Error modeling and sensitivity analysis of a novel 5-degree-of-freedom parallel kinematic machine tool

Abstract

5-Degree-of-freedom parallel kinematic machine tools are always attractive in manufacturing industry due to the ability of five-axis machining with high stiffness/mass ratio and flexibility. In this article, error modeling and sensitivity analysis of a novel 5-degree-of-freedom parallel kinematic machine tool are discussed for its accuracy issues. An error modeling method based on screw theory is applied to each limb, and then the error model of the parallel kinematic machine tool is established and the error mapping Jacobian matrix of 53 geometric errors is derived. Considering that geometric errors exert both impacts on value and direction of the end-effector’s pose error, a set of sensitivity indices and an easy routine for sensitivity analysis are proposed according to the error mapping Jacobian matrix. On this basis, 10 vital errors and 10 trivial errors are identified over the prescribed workspace. To validate the effects of sensitivity analysis, several numerical simulations of accuracy design are conducted, and three-dimensional model assemblies with relevant geometric errors are established as well. The simulations exhibit maximal −0.10% and 0.34% improvements of the position and orientation errors, respectively, after modifying 10 trivial errors, while minimal 65.56% and 55.17% improvements of the position and orientation errors, respectively, after modifying 10 vital errors. Besides the assembly reveals an output pose error of (0.0134 mm, 0.0020 rad) with only trivial errors, while (2.0338 mm, 0.0048 rad) with only vital errors. In consequence, both results of simulations and assemblies validate the correctness of the sensitivity analysis. Moreover, this procedure can be extended to any other parallel kinematic mechanisms easily.

Keywords

Parallel kinematic machine tool error modeling sensitivity analysis accuracy design

Introduction

Nowadays, five-axis machine tools play more and more important roles in the manufacturing industry for their convenience in accomplishing five-axis machining without repeatedly clamping workpieces and setting tools. Meanwhile, because of the multi-closed-loop architecture, parallel kinematic mechanisms (PKMs) are regarded to have theoretical advantages over serial kinematic mechanisms (SKMs) of higher stiffness/mass ratio and flexibility.¹ Therefore, parallel kinematic machine tools (PKMTs) are potential to realize five-axis machining of complex curving workpieces in a more compact and efficient way than the traditional serial kinematic machine tools (SKMTs). However, few of existing 5-DoF fully PKMs^2–5 are suited for and have been developed into PKMTs. Xie et al.^6,7 designed a novel 5-DoF PKM in 2014 and then analyzed the issues of mobility, singularity, kinematics, and dimensional synthesis. It has only three limbs to realize 5-DoF motion with 90° orientational capability, where two of them are planar substructures each composed of two links. This architecture guarantees both flexibility and the ability of five-axis machining, so it is promising for industrial application as a PKMT, and our paper will focus on this PKM.

Like all the other PKMTs, accuracy problem is always one of the main concerns. Although intelligent methods⁸ are rapidly developing, accuracy design⁹ and kinematic calibration^5,10 are still the less costly tools with wider applicability. In general, accuracy design is by allocating tolerances for geometric error parameters to restrict the range of output pose errors before PKMTs are built, while kinematic calibration is by measuring output pose errors to identify real geometric errors after PKMTs are assembled. Therefore, it is fundamental to grasp the relationships between output pose errors and geometric errors and is significant to estimate the effects of geometric errors on output pose errors. In fact, error modeling and sensitivity analysis are the prerequisites for accuracy problem of PKMTs.

There are several mathematical methods to establish the error model of PKMs. Closed-loop vector chain (CVC) method is a widely used approach for its concise and straightforward expression.^9–12 However, Wang et al.¹³ pointed out that there exist three different formats to express a single error vector and thus it is hard to find a unified and optimal error model with CVC method. Denavit–Hartenberg (D-H) homogeneous transformation (HT) method is another conventional approach for error modeling.^14–17 This method is somewhat attractive for its four-parameter representation of adjacent local reference frames located at each joint, which means D-H parameters are one of the minimal parameter sets with distinct physical meaning.¹⁵ However, if two consecutive joint axes are collinear, this method will develop error models neither complete nor parametrically continuous.¹⁶ Although Zhuang et al.^16,17 proposed a modified version of D-H modeling convention with completeness and parametric continuity properties, complex operations restricted its promotion.

Screw theory is another powerful tool to establish error models, not only due to its benefits of expressing revolute and prismatic joint motions in a complete and uniform representation with clear physical meaning,^18,19 but also because its modern geometric interpretation is the basis of the product of exponentials (POE) with the algebraic property of continuous differentiability.^20–23 However, the POE method is seldom applied to PKMs,²³ since it cannot formulate the constraint properties of low-mobility PKMs.²⁴ To extend the application of screw theory, Liu et al.²⁵ proposed a general error modeling method for PKMs in 2011 and applied it to three classical low-mobility PKMs, Sprint Z3 spindle head, Tricept, and Delta. Although this approach has covered most of the typical limbs and structures,^5,25,26 PKMs with substructures are barely included, let alone the novel architecture with special limbs studied in this article, which means it needs to be further studied.

When the error model is established, it means that the corresponding error mapping Jacobian matrix (EMJM) is derived, which essentially reflects the linear impacts of each error parameter on the end-effector’s pose errors. On this basis, sensitivity analysis can be implemented to find out which error parameters are vital error sources and which are trivial. Interval method,^12,27 probabilistic method,^11,28 and linearization method^29,30 are three commonly used approaches. However, all of the sensitivity indices (SIs) resulting from these methods are directly (linearization and probabilistic method) or indirectly (interval method) in accordance to the two-norm of the column vectors of EMJM, which means only the values of errors are in consideration, while the directions of errors are neglected. Li et al.³¹ proposed a new set of SIs and verified its feasibility on a five-axis SKMTs in 2016. These indices are derived from the inner product between the part of the pose error caused by each error parameter and the total of the pose error, so that the vector properties of errors can be embodied. In our opinion, this way of designing SIs is more effective due to its clearer physical interpretations than others and has good prospects when applied to PKMTs.

The remainder of this article is organized as follows. Section “Description of the PKMT” describes the architecture of the novel 5-DoF PKMT discussed in this article. Section “Error modeling” briefly introduces the error modeling method based on screw theory and then develops the error model of the PKMT accordingly. In section “Sensitivity analysis”, a set of SIs and an easy routine for sensitivity analysis are proposed, and the results are validated by several numerical simulations of accuracy design and three-dimensional (3D) model assemblies with geometric errors. Finally, some conclusions are given in the last section.

Description of the PKMT

The novel 5-DoF PKMT studied in this article is presented in Figure 1, and its inverse kinematics has been investigated in detail in Xie et al.⁷

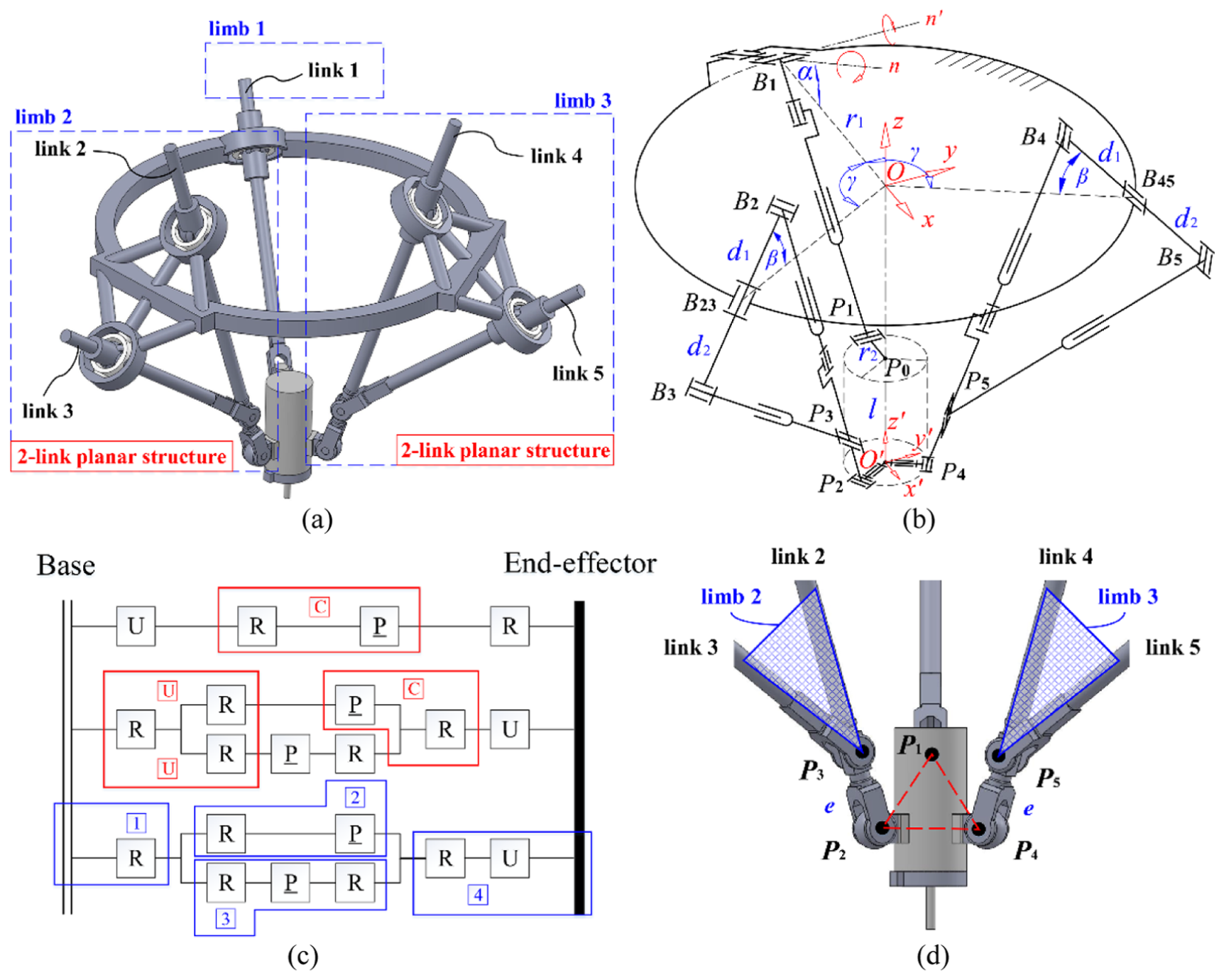

Figure 1.

The novel 5-DoF PKMT: (a) 3D model, (b) kinematic scheme, (c) joint-and-loop graph, and (d) view of the end-effector.

As it can be seen from the 3D model in Figure 1(a) and the kinematic scheme in Figure 1(b), there are five links constituting three limbs to connect the base with the end-effector. Limb 1 (link 1) is a URPR (U represents for universal joint, R for revolute joint, P for prismatic joint, and underline for the actuated joint) kinematic chain, and it is the only low-mobility limb (link) to provide the proper constraint. Limb 2 and limb 3 are two identical two-link planar structures and arranged symmetrically with respect to limb 1. Link 2(4) is a RRPRU kinematic chain, and link 3(5) is a RRPRRU kinematic chain. They form limb 2(3) by sharing the first and last R joint, together with the U joint.

Figure 1(c) is the joint-and-loop graph of the PKMT. It reveals some integrations of joints (in red) which are implicit in Figure 1(a) but explicit in Figure 1(b), and four divisions of joints in limb 2(3) (in blue) which will be explained in section “Error modeling for limb 2.”

Figure 1(d) shows the detailed view of the end-effector and presents the specialization of the two-link planar structure, which mostly comes from the distance e between point $P_{2 (4)}$ and $P_{3 (5)}$ . This distance makes room for the U joint in limb 2(3) to be designed and built strong enough for manufacturing. Meanwhile, this structure ensures limb 2(3) to stay as a triangle, which reduces the difficulty to analyze the kinematics of the PKMT. However, a new problem arises from it that link 3(5) would not attach to the end-effector anymore, which means the motions of joints just belonging to link 3(5) could only transmit to the end-effector indirectly, naturally as well as their errors. This problem will be analyzed in section “Error modeling for limb 2”.

Error modeling

As mentioned in section “Introduction”, an error modeling method based on screw theory would be applied to each limb of the PKMT under study. In general, this method consists of four steps, and the followings are a brief introduction:

Step 1: set up two global frames, ${G_{0}}$ at the base and ${G_{0}}$ at the end-effector, together with $n_{i} + 2$ local frames, ${R_{j, i}}$ $(j = 0, \dots, n_{i} + 1)$ , at each 1-DoF joint in the ith limb of n_i-DoF. Then the pose of the end-effector derived from the ith limb and measured in ${G_{0}}$ at the nominal configuration can be achieved by HT method

{{}^{O}T}_{n_{i} + 1, i} =^{O} T_{0, i} {{}^{0}T}_{1, i} {{}^{1}T}_{2, i} \dots {{}^{j - 1}T}_{j, i} \dots {{}^{n - 1}T}_{n, i} {{}^{n}T}_{n + 1, i}

(1)

where ${{}^{j - 1}T}_{j, i}$ is the homogeneous transformation matrix (HTM) of ${R_{j, i}}$ with respect to ${R_{j - 1, i}}$ .

Step 2: bring in kinematic and geometric parameters of HTMs in equation (1) with small perturbations. Then the actual pose of the end-effector can be expressed by

{{}^{O}T}_{n + 1, i} (I_{4} +^{n + 1} {\hat{Δ}}_{n + 1, i}) = [Π_{j = 1}^{n} (I_{4} +^{j - 1} {\hat{Θ}}_{j, i}) {{}^{j - 1}T}_{j, i} (I_{4} +^{j} {\hat{δ}}_{j, i})] \cdot (I_{4} +^{n} {\hat{Θ}}_{n + 1, i}) {{}^{n}T}_{n + 1, i}

(2)

where $I_{4}$ is the fourth-order identity matrix, ${}^{n + 1}{\hat{Δ}}_{n + 1, i}$ denotes the pose error matrix of the end-effector measured in ${R_{n_{i} + 1, i}}$ , ${}^{j - 1}{\hat{Θ}}_{j, i}$ denotes the geometric error of the jth joint measured in ${R_{j - 1, i}}$ , and ${}^{j}{\hat{δ}}_{j, i}$ denotes the kinematic error of the jth joint measured in ${R_{j, i}}$ .

Step 3: expand equation (2), ignore higher-order terms with errors and equally express HTMs in the vector form by appropriate adjoint transformation.³² Then the pose error of the end-effector in relation to first-order errors in the representation of Plücker coordinate can be obtained, and the concept of the screw can be brought in sequentially

\begin{matrix} $_{O'} = [\sum_{j = 1}^{n_{i}} (Δ θ_{j, i} {}^{ta}{\hat{$}}_{j, i} + A d_{g_{j - 1, i}^{O'}} {{}^{j - 1}P}_{j, i} {{}^{j - 1}Δ}_{j, i})] \\ + A d_{g_{n_{i}, i}^{O'}} {{}^{n i}P}_{n_{i} + 1, i} {{}^{n i}Δ}_{n_{i} + 1, i} \\ = (\sum_{j = 1}^{n_{i}} Δ θ_{j, i} {}^{ta}{\hat{$}}_{j, i}) + (\sum_{j = 1}^{n_{i}} A d_{g_{j - 1, i}^{O'}} {{}^{j - 1}P}_{j, i} {{}^{j - 1}Δ}_{j, i}) - A d_{g_{n_{i + 1}, i}^{O'}} {{}^{n_{i} + 1}P}_{n_{i}, i} {{}^{n_{i} + 1}Δ}_{n_{i}, i} \end{matrix}

(3)

where $I_{3}$ is the third-order identity matrix; $$_{O'}$ denotes the generated screw representing the pose error of the end-effector measured in ${G_{O'}}$ ; $Δ θ_{j, i}$ denotes the value of the jth joint’s kinematic error; ${}^{ta}{\hat{$}}_{j, i}$ denotes the unit twist of the jth joint expressed in ${G_{O'}}$ ; $A d_{g_{j - 1, i}^{O'}}$ denotes the adjoint transformation matrix of ${R_{j - 1, i}}$ with respect to ${G_{O'}}$ ; ${{}^{j - 1}Δ}_{j, i}$ denotes the jth joint’s geometric errors measured in ${R_{j - 1, i}}$ , and ${{}^{j - 1}P}_{j, i} {{}^{j - 1}Δ}_{j, i}$ reflects the amplified effect of the jth joint’s angle geometric errors on position errors of ${R_{j, i}}$ measured in ${R_{j - 1, i}}$ .

Step 4: remove the unknown kinematic errors of passive joints in equation (3) according to screw theory.²⁴ Then the error model of limb i can be established

\begin{array}{l} {}^{w a}{\hat{$}}_{k a, i}^{T} $_{O^{'}} = Δ θ_{k a, i} + {}^{w a}{\hat{$}}_{k a, i}^{T} \\ [(\sum_{j = 1}^{n_{i}} {Ad}_{g_{j - 1, i}^{O^{'}}} {{}^{j - 1}P}_{j, i} {{}^{j - 1}Δ}_{j, i}) \\ - {Ad}_{g_{n_{i + 1}, i}^{O^{'}}} {{}^{n_{i} + 1}P}_{n_{i}, i} {{}^{n_{i} + 1}Δ}_{n_{i}, i}] \end{array}

(4)

\begin{array}{l} {}^{w c}{\hat{$}}_{k c, i}^{T} $_{O^{'}} = {}^{w c}{\hat{$}}_{k c, i}^{T} \\ [(\sum_{j = 1}^{n_{i}} {Ad}_{g_{j - 1, i}^{O^{'}}} {{}^{j - 1}P}_{j, i} {{}^{j - 1}Δ}_{j, i}) \\ - {Ad}_{g_{n_{i + 1}, i}^{O^{'}}} {{}^{n_{i} + 1}P}_{n_{i}, i} {{}^{n_{i} + 1}Δ}_{n_{i}, i}] \end{array}

(5)

where the subscript ka denotes the serial number of the actuated joint, and $Δ θ_{ka, i}$ denotes the value of the actuated joint’s kinematic error; ${}^{wa}{\hat{$}}_{ka, i}$ denotes the unit active wrench of the actuated joint, and ${}^{wc}{\hat{$}}_{kc, i}$ denotes the kcth unit constrained wrench of a low-mobility limb.

The detailed expressions of symbols mentioned above can be checked in Appendix 1 and error modeling of most typical limbs for PKMs can be accomplished till here. However, if limbs are composed of substructures with any link not attached to the end-effector directly, there will exist some unknown kinematic errors of passive joints which cannot be removed by the active wrenches of the actuated joints, such as the limbs of two-link planar structures mentioned in section “Description of the PKMT”. This question will be solved in section “Error modeling for limb 2”.

Error modeling for limb 1

As shown in Figure 1(b), space frame ${G_{O} - xyz}$ and body frame ${R_{O'} - x' y' z'}$ are presented. According to this error modeling method, ${G_{O}}$ is one of the global frames, while the other one ${G_{O'} - xyz}$ is located at point $O'$ with axes parallel to ${G_{O}}$ . So the HTM from ${G_{O}}$ to ${G_{O'}}$ can be written as

{{}^{O^{'}}T}_{O} = [\begin{matrix} I_{3} & {}^{O^{'}}O \\ 0_{1 \times 3} & 1 \end{matrix}], {}^{O^{'}}O = - {}^{O}{O'}

(6)

Since limb 1 is a URPR kinematic chain, seven local frames should be built and orderly named ${R_{j, 1} - x_{j, 1} y_{j, 1} z_{j, 1}}$ ( $j = 0, \dots, 6$ ). Among them, ${R_{1, 1}}$ is known from ${G_{O}}$ and ${R_{6, 1}}$ equals to ${R_{O'}}$ . The left local frames can be classified into four categories by the joint attached to and the joint next to, and then defined accordingly as follows:

When ${R_{j} - x_{j} y_{j} z_{j}}$ is attached to a R joint followed by another R joint and their axes are not parallel, as shown in Figure 2(a), with a geometric error ${{}^{j}Δ}_{j + 1}$ , then the vector $z_{j}$ is along with the axis of the former R joint, and the vector $x_{j}$ is perpendicular to both of the two axes. The origin $R_{j + 1}$ locates at the intersection point of the common perpendicular and the axis of the later R joint, so the origin $R_{j}$ can be determined similarly by joint $j - 1$ . Then

{{}^{j}Δ}_{j + 1} = {[\begin{matrix} {}^{j}{δ x}_{j + 1} & 0 & {}^{j}{δ z}_{j + 1} & {}^{j}{δ α}_{j + 1} & 0 & 0 \end{matrix}]}^{T}

When ${R_{j} - x_{j} y_{j} z_{j}}$ is attached to a P joint followed by a R joint and their axes are not parallel, as shown in Figure 2(b), or vice versa with a geometric error ${{}^{j}Δ}_{j + 1}$ , $z_{j}$ , $x_{j}$ and $R_{j + 1}$ are defined the same as category 1, while $R_{j}$ locates at the intersection point of the common perpendicular and the axis of the P joint. It is because the P joint is always actuated so that the offset between ${R_{j}}$ and ideal ${R_{j}^{*}}$ can be viewed as the kinematic error $Δ L_{j}$ . Then

{{}^{j}Δ}_{j + 1} = [\begin{matrix} {}^{j}{δ x}_{j + 1} & 0 & 0 & {}^{j}{δ α}_{j + 1} & 0 & 0 \end{matrix}]^{T}

When ${R_{j} - x_{j} y_{j} z_{j}}$ is attached to a P joint followed by a R joint but their axes are collinear, as shown in Figure 2(c), or vice versa with a geometric error ${{}^{j}Δ}_{j + 1}$ , $z_{j}$ and $R_{j}$ are defined the same as category 1, while $x_{j}$ is free. The offset between ${R_{j}}$ and ${R_{j + 1}}$ can be viewed as the actual motion of the P joint $L_{j} + Δ L_{j}$ . Then

{{}^{j}Δ}_{j + 1} = {[\begin{matrix} 0 & 0 & 0 & 0 & 0 & 0 \end{matrix}]}^{T}

When ${R_{j} - x_{j} y_{j} z_{j}}$ is attached to a R joint followed by the end-effector, the geometric error is always measured in body frame and written as ${{}^{j + 1}Δ}_{j}$ . $z_{j}$ and $R_{j}$ are defined the same as category 1, while $x_{j}$ is perpendicular to $z_{j}$ and $z'$ . If there exists some axis in ${R_{j}}$ parallel to any axis in ${R_{O'}}$ , for example, $z_{j}$ is parallel to $y'$ as shown in Figure 2(d), the error along this direction can be deleted. Then

{{}^{j + 1}Δ}_{j} = {[\begin{matrix} {}^{j + 1}{δ x}_{j} & {}^{j + 1}{δ y}_{j} & {}^{j + 1}{δ z}_{j} & {}^{j + 1}{δ α}_{j} & 0 & {}^{j + 1}{δ γ}_{j} \end{matrix}]}^{T}

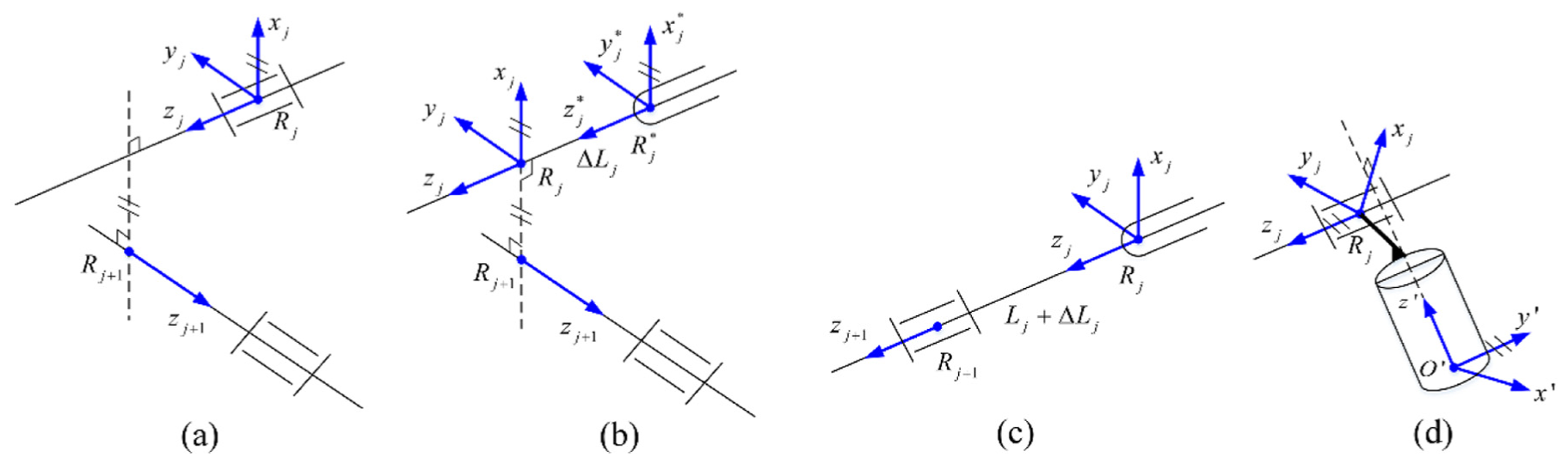

Figure 2.

The definition of local frames with geometric errors: (a) when a R joint is followed by another R joint with axes not parallel, (b) when a P joint is followed by a R joint with axes not parallel, (c) when a P joint is followed by a R joint with axes collinear, and (d) when a R joint is followed by the end-effector.

Consequently, ${R_{1, 1}}$ and ${R_{2, 1}}$ belong to category 1, ${R_{3, 1}}$ to category 3, ${R_{4, 1}}$ to category 2, and ${R_{5, 1}}$ to category 4. After building up all the local frames and adjacent HTMs (checked in Appendix 2), the pose error of the end-effector derived from limb 1 and measured in ${G_{O'}}$ can be expressed as

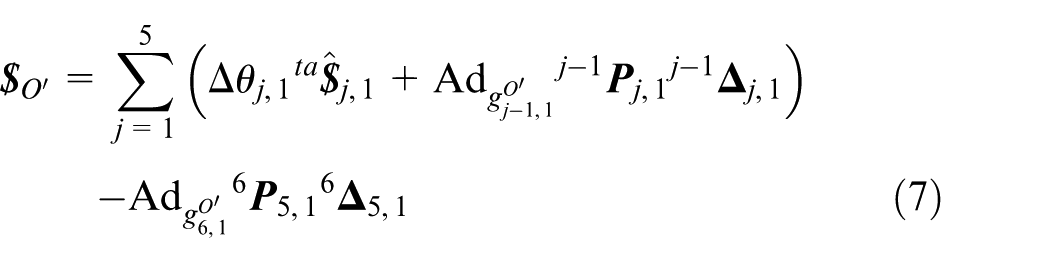

$_{O'} = \sum_{j = 1}^{5} (Δ θ_{j, 1} {}^{ta}{\hat{$}}_{j, 1} + A d_{g_{j - 1, 1}^{O'}} {{}^{j - 1}P}_{j, 1} {{}^{j - 1}Δ}_{j, 1}) - A d_{g_{6, 1}^{O'}} {{}^{6}P}_{5, 1} {{}^{6}Δ}_{5, 1}

(7)

where

\begin{matrix} {{}^{0}Δ}_{1, 1} = {[\begin{matrix} {}^{0}{δ x}_{1, 1} & {}^{0}{δ y}_{1, 1} & 0 & {}^{0}{δ α}_{1, 1} & {}^{0}{δ β}_{1, 1} & {}^{0}{δ γ}_{1, 1} \end{matrix}]}^{T} \\ {{}^{1}Δ}_{2, 1} = {[\begin{matrix} {}^{1}{δ x}_{2, 1} & 0 & {}^{1}{δ z}_{2, 1} & {}^{1}{δ α}_{2, 1} & 0 & 0 \end{matrix}]}^{T} \\ {{}^{2}Δ}_{3, 1} = {[\begin{matrix} {}^{2}{δ x}_{3, 1} & 0 & {}^{2}{δ z}_{3, 1} & {}^{2}{δ α}_{3, 1} & 0 & 0 \end{matrix}]}^{T} \\ {{}^{3}Δ}_{4, 1} = {[\begin{matrix} 0 & 0 & 0 & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{4}Δ}_{5, 1} = {[\begin{matrix} {}^{4}{δ x}_{5, 1} & 0 & 0 & {}^{4}{δ α}_{5, 1} & 0 & 0 \end{matrix}]}^{T} \\ {{}^{6}Δ}_{5, 1} = {[\begin{matrix} {}^{6}{δ x}_{5, 1} & {}^{6}{δ y}_{5, 1} & {}^{6}{δ z}_{5, 1} & {}^{6}{δ α}_{5, 1} & 0 & {}^{6}{δ γ}_{5, 1} \end{matrix}]}^{T} \end{matrix}

Because limb 1 is individually actuated by the P joint, the unit active wrench ${}^{wa}{\hat{$}}_{ka, 1}$ can be abbreviated as ${}^{wa}{\hat{$}}_{1}$ without ambiguity and expressed by

{}^{wa}{\hat{$}}_{1} = {}^{ta}{\hat{$}}_{4, 1} = {[\begin{matrix} s_{1} & ({{}^{O}B}_{1} - {}^{O}{O'}) \times s_{1} \end{matrix}]}^{T}

(8)

Besides, limb 1 has only 1-DoF constrained mobility, so the unit constrained wrench ${}^{wc}{\hat{$}}_{kc, i}$ can be abbreviated as ${}^{wc}{\hat{$}}_{1}$ without ambiguity and expressed by⁶

{}^{wc}{\hat{$}}_{1} = {[\begin{matrix} z_{5, 1} & ({{}^{O}B}_{1} - {}^{O}{O'}) \times z_{5, 1} \end{matrix}]}^{T} = {[\begin{matrix} y' & ({{}^{O}B}_{1} - {}^{O}{O'}) \times y' \end{matrix}]}^{T}

(9)

Multiplying equation (7) by equations (8) and (9), respectively, results in

{}^{wa}{\hat{$}}_{1}^{T} $_{O'} = Δ L_{1} + {}^{wa}{\hat{$}}_{1}^{T} [(\sum_{j = 1}^{5} A d_{g_{j - 1, 1}^{O'}} {{}^{j - 1}P}_{j, 1} {{}^{j - 1}Δ}_{j, 1}) - A d_{g_{6, 1}^{O'}} {{}^{6}P}_{5, 1} {{}^{6}Δ}_{5, 1}]

(10)

{}^{wc}{\hat{$}}_{1}^{T} $_{O'} = {}^{wc}{\hat{$}}_{1}^{T} [(\sum_{j = 1}^{5} A d_{g_{j - 1, 1}^{O'}} {{}^{j - 1}P}_{j, 1} {{}^{j - 1}Δ}_{j, 1}) - A d_{g_{6, 1}^{O'}} {{}^{6}P}_{5, 1} {{}^{6}Δ}_{5, 1}]

(11)

From Figure 2(b), it can be found that $Δ L_{1}$ has the same effect as ${}^{4}{δ z}_{5, 1}$ , so equation (10) can be revised as

\begin{array}{l} {}^{wa}{\hat{$}}_{1}^{T} $_{O^{'}} = {}^{wa}{\hat{$}}_{1}^{T} \\ [(\sum_{j = 1}^{5} {Ad}_{g_{j - 1, 1}^{O^{'}}} {{}^{j - 1}P}_{j, 1} {{}^{j - 1}Δ}_{j, 1}) - {Ad}_{g_{6, 1}^{O^{'}}} {{}^{6}P}_{5, 1} {{}^{6}Δ}_{5, 1}] \end{array}

(12)

where

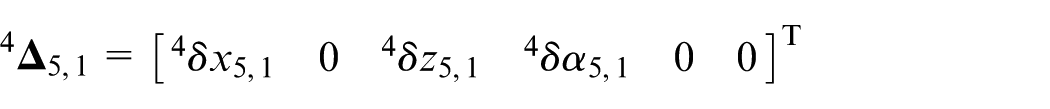

{{}^{4}Δ}_{5, 1} = {[\begin{matrix} {}^{4}{δ x}_{5, 1} & 0 & {}^{4}{δ z}_{5, 1} & {}^{4}{δ α}_{5, 1} & 0 & 0 \end{matrix}]}^{T}

Then the error model of limb 1 can be developed by rearranging equations (11) and (12) in the matrix form

[\begin{matrix} {J_{c, 1}}^{T} \\ {J_{a, 1}}^{T} \end{matrix}] $_{O'} = [\begin{matrix} G_{c, 1} ε_{c, 1} \\ G_{a, 1} ε_{a, 1} \end{matrix}] = G_{1} ε_{1}

(13)

where $J_{a, 1} = {}^{wa}{\hat{$}}_{1}$ , $J_{c, 1} = {}^{wc}{\hat{$}}_{1}$ , $G_{1} ε_{1}$ denotes the effective geometric error terms of limb 1 and can be obtained with the aid of Mathematica^®.

Error modeling for limb 2

Back to Figure 1(c), the joint constitution of limb 2 is divided into four divisions. To distinct the attached local frames in different divisions, they are also named in different ways. For division 1, there are ${R_{0, 23}}$ and ${R_{1, 23}}$ attached to the base. For division 2, there are ${R_{2, 2}}$ and ${R_{3, 2}}$ attached to link 2. For division 3, there are ${R_{2, 3}}$ , ${R_{3, 3}}$ , and ${R_{4, 3}}$ attached to link 3. For division 4, there are ${R_{tj}}$ ( $j = 0, \dots, 4$ ) attached to the common joints and the end-effector.

Similarly, the definitions of these local frames can also followed by the classification mentioned in section “Error modeling for limb 1”, then the pose error of the end-effector measured in ${G_{O'}}$ and derived from link 2 and link 3 can be respectively expressed as

\begin{array}{l} $_{O^{'}} = (Δ θ_{1, 23} {}^{ta}{\hat{$}}_{1, 23} + {Ad}_{g_{0, 23}^{O^{'}}} {{}^{0}P}_{1, 23} {{}^{0}Δ}_{1, 23}) \\ + (Δ θ_{2, 2} {}^{ta}{\hat{$}}_{2, 2} + {Ad}_{g_{1, 23}^{O^{'}}} {{}^{1}P}_{2, 2} {{}^{1}Δ}_{2, 2}) \\ + (Δ θ_{3, 2} {}^{ta}{\hat{$}}_{3, 2} + {Ad}_{g_{2, 2}^{O^{'}}} {{}^{2}P}_{3, 2} {{}^{2}Δ}_{3, 2}) \\ + {Ad}_{g_{3, 2}^{O^{'}}} {{}^{3}P}_{t 0, 2} {{}^{3}Δ}_{t 0, 2} \\ + [\sum_{k = 1}^{3} (Δ θ_{t k} {}^{ta}{\hat{$}}_{t k} + {Ad}_{g_{t (k - 1)}^{O^{'}}} {{}^{t (k - 1)}P}_{t k} {{}^{t (k - 1)}Δ}_{t k})] \\ - {Ad}_{g_{t 4}^{O^{'}}} {{}^{t 4}P}_{t 3} {{}^{t 4}Δ}_{t 3} \end{array}

(14)

\begin{matrix} $_{O'} = (Δ θ_{1, 23} {}^{ta}{\hat{$}}_{1, 23} + A d_{g_{0, 23}^{O'}} {{}^{0}P}_{1, 23} {{}^{0}Δ}_{1, 23}) \\ + (Δ θ_{2, 3} {}^{ta}{\hat{$}}_{2, 3} + A d_{g_{1, 23}^{O'}} {{}^{1}P}_{2, 3} {{}^{1}Δ}_{2, 3}) \\ + [\sum_{j = 3}^{4} (Δ θ_{j, 3} {}^{ta}{\hat{$}}_{3, 3} + A d_{g_{j - 1, 3}^{O'}} {{}^{j - 1}P}_{j, 3} {{}^{j - 1}Δ}_{j, 3})] \\ + A d_{g_{4, 3}^{O'}} {{}^{4}P}_{t 0, 3} {{}^{4}Δ}_{t 0, 3} \\ + [\sum_{k = 1}^{3} (Δ θ_{tk} {}^{ta}{\hat{$}}_{tk} + A d_{g_{t (k - 1)}^{O'}} {{}^{t (k - 1)}P}_{t k} {{}^{t (k - 1)}Δ}_{t k})] \\ - A d_{g_{t 4}^{O'}} {{}^{t 4}P}_{t 3} {{}^{t 4}Δ}_{t 3} \end{matrix}

(15)

where, due to the planar constraint of limb 2, the geometric angle errors and parts of geometric length errors in division 2 and 3 are omitted, then

\begin{array}{l} {{}^{0}Δ}_{1, 23} = {[\begin{matrix} {}^{0}δ x_{1, 1} & {}^{0}δ y_{1, 1} & 0 & {}^{0}δ α_{1, 23} & {}^{0}δ β_{1, 23} & {}^{0}δ γ_{1, 23} \end{matrix}]}^{T} \\ {{}^{1}Δ}_{2, 2} = {[\begin{matrix} {}^{1}δ x_{2, 2} & 0 & {}^{1}δ z_{2, 2} & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{2}Δ}_{3, 2} = {[\begin{matrix} {}^{2}δ x_{3, 2} & 0 & 0 & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{3}Δ}_{t 0, 2} = {[\begin{matrix} 0 & 0 & 0 & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{1}Δ}_{2, 3} = {[\begin{matrix} {}^{1}δ x_{2, 3} & 0 & {}^{1}δ z_{2, 3} & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{2}Δ}_{3, 3} = {[\begin{matrix} {}^{2}δ x_{3, 3} & 0 & 0 & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{3}Δ}_{4, 3} = {[\begin{matrix} {}^{3}δ x_{4, 3} & 0 & 0 & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{4}Δ}_{t 0, 3} = {[\begin{matrix} {}^{4}δ x_{t 0, 3} & {}^{4}δ y_{t 0, 3} & 0 & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{t 0}Δ}_{t 1} = {[\begin{matrix} 0 & 0 & {}^{t 0}δ z_{t 1} & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{t 1}Δ}_{t 2} = {[\begin{matrix} {}^{t 1}δ x_{t 2} & 0 & {}^{t 1}δ z_{t 2} & {}^{t 1}δ α_{t 2} & 0 & 0 \end{matrix}]}^{T} \\ {{}^{t 2}Δ}_{t 3} = {[\begin{matrix} {}^{t 2}δ x_{t 3} & 0 & {}^{t 2}δ z_{t 3} & {}^{t 2}δ α_{t 3} & 0 & 0 \end{matrix}]}^{T} \\ {{}^{t 4}Δ}_{t 3} = {[\begin{matrix} {}^{t 4}δ x_{t 3} & {}^{t 4}δ y_{t 3} & {}^{t 4}δ z_{t 3} & {}^{t 4}δ α_{t 3} & {}^{t 4}δ β_{t 3} & {}^{t 4}δ γ_{t 3} \end{matrix}]}^{T} \end{array}

Subsequently, the unit active wrenches of link 2 and link 3 can be respectively expressed as

{}^{wa}{\hat{$}}_{2} = {}^{ta}{\hat{$}}_{3, 2} = {[\begin{matrix} s_{2} & ({{}^{O}B}_{2} - {}^{O}{O'}) \times s_{2} \end{matrix}]}^{T}

(16)

{}^{wa}{\hat{$}}_{3} = {}^{ta}{\hat{$}}_{3, 3} = {[\begin{matrix} s_{3} & ({{}^{O}B}_{3} - {}^{O}{O'}) \times s_{3} \end{matrix}]}^{T}

(17)

Multiplying equation (14) by equation (16) and equation (15) by equation (17) obtains

{}^{wa}{\hat{$}}_{2}^{T} $_{O'} = Δ L_{2} + {}^{wa}{\hat{$}}_{2}^{T} g_{2}

(18)

{}^{wa}{\hat{$}}_{3}^{T} $_{O'} = Δ L_{3} + {}^{wa}{\hat{$}}_{3}^{T} (Δ θ_{t 2} {}^{ta}{\hat{$}}_{t 2} + Δ θ_{t 3} {}^{ta}{\hat{$}}_{t 3}) + {}^{wa}{\hat{$}}_{3}^{T} g_{3}

(19)

where

\begin{matrix} g_{2} = A d_{g_{0, 23}^{O'}} {{}^{0}P}_{1, 23} {{}^{0}Δ}_{1, 23} + A d_{g_{1, 23}^{O'}} {{}^{1}P}_{2, 2} {{}^{1}Δ}_{2, 2} \\ + A d_{g_{2, 2}^{O'}} {{}^{2}P}_{3, 2} {{}^{2}Δ}_{3, 2} + A d_{g_{3, 2}^{O'}} {{}^{3}P}_{t 0, 2} {{}^{3}Δ}_{t 0, 2} \\ + (\sum_{k = 1}^{3} A d_{g_{t (k - 1)}^{O'}} {{}^{t (k - 1)}P}_{t k} {{}^{t (k - 1)}Δ}_{t k}) \\ - A d_{g_{t 4}^{O'}} {{}^{t 4}P}_{t 3} {{}^{t 4}Δ}_{t 3} \\ g_{3} = A d_{g_{0, 23}^{O'}} {{}^{0}P}_{1, 23} {{}^{0}Δ}_{1, 23} + A d_{g_{1, 23}^{O'}} {{}^{1}P}_{2, 3} {{}^{1}Δ}_{2, 3} \\ + (\sum_{j = 3}^{4} A d_{g_{j - 1, 3}^{O'}} {{}^{j - 1}P}_{j, 3} {{}^{j - 1}Δ}_{j, 3}) + A d_{g_{4, 3}^{O'}} {{}^{4}P}_{t 0, 3} {{}^{4}Δ}_{t 0, 3} \\ + (\sum_{k = 1}^{3} A d_{g_{t (k - 1)}^{O'}} {{}^{t (k - 1)}P}_{t k} {{}^{t (k - 1)}Δ}_{t k}) - A d_{g_{t 4}^{O'}} {{}^{t 4}P}_{t 3} {{}^{t 4}Δ}_{t 3} \end{matrix}

From Figure 2(c), it can be found that $Δ L_{2}$ and $Δ L_{3}$ have the same effect as ${}^{3}δ z_{t 0, 2}$ and ${}^{3}δ z_{4, 3}$ , respectively, so equations (18) and (19) can be revised as

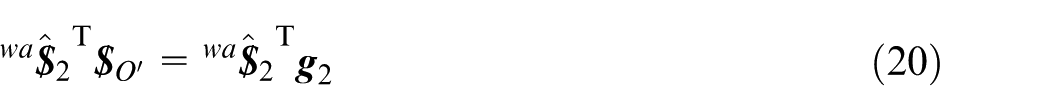

{}^{wa}{\hat{$}}_{2}^{T} $_{O'} = {}^{wa}{\hat{$}}_{2}^{T} g_{2}

(20)

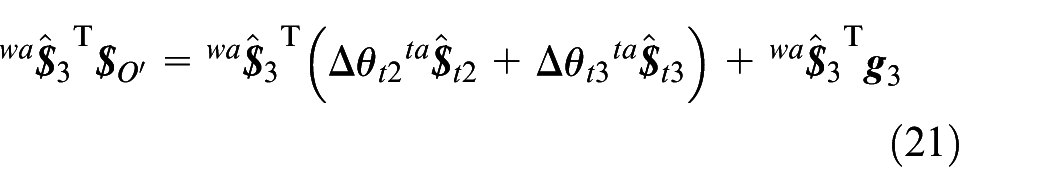

{}^{wa}{\hat{$}}_{3}^{T} $_{O'} = {}^{wa}{\hat{$}}_{3}^{T} (Δ θ_{t 2} {}^{ta}{\hat{$}}_{t 2} + Δ θ_{t 3} {}^{ta}{\hat{$}}_{t 3}) + {}^{wa}{\hat{$}}_{3}^{T} g_{3}

(21)

where

\begin{matrix} {{}^{3}Δ}_{t 0, 2} = {[\begin{matrix} 0 & 0 & {{}^{3}z}_{t 0, 2} & 0 & 0 & 0 \end{matrix}]}^{T} \\ {{}^{3}Δ}_{4, 3} = {[\begin{matrix} {}^{3}δ x_{4, 3} & 0 & {}^{3}δ z_{4, 3} & 0 & 0 & 0 \end{matrix}]}^{T} \end{matrix}

As it can be observed from equation (21), there are unknown terms $Δ θ_{t 2} {}^{ta}{\hat{$}}_{t 2}$ and $Δ θ_{t 3} {}^{ta}{\hat{$}}_{t 3}$ , which cannot be eliminated by ${}^{wa}{\hat{$}}_{3}$ . However, they can be achieved according to the following property in screw theory²⁴

{}^{wa}{\hat{$}}_{t 2 (3)}^{T} {}^{ta}{\hat{$}}_{j} {\begin{matrix} \neq 0 & j = t 2 (3) \\ = 0 & j \neq t 2 (3) \end{matrix}

(22)

From the definition of ${R_{t 2}}$ and ${R_{t 3}}$ , ${}^{ta}{\hat{$}}_{t 2}$ and ${}^{ta}{\hat{$}}_{t 3}$ can be respectively expressed by

{}^{ta}{\hat{$}}_{t 2} = {[\begin{matrix} {{}^{O'}P}_{2} \times z_{t 2} & z_{t 2} \end{matrix}]}^{T}

(23)

{}^{ta}{\hat{$}}_{t 3} = {[\begin{matrix} {{}^{O'}P}_{2} \times z_{t 3} & z_{t 3} \end{matrix}]}^{T}

(24)

As shown in Figure 3, the correlated unit active wrenches can be obtained based on Blanding rules⁶

{}^{wa}{\hat{$}}_{t 2} = {[\begin{matrix} x_{t 1} & {({{}^{O}B}_{2} - {}^{O}{O'})}_{2} \times x_{t 1} \end{matrix}]}^{T}

(25)

{}^{wa}{\hat{$}}_{t 3} = {[\begin{matrix} z_{t 2} & {({{}^{O}B}_{2} - {}^{O}{O'})}_{2} \times z_{t 2} \end{matrix}]}^{T}

(26)

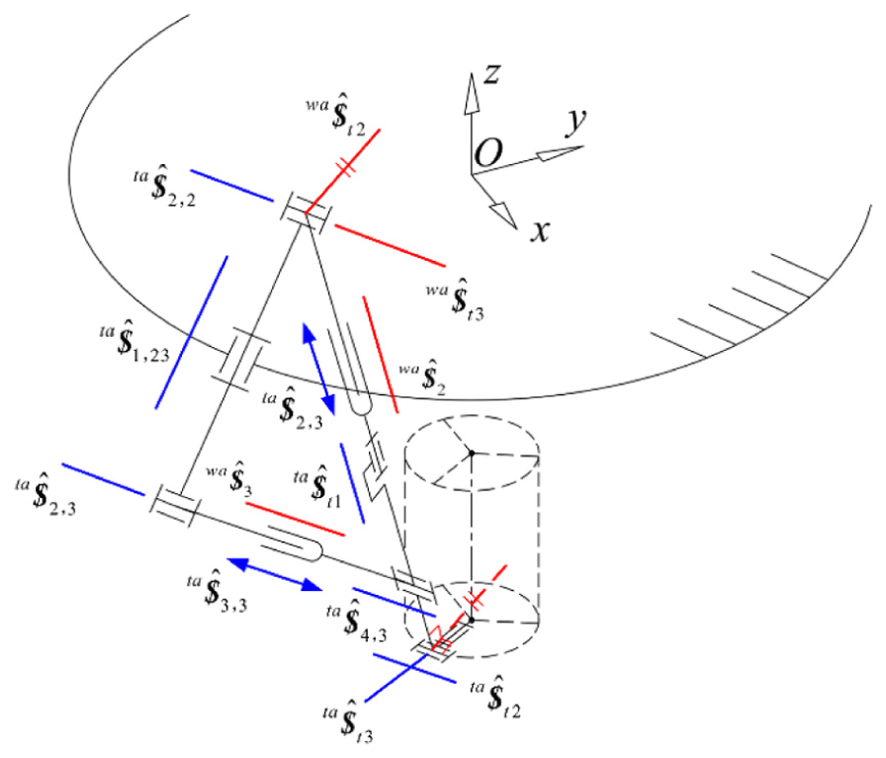

Figure 3.

The unit twists and active wrenches in limb 2, where blue lines represent for rotational motion, blue arrows represent for translational motion, and red lines represent for constraint force.

Multiplying equation (20) by equation (25) and equation (26), respectively, leads to

{}^{wa}{\hat{$}}_{t 2}^{T} $_{O'} = Δ θ_{t 2} ({}^{wa}{\hat{$}}_{t 2}^{T} {}^{ta}{\hat{$}}_{t 2}) + {}^{wa}{\hat{$}}_{t 2}^{T} g_{2}

(27)

{}^{wa}{\hat{$}}_{t 3}^{T} $_{O'} = Δ θ_{t 3} ({}^{wa}{\hat{$}}_{t 3}^{T} {}^{ta}{\hat{$}}_{t 3}) + {}^{wa}{\hat{$}}_{t 3}^{T} g_{2}

(28)

Thus, $Δ θ_{t 2}$ and $Δ θ_{t 3}$ can be generated from equations (27) and (28). Substituting them into equation (21) yields

{}^{wa}{\hat{$}}_{3}^{T} (I_{6} - \frac{{}^{ta}{\hat{$}}_{t 2} {}^{wa}{\hat{$}}_{t 2}^{T}}{{}^{wa}{\hat{$}}_{t 2}^{T} {}^{ta}{\hat{$}}_{t 2}} - \frac{{}^{ta}{\hat{$}}_{t 3} {}^{wa}{\hat{$}}_{t 3}^{T}}{{}^{wa}{\hat{$}}_{t 3}^{T} {}^{ta}{\hat{$}}_{t 3}}) $_{O'} = {}^{wa}{\hat{$}}_{3}^{T} [g_{3} - (\frac{{}^{wa}{\hat{$}}_{t 2}^{T} g_{2}}{{}^{wa}{\hat{$}}_{t 2}^{T} {}^{ta}{\hat{$}}_{t 2}}) {}^{ta}{\hat{$}}_{t 2} - (\frac{{}^{wa}{\hat{$}}_{t 3}^{T} g_{2}}{{}^{wa}{\hat{$}}_{t 3}^{T} {}^{ta}{\hat{$}}_{t 3}}) {}^{ta}{\hat{$}}_{t 3}]

(29)

Then the error model of limb 2 can be developed by rearranging equations (20) and (29) in the matrix form

[\begin{matrix} {J_{a, 2}}^{T} \\ {J_{a, 3}}^{T} \end{matrix}] $_{O'} = [\begin{matrix} G_{a, 2} ε_{a, 2} \\ G_{a, 3} ε_{a, 3} \end{matrix}] = G_{23} ε_{23}

(30)

where $J_{a, 2} = {}^{wa}{\hat{$}}_{2}$

{J_{a, 3}}^{T} = {}^{wa}{\hat{$}}_{3}^{T} (I_{6} - \frac{{}^{ta}{\hat{$}}_{t 2} {}^{wa}{\hat{$}}_{t 2}^{T}}{{}^{wa}{\hat{$}}_{t 2}^{T} {}^{ta}{\hat{$}}_{t 2}} - \frac{{}^{ta}{\hat{$}}_{t 3} {}^{wa}{\hat{$}}_{t 3}^{T}}{{}^{wa}{\hat{$}}_{t 3}^{T} {}^{ta}{\hat{$}}_{t 3}})

$G_{23} ε_{23}$ denotes the effective geometric error terms of limb 2.

Error modeling for the PKMT

Since limb 3 is identical and arranged symmetrically with limb 2, error models of link 4 and link 5 can be easily deduced out from equation (30) through turning $γ$ into $- γ$ and substituting $t 0 - t 4$ with $t 5 - t 9$ in order

[\begin{matrix} {J_{a, 4}}^{T} \\ {J_{a, 5}}^{T} \end{matrix}] $_{O'} = [\begin{matrix} G_{a, 4} ε_{a, 4} \\ G_{a, 5} ε_{a, 5} \end{matrix}] = G_{45} ε_{45}

(31)

where

J_{a, 4} = {}^{wa}{\hat{$}}_{4}, {J_{a, 5}}^{T} = {}^{wa}{\hat{$}}_{5}^{T} (I_{6} - \frac{{}^{ta}{\hat{$}}_{t 7} {}^{wa}{\hat{$}}_{t 7}^{T}}{{}^{wa}{\hat{$}}_{t 7}^{T} {}^{ta}{\hat{$}}_{t 7}} - \frac{{}^{ta}{\hat{$}}_{t 8} {}^{wa}{\hat{$}}_{t 8}^{T}}{{}^{wa}{\hat{$}}_{t 8}^{T} {}^{ta}{\hat{$}}_{t 8}})

Uniting equations (14), (33), and (34) yields the error model of the PKMT

J_{O'} $_{O'} = G ε

(32)

where

{J_{O'}}^{T} = [\begin{matrix} J_{c, 1} & J_{a, 1} & J_{a, 2} & J_{a, 3} & J_{a, 4} & J_{a, 5} \end{matrix}], G = [\begin{matrix} G_{1} \\ G_{23} \\ G_{45} \end{matrix}], ε = [\begin{matrix} ε_{1} \\ ε_{23} \\ ε_{45} \end{matrix}]

The detailed expressions of G and $ε$ can be checked in Appendix 3. In summary, limb 1 has 13 geometric errors with 3 angle errors and 10 length errors, while limb 2 or limb 3 has 20 geometric errors with 3 angle errors and 17 length errors. So there are 53 geometric errors with 9 angle errors and 44 length errors for the PKM in total.

Multiplying ${J_{O'}}^{- 1}$ in both sides of equation (32) will obtain

$_{O'} = {J_{O'}}^{- 1} G ε = J_{ε} ε

(33)

where $J_{ε}$ denotes the EMJM for geometric errors.

Sensitivity analysis

Definition of SIs

Concerning the effect of the single geometric error on the pose of the end-effector, equation (33) can be rewritten as

$_{O'} = \sum_{k = 1}^{53} J_{ε k} ε_{k}

(34)

where $J_{ε k}$ denotes the kth column vector of $J_{ε}$ , and $ε_{k}$ denotes the kth geometric error of $ε$ .

From equation (34), it can be known that $ε_{k}$ exerts both impacts on value and direction of $$_{O'}$ by $J_{ε k}$ , so the SIs should evaluate from both aspects. As is well known, inner product depends on vectors’ value and direction and reflects the physical meaning of projection. Then the SI of $ε_{k}$ can thus be defined as

SI (ε_{k}) = \frac{J_{ε k} ε_{k} \cdot J_{ε} ε}{‖ J_{ε} ε ‖}

(35)

which embodies the effective contribution of $ε_{k}$ to $$_{O'}$ .

However, it is worth noting that the terms of $ε$ are in different units, so they should be evaluated separately. Again rewriting equation (33) as

[\begin{matrix} $_{r} \\ $_{θ} \end{matrix}] = [\begin{matrix} {(J_{θ r})}_{3 \times 9} & {(J_{rr})}_{3 \times 44} \\ {(J_{θ θ})}_{3 \times 9} & {(J_{r θ})}_{3 \times 44} \end{matrix}] [\begin{matrix} {(ε_{θ})}_{9 \times 1} \\ {(ε_{r})}_{44 \times 1} \end{matrix}]

(36)

where $$_{r}$ and $$_{θ}$ denote the position and orientation part of $$_{O'}$ , respectively, while $ε_{θ}$ and $ε_{r}$ denote the 9 angle errors and the 44 length errors of $ε$ , respectively. The unit of $J_{θ r}$ is mm, of $J_{r θ}$ is mm⁻¹, and of $J_{θ θ}$ and $J_{rr}$ is 1.

Due to varying with the pose of the end-effector, SIs are calculated at some specific pose, so they are actually local sensitivity indices (LSIs). Assuming that the values of elements in $ε_{θ}$ or $ε_{r}$ are the same, LSIs can sequentially be classified as

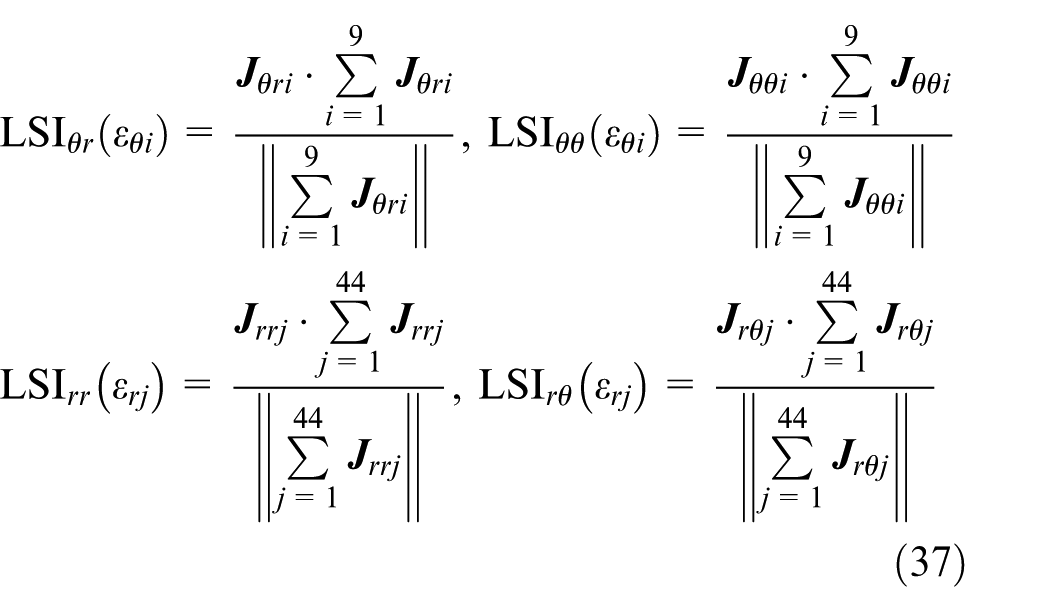

\begin{matrix} LS I_{θ r} (ε_{θ i}) = \frac{J_{θ ri} \cdot \sum_{i = 1}^{9} J_{θ ri}}{‖ \sum_{i = 1}^{9} J_{θ ri} ‖}, LS I_{θ θ} (ε_{θ i}) = \frac{J_{θ θ i} \cdot \sum_{i = 1}^{9} J_{θ θ i}}{‖ \sum_{i = 1}^{9} J_{θ θ i} ‖} \\ LS I_{rr} (ε_{rj}) = \frac{J_{rrj} \cdot \sum_{j = 1}^{44} J_{rrj}}{‖ \sum_{j = 1}^{44} J_{rrj} ‖}, LS I_{r θ} (ε_{rj}) = \frac{J_{r θ j} \cdot \sum_{j = 1}^{44} J_{r θ j}}{‖ \sum_{j = 1}^{44} J_{r θ j} ‖} \end{matrix}

(37)

where $ε_{θ i}$ and $J_{θ ri}$ ( $J_{θ θ i}$ ) denote the ith error or column vector of $ε_{θ}$ and $J_{θ r}$ ( $J_{θ θ}$ ), respectively, while $ε_{rj}$ and $J_{r θ j}$ ( $J_{rrj}$ ) denote the jth of $ε_{r}$ and $J_{r θ}$ ( $J_{rr}$ ), respectively. $LS I_{θ r} (ε_{θ i})$ and $LS I_{rr} (ε_{rj})$ embody the effective contribution of $ε_{θ i}$ and $ε_{rj}$ at a certain pose to $$_{r}$ , respectively, while $LS I_{r θ} (ε_{rj})$ and $LS I_{θ θ} (ε_{θ i})$ the effective contribution of $ε_{rj}$ and $ε_{θ i}$ to $$_{θ}$ , respectively.

Usually, LSIs at plenty of poses should be collected to analyze the sensitivity of the pose error to each geometric error comprehensively. Based on the notion of mathematical statistics, global sensitivity indices (GSIs) and variable sensitivity indices (VSIs) are introduced in analogy with the mean value and standard deviation of LSIs, respectively

\begin{matrix} GS I_{θ r} (ε_{θ i}) = \frac{\int_{W} LS I_{θ r} (ε_{θ i}) dW}{\int_{W} dW}, \\ GS I_{θ θ} (ε_{θ i}) = \frac{\int_{W} LS I_{θ θ} (ε_{θ i}) dW}{\int_{W} dW} \\ GS I_{rr} (ε_{rj}) = \frac{\int_{W} LS I_{rr} (ε_{rj}) dW}{\int_{W} dW}, \\ GS I_{r θ} (ε_{rj}) = \frac{\int_{W} LS I_{r θ} (ε_{rj}) dW}{\int_{W} dW} \end{matrix}

(38)

\begin{matrix} VS I_{θ r} (ε_{θ i}) = \sqrt{\frac{\int_{W} {[LS I_{θ r} (ε_{θ i}) - GS I_{θ r} (ε_{θ i})]}^{2} dW}{\int_{W} dW}}, \\ VS I_{θ θ} (ε_{θ i}) = \sqrt{\frac{\int_{W} {[LS I_{θ θ} (ε_{θ i}) - GS I_{θ θ} (ε_{θ i})]}^{2} dW}{\int_{W} dW}} \\ VS I_{rr} (ε_{rj}) = \sqrt{\frac{\int_{W} {[LS I_{rr} (ε_{rj}) - GS I_{rr} (ε_{rj})]}^{2} dW}{\int_{W} dW}}, \\ VS I_{r θ} (ε_{rj}) = \sqrt{\frac{\int_{W} {[LS I_{r θ} (ε_{rj}) - GS I_{r θ} (ε_{rj})]}^{2} dW}{\int_{W} dW}} \end{matrix}

(39)

where W denotes the workspace of the PKM.

Because GSIs and VSIs independently reflect different data characteristics of LSIs, they had better be adopted to evaluate the influence on the pose error simultaneously. Thus, a kind of synthetic sensitivity indices (SSIs) is designed as

\begin{matrix} SS I_{θ r} (ε_{θ i}) = | GS I_{θ r} (ε_{θ i}) | + VS I_{θ r} (ε_{θ i}), \\ SS I_{θ θ} (ε_{θ i}) = | GS I_{θ θ} (ε_{θ i}) | + VS I_{θ θ} (ε_{θ i}) \\ SS I_{rr} (ε_{rj}) = | GS I_{rr} (ε_{rj}) | + VS I_{rr} (ε_{rj}), \\ SS I_{r θ} (ε_{rj}) = | GS I_{r θ} (ε_{rj}) | + VS I_{r θ} (ε_{rj}) \end{matrix}

(40)

which uses the absolute average errors plus the average deviations to represent the average maximal impacts of each geometric error.

The next issue is to tell vital or trivial error sources among so many geometric errors from the achieved data of SSIs. Although there is no fixed standard, a consensus comes to that the vital errors are at least 10 times higher than the trivial ones. Hence, a kind of average sensitivity indices (ASIs) is defined as a baseline of evaluation criteria

\begin{array}{l} {ASI}_{θ r} (ε_{θ i}) = \frac{\sum_{i = 1}^{9} {SSI}_{θ r} (ε_{θ i})}{9}, {ASI}_{θ θ} (ε_{θ i}) = \frac{\sum_{i = 1}^{9} {SSI}_{θ θ} (ε_{θ i})}{9} \\ {ASI}_{r r} (ε_{r j}) = \frac{\sum_{j = 1}^{44} {SSI}_{r r} (ε_{r j})}{44}, {ASI}_{r θ} (ε_{r j}) = \frac{\sum_{j = 1}^{44} {SSI}_{r θ} (ε_{r j})}{44} \end{array}

(41)

Then by designing a baseline factor $λ$ manually, vital errors can be selected out when more than $λ \times ASI$ , while trivial errors can be filtered out when less than $0.1 λ \times ASI$ . It is an easy alternative for this issue in line with that the vital errors are one order of magnitude larger than the trivial errors. In general, via observing the distribution of geometric errors’ SSIs, $λ$ can be first decided within a scope, which satisfies the following constraint conditions: (1) $λ$ is bigger than 1; (2) $λ \times ASI$ is smaller than the maximum of SSIs. Then if the SSIs are centered near the boundaries of the value range, $λ$ is mainly chosen to determine the trivial errors. While if the SSIs are scattered near the middle of the value range, $λ$ is mainly chosen to determine the vital errors.

Sensitivity analysis for the PKMT

The nominal geometric parameters of the PKMT studied in this article are listed in Table 1. It is known that the end-effector of this PKMT can spatially realize 3-DoF translational positioning ( $x, y, z$ ) and 2-DoF orientational adjustment ( $φ, θ$ ), which is represented with Tilt-and-Torsion (T&T) angles here. Because the reachable range of $φ$ is a complex function of other four kinematic parameters and much smaller than $θ$ on the whole, the value of $φ$ can be fixed at 0 when conducting sensitivity analysis. Table 2 displays the investigated workspace of this PKMT.

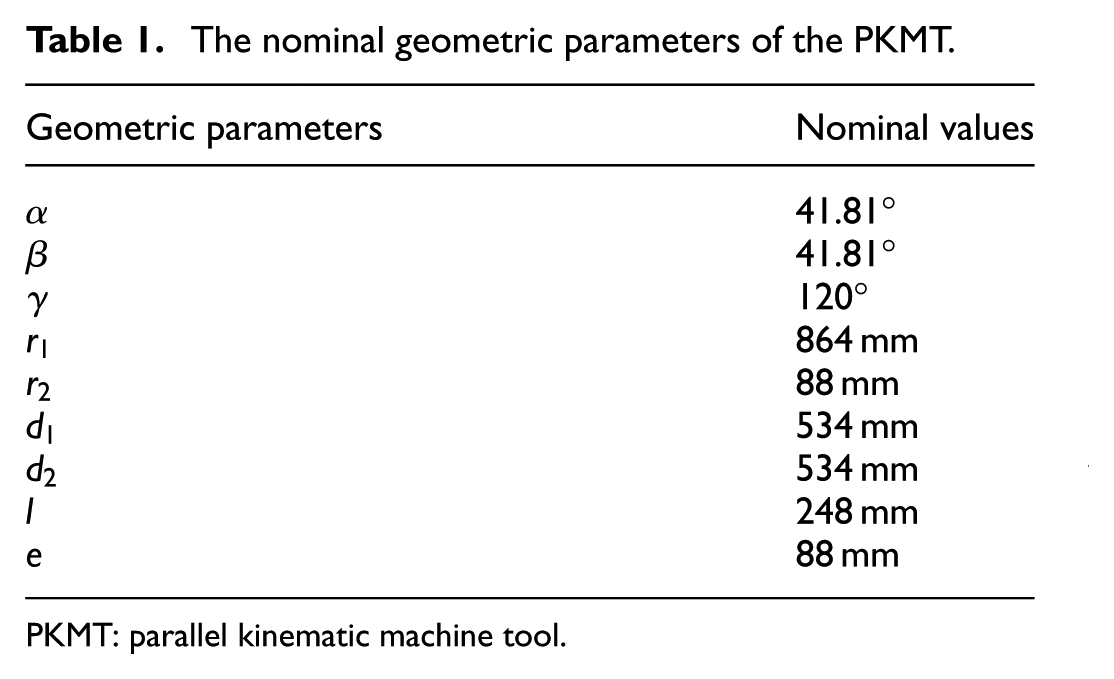

Table 1.

The nominal geometric parameters of the PKMT.

Geometric parameters	Nominal values
$α$	41.81°
$β$	41.81°
$γ$	120°
$r_{1}$	864 mm
$r_{2}$	88 mm
$d_{1}$	534 mm
$d_{2}$	534 mm
l	248 mm
e	88 mm

PKMT: parallel kinematic machine tool.

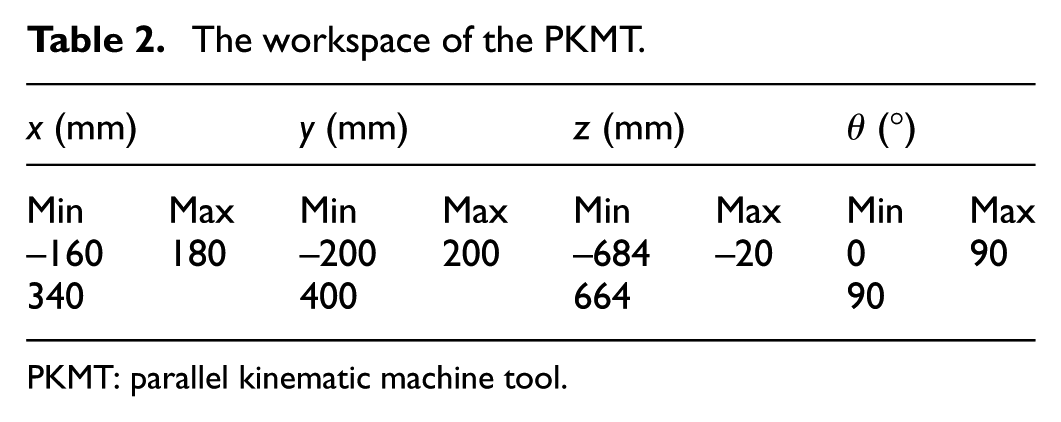

Table 2.

The workspace of the PKMT.

x (mm)		y (mm)		z (mm)		$θ$ (°)
Min	Max	Min	Max	Min	Max	Min	Max
−160	180	−200	200	−684	−20	0	90
340		400		664		90

PKMT: parallel kinematic machine tool.

Via substituting the parameters from Tables 1 and 2 into equations (50)–(54), the results of sensitivity analysis are presented as histograms of SSIs in Figure 4. According to the abovementioned rules for choosing baseline factors in section “Definition of SIs”, a set of $λ s$ is designated as follows

λ_{θ r} = 3.6, λ_{θ θ} = 3.2, λ_{rr} = 2.3, λ_{r θ} = 1.7

Figure 4.

Histograms of the SSIs and corresponding baselines with respect to geometric errors: (a) $SS I_{θ r}$ , (b) $SS I_{θ θ}$ , (c) $SS I_{rr}$ , and (d) 2 $SS I_{r θ}$ .

With the help of the baselines, some other conclusions can also be observed from Figure 4:

Figure 4(a) displays that ${}^{0}δ β_{1, 23}$ and ${}^{0}δ β_{1, 45}$ are vital error sources while the left angle errors are all trivial with respect to $$_{r}$ . Figure 4(b) displays that ${}^{0}δ β_{1, 23}$ and ${}^{0}δ β_{1, 45}$ are vital error sources in addition that ${}^{4}{δ α}_{5, 1}$ or ${}^{6}{δ α}_{5, 1}$ is not trivial anymore with respect to $$_{θ}$ . Therefore, by getting the union elements, the vital angle errors include ${}^{0}δ β_{1, 23}$ and ${}^{0}δ β_{1, 45}$ , while by getting the intersection elements, the trivial angle errors include ${}^{6}{δ γ}_{5, 1}$ , ${}^{0}δ α_{1, 23}$ , ${}^{0}δ γ_{1, 23}$ , ${}^{0}δ α_{1, 45}$ , and ${}^{0}δ γ_{1, 45}$ .

Figure 4(c) shows that ${}^{3}δ z_{4, 3}$ , ${}^{4}δ x_{t 0, 3}$ , ${}^{3}δ z_{4, 5}$ , and ${}^{4}δ x_{t 5, 5}$ are vital error sources while ${}^{0}{δ y}_{1, 1}$ , ${}^{2}{δ x}_{3, 1}$ , ${}^{2}{δ z}_{3, 1}$ , ${}^{6}{δ x}_{5, 1}$ , ${}^{6}{δ y}_{5, 1}$ , ${}^{0}δ y_{1, 23}$ , and ${}^{0}δ y_{1, 45}$ are trivial with regard to $$_{r}$ . Figure 4(d) shows that ${}^{0}{δ x}_{1, 1}$ , ${}^{4}{δ z}_{5, 1}$ , ${}^{1}δ z_{2, 3}$ , ${}^{3}δ z_{4, 3}$ , ${}^{4}δ x_{t 0, 3}$ , ${}^{1}δ z_{2, 5}$ , ${}^{3}δ z_{4, 5}$ , and ${}^{4}δ x_{t 5, 5}$ are vital error sources while ${}^{2}{δ x}_{3, 1}$ , ${}^{2}{δ z}_{3, 1}$ , ${}^{6}{δ y}_{5, 1}$ , ${}^{0}δ y_{1, 23}$ , and ${}^{0}δ y_{1, 45}$ are trivial with regard to $$_{θ}$ . Likewise, by getting the union elements, the vital length errors include ${}^{0}{δ x}_{1, 1}$ , ${}^{4}{δ z}_{5, 1}$ , ${}^{1}δ z_{2, 3}$ , ${}^{3}δ z_{4, 3}$ , ${}^{4}δ x_{t 0, 3}$ , ${}^{1}δ z_{2, 5}$ , ${}^{3}δ z_{4, 5}$ , and ${}^{4}δ x_{t 5, 5}$ , while, by getting the intersection elements, the trivial length errors include ${}^{2}{δ x}_{3, 1}$ , ${}^{2}{δ z}_{3, 1}$ , ${}^{6}{δ y}_{5, 1}$ , ${}^{0}δ y_{1, 23}$ , and ${}^{0}δ y_{1, 45}$ .

In summary, there are 10 geometric errors having striking impacts on the pose error of the end-effector, including two angle errors and eight length errors, which need strict restrictions when designing tolerances for manufacturing or assembly. Meanwhile, there are 10 geometric errors with tiny influence on the pose error of the end-effector, including five angle errors and five length errors, which can be deleted from the error model for simplification when carrying out kinematic calibration.

Simulating validation of sensitivity analysis results

Assuming that all the values of nine geometric angle errors are 0.1° and all the values of 44 geometric length errors are 0.1 mm, the pose errors of the end-effector can be calculated according to equation (37). Then the distributions of position errors ( $‖ $_{r} ‖$ ) and orientation errors ( $‖ $_{θ} ‖$ ) over the workspace can be simulated and presented as contour atlas in Figure 5. As a result, the maximums are always be found at the boundaries, while the minimums are not exactly in the central plane ( $y = 0$ ) of the PKM, although about which both of the architecture and workspace are symmetric. This is because the geometric errors are not symmetric when regarded as vectors, which somehow indicates the necessity to analyze the sensitivity of geometric errors from the directional aspect.

Figure 5.

The position (a–d) and orientation (e–h) error distributions of the end-effector over the workspace without accuracy design: (a) $‖ $_{r} ‖$ , $θ = 0 °$ ; (b) $‖ $_{r} ‖$ , $θ = 30 °$ ; (c) $‖ $_{r} ‖$ , $θ = 60 °$ ; (d) $‖ $_{r} ‖$ , $θ = 90 °$ ; (e) $‖ $_{θ} ‖$ , $θ = 0 °$ ; (f) $‖ $_{θ} ‖$ , $θ = 30 °$ ; (g) $‖ $_{θ} ‖$ , $θ = 60 °$ ; and (h) $‖ $_{θ} ‖$ , $θ = 90 °$ .

Based on sensitivity analysis, two numerical experiments of accuracy design are implemented via simulating the process of tolerance allocation with re-limiting the values of geometric errors. One is by modifying 10 trivial geometric errors to their one-tenth of the original values and the results are shown in Figure 6, which exhibits as nearly the same as Figure 5. The other one is by modifying 10 vital geometric errors to their one-tenth of the original values and the results are shown in Figure 7, which happen with great changes from Figure 5.

Figure 6.

The position (a–d) and orientation (e–h) error distributions of the end-effector over the workspace with accuracy design of 10 trivial geometric errors: (a) $‖ $_{r} ‖$ , $θ = 0 °$ ; (b) $‖ $_{r} ‖$ , $θ = 30 °$ ; (c) $‖ $_{r} ‖$ , $θ = 60 °$ ; (d) $‖ $_{r} ‖$ , $θ = 90 °$ ; (e) $‖ $_{θ} ‖$ , $θ = 0 °$ ; (f) $‖ $_{θ} ‖$ , $θ = 30 °$ ; (g) $‖ $_{θ} ‖$ , $θ = 60 °$ ; and (h) $‖ $_{θ} ‖$ , $θ = 90 °$ .

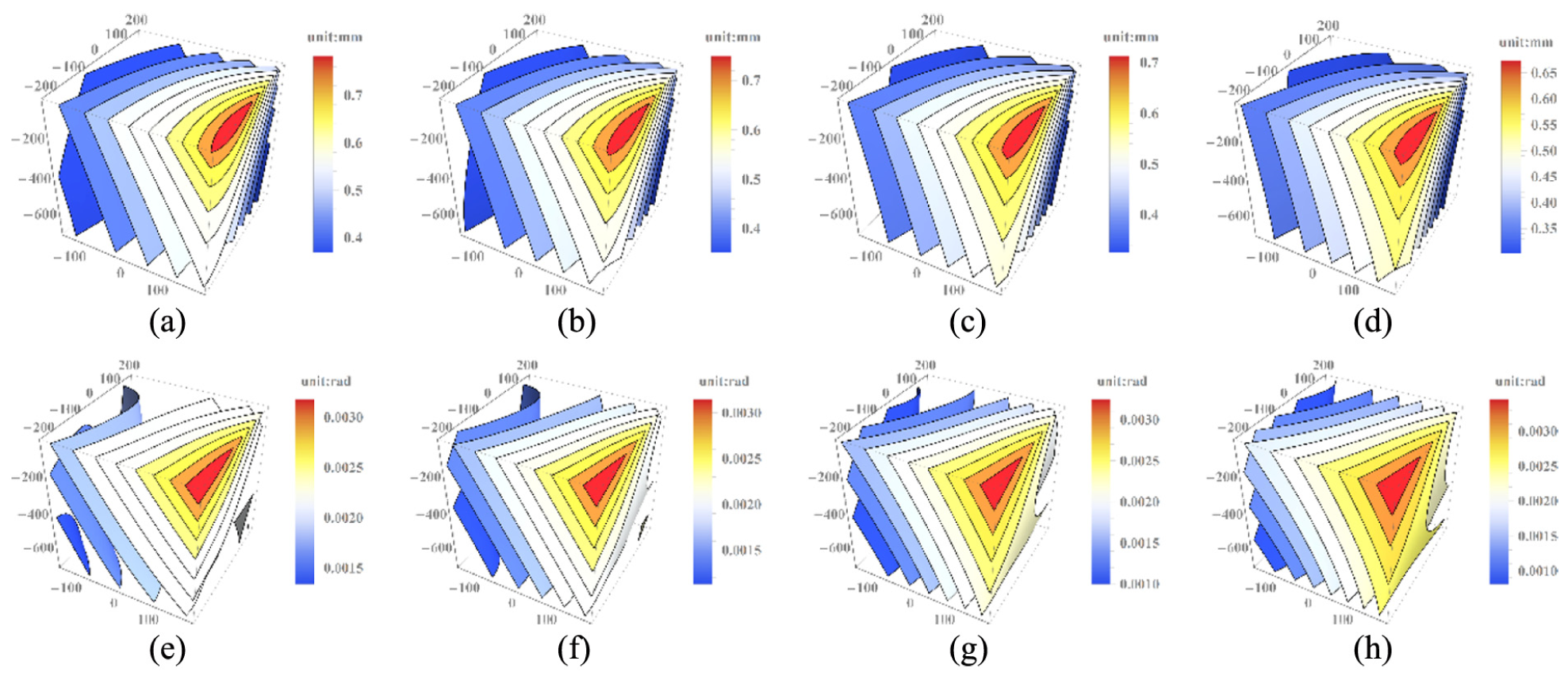

Figure 7.

The position (a–d) and orientation (e–h) error distributions of the end-effector over the workspace with accuracy design of 10 vital geometric errors: (a) $‖ $_{r} ‖$ , $θ = 0 °$ ; (b) $‖ $_{r} ‖$ , $θ = 30 °$ ; (c) $‖ $_{r} ‖$ , $θ = 60 °$ ; (d) $‖ $_{r} ‖$ , $θ = 90 °$ ; (e) $‖ $_{θ} ‖$ , $θ = 0 °$ ; (f) $‖ $_{θ} ‖$ , $θ = 30 °$ ; (g) $‖ $_{θ} ‖$ , $θ = 60 °$ ; and (h) $‖ $_{θ} ‖$ , $θ = 90 °$ .

To estimate the results explicitly, max and mean errors of (a) to (h) in Figures 5 to 7 are extracted, and comparisons are classified by units in Figure 8. From which, some conclusions can be observed as follows:

As for accuracy design of 10 trivial geometric errors, the largest decreasing ratios of max and mean position errors of the end-effector are −0.79% and −0.10%, respectively, with respect to the ones without accuracy design, while the largest decreasing ratios of max and mean orientation errors of the end-effector are 0.34% and −2.94%, respectively. As it can be seen that some pose errors of the end-effector deteriorate rather than improve by accuracy design, which indicates that some trivial geometric errors have contrary effects to other geometric errors, and embodies the vector property of geometric errors again.

As for accuracy design of 10 vital geometric errors, the smallest decreasing ratios of max and mean position errors of the end-effector are 65.56% and 72%, respectively, while the largest decreasing ratios reach 66.88% and 74.52%, respectively. In the meantime, the smallest decreasing ratios of max and mean orientation errors of the end-effector are 55.17% and 58%, respectively, while the largest decreasing ratios reach 73.75% and 59.68%, respectively.

In summary, the amount of vital and trivial geometric errors is the same as 10, which accounts for 18.87% of 53 in total. However, considerable improvements of the end-effector’s pose errors will take place when modifying vital errors other than trivial errors. Consequently, the correctness of sensitivity analysis can be verified.

Figure 8.

Comparisons of max and mean pose errors of the end-effector without/with accuracy design: (a) position errors and (b) orientation errors.

3D model validation of sensitivity analysis results

To validate the results of sensitivity analysis from the aspect of physical meaning, a 3D model with geometric errors are established with SolidWorks^®. As shown in Figure 9(a) and (b), the original pose of the PKMT ( $x, y, z, φ, θ$ ) is chosen as (100 mm, 0, –600 mm, 0, 45°), then 10 trivial and 10 vital geometric errors are added to the ideal assemblies, respectively. Among them, all the angle errors are 0.1° and the length errors are 0.1 mm. Subsequently, the global coordinates of the point $O'$ and other three points, which are located in the positive parts of axes $x' / y' / z'$ , apart 100 mm from point $O'$ and named as $X / Y / Z$ , respectively, are acquired from both 3D models in order to estimate the effects of geometric errors on the pose errors of the end-effector, and listed in Table 3.

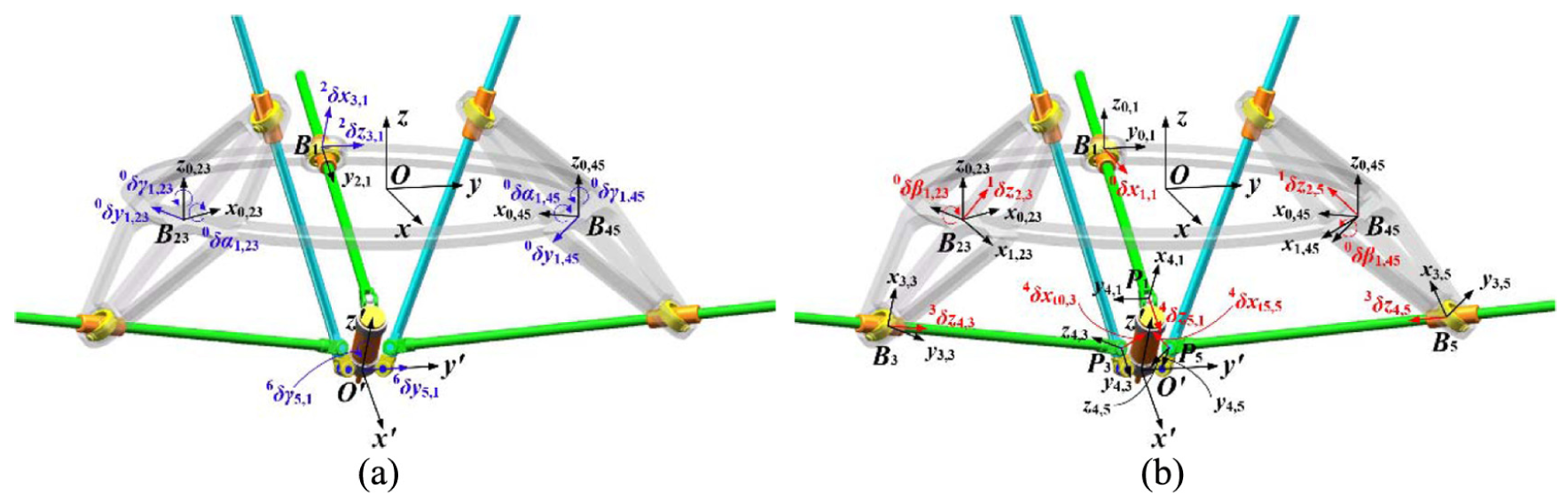

Figure 9.

3D assemblies of the PKMT with (a) 10 trivial geometric errors (in blue) and (b) 10 vital geometric errors (in red).

Table 3.

The global coordinates of points $O' / X / Y / Z$ .

Point coordinates (mm)	Assembly without errors	Assembly with trivial errors	Assembly with vital errors
$O'$	(100, 0, −600)	(99.9951, −0.0124, −600.0011)	(101.5706, 0, −601.2921)
X	(170.7107, 0, −670.7107)	(170.7048, −0.1596, −670.7172)	(172.2417, 0, −671.5393)
Y	(100, 100, −600)	(100.1985, 99.9874, −600.0059)	(101.5706, 100, −601.2921)
Z	(170.7107, 0, −529.2893)	(170.7066, −0.1527, −529.2913)	(171.8179, 0, −530.1210)

According to Table 3, the position and orientation errors are calculated as 0.0134 mm and 0.0020 rad, respectively, in the assembly with only trivial errors, while 2.0338 and 0.0048 rad, respectively, in the assembly with only vital errors, which are dramatically worse than the former when taken together. Since the chosen original pose is far from the limits of the workspace, it is somewhat representative, and the results of sensitivity analysis can be deduced to be correct.

Conclusion

Aiming at error modeling of a novel 5-DoF PKMT, a methodology based on screw theory is adopted because it can deal with the constraint characteristics of low-mobility PKMs and eliminate any unknown terms of passive joint motions. According to the EMJM of 53 geometric errors out of the developed error model of the PKMT, a set of SIs and baseline factors are designed for sensitivity analysis. Among them, LSIs are proposed based on the notion that geometric errors’ impacts embody vector properties on the end-effector’s pose errors, GSIs and VSIs are the mean value and standard deviation of LSIs data over the prescribed workspace, respectively, SSIs contain both data information of GSIs and VSIs, and ASIs and $λ s$ are proposed for the easy routine to distinguish vital and trivial error sources. As a result, 10 vital geometric errors and 10 trivial geometric errors are identified, and sequentially accuracy designs are simulated. Assessing the improvements of the max and mean pose errors of the end-effector extracted from the simulation results, maximal −0.10% and 0.34% decreasing ratios of position and orientation errors occur respectively after modifying trivial errors, while minimal 65.56% and 55.17% decreasing ratios of position and orientation errors occur respectively after modifying vital errors. Huge improvements take place in the simulation results from trivial errors to vital errors, which validates the correctness of the sensitivity analysis. Finally, 3D models of the PKMT with only trivial errors or vital errors are established at a representative configuration, and the pose errors are (0.0134 mm, 0.0020 rad) and (2.0338 mm, 0.0048 rad), respectively, which further verifies the sensitivity analysis in a direct way.

Currently, the prototype of the PKMT is in the process of manufacturing, and the results of sensitivity analysis have been adopted. Meanwhile, the kinematic calibration of the prototype based on the results of this article is under study, and it will be presented in the future. Moreover, the whole procedure proposed in this article can also be extended to any other PKMs.

Footnotes

Appendix 1

Appendix 2

\begin{matrix} {{}^{O}T}_{0, 1} = Trans (x, - r_{1}) \\ {{}^{0}T}_{1, 1} = Rot (y, \frac{π}{2} - α) Rot (z, θ_{1, 1}) \\ {{}^{1}T}_{2, 1} = Rot (x, - \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{2, 1}) \\ {{}^{2}T}_{3, 1} = Rot (x, - \frac{π}{2}) Rot (z, θ_{3, 1}) \\ {{}^{3}T}_{4, 1} = Trans (z, θ_{4, 1}), θ_{4, 1} = L_{1} \\ {{}^{4}T}_{5, 1} = Rot (x, \frac{π}{2}) Rot (z, \frac{π}{2} + θ_{5, 1}) \\ {{}^{5}T}_{6, 1} = Rot (x, \frac{π}{2}) Trans (x, r_{2}) Trans (z, - l) \end{matrix}

\begin{array}{l} {{}^{O}T}_{0, 23} = Rot (z, γ) Trans (x, - r_{1}) \\ {{}^{0}T}_{1, 23} = Rot (y, \frac{π}{2} - β) Rot (z, θ_{1, 23}) \\ {{}^{1}T}_{2, 2} = Trans (z, d_{1}) Rot (x, - \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{2, 2}) \\ {{}^{2}T}_{3, 2} = Rot (x, - \frac{π}{2}) Trans (z, θ_{3, 2}), θ_{3, 2} = L_{2} - e \end{array}

\begin{array}{l} {{}^{3}T}_{t 0, 2} = I_{4} \\ {{}^{1}T}_{2, 3} = Trans (z, - d_{2}) Rot (x, - \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{2, 3}) \\ {{}^{2}T}_{3, 3} = Rot (x, - \frac{π}{2}) Trans (z, θ_{3, 3}), θ_{3, 3} = L_{3} \\ {{}^{3}T}_{4, 3} = Rot (x, \frac{π}{2}) Rot (z, \frac{π}{2} + θ_{4, 3}) \\ {{}^{4}T}_{t 0, 3} = Rot (x, - \frac{π}{2}) \\ {{}^{t 0}T}_{t 1} = Trans (z, e) Rot (z, θ_{t 1}) \\ {{}^{t 1}T}_{t 2} = Rot (x, \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{t 2}) \\ {{}^{t 2}T}_{t 3} = Rot (x, \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{t 3}) \\ {{}^{t 3}T}_{t 4} = Trans (z, - r_{2}) Rot (x, - \frac{π}{2}) Rot (z, \frac{π}{2} - γ) \end{array}

\begin{matrix} {{}^{O}T}_{0, 45} = Rot (z, - γ) Trans (x, - r_{1}) \\ {{}^{0}T}_{1, 45} = Rot (y, \frac{π}{2} - β) Rot (z, θ_{1, 45}) \\ {{}^{1}T}_{2, 4} = Trans (z, d_{1}) Rot (x, - \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{2, 4}) \\ {{}^{2}T}_{3, 4} = Rot (x, - \frac{π}{2}) Trans (z, θ_{3, 4}), θ_{3, 4} = L_{4} - e \\ {{}^{3}T}_{t 5, 4} = I_{4} \\ {{}^{1}T}_{2, 5} = Trans (z, - d_{2}) Rot (x, - \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{2, 5}) \\ {{}^{2}T}_{3, 5} = Rot (x, - \frac{π}{2}) Trans (z, θ_{3, 5}), θ_{3, 5} = L_{5} \\ {{}^{3}T}_{4, 5} = Rot (x, \frac{π}{2}) Rot (z, \frac{π}{2} + θ_{4, 5}) \\ {{}^{4}T}_{t 5, 5} = Rot (x, - \frac{π}{2}) \\ {{}^{t 5}T}_{t 6} = Trans (z, e) Rot (z, θ_{t 6}) \\ {{}^{t 6}T}_{t 7} = Rot (x, \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{t 7}) \\ {{}^{t 7}T}_{t 8} = Rot (x, \frac{π}{2}) Rot (z, - \frac{π}{2} + θ_{t 8}) \\ {{}^{t 8}T}_{t 9} = Trans (z, - r_{2}) Rot (x, - \frac{π}{2}) Rot (z, \frac{π}{2} + γ) \end{matrix}

Appendix 3

\begin{matrix} {ε_{1}}^{T} = \\ [\begin{matrix} {}^{4}{δ α}_{5, 1} & {}^{6}{δ α}_{5, 1} & {}^{6}{δ γ}_{5, 1} & {}^{0}{δ x}_{1, 1} & {}^{0}{δ y}_{1, 1} & {}^{1}{δ x}_{2, 1} & {}^{1}{δ z}_{2, 1} & {}^{2}{δ x}_{3, 1} & {}^{2}{δ z}_{3, 1} & {}^{4}{δ z}_{5, 1} & {}^{6}{δ x}_{5, 1} & {}^{6}{δ y}_{5, 1} & {}^{6}{δ z}_{5, 1} \end{matrix}] \end{matrix}

\begin{matrix} {ε_{23}}^{T} = \\ [\begin{matrix} {}^{0}δ α_{1, 23} & {}^{0}δ β_{1, 23} & {}^{0}δ γ_{1, 23} & {}^{0}δ x_{1, 23} & {}^{0}δ y_{1, 23} & {}^{1}δ x_{2, 2} & {}^{1}δ z_{2, 2} & {}^{2}δ x_{3, 2} & {}^{3}δ z_{t 0, 2} & {}^{1}δ x_{2, 3} \end{matrix} \\ \begin{matrix} {}^{1}δ z_{2, 3} & {}^{3}δ z_{4, 3} & {}^{4}δ x_{t 0, 3} & {}^{4}δ y_{t 0, 3} & {}^{t 1}δ x_{t 2} & {}^{t 2}δ x_{t 3} & {}^{t 2}δ z_{t 3} & {}^{t 4}δ x_{t 3} & {}^{t 4}δ y_{t 3} & {}^{t 4}δ z_{t 3} \end{matrix}] \end{matrix}

\begin{matrix} {ε_{45}}^{T} = \\ [\begin{matrix} {}^{0}δ α_{1, 45} & {}^{0}δ β_{1, 45} & {}^{0}δ γ_{1, 45} & {}^{0}δ x_{1, 45} & {}^{0}δ y_{1, 45} & {}^{1}δ x_{2, 4} & {}^{1}δ z_{2, 4} & {}^{2}δ x_{3, 4} & {}^{3}δ z_{t 5, 4} & {}^{1}δ x_{2, 5} \end{matrix} \\ \begin{matrix} {}^{1}δ z_{2, 5} & {}^{3}δ z_{4, 5} & {}^{4}δ x_{t 5, 5} & {}^{4}δ y_{t 5, 5} & {}^{t 6}δ x_{t 7} & {}^{t 7}δ x_{t 8} & {}^{t 7}δ z_{t 8} & {}^{t 9}δ x_{t 8} & {}^{t 9}δ y_{t 8} & {}^{t 9}δ z_{t 8} \end{matrix}] \end{matrix}

\begin{array}{l} G_{1}^{T} = \\ [\begin{matrix} - L_{1} & 0 \\ - L_{1} \sin θ_{5, 1} & 0 \\ L_{1} \cos θ_{5, 1} & 0 \\ - \cos θ_{3, 1} \sin α \sin θ_{1, 1} + \cos α \cos θ_{2, 1} \sin θ_{3, 1} + \cos θ_{1, 1} \sin α \sin θ_{2, 1} \sin θ_{3, 1} & \cos θ_{1, 1} \cos θ_{2, 1} \sin α - \cos α \sin θ_{2, 1} \\ \cos θ_{1, 1} \cos θ_{3, 1} + \sin θ_{1, 1} \sin θ_{2, 1} \sin θ_{3, 1} & \cos θ_{2, 1} \sin θ_{1, 1} \\ \sin θ_{2, 1} \sin θ_{3, 1} & \cos θ_{2, 1} \\ \cos θ_{2, 1} \sin θ_{3, 1} & - \sin θ_{2, 1} \\ \sin θ_{3, 1} & 0 \\ \cos θ_{3, 1} & 0 \\ 0 & 1 \\ 0 & - \cos θ_{5, 1} \\ - 1 & 0 \\ 0 & - \sin θ_{5, 1} \end{matrix}] \end{array}

\begin{array}{l} G_{23}^{T} = \\ [\begin{matrix} - d_{1} \cos θ_{2, 2} \sin β \sin θ_{1, 23} & d_{2} \cos θ_{2, 3} \sin β \sin θ_{1, 23} + \frac{e}{L_{2}} \cdot d_{1} \cos θ_{4, 3} \sin β \sin θ_{1, 23} \sin θ_{2, 2} \\ d_{1} \cos θ_{1, 23} \cos θ_{2.2} & - d_{2} \cos θ_{1, 23} \cos θ_{2, 3} - \frac{e}{L_{2}} \cdot d_{1} \cos θ_{1, 23} \cos θ_{4, 3} \sin θ_{2, 2} \\ d_{1} \cos β \cos θ_{2, 2} \sin θ_{1, 23} & - d_{2} \cos β \cos θ_{2, 3} \sin θ_{1, 23} - \frac{e}{L_{2}} \cdot d_{1} \cos β \cos θ_{4, 3} \sin θ_{1, 23} \sin θ_{2, 2} \\ \cos θ_{1, 23} \cos θ_{2, 2} \sin β - \cos β \sin θ_{2, 2} & (\cos θ_{1, 23} \cos θ_{2, 3} \sin β - \cos β \cos θ_{2, 3}) - \frac{e}{L_{2}} (\cos β \cos θ_{2, 2} \cos θ_{4, 3} + \cos θ_{1, 23} \cos θ_{4, 3} \sin β \sin θ_{2, 2}) \\ \cos θ_{2, 2} \sin θ_{1, 23} & \cos θ_{2, 3} \sin θ_{1, 23} - \frac{e}{L_{2}} \cdot \cos θ_{4, 3} \sin θ_{1, 23} \sin θ_{2, 2} \\ \cos θ_{2, 2} & - \frac{e}{L_{2}} \cdot \cos θ_{4, 3} \sin θ_{2, 2} \\ - \sin θ_{2, 2} & - \frac{e}{L_{2}} \cdot \cos θ_{2, 2} \cos θ_{4, 3} \\ 0 & - \frac{e}{L_{2}} \cdot \cos θ_{4, 3} \\ 1 & 0 \\ 0 & \cos θ_{2, 3} \\ 0 & - \sin θ_{2, 3} \\ 0 & 1 \\ 0 & \cos θ_{4, 3} \\ 0 & - \sin θ_{4, 3} \\ 0 & \frac{L_{2} - e}{L_{2}} \cdot \cos θ_{4, 3} \cos θ_{t 1} \\ - \cos θ_{t 2} & \cos θ_{t 2} \sin θ_{4, 3} + \frac{L_{2} - e}{L_{2}} \cdot \cos θ_{4, 3} \cos θ_{t 1} \sin θ_{t 2} \\ 0 & \frac{L_{2} - e}{L_{2}} \cdot \cos θ_{4, 3} \sin θ_{t 1} \\ - c o s γ \sin θ_{t 2} + \cos θ_{t 2} \sin γ \sin θ_{t 3} & \begin{array}{l} (\cos γ \sin θ_{4, 3} \sin θ_{t 2} - \cos θ_{t 2} \sin γ \sin θ_{4, 3} \sin θ_{t 3}) - \\ \frac{L_{2} - e}{L_{2}} (c o s γ \cos θ_{4, 3} \cos θ_{t 1} \cos θ_{t 2} - \cos θ_{4, 3} \cos θ_{t 3} \sin γ \sin θ_{t 1} + \cos θ_{4, 3} \cos θ_{t 1} \sin γ \sin θ_{t 2} \sin θ_{t 3}) \end{array} \\ - \sin γ \sin θ_{t 2} - \cos γ \cos θ_{t 2} \sin θ_{t 3} & \begin{array}{l} (\sin γ \sin θ_{4, 3} \sin θ_{t 2} + \cos γ \cos θ_{t 2} \sin θ_{4, 3} \sin θ_{t 3}) - \\ \frac{L_{2} - e}{L_{2}} (\cos θ_{4, 3} \cos θ_{t 1} \cos θ_{t 2} \sin γ + \cos γ \cos θ_{4, 3} \cos θ_{t 3} \sin θ_{t 1} - \cos γ \cos θ_{4, 3} \cos θ_{t 1} \sin θ_{t 2} \sin θ_{t 3}) \end{array} \\ \cos θ_{t 2} \cos θ_{t 3} & - \cos θ_{t 2} \cos θ_{t 3} \sin θ_{4, 3} - \frac{L_{2} - e}{L_{2}} (\cos θ_{4, 3} \cos θ_{t 1} \cos θ_{t 3} \sin θ_{t 2} + \cos θ_{4, 3} \sin θ_{t 1} \sin θ_{t 3}) \end{matrix}] \end{array}

\begin{array}{l} G_{45}^{T} = \\ [\begin{matrix} - d_{1} \cos θ_{2, 4} \sin β \sin θ_{1, 45} & d_{2} \cos θ_{2, 5} \sin β \sin θ_{1, 45} + \frac{e}{L_{4}} \cdot d_{1} \cos θ_{4, 5} \sin β \sin θ_{1, 45} \sin θ_{2, 4} \\ d_{1} \cos θ_{1, 45} \cos θ_{2.4} & - d_{2} \cos θ_{1, 45} \cos θ_{2, 5} - \frac{e}{L_{4}} \cdot d_{1} \cos θ_{1, 45} \cos θ_{4, 5} \sin θ_{2, 4} \\ d_{1} \cos β \cos θ_{2, 4} \sin θ_{1, 45} & - d_{2} \cos β \cos θ_{2, 5} \sin θ_{1, 45} - \frac{e}{L_{4}} \cdot d_{1} \cos β \cos θ_{4, 5} \sin θ_{1, 45} \sin θ_{2, 4} \\ \cos θ_{1, 45} \cos θ_{2, 4} \sin β - \cos β \sin θ_{2, 4} & (\cos θ_{1, 45} \cos θ_{2, 5} \sin β - \cos β \cos θ_{2, 5}) - \frac{e}{L_{4}} (\cos β \cos θ_{2, 4} \cos θ_{4, 5} + \cos θ_{1, 45} \cos θ_{4, 5} \sin β \sin θ_{2, 4}) \\ \cos θ_{2, 4} \sin θ_{1, 45} & \cos θ_{2, 5} \sin θ_{1, 45} - \frac{e}{L_{4}} \cdot \cos θ_{4, 5} \sin θ_{1, 45} \sin θ_{2, 4} \\ \cos θ_{2, 4} & - \frac{e}{L_{4}} \cdot \cos θ_{4, 5} \sin θ_{2, 4} \\ - \sin θ_{2, 4} & - \frac{e}{L_{4}} \cdot \cos θ_{2, 4} \cos θ_{4, 5} \\ 0 & - \frac{e}{L_{4}} \cdot \cos θ_{4, 5} \\ 1 & 0 \\ 0 & \cos θ_{2, 5} \\ 0 & - \sin θ_{2, 5} \\ 0 & 1 \\ 0 & \cos θ_{4, 5} \\ 0 & - \sin θ_{4, 5} \\ 0 & \frac{L_{4} - e}{L_{4}} \cdot \cos θ_{4, 5} \cos θ_{t 6} \\ - \cos θ_{t 7} & \cos θ_{t 7} \sin θ_{4, 5} + \frac{L_{4} - e}{L_{4}} \cdot \cos θ_{4, 5} \cos θ_{t 6} \sin θ_{t 7} \\ 0 & \frac{L_{4} - e}{L_{4}} \cdot \cos θ_{4, 5} \sin θ_{t 6} \\ - c o s γ \sin θ_{t 7} + \cos θ_{t 7} \sin γ \sin θ_{t 8} & \begin{array}{l} (\cos γ \sin θ_{4, 5} \sin θ_{t 7} + \cos θ_{t 7} \sin γ \sin θ_{4, 5} \sin θ_{t 8}) - \\ \frac{L_{4} - e}{L_{4}} (c o s γ \cos θ_{4, 5} \cos θ_{t 6} \cos θ_{t 7} + \cos θ_{4, 5} \cos θ_{t 8} \sin γ \sin θ_{t 6} - \cos θ_{4, 5} \cos θ_{t 6} \sin γ \sin θ_{t 7} \sin θ_{t 8}) \end{array} \\ - \sin γ \sin θ_{t 7} - \cos γ \cos θ_{t 7} \sin θ_{t 8} & \begin{array}{l} (- \sin γ \sin θ_{4, 5} \sin θ_{t 7} + \cos γ \cos θ_{t 7} \sin θ_{4, 5} \sin θ_{t 8}) + \\ \frac{L_{4} - e}{L_{4}} (\cos θ_{4, 5} \cos θ_{t 6} \cos θ_{t 7} \sin γ - \cos γ \cos θ_{4, 5} \cos θ_{t 8} \sin θ_{t 6} + \cos γ \cos θ_{4, 5} \cos θ_{t 6} \sin θ_{t 7} \sin θ_{t 8}) \end{array} \\ \cos θ_{t 7} \cos θ_{t 8} & - \cos θ_{t 7} \cos θ_{t 8} \sin θ_{4, 5} - \frac{L_{4} - e}{L_{4}} (\cos θ_{4, 5} \cos θ_{t 6} \cos θ_{t 8} \sin θ_{t 7} + \cos θ_{4, 5} \sin θ_{t 6} \sin θ_{t 8}) \end{matrix}] \end{array}

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (Grant No. 51675290 and No. 51425501). The second author wishes to acknowledge the support from the Alexander von Humboldt (AvH) Foundation.

ORCID iD

Fugui Xie

References

Merlet

JP.

Parallel robots. Dordrecht: Springer, 2006.

Bar

Weiss

Kinematic analysis of a pentapod robot. J Geom Graph 2006; 10(2): 173–182.

Robust design and analysis of 4PUS-1RPU parallel mechanism for a 5-degree-of freedom hybrid kinematics machine. Proc IMechE, Part B: J Engineering Manufacture 2011; 225(5): 685–698.

Lin

Yang

et al . Modeling and control of inverse dynamics for a 5-DOF parallel kinematic polishing machine. Int J Adv Robot Syst 2013; 10(8): 314.

Song

Zhang

Lian

et al . Kinematic calibration of a 5-DoF parallel kinematic machine. Precis Eng 2016; 45: 242–261.

Xie

Liu

Luo

et al . Mobility, singularity, and kinematics analyses of a novel special parallel mechanism. J Mech Robot 2016; 8: 061022-1–061022-10.

Xie

Liu

Wang

et al . Kinematic optimization of a five-DoF spatial parallel mechanism with large orientational workspace. J Mech Robot 2017; 9: 051005-1–051005-9.

Cao

Zhang

Chen

XF.

The concept and progress of intelligent spindles: a review. Int J Mach Tool Manu 2017; 112: 21–52.

Zhang

Sun

et al . Accuracy analysis and design of A3 parallel spindle head. Chin J Mech Eng: En 2016; 29(2): 239–249.

10.

Guo

Wang

Fan

et al . Kinematic calibration and error compensation of a hexaglide parallel manipulator. Proc IMechE, Part B: J Engineering Manufacture 2019; 233(1): 215–225.

11.

Chen

Xie

Liu

et al . Error modeling and sensitivity analysis of a parallel robot with SCARA (selective compliance assembly robot arm) motions. Chin J Mech Eng: En 2014; 27(4): 693–702.

12.

Huang

Research on the accuracy assurance of a class of 3-DOF spatial parallel manipulators. PhD Thesis, Tsinghua University, Beijing, China, 2011.

13.

Wang

Liu

et al . Study of error modeling in kinematic calibration of parallel manipulators. Int J Adv Robot Syst 2016; 13(5): 1–12.

14.

Wang

Chen

SL.

Geometric error measurement and compensation of a six-degree-of-freedom hybrid positioning stage. Proc IMechE, Part B: J Engineering Manufacture 2008; 222: 185–200.

15.

Meggiolaro

Dubowsky

. An analytical method to eliminate the redundant parameters in robot calibration. In: Proceedings of the IEEE international conference on robotics & automation, San Francisco, CA, 24–28 April 2000, pp.3609–3615. New York: IEEE.

16.

Zhuang

Roth

Harmano

A complete and parametrically continuous kinematic model for robot manipulators. IEEE T Robotic Autom 1992; 8(4): 451–463.

17.

Zhuang

Wang

Roth

ZS.

Error-model-based robot calibration using a modified CPC model. Robot Cim-Int Manuf 1993; 10(4): 287–299.

18.

Zhao

Tang

XQ.

Geometric error modeling of machine tools based on screw theory. Procedia Engineer 2011; 24: 845–849.

19.

Simas

Gregorio

RD.

Geometric error effects on manipulators’ positioning precision: a general analysis and evaluation method. J Mech Robot 2016; 8: 061016.

20.

Park

Okamura

Kinematic calibration and the product of exponentials formula. In: Lenarcic

Ravani

(eds) Advances in robot kinematics and computational geometry. Dordrecht: Springer, 1994, pp.119–128.

21.

Chen

Yang

Tan

et al . Local POE model for robot kinematic calibration. Mech Mach Theory 2001; 36: 1215–1239.

22.

Cheng

Sun

Liu

et al . Geometric error compensation method based on Floyd algorithm and product of exponential screw theory. Proc IMechE, Part B: J Engineering Manufacture 2018; 232(7): 1156–1171.

23.

Yang

Chen

Lim

et al . Self-calibration of three-legged modular reconfigurable parallel robots based on leg-end distance errors. Robotica 2001; 19: 187–198.

24.

Research on motion/force transmission analysis of parallel mechanisms and its applications. PhD Thesis, Tsinghua University, Beijing, China, 2011.

25.

Liu

Huang

Chetwynd

DG.

A general approach for geometric error modeling of lower mobility parallel manipulators. J Mech Robot 2011; 3: 021013-1–021013-13.

26.

Sun

Zhai

Song

et al . Kinematic calibration of a 3-DoF rotational parallel manipulator using laser tracker. Robot Cim-Int Manuf 2016; 41: 78–91.

27.

Tannous

Caro

Goldsztejn

Sensitivity analysis of parallel manipulators using an interval linearization method. Mech Mach Theory 2014; 71: 93–114.

28.

Sun

Song

et al . Separation of comprehensive geometric errors of a 3-DoF parallel manipulator based on Jacobian matrix and its sensitivity analysis with Monte-Carlo method. Chin J Mech Eng: En 2011; 24(3): 1–8.

29.

Caro

Wenger

Bennis

et al . Sensitivity analysis of the Orthoglide: a three-DOF translational parallel kinematic machine. J Mech Design 2006; 128: 392–402.

30.

Binaud

Caro

Wenger

Sensitivity comparison of planar parallel manipulators. Mech Mach Theory 2010; 45: 1477–1490.

31.

Xie

Liu

XJ.

Geometric error modeling and sensitivity analysis of a five-axis machine tool. Int J Adv Manuf Technol 2016; 82: 2037–2051.

32.

Murry

Sastry

SS.

A mathematical introduction to robotic manipulation. Boca Raton, FL: CRC Press, 1994.
