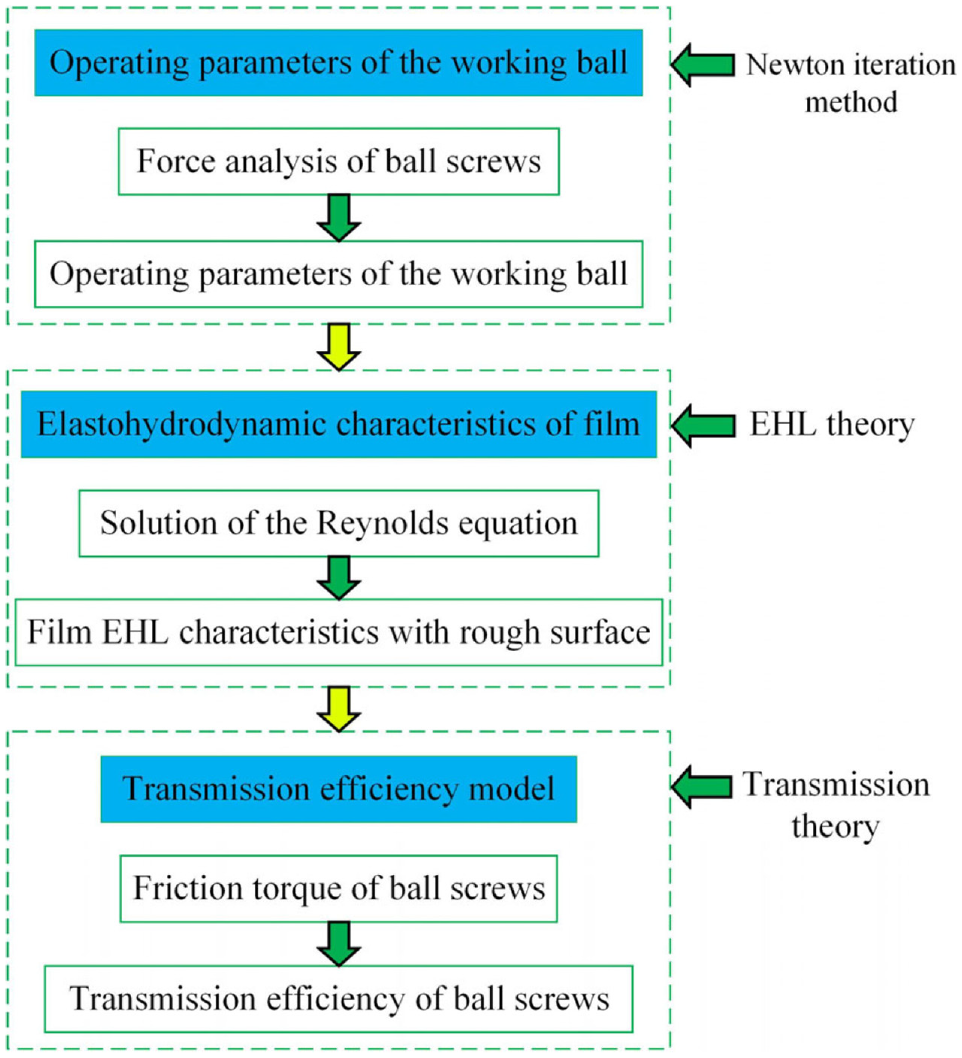

Optimal operating condition of precision ball screws based on a transmission efficiency model

Determination of the dynamic parameters of the working ball

The ball screws are composed of the screw, balls, and nuts, whose force and velocity are often different. Thus, it is necessary to construct the coordinate system of ball screws (Figure 2(a)).

OPEN IN VIEWER

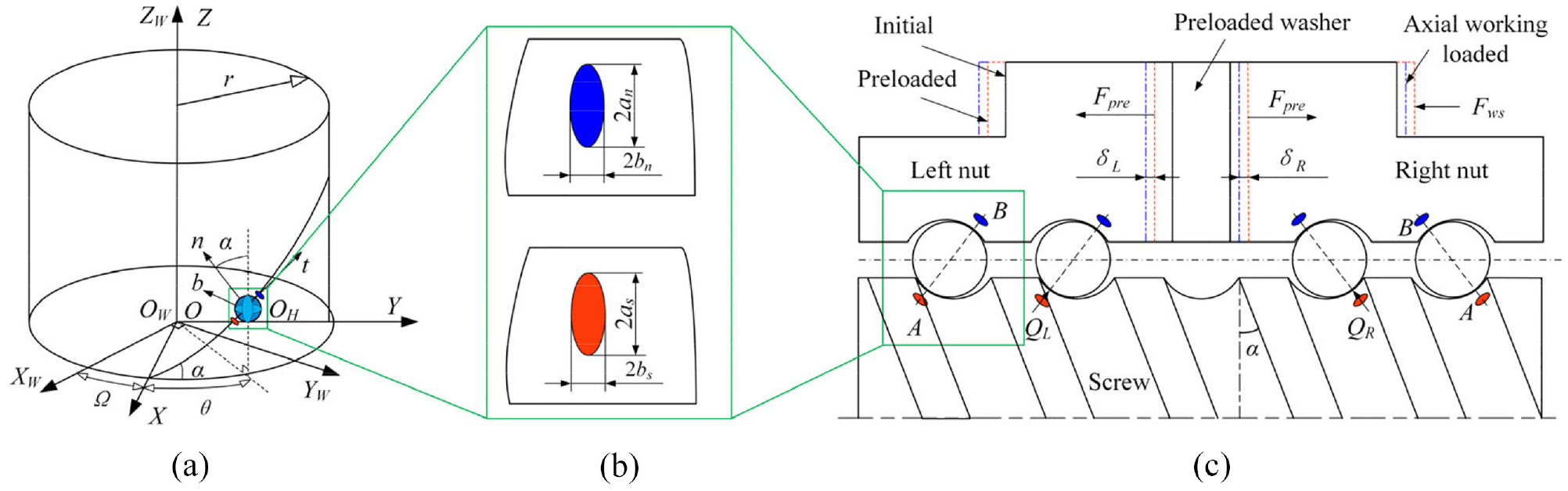

Figure 2.

Force and deformation analysis of ball screws: (a) coordinates systems of ball screws, (b) contact regions of the ball/screw-raceway and ball/nut-raceway, and (c) force and deformation analysis of ball screws.

The coordinates system O_WX_WY_WZ_W can be established in space with its Z_W-axis conforming to the axial direction of the screw. Coordinates system OXYZ rotates with the angle Ω as the screw. The X-axis is intersected with the helix track of the ball center, and the t-axis is coincident with the axial direction of the screw. The Frenet-Serret coordinates system O_Htnb can be indicated by any point in the helix track of the ball center with the angle θ as the ball. The origin O_H is located in the helix track of the ball center, and the t-axis, n-axis, and b-axis vary with the position of the helix track of the ball center. In the system, n is the main normal direction, b is the binormal direction, and t is the tangential direction of the helix.

When the ball screws work in the quasi-static state (constant speed), the working balls are influenced by force and torque, such as normal contact force, inertia force, friction, inertia torque, and friction torque. In terms of the ball force state, the force balance equation and torque balance equation of the working ball are expressed as

{ ∑ F = 0 : Q A + Q B + F SA + F SB + F IH = 0 ∑ M = 0 : M SA + M SB + M IH = 0

(1)

Where Q_A and Q_B indicate the normal contact force of the ball at point A and point B, respectively. F_SA and F_SB denote the friction of the ball at point A and point B, respectively. F_IH is the inertia force. M_SA and M_SB are the friction torque of the ball at point A and point B, respectively. M_IH is the inertia torque. The parameters of DNBSs in the operating state, such as β_A, β_B, Q_A, Q_B, F_SA, and F_SB, are determined by equation (1) using Newton iteration method. The detailed calculation process for the parameters of DNBSs can be found in the reference. ²¹

Relationship of the raceway normal contact force and axial working load (AWL)

The normal contact forces of the ball between the ball/screw-raceway and the ball/nut-raceway are determined by the preload and AWL, and the contact forces in the left nut and the right nut are different. The contact deformation and force analysis for the DNBSs under the AWL is shown in Figure 2.

The normal contact force of the ball is dependent on the preload and AWL, as shown in Figure 2(c). When the ball screws are only loaded by the preload F_pre, the normal contact forces of the ball in the right and left nuts are the same, that is, Q_R = Q_L. When the ball screws are loaded by the preload F_pre and the axial working load F_ws, the normal contact forces of the ball in the right and left nuts are different, that is, Q_R ≠ Q_L. The contact angles at contact point B and contact point A in a low-speed operating ball screw are considered to be equal, that is, β_B =β_A=β. According to the deformation coordination principle, ²² the axial contact recovery deformation of the right nut and the axial contact compressed deformation of the left nut are equal.

δ L = δ R

(2)

The normal contact forces of the ball in the right and left nuts can be determined as

{ F ws − Q L n b / 2 cos α sin β + Q R n b / 2 cos α sin β = 0 δ L = K 1 ( Q L 2 / 3 − F P 2 / 3 ) δ R = K 1 ( F P 2 / 3 − Q R 2 / 3 ) Q AL = Q BL = Q L Q AR = Q BR = Q R F P = F pre n b / 2 cos α sin β

(3)

where Q_R and Q_L are the normal contact forces of the ball in the right and left nuts, respectively. Q_AL and Q_BL denote the normal forces at point A and point B in the left nut, respectively. Q_AR and Q_BR denote the normal forces at point A and point B in the right nut, respectively. F_p is the normal contact preload of the ball. α is the helix angle. n_b is the number of working balls. K₁ is the contact stiffness coefficient, which can be calculated by Hertz theory. ²³ The structural parameters of DNBSs are shown in Table 1.

OPEN IN VIEWER

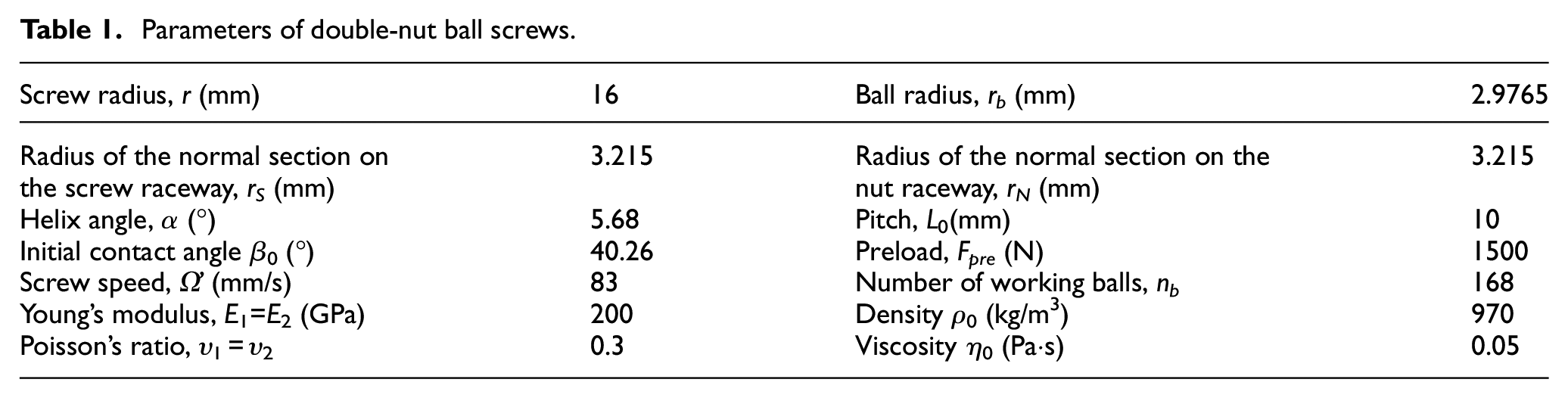

Table 1.

Parameters of double-nut ball screws.

Screw radius, r (mm)	16	Ball radius, rb (mm)	2.9765
Radius of the normal section onthe screw raceway, rS (mm)	3.215	Radius of the normal section on thenut raceway, rN (mm)	3.215
Helix angle, α (°)	5.68	Pitch, L0(mm)	10
Initial contact angle β0 (°)	40.26	Preload, Fpre (N)	1500
Screw speed, Ω’ (mm/s)	83	Number of working balls, nb	168
Young’s modulus, E1=E2 (GPa)	200	Density ρ0 (kg/m3)	970
Poisson’s ratio, υ1 = υ2	0.3	Viscosity η0 (Pa·s)	0.05

Determination of the EHL characteristics with a smooth surface

To improve the lubrication status in an operating ball screw, the EHL contact problem between the ball and raceway should be solved accurately. The EHL contact model of ball screws under different operation conditions was established, and the film bearing pressure distribution and film thickness distribution were quickly determined.

The basic equation of the EHL contact problem is the RE, ²⁴ which of the ball screws under steady-state, that is, when the contact characteristics do not vary with time, is expressed as

∂ ∂ x ( ρ h 3 η ∂ p ∂ x ) + ∂ ∂ y ( ρ h 3 η ∂ p ∂ y ) = 6 ( u 1 + u 2 ) ∂ ( ρ h ) ∂ x

(4)

where p is the film bearing pressure in the contact region, and the initial distribution of p can be calculated by Hertz theory. ²⁵ h is the distribution of film thickness (FT) in the contact region, ρ is the density of the oil film, η is the viscosity of the oil film, and u₁ and u₂ are the velocity of the ball and raceway in the tangential direction of the helix track of the ball center, respectively. The x-direction is the tangential direction of the helix track of the ball center.

The FT at the contact point of ball screws can be written as

h ( x , y ) = h 0 + x 2 2 R x + y 2 2 R y + V ( x , y )

(5)

where h₀ is the central oil FT in the contact region, R_x and R_y are the equivalent curvature radius of the contact system, respectively, and (R_y/R_x)^2/3 = b/a. a and b are the semi-major axis and semi-minor axis, respectively, in the contact region. V is contact deformation distribution in the contact region, ²⁶ which is calculated as

V ( x , y ) = 2 π E ∫ ∫ Ω p ( s , t ) ( x − s ) 2 + ( y − t ) 2 d s d t

(6)

1 E = 1 − υ 1 2 E 1 + 1 − υ 2 2 E 2

(7)

where E₁ and E₂ are Young’s modulus of the ball and screw/nut, respectively. υ₁ and υ₂ are Poisson’s ratios of the ball and screw/nut, respectively. Ω is the contact region.

The viscosity ²⁷ of the oil film based on the Roelands formula can be expressed as

η = η 0 exp { ( ln η 0 + 9 . 67 ) [ ( 1 + 5 . 1 × 10 - 9 p ) 0 . 68 − 1 ] }

(8)

where η₀ is the initial value of the oil film viscosity.

The density ²⁸ of the oil film can be expressed as

ρ = ρ 0 ( 1 + 0 . 6 × 10 - 9 p 1 + 1 . 7 × 10 - 9 p )

(9)

where ρ₀ is the initial value of the oil film density.

The boundary conditions of the RE are below:

{ p ( x 0 , y ) = p ( x e , y ) = 0 p ( x , y 0 ) = p ( x , y e ) = 0 p ( x , y ) ≥ 0 , ( x 0 ≤ x ≤ x e , y 0 ≤ y ≤ y e )

(10)

where x₀ and y₀ are the entrance coordinates of the contact region of ball screws, respectively, and x_e and y_e are the exit coordinates of the contact region of ball screws, respectively.

The sum of the film bearing pressure in the contact region should be equal to the normal force of the ball. Therefore, the load balance condition of the RE is calculated as follows:

∫ ∫ Ω p ( x , y ) d x d y = Q

(11)

The dimensionless parameters ²⁹ were used in the calculation process of the RE to describe the objective law. The ones of ball screws are written as follows:

{ X = x a , Y = y a ρ * = ρ ρ 0 , η * = η η 0 P = p p H , U S = η 0 u s E R x , H = h R x a 2

(12)

where P is dimensionless film bearing pressure distribution in the contact region, U_S is the dimensionless velocity parameter in the tangential direction of the helix track of the ball center, H is the dimensionless FT distribution in the contact region, u_s is the entrainment velocity of the oil film, and u_s=(u₁+u₂)/2. ρ* is the dimensionless oil film density, η* is the dimensionless oil film viscosity, and Y and X are the dimensionless coordinates of the contact region of ball screws, respectively.

By substituting Equations (5), (6), (7), (8), and (9) into equation (4) and combining the boundary condition and the load balance condition, the RE of ball screws can be accurately solved by the finite difference method. The nonlinear equations of the dimensionless film bearing pressure distribution P and dimensionless film thickness distribution H were obtained by discretized RE based on the finite difference method, ³⁰ and the results were determined by the Newton-Raphson method. ³¹ The flowchart for the computation of the RE of ball screws is shown in Figure 3.

OPEN IN VIEWER

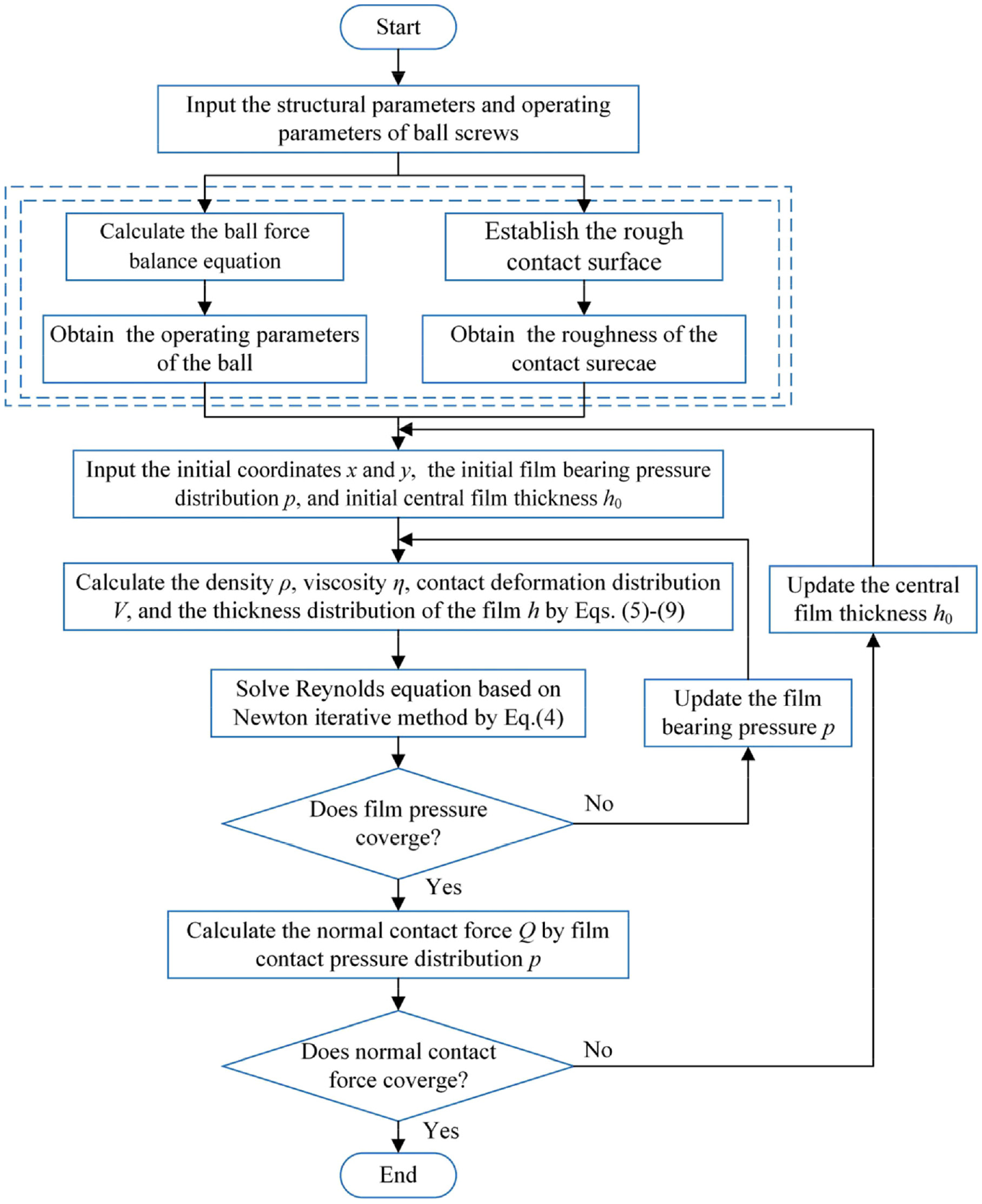

Figure 3.

Flowchart for the computation of the RE with a rough raceway surface.

Determination of the EHL characteristics with a roughness surface

Since the surfaces of the ball and raceway are rough, and the EHL characteristics of the contact system are significantly influenced by the roughness of the contact surfaces, the rough contact surface of ball screws should be established to accurately determine the film contact pressure distribution and FT distribution. Since the processing technology of the ball is mature, the contact surface of the ball can be considered smooth. The raceway rough contact surface ROU(x,y) was modeled based on fractal theory, ³² as shown in Figure 4(a). The surface roughness used in the simulation is determined from the experimental measurement based on the structure function method. ³³ The fractal parameters of the raceway surface are determined: Ds = 2.68, G = 0.97 × 10⁻⁹.

OPEN IN VIEWER

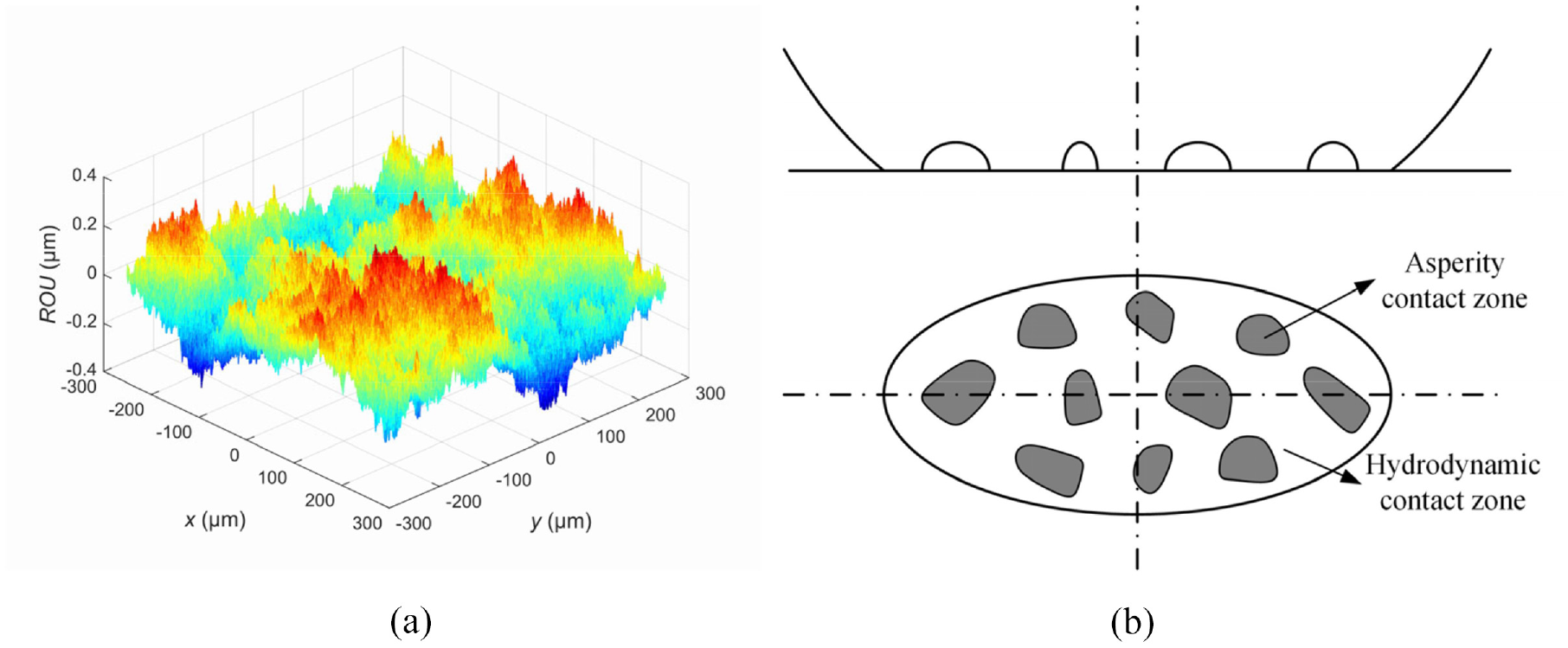

Figure 4.

(a) The fractal rough contact surface of raceway with R_q = 0.12 μm and (b) Contact pressure distributions of the film and asperity.

The fractal parameters of the rough fractal surface are calculated based on the experimentally measured raceway surface profile, and the roughness of the rough fractal surface is the same as the roughness of the experimentally measured surface. Therefore, the real raceway surface can be indicated with the rough fractal surface.

We calculate the FT distribution ³⁰ in the rough contact region based on the formula below

h ( x , y ) = h 0 + x 2 2 R x + y 2 2 R y + V ( x , y ) + ROU ( x , y )

(13)

The contact deformation distribution in the contact region is calculated as

V ( x , y ) = 2 π E ∫ ∫ Ω p f ( s , t ) + p a ( s , t ) ( x − s ) 2 + ( y − t ) 2 d s d t

(14)

where p_f and p_a are the film bearing pressure distribution and asperity bearing pressure distribution, respectively. p is the sum of the film bearing pressure distribution p_f and the asperity bearing pressure distribution p_a, that is, p = p _f +p_a. The contact system between the ball and the rough raceway surface is shown in Figure 4(b).

The description of the RE represents a balance of fluid flow. The right-hand side indicates the oil flowrate driven by surface motion in the tangential direction, and the left-hand of the RE is the oil flowrate driven by the hydrodynamic pressure. When the FT is zero, the film bearing pressure p_f vanishes, and the asperity bearing pressure p_a is generated. The RE is reduced to equation (15).

( u 1 + u 2 ) ∂ ( ρ h ) ∂ x = 0

(15)

By substituting equations (7), (8), (9), (13), and (14) into equations (4) and (15), and combining the boundary condition and the load balance condition, the RE of ball screws can be accurately solved by the finite difference method. The flowchart for the computation of the RE under certain roughness of ball screws is shown in Figure 3.

The lubrication status of ball screws can be indicated with the film thickness ratio Λ. If Λ < 1, the contact system is in a boundary lubrication status. If 1 < Λ < 3, the contact system is in a mixed lubrication status. If Λ > 3, the contact system is in a hydrodynamic lubrication status. The film thickness ratio can be expressed as

Λ = h min R q

(16)

Modeling of transmission efficiency of DNBSs

The transmission efficiency of DNBSs is the ratio of the screw output power to screw input power when the nut is driven by the screw to move axially. The transmission efficiency ³⁴ is written as

η e = F ws v M ω = F ws L 0 2 π M

(17)

M = M L − M R + M SL + M SR

(18)

where v is the axial velocity of the nut and ω is the screw input angle velocity. M is the input driving torque of the DNBSs, and M_SR and M_SL are the friction torque in the right and left nuts, respectively. M_L and M_R are the torque generated by the normal contact forces in the left and right nuts, respectively, which can be written as

{ M L = n b / 2 Q AL sin α L sin β AL ( r − r b cos β AL ) + n b / 2 Q BL sin α L sin β BL ( r + r b cos β BL ) M R = n b / 2 Q AR sin α R sin β AR ( r − r b cos β AR ) + n b / 2 Q BR sin α R sin β BR ( r + r b cos β BR )

(19)

where Q_AL, Q_BL and Q_AR, Q_BR denote the normal contact forces at point A and point B in the left and right nuts, respectively. α_R and α_L denote the helix angles in the right and left nuts, respectively. β_AL, β_BL and β_AR, β_BR denote the contact angles at point A and point B in the left and right nuts, respectively.

Experimental procedures

The experimental setup of ball screws is shown in Figure 5. The driving torque of the motor was measured by the torque sensor, which was installed between the motor and the screw. When the preload was applied and the AWL was zero, the EHL test of the ball screws was implemented. The driving torque was measured under different entrainment velocity conditions. The simulated friction torque of ball screws can be written as

M S = n b / 2 F SA ( r − r b cos β A ) + n b / 2 F SB ( r + r b cos β B )

(20)

OPEN IN VIEWER

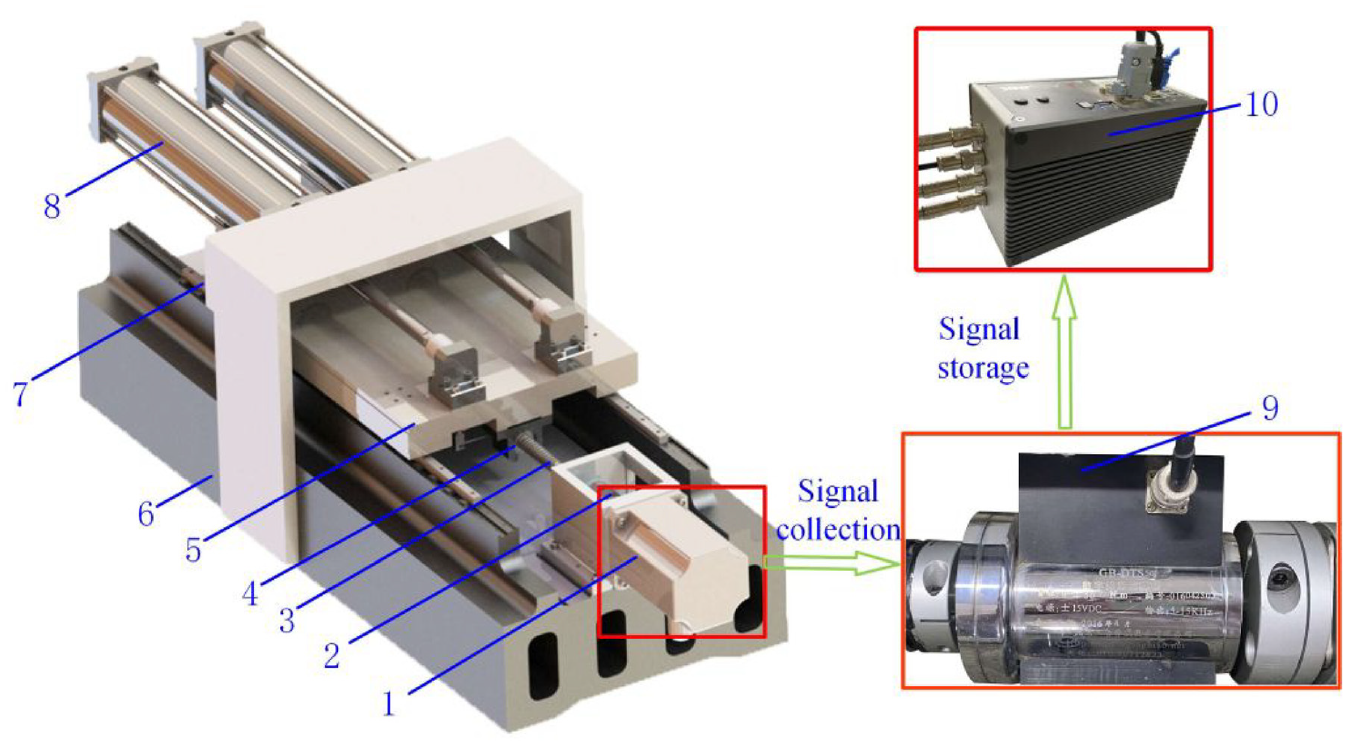

Figure 5.

Experimental setup of ball screws: 1. motor, 2. coupling, 3. screw, 4. nut, 5. table, 6. base, 7. guideway, 8. bidirectional cylinder, 9. torque sensor, and 10. computer.

Experimental results

The friction coefficient ³⁵ of ball screws can be written as

μ = μ a Q a + Q f Q

(21)

∫ ∫ A h τ f ( i , j ) d A h ( i , j ) = Q f

(22)

τ f ( i , j ) = τ 0 arcsin h ( η ( i , j ) Δ u ( i , j ) τ 0 h ( i , j ) )

(23)

where Q is the total normal contact force, including the film bearing force Q_f,, and the asperity bearing force Q_a. The ratio of the asperity bearing pressure is R_CS, R_CS = Q_a/Q. μ_a is the dry friction coefficient and μ_a = 0.1. τ_f is the film shear stress proposed by the Eyring model. ³⁶ A_h is the film hydrodynamic contact area, η is the oil film viscosity, Δu_(i,j) is the inhomogeneous relative sliding velocity distribution, and Δu = u_1(i,j)−u_2(i,j). h₀ is the film central thickness.

The friction coefficient is one of the input parameters of the ball force balance equation (1). The friction coefficient of ball screws calculated by equations (21)–(23) is used to obtain the friction torque of ball screws by equation (1). The initial friction coefficient μ of ball screws in equation (1) is given, which is satisfied with the lubrication operating condition.

The driving torque is equal to the friction torque of ball screws when only the preload is applied. The measured periodic driving torque of ball screws under an entrainment velocity of 837.75 mm/s is shown in Figure 6(a), and the values of driving torque are different in the forward and reverse operating states. Therefore, the measured driving torque was averaged under different entrainment velocities.

OPEN IN VIEWER

Figure 6.

Results of the friction torque test: (a) friction torque measured at 837.75 mm/s and (b) comparison of the simulated and experimental friction torque.

The experimental friction torques of ball screws are measured from multi-group experiments. The error bars of the experimental friction torques under different entrainment velocities are shown in Figure 6(b). The simulated and experimental friction torque decreased first and then increased as the entrainment velocity increased. The simulated friction torque was slightly lower than the experimental friction torque. The maximum error and minimum error between the simulated friction torque and experimental friction torque are 12.8% and 2.6%, respectively. The errors of the friction torque of ball screws meet the actual engineering requirement. Therefore, the experimental results verified the correctness of the elastohydrodynamic contact characteristics.

Analysis of EHL characteristics with a smooth surface

When the preload of ball screws is applied and AWL is zero, the EHL characteristics of oil film with a smooth surface are shown in Figure 7. As shown in Figure 7(a), the central bearing pressure of the film reduces as raised entrainment velocity. The secondary peak of the film bearing pressure is generated in the outlet of the contact region, and its value increases as raised entrainment velocity. Furthermore, the secondary peak is greater than the central bearing pressure when the entrainment velocity is increased to a certain extent. The FT increases as the entrainment velocity in the contact region increases, and the minimum of FT is generated in the second peak of film bearing pressure.

OPEN IN VIEWER

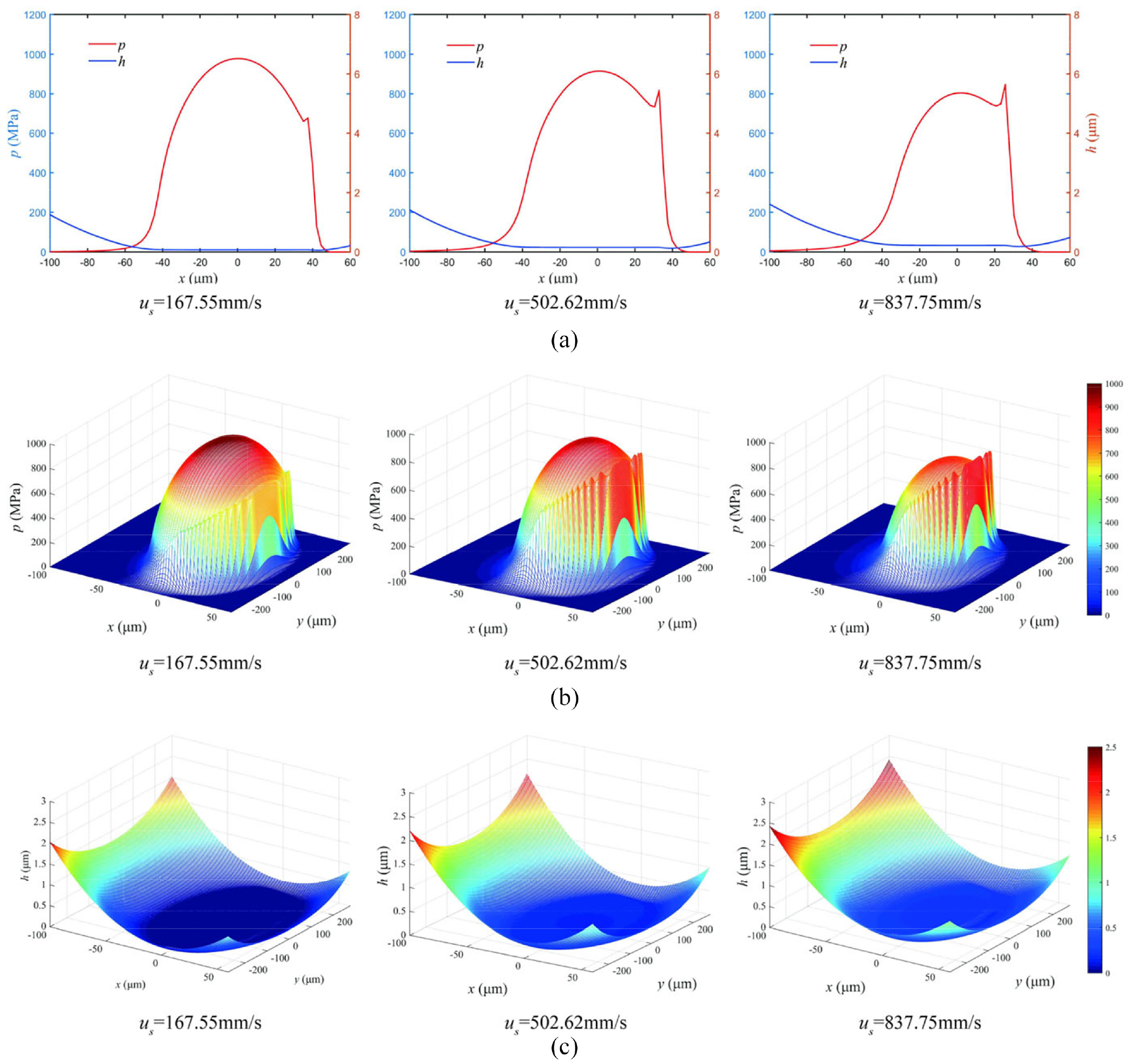

Figure 7.

EHL characteristics of oil film with a smooth surface: Q_A = 27.6N: (a) 2D curves of film bearing pressure and film thickness, (b) 3D distribution of film bearing pressure, and (c) 3D distribution of film thickness.

Figure 7(b) and (c) show the three-dimensional (3-D) distributions of the film bearing pressure and FT.

When the preload and AWL of DNBSs are applied under a constant entrainment velocity, the force states of the left nut and right nut are different, and the elastohydrodynamic film characteristics of the left nut (with a smooth surface) at point A under diverse AWLs are shown in Figure 8. Figure 8(a) shows that the central bearing pressure, secondary bearing pressure peak, and FT increase as the normal contact force increases. Figure 8(b) and (c) show the 3-D distributions of the film bearing pressure and FT.

OPEN IN VIEWER

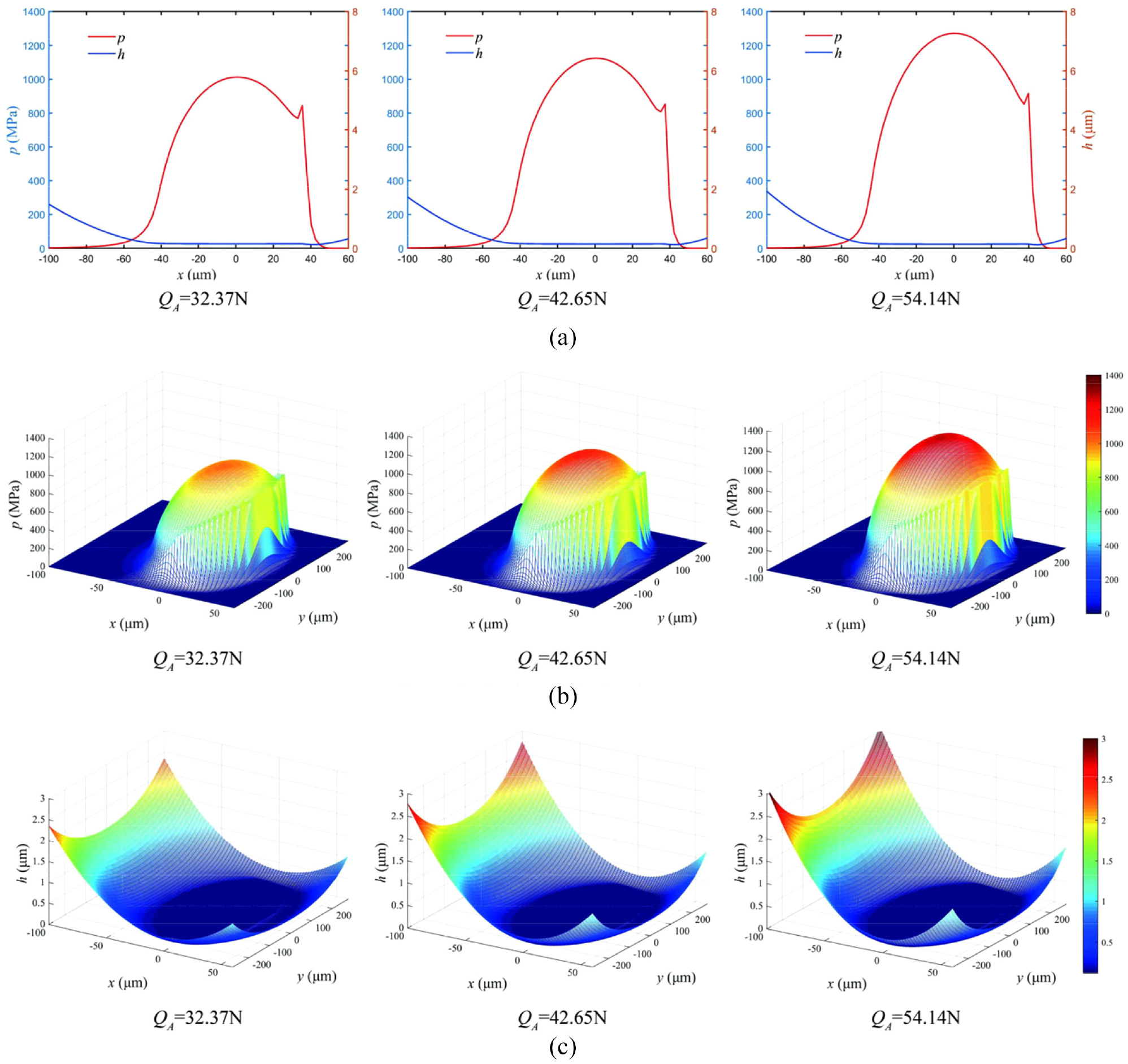

Figure 8.

EHL characteristics of oil film with a smooth surface: μ_e = 502.62 mm/s: (a) 2D curves of film bearing pressure and film thickness, (b) 3D distribution of film bearing pressure, and (c) 3D distribution of film thickness.

Analysis of EHL characteristics with a rough surface

When the preload of ball screws is applied and the axial working load is zero, the EHL characteristics of oil film with a rough surface are shown in Figure 9. Figure 9(a) shows that due to the high asperities of the rough surface, the maximum film bearing pressure on the rough surface is greater than that on the smooth surface. The FT of asperity contact zone is zero, and the area of asperity contact zone decreases as raised entrainment velocity. The reason is that the average film thickness increases as raised entrainment velocity. Other EHL characteristics obtained with the rough surface are the same as those obtained with the smooth surface. The film is punctured by the asperities concentrated in the central contact region because the central contact pressure is higher than that of other contact regions when the normal contact force increases. Figure 9(b) and (c) show the 3-D distributions of the film bearing pressure and FT.

OPEN IN VIEWER

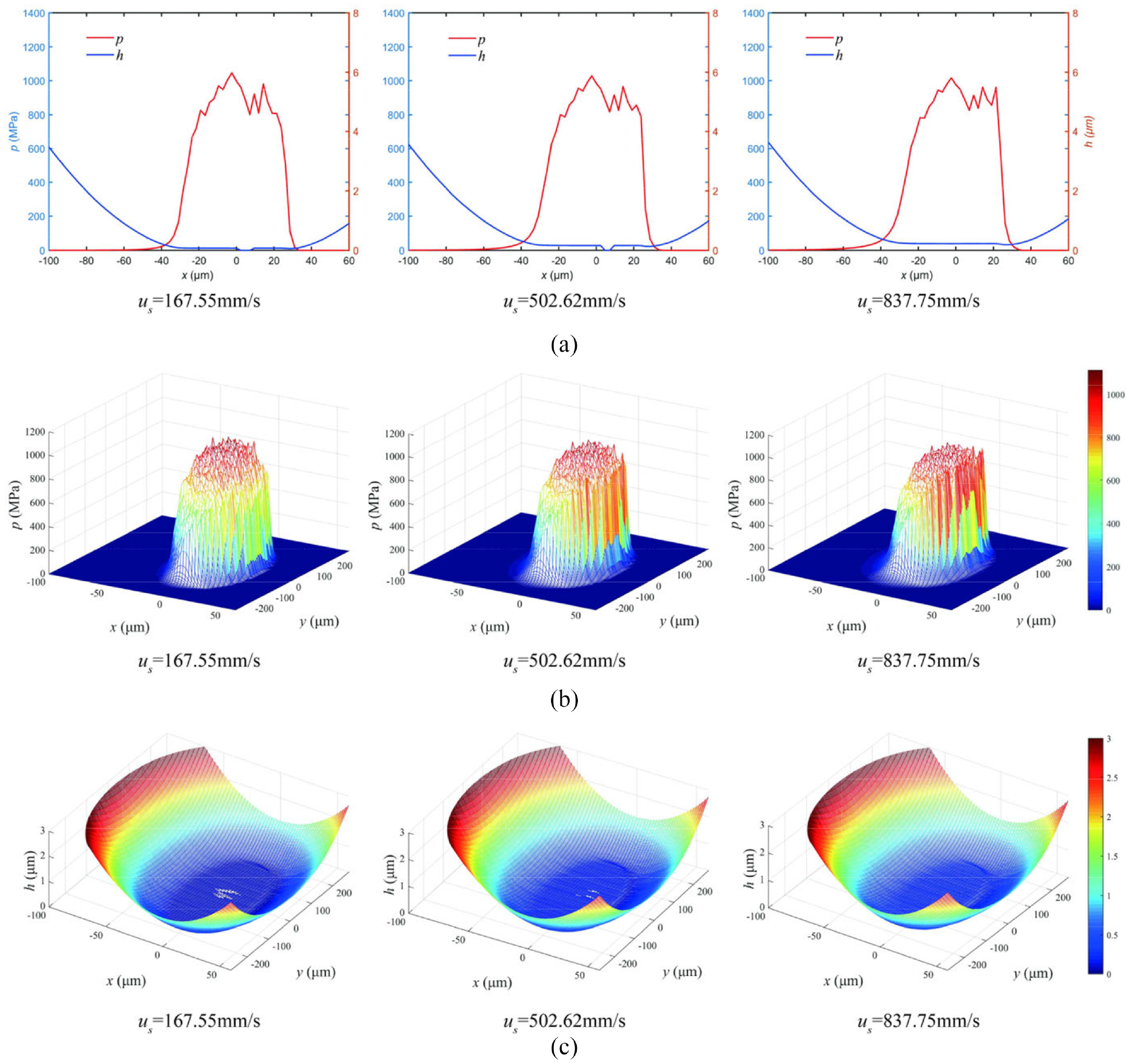

Figure 9.

EHL characteristics of oil film with a rough surface: R_q = 0.12 μm, Q_A = 27.6N: (a) 2D curves of film bearing pressure and film thickness, (b) 3D distribution of film bearing pressure, and (c) 3D distribution of film thickness.

When the preload and AWL of DNBSs are applied under a constant entrainment velocity, the EHL film characteristics of the left nut (with a rough surface) at point A under diverse AWLs are shown in Figure 10. Figure 10(a) shows that the central bearing pressure, secondary bearing pressure peak, and thickness of oil film increase as the normal contact force increases. The asperity zone becomes gradually closer to the center of the contact region, which can be seen clearly from Figure 10(a) and (c). Figure 10(b) and (c) show the 3-D distributions of the film bearing pressure and FT.

OPEN IN VIEWER

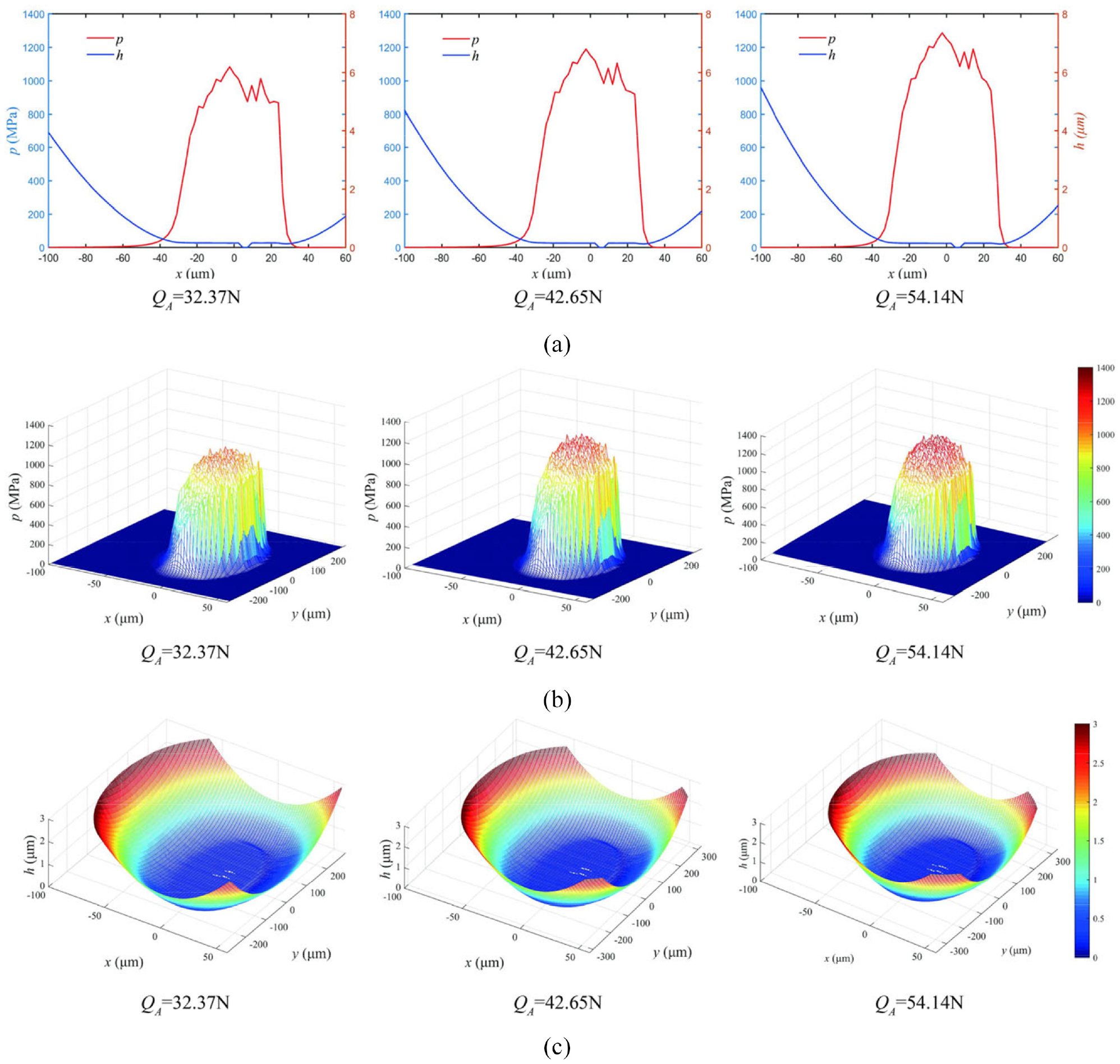

Figure 10.

EHL characteristics of oil film with a rough surface: R_q = 0.12 μm, μ_e = 502.62 mm/s: (a) 2D curves of film bearing pressure and film thickness, (b) 3D distribution of film bearing pressure, and (c) 3D distribution of film thickness.

Analysis of the lubrication status and friction coefficient (FC)

The FC of ball screws is elucidated clearly in Figure 11. As shown in Figure 11(b), the simulated FC of ball screws is indicated by the blue line, which is in good agreement with the schematic Stribeck curve ³⁷ shown in the green box (Figure 11(a)). The simulated FC decreases first and then increases with the entrainment velocity. On the one hand, the asperity FC decreases as raised entrainment velocity. On the other hand, the elastohydrodynamic FC increases as raised entrainment velocity. The reason is that the FT increases with the entrainment velocity shown in Figure 11(c), and more oil is entrained in the contact region. The FT h under 502.65 mm/s is 0.153 μm, and the roughness R_q of the contact surface is 0.12 μm. When h <3R _q , the contact system is in a mixed lubrication status. When h ≥ 3R _q , the hydrodynamic lubrication is generated in the contact system.

OPEN IN VIEWER

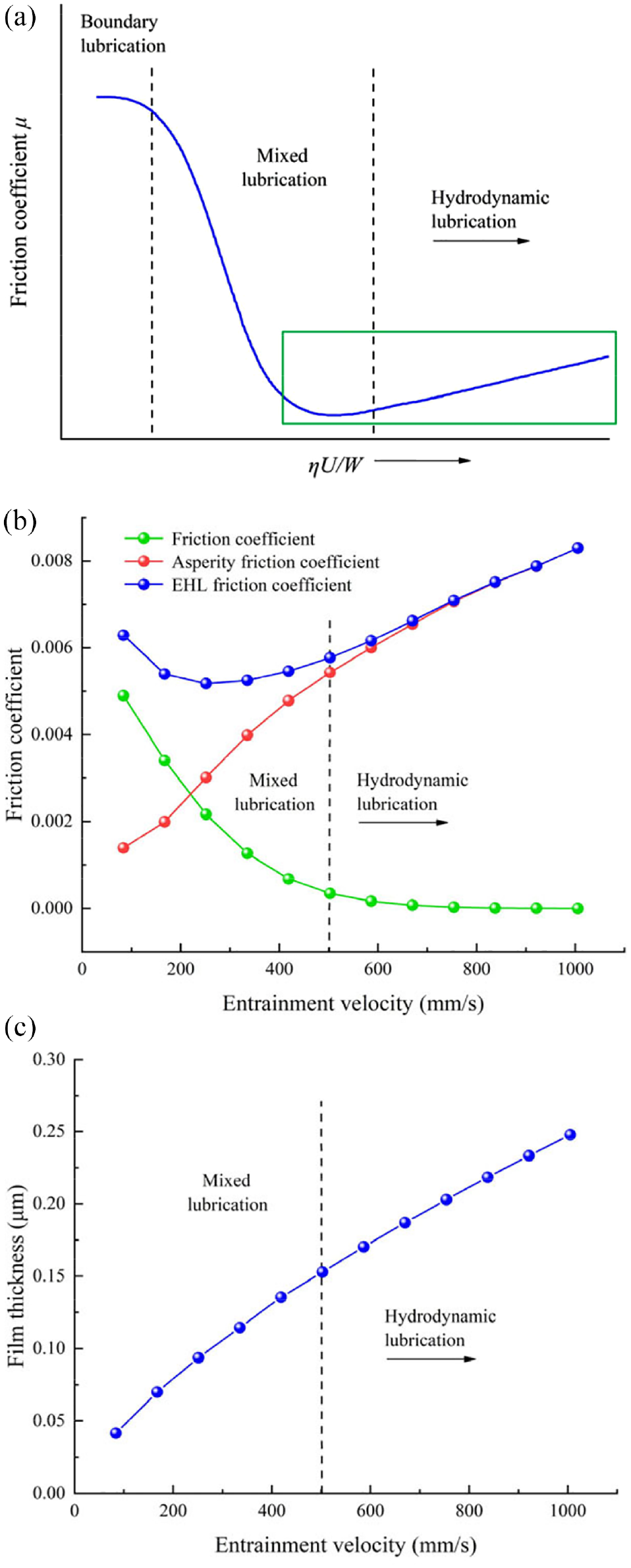

Figure 11.

Friction coefficient curve: (a) a schematic Stribeck curve, (b) friction coefficient curve, and (c) film thickness curve.

Transmission efficiency analysis of DNBSs

The positioning accuracy and lubrication status of machine tools are greatly influenced by the transmission efficiency and ratio of the asperity bearing pressure of ball screws under different operating conditions. Therefore, the optimal operating condition of ball screws is of great reference to the green processing and manufacturing fields. The distributions of the ratio of the asperity bearing pressure and transmission efficiency under different operating conditions of ballscrews are shown in Figure 12. Figure 12(a) shows that the ratio of the asperity bearing pressure R_CS decreases as raised entrainment velocity and increases as raised AWL, respectively. The transmission efficiency of ball screws increases with the rise of entrainment velocity but increases first and then reduces with the rise of AWL, respectively, as shown in Figure 12(b).

OPEN IN VIEWER

Figure 12.

The ratio of the asperity bearing pressure and transmission efficiency of ball screws: (a) the ratio of the asperity bearing pressure, (b) transmission efficiency, and (c) comparison of the transmission efficiency.

The predicated transmission efficiency of the present model is compared with the result predicted by the Pan model, ³⁴ as shown in Figure 12(c). The transmission efficiency calculated by the present model and Pan model both increased with the axial working load. The transmission efficiency determined by the present model is greater than the one predicted by the Pan model. The reason is that the friction coefficient of ball screws calculated by the present model varies with the axial working load, while the friction coefficient of the Pan model is constant. The transmission efficiency calculated by the Pan model cannot reflect the dynamic change of the transmission efficiency. Therefore, the transmission efficiency of ball screws predicted by the proposed model is more accurate.

The lubrication status of ball screws is considered good when the ratio of the asperity bearing pressure is less than 0.01, and the processing efficiency is considered high when the transmission efficiency is greater than 0.85. The optimal operating condition distribution confirming the good lubrication status and high transmission is shown in Figure 13. The operating conditions with R_CS ,  0.01 are indicated in green, with transmission efficiency η_e≥ 0.85 denoted in blue. The optimal operating condition with R_CS ,  0.01 and η_e≥ 0.85 is shown in red. The optimal operating condition of ball screws can reduce energy consumption, save resources, and further aid the sustainable development of the machine manufacturing industry. Besides, the optimal condition of ball screws acts as a reference for the green processing and manufacturing fields.

OPEN IN VIEWER

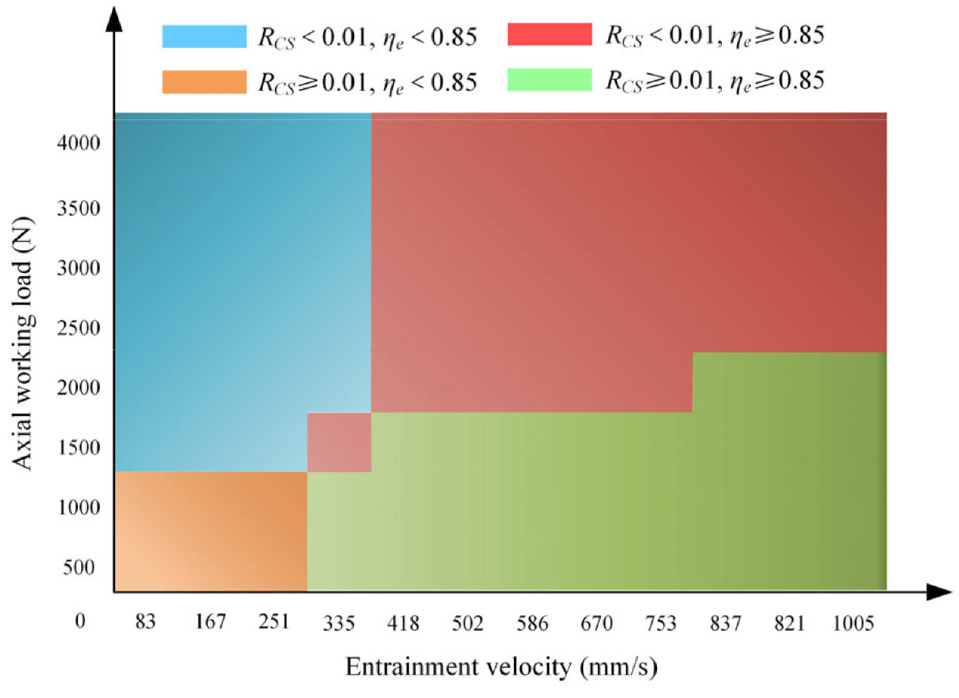

Figure 13.

Optimal operating condition of double-nut ball screws.
