Developing a model for analysis of the cooling loads of a hybrid electric vehicle by using co-simulations of verified submodels

Abstract

The requirement for including the air-conditioning and the battery-cooling loads within the energy efficiency analyses of a hybrid electric vehicle is widely recognized and has promoted system-level simulations and integrated modelling, escalating the challenge of balancing the accuracy and the speed of simulations. In this paper, a hybrid electric vehicle model is created through co-simulation of the passenger cabin, the air conditioning, the battery cooling, and the powertrai. Calibration and verification of the submodels help determine their accuracy in representing the target vehicle and achieve a balance between the model fidelity and the simulation speed. The result is a model which has a higher accuracy and a higher speed than those of similar models developed previously and which provides a reliable tool for a thorough investigation of the cooling loads for different ambient conditions and different duty cycles.

Keywords

Vehicle simulations system-level simulations co-simulations hybrid electric vehicle model energy efficiency of a hybrid electric vehicle cooling load

Introduction

The energy efficiencie of electric vehicles (EVs) and hybrid electric vehicle (HEVs) are arguably the most critical contributor to their acceptability in today’s market. As a result, a significant amount of the research on EVs and HEVs has been motivated by the prospects of a higher energy efficiency. Simulation-based optimisation and model-based optimisation have been key parts of the research, leading to the creation of various simulation tools, such as PSAT,¹ Autonomie,² ADVISOR³ and WARPSTAR.⁴ The majority of these tools are based on MATLAB/Simulink and are traditionally centred on the low-fidelity models of the powertrain subsystem, and crude representations of the energy storage, the power electronics and the auxiliary subsystems. Nonetheless, they fit the purpose and have been widely used in driving-cycle calculations, component sizing and energy management optimisation. The need for considering real-world conditions in the calculations has encouraged system-level simulations of EVs and HEVs, by integration of higher-fidelity models of mechanical,^5,6 electrical^7,8 and thermal⁹ components or subsystems of the vehicle. Developing high-accuracy models is far more practical in specialised tools than it is in MATLAB/Simulink. Therefore, co-simulation methods are becoming increasingly popular in system-level simulations.^10–12 The compromise between higher fidelity but slower models and lower fidelity but faster models still remains and should be addressed according to the specific application of the model and verification against the experimental data.

Of the auxiliary subsystems on HEVs, the electric air conditioning is the most energy demanding and can have a significant impact on the energy efficiency and the performance of the vehicle.^13–16 The largest load on the electric air conditioning is the thermal load of the passenger cabin,¹⁷ but the refrigeration circuit also provides cooling power to the traction battery¹⁸ and this further increases the power demand of the electric air conditioning. As vehicle batteries become more powerful, their cooling load becomes more comparable with that of the cabin.^18–20 The impact of the cooling load of the cabin and the battery on the energy efficiency can be mitigated in various ways,^21–23 but the first step is to quantify the loads and their impact accurately, either by vehicle tests or, much more practically, by a vehicle-level model. This model should represent both the total the instantaneous cooling loads with sufficient accuracy and still fit the requirement of drive cycle simulations, i.e. flexibility and high speed. Determining the appropriate model fidelity for this purpose has been studied by various researchers.^24–28 The present work is focused on developing a representative model of a chosen vehicle that can support calculation of hot ambient cooling loads within drive cycle energy efficiency simulations. Such applications allow little compromise on the simulation speed owing to their time length. However, based on practical considerations, making use of existing tool and co-simulation techniques is preferable. The approach chosen here is to model the electric air-conditioning subsystem of the target vehicle using the AirConditioning Library of Dymola.^29–31 Models of the passenger cabin and the battery-cooling subsystems are also required. These are developed using the open-source Modelica fluid library and are integrated with the electric air-conditioning subsystem model (submodel). The powertrain of the vehicle, is modelled in WARPSTAR, which is based in MATLAB/Simulink. To ensure that the model is representative of the target vehicle, rigorous calibration and experimental verification are carried out at the subsystem level. The vehicle model is then constructed from verified submodels which are co-simulated in Simulink with the help of the Functional Mock-up Interface (FMI) standard.³² Subsystem-level and vehicle-level verifications prove that the model is sufficiently accurate and the simulation speed is sufficiently fast; therefore, the vehicle model is suitable for the intended applications. In fact, as discussed, the achieved levels of accuracy and simulation speed are better than or at least comparable with similar models proposed previously in literature.

The main contribution of this paper is that it introduces a new tool for system-level simulations of hybrid vehicles, while outlining the achieved level of accuracy and the required modelling effort across a range of subsystems. The paper is organised in the following order. The next section introduces the target vehicle and describes the details of the relevant subsystems. The sunbsequent sections explain the submodels and the corresponding verification approach. Then, the model integration and co-simulation process as well as verification of the vehicle-level energy efficiency calculations are outlined. Finally, the scope of the follow-on work and a summary of the current research results are presented.

The target vehicle

A simplified illustration of the subsystems of the target vehicle is given in Figure 1. This vehicle has an all-wheel-drive parallel hybrid electric powertrain in which a 140 kW diesel engine is coupled to the driveline via a clutch, and a 35 kW electric machine is integrated within the transmission pre-gearbox. The battery pack has 72 cylindrical cells, each with 6.7 A h capacity, which are organised in six modules. The electrical architecture of the pack is 72S1P (72 cells in series).

Figure 1.

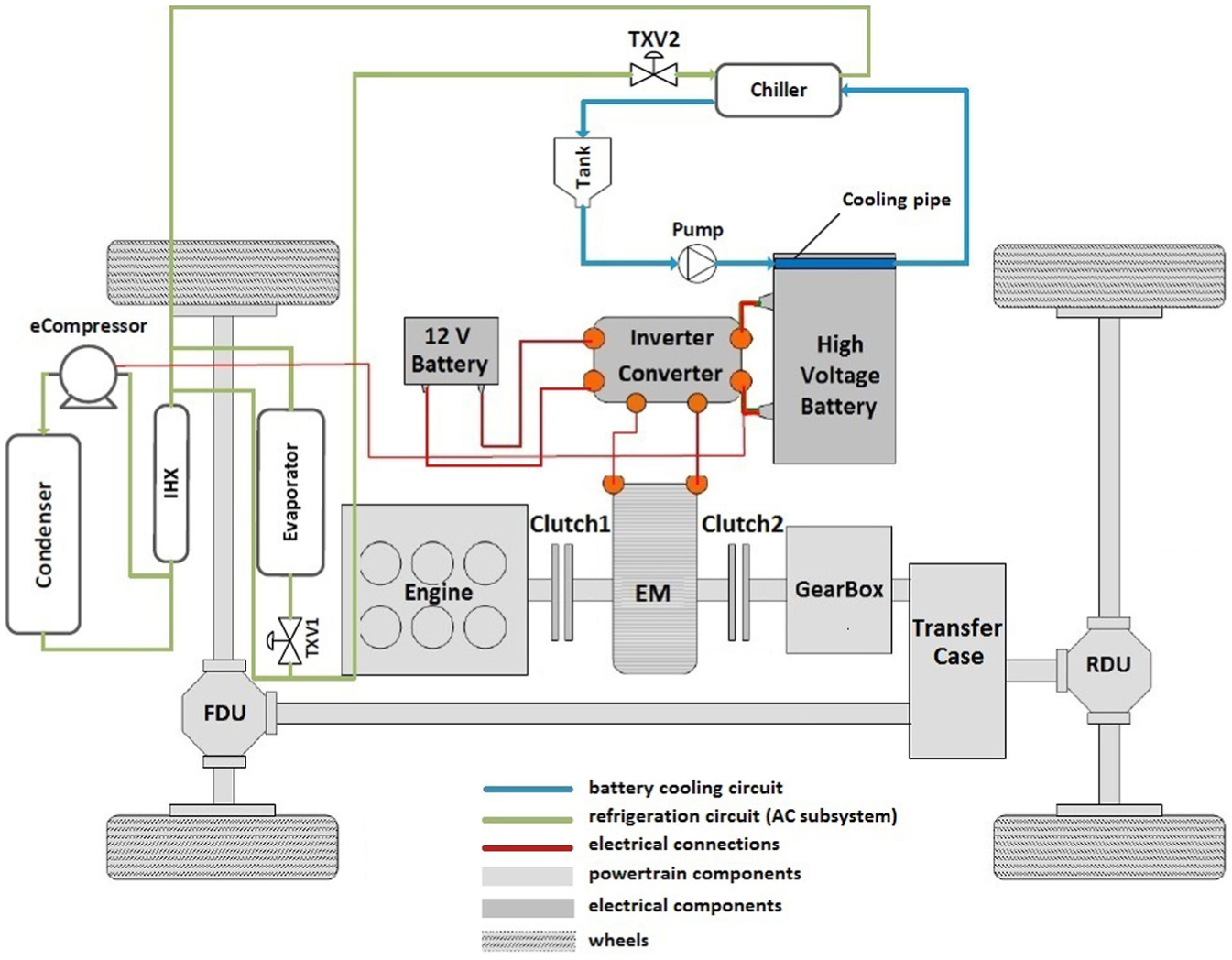

Vehicle subsystems.

Other subsystems of the vehicle which are of interest are the battery cooling, the electric air conditioning and the passenger cabin. As seen in Figure 1, the battery-cooling circuit includes a pump, an expansion tank and a cooling pipe and is integrated into the refrigeration circuit of the electric air-conditioning subsystem using a refrigerant–coolant heat exchanger (a chiller). The electric air-conditioning subsystem is composed of a refrigeration circuit and air-handling units. The refrigeration circuit, seen in Figure 1, is composed of a 33 cm³ constant-displacement variable-speed electric compressor, two air–refrigerant heat exchangers (an evaporator core and an integrated condenser–subcooler core), an internal refrigerant–refrigerant heat exchanger (IHX), as well as the chiller. The dimensions and the power ratings of the heat exchanger cores are given in Table 1. Two thermostatic expansion valves (TXVs) with integrated shut-off regulate the superheat and the allocation of cooling power to the evaporator and the chiller.

Table 1.

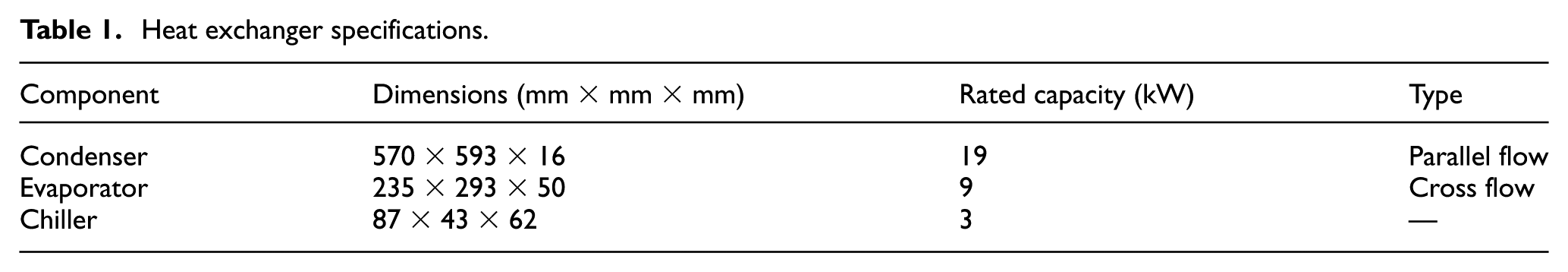

Heat exchanger specifications.

Component	Dimensions (mm × mm × mm)	Rated capacity (kW)	Type
Condenser	570 × 593 × 16	19	Parallel flow
Evaporator	235 × 293 × 50	9	Cross flow
Chiller	87 × 43 × 62	3	—

The passenger cabin in this vehicle (not shown in Figure 1) is approximately 2900 mm long and 1700 mm wide, with a shell made of 4.2 m² of glass (i.e. the windscreen, side windows, rear window, etc.) and 5.2 m² of wall segments (i.e. doors, side posts and the roof). A model is developed for each of the above vehicle subsystems, and the modelling and verification processes are detailed in the following sections.

The cabin subsystem

Vehicle cabin models are often developed and used for a variety of purposes, such as calculating the thermal loads,^33–35 designing the ventilation systems^36,37 and understanding the localised thermal conditions experienced by passengers;^38–41 therefore, such models have various degrees of fidelity and complexity. When the primary aim is to calculate the overall thermal conditions of the cabin, lengthy simulations can be avoided by using lumped-parameter models which neglect the spatial distribution of temperature and the irregularity of materials within the cabin. The cabin model developed in the current work is based on this approach.

Modelling the cabin

In contrast with the majority of the lumped-parameter models proposed previously which use the orientation of the shell to calculate the solar heat gain,^35,42,43 we assume the significantly simpler geometry in Figure 2, in which the glass and walls forming the cabin shell are modelled as lumped horizontal blocks with areas equal to the total area of glass or wall segments in the cabin shell, and their material properties and temperatures are averaged around the cabin.

Figure 2.

Geometry assumed by the model.

The cabin air is represented by a lumped air volume with ideal mixing as proposed previously^35,41,42,44 and thermal interactions with the shell and the interiors. In addition to the mass transfer due to ventilation and leakage, the major heat flows that affect the thermal conditions of the vehicle cabin are the solar irradiance, the convection between the shell and the ambient air, the conduction through the shell, the convection between the cabin air and the shell, the convection between the cabin air and the interior, the radiation from the glass and the interior, as well as the heat rejection from passengers. Possible thermal interactions with the engine compartment were ignored. It is also assumed that the heat transfer through the floor is limited to that from the battery.

The thermal interactions of the cabin are modelled by using first principles; however, to compensate for the simplifications in the cabin geometry, a number of shape factors are considered which are identified by calibration with the test results. For example, the solar irradiance absorbed by the cabin glass is modelled as

{\overset{\cdot}{Q}}_{g, abs}^{irr} = k 1_{g}^{irr} α_{g} SI A_{g}

(1)

where $k 1_{g}^{irr}$ is the shape factor included to account for the variability in the inclination, the curvature and the coatings of the different glass surfaces. A similar model is considered for the irradiance absorbed by the walls. The solar irradiance transmitted through the glass is consequently calculated as

{\overset{\cdot}{Q}}_{g, tr}^{irr} = k 1_{g}^{irr} τ_{g} SI A_{g}

(2)

where SI is the solar irradiance. Although a large part of the transmitted component of the solar irradiance is absorbed by the interior, some part of it can continue to exit the cabin environment. Therefore, to approximate the total transmitted irradiance incident that affects the interior of the cabin, equation (2) is modified by a correction factor $k 2_{int}^{irr}$ to give

{\overset{\cdot}{Q}}_{int, abs}^{irr} = k 2_{int}^{irr} (k 2_{g}^{irr} τ_{g} SI A_{g})

(3)

In modelling the interior of the cabin (seats, dashboard, floor and wall carpets, etc.), two separate heat capacities are used. This is to account for the fact that the upper parts of the interior are more exposed to the solar irradiance and can reach significantly higher temperatures. The total heat capacity and surface area of the interior was then split between the upper interior and the lower interior.

The heat transfer to the air enclosed in the cabin occurs primarily by convection. In modelling the convection between the cabin air and the interior, an average heat transfer coefficient as a function of the interior air flow was used, on the basis of the method proposed by Nielsen et al.³³ and Zhang et al.³⁶ Once the total heat flow to cabin air is calculated, the net internal energy of the cabin air can be calculated from the first law of thermodynamics on the assumption that air enters and exits the cabin at the same flow rate. The above approach leads to a total of four unknown parameters (the split between the heat capacities of the lower interior and the upper interior, in addition to three shape factors) that should be calibrated to complete the description of the required thermal interactions.

Calibration and verification

To calibrate the cabin model, the data obtained from pull-down tests and hot-soak tests of the target vehicle in a climatic chamber are used. These tests are part of the standard procedure for evaluating mobile air-conditioning systems.^39,45 The aim of the pull-down test is to determine the time and the energy required to cool the cabin in hot climate conditions. Typically, the vehicle is placed in the climatic chamber for 3 h in the conditions given in Table 2. The air-conditioning system is switched on at the maximum power, and the vehicle is driven over a purpose-built driving cycle. With the assumed conditions, a complete pull-down test of the target vehicle from 60 °C to 24 °C takes about 4300 s (approximately 1 h 12 min). The aim of the hot-soak test is to determine the maximum temperature experienced inside the cabin in an extremely hot climate; thus, the vehicle is placed in the climatic chamber until saturation temperatures are reached. The air temperature and the flow rate, as well as the temperatures of the shell and the interior, were measured at various points.

Table 2.

Climate chamber conditions for pull-down and hot-soak tests.

Air temperature (°C)	Solar irradiance (W/m²⁾	Relative humidity (%)	Windows
43	850	60%	Closed

The pull-down tests and the hot-soak tests were simulated with the ambient conditions, the irradiance, the vehicle speed, the air flow rate and the average vent temperatures as the boundary conditions, and the calibration factors were determined through linear regression.

Using the calibrated model, a new pull-down and hot soak test was simulated to verify the model. The measured and simulated cabin air temperatures are compared in Figure 3. It can be seen that very close correlation was achieved, which verifies the suitability of the model for predicting the cabin air temperature in both the cooling scenario and the warming scenario.

Figure 3.

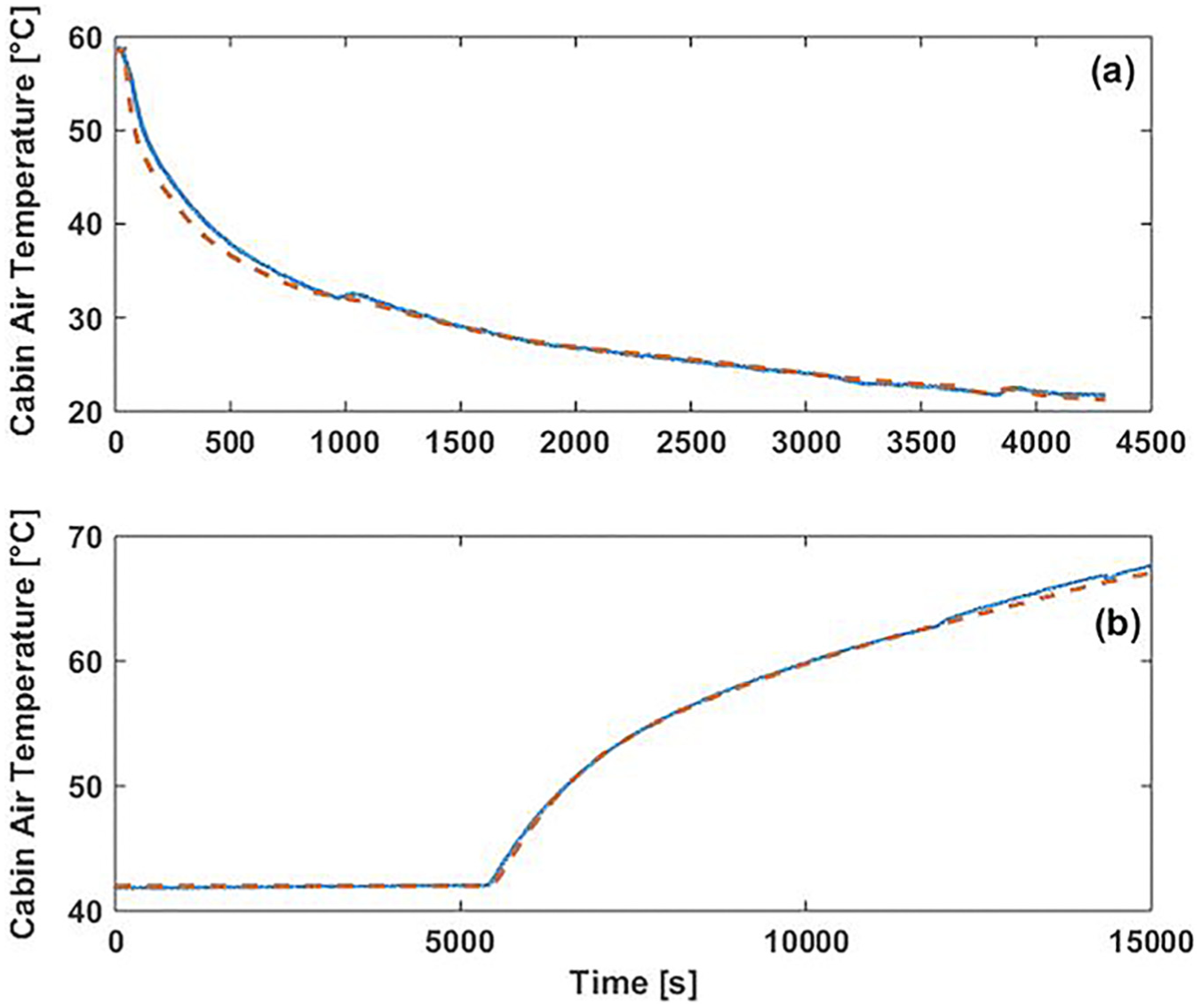

Verification of the cabin model against (a) pull-down tests and (b) hot-soak tests: solid curves, test results: dashed curves, simulation results.

Battery-cooling subsystem

As shown in Figure 4, the thermal model of the battery is represented by a heat capacity with thermal interaction with the coolant within the cooling pipe and the ambient air. This model does not distinguish between individual cell temperatures.

Figure 4.

Layout of the battery-cooling circuit.

The heat balance equation of the battery in this model is

{\overset{\cdot}{Q}}_{amb} + {\overset{\cdot}{Q}}_{cabin} + {\overset{\cdot}{Q}}_{clnt} + {\overset{\cdot}{Q}}_{gen} - C_{batt} \frac{d T_{batt}}{d t} = 0

(4)

in which the heat transfer between the battery and its ambient is given by

{\overset{\cdot}{Q}}_{amb} = \frac{T_{amb} - T_{batt}}{R_{amb}}

(5)

the heat transfer between the battery and the interior of the cabin is given by

{\overset{\cdot}{Q}}_{cabin} = \frac{T_{cabin, int} - T_{batt}}{R_{cabin}}

(6)

and the heat transfer to the coolant is given by

\begin{matrix} {\overset{\cdot}{Q}}_{clnt} = \frac{Δ T_{\ln}}{{\bar{R}}_{clnt}} \\ = {\overset{\cdot}{m}}_{clnt} c_{clnt} (T_{clnt, out} - T_{clnt, in}) \end{matrix}

(7)

where ΔT_ln is the logarithmic average of the temperature between the battery and the coolant along the length of the cooling pipe. Heat generation within the battery is associated solely with Joule heating⁴⁶ in this model because other mechanisms of heat generation have little significance for traction batteries and were therefore neglected.⁴⁷ A list of key parameters of the battery-cooling subsystem is given in Table 3. Verification of the model is carried out in conjunction with the air-conditioning subsystem model in the following section.

Table 3.

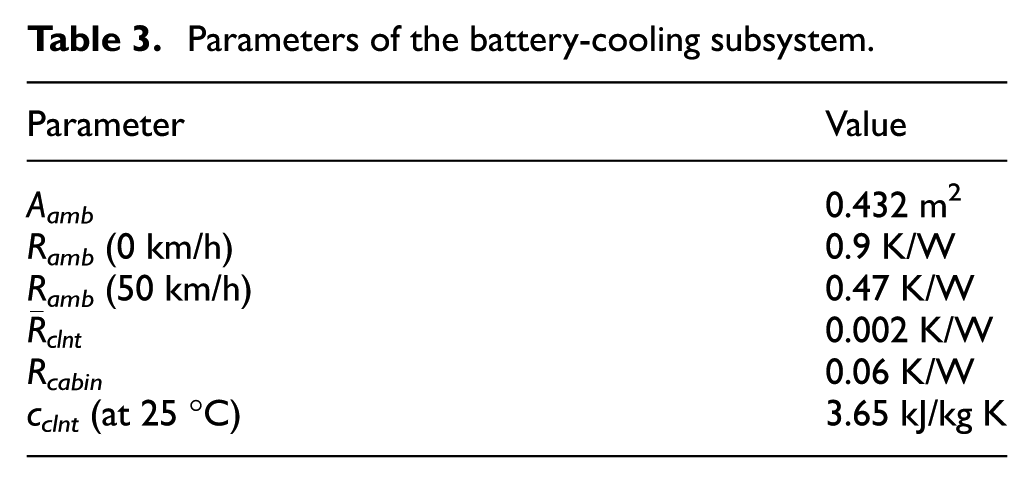

Parameters of the battery-cooling subsystem.

Parameter	Value
A_amb	0.432 m²
R_amb (0 km/h)	0.9 K/W
R_amb (50 km/h)	0.47 K/W
${\bar{R}}_{clnt}$	0.002 K/W
R_cabin	0.06 K/W
c_clnt (at 25 °C)	3.65 kJ/kg K

Air-conditioning subsystem

The air-handling unit of the air-conditioning subsystems include the ducts, the vents, the evaporator blower, the condenser (radiator) fan and the air heater. These components were briefly modelled as follows. The air ducts are modelled as frictionless pipes and volumes. The evaporator blower was modelled by implementing the blower characteristic curve as a look-up table. The condenser fan was modelled similarly; however, the total condenser air flow was implemented as a function of the vehicle speed. Also, an ideal air heater model is used to allow reheating of the air stream which exits the evaporator. The rest of this section covers the model developed for the refrigeration circuit of the air-conditioning subsystem.

Modelling the refrigeration circuit

The layout of the refrigeration circuit is shown in Figure 5. Various specialised tools^{29,30,44,48–50} exist for modelling the refrigeration cycles which facilitate the implementation and solution of the equations that describe the thermodynamics of refrigeration. In the present work, the Dymola AirConditioning Library is used, because, despite the fact that it uses a one-dimensional model, it has been shown to represent the steady-state behaviour and transient behaviour of the electric air conditioning with sufficient accuracy. It is beyond the scope of this paper to discuss the refrigeration circuit models in detail. A full explanation can be found in the work by Shojaei et al.,²² Eborn⁵¹ and Tummescheit.⁵² For completeness, a summary of the key attributes pertinent to the problem under investigation are provided for reference, with emphasis on the heat exchangers because of their higher complexity.

Figure 5.

Layout of the refrigeration cycle.

Heat exchangers

Basic models of typical heat exchangers similar to those used in the refrigeration circuit in Figure 5 are available in the simulation tool. These models are developed based on the (staggered) control volume approach.^52,53 To customise the existing models for specific components of interest, the constitutive equations (the relationships for the pressure drop and the heat transfer) should be defined through parameterisation and calibration of the models. This process is detailed below as it is key to achieving an accurate calculation of the cooling power available to the cabin and the battery.

For the air–refrigerant heat exchanges (condenser and the evaporator in Figure 5), the air-side heat transfer model and the refrigerant-side heat transfer model are implemented in the general forms

{\overset{\cdot}{Q}}_{aw} = {\bar{h}}_{aw} A_{aw} (T_{air} - T_{w})

(8)

and

{\overset{\cdot}{Q}}_{wr} = {\bar{h}}_{wr} A_{wr} (T_{w} - T_{r})

(9)

respectively, where A_aw and A_wr are the heat transfer areas which can be defined by using the parameterising geometries. In this work, the heat exchanger geometries were accurately defined using a combination of manufacturer drawings and component measurements. ${\bar{h}}_{aw}$ and ${\bar{h}}_{wr}$ are functions of the Nusselt number Nu, the fluid properties and the heat exchanger geometry. Once the geometries are known, the Nusselt number is the only unknown but it can be determined using empirical models and calibration. It was assumed here that the heat flux on the air side of the heat exchanger is the limiting factor. Therefore, for the refrigerant-side heat transfer, the Nusselt number is assumed to be consistent with the Dittus–Boelter model⁵⁴ and is given by

Nu = 0.023 R e^{4 / 5} P r^{n}

(10)

where the exponent n = $0.3$ for heat absorption (evaporator) and n = 0.4 for heat rejection (condenser). For the air-side heat transfer, the Nusselt number was implemented in the general form (see equation (7-1) in the book by Incropera⁵⁴)

Nu = C_{1} R e^{C_{2}} P r^{n}

(11)

where the coefficients C₁ and C₂ can be calibrated from the experimental data. A set of component characterisation data was available for this purpose, in which the cooling power of the heat exchanger is calculated in steady-state conditions. The characterisation procedure is briefly as follows. The refrigerant enters the heat exchanger at a specified pressure and subcooled conditions and exists at the pressure set on the heat exchanger outlet. A stream of air at a specified temperature and humidity is blown on to the heat exchanger and is cooled or heated as it exits. The mass flow rate of the refrigerant is adjusted to achieve the required superheat for any air flow rate, and the resulting cooling power is measured. Simulating the component models with the boundary conditions of the test, the corresponding Reynolds number and the corresponding Nusselt number can be calculated from the flow conditions and the calculated cooling power. The coefficients C₁ and C₂ in equation (12) were then found by linear regression over a number of the available measurement points and replaced in the models. The models were then verified by comparing the simulations and the test results for the remaining measurement points. As Figure 6 shows, this process resulted in an accuracy of ±5%, which is acceptable for the purpose of this model.

Figure 6.

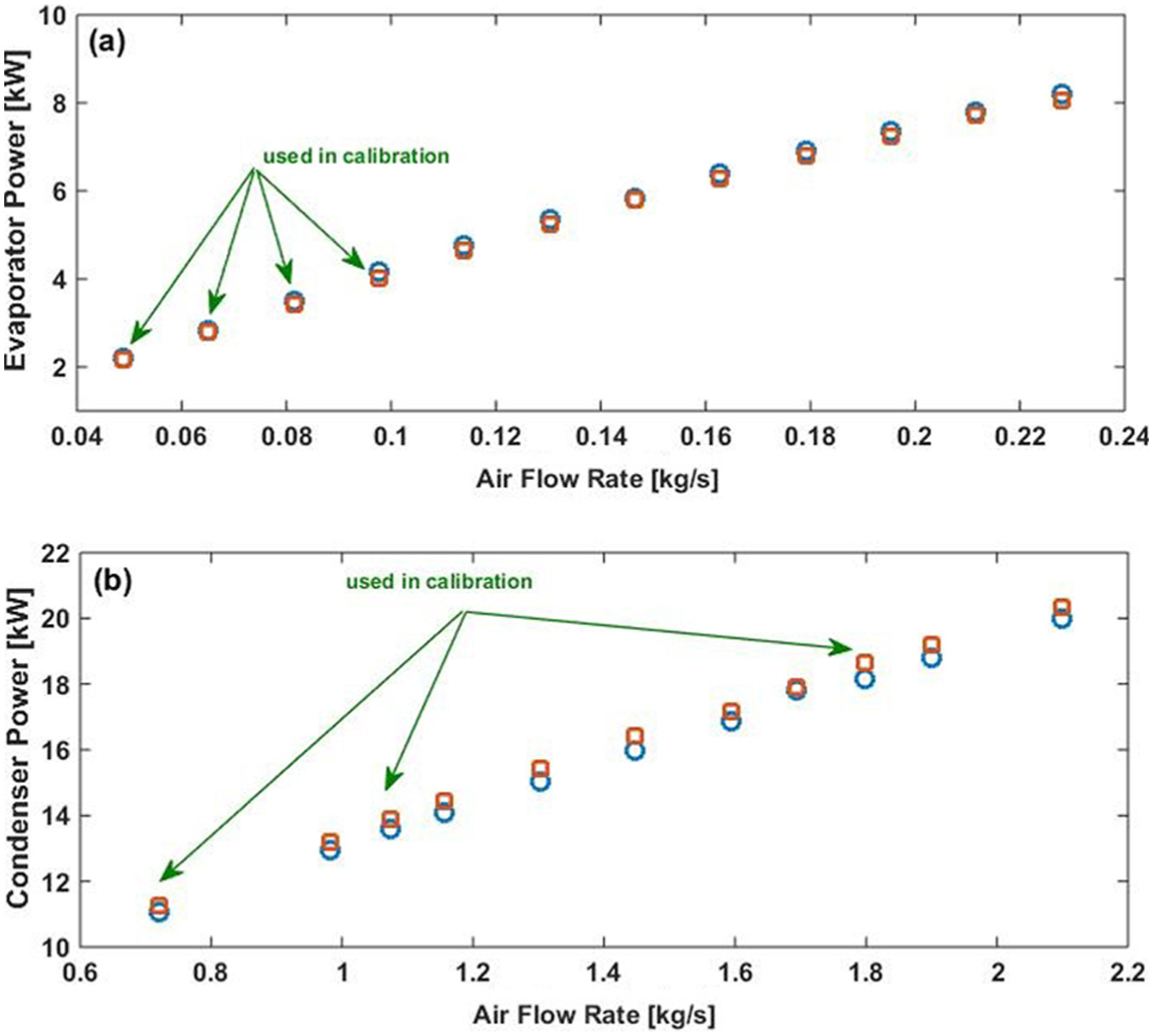

Calibration and verification of heat transfer models in the air–refrigerant heat exchangers showing (a) the evaporator power and (b) the condenser power: open circles, test results; open squares, simulation results.

The customisation process for the liquid–liquid heat exchangers (the IHX and the battery chiller in Figure 5) is fundamentally similar to that explained above: defining the geometries and calibrating the heat transfer models. For the refrigerant side of the chiller the Dittus–Boelter correlation (equation (11)) is used. For the IHX, since the flow is single phase, empirical correlations for single-phase flows in circular pipes are used.⁵⁵ To compensate for the geometric incompatibilities, a correction factor was assumed, leading to

{\bar{h}}_{corrected} = k \bar{h}

(12)

where $\bar{h}$ is the heat transfer coefficient given by empirical correlations and the correction factor k = 0.90 was defined by calibration. The resulting heat flows are plotted against the measured data in Figure 7 and show that close correlations were achieved.

Figure 7.

Calibration and verification of the heat transfer models in the internal flow heat exchangers: (a) the IHX; (b) the chiller.

A similar calibration and verification approach was employed to define the pressure loss models of the heat exchangers. In the interest of brevity, this process is not discussed further in this work.

Mass flow devices

The compressor and the valves of the circuit of Figure 5 are modelled by simple algebraic equations, since their dynamics are much faster than the average dynamics of refrigeration.⁵⁶ The compressor is modelled by describing the ideal mass flow rate of the refrigerant as a function of the rotational speed, the displacement and the volumetric efficiency, on the assumption of adiabatic compression. The isentropic efficiency map of the compressor is then required to correct the enthalpy values. The efficiency maps were extracted from the component data sheets for the purpose of this work. The electrical efficiency of the compressor was assumed to be 85% independent of its voltage. On the other hand, valve models consist of a volume and a simple pressure loss model with a variable flow coefficient. In the TXV models, the flow coefficient is controlled by a proportional–integral (PI) controller which mimics the behaviour of the mechanical components of the valve.

Steady-state verification of the refrigeration circuit

After the full circuit model in Figure 5 was constructed from the above components, verification at the circuit level was desirable. Steady-state characterisation of the vehicle’s refrigeration circuit was carried out on a test rig at nine test points, and the data set was used to verify the model. The verification results plotted in Figure 8 imply good correlation. The errors in the simulated chiller temperatures and simulated evaporator temperatures in Figure 8(b) and Figure 8(c) respectively are less than 3 °C. Also the refrigerant pressures on both the high-pressure side and the low-pressure side were predicted with ±1.5 bar error. These results imply an accuracy which is similar to or better than those given by the models of equivalent fidelity proposed by Huang et al.,²⁴ Kiss et al.⁴⁴ and Braun et al.⁵¹ Transient verification of the model is discussed in the following section.

Figure 8.

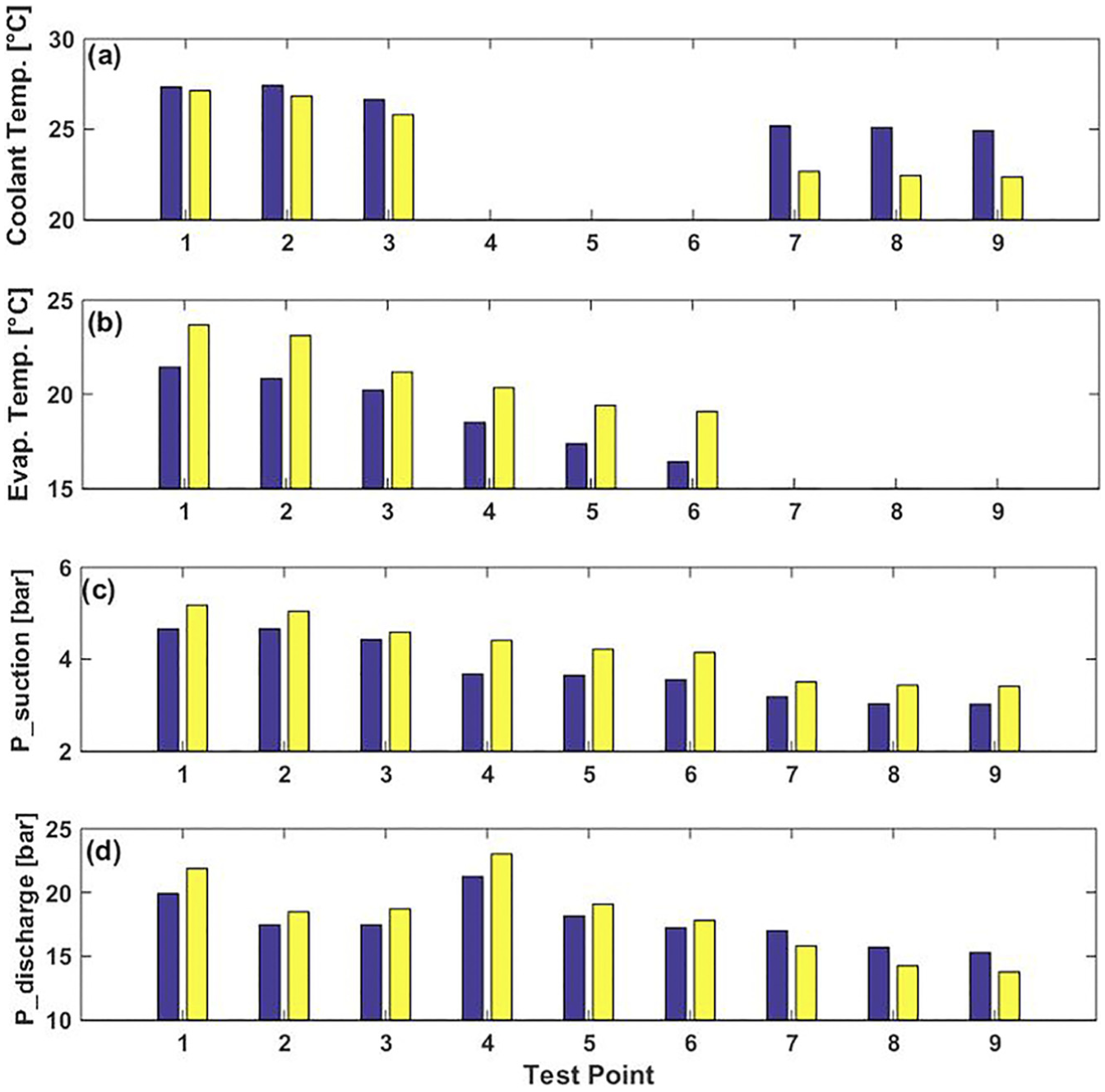

Verification of the refrigeration circuit model against the test rig measurement for (a) the coolant temperature at the chiller outlet, (b) the average evaporator air temperature, (c) the suction pressure and (d) the discharge pressure: black bars, test results: light bars, simulation results. For test points 1 to 3, both the evaporator and the chiller are in the circuit; for test points 4 to 6, only the evaporator is present in the circuit (the chiller is isolated); for test points 7 to 9, only the chiller is present in the circuit (the evaporator is isolated).

Transient verification of the refrigeration circuit and the battery-cooling circuit

For transient verification of the refrigeration circuit, the vehicle was tested in a climatic chamber at 43 °C. The refrigeration circuit and the battery-cooling circuit were instrumented. Here, as seen in Figure 9, the refrigeration circuit model and the battery-cooling circuit model are integrated. The battery average temperature, the TXV2 flag, the evaporator inlet air temperature and the compressor velocity are used as inputs. The condenser air flow rate is calculated from the vehicle speed, and the evaporator air flow is known from the fan specifications.

Figure 9.

Integrated refrigeration and coolant circuits as assumed for transient verification.

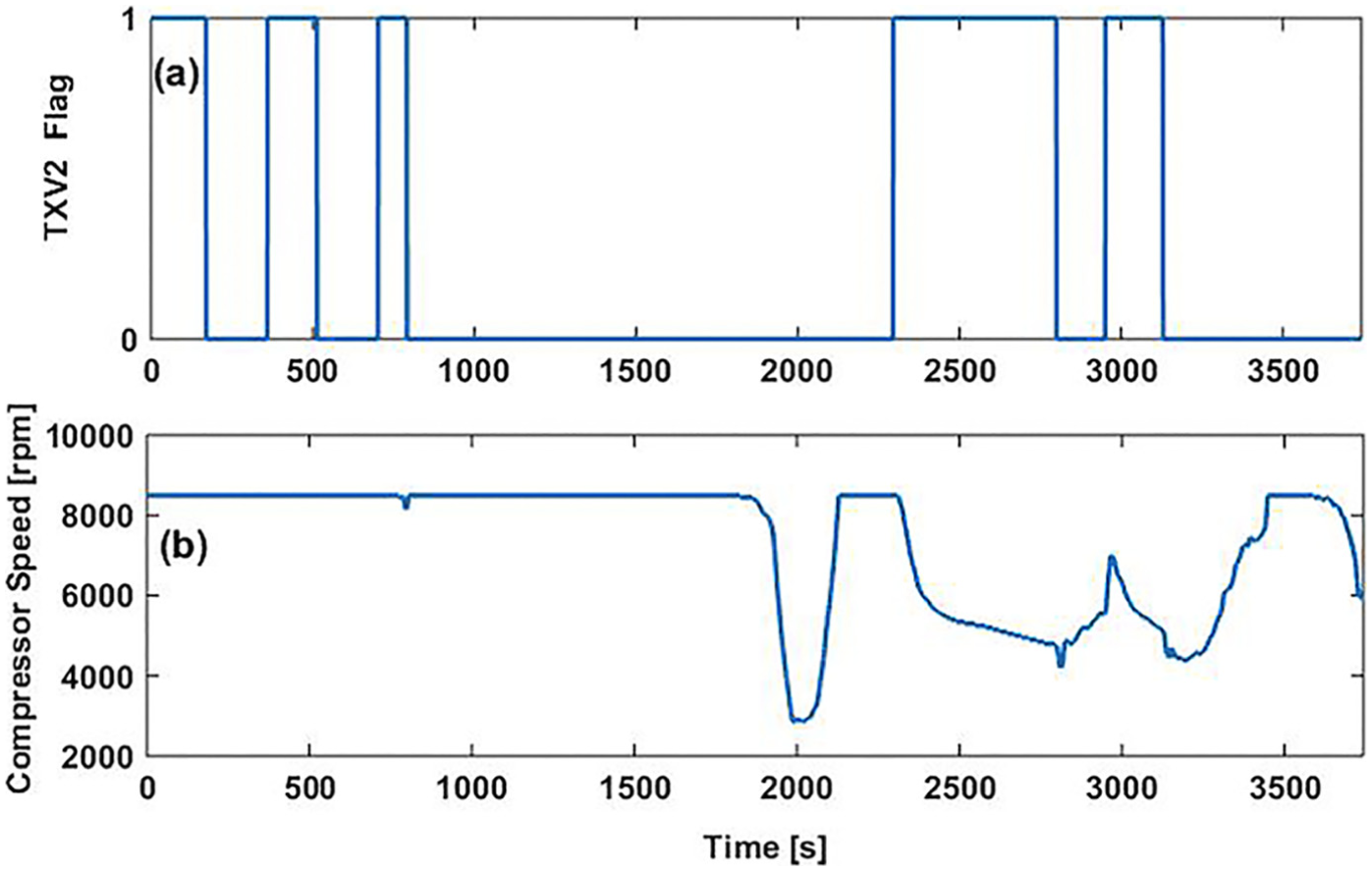

Figure 10 shows the on–off flag of the battery chiller TXV (TXV 2) and the compressor speed, which are the control signals and have the highest transients compared with the other inputs to the models.

Figure 10.

Control signals used as the inputs to the model in the verification process: (a) flag signal of TXV 2; (b) the compressor velocity.

In Figure 11 the simulated temperatures and the measured temperatures of the average evaporator air-off, the coolant at the battery inlet and the average condenser air-off are compared. As the figure shows, the model represents all the major system dynamics with an absolute error of less than 4 °C. A possible reason behind this inaccuracy is that the presence of lubrication oil in the refrigeration circuit and its potential impact on the heat transfer properties of the refrigerant are neglected.

Figure 11.

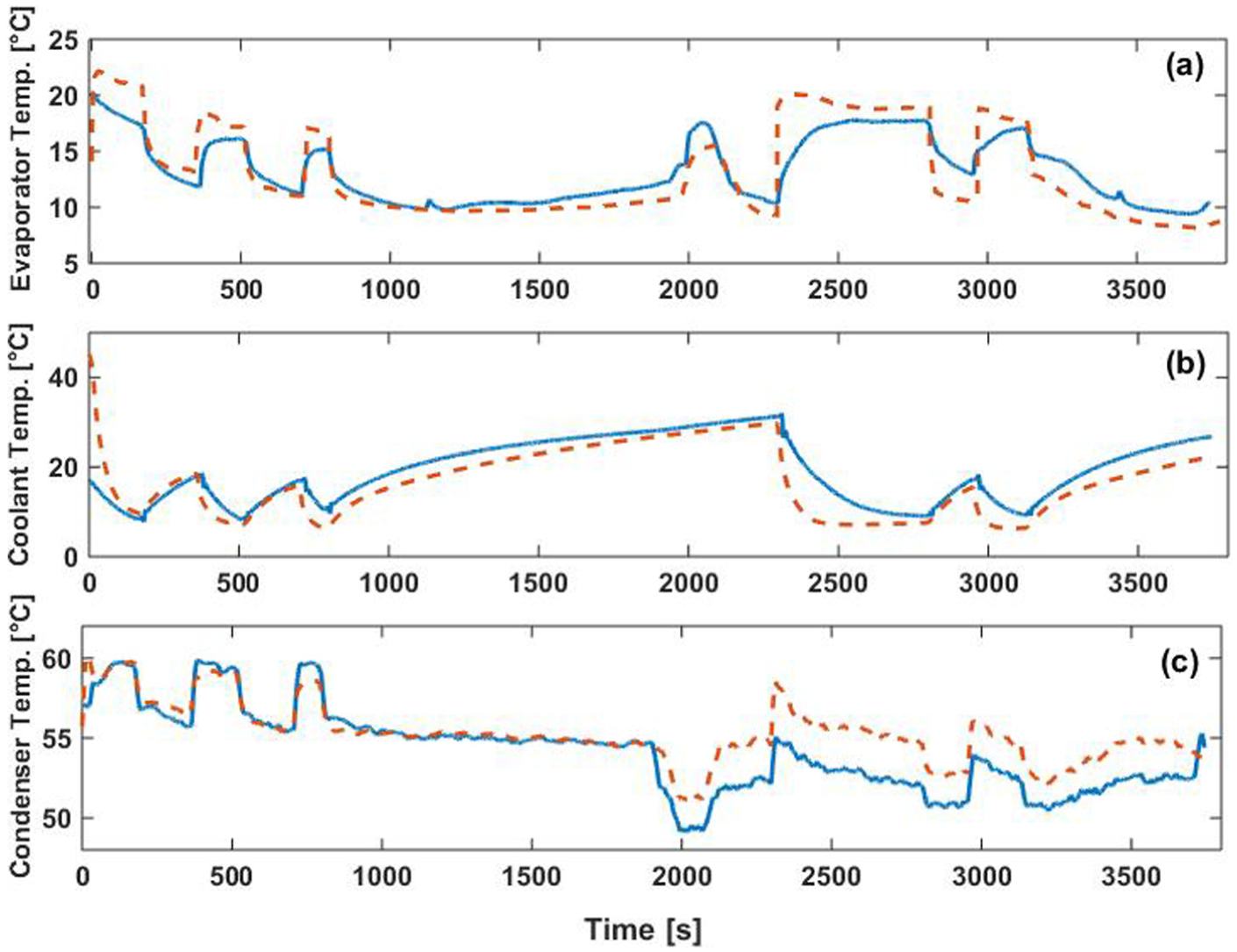

Verification results of the integrated refrigeration and battery-cooling circuit model against the transient vehicle data for (a) the average evaporator (air) temperature, (b) the coolant temperature and (c) the condenser temperature: solid curves, test results; dashed curves, simulation results.

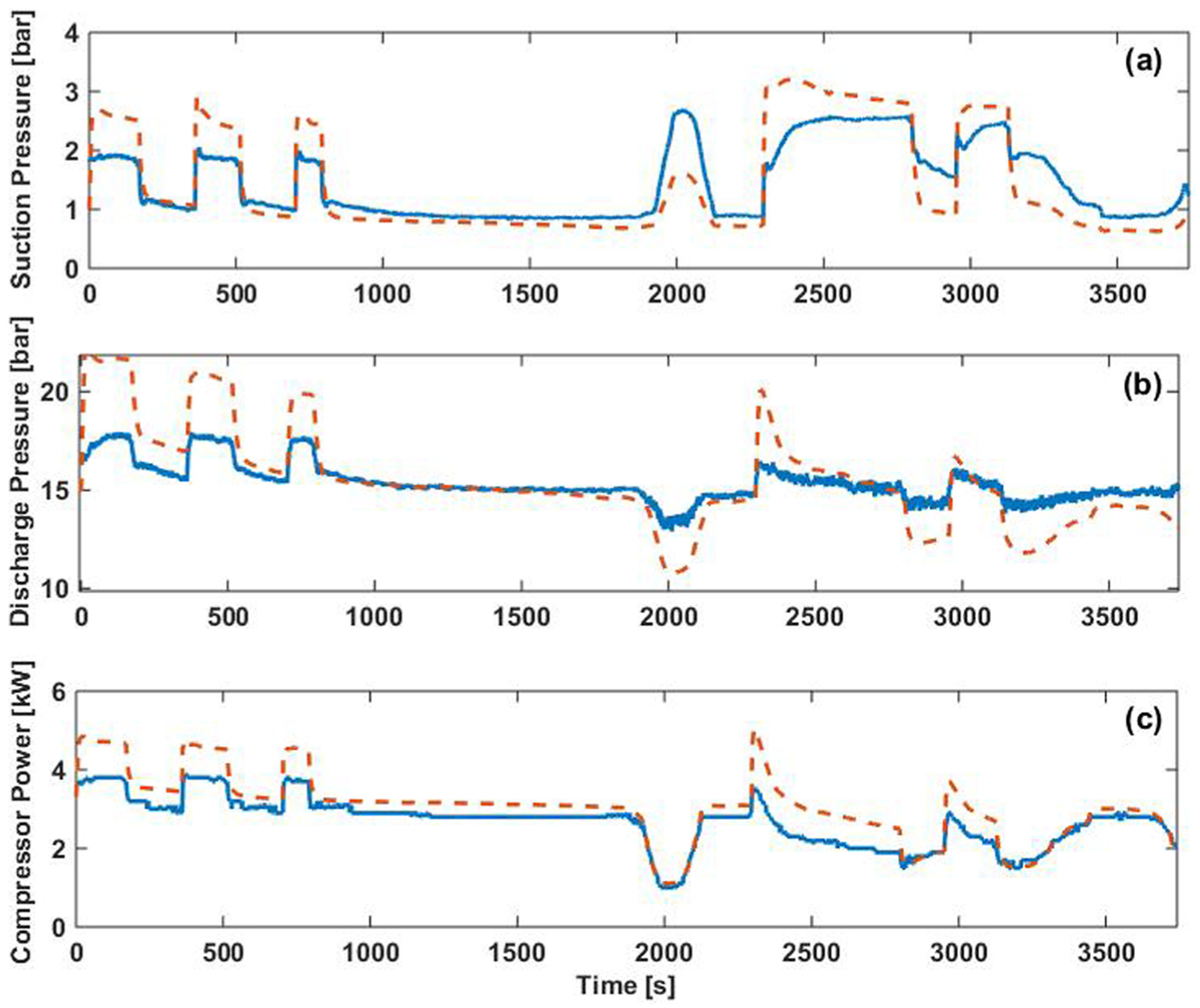

Figure 12(a) and Figure 12(b) show that the model was able to calculate the refrigerant pressure at the suction port and the discharge port of the compressor, leading to a reasonably accurate calculation of the compressor power (Figure 12(c)). The results achieved here are more accurate than those reported by Nielsen et al.³³ and Orofino et al.⁵⁷ and are comparable with the results reported by Ling et al.;²⁸ therefore, it can be concluded that the air-conditioning submodel and the battery-cooling submodel are appropriate for the intended application.

Figure 12.

Verification results of the integrated refrigeration and battery-cooling circuit model against the transient vehicle data for (a) the compressor suction pressure, (b) the compressor discharge pressure and (c) the compressor electric power: solid curves, test results; dashed curves, simulation results.

The powertrain subsystem

The powertrain model was developed in WARPSTAR on the basis of the longitudinal dynamics of the vehicle with the general form

\begin{matrix} \frac{η β}{R} [τ_{eng} (\frac{η β v}{R}, θ) + τ_{em} (\frac{η β v}{R})] - F_{RR} - F_{A} \\ = (M + \frac{I_{eq}}{R^{2}}) \frac{dv}{dt} \end{matrix}

(13)

Details of the equations have been given in the relevant documents and literature.⁴ Once the model was parameterised for the target vehicle, experimental verification was required. The vehicle was tested on a chassis dynamometer, and its controller area network signals were logged. Details of this test were consistent with the European Union test procedures.⁵⁸ Table 4 lists the details most relevant to this work.

Table 4.

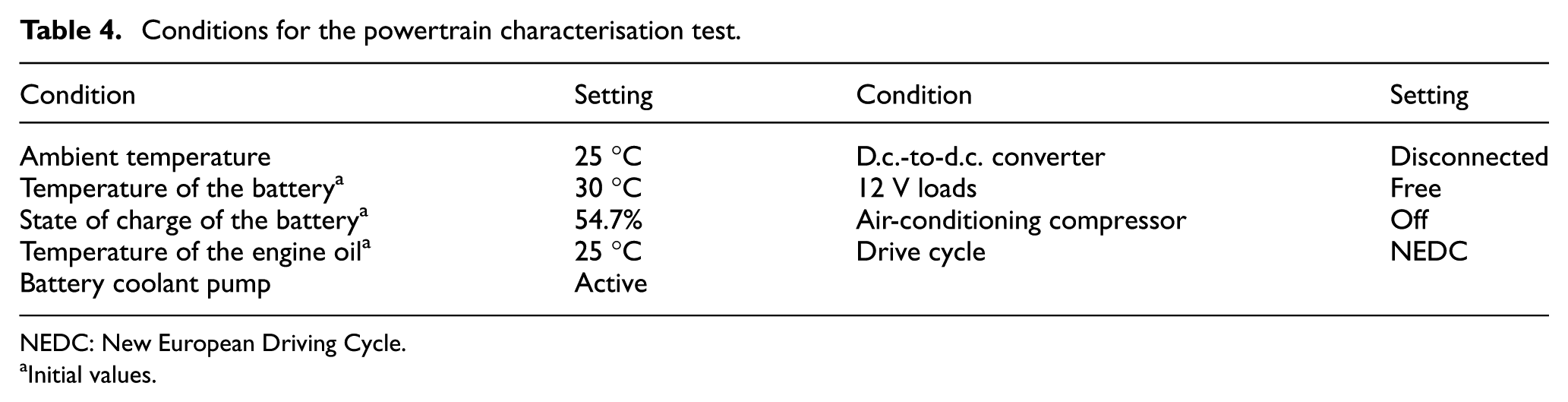

Conditions for the powertrain characterisation test.

Condition	Setting	Condition	Setting
Ambient temperature	25 °C	D.c.-to-d.c. converter	Disconnected
Temperature of the battery^a	30 °C	12 V loads	Free
State of charge of the battery^a	54.7%	Air-conditioning compressor	Off
Temperature of the engine oil^a	25 °C	Drive cycle	NEDC
Battery coolant pump	Active

NEDC: New European Driving Cycle.

Initial values.

The dynamometer test enables verifications at both component level and subsystem level. The intention here is to outline the process and to illustrate the level of accuracy which the component models deliver. Therefore, the discussions are limited to verification of the engine and the complete powertrain model.

Component-level verification

To verify the engine model, it was simulated with logged brake torque and angular velocity signals as the inputs. The simulated and logged fuel consumption values were then compared, as in Figure 13.

Figure 13.

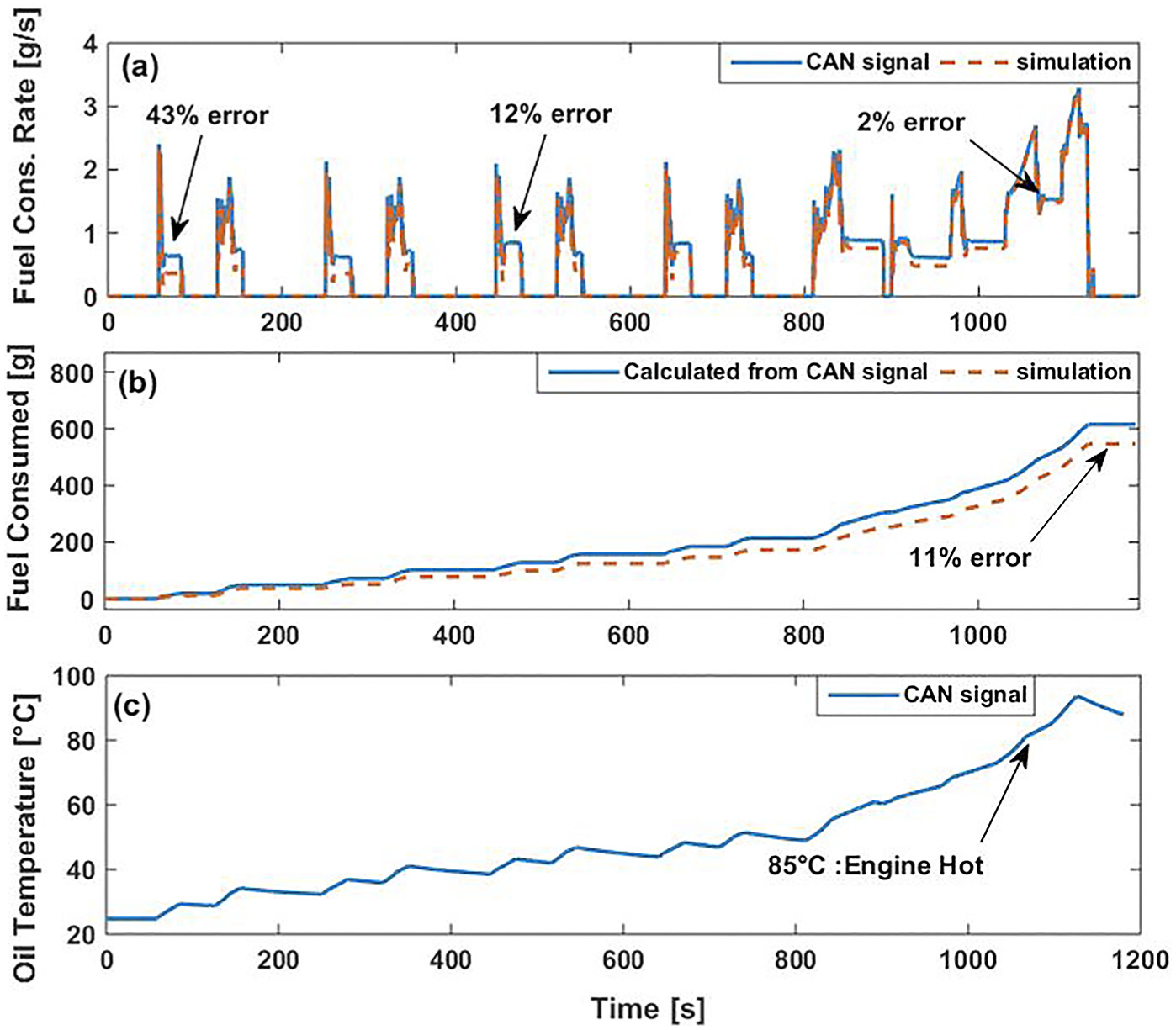

Engine model verification results for (a) the fuel flow rate, (b) the total fuel consumed against the test results and (c) the variations in the oil temperature: solid curves, test results; dashed curves, simulation results.

The simulated fuel flow rate in the above figure is consistent with the inputs. However, an offset between the simulated fuel flow rate signals and the logged fuel flow rate signals is seen (which is more obvious over cruise periods) and led to 11% underestimation of the total consumed fuel over the driving cycle. This error is due to the low fidelity since only hot engine fuel maps at 90 °C and high-temperature driveline efficiency maps were used in the model. According to the test regulations, the vehicle starts cold (from 25 °C); thus, the error is large in the beginning but fades away as the components gradually warm up. The issue can be resolved by modelling the thermal behaviour of the engine and driveline components and interpolating between the hot maps and the cold maps at the cost of increased computation but, since the intended application is simulating hot-climate scenarios, the level of accuracy seen in Figure 13 is considered sufficient.

Subsystem-level verification

Verification of the complete powertrain model can be achieved by simulating it with the logged vehicle speed profile as the input. It is worth mentioning that, since the exact control algorithms of the target vehicle are not used, any comparison between the simulations and the test results at this level are inevitably prone to error but are helpful for understanding the overall performance of the control rules and for identifying areas for improvement. Figure 14 compares the logged and simulated engine velocities and torques and the logged and simulated electric machine velocities and torques, as well as the battery state-of-charge (SoC) signals. This figure shows an acceptable correlation between the engine velocities and the electric machine velocities, which also indicates that the rule-based controller closely reconstructed the major operation modes of the vehicle, i.e. low-speed drive in the EV mode, hybrid drive above 24 km/h, engine stop and regeneration, etc. Although some of the discrepancies seen in the engine torques and the electric machine torques are due to noise, the majority are driven by the error in the SoC. The logged SoC decreases more rapidly than the model estimates, dropping below the lower limit of 50% earlier and shifting the charge event in time, as indicated in Figure 14(d) and Figure 14(e). A closer investigation of the results shows that this error is in fact due to an inaccuracy in the current measurements rather than to a model inaccuracy. Similar observations prove that simulation results were consistent with the assumed model fidelity and control rules, suggesting that the powertrain model is suitable for the intended application.

Figure 14.

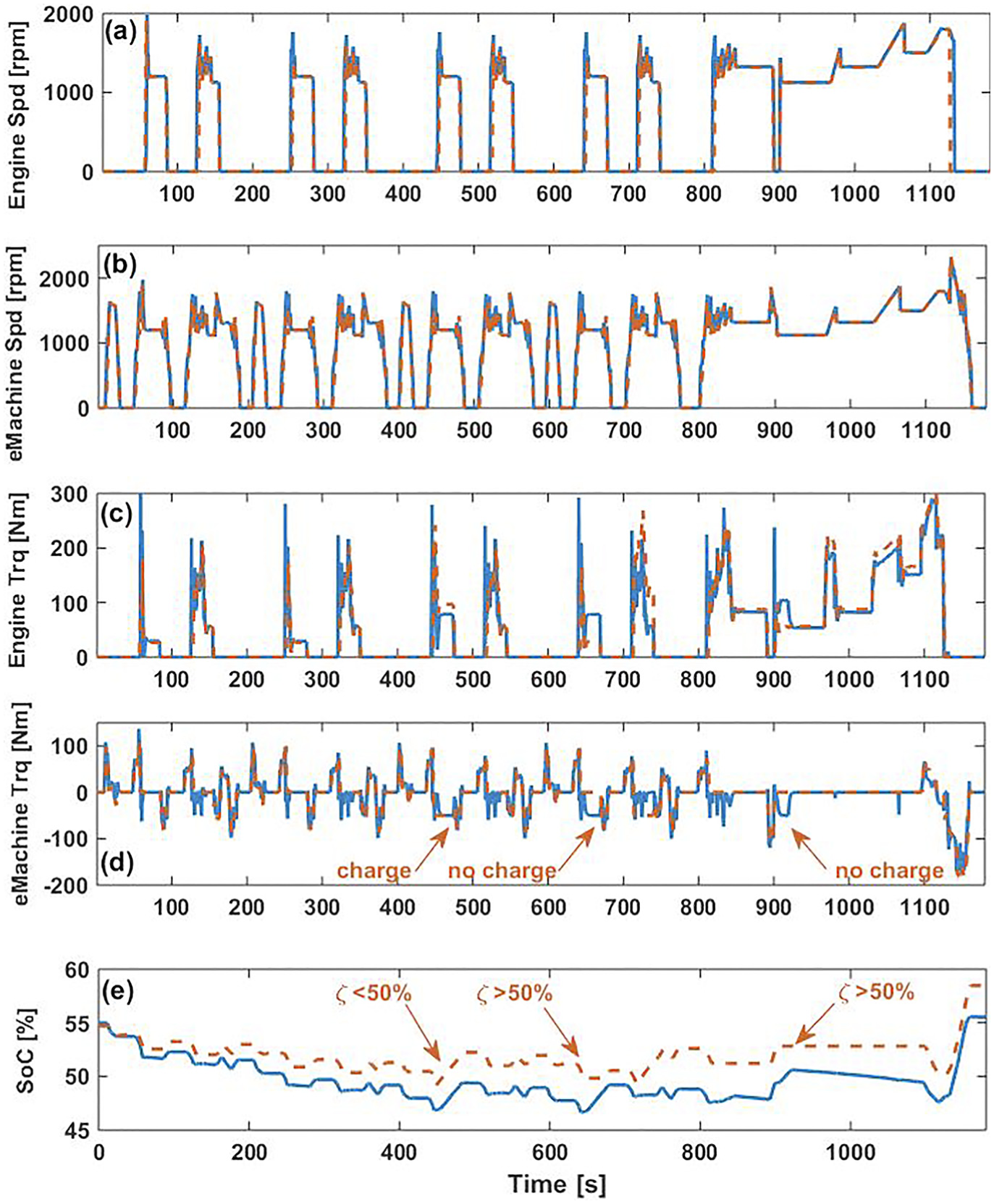

Verification of powertrain model (a) the engine speed and (b) the electric machine speed (c) engine torque, (d) electric machine torque (e) SoC solid curves, test results; dashed curves, simulation results.

Model integration

The vehicle model was developed by co-simulations of the above submodels in Simulink. For vehicle energy efficiency simulations, it is common to discretise vehicle driving cycles with discretisation steps as large as 1 s. This helps to improve the simulation speed without compromising the accuracy required for these simulations. Therefore, the powertrain model should be simulated with discrete fixed-step solvers. On the other hand, the thermal model is better simulated with the variable-step solvers of Dymola which are optimised to handle the non-linear behaviour of the refrigerant and air.⁵⁹ To achieve this, the thermal model was imported to Simulink using the FMI standard which enables Dymola solvers to be embedded in the exported code and to be used to simulate the code within Simulink.^60,61 Figure 15 shows the layout of the model and highlights the variability in local solvers. As the figure suggests, the thermal model uses two outputs of the powertrain model: first, the vehicle speed which is used to calculate the air flow through the condenser; second, the heat generation within the battery. In turn, the powertrain model receives the battery temperature and compressor power signals from the thermal model.

Figure 15.

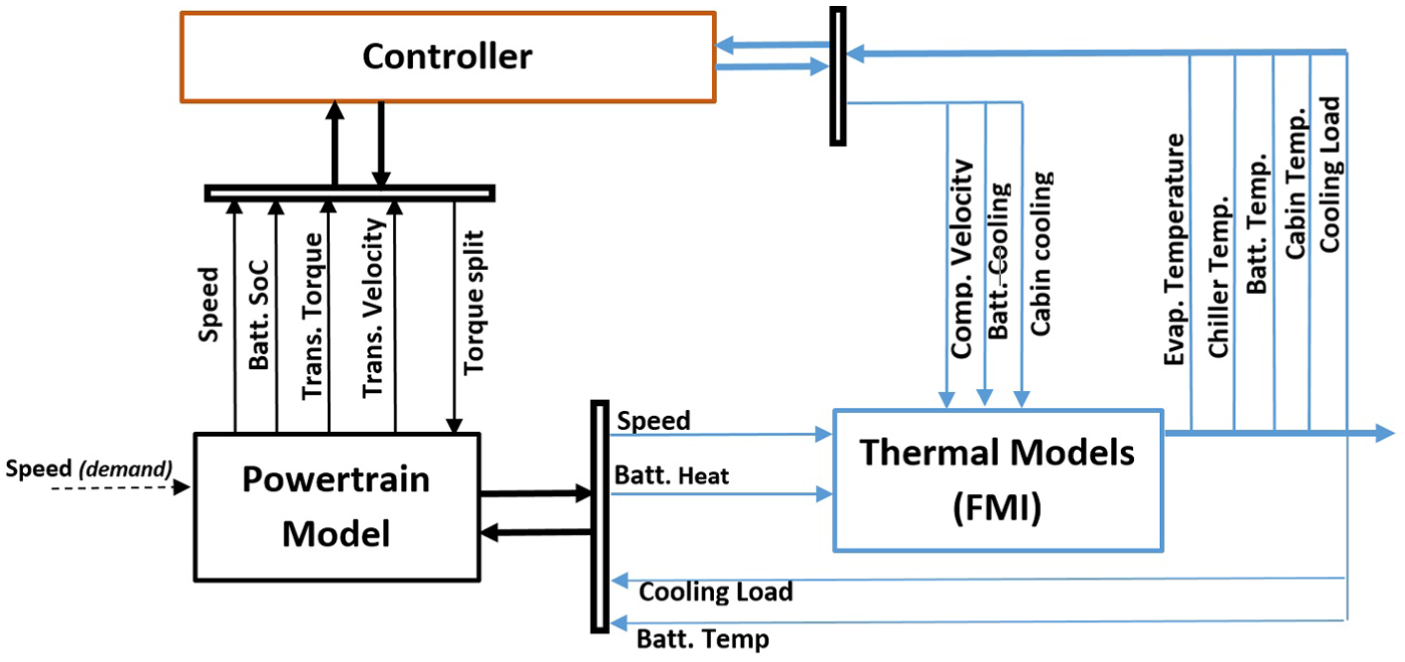

Layout of the system model in Simulink: the black border lines and arrows indicate the submodels and signals simulated using fixed-step MATLAB solvers; the blue border lines and arrows indicate the submodels and signals simulated with variable-step Dymola; the light brown rectangle indicates the controller.

The controller block in Figure 15 includes the control algorithms of both the powertrain model and the thermal model; the former is described in WARPSTAR documents but the latter can be briefly explained as follows. The general requirement for cooling the battery is to keep its temperature between 30 °C and 35 °C. The cabin temperature should be maintained between 22 °C and 23 °C. A state machine is employed that uses the temperature limits to determine the operating state, i.e. the on–off switch of the compressor and the open–close flag of the refrigerant shut-off valves. The velocity of the compressor is controlled via two PI controllers, as seen in Figure 16(a). When the cabin is cooled, the compressor is controlled to maintain the evaporator temperature above 5 °C. When only battery cooling is active, the controller maintains the chiller temperature above 10 °C. Also, as shown in Figure 16(b), a third PI controller regulates the air flow from the blower on the basis of the cabin temperature.

Figure 16.

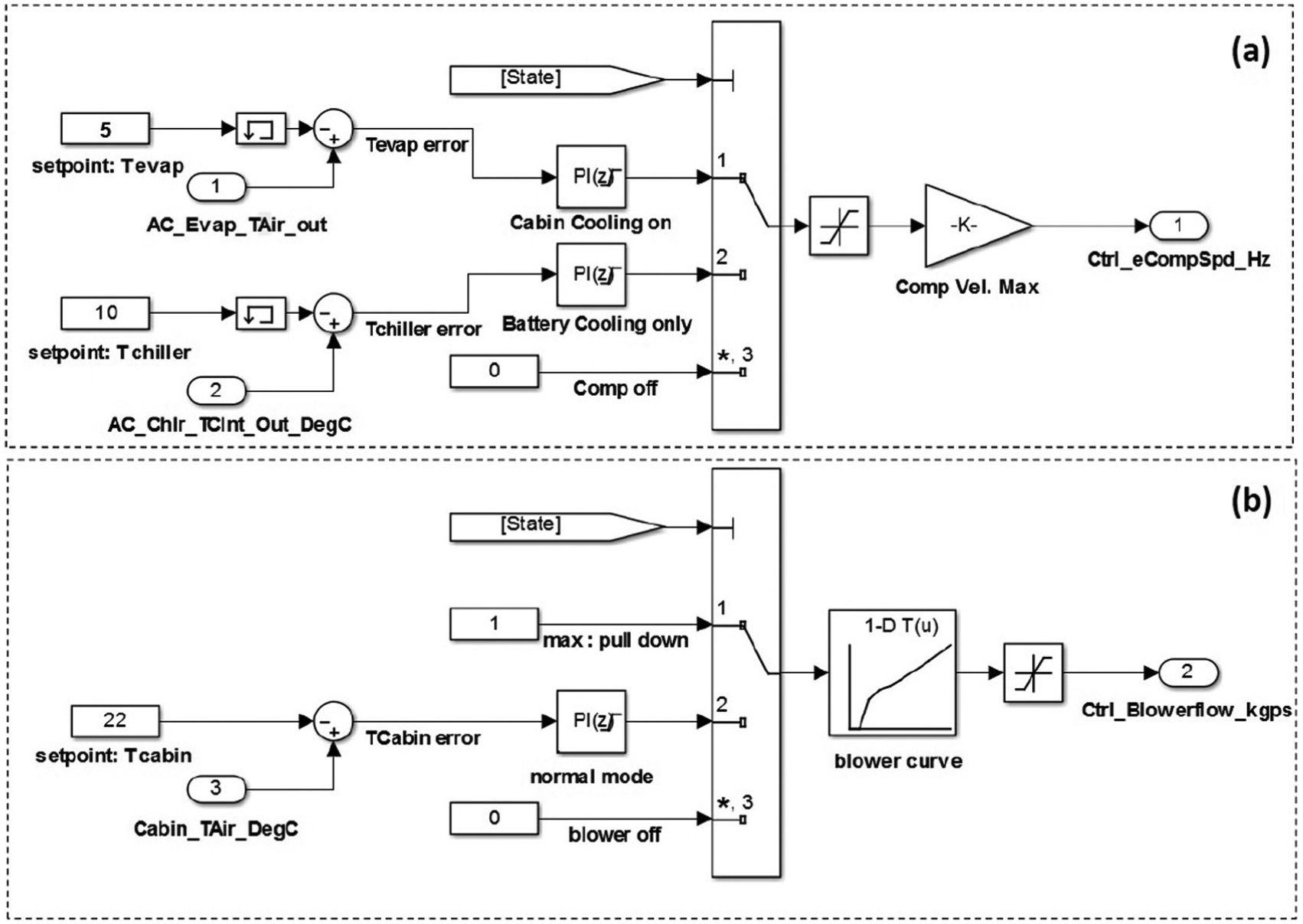

Control algorithm of the thermal model: (a) the compressor controller; (b) the blower controller.

Using the model, the vehicle energy consumption is calculated for hot ambient conditions (T_air = 35 °C; solar irradiance, 800 W/m²) over the New European Driving Cycle (NEDC) and the Worldwide Harmonised Light Vehicles Test Procedure (WLTP) cycle and the results are plotted in Figure 17. Figure 17(a) also shows the energy consumption for the standard 25 °C ambient condition (air conditioning off) as the baseline for comparisons. The baseline simulation results over the NEDC show an underestimation of 11% in the fuel consumption compared with the values reported for the vehicle, whereas the error is reduced to 4% for hot ambient conditions. This higher accuracy is expected because of the assumptions made in modelling the engine, since the temperature of the vehicle is closer to that assumed in the model. Figure 17(a) indicates that the cooling loads reduced the fuel economy of the vehicle by about 20%. It can be seen from Figure 17(b) that the model predicts that the cooling loads change the fuel economy over the WLTP cycle from 6.75 l/100 km to 8.35 l/100 km. It should be noted that, although reported figures or quotable test data are not available for the WLTP cycle, these results are consistent with the trends reported by Favre et al.⁶² and that, since the WLTP cycle is significantly longer than the NEDC, using hot efficiency maps is more realistic; thus, an error of 4% or even less is expected.

Figure 17.

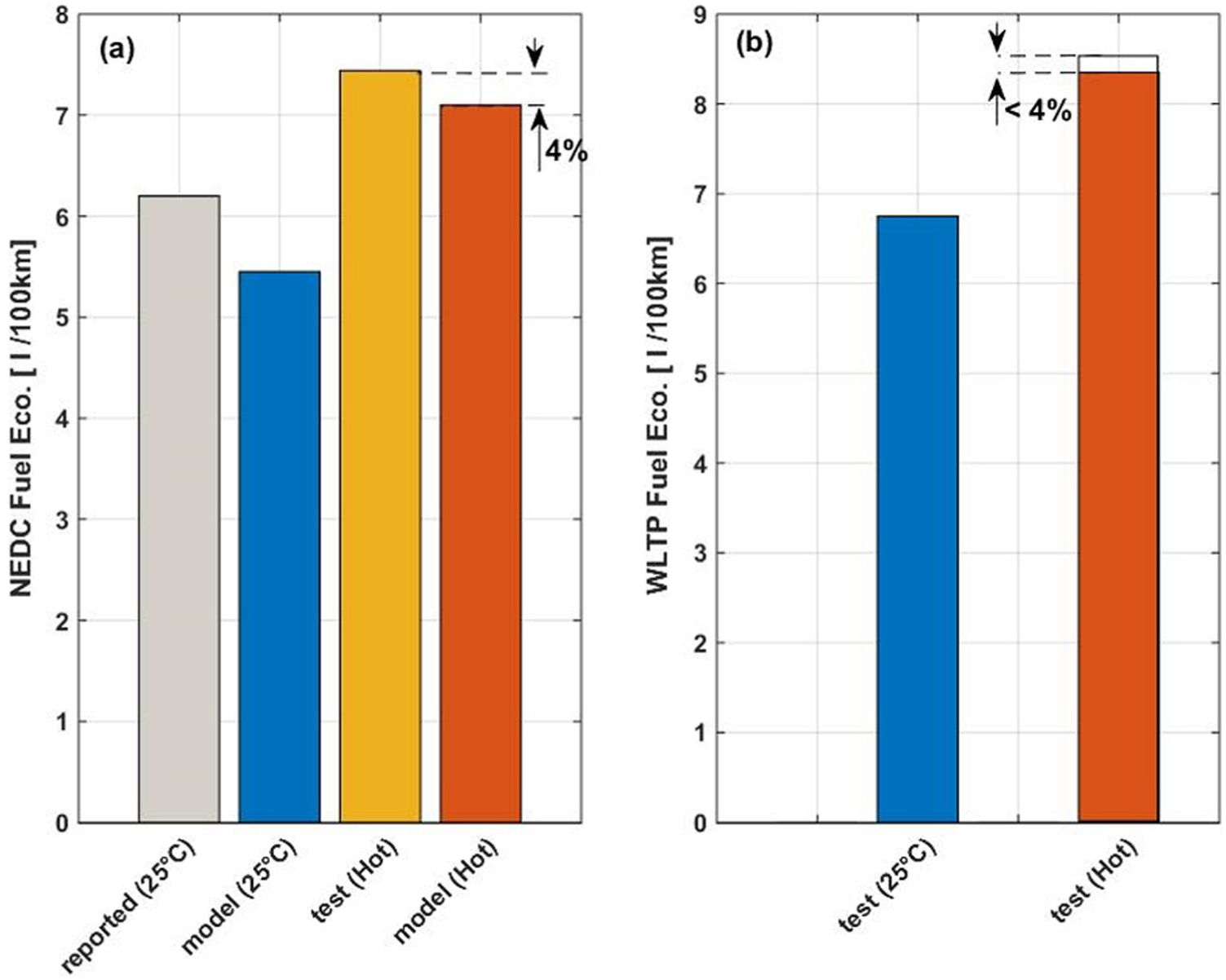

Vehicle-level energy consumption: (a) the converted energy; (b) the fuel economy.

As stated earlier, as well as accuracy, a suitable tool for vehicle-level calculations should have flexibility and a high speed. In terms of flexibility, the model can simulate various ranges of vehicle speed and ambient conditions. The only limitation is the zero flows of refrigerant and air which lead to discontinuities and cannot be handled by the air-conditioning submodel. Therefore, the compressor and blower controllers should include small offsets for which energy flows should be corrected accordingly. As for the simulation speed, some typical simulation times are given in Table 5. These results are achieved on a machine with a Core i7-2600 central processing unit and a 16 GB memory. Table 5 shows that the complete model is significantly slower than the powertrain model alone. Also, simulations with hotter ambient conditions are more time consuming since more events are generated in the model, e.g. because of more frequent opening and closing of the shut-off valves. Nevertheless, these simulation times are acceptable as they are considerably shorter than those reported for similar models by Kiss et al.²⁷ and Rasmussen.⁶³

Table 5

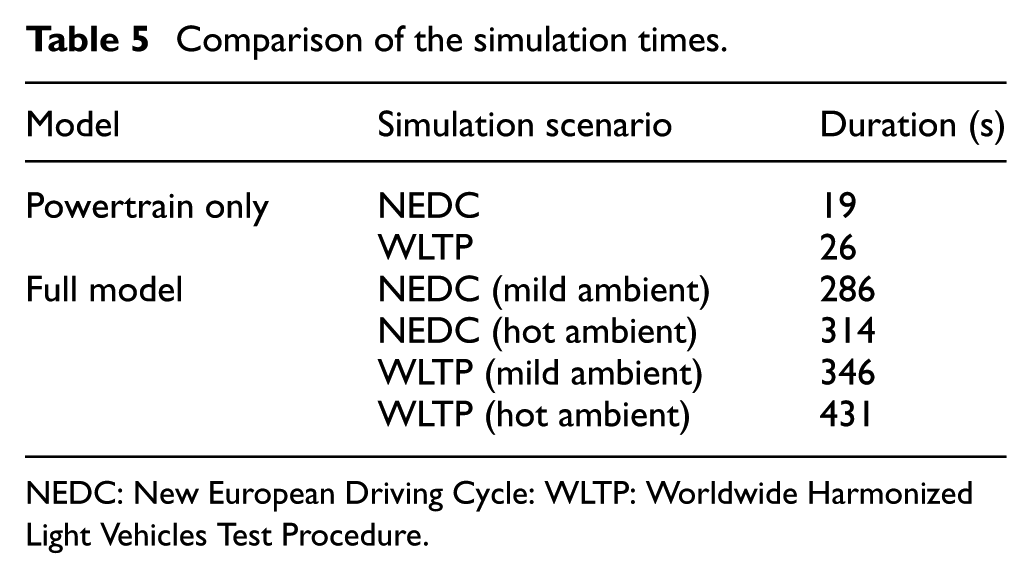

Comparison of the simulation times

Model	Simulation scenario	Duration (s)
Powertrain only	NEDC	19
Powertrain only	WLTP	26
Full model	NEDC (mild ambient)	286
	NEDC (hot ambient)	314
	WLTP (mild ambient)	346
	WLTP (hot ambient)	431

NEDC: New European Driving Cycle: WLTP: Worldwide Harmonized Light Vehicles Test Procedure.

Summary and conclusions

In this paper, a vehicle model was developed to enable the air-conditioning and battery-cooling loads to be included in vehicle-level energy efficiency calculations. Subsystem models were developed on the basis of the specifications of a target vehicle and integrated into Simulink using the FMI co-simulation standard. To achieve a representative model, verification against the experimental data from the target vehicle was embedded in the modelling process. The vehicle model developed here fulfils the requirements of the intended application as it is reasonably flexible, produces sufficiently accurate results and has an acceptable speed. One drawback of the modelling approach is its dependence on the test data. This dependence can be reduced by using a more physics-oriented approach, e.g.in the case of the cabin. Additionally, this work highlighted the following.

When the aim is to obtain the overall conditions of the passenger cabin, a reduced-order model is adequate, and model calibrations such as those proposed here can help to avoid the burden of modelling the geometric details of the cabin.

Calibration of the heat transfer models in the battery-cooling plate and the heat exchangers were crucial in minimising the modelling and the computation effort.

A sufficiently accurate representation of the dynamics of the refrigeration circuit and the air-conditioning subsystem can be expected from a one-dimensional model such as those in the AirConditioning Library of Dymola despite various inherent simplifications. Dymola proved to be a flexible platform for implementing empirical correlations which played key roles in achieving a sufficiently accurate representation of the thermal processes with a low-order model.

This work reaffirmed that a purpose-built model can help to overcome the challenges of system- level simulations, i.e. balancing the accuracy and the speed. Here, subsystem-level verifications helped to determine the fidelity necessary for each submodel early in the modelling process, and awareness of the intended application allowed various simplifications. An example of such simplifications were the temperature-dependent variations in the efficiency of the powertrain which proved to be negligible for the intended application.

The model developed here is appropriate for analysing the energy requirement of air conditioning and battery cooling for hot ambient conditions and representative duty cycles similar those discussed by Shojaei et al.⁶⁴ These analyses can support the design of alternative thermal management strategies to reduce the impact of the cooling loads on the energy efficiency and performance of the vehicle. Although the correlations achieved above between the simulations and the test results are considered sufficient for this purpose, further development of some aspects of the model can enhance confidence in the subsequent analysis. Modelling the effect of the oil circulation in the refrigeration circuit and investigating its impact on the response of the model should be included in this development process. Also, additional investigations of the inaccuracies observed in the battery current signal that was logged from the controller area network of the vehicle is required to establish a possible requirement for higher fidelity to obtain the underlying reason.
