Study on failure assessment and experimental validation of automotive steering knuckle in McPherson front suspension system

Abstract

The failure phenomenon of automotive components within the service life is one of the most concerning issues in the automotive industry. In this paper, the concept of deformation gradient is introduced into the CAE simulation results to obtain the critical strain of the component under large deformation conditions. Subsequently, a complete quasi-static failure prediction method combined with the Johnson-Cook criterion is proposed. In addition, considering the cyclic hardening effect of the components’ material, the subcritical plane model is improved based on the Fatemi-Socie model to make the fatigue life prediction more accurate. According to the assembly relationship of the McPherson front suspension system, the proposed method and the improved model are used to predict the failure of the steering knuckle. Finally, the predicted results are compared with the rig test results. The comparison results validate the applicability and accuracy of the proposed quasi-static failure prediction method and fatigue failure prediction model.

Keywords

McPherson front suspension system steering knuckle quasi-static failure fatigue failure rig test

Introduction

The front suspension system supports the vehicle’s weight by connecting the chassis frame and the axle, absorbing the vibration caused by the wheels.¹ With the increasing requirements for comfort and handling, consumers have a higher demand for the performance of the automotive suspension system. Currently, designers are committed to making suspension components lighter and more cost-effective while ensuring vehicle safety. Lightweight suspension components conform to the trend of energy-saving and emission reduction in the automotive industry and improve vehicle handling performance. The steering knuckle is one of the most critical components in the front suspension system. Its function is to transfer and bear the front load of the automotive, support and drive the front wheel to rotate around the kingpin to make the vehicle steer. According to the assembly relationship of the steering knuckle in the front suspension system, the steering knuckle needs to bear the load and torque caused by collision, braking, and acceleration. Therefore, it is required to have high static strength and fatigue strength. Traditionally, steering knuckles are made of ductile iron. But in recent years, most luxury brands have adopted aluminum alloy steering knuckles to reduce unsprung mass. Although this increases the manufacturing cost of the steering knuckle, it can achieve the lightweight goal and increase the service life of chassis components.

According to the traditional strength design of automotive, it will inevitably lead to the one-sided pursuit of high yield strength of alloy materials. However, with the increase in yield strength of materials, the fracture strength decreases, resulting in a decrease in vehicle safety. In recent years, some automotive research institutes have taken the equivalent plastic strain (PEEQ) as a standard for components to meet the required fracture strength. To study the fracture mechanism of the steering knuckle, Huang et al.² conducted a large number of quasi-static tests on the E-grade cast steel steering knuckle. The test results show that ductile fracture is still the main reason for the failure of the steering knuckle. Dai et al.³ proposed a new phenomenological damage model with strain rate and temperature terms to predict quasi-static failure. The predicted results show that the damage value of the component increases with the increase in temperature. In recent years, subroutines incorporating finite element (FE) commercial software have become an essential means of evaluating the fracture behavior of components. Xiang et al.⁴ implemented a displacement-based quasi-static prediction model into ABAQUS through the user’s subroutine. Then he realized the damage evaluation of high-rise steel frame structures under ultimate loads. Ji et al.⁵ et al. applied the improved MMC model to LS-DYNA for numerical simulation to describe the anisotropic yield and hardening behavior of 6061-t5 aluminum alloy. Lee et al.⁶ proposed a constitutive model to describe the elastic-plastic behavior of the aluminum alloy under large deformation. Subsequently, the constitutive model was implemented into ABAQUS to predict the component’s initial failure and plastic deformation characteristics in the large deformation range. Peterson et al.⁷ established a constitutive model for 7085-T711 aluminum alloy and used ABAQUS/ Implicit to predict the mechanical behavior. Subsequently, the accuracy of the constitutive model was verified by experiments. Xue et al.⁸ used an extended Gurson constitutive model to predict the quasi-static failure behavior of alloys under tensile-torsional conditions. García-Guzmán et al.⁹ proposed a model for calculating the relative displacement of elements and then applied the model to ABAQUS for two-dimensional analysis. Finally, the model’s applicability for predicting the fracture behavior of mechanical components was confirmed.

In the vehicle’s overall structure, the joint area is where the component connects and transfers the load. Because of the stress concentration near the joint area, the area is usually the weakest part of the system, which leads to the initiation of fatigue cracks. The existence of fatigue cracks will weaken the NVH performance of the vehicle and cause safety hazards. Therefore, the fatigue life of these components must be designed based on an accurate fatigue prediction model. The Fatemi-Socie (FS) life prediction model¹⁰ based on the critical plane method has been widely used in recent years. The model takes the alternating strain as the main factor of fatigue crack initiation, better explaining the effects of normal stress and shear stress on fatigue damage. Gates and Fatemi¹¹ improved the FS model by multiplying the normal stress and strain terms. Then he proved that the strain-based FS model could provide a good fatigue life correlation for various materials and load conditions. However, parameters based on stress or strain terms cannot reflect changes in material constitutive behavior when performing fatigue failure analysis. On the other hand, Li et al.¹² predicted the fatigue life of metallic materials under non-proportional loading based on the critical plane method. The comparison with experiments confirmed the accuracy of the prediction model but found that it could not explain the cyclic hardening effect. The analysis of the critical element is crucial for predicting the fatigue life of components using the critical plane method. Using the three-dimensional stress tensor component of the critical element to calculate the equivalent stress, Kashyzadeh et al.¹³ analyzed the fatigue life of automotive components under variable amplitude loads. Zhao et al.¹⁴ proposed the subcritical plane method based on the critical plane theory. Then he confirmed that the accuracy and stability of the proposed model are better than the traditional model. Kadhim et al.¹⁵ proposed a damage model based on FORTRAN and combined it with finite element software to predict the fatigue life of components. Qin et al.¹⁶ and Esmaeili et al.¹⁷ revealed the influence of preload on the fatigue strength of aluminum alloy bolted joints through multiaxial fatigue analysis and experiments. Zoroufi and Fatemi¹⁸ studied the fatigue behavior of the steering knuckle by using the local strain life prediction method combined with the fatigue test. The research results show that combining the local strain model with the CAE simulation results can provide more accurate life predictions.

In this paper, a quasi-static failure prediction method is firstly proposed based on the deformation gradient concept. The method combines the Johnson-Cook (J-C) constitutive model and failure criterion, which is suitable for failure prediction of components under large deformation. Subsequently, the subcritical model is improved regarding the form of the FS model. The improved model considers the material cyclic hardening effect’s influence and obtains more accurate fatigue failure prediction results. Finally, taking the steering knuckle as the research object, a series of rig tests are designed to validate the applicability and accuracy of the proposed quasi-static failure prediction method and fatigue failure prediction model.

Failure prediction models of the steering knuckle in the McPherson front suspension system

As shown in Figure 1, the McPherson front suspension system described in this paper consists of a steering knuckle, a tie rod, a lower control arm, a brake caliper, and a shock absorber.

Figure 1.

The assembly relationship of the steering knuckle in the McPherson front suspension system.

When the suspension deformation causes the components to bounce relative to the frame, the tie rods and lower control arms move relative to the steering knuckle. The ball studs are used to connect the components above to avoid movement interference. The upper end of the shock absorber is connected with the frame hinge, and the lower end is connected with the steering knuckle. In this section, the failure prediction models suitable for the steering knuckles will be proposed.

Quasi-static failure prediction model

As shown in Figure 2, take a connection mode of the steering knuckle in the front McPherson suspension system as an example. The ball stud of the steering knuckle realizes the power transmission between the different axles. It provides multi-angle rotation to make the steering mechanism rotate smoothly and reduce the vibration. Therefore, the connection areas between the steering knuckle and the ball stud bear a heavy load during operation, which is more prone to quasi-static failure. Therefore, this paper will first propose a quasi-static failure prediction method.

Figure 2.

The connection mode of the steering knuckle.

The material of the steering knuckle studied in this paper belongs to Al-Mg-Si alloy, which has good ductility and tensile strength. Since the J-C model is suitable for describing the plastic behavior of metals under large deformation, the constitutive relation of the material is described based on this model. The general expression of the J-C model is as follows:

σ_{e q} = (σ_{y} + B ε_{e q}^{n^{*}}) [1 + C^{*} \ln (ε_{e q}^{*})] (1 - T^{* m})

(1)

where $σ_{eq}$ is the equivalent stress; $σ_{y}$ is the yield strength of the material; B and $n^{*}$ are the strain hardening coefficients; C^* is the strain rate sensitivity coefficient; $ε_{eq}$ is the equivalent plastic strain; $ε_{eq}^{*}$ is the dimensionless equivalent plastic strain rate (assumed to be 1000 s⁻¹ according to the metal quasi-static tensile standard GB/T228.1-2010). $T^{*}$ and m are the dimensionless temperature parameters. Since the study only considers the test at room temperature and does not consider the factors of temperature change, the temperature term is omitted. The undetermined parameters $σ_{y}$ , B, $n^{*}$ , and C^* can be obtained by fitting the true strain-stress curve of the material shown in Figure 6.

Since the material model is nonlinear, the nonlinear term is extended to the following stress state by using Mises stress potential and adjoint flow law:

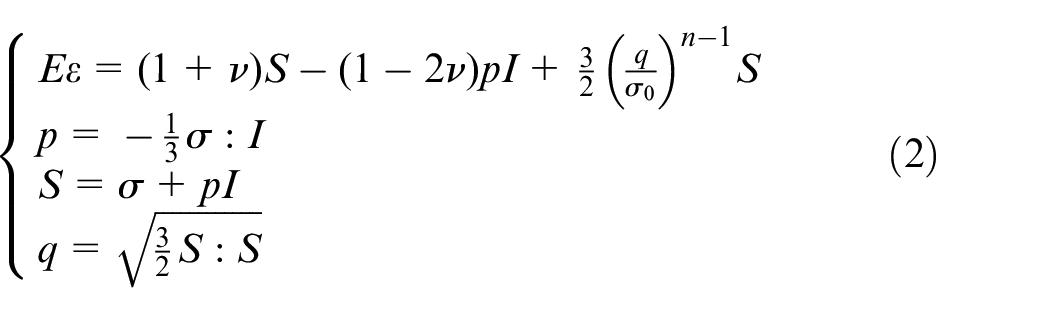

{\begin{matrix} E ε = (1 + ν) S - (1 - 2 ν) pI + \frac{3}{2} {(\frac{q}{σ_{0}})}^{n - 1} S \\ p = - \frac{1}{3} σ : I \\ S = σ + pI \\ q = \sqrt{\frac{3}{2} S : S} \end{matrix}

(2)

where $ε$ is the strain and $σ$ is the stress; q is the Mises equivalent stress; p is the equivalent hydrostatic stress; S is the stress deviator; E is the Young’s modulus; $ν$ is the Poisson’s ratio.

In the case of large deformation, it is necessary to consider the J-integral. The evaluation of J-integral requires strain energy density W, which is expressed as follows from equation (2):

\begin{matrix} W = \int σ : d ε = \frac{1 + ν}{3 E} \cdot q^{2} + \frac{3}{2} \cdot \frac{1 - 2 ν}{3 E} p^{2} + \frac{n}{n + 1} \\ \cdot \frac{q^{n + 1}}{E σ_{0}^{n - 1}} \end{matrix}

(3)

Taking c_q as the increment of q, the Newton Raphson iterative method is used to solve equation (3). The iterative equation is as follows:

{\begin{matrix} \frac{2 (1 + ν)}{3} + n {(\frac{q}{σ_{0}})}^{n - 1} c_{q} = E ε - \frac{2 (1 + ν)}{3} q - {(\frac{q}{σ_{0}})}^{n - 1} q \\ q = q + c_{q} \end{matrix}

(4)

In the incremental iteration process, t and $t + Δ t$ are expressed as the start and end time of the current incremental step. The derivative of W is then expressed as an increment¹⁹:

d W_{t + Δ t} = \int_{v} (d S_{t + Δ t} \cdot δ ε_{t + Δ t} + S_{t + Δ t} \cdot d δ ε_{t + Δ t}) dV

(5)

The change of stress increment $Δ S_{t + Δ t}$ caused by the material is related to the strain increment $Δ ε_{t + Δ t}$ and the constitutive relationship $C_{t + Δ t}$ . Since the stress and the strain are coupled, the following equation must be solved:

Δ S_{t + Δ t} = C_{t + Δ t} \cdot Δ ε_{t + Δ t}

(6)

The increments above should theoretically take the result of the end time of the current increment step. Then, the stress increment is transformed into strain increment according to the constitutive relationship, and the following is obtained:

d W_{t + Δ t} = \int_{v} (d ε_{t + Δ t} \cdot C_{t + Δ t} \cdot δ ε_{t + Δ t} + S_{t + Δ t} \cdot d δ ε_{t + Δ t}) d V

(7)

In ABAQUS/standard, $d ε_{t + Δ t}$ is related to the displacement increment du at the end of the increment step. The virtual strain $δ ε_{t + Δ t}$ is associated with the virtual displacement $δ u$ at the current time. Generally, we think of them as nonlinear relationships. After the simulation is completed through the FE iteration process, the element’s displacement vector u can be obtained.

For proper analysis, the relative displacements of all elements need to refer to the global coordinate axis. As shown in Figure 3, {E1, E2} represents the global reference standard. The displacement vector u can be expressed as:

u = [\begin{matrix} u_{S}^{L} / 2 \\ u_{n} / 2 \\ u_{S}^{S} / 2 \end{matrix}]

(8)

Figure 3.

Deformation diagram of the element in the spatial coordinate system.

where $u_{n}$ is normal displacement; $u_{S}^{L}$ is the longitudinal shear displacement; $u_{S}^{S}$ is the horizontal shear displacement.

U = [\begin{matrix} U_{11} & U_{12} \\ 0 & U_{22} \end{matrix}]

(9)

The second-order tensile tensor U can be derived from the following equation:

d u = (U - I) d X

(10)

where X is the initial coordinate; I is the second-order cell matrix. The submatrix of U is derived from equation (10):

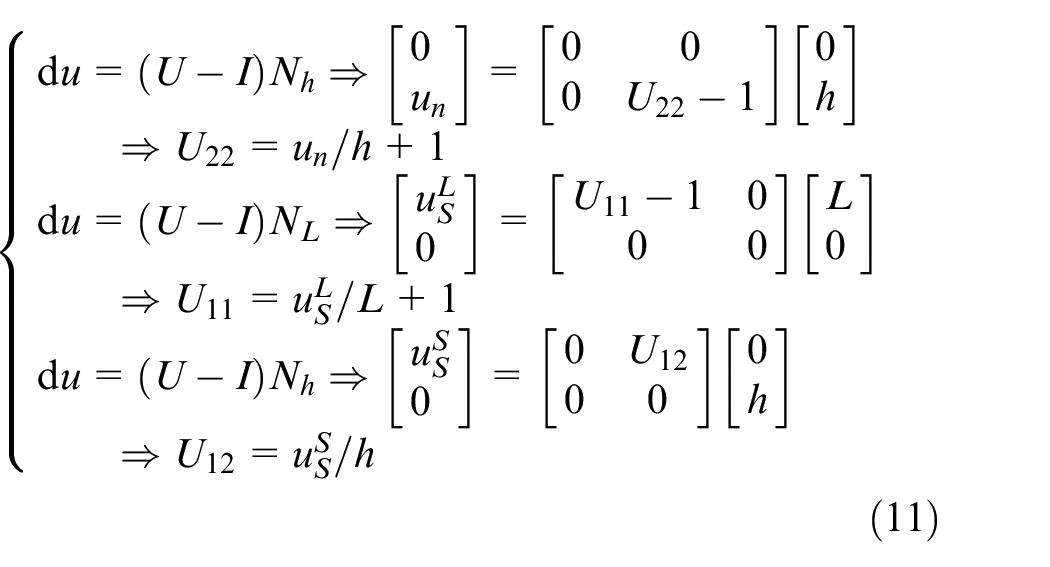

{\begin{matrix} d u = (U - I) N_{h} \Rightarrow [\begin{matrix} 0 \\ u_{n} \end{matrix}] = [\begin{matrix} 0 & 0 \\ 0 & U_{22} - 1 \end{matrix}] [\begin{matrix} 0 \\ h \end{matrix}] \\ \Rightarrow U_{22} = u_{n} / h + 1 \\ d u = (U - I) N_{L} \Rightarrow [\begin{matrix} u_{S}^{L} \\ 0 \end{matrix}] = [\begin{matrix} U_{11} - 1 & 0 \\ 0 & 0 \end{matrix}] [\begin{matrix} L \\ 0 \end{matrix}] \\ \Rightarrow U_{11} = u_{S}^{L} / L + 1 \\ d u = (U - I) N_{h} \Rightarrow [\begin{matrix} u_{S}^{S} \\ 0 \end{matrix}] = [\begin{matrix} 0 & U_{12} \\ 0 & 0 \end{matrix}] [\begin{matrix} 0 \\ h \end{matrix}] \\ \Rightarrow U_{12} = u_{S}^{S} / h \end{matrix}

(11)

where vector $N_{h}$ corresponds to the perpendicular side of the element’s midline and vector $N_{L}$ corresponds to the parallel side of the element’s midline; h is the thickness of the element, and L is the length of the element.

{\begin{matrix} N_{h} = [\begin{matrix} 0 \\ h \end{matrix}] \\ N_{L} = [\begin{matrix} L \\ 0 \end{matrix}] \end{matrix}

(12)

This paper introduces the deformation gradient F to obtain the strain of the element under the large deformation condition. The Cauchy green deformation tensor C is defined as⁹:

C = F^{T} F = U^{T} R^{T} RU

(13)

Since the tensor R is orthogonal, the deformation tensor is converted to the following form:

C = U^{T} U

(14)

Thus, the strain tensor E_u can be derived:

E_{u} = \frac{1}{2} (C - I) = [\begin{matrix} ε_{11} & ε_{12} \\ ε_{21} & ε_{22} \end{matrix}]

(15)

In this study, the Johnson-Cook criterion²⁰ is used to predict the quasi-static failure of the steering knuckle. At room temperature, the J-C criterion is expressed as:

[C_{1} + C_{2} \exp (C_{3} \cdot \frac{σ_{m}}{σ_{eq}}) / ε_{eq}] = 1

(16)

where C₁, C₂, and C₃ are the constants determined by the material; $σ_{m}$ is the hydrostatic stress; $ε_{eq}$ is taken as $ε_{11}$ for the uniaxial tension case. Therefore, the proposed quasi-static failure prediction method is shown in Figure 4.

Figure 4.

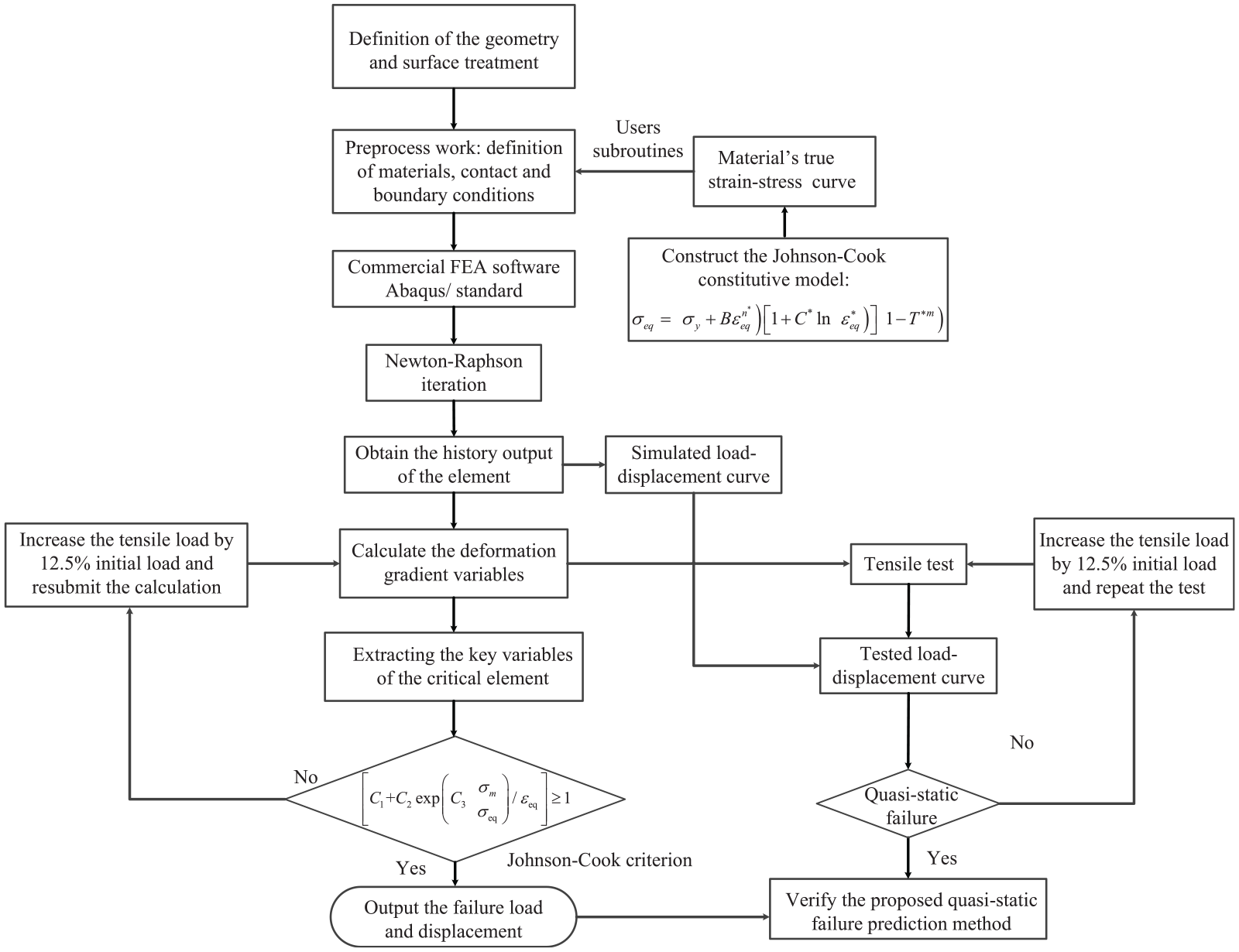

Flow chart of the proposed quasi-static failure prediction method.

Fatigue failure prediction model under cyclic loading

When the wheel is in contact with the road surface, the damping spring produces a large deformation through the function of the suspension system.²¹ To limit the deformation of the spring, the ball studs are no longer stable. Therefore, the slight swing of the force points of the ball studs accelerates the local fatigue failure of the contact part between the steering knuckle and the joints. The Miner cumulative damage theory²² is widely used in engineering for fatigue damage calculation. The theory estimates the fatigue damage D_i caused by each cycle. Then predicts the total damage D and the failure cycles $N_{f}$ under the j-level load spectrum as:

D = \sum_{i = 1}^{j} \frac{n_{i}}{N_{i}} = 1

(17)

N_{f} = (\sum_{i = 1}^{j} n_{i}) / (\sum_{i = 1}^{j} \frac{n_{i}}{N_{i}})

(18)

In recent studies, scholars have developed many improved damage parameters using the critical plane method to predict the fatigue failure of components. However, the most challenging problem is the interaction between the shear stress (strain) and normal stress (strain) components and their influence on fatigue damage.

Fatemi-Socie fatigue life prediction model

The main driving force of fatigue crack initiation is the alternating shear strain. Moreover, the normal stress on the critical plane also affects the crack initiation and propagation.¹¹ Fatemi-Socie proposes a critical plane-based damage model, which defines the critical plane as the plane with maximum shear strain. The damage parameters were subsequently modified using the maximum normal stress combined with the mean stress. This model can better predict the fatigue life of components and has been used by some researchers for fatigue failure prediction. Therefore, this paper will first take the Fatemi society (FS) model as a reference, and the fatigue failure prediction model can be expressed as:

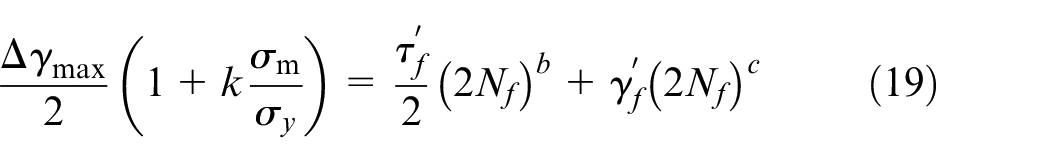

\frac{Δ γ_{max}}{2} (1 + k \frac{σ_{m}}{σ_{y}}) = \frac{τ_{f}^{'}}{2} {(2 N_{f})}^{b} + γ_{f}^{'} {(2 N_{f})}^{c}

(19)

where $Δ γ_{max}$ denotes the maximum shear strain range; k is the influence factor of the maximum normal stress (for aluminum alloy, k = 0.5)¹⁰; b is the axial fatigue strength index, and c is the axial fatigue ductility index; $τ_{f}^{'}$ is the shear fatigue strength coefficient; $γ_{f}^{'}$ is the shear fatigue strength index. For the uniaxial load cases, the right side of the equation (19) can be expressed as:

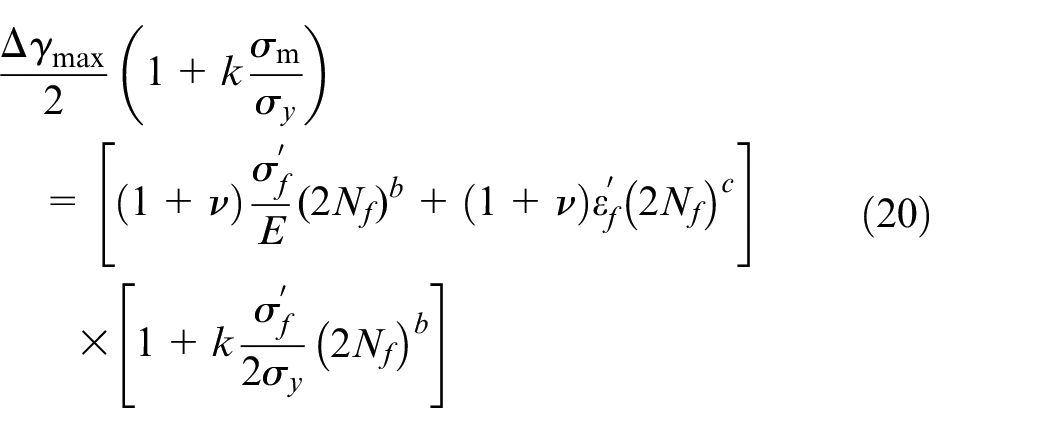

\begin{matrix} \frac{Δ γ_{max}}{2} (1 + k \frac{σ_{m}}{σ_{y}}) \\ = [(1 + ν) \frac{σ_{f}^{'}}{E} {(2 N_{f})}^{b} + (1 + ν) ε_{f}^{'} {(2 N_{f})}^{c}] \\ \times [1 + k \frac{σ_{f}^{'}}{2 σ_{y}} {(2 N_{f})}^{b}] \end{matrix}

(20)

where $ε_{f}^{'}$ is the axial fatigue ductility coefficient; The prediction model multiplies the normal stress by the shear strain to predict the fatigue life under different stress states. However, since the value of k in the model is constant, the FS model cannot explain the influence of the cyclic hardening effect on fatigue damage. Therefore, there are certain deviations in the prediction results of such models.

Improved subcritical plane model

In order to more accurately predict the fatigue failure of components, the influence of the cyclic hardening effect on the material is considered in this paper. An improved life prediction model is established by considering a cyclic hardening parameter to the subcritical plane model. At first, the damage parameter $f (γ_{t max}, ε_{γ t, max})$ is established for the defined subcritical plane¹⁴:

\begin{matrix} f (γ_{t max}, ε_{γ t, max}) = \frac{Δ ε_{eq}}{2} \\ = {[{ε^{2}}_{γ t, max} + {(\frac{ε_{- 1}}{γ_{- 1}} \cdot γ_{t, max})}^{2}]}^{1 / 2} \end{matrix}

(21)

where $γ_{t max}$ and $ε_{γ t, max}$ denotes the maximum shear strain and the maximum normal strain in the subcritical plane, respectively; $γ_{- 1}$ and $ε_{- 1}$ are the normal and tangential strain fatigue limits, respectively.

When establishing an improved subcritical fatigue life prediction model, the form of the FS model will provide a reference. Compared with the constant value k, the improved model considers a physical parameter $Γ_{t}$ that takes the effect of cyclic hardening into account to describe the variation of the strain in different planes:

{\begin{matrix} Γ_{t} = \frac{n^{'}}{0.1} f (γ_{t, max}, ε_{γ t, max}) \\ Γ_{T} = \frac{1}{T} \int_{0}^{T} Γ_{t} d t \end{matrix}

(22)

where $n^{'}$ is the strain hardening index. It should be noted that parameter $Γ_{t}$ is a process parameter varying with time t, and $Γ_{T}$ is the statistical parameter in a loading cycle T, which can reflect the material characteristics related to cyclic hardening. Subsequently, the parameter $Γ_{T}$ is introduced into the subcritical plane model:

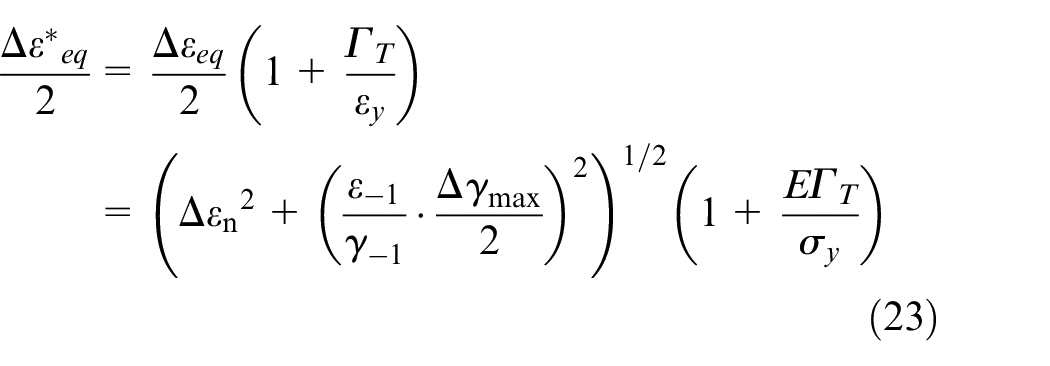

\begin{matrix} \frac{Δ {ε^{*}}_{eq}}{2} = \frac{Δ ε_{eq}}{2} (1 + \frac{Γ_{T}}{ε_{y}}) \\ = {(Δ {ε_{n}}^{2} + {(\frac{ε_{- 1}}{γ_{- 1}} \cdot \frac{Δ γ_{max}}{2})}^{2})}^{1 / 2} (1 + \frac{E Γ_{T}}{σ_{y}}) \end{matrix}

(23)

where $Δ ε_{n}$ and $Δ γ_{max}$ denote the maximum normal and maximum shear strain ranges in the subcritical plane, respectively. Taking the form of the FS model as a reference, the improved fatigue life prediction model is established as follows:

\begin{matrix} \frac{Δ {ε^{*}}_{eq}}{2} = (\frac{{σ^{'}}_{f}}{E} {(2 N_{f})}^{b} + {ε^{'}}_{f} {(2 N_{f})}^{c}) \\ (1 + \frac{(Δ γ_{max} - Δ γ_{Δ α t max}) {σ^{'}}_{f}}{2 Δ γ_{max} σ_{y}} {(2 N_{f})}^{b}) \end{matrix}

(24)

where ${σ^{'}}_{f}$ is the axial fatigue strength coefficient; $Δ γ_{Δ α t max}$ denotes the maximum shear strain range in the subcritical plane.

Failure prediction of the steering knuckle

This paper takes the steering knuckle of the front McPherson suspension system as the research object. The assembly relationship between the steering knuckle and its surrounding connecting parts is established through bolts and ball studs. As shown in Figure 5, the tightening torque of the four arc bolt joints is 120 N/m, and the tightening torque of two cylindrical bolt joints is 100 N/m.

Figure 5.

The CAE simulation model.

The preprocessing of the CAE model is carried out in ANSA v21.1.3. Since the rationality of mesh quality seriously affects the accuracy of simulation results, especially for fatigue analysis. Therefore, this study selected the industry-recognized mesh type C3D10M with a global size of 3 mm. The mesh quality is checked according to the enterprise-level meshing criteria. The checked results are shown in Table 1.

Table 1.

The enterprise-level meshing criteria and the checked results.

Meshing criteria	Failed	Number
Aspect ratio	<4	0
Warping	<15(°)	0
Min length	>0.8(mm)	0
Max length	<3.5(mm)	0
Min angle quads	>40(°)	0
Max angle quads	<140(°)	0
Min angle trias	>30(°)	0
Max angle trias	<120(°)	0

The boundary conditions of the steering knuckle are also shown in Figure 5. First, fix the steering knuckle on the fixing fixture through 4 arc bolt joints with the pre-tension load of 74.8 kN. Secondly, The brake caliper is connected with the steering knuckle through two cylindrical bolt joints with the pre-tension loads of 74.5 kN. Finally, the shock absorber is connected with the steering knuckle through a pin joint with a pre-tension load of 56.7 kN. All the pre-tension loads are calculated according to their specified tightening torques. Table 2 shows the material properties of the FE model.

Table 2.

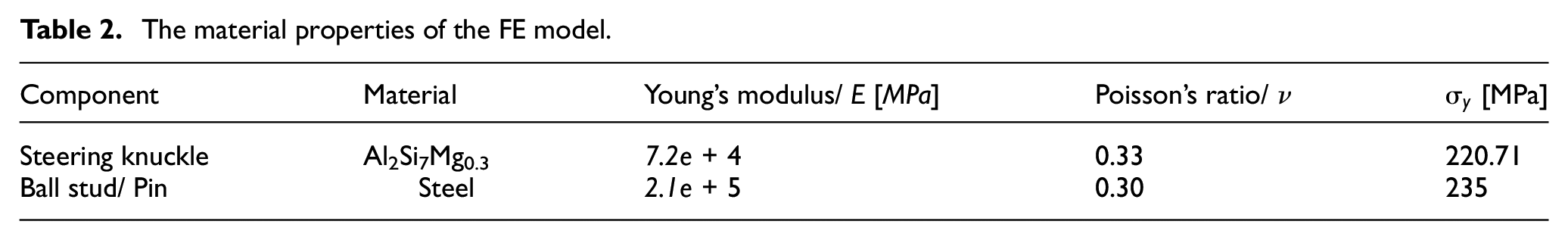

The material properties of the FE model.

Component	Material	Young’s modulus/ E [MPa]	Poisson’s ratio/ ν	$σ_{y}$ [MPa]
Steering knuckle	Al₂Si₇Mg_0.3	7.2e + 4	0.33	220.71
Ball stud/ Pin	Steel	2.1e + 5	0.30	235

After completing the preprocessing work, the CAE model is submitted for calculation to obtain the basic variables included in the proposed prediction method and model.

Quasi-static failure prediction of the steering knuckle

This section will utilize the proposed method to carry out the quasi-static failure prediction of the steering knuckle. As shown in Figure 6, by fitting the true strain-stress curve of Al₂Si₇Mg_0.3, the undetermined parameters $σ_{s}$ , B, $n^{*}$ , and C^* in equation (1) are obtained. Thus, the J-C constitutive model of the steering knuckle is determined as follows:

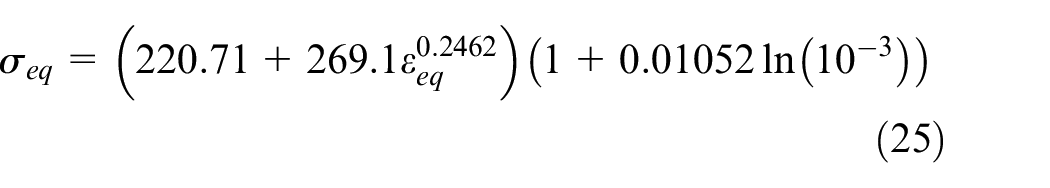

σ_{eq} = (220.71 + 269.1 ε_{eq}^{0.2462}) (1 + 0.01052 \ln (10^{- 3}))

(25)

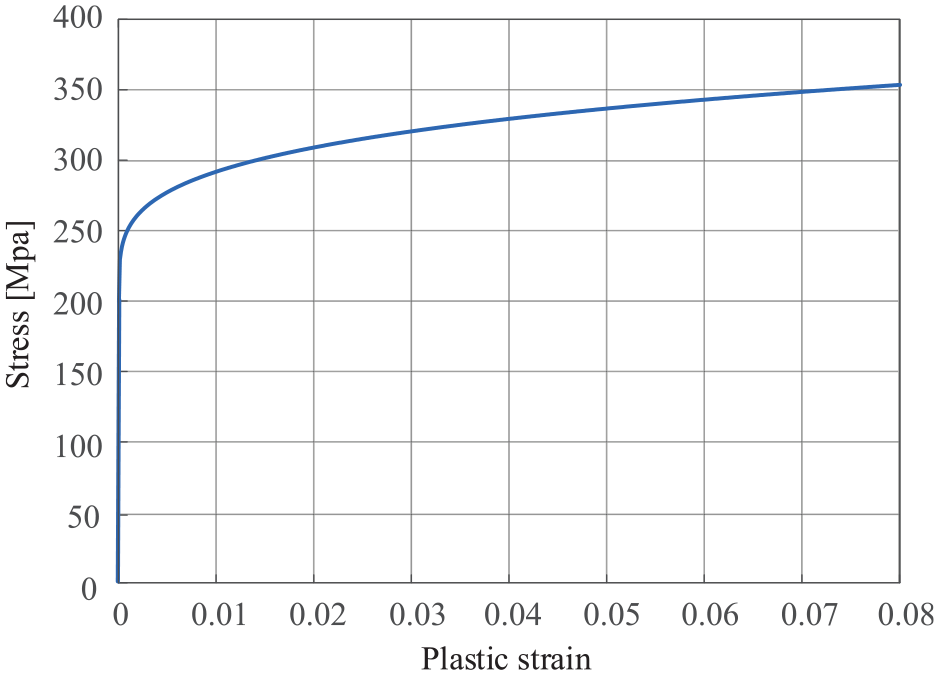

Figure 6.

The true strain-stress curve of Al₂Si₇Mg_0.3.

Subsequently, the constitutive model of the material is imported into the property module in ABAQUS/Standard through the user-defined subroutine to complete the definition of the material.

According to the connection modes described above, the quasi-static failure prediction of the steering knuckle is carried out under the three working conditions shown in Table 3.

Table 3.

The quasi-static working conditions.

Working condition	Direction of load	Upper load limit [kN]
Lower control arm	In the X–Y plane, 45° to the fixture surface	90
Tie rod	Perpendicular to X–Z plane	90
Shock absorber	Perpendicular to X–Z plane	90

For the J-C criterion described in equation (16), the undetermined parameters C₁, C₂, and C₃ of Al₂Mg₃Si_0.7 were queried to be −0.089, 1.539, and −1.681, respectively.²³ Then the J-C criterion of the steering knuckle becomes:

[- 0.089 + 1.539 \exp (- 1.681 \cdot \frac{σ_{m}}{σ_{eq}})] / ε_{11} = 1

(26)

Working condition 1: Lateral load at the lower control arm

According to Table 3 and Figure 5, the tension load in working condition 1 is 45° to the fixture surface in the X–Y plane. The load is increased gradually at the interval of 1 kN. The simulation results of working condition 1 are viewed through META v21.1.3 as follows:

Figure 7 shows the strain distribution of the steering knuckle when the tensile load reaches 90 kN. The simulation results show that the critical point is located at the outer edge of the steering knuckle. Then, the load-displacement curve of the critical point is output.

Figure 7.

The strain distribution of the steering knuckle in working condition 1.

As shown in Figure 8, the obtained load-displacement curve at the critical point shows that the plastic deformation of the steering knuckle begins to occur when the tensile load reaches 55 kN. When unloading to 0 at this time, we found a residual displacement of 0.03 mm at the critical point.

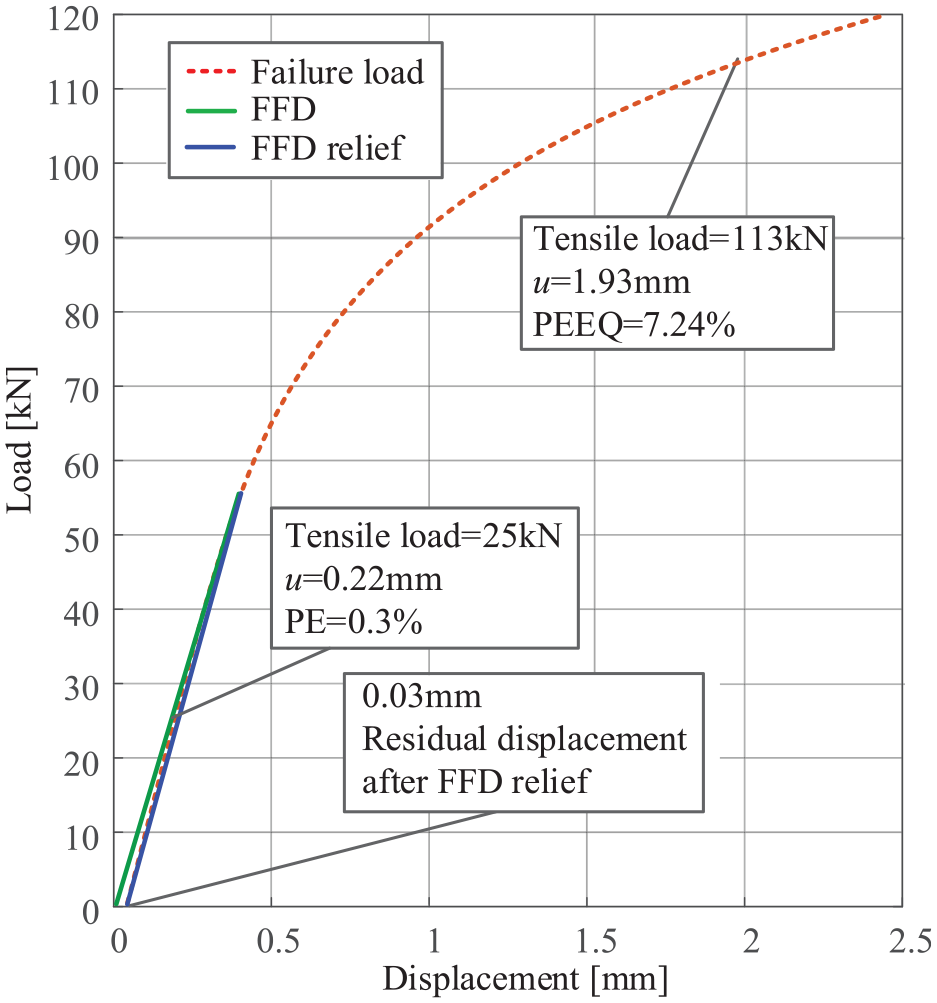

Figure 8.

The load-displacement curve at the critical point (working condition 1).

Take the tensile load (55 kN) at which plastic deformation is about to occur as the FFD load. Then increase the tensile load by 12.5% of the FFD load each time on the basis of the initial FFD load. The displacement components of the critical point under different tension loads are recorded.

As shown in Table 4, the quasi-static failure prediction is carried out using the proposed method. $ε_{11}$ is 0.059 when the tension load reaches 90 kN. Combined with the CAE simulation results, and use the J-C criterion in equation (26) for quasi-static failure prediction:

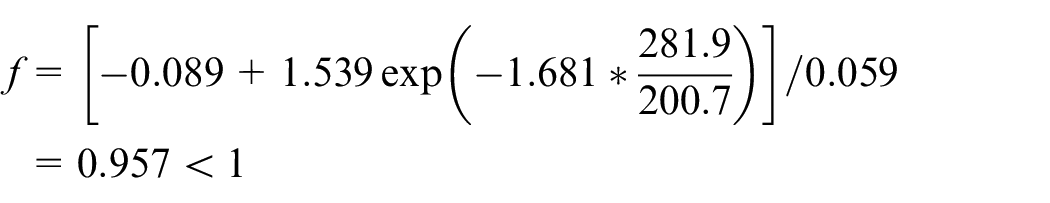

\begin{matrix} f = [- 0.089 + 1.539 \exp (- 1.681 * \frac{281.9}{200.7})] / 0.059 \\ = 0.957 < 1 \end{matrix}

(26)

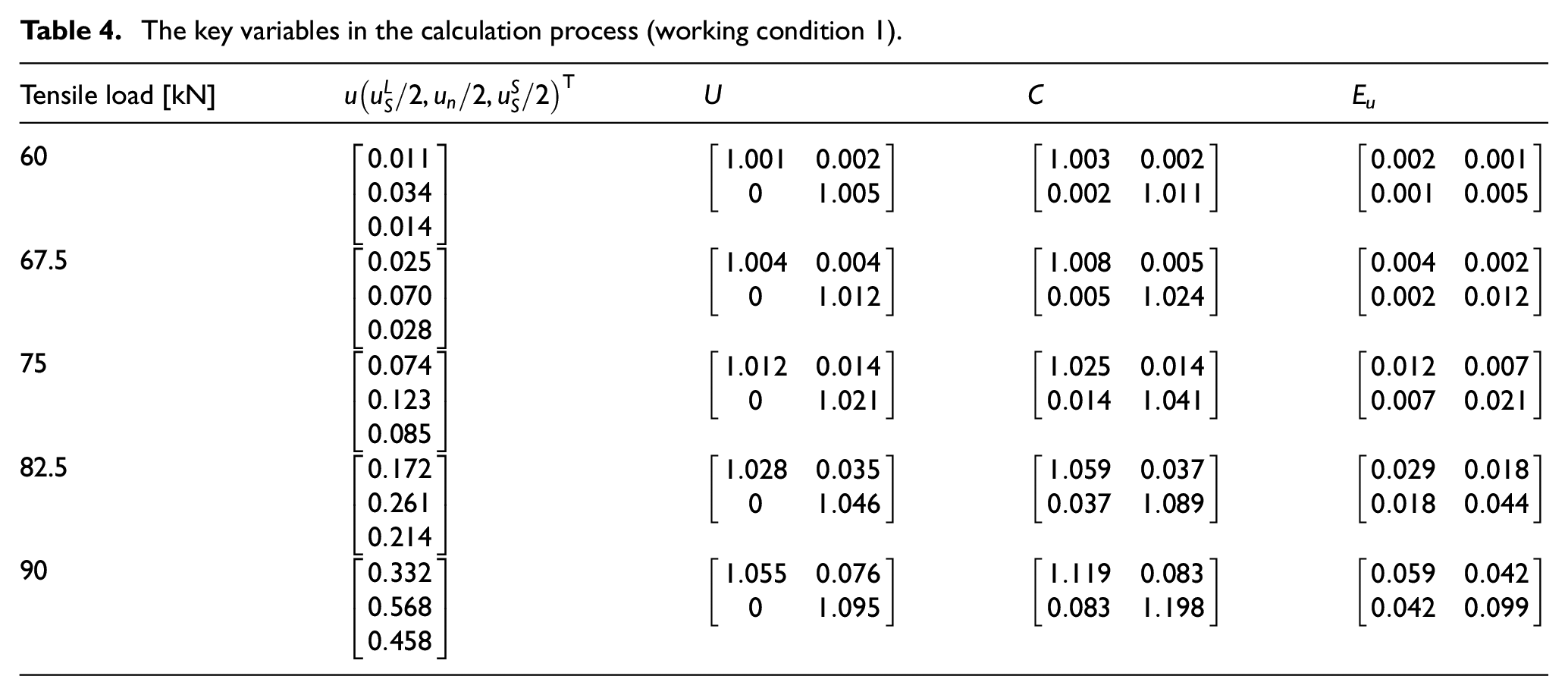

Table 4.

The key variables in the calculation process (working condition 1).

Tensile load [kN]	$u {(u_{S}^{L} / 2, u_{n} / 2, u_{S}^{S} / 2)}^{T}$	U	C	E_u
60	$[\begin{matrix} 0.011 \\ 0.034 \\ 0.014 \end{matrix}]$	$[\begin{matrix} 1.0010.002 \\ 01.005 \end{matrix}]$	$[\begin{matrix} 1.0030.002 \\ 0.0021.011 \end{matrix}]$	$[\begin{matrix} 0.0020.001 \\ 0.0010.005 \end{matrix}]$
67.5	$[\begin{matrix} 0.025 \\ 0.070 \\ 0.028 \end{matrix}]$	$[\begin{matrix} 1.0040.004 \\ 01.012 \end{matrix}]$	$[\begin{matrix} 1.0080.005 \\ 0.0051.024 \end{matrix}]$	$[\begin{matrix} 0.0040.002 \\ 0.0020.012 \end{matrix}]$
75	$[\begin{matrix} 0.074 \\ 0.123 \\ 0.085 \end{matrix}]$	$[\begin{matrix} 1.0120.014 \\ 01.021 \end{matrix}]$	$[\begin{matrix} 1.0250.014 \\ 0.0141.041 \end{matrix}]$	$[\begin{matrix} 0.0120.007 \\ 0.0070.021 \end{matrix}]$
82.5	$[\begin{matrix} 0.172 \\ 0.261 \\ 0.214 \end{matrix}]$	$[\begin{matrix} 1.0280.035 \\ 01.046 \end{matrix}]$	$[\begin{matrix} 1.0590.037 \\ 0.0371.089 \end{matrix}]$	$[\begin{matrix} 0.0290.018 \\ 0.0180.044 \end{matrix}]$
90	$[\begin{matrix} 0.332 \\ 0.568 \\ 0.458 \end{matrix}]$	$[\begin{matrix} 1.0550.076 \\ 01.095 \end{matrix}]$	$[\begin{matrix} 1.1190.083 \\ 0.0831.198 \end{matrix}]$	$[\begin{matrix} 0.0590.042 \\ 0.0420.099 \end{matrix}]$

The predicted results show that even if the tensile load reaches the upper load limit (90 kN) in Table 3, the steering knuckle under condition 1 still does not fail.

Working condition 2: Vertical load at the tie rod

In working condition 2, the tension load is perpendicular to the X–Z plane. The load is increased gradually at the interval of 1 kN.

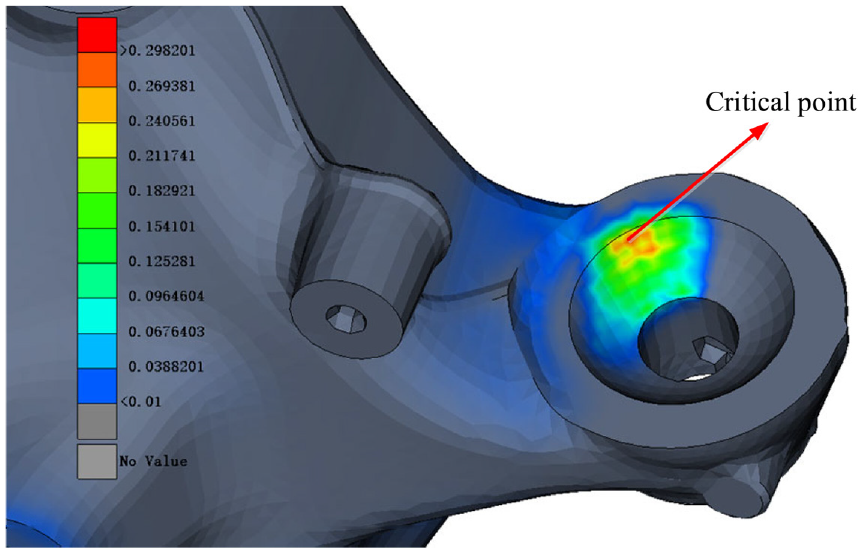

Figure 9 shows the strain distribution of the steering knuckle when the tensile load reaches 80 kN. The simulation results show that the critical point is located at the outer contact surface of the knuckle. Then, the load-displacement curve of the critical point for working condition 2 is output.

Figure 9.

The strain distribution of the steering knuckle in working condition 2.

As shown in Figure 10, the obtained load-displacement curve at the critical point shows that the plastic deformation occurs when the tensile load reaches 40 kN. When unloading to 0 at this time, we found a residual displacement of 0.09 mm at the critical point.

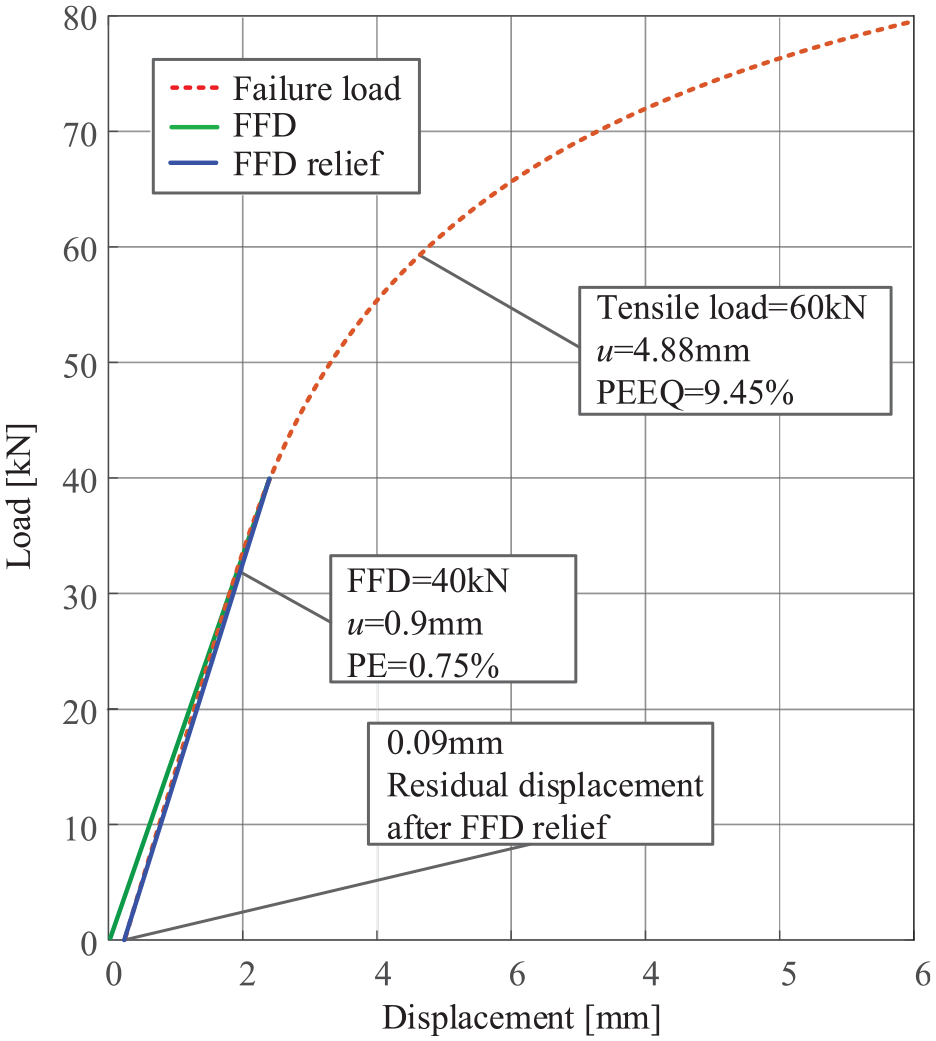

Figure 10.

The load-displacement curve at the critical point (working condition 2).

Take the tensile load that is about to plastically deform as the FFD load, and then increase the tensile load at 12.5% intervals of the FFD load each time. The displacement components of the critical point under different tensile loads are recorded.

As shown in Table 5, the quasi-static failure prediction is carried out by the proposed method for working condition 2. $ε_{11}$ is 0.157 when the tension load reaches 60 kN. Combined with the CAE simulation results, and use the J-C criterion for quasi-static failure prediction:

\begin{matrix} f = [- 0.089 + 1.539 \exp (- 1.681 \cdot \frac{318.1}{300.1})] / 0.157 \\ = 1.083 > 1 \end{matrix}

(26)

Table 5.

The key variables in the calculation process (working condition 2).

Tensile load [kN]	$u {(u_{S}^{L} / 2, u_{n} / 2, u_{S}^{S} / 2)}^{T}$	U	C	E_u
40	$[\begin{matrix} 0.118 \\ 0.306 \\ 0.064 \end{matrix}]$	$[\begin{matrix} 1.020 & 0.011 \\ 0 & 1.051 \end{matrix}]$	$[\begin{matrix} 1.040 & 0.011 \\ 0.011 & 1.105 \end{matrix}]$	$[\begin{matrix} 0.020 & 0.005 \\ 0.005 & 0.052 \end{matrix}]$
45	$[\begin{matrix} 0.859 \\ 1.432 \\ 0.463 \end{matrix}]$	$[\begin{matrix} 1.041 & 0.022 \\ 0 & 1.068 \end{matrix}]$	$[\begin{matrix} 1.084 & 0.027 \\ 0.027 & 1.414 \end{matrix}]$	$[\begin{matrix} 0.042 & 0.012 \\ 0.012 & 0.071 \end{matrix}]$
50	$[\begin{matrix} 0.424 \\ 0.679 \\ 0.228 \end{matrix}]$	$[\begin{matrix} 1.071 & 0.038 \\ 0 & 1.113 \end{matrix}]$	$[\begin{matrix} 1.148 & 0.042 \\ 0.042 & 1.239 \end{matrix}]$	$[\begin{matrix} 0.074 & 0.021 \\ 0.021 & 0.120 \end{matrix}]$
55	$[\begin{matrix} 0.649 \\ 1.598 \\ 0.351 \end{matrix}]$	$[\begin{matrix} 1.108 & 0.058 \\ 0 & 1.266 \end{matrix}]$	$[\begin{matrix} 1.232 & 0.074 \\ 0.074 & 1.603 \end{matrix}]$	$[\begin{matrix} 0.116 & 0.037 \\ 0.037 & 0.301 \end{matrix}]$
60	$[\begin{matrix} 0.863 \\ 2.300 \\ 0.494 \end{matrix}]$	$[\begin{matrix} 1.144 & 0.082 \\ 0 & 1.383 \end{matrix}]$	$[\begin{matrix} 1.315 & 0.114 \\ 0.114 & 1.913 \end{matrix}]$	$[\begin{matrix} 0.157 & 0.057 \\ 0.057 & 0.457 \end{matrix}]$

The predicted results show that quasi-static failure occurs when the tensile load reaches 60 kN, which does not meet the requirement of working condition 2.

Working condition 3: Longitudinal load at the shock absorber

In working condition 3, the tensile load is perpendicular to the X–Z plane. The load will be gradually increased at the interval of 1 kN.

Figure 11 shows the strain distribution of the steering knuckle when the tensile load reaches 30 kN. The simulation results show that the critical point is located at the external outer edge of the knuckle. Then, the load-displacement curve of the critical point for working condition 3 is output as follows.

Figure 11.

The strain distribution of the steering knuckle in working condition 3.

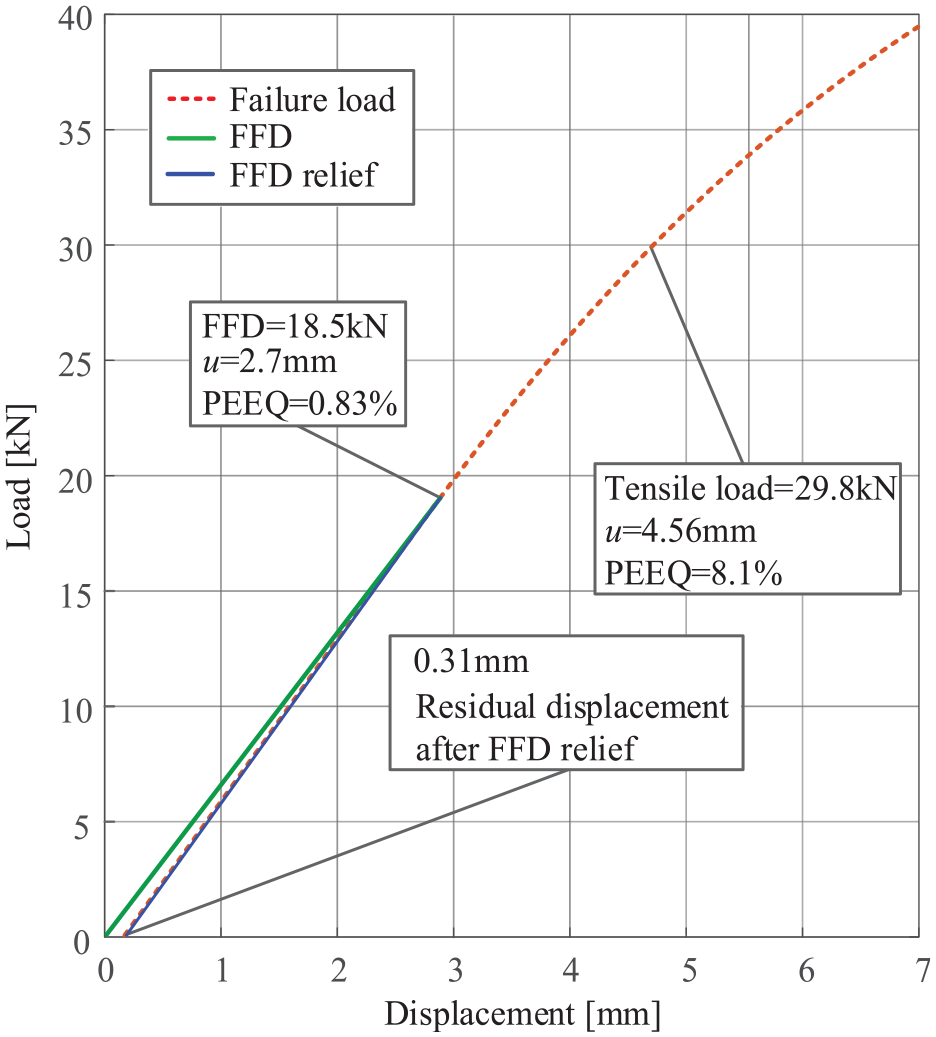

As shown in Figure 12, the obtained load-displacement curve at the critical point shows that the plastic deformation occurs when the tensile load reaches 18.5 kN. When unloading the FFD load to 0 at this time, we found a residual displacement of 0.31 mm at the critical point.

Figure 12.

The load-displacement curve at the critical point (working condition 3).

Increase the tensile load in sequence as described above, and the displacement components of the critical point under different tension loads are recorded. At last, the quasi-static failure prediction is also carried out for working condition 3.

It can be seen from Table 6 that $ε_{11}$ is 0.084 when the tension load reaches 27.75 kN. Combined with the CAE simulation results, and use the J-C criterion for quasi-static failure prediction:

\begin{matrix} f = [- 0.089 + 1.539 \exp (- 1.681 * \frac{335.73}{416.2})] / 0.084 \\ = 1.21 > 1 \end{matrix}

(26)

Table 6.

The key variables in the calculation process (working condition 3).

Tensile load [kN]	$u {(u_{S}^{L} / 2, u_{n} / 2, u_{S}^{S} / 2)}^{T}$	U	C	E_u
18.5	$[\begin{matrix} 0.188 \\ 3.757 \\ 0.632 \end{matrix}]$	$[\begin{matrix} 1.031 & 0.105 \\ 0 & 1.556 \end{matrix}]$	$[\begin{matrix} 1.075 & 0.164 \\ 0.164 & 2.432 \end{matrix}]$	$[\begin{matrix} 0.037 & 0.082 \\ 0.082 & 0.716 \end{matrix}]$
20.81	$[\begin{matrix} 0.201 \\ 3.958 \\ 0.704 \end{matrix}]$	$[\begin{matrix} 1.033 & 0.117 \\ 0 & 1.660 \end{matrix}]$	$[\begin{matrix} 1.082 & 0.195 \\ 0.195 & 2.755 \end{matrix}]$	$[\begin{matrix} 0.041 & 0.097 \\ 0.097 & 0.877 \end{matrix}]$
23.12	$[\begin{matrix} 0.232 \\ 4.326 \\ 1.013 \end{matrix}]$	$[\begin{matrix} 1.039 & 0.169 \\ 0.106 & 1.721 \end{matrix}]$	$[\begin{matrix} 1.107 & 0.291 \\ 0.291 & 2.962 \end{matrix}]$	$[\begin{matrix} 0.054 & 0.145 \\ 0.145 & 0.981 \end{matrix}]$
25.43	$[\begin{matrix} 0.266 \\ 5.464 \\ 1.101 \end{matrix}]$	$[\begin{matrix} 1.044 & 0.183 \\ 0 & 1.911 \end{matrix}]$	$[\begin{matrix} 1.124 & 0.350 \\ 0.350 & 3.651 \end{matrix}]$	$[\begin{matrix} 0.062 & 0.175 \\ 0.175 & 1.325 \end{matrix}]$
27.75	$[\begin{matrix} 0.335 \\ 6.950 \\ 1.386 \end{matrix}]$	$[\begin{matrix} 1.056 & 0.231 \\ 0 & 2.158 \end{matrix}]$	$[\begin{matrix} 1.168 & 0.499 \\ 0.499 & 4.658 \end{matrix}]$	$[\begin{matrix} 0.084 & 0.249 \\ 0.249 & 1.829 \end{matrix}]$

The predicted results show that quasi-static failure occurs when the tensile load reaches 27.75 kN, which does not meet the requirement of working condition 3.

Fatigue failure prediction of the steering knuckle

Due to the complexity of the geometry and stress state of the steering knuckle, it is not feasible to predict the fatigue failure by the nominal stress method. Therefore, in this section, the FS model and the improved subcritical plane model are used to predict the fatigue failure of the steering knuckle. At first, the S-N curve of the steering knuckle’s material is corrected in FEMFAT 5.3.1.

Figure 13 shows the corrected S-N curve of Al₂Si₇Mg_0.3 due to the influence of the processing technology and the component structure. Where the endurance limit is 73 MPa, and the cycle limit is 1e + 7. Subsequently, the fatigue properties of Al₂Si₇Mg_0.3¹² in the prediction models are shown in Table 7.

Figure 13.

The corrected S-N curve of Al₂Si₇Mg_0.3.

Table 7.

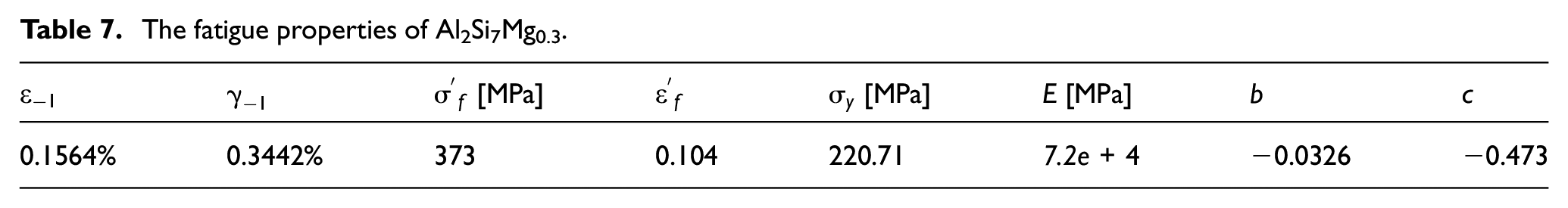

The fatigue properties of Al₂Si₇Mg_0.3.

$ε_{- 1}$	$γ_{- 1}$	${σ^{'}}_{f}$ [MPa]	${ε^{'}}_{f}$	$σ_{y}$ [MPa]	E [MPa]	b	c
0.1564%	0.3442%	373	0.104	220.71	7.2e + 4	−0.0326	−0.473

Subsequently, the load conditions and the initial number of cycles are inputted for simulation to determine critical elements. The cyclic load conditions in this study are based on actual vehicle measurements on different road conditions and formulated using the virtual equivalence simulation.

Table 8 shows the load conditions acting on the steering knuckle. The frequency of all load cases is 10 Hz, and the tensile direction is considered positive. The load points and directions are shown in Figure 5. Set the number of cycles to 500,000. The damage distributions are shown as follows.

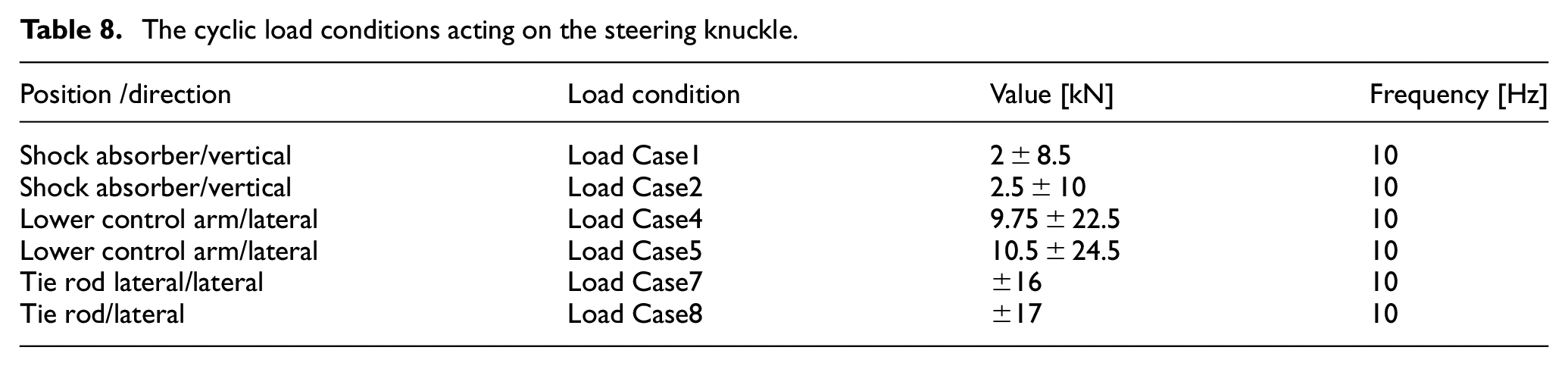

Table 8.

The cyclic load conditions acting on the steering knuckle.

Position /direction	Load condition	Value [kN]	Frequency [Hz]
Shock absorber/vertical	Load Case1	2 ± 8.5	10
Shock absorber/vertical	Load Case2	2.5 ± 10	10
Lower control arm/lateral	Load Case4	9.75 ± 22.5	10
Lower control arm/lateral	Load Case5	10.5 ± 24.5	10
Tie rod lateral/lateral	Load Case7	±16	10
Tie rod/lateral	Load Case8	±17	10

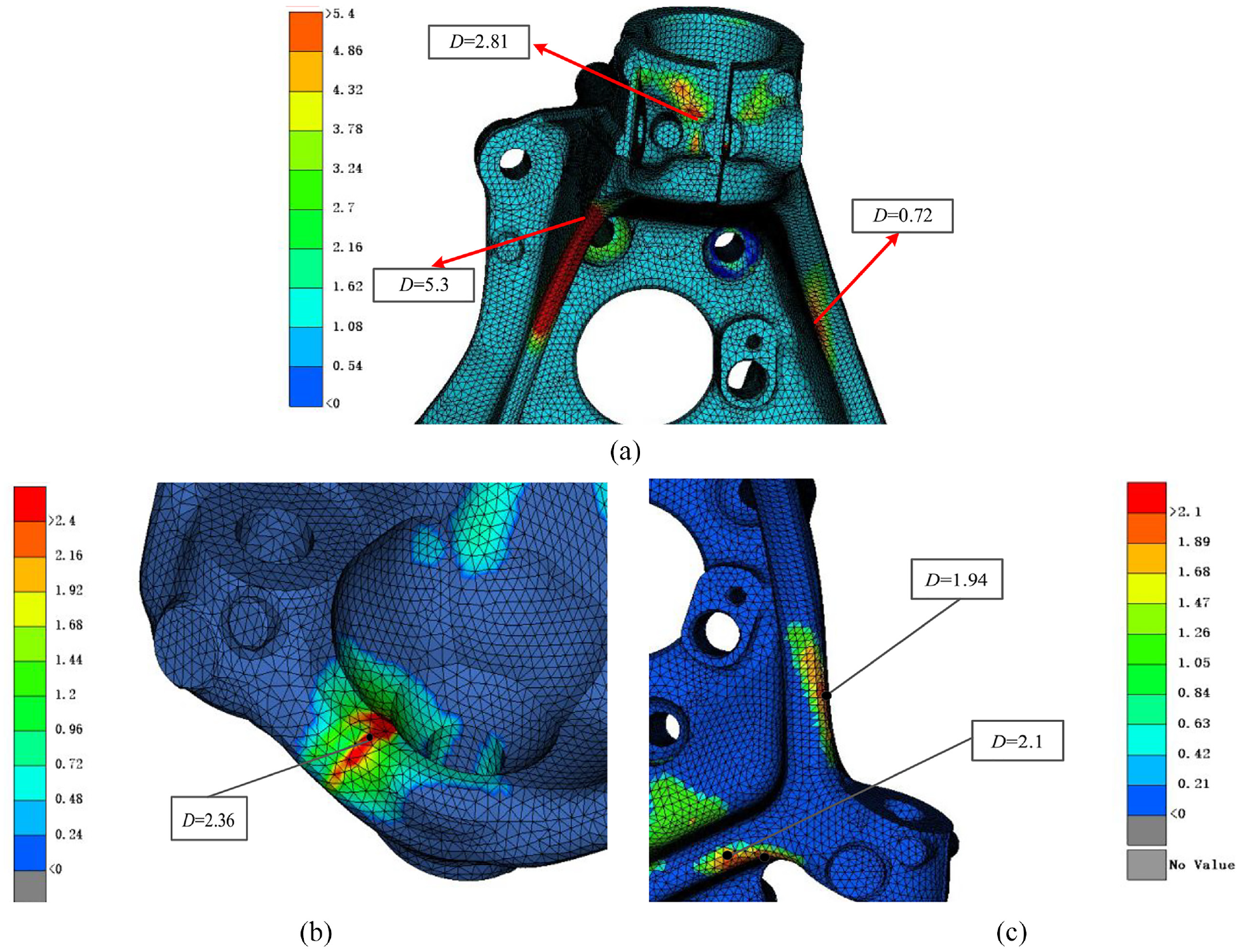

Figure 14 shows the damage distributions of steering knuckles under load cases 1, 4, and 7. According to the damage distributions, the critical elements of the steering knuckle under different working conditions are determined. For the load case1, the critical element is located at the root of the shock absorber connection. For load cases 4 and 7, the critical elements are located at the outer edge of the joint area with the lower control arm and the tie rod of the steering knuckle, respectively. Then, the key variables of the critical elements for the two fatigue failure prediction models are extracted (Table 9).

Figure 14.

The damage distributions under load cases 1, 4, and 7: (a) load case 1, (b) load case 4, and (c) load case 7.

Table 9.

The key variables in the prediction models.

Load condition	$γ_{t max}$ (%)	$ε_{γ t, max}$ (%)	$Δ γ_{max}$ (%)	$Δ γ_{Δ α t max}$ (%)	$σ_{m}$ [MPa]
Loadcase1	0.248	0.636	0.648	0.12	118.44
Loadcase2	0.353	0.447	0.637	0.12	61.102
Loadcase4	0.216	0.184	0.36	0.12	125
Loadcase5	1.31	0.492	0.46	0.12	144.5
Loadcase7	0.181	0.049	0.336	0.12	145.3
Loadcase8	0.183	0.051	0.343	0.12	154.78

Finally, the extracted key variables and the material’s fatigue properties are substituted into the FS prediction model and the improved subcritical plane prediction model. The predicted results will be compared with the test results in the subsequent validation chapter.

Experimental validation

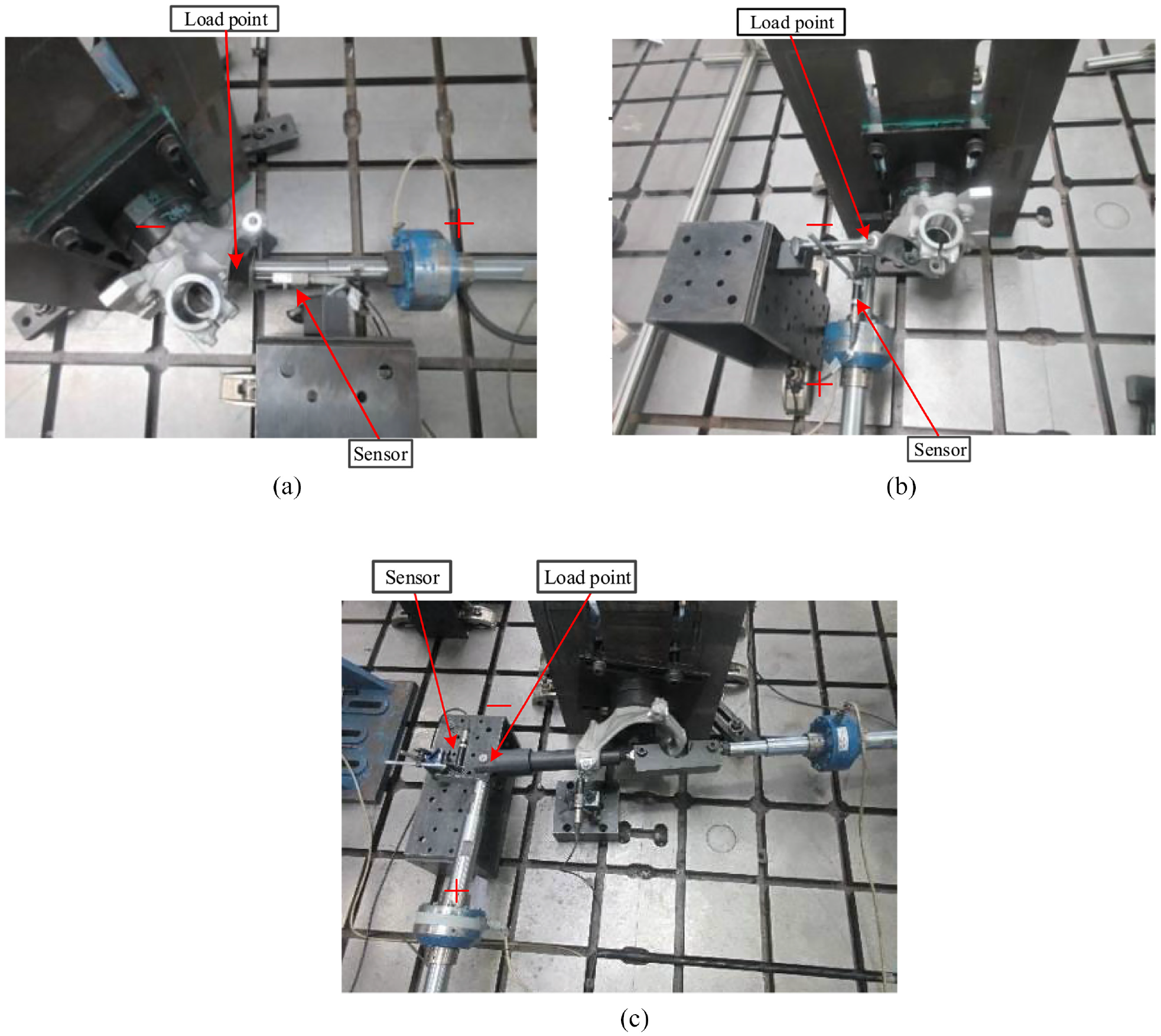

As shown in Figure 15, the validation test adopted the electro-hydraulic servo valve of MOOG company and the linear actuator produced by MTS company. The maximum dynamic test load is ±100 kN, and the maximum stroke range is ±150 mm. The hydraulic actuator was connected to the joints of the lower control arm, tie rod, and shock absorber of the steering knuckle with the ball studs, respectively. The loads were applied according to the BAB (German abbreviation for Bauteilauslegungsblatt) standard.

Figure 15.

The quasi-static test bench: (a) working condition 1 (b) working condition 2, and (c) working condition 3.

Quasi-static validation

The quasi-static tests were carried out to verify the proposed quasi-static prediction method, as shown in Figure 15. The external displacement sensors were arranged on the load points, and the load conditions were consistent with Table 3.

The quasi-static test scheme in this paper is: First, increase the tensile load to the FFD load. Then, release the FFD load and increase the tensile load by 12.5% of the FFD load on the basis of the initial FFD load. This process is repeated until a quasi-static failure of the steering knuckle occurs. Furthermore, the test will also be terminated if no quasi-static failure occurs when the tensile load reaches the upper limit of Table 3.

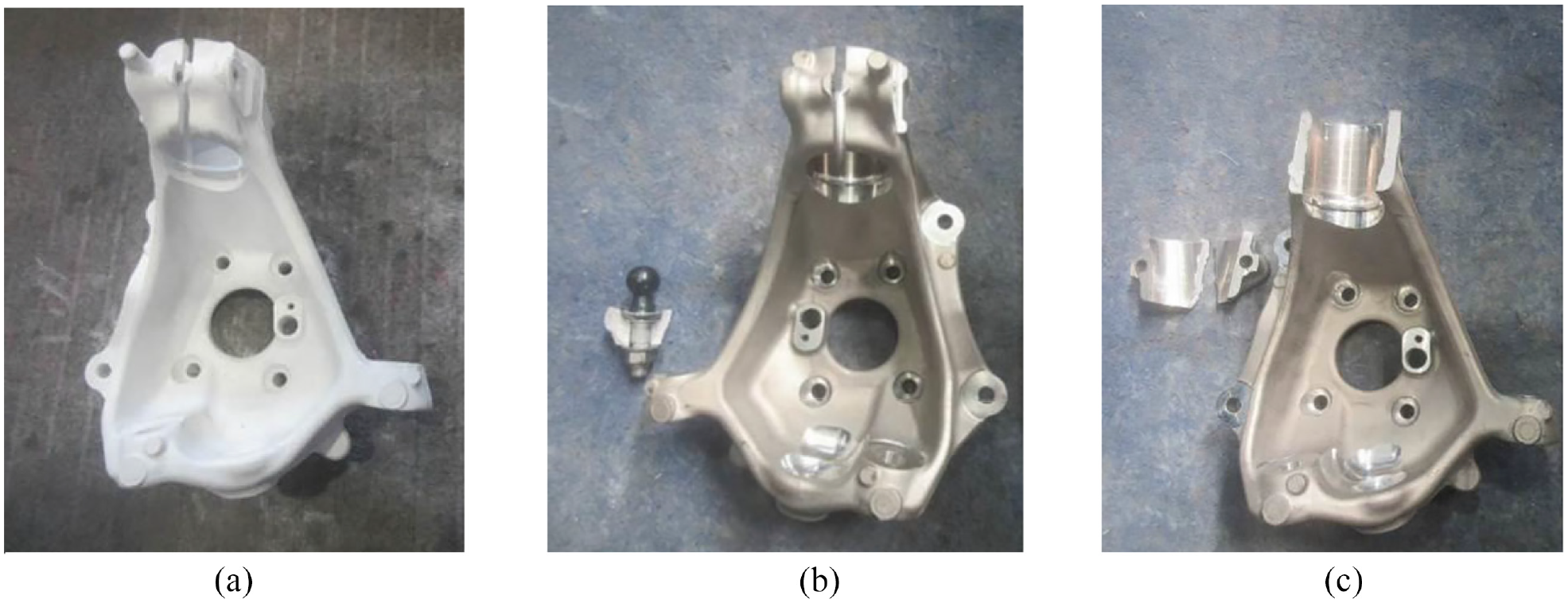

Figure 16 shows the steering knuckles after the quasi-static tests. In Figure 16(a), we found no quasi-static failure of the steering knuckle in working condition 1, but residual deformation still existed. Figure 16(b) and (c) show that the steering knuckles under working conditions 2 and 3 had experienced quasi-static failures.

Figure 16.

The steering knuckles after the quasi-static test: (a) working condition 1, (b) working condition 2, and (c) working condition 3.

Figure 17 shows the load-displacement curves of the critical points under the three quasi-static working conditions. It was found that when the FFD load was unloaded, the residual displacement existed at the load point of the steering knuckle. Moreover, the residual displacement gradually increased with the cycle’s number of tensile loads. Figure 17(a) shows that the steering knuckle still has no quasi-static failure when loaded to 90 kN for the fifth time. Besides, in the fifth loading-unloading cycle, the displacement of the load point increased from 2.85 to 6.23 mm, which means the increment was 3.38 mm. The test was terminated because the fifth loading value reached the upper limit.

Figure 17.

The load-displacement curves at the load points: (a) working condition 1, (b) working condition 2, and (c) working condition 3.

As shown in Figure 17(b), the steering knuckle appeared quasi-static failure when loaded to 63.88 kN for the fifth time. During the fifth loading process, the displacement value of the load point increased from 3.21 to 8.69 mm, which means the increment was 5.48 mm.

As shown in Figure 17(c), the steering knuckle appeared quasi-static failure when loaded to 30.15 kN for the fifth time. During the fifth loading process, the displacement value of the load point increased from 0.8 to 5.23 mm, which means the increment is 4.43 mm.

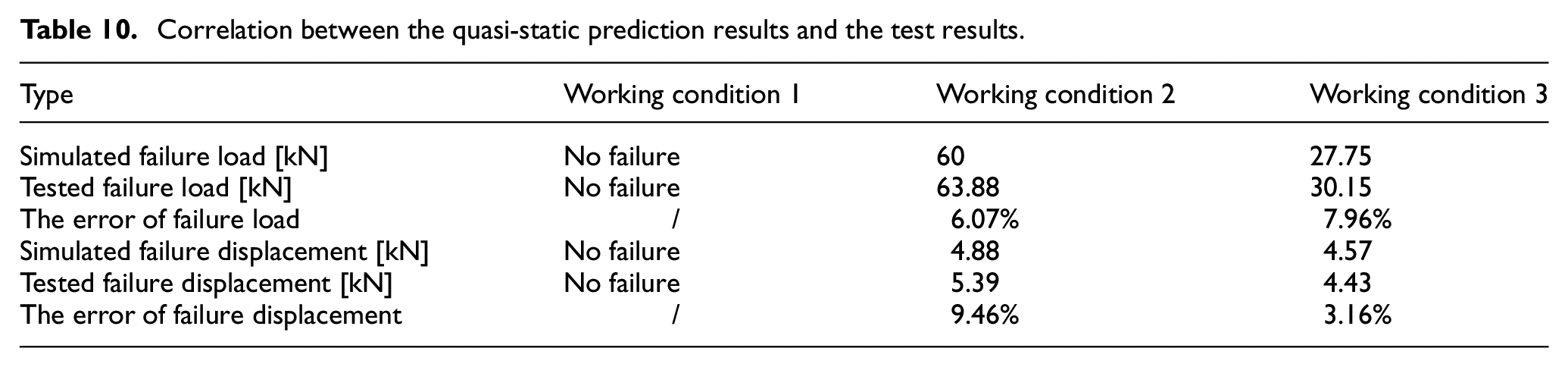

Table 10 summarizes the correlation between the predicted and test results under the quasi-static test conditions. From the comparison results, the error of failure load and the failure displacement of all cases are within a reasonable range according to the ISO standard. Therefore, the applicability and accuracy of the proposed quasi-static failure prediction method are confirmed.

Table 10.

Correlation between the quasi-static prediction results and the test results.

Type	Working condition 1	Working condition 2	Working condition 3
Simulated failure load [kN]	No failure	60	27.75
Tested failure load [kN]	No failure	63.88	30.15
The error of failure load	/	6.07%	7.96%
Simulated failure displacement [kN]	No failure	4.88	4.57
Tested failure displacement [kN]	No failure	5.39	4.43
The error of failure displacement	/	9.46%	3.16%

Fatigue failure validation

As shown in Figure 18, the fatigue tests were performed on the steering knuckles to validate the improved subcritical plane prediction model. The cyclic load conditions were consistent with those in Table 8. Moreover, all the load cases were in the form of sinusoidal reciprocation. The external displacement sensors were used to measure the axial displacement of the load points. In the automotive design process, the appearance of macro cracks is not allowed since the surface cracks will progress gradually in the depth of the component and eventually lead to fracture.²⁴ Therefore, the displacement of 0.2 mm was served as the shut-off criteria according to the enterprise test standard.

Figure 18.

The fatigue test bench: (a) lower control arm, (b) tie rod, and (c) shock absorber.

The fatigue test scheme is to apply the cyclic loads to the steering knuckles according to Table 8. Terminates the test when the load points’ displacement reaches the shut-off criteria and then records the number of cycles. Moreover, the fatigue test will also be terminated if the steering knuckle does not fail after 340,000 cycles. Thus, the fatigue tests were carried out on seven steering knuckles under each load case in Table 8 to make the test results credible and facilitate subsequent statistics.

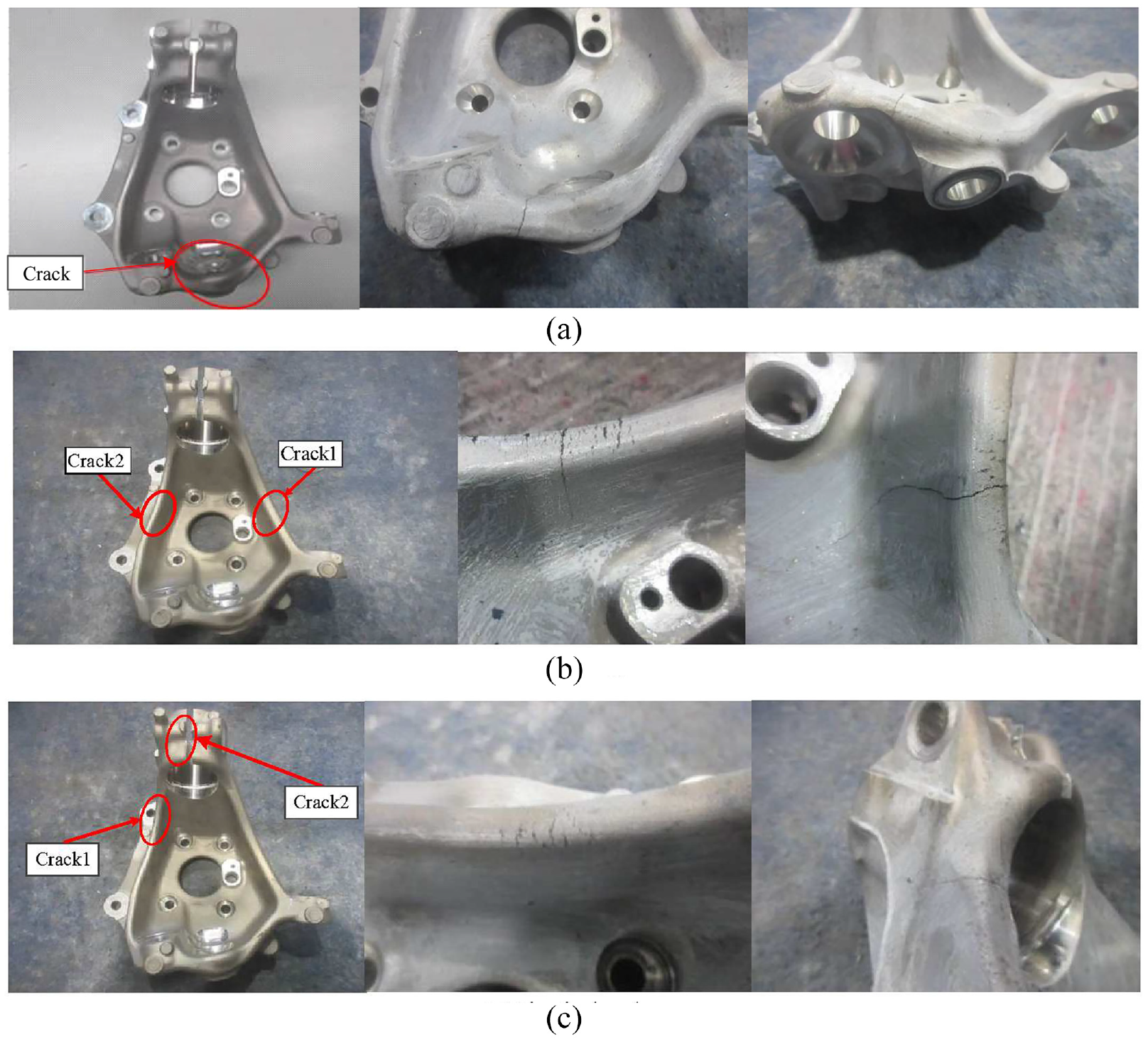

According to the test results, when the test reached the shut-off criteria, cracks appeared on the surface of the steering knuckles at the same position under each load case. Figure 19(a) shows the crack’s location at the outer edge of the joint area with the lower control arm. Figure 19(b) shows the crack’s location on both sides of the outer wall. From Figure 19(c), one is located at the outer wall, and the other is located at the contact part of the steering knuckle with the pin. It can be seen that the failure positions predicted by the CAE simulation are highly consistent with the test results.

Figure 19.

The fatigue test results: (a) lower control arm, (b) tie rod, and (c) shock absorber.

According to the BAB criterion, the lower limits of the cycle numbers corresponding to the 10% and the 50% failure reliability are 1000,000 and 1700,000, respectively. Moreover, the test results exceeding the corresponding lower limit are considered qualified. In general, we take 50% failure reliability as the design standard. The correlations between the fatigue life prediction results and the test results are shown in Figure 20. From the comparison results, all the test results can meet the 10% failure reliability and the 50% failure reliability. Besides, it can be seen that the fatigue life prediction results of the FS model deviate from the improved subcritical plane (S-P) model.

Figure 20.

Correlation between the fatigue life prediction results and test results: (a) lower control arm, (b) tie rod, and (c) shock absorber.

The Weibull distribution model is widely used in the mechanical components’ fatigue life statistics. Specifically, this study will compare the accuracy of the two prediction models by this model. At first, the number of cycles for 50% failure reliability (N_50%) of the test results is estimated by the linear least square method. The following equation determines the frequency of occurrence of each test result:

F_{(i)} = \frac{i - 0.3}{n + 0.4}

(27)

where n is the number of test samples; i = 1–n. Generally, the least square method of Weibull distribution adopts the inverse transformation method, and its cumulative distribution function has the following form²⁵:

F (N) = 1 - e^{- {(\frac{N}{T_{N}})}^{α}}

(28)

where T_N is the characteristic number of the load cycles; $α$ is the shape parameter; N is the number of sampling cycles.

The data of failure cycles are sorted from smallest to largest, so the independent variables of the regression model, N₁, N₂…N_n are also sorted from smallest to largest. For the test samples with uncensored data, the approximate median rank formula can be used to estimate the failure probability of each failure cycle number:

F_{i} (N_{i}) = \frac{i - 0.3}{n + 0.4}

(29)

According to equation (29), we can obtain the dependent variables Y₁, Y₂…, Y_n. Then the regression coefficients d and f are estimated by the least square method:

{\begin{matrix} d = \frac{\sum_{i = 1}^{n} N_{i}^{2} \sum_{i = 1}^{n} Y_{i} - \sum_{i = 1}^{n} N_{i} Y_{i}}{n \sum_{i = 1}^{n} N_{i}^{2} - {(\sum_{i = 1}^{n} N_{i})}^{2}} \\ f = \frac{\sum_{i = 1}^{n} Y_{i} - nd}{\sum_{i = 1}^{n} N_{i}} \end{matrix}

(30)

The estimated values of shape and size parameters are obtained by inverse transformation:

α = f, T_{N} = e^{- d / f}

(31)

Based on the above, the number of cycles for 50% failure reliability of the test results is obtained:

N_{50 %} = T_{N} \cdot 0.6931^(1 / α)

(32)

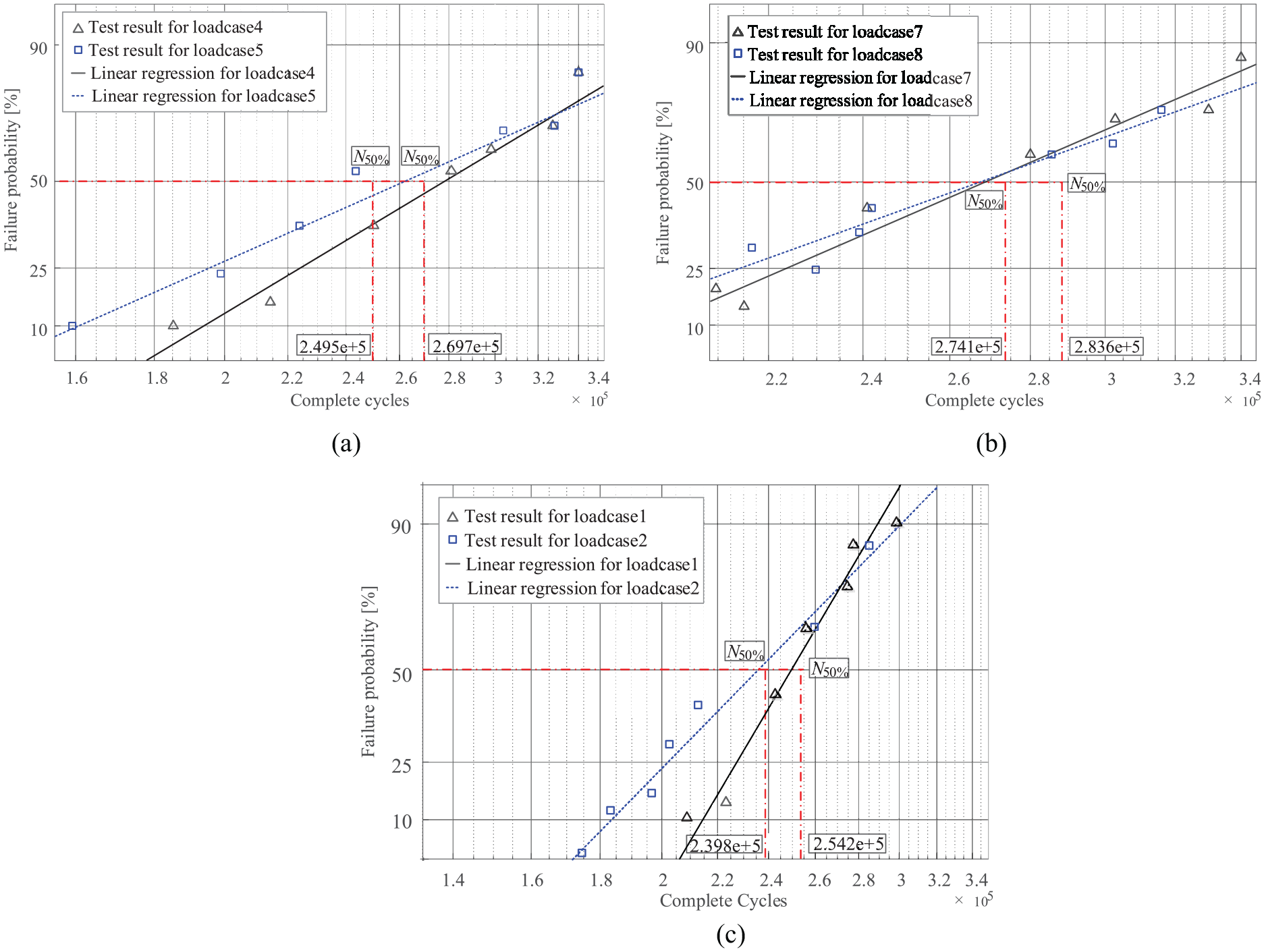

Thus, the Weibull distributions for the fatigue test results are shown in Figure 21.

Figure 21.

The Weibull distributions of the test results: (a) low control arm, (b) tie rod, and (c) shock absorber.

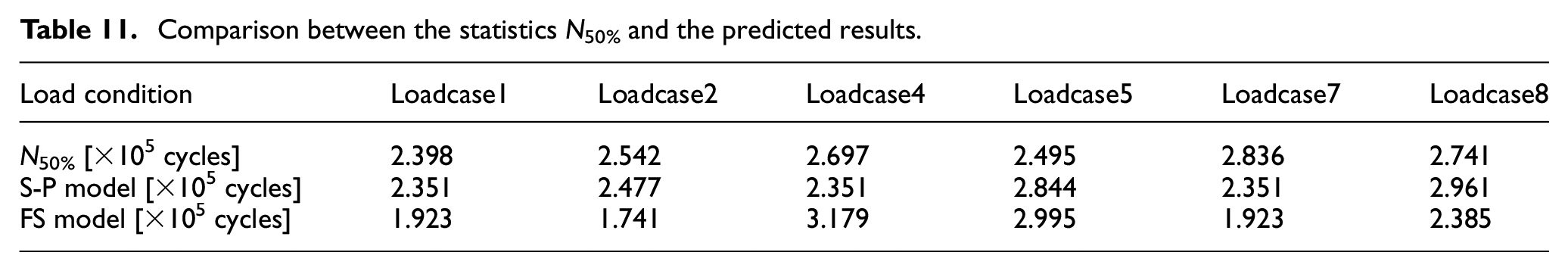

We summarized the N_50% of the six load cases based on the test results in Figure 21. The statistics N_50% and the predicted results of the two models are shown in Table 11.

Table 11.

Comparison between the statistics N_50% and the predicted results.

Load condition	Loadcase1	Loadcase2	Loadcase4	Loadcase5	Loadcase7	Loadcase8
N _50% [×10⁵ cycles]	2.398	2.542	2.697	2.495	2.836	2.741
S-P model [×10⁵ cycles]	2.351	2.477	2.351	2.844	2.351	2.961
FS model [×10⁵ cycles]	1.923	1.741	3.179	2.995	1.923	2.385

As shown in Table 11, the predicted results of the improved subcritical plane model are closer to N_50% than the FS model. The lowest errors of the two predicted models are 2.12% and 8.7%, respectively, indicating that the predicted results of the improved subcritical plane model had a better correlation with the test results.

Conclusion

CAE technology has become the main development tool of the automotive industry for its intuitive and convenient advantages. However, current research still lacks a good combination of CAE technology and failure prediction models. This paper first proposes a quasi-static failure prediction method by introducing the deformation gradient concept. The method combines CAE simulation results and the J-C criterion, which is more suitable for predicting the quasi-static failure of components under large deformation conditions. Subsequently, the subcritical plane model is improved by taking the FS prediction model as a reference and considering the cyclic hardening effect of materials. The improved model can accurately predict the fatigue failure of components. Then, taking the steering knuckle in the McPherson front suspension system as the research object, the quasi-static failure and fatigue failure of the steering knuckle are predicted by the proposed method and improved model, respectively. Finally, the rig test results verify the applicability and accuracy of the failure prediction methods. The main conclusions are as follows:

(1) When the component is unloaded after applying the tension load to the material’s elastic limit, residual displacement exists at the critical point. Furthermore, the residual displacement becomes larger with the increasing tensile load.

(2) The applicability of the proposed quasi-static failure prediction method is validated by comparing the predicted results with the quasi-static uniaxial tensile test results. Among them, the maximum error of failure load is 6.47%. The maximum error of failure displacement is 9.46%, which are within the reasonable range of ISO standard in the automotive industry.

(3) The fatigue life prediction results of the improved subcritical plane method are different from those of the traditional FS method. Compared with the N_50% of the Weibull distribution model obtained from the rig tests, their maximum errors are 2.12% and 8.7%, respectively. The comparison results indicate that the improved subcritical plane model obtains more accurate results due to the additional consideration of the cyclic hardening parameter.

Footnotes

Appendix

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China [granted numbers. 51675091]

ORCID iDs

Yifu Zhou

He Li

References

Song

Lee

Reliability-based design optimization of knuckle component using conservative method of moving least squares meta-models. Probab Eng Mech 2011; 26(2): 364–379.

Huang

Xia

Zhang

, et al. Investigation on brittle fracture mechanism of a grade E cast steel knuckle. Case Stud Eng Fail Anal 2014; 2(1): 15–24.

Dai

Deng

Jiang

, et al. Hot tensile deformation behaviors and a phenomenological AA5083 aluminum alloy fracture damage model. Mater Sci Eng A 2019; 766: 138325.

Xiang

Qing

Jia

, et al. Damage evaluation and ultra-low-cycle fatigue analysis of high-rise steel frame with mesoscopic fracture models. Soil Dyn Earthq Eng 2020; 139: 106283.

Liu

Development of an improved MMC-based fracture criterion characterizing the anisotropic and strain rate-dependent behavior of 6061-T5 aluminum alloy. Mech Mater 2020; 150: 103598.

Lee

Kim

Park

, et al. Metal plasticity and ductile fracture modeling for cast aluminum alloy parts. J Mater Process Technol 2018; 255: 584–595.

Peterson

Horstemeyer

Lacy

, et al. Experimental characterization and constitutive modeling of an aluminum 7085-T711 alloy under large deformations at varying strain rates, stress states, and temperatures. Mech Mater 2020; 151: 103602.

Xue

Faleskog

Hutchinson

JW.

Tension–torsion fracture experiments – Part II: Simulations with the extended Gurson model and a ductile fracture criterion based on plastic strain. Int J Solids Struct 2013; 50(25-26): 4258–4269.

García-Guzmán

Reinoso

Távara

, et al. A consistent finite displacement and rotation formulation of the linear elastic brittle interface model for triggering interlaminar damage in fiber-reinforced composites. Theor Appl Fract Mech 2020; 108: 102644.

10.

Fatemi

Socie

DF.

A critical plane approach to multiaxial fatigue damage including out-of-phase loading. Fatigue Fract Eng Mater Struct 1988; 11(3): 149–165.

11.

Gates

Fatemi

On the consideration of normal and shear stress interaction in multiaxial fatigue damage analysis. Int J Fatigue 2017; 100(PT.1): 322–336.

12.

Qiao

, et al. Fatigue life prediction for some metallic materials under constant amplitude multiaxial loading. Int J Fatigue 2014; 68: 10–23.

13.

Kashyzadeh

KR.

A new algorithm for fatigue life assessment of automotive safety components based on the probabilistic approach: the case of the steering knuckle. Eng Sci Technol 2020; 23: 392–404.

14.

Zhao

Xie

Wang

, et al. A new multiaxial fatigue life prediction model for aircraft aluminum alloy. Int J Fatigue 2021; 143(9): 105993.

15.

Kadhim

Abdullah

Ariffin

AK.

Effective strain damage model associated with finite element modelling and experimental validation. Int J Fatigue 2012; 36(1): 194–205.

16.

Qin

Han

Chu

Analytical model of bolted disk–drum joints and its application to dynamic analysis of jointed rotor. Proc IMechE, Part C: J Mechanical Engineering Science 2014; 228(4): 646–663.

17.

Esmaeili

Chakherlou

Zehsaz

Prediction of fatigue life in aircraft double lap bolted joints using several multiaxial fatigue criteria. Mater Des 2014; 59(7): 430–438.

18.

Zoroufi

Fatemi

Experimental durability assessment and life prediction of vehicle suspension components: A case study of steering knuckles. Proc IMechE, Part D: J Automobile Engineering 2006; 220(11): 1565–1579.

19.

ABAQUS/Standard User’s Manual Version 6.14. Simulia, 2014

20.

Johnson

Cook

WH.

Fracture characteristics of three metals subjected to various strains, strain rates, temperatures and pressures. Eng Fract Mech 1985; 21(1): 31–48.

21.

Chen

Bai

XXF

Zhu

, et al. Influence of balanced suspension on handling stability and ride comfort of off-road vehicle. Proc IMechE, Part D: J Automobile Engineering 2021; 235: 1602–1616.

22.

Chaboche

Lesne

PM.

A Non-Linear continuous fatigue damage model. Fatigue Fract Eng Mater Struct 1988; 11: 1–17.

23.

Johnson

Holmquist

. Test data and computational strength and fracture model constants for 23 materials subjected to large strains, high strain rates, and high temperatures. Vol. 198. Los Alamos National Laboratory; 1989. LA-11463-MS.

24.

Esmaeili

Mehri Sofiani

Broomand

A modified counterpart of cyclic extrusion-compression: experimental study and dislocation density-based finite element modeling. Proc IMechE, Part L: J Materials: Design and Application 2018; 232: 465–480.

25.

Reza Kashyzadeh

Farrahi

Shariyat

, et al. Experimental accuracy assessment of various high-cycle fatigue criteria for a critical component with a complicated geometry and multi-input random non-proportional 3D stress components. Eng Fail Anal 2018; 90: 534–553.
