Analysis on new semi-active control strategies to reduce lateral vibrations of high-speed trains by simulation and hardware-in-the-loop testing

Abstract

In order to further reduce the vibration of vehicles and simultaneously increase ride comfort, a class of new control strategies, namely, the extension of Rakheja-Sankar (RS) control, is proposed for semi-active suspension systems with magnetorheological (MR) dampers of high-speed trains. At first, the design and analysis of semi-active control strategies are conducted in a quarter railway lateral model considering the node stiffness. Secondly, a whole vehicle model of a high-speed train is constructed by using Universal Mechanism (UM) software to be applied in evaluating semi-active control strategies. Finally, a hardware-in-the-loop (HIL) test system is carried out to verify the performance of the new control strategies. During these processes, the transmission characteristics are calculated and compared, which helps to test the performance of the semi-active control strategy on train vibration suppression. Then, the effect of the control strategies on the dynamic performance of the whole vehicle is studied. The ride comfort under different control strategies is compared, and the effects of different semi-active control strategies on the lateral stability and safety of trains are also analyzed. Through simulations and experiments, it is confirmed that the new control strategies can effectively reduce the lateral vibration of trains and therefore contribute to the improvement of ride comfort while they do not significantly reduce the train running stability and safety. Therefore, the new control strategies possess future application value.

Keywords

High-speed train semi-active control magnetorheological dampers ride comfort hardware-in-the-loop

Introduction

The passive suspension system on vehicles has the advantages of low cost, easy installation and maintenance, and stable performance. The damping and stiffness coefficients of a passive suspension system are obtained by matching and optimizing the vehicle parameters and the specific track lines. Under most running conditions, they can effectively reduce vibration. However, the damping force cannot be adjusted in real time with changes in track lines and vehicle parameters. Under a certain relative speed of suspensions, only a fixed damping force can be provided.¹ Therefore, passive suspension is less adaptable to changing track lines, and the ability to decrease vibration is significantly reduced over a certain level of irregularity. In short, the passive suspension system has been unable to meet the requirement of attenuation of vehicle vibration. If an active device that generates the control force is added to the suspension system and the control force is adjusted by the designed control algorithm, the purpose of reducing the vibration of vehicles will be achieved, and an active suspension system will be formed. Moreover, compared with a passive suspension system, an active suspension system can adjust the stiffness and damping coefficients dynamically and adaptively according to some changing conditions, such as the vehicle’s motion state, track line conditions, and loads, which will contribute to keeping the railway vehicles in a good state of vibration suppression.^2–5 Many experts have been studying active control technology to achieve a better dynamic performance of railway vehicles.^6–9 For instance, in order to further improve the curving performance and stability of the train, an active control system was designed using simulation and experimental analysis by Braghin F and Bruni S to replace the original yaw damper.⁶ An active control technology applied to the car body tilting was introduced by Persson R and Goodall RM, which is helpful for curve passing of railway vehicles.⁷ In order to improve ride comfort, an active lateral secondary suspension with the H∞ control method was established and simulated by Orvnas A and Stichel S.⁸ Active suspension systems can realize multi-objective optimization through control methods, actively adjust suspension parameters, and compromise the ride comfort and running safety of railway vehicles. In summary, the active control has strong adaptability and can bring excellent dynamic performance for vehicles.¹⁰

American scholars Crosby and Karnopp proposed the concept of semi-active control technology in the 1970s, and the control mode was applied to actual vehicles in the early 1980s.¹¹ It is also called passive active suspension because of its lower dependence on external energy. The semiactive suspension system is very different from the passive suspension system. The damping coefficient of semi-active suspensions can be adjusted in real time by using various intelligent dampers (magnetorheological dampers), which only need very little external energy. Controllers and sensors are also necessary in semi-active suspensions except intelligent dampers. Through these, the semi-active suspension system can be adapted to the changing track conditions. Compared with the active control, its structure and maintenance are simpler, therefore its cost is lower. The vibration attenuation performance of the semiactive suspension is obviously better than that of the passive suspension, while it is weaker than that of the active suspension. Although the semi-active system performance can not be on a par with the control performance of the full active, it still enjoys wide application prospects.¹²

At present, semi-active control technology is developing rapidly and is applied in many fields, such as automobiles, railway vehicles, and buildings.^13–16 In 1983, the “on-off” semi-active suspension developed by Toyota, which can generate the corresponding damping force by adjusting a switch, was applied in the 280GT car.

In 1985, a Formula One racing car with semi-active suspension designed by Dominy and Bulman came out. In 2014, a semi-active suspension system with variable damping and variable stiffness developed by Yutong Bus Company greatly improved the ride comfort of cars. In order to verify the performance of the semi-active control on vibration reduction and improvement of ride comfort in high-speed trains, vehicle tests were conducted by Japanese railway vehicle engineers on 500 series EMUs at 300 km/h on Sanyo Shinkansen Line.¹⁷ The results showed that the lateral acceleration of the vehicle body and its energy spectrum decreased significantly. The semi-active suspension has gradually become a standardized device in Shinkansen vehicles in Japan since then. In addition, semi-active control technology has also been widely used in structural vibration control. In the future, with the rapid development of science and technology, the semi-active control technology will be more and more widely used, which will bring huge benefits for society.

To date, various semi-active control strategies have been developed for adjusting damping coefficients.^18–20 Superior control strategies used for semi-active suspension systems can further reduce the vibration of vehicles. For example, it is easy to implement the famous Sky-Hook (SH) control strategy, which has been widely used due to its superior performance in the reduction of vibration and improvement of ride comfort. Hence, many experiments about the semi-active control strategies have been conducted, and a variety of transformations have been produced until today.^21,22 In 1985, Rakheja and Sankar found that when the damper’s damping force and the spring’s elastic force were in the same direction, the damper force should be controlled to zero or a minimum to reduce the vibration acceleration of the vehicle body. Therefore, the Rakheja-Sankar (RS) control strategy is proposed according to this idea.^23–25 Based on optimal control theory, Savaresi et al. made a significant improvement on the traditional SH control strategy and proposed the famous control strategy of acceleration-driven damping (ADD).²⁶ Similar to the SH strategy, the ADD strategy has a very simple mathematical expression. Savaresi et al. proposed a hybrid control strategy (Mix-SH-ADD) based on the frequency transfer characteristics of the SH control strategy and ADD control strategy.²⁷ The advantages of SH and ADD are combined in this strategy. Therefore, theoretically speaking, it can achieve the best control effect.

The subject of this paper is the design and simulation of semi-active control strategies based on a railway vehicle model. It is worth noting that the paper focuses on the basic form of each control strategy, namely, the switch mode. There are three purposes that should be fulfilled when the paper is finished. The first objective is to propose an improved RS control strategy through comparative analysis of the vibration transmission characteristics with the traditional semi-active control (SH, RS, ADD, etc.).

The second aim is to establish a UMMATLAB co-simulation model of a high-speed train and simultaneously study the influence of various control strategies on the dynamic performance, such as ride comfort, safety, and stability. The third purpose is to conduct a hardware-in-the-loop test and apply the semi-active control strategies in a real MR damper to explore and analyze the effects of various control strategies on the reduction of car body vibration.

A quarter vehicle model considering node stiffness

A quarter railway vehicle lateral model is established to study the lateral vibration by using train parameters in this section because the research objects of this paper are railway vehicles. At the same time, the node stiffness is considered in the connection part of the two ends of the shock absorber.²⁸ For the convenience of calculation, the node stiffness of the two ends of the shock absorber can be equivalent to a series stiffness,²⁹ which is shown in Figure 1.

Figure 1.

A quarter railway vehicle lateral model.

The model mainly contains two parts, namely, the car body and the bogie, also known as the secondary suspension system. The parameters used throughout the paper are derived from a type of high-speed trains: m₁ = 8441.5 kg, m₂ = 1140 kg, k₁ = 168.9 kN/m, k₂ = 13,000 kN/m, k_r = 8575 kN/m, and c = 30,000 Ns/m.

In these parameters,m₁ and m₂ are the masses of a quarter car body and half of the bogie, respectively. k₁ is the lateral stiffness of the secondary spring, k₂ is the lateral stiffness of the primary spring, k_r is the node stiffness in series, and c is the passive damping coefficient of the secondary lateral damper. The differential equations of motion of the model are established as follows

{\begin{cases} m_{1} {\ddot{y}}_{1} + k_{1} y_{1} + c {\dot{y}}_{0} = - m_{1} {\ddot{x}}_{2} \\ c {\dot{y}}_{0} = k_{r} (y_{1} - y_{0}) \\ m_{2} {\ddot{x}}_{2} - k_{1} y_{1} + c {\dot{y}}_{0} + k_{2} (x_{2} - x_{r}) = 0 \end{cases}

(1)

where y₁ and y₀ are the relative displacement x₁−x₂ of mass m₁ to mass m₂ and the relative displacement x₀−x₂, respectively, and x_r is the track disturbance.

The equations of the model are solved numerically by using MATLAB/Simulink, as shown in Figure 2.

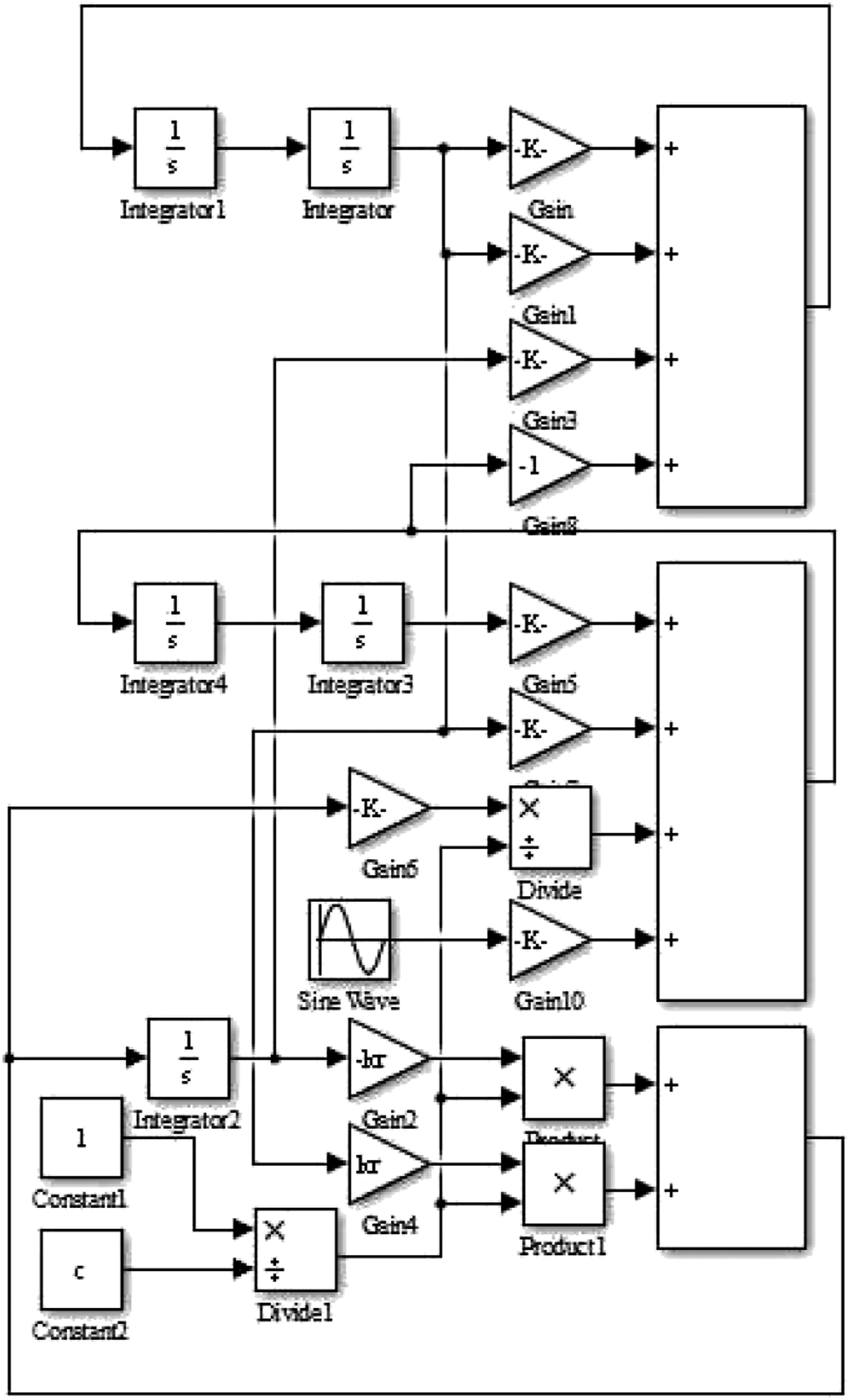

Figure 2.

Simulink model.

Design of control strategies

Rakheja-Sankar control strategy

The conventional RS control strategy was proposed by Rakheja and Skankar,²⁴ the expression of which is as follows

c = {\begin{matrix} c_{\min} & (x_{1} - x_{2}) ({\dot{x}}_{1} - {\dot{x}}_{2}) > 0 \\ c_{\max} & (x_{1} - x_{2}) ({\dot{x}}_{1} - {\dot{x}}_{2}) \leq 0 \end{matrix}

(2)

To analyze the semi-active control strategy on the acceleration frequency response of the vehicle body, a method is used. It can provide clear frequency domain pictures about the attenuation capabilities of suspensions. Then, the vibration suppression effect of the control strategy is evaluated. The function formula of this method is as follows^26,27,30

\hat{H} (j w_{i}) = \sqrt{\frac{\frac{1}{T} \int_{0}^{T} {[{\ddot{x}}_{1 i} (t)]}^{2} d t}{\frac{1}{T} \int_{0}^{T} {[x_{r i} (t)]}^{2} d t}} i = 1,2, \dots N

(3)

In order to numerically compute the function, the following procedure has been used: The closed-loop system is fed with a finite set of N single frequency excitations: x_ri(t) = Asin(w_it), i = 1, 2,..., N, t = [0,T]. The corresponding output signals are recorded: ${\ddot{x}}_{1 i} (t)$ , i = 1,2,..., N, t = [0,T]. Then, Formula (3) is computed in N points.

In Formula (3), $\hat{H}$ is defined as an approximate frequency response from the disturbance excitation x_r to the car body acceleration ${\ddot{x}}_{1}$ , where A = 0.01 m, w_i/(2π) is distributed in the range 0.2–25 Hz, N = 50, the simulation time T is 50 s, and the step is 0.001 s. Through simulation analysis, the excitation amplitude A does not affect the comparison trend of control strategies on the control effect. The transmission characteristics of the RS control strategy are shown in Figure 3.

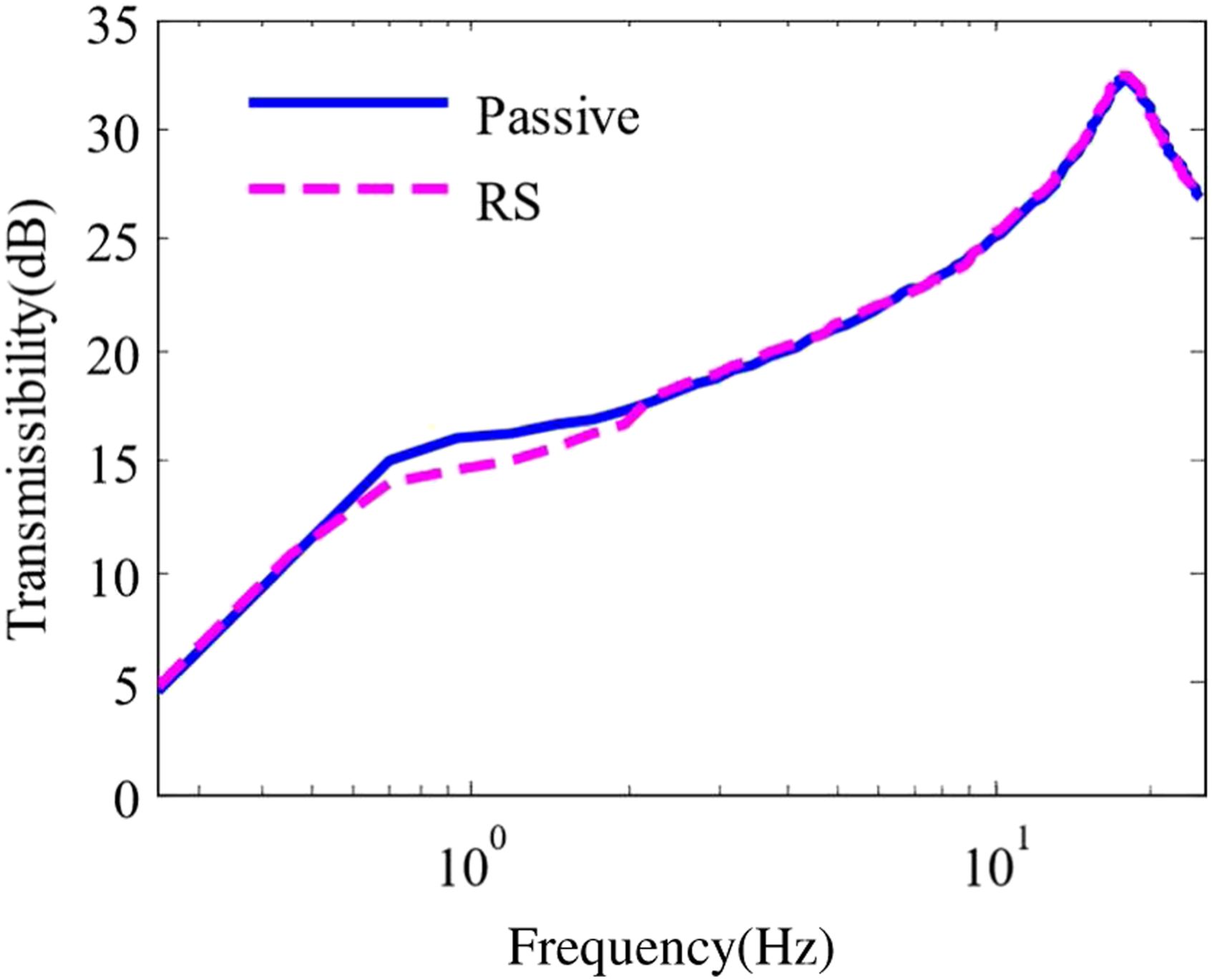

Figure 3.

Acceleration transfer characteristics.

The effect of the RS control strategy on vibration reduction at low frequency is better than that of passive control (uncontrolled). In the following research, the paper will improve it to be superior.

Rakheja-Sankar-I control strategy

In this section, the vehicle body mass block is taken as the research object, and the node stiffness is neglected. By this assumption, the following equation can be obtained

m_{1} {\ddot{x}}_{1} + k (x_{1} - x_{2}) + c ({\dot{x}}_{1} - {\dot{x}}_{2}) = 0

(4)

The acceleration is affected by both the spring force and the damping force. For the RS control strategy, when the spring force and the damping force are in the same direction, that is $(x_{1} - x_{2}) ({\dot{x}}_{1} - {\dot{x}}_{2}) > 0$ , the damping coefficient should be minimized in order to reduce the acceleration. When the direction of the spring force and the damping force is opposite, the damping coefficient should be maximized. However, when the spring force is less than a specific damping force, if the damping coefficient is largest, the acceleration will increase, which will lead to an increase in vibration. Therefore, the improved control strategy can be obtained, which is

c = {\begin{cases} c_{\min} [(x_{1} - x_{2}) ({\dot{x}}_{1} - {\dot{x}}_{2}) > 0] o r \\ [(x_{1} - x_{2}) ({\dot{x}}_{1} - {\dot{x}}_{2}) \leq 0 a n d | F_{k} | < | F_{c} |] \\ c_{\max} e l s e \end{cases}

(5)

where $c_{\max} = 60,000 Ns / m, c_{\min} = 10,000 Ns / m$ , $F_{k} = k_{1} (x_{1} - x_{2}), F_{c} = c_{0} ({\dot{x}}_{1} - {\dot{x}}_{2})$ , and c₀ is a specific damping coefficient that needs to be optimized, ranging between maximum and minimum damping.

In this paper, c₀ is selected to analyze the transfer characteristics of the improved RS control strategy. The results are shown in Figure 4.

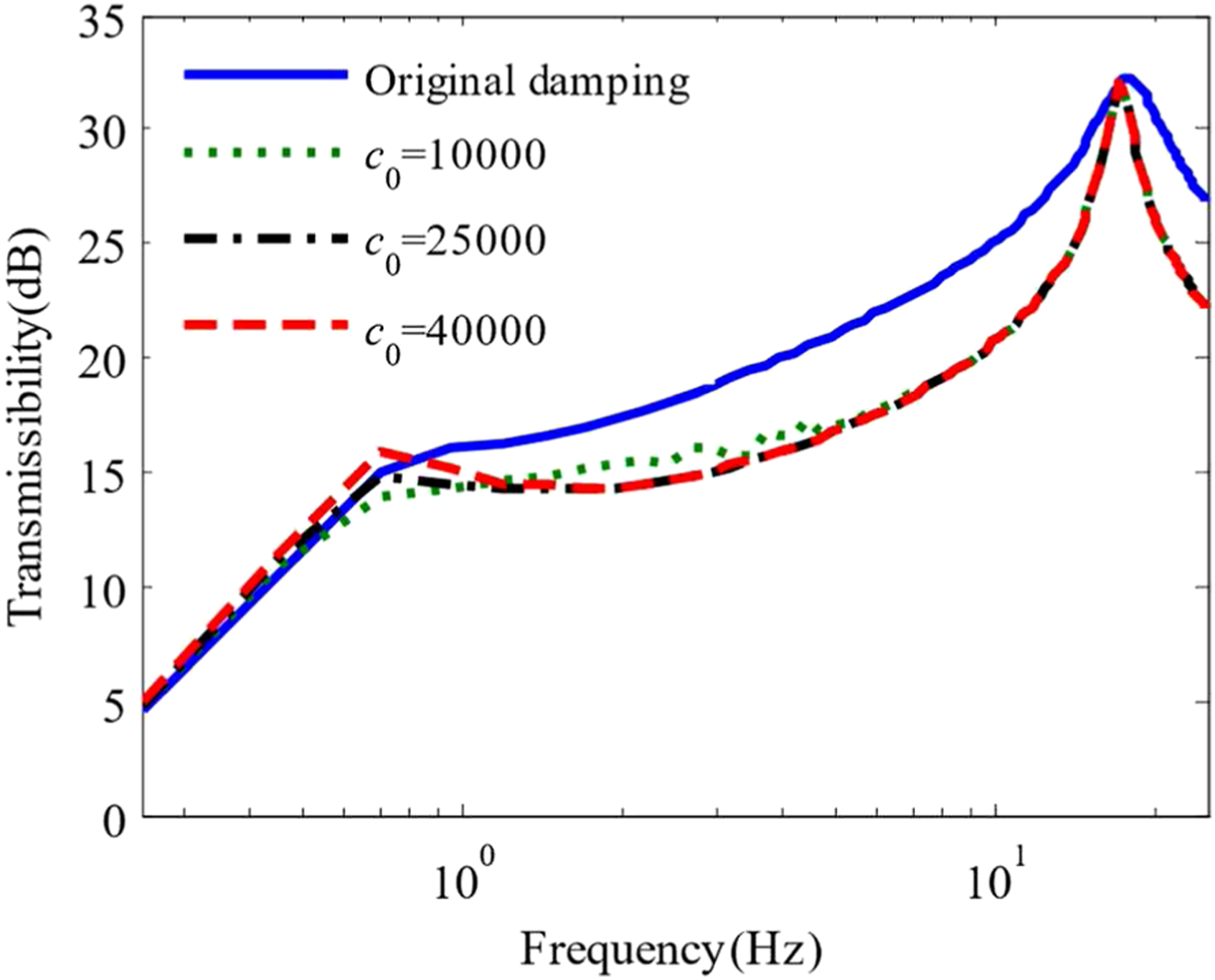

Figure 4.

Analysis of acceleration transfer characteristics.

It can be seen that the improved control strategy has an excellent vibration reduction effect in the high frequency range. The effect of vibration attenuation is better than that of the RS control strategy. When the value of c₀ is larger, the effect of the control strategy is worse in the low frequency range (<1 Hz); when the value of c₀ is smaller, the effect of the control strategy is worse in the range of approximately 1–6 Hz. In general, the value of c₀ is 25,000 Ns/m. The improved RS control strategy is simply called “RS-I” in this paper.

Rakheja-Sankar-II control strategy

Another control strategy is designed in this paper. The SH control strategy has an excellent vibration reduction effect in the low frequency band, while the RS-I has an excellent vibration reduction effect in the high frequency band, therefore, a hybrid control strategy is generated by combining the advantages of the two control strategies. The expression of the SH control strategy is

c = {\begin{matrix} c_{\max} & {\dot{x}}_{1} ({\dot{x}}_{1} - {\dot{x}}_{2}) > 0 \\ c_{\min} & {\dot{x}}_{1} ({\dot{x}}_{1} - {\dot{x}}_{2}) \leq 0 \end{matrix}

(6)

Figure 5 shows the acceleration transmission characteristics of the SH and RS-I control.

Figure 5.

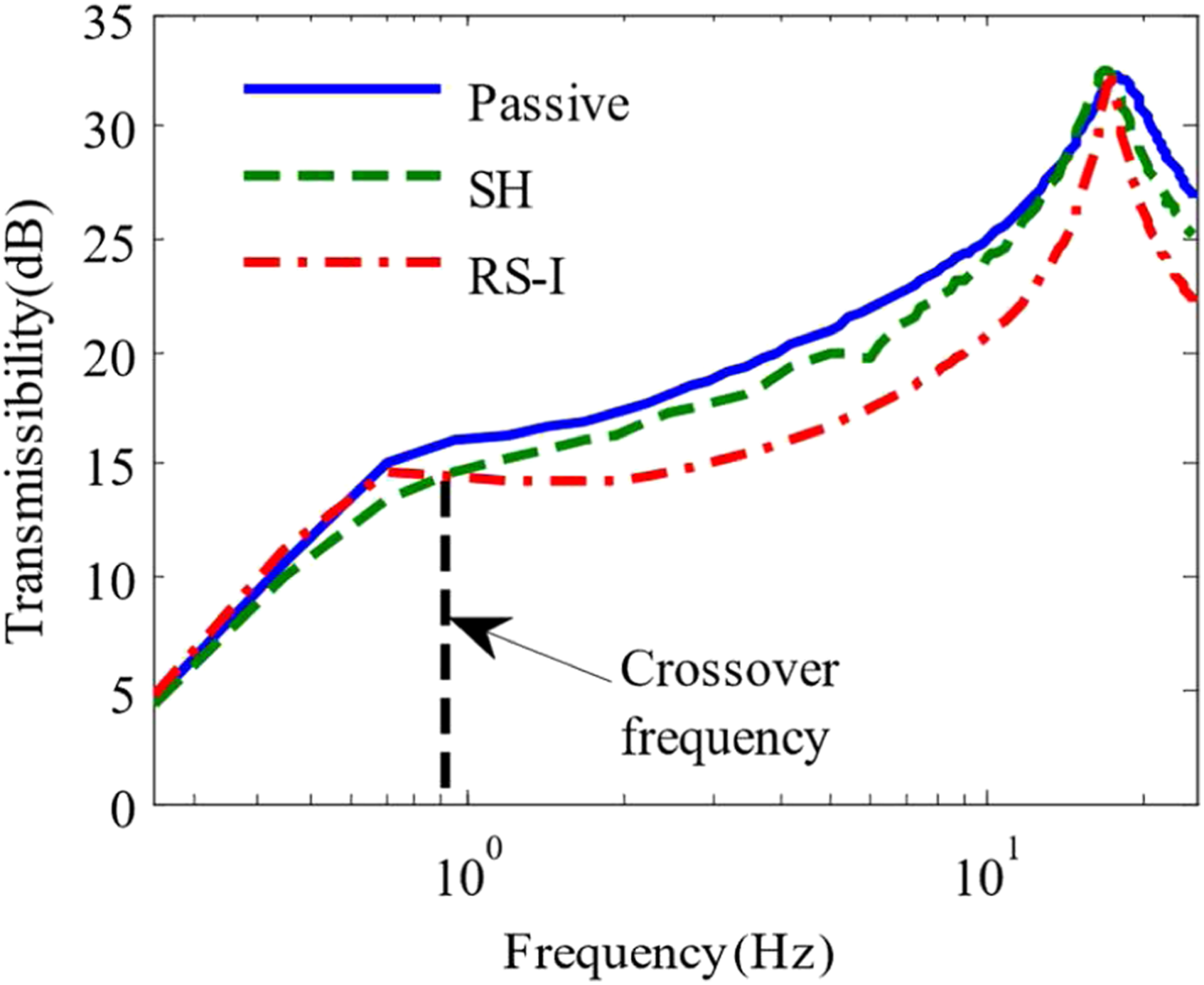

Analysis of acceleration transfer characteristics.

It can be seen from Figure 5, there is a crossover frequency between the SH and RS-I. When the excitation frequency is less than this, the SH control strategy is adopted. Otherwise, the RS-I is adopted. In this way, the best control effect can be achieved. Now, the main task is to find the method for how to switch the frequency.

In this paper, the relationship between the acceleration and displacement of the car body is used to switch the frequency. The sinusoidal signal is applied to the model as the input excitation, there is a special relationship between acceleration and displacement about the amplitudes, and simultaneously, their phase difference is 180°.

Assuming f₀ is the crossover frequency, $α = 2 π f_{0}$ . Then

Control strategy = {\begin{cases} SH | a c c | < α^{2} | d i s | \\ RS-I | a c c | \geq α^{2} | d i s | \end{cases}

(7)

Because of the phase relationship between acceleration and displacement, it is more accurate to use the acceleration and displacement to determine the conversion relationship of the control strategy. Meanwhile, the superiority of this switching method is verified. Assuming the excitation frequency is 0.5 Hz, when abs (acc) < α² abs (dis), it outputs 1, and then the SH control strategy is executed. Otherwise, the RS-I control strategy is executed. This method is called “switch-II” proposed in this paper. The switch method proposed by Savaresi is named “switch-I” in this paper.²⁷ The two methods are compared in Figure 6.

Figure 6.

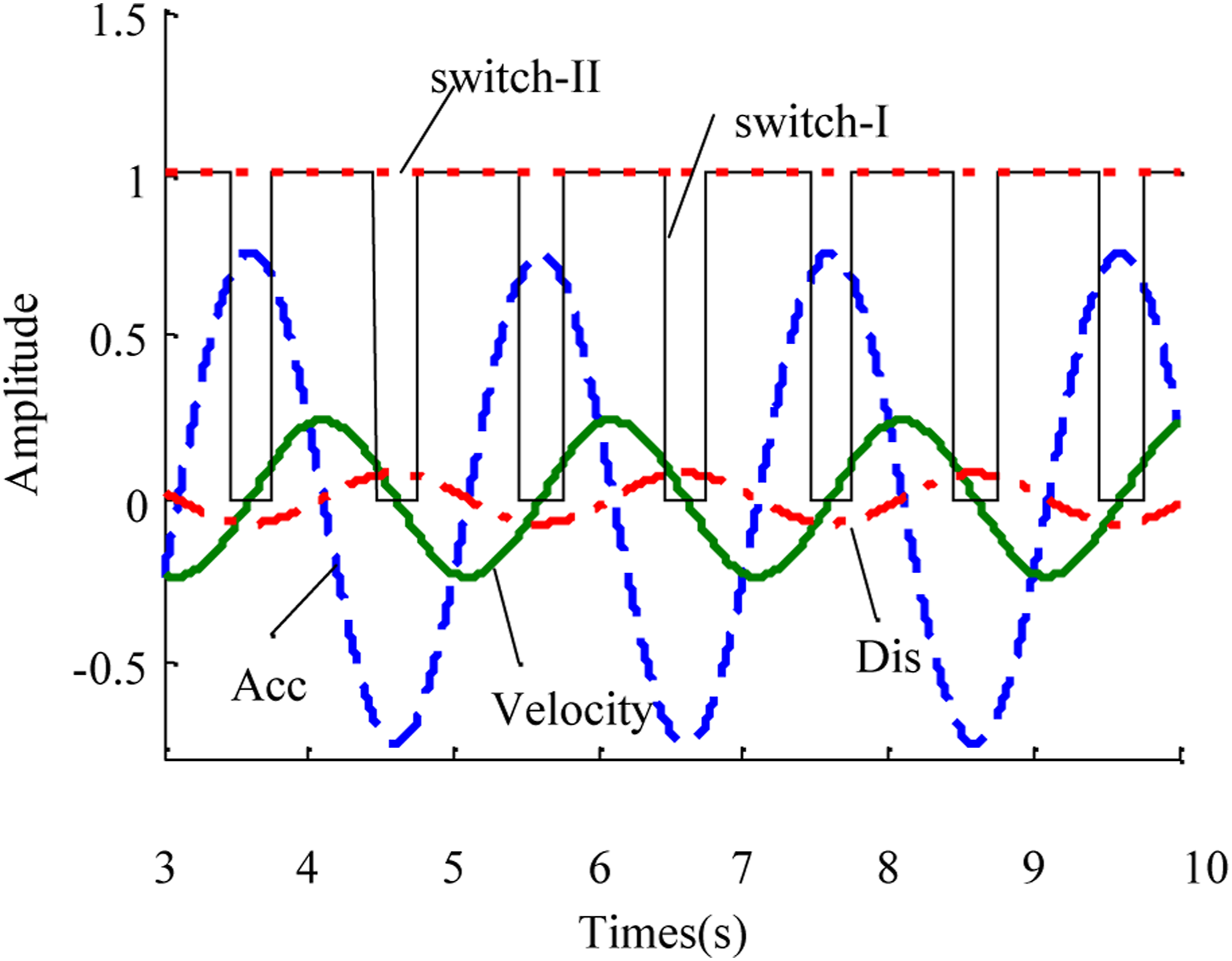

Comparison of two switching modes.

The SH control strategy is not applied for approximately 30% of the time in a period when “switch-I” is used. However, the “switch-II” method is executed at all times, as shown in Figure 6. The control strategy displayed by Expression (7) is called “RS-II,” which is an extension of the RS-I. Obviously as known from Figure 5, f₀ is 0.91 Hz. Therefore, the exact value of α is obtained. The acceleration transfer characteristics of the RS-II versus others are obtained, as shown in Figure 7.

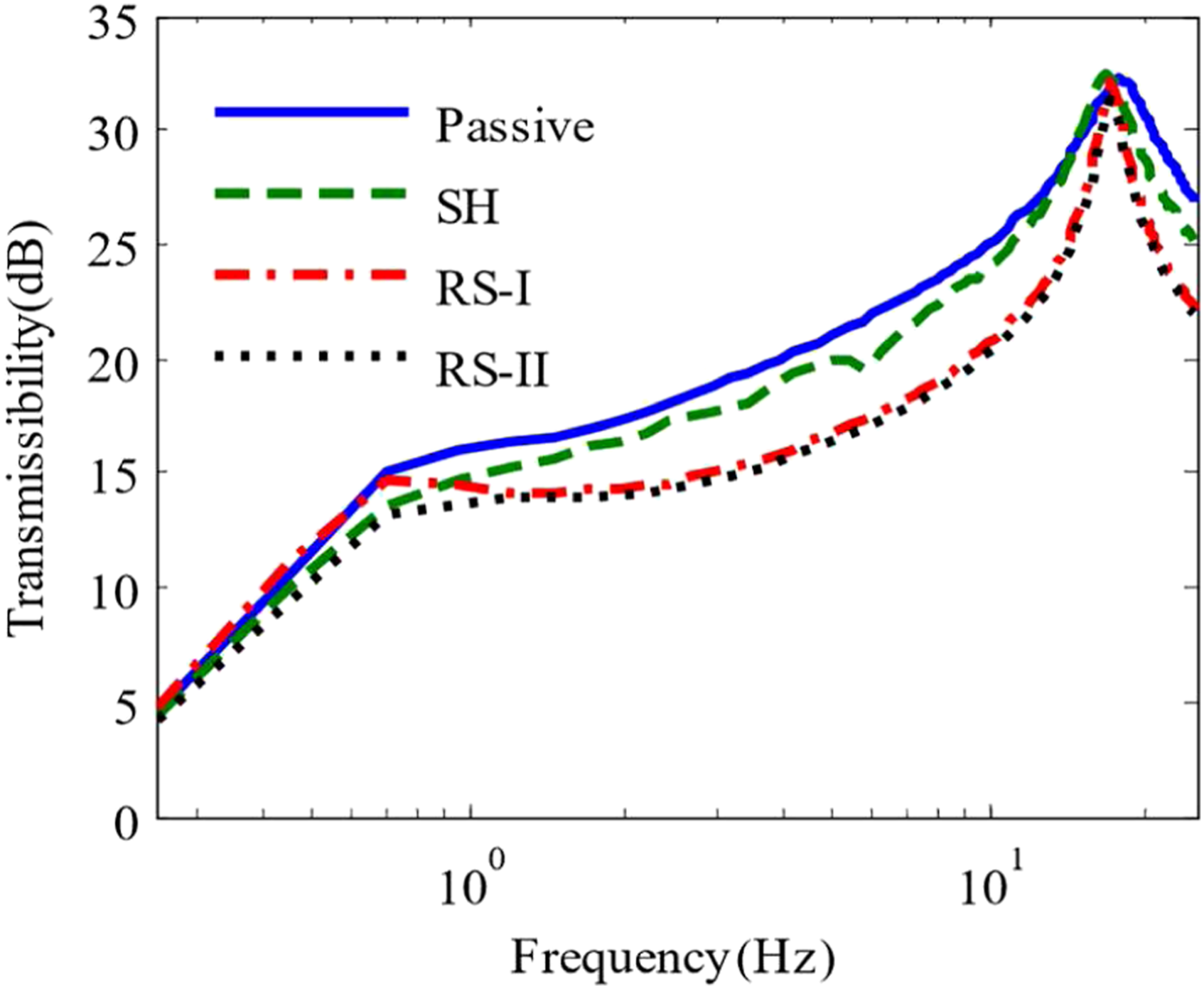

Figure 7.

Comparison of acceleration transfer characteristics of various control strategies.

It can be seen in Figure 7 that the RS-II combines the advantages of SH and RS-I and shows superior vibration attenuation performance in all frequency bands.

Because the RS-II has the advantage of the SH in the low frequency range, it should have a better vibration reduction effect than the RS-I.

Simulation analysis of semi-active control strategies

Simulation analysis under sinusoidal excitation

In this section, the attenuation performance of various semi-active control strategies is compared by using sinusoidal excitation and random excitation. The expression of the ADD control strategy is as follows

c = {\begin{matrix} c_{\max} & {\ddot{x}}_{1} ({\dot{x}}_{1} - {\dot{x}}_{2}) > 0 \\ c_{\min} & {\ddot{x}}_{1} ({\dot{x}}_{1} - {\dot{x}}_{2}) \leq 0 \end{matrix}

(8)

Therefore, the Mix-SH-ADD is obtained, and the control strategy is as follows

Mix-SH-ADD = {\begin{cases} SH abs (a c c) < α^{2} abs (d i s) \\ ADD abs (a c c) \geq α^{2} abs (d i s) \end{cases}

(9)

According to Figure 8, the control effects of RS-II and Mix-SH-ADD are the best than others in the whole frequency domain. In particular, the RS-II is better than the Mix-SH-ADD at approximately 1 Hz. Therefore, the vibration attenuation performance of the car body is increased after applying the new control strategy proposed in this paper to the model.

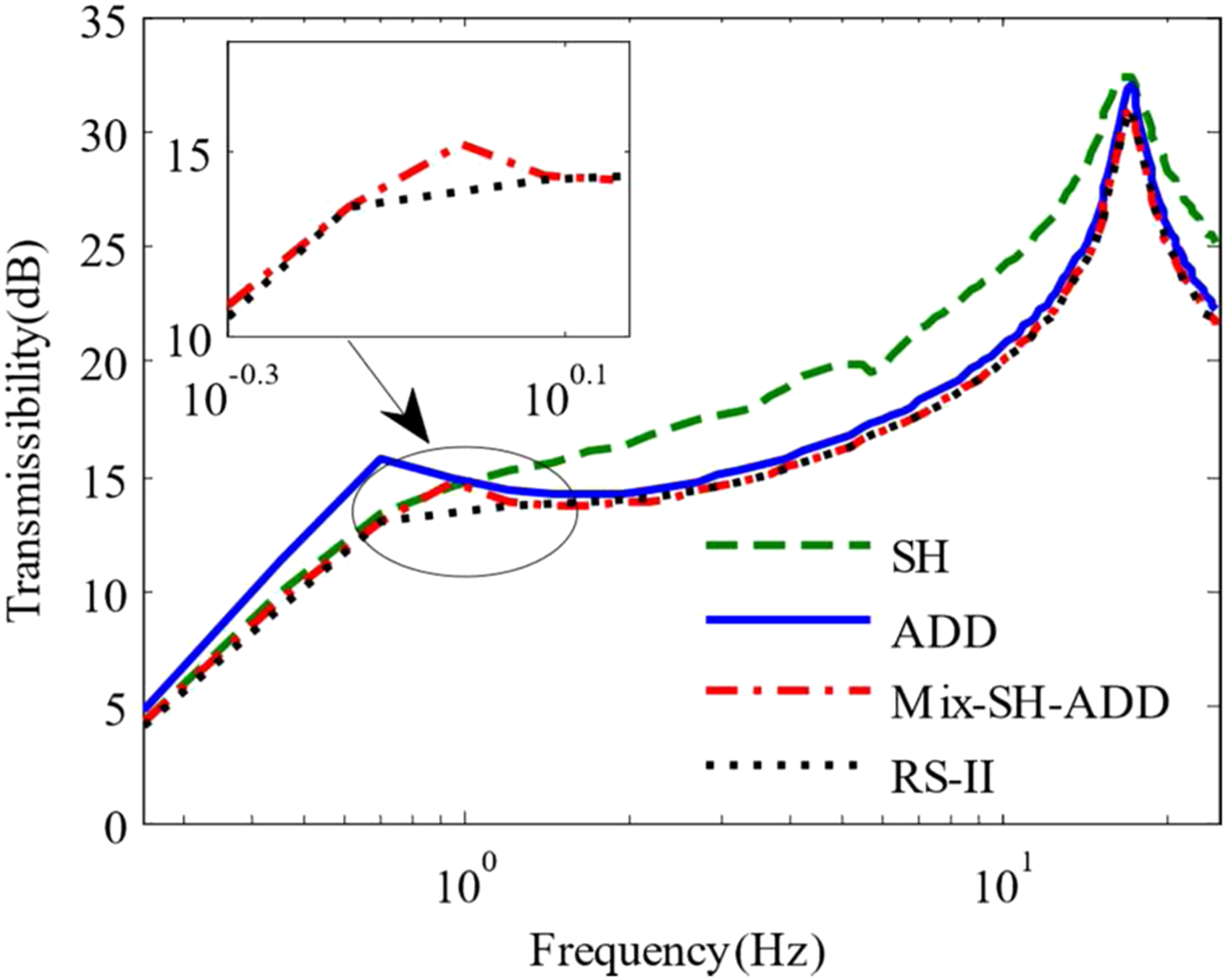

Figure 8.

Comparison of acceleration transfer characteristics of various control strategies.

The model with various control strategies is simulated in the time domain with single frequency sinusoidal excitation. The simulation results at a 1 Hz excitation frequency are compared in Figure 9. It is worth noting that each figure only shows the data curves in a certain time period in order to make the picture look clearly in this paper.

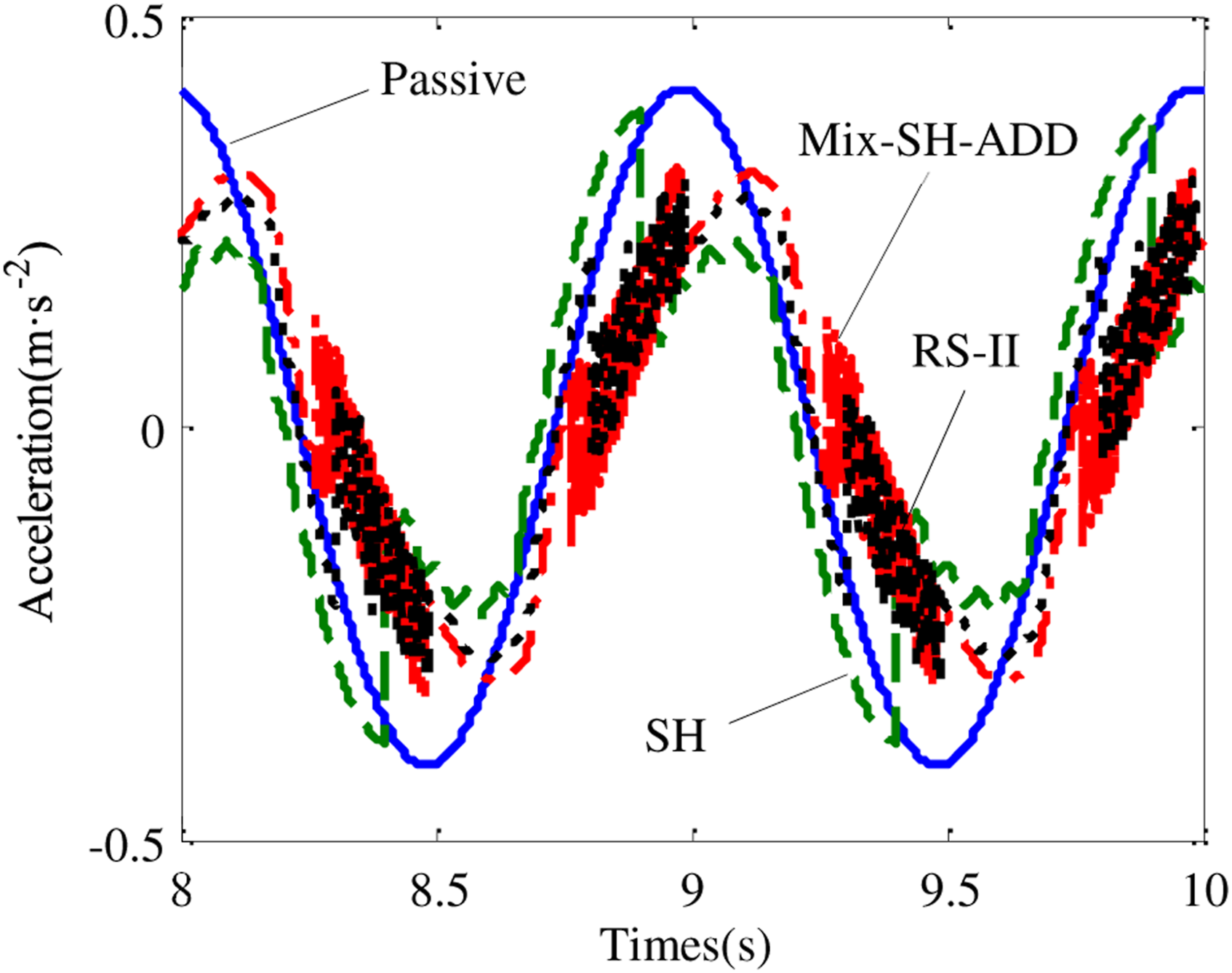

Figure 9.

Acceleration curves of several control strategies under single frequency sinusoidal excitation.

The control strategies introduced in this paper are compared and analyzed by using the simulation conditions mentioned in the Design of control strategies section. Their transfer characteristic curves are shown in Figure 8.

Simulation analysis under random excitation

Sinusoidal excitation has been used to study the vibration suppression performance of various control strategies. In this section, random excitation is used to analyze the effect of these control strategies. Through simulation of the model, the maximum and the root mean square (RMS) values of the acceleration of the car body are obtained. At the same time, compared with the fixed damping control, the improvement rates of each control strategy have also been computed. All control strategies are compared in Table 1. The results show that the RS-I and RS-II have achieved good results, that is, can effectively suppress the vibration of acceleration, and they are better than SH and ADD.

Table 1.

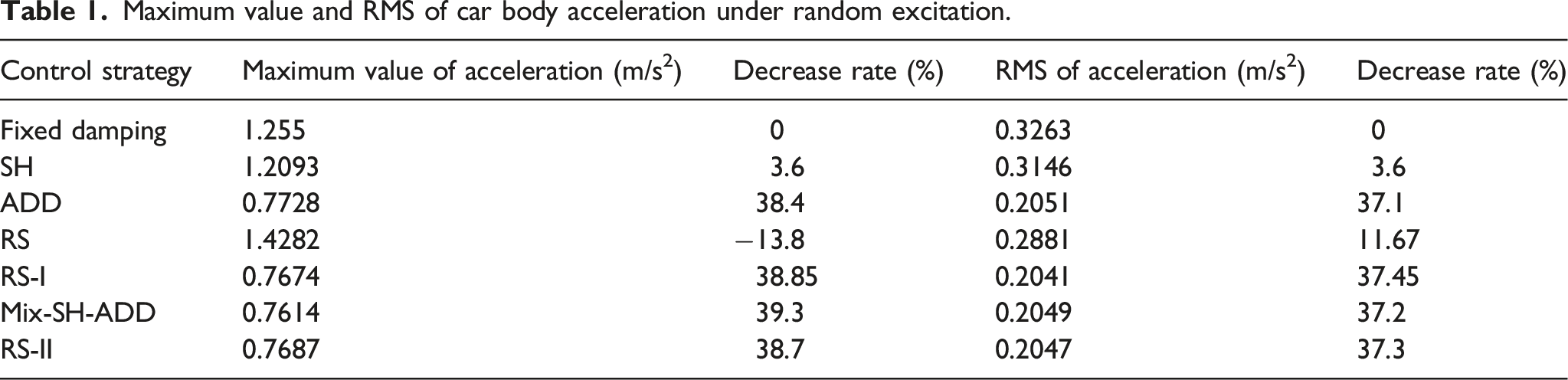

Maximum value and RMS of car body acceleration under random excitation.

Control strategy	Maximum value of acceleration (m/s²)	Decrease rate (%)	RMS of acceleration (m/s²)	Decrease rate (%)
Fixed damping	1.255	0	0.3263	0
SH	1.2093	3.6	0.3146	3.6
ADD	0.7728	38.4	0.2051	37.1
RS	1.4282	−13.8	0.2881	11.67
RS-I	0.7674	38.85	0.2041	37.45
Mix-SH-ADD	0.7614	39.3	0.2049	37.2
RS-II	0.7687	38.7	0.2047	37.3

The frequency domain analysis of various control strategies under random excitation is shown in Figure 10.

Figure 10.

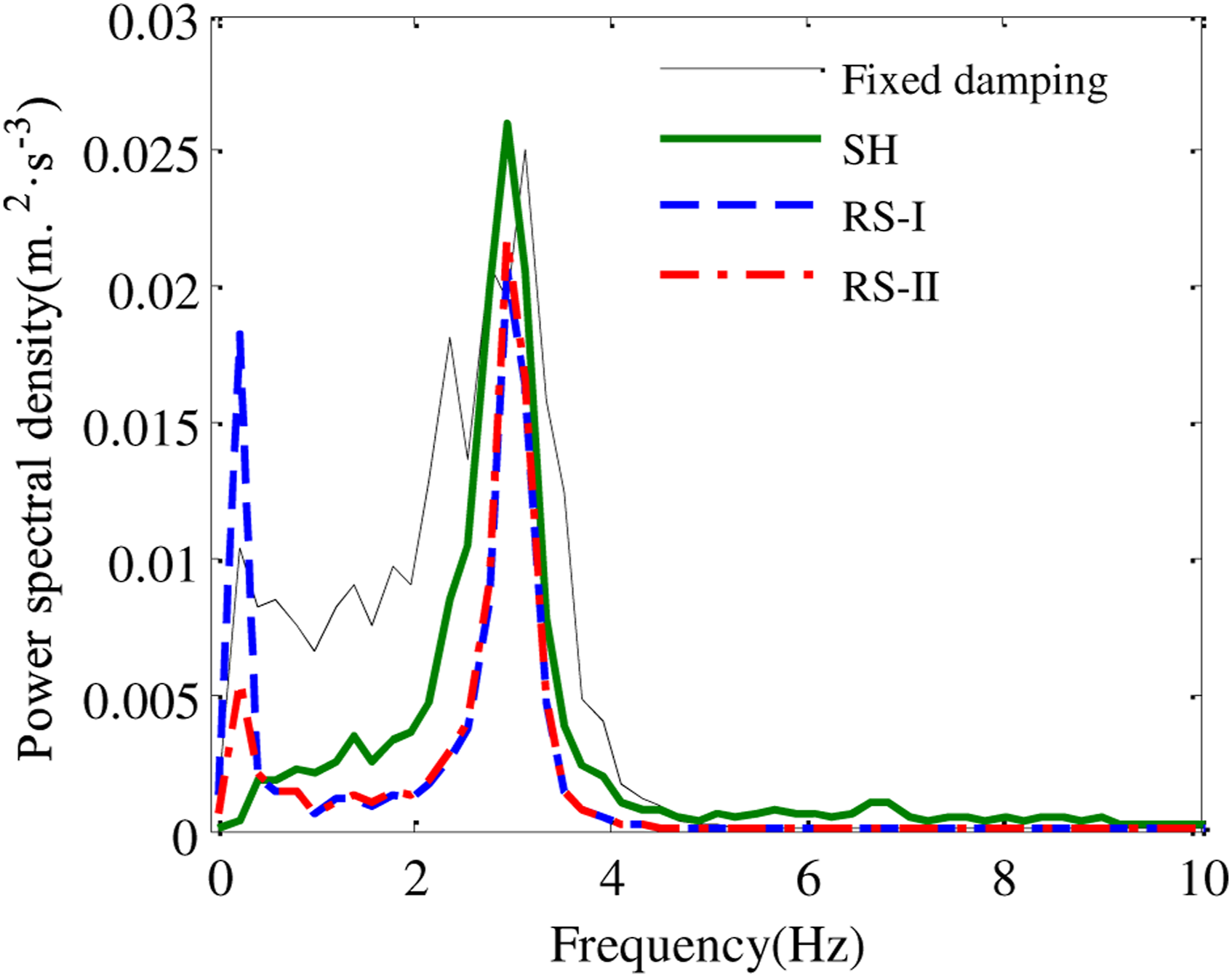

Acceleration power spectral density of various control strategies under random excitation.

It can be found from Figure 10 that the SH has a lower vibration energy at low frequency and the RS-I has a lower vibration energy at high frequency compared with fixed damping. However, the vibration energy of the RS-II is lower than that of fixed damping across the whole frequency range.

Simulation of the whole vehicle model

Construction of simulation model

In the A quarter vehicle model considering node stiffness section, a quarter vehicle model is established to analyze the control strategies.

Now, it is the objective to assess whether these control strategies are applicable to a full-scale railway vehicle. To this aim, the model of a certain type of high-speed train is established with UM dynamics simulation software. The whole railway vehicle model mainly consists of one car body, two bogies, four wheelsets, and eight axle boxes, which has 58 degrees of freedoms (DOFs).

The main parameters in the model are shown in Table 2.³¹

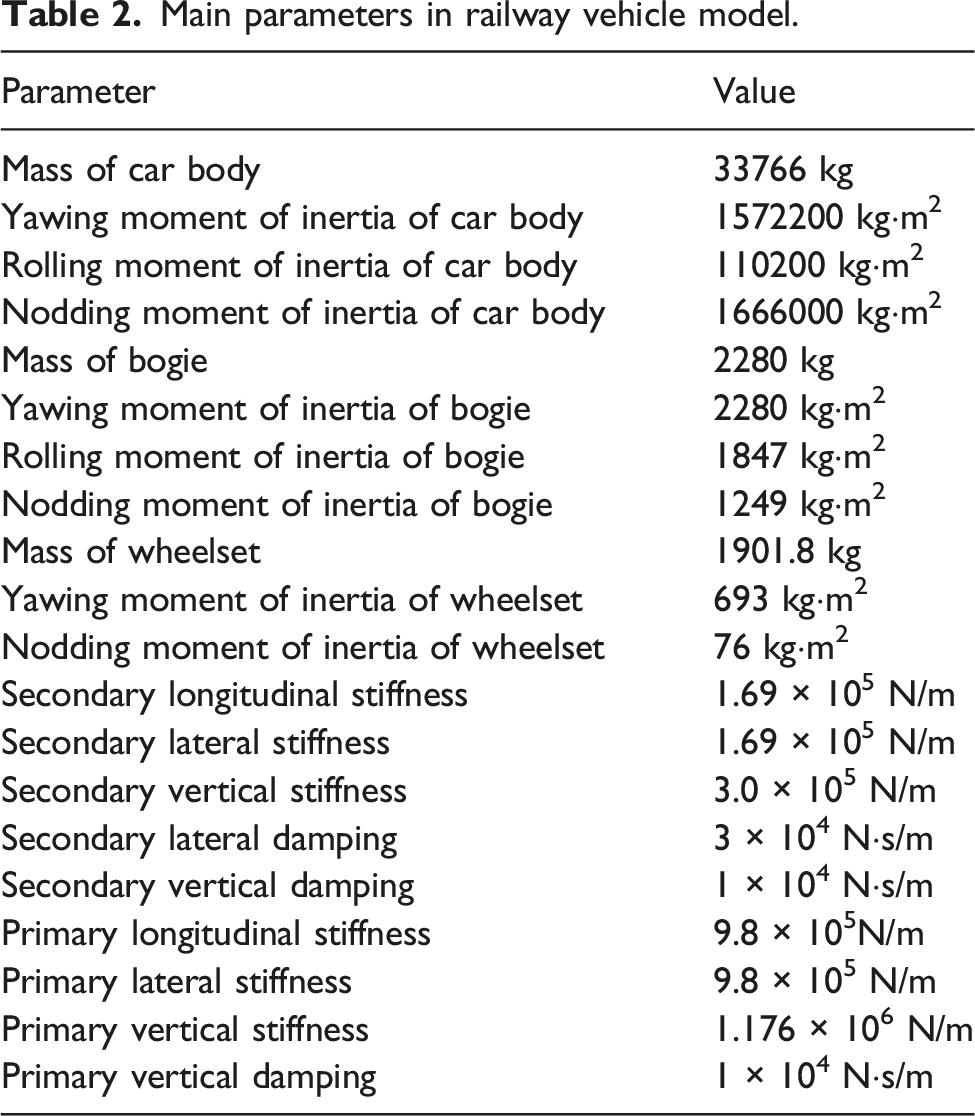

Table 2.

Main parameters in railway vehicle model.

Parameter	Value
Mass of car body	33766 kg
Yawing moment of inertia of car body	1572200 kg·m²
Rolling moment of inertia of car body	110200 kg·m²
Nodding moment of inertia of car body	1666000 kg·m²
Mass of bogie	2280 kg
Yawing moment of inertia of bogie	2280 kg·m²
Rolling moment of inertia of bogie	1847 kg·m²
Nodding moment of inertia of bogie	1249 kg·m²
Mass of wheelset	1901.8 kg
Yawing moment of inertia of wheelset	693 kg·m²
Nodding moment of inertia of wheelset	76 kg·m²
Secondary longitudinal stiffness	1.69 × 10⁵ N/m
Secondary lateral stiffness	1.69 × 10⁵ N/m
Secondary vertical stiffness	3.0 × 10⁵ N/m
Secondary lateral damping	3 × 10⁴ N·s/m
Secondary vertical damping	1 × 10⁴ N·s/m
Primary longitudinal stiffness	9.8 × 10⁵N/m
Primary lateral stiffness	9.8 × 10⁵ N/m
Primary vertical stiffness	1.176 × 10⁶ N/m
Primary vertical damping	1 × 10⁴ N·s/m

In order to apply semi-active control strategies to the model, it is necessary to import the vehicle model built in UM into MATLAB/Simulink in the form of an S-function to build a co-simulation model, as shown in Figure 11. Then, vehicle dynamics simulations are carried out where the secondary lateral dampers are driven semiactively.

Figure 11.

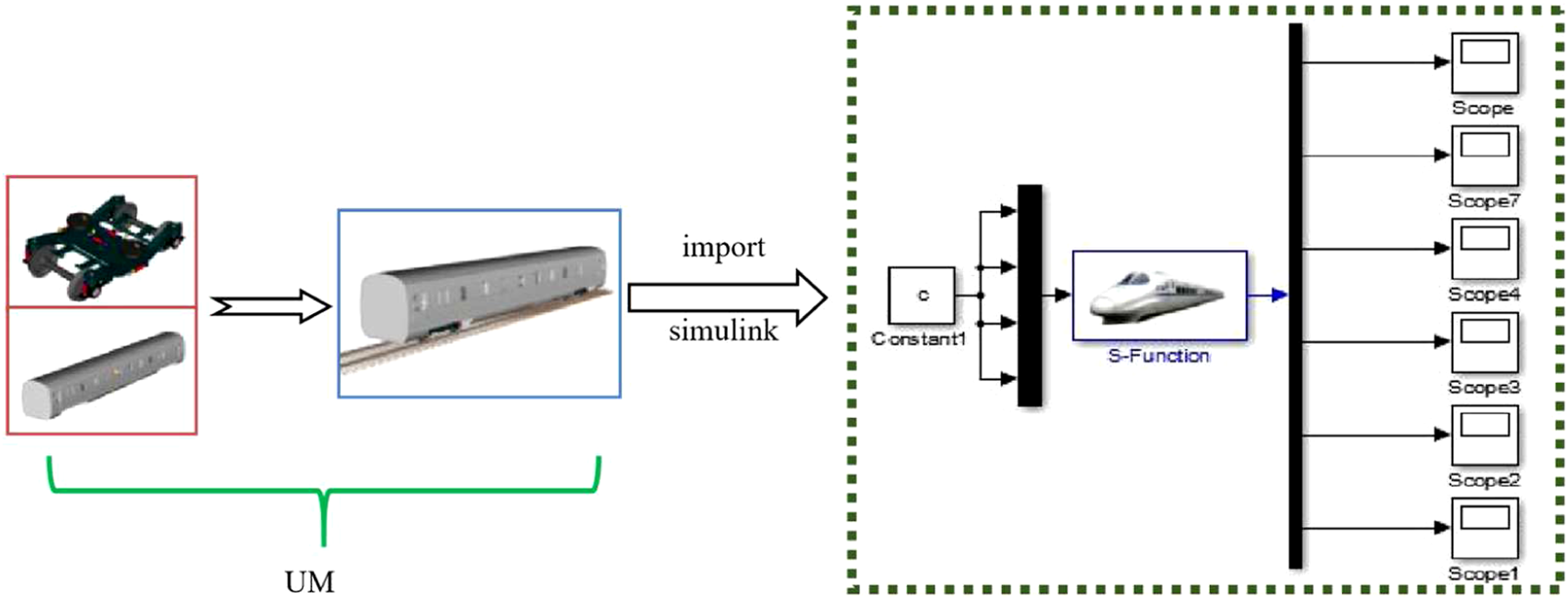

High-speed train co-simulation model.

Track irregularity

In this paper, the low-disturbance track spectrum of Germany is used as the track irregularity for the semi-active simulation. The low-disturbance track spectrum of Germany is calculated by using the power spectral density (PSD) functions as follows:³² Alignment irregularity

S_{a} (Ω) = \frac{A_{a} Ω_{c}^{2}}{(Ω^{2} + Ω_{r}^{2}) (Ω^{2} + Ω_{c}^{2})} m^{2} / (rad / m)

(10)

Vertical irregularity:

S_{v} (Ω) = \frac{A_{v} Ω_{c}^{2}}{(Ω^{2} + Ω_{r}^{2}) (Ω^{2} + Ω_{c}^{2})} m^{2} / (rad / m)

(11)

Cross-level irregularity:

S_{c} (Ω) = \frac{\frac{A_{v}}{b^{2}} Ω_{c}^{2} \cdot Ω^{2}}{(Ω^{2} + Ω_{r}^{2}) (Ω^{2} + Ω_{c}^{2}) (Ω^{2} + Ω_{s}^{2})} m^{2} / (rad / m)

(12)

Gauge irregularity:

S_{g} (Ω) = \frac{A_{g} Ω_{c}^{2} Ω^{2}}{(Ω^{2} + Ω_{r}^{2}) (Ω^{2} + Ω_{c}^{2}) (Ω^{2} + Ω_{s}^{2})} m^{2} / (rad / m)

(13)

where S(Ω) is the PSD of track irregularity; Ω is the spatial frequency; A_a and A_v are the roughness constants; A_g is any value that can ensure the gauge irregularity fluctuates between −3 mm and 3 mm; Ω_c, Ω_r, and Ω_s are the truncation angular frequencies; b is half of the wheel rolling circle distance, where b = 0.7465 m in this paper.

According to the low-disturbance track spectrum of Germany, the values of the parameters in these PSD functions are shown in Table 3.

Table 3.

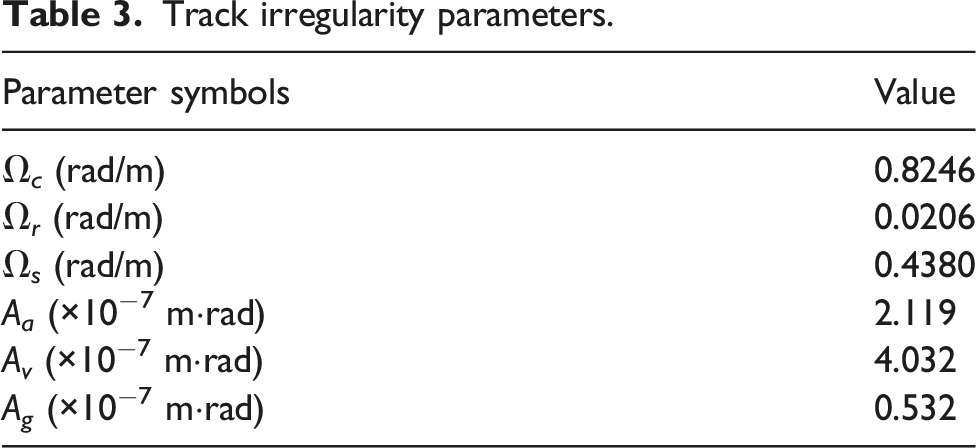

Track irregularity parameters.

Parameter symbols	Value
Ω_c (rad/m)	0.8246
Ω_r (rad/m)	0.0206
Ω_s (rad/m)	0.4380
A_a (×10⁻⁷ m·rad)	2.119
A_v (×10⁻⁷ m·rad)	4.032
A_g (×10⁻⁷ m·rad)	0.532

Then, the generated track irregularity data are imported into the whole vehicle model for the next simulation.

Ride comfort analysis

A straight track line is used to complete the dynamic simulation of semi-active control. The LMA wheel profile and CN60 rail profile are used for the vehicle model in this paper. Kalker’s simplified creep theory is used to calculate the wheel rail creep force in the vehicle model. Firstly, the ride comfort of the vehicle model is analyzed by applying various control strategies to the secondary lateral dampers. The running speed is set to 300 km/h, which is the normal operating speed of trains.

Generally, the acceleration of the car body can be used to evaluate the ride comfort of trains. However, in order to evaluate the ride comfort more accurately, not only the acceleration but also the influence of acceleration frequency on ride comfort should be considered. To study the influence of semi-active control strategies on ride comfort, the Sperling index, which is commonly used worldwide, is adopted and calculated according to the Standard of China Railway (GB/T 5599-2019). The expression of Sperling index W is as follows

W = 0.896 \sqrt[10]{\frac{a^{3}}{f} F (f)}

(14)

where a is the vibration acceleration (cm/s²), f is the vibration frequency (Hz), and F(f) is the correction factor related to the vibration frequency shown in Formula (15). Generally, the Sperling index W should be as small as possible for high-speed trains, with a maximum of 2.5

F (f) = {\begin{matrix} 0.8 f^{2} & (f = 0.5 \sim 5.4 Hz) \\ 650 / f^{2} & (f = 5.4 \sim 26 Hz) \\ 1 & (f>26 Hz) \end{matrix}

(15)

The peak and RMS values of acceleration of different control strategies are given, as shown in Figure 12(a) and Figure 12(b). The Sperling indexes are calculated according to Formula (14) and (15), which are shown in Figure 12(c).

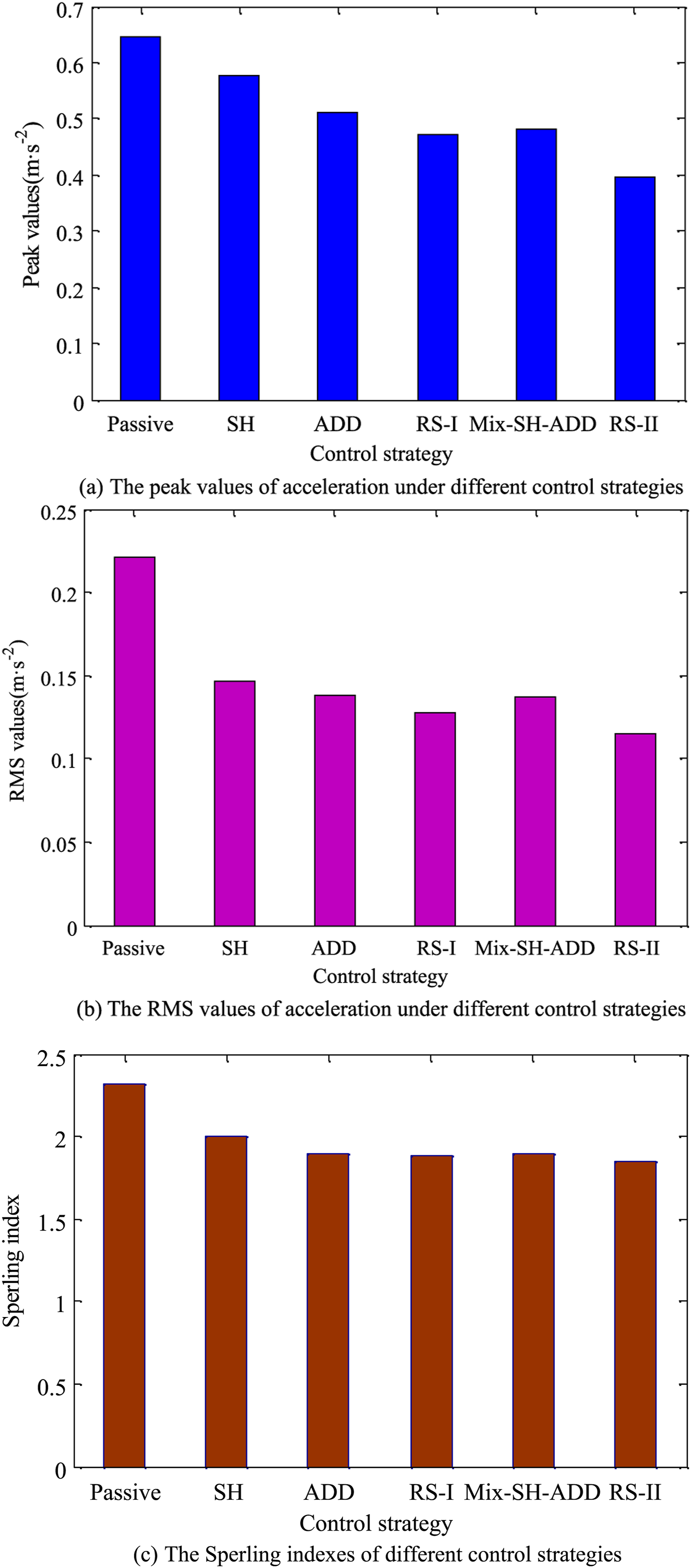

Figure 12.

Ride comfort analysis under various strategies. (a) The peak values of acceleration under different control strategies. (b) The RMS values of acceleration under different control strategies. (c) The Sperling indexes of different control strategies.

According to Figure 12(a), the peak values of the lateral acceleration of the vehicle body using the SH, ADD, RS-I, Mix-SH-ADD, and RS-II are reduced by 10.58%, 20.81%, 27.01%, 25.62%, and 38.39%, respectively, compared with the passive control. The RMS values of acceleration of the vehicle body decrease by 33.82%, 37.4%, 42.16%, 37.5%, and 47.87%, compared with the passive control, respectively, as shown in Figure 12(b). Finally, the Sperling index decreases by 13.85%, 18.16%, 18.63%, 18.59%, and 20.31%, respectively, as shown in Figure 12(c). In general, the RS-II has the best control effect in restraining the vibration of the car body among these control methods, followed by the RS-I and Mix-SH-ADD. Therefore, the RS-I and RS-II control methods proposed in this paper can reduce the vibration of the car body, and the RS-II is better than RS-I.

Running safety analysis

The purpose of this section is to analyze the influence of control strategies on train running safety. There are some indices that are capable of reflecting the train such as the derailment coefficient, wheelset force and vertical contact force. The lateral interaction force between the wheel and rail against the vertical interaction force is defined as the derailment coefficient. The influence of semi-active control strategies on wheel rail wear is also considered and computed. The wear power P is selected as the evaluation index. The formula is shown as

P = (F_{α} \cdot α + F_{β} \cdot β + M_{γ} \cdot γ) \cdot V

(16)

where, the F_α, F_β, and M_γ are the longitudinal creep force, lateral creep force (N), and spin moment (Nm), respectively, V is the wheel rolling speed (m/s), and α, β, and γ are the longitudinal creep rate, lateral creep rate, and spin creep (m⁻¹) rate, respectively.

The time domain curves of running safety indexes are obtained under passive control in Figure 13. Similarly, the time domain curves of running safety under other control strategies are obtained. The peak values and RMS values of these indexes are obtained by calculation and comparison, as shown in Table 4. In this paper, “Passive” means the result of a fixed damping coefficient.

Figure 13.

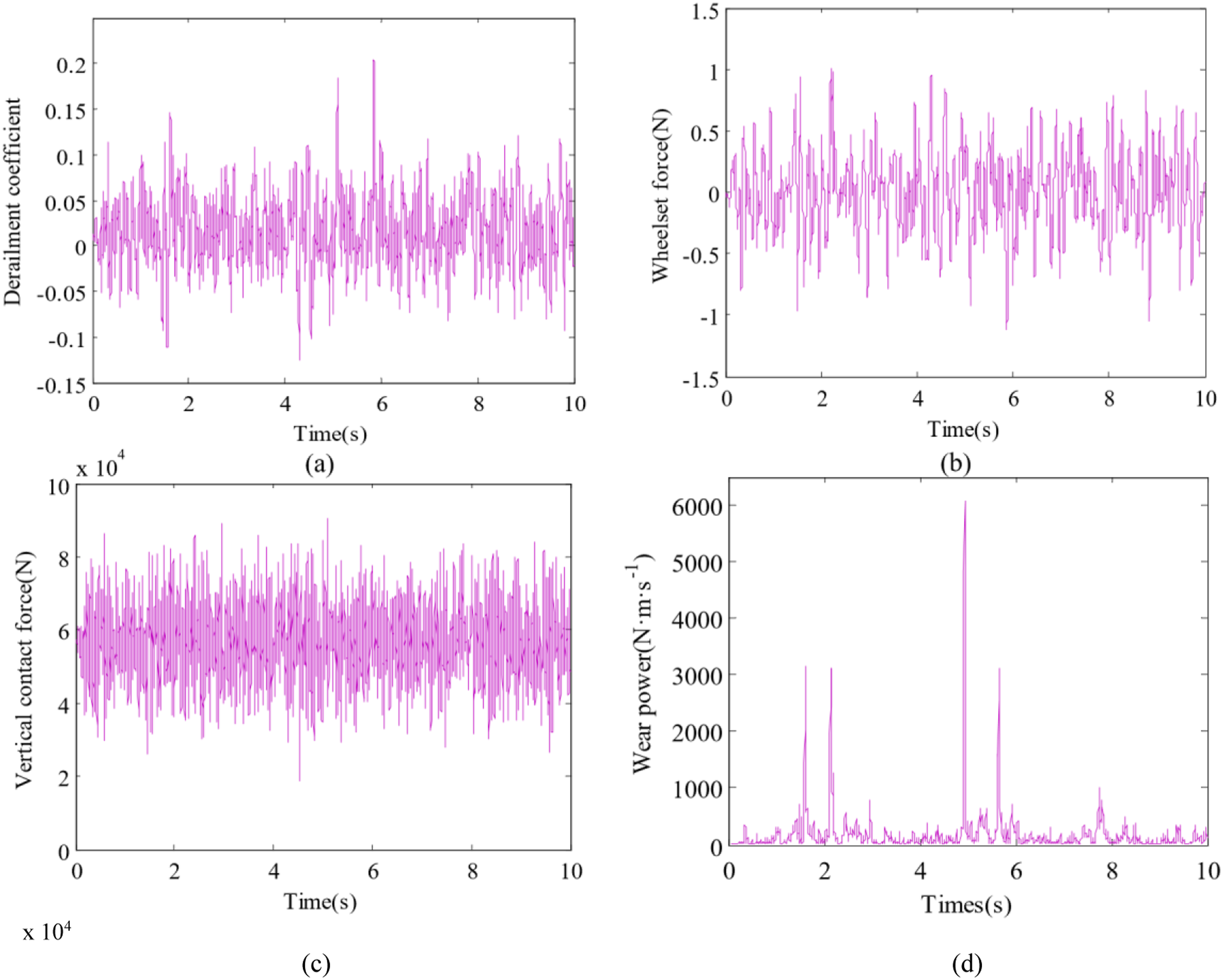

Evaluation indexes on the running safety of the railway vehicle under 300 km/h. (a) Derailment coefficient. (b) Wheelset force. (c) Vertical contact force. (d) Wear power.

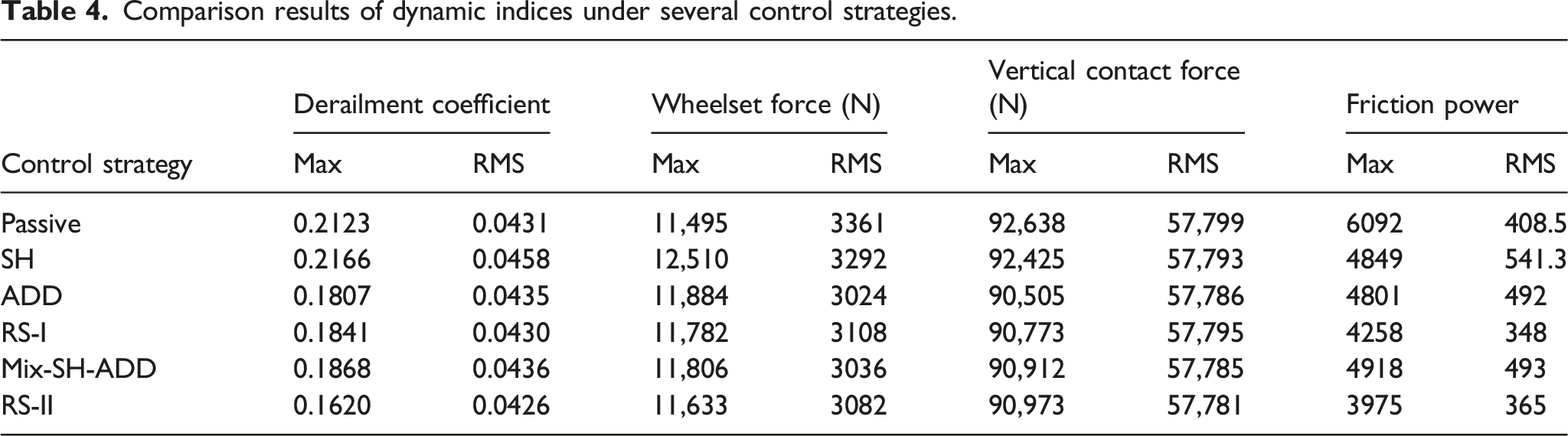

Table 4.

Comparison results of dynamic indices under several control strategies.

Control strategy	Derailment coefficient		Wheelset force (N)		Vertical contact force (N)		Friction power
Control strategy	Max	RMS	Max	RMS	Max	RMS	Max	RMS
Passive	0.2123	0.0431	11,495	3361	92,638	57,799	6092	408.5
SH	0.2166	0.0458	12,510	3292	92,425	57,793	4849	541.3
ADD	0.1807	0.0435	11,884	3024	90,505	57,786	4801	492
RS-I	0.1841	0.0430	11,782	3108	90,773	57,795	4258	348
Mix-SH-ADD	0.1868	0.0436	11,806	3036	90,912	57,785	4918	493
RS-II	0.1620	0.0426	11,633	3082	90,973	57,781	3975	365

Table 4 shows that the proposed control strategies RS-I and RS-II have little influence on the running safety of trains. All indexes are within the specified standard range. They can ensure the safety of the train while improving ride comfort. It is worth noting that they can reduce wear.

Hunting stability analysis

Analyzing the critical speed is a common way of evaluating train hunting stability. In a straight track, the wheelset displacement is measured to determine whether it converges or diverges after impulse excitation. At a certain speed, the amplitude of the wheelset lateral displacement does not increase or decrease, that is, at a constant amplitude steady-state vibration, the speed at this time is the critical speed of the vehicle. If the speed is less than the critical speed, the train will be stable. When the speed is greater than the critical speed, the train will lose stability. The scanning speed method is used in this paper, as shown in Figure 14, which is also called the reducing speed method.³³ According to this method, the critical speeds of the train under different control strategies are calculated and represented by the bar chart in Figure 15.

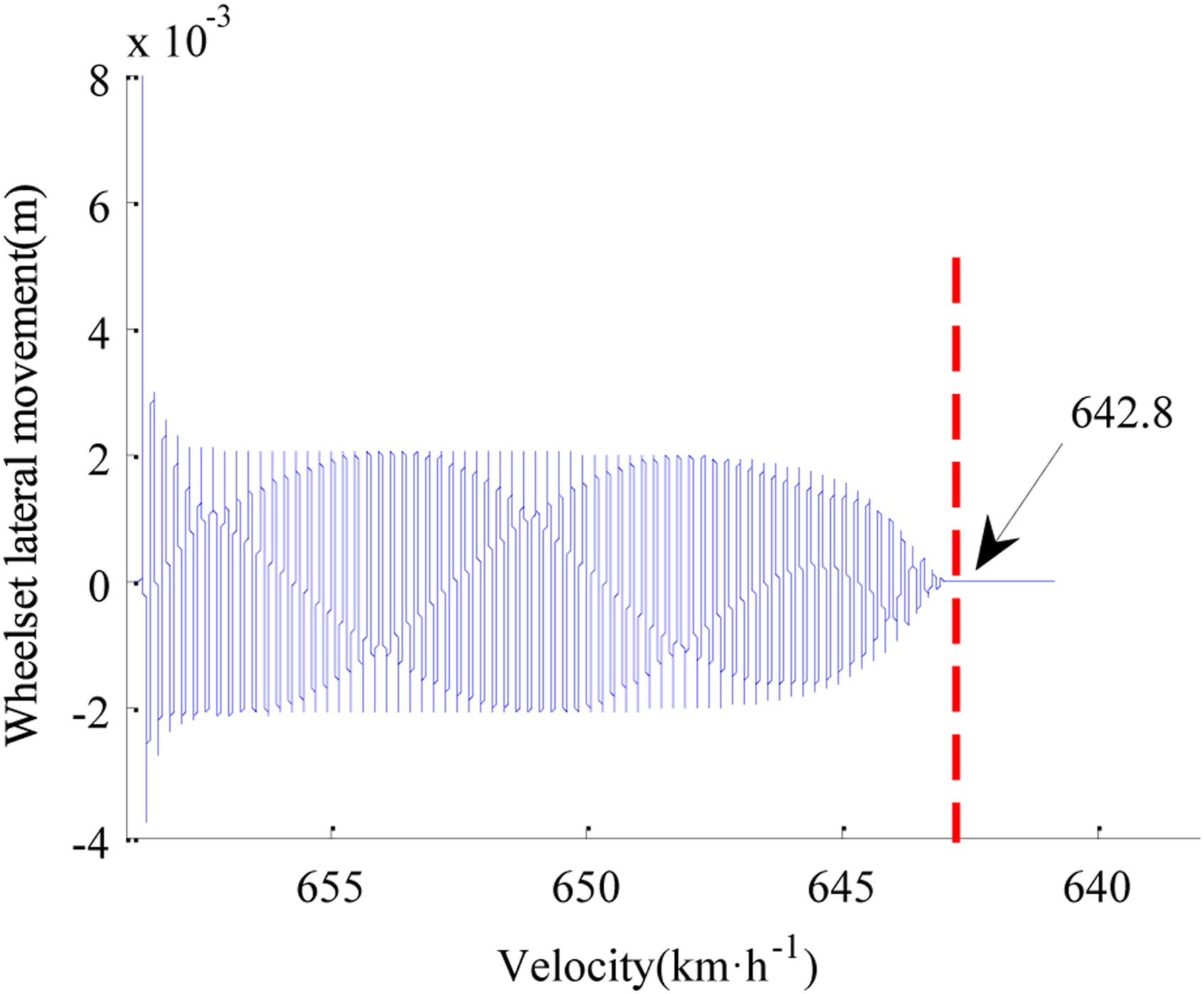

Figure 14.

Critical speed calculated by scanning speed method.

Figure 15.

Critical speed under several control strategies.

As it can be seen from Figure 15, when the semi-active control strategies are applied to the train, the critical speed is lower than that of the passive control. The critical speed of the SH decreases the most. In addition, the decrease of the critical speed of the RS-II is the least. Among these semi-active control strategies, the RS-II has the best stability.

Although the semi-active control strategy reduces the critical speed, it is still far higher than the real running speed of the train. The semi-active control strategy is still effective and has great practical value.

The RS-I and RS-II proposed in this paper can effectively improve ride comfort. At the same time, they can ensure the running safety and stability of high-speed trains.

Hardware-in-the-loop experiment

HIL systems, which have the advantages of low cost and high security, are widely used to verify and test a product before application. A hardware-in-the-loop (HIL) system that mainly includes one upper computer, one lower computer, one force sensor, one MR damper, and one electric cylinder is built for the semi-active control experiment to verify the semi-active control strategies in this paper. The schematic and physical configuration of the HIL system are shown in Figure 16.

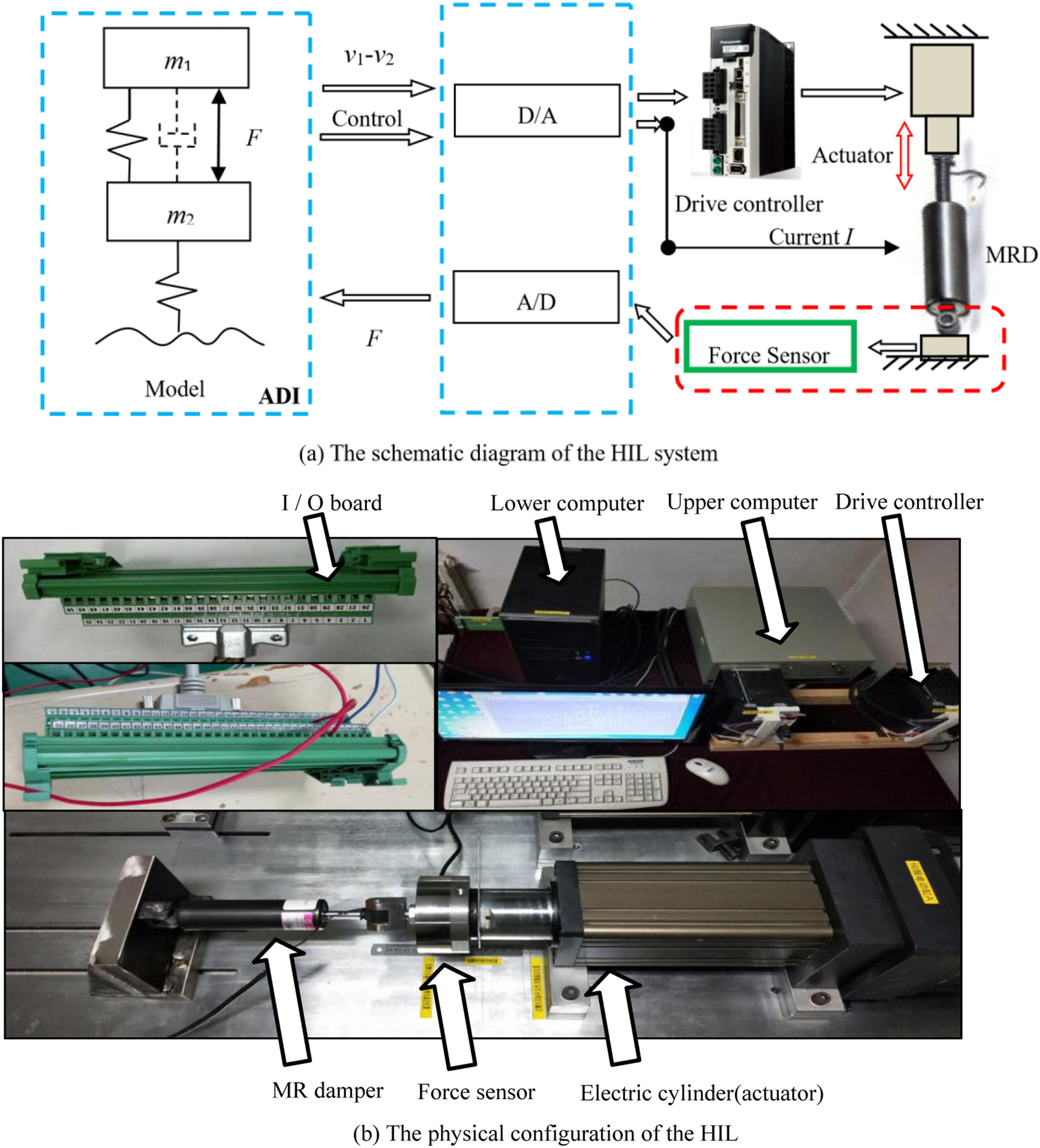

Figure 16.

The schematic and physical configuration of the HIL system. (a) The schematic diagram of the HIL system. (b) The physical configuration of the HIL.

In the HIL system, one side of the MR damper is fixed, and the other side is actuated by the actuator, which moves according to the relative velocity from the car body to the bogie in the model. The force sensor collects the force generated by the MR damper and converts it into an analog voltage signal to be fed back to the model. The real MR damper embedded in the system is closer to the real operating environment than the theoretical simulation. In the experiment, the RTX real-time simulation system from the ADI company is adopted to compile the model to complete the connection with the external hardware. The acceleration data of the car body under the action of the real MR damper are obtained by the HIL experiment.

Under the single harmonic excitation with a frequency of 1 Hz and an amplitude of 5 mm, the comparison curves of car body accelerations are obtained, as shown in Figure 17(a). Figure 17(b) shows the experimental results of car body accelerations when a composite harmonic excitation including three frequency components of 0.5 Hz, 1 Hz, and 2 Hz is applied. To make the experiment more comprehensive, the random excitation is used for the test to verify the semi-active control strategies. The acceleration curves obtained from the experiment are shown in Figure 17(c).

Figure 17.

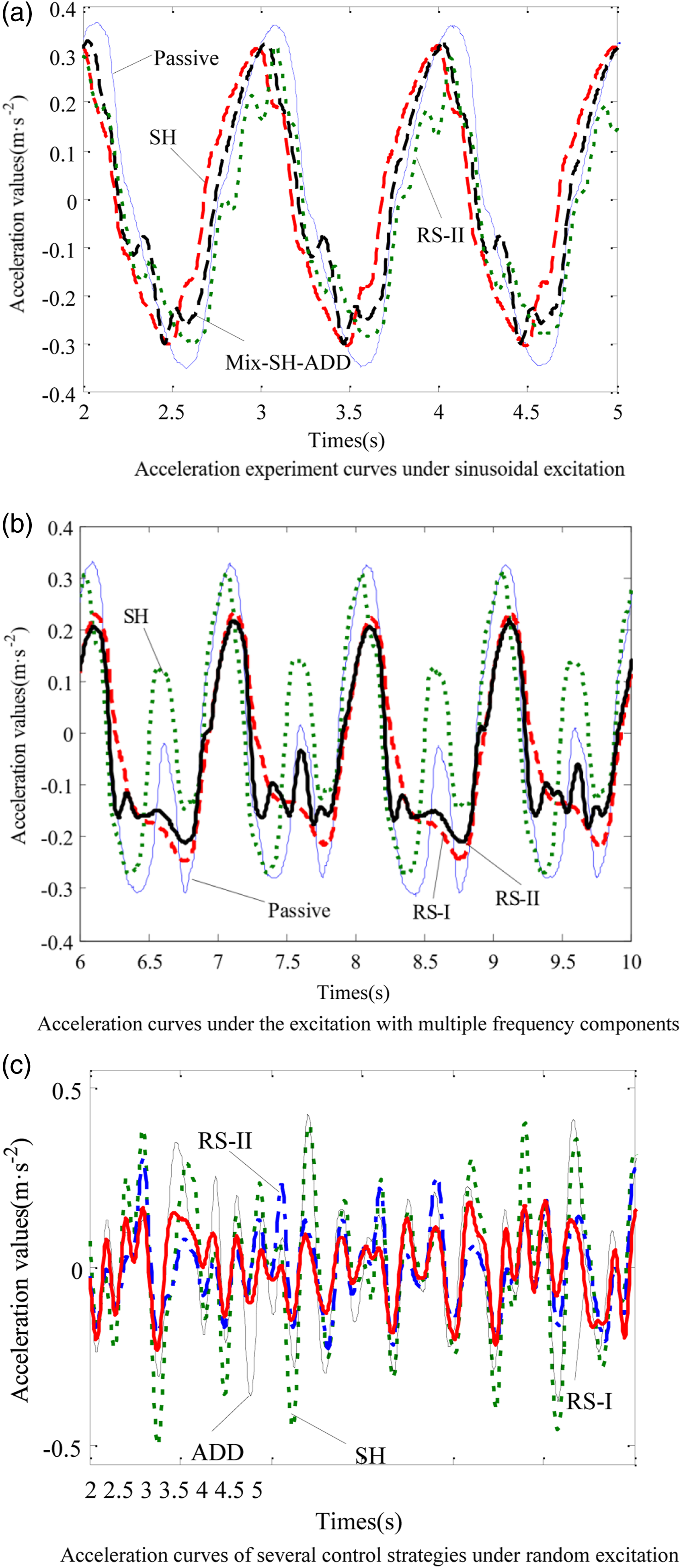

Test curves under different working conditions. (a) Acceleration experiment curves under sinusoidal excitation. (b) Acceleration curves under the excitation with multiple frequency components. (c) Acceleration curves of several control strategies under random excitation.

For the convenience of comparative analysis, the root mean square values of acceleration and their decrease rates are obtained under different control strategies, as shown in Table 5. The control effects of RS-I and RS-II are the best under the condition of random excitation. The root mean square of acceleration decreased by 46.85% and 27.01%, respectively. The RMS value of the ADD decreases by 29.38%, which is the largest decrease under a single harmonic excitation. The second is the RS-I, with a decrease of 28.44%. In the excitation including multiple sinusoids, the RMS value of the ADD decreases by 26.1%, which is the greatest decrease. The second is RS-I, with a decrease of 25.47%. Under the single and multiple frequency excitations, the decrease rate gap between the ADD and RS-I is very small, and ADD is slightly better than the RS-I. However, under the random excitation, the decrease rate of RS-I is much better than that of the ADD. Therefore, under different excitations, the adaptability of RS-I is better than that of the ADD. It should be noted in the experiment that the decrease rates of single control strategies (ADD, RS-I) are better than that of the hybrid control strategies (Mix-SH-ADD,RS-II). This is because the hybrid control strategy is designed under the single harmonic excitation, and the switching coefficient α is a fixed value which cannot be adjusted according to the changing environment. There may be some errors in the process of implementation of control strategies under the non single harmonic excitation. In general, the control strategies of RS-I and RS-II proposed in this paper can effectively reduce the acceleration of the car body.

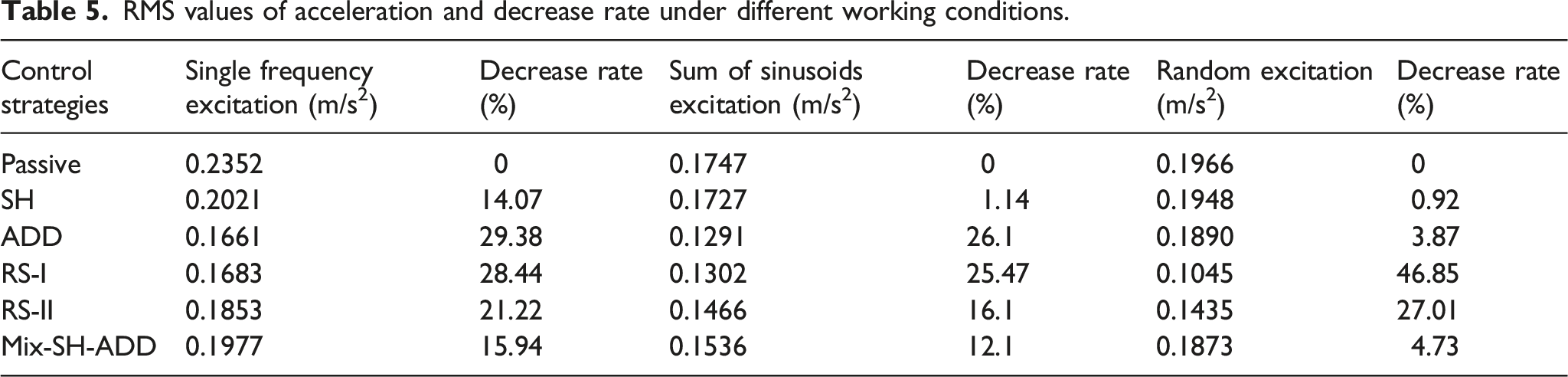

Table 5.

RMS values of acceleration and decrease rate under different working conditions.

Control strategies	Single frequency excitation (m/s²)	Decrease rate (%)	Sum of sinusoids excitation (m/s²)	Decrease rate (%)	Random excitation (m/s²)	Decrease rate (%)
Passive	0.2352	0	0.1747	0	0.1966	0
SH	0.2021	14.07	0.1727	1.14	0.1948	0.92
ADD	0.1661	29.38	0.1291	26.1	0.1890	3.87
RS-I	0.1683	28.44	0.1302	25.47	0.1045	46.85
RS-II	0.1853	21.22	0.1466	16.1	0.1435	27.01
Mix-SH-ADD	0.1977	15.94	0.1536	12.1	0.1873	4.73

Conclusion

The conclusions of this paper are as follows:

(1) The two control strategies, RS-I and RS-II, are designed in this paper and compared with other control methods. Simulation analysis with a quarter railway vehicle model is carried out. The results show that the two control strategies can reduce the acceleration of the vehicle body and have a good control effect.

(2) The UM-MATLAB simulation results show that the two control strategies can not only improve ride comfort but also ensure the safety of the train. The control effect takes into account the dynamic performance of the train. Furthermore, RS-II has the best stability among all semi-active control strategies in this paper.

(3) In this paper, the hardware-in-the-loop method is used to analyze the semi-active control strategy. The results show that the experimental results are consistent with the theoretical results, which proves that the control strategy proposed in this paper is practical.

(4) It is very interesting to study semi-active control strategies. This paper is just the beginning. Most importantly, the research results should be applied to engineering practice. In the future, a controller with semi-active control algorithms will be developed, and a real full-scale vehicle test will be carried out. Furthermore, the authors not only improve the comfort by using semi-active control strategies but also enhance the safety and stability of high-speed trains. Meanwhile, the continuous control strategy will also be studied.

Footnotes

Acknowledgements

The author(s) thank the State Key Laboratory of Mechanical Behaviour in Traffic Engineering Structure and System Safety for providing equipments to the experiment. The work is supported by the National Natural Science Foundation of China (Nos. 11790282, 12172235, 12072208 and 52072249), the Opening Foundation of State Key Laboratory of Shijiazhuang Tiedao University (ZZ2021-13), and the Postgraduate Foundation of Hebei Province (CXZZBS2021112).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iDs

Yiwei Zhao

Yongqiang Liu

References

Karnopp

. How significant are transfer function relations and invariant points for a quarter car suspension model. Vehicle Syst Dyn 2009; 47(4): 457–464.

Evers

Besselink

Teerhuis

, et al. On the achievable performance using variable geometry active secondary suspension systems in commercial vehicles. Vehicle Syst Dyn 2011; 49(10): 1553–1573.

Zhang

Naghdy

. Robust control of vehicle electrorheological suspension subject to measurement noises. Vehicle Syst Dyn 2011; 49(1–2): 257–275.

Bruni

Goodall

Mei

, et al. Control and monitoring for railway vehicle dynamics. Vehicle Syst Dyn 2007; 45(7): 743–779.

Giossi

Persson

, et al. Active suspension in railway vehicles: a literature survey. Railway Eng Sci 2020; 28(1): 3–35.

Braghin

Bruni

Resta

. Active yaw damper for the improvement of railway vehicle stability and curving performances: simulations and experimental results. Vehicle Syst Dyn 2006; 44(11): 857–869.

Persson

Goodall

Sasaki

. Carbody tilting--technologies and benefits. Vehicle Syst Dyn 2009; 47(8): 949–981.

Orvnas

Stichel

Persson

. Active lateral secondary suspension with H∞ control to improve ride comfort: simulations on a fullscale model. Vehicle Syst Dyn 2011; 49(9): 1409–1422.

Alfi

Bruni

Diana

, et al. Active control of airspring secondary suspension to improve ride quality and safety against crosswinds. Proc Inst Mech Eng F J Rail Rapid Transit 2011; 225(1): 84–98.

10.

Sun

W C.

Active Vibration Control of Automobile Suspension System. Harbin: Harbin Institute of Technology, 2013.

11.

Karnopp

Crosby

Harwood

. Vibration control using semi-active force generators. J Manufacturing Sci Eng 1974; 96(2): 619–626.

12.

Mihai

Andronic

. Behavior of a semi-active suspension system versus a passive suspension system on an uneven road surface. Mechanika 2014; 20(1): 64–69.

13.

. Research on Intelligent Semi-active Vibration Control of Tall Building Structure. Hangzhou: Zhejiang University, 2006.

14.

Dong

Liao

, et al. Comparative research on semi-active control strategies for magneto-rheological suspension. Nonlinear Dyn 2010; 59(3): 433–453.

15.

Ding

Liu

. Lateral suspension control mode and semi-active damper of high-speed train. China Mechanical Engineering 2013; 14(12): 995–998.

16.

Wang

. Research on key technologies of vehicle suspension system. Hang zhou: Zhejiang University; 2007.

17.

Kimiaki

. Improving lateral ride comfort of high-speed trains applying semi-active suspension system to high-speed trains. J China Railway Soc 2004; 26(1): 105–115.

18.

Liu

Zuo

. Mixed skyhook and power-driven-damper: A new low-jerk semi-active suspension control based on power flow analysis. J Dynamic Syst Meas Control 2016; 139(8): 1–10.

19.

Sammier

Sename

Dugard

. Sk- yhook and H∞ control of semi-active suspensions: some practical aspects. Vehicle Syst Dyn 2003; 39(4): 279–308.

20.

Savaresi

S M

Spelta

. Mix-sensor: A control strategy for semi-active suspension. IFCA Proc Volumes 2007; 40(10): 367–374.

21.

Ahmadian

Song

Southward

. No-jerk skyhook control methods for semiactive suspensions. J Vibration Acoust 2004; 126(4): 580–584.

22.

Hong

Sohn

Hedrick

. Modified skyhook control of semi-active suspensions: A new model, gain scheduling and hardware in the loop tuning. J Dynamic Syst Meas Control 2002; 124(1): 158–167.

23.

Alanoly

Sanker

. A new concept in semi-active vibration isolation. J Mech Des 1987; 109(2): 242–247.

24.

Rakheja

Sanker

. Vibration and shock isolation performance of a semi-active “On-Off ”damper. J Vibrat Acous 1985; 107(4): 398–403.

25.

Alanoly

Sanker

. Semi-active force generators for shock isolation. J Sound Vibrat 1988; 126(1): 145–156.

26.

Savaresi

S M

Silani

Bittanti

. Acceleration-driven-damper (ADD): An optimal control algorithm for comfort- oriented semi-active suspensions. J Dyn Syst Measure Cont 2005; 127(2): 218–229.

27.

Savaresi

S M

Spelta

. Mixed sky-hook and ADD: Approaching the filtering limits of a semi-active suspension. J Dyn Syst Meas Cont 2007; 129(4): 382–392.

28.

Zeng

. Influence of rubber node stiffness of damper on critical speed of railway vehicle system. China Railway Sci 2008; 2: 94–98.

29.

Akira

Arata

Daisuke

, et al. A study on semi-active control using maxwell-model variable damper. In: Pressure Vessels and Piping Conference, Denver, Colorado, USA, July 17–21 2005, 2005.

30.

Liao

Liu

Yang

. The application of a new hybrid semi-active control strategy in the vibration control of high-speed railway vehicles. J Vibrat Shock 2013; 32(12): 84–87.

31.

Liu

Yang

Liao

, et al. New semi-active combination control and its effect on the curving performance of EMUs. J Vibrat Shock 2017; 36(19): 164–168.

32.

Liao

Liu

Yang

, et al. Semi-active control of high-speed railway vehicle suspension system with magnetorheologiccal dampers. Shock Vibrat 2011; 31(04): 49–52.

33.

Hou

Wang

. Study of nonlinear methods of bogie instability. Rail Locomo Car 2011; 31(04): 49–52.
