Opportunities and limits to market-driven sanitation services: evidence from urban informal settlements in East Africa

a. Colonial provision through to structural adjustment

During colonial times, cities developed sewerage systems to service colonial elites. This led to the development of a “sanitary buffer” separating these serviced elites from native populations in urban and peri-urban areas, who were forced to develop on-site sanitation systems.⁽¹⁶⁾ Decolonization did not lead to the improvement of the sanitation situation. Modern infrastructure plans were developed based on a centralized planning model that did not link up with institutional arrangements or market demand.⁽¹⁷⁾

In post-colonial development states, systematic failures have been observed across all key services including health, education, water supply and waste collection.⁽¹⁸⁾ The failure to improve service delivery led to a re-examination of the problem and proposal of new solutions. A major reform effort was the reduction of government involvement in areas of service provision where it is presumed that the market is more productive, effective and efficient. Private sector participation was vigorously promoted as a panacea for achieving greater efficiency and investment in the urban water and sanitation sector in Africa, Asia and Latin America.⁽¹⁹⁾ But this did not lead to the development of efficient delivery models that serve the whole population.

Increased private sector involvement aimed to address a lack of capacity and financial resources. But this was not successful for a number of reasons, including conflicts between investors and civil society or the former state provider (e.g. Bolivia, Argentina) or loss of interest by foreign investors in frontier markets. A comparison of service provision contracts revealed that only 5 per cent of the world’s population is served by a formal private sector arrangement.⁽²⁰⁾ The level of foreign private finance and investment has been particularly low in the sanitation sector, which has received a minute portion of overall water sector investment. The reduction of government provision during the period of structural adjustment did not produce improved sector-wide performance; rather, it led to an evolution of delivery approaches involving different institutional contexts, service arrangements and actors (e.g. private company, utilities, NGOs).⁽²¹⁾

b. Self-help sanitation and the push towards market-based solutions

Sanitation services entail the payment of money for the provision of a technology or waste-related service. These services exist throughout the sanitation system, from the household (e.g construction of a toilet) through the collection and transport of wastes (e.g. the removal of wastes from a pit latrine) to the treatment centre (e.g the conversion of wastes into useful end products such as fertilizer). During the development of most sanitation systems, user preferences and consumer demands are often overlooked, which can lead to the development of inappropriate technologies and services. Therefore, it is important to understand the user perspective when developing sanitation facilities.

Most African residents in informal settlements have adapted to the near complete lack of publicly funded sanitation options and provide for themselves, or employ informal or small-scale service providers to build and empty on-site sanitation facilities. These facilities vary in cost and technology, depending on the urban context and socioeconomic factors. The plurality of providers, operating at multiple scales across formal and informal markets and institutions, has led to a provision patchwork with no overall logic or regulatory standards.⁽²²⁾ The patchwork can include government providers, private operators, NGOs or collective, community-driven approaches. Community-driven approaches have some notable successes.⁽²³⁾ But there are significant challenges to address, including the engagement of communities in the development and management of sanitation systems, the often tense relations between community groups and the government, and the need to develop affordable technologies and payment structures that can cover operation and maintenance costs.⁽²⁴⁾

The development of affordable sanitation technologies through the creation of a sustainable business model is the new dominant paradigm in service provision for the urban poor.⁽²⁵⁾ This trend has been pushed by agenda-setting sector agencies such as the World Bank’s Water and Sanitation Program (WSP) and several bilateral agencies with sizeable sanitation portfolios such as the UK Department for International Development (DFID) and United States Agency for International Development (USAID). The Bill & Melinda Gates Foundation’s entry into the sanitation sector in the recent past has also meant a massive investment in “sanitation value chain” initiatives for “base of the pyramid” (BoP) urban markets.⁽²⁶⁾

The current debate around the development of innovative BoP technologies and services frames the government as the central node within a network of service providers, each with its own task. In this model, the state is responsible for “network governance”, rather than being the driving force behind economic development or the delivery of urban environmental services. The state regulates and facilitates urban development rather than driving it. It is argued that this approach can incorporate more stakeholders, including users, civil society groups and NGOs, and the formal and informal private sector. Within this model, the informal sector is a key link in the collection and emptying of wastes in on-site sanitation systems, especially for the very poor in informal settlements.⁽²⁷⁾

The underlying philosophy behind the market-based approach is that economic incentives can result in more efficient and productive services, compared to services delivered though government agencies. In addition, supporting productive end use or reuse of human waste can stimulate new integrated solutions that can generate a profit, or at least recover operation costs. A number of social enterprises, such as Sanergy (Nairobi, Kenya), SOIL (Port-au-Prince, Haiti) and X-runner (Lima, Peru), are piloting projects that try to make hygienic sanitation affordable and accessible for the urban poor, using market-based approaches.⁽²⁸⁾ The successful development of these new initiatives depends heavily on the context in which they are located. A lack of understanding of this context will most likely lead to a failure to adopt a new product or service.⁽²⁹⁾

a. User practices and access arrangements

Access arrangements. Few households have a private latrine. In Nairobi, 50 per cent share a latrine with other households and many also use public pay-per-use facilities (45 per cent). Only 5 per cent have private facilities. In Kampala, most households use shared facilities (69 per cent); many have private latrines (20 per cent) and not that many rely on public pay-per-use facilities (11 per cent). The cost to use a public toilet (US$ 0.02–0.11 in Nairobi and US$ 0.04–0.08 in Kampala) varies largely according to the location of the toilet. Shared toilets are mostly close to the households they serve. Users of pay-per-use facilities need to walk further and their access is limited by the daily opening hours, with often no access at night. This forces people into degrading sanitation practices, such as open defecation or defecating into a plastic bag (locally known as a “flying toilet”), which is launched away from the household onto a neighbour’s rooftop or disposed of with other solid waste.⁽⁴²⁾

Cleaning. People using shared latrines usually share cleaning responsibilities between households rather than paying a cleaner. This task is usually undertaken by women in the household. Careless users and the lack of cooperation around cleaning are a considerable challenge.⁽⁴³⁾ This is probably why shared toilets are associated with a wide range of diseases, as compared to private toilets.⁽⁴⁴⁾ In Kampala, private facilities were rated about three times cleaner than shared facilities.⁽⁴⁵⁾ The public latrines are cleaned by the operators, with varying degrees of cleanliness.

Availability, access and cleanliness of the facility are all important factors to consider from the user’s perspective. This highlights the need to split the user of the facility (the tenant or paying customer) from the producer (usually the landlord or the public toilet operator). While tenants can organize communal cleaning activities and sometimes pay for the emptying of the latrine, they are unlikely to demand improvement in sanitation conditions due to prevailing structural issues, such as insecure tenure rights and lack of access to capital.⁽⁴⁶⁾

b. The construction of sanitation facilities and infrastructure

In the study areas, the facilities are connected to three general systems of waste management: a centralized sewerage network, with the utility company responsible for the functioning of the system and disposal of wastes; decentralized networks that that give specific individuals responsibility for the maintenance of certain latrines; and the hybrid model pioneered by the sanitation social enterprise Sanergy.

Each system requires a different constellation of access arrangements and technology and has separate issues related to proper operation and maintenance. In the surveyed informal settlements in Nairobi, three quarters of the households use on-site facilities, and a quarter are connected to sewer lines. In Kampala, only 1 per cent were connected to a sewer line. The decentralized system relies on a myriad of small-scale operators that are paid to build, repair and empty latrines. Local fundis (handymen) are contracted to build facilities while groups of young men usually empty the pits.⁽⁴⁷⁾ In the Mathare slum in Nairobi, the Mungiki gang controls some of the public toilet facilities. It also provides services such as waste collection.⁽⁴⁸⁾

Within the surveyed informal settlements in Nairobi, very few users (7 per cent) had ever built a toilet, and those were all landlords or people with secure tenure arrangements. In Kampala, 97 per cent of the private or shared toilets were paid for by household owners or landlords (the remainder were paid for by tenants or NGOs) and 55 per cent of the public facilities were paid for by the local government (Kampala Capital City Authority) or area politicians. The remainder of the facilities were owned by NGOs or community-based organizations (CBOs) (31 per cent) or landlords (14 per cent).

The reasons respondents gave for constructing a new latrine varied, but all focused on the desire to improve sanitation conditions for themselves, their families or their tenants. The cost of constructing and operating a latrine is largely dependent on the type of technology. There is an already existing market for the construction of sanitation facilities. Introducing a new product or sanitation service into the marketplace requires a competitive pricing structure, for not only the installation but also the ongoing operation and maintenance costs. But any construction of a new facility in an informal settlement requires the navigation of complex land tenure arrangements and vested interests that benefit from the status quo.⁽⁴⁹⁾

The sustainability of the system depends on the ability to find a sustainable source of finance. Part of the reason for pushing the market-driven approach is the recognition that people already pay for sanitation services and that this “market” could be entered with improved products and services in order to generate mutual benefit for users and providers of the system.⁽⁵⁰⁾ The decision to construct a latrine is based on many factors and the many technologies and emptying options reflect a fragmented “market” without a coherent logic. Table 2 compares construction costs for different sanitation facilities found in East African cities.

OPEN IN VIEWER

Table 2

Comparison of construction and maintenance costs of different facilities in East African cities

Option	Users	Approx. construction costs per toilet, in US$	Maintenance	Maintenance costs,(1) in US$
1. Unlined pit	Residents of peri-urban and low-income areas with relatively large plots	$60–200	If plot is large enough, pit is closed when full and another pit dug elsewhere	Formal emptying: $25–60 per pit
				Informal emptying: $15–$30 per pit
2. Lined pit with squatting pan	Residents of low-income urban areas, where small plots require reusable pits	$400–1,000	Suction truck or manual emptying one–two times/year	Formal emptying: $25–60 per pit
3. Toilet, lined pit and soak pit (soakaway)	Residents of urban areas, users of some public buildings	$450–1,000	Frequency of emptying reduced, suction truck once/year	Formal emptying: $25–60 per pit
4. Toilet, septic tank and soak pit	Residents of middle- and high-income areas far from sewer line	$800–3,000	Depending on size of septic tank, emptied mechanically every two–three years	Formal emptying: $25–60 per septic tank
5. Toilet connected to conventional sewer line	Residents of middle- and high-income areas adjacent to sewer line	Depends on connection fee	Maintained by utility	n.a.
6. Sanergy toilet	Local entrepreneurs purchase toilet and supplementary materials from Sanergy	$500	Toilet is cleaned by owner but maintenance and waste removal are provided by Sanergy	After first year of operation, recurrent fee of $80 is charged for waste collection service

NOTE: ⁽¹⁾Costs are dependent on the size of the pit, distance travelled and equipment used. See Murungi, C and M P van Dijk (2014), “Emptying, Transportation and Disposal of faecal sludge in informal settlements of Kampala Uganda: The economics of sanitation”, Habitat International Vol 42, pages 69–75.

SOURCE: Bassan, M (2014), “Institutional Frameworks for Faecal Sludge Management”, in L Strande, M Ronteltap and D Brdjanovic (editors), Faecal Sludge Management: Systems Approach for Implementation and Operation (1st edition, pages 255–272), International Water Association, London.

A variety of actors are involved in the construction of sanitation facilities and infrastructure. Most owners of public facilities in Mukuru are private owners (74 per cent), reflecting the impact of the Sanergy system. In Kibera, most public providers are NGOs/CBOs, which especially target the most vulnerable. However, NGO/CBO initiatives tend to focus on site-specific projects (i.e. latrine construction) and do not take into account the entire sanitation value chain from the user interface to safe disposal of human waste. These interventions, thus, tend to have a limited impact on urban sanitation solutions due to the lack of a sustainable revenue source and their major focus on construction of toilet facilities, rather than the development of a sustainable system.

In the case of public toilets, whether the owners are private entrepreneurs, NGOs, community groups or government, they are responsible for the construction of the facility, as well as for organizing the cleaning, maintenance and regular emptying of the latrines. It is in their interest to have a functioning toilet that does not discourage customers from using the facility. The situation for households sharing a toilet is rather different. The landlord or owner is responsible for the construction of the latrine whereas the tenants, usually a group of households, take turns cleaning the facilities. Landlords are mainly responsible for the maintenance and emptying of the latrine, but sometimes tenants also pay these costs. There is little NGO/CBO presence at the household level and no government actors involved in the provision of these facilities. These patterns hold for informal settlements in both cities (Figure 1).

OPEN IN VIEWER

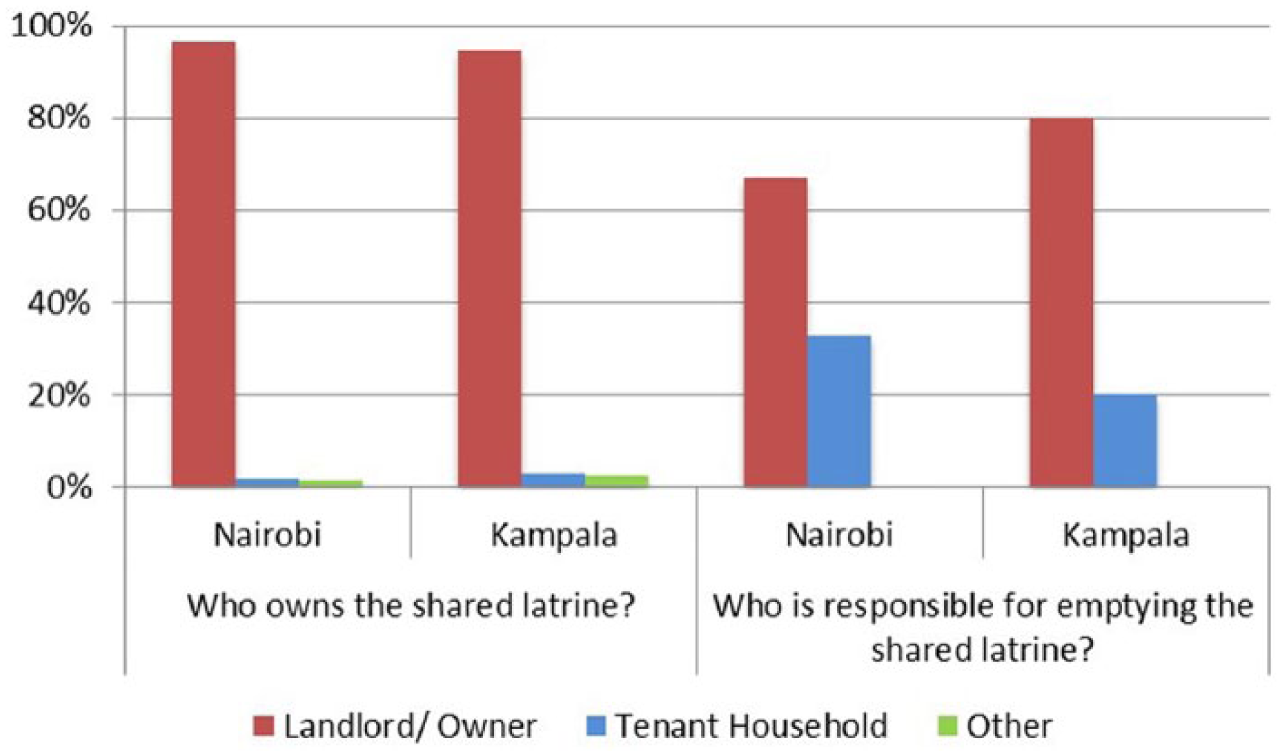

Figure 1

The main actors who own a shared latrine and bear responsibility for emptying the latrine within informal settlements in Nairobi and Kampala

c. The collection, transport and treatment of wastes

The safe collection, transport and disposal of waste is one of the most important but underappreciated links in the sanitation system. Private operators with mechanized trucks or groups of manual emptiers who use buckets, spades or even bare hands to empty the pits are hired to conduct pit emptying. It is largely the responsibility of landlords to organize the emptying, although some households also organize and pay for this. It is interesting to contrast the waste management systems of the informal settlements in the two cities. In Nairobi, the majority (86 per cent) of facilities connected to pits were emptied by hand. In Kampala, the majority (90 per cent) of those reporting paying for an emptying service hired a removal truck. The difference is striking and could be explained by the lower population density of Kampala, leading to easier access for trucks.

In Kampala, the price for emptying a pit is determined by the owners of the removal trucks. These owners are involved in a Pit Emptiers Association Union (PEAU), which could regulate quality of service and prices, but owners are unlikely to advocate for regulation that would cut into their profits. The absence of competing government provision and regulatory arrangements has led to the creation of a monopoly. Truck owners receive no subsidies and set prices based on the ability to recover costs and make a profit.⁽⁵¹⁾

Many wastewater treatment plants in East Africa are not operational or else lack the capacity to correctly treat the amount of faecal sludge produced in urban areas.⁽⁵²⁾ The failure to operate and maintain these plants, a major problem, requires serious investigation. The majority of people in East African cities live in informal settlements and use facilities serviced by providers that collect waste but do not treat or dispose of it in a process that complies with international guidelines on the safe disposal of human wastes, meaning that much of it is dumped back into drainage systems or open water bodies.

d. Conclusions on the consumers and producers of sanitation systems

In this section we have highlighted current user practices and access arrangements in parallel to the practices of different producers of the system. This gives us a unique perspective because most studies focus on either the user or producer. In Kampala, where most people use shared facilities (Figure 2), the lack of social cohesion around cleaning could lead to facilities becoming dirty and unusable. However, nearly every toilet is linked to the decentralized and fragmented pit-emptying services. These are controlled by the owners of the removal trucks, who effectively have a monopoly and can set prices in an environment with no regulation.

OPEN IN VIEWER

Figure 2

Comparison of the different combinations of access arrangements and types of waste management systems in informal settlements in Kampala and Nairobi

In Kibera and Mukuru, there is a fairly even split between people who access shared facilities and those who use public facilities, and many facilities are connected to the sewerage system, relative to Kampala (Figure 2). The major problem with the public system is access to the facilities at night. The informal settlements in Nairobi are notorious for high levels of crime and insecurity, and many people do not like to venture out at night. These figures illustrate that a decentralized network of providers serves the majority of latrines in urban informal settlements. Although some facilities are served some of the time, this does not mean that all facilities are served all the time. There is little to no regulation of quality standards, which leads to fragmented and conflicting actor arrangements. This leads in turn to the development of unsafe, unclean and unhygienic facilities. Therefore, the potential for a complete sanitation system that serves a large number of people within an urban area while collecting the wastes and turning them into a product that could be sold to generate a revenue stream is very appealing.

a. Explaining the consumption and production of sanitation systems

The aim of the research was to understand who is involved in the consumption and production of sanitation systems in informal settlements in Nairobi and Kampala. The research investigated current user practices and access arrangements, identified the key actors involved in the provision of sanitation systems, and highlighted the impact of a new sanitation system on user practices and satisfaction. In the investigated areas, the majority of households rely on on-site sanitation systems serviced by a network of formal and informal operators. These systems are characterized by poor coordination, unsafe practices and a lack of sector regulation. In the past few years, these deficiencies have led to the emergence of market-based approaches currently being tested in a number of locations such as Mukuru, Nairobi. These service providers tap into existing urban sanitation markets where private providers pay for the construction and emptying of toilets and disposal of wastes.

The analysis illustrates that in these settlements, sanitation provision is complex and does not form a coherent system. Rather, it is a collection of overlapping systems of consumption and provision that are heavily structured around daily living conditions. Understanding this complexity and the type of service being provided throughout the sanitation system allows us to identify points for interaction. For example, the main challenge for users is accessing a clean and hygienic facility nearby, when they need to go. The issues of cleanliness and access are significantly different from the producers’ issues in planning and constructing sanitation facilities. Here, the main concern is securing land and working through the often complex tenure arrangements and overlapping layers of political authority. The implication for market-based providers is that the difficult operating environment can hinder the diffusion of the new system. Identifying and negotiating with key stakeholders within local political structures is vital for successful adoption of new infrastructure.

The planning and construction of the facilities does not have to directly include end users, although facilities should not be planned that are in direct contention with prevailing socio-cultural norms.⁽⁵⁶⁾ For example, people who wash themselves after defecating cannot use urine-diverting dry toilets (UDDTs) because they need water for ablution, but the aim of dry toilets is to have as little water as possible in the faeces to ensure the safe destruction of pathogens.

The main challenge for the collection and transport of waste is logistical and relates to the type of system in place and the location of the facility. Sewerage systems require different operation and maintenance procedures than an on-site system. Proper treatment or disposal of wastes requires significant local discretion as the prevailing climatic and socioeconomic conditions will determine the most appropriate treatment process and potential markets for the sale of end products. The treatment of wastes requires a regulatory environment developed by the government.

A new hybrid system is being pioneered by Sanergy, which is developing dense clusters of (public) toilets in certain informal settlements in Nairobi. The company is responsible for every link in the sanitation value chain. This overview ensures a high degree of quality assurance as Sanergy knows how clean its toilets are, how much waste is collected and how its waste is treated. Users of the Sanergy latrines are more content than users of other facilities, especially with the greater possibility of handwashing. The users value the clean and hygienic environment provided by the facilities. In the areas of operation, a significant proportion of households are choosing to pay to use the facilities. It is too early to say whether this new approach will succeed or fail. The challenge for the company, and for similar companies operating in the sector, is to scale up the system to different areas and sell more toilets to different market segments. A report has highlighted the fact that none of these new initiatives is yet operating profitably.⁽⁵⁷⁾

b. Policy implications

Large-scale service providers and utilities in cities of East Africa must change their way of doing business if they want to reach the millions of low-income users (largely located within informal settlements) currently without access to good-quality sanitation services. This will require the creation of dedicated pro-poor providers that have a clear institutional mandate and the staffing and resources to increase access for low-income residents. In Nairobi, the creation of the Informal Settlements Department as a dedicated unit within the Nairobi Water and Sewerage Company in 2007 has brought about a change in approach towards informal settlement service provision. The current strategy aims to ensure that a fixed percentage of the total revenue collected by the utility should come from low-income communities, in order to extend and sustain services to these settlements. A crucial element of pro-poor services is the signing of letting contracts or delegated management arrangements with NGOs, social enterprises or private sector service providers that are closer to the realities of the end users.⁽⁵⁸⁾ The development of pro-poor units that serve people in informal settlements requires significant political will as these are not the most profitable markets to enter. Often, strong political will focused on improvement of basic services is lacking from areas with weak governance institutions; or the people in power prefer the status quo as it leads to the betterment of their individual economic situation.⁽⁵⁹⁾

Urban sanitation services deliver at least some coverage to millions living within informal settlements. But the services operate within a complex environment, are often fragmented, and do not align to form a cohesive and sustainable system. This context is important when considering the development of sanitation markets because markets do not function perfectly or outside of existing institutional arrangements. Rather, markets should be viewed as an interaction between different actors including consumers, suppliers, organizations, labourers and governments.⁽⁶⁰⁾ These actors and the market should be seen to be in constant co-evolution within different institutional settings.⁽⁶¹⁾ The neglect of a wider understanding of how markets are structured, operate and perform leads to an underestimation of the complexity of the sanitation system and the related transactional costs when working in these areas.

Table 4 illustrates the stakeholders and the major activities required to develop a sustainable sanitation system.⁽⁶²⁾ The major stakeholders involved are the national ministries, utility companies, local governments, private companies and CBOs/NGOs. For each of these stakeholders the most suitable role or responsibility is indicated with a green tick. Only the national ministries can set up a legal framework in which waste management companies (public, private, utility or hybrid) can operate. They can also provide other functions such as coordination between stakeholders and the synthesis of best practices in monitoring and evaluation into key learnings. National and municipal utilities could fulfil most roles and responsibilities apart from the development of the legal framework. However, these utilities have inherited unsustainable sanitation infrastructures that have failed, for a number of different reasons, to provide safe sanitation for the large and growing number of people living in towns and cities in East Africa. Hence the rise of the fragmented provision that exists today. The local government, through police officers, public health officials or community-based organizations, could enforce the legal framework. It is possible that CBOs/NGOs could fill many of the roles and responsibilities, but the lack of sustainable and long-term funding will ultimately undermine their operations. Private companies (shaded in Table 4) are most adept at focusing on the collection, transport and treatment of wastes and the reuse of waste into different products.

OPEN IN VIEWER

Table 4

Roles and responsibilities of different stakeholders involved in the provision of sanitation services

	Stakeholder
Role or responsibility	Ministries	National/municipal utilities	Local government	CBOs/NGOs	Private companies
Legal framework	✓
Stakeholder co-ordination	✓	✓
Collection and transport		✓		✓	✓
Treatment		✓		✓	✓
Resource recovery		✓		✓	✓
Enforcement		✓	✓	✓
Monitoring, evaluation and learning	✓	✓		✓

SOURCE: Adapted from Bassan, M (2014), “Institutional Frameworks for Faecal Sludge Management”, in L Strande, M Ronteltap and D Brdjanovic (editors), Faecal Sludge Management: Systems Approach for Implementation and Operation (1st edition, pages 255–272), International Water Association, London.

The opportunities for private companies to develop a market-based approach are clear, if often overstated. There is an already existing sanitation market where people pay private providers for the construction of latrines and the collection, transport and disposal of wastes. However, many of the providers do not have to factor in externalities such as the environmental effect of dumping wastes into the environment. Generating value from the reuse or sale of end products could subsidize at least part of the sanitation chain. Utilizing the concepts and best management practices from business can certainly reduce the operating costs of a service but it is difficult to envision a completely private, profitable company providing safe sanitation for all. Recognizing the limits of a singular focus on market-based approaches is not admitting defeat but highlighting areas that require different types of intervention.

Private providers can help to deliver sanitation services but they cannot develop the overall strategy of provision, which needs government direction, regulation and financial support. Historically, the development of sanitation systems has involved large public subsidies because the market will only service those who can afford to pay for sanitation services.⁽⁶³⁾ In countries that achieved total sanitation coverage within the last decades there has been high-level political will to improve material living conditions.⁽⁶⁴⁾ In many African cities weak governance institutions undermine the delivery of key services. Without serious consideration of the institutional setting, the new wave of projects aimed to develop products and services around the sanitation value chain will underestimate the transactional costs of working in informal settlements and overestimate the profit to be made at the bottom of the pyramid.
