Attention’s Accelerator

General Method

Procedure

Figure 1 illustrates the trial sequence for both experiments. Each trial began with the presentation of the fixation point for 1,200 to 1,600 ms (duration randomly drawn from a rectangular distribution of times). Next, a central cue stimulus, a colored circle, was presented for 200 ms. The color of the circle indicated the type of trial: large-, medium-, or small-reward trial in Experiment 1 (Fig. 1a), and fast or normal trial in Experiment 2 (Fig. 1b). Then, the target-cue stimuli were presented for 100 ms, followed by a 900-ms interval. The search array appeared next for 2,000 ms (all trials in Experiment 1), 1,000 ms (normal baseline trials in Experiment 2), or 500 ms (fast trials in Experiment 2). The intertrial interval was 1,200 to 1,600 ms (duration randomly drawn from a rectangular distribution). A target (Landolt C matching the orientation and color of the task-relevant cue) was present on half of the trials and was absent on the other half (i.e., the item matching the cue color was of a different orientation than the cue). Subjects responded as quickly and accurately as possible to each search array using a handheld game pad (Logitech Precision Gamepad, Logitech, Newark, CA). They pressed one button when the target was present and a different button when the target was absent, using different fingers on their right hand.

OPEN IN VIEWER

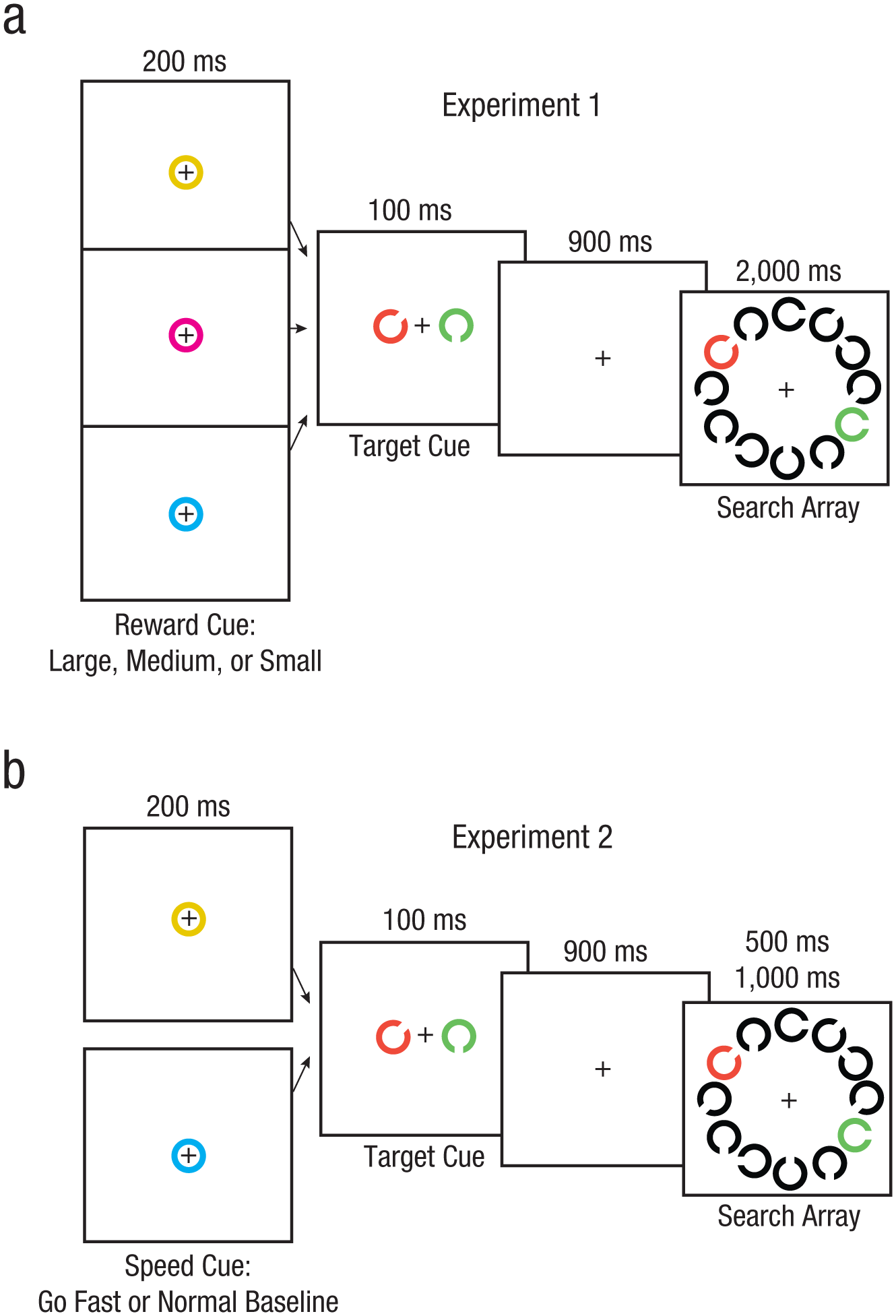

Fig. 1.

Illustration of the task and stimuli used in Experiments 1 and 2. Each trial of Experiment 1 began with a cue indicating the reward level for that trial and then a cue identifying the target (a). After a blank screen, the search array was presented for 2,000 ms. A given target object was cued and searched for across seven trials, and then a new target was selected. The large- and medium-reward cues could appear anywhere across the target repetitions within a run, but were mostly clustered at Target Repetition 5. The trials and procedure of Experiment 2 were similar (b), except that the first cue indicated whether the trial was to be performed with a balance of speed and accuracy (normal baseline) or as fast as possible (go fast).

The cued target orientation, whether the target was present or absent, and the target location (on target-present trials) were all randomly selected on each trial, with the exception that a given target orientation was cued across a run of 7 trials in a row. Each subject completed 1,260 trials (prior to rejection of trials with artifacts).

In both experiments, the meaning of the initial color cues was counterbalanced across subjects. In Experiment 1, these cues indicated whether subjects could earn 50 points (high reward), 25 points (medium reward), or 1 point (small reward) for the correct answer. The majority of trials were cued for small reward. Subjects were informed that the number of points they accumulated would translate to bonus money added to their hourly compensation of $10 (50 points = 5¢, 25 points = 2.5¢, 1 point = 1¢). The average reward bonus earned was approximately $15, so subjects received a total compensation of approximately $45 for the 3-hr experiment. In Experiment 2, the colored circles indicated whether the trial was to be performed fast (500-ms deadline) or normally (i.e., 1,000-ms deadline, so that speed and accuracy should be balanced). The majority of trials were cued for normal speed.

As in recent studies (Reinhart, McClenahan, & Woodman, 2015; Reinhart & Woodman, 2014a), in most runs, subjects searched for a given object with the small level of reward or normal speed stress for the first four trials. In Experiment 1, the reward level than changed to large reward on 33% of the fifth trials and to medium reward on 33% of the fifth trials; on the other 33% of the fifth trials, the reward level remained low. In Experiment 2, the fifth trial was preceded by a fast-speed cue in 50% of the runs and by a normal-speed cue in the remaining runs. So that subjects would be prepared for changes in reward and speed cues within runs, we had large-reward and fast-speed cues distributed at the other six serial positions (i.e., Target Repetitions 1–4, 6, and 7) in 5% of the runs. We focused on data from the critical fifth target repetitions, for which we had the most power to determine whether the averaged ERPs indicated that the high-pressure cues of reward or speed stress triggered subjects to use both working memory and long-term memory target representations to control attention.

Experiment 1

In Experiment 1, we manipulated the pressure that subjects experienced by using cues that indicated the reward value of each trial. Our logic was that if subjects could step on the attentional gas pedal to perform visual search more quickly, then they would do this more on large-reward trials than on the medium-reward trials; the small-reward trials served as our baseline condition. We expected increased reward value to speed subjects’ behavioral response to targets in the cluttered arrays of objects, but how would this be possible? If the mechanism for increasing the efficiency of search is the simultaneous use of working memory and long-term memory to push attention to targetlike objects, then the CDA and anterior P1 data would indicate that both working memory and long-term memory representations of the target were more active on the large-reward trials relative to the small-reward trials, and these effects would be reduced on the medium-reward trials.

Figure 2a shows that RTs got faster across target repetitions on the small-reward trials, F(2, 38) = 3.275, d = 0.59, p = .049. However, the important observation is that a cue indicating that additional reward could be earned resulted in faster RTs. Search was significantly faster on Target Repetition 5 following a medium-reward cue (25 points) than following a small-reward cue (1 point), t(19) = 2.119, d = 0.53, p = .048, and search was even faster following a large-reward cue (50 points) than following a medium-reward cue, t(19) = 2.322, d = 0.61, p = .032 (Fig. 2a). These RT effects were not due to a speed-accuracy trade-off across conditions, as accuracy was universally high (M = 96.6% correct; see Fig. 2b for the error rates) and did not differ across different reward levels or target repetitions (ts < 0.84, ps > .41).

OPEN IN VIEWER

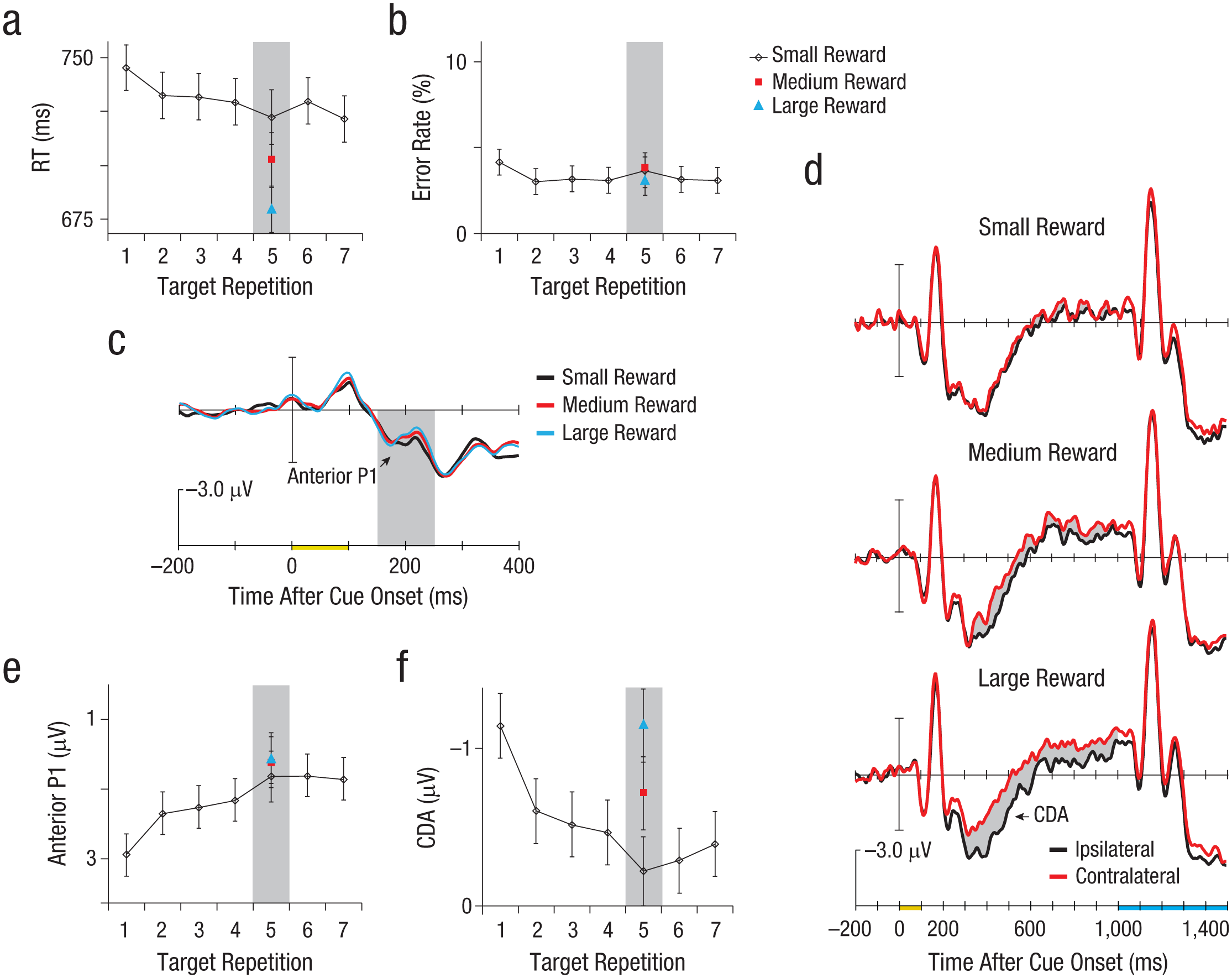

Fig. 2.

Results from Experiment 1. The graphs in (a) and (b) show reaction time (RT) and error rate in the small-reward condition as a function of target repetition, along with mean RT and error rate on Target Repetition 5 in the other two reward conditions. The grand-average waveforms in (c) are from the fronto-central electrode and show the anterior P1 amplitude (within the shaded area) on the critical Target Repetition 5 trials in each reward condition. The grand-average waveforms in (d) are from the lateral parietal, occipital, and temporal electrodes on Target Repetition 5 trials. The contralateral delay activity (CDA) is the difference (indicated by the gray shading) between waveforms from sites contralateral and ipsilateral to the target cue; separate waveforms are shown for each reward condition. The x-axes in (c) and (d) show the timing of stimulus presentation relative to the waveforms, with presentation of the target cue marked in yellow, from 0 to 100 ms, and presentation of the search array marked in blue. The graphs in (e) and (f) show the mean amplitudes of the anterior P1 and CDA as a function of target repetition in the small-reward condition, along with their mean amplitudes on Target Repetition 5 in the other two reward conditions. In (a), (b), (e), and (f), error bars represent ±1 SEM, and the shaded areas highlight results for Target Repetition 5.

Figures 2c and 2e show results for the anterior P1 component. The anterior P1 became progressively more negative as subjects searched for the same target across a run of small-reward trials, F(2, 38) = 3.675, d = 0.62, p = .035. This is consistent with the idea that each trial of search laid down a long-term memory trace that was used to help guide attention to the target item, and that the cumulative effect of these traces was to speed RT with each additional target repetition. We found that the different reward cues had no significant effect on the amplitude of the anterior P1 (ts < 0.35, ps > .73), which suggests that the strength of the trace laid down in long-term memory was not modulated by the reward value of the trial.

Figure 2f shows that the CDA decreased in amplitude as subjects searched for the same target across a run of trials, and a one-way ANOVA revealed a significant effect of target repetition across small-reward trials, F(2, 38) = 7.607, d = 0.89, p = .002. This is consistent with theories of learning and automaticity proposing that the role of working memory decreases as people perform the same task trial after trial (Logan, 2002). The key result is what happened on the Target Repetition 5 trials following high- and medium-reward cues relative to those following the small-reward cue. As illustrated in Figure 2d, the amplitude of the CDA elicited by the target-cue stimulus was significantly larger after medium-reward cues than after small-reward cues, t(19) = 2.140, d = 0.48, p = .046, and the CDA was even larger following large-reward than medium-reward cues, t(19) = 2.323, d = 0.50, p = .031, such that it returned to full amplitude following large-reward cues.

In summary, our index of working memory demonstrated a parametric effect of the reward value of the trials, which resulted in faster search milliseconds later. This is notable because after a handful of trials, long-term memory appeared to be largely in control of attention; the mean CDA amplitude approached zero on small-reward trials by the fifth target repetition (see Fig. 2f). These findings are consistent with the idea that subjects responded to the reward cues by bringing working memory representations of the target back on-line to complement the attentional control provided by the long-term memory representations that had accumulated across trials of searching for the same target object.

It is appealing to conclude that the medium-reward cue resulted in subjects pushing the attentional gas pedal down halfway, relative to the pressure they exerted on large-reward trials. This could have been due to subjects using working memory representations to supplement the attentional control provided by long-term memory on about half of the trials overall, and on all of the large-reward trials. However, this could also have been due to the use of a graded working memory representation worth half an object on the medium-reward trials, if one assumes a resource model of working memory in which half a target representation is possible (Luck & Vogel, 2013). What is clear is that the high-pressure trials in which greater reward was at stake resulted in the subjects using working memory representations of the target to supplement the attentional control provided by long-term memory.

Experiment 2

In Experiment 1, we showed that subjects respond to reward cues by bringing working memory representations of the targets back on-line to supplement the attentional control provided by long-term memory. But how general is this effect? If the use of multiple memory representations is a general mechanism that people use to speed attentional selection of task-relevant information, then the same effect should emerge in other high-pressure situations. In Experiment 2, we kept the search task the same, but simply cued people to respond quickly on a subset of trials by enforcing a 500-ms response deadline (see Fig. 1b). We call these go-fast trials. The rest of the trials were preceded by a cue indicating that the response deadline was 1,000 ms and subjects should balance speed and accuracy. We call these normal baseline trials.

Figure 3a summarizes the RT results. The RTs got faster across target repetitions of the normal baseline trials, F(2, 38) = 4.219, d = 0.67, p = .040. Critically, subjects were faster on Target Repetition 5 following the go-fast cue, t(19) = 7.402, d = 1.49, p < .01, at the cost of a slight reduction in accuracy (see Fig. 3b for error rates), t(19) = 2.114, d = 0.62, p = .048.

OPEN IN VIEWER

Fig. 3.

Results from Experiment 2. The graphs in (a) and (b) show reaction time (RT) and error rate in the normal baseline condition as a function of target repetition, along with mean RT and error rate on Target Repetition 5 in the go-fast condition. The grand-average waveforms in (c) are from the fronto-central electrode and show the anterior P1 amplitude (within the shaded area) on the critical Target Repetition 5 trials in each speed condition. The grand-average waveforms in (d) are from the lateral parietal, occipital, and temporal electrodes on Target Repetition 5 trials. The contralateral delay activity (CDA) is the difference (indicated by the gray shading) between waveforms from sites contralateral and ipsilateral to the target cue; separate waveforms are shown for each speed condition. The x-axes in (c) and (d) show the timing of stimulus presentation relative to the waveforms, with presentation of the target cue marked in yellow, from 0 to 100 ms, and presentation of the search array marked in blue. The graphs in (e) and (f) show the mean amplitudes of the anterior P1 and CDA as a function of target repetition in the normal baseline condition, along with their mean amplitudes on Target Repetition 5 in the go-fast condition. In (a), (b), (e), and (f), error bars represent ±1 SEM, and the shaded areas highlight results for Target Repetition 5.

Figure 3e shows that the anterior P1 became progressively more negative across target repetitions in the normal baseline trials. The effect of target repetition on mean amplitude was significant, F(2, 38) = 4.865, d = 0.71, p = .014. As illustrated in Figure 3c, there was no significant effect of the type of cue (i.e., go-fast vs. normal baseline cue) on this index of long-term memory, t(19) = 0.279, d = 0.12, p = .783. These findings demonstrate the same pattern of long-term memory ERPs as we found in Experiment 1, with a different kind of pressure (speed, rather than large reward). We verified the similarity of these observations with a 2 (experiment: Experiment 1 vs. Experiment 2) × 2 (cue type: go-fast or large-reward cue vs. baseline cue) × 3 (target repetition: 1–2, 3–4, 5–7) ANOVA. This analysis yielded an effect of experiment, F(1, 19) = 7.269, d = 0.87, p = .014; mean anterior P1 amplitude was larger in Experiment 1 than in Experiment 2. However, experiment did not interact with target repetition, F(2, 38) = 0.022, d = 0.15, p = .970, or cue type, F(1, 19) = 0.449, d = 0.22, p = .511.

Figure 3f shows that the CDA in Experiment 2 returned to full amplitude following go-fast cues on Target Repetition 5 trials, just as we observed with the large-reward cues in Experiment 1. As in Experiment 1, we found significant effects of target repetition, F(2, 38) = 4.536, d = 0.69, p = .019 (see Fig. 3f), and cue type, t(19) = 2.649, d = 0.88, p = .016. A 2 (experiment: Experiment 1 vs. Experiment 2) × 2 (cue type: go-fast or large-reward cue vs. baseline cue) × 3 (target repetition: 1–2, 3–4, 5–7) ANOVA verified that go-fast cues and large-reward cues had similar effects on CDA amplitude relative to their respective baseline cues (cf. Figs. 2d and 3d). This mixed-model ANOVA yielded no effect of experiment, F(1, 19) = 0.267, d = 0.17, p = .611; mean CDA amplitudes were roughly equivalent between the groups of subjects in Experiments 1 and 2. Also, experiment did not interact with target repetition, F(2, 38) = 0.583, d = 0.25, p = .541, or cue type, F(1, 19) = 0.500, d = 0.23, p = .488.

Conclusion

Our findings support the hypothesis that people overrepresent targets in memory to make attention operate at peak efficiency. That is, they simultaneously use memory representations of targets in working memory and in long-term memory to bias attention to select targetlike objects. This conclusion is supported by our observation of essentially identical patterns in our electrophysiological indices of working memory and long-term memory across two different situations that induced higher pressure during the visual search task.

We note that the present study reveals but a slice of how the human brain reconfigures cognitive processing on the basis of changes in motivational state. For example, we used speed stress and monetary incentives to change the motivational state of the subjects. However, some people might operationally define high-pressure situations as those that result in costs, ascribing greater subjective value to costs than to gains (Tversky & Kahneman, 1992). In addition, human electrophysiology can reveal only what occurs in cortical structures (Luck, 2005). But it is clear that neural circuitry in subcortical structures, such as the basal ganglia (Frank, Loughry, & O’Reilly, 2001), is critical for changes in brain states and memory representations, particularly as motivational factors wax and wane. Integrating the present findings into the broader literature will require combining tasks that can reveal effects of factors such as reward value, motivation, arousal, learning, and attention with techniques that measure activity across the brain.
