Domain-adapted explainability for machine learning predictions of rotodynamic pump degradation in safety-critical industrial sectors

Introduction

Recently, AI and ML models have been increasingly deployed in safety-critical sectors. ¹ Most AI and ML applications use black-box models because their outputs perform better than white-box models but lack transparency. Black-box models are ML or statistical models that make predictions or decisions based on complex algorithms that are not easily interpretable by humans. ² A new rule is to be enforced by the General Data Protection Regulation (GDPR): “a right to an explanation of all decisions made by automated or artificially intelligent algorithmic systems”, ³ which means that there are additional requirements for the technology’s deployment.^4,5 described the increased usage of black-box models in applications controlled by complex algorithms and the severe consequences of a lack of transparency, such as possible biases in decision-making and unfair competition. Therefore, blindly relying on black-box ML models to make decisions in safety-critical sectors is unacceptable, because serious safety-related consequences can occur. ⁶

In black-box models, stakeholders, including end-users, domain experts, and decision-makers ⁷ need help in understanding the underlying structure of how and why predictions are made. ⁸ By understanding how ML models behave, decision-makers will trust ML models and decide when and how they will deploy these ML models. ⁶ Many well-known companies enforce explainability in AI-powered applications to pass trustworthiness checks. ⁹ Explainable AI (XAI) techniques are intended to provide credibility to stakeholders by understanding how ML models work and why they generate predictions. ¹⁰ Explainability and trust are different concepts, but they are tied together in the literature to the extent that researchers assume a direct connection. For example, in, ¹¹ the authors developed a new explainability and trust hypothesis, where explainability is one approach to establishing stakeholders’ trust. As a natural consequence of more complex ML models being proposed, developed, and deployed alongside new regulations, the need for XAI tools to understand predictions has also increased.

How explanations are conveyed to domain experts, who are usually non-ML experts, is essential. There is a knowledge gap between developers of ML models (e.g., data science experts) and domain experts who are to be considered the end users of these developed ML models. What is deemed understandable for AI and ML experts is often not comprehensible for domain experts. Researchers have identified and are proposing solutions to bridge this gap to increase the usability of AI and ML techniques.^11,12 Recent advancements have highlighted the critical role of XAI in industrial condition monitoring and predictive maintenance, demonstrating its potential to improve decision-making, enhance resource optimisation, and increase trust in machine learning models. For instance, one study proposed an XAI framework utilising LIME to provide clear, actionable explanations for decision-makers, while linking predictions to spare parts management, thus improving maintenance strategies. ¹³

Another study leveraged the Shapley Additive exPlanation tool (SHAP), an explainability method that assigns each feature a contribution value for a model’s prediction in a fair and consistent manner, to enhance the interpretability of machine learning models in diagnosing faults in rotating machinery. By analysing vibration data from industrial bearings, the study identified skewness and shape factor as critical features, achieving over 98.5% accuracy with Support Vector Machine (SVM) and k-Nearest Neighbour (kNN) models. This highlights SHAP’s effectiveness in feature selection and fault classification. ¹⁴

XAI algorithms such as Gradient-weighted Class Activation Mapping (GradCAM), Layer-wise Relevance Propagation (LRP), and Local Interpretable Model-agnostic Explanations (LIME) have also been applied to convolutional neural networks (CNNs) for vibration-based condition monitoring. By analysing synthetic and real-world datasets, these methods generated saliency maps that identified class-specific features while excluding irrelevant ones, improving CNN interpretability for fault detection. ¹⁵

Further research has emphasised XAI’s broader applications in manufacturing and industrial cyber–physical systems, advocating for clear, understandable intelligent models. These studies underscore XAI’s role in increasing trustworthiness and reliability in industrial processes. ¹⁶

Additionally, the use of Shapley values has been explored for clustering frameworks in semi-supervised learning for fault diagnosis and prognosis. This approach demonstrated improvements in clustering quality and facilitated the identification of meaningful clusters related to fault classification. ¹⁷

In collaborative robotics, XAI-driven techniques like autoencoders have been applied to detect anomalies using multivariate operational data. These methods proved effective in identifying faults, enhancing the reliability and safety of robots in smart manufacturing environments. ¹⁸

Collectively, these studies demonstrate the transformative potential of XAI in industrial condition monitoring. By bridging the gap between complex machine learning models and actionable insights, XAI ensures enhanced fault detection, classification, and operational safety, contributing significantly to predictive maintenance and resource optimisation in industrial settings.

This paper presents a new framework to bridge the gap between ML model developers and technical and industrial specialists in engineering applications. The aim is to support specialists and domain experts in engineering applications in understanding ML models by providing clear explanations to help them make informed decisions.

The main objective of this framework is to assist specialists and domain experts in the engineering application field by delivering relevant explanations of ML models in the development and implementation phases of the ML models. This assistance empowers them to make well-informed decisions and aims to improve their understanding and foster effective collaboration between AI/ML developers and domain experts. A set of novel algorithms has been developed with a dual purpose: generating explanations in a text-based format and presenting them visually in a way that domain experts are accustomed to. These explanations were specifically designed to enable individuals without a background in ML to comprehend the utilised models. Furthermore, the value of this framework lies not only in the methodology itself but also in its successful application and evaluation in a specific real-world context involving roto-dynamic pumps. These pumps, which convert kinetic energy into pressure energy, operate according to performance curves. By using the framework, experts gained actionable insights into pump performance, improving operations and reducing wear.

The subsequent sections of this paper are structured as follows: The next section delves into the background of the term “explainability,” its recent usage in literature, and the diverse methodologies employed to achieve it. Following this, existing frameworks geared towards providing explanations to non-expert users are elucidated. Subsequent sections outline the proposed framework for addressing the explainability problem, describing the algorithms developed to furnish human-friendly explanations and graphical representations. Additionally, an introduction to the Iris dataset is provided, as well as insights into its application, and our main case study on thrust-bearing wear. The results demonstrating the utility of the novel approaches discussed herein are then presented. A section discussing how validation is done against existing domain knowledge is illustrated. Finally, the paper concludes with a summary section.

Explainability

Explainability has been referred to in the literature by various terminologies such as “Interpretability”,^4,19 “Understandability”, ²⁰ “Comprehensibility”, ²¹ “Accountability”, and “Responsible AI”. ² The definitions of these terms may differ depending on the explanations provided to the target users. ²² Generally, in ML literature, the term “Interpretability” is used more often than the term “Explainability”. ²³

²⁴ suggested that even with the significant advancements in deep learning, the central issue of the “black box” dilemma persists, and the idea of XAI, which refers to a model that can provide clear and understandable explanations for its concluded output, becomes highly valuable, fostering greater transparency. ²⁵ has defined interpretability as the ability to understand the internal structure of the ML model, while explainability is the ability to understand the reasons why ML models work. Some researchers have not defined explainability but rather its taxonomies. ⁹

One specific definition for XAI was given by, ²⁶ ”XAI typically refers to post-hoc analysis and techniques used to understand a previously trained model or its predictions.”. Another definition was given in ²⁷ : “XAI will create a suite of ML techniques that enable human users to understand, appropriately trust, and effectively manage the emerging generation of artificially intelligent partners.”. Thus, XAI generally allows users to gain insights into why specific predictions are made. ¹⁰ suggested that the system may or may not be explainable depending on the definition of explainability for that system and defined explainability as ensuring that predictions produced by ML models can be explained by non-experts.

A model can be defined as interpretable when it can provide accurate solutions to humans in an understandable way. ²⁸ and ²⁹ provided similar definitions of model interpretability as the degree to which humans can understand the logic behind generated predictions. Another definition was given by ³⁰ : ”When you can no longer keep asking why”. However, achieving complete interpretability for a specific modelling problem can take time and effort. Therefore, when a clear explanation for all model outputs is available, then complete interpretability is achieved, which is a difficult task in reality. ³¹ Furthermore, ³² argued that ML experts should try to build interpretable models, especially in high-stake applications, rather than using XAI tools to interpret black-box models.

Based on the above definitions, this paper concludes that the definition of explainability might vary depending on the target audience. What is considered understandable by an AI expert may not be comprehensible by a domain expert. This paper focuses on industrial and engineering applications where decisions about critical assets with substantial financial and safety implications are made. Thus, it’s crucial to offer explainability in a context that domain experts who aren’t machine learning experts can understand.

Explainability in AI systems can be categorised based on different criteria, providing insights into the nature of interpretation methods. These classifications are.

• Global and Local Explainability:

– Global methods provide an overall understanding of the model’s behaviour across all data points, focusing on the relationship between input features and output predictions.

Existing frameworks to provide explanations to non-expert users

The attribute of explainability positively affects every stakeholder involved with an AI system. ³³ However, most XAI tools produce explanations aimed at users with ML expertise. ³⁴ Due to the knowledge gap between ML experts and non-ML experts, it is challenging to present explanations and communicate with stakeholders in a human-understandable context. Research suggests that experts in the application domain are more likely to trust ML models when provided with human-friendly explanations, allowing them to understand the decision-making process of ML models. ³⁴

In, ³⁵ the Authors divided users of ML and AI applications into ML and AI experts, domain experts, and newcomers to a domain. There are distinct explanations needed for stakeholders in different application domains. Researchers have proposed various techniques to address this challenge.

An explainability framework has been developed to address different user needs, incorporating three levels of explanations. At the first level, pre-model XAI methods are employed to provide an initial understanding of the data. At the second level, these low-level explanations are combined with expert knowledge to create high-level insights. Finally, co-created explanations are generated with the help of users who interact with the model, providing feedback that is later integrated to tailor explanations according to their specific requirements. ³⁶

An online experiment involving 199 participants evaluated users’ understanding of different XAI interfaces. The results demonstrated that interactive explanations significantly enhance users’ comprehension of the provided explanations, highlighting the importance of user-friendly, engaging interfaces in XAI systems. ³⁷

Existing XAI frameworks and approaches are primarily aimed at people with prior AI and ML capabilities. Although XAI has made significant progress in recent years, there is still room for improvement in addressing the needs of non-ML experts. In addition, there is a lack of dependency on the existing explanation frameworks. Future XAI frameworks will have to go beyond this if ML is adopted more widely.

The authors in ³⁸ proposed a new framework to assess users’ understandability of LIME. Based on their assessments, they concluded LIME explanations target users with ML backgrounds, and additional human-understandable visualisations are required to enhance LIME explainability.

In this paper, a new framework is proposed in which a set of novel algorithms has been developed to provide non-expert users with more insights into the application of ML. The novelty of our framework lies in the integration, adaptation and combination of different stages to deliver human-understandable explanations tailored explicitly to domain experts. These explanations are also provided rapidly, as the process is automated. This framework solves a problem that other existing methodologies in industrial and engineering domains need to address. It is designed to bridge the gap between ML model developers and technical and industrial specialists in engineering applications. This framework is designed to assist specialists and domain experts in the engineering field by providing comprehensible explanations of Machine Learning (ML) models, empowering them to make well-informed decisions. It achieves this through a set of innovative algorithms developed to serve a dual purpose: generating human-readable text-based explanations and presenting them graphically in a format that aligns with common domain practices. These explanations are crafted to help non-ML experts understand the underlying models. A unique aspect of this framework is its ability to overcome a limitation of SHAP, a widely used ML explainability tool that can show correlations but cannot detect causal relationships. The framework’s graphical representation addresses this by establishing a causal context for SHAP explanations. This allows domain experts to identify critical operational areas to avoid based on these graphical representations, thereby enhancing the models’ interpretability and usability.

Additionally, a validation process is conducted against existing domain knowledge. This step not only provides domain experts with human-friendly explanations but also measures the reliability of the explanations, indicating to what extent these interpretations can be trusted. This approach helps build confidence among domain experts and fosters greater acceptance of ML-based decision-making in engineering contexts.

A new framework for understandable explanations for non-expert users in industrial and engineering applications

This section introduces the proposed framework based on, ³⁹ which provides human-understandable and graphical explanations to non-ML experts in industrial and engineering applications. The objective is to develop multiple alternatives to obtain explainability from predictive or diagnostic analytic tools. To achieve this goal, a framework comprising five complementary explanatory stages is proposed (see Figure 1).

(1) Pre-processing of data: During the initial stage, the objective is to ease the understanding of the data set used and its features. The data quality is evaluated and transformed into an understandable format that can be employed later in ML/analytic models.

OPEN IN VIEWER

Figure 1.

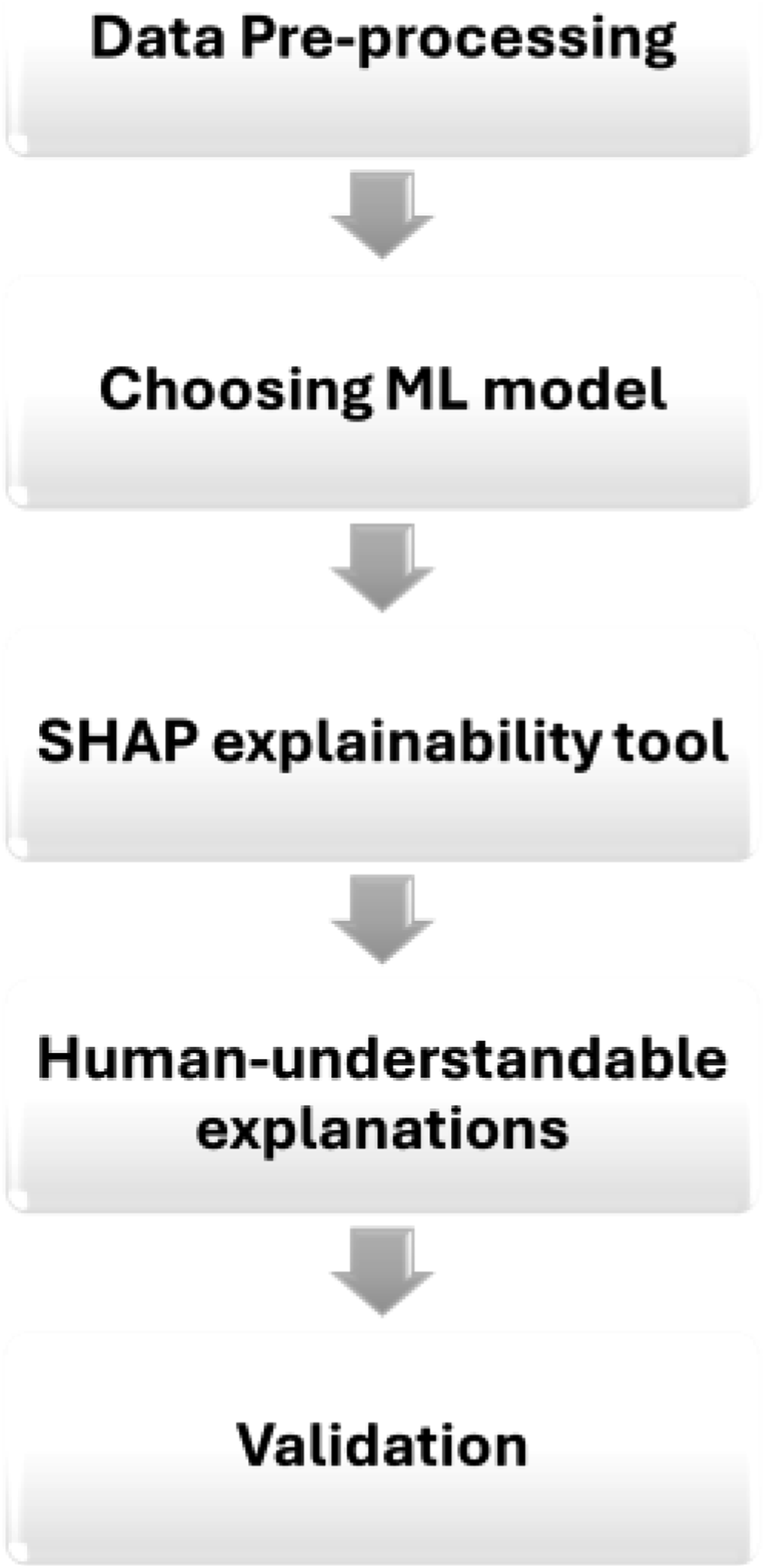

A step-by-step framework for creating understandable ML explanations tailored for non-ML expert users.

Automated human-understandable explanations algorithms

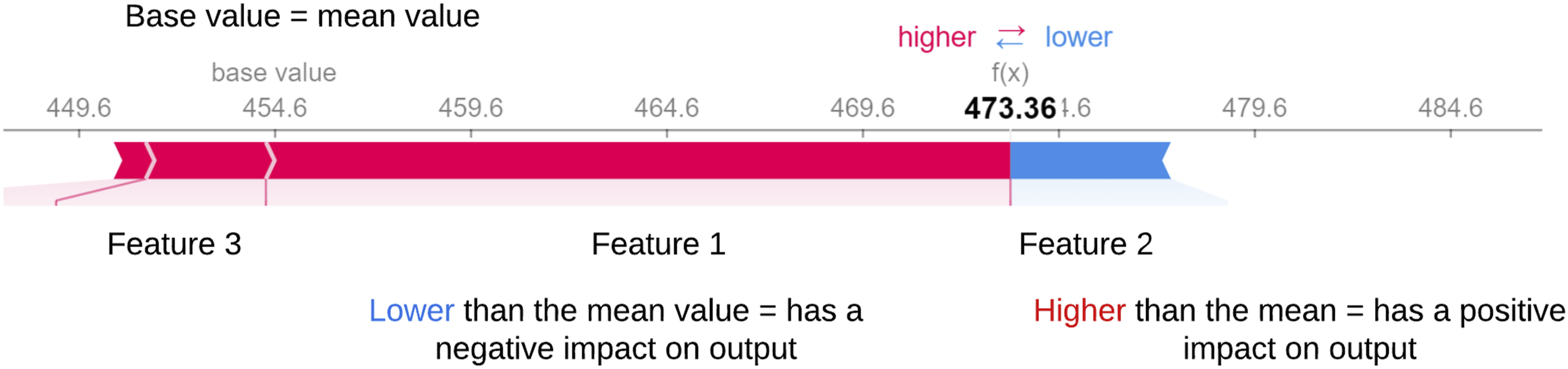

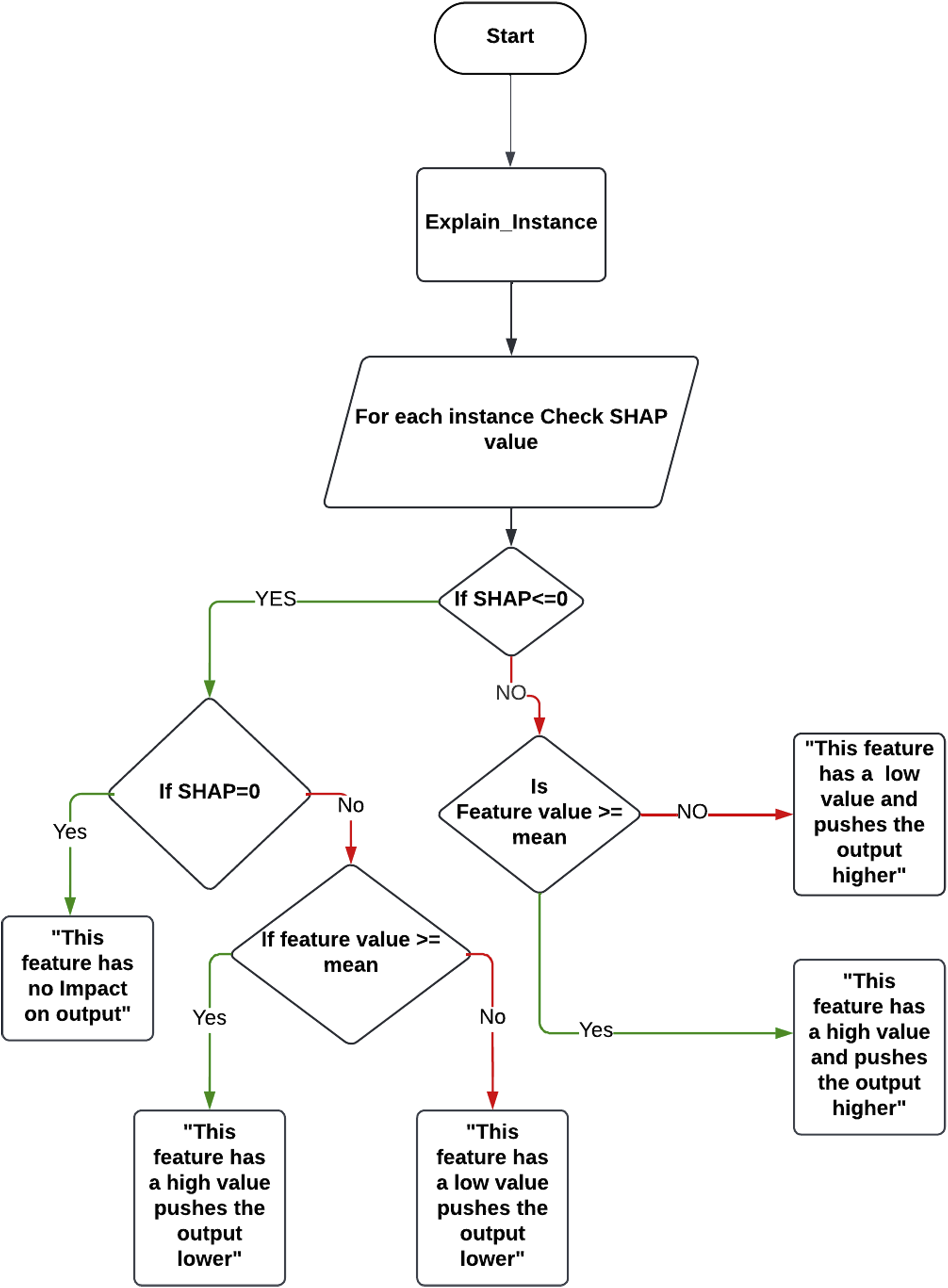

In this section, the algorithms created to transform bespoke SHAP plots into easily understandable human text and (case-study-related) visually based graphical explanations are described.

Explaining SHAP global summary plots

For global explainability, SHAP produces a ’summary plot’ which summarises the feature importance and impact of feature values on model outputs for the full range of predictions. ⁴⁰

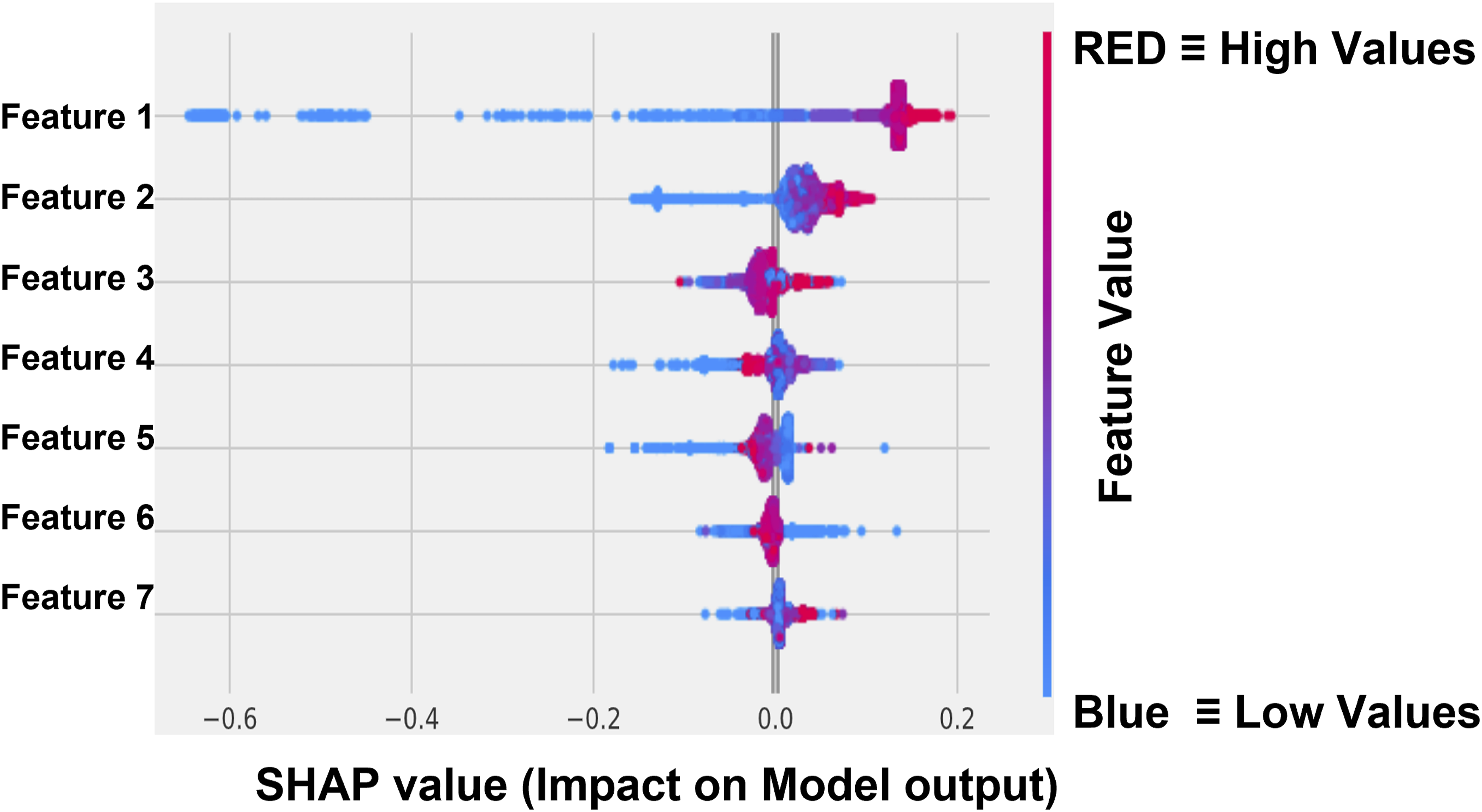

Figure 4 depicts an example of a SHAP summary plot. In a summary plot, all features have the effect of all their SHAP values displayed. Features with higher aggregated SHAP values have a more significant impact on the predicted output and vice versa (e.g., for Figure 4, the most important features in order are Feature 1, Feature 2, and Feature 3). In Figure 4, the vertical axis depicts feature values (blue represents low values, and red represents high values). The horizontal axis depicts SHAP values, which determine the effect of the feature values on model prediction. SHAP summary plot highlights the most important features and the impact of each feature’s value on the output. Similar to SHAP force plots, non-ML experts do not rapidly and easily assess summary plots. The authors propose an algorithm to explain SHAP global explainability plot intended for non-ML experts. How this information is transformed into human-understandable text is shown in Figure 5, as a flow chart that describes the logic behind the code that has been produced for generating text-based explanations. For each feature, SHAP values have been aggregated. The aggregated SHAP values for all the features were compared. The most important features will have greater aggregated SHAP values; hence, a more significant impact on predictions.OPEN IN VIEWER

Figure 4.

Example of SHAP summary plot showing the most important features and their impact on predictions. The x-axis represents SHAP values, where positive values indicate an increase in the prediction and negative values indicate a decrease. Red dots represent high feature values, and blue dots represent low feature values, helping identify key contributors to the model’s output.

OPEN IN VIEWER

Figure 5.

Flowchart for interpreting a SHAP summary plot. The process involves aggregating SHAP values for each feature, comparing these aggregated values, and ranking features based on their overall importance to the model’s predictions.

IRIS dataset

In this section, the application of our framework to the Iris dataset will be initiated, leveraging its status as an accessible open case dataset. This initial step will facilitate the subsequent transition to our main case study, which involves real-world monitoring data.

To ensure the credibility and reliability of our validation process, the Iris dataset was deliberately selected as the foundation for establishing a solid baseline. To illustrate the methodology applied to the IRIS dataset, Figure 6 showcases the approach undertaken. The approach used to verify SHAP explanations. The IRIS dataset is processed using a Random Forest Classifier to generate predictions. The SHAP tool is then applied to provide explanations for these predictions. These explanations are compared to domain knowledge to assess their reliability and determine how closely they align with expert understanding. This process ensures that SHAP explanations are trustworthy and meaningful for users.OPEN IN VIEWER

The Iris dataset holds a distinguished status in the field of data analysis and ML, recognised as a benchmark dataset with well-defined characteristics. It encompasses samples derived from three distinct species of iris flowers, and in total, it comprises 150 instances.

What lends added confidence to our validation effort is the wealth of established knowledge and research that has been conducted on the Iris dataset over the years. Numerous studies, as referenced in, ⁴¹ have thoroughly explored and documented the characteristics and patterns within this dataset. This extensive body of prior research provides us with a well-structured foundation for our validation process.

By leveraging the insights and findings from these established sources, the effectiveness of benchmarking our own validation procedures against widely accepted standards is achieved. This not only bolsters the credibility of our validation but also ensures that our results can be rigorously compared and validated within the broader context of the Iris dataset, a dataset known for its reliability and extensive history of analysis.

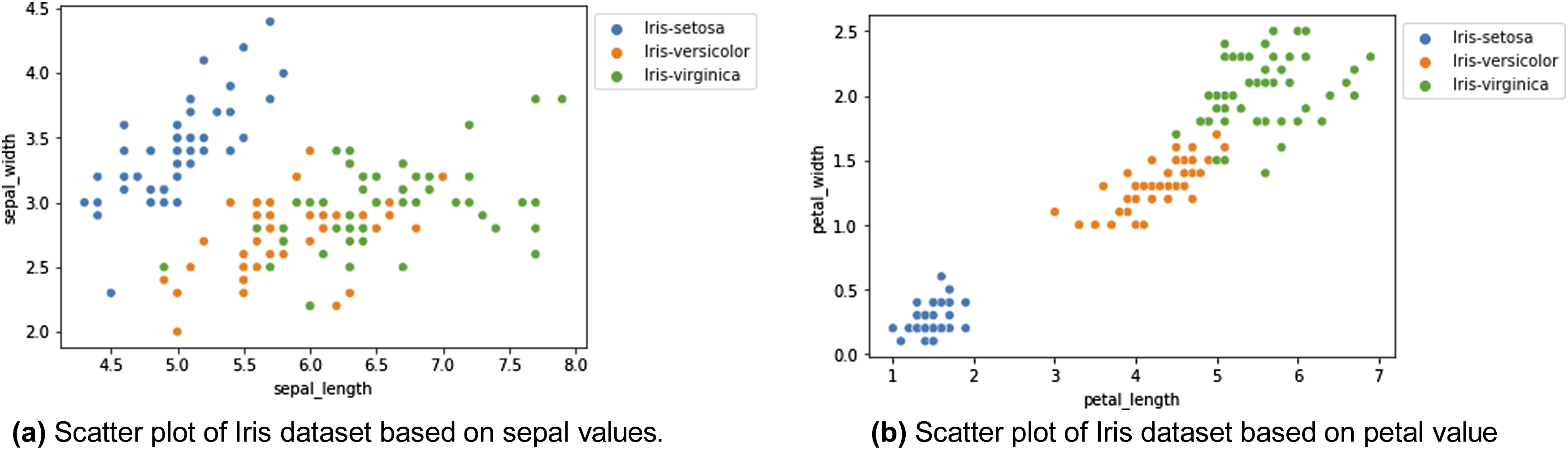

Initially, as part of the data pre-processing phase aimed at achieving a deeper understanding and uncovering potential correlations, data visualisation was conducted. In this process, the data was visualised using the sepal width and sepal length attributes as shown in Figure 7. However, as shown in Figure 7(a), it was observed that the separation between the different iris species might not have been as distinct as anticipated. This observation suggests that the influence of the sepal features alone in effectively distinguishing between the various iris species may not have been particularly pronounced.OPEN IN VIEWER

In essence, despite the exploration of the sepal width and sepal length attributes as potential discriminators, it was inferred that other factors or features may have played a more substantial role in the accurate differentiation of iris species. This insight underscores the significance of considering a broader set of attributes or features in our analysis to ensure precise species classification.

On the contrary, when visualising the data based on petal width and petal length as shown in Figure 7(b), distinct clusters for each species can be clearly discerned. This serves as a compelling illustration that these two features possess a high level of discriminative power when it comes to accurately classifying the various types of iris flowers.

Following that, the Iris dataset was subjected to classification using a Random Forest classifier, where instances were classified into one of three classes: Setosa, Versicolor and Virginica. This ML algorithm, renowned for its versatility and robustness, was employed to discern and allocate each instance to its respective class based on the dataset’s features.

The Random Forest classifier operates by constructing a multitude of decision trees, with each tree contributing to the classification decision. Through the amalgamation of these individual tree predictions, a robust and accurate classification outcome can be achieved.

By employing this classifier on the Iris dataset, the aim was to leverage its capabilities in effectively distinguishing and classifying instances into the three distinct categories. This classification process relied on the underlying patterns and relationships within the dataset, allowing informed and precise decisions regarding class assignments to be made for each instance.

The feature importance analysis conducted using the Random Forest Classifier yielded valuable insights into the discriminative power of each feature within the Iris dataset. Among these features, petal length and petal width emerged as the most influential factors in classifying iris species, as shown in Table 1, both carrying substantial importance values of 0.436,130 and 0.436,065, respectively. These high importance scores underscore the pivotal role of petal characteristics in the classifier’s decision-making process.

OPEN IN VIEWER

Table 1.

Feature importance scores generated by the random forest classifier.

Feature	Importance
Petal length (cm)	0.436130
Petal width (cm)	0.436065
Sepal length (cm)	0.106128
Sepal width (cm)	0.021678

In addition to petal attributes, sepal length was also identified as a relevant discriminative feature, albeit with a lower importance value of 0.106,128. This indicates that variations in sepal length contribute significantly to species classification, although to a lesser extent compared to petal attributes.

Conversely, sepal width exhibited the lowest feature importance among the four attributes, with a score of 0.021,678. While its influence is relatively minor in comparison to the other features, it still plays a role in the classification process.

Collectively, these feature importance values provide a clear hierarchy of the features’ contributions to accurate species classification within the Iris dataset. The findings highlight the significance of petal characteristics, especially petal length and width, in differentiating iris species, offering valuable insights for further analysis and model interpretation.

Utilising the SHAP explainability tool in conjunction with the Random Forest classifier, a comprehensive analysis of feature importance was conducted. The outcome of this analysis is the paramount significance of certain features, with petal width and petal length emerging as the most influential. Following closely in importance are sepal length and sepal width, in that order.

Remarkably, the Random Forest classifier consistently and persistently identifies petal width and petal length as the preeminent features in the classification process, as shown in Table 1. This consistent recognition serves to underscore the pivotal role that these attributes play in effectively discerning between various iris species. In essence, these findings robustly reinforce the assertion that petal width and petal length are of paramount importance when it comes to classifying iris species, as consistently demonstrated by the Random Forest classifier.

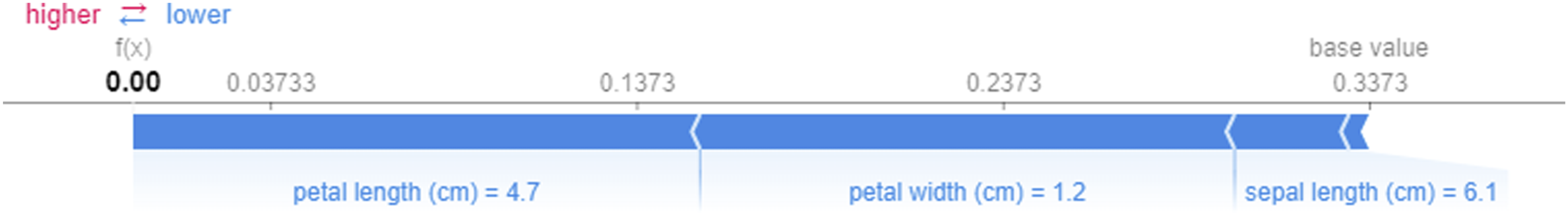

SHAP, in addition to its role in feature importance analysis, offers valuable insights into the individual contributions of features to model predictions. In the context of this analysis, as exemplified in the provided figure, SHAP elucidates the specific contributions of each feature to predictions as shown in Figure 8. In this case, it affirms the profound significance of petal characteristics in effectively distinguishing between various types of iris flowers.OPEN IN VIEWER

The figure illustrates how petal characteristics, notably petal width and petal length, exert a substantial influence on shaping the model’s predictions. These insights reinforce the understanding that variations in petal attributes serve as key discriminators in accurately classifying different iris species. SHAP’s ability to provide such granular insights enhances our comprehension of feature contributions within the predictive model and underscores the pivotal role of petal characteristics in the classification process.

After receiving SHAP explanations, domain knowledge rules were derived from established references, delineating feature thresholds within the context of various species. These rules encompassed feature thresholds pertinent to each species. Subsequently, SHAP value extraction was carried out by applying a trained Random Forest classification model to the Iris dataset, yielding SHAP values for a specific instance. The ensuing analysis of SHAP values for each feature within the given instance unveiled that positive SHAP values signified a feature’s affirmative contribution to the prediction, whereas negative SHAP values denoted a detrimental contribution. A crucial step in this process involved comparing the effects of SHAP values on the prediction with the predefined domain knowledge rules. This comparison elucidated whether the impact of each feature, as indicated by the SHAP values, concurred with the predictions made by the established domain knowledge.

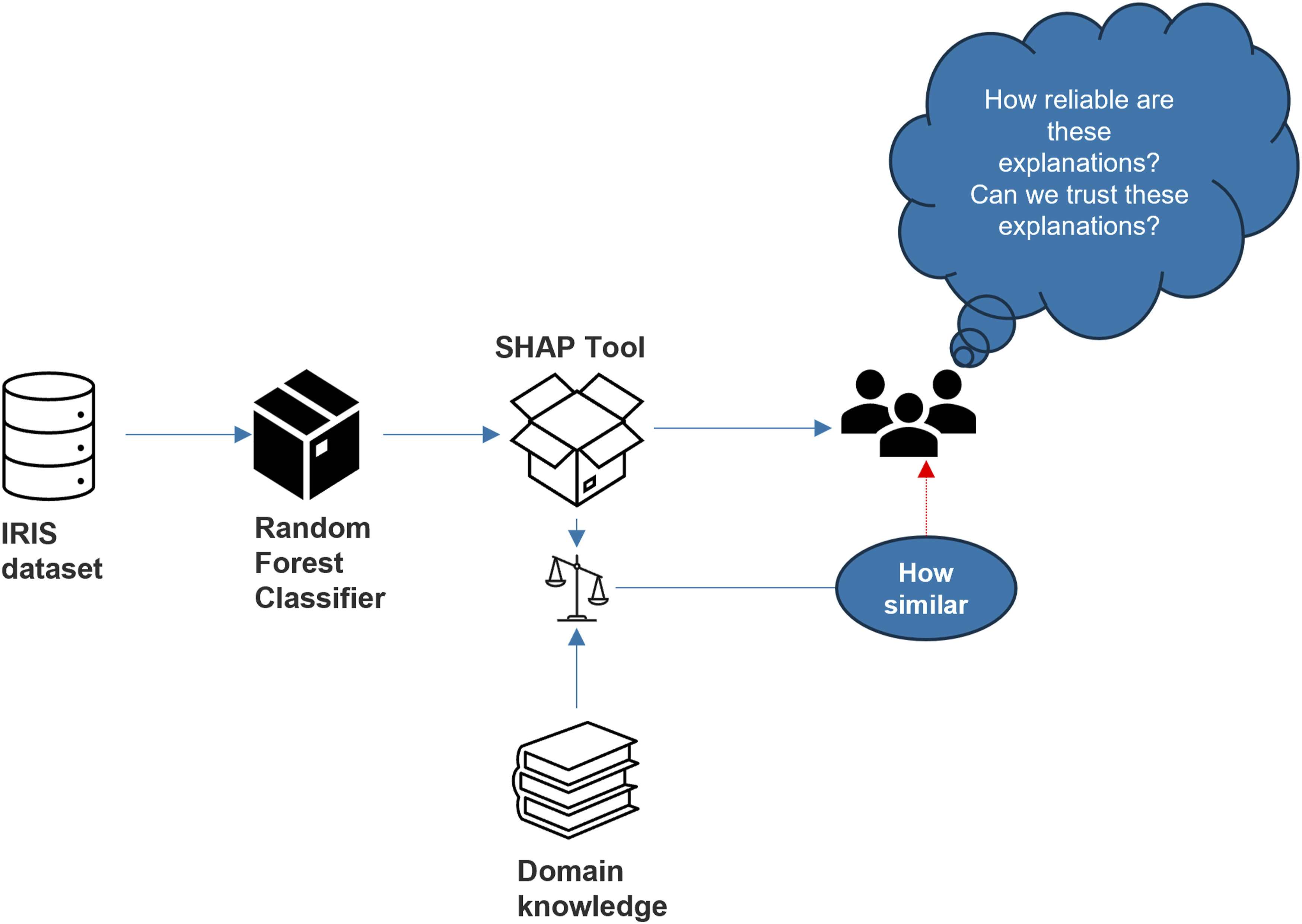

In order to establish a robust baseline for measuring the alignment between SHAP explanations and domain knowledge, the same methodology was applied to this controlled dataset. The objective of this approach was to determine a satisfactory level of similarity accuracy between SHAP explanations and domain knowledge, which not only enhances our methodological confidence but also furnishes a valuable benchmark for assessing the degree of disparity observed within the original industrial context.

In analysing SHAP values, it is crucial to interpret their implications accurately. Figure 9 shows how SHAP values are verified against rules extracted from domain knowledge taken from. ⁴¹ Positive SHAP values for specific features indicate that the presence of those features positively contributes to the likelihood of predicting the corresponding class. For instance, a positive SHAP value associated with the ”petal width” feature in the ”Setosa” class suggests that higher values of petal width increase the probability of the model predicting the class as ”Setosa.” Conversely, negative SHAP values for features imply a negative contribution to class prediction likelihood. If a negative SHAP value is linked to the ”sepal length” feature in the ”Virginica” class, it signifies that lower sepal length values elevate the probability of the model predicting the class as ”Virginica.” Additionally, the magnitude of SHAP values reflects the extent of a feature’s impact on the prediction. Larger magnitudes indicate stronger influence, where a high positive SHAP value signifies a significant positive effect on class prediction, while a high negative value denotes a substantial negative impact. These insights are instrumental in comparing SHAP explanations with domain knowledge to assess the congruence of their findings.OPEN IN VIEWER

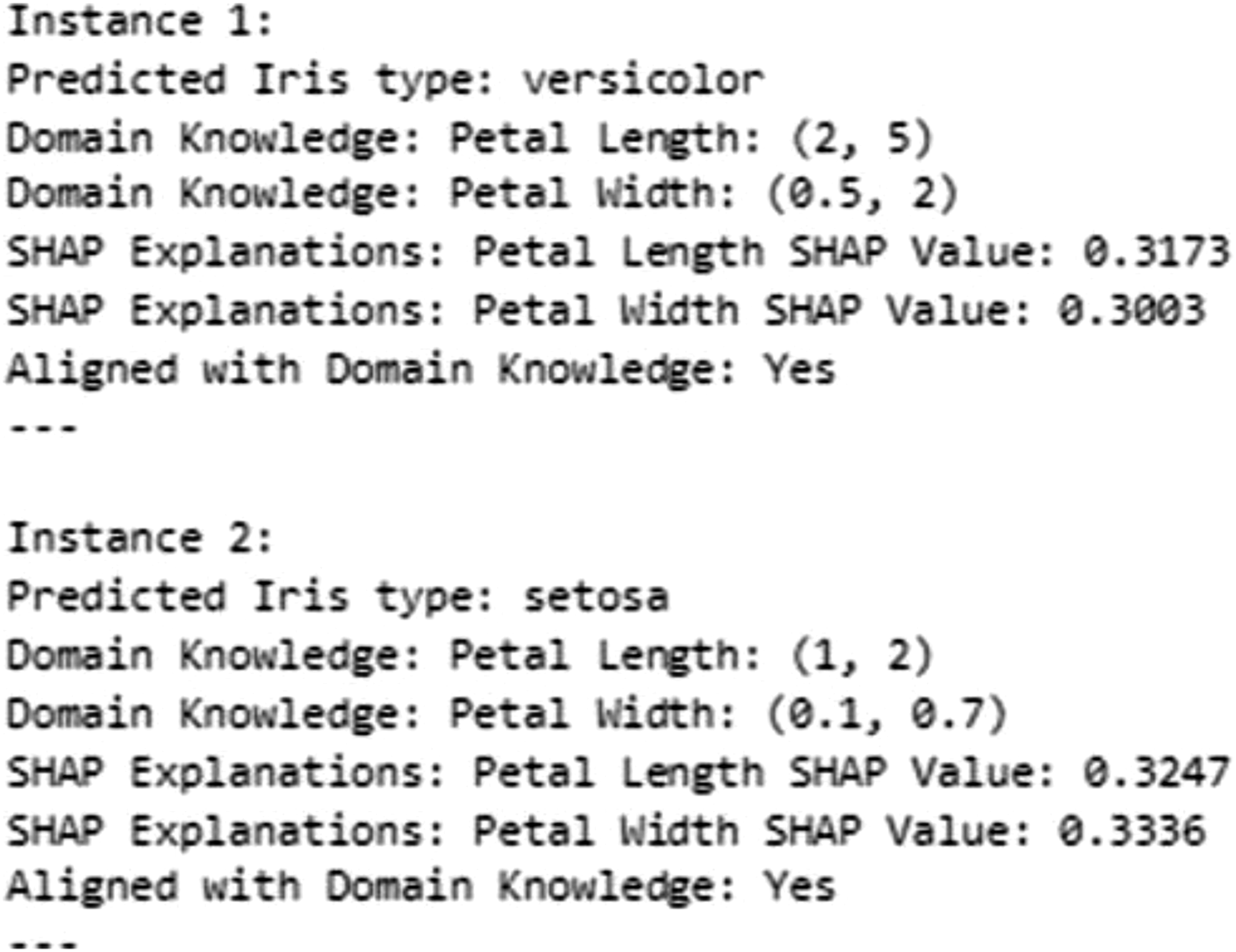

In Figure 10, a sample output from verifying SHAP values against domain knowledge rules. For each data instance in our analysis, SHAP values are computed to understand the impact of individual features on the model’s prediction. Specifically, the focus is placed on the two most critical features, petal length and petal width, which have consistently been found to be the most influential in our context.OPEN IN VIEWER

Firstly, an assessment is made to determine whether the SHAP values for these features in a given instance have a significant positive effect on the predicted output. In other words, it is checked whether higher values of petal length and petal width contribute positively to the likelihood of the model predicting a specific class. This step assists in identifying which features are deemed crucial for the model’s decision for that particular instance.

Once the impact of the SHAP values has been established, the next step involves comparing these findings with our domain knowledge rules, which define specific boundaries or thresholds for petal length and petal width based on established references. These rules encapsulate our understanding of how these features should behave in relation to the predicted class.

The crux of this analysis lies in determining whether the observed impact of petal length and petal width aligns with what our domain knowledge rules predict. If the SHAP values indicate that higher values of these features positively influence the prediction, and our domain knowledge rules are in agreement with this observation, it strengthens our confidence in both the model and the domain knowledge. Conversely, if there is a misalignment, it prompts further investigation into potential discrepancies or areas for improvement.

In summary, this analytical process involves the computation of SHAP values to assess the impact of crucial features, a comparison of these values with domain knowledge rules, and an evaluation of the degree of alignment between the two. This helps us validate the model’s behaviour and gain insights into the consistency between data-driven predictions and established domain expertise.

In our approach, the comparison between SHAP explanations and domain knowledge was structured around a set of predetermined rules well-established within the domain. These rules represent a concrete embodiment of expert understanding, detailing how various features are expected to influence outcomes. Each SHAP explanation was systematically compared against the domain knowledge, using these rules as a benchmark, to assess its accuracy.

The process entailed an examination of SHAP outputs to determine whether they adhered to or deviated from these predefined rules. A SHAP explanation was considered ’right’ when it aligned with the expectations set forth by these rules, indicating a correct identification of feature impacts. Conversely, explanations were deemed ’not right’ whenever there was a divergence from these established guidelines.

The similarity measure was thus calculated by tallying instances of agreement (where SHAP outputs conformed to the domain knowledge rules) versus instances of disagreement. This calculation yielded a similarity rate of 99%, demonstrating a high degree of concordance between the SHAP-generated insights and the established domain rules. Such a high similarity rate reinforces the validity of the SHAP explanations, showcasing their ability to accurately reflect the nuanced interplay of features as encapsulated by domain-specific rules. This methodical comparison underscores the robustness of our model in generating explanations that are not only interpretable but also deeply rooted in domain expertise.

A case study demonstrating the proposed approach to ML explainability: explaining a thrust bearing wear predictive model

In this section, a case study is presented where the proposed methods are applied, and the results from each stage are shown.

Understanding the reasoning behind the ML model predictions is essential for domain experts in industrial applications where high-stakes decisions are made. This framework will help domain experts understand ML model outputs, build trust in ML models, and ensure responsible and effective deployment in real-world applications. The impact of this framework is demonstrated in this case study, where these human-understandable explanations were used to explain a model predicting pump degradation. This application of the ML model led to more effective pump operations and extended pump lifespan. Centrifugal (or roto-dynamic) pumps are widely used in various industries. They accelerate the working fluids to generate pressure from kinetic energy. Centrifugal pumps operate according to a performance curve that describes their flow-pressure relationship. Figure 11 shows a typical performance curve of a centrifugal pump. ⁴² The plot describes the pressure increase (Head) a pump produces at different flow rates. Centrifugal pumps have different physical characteristics depending on the application for which they have been designed. During pump design, a predetermined operating criterion is used to develop a pump with the lowest mechanical losses due to vibration, heating, or cavitation. ⁴² Figure 11 shows the best efficiency point (BEP) at which the pump operates best in terms of energy generated and causes less or no wear to the pump. Operating away from the BEP leads to wear in some parts of the pump, ⁴² and accelerated degradation or loss of life.OPEN IN VIEWER

This case study used actual condition monitoring data from feed-water pumps to predict thrust-bearing positions. Thrust-bearing movement is analogous to thrust-bearing wear, which is regarded as a degradation in pump performance. Since thrust-bearing movement is an unwanted consequence of pump operation, and as the bearing moves, the associated pads wear as a result, minimising thrust-bearing movement helps extend the pump’s lifespan. For the ML model implemented in this case study and the associated analysis, the median thrust-bearing position is denoted “median-TB (t)”. ⁴³ Median-TB (t) is predicted given predetermined pump operational profiles for flow (denoted “mean-flow”) and head (denoted as “mean-head”). The goal of the ML model is to identify the operational consequences (i.e., predicted thrust bearing wear) that result from proposed plant operating profiles and subsequently link the result with related domain expertise. A clear and rapid explanation of the prediction is provided in a context familiar to the end-user of the ML outputs. Two data sets were used.

(1) Data taken during normal operation, which represents operating near the BEP.

The following outlines how each stage of the proposed explainability framework, as previously mentioned, is applied in this case study.

Modelling

Three different simple models have been assessed for potential application in the explainability case study: linear regression, random forest, and XGboost. Although these ML models are simple, they are also challenging to interpret for non-ML experts. The selection of these models was based on their varying levels of complexity, interpretability, and robustness. Linear regression was chosen for its simplicity and ease of interpretation, serving as a baseline model to identify linear relationships between input features and the target variable. Random forest, an ensemble-based model, was selected for its robustness in handling non-linear relationships and complex feature interactions without requiring extensive parameter tuning. XGBoost, a gradient-boosting algorithm, was included for its efficiency and advanced regularisation capabilities, which help mitigate overfitting and improve performance on high-dimensional datasets. These ML models were used to predict thrust-bearing positions. Three performance metrics have been used to assess the performance of each model (see Table 2 and Table 3). These metrics are root mean squared error (RMSE) metric, which quantifies the average error made by the model, R2 score determines the closeness of the calculated values to the actual data values and mean squared error (MSE) (refer to equations (1)–(3) for mathematical expressions where y ^ is predicted value of y and y ¯ is the mean value of y). For the normal profile, as illustrated in Table 3, the linear regression algorithm was observed to give the best performance; hence, it was used as the predictive model for the normal profile data set. For the refuelling profile, as shown in Table 2, the metrics for the linear regression outperformed those of the random regression model and the XGboost regression model with R-squared = 0.99 and RMSE = 0.07 for the refuelling profile; hence, linear regression was used as the predictive model for the refuelling profile data set. The results from the modelling phase demonstrated that there was no need to employ more complex machine learning models, as the selected models—linear regression, random forest, and XGBoost—provided adequate performance for the task. The primary focus of this study was not solely on achieving the highest predictive performance but on presenting model explanations in a manner that is contextualised and tailored to domain experts.

M S E = 1 N ∑ i = 1 N ( y i − y ^ ) 2

(1)

R M S E = M S E = 1 N ∑ i = 1 N ( y i − y ^ ) 2

(2)

R 2 = 1 − ∑ i = 1 N ( y i − y ^ i ) 2 ∑ i = 1 N ( y i − y ¯ ) 2

(3)

OPEN IN VIEWER

Table 2.

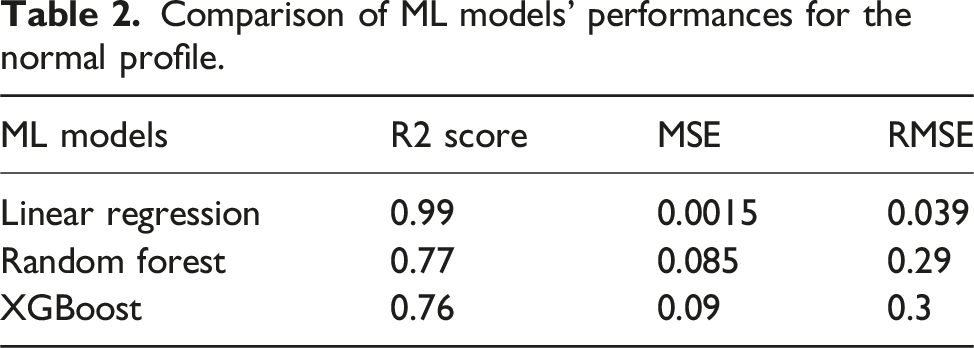

Comparison of ML models’ performances for the normal profile.

ML models	R2 score	MSE	RMSE
Linear regression	0.99	0.0015	0.039
Random forest	0.77	0.085	0.29
XGBoost	0.76	0.09	0.3

OPEN IN VIEWER

Table 3.

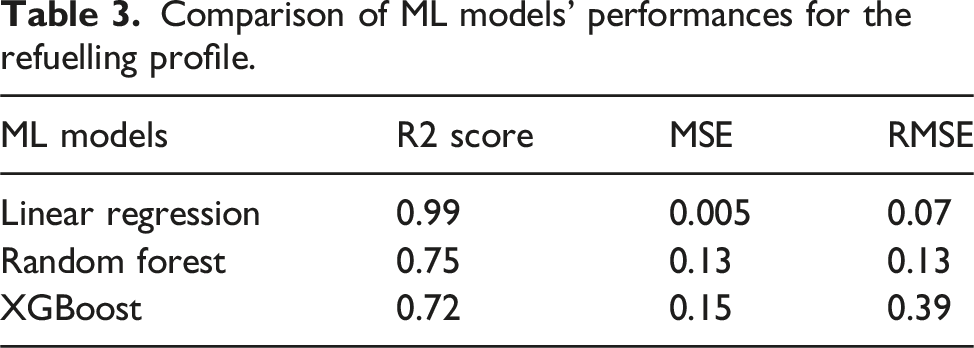

Comparison of ML models’ performances for the refuelling profile.

ML models	R2 score	MSE	RMSE
Linear regression	0.99	0.005	0.07
Random forest	0.75	0.13	0.13
XGBoost	0.72	0.15	0.39

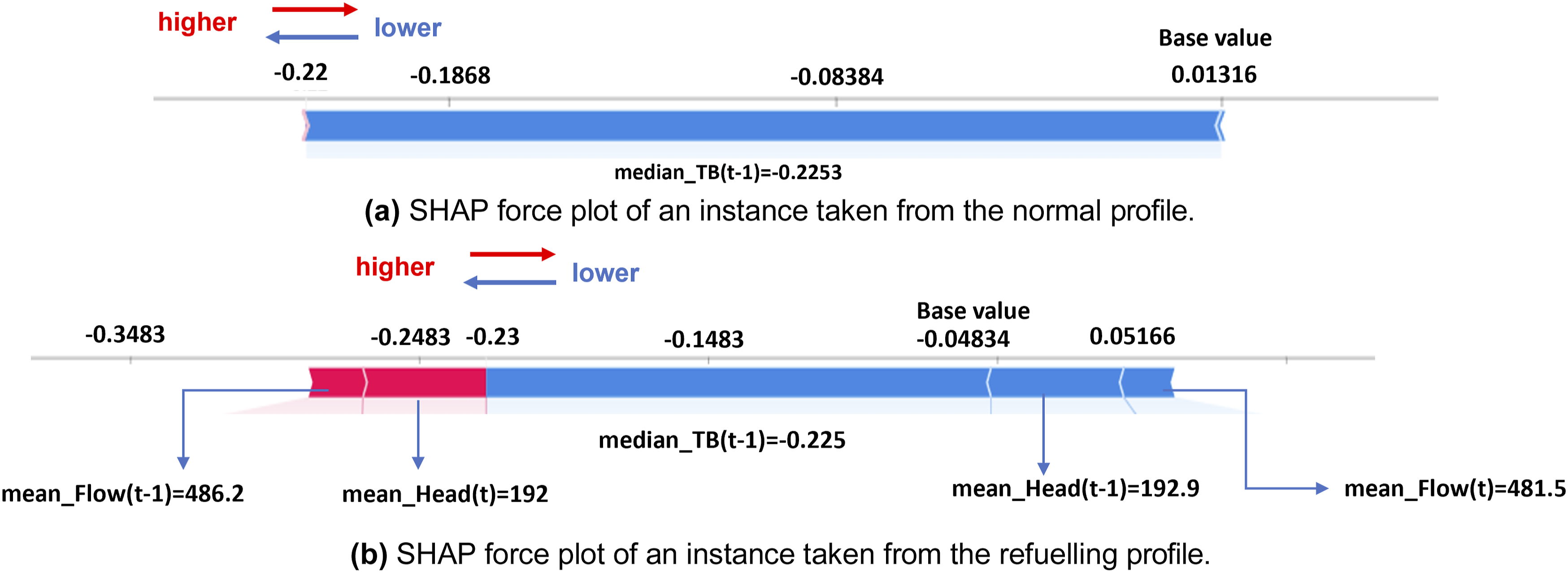

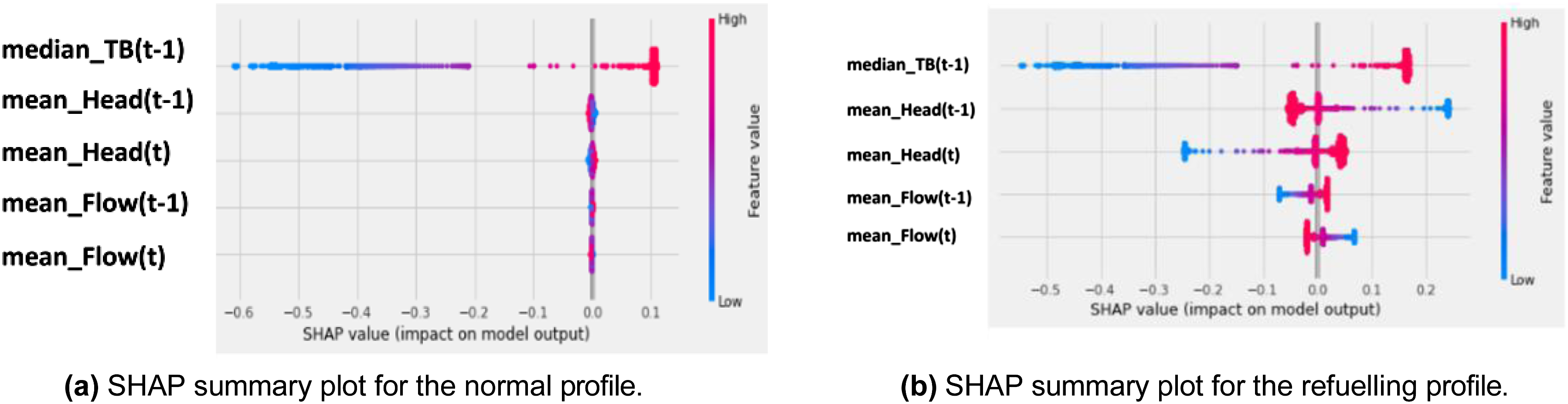

Generation of human-understandable explanations

The approaches described in the previous Sections were used to generate automated-text-based explanations that are proposed to be easier and faster to understand from a non-ML expert perspective. In Figure 14, an example of the text-based output generated for the refuelling profile,, which corresponds to the SHAP local explanations plot produced above and shown in Figure 13(b). Also, Figure 15 depicts text-based explanations for the refuelling profile, which corresponds to the SHAP summary plot in Figure 12(b), showing the most influential features of the refuelling profile.OPEN IN VIEWER

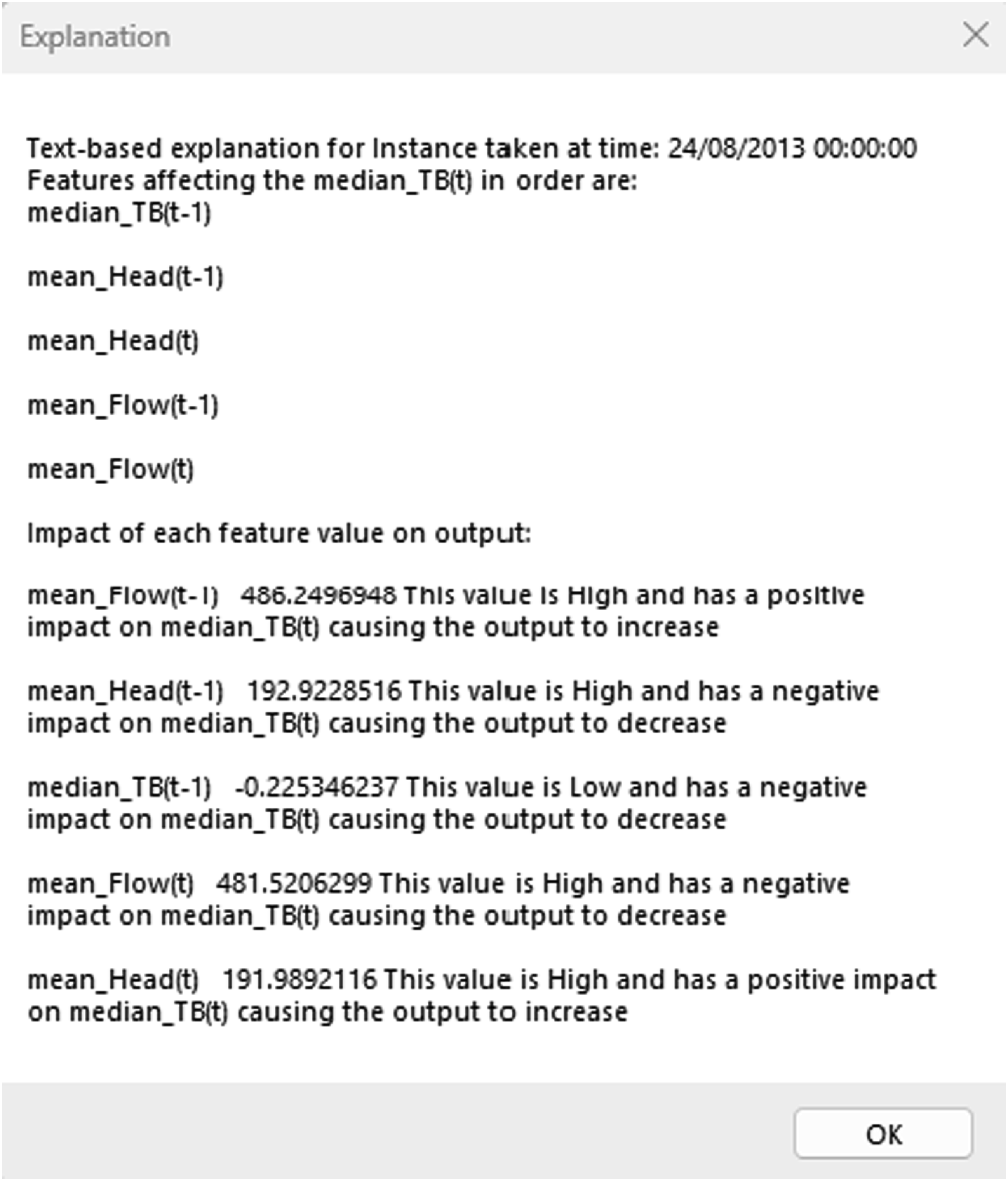

Figure 14.

Text-based explanations for a SHAP force plot corresponding to the refuelling profile. The explanation outlines the key features affecting the prediction, their values, and whether they positively or negatively impact the output.

OPEN IN VIEWER

Figure 15.

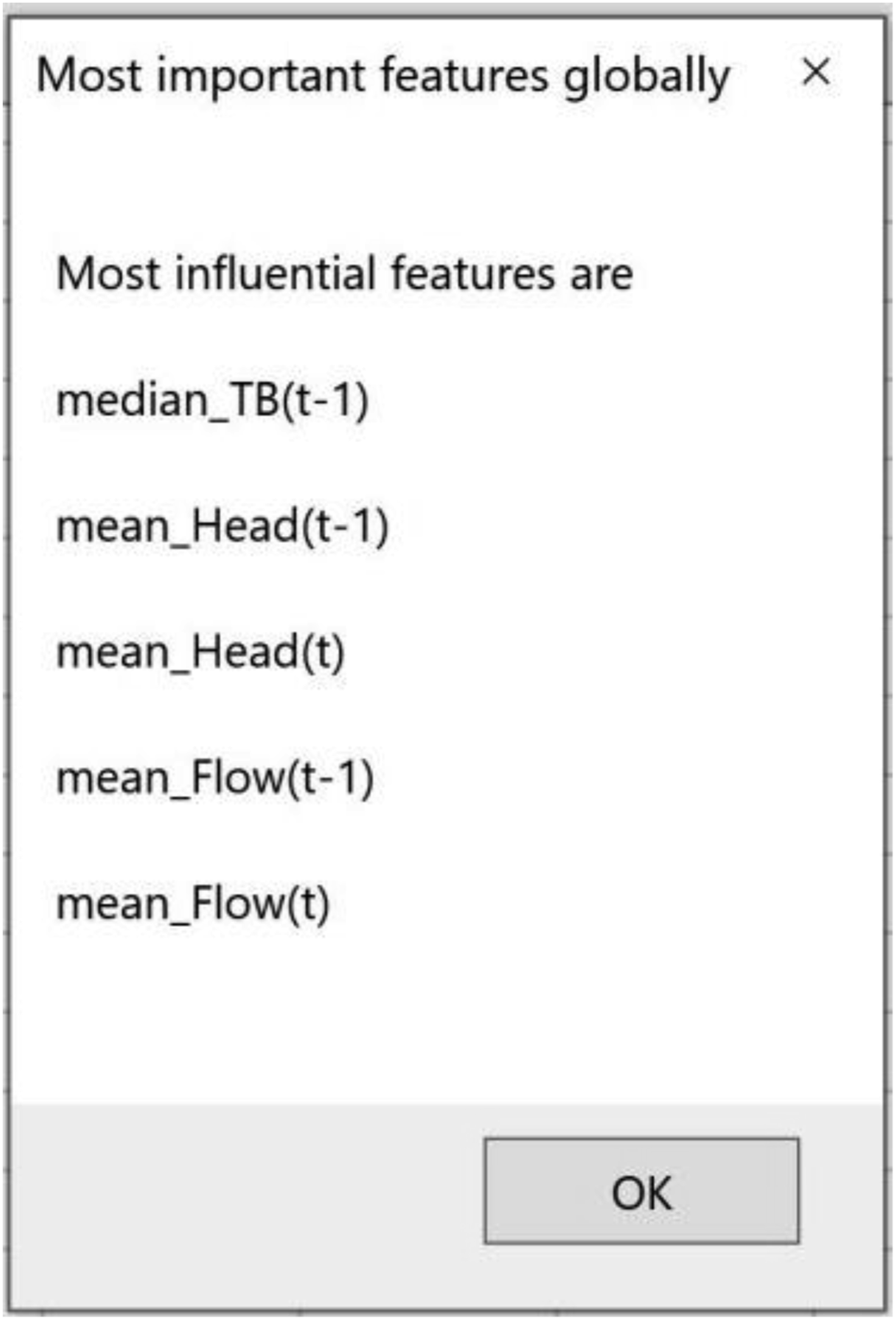

Text-based explanations for the SHAP summary plot associated with the refuelling profile. The explanation identifies the most influential features globally.

These algorithms will be added to existing software tools, ⁴³ rather than being a standalone software application. The software tool implemented in ⁴³ articulates the consequence of operating decisions using predictive features derived from domain expert knowledge - specifically, how the position of a pump set point within a pump curve (the relation between flow and head in efficiency terms) relates to lateral movement of the pump shaft. Domain expertise informed the need to partition the pump curve into sectors and capture the duration at which these are dwelt in. Specific sectors in the curve incur particular consequences in terms of wear. These are known to a pump asset expert but are not apparent in raw data. The design of this tool allows the raw data to be used to automatically predict the consequence of an operational decision without putting the pump through it. This framework is designed to seamlessly integrate with the referenced software tool, leveraging its functionalities and expanding its capabilities in terms of generating interpretable explanations. The framework will complement and extend the existing software’s functionality by enabling it to deliver human-understandable explanations. ⁴³

Validation of explanations

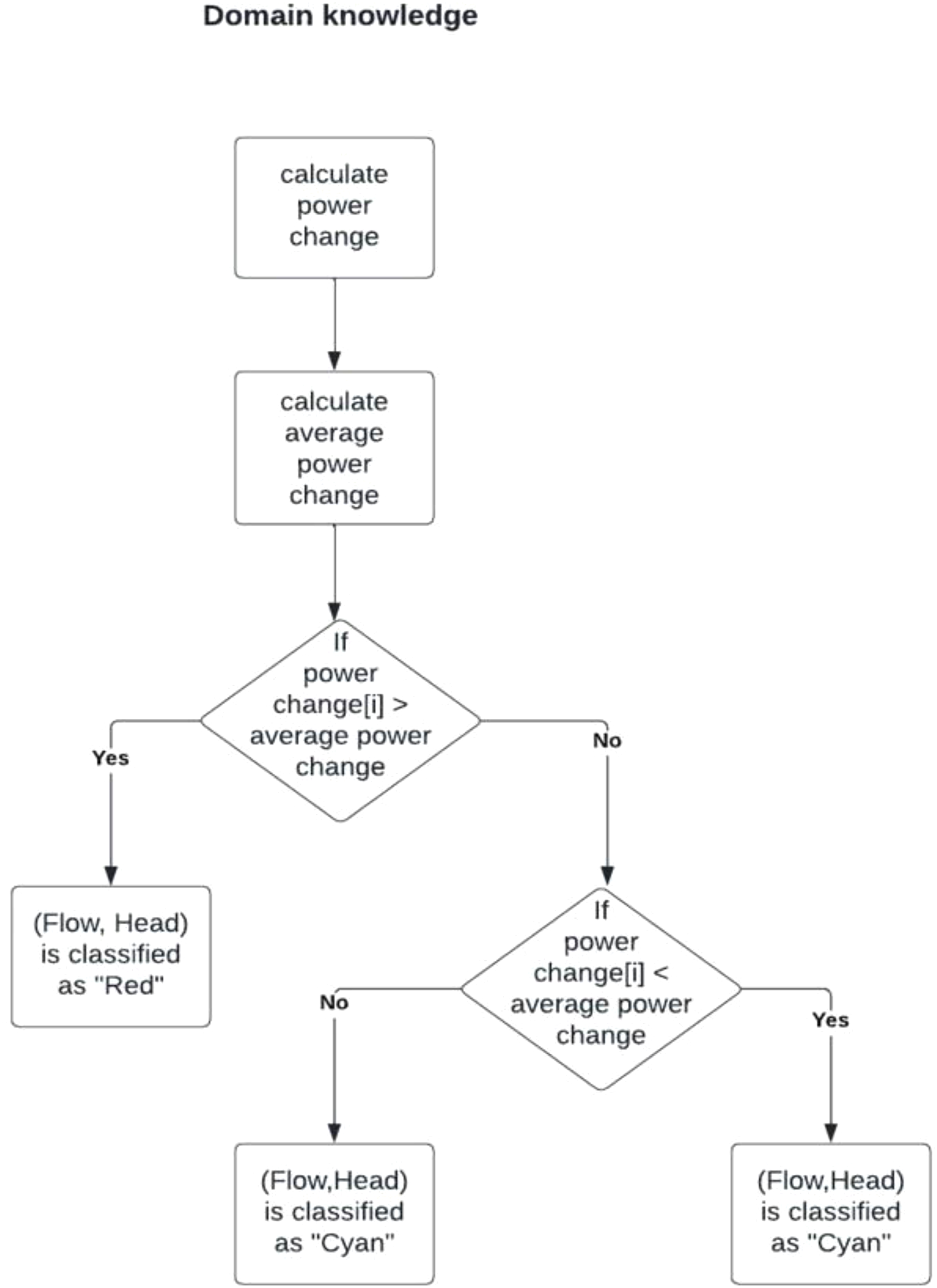

In the traditional approach to validation, experts well-versed in the domain would assess the explanations furnished by the SHAP explainability tool, ensuring their alignment with established principles. However, in the unique context of this case study, the availability of such domain experts was limited or nonexistent.

To overcome this challenge, an alternative path was sought by drawing upon existing and validated domain knowledge, particularly focusing on a set of principles known as the pump affinity laws. These laws are foundational within the realm of fluid mechanics and pump operation, providing precise insights into the inner workings of pumps and how variations in operational conditions influence their performance.

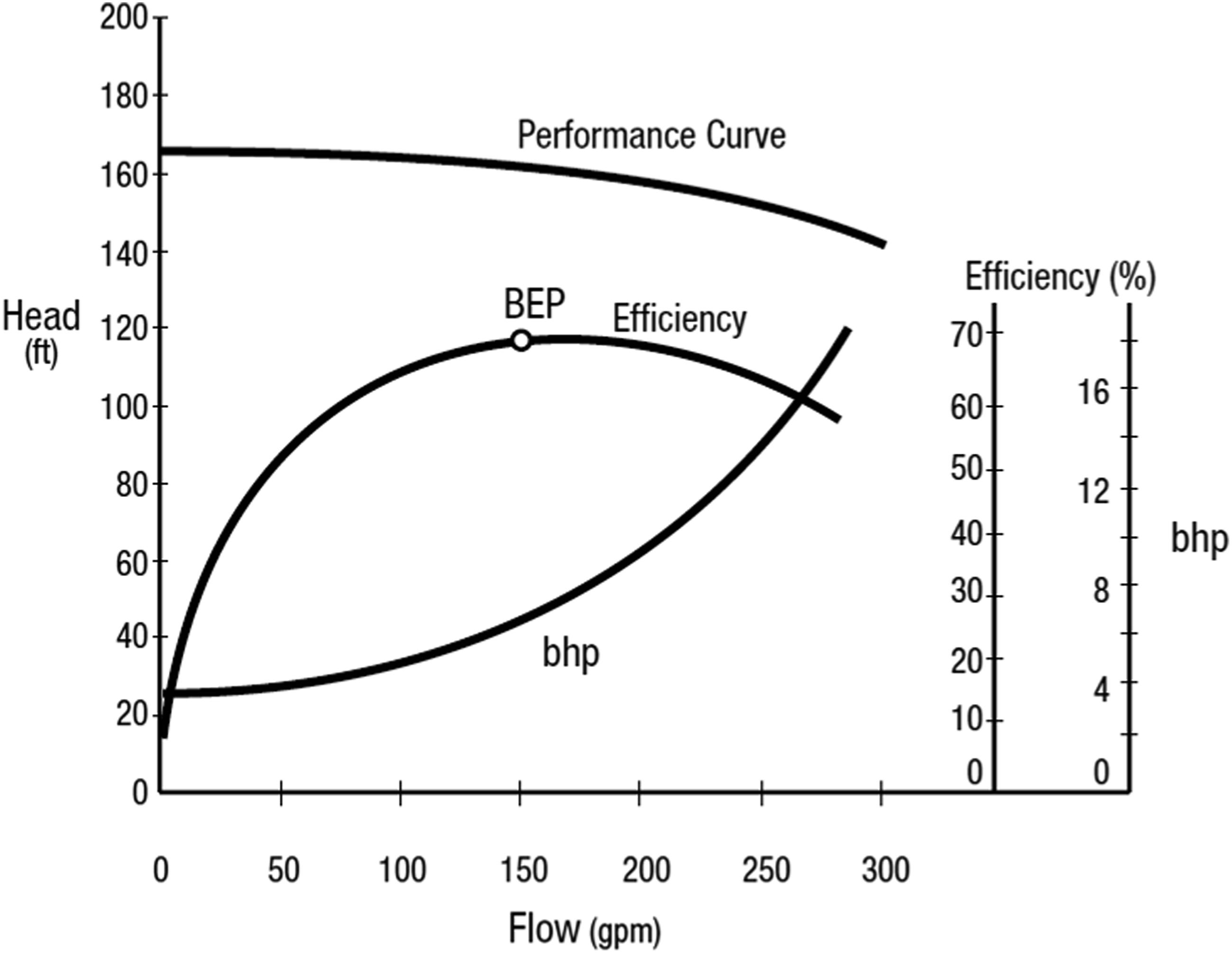

A key finding from the pump affinity laws is how power usage and pump efficiency are connected. According to these laws, if a pump uses more power than expected, it might not be working efficiently. Basically, when a pump consumes more power than it should for certain conditions, it might not be doing its job well, which can waste energy. Also, this inefficiency could cause more wear and tear on the pump’s parts, which isn’t good.

To validate the explanations generated by the SHAP tool, a thorough comparison has been conducted against the forecasts and insights derived from the pump affinity laws as denoted in equations (4)–(6). The assessment of whether the explanations are aligned with the well-established principles has been conducted by investigating how alterations in input variables influenced the SHAP values and, subsequently, the model’s predictions. In instances where the SHAP explanations indicated a notable increase in power consumption as a significant factor impacting predictions, it concurred with the tenets of domain knowledge, further affirming the validity of the generated explanations.

This approach, built on well-established domain knowledge, provided a robust method for validation. It ensured that the explanations from the SHAP tool aligned with established principles, even without direct input from domain experts. This validation framework enhanced the reliability and credibility of the explanations, making them more effective in understanding the ML model’s predictions in our specific case study context.

H 2 H 1 = N 2 N 1 2

(4)

Where:

H 1 : Total head at the initial point. H 2 : Total head at the final point. N 1 : Initial speed or condition. N 2 : Final speed or condition.

P 2 P 1 = N 2 N 1 3

(5)

Where:

P 1 : Power consumption at initial speed or condition. P 2 : Power consumption at final speed or condition. N 1 : Initial speed or condition. N 2 : Final speed or condition.

Q 2 Q 1 = N 2 N 1

(6)

Where:

Q 1 : Flow rate at initial speed or condition. Q 2 : Flow rate at final speed or condition. N 1 : Initial speed or condition. N 2 : Final speed or condition.

SHAP explantaions vs domain knowledge

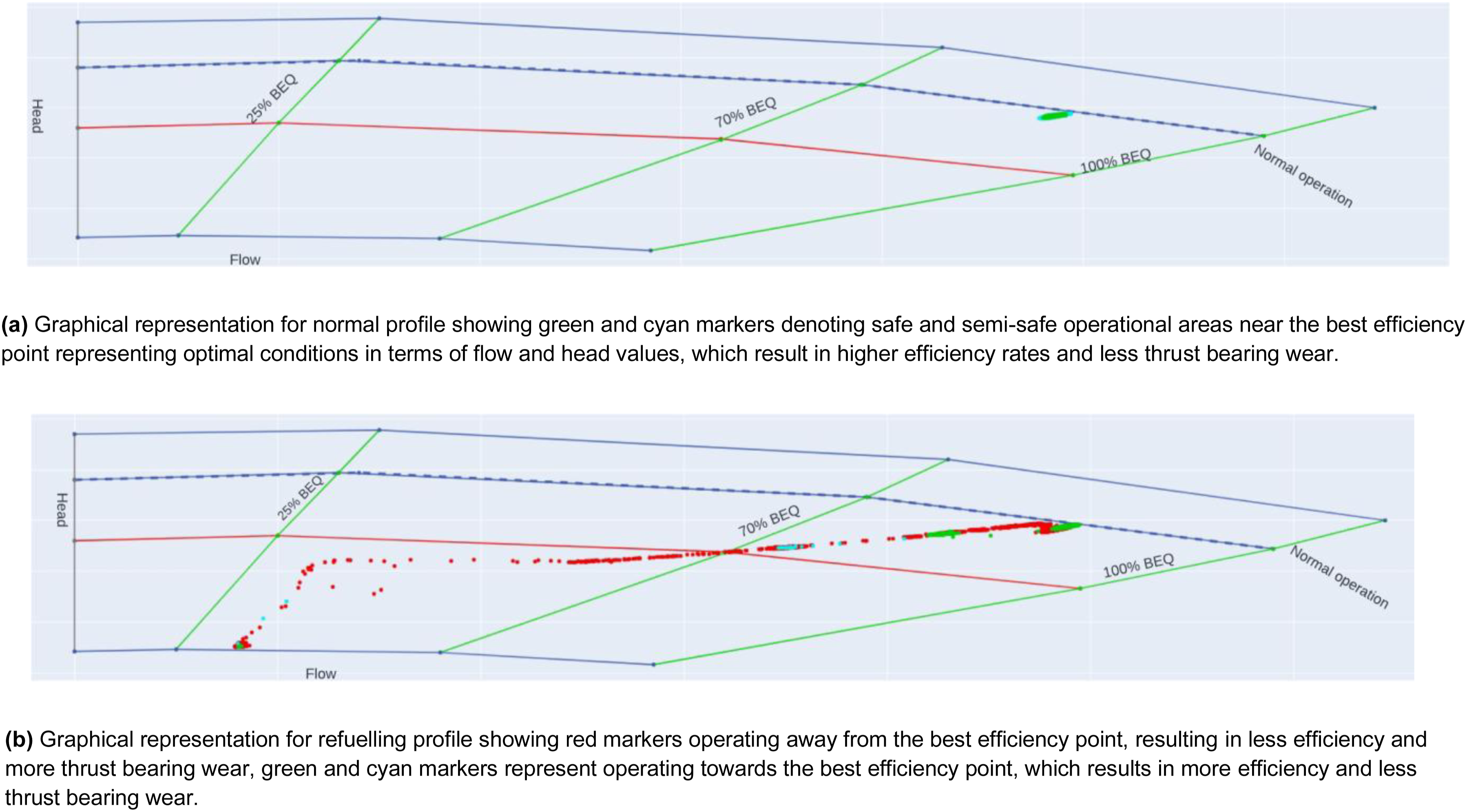

SHAP values were utilised to categorise the dataset by examining the cumulative sum of Shapley values for each data point. If the sum of Shapley values was negative, it indicated a reduction in thrust-bearing movement. This reduction suggested that the operational conditions represented by this data point would not increase thrust-bearing wear and, in fact, might contribute to maintaining or even improving thrust-bearing stability. Consequently, such data points were classified as “green,” signifying efficient operation and minimal wear on the thrust-bearing components.

Conversely, if the cumulative sum of Shapley values was positive and exceeded a certain threshold, it indicated an increase in thrust-bearing movement. This increase was interpreted as a condition likely to accelerate thrust-bearing wear or contribute to less stable operational states. These data points were categorised as “red,”V highlighting conditions that might require closer attention or potential intervention. Data points with cumulative Shapley values near zero were classified as “cyan,” representing a balanced state where neither significant wear nor notable efficiency gains were evident.

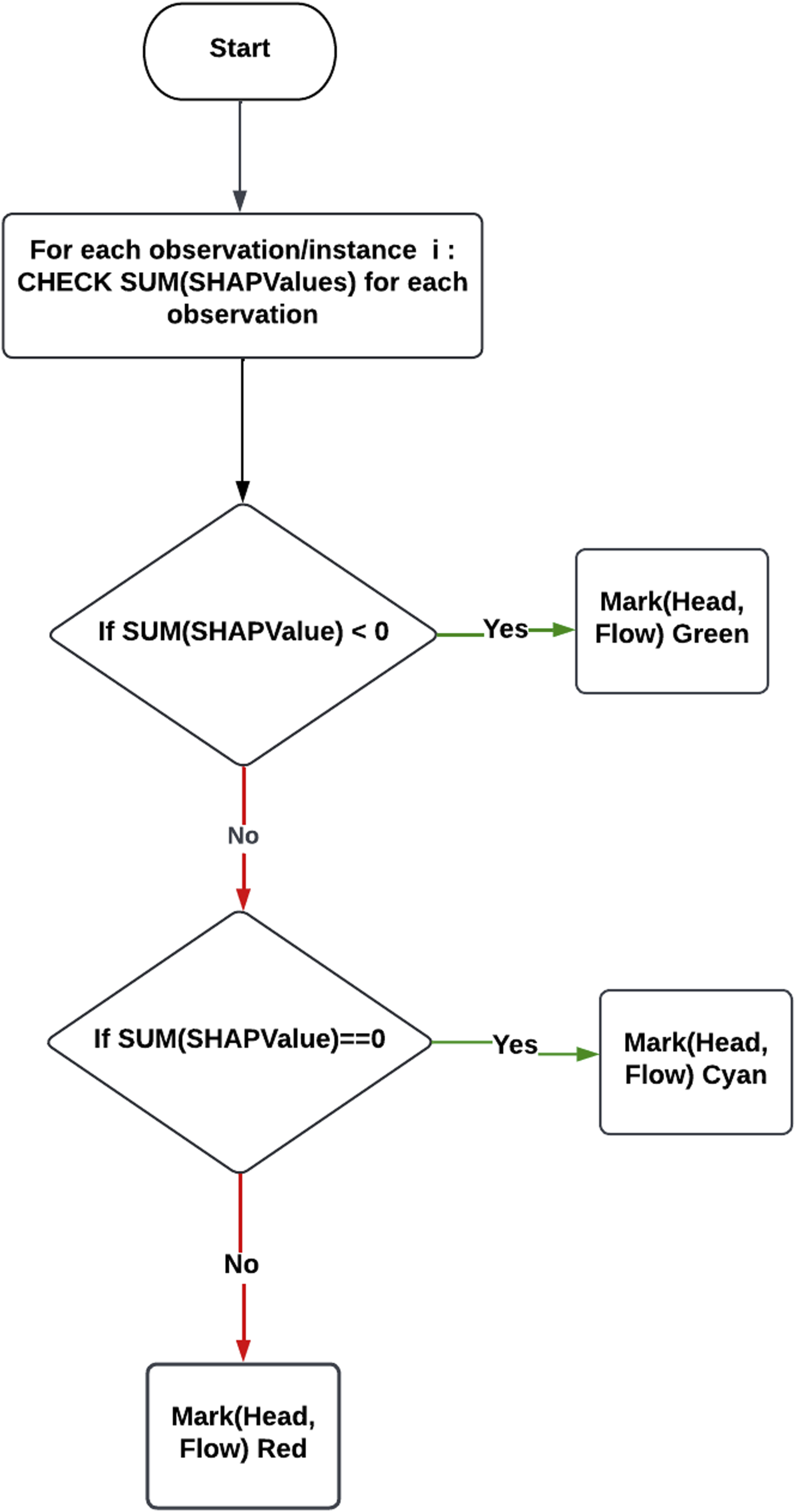

By using Shapley values to categorise data points in this way, we effectively translated the model’s predictive insights into actionable categories that align with known operational outcomes. This approach enabled the identification of scenarios where thrust-bearing wear was likely to occur and provided a structured framework for understanding and mitigating wear-related issues.

Subsequent to this, an in-depth analysis was undertaken, employing various similarity measures to evaluate the level of resemblance between these two datasets. The objective was to determine the degree of alignment between the domain knowledge-based categorisation and the categorisation derived from SHAP explanations. This analytical endeavour allowed for an assessment of how well the SHAP-generated explanations conformed to the established domain knowledge.

Throughout this assessment, the primary focus was placed not only on overall similarity but also on the identification of specific instances where the two categorisations either concurred or diverged. Through this comparative analysis, valuable insights were gained into the compatibility and congruence of SHAP explanations with the well-established domain knowledge. Various similarity measures were harnessed to conduct a comparative analysis between the dataframes generated from the SHAP tool and the dataframe derived from the domain knowledge encapsulated in the pump affinity laws as shown in Table 4. In our analysis, various similarity measures, including the Jaccard similarity (Equation (7)), cosine similarity (Equation (8)), Dice similarity (Equation (9)), and Tversky index (Equation (10)), were employed to provide quantitative metrics for assessing the degree of concordance or divergence between the two datasets. Through the use of these measures, the categorisations and patterns revealed by SHAP explanations were systematically evaluated for their alignment with those defined by the established domain knowledge, ensuring a comprehensive and rigorous comparison.

J ( A , B ) = | A ∩ B | | A ∪ B |

(7)

cos ( A , B ) = A ⋅ B ‖ A ‖ ‖ B ‖

(8)

D ( A , B ) = 2 | A ∩ B | | A | + | B |

(9)

T ( A , B ) = | A ∩ B | | A ∩ B | + α | A \ B | + β | B \ A |

(10)

OPEN IN VIEWER

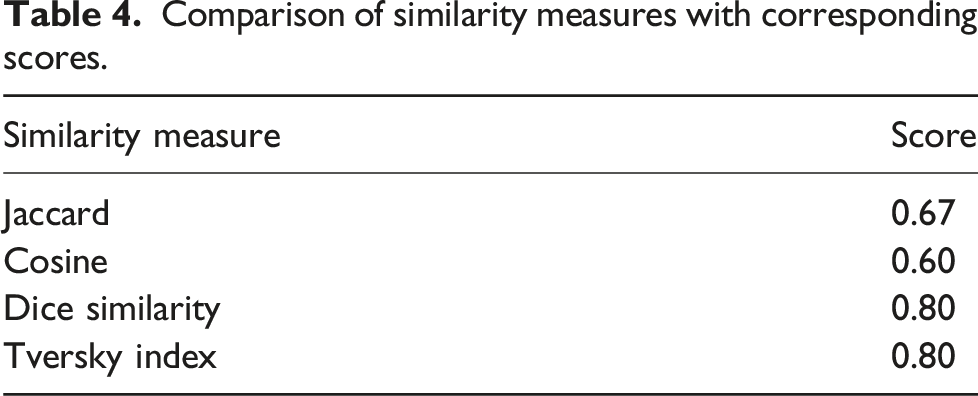

Table 4.

Comparison of similarity measures with corresponding scores.

Similarity measure	Score
Jaccard	0.67
Cosine	0.60
Dice similarity	0.80
Tversky index	0.80

The Jaccard similarity score of 0.67 revealed a moderate level of similarity, indicating the presence of shared elements and categories between the two datasets. However, it should be noted that there were discernible differences, contributing to a moderate degree of dissimilarity.

Similarly, the cosine similarity score of 0.6 pointed to a moderate level of similarity, suggesting that the vectors representing the datasets exhibited some alignment in terms of direction and magnitude. Nevertheless, variations persisted, resulting in the moderate dissimilarity observed.

Conversely, the Dice similarity score of 0.8 unveiled a relatively high level of similarity, signifying a substantial overlap in categories or elements between the datasets. This underscored a strong degree of concordance.

Similarly, the Tversky index, also yielding a score of 0.8, echoed the notion of relatively high similarity. It highlighted the robust alignment between the datasets, particularly in the context of shared categories or elements.

These similarity measures provided valuable insights into the comparative analysis, shedding light on the extent to which the categorisations and patterns elucidated by SHAP explanations were in harmony with those prescribed by the established domain knowledge encapsulated in the pump affinity laws. The higher scores in the Dice Similarity and Tversky Index indicated a notable degree of alignment, while the moderate scores in Jaccard and Cosine similarity denoted shared elements amidst discernible differences. This comprehensive assessment served to bolster the credibility of SHAP-generated explanations and their alignment with well-established domain principles, a critical facet of our thesis research.

Discussion

The deployment of ML models in industrial applications is often met with hesitation by domain experts due to the opaque nature of black-box ML models. The lack of explainability creates barriers to trust, which in turn limits the widespread adoption of ML. To address this challenge, the use of XAI tools becomes crucial in establishing confidence in these models and encouraging their adoption within the industry.

While the proposed framework provides interpretable and domain-aligned explanations using SHAP, it is not without limitations. First, SHAP relies on a correlation-based, additive attribution model that does not capture underlying causal relationships between features. As a result, it may assign high importance to variables that are statistically influential but not causally responsible for the output. This limitation is partially mitigated in our framework by incorporating graphical overlays grounded in domain knowledge (e.g., pump affinity laws), which provide a physical context to interpret SHAP outputs.

Second, the computational complexity of SHAP—particularly for model-agnostic variants like Kernel SHAP—can become a bottleneck in real-time or high-frequency industrial monitoring applications. Although the current implementation targets post hoc analysis, future deployment in live systems may require lightweight approximation methods or parallelised computation to scale effectively.

Finally, the generalizability of the framework to other mechanical systems, such as turbines, compressors, or rotating machinery, depends on the availability of equivalent domain models (e.g., performance curves, physical laws). While the approach is modular and adaptable, its effectiveness in other domains should be validated with additional case studies and, ideally, expert-in-the-loop feedback.

This work introduces a novel framework designed to generate user-friendly explanations from SHAP outputs. It aims to bridge the gap between ML models and domain experts who might not have in-depth knowledge of ML. The framework was applied to a specific case study in the power generation sector, demonstrating its ability to offer domain experts both local and global explanations that are comprehensible and relevant. This facilitated the understanding of ML-generated results, allowing domain experts to confidently interpret model outputs.

One of the key contributions of this framework is its ability to address outliers and unexpected data scenarios. By providing explanations that reveal the underlying rationale for outliers, the framework aids in identifying suspicious data points and sheds light on their cause. This capacity to bridge complex ML models with domain experts’ understanding is critical in building trust and fostering transparency.

The framework was initially tested on the Iris dataset, an open-source benchmark, achieving a high similarity score of 99%, indicating that the SHAP-based explanations worked well with clean data. However, when applied to real-world industrial data, the framework achieved a lower similarity score of 67%, suggesting a moderate alignment between SHAP explanations and domain knowledge. This discrepancy underscores the challenges posed by real-world data, which often include noise, missing values, outliers, and biases.

The observed discrepancies highlight the limitations of SHAP in fully capturing the complexities of real-world data. While SHAP is a powerful tool for explainability, it may struggle with the nuanced and multifaceted nature of industrial data, leading to variations in explanation. This points to the need for ongoing improvements in XAI to ensure that explanations are accurate, reliable, and meaningful, especially in complex real-world applications.

Despite these challenges, the framework has proven effective in presenting explanations that are readily recognisable and understandable by pump engineers and other domain experts. It provides a valuable tool for enhancing transparency and decision-making in industrial applications. The potential for broader adoption lies in the framework’s ability to adapt to other contexts within the industry, encouraging domain experts to use XAI tools and ultimately driving greater acceptance of ML in safety-critical environments.

The practical value of the framework lies in its ability to transform model predictions into actionable maintenance decisions. In particular, the graphical overlays shown in Figure 17 enable operators to visually identify operational zones associated with elevated degradation risk. Instances falling in the “red” zone—defined by both SHAP explanations and affinity-law-based thresholds—correspond to increased power inefficiencies and mechanical strain, which are known precursors to thrust bearing wear. Observations in these zones were associated with noticeable increases in bearing temperature and vibration, suggesting the onset of performance decline.

By identifying and avoiding such high-risk zones, maintenance teams can prioritise interventions when they are most needed, supporting a transition from time-based to condition-based scheduling. This may help extend equipment lifespan and reduce unplanned downtime, improving overall cost efficiency. These insights demonstrate how SHAP explanations can inform proactive decision-making in industrial maintenance planning.

Conclusions and future work

In this work, a new framework has been proposed to provide non-expert users with more insight into the application of ML within a specific industrial domain through auto-generated text-based and visual-based explanations. A well-known explainability tool (SHAP) has been used to provide both local and global explanations. Most currently available ML explanation frameworks offer one level of explainability. This framework proposes two levels of explainability to increase ML model interpretability for non-ML experts. The first level offers text-based explanations, and the second level offers a graphical representation of these explanations. The explanations were then cross-referenced with domain knowledge to provide a degree of causation for ML prediction. Our approach can improve model understandability, which also contributes to enhancing users’ trust in the modelling methodology. Although a specific use case has been adopted for this model, this framework can be used in various prediction/classification applications. With adequate domain knowledge and a comprehensive understanding of the application, this innovative framework can be readily adapted and applied to offer domain experts clear and understandable explanations, contributing to increased trust in AI and ML techniques. Furthermore, even though certain explainability approaches claim theoretical guarantees based on specific criteria, these assurances might be lost during practical implementation. ⁴⁵ However, our approach has demonstrated its effectiveness when practically applied, substantiating its reliability and performance in real-world scenarios. The work demonstrates the feasibility of generating more user-friendly explanations using the proposed framework, providing users with no ML expertise with both text-based and graphical-based explanations. Text-based and graphical-based explanations are proposed to be easier to understand than the conventional graphical results produced by SHAP tools. These explanations are particularly beneficial for domain experts with no background knowledge of ML predictive algorithms and SHAP tool. Ongoing work will enhance the proposed approach to overcome its limitations and deliver more enhanced explanations.

One significant advantage of our explainable AI framework, designed to deliver human-friendly explanations, is its potential for seamless integration into the V-cycle of ML software development. The alignment of our framework with established software engineering standards demonstrates its practical applicability and potential to enhance each phase of the development process. At the initial stages, our framework aids in feature selection and model development, providing data scientists and engineers with immediate insights for creating more interpretable models. In subsequent testing and validation phases, it assists in identifying unexpected model behaviours, allowing for fine-tuning and validation against domain-specific criteria. During deployment and maintenance, the framework continues to play a crucial role by supporting ongoing monitoring and explanation of model outputs to ensure transparency and accountability. This integration promotes trust, collaboration, and the development of robust and interpretable ML systems, thereby making it a valuable asset throughout the ML software development life cycle. ⁴⁶

While SHAP has demonstrated its reliability compared to other XAI tools, our investigation has identified its vulnerability to adversarial attacks as a critical area for further research. These attacks exploit limitations in perturbation-based techniques by manipulating the local approximations of black-box models through strategically altered data points. Perturbations can fall into densely populated regions or sparsely populated areas, where even high-performing models may exhibit unexpected behaviour due to a lack of training data. ⁴⁷ Such vulnerabilities in SHAP and similar methods like LIME underscore the need for future research to enhance the robustness of explanation techniques and safeguard against adversarial exploitation. ⁴⁸

Advancing SHAP’s framework through approaches like WeightedSHAP ⁴⁹ presents an opportunity to address its limitations in capturing causal relationships among features. WeightedSHAP allows for unequal attribution weights, aligning explanations more closely with real-world causal structures and improving their accuracy and interpretability, particularly in complex industrial applications.

Additionally, incorporating natural language processing (NLP) techniques to validate XAI explanations against user requirements and regulatory standards is a promising direction. By ensuring compliance with ethical norms and enhancing alignment with end-user expectations, these techniques can make XAI systems more transparent and trustworthy.

Future research should also prioritise developing causal-based XAI methods that move beyond correlations to provide insights into cause-and-effect relationships. This shift is critical for domain experts to gain a deeper understanding of the mechanisms driving AI decisions and to address potential biases. Constructing knowledge graphs from XAI-generated text explanations is another avenue for exploration. This innovative approach leverages NLP to transform narrative explanations into structured, queryable graphs, allowing users to uncover relationships and probe AI reasoning more effectively.

These directions collectively aim to enhance the robustness, interpretability, and usability of XAI systems, ensuring their applicability and reliability across diverse industries.
