Natural and human-induced Holocene paleoenvironmental changes on the Guadiana shelf (northern Gulf of Cadiz)

Abstract

Three contrasting sedimentary environments on the continental shelf off the Guadiana River (northern Gulf of Cadiz) were integrated in a chronological framework and analysed in terms of sedimentology and benthic foraminiferal assemblages to understand the Holocene paleoenvironmental evolution. The analysed environments differ in terms of their depositional regimes and benthic foraminiferal assemblages. However, a dominant fluvial origin of the sand fraction was observed in all three environments. Holocene sedimentary processes were mainly controlled by natural (sea level changes and climate variations) and human-induced processes (e.g. deforestation, agriculture) along four evolutionary stages. The three older stages were mainly influenced by natural processes, such as sea level variations and fluvial inputs, whereas the most recent stage reflects a combination of climatic- and human-induced processes. A deepening of sedimentary environments related to a period of rapid sea level rise, strongly influenced by river discharges occurred from c. 11,500 to c. 10,000 cal. yr BP. A reduction in sediment export to the shelf, as a result of the continuous and rapid sea level rise and enhanced estuary infilling reflects the second stage, from c. 10,000 to c. 5000 cal. yr BP. The beginning of the third stage, from c. 5000 to c. 1500–1000 cal. yr BP, is marked by a sea-level slowdown and the relatively stable climate and environmental conditions. The fourth stage, from c. 1500–1000 cal. yr BP to Recent times, reflects the intensification of human-induced processes and climatic variability in the Guadiana River basin. This stage also reflects modern depositional conditions, with the formation of a proximal prodeltaic wedge and a distal muddy body.

Keywords

anthropogenic impact benthic foraminifera climate change continental shelf Gulf of Cadiz Holocene

Introduction

Shelf sediment sequences are recognized as important environmental archives, as they respond not only to a number of natural processes such as sea level fluctuations, and oceanographic and climatic changes, but also to the most recent anthropogenic impacts (e.g. Bauch et al., 2001; Evans et al., 2002; Lesueur et al., 1996; Mendes et al., 2010; Oldfield et al., 2003). The drastic changes in sea level observed within the Holocene, combined with local factors, resulted in the generation of both transgressive and highstand sediment bodies. Additionally, the combined influence of climatic and oceanographic changes promoted significant variations in sediment supply. Shelf depositional systems responded to these changes, as evidenced by shifting depositional and erosional areas. Such environments have been additionally influenced during the last centuries by human-induced processes (e.g. Dias et al., 2004; Fletcher et al., 2007; Gonzalez et al., 2005; Nocete et al., 2005).

Benthic foraminifera are the principal microfossils used in the reconstruction of past sea-floor conditions, because of their wide distribution in both space and geological time, and also because of their rapid response to ecological changes (Murray, 2006). In addition, benthic foraminifera can be used: (1) to date the sediments where they lived, providing a relative timescale (e.g. Evans et al., 2002; Oldfield et al., 2003; Scourse et al., 2002; Xiang et al., 2008); (2) in the interpretation of depositional patterns (e.g. Hald et al., 1999; Kaminski et al., 2002; Martins et al., 2007; Wollenburg et al., 2007); (3) to recognize different environments (e.g. Jiang et al., 1997; Martins et al., 2006; Morigi et al., 2005; Rossi and Vaiani, 2008); (4) as proxies of several parameters such as dissolved oxygen, organic production, salinity, and temperature (e.g. Abrantes et al., 2005; Altenbach and Sarnthein, 1989; Diz et al., 2002; Kaiho, 1999).

Despite the aforementioned studies, integrated approaches concerning Holocene paleoenvironmental changes in shelves environment are scarce (e.g. Lesueur et al., 1996; Martins et al., 2006; Mendes et al., 2010). Thus, the main goal of this study is to understand the Holocene paleoenvironmental changes of the continental shelf in the vicinity of the Guadiana River, in terms of the evolution of depositional patterns in response to natural processes (such as sea level changes, fluvial inputs, climatic variations) and human-induced environmental changes. For this purpose, sedimentological and benthic foraminiferal analyses, integrated in a temporal framework, were performed on three cores retrieved from distinct depositional environments.

Study area

The study area is located on the northern Gulf of Cadiz continental shelf (southwestern Iberian Peninsula) off the Guadiana River mouth (Figure 1). This area receives the discharges from the Guadiana River, which is the main sediment source. Its annual mean water discharge (80 m³/s) is about half of the Guadalquivir River discharge (van Geen et al., 1997) and the estimated sediment supply to the shelf between 1946 and 1990 was 57.90 × 10⁴ m³/yr for average suspended load and 43.96 × 10⁴ m³/yr for bedload (Morales, 1997). Its river basin, the fourth largest on the Iberian Peninsula, is highly susceptible to climatic variability, showing strong inter- and intra-annual variations in rainfall (Loureiro et al., 1986). Furthermore, the area is also subject to the influence of larger-scale annual and decadal climatic signals such as the North Atlantic Oscillation (NAO), as revealed in data for rainfall and river discharge (e.g. Dias et al., 2004; Trigo et al., 2004). These strong variations in climatic conditions can result in episodic floods that play a major role in the supply of sediment to the continental shelf (Morales, 1997; Portela, 2006). The coast off Guadiana River is considered mesotidal, with a mean range of 2 m (e.g. Morales, 1997). The offshore waves are predominately from the west-southwest (71% of occurrences), but easterly winds frequently generate short-period waves incoming from the southeast (23% of occurrences) (Costa et al., 2001). Wave energy is moderate with an average annual significant offshore wave height of 1.0 m and average peak period of 8.2 s (Costa et al., 2001). Storm events in the region have been defined with offshore wave heights >3 m (Pessanha and Pires, 1981). Between 1986 and 1993, storm events accounted for 1% of the offshore wave climate (Costa, 1994).

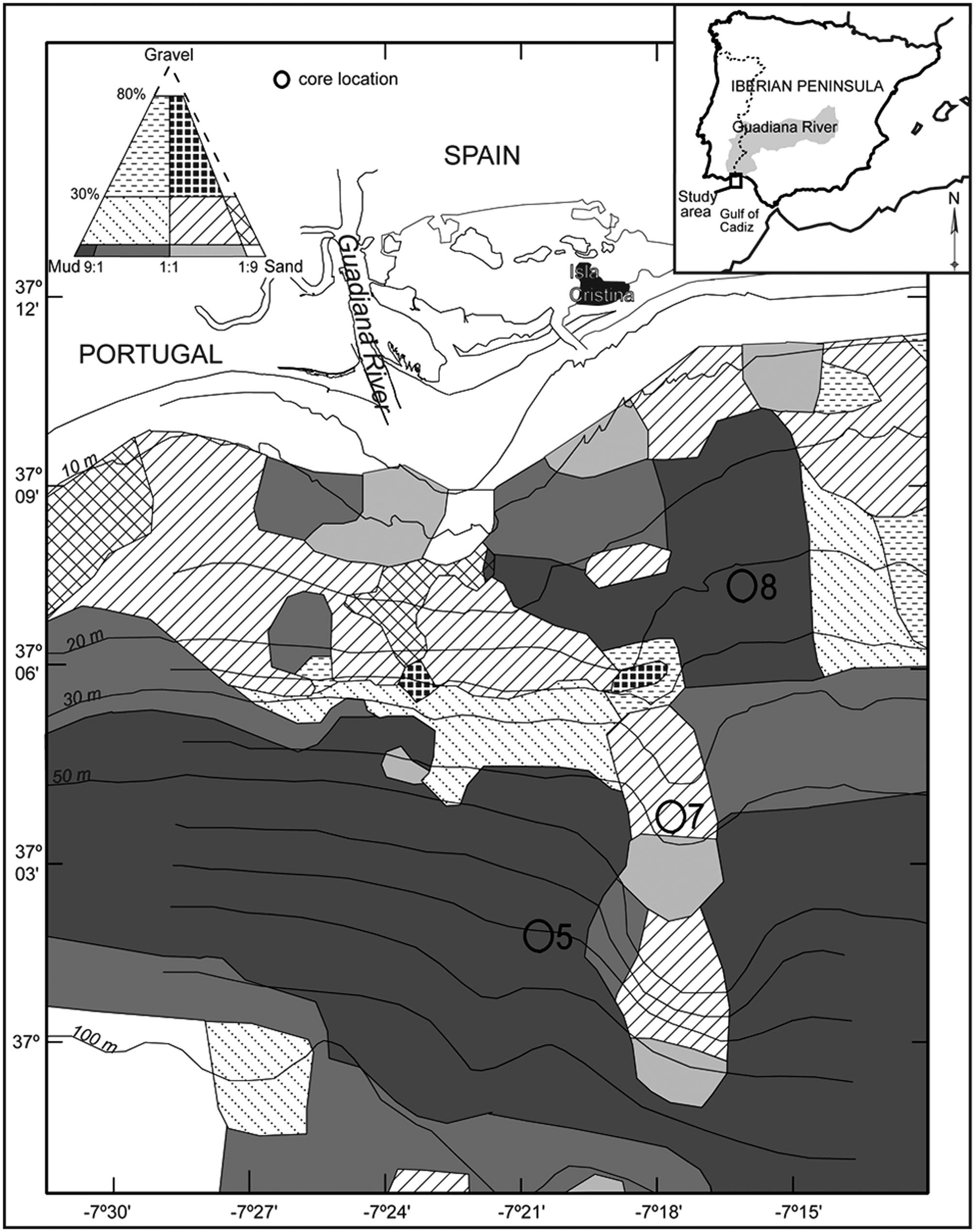

Figure 1.

Locations of the studied cores (5, 7, and 8) and distribution of surface sediments on the continental shelf off the Guadiana River (adapted from Gonzalez et al., 2004).

The postglacial evolution of depositional systems was strongly influenced by rapid changes in sea level, leading to the formation of high-frequency transgressive and highstand system tracts (Lobo et al., 2001, 2004). Three transgressive parasequences exposed across the inner to middle shelf were identified in high-resolution seismic profiles (Lobo et al., 2001). Highstand deposits occur on the inner shelf as a prodeltaic wedge and on the middle shelf as an extensive muddy belt (Gonzalez et al., 2004; Lobo et al., 2004; Nelson et al., 1999). Recent studies have characterized the geochemical, micropaleontological, and sedimentological properties of those highstand deposits (e.g. Burdloff et al., 2008; Corredeira et al., 2008; Mendes et al., 2006, 2010; Rosa et al., 2011).

Climatic variations together with human activities initiated environmental changes in the Guadiana basin after c. 4000 cal. yr BP (Fletcher et al., 2007). During the late pre-Roman, Roman, Moorish and early Portuguese stages of settlement (which correspond to the period between c. 3000 and c. 300 yr BP), exploitation for timber and other agricultural products caused widespread erosion and siltation of estuaries (Chester and James, 1999). In the upper estuary, widespread erosion and soil loss caused by overuse of land suggests abandonment of rural villages during the mid-12th century (Boone and Worman, 2007). These anthropogenic influences have significantly increased in both intensity and scale during the last 150 years, namely through mining and agriculture activities with consequent deforestation, and the construction of dams in the river basin, which have affected the amount of sediment supplied to the shelf (Dias et al., 2004; Gonzalez and Dias, 2006; Gonzalez et al., 2001; Maldonado and Nelson, 1999).

Material and methods

Cores were collected from the continental shelf off the Guadiana River in July 2002 (Figure 1), by using a light-weighted vibrocorer with water injection. Core 5 with 353 cm length was collected from a central position in the muddy body at a water depth of 72 m (latitude 37°1′54″N and longitude 7°20′44″W). Core 7 with 71.5 cm length was taken at 36 m water depth (37°3′44″N, 7°17′40″W) within the proximal zone of a transgressive sandy deposit. Core 8 with 376 cm length was extracted from the inner shelf Guadiana prodeltaic wedge, at a water depth of 22 m (37°7′24″N, 7°16′6″W) (Figure 1). Mud sediment cores (5 and 8) were sampled continuously in intervals of 1 cm thick slices from the top down to 50 cm and in intervals of 2 cm slices from there to the base. Core 7 was sampled in intervals of 1 cm thick slices from the top down to 4 cm and from 26 to 50 cm, and in intervals of 2 cm thick slices in the remaining intervals of the core, which consisted of coarser sediments. Each level of cores 7 and 8 was sampled for grain size and benthic foraminiferal analyses. Core 5 was sampled on alternating levels for grain size and benthic foraminifera, in order to obtain more material for each analysis.

Eleven accelerated mass spectrometry (AMS) radiocarbon (¹⁴C) dates were obtained (Table 1) by using benthic foraminiferal test mixtures of most abundant species, carried out by Beta Analytic (USA). The age calibration was made with the program Calib 5.1 (Stuiver et al., 2005), by using the MARINE 04 curve with a global ocean reservoir correction of about 400 years (Stuiver and Reimer, 1993). The local reservoir effect (ΔR) was applied according to Soares and Martins (2010) (Table 1). Two additional amino acid racemisation (AAR) dates were performed on samples from core 5 (Table 1). The analyses were performed by the Amino Acid Geochronology Laboratory of the Northern Arizona University, USA.

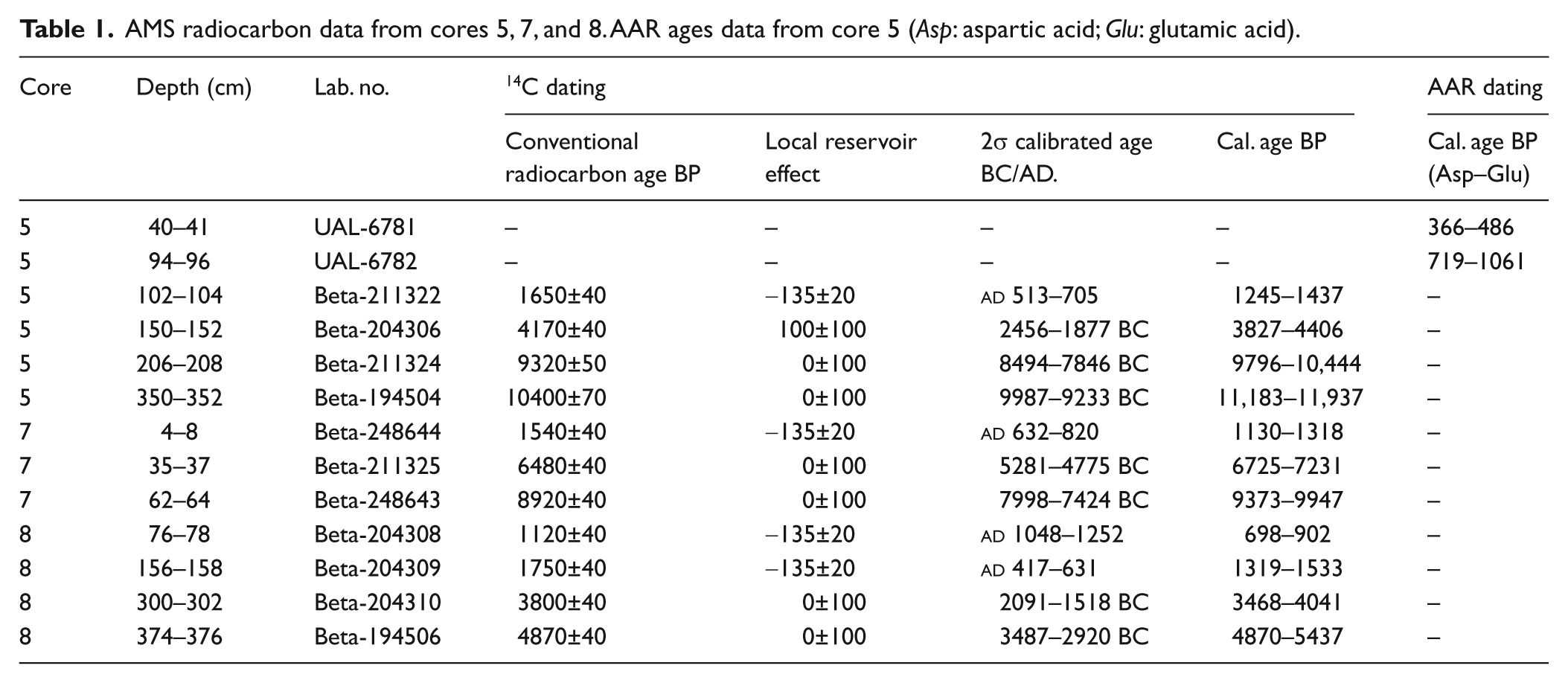

Table 1.

AMS radiocarbon data from cores 5, 7, and 8. AAR ages data from core 5 (Asp: aspartic acid; Glu: glutamic acid).

Core	Depth (cm)	Lab. no.	¹⁴C dating				AAR dating
			Conventional radiocarbon age BP	Local reservoir effect	2s calibrated age BC/AD.	Cal. age BP	Cal. age BP (Asp–Glu)
5	40–41	UAL-6781	–	–	–	–	366–486
5	94–96	UAL-6782	–	–	–	–	719–1061
5	102–104	Beta-211322	1650±40	−135±20	ad 513–705	1245–1437	–
5	150–152	Beta-204306	4170±40	100±100	2456–1877 BC	3827–4406	–
5	206–208	Beta-211324	9320±50	0±100	8494–7846 BC	9796–10,444	–
5	350–352	Beta-194504	10400±70	0±100	9987–9233 BC	11,183–11,937	–
7	4–8	Beta-248644	1540±40	−135±20	ad 632–820	1130–1318	–
7	35–37	Beta-211325	6480±40	0±100	5281–4775 BC	6725–7231	–
7	62–64	Beta-248643	8920±40	0±100	7998–7424 BC	9373–9947	–
8	76–78	Beta-204308	1120±40	−135±20	ad 1048–1252	698–902	–
8	156–158	Beta-204309	1750±40	−135±20	ad 417–631	1319–1533	–
8	300–302	Beta-204310	3800±40	0±100	2091–1518 BC	3468–4041	–
8	374–376	Beta-194506	4870±40	0±100	3487–2920 BC	4870–5437	–

The age model was created based on ¹⁴C and AAR calibrated ages (2 sigma) (Table 1), depth, and sedimentation rates, assuming a constant rate of accumulation between the dated levels. The zero validation for the age model was applied.

Grain size analyses were performed sequentially along the cores. When available material was not enough, two or more adjacent samples were combined for one grain size analysis. Hydrogen peroxide was used to eliminate organic matter. Fine (silt and clay) and coarse (sand and gravel) fractions were wet separated using a 63 μm (4 φ) sieve. The fine fraction was analysed using the pipette method and the coarse fraction was subdivided by dry sieving using a sieve rack. Both fractions were graded in phi intervals. The textural classification was performed according to Folk (1954).

Components of the sand fraction were analysed in the three cores at irregular intervals, varying from 1 to 10 cm. A total of 71, 27, and 38 samples were analysed in cores 5, 7, and 8, respectively. Data used for core 8 were adapted from Pinheiro et al. (2006). In each phi grade of the sand fraction, 100 grains were counted and identified. For each sample the weighted mean for each grain type was calculated after Sarnthein (1971).

Benthic foraminifera were analysed in core 5 for 41 samples (collected from the core with a variable spacing of 2 to 12 cm), in core 7 for 15 samples (variable spacing of 4 to 6 cm), and in core 8 for 38 samples (10 cm intervals). The material >63 μm was divided in aliquots by using an Otto micro-splitter, placed in a picking tray, and analysed under a binocular microscope. Whenever possible, at least 300 well-preserved benthic foraminiferal tests were collected from each sample, identified, and counted. Benthic foraminifera were classified according to the generic classification of Loeblich and Tappan (1987), and determined by reference to Ellis and Messina (1942–2009), Murray (1971), Jones (1994), Levy et al. (1995), and Martins and Gomes (2004). The Diversity Shannon Index was calculated by using PAST software (PAlaeontological STatistics, ver. 1.81; Hammer et al., 2008). Zonation areas were constructed by using the Psimpoll 4.25 program (Bennett, 2005). The method of binary splitting by information content was used. Cluster analyses were also performed using PAST software (Hammer et al., 2008). For each core, a matrix of data was built using species with more than 5% abundance in at least one sample. R-mode cluster analyses grouped species by using the correlation method and joined the groups by using the unweighted pair-group average (UPGMA). Q-mode cluster analyses grouped samples by using Ward’s method.

Since ages are presented in the literature as either calibrated or uncalibrated dates, in order to compare them with our dates a conversion table from radiocarbon years (yr BP) to calendar ages (cal. yr BP) (and vice versa) was used according to Roberts (1998).

Results

Age models

The ¹⁴C date of c. 11,500 cal. yr BP obtained at the base of core 5 indicated this core covers the largest time period (Table 1). Two periods of high sedimentation rate occurred, from c. 11,500 to c. 10,000 cal. yr BP and from c. 1000 cal. yr BP to Recent times. A lower (by a factor of 10) sedimentation rate prevailed between c. 10,000 and c. 4000 cal. yr BP (Figure 2a). Core 7 presented the lowest sedimentation rates. The age data indicated decreasing sedimentation rates upward through the core (Figure 2b). Core 8 covers only the depositional period from c. 5150 cal. yr BP onwards (Table 1) and exhibited the highest sedimentation rates (Figure 2c). The deposits of cores 7 and 8 indicate a relatively continuous sediment input.

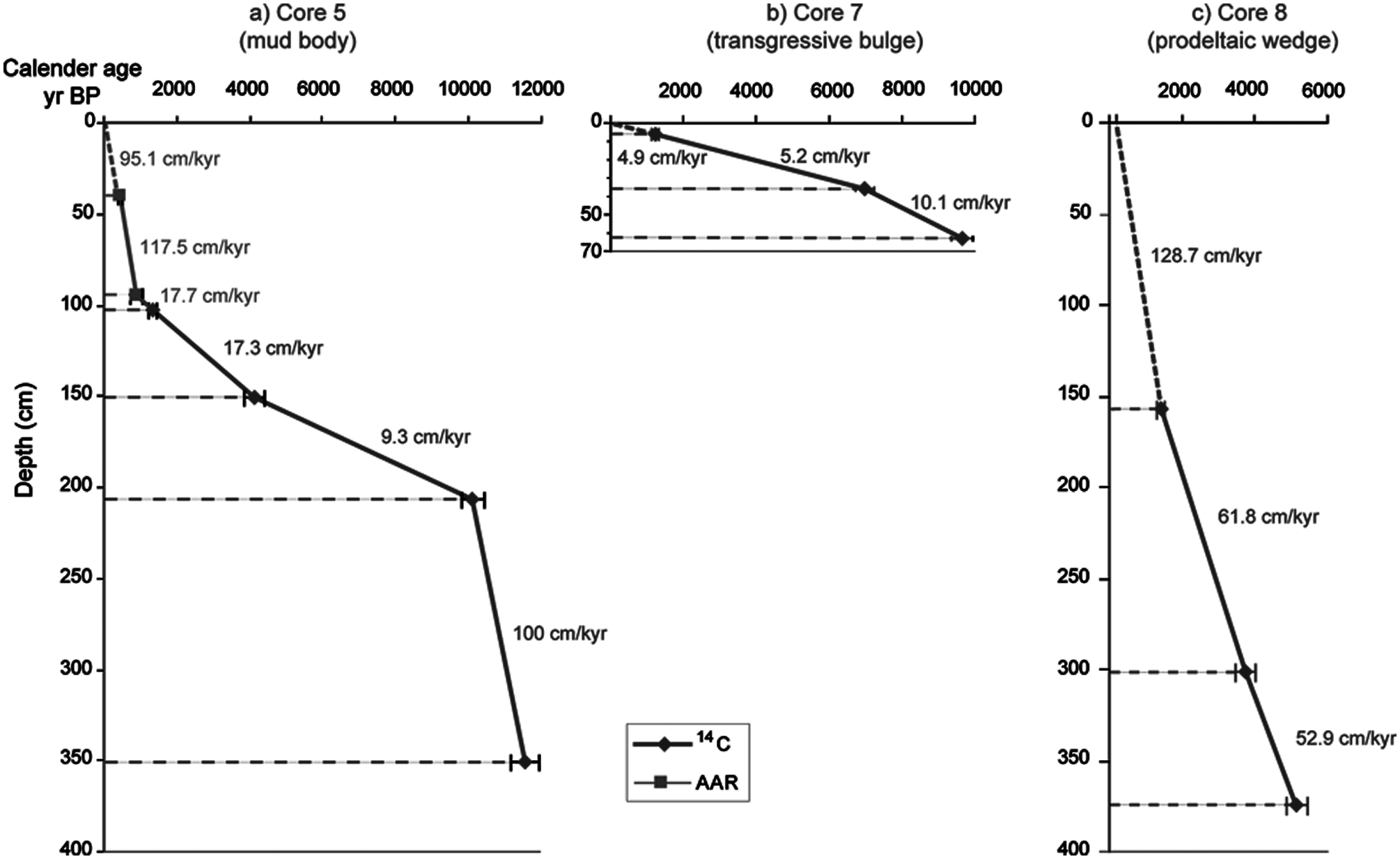

Figure 2.

Age model for cores 5, 7, and 8, based on calibrated ages with confidence bars of age variation, and sedimentation rates between age control points.

Sedimentology

In core 5, 61–100% of the sediment was made up of fines (silt+clay) (Figure 3a; Appendix 1, available online). The silt fraction was the most abundant, and the coarse fraction was essentially constituted by sand. The maximum value for sand was observed near the core base. A decrease in the sand fraction during the last 4000 cal. yr BP coincided with an increase in the clay fraction. The mean grain size showed a fining-upward trend varying from 5.13 to 8.34 phi (Figure 3a).

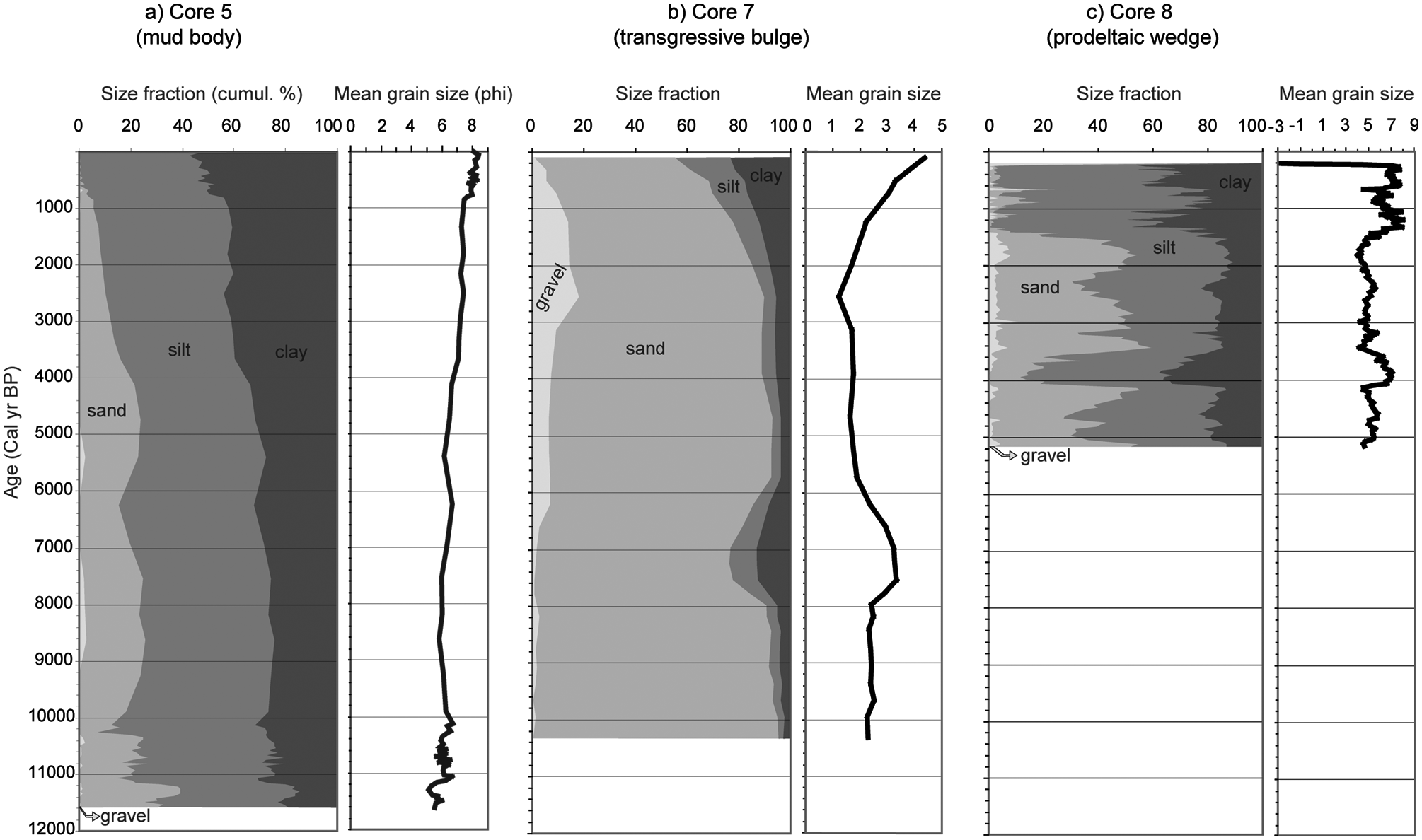

Figure 3.

Size fraction and mean grain size variations with age (cal. yr BP) for the three environments analysed on the Guadiana continental shelf.

Core 7 was constituted mainly by coarse sediments and sand was the most abundant fraction (54–95%) (Figure 3b; Appendix 1, available online). Two periods of an increased proportion of fine fraction were observed, between c. 8000 and 6000 cal. yr BP and from c. 2500 cal. yr BP until Recent times. The mean grain size varied from 1.24 phi (at c. 2500 cal. yr BP) to 4.36 phi (top of the core) (Figure 3b).

In core 8, grain size analyses allowed the identification of two distinct units along the core (Figure 3c; Appendix 1, available online). The lower unit, from c. 5150 to c. 1500–1400 cal. yr BP, presented similar percentages of fine and coarse fractions. The upper unit, from c. 1500–1400 cal. yr BP to the core top (c. 200 cal. yr BP), was characterized by a higher proportion of silt-clay, reaching more than 90% of total sediments. Along core 8, the mean grain size varied between −2.72 phi at the top of the core and 8 phi at c. 1200 cal. yr BP (Figure 3c).

Sand fraction analyses (Appendix 1, available online) showed that terrigenous components dominate core 5 from c. 11,500 to c. 400 cal. yr BP, while bioclasts (foraminifera and other bioclastic grains) prevail in the younger part of the core (Figure 4a). Within the succession dominated by terrigenous components, two distinct units were identified. The lower unit, extending from the core base to c. 5000 cal. yr BP, is dominated by quartz (56–88%), mica (0.7–23%) and other terrigenous (0.4–12%). During this period, glauconite reached values of 3%. The second unit, extending from around c. 5000 to c. 400 cal. yr BP, showed a decrease in both mica and other terrigenous, and increases in glauconite (3–16%), foraminifera (6–21%), and other bioclasts (0.4–13%).

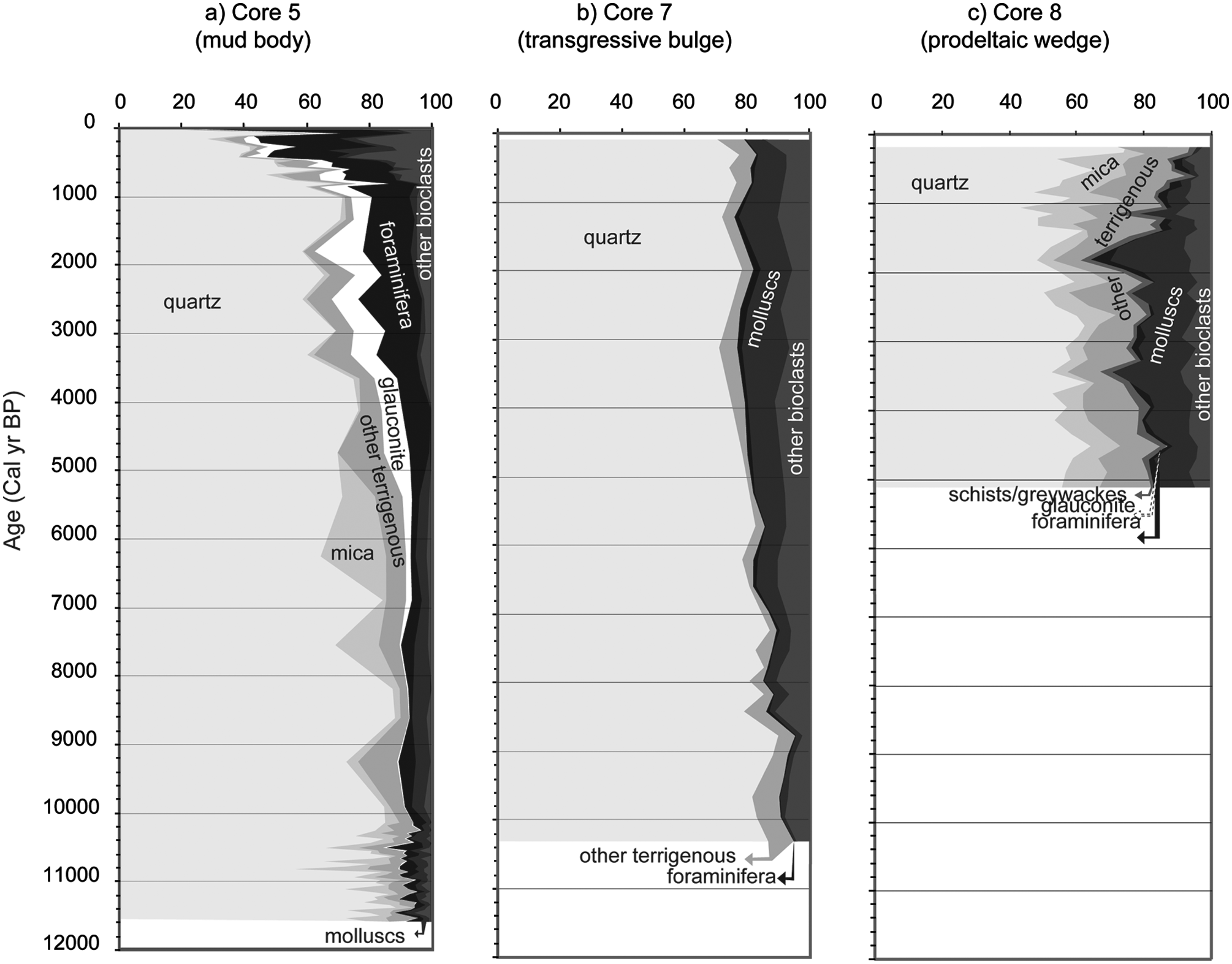

Figure 4.

Variation in the components of the sand fraction with age (cal. yr BP) for the three environments analysed on the Guadiana continental shelf.

In core 7, quartz was the principal component (71–90%). Between c. 8500 cal. yr BP and c. 1200 cal. yr BP, bioclastics increased to a maximum of 24% (Figure 4b).

In core 8, quartz (46–75%) was the main component, but other terrigenous and mica also showed relatively high percentages (Figure 4c). Two distinct units could be identified. The lower unit, from c. 5150 to c. 1500–1400 cal. yr BP, presented relatively constant percentages of all sand fraction components. The upper unit, from c. 1650–1400 cal. yr BP to c. 200 cal. yr BP, showed an increase in the terrigenous components reaching a maximum of 95%. The transition between the units occurred at c. 1500–1400 cal. yr BP, when the silt-clay fraction shows a marked increase (Figure 3c).

Benthic foraminifera

Density and species richness

The highest values of foraminiferal population density (number of benthic foraminifera per gram of dry sediment) were obtained in core 5 (755–4543 specimens/g) and the lowest in core 7 (16–320 specimens/g) (Figure 5a). In core 8, the population density (17–3090 specimens/g) generally decreased from the base to the core top (Figure 5a).

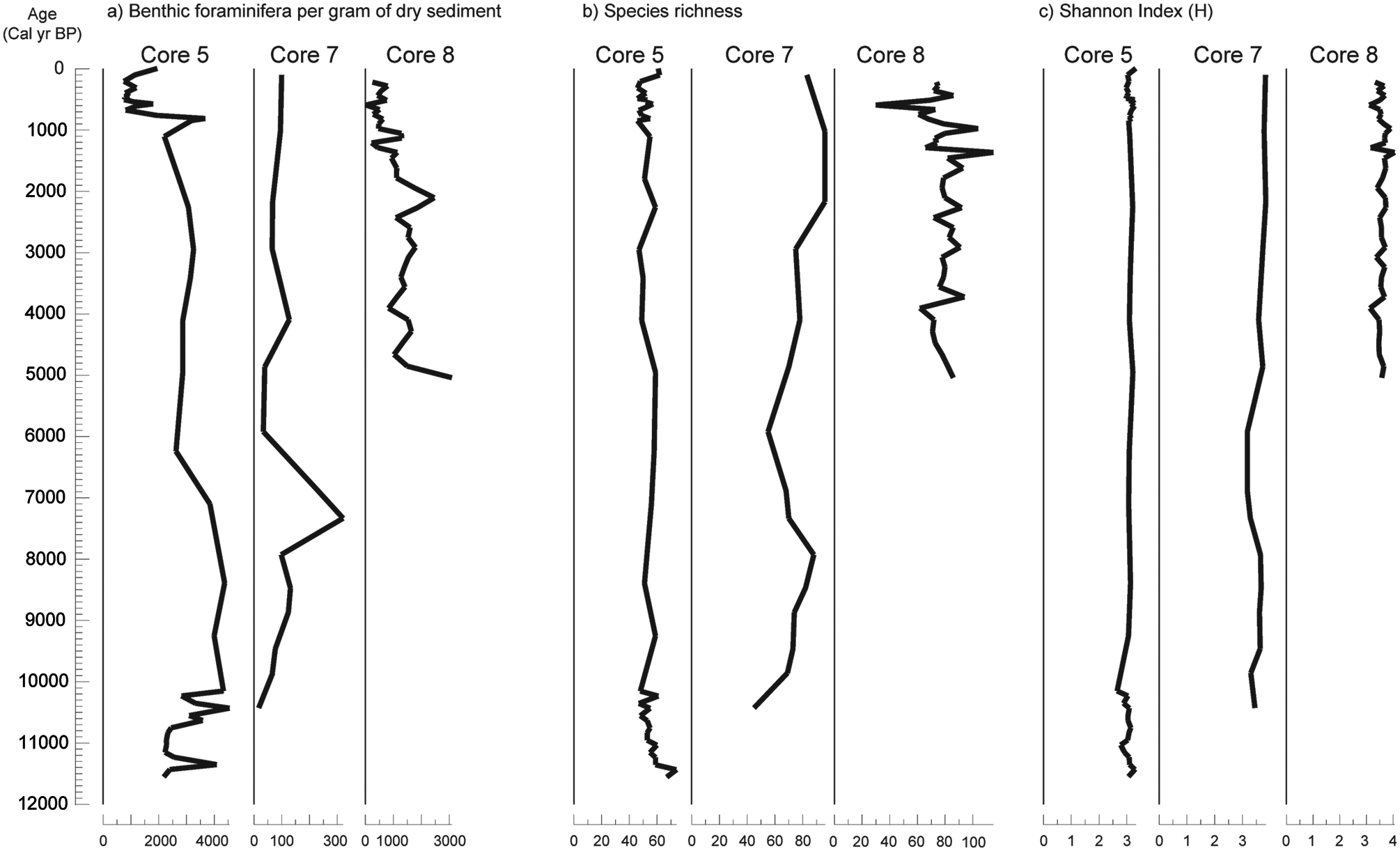

Figure 5.

Variation with age (cal. yr BP) in: (a) benthic foraminifera per gram of dry sediment; (b) species richness; (c)Shannon Index, for the three environments analysed on the Guadiana continental shelf.

The lower and more stable values of species richness were observed in core 5 (46–74 species). In contrast, greater variations and values were observed in core 7 (45–96 species) and the greatest in core 8 (30–115 species) (Figure 5b). These results indicate that greater numbers of specimens are not related to greater numbers of species.

The Shannon diversity index remained relatively constant through all three studied cores. In core 5, it ranged from 2.6 to 3.3, in core 7 from 3.17 to 3.84, and in core 8 from 3.11 to 4.05 (Figure 5c).

Cluster distribution

Cluster analyses were performed using the species that showed an abundance >5%. In core 5, these species comprised between 68 and 82% of all species found in the analysed samples. In core 7 they comprised between 40 and 56% and in core 8 between 44 and 63% of all species found in the samples.

R-mode cluster analyses performed on the foraminiferal species data from each core produced three dendrograms and each one discriminated two clusters: cluster I and cluster II (Figure 6a–c). Main species from each cluster are discriminated below. Q-mode cluster analyses also produced three dendrograms and each one distinguished two clusters: cluster A and cluster B (Figure 6d–f). Cluster A grouped all samples with older ages (except one): core 5 from c. 11,560 to c. 4959 cal. yr BP (Figure 6a); core 7 from c. 10,400 to 5400 cal. yr BP (Figure 6b) and core 8 from c. 5000 to c. 1360 cal. yr BP (Figure 6c). Cluster B grouped all samples (except one) with younger ages: core 5 from c. 4117 cal. yr BP to Recent times (Figure 6d); core 7 from c. 5400 cal. yr BP to Recent times (Figure 6e) and core 8 from c. 1300 to c. 200 cal. yr BP (top core) (Figure 6f). The exceptions occurred in core 7 when a sample collected at the core base, c. 10,400 cal. yr BP, was included in cluster B, and the sample collected at c. 4090 cal. yr BP was included in cluster A (Figure 6b, e).

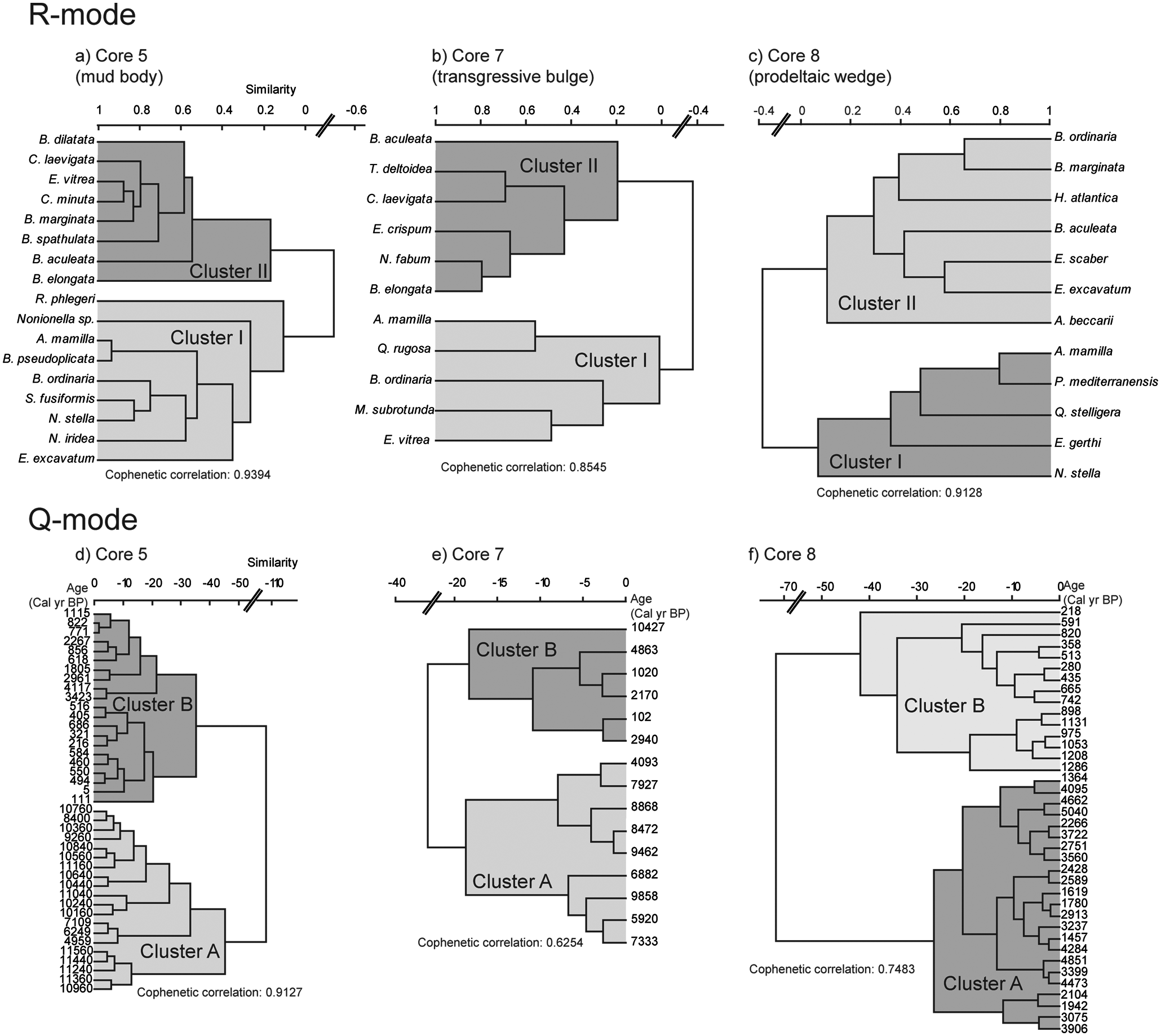

Figure 6.

Dendrogram classification resulting from cluster analyses based on species with relative abundance >5% in at least one sample, in cores 5, 7, and 8: (a), (b) and (c) Foraminiferal assemblages produced by R-mode analysis (correlation method joined by UPGMA); (d), (e) and (f) samples associated produced by Q-mode analysis (Ward’s method).

Individual species distribution

Along core 5, the individual distributions of 17 species with abundance >5% showed two general trends (Figure 7a; Appendix 2, available online). The first trend was characterized by a high abundance or gradual decrease from c. 11,500 cal. yr BP to c. 4500 cal. yr BP, with a further decrease in abundance from this level to the top of the core, with abundances <1% or even a complete disappearance of certain species (Figure 7a). Typical examples of these species were Asterigerinata mamilla (Williamson) (0–22.8%), Bolivina ordinaria Pheleger and Parker (3.8–36.5%), Bolivina pseudoplicata Heron-Allen and Earland (0–5.4%), Elphidium excavatum (Terquem) (0.2–9.3%), Nonionella sp. (0.3–5.4%), Nonionella iridea Heron-Allen and Earland (0.5–6%), Nonionella stella Cushman and Moyer (0–11%), Rectuvigerina phlegeri Le Calvez (0.9–7%), and Stainforthia fusiformis (Williamson) (0–10.9%). The second trend was characterized by lower abundances from the core base to c. 4500 cal. yr BP and an increase from this level to the top of the core. Typical examples of these species were Brizalina dilatata (Reuss) (0.3–10.7%), Brizalina spathulata (Williamson) (0–17.2%), Bulimina aculeata d’Orbigny (0.3–9.6%), Bulimina elongata d’Orbigny (0–5.2%), Bulimina marginata d’Orbigny (0–6.1%), Cassidulina laevigata d’Orbigny (0–21.9%), Cassidulina minuta Cushman (0–5.3%), and Epistominella vitrea Parker (0.9–17.3%). An exception to this pattern was C. laevigata, which showed an earlier increase in abundance, at c. 7000 cal. yr BP (Figure 7a). The individual distributions shown by these species are closely linked with R-mode cluster analyses obtained for core 5 (Figure 6a): species described in the first trend correspond to cluster I, while species from the second trend form cluster II (Figure 7a). The zonation method produced two zones along core 5, the older zone stretching from c. 11,500 to c. 4500 cal. yr BP, and the younger zone from 4500 cal. yr BP to Recent times (Figure 7a).

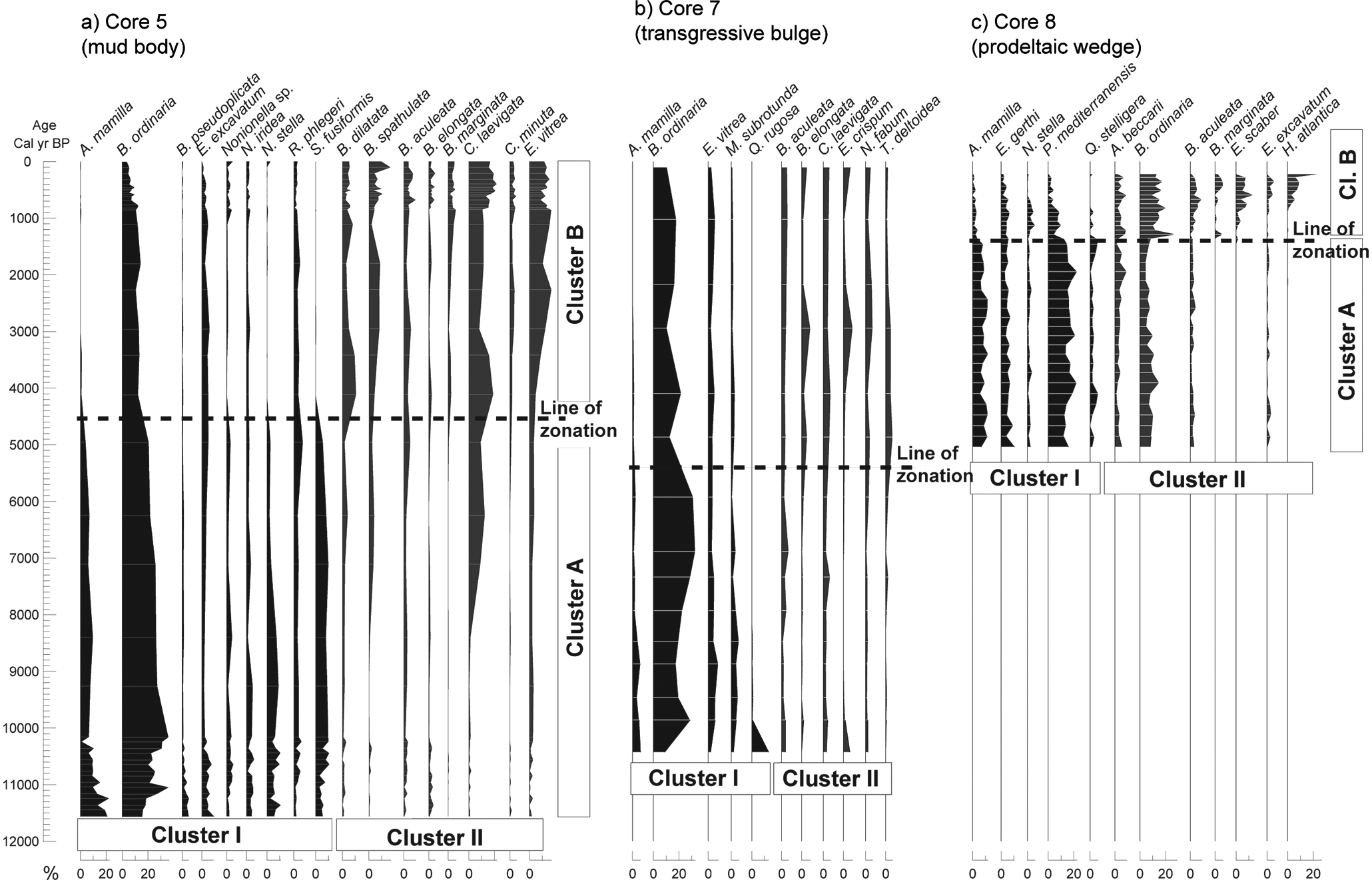

Figure 7.

Variation with age (cal. yr BP) of the relative abundances of benthic foraminiferal species, with abundance >5% in at least one sample, for the three environments analysed on the Guadiana continental shelf. The results obtained by R-mode (Cluster I and II) and by Q-mode (Cluster A and B) cluster analyses, when consistent, are also represented. The dashed lines indicate the results obtained by the zonation method in each environment.

Ten species were most abundant along core 7 (Appendix 2, available online). Again, two general trends could be identified (Figure 7b). The first trend was characterized by species with high or decreasing abundances between c. 10,400 and c. 5400 cal. yr BP: Asterigerinata mamilla (0–6.3%), Bolivina ordinaria (8.9–32.8%), Epistominella vitrea (1.9–7.9%), Miliolinella subrotunda (Montagu) (0.9–6.1%), and Quinqueloculina rugosa d’Orbigny (0–13.3%). Of these species, only Q. rugosa showed higher abundance at the core base, however, dropped abruptly to values <2% in the next analysed level. From c. 5400 cal. yr BP to the core top, the aforementioned species decreased in abundance. The second trend was characterized by species displaying increasing abundance from c. 5400 cal. yr BP to the top: Bulimina aculeata (1.2–5.6%), Bulimina elongata (0–6.9%), Cassidulina laevigata (2.2–5.7%), Elphidium crispum (Linnaeus) (0 –7.3%), Nonion fabum (Fichtel and Moll) (0.8–5.6%), and Textularia deltoidea Reuss (0–5.5%). The distribution trends shown by these species can be closely related to the clusters obtained for core 7 (Figure 6b). The first trend corresponds to cluster I, while the second corresponds to cluster II (Figure 7b). The zonation method produced two zones in core 7, the first zone from c. 10,400 to c. 5400 cal. yr BP, and the second zone from 5400 cal. yr BP to Recent times (Figure 7b).

Along core 8, 12 benthic foraminiferal species showed relative abundances >5% (Appendix 2, available online). As in the other cores, two trends could be observed (Figure 7c). The first trend was characterized by relatively high and constant abundances from the core base to c. 1400–1200 cal. yr BP, followed by a decrease. Typical species were: Asterigerinata mamilla (0–12%), Elphidium gerthi Van Voorthuysen (1–10%), Nonionella stella (0–6%), Planorbulina mediterranensis d’Orbigny (0–23%), and Quinqueloculina stelligera Schlumberger (0–6%). The second trend was characterized by species with low abundance from the core base to c. 1400 cal. yr BP, and increased abundance from this level to the core top (c. 200 cal. yr BP) (Figure 7c). Examples included Ammonia beccarii (2–10%), Bolivina ordinaria (5–29%) (with different trend than previous cores), Bulimina aculeata (0–9%), Bulimina marginata (0–6%), Eggerelloides scaber (Williamson) (0–14%), Elphidium excavatum (0–6%), and Hopkinsina atlantica (Cushman) (0–27%). Eggerelloides scaber and A. beccarii presented peak abundances of 14 and 10%, respectively, around c. 600 cal. yr BP. These groups of species are closely linked with R-mode cluster analyses obtained for core 8 (Figure 6c). Species from the first trend correspond to cluster I and species from the second trend to cluster II (Figure 7c). The zonation method produced two zones along core 8. The first zone, from c. 5000 cal. yr BP (core base) to c. 1350 cal. yr BP, and the second zone from 1350 cal. yr BP to c. 200 cal. yr BP (core top) (Figure 7c).

Discussion

The environments on the continental shelf off the Guadiana River, as analysed above, differed in terms of depth (Figure 1), sedimentary regime (Figures 3, 4), and constituent benthic foraminiferal assemblages (Figures 5, 7). They are regarded as typical marine shelf environments, owing to the relatively constant values of the Shannon index diversity (Murray, 2006) (Figure 5c). A dominant fluvial origin of the sand fraction was inferred for the three analysed environments through the abundance of quartz and the significant amount of mica and other terrigenous components (Figure 4). Sediment remobilization was considered to play a minor role and not to bias the sedimentary record because the radiocarbon dates showed coherently increasing values with core depth (Table 1). Sedimentary structures indicating disturbances were not observed in sediment cores when they were opened. Burdloff et al. (2008) found, however, in upper part of core 5 breaks in the decay profiles of ²¹⁰Pb excess activity. These steps in the activity profiles were probably related to single events with a massive input of sediment. The results obtained allow the identification of four evolutionary stages, described in turn below. These stages provide information about sedimentary deposition through the Holocene in consequence of both natural and anthropogenic processes.

From c. 11,500 to c. 10,000 cal. yr BP

The beginning of the Holocene was characterized by a rapid rise in sea level until c. 7000–5700 cal. yr BP, at which time the rate of rise decreased substantially (e.g. Dias et al., 2000; Fairbanks, 1989; Fleming et al., 1998; Hijma and Cohen, 2010; Stanley, 1995; Teixeira et al., 2005; Vis et al., 2008) (Figure 8). The global sea level curve proposed by Stanley (1995) and the sea level curve for the northern Portuguese shelf (Dias et al., 2000) indicate a variation of 15 to 25 m in water depth during the period from c. 11,500 to c. 10,000 cal. yr BP (c. 10,000 to c. 9040 yr BP) (Figure 8a). At the beginning of this period, mean sea levels were approximately 55–60 m below present and 35–40 m below present at c. 10,000 cal. yr BP (Figure 8a). In contrast, the relative sea level curve for the Lower Tagus Valley (west Portugal) indicates sea levels 40 m and 22 m below present at c. 11,500 and c. 10,000 cal. yr BP, respectively (Vis et al., 2008) (Figure 8b).

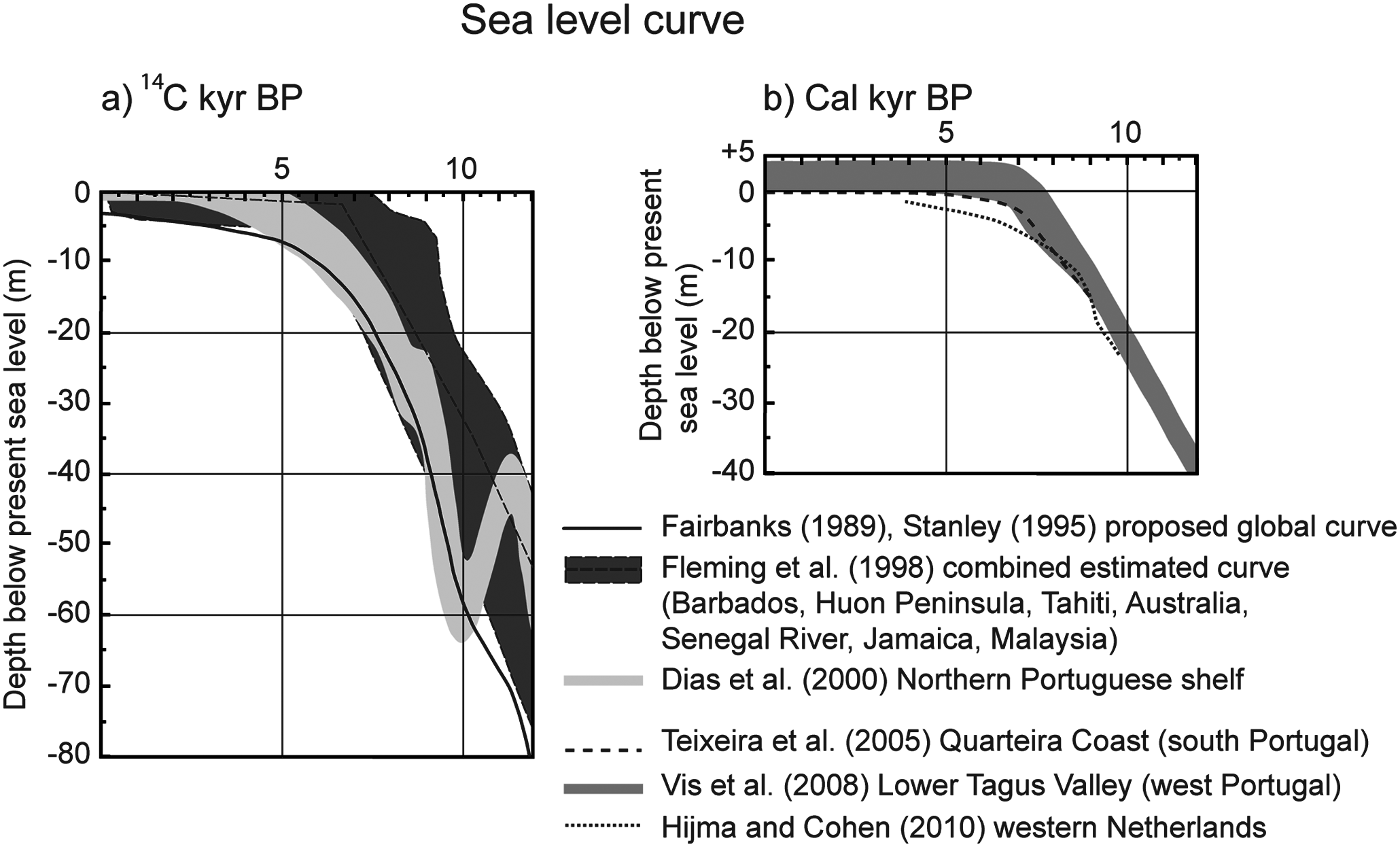

Figure 8.

Sea level curves, proposed by different authors with respective locations. Variation in depth below present sea level with: (a) radiocarbon ages (kyr BP); (b) calibrated age (cal. kyr BP).

At present, fine-grained sediments occur on the shelf study area between 35 and 100 m water depth (Gonzalez et al., 2004). If similar conditions existed in the beginning of the Holocene, the base of core 5 would have been located in an area corresponding to the shallowest limit of fine-grained sedimentation. Core 7 would probably have been located in the vicinity of the paleo-mouth of the Guadiana River in a shallow marine environment. Thus it indicates that the obtained results seem to be more in accordance with the proposed sea level curve of Vis et al. (2008) and Teixeira et al. (2005), in which the mean sea level would have been closer to the present one (Figure 8b).

During this period, high sedimentation rates of sandy mud were recorded in core 5, in agreement with the observations of Nelson et al. (1999) of 131 cm/ka in a core located southeast of the Guadiana River mouth at mid-shelf water depths. For the middle shelf mud body (core 5), this period was characterized by the highest percentages of sand (Figure 3a) and by the highest sedimentation rates, resulting in an accumulation of about 1.5 m of sediment (Figure 2a). An increasing abundance of B. ordinaria, normally associated with a high organic matter content (Martins et al., 2006), can be observed (Figure 7a). This is very likely associated with higher influence of the discharges from the Guadiana River at this time. Simultaneously, A. mamilla shows a decrease in abundance (Figure 7a), indicating a deepening sedimentary environment and a reduction in hydrodynamic energy levels near the bottom. This is in accordance with Mendes et al. (2004) who described high abundances of this species on the inner shelf off the Guadiana River in waters shallow than 12 m, and associated with a mixture of mud and sands.

In the upper middle shelf transgressive bulge (core 7), only the period between c. 10,400 and c. 10,000 cal. yr BP is represented. It was characterized by the lowest benthic foraminiferal population density (Figure 5a), and the lowest abundance of B. ordinaria. Simultaneously, the greatest abundance of Q. rugosa observed through the core (Figure 7b) is in agreement with Villanueva et al. (1999), which described Quinqueloculina rugosa (as Cycloforina rugosa) associated with sands and high organic matter content. Indicating a sandy environment rich organic matter and dominated by Q. rugosa.

From c. 10,000 to c. 5000 cal. yr BP

This period was characterized by a rapid and continuous rise in sea level until c. 7000–5700 cal. yr BP, after which the rate of the rise decreased significantly (Figure 8). The fast sea level rise led to an accelerated phase of infilling of the Guadiana Estuary (Boski et al., 2002). This infilling began mainly with clay deposition in the period between 9800 and 6500 yr BP (c. 10,700 to c. 7380 cal. yr BP), followed by coarser sediments in the central part of the estuary, between 7500 and 7000 yr BP (c. 8220 to c. 7787 cal. yr BP) (Boski et al., 2002). In the study area, the period of estuary infilling resulted in a reduction of sediment exported to the adjacent shelf. The consequent decrease in sedimentation coincides with the lowest sedimentation rates observed in core 5 on the middle shelf mud body (Figure 2a). Furthermore, the progressive decrease in mean grain size (Figure 3a) indicates that fine-grained sediments were exported mainly to the shelf while most coarse-grained sediments were retained inside the estuary. This is in accordance with Lantzsch et al. (2009), which observed a transition from fine sands towards mud on the central Muros and Galicia mud belts (NW Iberia), during this period. The analysed sediments were interpreted to reflect a deepening environment which resulted in low hydrodynamic levels, and the decrease influence of Guadiana River discharges. This was confirmed by the high abundances of opportunistic and/or highly adapted benthic foraminiferal species observed during this period (Figure 7a). The most abundant species found coexisting in this part of the core 5 have different ecological requirements. Some of the species characterizing this period are highly adapted to a specific environment, such as A. mamilla, described in shallow waters and associated with a mixture of mud and sand or sandy sediments (e.g. Jorissen, 1987; Mendes et al., 2004; Samir and El-Din, 2001). Other species are opportunistic and have been associated with high organic matter contents, such as B. ordinaria (Martins et al., 2006) and E. excavatum (de Nooijer et al., 2008). Rectuvigerina phlegeri is also influenced by river discharges (Mojtahid et al., 2009) and described on muddy bottoms characterized by high organic matter contents (Frezza and Carboni, 2009; Villanueva and Cervera, 1999a). Species such as S. fusiformis, considered to have an opportunistic life-strategy and to be highly adapted to environmental stress, predominate in areas subject to rapidly changing environmental conditions (Alve, 2003). This period, therefore, could be interpreted as an environment in a state of disequilibrium under the influence of multiple changing parameters, reflecting shifts in water depth, sediment supply, and hydrodynamic levels.

On the upper middle shelf transgressive bulge (core 7), the impact of the Guadiana Estuary infilling seems to show a visible influence only in the period between c. 7500 and c. 7000 cal. yr BP. During this period, while sands remained the dominant textural class, an increase in fines was observed (Figure 3b), probably as a consequence of the retention of most of the coarser sediments inside the estuary (Boski et al., 2002). The temporal discrepancy between the estuary infilling reported by Boski et al. (2002) and the sedimentary changes observed for this area of the shelf could indicate a time lag for the final deposition of fine-grained sediments after successive periods of deposition and remobilization.

The 4 to 5 km wide and 4 km long transgressive bulge on the continental shelf, where core 7 was collected, is elevated by 10 m in relation to adjacent areas and is composed of muddy gravelly sands and muddy sands (Gonzalez et al., 2004). The development of the bulge continues to be a topic of scientific discussion. Lobo et al. (2001) attribute its formation to a combination of reduced rates of sea level rise and increased sediment yields to the shelf, probably associated with the cold event centred around 8.2 kyr BP. Gonzalez et al. (2004) interpret this body as a result of a period of rapid sediment accumulation related to floods in the Guadiana River basin, probably associated with a transition from a dry, cold period to a warmer, more humid, period. In the lower Guadiana valley, palynological evidence points to a short-lived event associated with arid conditions of wider regional significance around c. 8000 cal. yr BP (Fletcher et al., 2007). However, in the study area, the period from c. 10,000 to 5000 cal. yr BP was characterized by relatively constant sedimentation rates (Figure 2b), small variations in grain size (Figure 3b), a sand fraction dominated by terrigenous components (Figure 4b), and a low benthic foraminiferal population density (Figure 5a), together indicating that the 8.2 kyr event was not clearly recorded or that the event was not captured because of the comparatively low temporal resolution of the sample intervals in this part of the core.

As observed on the middle shelf mud body (core 5), the more abundant species on the transgressive bulge (core 7) have been reported in the literature as being highly adapted or opportunistic. Asterigerinata mamilla and B. ordinaria presented a similar trend as in core 5. In contrast, E. vitrea displayed opposing behaviour, being more abundant during this period in sandy sediments (Figure 7b), indicating opportunism. This species has been described on the middle shelf, where river discharge was enhanced (Duchemin et al., 2007), and in muddy sediments associated with low hydrodynamic levels (Mendes et al., 2004). Miliolinella subrotunda, which is more abundant only in this environment, decreased in abundance during this period, pointing to environmental changes. This species has been described in sediments having more than 75% of sand (Levy et al., 1995). The high abundances of these species associated with sand could indicate a shallower environment strongly influenced by the bedload discharges from the Guadiana River. The low population density in core 7 (Figure 5a) and the high percentage of terrigenous components (Figure 4b) indicates that this area of the continental shelf was probably located in a shallower position, probably corresponding to a sedimentary environment similar to the present river mouth, where predominately terrigenous sands can be observed (Gonzalez et al., 2004).

From c. 5000 to c. 1500–1000 cal. yr BP

There is no worldwide or even regional consensus for the time at which the present-day sea level was reached. Most studies of sea level change indicate that it might have been reached at around 5700–5000 cal. yr BP (e.g. Dias et al., 2000; Fairbanks, 1989; Peltier and Fairbanks, 2006; Stanley, 1995; Zazo et al., 2008). In contrast, local studies in the Lower Tagus Valley (Vis et al., 2008) and on the Quarteira coast (Teixeira et al., 2005) indicate that present-day mean sea levels might have been reached as early as 7000 cal. yr BP (Figure 8b). However, there is general agreement that a rapid rise in sea level occurred until approximately c. 7000 cal. yr BP.

In this investigation, variations observed in components of the sand fraction (Figure 4) and benthic foraminiferal assemblages, also corroborated by statistical results obtained by cluster analysis and zonation methods (Figures 6 and 7), indicate that important changes occurred at around 5000 cal. yr BP. These changes clear identify the transition from low sea level to modern sea level. These results are in agreement with those obtained by Zazo et al. (2008) in southern Spain, and by Boski et al. (2002) in the Guadiana Estuary, where dates of c. 5700–5000 cal. yr BP were calculated for the attainment of present-day sea levels. Those authors documented, however, a phase of slower rise between 7000–6500 and 7380–5700 cal. yr BP, respectively.

The results obtained for the three environments indicate relatively stable climatic and environmental conditions, after reaching the present mean sea level. On the middle shelf (core 5), the period reflects the depositional conditions that established the muddy body, after the stabilization of mean sea level. A decreasing trend of sand content and mean grain size (Figure 3a) could indicate the progressive disequilibrium of the estuary, with a progressive silting-up, until equilibrium with the new base level was reached (a hysteresis of estuarine sedimentation). This process led to a decrease in sedimentation rates of fine-grained sediments on the shelf (Figures 2a, 3a). These inferences are reinforced by an increase in glauconite sediments observed during this period (Figure 4a), normally associated with periods of little or no active sedimentation (e.g. Odin and Matter, 1981).

Faunal changes occurred at the beginning of this period, with a decreasing (increasing) abundance of species more adapted to shallow (deeper) environments. With the exception of B. elongata, the species that showed increased abundances during this period (Figure 5) were described at depths >40 m, associated with fine sediments and low hydrodynamic levels (Mendes et al., 2004). Furthermore, species such as B. spathulata, B. aculeata, and B. marginata have been reported in areas influenced by river discharges, in mud sediments characterized by high organic matter contents (e.g. Donnici and Barbero, 2002; Frezza and Carboni, 2009; Mojtahid et al., 2009). Cassidulina laevigata and B. marginata are also associated with fresh organic matter with high nutrition value (de Rijk et al., 2000). This indicates that the abundance of these species was affected not only by the establishment of a new, deep environment after reaching the present-day mean sea level, but also by an increasing contribution of organic matter that could be related to larger river discharges or to productivity changes. This interpretation is in accordance with that of Burdloff et al. (2008), who found (in core 5) an increasing contribution of fine-sized marine organic matter and an enhancement of terrestrial sediment supply during the upper Holocene.

The upper middle shelf transgressive bulge (core 7) is composed mainly of sands and is influenced by the Guadiana River discharges. Bolivina ordinaria remained the most abundant species (Figure 7b), and the most opportunistic of the assemblage, despite its decreased abundance. Six more species with different ecological requirements presented increased abundance during this period. These species have been described by Mendes et al. (2004) at various water depths and in different environments. For instance, E. crispum was described at depths <12 m and C. laevigata at depths >95 m and associated with different types of sediments (Mendes et al., 2004). The occurrence of these species with different ecological requirements indicates that the sandy substratum was the most important factor controlling their abundance or that mixing or transport could have occurred during this period.

The sedimentary sequence retrieved from the inner shelf prodeltaic wedge (core 8) reflects the environmental conditions achieved after the attainment of the present mean sea level. These sediments were interpreted as representative of a depositional unit formed under the direct influence of the Guadiana River. The description by Strabo (Geographica, III, 1, 9, Velozo and Cardoso, 1965) of the southern Iberian Peninsula reports the existence of two distributaries of the Guadiana Delta around 2000 cal. yr BP. This description, together with geomorphological evidence (e.g. Gonzalez et al., 2004), indicates that the easternmost distributary of the Guadiana estuary (probably in the present-day area of Isla Cristina) may have been responsible for direct river discharge into the location of the present-day prodeltaic wedge (Figure 1). This interpretation is supported by the similar percentages of the fine and coarse fractions (Figure 3c), by the relatively constant percentages of all components of the sand fraction (Figure 4c), and by the high abundances of A. mamilla, P. mediterranensis and E. gerthi (Figure 7c) which are characteristic of shallow and sandy environments (e.g. Mendes et al., 2004; Pujos, 1976; Villanueva and Cervera, 1999b).

From c. 1500–1000 cal. yr BP to Recent times

Intensification of human impact on woodland resources and a considerable anthropogenic influence on the landscape occurred during the protohistoric periods (Iron age, Roman) in the Guadiana Valley (Fletcher et al., 2007). During the Roman occupation of the Iberian Peninsula, between 218 bc and ad 411 (c. 2168 to 1539 cal. yr BP), increased anthropogenic impact occurred in the Guadiana River, since it was used to transport agricultural products such as wine (Alarcão, 1988) and copper from the São Domingos mine (Fabião, 1992). Between 1500 and 1000 cal. yr BP, the climate deteriorated in northern Europe, characterized by a rapid cooling, defined as the Dark Ages (Lamb, 1977). On the Tagus prodelta, the period between c. ad 400 and 700 (c. 1550 to 1250 cal. yr BP – ‘Dark Ages’) could have been as warm as the ‘Medieval Warm Period’ (MWP) (Lebreiro et al., 2006). During the MWP, drier continental conditions and intensified coastal upwelling occurred on the Tagus prodelta (Abrantes et al., 2005; Lebreiro et al., 2006). On the Galician continental shelf relatively dry conditions were also observed between 1700 and 1200 cal. yr BP, however an increase precipitation over the NW Iberian Peninsula, with enhanced flow of the Minho and Douro rivers, occurred since c. 1200 cal. yr BP (Bernárdez et al., 2008). On the inner shelf prodeltaic wedge study area (core 8), the results obtained for the period between 1500 and 1200 cal. yr BP indicate that humid conditions occurred earlier, which combined with human activities allowed large volumes of sediment to be transported to the continental shelf, creating changes in the type of sediment and foraminiferal assemblages (Figures 3c, 7c). This interpretation is in agreement with Lesueur et al. (1996), which observed on the Gironde shelf an increasing deposition of fine-grained sediments and the formation of mud fields during the last c. 2000 yr BP, linked to climatic fluctuations, combined with anthropogenic activities.

On the middle shelf mud body (core 5), a period of environmental transition occurred from c. 1000 to c. 800 cal. yr BP. It was characterized by a gradual increase of bioclastic components (Figure 4a), marked variations in benthic foraminiferal population density, and variations in benthic foraminiferal assemblages (Figures 5, 7). After this transition the period between c. 800 cal. yr BP and Recent times was characterized by the new base level on the continental shelf, reflecting the recent depositional conditions. This equilibrium was indicated by the deposition of fine sediments and relatively constant mean grain size (Figure 3a), an increase in sedimentation rates (Figure 2a), and an increase in bioclastic components of the sand fraction (mainly foraminifera and other bioclasts) (Figure 4a). Furthermore, this interval coincides with the lower number of benthic foraminifera per gram of sediment (Figure 5a) and the relatively constant abundance of species characteristic of middle shelf environments.

On the upper middle shelf transgressive bulge (core 7), the last c. 1000 years were characterized by a relatively stable environment. The increase in the percentage of the fine fraction could be interpreted as recent fluvially derived sediments.

On the inner shelf prodeltaic wedge (core 8), a period of environmental transition was observed between c. 1500 and c. 1200 cal. yr BP. It was evidenced by a rapid increase in the fine fraction (Figure 3c), a smooth increase in the terrigenous component (Figure 4c), and important shifts in benthic foraminiferal assemblages, also confirmed by cluster analysis and zonation methods (Figures 6, 7c). The highest species richness occurred (Figure 5b), indicating that species from the lower and upper sedimentary units coexisted, until the establishment of the new environmental conditions. Furthermore, a greater abundance of B. ordinaria and B. marginata, normally associated with high amounts of organic carbon (Donnici and Barbero, 2002; Martins et al., 2006) also points to environmental changes (Figure 7c). After this transitional period and up to the core top, new climatic and environmental conditions were established. A more stable environment, with increased deposition of fines and greater availability of organic matter, is reflected by the higher abundance of B. ordinaria and H. atlantica (e.g. Diz and Francés, 2008; Ernst et al., 2005; Martins et al., 2006; Mendes et al., 2004). Despite a more stable environment, around 600 cal. yr BP, a change seemed to occur, as the number of benthic foraminifera reached a minimum and some species such as A. beccarii and E. scaber presented peaks of abundance. Ammonia beccarii is a typical estuarine species from the Guadiana estuary (Ruiz et al., 2005) and E. scaber shows a higher abundance near the Guadiana River mouth (Mendes et al., 2004). The highest abundances of these species, associated with a smooth peak of gravel and sand (c. 650 cal. yr BP), could be related to a wetter phase such as that identified by Abrantes et al. (2005), Lebreiro et al. (2006) and Alt-Epping et al. (2009) in the Tagus prodelta and by Bernárdez et al. (2008) on the Galician continental shelf interpreted as the beginning of the ‘Little Ice Age’ (LIA). Negative NAO indices were correlated with precipitation-river input during cold periods, and more persistent negative state or frequent extreme NAO minima occurred during the LIA (Abrantes et al., 2005; Lebreiro et al., 2006). According to Dias et al. (2004), discharges from the Guadiana River in the last 50 years show a strong link with the NAO index, with negative values usually resulting in higher rainfall and subsequent flooding in the river basin during winter months. Furthermore, the great interannual variability in the flows of the Tagus and Guadiana Rivers is largely modulated by the NAO phenomenon (Trigo et al., 2004). Deterioration of climate and intensification of rains combined with human activities would generate transportation of both coarser sediments and related foraminiferal species which are more abundant near the river mouth, to more distal areas of the inner shelf, where core 8 is located. These results are in agreement with those obtained by Bartels-Jónsdóttir et al. (2006) in the Tagus prodelta, where shifts in the benthic foraminiferal assemblages around 550 cal. yr BP were associated with increased river discharges.

The highest sedimentation rates, together with the stabilization of the fine fraction deposition in core 8 on the inner shelf prodeltaic wedge (at c. 1400 cal. yr BP until present) and in core 5 on the middle shelf mud body (from c. 900 to c. 420 cal. yr BP) (Figure 2a, c), could be related with increased settlement density. According to Boone and Worman (2007), after the dissolution of the Roman control of Iberia in the 5th century ad (c. 1500 cal. yr BP) and over the next 500 years, particularly after the Muslim invasion of ad 711 (c. 1200 cal. yr BP), settlement density increased six-fold over the number of inhabitants in the Roman period.

On the central Adriatic Sea, sedimentation rates roughly quadrupled between 1100 and 700 yr BP in response to land use changes, which increased the input of terrigenous sediment to the shelf (Oldfield et al., 2003). In the region of Mértola (approximately 70 km upriver from the estuary mouth) geoarchaeological investigation concerning the role of human activity and environmental change points to widespread erosion and soil loss after the later Medieval Islamic period (800–900 cal. yr BP), caused by the overuse of land (Boone and Worman, 2007). This probably led to the increased exportation of sediments to the shelf, which contributed to the silting-up of the Guadiana’s eastern distributary. The reinforcement of the western distributary, with the transportation of greater amounts of sediments to the shelf, led to the formation of the present prodeltaic wedge. On the middle shelf, the establishment of the muddy body where the higher rates of sedimentation were observed seems to have occurred only after the formation of the prodeltaic wedge.

Conclusions

This study allowed an integrated approach, on the paleoenvironmental evolution of the continental shelf off Guadiana River in response to natural and human-induced changes. Four evolutionary stages were identified. Each stage is a representation of the environmental changes that characterized the three depositional environments at different times during the Holocene. They indicate that the three older stages were mainly influenced by natural processes, including sea level changes, influence of river discharge and substrate properties. The younger stage, the last c. 1500 cal. yr BP, reflects human-induced environmental changes caused by human occupation (inducing soil erosion) associated with climatic changes.

The three shelf environments studied differed in terms of depth, sedimentary regime, and benthic foraminiferal assemblages, however, dominated by sand from fluvial origin. On the basis of these variations four evolutionary stages were identified. The first stage from c. 11,500 to c. 10,000 cal. yr BP, on the middle shelf mud body (Core 5) was characterized by a deepening sedimentary environment with high influence of river discharges. The upper middle shelf transgressive bulge (Core 7) was probably located in the vicinity of the paleo-mouth of the Guadiana River. The second stage from c. 10,000 to c. 5000 cal. yr BP reflected the reduction of sediments exported to the shelf, as result of the continuous and rapid sea level rise and consequent estuary infilling. On the transgressive bulge, this period reflected a shallower environment influenced by Guadiana River discharges. The present day sea level was reached in the beginning of third stage from c. 5000 to c. 1500–1000 cal. yr BP. This period reflects depositional conditions that established the muddy body, after the attainment of the present mean sea level and of estuary equilibrium. On the prodeltaic wedge the sedimentary deposition occurred under the direct influence of the easternmost distributary of the Guadiana River. The forth stage from c. 1500–1000 cal. yr BP to Recent times, reflects the intensification of human activities, the muddy body formation and recent depositional conditions. On the prodeltaic wedge, after 1200 cal. yr BP, new climatic and environmental conditions were established. However, around c. 600 cal. yr BP, a wetter phase, related to the beginning of the LIA, may have been registered. This phase could also be associated with negative NAO values, which would likely have resulted in more rainfall and subsequent flooding in the river basin during winter months. The intensification of human impact on the Guadiana River basin, associated with more humid climate conditions led to an increase in sediment export to the shelf and to the possible silting-up of the Guadiana’s eastern distributary. The reinforcement of the western distributary, led to the formation of the present prodeltaic wedge. On the middle shelf, the establishment of the muddy body seems to have occurred only after the prodeltaic wedge formation.

Footnotes

Funding

This work was supported by the Portuguese Science Foundation under the aims of projects CRIDA (Consequences of River Discharge Modifications on Coastal Zones and Continental Shelf – PDCTM/P/MAR/15289/1999); IMCA (Impact of climatic and anthropic variations on the northern continental shelf, Gulf of Cadiz – POCTI/CLI/60192/2004) and CIRCO (Climate changes from isotopic records during the Holocene in South-western Iberia – PTDC/CLI/66393/2006). Isabel Mendes thanks also the Portuguese Science Foundation for grants SFRH/BD/18342/2004 and SFRH/BPD/72869/2010 and Francisca Rosa for grant SFRH/BD/46020/2008.
