An improved methodology for the recovery of Zea mays and other large crop pollen,with implications for environmental archaeology in the Neotropics

Abstract

We present a simple sieving methodology to aid the recovery of large cultigen pollen grains, such as maize (Zea mays L.), manioc (Manihot esculenta Crantz), and sweet potato (Ipomoea batatas L.), among others, for the detection of food production using fossil pollen analysis of lake sediments in the tropical Americas. The new methodology was tested on three large study lakes located next to known and/or excavated pre-Columbian archaeological sites in South and Central America. Five paired samples, one treated by sieving, the other prepared using standard methodology, were compared for each of the three sites. Using the new methodology, chemically digested sediment samples were passed through a 53 µm sieve, and the residue was retained, mounted in silicone oil, and counted for large cultigen pollen grains. The filtrate was mounted and analysed for pollen according to standard palynological procedures. Zea mays (L.) was recovered from the sediments of all three study lakes using the sieving technique, where no cultigen pollen had been previously recorded using the standard methodology. Confidence intervals demonstrate there is no significant difference in pollen assemblages between the sieved versus unsieved samples. Equal numbers of exotic Lycopodium spores added to both the filtrate and residue of the sieved samples allow for direct comparison of cultigen pollen abundance with the standard terrestrial pollen count. Our technique enables the isolation and rapid scanning for maize and other cultigen pollen in lake sediments, which, in conjunction with charcoal and pollen records, is key to determining land-use patterns and the environmental impact of pre-Columbian societies.

Keywords

cultigen pollen palynology pollen preparation techniques pre-Columbian agriculture pre-Columbian archaeology

Introduction

The pollen of domesticated plants, including maize (Zea mays L.), are key indicators of pre- and post-Columbian food production in palaeoecological records throughout South and Central America (Behling et al., 1998; Berrio et al., 2000, 2002; Bush and Weng, 2007; Bush et al., 1989, 2007; Clement and Horn, 2001; Gessert et al., 2011; Islebe et al., 1996; Kennedy and Horn, 2008; Niemann and Behling, 2009; Northrop and Horn, 1996; Piperno, 2006a). Maize pollen is particularly advantageous for the detection of food production in the palaeorecord because, although it has been shown to overlap in morphology, notably size, with its ancestor, Balsas teosinte (Zea mays subsp. parviglumis) (Holst et al., 2007; Matsuoka et al., 2002; Piperno et al., 2009; van Heerwaarden et al., 2011), maize pollen can be readily separated from that of other wild grasses by its size, surface sculpturing and exine structure (Holst et al., 2007). However, maize pollen is poorly dispersed from the source plants because of its large size (55–120 µm), as shown in both field and laboratory settings (Jarosz et al., 2003; Raynor et al., 1972), as well as in modern lacustrine environments (Lane et al., 2010). Additional staple food crops common to the Neotropics, such as manioc (Manihot esculenta Crantz), sweet potato (Ipomoea batatas L.), and squash (Cucurbita spp.) can also be useful indicators of food production, although, at present, insufficient studies have been conducted to distinguish the pollen of these domesticated varieties from their wild relatives. Similar to maize, Ipomoea batatas, Cucurbita spp., and Manihot esculenta produce large pollen grains (80–250 µm) (Herrera and Urrego, 1996), and because they are insect-pollinated (Hurd et al., 1971; Real, 1981; Rival and McKey, 2008; Rogers, 1965), these crops also yield low quantities of pollen.

Thus, key indicators of cultivation are generally rare within lacustrine fossil pollen records (Behling et al., 1998; Bush et al., 1989; Niemann and Behling, 2009), often represented by single grains in non-contiguous horizons, but because of their poor dispersal, large cultigen pollen are considered to be strong indicators of local food production (Bryant and Hall, 1993; Bush et al., 2007; Islebe et al., 1996; Jones, 1994; Lane et al., 2010; Pohl et al., 1996). Palaeoecologists and archaeologists have therefore inferred cultivation from simple presence/absence of these rare pollen grains, rather than quantified variations in abundance afforded by more common pollen types.

Given that it can be identified to species level, maize pollen is considered to be the strongest evidence of local food production in pre-Columbian archaeological and palaeoenvironmental studies (Clement and Horn, 2001). To increase the likelihood of its detection, palynologists often count outside the standard terrestrial pollen sum (typically 300 grains) (Anchukaitis and Horn, 2005; Bush et al., 1989; Clement and Horn, 2001; Horn and Kennedy, 2001; Kennedy and Horn, 2008), which can be a laborious and inefficient task. Even for a lake surrounded by cultivated maize fields, Zea pollen is either rare (< 80 grains/cm³), or even absent, from standard terrestrial pollen sums (Lane et al., 2010). Also, the number of slides required to be scanned for maize pollen is likely to increase with lake area and distance from the site of cultivation, given these factors are negatively correlated with maize concentrations in lacustrine sedimentary environments (Lane et al., 2010).

A better method that increases the probability of retrieving maize and other large cultigen pollen involves the concentration of these grains using a fine sieve. A detailed methodology has been described for the retrieval of cereal grains in northern Europe (Bowler and Hall, 1989), using a 30 µm aperture sieve. However, this methodology suffers from the disadvantage of requiring two sediment samples from a given stratigraphic horizon – one for the standard pollen preparation, and the other specifically for sieving for large cultigen pollen grains. Not only is this double-sample method time-consuming compared with analysis of a single sample, it is also wasteful of sediment (a sparse commodity from a typical 5 cm diameter core) that could potentially be used for additional palaeoenvironmental proxy analyses.

Aims

Here, we present a simple sieving methodology for detection of maize and other large cultigen pollen that does not suffer from the drawbacks of a double sampling protocol (Bowler and Hall, 1989). Our method incorporates sieving as an extra key step within a standard chemical digestion pollen protocol (Fægri and Iverson, 1989), which markedly increases the likelihood and ease of recovery of maize and other large pollen from staple crops of South and Central America from lake sediments.

Study sites

We tested our methodology on sediments of three lakes from two distinct regions in Latin America, each located near to known archaeological sites (Figure 1). Lake data are summarized in Table 1.

Figure 1.

Location of (a) New River Lagoon, adjacent the Maya settlement at Lamanai, in Belize, and (b) Lagunas San José and Isireri, situated near to habitation mounds and raised fields, respectively, in the Beni department, lowland Bolivia.

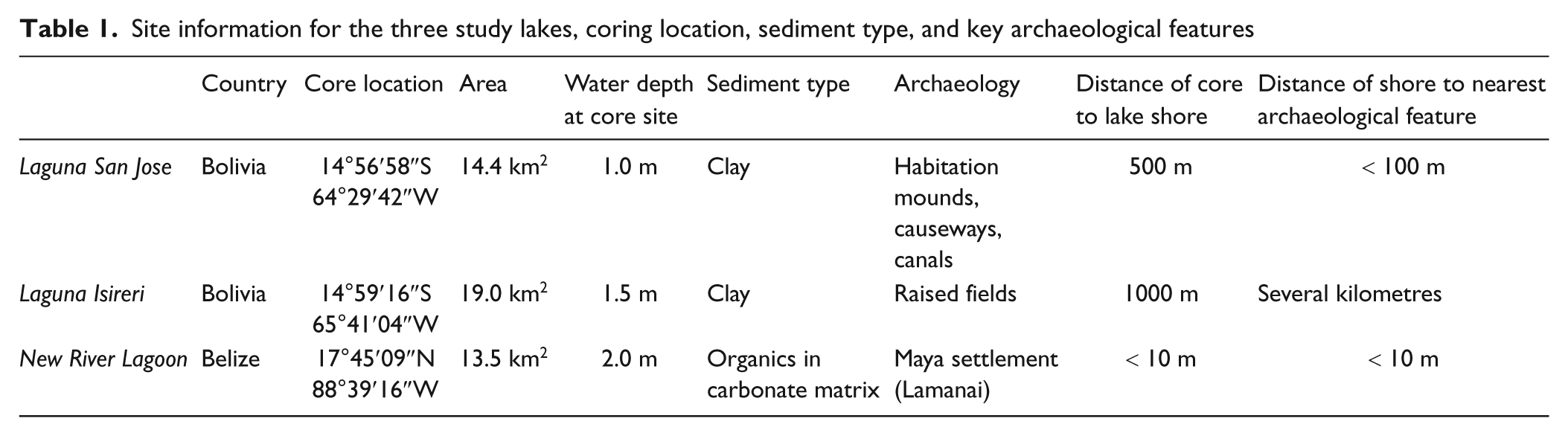

Table 1.

Site information for the three study lakes, coring location, sediment type, and key archaeological features

	Country	Core location	Area	Water depth at core site	Sediment type	Archaeology	Distance of core to lake shore	Distance of shore to nearest archaeological feature
Laguna San Jose	Bolivia	14°56′58″S 64°29′42″W	14.4 km²	1.0 m	Clay	Habitation mounds, causeways, canals	500 m	< 100 m
Laguna Isireri	Bolivia	14°59′16″S 65°41′04″W	19.0 km²	1.5 m	Clay	Raised fields	1000 m	Several kilometres
New River Lagoon	Belize	17°45′09″N 88°39′16″W	13.5 km²	2.0 m	Organics in carbonate matrix	Maya settlement (Lamanai)	< 10 m	< 10 m

Region 1: Northern Belize

Belize is located in the southeastern part of the Yucatán peninsula, bordered by Mexico to the north, Guatemala to the south and west, and the Caribbean Sea to the east. This country is characterized by extensive pre-Columbian Maya occupation, including Lamanai, a site located in the north-central part of Belize where archaeological evidence points to continuous occupation from 300 bc to ad 1675 ( Graham, 2001, 2004; Pendergast, 1986). The Maya settlement at Lamanai is located on the west shore of our study site, New River Lagoon (NRL), a substantial open-water body 60 km from the estuary of New River, one of the largest rivers in northern Belize (Table 1). The vegetation at Lamanai is characterized by lowland evergreen broadleaved forest (Bridgewater et al., 2002). A large swathe of marshy vegetation forms the eastern boundary of the lagoon (Meerman and Sabido, 2001; Metcalfe et al., 2009). Although a lake-level reconstruction from NRL points to shifts in the late-Holocene precipitation regime in northern Belize (Metcalfe et al., 2009), there is no archaeological or palaeolimnological evidence of Terminal/Late Classic collapse (c. ad 750–1050) (Graham, 2004; Metcalfe et al., 2009), unlike neighbouring archaeological sites in Belize (Alcala-Herrera et al., 1994; Jacob and Halmark, 1996), Guatemala (Hodell et al., 2001) and Mexico (Curtis et al., 1996; Hodell et al., 2005).

Region 2: Llanos de Moxos, Bolivia

The Llanos de Moxos is a large hydrological basin (130,000 km²) in SW Amazonia, situated in the Beni department, lowland Bolivia. The Llanos de Moxos is characterized by a mosaic landscape that consists predominantly of seasonally inundated savannahs, interspersed with forested mounds and river levées (Orellana et al., 2004). Large-scale pre-Columbian earthworks, including habitation mounds, raised fields, canals, causeways and fish weirs (Denevan, 1966; Erickson, 2000; Lombardo and Prümers, 2010; Lombardo et al., 2011; Mann, 2008) have been identified throughout the region. Approximately 50 km east of Trinidad, the capital of the Beni department, the pre-Columbian earthworks consist of extensive large habitation mounds (> 100), canals and causeways (Lombardo and Prümers, 2010). Situated among these archaeological features, Laguna San José is one of many flat-bottomed and shallow rectilinear lakes dispersed across the Llanos de Moxos (Clapperton, 1993). Two large habitation mounds, Loma Salvatierra and Loma Mendoza, lie within 2 km of Laguna San José, and have been extensively excavated by archaeologists (Dickau et al., 2012; Lombardo and Prümers, 2010; Prümers, 2008, 2009a, 2009b). Several additional pre-Columbian earthworks surround the lake, including a canal located within 100 m of its northwestern shore (Lombardo and Prümers, 2010). Dominant vegetation around Laguna San José includes seasonally inundated savannahs, some of which are used for cattle pasture. Forest patches are located near the lake shore. Situated approximately 80 km west of Trinidad, Laguna Isireri is another large, rectilinear lake adjacent to the town of San Ignacio de Moxos. Typical of the northern and western region of the Llanos de Moxos, evidence of pre-Columbian land use in this area consists of raised field cultivation (Mann, 2008), and several raised fields have been identified adjacent to Laguna Isireri (Erickson, 1995; Saavedra, 2009). Although the local vegetation has been heavily modified in recent centuries, the dominant vegetation in the region is seasonally inundated savannah, with forest fringing the lake shore.

Methods

Sediment collection

Belize

The NRL core was taken in 1999 from a jetty adjacent to the Lamanai settlement using a square-rod modified Livingstone piston corer. Four consecutive cores, totalling 319 cm of sediment, were recovered. Cores were shipped in plastic piping and stored at 4°C. Details of six radiocarbon dates, reported in Metcalfe et al. (2009), demonstrate the core spans 1800 bc to ad 1500. Sediments from the NRL core comprise organics within a calcareous matrix, with increasing abundance of silts and clays down core.

Bolivia

Surface-sediment coring of the two lakes was performed in June and July 2010 using a 5 cm diameter Perspex^® tube and piston from a floating platform. Surface cores of 31 cm (San José) and 51 cm (Isireri) were extruded in consecutive 0.5 cm increments in the field into sealed plastic bags or screw-lid bottles, and shipped to the University of Edinburgh where they were stored at 4°C. Sediments from both cores are clay-rich and contain very little organic matter (< 5%), as estimated through loss-on-ignition at 550°C.

Summary of protocol

For each of the three study lakes, five pairs of 1 cm³ sediment samples were prepared. For each pair, both samples received identical chemical treatments, but one sample was treated with an extra sieving stage (53 µm), while the other control sample, taken from the same stratigraphic horizon, was not sieved.

Standard chemical digestion protocol was used for the preparation of all fossil pollen samples (Bennett and Willis, 2001; Faegri and Iversen, 1989), including hot 10% NaOH, 40% HF (with the exception of NRL), and acetolysis treatments. However, the lengths and types of treatment differed somewhat between lakes, according to differences in sediment lithology. The sequence of chemical treatments performed for each study lake is outlined in Figure 2. In clayey sediments from the two Llanos de Moxos lakes, sample preparation began with a hot 5% sodium pyrophosphate treatment to disaggregrate clays (Bates et al., 1978), followed by repeated rinses with water until the supernatant became clear. Hydrofluoric acid and acetylosis treatments followed, after which the samples were passed through a 53 µm sieve (details below). The predominantly calcareous sediments from NRL in Belize were initially treated with cold 10% HCl until the sample stopped effervescing. New River Lagoon samples were not treated with HF, but instead were treated with hot Calgon®, and repeatedly rinsed until the supernatant was clear of suspended clays. Acetolysis followed the removal of clays. After the chemical treatments detailed above had been completed, samples from all three sites were passed through a 53 µm sieve, as described below, to isolate the large cultigen pollen grains.

Figure 2.

Flowchart of the pollen preparation method used for each study site, and incorporating the sieving stage.

Isolation of large pollen grains

We used a 53 µm aperture sieve to isolate maize and other large cultigen pollen, based on the minimum size of maize pollen in Mesoamerica determined by Holst et al. (2007). Also, pollen of Cucurbita spp., Ipomoea batatas, and Manihot esculenta all have diameters > 80 µm (Herrera and Urrego, 1996). Preparations for sieving were begun by suspending the pellet in 10 ml of 10% NaOH, and heating in a boiling water bath for 5 min, stirring occasionally to disaggregate the sample. Samples were transferred to a small beaker, using deionized water to rinse the contents of the tube into the beaker. Approximately 30 ml of water was used to transfer the sample.

The sample was passed through a 53 µm brass sieve with a few short blasts of deionized water from a wash bottle, and in doing so, we tried to keep the total volume of filtrate < 100 ml. The filtrate was saved for the standard terrestrial pollen count, and the residue was easily washed off the sieve into a 15 ml centrifuge tube, reserved for large (>53 µm) pollen grains. The filtrate was concentrated by centrifuging in 15 ml tubes at 3500 rpm, decanting, and topping up with additional filtrate until all of the fine fraction was contained in the pellet. All 15 ml tubes, now double the original number, were centrifuged and decanted.

At this stage, we checked to ensure whether the sieving had been successful (Figure 2). Selected tubes containing the coarse fraction (> 53 µm) of a sample were whirly mixed, and, using a clean pipette, a small aliquot of the sample was transferred onto a slide and scanned at 100× magnification to check if the sample contained small (< 53 µm) pollen and/or ‘clumped’ organic material which binds small pollen and prevents it from passing through the sieve. Although this was rarely the case, if the sieving stage was found to be ineffective, the coarse fraction (residue) can be re-suspended in 10% NaOH and re-sieved. The resulting filtrate can be concentrated as above, and combined with the fine fraction from the first sieving attempt.

After the sieving stage, an equal number of Lycopodium tablets (Stockmarr, 1971) were added to each tube containing the residue and filtrate. The separated coarse and fine fractions were then dehydrated in tertiary-butyl alcohol and mounted in silicone oil for analysis.

Pollen identification and counting

The separated coarse and fine fractions were both mounted on slides for analysis. Identifications of all pollen types were made according to published tropical pollen floras (Colinvaux et al., 1999; Herrera and Urrego, 1996; Roubik and Moreno, 1991), a digital tropical pollen data base (Bush and Weng, 2007), and a Neotropical pollen reference collection consisting of > 1000 specimens (collected from herbaria at the ‘Noel Kempff Mercado’ Natural History Museum in Santa Cruz, Bolivia, and the Royal Botanic Garden Edinburgh (RBGE)), held at the School of Geosciences, The University of Edinburgh. Additional reference literature (Palacios-Chavéz et al., 1991) was used for the identification of pollen from Belizean samples, as well as an additional 60 reference specimens of common pollen types of the Yucatán peninsula prepared from herbarium material collected from the RBGE, and held in the School of Geography, the University of Nottingham. The identification of Zea mays was confirmed using the criteria outlined in Holst et al. (2007), including analysis of the distribution of exine intertectile columnellae using phase contrast at 1000× magnification, to distinguish it from the large grains of the genus Tripsacum (Poaceae).

Fine fractions (< 53 µm) were counted at 400× magnification for the standard terrestrial pollen count of 300 grains, and coarse fractions (> 53 µm) were counted at 100× magnification for large cultigen pollen grains, in particular, Zea mays (maize), Cucurbita (squash), Manihot (manioc) and Ipomoea batatas-type (sweet potato). Results of cultigen pollen counts from each sample are presented in Table 2. Counting the coarse fraction also allowed us to determine the number and type of small (< 53 µm) pollen grains caught on the sieve that should have been washed through the sieve into the filtrate. This was calculated using the Lycopodium counts of each fraction to relate the standard terrestrial pollen count (fine fraction) to the coarse fraction count. However, we found that only a negligible number of small pollen grains were inadvertently caught in the coarse fraction (Table 2).

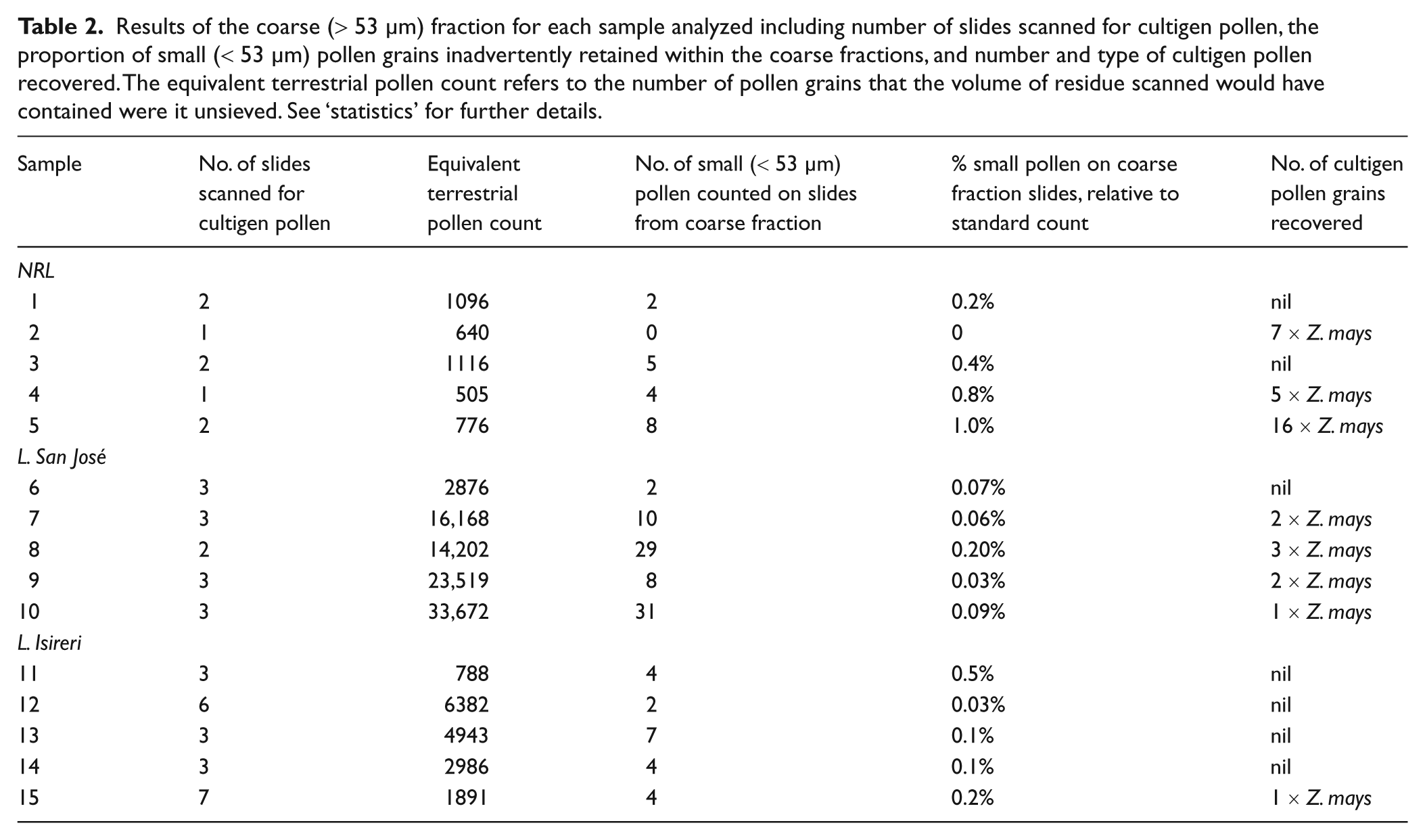

Table 2.

Results of the coarse (> 53 µm) fraction for each sample analyzed including number of slides scanned for cultigen pollen, the proportion of small (< 53 µm) pollen grains inadvertently retained within the coarse fractions, and number and type of cultigen pollen recovered. The equivalent terrestrial pollen count refers to the number of pollen grains that the volume of residue scanned would have contained were it unsieved. See ‘statistics’ for further details.

Sample	No. of slides scanned for cultigen pollen	Equivalent terrestrial pollen count	No. of small (< 53 µm) pollen counted on slides from coarse fraction	% small pollen on coarse fraction slides, relative to standard count	No. of cultigen pollen grains recovered
NRL
1	2	1096	2	0.2%	nil
2	1	640	0	0	7 × Z. mays
3	2	1116	5	0.4%	nil
4	1	505	4	0.8%	5 × Z. mays
5	2	776	8	1.0%	16 × Z. mays
L. San José
6	3	2876	2	0.07%	nil
7	3	16,168	10	0.06%	2 × Z. mays
8	2	14,202	29	0.20%	3 × Z. mays
9	3	23,519	8	0.03%	2 × Z. mays
10	3	33,672	31	0.09%	1 × Z. mays
L. Isireri
11	3	788	4	0.5%	nil
12	6	6382	2	0.03%	nil
13	3	4943	7	0.1%	nil
14	3	2986	4	0.1%	nil
15	7	1891	4	0.2%	1 × Z. mays

Large non-cultigen pollen grains that palaeoecologists would usually include as components of the standard terrestrial pollen count, for example Inga spp. and Annona spp., are also concentrated in the coarse fraction. These grains usually comprise a very low proportion of the pollen sum, but their presence can be of high ecological value for the interpretation of the pollen signal. An exception, however, is Pinus pollen (> 53 µm), which are highly abundant in pollen assemblages from the Yucatan (Bhattacharya et al., 2011), where Pinus caribaea is an ecological dominant of Belizean lowland savannahs. In samples from NRL, this taxon comprises a significant proportion of the terrestrial pollen sum. However, here we included Pinus in the main sum by scanning the coarse fraction for Pinus until the number of Lycopodium spores encountered on the slide was equal to the number counted in the fine fraction for the standard terrestrial pollen count. Given that we found an equal count of Lycopodium spores was usually encountered in the first few transects across the coverslip, this is not a time-consuming task. Percent abundance of Pinus determined using this methodology for the sieved NRL samples are compared with standard non-sieved counts in Figure 3.

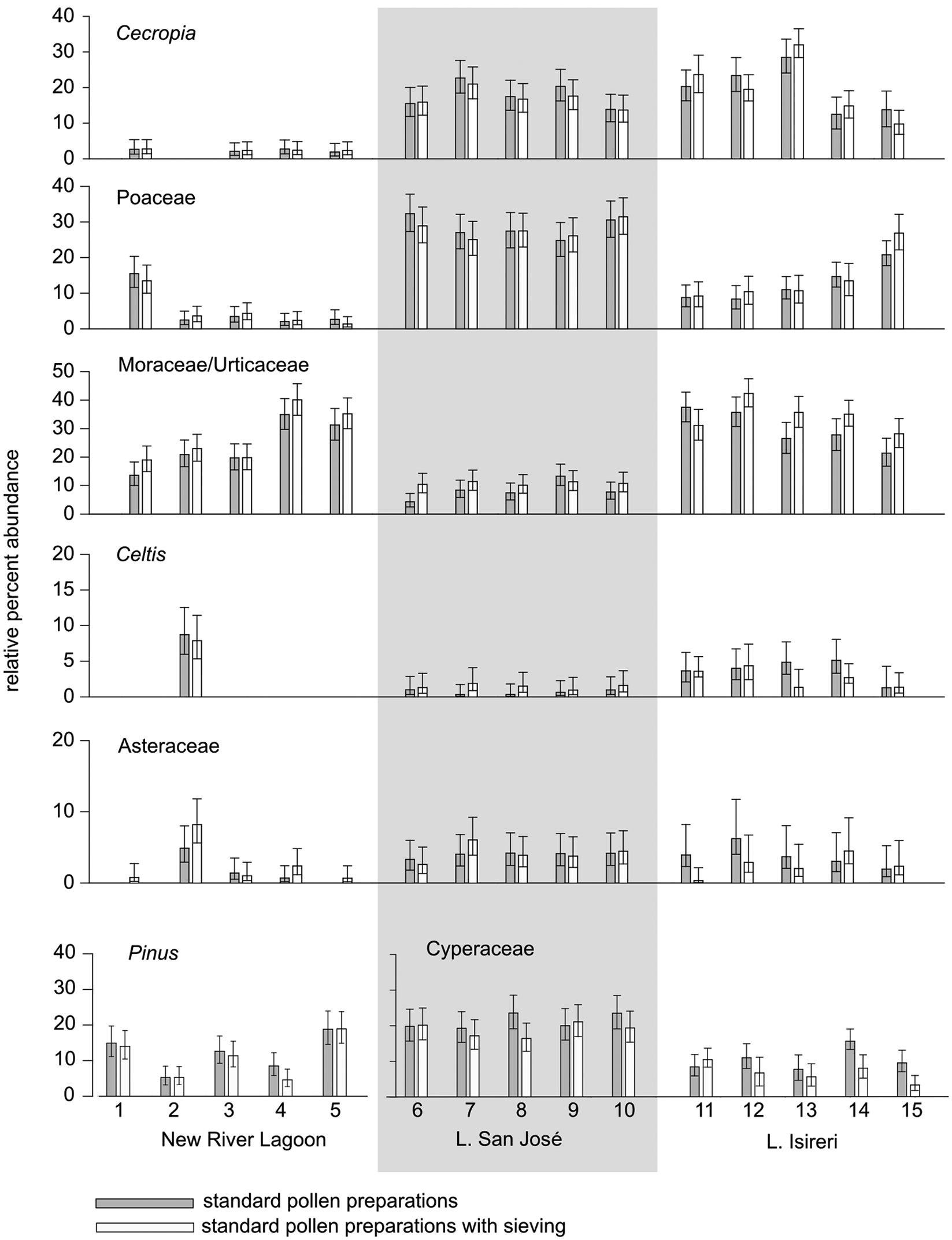

Figure 3.

Bar plots with 95% confidence intervals comparing sieved and unsieved percent abundances of key taxa found in each study site. Pinus is only present in assemblages from NRL, and Cyperaceae was excluded from the terrestrial sum at NRL because of the abundance of emergent aquatic vegetation at the site.

Statistics

Confidence intervals (95%) were calculated using the modification of Maher’s lognormal distributions method in Psimpoll (Bennett, 2007; Maher, 1972). To relate the volume of sample analyzed from the coarse fraction to that of the standard terrestrial pollen count, or the ‘count equivalent’ (Table 2), the number of Lycopodium spores found on the coarse fraction slide was expressed as a proportion of the Lycopodium count of the main pollen sum. For example, if 100 Lycopodium spores were encountered in the standard terrestrial pollen count and 1000 spores were counted on the coarse fraction slide, then the volume of material on the coarse fraction slide represents 10× the amount of sample analyzed for the standard terrestrial pollen count.

To determine what proportion of small pollen grains (< 53 µm) were unintentionally retained in the coarse fraction (sieve residue) during preparation, the number of small grains that were encountered in the coarse fraction slide were expressed as a percentage of the main pollen sum using the aforementioned ‘count equivalent’. Expanding on the above example, and assuming a standard count of 300 grains, the amount of residue scanned in the coarse fraction is equivalent to a count of 3000 pollen grains. Thus, if 30 small pollen grains were found on the coarse fraction slide, we can estimate that this equates to approximately 1% of the 300-grain standard pollen sum (Table 2).

Results and analysis

Our results demonstrate that sieving at 53 µm successfully isolates large cultigen pollen grains such as Zea mays (Table 2). Although this is the only cultigen pollen type found in the test samples, subsequent use of this technique has yielded Cucurbita (squash) pollen at NRL, and Manihot (manioc) and Ipomoea batatas-type (sweet potato) pollen grains in sediments from an additional study site in French Guiana (Iriarte et al., unpublished data, 2012).

All three study sites are substantial water bodies and cores from Lagunas Isireri and San José were taken 1000 m and 500 m from the lake shore, respectively, to ensure the recovery of a continuous sediment sequence in case of lower lake levels due to past drought (the NRL core was taken within a few metres of the shore, adjacent to the Maya settlement Lamanai). Despite the considerable distance of the core location from shore, which is shown to reduce maize pollen concentrations in the sediment (Lane et al., 2010), we found maize pollen in all samples analyzed from the San José core. Furthermore, the concentration of large pollen (> 53 µm) by sieving was particularly successful for this site, where in some horizons, the proportion of 1 cm³ sediment sample examined for the coarse fraction equated to over 100× the proportion of the sample examined for the standard terrestrial pollen sum (Table 2). It follows then, that even if the samples were scanned outside the standard terrestrial pollen sum, it is highly improbable that any Zea mays grains would have been found at Lagunas San José and Isireri if this additional sieving stage had not been employed.

Zea mays pollen recovery was higher for sediments from NRL, which is unsurprising given the proximity of the core to Lamanai. However, analysis of previously unsieved preparations from NRL revealed no cultigen pollen within the standard terrestrial pollen count, which meant that additional steps were necessary to isolate Zea mays from this site. This could have been achieved by scanning the unsieved preparations outside the pollen sum, but this too would have been very time-consuming, requiring the scanning of numerous additional pollen slide preparations. In contrast, maize pollen was encountered in the first coarse-fraction slide analyzed in our new sieving methodology, thereby considerably reducing the amount of time an analyst needs to invest in searching for evidence of pre-Columbian cultivation.

Confidence intervals calculated for the paired samples (Bennett, 2007) demonstrate that the added sieving stage does not concentrate small pollen grains such as Cecropia or reduce the relative abundance of larger grains such as Poaceae. Furthermore, whatever small (< 53 µm) grains are caught in the coarse fraction, they are not disproportionately represented by any particular pollen type. However, the number of small grains trapped in the coarse fraction is negligible (< 1%) if care is taken to properly digest the sediments prior to sieving. Moreover, the 95% confidence intervals show tight overlap among the sieved and unsieved pollen percentage values for Pinus in the NRL record, which means that large (> 53 µm) pollen grains can be confidently incorporated into the terrestrial sum using equivalent Lycopodium counts on both fine and coarse fraction slides.

A further key advantage to including our coarse-sieving stage is that the pollen assemblages in the fine fraction are more concentrated, and comprise ‘cleaner’ preparations, than those for non-sieved samples, making the process of pollen counting significantly faster and easier. To reach a count of 300 terrestrial grains can be relatively time-consuming in the analysis of largely inorganic sediments from large lakes in the Bolivian lowlands where pollen concentrations are often relatively low. Analysis of unsieved samples from NRL was particularly laborious (HF was not used in the preparation of these samples), and in most horizons, an average of seven slides were required to achieve a sum of near to 300 terrestrial grains. However, incorporating our sieving stage (53 µm) concentrated the samples such that full counts were reached in only two slides.

Recommendations for best sieving practice

The most important factors in ensuring a good recovery of small (< 53 µm) pollen grains in the filtrate were: (1) choosing the appropriate chemical treatments for each sediment type, and (2) sufficient rinsing with deionized water to remove chemical residues after each treatment, particularly HF. Standard chemical digestion protocol (Bennett and Willis, 2001; Faegri and Iversen, 1989) describes a set sequence of stages for the preparation of fossil pollen, often beginning preparations with the hot NaOH (or KOH) treatment. Although this sequence works well for organic samples, such as peat and gyttja, in the case of tropical sediments containing high proportions of clays and silts, the analyst is best served by first tackling the removal of inorganic matter to facilitate further chemical treatments. Second, intensive HF treatments (two treatments of 40% HF for 30 min in a hot water bath) are frequently required for lake sediments from tropical regions where the abundance of very small pollen (e.g. Cecropia and Mimosa, < 5 µm diameter) precludes the possibility of fine sieving (Cwynar et al., 1979) for the removal of clays and fine silts. However, the chemical residues from the digestion of silica (fluorosilicates), resulting from intensive HF treatment, often create a sticky black pellet that does not easily disperse in liquid. Although a common solution to the problem of fluorosilicate build-up is the use of a hot 10% HCl treatment (Bennett and Willis, 2001), we found that 3–4 rinses in deionized water following the HF treatment removed the chemical residues and allowed the pellet to disperse in liquid. Further care was taken to ensure that all chemical residues were removed after each treatment, thereby ensuring the pellet was not clumped before we proceeded with the sieving step.

We advise against the use of 50 ml centrifuge tubes for concentrating the filtrate without further experimentation to adjust the speed and/or time of centrifugation. Initially, we sieved at 53 µm using generous volumes of water (400–500 ml) to get the best pollen recovery in the fine fraction, but this practice diluted the fine fraction to such an extent that concentrating the pellet was difficult. After several rounds of centrifugation in 50 ml tubes, the fine organic material (and with it, small pollen) gathered on the angled sides at the bottom of the tube instead of forming a discrete pellet. This made decanting very difficult, and we lost a sizeable proportion of fine pollen grains, in particular, Cecropia, experimenting with this method. Instead, we found the judicious use of ~ 100 ml of water, which resulted in a volume of filtrate that can be reasonably concentrated in 15 ml tubes, gave the best results. Also, increasing the centrifuge speed from 3000 to 3500 rpm ensured a better recovery of small grains in the filtrate.

Implications for palaeoecology and archaeology in the Americas

Where palaeoecological studies rely on terrestrial pollen and charcocal records from lake and bog sediments to demonstrate evidence of past land-use practices in archaeological contexts, changing climate can present a complicating story, particularly in regions such as the Yucatan peninsula, which has experienced large shifts in its precipitation regime over the past few millennia (Curtis et al., 1996; Hodell et al., 1995, 2001; Metcalfe et al., 2009), and in the Southern Hemisphere tropics of South America, where rising precipitation in the late Holocene (Baker et al., 2001; Mayle and Power, 2008) has resulted in shifting Amazon forest–savannah boundaries (Burbridge et al., 2004; Mayle et al., 2000). Thus, disentangling the relative impacts of changes in human land use, climate, and fire regime, upon past vegetation can prove problematic. Crucially, direct evidence of crop cultivation is required to unequivocally demonstrate human land use in the palaeorecord, but the recovery of large cultigen pollen has often proved difficult because of its rarity in pollen assemblages. Starch grain and phytolith analyses from selected archaeological features and residues from food containers (ceramics, bottle gourds) and plant processing tools (manos, edge ground cobbles, ceramic graters), in addition to combined analysis of phytoliths, pollen and charcoal from lake and wetland sediments, have been successful in addressing this issue (Dickau et al., 2012; Duncan et al., 2009; Iriarte et al., 2004; Pearsall et al., 2003; Piperno et al., 2007, 2009). However, some important food crops, notably Manihot esculenta and Ipomoea batatas, do not produce diagnostic phytoliths (Piperno, 2006b). The combination of all three techniques from archaeological contexts and lake sediments provides the most complete picture of the natural environments and plant associations in which the first farming arose (Denham et al., 2003; Piperno et al., 2007, 2009; Ranere et al. 2009) and assessing pre-Columbian land use in palaeoenvironmental studies (Pearsall, 2000), particularly as a lack of comparative pollen morphology studies means that at present, cultivated varieties of domesticated plants (Ipomoea batatas, Manihot esculenta) are palynologically indistinguishable from some of their wild relatives. However, in the absence of these multiproxy analyses, cultigen pollen types in conjunction with evidence of forest clearance and/or disturbance, along with charcoal evidence for anthropogenic fires, is strong evidence of local human activities. Among many research topics, this improved technique for recovering cultigen pollen will allow palaeoecologists and archaeologists alike to maximize their chances of detecting early food-production and assess past human impact on the Neotropics, even in regions where archaeology and archaeobotany are at a very early stage of development. Similarly, it will prove crucial to documenting the practice of early slash-and-burn agriculture (e.g. Piperno et al., 1991), which unlike irrigation canals, raised fields, and agricultural terraces, does not leave visible imprints on landscapes. Lastly, it will help better understand arguably the most dramatic changes in land-use practices since the Pleistocene–Holocene transition brought by the 1492 Columbian Encounter (Turner and Butzer, 1992).
