Multiproxy study of the last meal of a mid-Holocene Oyogos Yar horse,Sakha Republic,Russia

Abstract

The last meal of a horse that lived in the northern part of the Sakha Republic (Russia) c. 5400 years ago was studied using pollen, spores, botanical macroremains, lipid composition, and ancient DNA in order to reconstruct its components. Pollen of Poaceae was superabundant, but this may be because of over-representation as a consequence of grazed inflorescenses of grasses. We evaluate the paleo-environmental indicator value of the different methods applied. Botanical macrofossils and chemical data show what the animal had eaten. Pollen grains and the aDNA record also give information about taxa that occurred elsewhere in the landscape. The combined data point to an open landscape of a coastal tundra dominated by graminoids (Poaceae, Cyperaceae) with a limited amount of Birch and Alder.

Keywords

ancient DNA horse last meal lipids macrofossils mid-Holocene pollen and spores Sakha Republic

Introduction

The contents of the stomach and intestines of frozen animals are an important source of information about the food choice of animals and the paleo-environment where these animals were living (Guthrie, 1990, 2001; Lazarev, 2008; Ukraintseva, 1979, 1993, 2013; Van Geel et al., 2008, 2011a, 2011b). In 2010, a frozen horse (Figure 1a and b) was found in the area called Oyogos Yar, in the Ust-Yana region of the Sakha Republic (formerly Yakutia; 72°40′49.42″N, 142°50′38.33″E; Boeskorov et al., 2013). The Yukagir horse was radiocarbon dated 4630 ± 35 BP (GrA-54020). After calibration (http://www.calpal-online.de/), this date corresponds to a period between c. 5442 and 5326 calendar years BP (cal. yr BP), and therefore, the carcass is among the youngest wild horse fossils in North-East Siberia. For the history and extinction chronology of horses and other large herbivores in the Arctic, we refer to Sher et al. (2005) and Guthrie (2006). Oyogos Yar is one of the richest areas for Quaternary fossils in the northern part of the Sakha Republic. It is located on the mainland coast of the Dmitri Laptev Strait and stretches more than 100 km, from Cape Svyatoi Nos in the west to the mouth of the Kondratieva River in the east. The Yedoma deposits of the Oyogos Yar’s northern slope reach up to 40–50 m above sea level. The icy deposits in the area include the marine isotope stage 3 and mainly stage 2 (coldest part of the last Ice Age; Schirrmeister et al., 2013). The western part of Oyogos Yar is composed of lake-alluvial silt sediments reaching 5–7 m a.s.l., which are contemporary with the sediments of the Olyor Formation (Lower Kolyma River basin, Lower Pleistocene). For present day climatic conditions, soils, vegetation cover (among which grassy tundra in dry coastal areas), and other landscape characteristics, we refer to Smith et al. (1995).

Figure 1.

Remains of the frozen Yakutian horse and various plant remains from its colon: (a) hind part of the horse body, (b) head, (c) epidermis Poaceae, (d) cluster of Poaceae pollen, (e) Type 815 ascospores, (f) Type 816 (Bryophyte?) spores, (g–m) various types of cyperaceous epidermis with spiny leaf margins (g–j) and (h–j) papillae, and (n) unidentified broken seed.

The partial carcass was found trapped in a thermokarst pit and buried in Late Pleistocene deposits. It represents the remains of an adult female horse about 5 years old. The frozen corpse is represented by the well-preserved head with neck (detached from the body), and the hind part of the body with hind legs and tail and internal organs in the abdominal cavity. The front legs are missing. Body measurements showed that the height of the horse in the hind quarters was about 130 cm. Thus, the new finding relates to the ‘undersized’ horses, similar to the Lena horse (Equus lenensis Russ.), which inhabited Eastern Siberia and became extinct in the Holocene (Gromov and Baranova, 1981). The scarcity of mummified horse remains determines the high scientific and museum value of the new discovery.

We sampled and studied material from the Yukagir horse colon in order to reconstruct the species composition of its last meal and the paleovegetation in the area where the animal was living. The colon contents were subsampled to provide separate aliquots of material for each analytical procedure. We followed a multiproxy approach, including the analysis of microfossils (pollen, spores), macroremains (including epidermis and moss remains), chemistry, and ancient plant DNA.

Methods

Microfossils and macroremains

The preparation of a subsample for the study of microfossils in Russia was as follows: after thawing, the sample was sieved through a sieve with a mesh of 250 µm to remove large particles. Subsequently, the material was treated with 10% hydrochloric acid and 10% potassium hydroxide, and then washed with distilled water and centrifuged. After sieving (meshes of 7 µm), the material on the sieve was put in a tube, and glycerin was added. The microfossil analysis was conducted with 400× magnification. The preparation of a subsample for microfossil analysis in the Netherlands was according to Faegri and Iversen (1989) and Moore et al. (1991), but without HF treatment, and the analysis was worked out with 400× and 1000× magnifications. Identifications of microfossils are based on Moore et al. (1991), Beug (2004), and a pollen reference collection. The identification of fungi was based on Van Geel and Aptroot (2006) and Cugny et al. (2010). Macrofossils were prepared according to Mauquoy and Van Geel (2007). Mosses were identified using Landwehr (1984), Lawton (1971), Nyholm (1968), Smith (1978), Siebel and During (2006), The Plant List (2012), and Touw and Rubers (1989).

Lipids

Lipids were extracted from freeze-dried, ground colon contents using the methodology of McCartney et al. (2013) to optimize recovery of the dialkyl glycerol ether archaeol (2,3-di-O-phytanyl-sn-glycerol) if present. Briefly, 6.92 µg of internal standard, 1,2-di-O-rac-hexadecyl glycerol (Santa Cruz Biotechnology Inc., CA, US), was added to each sample before lipid extraction, and the total lipid extract was obtained using an extraction procedure modified from Bligh and Dyer (1959). Acid methanolysis was used to cleave polar head groups from archaeol. Silica column chromatography was used to separate the total lipid extract into an apolar fraction and a fraction containing predominantly hydroxyl group-bearing components. For this latter fraction, analytes were derivatised to their respective trimethylsilyl (TMS) ethers by adding 50 µL of N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA) containing 1% trimethylchlorosilane (TMCS), and 50 µL pyridine to the sample and heating at 70°C for 1 h. Samples were dissolved in ethyl acetate prior to analysis by gas chromatography/mass spectrometry (GC/MS).

GC/MS was conducted using a Trace 1300 GC coupled to an ISQ MS (Thermo Scientific, Hemel Hempstead, UK), equipped with a non-polar fused silica capillary column (CPSil-5CB, 50 m × 0.32 mm × 0.12 mm, Agilent J&W). The following temperature program was used: initial temperature 40°C, rising to 130°C at 20°C/min, then rising to 300°C at 4°C/min, holding at 300°C for 25 min. The ion source was maintained at 300°C and the transfer line at 300°C. The emission current was set to 50 µA and the electron energy to 70 eV. The analyzer was set to scan m/z 50-650 with a scan cycle time of 0.6 s.

DNA extraction

The outer layer of the intestinal samples was carefully removed with a scalpel to prevent contaminants in the extractions, and inner parts of the same freeze-dried, ground colon contents sampled for chemical and morphological analyses were sampled for DNA extraction. Each sample was ground to fine powder in liquid nitrogen with a mortar and pestle; c. 100 mg was used for a CTAB extraction (Doyle and Doyle, 1987). A freshly prepared CTAB buffer (2% CTAB, 2% PVP, 20 mM EDTA, 100 mM Tris-HCl, pH 8.0, 1.42 M NaCl, 2% 2-mercaptoethanol) was added to the ground samples before incubation for 1 h at 65°C under agitation. DNA was subsequently extracted using chloroform:isoamyl alcohol (24:1), precipitated with ice-cold isopropyl alcohol, and re-suspended in 1 × TE buffer. The suspension was then re-precipitated with NH₄ acetate and pure ethanol at −20°C for 30 min, washed twice in 76% ethanol 10 mM NH₄ acetate, and the resulting pellet was air dried and re-suspended in 1 × TE buffer. Subsequently, aliquots of each extraction were further purified using Promega PCR purification columns. All extractions were carried out in the special ancient DNA facility of Leiden University following established protocols to avoid contamination (Cooper and Poinar, 2001).

PCR amplification

Amplifications of the plastid rbcL DNA barcoding marker were performed using forward primer Z1aF and reverse primer 19 bR (Hofreiter et al., 2000). Amplification of the plastid intergenic trnL-trnF spacer was performed using forward primer E and reverse primer F (Taberlet et al., 1991). Primers were labeled for sequencing with IonExpress labels. The PCR was carried out in 25 µL reactions containing 1 U Phire hot start II DNA polymerase, Phire reaction buffer, 1 mM MgCl₂, 0.1 mg/mL BSA, 1% DMSO, 0.05 mM dNTPs, and 0.4 µM of each primer. Amplifications were performed using a 5-min activation step at 98°C, followed by 40 cycles at 98°C for 5 s, 55°C for 20 s, and 72°C for 60 s, and a concluding step at 72°C for 5 min.

Ion Torrent sequencing

Primer dimer and other contaminants were removed by using Ampure XP beads (Agencourt) to which the PCR products were bound. The beads were washed with 150 µL 70% EtOH twice and re-suspended in 20 µL TE buffer. Cleaned PCR products were quantified using an Agilent 2100 Bioanalyzer DNA High sensitivity chip. An equimolar pool was prepared of the amplicon libraries at the highest possible concentration. This equimolar pool was diluted according to the calculated template dilution factor to target 10–30% of all positive Ion Sphere Particles. Template preparation and enrichment was carried out with the Ion One Touch 200 Template kit with use of the Ion One Touch System, according to the manufacturers protocol. The quality control of the Ion one touch 200 Ion Sphere Particles was done with the Ion Sphere Quality Control Kit using a Life Qubit 2.0. The Enriched Ion Spheres were prepared for sequencing on a Personal Genome Machine (PGM) with the Ion PGM 200 Sequencing kit as described in the protocol and deposited on an Ion-314-chip (520 cycles per run) in three consecutive loading cycles for one sequencing run.

Data analysis

Reads obtained from Ion Torrent sequencing were trimmed for primers and MID label tags with a custom script. Only reads with a length of at least 100 bp and a mean quality score of Q20 or higher were selected for further analysis. Reads were clustered into Operational Taxonomic Units (OTUs) defined by a sequence similarity of at least 97% using CD-HIT (Li and Godzik, 2006). Singletons were omitted. Representative consensus sequences of each cluster were blasted against NCBI GenBank data for taxonomic identification up to family and sometimes genus level.

Results

Microfossils

Table 1 shows the results of the microfossil analysis. Percentages are based on the pollen sum, which is the total of recorded pollen grains per sample. Non-pollen microfossils were excluded from the sum, but their frequencies are expressed as percentages on that pollen sum. A cluster of pollen grains of Poaceae (Figure 1d) was recorded as a single grain. The ascospore cells of the dung-inhabiting Sporormiella-type and the ascospores of the coprophilous Sordaria-type (Van Geel and Aptroot, 2006) show relatively high percentages. Delitschia ascospores also point to the occurrence of feces as a substrate. No fungal fruit-bodies were found during macrofossil analysis, so ascospores were ingested by chance, together with the grazed herbaceous vegetation. Clasterosporium caricinum is an indicator for the local occurrence of Carex (Van Geel and Aptroot, 2006). A newly recorded dark-brown ascospore type (38–53 × 20–33 µm, including the light-brown velum) was named as Type 815 (Figure 1e). Those spores show a pore with a thickened wall at one end. The other end is flattened, with a pore. Considering their morphology, these spores may well represent one of the dung-inhabiting Sordariales (Lundqvist, 1972). Newly recorded globose spores, 18–26 µm in diameter with an irregularly placed, dense pattern of rounded appendages (0.3–1 µm in diameter), were named as Type 816 (Figure 1f). These spores probably have a Bryophyte origin. The microfossil sample contained many multicellular rhizoids fragments with oblique septa as occurring in Bryum (Figure 2d).

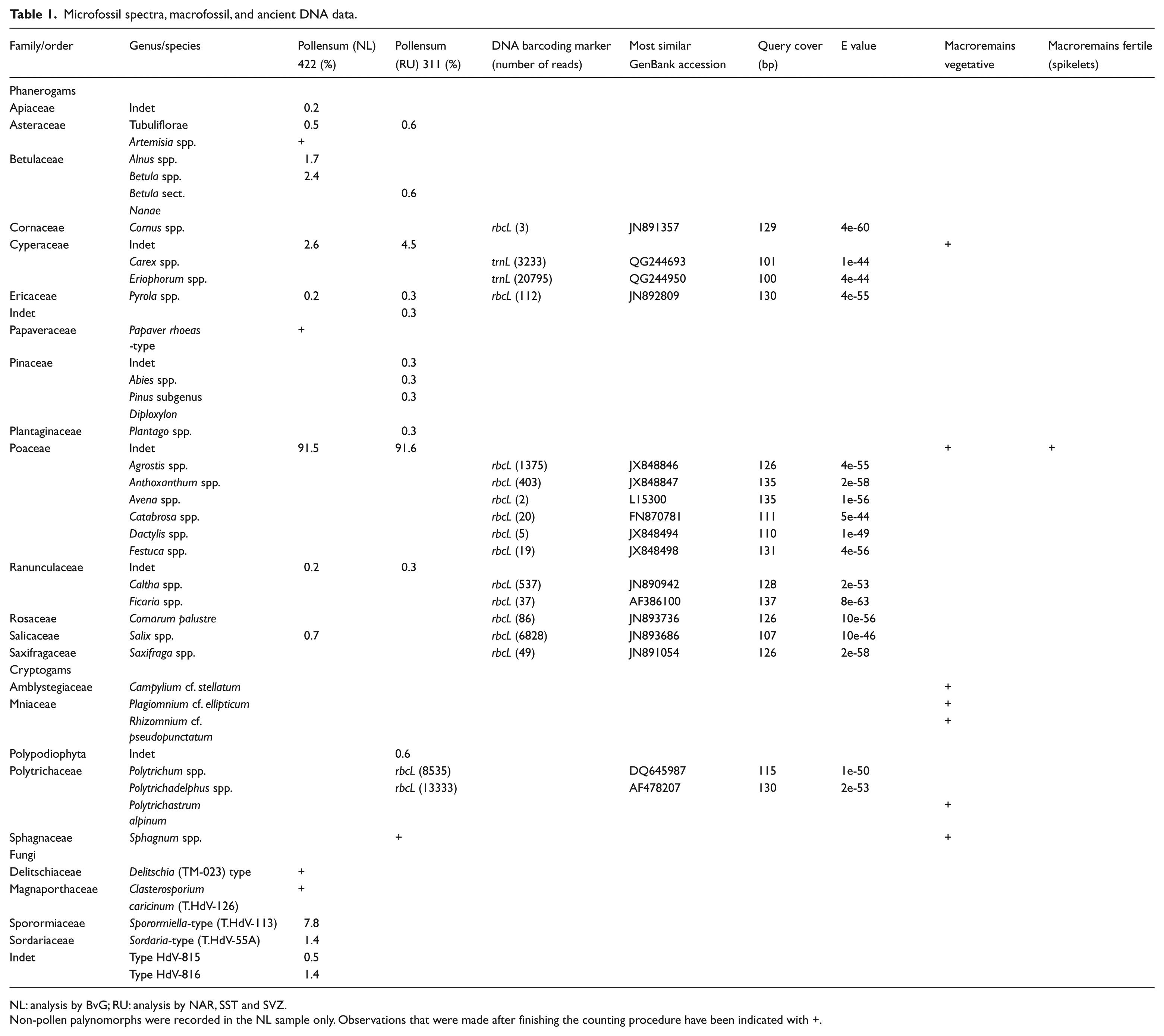

Table 1.

Microfossil spectra, macrofossil, and ancient DNA data.

Family/order	Genus/species	Pollensum (NL) 422 (%)	Pollensum (RU) 311 (%)	DNA barcoding marker (number of reads)	Most similar GenBank accession	Query cover (bp)	E value	Macroremains vegetative	Macroremains fertile (spikelets)
Phanerogams
Apiaceae	Indet	0.2
Asteraceae	Tubuliflorae	0.5	0.6
	Artemisia spp.	+
Betulaceae	Alnus spp.	1.7
	Betula spp.	2.4
	Betula sect.		0.6
	Nanae
Cornaceae	Cornus spp.			rbcL (3)	JN891357	129	4e-60
Cyperaceae	Indet	2.6	4.5					+
	Carex spp.			trnL (3233)	QG244693	101	1e-44
	Eriophorum spp.			trnL (20795)	QG244950	100	4e-44
Ericaceae	Pyrola spp.	0.2	0.3	rbcL (112)	JN892809	130	4e-55
Indet			0.3
Papaveraceae	Papaver rhoeas-type	+
Pinaceae	Indet		0.3
	Abies spp.		0.3
	Pinus subgenus		0.3
	Diploxylon
Plantaginaceae	Plantago spp.		0.3
Poaceae	Indet	91.5	91.6					+	+
	Agrostis spp.			rbcL (1375)	JX848846	126	4e-55
	Anthoxanthum spp.			rbcL (403)	JX848847	135	2e-58
	Avena spp.			rbcL (2)	L15300	135	1e-56
	Catabrosa spp.			rbcL (20)	FN870781	111	5e-44
	Dactylis spp.			rbcL (5)	JX848494	110	1e-49
	Festuca spp.			rbcL (19)	JX848498	131	4e-56
Ranunculaceae	Indet	0.2	0.3
	Caltha spp.			rbcL (537)	JN890942	128	2e-53
	Ficaria spp.			rbcL (37)	AF386100	137	8e-63
Rosaceae	Comarum palustre			rbcL (86)	JN893736	126	10e-56
Salicaceae	Salix spp.	0.7		rbcL (6828)	JN893686	107	10e-46
Saxifragaceae	Saxifraga spp.			rbcL (49)	JN891054	126	2e-58
Cryptogams
Amblystegiaceae	Campylium cf. stellatum							+
Mniaceae	Plagiomnium cf. ellipticum							+
	Rhizomnium cf. pseudopunctatum							+
Polypodiophyta	Indet		0.6
Polytrichaceae	Polytrichum spp.		rbcL (8535)		DQ645987	115	1e-50
	Polytrichadelphus spp.		rbcL (13333)		AF478207	130	2e-53
	Polytrichastrum alpinum							+
Sphagnaceae	Sphagnum spp.		+					+
Fungi
Delitschiaceae	Delitschia (TM-023) type	+
Magnaporthaceae	Clasterosporium	+
	caricinum (T.HdV-126)
Sporormiaceae	Sporormiella-type (T.HdV-113)	7.8
Sordariaceae	Sordaria-type (T.HdV-55A)	1.4
Indet	Type HdV-815	0.5
	Type HdV-816	1.4

NL: analysis by BvG; RU: analysis by NAR, SST and SVZ.

Non-pollen palynomorphs were recorded in the NL sample only. Observations that were made after finishing the counting procedure have been indicated with +.

Figure 2.

Moss remains from the colon of the Yakutian horse: (a, b) cross section through leaf of Polytrichastrum alpinum, (c) leaves of Campylium cf. stellatum, and (d) multicellular rhizoids with obliques septa (cf. Bryum).

Macrofossils

The investigated sample consisted of debris of vegetative plant remains. In total, 45 mL of vegetation debris was investigated. The plant remains were fragmented with different degrees of decomposition, and therefore, estimation of mass or volume fraction of the individual categories was impossible. The plant remains mainly consisted of vegetative remains of Cyperaceae (Figure 1g–m) and, to a lesser extent, of Poaceae (Figure 1c). Two fragmented Poaceae spikelets were found. The following bryophytes could be identified: Plagiomnium cf. ellipticum, cf. Rhizomnium pseudopunctatum, Polytrichastrum alpinum (Figure 2a and b), Campylium cf. stellatum (Figure 2c), and Sphagnum spp (see Table 1 for summary of results).

Ancient DNA

Taxa with 97% certainty or higher retrieved encompass genera within the Cyperaceae (Carex and Eriophorum), Cornaceae (Cornus), Ericaceae (Pyrola), Poaceae (Agrostis, Anthoxanthum, Avena, Catabrosa, Dactylis, Festuca), Ranunculaceae (Caltha, Ficaria), Rosaceae (Comarum), Salicaceae (Salix), Saxifragaceae (Saxifraga), and Polytrichaceae (Polytrichum and Polytrichadelphus) (see Table 1 for more details).

Lipids

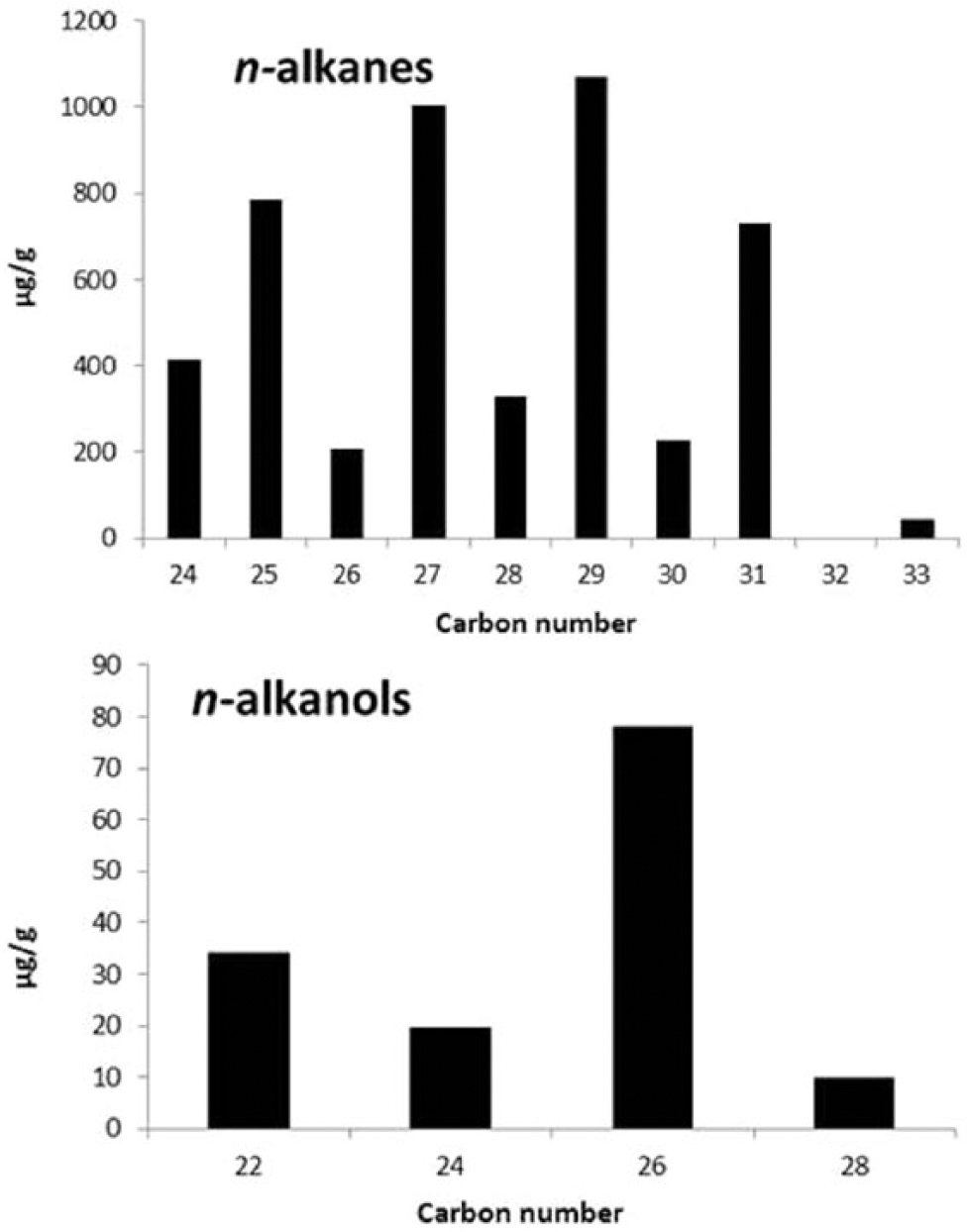

Figure 3 shows the n-alkane and n-alkanol distributions of the horse intestinal tract contents. n-alkanes range from C₂₄ to C₃₃ with a strong odd over even predominance, maximizing at C₂₉. n-alkanols range from C₂₂ to C₂₈, maximizing at n-C₂₆. This distribution of n-alkanes and n-alkanols is consistent with a major input of higher plant organic matter with the predominance of the C₂₆ n-alkanol indicating a significant contribution from Poaceae (Bughalo et al., 2004; Dove and Mayes, 1996; Killops and Killops, 2005; Maffei, 1996; Van Bergen et al., 1997).

Figure 3.

n-alkyl lipids from horse intestinal tract contents.

Figure 4 shows a partial gas chromatogram of the alcohol fraction isolated from the horse intestinal tract contents. The presence of a suite of 5β-stanol components (C₂₇ to C₂₉) confirms that this is digested matter, since these compounds are uniquely formed in the digestive tract by biohydrogenation of unsaturated sterols by digestive tract bacteria (Murtaugh and Bunch, 1967). The predominance of the C₂₉ 5β-stanols (stigmastanol and epistigmastanol) and the occurrence of the phytosterol sitosterol are consistent with an herbivorous diet (Bull et al., 2002; Leeming et al., 1996).

Figure 4.

Partial gas chromatogram of the alcohol fraction isolated from the horse intestinal tract contents.

No archaeol was detected in the horse intestinal tract alcohol fraction. This is consistent with previous studies on fecal lipids of modern herbivorous mammals (Gill et al., 2010) in which archaeol, attributed to digestive tract methanogenic archaea, was detected in the feces of foregut fermenters (compare Van Geel et al., 2014), but not hindgut fermenters, including horses.

Discussion

Paleovegetation

Based on the pollen record, it seems that Poaceae (grasses) were a major component in the vegetation. But the presence of a cluster of pollen grains of Poaceae shows that the pollen spectra can be strongly biased by the food selection of the animal and by the fact that inflorescenses – if still full of not yet released pollen grains – may result in over-representation in pollen spectra. Pollen grains ingested during the growing season will mainly represent the taxa that were flowering when the animal collected its food, and therefore, the pollen record of intestinal contents may well be strongly seasonally dependent (compare present day ‘pollen calendars’ showing the different flowering periods of taxa).

The macrofossil record supports the conclusion based on pollen, as epidermis fragments of Poaceae were observed, but the vegetative remains of Cyperaceae were more common than those of Poaceae. The mosses probably were ingested by chance, together with the monocots. The identified moss species indicate moist or wet habitats (fens, marshes, or along streams) and calcareous soils. Based on the study of ancient DNA, we have additional data about plant taxa that played a role in the vegetation where the horse grazed its last meal. Caltha, Carex, Comarum, and Eriophorum may well have formed part of the vegetation in moist areas in the landscape, while Agrostis, Avena, Dactylis, and Festuca may have grown on dry soils.

The age of the Yukagir horse is about 5400 cal. yr BP according to radiocarbon dating. Pollen diagrams from lake deposits allow us to compare the vegetation record from the horse with the regional historical vegetation development. The middle-Holocene vegetation near the Laptev Sea coast is characterized by tundra vegetation similar to the modern vegetation (Andreev et al., 2011). According to Smith et al. (1995), nowadays, upland areas along the Arctic coast support grassy steppe-like tundra ecosystems, in very dry climatic conditions with precipitation lower than 200 mm per year.

Apart from climatic factors, like temperature and precipitation, grazing herbivores may also have had an impact on the species composition of past vegetation. Olofsson (2006; see also Zimov, 2005) found that increased reindeer grazing pressure in northern Norway stimulated grassland species at the expense of dwarf shrub vegetation. Poaceae are ‘adapted’ to grazing as their growing points are just above the soil surface. Grazing does not do any harm to grasses; in fact, grazing stimulates their growth.

Comparison of methods

The methods used (microfossils, macroremains, aDNA, and chemistry) show agreements and differences in the results, and we realize that these methods are not equal in their paleo-environmental indicator value. Macrofossils and lipid data mainly tell us about the food choice of the animal, but the pollen and aDNA records of taxa do not necessarily all point to the composition of the last meal of the horse. Ancient DNA may mainly come from the ingested plant species, but pollen grains may also be a source of the DNA-recorded taxa. Wind-pollinated taxa produce high amounts of pollen that is transported all over the region and that may stick to vegetation. This pollen may be ingested by chance, so not intentionally, together with the food plants. DNA barcodes can be retrieved from pollen, and in this way, species not forming a part of the regular diet may have been recorded. The pollen of insect-pollinated taxa is less common (produced in relatively low amounts) but may also be deposited on grazed plants. Grazing animals also may ingest some of the litter on top of the soil, and in this way, pollen from throughout the flowering season may be ingested. A total of 18 different plant families were identified based on our integrated study of pollen, ancient DNA, and macroremains. The pollen study retrieved most of the families (11 of which 6 were not detected by ancient DNA or macroremains). The ancient DNA study revealed nine families (of which three families were not detected by the other methods), and the macroremains indicated that six families were part of the paleo-environment (two of these families were not detected by the other methods; Table 1). We advocate a multiproxy approach for reconstruction of paleo-environments and paleodiets to identify as many families as possible.

In lake sediments and peat deposits, the frequency changes of spores of coprophilous fungi reflect changes of the population densities of mammals (e.g. Innes et al., 2013). Individual samples from the intestines of herbivores can deliver different but important information. Based on the presence of fungal fruit-bodies in intestinal mammoth samples, Van Geel et al. (2008, 2011a, 2011b) concluded that coprophagy played a role in the behavior of mammoths. The frequency of spores of coprophilous fungi in the intestinal sample from the horse does not show more than the presence of feces in the area where the horse lived. For climatic conditions as derived from the fossil record in northern Siberia, we refer to Giterman et al. (1982), Andreev et al. (2011), and to Andreev and Tarasov (2013).

Conclusion

Four methods applied to intestinal material of a middle-Holocene horse point to a diet of mainly Cyperaceae and Poaceae. Macrofossils and chemistry mainly reflect the ingested plants. The taxa detected by ancient DNA and pollen analysis may partly reflect species that were not actively grazed, but were producing pollen elsewhere in the landscape.

Footnotes

Acknowledgements

Annemarie Philip prepared the microfossil samples and Jan van Arkel made the pictures of microfossils and macroremains. Three anonymous reviewers provided useful suggestions that greatly improved the initial version of this manuscript.

Funding

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.
