A 5500-year oxygen isotope record of high arctic environmental change from southern Spitsbergen

Abstract

The oxygen isotope composition of chironomid head capsules in a sediment core spanning the past 5500 years from Lake Svartvatnet in southern Spitsbergen was used to reconstruct the oxygen isotope composition of lake water (δ¹⁸O_lw) and local precipitation. The δ¹⁸O_lw values display shifts from the baseline variability consistent with the timing of recognized historical climatic episodes, such as the Roman Warm Period, the Dark Ages Cold Period and the ‘Little Ice Age’. The highest values of the record, ca. 3‰ above modern δ¹⁸O_lw values, occur at ca. 1900–1800 cal. yr BP. Three negative excursions increasing in intensity toward the present, at 3400–3200, 1250–1100, and 350–50 cal. yr BP, are tentatively linked to roughly synchronous episodes of increased glacier activity and general cold spells around the northern North Atlantic. Their manifestation in the Svartvatnet δ¹⁸O_lw record not only testify to the sensitivity and potential of high Arctic lacustrine δ¹⁸O_chir records in tracking terrestrial climate evolution but also highlight nonlinear dynamics within the northern North Atlantic hydroclimatic system. The ‘Little Ice Age’ period at 350–50 cal. yr BP displays a remarkable 8–9‰ drop in δ¹⁸O_lw values, construed to predominantly represent significantly decreased winter temperatures during a period of increased seasonal differences and extended sea ice cover inducing changes in moisture source regions.

Keywords

Arctic climate ‘Little Ice Age’North Atlantic oxygen isotopes Spitsbergen Svalbard temperature

Introduction

The Arctic, and particularly the region of the Nordic Seas, has an enormous impact on the global distribution of heat and the ventilation of oceans via interconnected ocean–atmosphere feedback mechanisms involving surface winds, variable ice conditions, ocean stratification, and deep water formation (Bond et al., 2001; McManus et al., 2004; Steffensen et al., 2008). The Svalbard archipelago (Figure 1) lies at the crossroads of the Arctic and North Atlantic Oceans and the major oceanic gateways connecting these, at an optimal position to record past fluctuations in the Arctic ocean–atmosphere system. The four largest islands of the archipelago are the main island Spitsbergen, Nordaustlandet to the northeast, and Edgeøya and Barentsøya to the southeast. As the northernmost extension of the North Atlantic Current, the West Spitsbergen Current carries warm, saline Atlantic water northward along the western coast of Spitsbergen. Cold, ice-laden, low-salinity Arctic waters enter the North Atlantic via the western Fram Strait and are delivered south by the East Greenland Current. Additional cold Arctic waters are carried down from the Barents Sea along the eastern margin of Svalbard and around the southern tip of Spitsbergen by the East Spitsbergen Current. The climate of Svalbard is inseparably connected to the variations in the relative strengths of the flow of warm Atlantic and cold Polar/Arctic waters to the region (Marsz, 2013; Walczowski, 2013).

Figure 1.

Maps depicting the location of the study area, bathymetry of Lake Svartvatnet and locations of the coring site, lake water sampling sites (crosses), and inlet stream sampling sites (triangles). The arrow on the eastern flank shows the approximate location of the outlet stream. Star symbols in the indicator map show sites of prior proxy studies mentioned in the text. 1: Mitrahalvøya peninsula; 2: Lake Kongressvatnet; 3: Lake Skardtjørna.

The Nordic Seas’ significance to global climate is reflected, for example, in the vast number of research efforts aiming to characterize and quantify the properties of the water masses, flow strengths, and sea ice conditions in this region during the latest deglaciation and the Holocene (Belt et al., 2015; Berben et al., 2014; Bonnet et al., 2010; Cabedo-Sanz and Belt, 2016; De Vernal et al., 2013; Dylmer et al., 2013; Łącka et al. 2015; Majewski et al., 2009; Moros et al., 2012; Müller et al., 2012; Perner et al., 2015, 2016; Rasmussen and Thomsen, 2009, 2014; Rasmussen et al., 2007, 2012; Risebrobakken et al.,2003, 2010; Sarnthein et al., 2003; Werner et al., 2013, 2014). However, the picture of Holocene terrestrial climatic development on Svalbard is far more limited. Terrestrially based investigations have largely focused on past characteristics and activity of glaciers on Svalbard (Reusche et al., 2014; Snyder et al., 2000; Svendsen and Mangerud, 1991, 1997), with indirect climatic implications. Despite their sensitivity to post-depositional alteration (Pohjola et al., 2002), ice cores from Svalbard glaciers have yielded information on summer and winter temperatures, continentality, sea ice cover, and sources of moisture and pollution (Beaudon et al., 2013; Divine et al., 2011; Grinsted et al., 2006; Isaksson et al., 2005) over the past centuries. However, except for the study of Divine et al. (2011), time series from Svalbard ice caps do not extend back in time beyond 1000 CE. Similarly, millennial timescale reconstructions of climatic variables based on lake sedimentary archives from the region are also very scarce (Birks, 1991; D’Andrea et al., 2012; Velle et al., 2011).

Environmental time series from terrestrial contexts are highly desirable owing to their potentially higher sensitivity, that is, possibility for recording short-lived and small-scale fluctuations compared with the tendency of short-term variations to be smoothed out in oceanic records. Our study aims to provide a record of the development of the atmospheric component of northern North Atlantic hydroclimate over the middle to late Holocene from an area extremely sensitive to the interplay of Arctic and Atlantic air masses (Majewski et al., 2009) where previous terrestrial records of climate evolution are very rare. To this end, we use lake sedimentary proxy archives preserving records of the past oxygen isotope values of precipitation (δ¹⁸O_pr), which, in the right circumstances, can bear information on surface air temperatures (Dansgaard, 1964; Rozanski et al., 1993). Especially at high latitudes, less complexities stemming from moisture recycling and re-evaporation, convection, variable condensation heights, and source temperatures disturb the applicability of δ¹⁸O_pr as a temperature proxy, and much of our understanding of the long-term evolution of the thermal climate during the past 800,000 years is based on the isotopic composition of past Arctic and Antarctic precipitation, stored as ice (Johnsen et al., 1997; Jouzel et al., 2007). Also in Spitsbergen, ice core δ¹⁸O values have been shown to be good proxies for surface air temperature over the last 1000 years (Divine et al., 2011, 2005; Grinsted et al., 2006; Isaksson et al., 2003). Where glacier ice, directly preserving past records of δ¹⁸O_pr, is absent or ice cores are temporally limited by core length as is the case for Spitsbergen, other materials recording the δ¹⁸O values of environmental waters can be used. One such material is the chitinous exoskeleton of chironomid (Insecta: Diptera: Chrinomidae) larvae. Chironomid remains are generally abundant in lakes and they preserve well in the sediment record (e.g. Brooks, 2006). Chironomid species assemblages, and more recently the δ¹⁸O values of their larval head capsules, have been demonstrated as being sensitive indicators of past δ¹⁸O_pr values and temperatures (Brooks, 2006; Verbruggen et al., 2010a; Wooller et al., 2004). Using oxygen isotope analysis of chironomid head capsules in a lake sediment core retrieved from southernmost Spitsbergen, we aim to reconstruct variations in δ¹⁸O values of lake water (δ¹⁸O_lw) and to evaluate how they relate to δ¹⁸O_pr and changes in past air temperatures. The record spans the past 5500 years and demonstrates how, in optimal circumstances, chironomid δ¹⁸O values in high Arctic lakes faithfully track climatic oscillations, offering insight into past temperatures and sea ice oscillations.

Study site

Lake Svartvatnet (76.895°N, 15.676°E, 63 m a.s.l.) is a small, oligotrophic lake in Sørkappland, the southern part of Spitsbergen, ca. 1.5 km south of the Hornsund mouth and 12 km south(west) of the Polish Polar Station (Figure 1). It has a surface area of 0.8 km², a maximum depth of 26.5 m and a catchment area of ca. 15 km² (Ojala et al., 2016). The lake comprises a main basin to the south and a series of smaller, shallower sub-basins in its northern part (Figure 1). Lake Svartvatnet receives water through a network of seasonally active, shallow streams in its northern and southern–southeastern margins and drains to the adjacent fjord via a single outlet at its southeastern flank. At the time of our surveying in July 2013, the lake water had a temperature between 4°C (bottom) and 4.5°C (surface), a surface pH of 7.2, a color of 0 CPU, conductivity at 50 µS cm⁻¹, and total dissolved solids at 20 mg L⁻¹ (Ojala et al., 2016). Based on turbidity measurements, the water column in the northern basin is less turbidic because the main network of streams entering the lake and delivering allochthonous mineral matter is located in the southern part of the lake. In addition to turbidity measurements, ¹³⁷Cs-based estimates of sediment deposition rate in different parts of the lake indicate that most of the allochthonous material appears to be effectively trapped in the deep southern basin, shielding the northern basins from massive deposition and disturbances by episodic inputs of allochthonous mineral material from seasonal runoff and erosion (Ojala et al., 2016).

Lisbetdalen valley, the area surrounding lake Svartvatnet, is a typical periglacial landscape with glacial cirques, stone circles, and solifluction tongues. The steep slopes bordering the lake in the west feature talus formations and cones of slided coarse-grained debris. To the north, a series of ancient marine terraces dominate the setting between Lake Svartvatnet and the fjord.

The local climate is typical for a high arctic, maritime site. According to monitoring statistics at the Polish Polar Station, the mean annual temperature (MAT) and July air temperature for 1979–2014 are −4.0°C and 4.4°C, respectively, and the mean annual precipitation is 438.6 mm (Institute of Geophysics, Polish Academy of Sciences, 2016). The MAT and July temperature for the past 5 years are distinctly higher, −1.9°C and 5.2°C, consistent with observations of a 2–3°C increase in seasonal temperature and MAT since 1979 (Marsz, 2013). Precipitation events are strongly linked to advection of warm and moist air from the southwest, and most precipitation falls during the months of August, September, and October.

Material and methods

Core sampling and chronology

A 163-cm-long sediment sequence (core SV4c) was taken from the northernmost sub-basin (Figure 1) of Lake Svartvatnet in July 2013 with a piston corer. In the laboratory, the core was sliced into 1 cm sections. The dating of the sediment sequence, consisting of clay gyttja, was established using a combination of radiometric and paleomagnetic methods. A detailed description and discussion regarding the age–depth model for the Svartvatnet sediment sequence depicted in Figure 2, the sediment properties, and dating methods were presented by Ojala et al. (2016). The chronology relies on five AMS ¹⁴C dates obtained from terrestrial and aquatic bryophytes, ¹³⁷Cs and ²¹⁰Pb profiles, and comparisons of the paleosecular variation curves with regional reference curves described by Snowball et al. (2007). The resulting age model, constructed using a Bayesian P-sequence deposition model in OxCal 4.2 (Bronk Ramsey, 2008, 2009), indicates that the core represents ca. 5500 years of deposition (Ojala et al., 2016). The sediment sequence shows no indication of erosion or slumping of sediment, suggesting stable and continuous sedimentation throughout the sequence, while the ²¹⁰Pb record indicates increased sedimentation during the 20th century. All dates in the text are calendar dates, discussed either as calendar years during the Common Era (CE) or before present (cal. yr BP; present = year 1950), or thousands of years before present (cal. kyr BP).

Figure 2.

The age model for the Svartvatnet sediment core SV4c, modified after Ojala et al. (2016). Data labels show the sample ID and uncalibrated radiocarbon date.

Chironomid oxygen isotope analyses

The oxygen isotope analysis was performed on mixed chironomid taxa, following Wooller et al. (2004, 2008, 2012) and Verbruggen et al. (2010a). The most abundant chironomid taxa in the sediment were the benthic Micropsectra contracta-type and M. radialis-type that occurred throughout the stratigraphy (Luoto et al., in review). The sampling plan aimed at analyzing δ¹⁸O values of chironomid larval head capsules (δ¹⁸O_chir) from 1-cm-thick slices of sediment taken every 4 cm: 0–1 cm, 4–5 cm, and so on. However, the number of chironomid head capsules per cubic centimeter of sediment was relatively low and varied along the sediment sequence, and in most cases, it was necessary to combine two to four adjacent 1 cm slices in order to achieve a satisfactory sample mass. A minimum mass of 50 µg was previously recommended by Verbruggen et al. (2010a, 2010b) and Wang et al. (2008), but we typically achieved ⩾80 µg. The analytical protocol followed that described in Wang et al. (2008), and a more detailed description is provided in Kurki (2016). The acid treatment step was left out as Svartvatnet sediment is carbonate-poor and there is some evidence that acids may induce oxygen isotope exchange (Verbruggen et al., 2010a, 2010b).

Measurements of δ¹⁸O_chir values were performed on a Finnigan ThermoQuest TC/EA at 1330°C coupled to a Delta^PlusAdvantage isotope ratio mass spectrometer (IRMS) at the Laboratory of Chronology, Finnish Museum of Natural History. Established δ¹⁸O values for the international reference materials IAEA-NO₃ (25.6‰), IAEA-601 (23.3‰), ANU sucrose (36.4‰), baleen whale keratin BWBII (14.0‰), and an internally validated IAEA-CH₃ cellulose (32.6‰) were used to normalize raw δ¹⁸O data. An initial set of four samples was analyzed at the Alaska Stable Isotope Facility, where IAEA-601, BWBII, and EMA P-1 were run along with the unknowns. Both analytical runs showed a 1:1 relationship and an r² > 0.99 for measured versus expected δ¹⁸O values of the references. Chironomid concentration in the sediment sequence did not allow for replicate analysis of unknowns, but reproducibility of similar biogenic reference materials BWBII, Fluka crab shell chitin powder, and ANU sucrose indicates a mean analytical precision (1σ) of 0.5‰, with a range from 0.4‰ to 2.5‰ depending on signal (sample) size (see Appendix 1). All isotope data are reported as δ-values relative to Vienna Standard Mean Ocean Water (VSMOW).

Environmental water samples

To monitor modern δ¹⁸O_pr values, samples of monthly precipitation were collected at the Polish Polar Station in 2013 and 2014. The sampling protocol strived to minimize any evaporative effects using a layer of paraffin oil in the collection bottles and melting collected snow in closed containers. In addition, samples of Svartvatnet lake water and three streams supplying the lake were collected in July 2013. Lake water was sampled at the coring location and the southern main basin (Figure 1). The stream waters and lake surface water were collected in 100 mL HDPE flasks filled to the brim and sealed tightly. The subsurface water column was sampled at three levels −0.9, 6, and 12 m and 0.9, 10, and 24 m for the coring site and southern basin, respectively – using 500 mL HDPE flasks in a Biothofen VP90 water sampler.

The lake and stream waters, as well as the monthly precipitation samples for January–June 2013, were analyzed for their δ²H and δ¹⁸O values on a Picarro Isotopic H₂O L1115-I cavity ring-down spectrometer at the Department of Geosciences and Geography, University of Helsinki. All samples were measured in duplicate. Two internal reference waters calibrated against VSMOW and SLAP standards were used to normalize the results. Sample duplicates show a mean reproducibility (1σ) of 0.1‰ and 0.2‰ for δ¹⁸O and δ²H, respectively, while the long-term reproducibility based on standards is 0.2‰ for δ¹⁸O and 1‰ for δ²H. Precipitation samples from July 2013 to December 2014 were analyzed in quadruplicate at the Alaska Stable Isotope Facility on a Delta V Plus IRMS coupled to a ThermoQuest TC/EA pyrolysis unit. To ensure comparability, the same in-house references used at the University of Helsinki were included in the run. Sample replicates showed a mean reproducibility (1σ) of 0.3‰ and 2‰ for δ¹⁸O and δ²H values, respectively.

Reconstructions

The δ¹⁸O_lw values were calculated from the measured δ¹⁸O_chir values using a previously established calibration based on δ¹⁸O value pairs (n = 19) of chitinous head capsules of chironomid larvae from surface sediment and samples of the ambient lake water along a latitudinal transect extending from 40.9 to 68.4°N across Europe and covering a δ¹⁸O_lw range from −0.3‰ to −13.0‰ (Eq. 1; Verbruggen et al., 2011):

δ^{18} O_{chir} = 0.76 \times δ^{18} O_{lw} + 21.09 r^{2} = 0.90

To estimate changes in MAT corresponding to changes in δ¹⁸O values, we calculated two indexed MAT reconstructions. Both rely on spatial δ/T relationships (Dansgaard, 1964; Rozanski et al., 1993) derived from regressions of long-term means of δ¹⁸O values and MAT along climatic gradients around the northern North Atlantic. In the first approach, MAT was calculated from δ¹⁸O_chir values using a calibration by Wooller et al. (2004) correlating δ¹⁸O_chir values of surface sediment chironomid larval chitin against projected MAT at four lake sites in coastal northeastern North America and Greenland (Eq. 2). In the second approach, changes in MAT were calculated from changes in reconstructed δ¹⁸O_lw values, based on the relationship between δ¹⁸O_pr and MAT values (IAEA/WMO, 2016) on coastal stations with ⩾5 years of observations adjacent to the Greenland Sea, including Spitsbergen (Eq. 3; see Appendix 1 for data):

δ^{18} O_{chir} = 0.65 \times MAT + 14.5 r^{2} = 0.98

δ^{18} O_{pr} = 0.71 \times T - 9.94 r^{2} = 0.83

The composite error (1σ) factoring in measurement uncertainty and calibration error associated with the reconstructed δ¹⁸O_lw values, and MAT indices based on Wooller et al. (2004), was quantified for each sample depth using Eq. 4, which represents a modification (Pryor et al., personal communication, 2015) of formula 4 presented and discussed in Pryor et al. (2014). Briefly, x is the reconstructed term, δx is the total error for that term, y is δ¹⁸O_chir, δy is the measurement error for δ¹⁸O_chir, a is the slope of the calibration, S_y/x estimates the natural variation around the fit, and n is the number of observations in the calibration dataset:

δ x = \sqrt{({(\frac{S_{y / x}}{a} \sqrt{\frac{1}{n}} + \frac{{(y - \bar{y})}^{2}}{a^{2} Σ {(x_{i} - \bar{x})}^{2}})}^{2} + {(\frac{δ y}{a})}^{2})}

For the temperature estimates based on the Greenland Sea δ/T gradient, the composite errors were calculated using the formula for Z2-type conversions (Pryor et al., 2014). Throughout the text, the composite errors are given in parentheses, in contrast to measurement precision and standard deviation around calculated mean values.

Results

The δ¹⁸O_chir values range from 6.9‰ to 16.3‰ (Appendix 1). The lowest values in the sequence are recorded for sample depths 6–7 and 8–12 cm and the highest at 52–53 cm, corresponding to ca. 350–50 cal. yr BP and 1900–1800 cal. yr BP, respectively, according to the age model (Ojala et al., 2016). Two additional noteworthy negative fluctuations in δ¹⁸O_chir values occur around 30–35 cm (1250–1100 cal. yr BP) and at 88–92 cm (3400–3200 cal. yr BP). Outside these perturbations, the rest of the δ¹⁸O_chir record is relatively stable, with most samples exhibiting values between ca. −14.5‰ and −12‰.

The oxygen and hydrogen isotopic compositions of the environmental waters in the study area are presented in Tables 1 and 2. The lake is not isotopically stratified, and the water column shows uniform δ¹⁸O_lw and δ²H_lw values at −9.6 ± 0.1‰ and 66 ± 0.5‰, respectively. The inlet stream waters show more variability, with δ¹⁸O and δ²H values of −8.7 ± 0.6‰ and −61 ± 5‰, respectively. The monthly precipitation samples collected at the Polish Polar Station 14 km northeast of the study lake indicate a mean annual δ¹⁸O_pr value of −8.7‰ for 2013 and −7.6‰ for 2014. Mean monthly values of δ¹⁸O_pr over the 2013–2014 period were related to air temperature (Institute of Geophysics, Polish Academy of Sciences, 2016) according to δ¹⁸O_pr = 0.47 × T_air − 7.07 (r² = 0.66).

Table 1.

The isotope composition of Svartvatnet lake water and inlet streams sampled in July 2013.

	Depth	δ¹⁸O (‰, VSMOW)	δ²H (‰, VSMOW)	d-excess
Northern basin	Surface	−9.6	−67	9.8
	0.9 m	−9.8	−67	11.4
	6 m	−9.7	−66	10.8
	12 m	−9.5	−66	10.0
Southern basin	Surface	−9.4	−65	9.6
	0.9 m	−9.5	−66	9.5
	10 m	−9.4	−66	9.6
	24 m	−9.6	−67	10.4
Lake average		−9.6 ± 0.1	−66 ± 0.5
Stream 1, south		−9.3	−66	8.6
Sream 2, southeast		−8.8	−61	9.1
Stream 3, north		−8.0	−55	9.0
Stream average		−8.7 ± 0.6	−61 ± 5

VSMOW: Vienna Standard Mean Ocean Water.

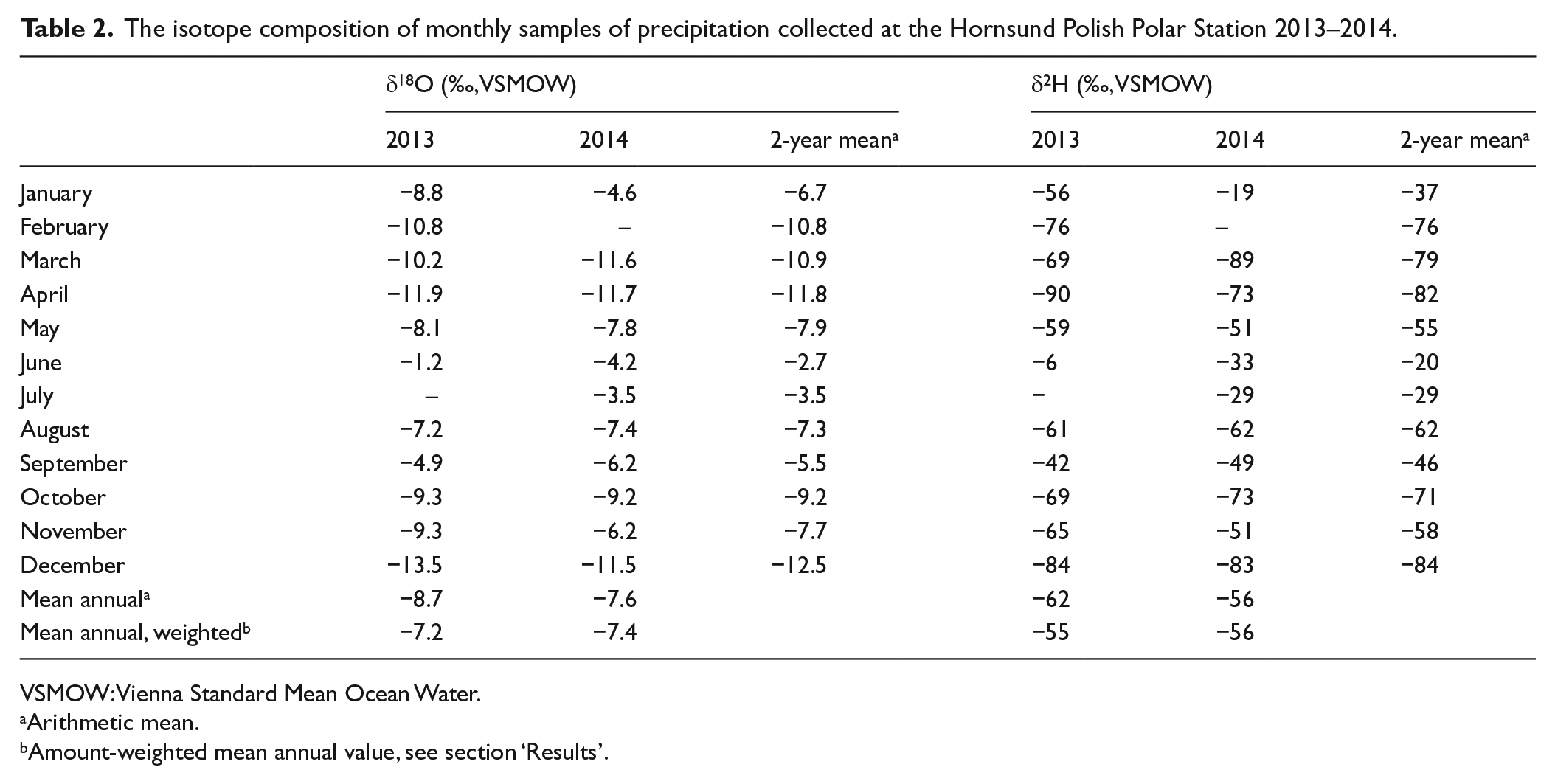

Table 2.

The isotope composition of monthly samples of precipitation collected at the Hornsund Polish Polar Station 2013–2014.

	δ¹⁸O (‰, VSMOW)			δ²H (‰, VSMOW)
	2013	2014	2-year mean^a	2013	2014	2-year mean^a
January	−8.8	−4.6	−6.7	−56	−19	−37
February	−10.8	–	−10.8	−76	–	−76
March	−10.2	−11.6	−10.9	−69	−89	−79
April	−11.9	−11.7	−11.8	−90	−73	−82
May	−8.1	−7.8	−7.9	−59	−51	−55
June	−1.2	−4.2	−2.7	−6	−33	−20
July	–	−3.5	−3.5	−	−29	−29
August	−7.2	−7.4	−7.3	−61	−62	−62
September	−4.9	−6.2	−5.5	−42	−49	−46
October	−9.3	−9.2	−9.2	−69	−73	−71
November	−9.3	−6.2	−7.7	−65	−51	−58
December	−13.5	−11.5	−12.5	−84	−83	−84
Mean annual^a	−8.7	−7.6		−62	−56
Mean annual, weighted^b	−7.2	−7.4		−55	−56

VSMOW: Vienna Standard Mean Ocean Water.

Arithmetic mean.

Amount-weighted mean annual value, see section ‘Results’.

Using the station’s records of monthly precipitation amount for the collection period, we calculated amount-weighted annual mean δ¹⁸O_pr values of −7.2‰ and −7.4‰ for 2013 and 2014, respectively.

The reconstructed sequence of lake Svartvatnet δ¹⁸O_lw values (Figure 3a, Appendix 1) logically tracks the pattern of the δ¹⁸O_chir record but is shifted to more negative values by 23.6 ± 0.6‰ due to known biogenic fractionation effects between growth water and the chironomid head capsules (see Wang et al., 2009). Thus, the reconstructed δ¹⁸O_lw values range from −18.7‰ (±2.4) to −6.3‰ (±1.5), the values in parentheses representing the composite error (cf. Pryor et al., 2014, see section ‘Methods’). The δ¹⁸O_lw value for the top 2 cm of sediment, reflecting the average composition of Lake Svartvatnet water for the past ~20 years (Ojala et al., 2016), is −9.2‰ (±1.9).

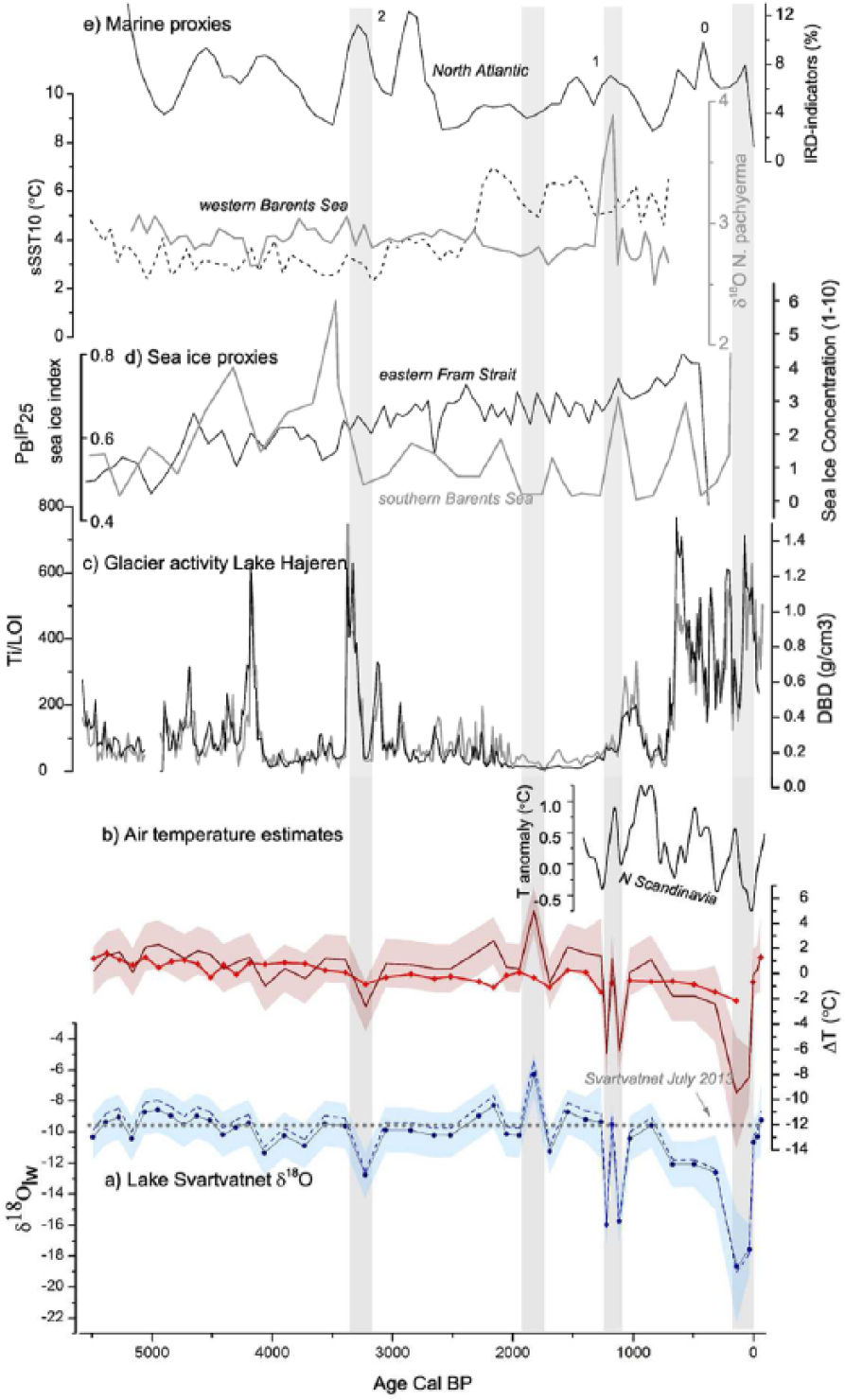

Figure 3.

Proxy records of Arctic climate. (a) Lake Svartvatnet δ¹⁸O values calculated according to Verbruggen et al. (2011, solid line with markers) and Wang et al. (2009, dashed line). Shading represents the composite error of the reconstruction calculated based on Verbruggen et al. (2011). (b) Air temperature reconstructions. Solid thin line and shading (composite error) shows calculated ΔMAT, assuming all variability in δ¹⁸O_lw stems from changes in temperature. Solid bold line with markers depicts the ΔJuly-T reconstruction based on chironomid assemblage analysis from the same core (Luoto et al., review). Both reconstructions are expressed as deviations from the reconstruction mean. Additionally shown is the 100-year filtered reconstruction of summer temperature anomalies from Lake Tornetrask, northern Scandinavia, for the past 1500 years (Grudd, 2008). (c) Sedimentary records of glacier activity from Lake Hajeren on Mitrahalvøya, western Spitsbergen (Van der Bilt et al., 2015). (d) Indicators of sea ice conditions in the eastern Fram Strait (Müller et al., 2012) and southeastern Barents Sea (De Vernal et al., 2013). (e) Reconstructed summer sea surface (upper 10 m) temperature and δ¹⁸O values of Neogloboquadrina pachyderma (sin.) from the western Barents Sea (Sarnthein et al., 2003) and a stacked record of ice-rafted debris indicators from four cores in the North Atlantic, with numbers referring to bond cycles 0 through 2 (Bond et al., 2001).

Discussion

δ¹⁸O_lw reconstruction

Approximately 70% of the oxygen in chironomid larvae is derived from growth water (Wang et al., 2009). The primary dependence of δ¹⁸O_chir values on δ¹⁸O_lw has been demonstrated in field studies (Verbruggen et al., 2010a, 2011; Wooller et al., 2004), and possible changes in, for example, the relative contributions of different dietary sources and changes in their respective oxygen isotope fractionation systematics appear subordinate to the influence of ambient water, as observed by Wooller et al. (2008) in a study monitoring chironomid dietary shifts and δ¹⁸O_chir values. While the δ¹⁸O_chir value mainly tracks the δ¹⁸O value of lake water, the reliability of the δ¹⁸O_lw reconstruction is influenced by the applicability of the δ¹⁸O_chir–δ¹⁸O_lw equation describing the oxygen isotope fractionation between lake water and chironomid head capsules. The δ¹⁸O_chir–δ¹⁸O_lw equation applied here (Verbruggen et al., 2011) might prove unsuitable in case of a significant dependence of fractionation effects on (1) formation temperature or (2) species of chironomid analyzed. Contrary to what is observed for the formation of many carbonates and silicates, a direct temperature dependence of the O-isotope fractionation during chironomid head capsule biosynthesis is not expected (Heiri et al., 2012; Verbruggen et al.,2010a; Wolfe et al., 2001, 2011), but this remains to be experimentally verified. Temperature-dependent fractionation would be problematic in circumstances of marked water temperature differences between the calibration conditions and those at the study lake. Unfortunately, Verbruggen et al. (2011) do not report the temperatures of their lake profundal waters where chironomids live, but they sampled very deep lakes whose bottom water temperatures are likely to remain stable and relatively low.

We followed the technique of previous down-core chironomid δ¹⁸O investigations in relying on a mixed-taxon approach (Verbruggen et al., 2010a; Wooller et al., 2004, 2008, 2012), which was also applied in the δ¹⁸O_chir–δ¹⁸O_lw calibration of Verbruggen et al. (2011). The notable similarity of δ¹⁸O_lw reconstructions for Lake Rotsee in Switzerland based on lake carbonates and mixed-taxon δ¹⁸O_chir values (Verbruggen et al., 2010a) indicates that different chironomid taxa exhibit very similar relationships to ambient δ¹⁸O_lw values and mixing species for the purpose of estimating past δ¹⁸O_lw values does not induce significant errors in the reconstruction. Furthermore, the observation of Wooller et al. (2008) that marked changes in δ¹⁸O_chir values along a Holocene-covering sediment sequence from an Icelandic lake were not coeval with shifts in chironomid taxonomic assemblages supports this conclusion.

As an additional sensitivity test, we applied another δ¹⁸O_chir–δ¹⁸O_lw calibration from a rearing experiment relating δ¹⁸O values of whole bodies of Chironomus dilutus larvae to that of their growth water (Wang et al., 2009) to estimate past δ¹⁸O_lw values for Lake Svartvatnet. The Wang et al. (2009) equation (δ¹⁸O_chir = 0.69δ¹⁸O_w + 20.1) is very similar to that of Verbruggen et al. (2011) despite obvious differences in study setups, and the reconstructed δ¹⁸O_lw records are likewise highly comparable (Figure 3a). This points to relative insensitivity of the stable oxygen isotope fractionation to any potential species-specific vital effects and possible differences in dietary source and water temperature and further suggests a negligible offset between the isotope composition of chironomid larval chitinous head capsules and that of the whole body, as already observed for carbon and nitrogen isotopes (Heiri et al., 2012). Consequently, based on these observations and the fact that the measured present-day Lake Svartvatnet δ¹⁸O_lw value, 9.6 ± 0.1‰, is well within the δ¹⁸O_lw estimate for the top 2 cm of surface sediment, −9.2‰ (±1.9), we consider our δ¹⁸O_lw reconstruction a realistic, robust representation of past changes in the oxygen isotope composition of Lake Svartvatnet water.

Svartvatnet δ¹⁸O_lw as a proxy for δ¹⁸O_pr

The δ¹⁸O value of lake water can be expected to represent the mean δ¹⁸O value of precipitation in the catchment area if it is not altered by evaporation or does not receive significant input from non-local or non-contemporaneous waters, such as melt waters from high altitudes and glaciers. Presently, the nearest glaciers Gåsbreen and Bungebreen lie 5–7 km to the east and southeast of the lake (Figure 1), and the chain of highest peaks in Sørkappland reaching 925–142 m a.s.l. is ca. 11 km to the east. Our study lake is also shielded from the drainage of both glaciers and high-altitude peaks by a N-S-trending ridge of higher (ca. 400–500 m a.s.l.) ground. The δ¹⁸O values of the southern inlet streams (−9.3‰ and −8.8‰, Table 1) draining these higher terrains are close to mean annual values of δ¹⁸O_pr and probably represent a mixture of June–July precipitation and the continued seasonal melt of snow from the slopes in the lake catchment area.

Lake Svartvatnet has a relatively small volume compared with the size of its catchment (~15 km²), suggesting a relatively short residence time with the majority of the water mass replaced each year during snowmelt. The short, ca. 2.5 month, period of time the lake remains free of ice cover annually, the generally low temperatures and high relative humidity (RH; July 2013–2014 mean RH 87%) of the local air during the open-water period minimize evaporative influences to the water body. At the time of sampling in mid-July, the water column shows uniform δ¹⁸O values, with no indication of surface water ¹⁸O enrichment, which would otherwise indicate significant evaporation from the lake surface (Table 1). Furthermore, the δ¹⁸O and δ²H values of the samples collected from Svartvatnet lake water and the inlet streams plot along the local meteoric water line (Figure 4) describing the isotopic composition of precipitation on the western coast of Spitsbergen. These data strongly suggest that the waters of Lake Svartvatnet are sourced from local precipitation and evaporative isotopic enrichment is likely to be negligible. However, the isotopic composition of Lake Svartvatnet water in mid-July 2013 was ~2‰ lower than the amount-weighted mean annual δ¹⁸O_pr values for 2013–2014 recorded at the Polish Polar Station. There are several possible explanations for this observation. The difference may be a reflection of the considerable uncertainties in precipitation amount measurements at high latitudes (Aguado and Burt, 1999; Łupikasza, 2013) affecting the amount-weighted δ¹⁸O_pr values. According to Aguado and Burt (1999), Spitsbergen is located in a zone where the error may reach 20–39% of measured annual totals, with totals of snowfall having the highest potential errors (Łupikasza, 2013). Furthermore, the discrepancy may be related to the fact that autumn 2012 was not covered in the precipitation monitoring, although it can be expected to exert a major control over δ¹⁸O_lw values of the lake sampled in July 2013, considering that the autumn months usually contribute almost 40% of annual precipitation (Łupikasza, 2013). Another factor that could explain the offset is the general seasonal variation of δ¹⁸O_pr values. The degree to which lake water δ¹⁸O values are affected by seasonal variability in δ¹⁸O_pr is determined by the residence time (e.g. Sauer et al., 2001). The relatively short residence time of Lake Svartvatnet gives cause to expect that δ¹⁸O_lw values are at their lowest during the summer snowmelt period, usually beginning in late May to early June in this region (Rotschky et al., 2011), and rise gradually toward the end of the open-water season (September; Ojala et al., 2016) with the accumulation of warm-season precipitation with higher δ¹⁸O values.

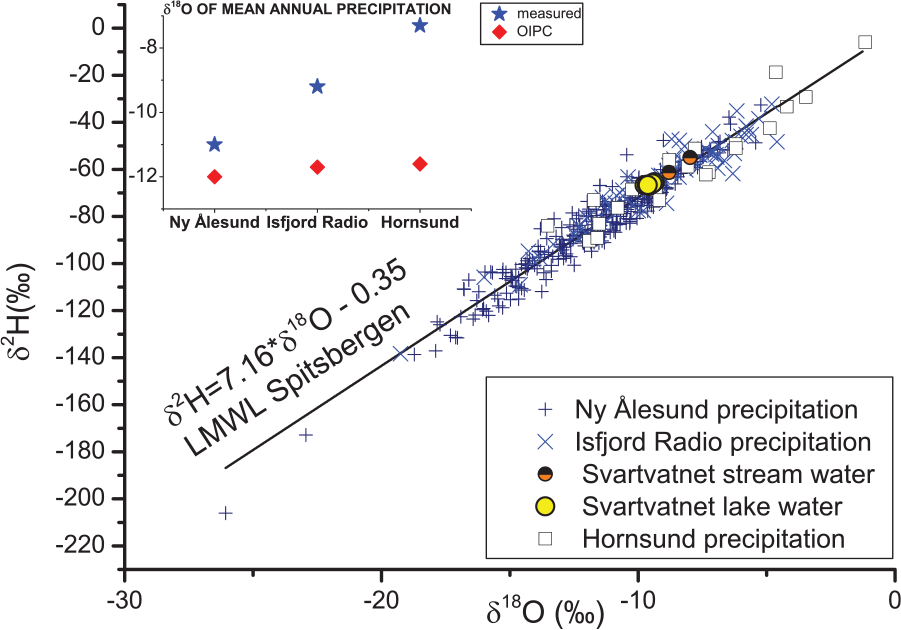

Figure 4.

The δ¹⁸O and δ²H values of the water samples taken from Lake Svartvatnet, inlet streams, and monthly precipitation relative to the Local Meteoric Water Line for western Spitsbergen. Inset: comparison between amount-weighted mean annual δ¹⁸O values of precipitation in Ny-Ålesund, Isfjord Radio, and Hornsund and those predicted by the Online Isotopes in Precipitation Calculator (OIPC; Bowen, 2016; Bowen and Revenaugh, 2003).

We note that the δ¹⁸O_lw values are ca. 2.5‰, and the amount-weighted annual δ¹⁸O_pr values are ca. 4.5‰ less negative than what the Online Isotopes in Precipitation Calculator (OIPC; Bowen, 2016; Bowen and Revenaugh, 2003) predicts for the site based on its location and elevation (see inset in Figure 4). Positive offsets of 1‰ and 2.5‰ are observed also for amount-weighted annual δ¹⁸O_pr values on IAEA’s Global Network of Isotopes in Precipitation (GNIP) monitoring stations at Ny-Ålesund and Isfjord Radio (IAEA/WMO, 2016), respectively, suggesting that the OIPC tends to underestimate δ¹⁸O_pr values for this region and might not be a suitable point of reference for local δ¹⁸O_pr values.

Viewed against this background, it is reasonable to assume that Lake Svartvatnet δ¹⁸O_lw values track changes in mean annual δ¹⁸O values of regional precipitation. It is also likely that they represent the absolute level of δ¹⁸O_pr values with reasonable accuracy, with a possible bias toward somewhat lower δ¹⁸O values due to lingering effects of summer snowmelt during the period of chironomid larval growth. However, to reconstruct past environmental conditions, we must be able to assume that the status quo regarding evaporation and glacier water influence to δ¹⁸O_lw has remained unchanged for the past 5500 years. Based on the modest increases in temperatures inferred for the warmer early-Holocene period in Svalbard (Birks, 1991), any significant increase in evaporative demand is not expected. Also, there is no geomorphological evidence for the presence of a glacier in the Lisbetdalen valley during the late Holocene (Lindner and Marks, 1993; Ojala et al., 2016), and records of glacier thickness since 1899 (Ziaja, 2004), immediately after the ‘Little Ice Age’ (LIA) when Svalbard glaciers in general are thought to have had their largest Holocene extent (Snyder et al., 2000; Svendsen and Mangerud, 1997; Werner, 1993), suggest that the nearest glacier Gåsbreen did not advance over the ca. ⩾400 m a.s.l. ridge separating it from Lake Svartvatnet catchment. Thus, it seems plausible that Lake Svartvatnet has remained shielded from glacier melt water pulses even during (after) intervals of expanded glacier extent.

Reconstructing paleoenvironmental conditions

Some noteworthy challenges arise when attempting to interpret δ¹⁸O_pr proxy records in terms of past air temperatures. An exhaustive review of these is beyond this paper, but we briefly visit some of the most relevant issues. Ideally, investigations of variations in past temperatures based on δ¹⁸O_pr proxies should rely on temporal δ/T slopes, based on prior knowledge of the regional past relationship between changes in past surface temperature and δ¹⁸O_pr, derived from, for example, paleogroundwaters (Darling et al., 1997; Huneau et al., 2002; Loosli et al., 2001) or ice cores (Buizert et al., 2014; Jouzel et al., 1997; Vinther et al., 2008). Situations with independent knowledge of both MAT and δ¹⁸O_pr changes are, however, regrettably rare, and most paleotemperature studies apply spatial δ/T slopes determined over large-scale geographical climatic gradients (Dansgaard, 1964; Rozanski et al., 1992, 1993). Despite several reports of temporal δ/T slopes close to modern spatial slopes from both North America and Europe (Beyerle et al., 1998; Edwards et al., 1996; Hammarlund, 1999; Remenda et al., 1994; Rozanski et al., 1992; Zuber et al., 2004), contradicting observations of temporal δ/T slopes in Greenland different from modern spatial gradients (Buizert et al., 2014; Jouzel et al., 1997; Vinther et al., 2008) add considerable uncertainty to the general reliability of δ¹⁸O_pr values as proxy for temperature.

The δ¹⁸O value of precipitation, and thus the observed δ/T slope, is a manifestation of the isotopic composition and conditions at the source of evaporation and conditions along the moisture trajectories to the site of precipitation. Therefore, a change in the dominant moisture source or its temperature, affecting the extent of fractionation of the water vapor (Dansgaard, 1964), can lead to a change in the δ¹⁸O of precipitation at a site (Masson-Delmotte et al., 2005; Steffensen et al., 2008; Vachon et al., 2010). For example, Masson-Delmotte et al. (2005) explained the lower δ¹⁸O values of the NGRIP ice core compared with the GRIP record by a combination of lower condensation temperatures and a different moisture source with a higher temperature. In the Arctic, sea ice acts as insulation between the ocean and the atmosphere restricting the exchange of moisture and heat and has been shown to exert a significant influence over the availability of and distance to moisture sources (Divine et al., 2008; Grinsted et al., 2006; Klein et al., 2015). According to a recent simulation examining the effects of changes in sea ice cover and sea surface temperatures on δ¹⁸O values of Arctic precipitation, especially the restriction imposed by increased sea ice to locally sourced water vapor causes significant decreases in the δ¹⁸O_pr values (Faber et al., 2017). Interestingly though, the study reported fairly robust δ/T relationships, largely unaffected by sea ice variability, around the Arctic.

δ¹⁸O_pr proxies relying on modern spatial δ/T relationships will also lead to misinterpretation of air temperatures in cases where the seasonal distribution of precipitation is different from that of the present day. For instance, Wooller et al. (2008) interpreted seasonality changes as a contributing factor explaining large δ¹⁸O shifts leading to unrealistically large interpreted temperature changes in an Icelandic lacustrine sediment record covering the Holocene.

Comparisons with other high Arctic proxy records

5500–2500 cal. yr BP

As a whole, the earlier part of the δ¹⁸O_lw record up to ca. 2500 cal. yr BP shows relatively little variation and the δ¹⁸O_lw values remain close to present-day level, suggesting fairly stable hydroclimatic conditions similar to those prevailing today. At ca. 3400–3200 cal. yr BP, the δ¹⁸O_lw of Lake Svartvatnet decreases to −12.8‰, representing the lowest value in the earlier part of the record. The timing of this episode of ca. 3‰ lower δ¹⁸O_lw values is concurrent with a prominent centennial-scale glacier advance at 3380–3230 cal. yr BP on Mitrahalvøya Peninsula in northwestern Spitsbergen (Figure 3c; Van der Bilt et al., 2015), attributed to North Atlantic forcing against a background of general Neoglacial cooling. In a wider context, the drop overlaps with the timing widespread evidence of increased Northern Hemisphere glacier activity (3.3–2.8 cal. kyr BP; Solomina et al., 2015) and low temperatures (3.3–2.5 cal. kyr BP; Wanner et al., 2011), as well as increased ice-rafted debris indicators (Figure 3e; Bond et al., 2001) and sediment markers of storminess and/or brine formation (ca. 3500–3200 cal. yr BP; Sarnthein et al., 2003) indicating cool conditions in the northern North Atlantic.

2500 cal. yr BP to the LIA

After ca. 2500 cal. yr BP, the δ¹⁸O_lw record shows more variability, in agreement with observations of more unstable conditions in the Nordic Seas (Berben et al., 2014; Rasmussen et al., 2012; Risebrobakken et al., 2010) and higher glacier activity around Svalbard (Lubinski et al., 1999; Røthe et al., 2015) toward the end of the Holocene. The highest δ¹⁸O_lw value of the record occurs at ca. 1900–1800 cal. yr BP (~50–150 CE), coinciding with a period of general warmth referred to as the Roman Warm Period (RWP). In the North Atlantic Ocean, the RWP interval (ca. 2500–1500 cal. yr BP) is associated with, for example, increased temperatures and productivity, decreased evidence of ice, and strengthened flow along the major flow path and the side branches of the North Atlantic Current (Bianchi and McCave, 1999; Dylmer et al., 2013; Moros et al., 2012; Perner et al., 2015, 2016; Risebrobakken et al., 2003; Sarnthein et al., 2003). Similarly, Northern Hemisphere terrestrial environments widely display evidence of elevated temperatures between 1 and 300 CE (Ljungqvist, 2010).

The prominent double decrease in the Svartvatnet δ¹⁸O_lw record at ca. 1250–1100 cal. yr BP suggests that southern Spitsbergen experienced a significant late-Holocene cold spell prior to the onset of the LIA. These negative shifts overlap with the latter part of a cooling known as the Dark Ages Cold Period (DACP, ca. 1500–1000 cal. yr BP; Bianchi and McCave, 1999; McDermott et al., 2001). The event is directly preceded by a minimum in total solar irradiation (Renssen et al., 2006; Steinhilber et al., 2009) and contemporaneous with records of expanded glaciers on the Northern Hemisphere at 1.2–1.1 cal. kyr BP (Solomina et al., 2015). On Spitsbergen, glacier advances or increased glacier activity has been reported from different parts of the island (Guilizzoni et al., 2006; Humlum et al., 2005; Røthe et al., 2015; Van der Bilt et al., 2015), and sedimentary records from lakes Kongressvatnet and Skardtjørna indicate cooled summers during the time period (D’Andrea et al., 2012; Velle et al., 2011). Further afield, low summer temperatures during this time interval were also reconstructed for northern Scandinavia (Figure 3b; Grudd, 2008). In the marine realm, elevated IRD markers (Figure 3e; Bond et al., 2001), cooler summer sea surface and subsurface temperatures (Risebrobakken et al., 2010; Sarnthein et al., 2003), and increased sea ice (Rasmussen and Thomsen, 2014) in the surrounding areas indicate a cooling of the North Atlantic overlapping with the time interval. Additionally, an intriguing peak (Figure 3e) of the planktic foraminifer Neogloboquadrina pachyderma (sin.) δ¹⁸O values is observed in a number of long sediment cores retrieved from different locations in the Barents Sea (core 23258-2: Sarnthein et al., 2003; core JM02-460: Rasmussen et al., 2007; core PSh-5159N: Risebrobakken et al., 2010; core JM09-KA11-GC: Berben et al., 2014), perhaps associated with a cooling of the sea (sub)surface temperatures (Risebrobakken et al., 2010) or increased advection from the cold Barents shelf (Sarnthein et al., 2003) during a time of periodic freshening of the surface and stratification of the upper water column.

The LIA

A wealth of proxy evidence testifies to the LIA cooling, thought to have been triggered by reduced solar irradiance, extended volcanism, and internal characteristics of the ocean–atmosphere system (Miller et al., 2010, 2012; Wanner et al., 2011). The isotopic composition of lake Svartvatnet shows a remarkable depression, with δ¹⁸O_lw values ca. 8–9‰ below present-day values during the LIA period. There is an initial drop of 2.5‰ from present-day levels to −12‰ at ca. 800–700 cal. yr BP and, a further, more prominent decrease to −19‰ at ca. 350–50 cal. yr BP (ca. 1600–1900 CE). The timing of the event in our record agrees with that in large-scale Arctic and Northern Hemisphere temperature compilations by Kaufman et al. (2009) and Marcott et al. (2013), respectively. Abundant proxy evidence on and around Svalbard, consistent with the timing and pattern of the LIA in the Svartvatnet δ¹⁸O record, testify to the climatic deterioration during the period. The flow of warm Atlantic water was significantly reduced, Arctic/Polar waters dominated the surface ocean off western Spitsbergen and western Barents Sea (Dylmer et al., 2013), and the western Nordic seas experience their most extensive April sea ice cover since 1200 CE between the 17th and the 19th centuries (Macias Fauria et al., 2009). Terrestrial records from Spitsbergen indicate general glacier expansion and decreased air temperatures (Grinsted et al., 2006; Guilizzoni et al., 2006; Isaksson et al., 2003; Kekonen et al., 2005; Lubinski et al., 1999; Røthe et al., 2015; Snyder et al., 2000; Svendsen and Mangerud, 1997; Van der Bilt et al., 2015; Velle et al., 2011; Werner, 1993), with multiple reports of a two-step progression for the LIA.

Factoring in respective age-model uncertainties, it appears that all major negative shifts, that is, ‘cold’ periods, in the δ¹⁸O_lw record are roughly synchronous with periods of major negative anomalies in total solar irradiation and high modeled probabilities for extremely cold years in the Nordic Seas (Renssen et al., 2006), and widespread evidence of North Atlantic ‘cold spells’ (Bond et al., 2001; Sarnthein et al., 2003; Solomina et al., 2015; Wanner et al., 2008) linked to solar forcing. However, we emphasize that significant differences exist between the Svartvatnet δ¹⁸O_lw record and the aforementioned records of solar forcing–induced cold events (see, for example, Figure 3e). For example, one of the most prominent of these cold anomalies at ca. 2800 cal. yr BP does not appear on the Svartvatnet δ¹⁸O_lw record. Renssen et al. (2006) simulate 10–15°C lower spring (March) air temperatures and 40–60% enhanced sea ice cover for our study area during this cold climatic anomaly, absent from our record. This highlights an intriguing non-linearity of the high arctic ocean–atmosphere hydroclimatic system. Additionally, we would like to note that both the 1900–1800 and 3400–3200 cal. yr BP fluctuations are only one-sample events in the record, and thus, their apparent match with concurrent climatic trends may be fortuitous. In any case, as single-sample events, they should not be considered representative of the actual regional strength, length, or structure of the climatic episodes they are tentatively linked to.

The cold spells: changed temperatures, moisture sources, or seasonality?

The northern North Atlantic has a central role in shaping the climate of the study area. There is a strong correlation between mean annual air temperatures measured at the Hornsund Polish Polar Station and temperatures of Atlantic waters from 2000 to 2007 (Walczowski, 2013). While their influence on summer air temperatures in the study area is negligible, Atlantic water masses mitigate winter temperature minima through the flux of sensible and latent heat (Walczowski, 2013), and thus, winter temperatures play an essential part in variations of MATs. Due to the significant effects of sea ice cover on heat exchange with the atmosphere, winter climate of southern Spitsbergen exhibits a substantial sensitivity to seasonal sea ice extent, as demonstrated by high coefficients of determination (r² > 0.75) of winter and spring sea ice extents in the Greenland and Kara–Barents Seas on Hornsund MATs during 1979–2009 (Marsz, 2013). Hence, the δ¹⁸O_lw record can be expected to be strongly influenced by regional winter conditions, particularly by variability in the northward advection of warm Atlantic water masses, extent of sea ice, and moisture availability from the adjacent Nordic Seas in addition to general insolation variability. These factors bear great significance to the interpretation of the Svartvatnet δ¹⁸O_lw record.

Yet a significant influence of air temperature on Svartvatnet δ¹⁸O_lw values is suggested by the similarity of the δ¹⁸O record to a July air temperature (July-T) reconstruction based on chironomid assemblage analysis from the same sediment core (Figure 3b; Luoto et al., in review). The July-T reconstruction shows a similar general trend, and cold periods are indicated by both records at ca. 3400–3200, 1300–1200, and 350–50 cal. yr BP. Dissimilarities between the records are expected because the July-T record is based on 1-cm-thick samples taken every 4 cm throughout the sequence, while the δ¹⁸O analyses predominantly reflect an average of 2–4 cm of sediment. Furthermore, based on observations of relative thermal stability of summers compared with the rest of the annual cycle in Spitsbergen for the past decades (Divine et al., 2011; Marsz, 2013), any reconstruction of MAT can be expected to show more variability compared with reconstructed summer temperatures.

If assumed to represent solely changes in MAT using δ/T gradients of 0.65 (Wooller et al., 2004) and 0.71 (Greenland Sea spatial slope; see section ‘Material and methods’ and Appendix 1), the local minima in δ¹⁸O_lw values at 3400–3200 and 1250–1100 cal. yr BP translate to MATs 3°C (±3) and 6–8°C (±3) below the reconstruction mean. For the LIA minimum between 1600 and 1900 CE, the δ¹⁸O_lw record suggests ca. 10–12°C (±6) lower MATs (Figure 3b). However, it is highly probable that the observed shifts in δ¹⁸O_lw reflect additional environmental factors and cannot be interpreted as temperature changes alone. This is particularly evident for the drop in δ¹⁸O_lw values associated with the LIA.

The climate of the LIA

In notable contrast to the 10–12°C (±6) lower MATs inferred from the δ¹⁸O_lw record, the summer air temperature reconstruction for lake Svartvatnet (Figure 3b; Luoto et al., in review) indicates only 2°C cooler LIA summers than the reconstruction mean and 3.5°C lower than the calculated temperature for the surface sample. However, a more subdued drop in summer air temperature is consistent with the general thermal stability of summer climate in Spitsbergen over the long term (Divine et al., 2011; Marsz, 2013), and considering the strong influence of winter temperatures on the MATs discussed above, a transient decoupling of summer and winter temperatures seems to have taken place during the 1600–1900 CE time interval. Indeed, increased seasonality or continentality, that is, a greater amplitude between winter temperature minima and summer maxima, for the LIA time interval has been inferred based on increases in the amplitude of seasonal δ¹⁸O variations in ice core records from the Lomonosovfonna glacier in central Spitsbergen (Divine et al., 2011; Grinsted et al., 2006). The δ¹⁸O-based Lomonosovfonna continentality index, mostly driven by winter temperature change, peaks at 1860 CE and declines rapidly thereafter (Grinsted et al., 2006). Increased seasonal temperature variations for the 19th century are known also from Greenland (Box et al., 2009), Iceland, and northern Scandinavia (Hanna et al., 2004; Klingbjer and Moberg, 2003). Considering large-scale trends, a more prominent lowering of winter temperatures agrees also with evidence characterizing the well-known European cold of the LIA during the Maunder Minimum (1650–1700 CE; Eddy, 1976) as mainly a spring and winter phenomenon, whereas summers and autumns do not show strong departures from the European 20th-century average (Luterbacher et al., 2004; Xoplaki et al., 2005). Thus, an enhanced drop in winter temperatures, leading to a more pronounced lowering of MATs compared with summer, is plausible, and we argue that significantly lowered winter temperatures likely account for a part of the outstandingly low LIA δ¹⁸O_lw values. However, considering that LIA winter temperatures on Svalbard are estimated to have been ca. 4°C colder based on ice core records (Divine et al., 2011), a 10–12°C drop in MAT appears disproportionately large and requires further examination.

In Greenland, a major drop in the GRIP ice core d-excess record at 0.35 ka (ca. 1600 CE) indicates changes in moisture source conditions (Hoffmann et al., 2001; Masson-Delmotte et al., 2005), with a reconstructed 1°C temperature drop on site in Greenland accompanied by a 2°C decrease in moisture source temperature. Similar to Greenland (Johnsen et al., 1989), Spitsbergen receives much of its precipitation from evaporation taking place in the subtropics (Dickson et al., 2000; Divine et al., 2008; Humlum et al., 2005). However, more proximal sources, most likely the Greenland and Norwegian Seas, seem to have played a significant role in supplying moisture to Spitsbergen (Beaudon et al., 2013; Divine et al., 2008; Hebbeln et al., 1994; Svendsen and Mangerud, 1991). With reference to evidence of much extended sea ice cover around Spitsbergen during the LIA (Grinsted et al., 2006; Macias Fauria et al., 2009; Müller et al., 2012), it is very likely that ice cover–induced changes in the moisture supply from the adjacent seas play a significant part in the prominent drop of δ¹⁸O_lw values observed at 350–50 cal. yr BP in lake Svartvatnet. A decrease in the proportion of proximally derived ‘cold source’ moisture, that is, a shift to greater dominance of more distant southerly and hence warmer moisture sources, would result in enhanced Rayleigh distillation of the water vapor leading to more ¹⁸O depleted precipitation on site. As inferred for the termination of the LIA in ice core proxies, the rapid recovery from the LIA δ¹⁸O_lw minimum at ca. 50 cal. yr BP is likely related to fast decline of sea ice in the adjacent Nordic Seas (Divine et al., 2008; Grinsted et al., 2006). For example, the significant shift in the sea ice cover of the Greenland Sea occurred right after 1880 CE, creating year-round open-water conditions southwest of Spitsbergen (Divine et al., 2008). The apparent sensitivity of Lake Svartvatnet δ¹⁸O_lw values to variations in sea ice extent in the surrounding seas, consistent with results of modeling and empirical data on the dependence of δ¹⁸O_pr values on sea ice on Spitsbergen (Faber et al., 2017; Macias Fauria et al., 2009), implies that comparable high-quality (i.e. lake shielded from glacier/high-altitude melt waters, minimal evaporation, short residence time, stable deposition, and sufficient resolution) lacustrine δ¹⁸O_pr proxy records on Svalbard may be used as indicators of past major fluctuations in sea ice extent.

It is additionally possible, that part of the lowering in the δ¹⁸O_lw value is accounted for by a shift in the seasonal distribution of precipitation toward the cold season, that is, increased snowfall during the winter months. This would be consistent with scenarios attributing the maximum extent of Svalbard glaciers during the LIA (D’Andrea et al., 2012), and late-Holocene ice advances in general (Müller et al., 2012; Van der Bilt et al., 2015) to cold season precipitation rather than decreased summer temperatures. However, based on the 2-year monitoring of precipitation δ¹⁸O values at the Polish Polar Station indicating winter minimum δ¹⁸O_pr values of ca. −13‰ to −12‰, the exceptionally low δ¹⁸O_lw values observed for the LIA are not attainable even with 100% of precipitation received during the deepest winter. Thus, any seasonality change-induced effects on Lake Svartvatnet δ¹⁸O_lw must be accompanied with an air temperature and/or moisture source–related lowering of δ¹⁸O_pr values.

The rest of the record

The issues raised above are naturally pertinent to the interpretation of the negative δ¹⁸O_lw shifts observed at 3400–3200 and 1250–1100 cal. yr BP. It is particularly clear that any significant changes in sea ice cover over the Greenland and Barents Seas will inevitably influence the Svartvatnet δ¹⁸O_lw record. Unfortunately, much less precise information is available on sea ice conditions in the Nordic Seas over the 5500-year time span represented by our proxy record. The reconstructions available for the eastern Fram Strait region on the northern West Spitsbergen Shelf are not necessarily easily comparable nor mutually consistent. Although some similar trends can be discerned (Cabedo-Sanz and Belt, 2016), sea ice reconstructions based on the biomarker IP25 (Figure 3d; Cabedo-Sanz and Belt, 2016; Müller et al., 2012) and those derived from dinocyst assemblage variations (Bonnet et al., 2010; De Vernal et al., 2013) display clear differences. The biomarker-based reconstructions show relatively low general variability and display minor highs a little before 800 CE (1150 cal. yr BP; Cabedo-Sanz and Belt, 2016) and 1.1 cal. kyr BP (Müller et al., 2012). The dinocyst-based reconstructions (Bonnet et al., 2010; De Vernal et al., 2013) show much larger variability, sometimes opposing trends, and do not support a scenario of particularly extended sea ice cover at 3400–3200 and 1250–1100 cal. yr BP. To the south and southeast of Spitsbergen, intermittent seasonal sea ice was inferred from biomarker IP25 indices for the middle to late Holocene in the Kveithola Trough, western Barents Sea, by Berben et al. (2014) and Belt et al. (2015), with somewhat elevated index values roughly between 3.5 and 3 ka cal. yr BP and 1 ka cal. yr BP onward. For southeastern Barents Sea, peaks at 3.5 and 1.1 ka cal. yr BP in the dinoflagellate cyst–based reconstruction (Figure 3d; De Vernal et al., 2013) suggest increased sea ice cover during these periods. In summary, although conclusive evidence of significantly extended sea ice cover for the time periods of interest cannot be drawn from the dinocyst- and biomarker-based reconstructions, it is very likely that increased sea ice was associated with these periods of general cooling (Bond et al., 2001; Rasmussen and Thomsen, 2014; Sarnthein et al., 2003). Thus, the negative shifts in Svartvatnet δ¹⁸O_lw values probably include a component related to changes in moisture sources and, possibly in seasonality of precipitation, and do not represent decreased MATs only. Nonetheless, the δ¹⁸O_lw record from Lake Svartvatnet provides solid evidence of the mid- to late-Holocene development of meteoric hydroclimate in the European sector of the high Arctic registering perturbations consistent with the timing of well-known historical climate episodes (the RWP, the DACP, and the LIA) and clearly demonstrates the inseparable connection between the evolution of North Atlantic conditions and terrestrial climate in the region. Our δ¹⁸O_lw record from Svartvatnet certainly sets the stage for future comparative studies from other lakes in the region.

Conclusion

The δ¹⁸O_chir values of chironomid head capsules from Lake Svartvatnet in southern Spitsbergen yield a realistic, robust reconstruction of past changes in δ¹⁸O_lw values over the past 5500 years. Owing to the relatively short residence time and minimal evaporative influences, and absence of extraneous water inputs from, for example, glacier melt waters, the δ¹⁸O_lw values are likely to represent the variations and the absolute level of δ¹⁸O values of regional precipitation with reasonable precision. The similarity of the trends between the δ¹⁸O_lw record and a July-T reconstruction based on chironomid assemblages from the same core suggests that temperature plays a significant role in the variations of the δ¹⁸O_lw record, but the record appears to also be influenced by changes in sea ice extent, and possibly the seasonal distribution of precipitation, limiting our possibilities to present precise estimates of past temperature changes. The strong influence of winter conditions on MATs in the study area suggests that the δ¹⁸O_lw record has particular value in offering insight into the climatic variations of the cool/cold season, in contrast to the majority of terrestrial climate proxies reflecting conditions during the growing season.

The Svartvatnet δ¹⁸O_lw record shows a peak at ca. 1900–1800 cal. yr BP, consistent with the timing of the RWP and negative excursions at 3400–3200, 1250–1100, and 350–50 cal. yr BP, increasing in intensity toward the present day. The time period of the LIA is manifested in the δ¹⁸O_lw record as a two-step decrease in δ¹⁸O_lw values, with a remarkable, 8–9‰ depression in δ¹⁸O_lw values at 350–50 cal. yr BP. The δ¹⁸O_lw record suggests that the LIA in southern Spitsbergen was associated with significantly lowered cold season temperatures, that is, increased seasonal contrasts. Extended sea ice cover, and possibly increased proportion of cold season precipitation, contributed to the prominent depression in δ¹⁸O_lw values during the LIA. All the time periods of the negative shifts in the δ¹⁸O_lw record are linked to widespread evidence of glacier expansion and ‘cold spells’ in the northern North Atlantic testifying to the sensitivity and general potential of high Arctic lacustrine δ¹⁸O_chir records in tracking terrestrial climate evolution.

Footnotes

Appendix 1 Acknowledgements

We express our gratitude to the two anonymous reviewers, whose comments helped improve the manuscript. The input of Paula Niinikoski in CRIS-analyses of the water samples, Juhani Virkanen with water sampling equipment, and Alex Pryor in the composite error calculations is gratefully acknowledged. We sincerely thank Lukasz Stachnik, Magdalena Grzesik-Felisiak, and Wojciech Mateja for collection of precipitation samples; Mimmi Oksman, Mateusz Damrat, and Joanna Pawłowska for help during core collection; and the Polish Polar Station for logistical support.

Funding

This project was funded by a grant to AEKO (259343) by the Academy of Finland. TPL received funding from the Emil Aaltonen Foundation (grant 160156).
