Lake Kinneret (Israel): New insights into Holocene regional palaeoclimate variability based on high-resolution multi-proxy analysis

Abstract

The southern Levant is a Mediterranean climate zone of complex variability in which uncertainty remains in regional palaeoclimate reconstruction. In spite of the proven value of diatoms in circum-Mediterranean palaeoenvironmental research, their potential remains largely unexplored in the southern Levant region. In this study, we generate a new, high-resolution multi-proxy record for the last ca. 9000 cal. yr BP, supported by diatom data and key biological, mineralogical and geochemical indicators preserved in a 17.8-m-long sediment sequence recovered from Lake Kinneret (the Sea of Galilee), Israel. During the Holocene, well-correlated shifts in the diatom, minero-geochemical and palynological data indicate marked lake-level variation over time as well as changes in the trophic state of Lake Kinneret. Our results are particularly important in improving the reconstruction of Holocene lake-level variation, and thus past moisture availability. Diatom-inferred lake-level oscillations correlate well with the output from climatic models from the Levantine region and clarify previous uncertainty concerning regional variation in moisture availability. The Early Holocene (from ca. 9000 to 7400 cal. yr BP) was characterized by lake-level shifts due to fluctuating dry-wet climate conditions. During the mid-Holocene (from 7400 to 2200 cal. yr BP), a stable, deep lake-level phase persisted due to high humidity. The lake level of modern Lake Kinneret not only fluctuates seasonally with available moisture, but has also been influenced for ca. 2000 years by the impacts of water abstraction for human consumption and agriculture. Over the last 9000 cal. yr BP, the trophic state of Lake Kinneret has changed from an oligotrophic to a meso- to eutrophic environment, mainly triggered by increased human impact from around 2200 cal. yr BP onwards. The lake’s ecosystem status was not strongly affected by the documented major changes in human occupation patterns during the mid-Holocene, when a relatively stable environment persisted.

Keywords

diatoms human activity lacustrine carbonates Levant palaeoecology Sea of Galilee

Introduction

The Eastern Mediterranean is a key region for palaeoclimate research due to its considerable sensitivity to climate change because of its location between the North Atlantic pressure systems, the monsoons of East Africa and India, and the continental climate of Europe (Lionello et al., 2006). This complexity translates itself into considerable complexity in palaeoenvironmental archive data, with climate change manifesting itself in the combined influence of precipitation and temperature change on lake levels and limnological processes, which may be mediated to a greater or lesser extent by other factors including catchment processes and human activities, to name but a few. In spite of expansion of Holocene circum-Mediterranean research in recent decades (Finné et al., 2011; Robinson et al., 2006), our understanding of past environmental variability and its possible drivers is still limited.

The Levantine region, located in the transition zone between the Saharo-Arabian desert belt and the subtropical Mediterranean, on the western end of the Fertile Crescent, has a long history of human occupation and therefore represents an ideal area for investigating the complex relationships between climatic, environmental and societal changes (Frumkin et al., 2011; Issar and Zohar, 2004; Richter et al., 2012). The Early Holocene is reported as the wettest phase in the past 25,000 years across the eastern Mediterranean (Robinson et al., 2006), whereas a trend towards more aridity with punctual short-term climate shifts, having notable impacts on human occupation patterns, is assumed for the mid- to Late Holocene (Rambeau and Black, 2011). A series of reviews have recently been compiled which consider the palaeoenvironmental evidence derived from proxies such as pollen analyses, stable isotopes (e.g. from speleothems, lake sediments or snails), from geomorphological indicators (such as palaeo-shorelines) and from the archaeological record for the Southern Levant during the Holocene (e.g. Bar-Matthews et al., 2017; Finné et al., 2011; Issar, 2003; Litt and Ohlwein, 2017; Rambeau and Black, 2011; Robinson et al., 2006; Rosen and Rosen, 2017; Torfstein and Enzel, 2017). Establishing a coherent linkage between different sources of data in the southern Levant (e.g. lacustrine and marine sediment records, speleothem data) can be challenging due to distinctive gradients in topography and moisture availability. It is not understood whether apparent discrepancies are a result of real spatial variability in climate response (Rambeau, 2010), that of differences in response thresholds between palaeoenvironmental archives, or are a function of data quality. The uncertainty is probably due in part to the rarity of well-dated, continuous multi-proxy records in the southern Levant spanning the entire Holocene. With several lakes in the region, palaeolimnology offers the potential to reduce uncertainty surrounding continental variability.

Lake-level reconstructions from the past Lake Lisan, the Dead Sea (Kushnir and Stein, 2010; Torfstein et al., 2013) and the northern freshwater body of Lake Kinneret (Hazan et al., 2004, 2005) have been achieved, but uncertainties remain. Current understanding of Dead Sea lake-level variability during the Holocene is reviewed by Kushnir and Stein (2010). A lake-level reconstruction from Lake Kinneret based on sedimentological identification of radiocarbon-dated palaeo-shorelines (Hazan et al., 2004, 2005) offers a fragmentary Holocene reconstruction. Lake Kinneret is thought to have stood at ~ 212 m below sea level (mbsl) during most of the Holocene, that is similar to the modern lake, yet there were periods when the lake level declined and the shallower southern sediments were exposed (Hazan et al., 2005; Stein, 2014). There is no existing evidence for full desiccation of the lake during the past 10,000 years (Langgut et al., 2015). Several authors emphasize the still incomplete picture of Holocene lake-level evolution, and thus the uncertain character of local changes in moisture availability (Hazan et al., 2004; Hazan et al., 2005; Schiebel and Litt, 2017; Stein, 2014).

To date, palaeolimnological reconstructions based on diatoms (single-celled siliceous algae; Bacillariophyceae) have been limited in the southern Levant, in spite of their high sensitivity to a wide range of limnological variables (Van Dam et al., 1994) and proven potential in palaeoclimate research in Mediterranean climate zones (Battarbee et al., 2001; Cvetkoska et al., 2014; Zhang et al., 2014). Previous diatom-based palaeolimnological studies at Lake Kinneret comprise a low-resolution analysis of the changing character of planktonic diatoms in the southern part of the lake over the last 5000 years (Pollingher et al., 1984) and a palaeoecological assessment of recent environmental change in the diatom flora of five short cores (Ehrlich, 1985). A detailed mineral and geochemical investigation based on sediments from Lake Kinneret covering the entire Holocene was also lacking.

In this study, we present the results of high-resolution diatom analysis combined with minero-geochemical analysis of a 17.8-m-long sediment sequence from Lake Kinneret. Our results are compared with previously published palynological data from the same core (Langgut et al., 2013, 2015, 2016; Schiebel, 2013; Schiebel and Litt, 2017), the longest and most continuous Holocene sequence yet retrieved from the lake. This study aims to exploit the value of diatoms as palaeolimnological proxy indicator for lake-level variation and thus local changes in moisture availability. We assess critical evidence for confounding factors of additional ecological change such as shifts in lake productivity (Wilson et al., 2008) or human impact since Neolithic times (e.g. Maher et al., 2011; Rollefson and Köhler-Rollefson, 1992), which may affect interpretation. Our results are set in the context of known regional records, considering short-term climate events, to test whether there is coherency in regional patterns of climate change during the Holocene.

Site description and limnology of Lake Kinneret

Lake Kinneret (Sea of Galilee or Lake Tiberias) is, with a surface elevation of 210 mbsl, the lowest-lying freshwater lake on Earth. The lake is located in the north of Israel in the northern part of the Jordan Rift Valley (32°48 ′08.12 ″N, 35°35 ′20.62 ″E; Figure 1), which is filled with alluvial and lacustrine sediments of Neogene and Pleistocene age. The lake is situated, together with the Dead Sea Basin, on the tectonically active Dead Sea Transform Fault (DSTF), which currently forms a more than 1000-km-long fault system connecting the divergent plate boundary along the Red Sea with the Eastern Anatolian Fault (EAF) in Turkey (Hurwitz et al., 2002). The Holocene Sea of Galilee has evolved from ancient water bodies that filled the Kinneret tectonic depression during the Late Pleistocene, such as the former Lake Lisan (Hazan et al., 2005). The lake catchment is mainly composed of Cretaceous to Eocene carbonate rocks with extensive karst. Neogene and Pleistocene basalt is also common, especially in the Golan Heights, forming escarpments of up to 500 m in height around the lake (Sneh et al., 1998).

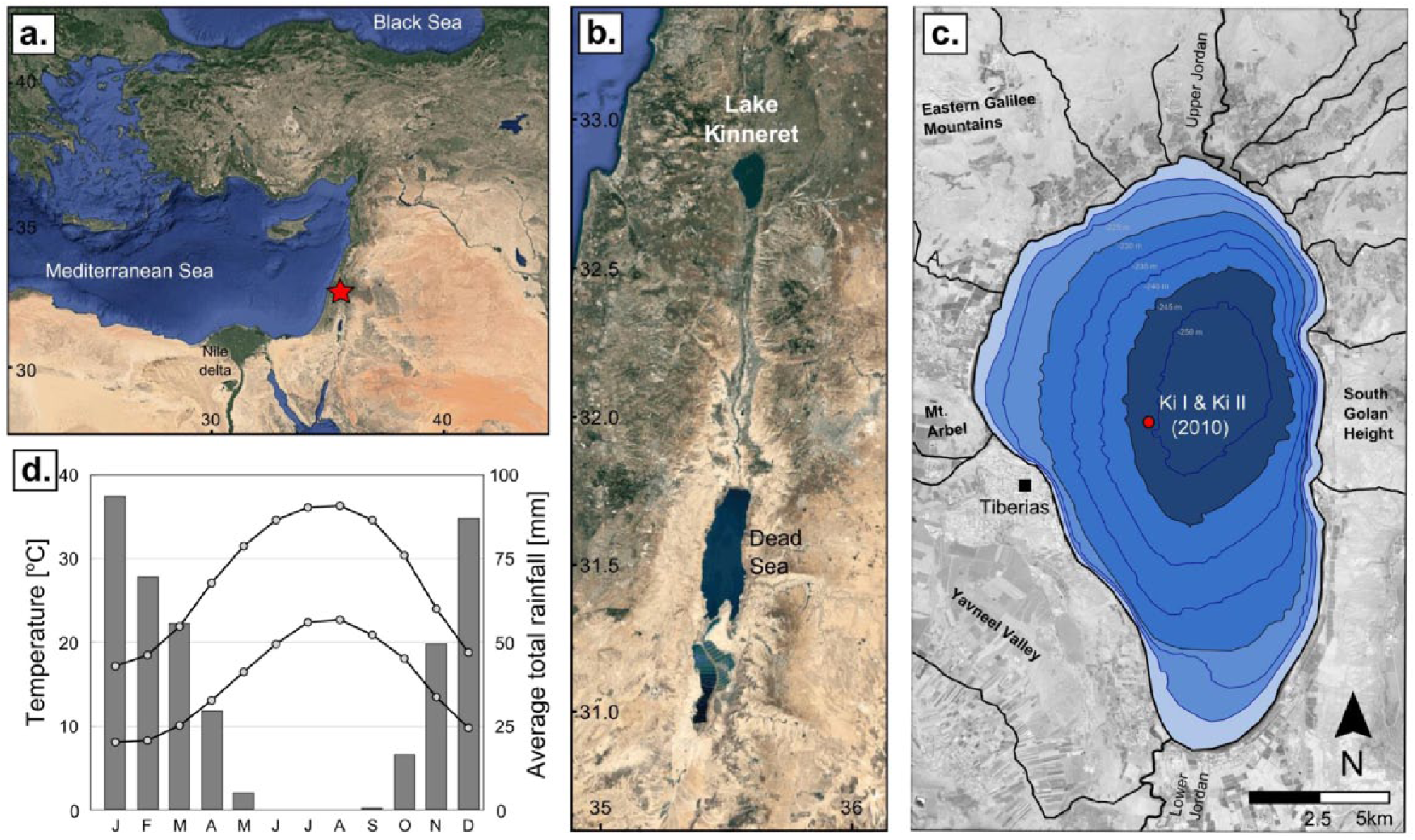

Figure 1.

(a) Location of Lake Kinneret (star) in the Eastern Mediterranean Region; (b) Jordan Rift Valley (satellite images for (a) and (b) are from Imagery-2016 TerraMetrics); (c) Lake Kinneret with location of two 2010 coring sites Ki I and Ki II. Bathymetry given in 5-m intervals (after Berman et al., 2014, background after NASA) and (d) average monthly rainfall and average temperatures (daily maxima and minima) for the city of Tiberias (time-series from 1976–1995, www.worldweather.org).

The Kinneret region is currently characterized by a typical semi-arid Mediterranean climate (Baruch, 1986), with an average annual precipitation of 400 mm and a mean annual temperature of 21°C (Figure 1). Northern Israel receives most of its precipitation from mid-latitude Cyprus lows, which generate westerlies and transport moist air from the Mediterranean Sea into the region (Ziv et al., 2014). The mean annual precipitation and temperature vary considerably from northern (up to 1600 mm/yr; Golan Heights) to southern (up to 300 mm/yr; Beth Shean region) Israel, partly as a function of topography. Annual temperatures increase approximately linearly with decreasing precipitation.

The lake is the largest natural freshwater body in Israel (22 × 12 km; 167 km²) and by water abstraction, a major source of drinking and irrigation water. A bathymetric map is provided in Figure 1. The catchment area (2730 km²) extends to parts of the Upper Galilee in NE Israel, the Golan Heights, the Hermon range and the southern Anti-Lebanon mountains (Baruch, 1986). The Jordan River flows into and out of the lake and is its main freshwater input (434 × 10⁶ m³/yr), draining southwards to the Dead Sea. The lake is also fed by several saline springs, which influence its salinity and geochemical composition (Kolodny et al., 1999; Nishri et al., 1999; Stein, 2014; Stiller et al., 2009), such that the water is slightly oligosaline (Table 1, total dissolved solids ca. 600 mg L⁻¹ (Katz and Nishri, 2013; Nishri et al., 1999). Analysis of the modern diatom flora (Vossel et al., in preparation) shows the presence of halophilous diatom taxa close to the saline springs, confirming that these, rather than evaporative concentration, are the main cause of the subtle increase in salinity.

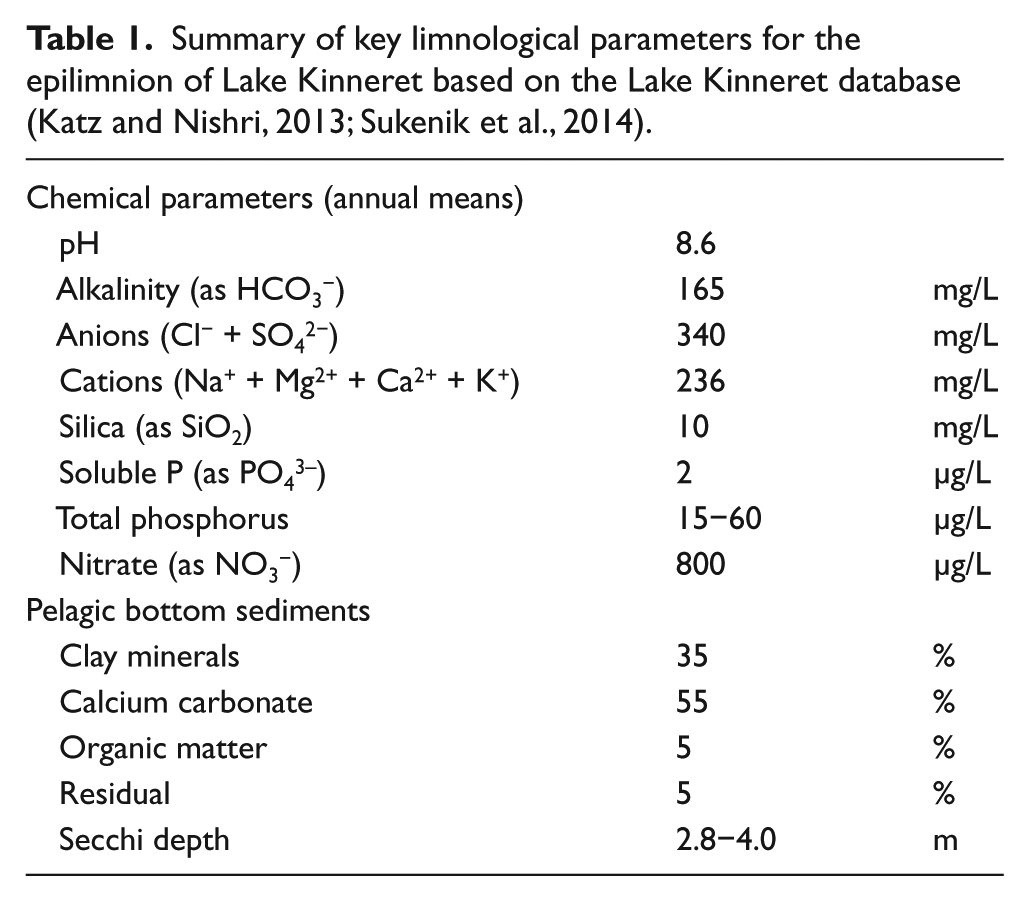

Table 1.

Summary of key limnological parameters for the epilimnion of Lake Kinneret based on the Lake Kinneret database (Katz and Nishri, 2013; Sukenik et al., 2014).

Chemical parameters (annual means)
pH	8.6
Alkalinity (as HCO₃⁻)	165	mg/L
Anions (Cl⁻ + SO₄²⁻)	340	mg/L
Cations (Na⁺ + Mg²⁺ + Ca²⁺ + K⁺)	236	mg/L
Silica (as SiO₂)	10	mg/L
Soluble P (as PO₄^3–)	2	µg/L
Total phosphorus	15−60	µg/L
Nitrate (as NO₃⁻)	800	µg/L
Pelagic bottom sediments
Clay minerals	35	%
Calcium carbonate	55	%
Organic matter	5	%
Residual	5	%
Secchi depth	2.8−4.0	m

Total annual water inflow is about 629 × 10⁶ m³ comprising the inflow of the Jordan River, direct catchment runoff, saline springs, direct precipitation and other water sources (Rimmer and Givati, 2014a). Modern lake level can fluctuate by up to 4 m within one year depending on precipitation, evaporation (230 × 10⁶ m³/yr) and water use for human consumption and agriculture (National Water Carrier, personal communication).

Lake Kinneret is warm monomictic, being stratified with an anoxic hypolimnion from May to December and fully mixed from December to April (Gophen, 2003; Katz and Nishri, 2013). The mixing cycle of the water column is closely linked to the bio-geochemical signature imprinted in the sediments and directly affects the fluxes of calcite precipitated from the water column towards the bottom of the lake (Katz and Nishri, 2013). Biologically induced calcite precipitation occurs in spring and early summer (Katz and Nishri, 2013).

The modern phytoplankton flora of Lake Kinneret is dominated by dinoflagellates, with a low proportion of diatoms, cyanobacteria and chlorophytes. As diatoms are a minor component of the phytoplankton biomass (Pollingher et al., 1984), they have not previously been a focus for ecological research, although, with more than 200 reported species (Round, 1978), they are an important component of the benthic flora. The most common planktonic taxa are Cyclotella spp., Stephanodiscus spp. and Aulacoseira granulata, which are often accompanied by the periphytic Brachysira spp. The most common benthic taxa are Amphora pediculus, Achnanthes sensu lato spp., Navicula spp., Synedra ulna and Rhoicosphenia curvata. A detailed species list is provided in Zohary et al. (2014).

Material and methods

Sediment cores, sedimentology and chronology

In March 2010, two parallel sediment cores (core KI_10_I and KI_10_II) were recovered from a water depth of 38.8 m at the deepest part of the lake basin (32°49’13.8’’N, 35°35’19.7’’E; Figure 1). Cores were retrieved from a UWITEC Universal Sampling Platform (http://www.uwitec.at), using a piston corer for successive 2-m sections. Sediment cores were offset by 0.5 m to allow construction of a continuous composite profile (Schiebel, 2013). The recovered sediment cores consist of homogeneous greyish to brown silt and clay deposits (Figure 5); only the upper 25 cm of sediments show lamination, possibly due to the construction of the Degania Dam in 1932 (A. Nishri, personal communication). Only one notable sediment disturbance is apparent at 4.64 to 4.57 m depth (Figure 7), and there is otherwise no variation in colour or texture of the sediments (Schiebel and Litt, 2017).

As this sediment sequence shows no evidence for full desiccation (e.g. desiccation cracks or crusts) of the lake during the past 10,000 years (Langgut et al., 2015), it can be assumed that sedimentation is continuous in the deepest parts of the Kinneret basin. The 17.8 m composite sequence covers approximately the last 9000 cal. yr BP (Figure 2; Schiebel and Litt, 2017). The age-depth model, which is presented in full detail in Schiebel and Litt (2017), relies on radiocarbon determinations on bulk organic material (n = 21) and selective encountered terrestrial macrofossils (n = 10). Age determinations on both materials at the same stratigraphic depth show that bulk organic ages are subject to a reservoir offset ranging from ca. 800 to ca. 1600 years. The linear age–depth model (Figure 2) assumes a constant sedimentation rate of 1.9 mm/yr for the Holocene and a gradual decrease of the reservoir offset from the beginning of the Holocene until present day, at a rate of ca. 70 years offset per 500 years (or 0.14 per year).

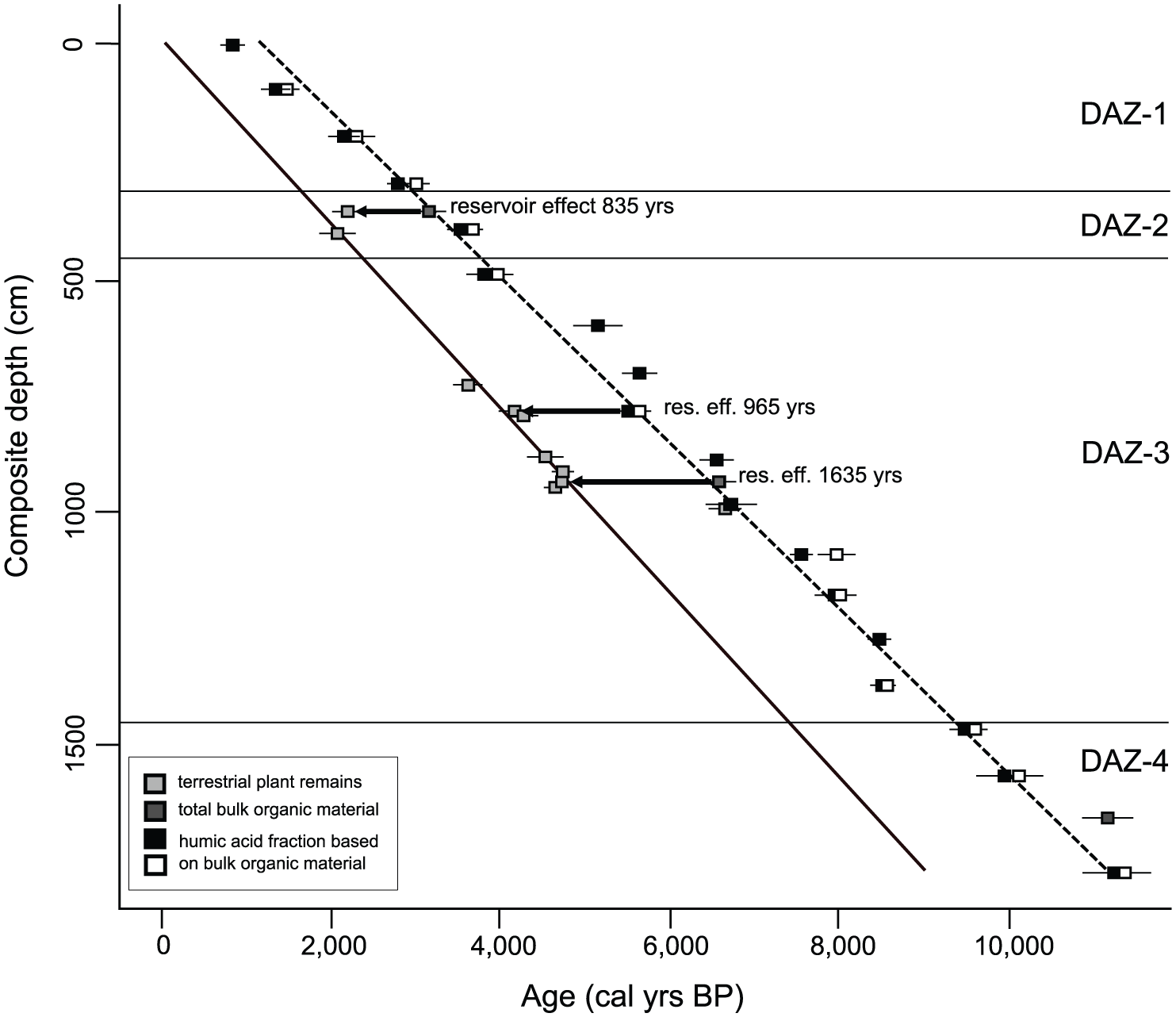

Figure 2.

Age–depth model of the Lake Kinneret composite profile based on calibrated radiocarbon data. Error bars indicate 2σ-range. Black arrows display reservoir correction at depth horizons (358, 794 and 944 cm) with available macro- and bulk organic samples. Diatom assemblage zones (DAZ)-1 to DAZ-4 correspond to defined DAZs (modified after Schiebel and Litt, 2017).

Diatom and other micropalaeontological analyses

For diatom analysis, 165 samples were taken at 10-cm intervals, corresponding to a resolution of ca. 50 years. Sample resolution was increased to 2 (10 years) or 5 cm (25 years) in two sections: 17.8–14.8 m and 4.6–3.5 m, intervals in which the diatom concentration was low or a complete turnover of the diatom community was recognized. All samples were prepared using standard techniques (Battarbee, 1986): 0.2 g of wet sediment was treated with H₂O₂ to oxidize organic matter, followed by concentrated HCl (35%) to remove carbonates. Known quantities of microspheres were added to allow the calculation of diatom concentrations (valves/g) for each sample. Subsamples were mounted in Naphrax™. Where diatoms were well preserved, more than 500 valves were counted using a Zeiss Axio Lab.A1 light microscope at 1000× magnification. In some samples, counts were lower (up to 200 valves) due to preservation problems or the complete lack of diatoms. Phytoliths were counted at a similar sample resolution in relative abundance to diatom counting. Diatom taxonomy and nomenclature follow Krammer and Lange-Bertalot (1986, 1988, 1991a, 1991b), Lange-Bertalot (2013) and the Diatom Flora of Israel (Ehrlich, 1995). Following several authors (Cruces et al., 2010; Hobbs et al., 2011; Zhang et al., 2014), Stephanodiscus minutulus (Kützing) Cleve & Möller and Stephanodiscus parvus Stoermer & Håkansson are merged into Stephanodiscus minutulus/parvus. Current changes in nomenclature are applied following the Catalogue of Diatom Names (Fourtanier and Kociolek, 2009). Diatom counts were converted to percentage data and displayed stratigraphically using Tilia, version 1.7.16 (©1991–2011 Eric C. Grimm). Stratigraphically constrained cluster analysis using square root transformation was applied using CONISS (Grimm, 1987) to define zone boundaries, based on taxa present at >5% abundance.

Palynological data from pollen analysis of 73 samples (parallel sampling depth to diatom samples) at a resolution of 25 cm (150 per year) are published in detail in Schiebel (2013) and Schiebel and Litt (2017).

The application of a transfer function to reconstruct lake-water nutrient concentrations from the taxonomic composition of diatom communities was not appropriate. The dominant taxon Cyclotella ocellata has an extremely broad tolerance for nutrient availability (Cremer and Wagner, 2003; Fritz et al., 1993; Houk et al., 2010; Kiss et al., 1996; Schlegel and Scheffler, 1999; Van Dam et al., 1994) and another common taxon, Cyclotella paleo-ocellata, is newly described (Vossel et al., 2015) and without a modern analogue.

Diatom-based lake-level reconstruction

Diatom-based lake-level reconstruction is based on the assumption that the variability in the ratio of planktonic to benthic (P/B) diatom taxa can be interpreted as a response to varying basin morphology as lake level fluctuates (Jones et al., 2013). As a lake shallows, benthic habitats may increasingly disperse into regions that were previously inhabited by planktonic diatoms living in a deeper water column, thereby changing the P/B-ratio. Effectively, decreasing lake level shortens the transport distance from littoral habitats to the deepest region of the lake (the favoured coring site), coupled with a reduction in area suitably deep for planktonic diatoms (Stone and Fritz, 2004). The plankton/benthos-ratio may also be affected by shifts in productivity. Therefore, supporting evidence for lake-level change, coupled with regional shifts in moisture availability, is sought from the comparison with known palynological datasets and climate models as well as speleothem data from other study sites. Known trophic preferences of diatom taxa and the geochemistry data can help to disentangle if changes in the diatom assemblage reflect fluctuating lake-level conditions or are the result of productivity shifts.

The P/B-ratio was calculated using the following formula provided by Wang et al. (2013):

\frac{P}{B} = \frac{\sum (p l a n k t o n i c t a x a)}{\sum (p l a n k t o n i c + b e n t h i c t a x a)}

Following the allocation of Pollingher et al. (1984), facultative planktonic taxa such as Pseudostaurosira brevistriata, Staurosira venter and Staurosirella pinnata and epiphytic species such as Cocconeis spp. were assigned as benthic (i.e. littoral) taxa in this calculation.

Geochemistry and mineralogy

Geochemistry was determined by non-destructive high-resolution (1 cm) XRF core scanning (Itrax, Cox Analytical Systems, Sweden) at the University of Cologne, equipped with a Cr x-ray source, operated under the following conditions: voltage (kV): 30, current (mA): 30 and exposure time (s): 10.

For mineral analysis, 50 samples were taken from various depths (approximate intervals of 20–30 cm) in parallel with palaeoecological samples. Mineralogy was obtained from the powdered bulk fraction measured with a Siemens D5000 at the University of Bonn, equipped with a CuKα1,2 target tube. Operation conditions were voltage (kV): 40, current (mA): 30, scan range (°2θ): 4–70, step-size (°2θ): 0.02, counting time (s): 1, divergence slit (°): 1, anti-scatter slit (°): 1 and mask (mm): 15. Mineral assemblage was identified using the software MacDiff (Petschick et al., 1996) and X’Pert High Score Plus (PANanalytical B.V.). The Rietveld refinement was applied using Profex v. 3.10.2 (Döbelin and Kleeberg, 2015) with additional structure files from the American Mineralogist Crystal Structure Database (Angel et al., 1990; Bailey, 1969; Maslen et al., 1995). Compositional data analysis was applied to the geochemical data (Aitchison, 2003; Comas-Cufí and Thió-Henestrosa, 2011) and gives further insights to the inter-element and possible source relationship (Aitchison and Greenacre, 2002). Biplots of complex datasets can be used as a simple tool to investigate the structure of these datasets (Greenacre, 2010).

Results

Diatom analysis

A total of 143 diatom taxa were identified within the subfossil sediment sequence of Lake Kinneret, most of which can be classified as oligohalobous-indifferent, requiring alkaline water for optimal growth (Ehrlich, 1995; Krammer and Lange-Bertalot, 1986, 1988, 1991a, 1991b; Lange-Bertalot, 2013). The summary diagram (Figure 3) shows that diatoms were well preserved in most samples. They were rare (valves dissolving and fragmented) in two intervals (17.8–16.9 m; 15.4–14.8 m depth) and absent in one sample (4.57 m depth).

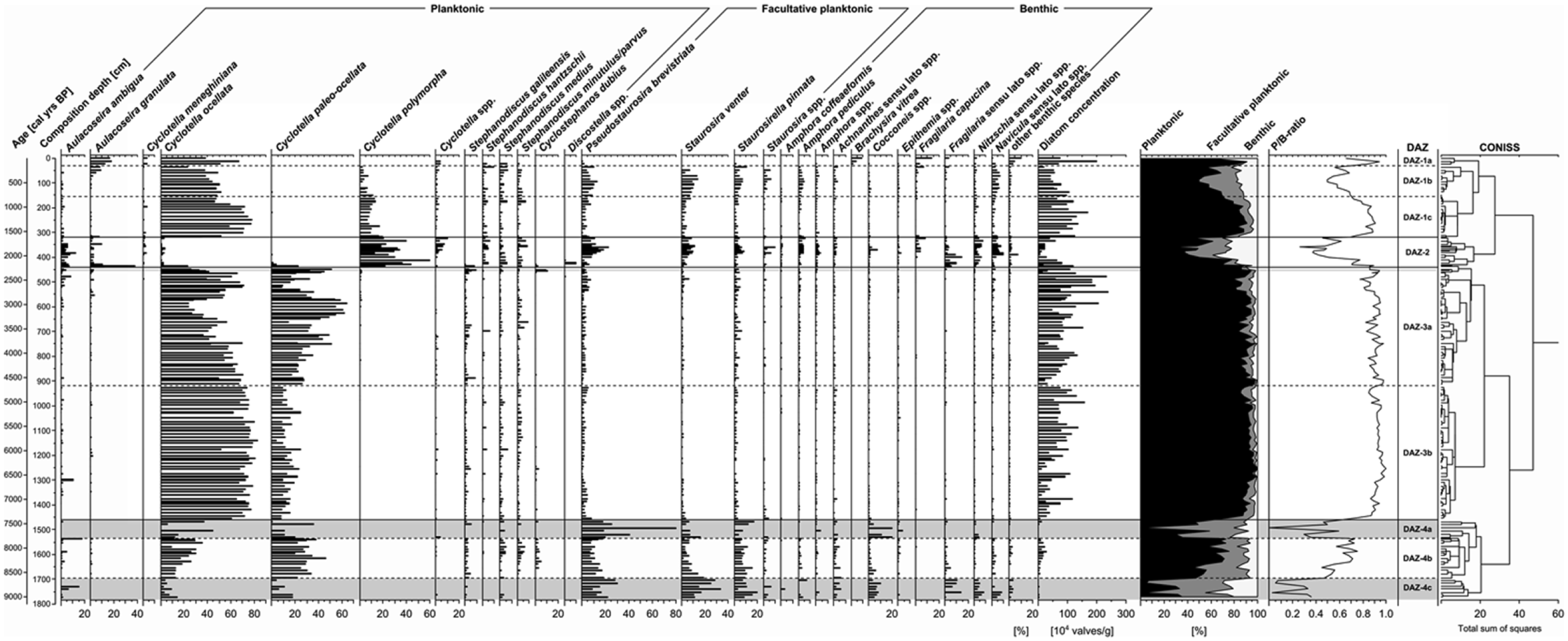

Figure 3.

Summary diatom diagram from Lake Kinneret (composite profile from core KI_10_I and KI_10_II) showing selected taxa (present at >5% abundance), diatom concentration and Plankton/Benthos (P/B)-ratio. Some of the rare benthic taxa are grouped together at genus level (e.g. Amphora spp., Achnanthes spp., Nitzschia spp., Navicula spp.). Diatom assemblage zones (DAZ) are defined by CONISS cluster analysis. The calibrated radiocarbon chronology (Schiebel and Litt, 2017) is marked at 500-year intervals, with an estimated age of 9000 cal. yr BP at the base of the sequence. In the marked sections of the diagram (grey pattern), diatoms were rare (17.8–16.9 m; 15.4–14.8 m depth) or not well preserved and absent in one sample (4.57 m depth).

Planktonic taxa from the genera Cyclotella, Stephanodiscus and Aulacoseira dominate the sequence. Small, facultative planktonic fragilarioid taxa (e.g. Pseudostaurosira brevistriata, Staurosira venter, Staurosirella pinnata) are also common. Salt-tolerant diatom species such as Amphora coffeaeformis are present sporadically at low abundance.

Four major diatom assemblage zones (DAZ-1–DAZ-4) could be recognized from the results of CONISS (Grimm, 1987). Adopting the opposite of stratigraphic convention, zones in this study are numbered from the top-down (DAZ-1 representing the recent past) to allow coherent sequencing of zone numbers in future studies of a longer sequence. A detailed description of each DAZ, its species composition and criteria for defining the lower zone boundaries are given in Table 2. Although anthropogenic influences might have caused a shift in the modern diatom composition compared with the fossil one, the modern flora still contains many of the taxa present in the fossil record.

Table 2.

Detailed description of diatom assemblage zones and their species composition.

DAZ	Depth (cm)	Age (cal. kyr BP)	Diatom assemblage	P (%)	FP (%)	B (%)
1a: Aulacoseira granulata DAZ	30–1	0.2–present	DA: dominated by Cyclotella ocellata and Aulacoseira granulata (increasing up to 20% and forming long filament chains); Cyclotella meneghiniana and benthic species such as Fragilaria capucina become more common	60–80	<5	5–15
			DC: low (<50 (10⁴ valves/g)) to high (>200 (10⁴ valves/g)) with rapid changes
			LB: increase in Aulacoseira granulata, C. meneghiniana and DC
1b: Stephanodiscus DAZ	160–30	0.9–0.2	DA: dominated by Cyclotella ocellata (35–55%); Cyclotella polymorpha and small Stephanodiscus species are common as well as facultative planktonic fragilarioid taxa such as Pseudostaurosira brevistriata, Staurosira venter and Staurosirella pinnata; Naviculoid taxa increase slightly; occurrence of Aulacoseira granulata increases towards top of this subzone	50–80	10–30	5–15
			DC: low (<50 (10⁴ valves/g)) to moderate (> 100 (10⁴ valves/g))
			LB: decrease in Cyclotella ocellata; increase in FP and B species
1c: Cyclotella DAZ	320–160	1.6–0.9	DA: strong dominance of Cyclotella ocellata (up to 80%); Cyclotella polymorpha is present (10–15%); facultative planktonic and benthic diatoms are present at low abundance (<5%)	>80	<5	<5
			DC: moderate (>50 (10⁴ valves/g)) to high (up to 175 (10⁴ valves/g))
			LB: increase in Cyclotella ocellata and DC
2: Cyclotella polymorpha DAZ	440–320	1.6–2.2	DA: dominated by Cyclotella polymorpha (strong increase up to 55%); Aulacoseira ambigua, Aulacoseira granulata (showing strong occurrence at base of this zone: 35%) and smaller Stephanodiscus taxa are common; only occurrence of Discostella spp. in record; strong decrease in occurrence of Cyclotella ocellata (<5%) and complete disappearance of Cyclotella paleo-ocellata and Stephanodiscus galileensis from record, fragilarioid and benthic species (e.g. Amphora pediculus at 5%) show higher abundance (up to 10% per species); complete shift in diatom assemblage composition compared with other DAZs	40–70	10–50	5–40
			DC: low; lack of diatom preservation in some samples
			LB: decrease in Cyclotella ocellata/Cyclotella paleo-ocellata/other planktonics; strong decrease in DC; strong increase in Cyclotella polymorpha, Aulacoseira granulata and benthic taxa
3a: Cyclotella paleo-ocellata DAZ	920–440	4.7–2.2	DA: strongly dominated by Cyclotella species: Cyclotella paleo-ocellata often exhibits higher relative abundances (up to 65%) than Cyclotella ocellata; both species strongly co-dominating DA; at top of this subzone Cyclostephanos dubius (maximum peak of 15%) and Stephanodiscus galileensis become more abundant	>80	<5	<5
			DC: moderate to high (maximum values in record: 250 (10⁴ valves/g); various rapid fluctuations
			LB: remarkable increase in Cyclotella paleo-ocellata
3b: Cyclotella ocellata DAZ	1460–920	7.4–4.7	DA: dominated by planktonic Cyclotella species: Cyclotella ocellata is the most common diatom in this DAZ (often >75 %) and Cyclotella paleo-ocellata is common at 10–25%; Stephanodiscus species (all sizes) are abundant at 5–10%; abundance of facultative planktonic and benthic species is very low	>80	<5	<5
			DC: low (<20 (10⁴ valves/g)) to high (>130 (10⁴ valves/g)) with various fluctuations
			LB: increase of Cyclotella ocellata, other planktonic taxa and DC; decrease in FP and B species
4a: Pseudostaurosira brevistriata DAZ	1535–1460	7.9–7.4	DA: dominated by robust fragilarioid species such as Pseudostaurosira brevistriata reaching its maximum (ca. 80%) in record; Cocconeis spp. are common, reaching maximum abundance of up to 20%	5–60	35–80	10–25
			DC: very low; lack of diatom preservation in some samples
			LB: decrease in planktonic species and DC; increase in Pseudostaurosira brevistriata and Cocconeis spp.
4b: Fragilarioid DAZ	1695–1535	8.6–7.9	DA: dominated by planktonic taxa such as Cyclotella ocellata (10–35%), Cyclotella paleo-ocellata (20–45%) and smaller Stephanodiscus species (<10%) and some small fragilarioid species (~25%)	45–75	20–40	10–20
			DC: low (<20 (10⁴ valves/g))
			LB: increase of planktonic species and DC
4c: Aulacoseira DAZ (lower boundary not defined)	1772–1695	9.1–8.6	DA: dominated by robust fragilarioid species (<50%), Cocconeis spp. common (up to 10%) and Navicula and Nitzschia are also present; presence of planktonic diatoms low; besides Cyclotella ocellata, Aulacoseira ambigua is abundant up to 15%	5–35	45–56	20–45
			DC: very low; lack of diatom preservation in some samples
			LB: not defined (start of record)

DAZ: diatom assemblage zone; DA: diatom assemblage; DC: diatom concentration; LB: lower boundary; P: planktonic; FP: facultative planktonic; B: benthic.

The P/B-ratio (given in Figures 3, 5 and 6) shows some significant variations within the record, being particularly low within DAZ-4 and DAZ-2, which also exhibit low diatom concentration and high counts of phytoliths and high potassium values.

Sediment minero-geochemistry and compositional data analysis

The major mineral assemblage of Lake Kinneret sediments is composed of calcite (CaCO₃), dolomite (CaMg(CO₃)₂), quartz (SiO₂), muscovite/illite ((K, H₃O)(Al, Mg, Fe)₂(Si, Al)₄O₁₀((OH)₂,(H₂O)) – probably in the fine fraction – and feldspars (plagioclase and alkali feldspar). In the diffractograms the feldspars were best explained by anorthite (CaAl₂Si₂O₈) and microcline (KAlSi₃O₈). The structure that best resolved the phylossilicates was that of a muscovite (2M1). The major mineral assemblage remained qualitatively constant throughout the sediment sequence and changes in abundance of the major minerals correlate well with DAZ boundaries (Table 3). Minerals in trace amounts, e.g. pyrite, occurred at specific depths. Pyrite concentrations larger than 1% occurred particularly in DAZ-1, reaching up to 2.25 w%.

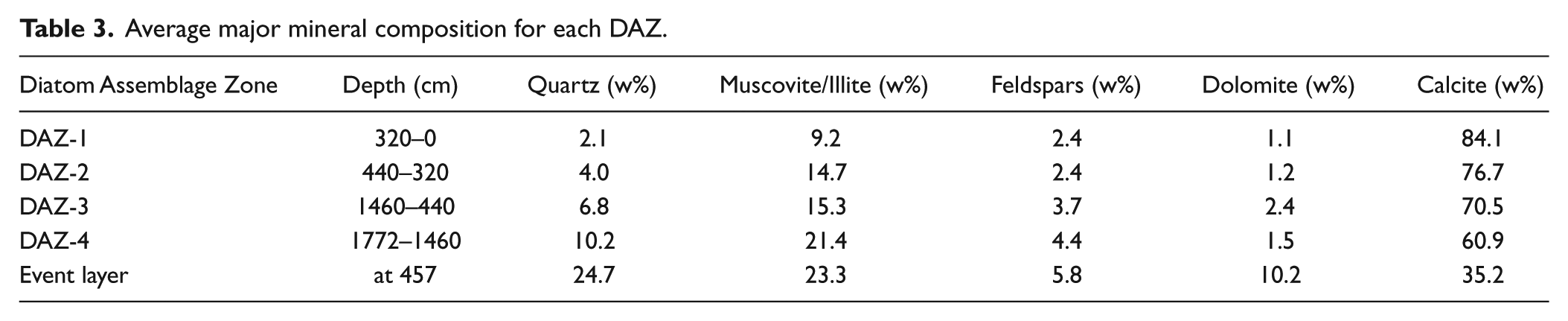

Table 3.

Average major mineral composition for each DAZ.

Diatom Assemblage Zone	Depth (cm)	Quartz (w%)	Muscovite/Illite (w%)	Feldspars (w%)	Dolomite (w%)	Calcite (w%)
DAZ-1	320–0	2.1	9.2	2.4	1.1	84.1
DAZ-2	440–320	4.0	14.7	2.4	1.2	76.7
DAZ-3	1460–440	6.8	15.3	3.7	2.4	70.5
DAZ-4	1772–1460	10.2	21.4	4.4	1.5	60.9
Event layer	at 457	24.7	23.3	5.8	10.2	35.2

From XRF-scanning, the elements Si, S, Cl, K, Ca, Ti, Fe and Sr were present at detectable concentrations, with reduced scattering throughout the profile; apart from sulphur and chlorine, these elements were also retained in the lattices of the identified minerals. The S/Ti-ratio plotted versus depth shows covariance with the Ca/Ti-ratio (Figure 5).

First observations from the centred log ratio of the compositional data (clr-biplot, Figure 4) show that the defined DAZs also have distinct geochemical fingerprints. For geochemical elements, the pair [Ca, Sr] shows relatively small variance, as do the elements [Fe, Ti, K, Si] between each other. Hence, Ca and Sr represent the carbonate accumulation, and Ti, K, Fe and Si represent the detrital fraction. The high variance between any pair of variables from these two groups arises from the fact that Ca and Sr in the Kinneret sediments are reflecting lake internal carbonate precipitation, whereas a detrital source for the carbonate input is here of secondary order. One representative element from each group was chosen for the following interpretations.

Figure 4.

The presented clr-biplot for the geochemical data of Lake Kinneret segregates the individual diatom zones (DAZs; different coloured dots). The variables, herein geochemical elements, are represented by rays emanating from the origin. Interpretations are mainly based on links, i.e. distances between the end-points of these rays. The length of the link between Fe and Ti (dashed line) shows, for example, that the variance between the pair of elements [Fe, Ti] is smaller than the variance between the pair [Fe, Si]. Thus, pairs of elements with low variance in between each other have rays pointing to similar directions and are correlated to each other.

Sediment geochemistry and implications for palaeoenvironmental reconstruction

In the sediments of Lake Kinneret, Ca is retained in the lattices of plagioclase, dolomite and calcite. The positive correlation between Ca/Ti-ratio and calcite/quartz (Figure 5) indicates that the calcium accumulation in Lake Kinneret is mainly driven by calcite. Pelagic bed sediments from Lake Kinneret consist with up to 60% of calcite (Table 1, Dubowski et al., 2003; Serruya, 1978) that is mostly of autochthonous origin (Katz and Nishri, 2013). This chemical precipitation of calcite in the water column is a major process in the lake, favoured by the waters’ alkalinity and is associated to the lake mixing cycle (Katz and Nishri, 2013). The carbonate precipitation is strongly biogenic induced, as maximum calcite accumulation in the lake occurs between February and March due to intensive photosynthesis, occurring concomitant with bloom periods of the dinoflagellate Peridinium gatunense (Koren and Klein, 2000). The necessary carbonate and calcium ions are fed to the lake system in dissolved form from the catchment (Leng and Marshall, 2004; Nishri and Stiller, 2014) and picoplankton seems to serve as nuclei for calcite crystal growth (Nishri and Stiller, 2014). Thus, the primary carbonate accumulation in Lake Kinneret is a potential indicator for lake productivity, given that carbonate precipitation from the water column of alkaline lakes is usually triggered by algal production and consequent changes in the carbonate equilibria (Matter et al., 2010; Ohlendorf and Sturm, 2001; Roeser et al., 2016).

Figure 5.

Multi-proxy data from Lake Kinneret (composite profile from core KI_10_I and KI_10_II) showing a selected dataset of diatoms, geochemistry, mineralogy and palynology plotted against age (cal. yr BP) and depth (cm). Pollen data were provided by Schiebel (2013): ‘typical steppe vegetation’ here includes all species of the following families: Apiaceae, Asteraceae, Chenopodiaceae, Poaceae and Polygonum. A detailed pollen analysis is published in Schiebel and Litt (2017).

Lake Kinneret data (Figure 5) show good correspondence between the diatom concentration, the carbonate accumulation (Ca/Ti), the sulphur accumulation (S/Ti) and calcite/quartz, suggesting that they mainly reflect internal lake processes and together are indicative of lake productivity. Lacustrine processes participating in sulphur cycling are largely bio-geochemical such that sulphur is added to the sediments (1) as organic compounds or (2) dissolved sulphate that might be reduced to sulphides (Berner, 1971; Mackereth, 1966). Thus, sulphur might indicate primary organic production or diagenetic processes.

The detrital (clastic) input from the catchment is well reflected in the clr-biplot from the low variation between the elements Si, K, Fe and Ti. From these elements, variations in potassium (K) counts are positively correlated to the sum of minerals representing the clastic fraction (quartz + feldspars + clays) and the phytolith counts (see Figure 5). The detrital input can increase (a) with enhanced humidity/rainfall; (b) with a lower lake level due to (1) a reduction in lake-water volume also reduces internal biomass and calcium production, which can cause a relative increase in detrital material and (2) a shallow lake exposes sediment surfaces in shallower littoral zones; (c) with open vegetation cover on the surrounding landscape, which increases sediment and nutrient input to the lake system, whereas a dense vegetation cover stabilizes the soil.

Discussion

In the following sections, we discuss major palaeolimnological and environmental changes inferred from diatom analysis and minero-geochemistry data of a 17.8-m long sediment sequence of Lake Kinneret. The study spans the last 9000 cal. yr BP and emphasis is given to disentangling climate-driven lake-level variation from shifts in trophic status and the impact of past human activities. A summary multi-proxy diagram is provided in Figure 5 for a comparison of key limnological indicators and selected previously published palynological data (Langgut et al., 2013, 2015, 2016; Schiebel, 2013; Schiebel and Litt, 2017). For interpretation of regional trends in moisture availability, a comparison of existing Holocene lake-level reconstructions from the Dead Sea (Kushnir and Stein, 2010) and Lake Kinneret (Hazan et al., 2005) are given in Figure 6. The sparse occurrence of obligate halophilous diatom taxa (e.g. Amphora coffeaeformis) indicates an essentially freshwater lake and a hydrologically open lacustrine system throughout the Holocene. Palaeolimnological interpretation and implications for palaeoclimate reconstruction are discussed according to DAZ boundaries below. Calibrated ages are provided (according to the age-depth model given in Figure 2; Schiebel and Litt, 2017), with associated archaeological periods for comparison with the wider literature.

Figure 6.

Comparison of currently known, fragmentary Holocene lake-level reconstructions from the Dead Sea (Kushnir and Stein, 2010) and Lake Kinneret (Hazan et al., 2005) compared with the reconstructed lake-level curve inferred from shifts in the ratio of planktonic to benthic (P/B) diatom taxa (grey curve shows P/B-ratio for diatoms in high resolution; black curve is a 10 point average for the P/B-ratio). The presented lake-level reconstruction for the Dead Sea is a combination of absolute lake-level curves (based on the identification of palaeo-shorelines and knowledge of their age and original elevation) and relative lake-level curves (based on estimates of relative water depth identified by lithological changes in sediment cores) and were compiled for the Holocene by Kushnir and Stein (2010). The presented lake-level reconstruction for Lake Kinneret by Hazan et al. (2005) is based on sedimentological identification of radiocarbon-dated palaeo-shorelines. Note that some intervals of the curves are dashed and labelled with question marks, indicating that they are assumptions and not robust curve reconstructions. Assumed correlations between the Dead Sea and Lake Kinneret curves are marked for a better comparison.

Holocene history of Lake Kinneret: A multi-proxy interpretation

From 9000 to 7400 cal. yr BP (DAZ-4, Pottery Neolithic Period)

At the base of the sequence, DAZ-4 is characterized by very low diatom concentration or even an absence of diatoms (Figure 3), in subzones DAZ-4c and DAZ-4a in particular. The low diatom concentration may (1) result from poor preservation rather than being a reliable indicator of lake productivity (Battarbee et al., 2001), as many valves were broken or showed early signs of dissolution and/or (2) reflect an increased sediment accumulation rate in a phase of shallowing and sediment in-wash.

Where diatoms were identifiable, the diatom community of subzone DAZ-4c (9.1–8.6 cal. kyr BP; Table 2) is dominated by robust facultative planktonic species, such as Pseudostaurosira brevistriata, Staurosira venter and Staurosirella pinnata, and fragmented valves of benthic genera such as Cocconeis (growing on submerged water plants in the littoral zone), Navicula and Nitzschia. As fragilarioid species are associated with environmental stress and physical disturbance (Schmidt et al., 2004), the high proportion of benthic and facultative planktonic taxa can be linked with an expansion of the littoral zone, i.e. are a strong indicator for relatively shallow waters (Barker et al., 1994). The occurrence of Aulacoseira spp. in these subzones, and low abundance of Cyclotella ocellata, can be indicative of turbulent mixing of the water column and a temporary breakdown of stratification (Anderson, 2000; Owen and Crossley, 1992), since Aulacoseira have highly silicified valves and require a turbulent water column to stay within the photic zone. A combination of low lake level and high wind exposure can provide the turbulent, high nutrient condition favoured by this genus (Wolin and Stone, 2010). Shallow and turbulent water conditions can often enhance dissolution of diatom valves (Flower, 1993), which is here well reflected in the low diatom concentration.

Mineralogical and geochemical data indicate a phase of long-lasting and high detrital input, supported by palynological data: The poorest diatom preservation (DAZ-4c and DAZ-4a) occurs in phases of maximum inferred detrital input: increased potassium (K) counts, phytolith counts and detrital mineral concentrations with values up to 50 w% (clays + feldspars + quartz), and the unique presence of anorthite and microcline only in this sediment unit. DAZ-4 as a whole shows maximum abundance of steppic pollen taxa, indicating a natural open vegetation cover (not influenced by human activities) and arid climate conditions in the catchment area (Figure 5, Schiebel and Litt, 2017). The open steppe vegetation would also favour soil erosion processes (Zuazo and Pleguezuelo, 2008) and increase the sediment discharge, serving to dilute the diatom concentration. A high sediment discharge into the lake likely causes a turbid water column, limiting the light availability for the photosynthetic processes necessary for diatom growth, especially for species with a planktonic life habit. In addition, Barker et al. (1994) stated that planktonic diatom taxa can be restricted by turbidity during phases of enhanced catchment erosion. Tychoplanktonic fragilarioid species, which here occur at their peak abundance (Table 2; Figure 3), would be favoured by a turbid, sediment-loaded water column. The inferred phase of shallow lake levels for Lake Kinneret until ca. 8600 cal. yr BP is consistent with pollen-climate model reconstructions from the Dead Sea (Litt et al., 2012), which document an arid (precipitation values < 350 mm/a) and warm period.

In subzone DAZ-4b, the shift towards dominance of the planktonic Cyclotella ocellata-complex (45–75%, Table 2), i.e. Cyclotella ocellata and Cyclotella paleo-ocellata, suggests a slight increase in lake levels around 8600 cal. yr BP lasting till 7900 cal. yr BP. Total diatom concentration and the Ca/Ti-ratio remains low in spite of better diatom preservation, indicating reduced lacustrine productivity. As Cyclotella ocellata is known for its extremely broad tolerance for nutrient availability (Cremer and Wagner, 2003; Fritz et al., 1993; Houk et al., 2010; Kiss et al., 1996; Schlegel and Scheffler, 1999; Van Dam et al., 1994), the co-occurrence of Cyclotella ocellata with Cyclotella paleo-ocellata is interpreted in this record as an indicator of oligotrophic conditions in a deeper open-lake system (Vossel et al., 2015, and references therein). Notably, the peak in the S/Ti-ratio at the beginning of DAZ-4b (~8.6 cal. kyr BP) differs from the Ca/Ti signature, possibly indicating changes in lacustrine mixing related to a deeper water column. This can result as a transient state after a rapid lake-level increase, as known for other east Mediterranean lakes (e.g. Lake Van, Turkey (Kaden et al., 2010)).

An excursion towards more humid climate conditions with higher precipitation values is recognized between 8600 and 7900 cal. yr BP from speleothem records of the nearby Soreq cave, Israel (Bar-Matthews et al., 2000) and Jeita cave, Lebanon (Verheyden et al., 2008) with reconstructed precipitation values up to 550–700 mm/a. These shifts in moisture availability also affected the Eastern Mediterranean basin, as seen by the formation of sapropel (e.g. S1; De Rijk et al., 1999; Kallel et al., 1997). Our data are strongly in accord with the hypothesis of a humid Early Holocene in the southern Levant, clarifying the uncertainty generated previously by low lake levels reported in the Dead Sea (Kushnir and Stein, 2010). A slight rise in Dead Sea lake level does occur at this time (Figure 6), reflecting a subdued response or local variation in climate.

As noted above, conditions in subzone DAZ-4a (7900–7400 cal. yr BP) return to a relatively arid state with a low lake level similar to that reported for DAZ-4c, even though diatom communities show higher relative abundance of fragilarioid and Cocconeis spp. rather than a diversity of benthic taxa, indicative of an unstable, fluctuating environment (Schmidt et al., 2004, Table 2). Although later, according to the age–depth model (Figure 2), it is within the error range (a reservoir effect of nearly 1000 years; Schiebel and Litt, 2017) to argue that this subzone represents the Early to mid-Holocene boundary, coinciding with the so-called 8.2 kyr abrupt climate event (Walker et al., 2012). The 8.2 kyr cold (arid) event is the most prominent rapid climate change (RCC) at northern high latitudes during the Holocene (Johnsen et al., 2001; Pross et al., 2009), and its influence on terrestrial records in the Eastern Mediterranean is strongly debated (Robinson et al., 2006). The observed strong diatom response also occurs in some other Mediterranean sites (e.g. Ariztegui et al., 2001; Cvetkoska et al., 2014); here, other proxy data also show a peak, for example, K – indicative for enhanced erosion, but no marked shift in palynological evidence for its impact on catchment vegetation is recognizable. Bar-Matthews et al. (1999) reported a sudden cooling and decrease in precipitation around 8.2 cal. kyr BP for the Soreq cave (Israel). Moreover, geomorphological lake-level reconstructions from Lake Kinneret (Hazan et al., 2005, and this study) and the Dead Sea (Kushnir and Stein, 2010; Litt et al., 2012) show low lake-level stands between 8000 and 7500 cal. yr BP (Figure 6), indicating a region-wide response to shifts in moisture towards more arid climate conditions. Kushnir and Stein (2010) conclude that marked Holocene arid events, which are expressed as abrupt and relatively large drops in the Dead Sea lake level (10 m or more), correlate with pronounced cooling episodes recorded in Eastern Mediterranean winter sea surface temperatures (SST; reconstructed from planktonic foraminifera in marine sediment cores) and with cold events in northern latitudes.

From 7400 to 2200 cal. yr BP (DAZ-3, Transition Neolithic/Chalcolithic period, Bronze Age and Iron Age)

DAZ-3 is characterized by the consistently high abundance of planktonic diatom taxa (>80%) mainly belonging to the Cyclotella ocellata-complex (Table 2), indicating stable, high lake levels and an oligo-mesotrophic state throughout this subzone (Vossel et al., 2015, and references therein). The marked transition to plankton dominance represents strong evidence for a rapid increase in lake level around 7400 cal. yr BP, which is also observed in the diatom data from Lake Prespa, further north (Cvetkoska et al., 2014).

From a geochemical perspective, in phase primary carbonate accumulation (Ca/Ti-ratio) and diatom concentration indicate long-lasting increased productivity phases between 6000 and 5000 cal. yr BP and between 4000 and 2200 cal. yr BP (Figure 5). In general, DAZ-3 is a phase of moderate detrital input. Abrupt, marked excursions of potassium also occur, indicating pulses of terrigenous input, which might be caused by flood events or other external triggers. Most of the punctual increases in detrital input have no influence on the diatom flora.

The interpretation of enhanced humidity is supported by palynological evidence showing an increase of summer-green oak (Quercus ithaburensis-type), especially in subzone DAZ-3a and a slight decrease in steppic vegetation, which seems to be natural and not anthropogenically induced (Schiebel and Litt, 2017). The pollen evidence alone was not definitive since the climate signal is strongly overprinted by human activities from the Chalcolithic period onwards. Fluctuating human settlement size and activities around Lake Kinneret during this time period (Langgut et al., 2013, 2015) seem not to have a remarkable effect on the lake’s ecosystem and trophic state, as interpreted from the high-resolution diatom record.

In summary, all analysed proxies indicate a stable, oligo-mesotrophic lake system for the mid-Holocene with a maximum lake-level high stand lasting from 7500 till 2200 cal. yr BP. This is in accord with climate models based on palynological data, providing evidence for an extended humid phase with precipitation values up to 650 mm/a for the Levantine region (Litt et al., 2012). In addition, our dataset is in accord with other diatom records in the Eastern Mediterranean, which also exhibit an inferred mid-Holocene phase of maximum lake levels (e.g. Lake Ioannina (Jones et al., 2013); Lake Prespa (Cvetkoska et al., 2014) and Lake Dojran (Zhang et al., 2014)). A mid-humid Holocene is also documented by increasing lake levels in Lake Iznik (Turkey) based on high-resolution grain size analysis and carbonate accumulation (Roeser et al., 2016). Many localities in the Levant support the hypothesis of a humid climate optimum, for example, speleothem records from Soreq cave, Israel (Bar-Matthews and Ayalon, 2011) and Jeita cave, Lebanon (Verheyden et al., 2008) and a new, high-resolution pollen record from Lake Kinneret (Langgut et al., 2016).

Previous lake-level reconstructions for Lake Kinneret (Hazan et al., 2005) and the Dead Sea (Kushnir and Stein, 2010) (Figure 6) had shown inconsistencies, which were thought to reflect differences in patterns of evaporation and local differences in freshwater supply (Stein, 2014). From our results, the stability of the Kinneret high stand accentuates the apparent discrepancy further, standing in stark contrast to the major fluctuations in lake level inferred for the Dead Sea. Although our results are more closely in accord with other records of the region, it is possible that, as a closed-lake basin, the Dead Sea exhibits far higher sensitivity to changing moisture availability. Furthermore, our results support the hypothesis that the strong north to south climate gradient of today (see also site description section) operated through most of the Holocene, which might explain independent changes in the limnological behaviour of the two lake systems. These observations support the analysis of Enzel et al. (2008), who argued that the present north-south climatic gradients between arid and Mediterranean zones were already established during the Late Pleistocene.

The diatom record of Lake Kinneret shows, in contrast to the 8.2 kyr event, no evidence for the so-called 4.2 cal. kyr BP drought event appearing across the Northern Hemisphere between 4.2 and 3.8 cal. kyr BP (Mayewski et al., 2004). The lack of response might be caused by the fact that the lake was a deep, stable ecosystem during this time. A similar lack of diatom response was observed in Lake Prespa (Cvetkoska et al., 2014). Nevertheless, there is subtle evidence in the pollen record (Schiebel and Litt, 2017) comprising decreased arboreal pollen percentages around 4000 cal. yr BP (Figure 5).

During the Late Bronze Age (around 3200 cal. yr BP), a subsequent pronounced dry episode has been identified from palynological analysis of Lake Kinneret (Langgut et al., 2013, 2015; Schiebel and Litt, 2017). This event lasted probably slightly more than a century and is represented by a reduction in arboreal pollen percentages (low Quercus spp. in Figure 5), clearly not induced by human deforestation as settlement activity was low in many areas during that time. Again, the stable, deep lake-level state in Kinneret during this phase might cause a buffering effect on the diatom response, possibly similar to observations made in Lake Eski Acigöl, Turkey (Roberts et al., 2001). A remarkable drop in lake levels does appear to occur in the Dead Sea at this time (Kushnir and Stein, 2010; Stein et al., 2010), however.

Sediment disturbance at 2.3 cal. kyr BP

In the rather homogeneous Holocene sediment sequence of Lake Kinneret, a major shift in palaeolimnological proxy data at 4.64 to 4.57 m depth (ca. 2.3 cal. kyr BP; Figure 7) indicates the occurrence of an event layer. This 4-cm thick sediment sequence shows abrupt lithologic and mineralogical boundaries, and grain size shows inverse grading, which is indicative of a rapid depositional event. Concentrations of microcline, detrital dolomite and quartz are the highest of the profile (Table 3) and potassium and phytolith counts exhibit clear peaks.

Figure 7.

A putative event layer in core Ki_I_4.3–5.3 showing inverse grading and contrasting lithology compared with the rest of the record, correlating with marked shifts in geochemical and mineralogical indicators. Each star represents one sample. The light grey line denotes a sample containing no diatoms.

This distal deposit of a turbidity current/gravity flow might have originated from two distinct natural triggers (1) seismic activity or (2) climate, as a result of a flash flood event. Terrestrial deposits of paleo-earthquakes with Holocene age are encountered at the south-eastern margin of Lake Kinneret (e.g. Klinger et al., 2015; Reches and Hoexter, 1981). Given the lake’s location on the active DSTF system, it is conceivable that the observed event layer originated from a seismic event. On the contrary, deposits of flood events are known from Lake Kinneret, however, appearing closer to the shore and under direct influence of river discharge. For example, Williams (2016) recently recorded two flood deposits in a short sediment core (143 cm; 4000 years) from the western shore of Lake Kinneret, providing strong evidence for fluctuating dry–wet conditions of the Roman/Byzantine periods due to climate instability.

Another possible human-induced explanation for the sediment disturbance could be the start of olive tree cultivation and the previous clearance of the natural vegetation visible in the gradual decrease of Quercus spp. in the pollen data (Schiebel and Litt, 2017) at the top of DAZ-3a. Natural vegetation clearance and heavy rain could cause a rapid in-wash of soils and nutrients from the catchment (Cohen, 2003; Zuazo and Pleguezuelo, 2008), which also would explain high amounts of K and detrital minerals, low lake productivity (i.e. low diatom concentration and Ca/Ti ratio), as well as the sample devoid of diatoms. Further research is necessary to identify the causal mechanism, but the event is followed shortly afterwards by a complete compositional change of the diatom community towards a more eutrophic assemblage.

From 2200 to 1600 cal. yr BP (DAZ-2, Hellenistic and Roman/Byzantine period)

The onset of DAZ-2 (corresponding to the Hellenistic Period; around 2200 cal. yr BP) is marked by a major reduction in the P/B-ratio and diatom concentration. A floral shift towards planktonic taxa such as Aulacoseira granulata, Cyclotella polymorpha and small Stephanodiscus (Stephanodiscus minutulus/parvus and Stephanodiscus hantzschii) strongly indicate a higher trophic state of the lake (Krammer and Lange-Bertalot, 1986, 1988, 1991a, 1991b; Stiller et al., 1984) and a possible reduction of lake level. Cyclotella paleo-ocellata and Stephanodiscus galileensis disappear completely from the record probably due to the increase in nutrient availability. Pollingher et al. (1984) made similar observations in diatom analysis of the sediment core KIND-4, taken close to station D in the southern part of Lake Kinneret at 23 m water depth, and inferred nutrient enrichment correlated to more dense human settlement and intensive agricultural activity around the lake during the Hellenistic-Roman period. The increase and diversification of Pediastrum spp. in this DAZ also supports an increase in trophic state (Pollingher, 1986). The surprisingly low diatom concentration in DAZ-2 may be explained by the competitive advantage of green algae over diatoms (Stiller et al., 1984).

This interpretation is supported by the replacement of oak woodland by olive plantations (Olea europaea) in the catchment (Schiebel and Litt, 2017) and an inferred increase in terrigenous input indicated by mineralogy and phytolith data. Neumann et al. (2007) recognized deforestation activities during the same period in nearby Birkat Ram, a small maar lake in the northern Golan Heights. Rising population density, bigger urban societies and continuous agriculture activities are also well documented archaeologically in the Hellenistic and Roman/Byzantine time periods (Anderson, 1995; Chancey and Porter, 2001; Dar, 1993).

The clearance of the surrounding natural vegetation would enhance erosion of nutrients and terrestrial input to the lake, indicating that the shift from an oligotrophic to a more meso- to eutrophic lake system was induced by human activities rather than climate change.

Deforestation and intensive farming has led to marked changes in the nutrient balance of many lake systems during the mid- to Late Holocene, which is well reflected in many palaeolimnological records based on diatoms around the Mediterranean (e.g. Cvetkoska et al., 2014; Zhang et al., 2014).

The evidence for lake-level shallowing in the proxy data (slightly comparable with DAZ-4a/c) may be climatically induced, since this has also been recognized as a more arid, warmer phase by other researchers (Finné et al., 2011), but standing in contrast to colder and humid climate conditions reported for this region (Issar, 2003). A climate-induced shallower lake-level phase in Lake Kinneret is therefore unlikely and also stands in contrast to a high lake-level stand reported from the Dead Sea (Figure 6, Kushnir and Stein, 2010). Woodbridge and Roberts (2011) have demonstrated in a palaeoclimate record from Nar Lake (Turkey) that anthropogenic changes in land use can lead to long-term shifts in the diatom response to climate variability through time and therefore highlight that diatom-inferred climate interpretations on Late Quaternary timescales should be considered with caution.

An alternative, non-climatically induced explanation for a lake-level reduction of Lake Kinneret could be human water abstraction associated with catchment vegetation management and irrigation. Major irrigation systems were introduced to this region in Hellenistic times and become common in the Roman era to ensure water-supply of bigger urban centres (Lemche, 2015), such as Tiberias, which was founded in the Roman period.

Overall, it can be concluded that human activities are strongly overprinting the climate signal of the multi-proxy record after the onset of the Hellenistic/Roman period. Shifts in the diatom assemblage or varying P/B-ratios in the following sections therefore reflect changes in the trophic state of the lake and its productivity, rather than being a reliable indicator for fluctuating lake levels.

From 1600 to 900 cal. yr BP (DAZ-1c/-1b, late Byzantine and Islamic period)

In DAZ-1c/-1b (Table 2), the recovery to an oligo-mesotrophic lake system is indicated by a decrease of initial dominance of Cyclotella polymorpha (DAZ-1c; mesotrophic) and the subsequent renewed dominance of Cyclotella ocellata (< 80 %; oligo-mesotrophic) in this subzone. The low abundance of Aulacoseira and Stephanodiscus taxa also support a shift to more oligo-mesotrophic conditions. This is not reflected in the geochemical data. Carbonate accumulation and S/Ti both increase, whereas detrital minerals are at their lowest values (<15%). The consistent increase of pyrite concentration is indicative of an at least seasonally anoxic sediment surface, likely allowing sin-depositional pyrite concentration. This is a typical feature in eutrophic lakes, when increases in TOC production, and especially consumption, lead to anoxic conditions in the lower water column.

Schiebel (2013) and Schiebel and Litt (2017), report a period of woodland regeneration with the re-occupation of abandoned olive groves by evergreen oaks and pistachios in the palynological record of Lake Kinneret in this period. The recovery of the diatom flora as well as the regeneration of natural woodland can be reflecting a decrease in settlement activities and in economic structures as well as a decline of agriculture and population density reported in the Southern Levant during the Islamic Period (Safrai, 1994).

From 900 cal. yr BP to present (DAZ-1a, Crusader period till today)

DAZ-1a incorporates the species composition of the modern diatom flora of Lake Kinneret, which is now strongly influenced by the economic revival in this area, especially the development of industry and tourism. The subzone DAZ-1a is dominated by strongly eutrophic diatom taxa, which are also tolerant of general water pollution, including Aulacoseira granulata, Cyclotella meneghiniana and large Fragilaria capucina (Ehrlich, 1995; Krammer and Lange-Bertalot, 1986, 1988, 1991a, 1991b; Lange-Bertalot, 2013). As noted above, the low diatom concentration in the modern flora is probably due to a marked increase in dominance of dinoflagellates and green algae (Pyrrhophyta-Chlorophyta assemblages) in the phytoplankton (Pollingher et al., 1984). The geochemical data exhibit an increase in detrital values and maximum pyrite values. The lack of shifts in other indicators compared with DAZ-1b suggest that it was only recently that the annual pattern of lake mixing was established. This is also supported by the laminated sediment deposits only occurring in the upper most 25 cm of the sediment sequence.

Lake levels fluctuated markedly from 1600 cal. yr BP until present, as indicated by shifts both in diatom concentration and the P/B-ratio. As noted above, lake levels can fluctuate by up to 4 m per year depending on precipitation/evaporation, but mostly on human water management control. Human-induced impacts (e.g. water abstraction, industry and agriculture) on the lake ecosystem and its watershed are well documented over the last >40 years by the Lake Kinneret monitoring programme (Sukenik et al., 2014).

Conclusion

Our study has greatly improved our understanding of Holocene climate variability in the Lake Kinneret area and across the southern Levant as a whole. The diatom data in particular provide a robust signal of lake-level response to shifts in moisture availability, although partly obscured in the later record by the impact of human activities. In the context of understanding palaeoclimate variability, our major conclusions are as follows:

Apart from lithological evidence for a possible disturbance event around 2300 cal. yr BP, the Lake Kinneret sediment record provides an important continuous high-resolution Holocene sequence for the southern Levant.

Major shifts in the diatom community and especially in the P/B-ratio, during the Early and mid-Holocene are driven by changes in lake level and moisture availability rather than lake productivity or changes in trophic status.

During the Late Holocene, after 2200 cal. yr BP, the climatic signal is overprinted by accelerated nutrient enrichment linked to intensification of human activities in the catchment area.

The new detailed lake-level reconstruction for Lake Kinneret based on the P/B-ratio of diatoms in combination with minero-geochemical analysis allows for the first time a detailed comparison between the two contrasting lake systems of the Dead Sea and Lake Kinneret. Following a phase of lake-level fluctuations in the Early Holocene linked to alternation between an arid and more humid climate in Lake Kinneret, diatoms indicate a prolonged stable deep lake phase throughout the mid-Holocene and the onset of the Late Holocene due to long-lasting humid climate conditions. Independent changes in the limnological behaviour of Lake Kinneret and the Dead Sea probably reflect the long-term existence of the strong north (humid) to south (arid) climate gradient which operates today, coupled with the higher sensitivity to changing evaporation/precipitation conditions of the Dead Sea, as a closed basin system.

The presented diatom record shows similarities to palaeoclimate records studied around the Mediterranean. Lake ecosystems of these moderately deep, alkaline lakes seem to react in similar ways to larger scale climatic events during the Holocene such as the 8.2 kyr event and the mid-Holocene humid period.
