Changes in the vegetation and water cycle of the Ecuadorian páramo during the last 5000 years

Abstract

We analyzed changes in the long-term vegetation cover and in fire activity over the past 5000 years in the Ecuadorian páramo using a sediment core from Papallacta (Ecuador). The chronology is constrained by three tephra layers and 32 AMS ¹⁴C ages, and 168 samples yielded a high-resolution record of environmental changes. We estimated the upslope wind convectivity as the ratio between pollen transported from the Andean cloud forest and Poaceae pollen to distinguish changes in atmospheric moisture from changes in soil moisture. The record showed that the two sources of moisture, either from year-round adiabatic cloud dripping linked to SASM activity or to ENSO variability at decadal-scale, influenced vegetation-cover changes. Between 5000 and 2450 cal yr BP, both soil moisture and biomass burning were higher than after 2450 cal yr BP. The shift between the two states matches the zonal increase in summer insolation that drove the ITCZ to its southernmost position. Our results underline resilience to volcanic activity, the importance of the upslope convective dripping with the lowest convective index observed at ~4500 cal yr BP, the anomalous last century with the highest convective activity and the driest soil conditions recorded in the last 5000 years, the recent increase in fire activity and the link between soil moisture and the position of the ITCZ.

Keywords

adiabatic upslope fire SASM soil moisture tephra tropical Andes

Introduction

Páramo (or páramos) is a widespread treeless grassland neotropical ecosystem located in the wetter northern Andes (Borrelli et al., 2015) between the upper limit of the cloud forest (c. 3000 m asl) and the upper limit of plant life (c. 4700 m asl; Körner and Paulsen, 2004; Luteyn, 1999). Páramos play an important ecological role in regional water storage (Buytaert et al., 2006) and in the global carbon balance and host high biodiversity (Zúñiga-Escobar et al., 2013). Water drains from the wetlands into the thick volcanic soils that form the “sponge” of the páramo, where the precipitation is stored. Currently, tussock grassland (Calamagrostis sp or/and Festuca sp), acaulescent rosettes and cushions, the dominant growth forms of the páramo (Ramsay and Oxley, 1997), are undergoing severe degradation due to burning and grazing (Grubb et al., 2020). Degraded areas only recover slowly due to the high elevation as well as the effects of the oxygen level, high radiation and drying wind; as a result, the high biodiversity of this ecosystem is under threat. An additional issue is ongoing and future climate change with increasing temperatures and the associated glacier retreat and an increase in drought events and in fire frequency due to enhanced precipitation seasonality (Urrutia and Vuille, 2009).

The long-term management of the páramo requires a detailed understanding of the role of fire (Sarmiento and Frolich, 2002). While the grasslands are highly flammable, their ability to sprout and germinate after fires can be viewed as is considered as an adaptation to disturbance by fire (Borrelli et al., 2015; Horn and Kappelle, 2009). Accordingly, direct observations of lightning strikes and paleoecological evidence of fires both clearly demonstrate that fires occur in neotropical páramo without human intervention (Horn and Kappelle, 2009). However, the extent to which the páramo can be viewed as a fire-dependent ecosystem is still a matter of debate (Horn and Kappelle, 2009). Today, fire frequency in the páramo is higher than before, probably due to human-set fires that are used to remove the dead standing biomass of native grasses and promote the growth of young grass shoots that are easier to stock (Matson and Bart, 2013).

Long-term paleoecological records from natural archives (lacustrine sediments, peat) make it possible to document vegetation responses to climate and fire-regime changes under environmental conditions that differ substantially from those that occurred during the historical period. For instance, in Colombia, the upper tree line shifted in conjunction with glacier advances and retreats during the glacial-interglacial cycles over the Quaternary (Hooghiemstra and Flantua, 2019). During the Holocene, at millennial time scales, the South American Summer Monsoon (SASM) gradually intensified in response to increasing southern hemisphere summer insolation. Thus, during the mid-Holocene (7000–5000 yr BP), a weaker SASM system produced drier conditions in large parts of the neotropics south of the equator (Prado et al., 2013; Valencia et al., 2018). Further north, near the Pacific coast of Ecuador, the strengthening of the cold Humboldt current led to cooler climatic conditions between 4200 and 2850 cal BP (Seillès et al., 2016) and drier conditions in the Ecuadorian Andes between 5500 and 2500 cal yr BP (Rodbell et al., 1999) when the InterTropical Convergence Zone (ITCZ) was in its northernmost position. Andean pollen records for the late-Holocene rather centered on changes in the upper forest limit, with the highest position reached around 4900 cal yr BP in conjunction with wetter climate conditions and the lowermost altitude reached between ~910 and 520 cal yr BP in conjunction with drier climate conditions (Bakker et al., 2008; Jansen et al., 2013). Similarly, little is known about the floristic changes of the páramo.

Here we present new high-resolution pollen and macroscopic charcoal records spanning the past 5000 years from a peat bog (Papallacta) located in the páramo of Antisana, one of the main hydrological basins for Quito, the capital city of Ecuador (Buytaert et al., 2006). The pollen record from this site for the last 1000 year showed that vegetation was highly sensitive to moisture from two main sources, one the annual amount of rainfall retained in the soil, and the other from the upslope cloud convection that delivers moisture from the Amazon basin to the summits (Ledru et al., 2013). By extending the Papallacta record further back in time, we explore the longer-term drivers of changes in hydrological conditions, fire and vegetation in a high elevation ecosystem in the tropics.

Study area

The Papallacta (or Sucus) peat bog is located on the eastern part of the Chacana volcanic complex, and at 12–14 km to the north slope of the Antisana volcano at an elevation of 3815 m asl (00°2′30″S, 78°11′37″W) on the Eastern Cordillera range (EC) (Figure 1a). The Antisana (5704 m asl) is a potentially active volcano in the Ecuadorian Eastern Cordillera, whose most recent fumarolic activity was reported by Humboldt at the beginning of the 19th century (Hall et al., 2017). Antisana’s base diameter is ca. 14 km, running north-south. There, glaciers descend to approximately 4600 m (eastern side) and 4800 m (western side), while older moraines dated to the Younger Dryas cold event indicate glaciers about 1200 m lower on the eastern side (Clapperton et al., 1997; Hastenrath, 1981). Average annual temperature is between 7.5°C (at 3500 m asl) and 5°C (at 4000 m asl) (Jorgensen and Leon-Yanez, 1999).

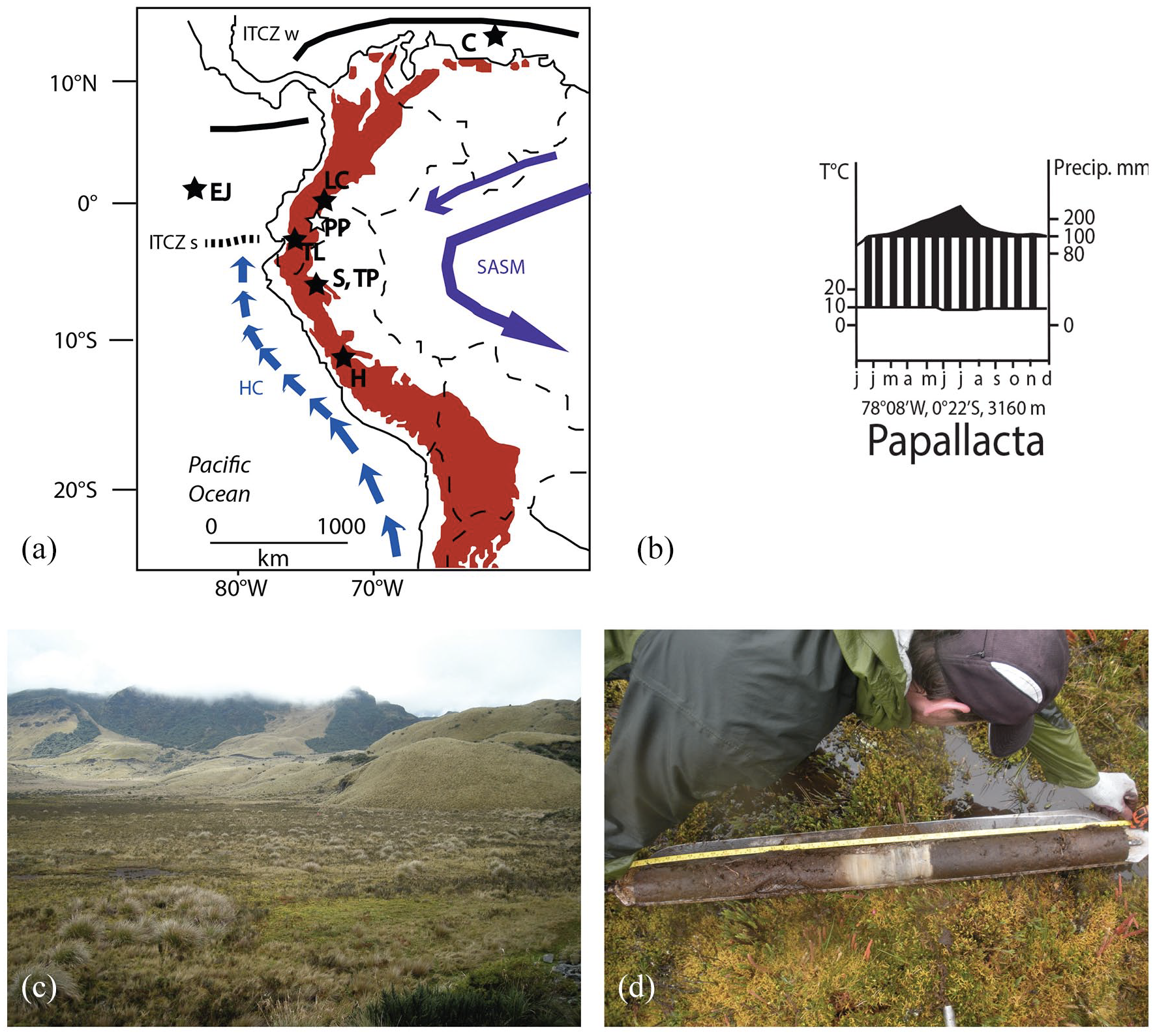

Figure 1.

(a) Map of western South America showing the tropical Andes (in red), the location of Papallacta bog (white star), the location of some of the records cited in the text (C Cariaco (Haug et al., 2001), LC Lake La Cocha (González-Carranza et al., 2012), TL Tres Laguna (Frederick et al., 2018), S Shatuca (Bustamante et al., 2016), TP Tigre Perdido (van Breukelen et al., 2008), H Huagapo (Kanner et al., 2013)) and the main climatic features discussed in the text (ITCZw is the position of the InterTropical Convergence Zone in winter, ITCZs in summer, HC the Humboldt Current, SASM South American Summer Monsoon). (b) Climate information represented on a Walter diagram (Luteyn, 1999). Temperature is shown by the bottom curve, precipitation by the upper curve. (c) The bog at Papallacta with patches of Polylepis forest on the background slopes. (d) View of the M2 tephra in core PA1-08 (©MP Ledru) .

The climate in the equatorial Andes is influenced by complex and heterogeneous atmospheric mechanisms (Segura et al., 2019). Currently, both the Eastern (EC) and the Western Cordillera (WC) are under the seasonal influence of the Intertropical Convergence Zone (ITCZ), a zone of deep convection that produces heavy precipitation due to the convergence of the trade winds at low latitudes between February and April (Garreaud, 2009). The EC receives year-round rainfall fed by moist air resulting from evapotranspiration of the trees in the Amazon basin (Bendix et al., 2006a, 2006b). Upon meeting the Andes, these moist air masses ascend, cool, and lose a substantial portion of their humidity (orographic rain) thereby attenuating the dry season. As a result, large parts of the EC are currently characterized by the absence of a dry season (Figure 1b). However, extreme monthly wet (dry) events are associated with anomalous southward (northward) shifts of the eastern pacific ITCZ during the rainy season (Segura et al., 2019).

Today, at the high elevation of the Papallacata bog on the north-western slope of the Antisana, two main mechanisms are responsible for the year-round precipitation: regular SASM activity observed every year and variable El Niño activity (Vuille and Werner, 2005). First, the South American Summer Monsoon (SASM) is paced by the southward migration of the ITCZ over the tropical Atlantic and Pacific Oceans during austral summer and causes precipitation during the austral summer (Figure 1a; Ledru et al., 2013). Second, the interannual variability in precipitation related to ENSO (El Niño Southern Oscillation) with El Niño (La Niña) episodes associated with warmer (cooler) and below (above) average rainfall in the Amazon Basin (Marengo, 2009; Marengo and Nobre, 2001) as well as glacier regression (expansion) in Ecuador (Caceres et al., 2006). At millennial scale, paleoclimatic records reconstructed mean-state variations in ENSO-like behavior, for instance, in the lacustrine sediment of the Galapagos with an increase in ENSO variability in the Late-Holocene (Conroy et al., 2009; Moy et al., 2002; Zhang et al., 2014).

Sucus bog, located close to the town of Papallacta, hereafter named Papallacta bog, is a wetland area located within the páramo. Patches of Polylepis forest grow on the slopes above the bog (Figure 1c). In the region of Antisana, the cloud forest (or upper montane rain forest) occurs between ca. 2500 m a.s.l. and 3400–3600 m a.s.l. and is mainly dominated by Weinmannia pinata, Schefflera sodiroi, Myrcianthes rhopaloides, Hedyosmum cumbalense, H. luteynii, Oreopanax ecuadoriensis, Hesperomeles ferruginea, and Weinmannia fagaroides. Between 3600 and 4300 m asl, in the Páramo, Gynoxys acostae, Escallonia myrtilloides, Buddleia, Polylepis are observed and, high elevation, or super páramo extends between 4200 and 4600 m on the eastern side. Shrubby vegetation dominated by Loricaria antisanensis grows on the eastern humid side at ca. 4200 m (Sklenar and Jorgensen, 1999) (Table 1).

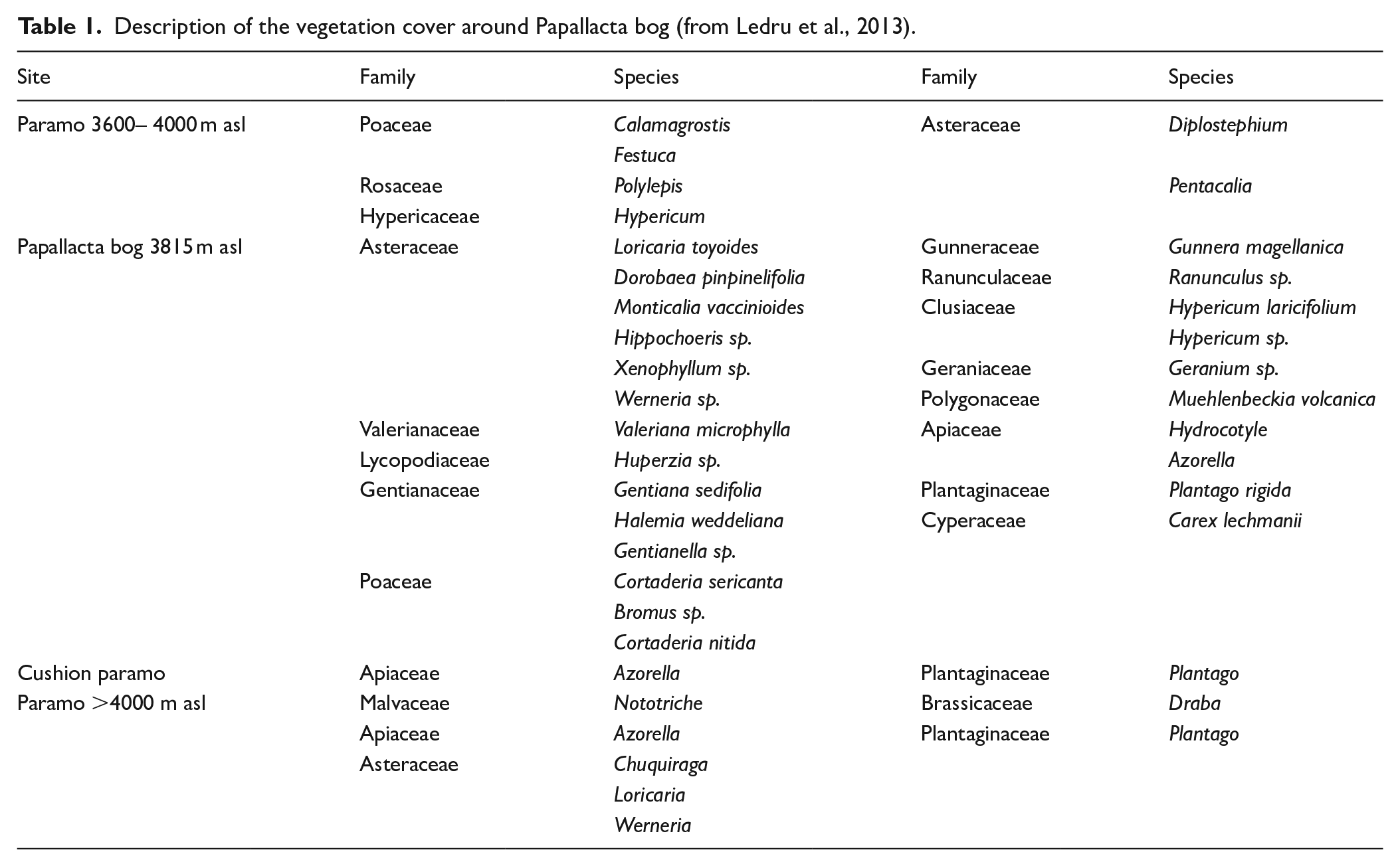

Table 1.

Description of the vegetation cover around Papallacta bog (from Ledru et al., 2013).

Site	Family	Species	Family	Species
Paramo 3600– 4000 m asl	Poaceae	Calamagrostis	Asteraceae	Diplostephium
	Poaceae	Festuca	Asteraceae	Diplostephium
	Rosaceae	Polylepis		Pentacalia
	Hypericaceae	Hypericum
Papallacta bog 3815 m asl	Asteraceae	Loricaria toyoides	Gunneraceae	Gunnera magellanica
		Dorobaea pinpinelifolia	Ranunculaceae	Ranunculus sp.
		Monticalia vaccinioides	Clusiaceae	Hypericum laricifolium
		Hippochoeris sp.		Hypericum sp.
		Xenophyllum sp.	Geraniaceae	Geranium sp.
		Werneria sp.	Polygonaceae	Muehlenbeckia volcanica
	Valerianaceae	Valeriana microphylla	Apiaceae	Hydrocotyle
	Lycopodiaceae	Huperzia sp.		Azorella
	Gentianaceae	Gentiana sedifolia	Plantaginaceae	Plantago rigida
		Halemia weddeliana	Cyperaceae	Carex lechmanii
		Gentianella sp.
	Poaceae	Cortaderia sericanta
		Bromus sp.
		Cortaderia nitida
Cushion paramo	Apiaceae	Azorella	Plantaginaceae	Plantago
Paramo >4000 m asl	Malvaceae	Nototriche	Brassicaceae	Draba
	Apiaceae	Azorella	Plantaginaceae	Plantago
	Asteraceae	Chuquiraga
		Loricaria
		Werneria

Material and methods

Coring

The 9-m long sediment core named PA1-08 was collected from Papallacta peat bog in 2008 using a Russian-type corer (drives 1 m long, diameter 5 cm) (Figure 1d). Sediment drives were transferred onto PVC half-tubes and sealed in a plastic sheath (Figure 2). The sediments were then sliced into 2-cm thick slices, which were placed individually in labeled plastic bags and stored at +4°C at the University of Montpellier.

Figure 2.

Lithology of the PA1-08 core of Papallacta showing the location of tephra layers M1 to M18 (see Table 3). Gray rectangles along the depth scale indicate the thickness of the tephra layers. Bacon age/depth model of core PA1-08 (red dashed line) overlaying the calibrated distributions of the individual radiocarbon dates (blue) (see Table 2) and the age of the tephra deposits (in green) reported in Table 3. Dark gray areas show the 95% confidence intervals of the models (Blaauw et al.,2021).

Chronology

A total of 34 bulk sediment samples were sent for radiocarbon Accelerator Mass Spectrometry (AMS) dating and measured at the Laboratoire de Mesure du Carbone14 (LMC14)–UMS 2572 (CEA/DSM –CNRS–IRD–IRSN–Ministère de la Culture et de la Communication, Saclay, France), and at the BetaAnalytics laboratory (USA). In addition to radiocarbon dating, we used tephrochronology when tephra layers resulting from known volcanic eruptions were available. Tephrochronology is used to determine the age of a volcanic eruption based either on evidence from a historical archive or from prior dating of tephras in other sediment records (Turney and Lowe, 2001). The geochemical and mineralogical composition of the main of the tephra layers makes it possible to identify the origin of the uppermost ash layers (Table 3). However, our knowledge of the origin of the eruption and its corresponding ages become uncertain as one goes deeper in time (Supplemental Table S1, available online). We classified the tephra layers recognized in PA1-08 in three categories, from 0 for no uncertainty to 3 for maximum uncertainty, and only the three most recent tephra layers were usable for our age model (Supplemental Table S2, available online).

The chronology of the core was determined using rBacon v2.5.6 (Blaauw et al., 2021). It is constrained by 35 control points: 31 ¹⁴C dates, the estimated age of the sediment surface (Table 2), and the ages of the three most recent tephra layers identified (Figure 2). Three ¹⁴C dates that were taken near sediment-drive ends were rejected as they reported much younger ages than expected based on adjacent dates. We excised sediments identified as tephra layers before age-modeling (and added them after age-modeling) as these sections are assumed to be abrupt accumulations. All ¹⁴C dates were calibrated with a mixed calibration curve (50% IntCal20 and 50% SHCal20) as the study site receives a mixture of northern and southern air masses (Hogg et al., 2020).

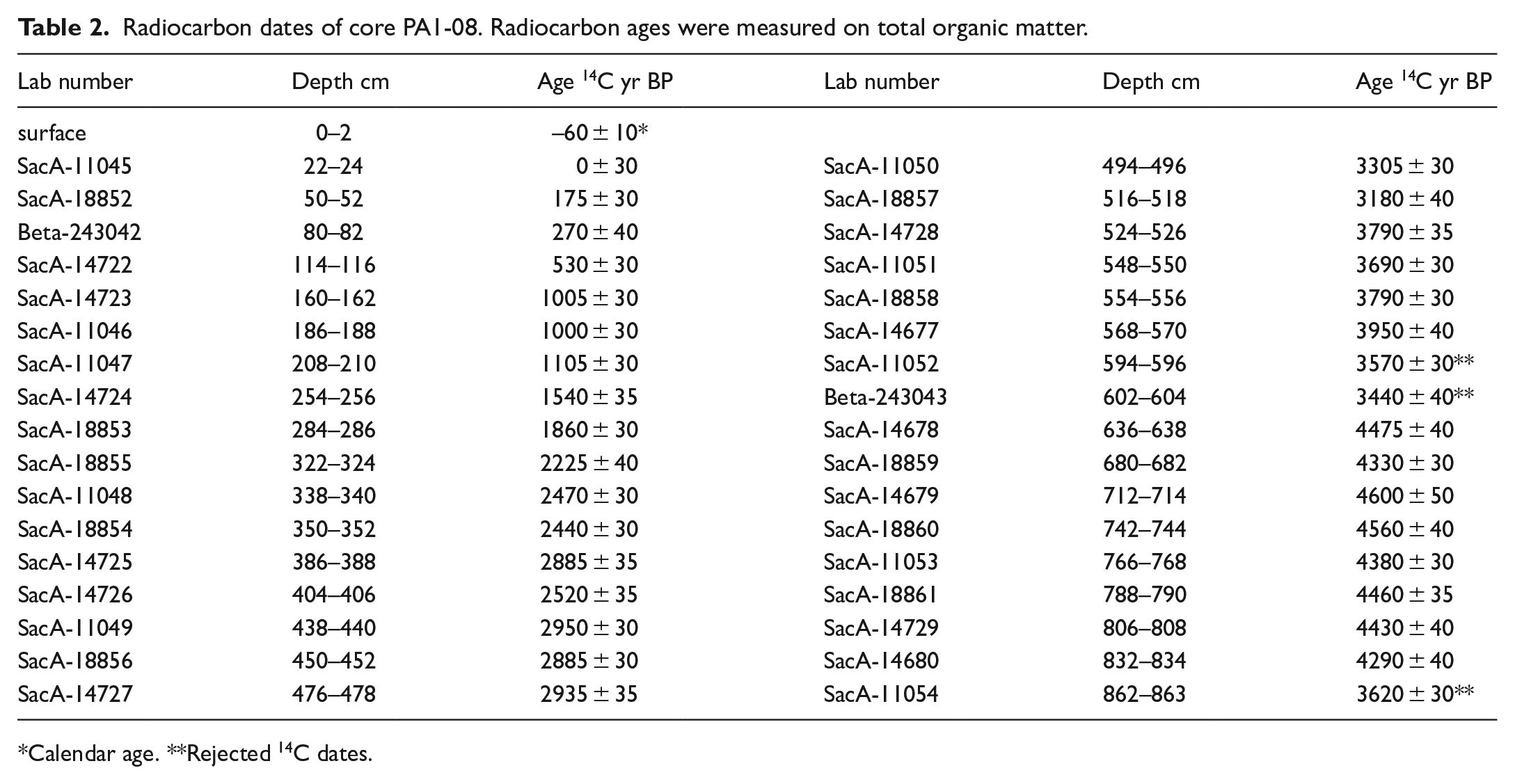

Table 2.

Radiocarbon dates of core PA1-08. Radiocarbon ages were measured on total organic matter.

Lab number	Depth cm	Age ¹⁴C yr BP	Lab number	Depth cm	Age ¹⁴C yr BP
surface	0–2	–60 ± 10*
SacA-11045	22–24	0 ± 30	SacA-11050	494–496	3305 ± 30
SacA-18852	50–52	175 ± 30	SacA-18857	516–518	3180 ± 40
Beta-243042	80–82	270 ± 40	SacA-14728	524–526	3790 ± 35
SacA-14722	114–116	530 ± 30	SacA-11051	548–550	3690 ± 30
SacA-14723	160–162	1005 ± 30	SacA-18858	554–556	3790 ± 30
SacA-11046	186–188	1000 ± 30	SacA-14677	568–570	3950 ± 40
SacA-11047	208–210	1105 ± 30	SacA-11052	594–596	3570 ± 30**
SacA-14724	254–256	1540 ± 35	Beta-243043	602–604	3440 ± 40**
SacA-18853	284–286	1860 ± 30	SacA-14678	636–638	4475 ± 40
SacA-18855	322–324	2225 ± 40	SacA-18859	680–682	4330 ± 30
SacA-11048	338–340	2470 ± 30	SacA-14679	712–714	4600 ± 50
SacA-18854	350–352	2440 ± 30	SacA-18860	742–744	4560 ± 40
SacA-14725	386–388	2885 ± 35	SacA-11053	766–768	4380 ± 30
SacA-14726	404–406	2520 ± 35	SacA-18861	788–790	4460 ± 35
SacA-11049	438–440	2950 ± 30	SacA-14729	806–808	4430 ± 40
SacA-18856	450–452	2885 ± 30	SacA-14680	832–834	4290 ± 40
SacA-14727	476–478	2935 ± 35	SacA-11054	862–863	3620 ± 30**

Calendar age. **Rejected ¹⁴C dates.

Charcoal analysis

We took a total of 322 samples, 69 of which originated from tephra layers, from the contiguous 2-cm thick sediment slices down to a depth of 700 cm, measured sample volumes by water displacement (median volume = 1 cm³; range: 0.1–4 cm³), and then soaked the samples in a 7.5% hydrogen peroxide solution for at least 24 h (Schlachter and Horn, 2010) before gently washing them through a sieve with a 125 μm screen. To quantify charcoal abundances, we transferred the sieving residues into a white porcelain evaporating dish to facilitate the identification and counting of charcoal particles against the white background (Finsinger et al., 2014) and identified charcoal particles under a Leica M80 stereomicroscope at 7.5–60× magnifications based on the following features: dark, shiny and geometric particles that are brittle at low less pressure (Whitlock and Larsen, 2001). As charcoal morphology helps interpret the fuel source (Feurdean, 2021; Jensen et al., 2007), we counted charcoal pieces of Poaceae tissues (Jensen et al., 2007; Mustaphi and Pisaric, 2014), wood and bark (types C and S in Enache and Cumming, 2006), and other charcoal morphologies (“undiff. charcoal”) in 178 samples (34 of which were included in tephra layers). In addition, we scanned the samples at 7.5× magnification with a CMEX-5000 camera using the winSEEDLE™ software v2009 (Regent Instruments Canada Inc.) to measure both the total charcoal abundance and the cumulative sum of charcoal-particle areas (i.e. total charcoal per area) (Finsinger et al., 2014). To account for varying sediment accumulation rates, we selected the samples that were not included in tephra layers and calculated the charcoal accumulation rates (CHAR, pieces cm⁻² yr⁻¹) based on the chronology (Whitlock and Larsen, 2001).

To determine the centennial-scale trends in CHAR, which was interpreted as reflecting the amount of biomass burned over time (Higuera et al., 2010; Marlon et al., 2008), and to identify peaks, which were interpreted as fire episodes, we analyzed the CHAR data using CharAnalysis v1.1 (Higuera et al., 2009). The analysis involved binning the charcoal record to a constant sampling resolution (here, the third quartile value of the records’ sampling resolution = 23 years sample⁻¹), decomposing that record into a background trend and a peak component using a lowess smoother robust to outliers (with a 500-year smoothing window), and evaluating peak samples using the 99th percentile of the modeled noise distribution obtained with a Gaussian mixture model and a peak-screening test (Higuera et al., 2009). The suitability of the record for peak detection was assessed with the signal-to-noise index (SNI; Kelly et al., 2011). We calculated fire return intervals (FRI) using the screened peak record.

Pollen analysis

A total of 200 pollen samples were taken from the 2-cm thick sediment slices down to a depth of 700 cm, 37 of which were taken from tephra layers. We measured both their wet and dry weights before processing the samples using a standard protocol (Faegri and Iversen, 1989). We mounted the residue in silicone oil on microscope slides and identified and counted a minimum of 300 terrestrial pollen grains in each sample under 630× magnification. Pollen grains and spores were identified using the ISEM reference pollen collection and pollen keys (Herrera, 2010; Hooghiemstra, 1984; Kuentz, 2009; Ortuño, 2008). Pollen taxa assignments to ecological groups (bog, Andean forest, páramo) were based on published classifications of páramo pollen records (Moscol Olivera and Hooghiemstra, 2010; Moscol Olivera et al., 2009) and on our own botanical survey (Ledru et al., 2013). To calculate percentages fern spores and aquatic or water level-related taxa were excluded from the total sum. The concentration of pollen was calculated using the method of Cour (1974). Pollen assemblage zones were determined by optimal partitioning with square-root transformed percentage values for pollen types included in the pollen sum (Birks and Gordon, 1985) and for all pollen samples, including those taken from tephra layers. Statistically significant zones were assessed by comparison with the broken-stick model, following Bennett (1996). Pollen diagrams and zonation were prepared with Psimpoll v4.26 (Bennett, 2008).

To qualitatively estimate variations in convective wind activity over time we used the log-transformed Transported pollen: Poaceae pollen ratio (Ledru et al., 2013). According to our modern pollen survey, the pollen produced by three tree taxa that occur in the upper montane cloud forest (Alnus, Hedyosmum, Podocarpus) is transported upslope and characterizes the convective wind activity (Bendix et al., 2006c). Poaceae pollen frequency is related to the soil moisture of the páramo as plants of this family (Calamagrostis, Festuca) grow mainly on humid organic clayey soils (Liu et al., 2005).

Results

Lithology and chronology

The core was mostly composed of brown peat intercalated with 18 tephra layers, M1 to M18, corresponding to fine-to-medium sized distal ash deposits reported in Figure 2 and Table 3. The six radiocarbon dates below a depth of 700 cm are incoherent for regular sedimentation because they report similar ages (Table 2, Figure 2). For this reason and based on evidence of a 2-m-thick homogeneous sediment layer composed of reworked organic mud and tephra, we interpreted these 2 m-layers of sediment as a fluvio-glacial deposit. While this interpretation is weakly constrained, the chronology of the sediments above a depth of 700 cm is better constrained. The depth-age model shows that sediments accumulated at least over the past 5000 years with relatively high sediment deposition times (1.5–20 years cm⁻¹). Comparison of the age distributions of the tephras resulting from the depth-age model and published radiocarbon dates from within the tephra and/or paleosoils located below or above the tephras in the area of the volcanoes shows good coherence except when two different eruptions occurred within a short time interval (Table 3, Supplemental Table S1, available online).

Table 3.

Description of the tephra layers observed in PA1-08 and reported in Figure 3 together with the origin and the year of the eruption re-calculated from our age model (see also Supplemental Tables 1 and 2, available online).

Tephra layer number	Depth cm	Cordillera	Volcano	Calibrated date of the eruption	Description of the ash layer	References
M1	110–115	WC	Guagua Pichincha	1600 AD	Fine, yellowish ash	Robin et al. (2008)
M2a & b	130–148	WC	Quilotoa	1150 AD	2a white & 2b coarse gray ash with small pumice lapilli	Mothes and Hall (2008)
M3	181	WC	Guagua Pichincha	975 AD	Coarse, crystal-rich ash with peat	Robin et al. (2008)
M4	202–206	EC	Cotopaxi?	1165 yr BP	Yelllowish ash	Hall and Mothes (2008)
M5	208–226	EC	Antisana	1180 yr BP	Peat with coarse ash and disseminated lapilli
M6	232–236	-	-	1235 yr BP	Fine, yellowish ash with peat
M7	257–264	EC	Cotopaxi?	1460 yr BP	Coarse, crystal-rich ash with peat
M8	318–322	-	-	2230 yr BP	Fine-medium, gray-yellow, crystal-rich ash with peat
M9	326–332	WC	Atac	2290 yr BP	Fine, white ash	Hidalgo et al. (2008)
M10	350–354	-	-	2445 yr BP	Medium ash with peat
M11a	374–377	-	-	2560 yr BP	Fine, gray-yellowish ash
M11bM12	381–386	WC	-	2585 yr BP	Fine, gray-yellowish ash with disseminated lapilli
	458–464	-	-	3140 yr BP	Fine-medium, white ash, well-stratified oxidation level	Hillebrandt von (1989)
M13	470–473	EC	Tungurahua	3195 yr BP	Medium ash with peat	Hall et al. (1999), Le Pennec et al. (2013)
M14	493–500	-	-	3500 yr BP	Fine, clay-rich, dar ash with peat
M15	521–528	WC	Pichincha	3890 yr BP	Medium, gray-white ash with disseminated crystals	Robin et al. (2008)
M16	538–542546–562	EC	Cotopaxi	4075 y BP	Fine-medium, pseudo-stratified ash with disseminated lapilli	Hall and Mothes (2008)
M17a	589–592	WC	-	4320 yr BP	Fine, white ash
M17b	594–596	WC	-	4335 yr BP	Medium, gray-yellowish ash
M18	658–668	EC	Atacazo-Ninahuilca	4790 yr BP	Fine, white ash	Hidalgo et al. (2008)

WC: Western Cordillera; EC: Eastern Cordillera.

Vegetation dynamics and fire history

The results of the pollen record are presented in a synthetic diagram along a depth scale (Figure 3) and an age scale (Figure 4). A total of 189 taxa were identified, including 56 tree pollen taxa, 84 non-arboreal pollen taxa, 27 fern taxa, 2 Algae and 22 unknown types. The Papallacta pollen diagram contains eight statistically significant pollen assemblage zones (Figures 3 and 4). The signal-to-noise index (SNI) values (median SNI = 10.07, minimum SNI > 3) show that the charcoal-accumulation rate (CHAR) record is suitable for peak analysis and for the detection of fire events.

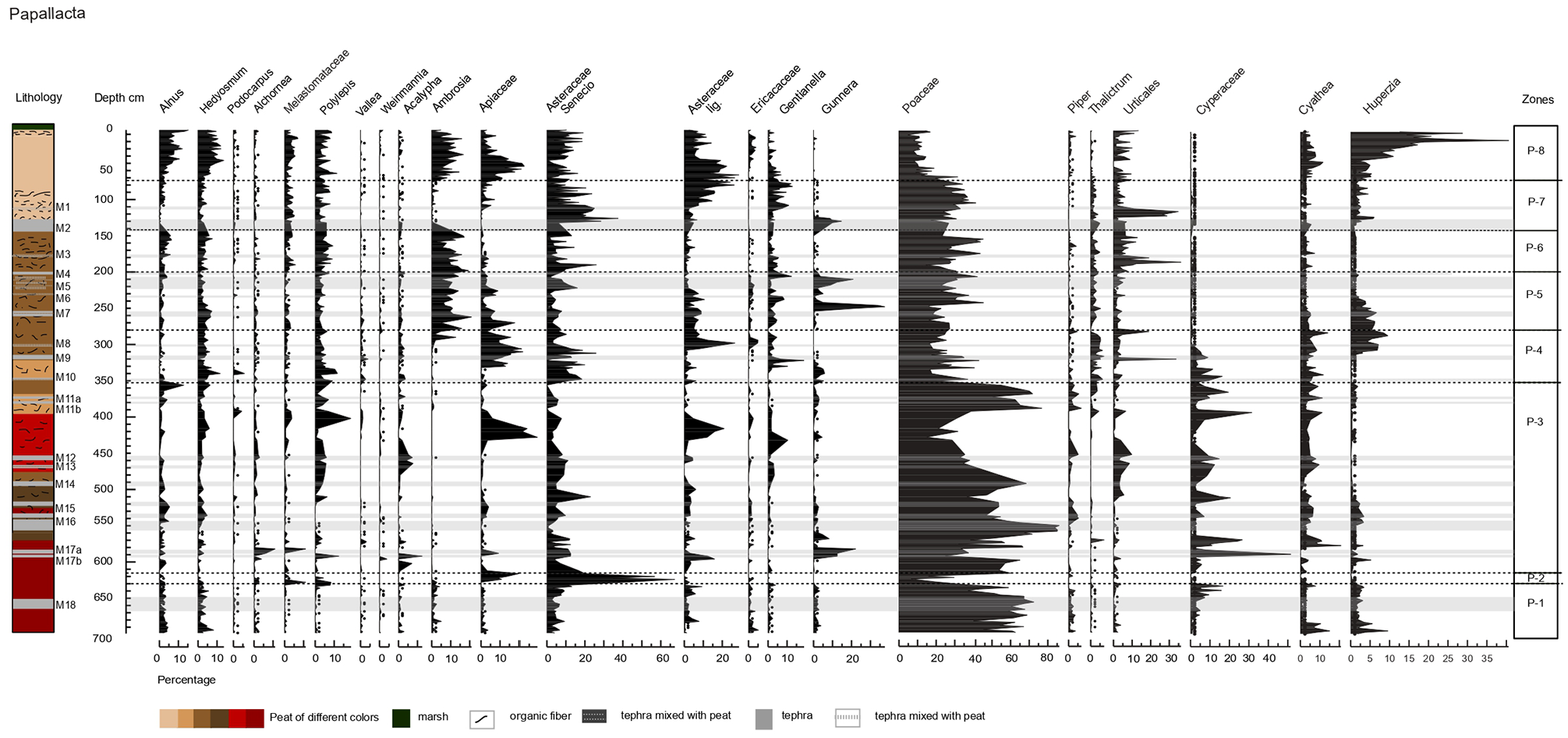

Figure 3.

Percentages of 23 selected pollen and non-pollen taxa sampled in core PA1-08 plotted along a depth scale. Gray shaded areas indicate tephras; dashed horizontal lines: statistically significant pollen assemblage zone boundaries.

Figure 4.

Percentages of 23 selected pollen and non-pollen taxa sampled from core PA1-08 plotted along an age scale. Dashed horizontal lines: statistically significant pollen assemblage zone boundaries.

Pollen zone P1, (700–630 cm, 4960–4600 cal yr BP, 25 samples, resolution 14 years/sample)

This zone contained one 10-cm thick tephra deposit M18 (668–658 cm) dated to 4790 cal yr BP. The vegetation was dominated by Poaceae (35–72%) with low pollen frequencies of cloud forest taxa Alnus (0.5–4.5%), Hedyosmum (1–8%), Podocarpus (0–1%). Among the non-arboreal taxa, Ambrosia (0–5%), Gentianella (0.2 – 1.5%) Ericaceae (0.2–5%) Gunnera (0.2–4%), Acalypha (0.3–5%), Cyperaceae (7–166%) with the highest frequencies at the top of the zone between 658 and 630 cm and the fern Huperzia (10–95%). The quantity of burned biomass increased and two fire events were detected (Figure 5). Charcoal morphotypes indicate that fires were fed by a mixture of wood and Poaceae fuel.

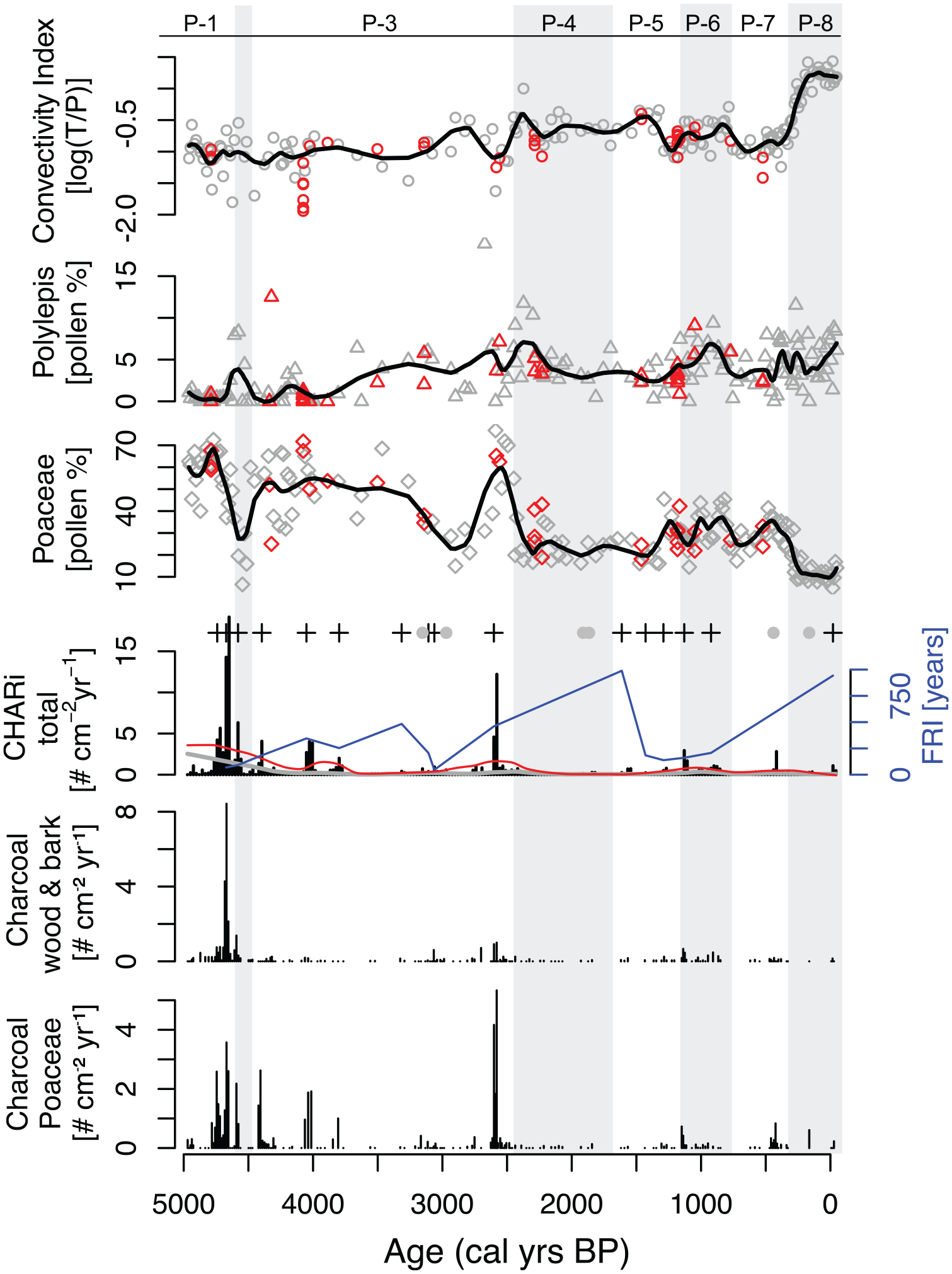

Figure 5.

Results of core PA1-08. Comparison between vegetation dynamics and fire history in Papallacta bog. From top to bottom: the convective wind activity (convectivity index) inferred from the log-transformed Transported pollen:Poaceae pollen ratio (log(T/P)), Polylepis and Poaceae pollen percentages, and fire history based on the abundance of all particles of charcoal, wood and bark charcoal, and Poaceae charcoal. Red empty symbols: samples from tephra layers; black thick lines: loess smoothed records; histograms: charcoal accumulation rate; thick gray line: burned biomass; thin red line: threshold; crosses: fire events; gray circles: insignificant charcoal peaks; blue line: fire return interval (FRI).

The beginning of the record, between 700 and 658 cm, was characterized by the presence of Ambrosia, bog plant assemblages and a few Cyperaceae, an assemblage that documents sufficient soil moisture. After the M18 tephra were deposited, Poaceae pollen frequency decreased while that of Cyperaceae increased.

Pollen Zone P2, 630–614 cm, 4600–4475 cal yr BP, five samples, resolution 25 years/sample

No tephra was deposited in this zone. Pollen assemblages were characterized by low frequency of Poaceae (6%), and high frequency of Ast Senecio (67%). Melastomataceae and Polylepis peaked toward the beginning of the zone (14% and 8%, respectively), while Apiaceae pollen values peaked toward the end of zone (20%). The upper montane cloud forest taxa (Alnus, Hedyosmum, Podocarpus) were well represented. The decrease in bog moisture-related taxa that started at the end of P1 (Piper, Gunnera, Gentianella, Cyathea, and Huperzia) suggest drier conditions in the bog. Cyperaceae almost disappeared (~8%). Less biomass was burned and the fire-return interval (FRI) was slightly higher than in the previous zone.

Pollen Zone P3, 614–353 cm, 4475–2440 cal yr BP, 49 samples, resolution 41 years/sample

Seven tephra layers (M17 to M11) were deposited on the bog during this zone (Figure 2, Table 3). Poaceae pollen was frequent but a sharp decrease was observed at 490 cm (3450 cal yr BP) (53%–14%), and remained low up to 416 cm (2800 cal yr BP). This event lasted ~650 years then increased progressively to 68% (2575 cal yr BP) at the end of the zone, reaching 53% at 2440 cal yr BP. Poaceae (25–85%), Ast liguliflorae (0–6%) (Apiaceae 0–8%) Alnus (0–5%) Hedyosmum (0–4.5%) were the main taxa in pollen zone P3. While burned biomass was mostly low in this zone, distinct charcoal peaks point to the occurrence of fire events. The lowest FRI values (50 years) occurred around 3100–3050 cal yr BP when Poaceae pollen decreased. Charcoal morphotypes indicate that fire events around 4400–3800 and at 2600 cal BP were predominantly fueled by Poaceae. The fire events at 4100 and 2550 cal yr BP occurred after tephra deposition (the ~40 cm thick M16 tephra and the 8 cm thick M11 tephra, respectively).

Pollen zone P4, 353–280 cm, 2440–1685 cal yr BP, 24 samples, 31 years/sample

Two 4-cm thick tephra layers (M9 and M8) were deposited in a short time interval between 2290 and 2230 cal yr BP. The zone was characterized by a sharp decrease in Poaceae (16–42%) and in cloud forest-related tree taxa although the decrease in Alnus (0–3%) is masked by an increase in Hedyosmum (3–11%), an increase in Ast. Senecio (6–25%) including a decrease during the eruptions and at the end of the zone (0–3%). Cyperaceae disappeared progressively while Thalictrum (%), an herb of the páramo, increased. Ambrosia began to increase at the end of the zone (0–1% to 4–12%) while Huperzia increased right after the volcanic eruptions. The quantity of burned biomass remained low throughout the period and no fire event occurred. During this 750 years interval, the convective activity index increased (Figure 5) and Polylepis was well represented. This suggests no changes in the cloud and Polylepis forests but rather in the local assemblages with drier soil conditions after the two ash fallout deposits, as indicated by the increase in Apiaceae, which ranged from 0% to 1% before ash deposits and from 6% to 21% after the ash deposits, by the decrease in Ast. Senecio (25–3%), Gunnera frequency which was notable (6–3%) before the eruption and absent after the eruption (0–1%), by the increase in Gentianella (1–18%) which started just before the volcanic eruption, and by a brief increase in Poaceae during the interval of the volcanic eruption.

Pollen Zone P5, 280–200 cm, 1685−1155 cal yr BP, 22 samples, resolution 24 years/sample

Zone 5 lasted 530 years and included four tephra layers M7 (264–257 cm) and M6 (236–232 cm), M5 (226–208 cm) and M4 (206–202 cm) dated to 1460, 1235, 1180, and 1165 cal yr BP, respectively. No major changes in the ecology of the páramo occurred during and after the ash fallout deposits.

Pollen content was characterized by Ambrosia (5–20%), a decrease in Apiaceae (17–1%), a progressive decrease in Huperzia (62–4%), two peaks of Gunnera 33–36% at 248–246 cm (~1350 cal yr BP) and 11–20% at 208–210 cm (1180 cal yr BP), the second located above the M4 tephra deposition.

The sharp decrease in convective activity that started at the beginning of P5 was accentuated by the decrease in Hedyosmum (7–1%) observed at 250 cm (1375 cal yr BP). While burned biomass remained low, FRI dropped sharply to around 150–200 years.

Pollen Zone P6, 200–141 cm, 1155–770 cal yr BP, 21 samples, resolution 18 years/sample

Two tephra layers were deposited, M3 (181 cm) dated to 975 AD and the beginning of M2 (148–130 cm) dated to 1150 AD. The pollen assemblages were characterized by Ambrosia (6–18%) and Poaceae (12–42%) both well represented throughout the zone, a decrease in Apiaceae (4–0%) and Gentianella (5–1%), a peak in Urticales (32% and 18%) before and after M3. Charcoal particles remained low with a decrease in the middle of the P6 zone. The convective activity index first increased in zone 6 before stabilizing. No changes occurred in the pollen assemblages of the páramo during or after the ash deposit episodes. This zone provides evidence for high moisture and warm temperatures on the páramo.

Pollen Zone P7, 141–74 cm, 770−325 cal yr BP, 25 samples, 18 years/sample

With two tephra layers, M2, which ended at the beginning of zone 7 (130 cm), and M1, which ended at 115–110 cm (1600 AD), zone 7 was characterized by the disappearence of Ambrosia (3.5–0%), an increase in Gentianella (1–12%), Poaceae (17–36%) and Ast liguliflorae (from 1–7% to 15–25% at the end of the zone). The convective activity index decreased abruptly at the beginning of the zone with the decrease in Alnus and Hedyosmum up to 105 cm when it again started to increase. A 11–35% peak in Urticales occurred at 122–112 cm. Charcoal particle abundance remained low with a peak at the end of zone P7. This zone shows drier conditions than the previous zone. Burned biomass was low and no fire events were detected.

Pollen Zone P8, 74–0 cm, 325−0 cal yr BP, 29 samples, resolution 3 years/sample

No tephra deposition occurred in the sediment in the last 340 years. Zone 8 was characterized by an increase in Apiaceae and Ambrosia (2–11%), the highest convective index of the record (0.25), the absence of charcoal particles except for a peak in the last decade, high Huperzia frequency (19–405%), a sharp decrease in Poaceae (from 30% to 8%), a 10% to 22% increase followed by a 22–1% decrease in Apiaceae throughout the zone. High convective activity and low soil moisture characterized the hydrological pattern of this zone. Burned biomass was low and only one fire event was detected.

For a detailed description of the last 700 years, that is 1300 to 2008 AD, see Ledru et al. (2013).

Interpretation and discussion

To analyze how the forcing factors, climate, fire and tephra deposition, alternately influenced the landscape of the páramo, we compared the convective activity index with published paleoclimate records that are representative of ENSO variability and SASM activity (Figures 1a and 6). ENSO variability refers to the changes in equatorial Pacific Sea Surface Temperature (SST) that impacted high elevation rainfall variability at interdecadal scales (Garreaud et al., 2009; Ledru et al., 2013; Morales et al., 2012). To characterize El Niño activity, we used the record of El Junco in the Galapagos where blooms of the algae Botryococcus that are associated with high rainfall recorded weak El Niño activity until 3500 cal yr BP (Figure 6) (Zhang et al., 2014). Further south, at Guayaquil, Uk′37-based SST changes were reconstructed from a marine core and revealed several fluctuations in SST during the early and mid-Holocene until 2500 yr BP when the ITCZ reached the latitude of Guayaquil (Mollier-Vogel et al., 2013; Seillès et al., 2016). SASM activity at pluridecadal scale was characterized by changes in the oxygen isotope ratio measured in speleothems located in the Eastern Cordillera. Both Shatuca (1960 m asl) and Huagapo (further south at 3850 m asl) records show a synchronous decrease in moisture along the EC until 2500 yr BP (Bustamante et al., 2016; Kanner et al., 2013). After this date, an out-of-phase evolution can be observed between the records (Figure 6), suggesting that the increase in ENSO activity is well detected at high elevations while at Shatuca, the SASM forcing became dominant after 2500 yr BP.

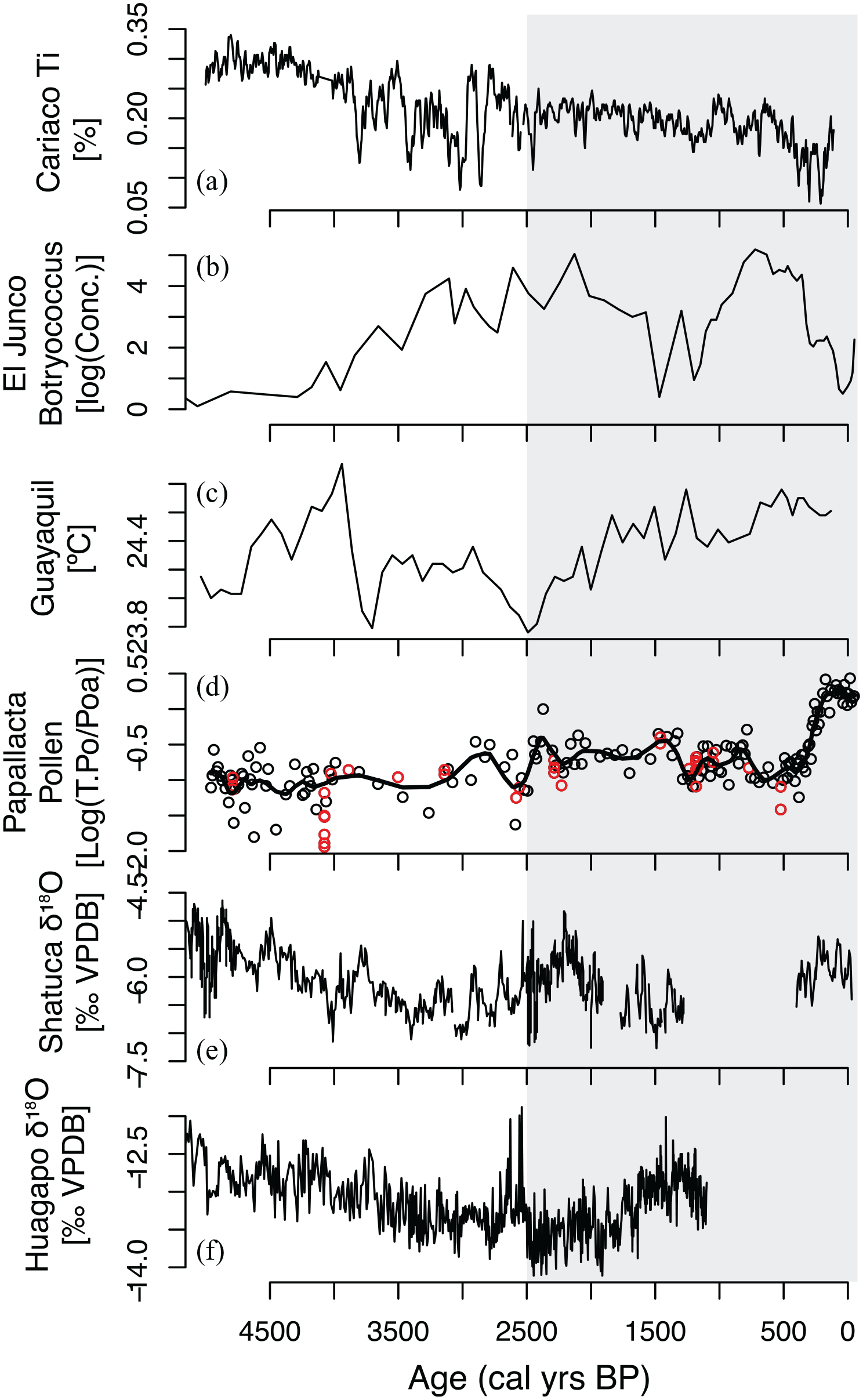

Figure 6.

Records documenting past changes in precipitation in western tropical South America for the past 5000 years. From north to south (a) the changes in Ti% associated with shifts in ITCZ at Cariaco (10°N) (Haug et al., 2001) (b) changes in Botrycoccus frequencies at El Junco (Galapagos), a record of El Niño frequency (Zhang et al., 2014) (c) SST in the Bay of Guayaquil (Ecuador; Mollier-Vogel et al., 2013) (d) the Papallacta T/P index of upslope convective activity calculated from the PA1-08 pollen record; (e) changes in ∂¹⁸O at Shatuca (Peru): a record of SASM intensity (Bustamante et al., 2016); (f) changes in ∂18O at Huagapo (Peru): a record of SASM intensity (Kanner et al., 2013).

At Papallacta, two main increases in the convective index reflecting higher monsoon activity occurred at ~2500 BP and at 400 BP while the lowest values of the index occurred at 2600, 1200, and 600 cal yr BP (Figure 6). Polylepis pollen is permanently present in the area of Papallacta, with some peaks in the bottom of the core followed by full expansion from 3500 cal yr BP until today (Figure 4).

Fires and tephra deposition

Although the páramo has been present at the elevation of Papallacta for the last 5000 years (Di Pasquale et al., 2008), some changes in its floristic assemblages, for example, shifts from Poaceae dominant páramo to Asteraceae dominant páramo, suggest high sensitivity either to climate or other disturbances such as fire or tephra deposition. Today in the páramo, frequent burning can be either natural, or linked to volcanic or human activities (Horn and Kappelle, 2009). Fires do not appear to have been a common disturbance at Papallacta in the last 5000 years as only four major episodes can be distinguished. Charcoal peaks may appear at Papallacta due to the long-distance transport of charcoal particles from volcanic eruptions and the associated increase in dry and highly flammable fuels due to tephra-induced plant mortality (Horn and Kappelle, 2009). Thus, when charcoal abundances increased shortly after a tephra deposition, we infer a potentially tephra-induced fire event occurred. Soil moisture is characterized by the frequency of Poaceae pollen (Ledru et al., 2013) and changes can be caused either by climate or tephra deposition (Horn and Kappelle, 2009). Three abrupt changes in soil moisture content evidenced by drops in Poaceae pollen percentages can be seen in Figures 3 and 4. The first drop (from 53% to 6%) at ~4700 cal BP follows the 10-cm-thick M18 tephra deposition and is associated with higher quantities of burned biomass and low FRI values (Figure 5). Thus, in a scenario where tephra deposition enhances soil and fuel drought, the Poaceae drop could have been triggered by fires. This event lasted for 260 years and the vegetation took 60 years to fully recover. Due to the relatively long duration of this drier event (260 years), we infer that, during this interval, a volcanic effect on the soil was coupled with dry climate conditions. Although of less amplitude than the ones described above, another fire event at 4100 cal yr BP associated with a drop in Poaceae could result from the effect of the M16 tephra deposition.

The second drop in the frequency of Poaceae pollen occurred between 3450 and 2900 cal yr BP. No tephra deposition was observed during this event but the FRI was low (50 years at ~3100 years BP). When FRI increased again, the recovery of the vegetation lasted less than 50 years and was characterized by the expansion of two taxa, which, according to our modern survey, are indicators of drier and cooler climate conditions, Apiaceae and Asteraceae liguliflorae (Ledru et al., 2013). The third drop in Poaceae pollen frequency occurred between 2600 and 2400 cal yr BP right after the M11 tephra deposition and at the same time as a fire fueled by Poaceae observed at the beginning of this episode (Figure 5).

Between 1800 and 770 cal yr BP, the synchronous increase in the concentration of charcoal particles, Ambrosia pollen, cloud forest tree taxa and bog taxa Huperzia (Figures 4 and 5) suggests high moisture and warm conditions and characterizes the warmest interval of the pollen record. Under such moist and warm climate conditions, the low FRI is probably related to increased human activity, which reached higher elevations during this interval with minor fluctuations recorded at 1750, 1550 and around 900 cal yr BP. The same conclusion was inferred at Lake La Cocha (González-Carranza et al., 2012).

Between 770 and 325 cal yr BP, the simultaneous disappearance of Ambrosia, Apiaceae pollen and cloud forest tree taxa, and the expansion of Ast. Senecio suggests drier soil and atmospheric conditions than in the previous interval. This is the driest interval of the pollen record which, due to its long duration, could result from both tephra deposition (M2 layer) and climate conditions (Ledru et al., 2013). During the last century, between 250 and 150 cal yr, the expansion of the Apiaceae pollen percentages, the re-expansion of Ambrosia and cloud forest tree taxa and the high Huperzia frequency suggest high moisture rates on the paramo.

Out of seven changes in the landscape, we attribute two to tephra deposition (4100 and 2550 cal yr BP), two of longer duration are associated with the superimposed effect of tephra deposition and climate change (respectively 4600–4440 cal yr BP and 770–325 cal yr BP), two events are exclusively attributed to climate change (3450–2900 cal yr BP and 250–150 cal yr BP) and one to human activity between 1800 and 770 cal yr BP. In the following section, we discuss the climate patterns.

Climate forcings, SASM versus El Niño activity

The bog at the base of core PA1-08 was not fully expanded, probably due to vegetation recovery after the deposit of 2 m of organic mud and reworked tephra. However, high Poaceae and cloud forest tree taxa frequencies suggest a high moisture level at Papallacta at the beginning of the record.

The pollen record of the last 1000 year showed statistically significant vegetation changes (pollen zones P-6 to P-8; Figure 4), including fluctuations of transported tree pollen, Ambrosia, and Apiaceae frequencies, that were broadly synchronous with Sea Surface Temperature changes during the Medieval Climate Anomaly (MCA) and the Little Ice Age (LIA) (Ledru et al., 2013). An intermediate dry period, characterized by low tree frequencies and the regression of Ambrosia between the MCA and the LIA (zone P-7), also identified by Apaéstegui et al. (2018), highlights the response of páramo biodiversity under both low ENSO variability and low convective activity. Thus, the pollen record spanning the last 1000 years shows how the two sources of moisture, namely the year-round adiabatic cloud dripping linked to SASM activity and the ENSO variability at decadal scale, influenced the vegetation cover around Papallacta. Here our aim was to understand how these moisture sources behaved during the late-Holocene with an additional driver represented by summer insolation and including the regional volcanic activity with 18 tephras deposited over the course of the last 5000 years.

At millennial scale, the progressive increase in convective moisture mirrors the long-term trend toward more intense SASM driven by higher austral summer insolation in agreement with other records (e.g. Seillès et al., 2016). The increase in insolation drove a progressive increase in adiabatic moisture to higher elevation that today represents its highest index in the last 5000 years (Figure 6).

The first interval, between 5000 and 2450 cal yr BP, was characterized by high soil moisture, low adiabatic moisture and four increases in the number of charcoal particles associated with fire events (Figures 4 and 5). The abrupt changes in environmental conditions that occurred between 4600 and 4475 cal yr BP (corresponding to pollen zone 2) lasted 150 years and were associated with less adiabatic moisture along the eastern cordillera and low rainfall on the páramo, in agreement with the weakening of the SASM in the Amazon basin and the low frequency of El Niño on the Pacific side (Bustamante et al., 2016; Zhang et al., 2014). The northernmost position of the ITCZ and the weaker SASM activity (Maksic et al., 2019) also resulted in drier climate conditions further east, in northeastern Brazil (Montade et al., 2014; Utida et al., 2020), thus confirming similar responses to climate changes by the high tropical Andes and Northeastern Brazil and possible links between the two regions (Mollier-Vogel et al., 2013; Sulca et al., 2016; Vuille et al., 2000). Another simulation showed that during this interval, northern Ecuador was under the influence of the northern hemisphere cooling but does not exclude the possibility of cooling caused by a huge volcanic eruption (Ning et al., 2019).

Between 3450 and 2900 cal yr BP, the dry soil conditions, the increase in adiabatic moisture and the cooler temperature are consistent with the lacustrine record of Pallcacocha in Peru (4200 m asl) (Moy et al., 2002) as well as with the speleothem records, Tigre Perdido (1000 m asl), Shatuca (1960 m asl) and Huagapo (3850 m asl) (Figure 6). This period of increased humidity in the Amazon basin was interpreted as changing SST gradients in the tropical Atlantic (Bustamante et al., 2016; Kanner et al., 2013; van Breukelen et al., 2008). At the same time, ~3500–2600 cal yr BP, El Niño became both more frequent and more intense (Figure 6) and, near the Ecuadorian coast area, the interval between 4200 and 2850 cal yr BP was marked by the coolest and driest climate conditions of the Holocene, due to the weak influence of the ITCZ and strengthening of the Humboldt Current in the Pacific Ocean (Figure 1a) (Seillès et al., 2016). Thus, our results show that the increase in El Niño frequency was superimposed on the strengthening of the Humboldt Current able to maintain drier conditions on the paramó, thus hampering the high monsoon activity recorded in the Amazon basin.

The progressive uplift in adiabatic moisture and in the upper forest limit started after 2450 cal yr BP and was characterized by an abrupt change in Poaceae and fire activity on the páramo (Figures 4 and 5). On the Pacific side, the date of ~2500 cal yr BP marks the time when the ITCZ reached the latitude of Papallacta and the beginning of the bimodal precipitation regime observed today along the coast (Mollier-Vogel et al., 2013). At higher elevations, this bimodal regime is hampered by permanent moisture originating from the Amazon basin, also related to the southern shift of the ITCZ and SASM activity, which is superimposed on moisture linked to the Pacific-SST. Within these two intervals separated by 2450 cal yr BP and superimposed on the long-term influence of insolation on the Andean records, centennial- or multidecadal-scale environmental changes occurred at Papallacta and are described below (Figure 6).

During the second interval of the record, between 2450 and 0 cal yr BP, lower Poaceae frequencies (~30%), there was no – or only weak – fire activity (Figures 4 and 5). In addition, the progressive increase in the convective index (Figure 5) suggests upslope expansion of the upper forest limit synchronous with a southward shift of the the ITCZ (Seillès et al., 2016) and enhanced SASM on the Amazon side, as also reported at Lake La Cocha (2780 m asl) near Papallacta (González-Carranza et al., 2012; Van Boxel et al., 2014). From 2300 to 1900 cal yr BP, drier soil conditions and colder temperatures were followed by a warmer episode that lasted until 1550 cal yr BP, synchronous with an increase in ENSO activity between 2000 and 1500 cal yr BP (Rein et al., 2005; Zhang et al., 2014). Changes in the convective index point to two drier episodes at 2550 and 1300 cal yr BP (Figure 6). At about 500 km south of Papallacta and at 3800 m asl, two drier episodes, between 2700 and 2000 cal yr BP and between 1700 and 1000 cal yr BP, were also observed in the lacustrine record of Tres Lagunas (Frederick et al., 2018) and can be attributed to abrupt changes in SASM activity at centennial scale.

Modern-day El Niño conditions are characterized by a weaker monsoon and reduced transport of moisture and warmer temperatures on the páramo with the reverse situation under La Niña conditions (Garreaud, 2009). The wet climate episodes observed at Papallacta before 2450 cal yr BP and in the last 500 years were both characterized by low El Niño frequency while the dry episode with low soil moisture between 2450 and 1300 cal yr BP was characterized by high El Niño frequency between 2400 and 2000 cal yr BP and low El Niño frequency after 2000 cal yr BP (Zhang et al., 2014) (Figure 6). Between 1500 and 1000 cal yr BP, the low El Niño frequency (Figure 6) probably impacted the SASM activity as a marked decrease in adiabatic moisture was observed at Papallacta during this interval (Vuille et al., 2000). High SASM activity (high convective index) was observed up to the elevation of Papallacta at 4600 cal yr BP, 4400 cal yr BP, between 2400 and 1500 cal yr BP and during the last 500 years, while low SASM activity (low convective index) was observed at ~4550, 2550, 1200, and 700 cal yr BP (Figure 6).

Thus, our results show that the influences of the long-term insolation (precession-scale) forcing and of the multi-century fluctuations in SASM activity on precipitation over the high summits of the Andes are stronger than the influence of ENSO variability at multi-centennial to multi-decadal scales. Differences in the intensity and/or amplitude of the signal are also observed between the Andean records emphasizing the considerable spatial variability associated with SASM activity. For instance, at Shatuca and Tigre Perdido, the long dry period that lasted ~200 years at about 2300 cal yr BP (Bustamante et al., 2016; van Breukelen et al., 2008) does not correspond to the driest period at Papallacta. The multi-decadal changes observed in the speleothem records, for instance, the increase in moisture between 3500 and 2900 cal yr BP, are not observed at Papallacta or in the lacustrine record of Tres Lagunas (Frederick et al., 2018), suggesting that the vegetation was not impacted and/or that the amplitude of the event was smaller at higher elevations. The influence of the intensity of the SASM on precipitation variability over the high summits of the Andes after 2500 years BP is also visible in the Ti/Ca sediment record of Mollier-Vogel et al. (2013) from the Gulf of Guayaquil (4°S) (Figure 6). However, during the late-Holocene, at both low and high elevations, the influence of the precession cycle on the gradual increase in moisture was punctuated by centennial-scale deviations, indicating other influences triggered the considerable spatial variability associated with the SASM (Kanner et al., 2013; Vuille and Werner, 2005).

Conclusion

Our results show that the páramo is a very sensitive ecosystem to long-term insolation and to the series of multi-centennial to multi-decadal-scale events in the late-Holocene. We found two types of responses of the vegetation cover depending on the origin of the moisture: soil with the expansion/regression of Poaceae/Ast. Senecio, and atmospheric moisture with cloud dripping enhanced by the adiabatic upslope between the Amazon basin and the high summits of the Eastern Cordillera. During the last 5000 years, the Andean forest upper limit never reached the elevation of the Sucus bog at Papallacta and the 18 regional tephra fallout deposits had almost no impact on the biodiversity of the páramo, only on the local drainage of the bog. However, in the long term, at precession scale, and superimposed on the short term, multi-centennial to multi-decadal climate events strongly modified the floristic composition of the páramo with frequent fires before 2450 cal yr BP. The driest event in the last 5000 years characterized by the lowest convective index occurred at ~4500 cal yr BP, when both mean annual precipitation decreased and convective moisture abruptly stopped reaching the elevation of Papallacta. In the last century, the adiabatic moisture upslope reached its strongest amplitude. By comparing our results with marine, speleothem, lake or bog records, we also emphasize how in the Tropics, a single climate event may be manifest in a wide range of effects depending on the elevation and location of the site, confirming the influence of the SASM on precipitation variability over the high summits of the Andes.

Supplemental Material

sj-docx-1-hol-10.1177_09596836221101251 – Supplemental material for Changes in the vegetation and water cycle of the Ecuadorian páramo during the last 5000 years

Supplemental material, sj-docx-1-hol-10.1177_09596836221101251 for Changes in the vegetation and water cycle of the Ecuadorian páramo during the last 5000 years by Marie-Pierre Ledru, Olga Aquino-Alfonso, Walter Finsinger, Pablo Samaniego and Silvana Hidalgo in The Holocene

Supplemental Material

sj-docx-2-hol-10.1177_09596836221101251 – Supplemental material for Changes in the vegetation and water cycle of the Ecuadorian páramo during the last 5000 years

Supplemental material, sj-docx-2-hol-10.1177_09596836221101251 for Changes in the vegetation and water cycle of the Ecuadorian páramo during the last 5000 years by Marie-Pierre Ledru, Olga Aquino-Alfonso, Walter Finsinger, Pablo Samaniego and Silvana Hidalgo in The Holocene

Footnotes

Acknowledgements

Radiocarbon dates were measured at the Laboratoire de Mesure du Carbone 14 (LMC14) – UMS 2572 (CEA/DSM CNRS IRD IRSN). We thank the Ministerio del Ambiente del Ecuador for permitting and facilitating our fieldwork at Papallacta, the INAMHI for providing climate data, Katerine Escobar-Torrez for help with the figures in an earlier version, Marjorie Herrera, Boromir Bogumil and Jörg Bogumil for coring and fieldwork in 2009, Benjamin Bernard, Marco Córdova and Edwin Telenchana for coring in 2014.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This research was funded by UR GREAT ICE (IRD) and UMR ISEM (Univ. of Montpellier, CNRS, IRD, EPHE).

ORCID iDs

Marie-Pierre Ledru

Walter Finsinger

Pablo Samaniego

Supplemental material

Supplemental material for this article is available online.
