Tracking postglacial palaeoceanographic change of the Baltic Sea Basin using Osmium isotopes: Transition between the freshwater Ancylus Lake and the marine/brackish Littorina Sea

Abstract

The Baltic Sea has experienced marked changes in salinity over the Holocene due to a rising global sea level and the isostatic rebound of the area. Here we investigate the temporal transition of the Littorina Sea Transgression (~8000 cal BP) between the freshwater Ancylus Lake stage and the marine/brackish Littorina Sea stage using Osmium isotopes (i.e. ¹⁸⁷Os/¹⁸⁸Os values), supplemented by BIT index, TOC content and sedimentology. The ¹⁸⁷Os/¹⁸⁸Os values of surface sediments show a clear distinction between the North Sea, Kattegat Bay and Skagerrak Strait (~1) and that of the Baltic Sea Basin (~1.9 to 2.6), with more radiogenic ¹⁸⁷Os/¹⁸⁸Os compositions being associated with lower surface salinity values. A ¹⁸⁷Os/¹⁸⁸Os record determined from a 4.5 m-long core from the central Baltic (the anoxic Gotland Basin) reveals the transition from the freshwater Ancylus Lake stage into the Littorina Sea stage by a lowering of ¹⁸⁷Os/¹⁸⁸Os values coupled with the sharp decrease in BIT index values, and an increase in the TOC content, accompanied by the appearance of brackish water diatoms. Collectively we show that ¹⁸⁷Os/¹⁸⁸Os values can be applied to identify large-scale changes between freshwater and marine environments, as previously demonstrated for the Arctic Basin during the Eocene.

Keywords

Baltic Sea Littorina Sea Ancylus Lake osmium isotopes BIT index

Introduction

The Baltic Sea Basin has had a long glaciological history being influenced by the continually shifting margins of the Fennoscandian Ice Sheet over the Quaternary (Andrén et al., 2015; Björck, 1995). At the Last Glacial Maximum, the Fennoscandian Ice Sheet covered the entire Baltic Basin (Rosentau et al., 2017). The retreat of the Fennoscandian Ice Sheet was not continuous, and over time differing rates of glacio-isostatic uplift and glacio-eustatic sea level rise have resulted in changes in basin palaeogeography that define a series of basin stages. Numerous cores from the Baltic Sea show records of these different basin stages, which include: the freshwater Baltic Ice Lake (~16–11.7 cal ka BP); the brackish Yoldia Sea (~11.7–10.7 cal ka BP); the freshwater Ancylus Lake and the brackish to marine Littorina Sea (present day conditions) separated by the Littorina Sea transgression (Andrén et al 2008, 2011; Bennike et al., 2021; Berglund et al., 2005; Björck, 1995; Jakobsson et al., 2007; Rosentau et al., 2017). The Littorina Sea transgression was time-transgressive, with marine waters being recorded earlier around Öresund (10.3 cal. ka BP) and the Great Belt (8.2 cal. ka BP) than further into the Baltic Sea Basin in Mecklenburg Bay (8.1 cal. ka BP) and the Arkona Basin (7.6 cal. ka BP; Bennike et al., 2021; Rößler et al., 2011).

During the transition from the Ancylus Lake to the Littorina Sea connections between the Baltic Basin and the palaeo-North Atlantic (via the North Sea) evolved to their present-day configurations with the main connections developing through the Danish Straits of Öresund and the Great Belt (Figure 1; Andrén et al., 2011; Jakobsson et al., 2007; Rosentau et al., 2017). Due to these altering connections, the basin changed from a freshwater lake (Ancylus Lake) to a more marine-brackish basin (Littorina Sea). The basin therefore experienced significant changes in salinity, freshwater versus marine input, temperature, productivity and sedimentation (Andrén et al., 2015; Björck, 1995; Rosentau et al., 2017), which were subsequently recorded in the geochemistry of the basin sediments. The Baltic Sea Basin generally experiences high sedimentation rates (~100–500 cm/1000 years; Andrén et al., 2015) and therefore can provide high resolution records, making it an excellent site for reconstructing longer and shorter timescale climatic oscillations and palaeoenvironments with high-temporal resolution (Andrén et al., 2015; Björck, 1995; Rosentau et al., 2017).

Figure 1.

Map of the Baltic Sea Basin showing the locations of core P435/1-5 GC (and 303600-N – orange circle covers both core sites, exact locations found in Table 1), and surface sediment samples analysed in this study (pink circles). The pink circle labelled three covers surface sample EMB046/10-1, core top samples M86-1-07-1GC and M86-1-05-1GC (Ownsworth et al., 2024), and are labelled 3a, 3b and 3c in Table 1 and Figure 2. Colour map from ArcGIS, grey and white Europe map from Wikipedia (https://en.wikipedia.org/wiki/File:Europe_blank_map.png), and the basic geological data is adapted from Peucker-Ehrenbrink and Ravizza (1996) and Rosentau et al. (2017).

The palaeo-record of the Baltic Sea Basin has been well studied using numerous proxies (Andrén et al., 2015; Björck, 1995; Rosentau et al., 2017; Warden et al., 2017). This study applies the first use of osmium isotopes (¹⁸⁷Os/¹⁸⁸Os) to a sedimentary core record of the Gotland Basin in the Baltic Sea to investigate whether the ¹⁸⁷Os/¹⁸⁸Os composition of the sediment, which reflects the osmium isotope composition of the water column at the time of deposition, can distinguish between the freshwater Ancylus Lake stage and the brackish Littorina Sea stage. Hitherto, the utility of osmium isotopes has proved successful applied to restricted basins. For example, osmium isotopes were used to reconstruct the Messinian Salinity Crisis in the Mediterranean as it became restricted from input of waters from the Atlantic Ocean, resulting in a greater influence of the unradiogenic osmium (lower ¹⁸⁷Os/¹⁸⁸Os) derived from ultramafic units (ophiolites) present in the Mediterranean Sea catchment (Kuroda et al., 2016). Hence, the Messinian Salinity Crisis is recorded by a lowering of the ¹⁸⁷Os/¹⁸⁸Os value compared to ¹⁸⁷Os/¹⁸⁸Os of the open ocean at the time. Osmium isotopes have also been used to show the marine-lacustrine environment transitions of the Arctic Basin during the Eocene, with more radiogenic osmium (i.e. higher ¹⁸⁷Os/¹⁸⁸Os values) recorded in the Arctic Lake-stage due to the restriction from the open ocean values and hence increased influence of the more radiogenic old rocks around the Arctic Basin (Dickson et al., 2022; Poirier and Hillaire-Marcel, 2011). During the transition back to a marine setting of the Arctic Basin at 36 Ma the ¹⁸⁷Os/¹⁸⁸Os values decreased from ~1.3 to ~0.4–0.6 in line with the global open ocean values at that time. Osmium isotopes have similarly tracked basin evolution through relative sea-level change and glacial isostatic readjustment in northwest Scotland since the Last Glacial Maximum (Taylor et al., 2024).

Here, we show the present day ¹⁸⁷Os/¹⁸⁸Os measurements of surface sediments from across the Baltic Sea, Skagerrak and North Sea record the transition between marine waters in the North Sea, through brackish waters in the Danish Straits and the south of the Baltic Sea, through to more freshwater in the north and east of the Baltic Sea. Using this knowledge, we discuss the ¹⁸⁷Os/¹⁸⁸Os record, in conjunction with the BIT index record (Branched and Isoprenoid Tetraether index), fossilised diatoms, and core sedimentology, can provide a geochemical record of palaeoceanographic changes between the Ancylus Lake and the Littorina Sea stages in the Baltic Sea history.

Present day Baltic Sea Basin geography and geology

The Baltic Sea Basin (Figure 1) is one of the world’s largest brackish water bodies and is subdivided into several different basins and sub-basins (Andrén et al., 2015; Björck, 1995; Rosentau et al., 2017; Tuuling et al., 2011). The Baltic Sea is connected to the North Sea through the narrow and shallow straits between Sweden and Denmark (e.g. Öresund, the Great Belt Strait) and between Kattegat Bay and Skagerrak Strait. Together this system acts as an estuary (Björck, 1995; Dickens, 2013; Nordberg, 1991; Rosentau et al., 2017; Tuuling et al., 2011).

The surface salinity in the Baltic Basin is mainly controlled by varying freshwater inputs and a restricted input of marine waters from the North Sea (Andrén et al., 2011). Salinity varies between almost freshwater (0–5 PSU) in the Gulfs of Bothnia and Finland, to 6–8 PSU in the central Baltic and 10–15 PSU in the south Baltic and Danish Straits into the Kattegat (Figure 2; Björck, 1995; Ducrotoy and Elliott, 2008; Ehlin, 1981; Jiang et al., 1997; Melvasalo et al., 1981; Omstedt et al., 2004; Peucker-Ehrenbrink and Ravizza, 1996; Rosentau et al., 2017). The Baltic Sea drains a large area of 1.6 million km² (Andrén et al., 2015; Björck, 1995), with half of the freshwater inputs originating from rivers draining south/southeast of the basin, and half draining the Precambrian Shield in the north (Peucker-Ehrenbrink and Ravizza, 1996).

Figure 2.

(a) The ¹⁸⁷Os/¹⁸⁸Os data for surface samples in this study (pink circles), core top sample P435/1-5 GC, core top samples M86-1-07-1GC and M86-1-05-1GC (Ownsworth et al., 2024; inset (b)), and Mn nodules (green circles; Peucker-Ehrenbrink and Ravizza, 1996) across the Baltic Sea, Skagerrak Strait and the Kattegat. The ¹⁸⁷Os/¹⁸⁸Os values are also shown for continental runoff from Finland, south-Sweden, Denmark and northern Germany derived from lake ore and bog ore Fe-Mn oxidates (dark grey values; Peucker-Ehrenbrink and Ravizza, 1996). Estimated salinity across the study area is plotted in purple (PSU), which is visualised by sea surface salinity measurements at respective areas divided by dashed lines (Sjöqvist et al., 2015). These salinity gradients also agree with data from other studies and have not changed since measurements started in the early 1900s (e.g. Ehlin, 1981; Melvasalo et al., 1981; Omstedt et al., 2004). Map sourced from ArcGIS.

The north, northeast and west of the Baltic Sea Basin is characterised by crystalline basement or ‘shield’ (Precambrian: Late Proterozoic – Late Archean), whereas the south and east is dominated by the European sedimentary platform of Phanerozoic age, and a small part of south-western Baltic Sea lies on the west European sedimentary platform of Palaeozoic age, and comprises of mainly calcareous, clastic, sandstone and clay rocks and deposits (Figure 1; Björck, 1995; Peucker-Ehrenbrink and Ravizza, 1996; Rosentau et al., 2017).

Materials and methods

Sampling

Surface sediments were obtained from locations across the Baltic Sea, Kattegat, Skagerrak and North Sea (Figure 1; Table 1) by using a multi-corer. Samples were dried and shelly detritus and larger clasts >2 mm were removed by sieving before powdering.

Table 1.

Details of surface sediment samples and the P435/1-5 GC and 303600-N cores of the central Baltic.

Core/Sample	Map Code	Depth (cm)	Latitude (°N)	Longitude (°E)	Water depth (m)
P435/1-5 GC	P435/1-5 GC	0–1100	56°57.954	19°22.210	178
303600-N	P435/1-5 GC	0–400	56°55.01	19°19.99	170
EMB046/8-4 FC	1	0	60°48.68	03°45.19	338
EMB046/10-1	2	0.5–1	57°49.75	07°17.62	457
EMB046/20-2	3a	0.5–1	58°31.59	09°29.09	532
M86-1-07-1GC	3b	3	58°26.370	09°43.530	667
M86-1-05-1GC	3c	0	58°29.513	09°34.787	553
242970-4	4	3.5	56°43.580	11°49.800	46
318170-3	5	1	56°36.158	11°46.522	36
348250	6	0–0.5	55°56.54	12°42.85	26
317990 MUC	7	0–1	54°18.596	11°25.571	23
317980	8	0–1	54°14,996	11°30.008	24
318320-2	9	0	54°49.786	13°39.365	45
MSM51/2/53-4	10	0	60°06.927	19°17.925	245
P435-8-3-FC	11	0–1	62°46.690	18°2.973	89
P435/10-2 MUC 1AW	12	0	62°52.169	19°2.562	213

Two sediment gravity cores were obtained from the anoxic Gotland Basin in the central Baltic. The 11 m-long core P435/1-5 GC (56°57.954°N, 19°22.210°E, 178 m depth) was collected on research cruise RV ‘Poseidon’ in 2012 (Figure 1; Table 1). The upper 4.5 m was analysed for Re-Os abundance and isotopic composition; analysis of the TOC content and BIT index was restricted to the 2 to 4.5 m interval of the core. Core 303600-N was obtained from a nearby location ~35 km away (56°55.01°N, 19°19.99°E, 170 m depth; Figure 1; Table 1), which had been previously utilised for TOC content and BIT index values (Warden et al., 2017, 2018). Here, both cores were used for the study of diatom assemblages, with the two cores correlated based on TOC and BIT index records (Supplemental Figure 1).

Determination of the TOC content

Total carbon (TC) and total inorganic carbon (TIC) for core P453/1-5 GC was determined at ~3 cm intervals using 100 mg of freeze-dried sediment that was diluted with 40% H₃PO₄ and incinerated at 1200°C on a Multi Elemental Analyser 4000 from Analytik Jena at the Leibniz Institute for Baltic Sea Research, Warnemünde. Total organic carbon (TOC) was calculated based on TOC (wt. %) = TC (wt. %) – TIC (wt. %).

Rhenium-osmium (Re-Os) isotope analysis

Twelve surface sediments (0–1 cm) and twenty 1-cm stratigraphic thick sediment horizons from core P435/1-5 GC were analysed for their Re-Os chemistry. The sediment samples were dried in air at 50°C overnight and then powdered using an agate pestle and mortar. The Re-Os analysis is based on established methods that utilises a chemical digestion technique which preferentially liberates the hydrogenous Re and Os from organic matter, thus avoiding incorporation of Re and/or Os possibly held in detrital silicate (Selby and Creaser, 2003). Briefly, ~1 g of powdered sample is sealed into a Carius tube with 8 ml CrO₃ 4N H₂SO₄ and tracer solution (enriched in ¹⁸⁵Re and ¹⁹⁰Os), which was then heated at 220°C for 48 h. The Carius tubes were opened, and a solvent extraction was undertaken using chloroform (CHCl₃) to separate the Os for back extraction into HBr. Purification of the Re fraction is achieved using a 5N NaOH – acetone extraction, and HCl-HNO₃ anion bead chromatography. The Os fraction was further purified by a H₂SO₄-CrO₃-HBr microdistillation. The purified Os and Re fractions were loaded on Pt and Ni filaments, respectively (Selby and Creaser, 2003), with the addition of ~0.5 µl BaNO₃ and BaOH activator solutions, respectively. The isotope compositions of the purified Re and Os fractions were measured using negative thermal ionisation mass spectrometry (NTIMS; Creaser et al., 1991; Völkening et al., 1991) using a ThermoScientific TRITON mass spectrometer via faraday cups for Re and electron multiplier (SEM) in peak hopping mode for Os. Osmium isotopic ratios were calculated relative to ¹⁸⁸Os and corrected for mass fractionation using a ¹⁹²Os/¹⁸⁸Os value of 3.08261 (Nier, 1937). The oxide corrected ¹⁸⁵Re/¹⁸⁷Re was normalised using a ¹⁸⁵Re/¹⁸⁷Re value of 0.59738 (Gramlich et al., 1973).

Total procedural blanks for Re and Os during this study are 19.04 ± 4.67 pg and 0.08 ± 0.05 pg, respectively, with a ¹⁸⁷Os/¹⁸⁸Os of 0.27± 0.20 (1 S.D, N = 8). The percent blank correction ranges between 0.02 and 0.68 (Re) and 0.01 and 0.70 (Os). Uncertainties for ¹⁸⁷Re/¹⁸⁸Os and ¹⁸⁷Os/¹⁸⁸Os are determined through full propagation of uncertainties in Re and Os mass spectrometer measurements, blank abundances and isotopic compositions, spike calibrations and reproducibility of standard Re and Os isotopic values. Given the young age of the sediment samples analysed, the correction for any ingrowth of radiogenic ¹⁸⁷Os to the measured present-day ¹⁸⁷Os/¹⁸⁸Os composition is less than that of the minimum ¹⁸⁷Os/¹⁸⁸Os uncertainty (~0.01; Table 2). As such, the measured present-day values are presented and discussed (Table 2). In-house standard solutions (DROsS 50 pg and Re Std 125 pg) are run repeatedly throughout each batch of samples to monitor mass spectrometer reproducibility. The Re standard yielded an average ¹⁸⁵Re/¹⁸⁷Re value of 0.59834 ± 0.00063 (1 S.D., N = 25). The DROsS (Durham Romil Osmium Standard) osmium solution yielded average ¹⁸⁷Os/¹⁸⁸Os values of 0.16080 ± 0.00025 (1 S.D., N = 25). The isotope compositions of these Re and Os solutions are consistent with uncertainty to those published by Nowell et al. (2008) and previous studies (e.g. Taylor et al., 2025).

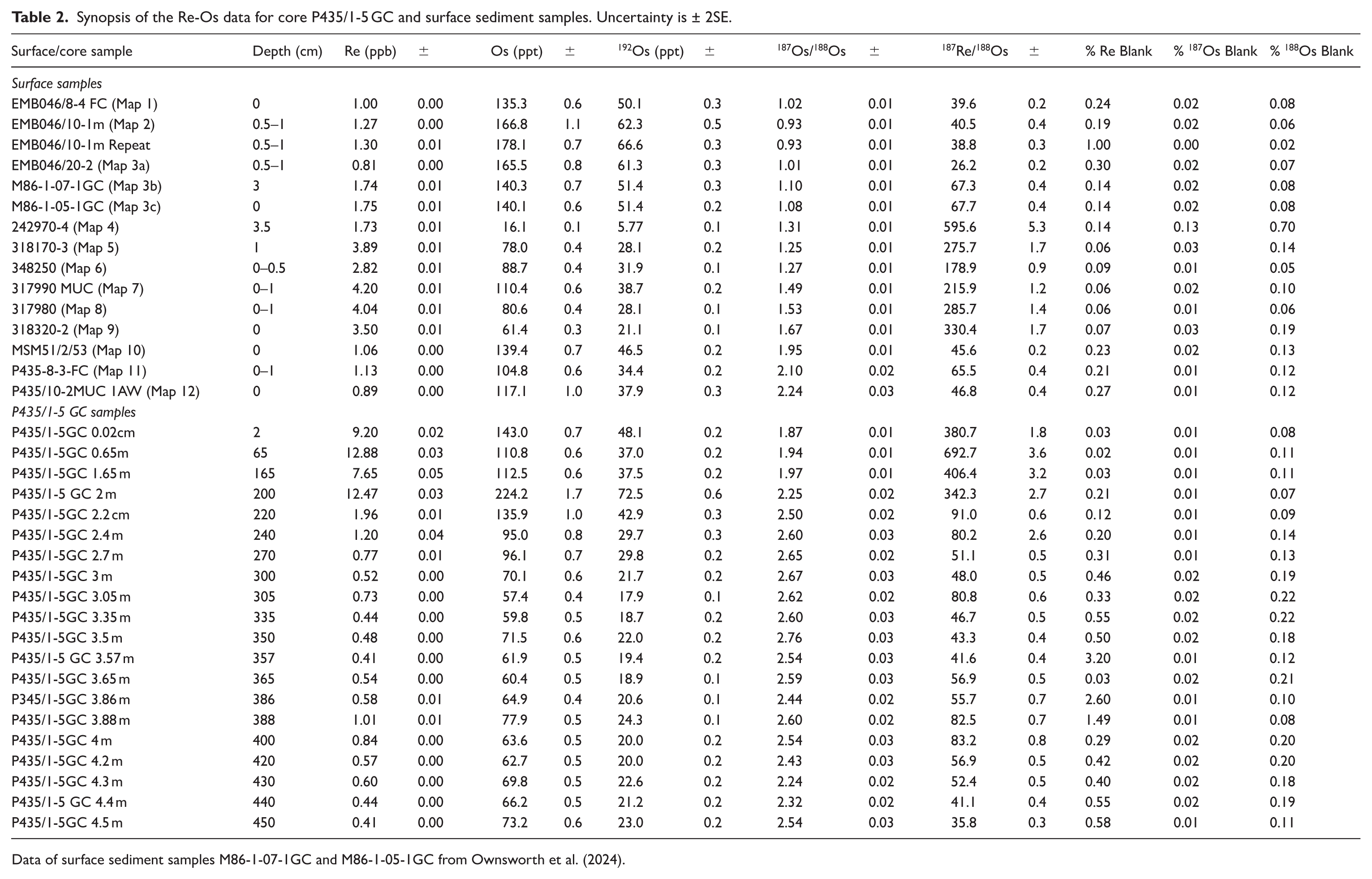

Table 2.

Synopsis of the Re-Os data for core P435/1-5 GC and surface sediment samples. Uncertainty is ± 2SE.

Surface/core sample	Depth (cm)	Re (ppb)	±	Os (ppt)	±	¹⁹²Os (ppt)	±	¹⁸⁷Os/¹⁸⁸Os	±	¹⁸⁷Re/¹⁸⁸Os	±	% Re Blank	% ¹⁸⁷Os Blank	% ¹⁸⁸Os Blank
Surface samples
EMB046/8-4 FC (Map 1)	0	1.00	0.00	135.3	0.6	50.1	0.3	1.02	0.01	39.6	0.2	0.24	0.02	0.08
EMB046/10-1m (Map 2)	0.5–1	1.27	0.00	166.8	1.1	62.3	0.5	0.93	0.01	40.5	0.4	0.19	0.02	0.06
EMB046/10-1m Repeat	0.5–1	1.30	0.01	178.1	0.7	66.6	0.3	0.93	0.01	38.8	0.3	1.00	0.00	0.02
EMB046/20-2 (Map 3a)	0.5–1	0.81	0.00	165.5	0.8	61.3	0.3	1.01	0.01	26.2	0.2	0.30	0.02	0.07
M86-1-07-1GC (Map 3b)	3	1.74	0.01	140.3	0.7	51.4	0.3	1.10	0.01	67.3	0.4	0.14	0.02	0.08
M86-1-05-1GC (Map 3c)	0	1.75	0.01	140.1	0.6	51.4	0.2	1.08	0.01	67.7	0.4	0.14	0.02	0.08
242970-4 (Map 4)	3.5	1.73	0.01	16.1	0.1	5.77	0.1	1.31	0.01	595.6	5.3	0.14	0.13	0.70
318170-3 (Map 5)	1	3.89	0.01	78.0	0.4	28.1	0.2	1.25	0.01	275.7	1.7	0.06	0.03	0.14
348250 (Map 6)	0–0.5	2.82	0.01	88.7	0.4	31.9	0.1	1.27	0.01	178.9	0.9	0.09	0.01	0.05
317990 MUC (Map 7)	0–1	4.20	0.01	110.4	0.6	38.7	0.2	1.49	0.01	215.9	1.2	0.06	0.02	0.10
317980 (Map 8)	0–1	4.04	0.01	80.6	0.4	28.1	0.1	1.53	0.01	285.7	1.4	0.06	0.01	0.06
318320-2 (Map 9)	0	3.50	0.01	61.4	0.3	21.1	0.1	1.67	0.01	330.4	1.7	0.07	0.03	0.19
MSM51/2/53 (Map 10)	0	1.06	0.00	139.4	0.7	46.5	0.2	1.95	0.01	45.6	0.2	0.23	0.02	0.13
P435-8-3-FC (Map 11)	0–1	1.13	0.00	104.8	0.6	34.4	0.2	2.10	0.02	65.5	0.4	0.21	0.01	0.12
P435/10-2MUC 1AW (Map 12)	0	0.89	0.00	117.1	1.0	37.9	0.3	2.24	0.03	46.8	0.4	0.27	0.01	0.12
P435/1-5 GC samples
P435/1-5GC 0.02cm	2	9.20	0.02	143.0	0.7	48.1	0.2	1.87	0.01	380.7	1.8	0.03	0.01	0.08
P435/1-5GC 0.65m	65	12.88	0.03	110.8	0.6	37.0	0.2	1.94	0.01	692.7	3.6	0.02	0.01	0.11
P435/1-5GC 1.65 m	165	7.65	0.05	112.5	0.6	37.5	0.2	1.97	0.01	406.4	3.2	0.03	0.01	0.11
P435/1-5 GC 2 m	200	12.47	0.03	224.2	1.7	72.5	0.6	2.25	0.02	342.3	2.7	0.21	0.01	0.07
P435/1-5GC 2.2 cm	220	1.96	0.01	135.9	1.0	42.9	0.3	2.50	0.02	91.0	0.6	0.12	0.01	0.09
P435/1-5GC 2.4 m	240	1.20	0.04	95.0	0.8	29.7	0.3	2.60	0.03	80.2	2.6	0.20	0.01	0.14
P435/1-5GC 2.7 m	270	0.77	0.01	96.1	0.7	29.8	0.2	2.65	0.02	51.1	0.5	0.31	0.01	0.13
P435/1-5GC 3 m	300	0.52	0.00	70.1	0.6	21.7	0.2	2.67	0.03	48.0	0.5	0.46	0.02	0.19
P435/1-5GC 3.05 m	305	0.73	0.00	57.4	0.4	17.9	0.1	2.62	0.02	80.8	0.6	0.33	0.02	0.22
P435/1-5GC 3.35 m	335	0.44	0.00	59.8	0.5	18.7	0.2	2.60	0.03	46.7	0.5	0.55	0.02	0.22
P435/1-5GC 3.5 m	350	0.48	0.00	71.5	0.6	22.0	0.2	2.76	0.03	43.3	0.4	0.50	0.02	0.18
P435/1-5 GC 3.57 m	357	0.41	0.00	61.9	0.5	19.4	0.2	2.54	0.03	41.6	0.4	3.20	0.01	0.12
P435/1-5GC 3.65 m	365	0.54	0.00	60.4	0.5	18.9	0.1	2.59	0.03	56.9	0.5	0.03	0.02	0.21
P345/1-5GC 3.86 m	386	0.58	0.01	64.9	0.4	20.6	0.1	2.44	0.02	55.7	0.7	2.60	0.01	0.10
P435/1-5GC 3.88 m	388	1.01	0.01	77.9	0.5	24.3	0.1	2.60	0.02	82.5	0.7	1.49	0.01	0.08
P435/1-5GC 4 m	400	0.84	0.00	63.6	0.5	20.0	0.2	2.54	0.03	83.2	0.8	0.29	0.02	0.20
P435/1-5GC 4.2 m	420	0.57	0.00	62.7	0.5	20.0	0.2	2.43	0.03	56.9	0.5	0.42	0.02	0.20
P435/1-5GC 4.3 m	430	0.60	0.00	69.8	0.5	22.6	0.2	2.24	0.02	52.4	0.5	0.40	0.02	0.18
P435/1-5 GC 4.4 m	440	0.44	0.00	66.2	0.5	21.2	0.2	2.32	0.02	41.1	0.4	0.55	0.02	0.19
P435/1-5GC 4.5 m	450	0.41	0.00	73.2	0.6	23.0	0.2	2.54	0.03	35.8	0.3	0.58	0.01	0.11

Data of surface sediment samples M86-1-07-1GC and M86-1-05-1GC from Ownsworth et al. (2024).

Diatom assemblages

The diatom assemblage of cores P435/1-5 GC and 303600-N was studied at the Palaeo-oceanology Unit at the Faculty of Geosciences, University of Szczecin focusing on the identification of the freshwater Ancylus Lake to the marine-brackish Littorina Sea transition. In core P435/1-5 GC between 4.5 and 2 m, 1 cm-thick sediment horizons were analysed every 9–12 cm. The diatoms present were classified as either brackish or freshwater. Sample preparation follows previously published methods (Harff et al., 2011; Kotrys et al., 2014). To identify the depth position of the Ancylus Lake to Littorina Sea transition (cf e.g. Andrén et al., 2000) in 303600-N we use the percentages of the marine planktonic species Pseudosolenia calcar-avis (Schultze) Sundström to the freshwater taxa Aulacoseira spp. from the lowermost part of core 303600-N. The palaeo-ecological preferences of these two species groups are presented in previous publications (e.g. Andrén et al., 2000; Harff et al., 2011; Kaiser et al., 2016; Kotrys et al., 2014).

BIT index

The BIT index records the abundance of certain branched glycerol dialkyl glycerol tetraethers (bGDGTs) obtained from terrestrial organisms, compared to an isoprenoid GDGT called ‘crenarchaeol’ which marine Archaea produce (Kim et al., 2006; Sinninghe Damsté et al., 2002). This therefore allows basic changes between a comparatively more terrestrial (value of 1) versus more marine environment (value of 0) to be inferred.

Sediment samples from core P453/1-5 GC were freeze-dried, ground, homogenised and extracted using Dionex™ accelerated solvent extraction (ASE). Analysis of glycerol dialkyl glycerol tetraethers (GDGTs) and BIT (Branched and Isoprenoid Tetraether) index calculation was performed as described previously (Warden et al., 2018).

Results

To understand the ¹⁸⁷Os/¹⁸⁸Os geochemistry of the Baltic Basin and to apply this in the reconstruction of its palaeoceanographic evolution through to the Holocene, we investigated (i) a set of surface sediments from across the Baltic Sea, Kattegat, Skagerrak and North Sea, and (ii) a sediment core from the anoxic Gotland Basin covering the Ancylus Lake and Littorina Sea stages of the Baltic Sea.

The ¹⁸⁷Os/¹⁸⁸Os values of surface sediments

To characterise the present-day ¹⁸⁷Os/¹⁸⁸Os values along a marine to brackish to relatively freshwater transition, 12 surface sediments were analysed from across the Baltic Sea, Kattegat, Skagerrak and North Sea (Figure 1; Table 1). These sediments comprised a mix of sandy, gritty, muddy to clayey sediments with occasional shelly detritus and larger clasts > 2 mm. The Re and total Os abundances vary between 0.81 and 4.20 ppb, and 16 and 167 ppt, respectively (Table 2). The ¹⁸⁷Os/¹⁸⁸Os values range between 0.93 and 2.25 (Table 2; Figure 2). Collectively in ¹⁸⁷Os/¹⁸⁸Os versus 1/¹⁹²Os space no appreciable trend is observed, even removing the single outlier with a high 1/¹⁹²Os value (sample 242970-4; Figure 3a). The ¹⁸⁷Os/¹⁸⁸Os values in the surface sediments of the Skagerrak and off western Norway (samples 1–3) are ~1. Moving through the Kattegat into the southwest of the Baltic Sea values increase from ~1.25 to 1.67 (samples 4–9). In the mid Baltic Sea and northern Baltic Sea surface sediment values increase to 1.88 and 1.95 and then further to 2.10 and 2.24, respectively (samples P435/1-5 GC - 10 and 11–12, respectively).

Figure 3.

(a) The ¹⁸⁷Os/¹⁸⁸Os values for the surface sediments analysed in this study (R² = 0.76) and Mn nodules from the seafloor (R² = 0.81; surface sediment and Mn nodules together R² = 0.73; Peucker-Ehrenbrink and Ravizza, 1996) plotted against sea surface salinity (PSU; Sjöqvist et al., 2015). Also shown is a binary mixing line between salinity and ¹⁸⁷Os/¹⁸⁸Os based on salinity end members of 30 and 0.1 PSU and ¹⁸⁷Os/¹⁸⁸Os end members of 1 and 2.6 of this study and Peucker-Ehrenbrink and Ravizza (1996), and an average water osmium abundance of 10 pg/kg (Rooney et al., 2024 and references therein); (b) ¹⁸⁷Os/¹⁸⁸Os versus 1/¹⁹²Os plot for present-day surface samples; (c) ¹⁸⁷Os/¹⁸⁸Os versus 1/¹⁹²Os plot for core P435/1-5 GC samples. See text for discussion.

Holocene sedimentary record

To understand ¹⁸⁷Os/¹⁸⁸Os changes through the Holocene, core P435/1-5 GC was used to create a record over time of ¹⁸⁷Os/¹⁸⁸Os, TOC, diatom assemblages and BIT index. This is then further supplemented with previously published data on core 303600-N including the TOC content (Warden et al., 2017) and BIT index values (Warden et al., 2018).

Rhenium and osmium abundances and ¹⁸⁷Os/¹⁸⁸Os values

The Re and Os abundances vary between 0.4 and 12.9 ppb and 57 and 224 ppt, respectively within P435/1-5 GC (Figure 4; Table 2). Between 450 and 240 cm Re and Os abundance remain relatively similar with an average of ~1 ppb and 80 ppt, respectively. Rhenium and Os abundances rise to a peak at 200 cm of 12.5 ppb and 224 ppt, respectively, before decreasing back to ~110 ppt Os and 10 ppb Re up to the core top, staying more elevated compared to the deeper part of the core. The ¹⁸⁷Os/¹⁸⁸Os values range between 1.87 and 2.76. Between 450 and 240 cm the ¹⁸⁷Os/¹⁸⁸Os values are the highest, largely >2.5, except for a drop to 2.2 at 430 cm and to 2.4 at 386 cm. The ¹⁸⁷Os/¹⁸⁸Os values then decrease from 2.5 to 2.0 between 220 and 165 cm. This is followed by a more gradual decrease in ¹⁸⁷Os/¹⁸⁸Os values from 2.0 to 1.9 between 165 cm and the core top. As shown for the surface samples, collectively no appreciable trend is observed in ¹⁸⁷Os/¹⁸⁸Os versus 1/¹⁹²Os space (Figure 3b).

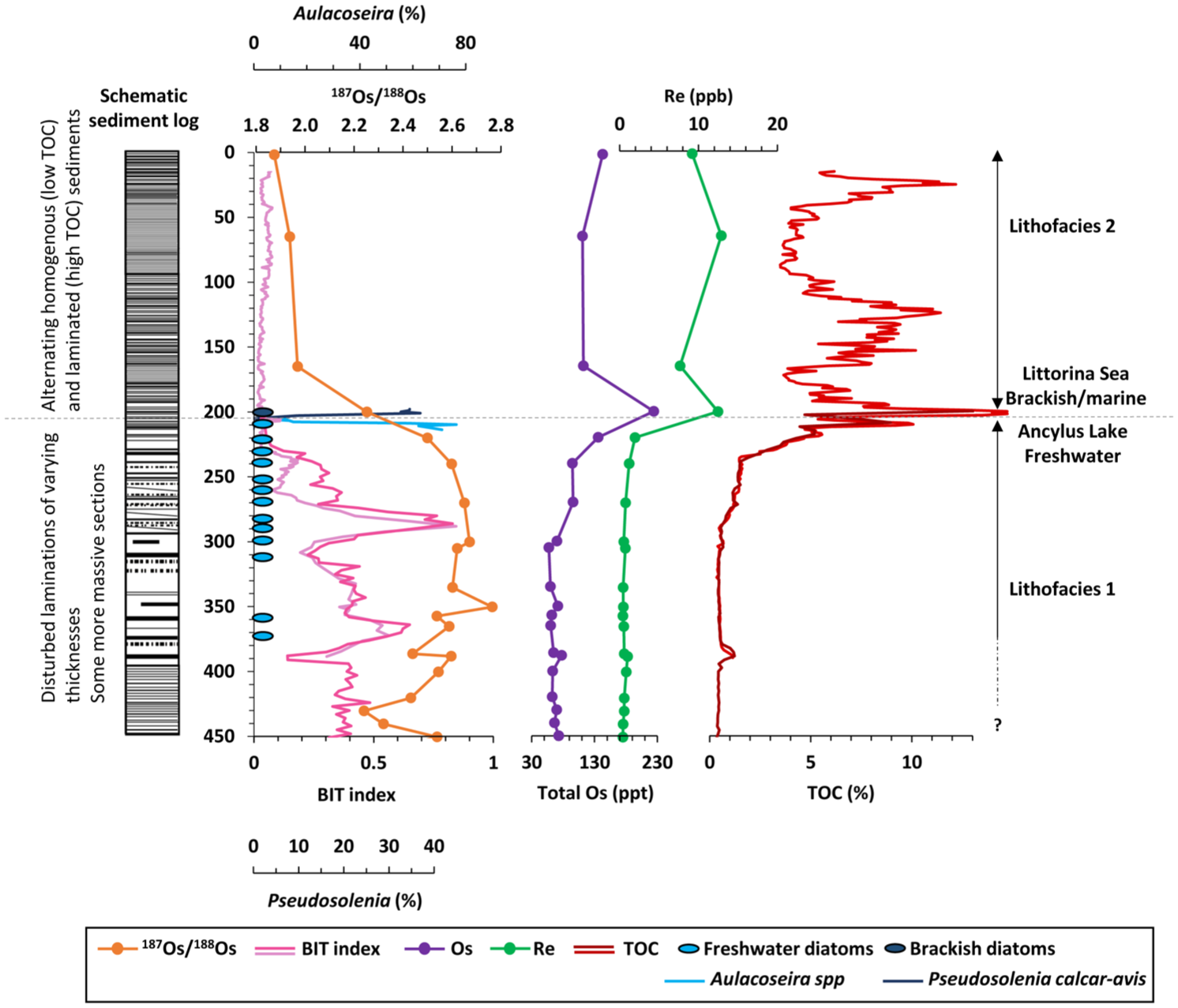

Figure 4.

Fresh and brackish diatoms, ¹⁸⁷Os/¹⁸⁸Os, BIT index, total Os (ppt), Re (ppb) and TOC (%) data for core P435/1-5 GC against depth. The lighter coloured lines for the records of the BIT index and TOC represent core 303600-N data from Warden et al. (2018). Diatom data for core 303600-N is also shown with freshwater diatoms (Aulacoseira spp %) in light blue and brackish diatoms (Pseudosolenia calcar-avis) in dark blue solid lines (ranging 182–198 cm depth). For total Os, Re and ¹⁸⁷Os/¹⁸⁸Os the symbol size is greater than the uncertainty of the data (see Table 2). Dashed lines show the division between the two lithofacies. Cores have been correlated together based on TOC and BIT index (Supplemental Figure 1).

TOC content

Between 450 and 240 cm the TOC values are low, between 0.4% and 1.5%. At 240 cm the TOC values begin to increase quickly to a peak of 15% at ~220 cm and then fluctuate between 4% and 12% to the core top as seen in the data from core 303600-N (Figure 4; Table 3).

Table 3.

Total carbon (TC), total inorganic carbon (TIC) and total organic carbon (TC) for core P453/1-5 GC.

Depth (cm)	TC (% sed)	TIC (%)	TOC (%)	Depth (cm)	TC (% sed)	TIC (%)	TOC (%)
199.5	13.204	0.000	13.204	325.5	0.453	0.000	0.453
202.5	4.697	0.000	4.697	328.5	0.433	0.000	0.433
205.5	7.260	0.000	7.260	331.5	0.460	0.000	0.460
208.5	8.954	0.000	8.954	334.5	0.449	0.000	0.449
211.5	4.462	0.000	4.462	337.5	0.424	0.000	0.424
214.5	5.196	0.000	5.196	340.5	0.422	0.000	0.422
217.5	5.466	0.288	5.178	343.5	0.449	0.000	0.449
220.5	4.498	0.230	4.268	346.5	0.443	0.000	0.443
223.5	3.657	0.000	3.657	349.5	0.474	0.000	0.474
226.5	3.479	0.000	3.479	352.5	0.497	0.031	0.466
229.5	2.854	0.000	2.854	355.5	0.517	0.000	0.517
232.5	2.416	0.000	2.416	358.5	0.440	0.000	0.440
235.5	1.922	0.000	1.922	361.5	0.451	0.000	0.451
238.5	1.504	0.000	1.504	364.5	0.491	0.000	0.491
241.5	1.481	0.000	1.481	367.5	0.484	0.000	0.484
244.5	1.482	0.000	1.482	370.5	0.509	0.000	0.509
247.5	1.411	0.000	1.411	373.5	0.510	0.000	0.510
250.5	1.398	0.000	1.398	376.5	0.531	0.000	0.531
253.5	1.406	0.000	1.406	379.5	0.629	0.000	0.629
256.5	1.520	0.000	1.520	382.5	1.023	0.000	1.023
259.5	1.245	0.000	1.245	385.5	1.279	0.098	1.181
262.5	1.142	0.000	1.142	388.5	1.230	0.000	1.230
265.5	1.159	0.000	1.159	391.5	0.721	0.000	0.721
268.5	1.165	0.000	1.165	394.5	0.455	0.000	0.455
271.5	1.388	0.000	1.388	397.5	0.594	0.000	0.594
274.5	1.043	0.000	1.043	400.5	0.428	0.000	0.428
277.5	0.918	0.000	0.918	403.5	0.434	0.000	0.434
280.5	0.810	0.000	0.810	406.5	0.424	0.000	0.424
283.5	0.780	0.000	0.780	409.5	0.449	0.000	0.449
286.5	0.655	0.000	0.655	412.5	0.424	0.000	0.424
289.5	0.539	0.000	0.539	415.5	0.453	0.000	0.453
292.5	0.594	0.000	0.594	418.5	0.425	0.000	0.425
295.5	0.544	0.000	0.544	421.5	0.442	0.000	0.442
298.5	0.592	0.000	0.592	424.5	0.467	0.000	0.467
301.5	0.640	0.000	0.640	427.5	0.443	0.000	0.443
304.5	0.668	0.000	0.668	430.5	0.454	0.000	0.454
307.5	0.515	0.000	0.515	433.5	0.411	0.000	0.411
310.5	0.494	0.000	0.494	436.5	0.402	0.000	0.402
313.5	0.447	0.000	0.447	439.5	0.396	0.000	0.396
316.5	0.460	0.000	0.460	442.5	0.379	0.000	0.379
319.5	0.454	0.000	0.454	445.5	0.474	0.000	0.474
322.5	0.453	0.000	0.453	448.5	0.415	0.000	0.415

Diatom assemblages

Core P435/1-5 GC displays limited occurrences of diatoms (blue ovals; Figure 4; Table 4). Freshwater diatoms are recorded at depths of 370.5 and 358.5 cm. No diatoms are found between the depths of 350 and 320 cm. Freshwater diatoms are recorded between 310 and 210 cm. The occurrence of brackish diatoms is then noted at 199.5 cm. The diatom assemblage of core 303600-N (solid blue lines) shows a decrease in the freshwater taxa Aulacoseira spp from 76% to 3% at a depth of ~210 cm and a sudden increase in the marine planktonic species Pseudosolenia calcar-avis from 1% to 37% at ~205 cm (Figure 4, Table 5).

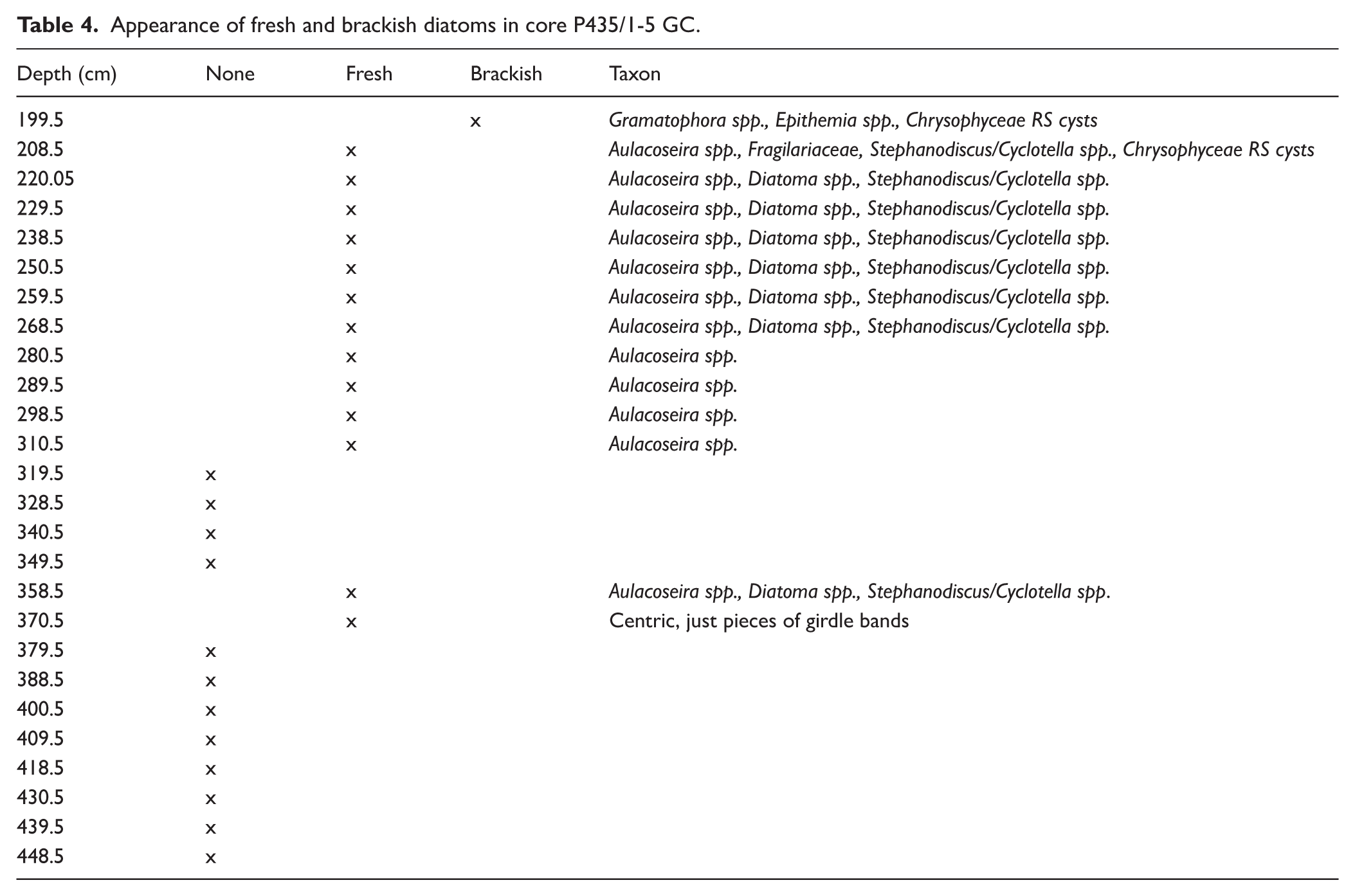

Table 4.

Appearance of fresh and brackish diatoms in core P435/1-5 GC.

Depth (cm)	None	Fresh	Brackish	Taxon
199.5			x	Gramatophora spp., Epithemia spp., Chrysophyceae RS cysts
208.5		x		Aulacoseira spp., Fragilariaceae, Stephanodiscus/Cyclotella spp., Chrysophyceae RS cysts
220.05		x		Aulacoseira spp., Diatoma spp., Stephanodiscus/Cyclotella spp.
229.5		x		Aulacoseira spp., Diatoma spp., Stephanodiscus/Cyclotella spp.
238.5		x		Aulacoseira spp., Diatoma spp., Stephanodiscus/Cyclotella spp.
250.5		x		Aulacoseira spp., Diatoma spp., Stephanodiscus/Cyclotella spp.
259.5		x		Aulacoseira spp., Diatoma spp., Stephanodiscus/Cyclotella spp.
268.5		x		Aulacoseira spp., Diatoma spp., Stephanodiscus/Cyclotella spp.
280.5		x		Aulacoseira spp.
289.5		x		Aulacoseira spp.
298.5		x		Aulacoseira spp.
310.5		x		Aulacoseira spp.
319.5	x
328.5	x
340.5	x
349.5	x
358.5		x		Aulacoseira spp., Diatoma spp., Stephanodiscus/Cyclotella spp.
370.5		x		Centric, just pieces of girdle bands
379.5	x
388.5	x
400.5	x
409.5	x
418.5	x
430.5	x
439.5	x
448.5	x

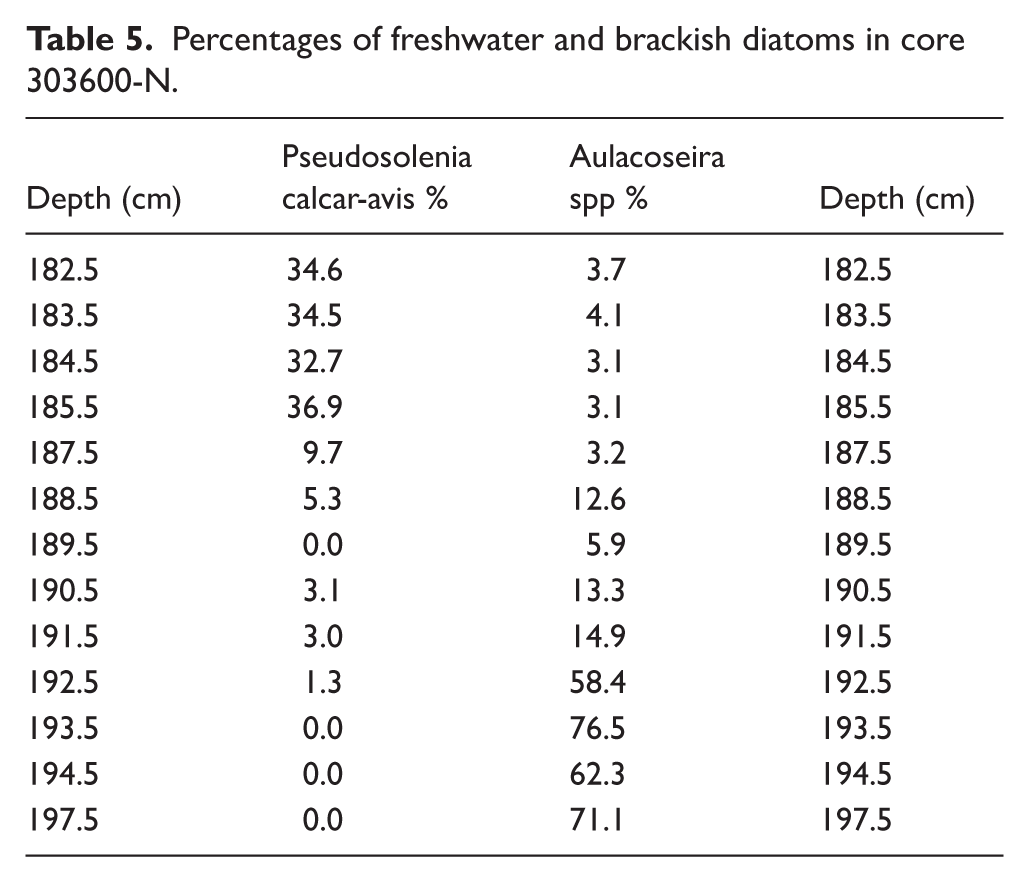

Table 5.

Percentages of freshwater and brackish diatoms in core 303600-N.

Depth (cm)	Pseudosolenia calcar-avis %	Aulacoseira spp %	Depth (cm)
182.5	34.6	3.7	182.5
183.5	34.5	4.1	183.5
184.5	32.7	3.1	184.5
185.5	36.9	3.1	185.5
187.5	9.7	3.2	187.5
188.5	5.3	12.6	188.5
189.5	0.0	5.9	189.5
190.5	3.1	13.3	190.5
191.5	3.0	14.9	191.5
192.5	1.3	58.4	192.5
193.5	0.0	76.5	193.5
194.5	0.0	62.3	194.5
197.5	0.0	71.1	197.5

BIT index

The BIT index varied substantially in the 200–450 cm section of core P435/1-5 GC (Figure 4; Table 6). In general, values markedly increased from <0.1 at 200 cm to a peak value of 0.86 at 286 cm. At greater depth the BIT values decreased but remained high (average ca. 0.4) with a second maximum of 0.65 at 364 cm, and two dips to 0.14 and 0.22 at 391 and 316 cm, respectively. The general profile of the BIT index record is similar to that obtained previously for the adjacent 303600-N core (Warden et al., 2018; Figure 4).

Table 6.

BIT index values for core P435/1-5 GC.

Depth (cm)	BIT	Depth (cm)	BIT
199	0.026	325	0.339
202	0.060	328	0.414
205	0.029	331	0.361
208	0.028	334	0.424
211	0.047	337	0.417
214	0.048	340	0.426
217	0.050	343	0.466
220	0.052	346	0.413
223	0.062	349	0.410
226	0.071	352	0.387
230	0.124	355	0.380
232	0.213	358	0.397
235	0.179	361	0.501
238	0.241	364	0.650
241	0.278	367	0.623
244	0.282	370	0.615
247	0.313	373	0.552
250	0.277	376	0.480
253	0.289	379	0.392
256	0.236	382	0.355
259	0.329	385	0.303
262	0.366	388	0.140
265	0.344	391	0.140
268	0.350	394	0.394
271	0.269	397	0.406
274	0.436	400	0.388
277	0.560	403	0.430
280	0.764	406	0.383
283	0.714	409	0.400
286	0.829	412	0.411
289	0.712	415	0.354
292	0.572	418	0.338
295	0.433	421	0.382
298	0.418	424	0.484
301	0.313	427	0.328
304	0.277	430	0.398
307	0.255	433	0.344
310	0.225	436	0.382
313	0.269	439	0.372
316	0.272	442	0.406
319	0.441	445	0.347
322	0.366	448	0.404

Discussion

¹⁸⁷Os/¹⁸⁸Os composition characteristics of the present-day Baltic Sea basin

Understanding of the present-day environment and sediment geochemistry in the Baltic Sea is key to investigating the evolution of the Baltic Sea Basin through the Late Quaternary and Holocene. This study focusses on the use of osmium isotopes to infer the water ¹⁸⁷Os/¹⁸⁸Os composition (Cohen et al., 1999; Ravizza and Turekian, 1989) together with sedimentological, diatom analysis, BIT index and TOC abundance of the Baltic Basin during the transition of the Ancylus Lake into the Littorina Sea. Establishing the present-day ¹⁸⁷Os/¹⁸⁸Os signature of the Baltic and North Sea is critical to assess the potential of ¹⁸⁷Os/¹⁸⁸Os to track changes in water mass exchange through time. The application of ¹⁸⁷Os/¹⁸⁸Os chemostratigraphy allows the differentiation between long- and short-term changes in the environment due to the relatively short residence time of osmium in the oceans of 1–50 kyrs, with many studies noting a residence time of <10 kyrs (Levasseur et al., 1999; Ownsworth et al., 2023, 2024; Oxburgh, 1998, 2001; Peucker-Ehrenbrink and Ravizza, 2012; Rooney et al., 2016; Sharma et al., 1997; Taylor et al., 2024). The ¹⁸⁷Os/¹⁸⁸Os signature of present-day oxic open seawater has an average value of 1.060 ± 0.005 and is relatively similar across the global oceans (Burton et al., 1999; Cohen, 2004; Levasseur et al., 1998; Peucker-Ehrenbrink and Ravizza, 2000; Rooney et al., 2016; Sharma et al., 1997). Spatial and temporal variations in ¹⁸⁷Os/¹⁸⁸Os can exist that reflect local influences in the ocean chemistry due to variations in terrestrial sources, especially in more isolated/restricted seawater basins (Burton et al., 2010; Chen et al., 2009; Gannoun and Burton, 2014; Kuroda et al., 2016; Ownsworth et al., 2023, 2024; Paquay and Ravizza, 2012; Peucker-Ehrenbrink and Ravizza, 2012; Plint et al., 2025; Poirier and Hillaire-Marcel, 2011; Rooney et al., 2016; Taylor et al., 2024, 2025). The surrounding geology and variations in flux of eroded material, as well as marine influence is therefore important in understanding the ¹⁸⁷Os/¹⁸⁸Os of sediments through a core section, and thus by inference the ¹⁸⁷Os/¹⁸⁸Os of the water column at the time of deposition.

The Baltic Sea catchment is dominated by the Precambrian crystalline basement (Baltic Shield; Figure 1) comprising rocks and runoff with a highly radiogenic ¹⁸⁷Os/¹⁸⁸Os signature (~3.6 to 7.9; Figure 2; Pegram et al., 1992; Peucker-Ehrenbrink and Ravizza, 1996). Freshwater runoff from the Baltic Shield therefore delivers a radiogenic signal into the Baltic Basin, and potentially an even greater radiogenic signature due to preferential weathering of felsic matrices that possess a more radiogenic ¹⁸⁷Os/¹⁸⁸Os composition (Peucker-Ehrenbrink and Blum, 1998). This is demonstrated by ¹⁸⁷Os/¹⁸⁸Os values of surface sediments (this study) and of Mn nodules of the Baltic Basin (Pegram et al., 1992; Peucker-Ehrenbrink and Ravizza, 1996; ¹⁸⁷Os/¹⁸⁸Os = ⩾~1.5 to 2.6; Figure 2).

The transition from the Kattegat through the Baltic Sea possesses present-day ¹⁸⁷Os/¹⁸⁸Os compositions ranging from 1.3 in Kattegat Bay through to 2.6 in the Gulf of Bothnia (N = 4 Mn nodules; Pegram et al. (1992, Peucker-Ehrenbrink and Ravizza (1996, N = 10 surface sediments; this study; Figure 2). Manganese nodules have been extensively used to accurately record the ¹⁸⁷Os/¹⁸⁸Os composition of the water column from which they formed, as have organic-bearing sediments (Peucker-Ehrenbrink and Ravizza, 1996, 2012; Peucker-Ehrenbrink and Ravizza, 2000; Rooney et al., 2024 and references therein). Direct comparison of Mn nodule and sediment ¹⁸⁷Os/¹⁸⁸Os compositions and by inference the water column ¹⁸⁷Os/¹⁸⁸Os can only be evaluated for samples that are spatially associated and occur in water columns of similar salinity. In this case, location 7 and 8 of this study are nearby the Mn nodule sample of Mecklenburg Bight and possess similar ¹⁸⁷Os/¹⁸⁸Os values (Location 7 = 1.49; location 8 = 1.53; Mn nodule = 1.49; Figure 2). Although spatially distinct, the Mn nodule value of the Bothnian Sea is more radiogenic than the closest (~125 and 160 km) sediment surface samples (2.50 vs 1.95, 2.10, 2.24; Figure 2). Although all similarly radiogenic, the slightly lower surface sediment ¹⁸⁷Os/¹⁸⁸Os values may record local variations in the osmium isotope composition of the crustal source input and/or anthropogenic influence (Chen et al., 2009) in comparison to the Mn nodule which is more centrally positioned in Bothnian Sea and was archived before 1950 (Peucker-Ehrenbrink and Ravizza, 1996). Additionally, variation between Mn nodule and sediment ¹⁸⁷Os/¹⁸⁸Os values may relate to slow accumulation and diffusion rates of osmium associated with Mn nodules (Peucker-Ehrenbrink and Ravizza, 2000 and references therein).

The ¹⁸⁷Os/¹⁸⁸Os compositions of the surface sediment for the Baltic Sea in general are significantly more radiogenic than those from the North Sea and Skagerrak (~0.93–1.10, N = 5 surface sediments; this study and Ownsworth et al., 2024; Figure 2). The North Sea and Skagerrak surface samples record ¹⁸⁷Os/¹⁸⁸Os values (0.93–1.10; Figure 2) that are similar and slightly lower than the average open ocean value (~1.06). The slightly less radiogenic value of 0.93 could be due to several factors including influx of less radiogenic osmium from coastal riverine systems and potentially localised anthropogenic pollution, which commonly has an unradiogenic isotopic signature (e.g. Chen et al., 2009). For example, the Alcoa Lista Al and Eramet Porsgrunn Mn smelters occupy coastal locations nearby the sampling site (e.g. location 2 which exhibits the lowest ¹⁸⁷Os/¹⁸⁸Os value of 0.93; N = 2; Table 6). The more radiogenic ¹⁸⁷Os/¹⁸⁸Os composition moving from the Skagerrak through the Kattegat into the Baltic Sea from the narrow straits around Denmark to the south-central Baltic Sea coincides with the present day decreased marine influence from the North Sea. This is shown by the decrease in surface salinity from normal marine values in the North Sea (30–35 PSU) to 30–15 PSU through the Skagerrak and Kattegat, 10 PSU in the south Baltic Sea, 8–6 PSU in the Central Baltic and then almost fresh water at 0.5 PSU in the outer Gulf of Finland and Gulf of Bothnia (Figure 2; Björck, 1995; Dickens, 2013; Ducrotoy and Elliott, 2008; Ehlin, 1981; Jiang et al., 1997; Melvasalo et al., 1981; Peucker-Ehrenbrink and Ravizza, 1996; Rosentau et al., 2017). The decreasing salinity indicates an increased influence of freshwater terrestrial runoff, and hence a predominance in the supply of terrestrially sourced radiogenic material from the Precambrian Baltic Shield, which possesses ¹⁸⁷Os/¹⁸⁸Os between 3.6 and 7.9 (Pegram et al., 1992; Peucker-Ehrenbrink and Ravizza, 1996).

The ¹⁸⁷Os/¹⁸⁸Os values show a moderate increase between the North Sea and the Danish Straits. From the Danish Straits the ¹⁸⁷Os/¹⁸⁸Os values become progressively more radiogenic through the central and northern regions of the Baltic Sea, corresponding to the reduction in marine influence through the narrow Danish Straits (Figure 3c). There is no clear linear relationship in ¹⁸⁷Os/¹⁸⁸Os versus 1/¹⁹²Os space (Figure 3a), that is, a mixing line between an open seawater and terrestrial derived osmium isotope signal. This might be, in part, because this data presentation does not take into consideration that the uptake of osmium from the water column (i.e. hydrogenous osmium i.e. associated with organic matter), is highly variable, being a function of the depositional environmental conditions and the organic matter type (Harris et al., 2013). Moreover, it could also be related to the transport of water through the Danish Sounds which takes place in the upper 10–15 m layer. During the outward phase, relatively freshwater masses move into the Belt Sea, where the water becomes mixed vertically with saline masses (Ehlin, 1981). During the next period of inflow, the water mass returns to the Baltic Sea. Based on the data of this study and Peucker-Ehrenbrink and Ravizza (1996) the ¹⁸⁷Os/¹⁸⁸Os composition inflowing into the Bornholm Basin from the Belt Sea would have a more radiogenic ¹⁸⁷Os/¹⁸⁸Os composition (~1.5; Figure 2) than that of the open ocean (~1.0; Figure 2). In addition, starting from the Bornholm Basin the basins buffer circulation, with the Gulfs of Bothnia and Riga being topographically isolated from the saline water below the halocline and only receiving surface water (Elken and Matthäus, 2008). The latter (i.e. non binary mixing) is further supported by the ¹⁸⁷Os/¹⁸⁸Os data not falling along a simple binary mixing model (Figure 3c) that predicts a linear relationship between salinity and osmium isotope composition using salinity end members of 30 and 0.1 PSU and ¹⁸⁷Os/¹⁸⁸Os end members of 1 and 2.6 of this study and Peucker-Ehrenbrink and Ravizza (1996), and an average water osmium abundance of 10 pg/kg (Rooney et al., 2024 and references therein).

Based on the modern-day sediment signature, ¹⁸⁷Os/¹⁸⁸Os compositions of Holocene sediments from the core within the southern Gotland Basin should identify periods of isolation from a marine signal (i.e. from the North Sea) with a relative increase in the flux of terrestrially eroded material into the basin and reduced dilution by marine incursion. This would be similar to the present-day ¹⁸⁷Os/¹⁸⁸Os composition of the northern and eastern extremities of the Baltic Sea, and thus starkly different to that of the Late Pleistocene and Holocene global ocean (ca. 1; Paquay and Ravizza, 2012; Rooney et al., 2016). Thus, the sediment archive of core P435/1-5 GC should record the palaeoceanographic changes in the Baltic Sea basin.

The transition of the Ancylus Lake to Littorina Sea

Based on the obtained data of this study, sedimentological features of core P435/1-5 GC and 303600-N together with published data (Warden et al., 2017, 2018), the sediments have been divided into two lithofacies (Figure 4). Lithofacies 1 encompasses the deepest part of the core from ~450 cm to a depth of ~220 cm. Here the sediments are a mixture of mainly clay with some silt and sand, and with some disturbed laminations of varying thickness (mm-cm scale) and some more massive sections. Here TOC, Re and Os abundances are low and stable (2–6%, 0.6–2 ppb and ~60–136 ppt, respectively), whilst ¹⁸⁷Os/¹⁸⁸Os and BIT index values are high (2.24–2.76, and 0.15–0.82, respectively), and freshwater diatoms are present. Lithofacies 2 encompasses the section of core between ~220 and 0 cm. Here the sediments are homogenous, with very fine and even laminations, TOC, Re and Os abundances are at their highest (3–15%, 7.7–12.5 ppb and 111–224 ppt, respectively), and ¹⁸⁷Os/¹⁸⁸Os and BIT index values have decreased to their lowest (1.87–2.25, and 0.03–0.06, respectively), and the first appearance of brackish diatoms are noted at the start of lithofacies 2. The point at which the freshwater diatoms disappear, and the brackish diatoms appear is utilised as the main factor in determining the boundary of lithofacies 1 and 2 at 205 cm. The below discussion focusses on the transition between the two lithofacies.

As with many other cores from the Baltic region, the P435/1-5 GC core used in this study lacks any datable fossil material in the pre-Littorina sediments (Hyttinen et al., 2014; Kögler and Larsen, 1979; Kortekaas, 2007; Moros et al., 2002). Thus, any discussion of the ages of sediments in core P435/1-5 GC below are poorly constrained and can only be inferred from correlating changes in sedimentology (which, basin-wide have been attributed to the different stages) and any accompanying geochemical changes (¹⁸⁷Os/¹⁸⁸Os, BIT index) to sediments of the Baltic Sea stages. The sedimentology of the Ancylus Lake stage is characterised by grey clays of lacustrine origin with more heterogenous sediments and occasional disturbed laminations of varying thickness (Kögler and Larsen, 1979; Rosentau et al., 2017). The Littorina Sea sediments are characteristically laminated organic-rich alternating muds and clay-gyttjas with homogenous laminations (Moros et al., 2002, 2020; Warden et al., 2017, 2018; Zillén et al., 2008). The appearance of brackish diatoms (and high TOC values) in Baltic Sea sediments marks the establishment of brackish marine conditions. Although no absolute age constraints can be placed on the sediments of core P435/1-5 GC, the transition to brackish conditions signified by diatoms and TOC has been dated in other cores close to 8 ka (Moros et al., 2020; Zillén et al., 2008).

Ancylus Lake

The transition from the marine Yoldia Sea stage to the freshwater Ancylus Lake stage was driven by glacio-isostatic uplift following deglaciation of the Fennoscandian Ice Sheet. Due to isostatic uplift, channels connecting the Baltic Basin to the Skagerrak and into the North Sea over south-central Sweden closed, allowing the build-up and development of the freshwater Ancylus Lake (Andrén et al., 2002, 2011; Berglund et al., 2005; Björck, 1995; Rosentau et al., 2017). Between ~400 and 220 cm the sedimentological record in core P435/1-5 GC (lithofacies 1) is dominated by heterogenous laminations of varying thicknesses with some more massive units. The ¹⁸⁷Os/¹⁸⁸Os values increase from 2.2 at 425 cm to a peak of 2.8 at 350 cm with values remaining between 2.6 and 2.7 from 425 to 240 cm (Figure 4). These values are more radiogenic than the northernmost present-day Baltic Sea sediment sample values (2.1–2.3), representing the most freshwater influenced values of the present Baltic Sea. The ¹⁸⁷Os/¹⁸⁸Os values of 2.6 to 2.8 are, therefore, likely to represent a much lower marine influence than the present-day, with greater influence of run-off and meltwater from the Fennoscandian Ice Sheet moving over the Baltic Shield. Coincident with the radiogenic ¹⁸⁷Os/¹⁸⁸Os values, the BIT index is higher at >0.3 with intervals reaching 0.6 and 0.8 at 364 and 286 cm, respectively. These BIT values indicate a greater flux of terrestrial/freshwater material and a more continental input (Kim et al., 2006; Wang et al., 2013; Warden et al., 2018). The TOC levels are consistently very low (<0.5%) from 400 to 280 cm (except for a minor peak at 380–390 cm), then gradually increase to 1.5% by 230 cm and then abruptly to ~15% at the boundary between lithofacies 1 and 2 (~205 cm). This indicates initially very low productivity in lithofacies 1, increasing slightly towards the top.

Freshwater diatoms are also recorded at 370 and 360 cm and at various intervals between 310 and 210 cm (Figure 4). However, in general diatoms are scarce between 450 and 300 cm indicating the low productivity of this lower section of the Ancylus Lake sequence.

The radiogenic nature of the ¹⁸⁷Os/¹⁸⁸Os record is interpreted to reflect freshwater conditions of the Baltic Basin during the deposition of lithofacies 1 between 450 and 205 cm. This is supported by other collected and published data including diatoms, TOC, BIT index and several organic geochemical records (Sinninghe Damsté et al., 2022; Sollai et al., 2017; Warden et al., 2017, 2018). With this information alongside the sedimentology of the core, the interpretation of this interval is that it represents deposition during the Ancylus Lake stage.

Littorina Sea

The combination of decreasing glacio-isostatic uplift along with glacial-eustatic changes led to a relative sea-level rise allowing areas through the Danish Straits such as Öresund and the Great Belt channels to connect the Baltic Basin and the North Sea. This deepening connection allows the Ancylus Lake to drain but also leads to the influx of marine waters into the Baltic Basin (the Littorina Sea Transgression), over time creating the marine/brackish Littorina Sea stage (Andrén et al., 2011; Bennike et al., 2021; Rosentau et al., 2017). The Littorina Sea stage is characterised by brackish water conditions, as marine waters were able to flow and mix into the Baltic Basin through the Danish Straits as the Fennoscandian Ice Sheet retreated (Andrén et al., 2011; Berglund et al., 2005; Björck, 1995; Rosentau et al., 2017). The transport of water through the Danish Straits was likely similar to present day whereby during the outward phase, relatively freshwater masses move into the Belt Sea and are mixed with saline masses. Then, during the next period of inflow, the mixed water mass returns to the Littorina Sea (Ehlin, 1981). This stage is represented in cores across the Baltic Basin by homogenous, finely laminated olive-green sediments with higher TOC values in comparison to Ancylus Lake sediments (Moros et al., 2002; Rosentau et al., 2017).

The sedimentology of core P435/1-5 GC from 205 cm to the core top (lithofacies 2) is characterised by fine, homogenous clay-dominated laminations. From ~240 to 170 cm the ¹⁸⁷Os/¹⁸⁸Os values decrease from 2.60 to 1.97 and then gradually to the present-day value 1.88 at the core top (Figure 4). This indicates a decrease in radiogenic, terrestrially sourced material from freshwater flux and/or an increased influence from open marine waters, lowering the ¹⁸⁷Os/¹⁸⁸Os values to 1.88 and in line with other surface samples taken from the present-day around the Baltic Sea (Figure 2). The BIT index values decline from 0.83 to their lowest at 0.03 between 280 and 200 cm and then remain at this low level to the core top. A value of 0 for the BIT index represents a marine end member (Kim et al., 2006; Wang et al., 2013; Warden et al., 2018). Thus, the decline and consistently low values in the BIT index in P435/1-5 GC and 303,600 -N represents a significant increase and continuous influence of marine waters. A sudden decrease in the BIT index between the Ancylus Lake and Littorina Sea stages has also been noted in sedimentary successions from the Arkona and Gotland Basins (Warden et al., 2018). Contemporaneously, TOC levels begin to increase significantly for the first time over the length of the core at 250 cm, and then much more rapidly at 230 cm rising from <2% to 13% and remain relatively high through lithofacies 2 (average ~6%) compared to lithofacies 1 (average ~ 0.5%; Warden et al., 2017). This is likely a result of increased productivity due to general climate amelioration, and a reduction in meltwater influx diluting the organic material produced from in situ productivity. Increasing TOC values are found from sediments of the Littorina Sea stage across many cores around the Baltic Sea (Kögler and Larsen, 1979; Moros et al., 2002). Total Os and Re values increase to their highest levels (224 ppt and 12 ppb, respectively) coincident with the rise in TOC and decrease in ¹⁸⁷Os/¹⁸⁸Os and BIT index (Fig4) this figure reference hasnt been altered and linked like all the others. Rhenium and osmium are organophilic and so are concentrated in the organic matter of organic-rich sediments during deposition from seawater. The increase in abundance of Re and Os at ~200 cm could relate to increased chelation by the initial marine water incursion, higher organic matter content and change in organic matter type related to the paleoceanographic change from the Ancylus Lake and Littorina Sea stages (Cohen, 2004; Cohen et al., 1999; Harris et al., 2013; Ravizza and Turekian, 1989; Selby et al., 2013; Selby and Creaser, 2003; Taylor et al., 2025). Additionally, at ~205 cm the first occurrence of brackish diatoms is recorded in both cores P435/1-5 GC and 303600 N, with an abrupt switch from freshwater to brackish diatoms. Diatom analysis was not undertaken from 180 cm to the surface, but abundant brackish to marine diatoms are found throughout the Baltic Sea in core sediments deposited during the Littorina Sea stage (Andrén et al., 2011; Moros et al., 2002).

The decline to less radiogenic ¹⁸⁷Os/¹⁸⁸Os values in lithofacies 2 between ~220 cm and core top therefore indicates an increased influence of less radiogenic marine waters and less influence of more radiogenic freshwater sources. Although, likely similar to present day, the ¹⁸⁷Os/¹⁸⁸Os mixing into the Bornholm Basin would have been more radiogenic than the open ocean (~1.06) and more likely ⩾1.5 at ~8 ka. This is in part due to the marine water entering Kattegat Bay from eastern Skagerrak being more radiogenic at ~8 ka (⩾1.1; Ownsworth et al., 2024), and due to the mixing of waters in the Belt Sea as discussed above. As such, this may explain the absence of a mixing line in ¹⁸⁷Os/¹⁸⁸Os versus 1/¹⁹²Os space (Figure 3b) between an open seawater (~1) and terrestrial derived osmium isotope signal (~2).

The transition from the Ancylus Lake to Littorina Sea stages is further supported by other collected and published data including a low BIT index (Warden et al., 2018), higher TOC (Warden et al., 2017) and a sharp increase in the percentage of brackish diatoms. This alongside the sedimentology of the core indicates that the transition from lithofacies 1 to 2 represents the transition from the freshwater Ancylus Lake stage to the brackish Littorina Sea stage of the Baltic Sea Basin history.

Deeper sections

In the deeper section of the core ~390–386 cm there are several changes in our dataset that, combined, could provide evidence for a relatively restricted and short-lived marine influx (Figure 4). Between the depths of ~390–386 cm there is a dip in the BIT index to 0.14, close to the marine end member of 0 (Kim et al., 2006; Wang et al., 2013; Warden et al., 2018), which could indicate an increase in marine input. There is also a small lowering in the ¹⁸⁷Os/¹⁸⁸Os values from 2.6 to 2.4, which would indicate a less radiogenic source of Os. An increased marine influence would achieve this. A minor increase of ~1% in TOC also occurs at this same depth (Figure 4). This small TOC spike can potentially be correlated with similar spikes in cores from other areas in the Baltic Sea (e.g. Andrén et al., 2000; Moros et al., 2002; Warden et al., 2018). However, especially without means of dating the core, and with such small deviations, it is very difficult to make any definitive conclusions as to the cause of the TOC enrichment. Despite this, the data may become useful in later studies.

Implications and conclusions

Through combining modern day surface sediment data with past core records including BIT index, and TOC, this study demonstrates the utility of osmium isotopes for reconstructing and understanding the connection of the Baltic Sea Basin to the open ocean. This technique has the potential to be applied to other similarly restricted basins. A strong correlation between salinity and ¹⁸⁷Os/¹⁸⁸Os is recorded showing that the ¹⁸⁷Os/¹⁸⁸Os composition of sediments can be used to differentiate between a largely marine environment and a largely freshwater environment. It is shown that the use of ¹⁸⁷Os/¹⁸⁸Os is effective in distinguishing between freshwater and marine phases where there are large and longer-term drainage or inflow events, such as in this study with the Littorina Sea transgression between the freshwater Ancylus Lake stage and the brackish Littorina Sea stage of the Baltic Sea history. This also supports the findings of ¹⁸⁷Os/¹⁸⁸Os values tracking the Arctic Lake to Arctic Ocean transition (Dickson et al., 2022; Poirier and Hillaire-Marcel, 2011).

Supplemental Material

sj-pdf-1-hol-10.1177_09596836261432434 – Supplemental material for Tracking postglacial palaeoceanographic change of the Baltic Sea Basin using Osmium isotopes: Transition between the freshwater Ancylus Lake and the marine/brackish Littorina Sea

Supplemental material, sj-pdf-1-hol-10.1177_09596836261432434 for Tracking postglacial palaeoceanographic change of the Baltic Sea Basin using Osmium isotopes: Transition between the freshwater Ancylus Lake and the marine/brackish Littorina Sea by Emma Ownsworth, Matthias Moros, David Selby, Jeremy Lloyd, Yang Li, Jaap Sinninghe Damste and Slawomir Dobosz in The Holocene

Footnotes

Acknowledgements

We are grateful to laboratory assistance from Chris Ottley, Geoffrey Nowell and Emily Unsworth at Durham University.

ORCID iD

Emma Ownsworth

Ethical considerations

Ethical approval not required.

Author Contributions

Emma Ownsworth: Conceptualisation; Data curation; Funding acquisition; Investigation; Methodology; Writing – original draft; Writing – review & editing.

Matthias Moros: Conceptualisation; Data curation; Formal analysis; Supervision; Writing – review & editing.

David Selby: Conceptualisation; Funding acquisition; Methodology; Project administration; Resources; Supervision; Writing – review & editing.

Jeremy Lloyd: Conceptualisation; Supervision; Writing – review & editing.

Yang Li: Data curation; Writing – review & editing.

Jaap Sinninghe Damste: Data curation; Formal analysis; Writing – review & editing.

Slawomir Dobosz: Data curation; Formal analysis; Writing – review & editing.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This study was part funded by the NERC IAPETUS DTP, grant code NE/L002590/1. Funding contribution came also from a Yorkshire Geological Society (YGS) research fund grant.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data availability statement

The data that support the findings of this study are available in the article and supplementary material.

Supplemental material

Supplemental material for this article is available online.

References

Andrén

Kunzendorf

(2000) Holocene history of the Baltic Sea as a background for assessing records of human impact in the sediments of the Gotland Basin. Holocene 10(6): 687–702.

Andrén

Björck

Andrén

, et al. (2011) The development of the baltic sea basin during the last 130 ka. In: Harff

Björck

Hoth

(eds) The Baltic Sea Basin. Central and Eastern European Development Studies (CEEDES), 1st edn. Springer, pp. 75–97. Available at: http://link.springer.com/10.1007/978-3-642-17220-5

Andrén

Jørgensen

Cotterill

, et al. (2015) Expedition 347 summary. Proceedings of the Integrated Ocean Drilling Program 347.

Andrén

Lindeberg

Andrén

(2002) Evidence of the final drainage of the Baltic Ice Lake and the brackish phase of the Yoldia Sea in glacial varves from the Baltic Sea. Boreas 31(3): 226–238.

Andrén

Lindeberg

Andrén

(2008) Evidence of the final drainage of the Baltic Ice Lake and the brackish phase of the Yoldia Sea in glacial varves from the Baltic Sea. Boreas 31(3): 226–238.

Bennike

Jensen

Nørgaard-Pedersen

, et al. (2021) When were the straits between the Baltic Sea and the Kattegat inundated by the sea during the Holocene? Boreas 50(4): 1079–1094.

Berglund

Sandgren

Barnekow

, et al. (2005) Early Holocene history of the Baltic Sea, as reflected in coastal sediments in Blekinge, southeastern Sweden. Quaternary International 130(1): 111–139.

Björck

(1995) A review of the history of the Baltic Sea, 13.0-8.0 ka BP. Quaternary International 27: 19–40.

Burton

Bourdon

Birck

, et al. (1999) Osmium isotope variations in the oceans recorded by Fe-Mn crusts. Earth and Planetary Science Letters 171(1): 185–197.

10.

Burton

Gannoun

Parkinson

(2010) Climate driven glacial–interglacial variations in the osmium isotope composition of seawater recorded by planktic foraminifera. Earth and Planetary Science Letters 295(1–2): 58–68.

11.

Chen

Sedwick

Sharma

(2009) Anthropogenic osmium in rain and snow reveals global-scale atmospheric contamination. Proceedings of the National Academy of Sciences of the United States of America 106(19): 7724–7728.

12.

Cohen

(2004) The rhenium–osmium isotope system: Applications to geochronological and palaeoenvironmental problems. Journal of the Geological Society 161(4): 729–734.

13.

Cohen

Coe

Bartlett

, et al. (1999) Precise Re–Os ages of organic-rich mudrocks and the Os isotope composition of Jurassic seawater. Earth and Planetary Science Letters 167(3-4): 159–173.

14.

Creaser

Papanastassiou

Wasserburg

(1991) Negative thermal ion mass spectrometry of osmium, rhenium and iridium. Geochimica et Cosmochimica Acta 55: 397–401.

15.

Dickens

(2013) Late Quaternary Palaeoceanographic Evolution in the Skagerrak, North Eastern North Sea. Durham University.

16.

Dickson

Davies

Bagard

M-L

, et al. (2022) Quantifying seawater exchange rates in the Eocene Arctic Basin using osmium isotopes. Geochemical Perspectives Letters 24: 7–11.

17.

Ducrotoy

Elliott

(2008) The science and management of the North Sea and the Baltic Sea: Natural history, present threats and future challenges. Marine Pollution Bulletin 57(1-5): 8–21.

18.

Ehlin

(1981) Hydrology of the Baltic Sea. In: Voipio

(ed.) The Baltic Sea. Elsevier, pp.123–134.

19.

Elken

Matthäus

(2008) Baltic Sea oceanography. In: Bolle H-J, Menenti M and Rasool I (eds) Assessment of the Climate Change for the Baltic Sea Basin. Springer-Verlag, pp.379–386.

20.

Gannoun

Burton

(2014) High precision osmium elemental and isotope measurements of North Atlantic seawater. Journal of Analytical Atomic Spectrometry 29(12): 2330–2342.

21.

Gramlich

Murphy

Garner

, et al. (1973) Absolute isotopic abundance ratio and atomic weight of a reference sample of rhenium. Journal of Research of the National Bureau of Standards Section A Physics and Chemistry 77A: 691–698.

22.

Harff

Endler

Emelyanov

, et al. (2011) Late Quaternary Climate Variations Reflected in Baltic Sea Sediments. In: Harff

Björck

Hoth

(eds) The Baltic Sea Basin. Central and Eastern European Development Studies (CEEDES), 1st edn. Springer, pp.99–132.

23.

Harris

Mnich

Selby

, et al. (2013) Minor and trace element and Re–Os chemistry of the Upper Devonian Woodford Shale, Permian Basin, West Texas: Insights into metal abundance and basin processes. Chemical Geology 356: 76–93.

24.

Hyttinen

Eskola

Kaakinen

, et al. (2014) First direct age determination for the Baltic Ice Lake/Yoldia Sea transition in Finland. GFF 136(2): 398–405.

25.

Jakobsson

Björck

Alm

, et al. (2007) Reconstructing the Younger Dryas ice dammed lake in the Baltic Basin: Bathymetry, area and volume. Global and Planetary Change 57(3-4): 355–370.

26.

Jiang

Björck

Knudsen

(1997) A palaeoclimatic and palaeoceanographic record of the last 11 000 ¹⁴C years from the Skagerrak-Kattegat, northeastern Atlantic margin. Holocene 7(3): 301–310.

27.

Kaiser

Belt

Tomczak

, et al. (2016) C25 highly branched isoprenoid alkenes in the Baltic Sea produced by the marine planktonic diatom Pseudosolenia calcar-avis. Organic Geochemistry 93: 51–58.

28.

Kim

Schouten

Buscail

, et al. (2006) Validation study of terrestrial biomarker proxy (BIT index) in the Gulf of Lions (NW Mediterranean). Geophysical Research Abstracts 8: 07436.

29.

Kögler

Larsen

(1979) The West Bornholm basin in the Baltic Sea: geological structure and Quaternary sediments. Boreas 8(1): 1–22.

30.

Kortekaas

(2007) Post-glacial history of sea-level and environmental change in the southern Baltic Sea. Lundqua Thesis 57: 1–34.

31.

Kotrys

Tomczak

Witkowski

, et al. (2014) Diatom-based estimation of sea surface salinity in the south Baltic Sea and Kattegat. Baltica 27(2): 131–140.

32.

Kuroda

Jiménez-Espejo

Nozaki

, et al. (2016) Miocene to Pleistocene osmium isotopic records of the Mediterranean sediments. Paleoceanography 31(1): 148–166.

33.

Levasseur

Birck

Allegre

(1998) Direct measurement of femtomoles of osmium and the 187Os/186Os ratio in seawater. Science 282(5387): 272–274.

34.

Levasseur

Birck

Allègre

(1999) The osmium riverine flux and the oceanic mass balance of osmium. Earth and Planetary Science Letters 174(1-2): 7–23.

35.

Melvasalo

Pawlak

Grasshoff

, et al. (eds) (1981) Assessment of the effects of pollution on the natural resources of the Baltic Sea, 1980. Baltic Sea Environmental Proceedings 5B: 426.

36.

Moros

Kotilainen

Snowball

, et al. (2020) Is ‘deep-water formation’ in the Baltic Sea a key to understanding seabed dynamics and ventilation changes over the past 7,000 years? Quaternary International 550: 55–65.

37.

Moros

Lemke

Kuijpers

, et al. (2002) Regressions and transgressions of the Baltic basin reflected by a new high-resolution deglacial and postglacial lithostratigraphy for Arkona Basin sediments (western Baltic Sea). Boreas 31(2): 151–162.

38.

Nier

(1937) The isotopic constitution of osmium. Physical Review 52: 885–885.

39.

Nordberg

(1991) Oceanography in the Kattegat and Skagerrak over the past 8000 years. Paleoceanography 6(4): 461–484.

40.

Nowell

Luguet

Pearson

, et al. (2008) Precise and accurate 186Os/188Os and 187Os/188Os measurements by multi-collector plasma ionisation mass spectrometry (MC-ICP-MS) part I: Solution analyses. Chemical Geology 248(3–4): 363–393.

41.

Omstedt

Elken

Lehmann

, et al. (2004) Knowledge of the Baltic Sea physics gained during the BALTEX and related programmes. Progress in Oceanography 63: 1–28.

42.

Ownsworth

Moros

Lloyd

, et al. (2024) Multi-proxy palaeoenvironmental reconstruction of the Skagerrak from the Lateglacial to Middle Holocene. Boreas 53(3): 360–375.

43.

Ownsworth

Selby

Lloyd

, et al. (2023) Tracking sediment delivery to central Baffin Bay during the past 40 kyrs: Insights from a multiproxy approach and new age model. Quaternary Science Reviews 308: 108082.

44.

Oxburgh

(1998) Variations in the osmium isotope composition of sea water over the past 200,000 years. Earth and Planetary Science Letters 159(3-4): 183–191.

45.

Oxburgh

(2001) Residence time of osmium in the oceans. Geochemistry Geophysics Geosystems 2(6).

46.

Paquay

Ravizza

(2012) Heterogeneous seawater 187Os/188Os during the Late Pleistocene glaciations. Earth and Planetary Science Letters 349-350: 126–138.

47.

Pegram

Krishnaswami

Ravizza

, et al. (1992) The record of sea water ¹⁸⁷Os¹⁸⁶Os variation through the Cenozoic. Earth and Planetary Science Letters 113(4): 569–576.

48.

Peucker-Ehrenbrink

Blum

(1998) Re-Os isotope systematics and weathering of Precambrian crustal rocks: Implications for the marine osmium isotope record. Geochimica et Cosmochimica Acta 62(19–20): 3193–3203.

49.

Peucker-Ehrenbrink

Ravizza

(1996) Continental runoff of osmium into the Baltic Sea. Geology 24(4): 327–330.

50.

Peucker-Ehrenbrink

Ravizza

(2012) Osmium isotope stratigraphy. In: Gradstein

Ogg

Schmitz

Ogg

(eds) The Geologic Time Scale, Vol. 1, Elsevier, pp.145–166.

51.

Peucker-Ehrenbrink

Ravizza

(2000) The marine osmium isotope record. Terra Nova 12(5): 205–219.

52.

Plint

Gröcke

Selby

, et al. (2025) The Cenomanian–Turonian boundary interval in the Western Canada Foreland Basin: Stratigraphy, geochemistry, geochronology and sea-level changes recorded in expanded and condensed clastic successions. Depositional Record 11: 1200–1258.

53.

Poirier

Hillaire-Marcel

(2011) Improved Os-isotope stratigraphy of the Arctic Ocean. Geophysical Research Letters 38(14): 10–15.

54.

Ravizza

Turekian

(1989) Application of the 187Re-187Os system to black shale geochronometry. Geochimica et Cosmochimica Acta 53(12): 3257–3262.

55.

Rooney

Hnatyshin

Toma

, et al. (2024) Application of the 187Re-187Os geochronometer to crustal materials: Systematics, methodology, data reporting and interpretation. Geological Society of America Bulletin 136(9–10): 4091–4129.

56.

Rooney

Selby

Lloyd

, et al. (2016) Tracking millennial-scale Holocene glacial advance and retreat using osmium isotopes: Insights from the Greenland ice sheet. Quaternary Science Reviews 138: 49–61.

57.

Rosentau

Bennike

Uscinowicz

, et al. (2017) The Baltic Sea Basin.

58.

Rößler

Moros

Lemke

(2011) The Littorina transgression in the southwestern Baltic Sea: New insights based on proxy methods and radiocarbon dating of sediment cores. Boreas 40(2): 231–241.

59.

Selby

Creaser

(2003) Re–Os geochronology of organic rich sediments: An evaluation of organic matter analysis methods. Chemical Geology 200(3-4): 225–240.

60.

Selby

Cumming

Rooney

, et al. (2013) Hydrocarbons/Rhenium-Osmium (Re-Os): Organic-Rich Sedimentary rocks. In: Encyclopedia of Scientific Dating Methods. Springer Netherlands, pp.1–7.

61.

Sharma

Papanastassiou

Wasserburg

(1997) The concentration and isotopic composition of osmium in the oceans. Geochimica et Cosmochimica Acta 61(16): 3287–3299.

62.

Sinninghe Damsté

Schouten

Hopmans

, et al. (2002) Crenarchaeol: The characteristic core glycerol dibiphytanyl glycerol tetraether membrane lipid of cosmopolitan pelagic crenarchaeota. Journal of Lipid Research 43(10): 1641–1651.

63.

Sinninghe Damsté

Warden

Berg

, et al. (2022) Evaluation of the distributions of hydroxylated glycerol dibiphytanyl glycerol tetraethers (GDGTS) in Holocene Baltic Sea sediments for reconstruction of sea surface temperature: The effect of changing salinity. Climate of the Past 18(10): 2271–2288.

64.

Sjöqvist

Godhe

Jonsson

, et al. (2015) Local adaptation and oceanographic connectivity patterns explain genetic differentiation of a marine diatom across the North Sea-Baltic Sea salinity gradient. Molecular Ecology 24(11): 2871–2885.

65.

Sollai

Hopmans

Bale

, et al. (2017) The Holocene sedimentary record of cyanobacterial glycolipids in the Baltic Sea: An evaluation of their application as tracers of past nitrogen fixation. Biogeosciences 14(24): 5789–5804.

66.

Taylor

Selby

Lloyd

, et al. (2024) Palaeoenvironmental reconstruction of Loch Duart (NW Scotland, UK) since the Last Glacial Maximum: Implications from a multiproxy approach. Journal of Quaternary Science 39(1): 6–23.

67.

Taylor

Selby

Lloyd

, et al. (2025) Palaeoenvironmental reconstruction of a fjord catchment NW Scotland, UK since the Last Glacial Maximum: A multi-geochemical approach. Quaternary Science Reviews 356: 109311.

68.

Tuuling

Bauert

Willman

, et al. (2011) The Baltic Sea: Geology and Geotourism Highlights. NGO GEOGuide Baltoscandia.

69.

Völkening

Walczyk

Heumann

(1991) Osmium isotope ratio determinations by negative thermal ionization mass spectrometry. International Journal of Mass Spectrometry and Ion Processes 105: 147–159.

70.

Wang

Liu

Zhang

, et al. (2013) Branched and Isoprenoid Tetraether (BIT) Index Traces Water Content Along Two Marsh-Soil Transects Surrounding Lake Qinghai: Implications for Paleo-Humidity Variation. Organic Geochemistry 59. Elsevier Ltd, pp.75–81.

71.

Warden

Moros

Neumann

, et al. (2017) Climate induced human demographic and cultural change in northern Europe during the mid-Holocene. Scientific Reports 7(1): 15251.

72.

Warden

Moros

Weber

, et al. (2018) Change in provenance of branched glycerol dialkyl glycerol tetraethers over the Holocene in the Baltic Sea and its impact on continental climate reconstruction. Organic Geochemistry 121: 138–154.

73.

Zillén

Conley

Andrén

, et al. (2008) Past occurrences of hypoxia in the Baltic Sea and the role of climate variability, environmental change and human impact. Earth-Science Reviews 91(1–4): 77–92.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.17 MB

Tracking postglacial palaeoceanographic change of the Baltic Sea Basin using Osmium isotopes: Transition between the freshwater Ancylus Lake and the marine/brackish Littorina Sea

Abstract

Keywords

Introduction

Present day Baltic Sea Basin geography and geology

Materials and methods

Sampling

Determination of the TOC content

Rhenium-osmium (Re-Os) isotope analysis

Diatom assemblages

BIT index

Results

The 187Os/188Os values of surface sediments

Holocene sedimentary record

Rhenium and osmium abundances and 187Os/188Os values

TOC content

Diatom assemblages

BIT index

Discussion

187Os/188Os composition characteristics of the present-day Baltic Sea basin

The transition of the Ancylus Lake to Littorina Sea

Ancylus Lake

Littorina Sea

Deeper sections

Implications and conclusions

Supplemental Material

sj-pdf-1-hol-10.1177_09596836261432434 – Supplemental material for Tracking postglacial palaeoceanographic change of the Baltic Sea Basin using Osmium isotopes: Transition between the freshwater Ancylus Lake and the marine/brackish Littorina Sea

Footnotes

Acknowledgements

ORCID iD

Ethical considerations

Author Contributions

Funding

Declaration of conflicting interests

Data availability statement

Supplemental material

References

Supplementary Material

The ¹⁸⁷Os/¹⁸⁸Os values of surface sediments

Rhenium and osmium abundances and ¹⁸⁷Os/¹⁸⁸Os values

¹⁸⁷Os/¹⁸⁸Os composition characteristics of the present-day Baltic Sea basin
