Antihistamines modulate the integrin signaling pathway in h9c2 rat cardiomyocytes

Abstract

The identification of biomarkers for toxicity prediction is crucial for drug development and safety evaluation. The selective and specific biomarkers for antihistamines-induced cardiotoxicity is not well identified yet. In order to evaluate the mechanism of the life-threatening effects caused by antihistamines, we used DNA microarrays to analyze genomic profiles in H9C2 rat cardiomyocytes that were treated with antihistamines. The gene expression profiles from drug-treated cells revealed changes in the integrin signaling pathway, suggesting that cardiac arrhythmias induced by antihistamine treatment may be mediated by changes in integrin-mediated signaling. It has been reported that integrin plays a role in QT prolongation that may induce cardiac arrhythmia. These results indicate that the integrin-mediated signaling pathway induced by antihistamines is involved in various biological mechanisms that lead to cardiac QT prolongation. Therefore, we suggest that genomic profiling of antihistamine-treated cardiomyocytes has the potential to reveal the mechanism of adverse drug reactions, and this signal pathway is applicable to prediction of in vitro cardiotoxicity induced by antihistamines as a biomarker candidate.

Keywords

QT/QTc antihistamine genomics integrin

Introduction

Certain non-antiarrhythmic drugs produce undesirable effects by delaying cardiac repolarization, which can be defined as a prolongation of the QT interval on a surface electrocardiogram (ECG).¹ The QT interval represents the duration of ventricular depolarization and subsequent repolarization and is measured from the beginning of the QRS complex to the end of the T wave. QT prolongation and proarrhythmias have been the most common reasons for the withdrawal of a wide variety of therapeutic drugs from the market. Identification of toxicity biomarkers may potentially provide a solution to these challenges; however, the number of effective and reliable cardiovascular biomarkers currently available is low. Therefore, there is a compelling need to find suitable biomarkers for drug safety prediction and evaluation.

First-generation sedative antihistamines, such as diphenhydramine, are still widely used in several countries where they are the major cause of drug toxicity, regarding their marked central nervous system and anticholinergic adverse effects,² where they are a major cause of drug toxicity. Second-generation, nonsedating histamine H₁-receptor antagonist antihistamines were introduced in the 1980s.³ However, after a decade of worldwide usage, the second-generation drugs terfenadine and astemizole were found to cause prolonged QT interval measured on ECGs, leading to their withdrawal from the market.^4,5 The side effects of the drugs were primarily attributed to blockade of cardiac potassium channel currents, resulting in impaired repolarization of the heart and increased risk of ventricular tachyarrhythmia (torsades de pointes (TdP)). Another second-generation antihistamine, loratadine, has been studied extensively in vitro and in the clinic to assess whether it has any risk of QT prolongation.^6,7

The molecular mechanism underlying the adverse reactions of the QT-prolonging drugs is thought to be via the blockade of the delayed rectifier potassium channels (IKr), encoded by the human ether-a-go-go-related gene (hERG).^8,9 Especially, antihistamine such as astemizole was reported to directly bind to and block the hERG channel.¹⁰ The potential cardiovascular side effects of these drugs could not be identified during the process of drug development and approval, due to limitations of the technologies for biomarker screening available at that time. Therefore, there is a critical requirement for reliable and predictable screening methods, on a larger genomic scale, in order to prevent unanticipated withdrawal of drugs from the market.

In this study, we analyzed genomic profiles of rat cardiomyocytes for the screening of putative biomarker candidates, which are specific to adverse effects caused by astemizole, loratadine, and terfenadine.

Materials and methods

Chemicals and reagents

Astemizole, loratadine, and terfenadine were purchased from Sigma Chemical Co. (St Louis, Missouri, USA). Microarray chips and reagents for rat genome were purchased from Applied Biosystems (Foster city, California, USA). Isopropanol, ethanol, and other routine chemicals were purchased from Sigma Chemical Co. unless mentioned otherwise.

Cell culture

H9C2 rat cardiomyocytes (CRL-1446, ATCC; American Type Culture Collection, Manassas, Virginia, USA) were cultured with Dulbecco’s modified Eagle’s medium (DMEM; Gibco BRL, Grand Island, New York, USA) supplemented with 10% fetal bovine serum, 2 mM l-glutamine, 1% penicillin/streptomycin, and maintained under fully humidified atmosphere of 95% air–5% carbon dioxide at 37°C.

RNA isolation and DNA microarray

After 24 h treatment of vehicle (DMEM with dimethyl sulfoxide 0.1%), astemizole, loratadine, or terfenadine to rat cardiomyocytes at concentrations of 0, 0.5, 1, and 5 µM, RNA isolation was performed. Astemizole (3.1 µM) was reported to cause between 20% and 30% cytotoxicity after 24 h treatment in H9C2 cardiomyocytes.¹¹ Therefore, we choose concentration range as above to study and compare the effects of antihistamines on gene expression. Total RNA was extracted using a Trizol (Invitrogen, Carlsbad, California, USA) in accordance with the manufacturer’s procedures. Quantity and purity (260/280 ratio) of RNA were monitored using the ultraviolet–visible spectrophotometer (ND-1000, NanoDrop Technologies, Wilmington, Delaware, USA). Differential gene expressions were profiled using rat genome survey array chips (Applied Biosystems, Foster City, California, USA) containing 60-mer oligonucleotide probes representing a set of 27,088 individual rat genes and more than 1000 control probes. Microarray experiments were performed according to manufacturer’s instructions. Digoxigenin (DIG)–uridine triphosphate-labeled complementary RNA (cRNA) was generated from 5 µg of total RNA and amplified using a chemiluminescent reverse transcription in vitro transcription labeling kit (Applied Biosystems). Briefly, each microarray was prehybridized in hybridization buffer with blocking reagent at 55°C for 1 h. DIG-labeled cRNA targets (10 µg) were fragmented to 100–400 bp and hybridized with each prehybridized microarray at 55°C for 16 h. Arrays were washed with hybridization wash buffer, followed by chemiluminescence rinse buffer. Chemiluminescent signals were generated by incubating arrays with anti-DIG–alkaline phosphatase and chemiluminescence substrate. Images were collected for each microarray using a Model 1700 Chemiluminescent Microarray Analyzer (Applied Biosystems).

Analysis of microarray expression data

Signal intensities were imported into Avadis software (Strand and Stratagene, Bengaluru, Karnataka, India). Interarray quantile normalization was performed in order to minimize the effect of external variables. Average values of gene expression ratios obtained from three replicates were calculated. Differentially expressed genes (DEGs) were selected based on fold changes of ≥2 and p value of <0.05. For further analysis, DEGs were categorized according to their biological functions using the Protein ANalysis THrough Evolutionary Relationships (PANTHER) classification system (Applied Biosystems, https://panther.appliedbiosystems.com). Functional classification of DEGs was performed by Kyoto Encyclopedia of Genes and Genomes (KEGG; http://www.genome.ad.jp/kegg/kegg2.html).¹²

Statistical analysis

Statistical analyses were performed using the Avadis softwar (Strand and Stratagene). Welch’s t test was applied to select DEGs induced by antihistamine treatments.

Results

Differentially expressed genes in astemizole-, loratadine-, and terfenadine-treated H9C2 rat cardiomyocytes

The effects of astemizole, loratadine, and terfenadine on gene expression in rat cardiomyocytes were examined. Total RNA, derived from H9C2 rat cardiomyocytes treated at various doses and the untreated control as well, was subjected to cRNA synthesis. Table 1 shows the number of differentially expressed genes (fold change ≥2, p < 0.05) 24 h after astemizole, loratadine, and terfenadine treatments. Of the 27,088 genes represented on the chip, 768 genes were differentially expressed upon astemizole treatment. At a dose of 5 µM astemizole, 592 genes were modulated; 350 genes were upregulated, and 242 genes were downregulated. Treatment with loratadine resulted in the differential expression of 316 genes, 238 of which were modulated at a dosage of 5 µM. In the terfenadine treatment group, 240 genes were differentially expressed (102, 75, and 63 genes at 0.5, 1, and 5 µM doses, respectively). The hierarchical clustering with astemizole, loratadine, and terfenadine is shown in Figure 1(a) to (c). In order to compare the biological pathways induced by astemizole, loratadine, and terfenadine, differentially expressed genes were classified according to their biological processes. As shown in Figure 2, the genes modulated by these three drugs showed similar biological process classifications in H9C2 rat cardiomyocytes, even though the numbers of differentially expressed genes varied. In order to obtain detailed information on gene expression profiles, we further analyzed and compared individual genes modulated by astemizole, loratadine, and terfenadine.

Table 1.

The number of differentially expressed genes by treatment of astemizole, loratadine, and terfenadine.^a

	Astemizole			Loratadine			Terfenadine
	0.5 µM	1 µM	5 µM	0.5 µM	1 µM	5 µM	0.5 µM	1 µM	5 µM
Up	43	44	350	18	40	137	50	30	45
Down	55	34	242	9	11	101	52	45	18
Total	98	78	592	27	51	238	102	75	63

^aThe numbers indicate differentially expressed genes (fold change ≥2, p value <0.05) 24 h after astemizole, loratadine, and terfenadine treatments.

Figure 1.

Hierarchical clusterings of astemizole (a), loratadine (b), and terfenadine (c)-treated gene expression in H9C2 rat cardiomyocytes. H9C2 rat cardiomyocytes were seeded at a density of 3 × 10⁶ cells in 75-cm² tissue culture flasks. Cells were treated with 0, 0.1, 0.5, 1, and 5 µM of astemizole, loratadine, and terfenadine, respectively. The cells were harvested 24 h after treatment. Data were measured using a cRNA microarray with elements representing 27,088 distinct rat genes. All measurements are relative to nontreated control. Expression values are displayed within the rage [−3, 3] with levels above, equal to, or below the mean displayed in red, black, and green, respectively. Each gene is represented by a single row of colored boxes; each concentration is represented by a single column. cRNA: complementary RNA.

Figure 2.

PANTHER biological process classification of genes differentially expressed by astemizole, loratadine, and terfenadine in H9C2 rat cardiomyocytes. This figure represents various gene families that are overrepresented or underrepresented by antihistamine treatments. The number of genes for each gene family that were differentially represented are shown in the figure. Signal transduction is the most affected gene family in antihistamine treatment cells.

Gene expression profile analysis in astemizole-, loratadine-, and terfenadine-treated H9C2 rat cardiomyocytes

To identify genes commonly and specifically expressed in response to treatment with the three antihistamines, Venn diagram analysis was used (Figure 3). Results indicated that the numbers of commonly modulated genes within each drug pair were 53 (astemizole and loratadine groups, Table 2), 9 (astemizole and terfenadine groups, Table 3), and 7 (loratadine and terfenadine groups, Table 4). However, there was only one gene commonly modulated by all these three drugs (Table 5). All genes modulated by astemizole, loratadine, and terfenadine were classified into functional pathways using the PANTHER classification system. As shown in Figure 4, the genes modulated by astemizole, loratadine, and terfenadine were mostly involved in the integrin signaling pathway, interleukin signaling pathway, angiogenesis, inflammation-mediated signaling pathway, and Wnt signaling pathway. The genes that were functionally categorized in the integrin signaling pathway were further analyzed by KEGG pathway mapping. The results from the pathway mapping are shown in Figure 5.

Figure 3.

Venn diagram of commonly modulated genes by treatment with astemizole, loratadine, and terfenadine in H9C2 rat cardiomyocytes at concentrations of 0.5, 1, and 5 µM. Number indicates number of genes.

Figure 4.

PANTHER pathway analysis of commonly modulated genes by treatment with astemizole, loratadine, and terfenadine in H9C2 rat cardiomyocytes. The number of genes for each pathway that were differentially represented are shown in the figure. Intergrin signalling pathway is the most affected signal transduction in antihistamine treatment cells.

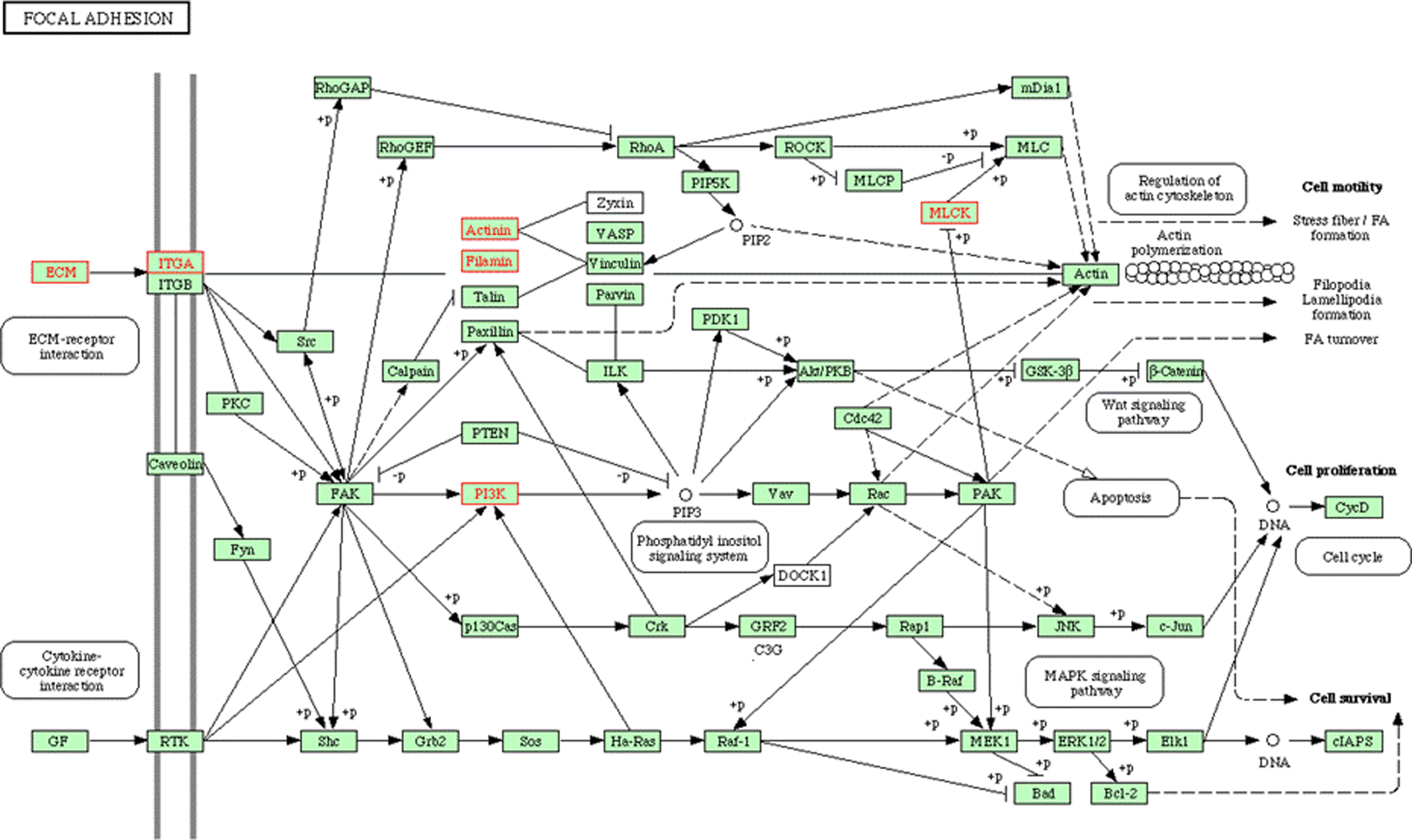

Figure 5.

The KEGG pathway map of gene expression data from astemizole, loratadine, and terfenadine in H9C2 rat cardiomyocytes. A rectangle and a circle represent, respectively, an enzyme and a compound. The enzymes whose genes are identified in the genome are shown by colored (shaded) rectangles. KEGG: Kyoto Encyclopedia of Genes and Genomes.

Table 2.

Commonly modulated genes in astemizole and loratadine groups.^a

Gene ID	Gene symbol	Gene name	Astemizole (0.5 µM)		Astemizole (1 µM)		Astemizole (5 µM)		Loratadine (0.5 µM)		Loratadine (1 µM)		Loratadine (5 µM)
Gene ID	Gene symbol	Gene name	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value
299269	COX6A2	Cytochrome c oxidase, subunit via, polypeptide 2	0.54	0.3530	1.41	0.0973	3.43	0.0031^d	−0.04	0.9083	0.29	0.4187	1.22	0.0191^d
113955	UNASSIGNED	Putative ISG12(b) protein	1.00	0.1631	1.36	0.0929	2.87	0.0165^d	0.25	0.0157^d	0.48	0.0235^d	2.11	0.0003^d
24421	GPNMB	Glycoprotein (transmembrane) NMB⁴	0.56	0.0382^d	0.27	0.6706	2.35	0.0038^d	0.41	0.0793	0.44	0.0622	1.52	0.0020^d
365042	GSTA3	Glutathione S-transferase A3	0.43	0.4639	1.27	0.1705	2.28	0.0184^d	0.65	0.4180	0.95	0.2618	2.93	0.0167^d
302642	RGD1559997^b	Similar to RAB32^c	0.32	0.1272	0.60	0.1616	1.82	0.0141^d	0.41	0.2665	0.02	0.9368	1.03	0.0043^d
246273	UNASSIGNED	Spermidine/spermine n1-acetyl transferase (mapped)	0.46	0.0070^d	0.80	0.0334^d	1.81	0.0003^d	−0.06	0.4683	0.20	0.2715	1.13	0.0000^d
310132	TRIB3	Tribbles homolog 3 (Drosophila)	0.48	0.1115	0.58	0.1443	1.71	0.0021^d	0.12	0.4397	0.20	0.2333	1.25	0.0007^d
RCG20347	OSMR	Oncostatin M receptor	0.53	0.3171	1.45	0.1522	1.70	0.0338^d	0.47	0.1753	0.48	0.2522	1.21	0.0224^d
24314	AKR1B8	Aldo-keto reductase Family 1, member b8	0.14	0.6467	0.72	0.0203^d	1.61	0.0042^d	0.13	0.6947	0.08	0.8156	0.69	0.0200^d
287472	NQO1	NAD(P)H dehydrogenase, quinone 1	0.24	0.1784	0.49	0.1786	1.55	0.0065^d	0.17	0.5323	0.21	0.4970	1.55	0.0026^d
29467	TLCD1	TLC domain containing 1	0.44	0.1535	0.66	0.0697	1.43	0.0063^d	0.16	0.5079	0.24	0.0379^d	0.62	0.0025^d
RCG30725	DDIT3	DNA damage-inducible transcript 3	0.48	0.0470^d	0.55	0.0329^d	1.42	0.0153^d	0.26	0.1823	0.24	0.2533	1.09	0.0001^d
24827	TXNRD3 ^b	Thioredoxin reductase 3^c	0.40	0.1370	0.58	0.0138^d	1.29	0.0045^d	0.43	0.2723	0.15	0.6188	1.05	0.0341^d
24567	TGFA	Transforming growth factorα	0.25	0.5479	0.40	0.3393	1.28	0.0254^d	0.23	0.5583	0.42	0.3339	1.37	0.0262^d
296271	MT1A	Metallothionein 1α	0.14	0.3371	0.39	0.0454^d	1.22	0.0010^d	0.30	0.2714	0.36	0.2155	1.28	0.0094^d
296271	SRXN1	Sulfiredoxin 1 homolog (Saccharomyces cerevisiae)	0.14	0.5292	0.35	0.2119	1.12	0.0151^d	−0.03	0.8565	0.33	0.1153	0.72	0.0124^d
RCG31672	AKNA ^b	AT-hook transcription factor^c	0.16	0.6077	0.56	0.3976	1.10	0.0351^d	0.14	0.5363	0.51	0.0214^d	0.88	0.0119^d
RCG30030	CNIH2	Cornichon homolog 2 (Drosophila)	0.33	0.0999	0.51	0.2872	1.04	0.0159^d	0.15	0.3512	0.37	0.2711	0.59	0.0047^d
317580	RGD1306697 ^b	Similar to HSPC049 protein^c	0.17	0.5238	0.59	0.1747	0.91	0.0305^d	0.32	0.2922	0.41	0.2449	0.77	0.0385^d
304669	RAB33A ^b	RAB33a, member of RAS oncogene family^c	0.22	0.3548	0.09	0.6729	0.90	0.0438^d	0.15	0.4353	0.04	0.9302	0.66	0.0448^d
497954	HOOK2	HOOK homolog 2 (Drosophila)	0.20	0.4249	0.28	0.3254	0.84	0.0355^d	0.30	0.4123	0.25	0.2820	0.83	0.0197^d
288031	RGD1564623 ^b	Similar to candidate tumor suppressor OVCA2^c	0.17	0.1635	0.91	0.2786	0.80	0.0465^d	0.42	0.4348	0.86	0.0113^d	0.56	0.1479
294673	RGD1304790	Similar to CG8312-PA	0.00	0.9963	0.60	0.2675	0.77	0.0041^d	−0.04	0.8571	0.23	0.6409	0.63	0.0230^d
25027	HEXB	Hexosaminidase B	0.10	0.4684	0.29	0.0961	0.76	0.0009^d	−0.01	0.9639	0.19	0.3051	0.69	0.0079^d
314128	SLC16A1	Solute carrier family 16 (monocarboxylic acid transporters), member 1	−0.01	0.9554	0.44	0.3016	0.76	0.0110^d	0.03	0.7913	0.09	0.5859	0.62	0.0012^d
60630	RGD1304624 ^b	Similar to RIKEN cDNA 2700097o09^c	0.30	0.2432	0.92	0.2429	0.76	0.0274^d	−0.10	0.6121	0.06	0.6968	0.60	0.0296^d
308291	UNC5B	UNC-5 homolog B (Caenorhabditis elegans)	0.10	0.5240	0.25	0.2114	0.75	0.0036^d	0.13	0.3534	0.18	0.1717	0.67	0.0017^d
296560	PHACTR2	Phosphatase and actin regulator 2	0.43	0.0602	0.67	0.1544	0.70	0.0190^d	0.07	0.7070	0.17	0.5255	0.60	0.0092^d
29292	UAP1L1 ^b	UDP-N-acetylglucosamine pyrophosphorylase 1-like 1^c	0.05	0.8297	0.03	0.9073	0.70	0.0285^d	0.10	0.4490	0.24	0.2088	1.01	0.0082^d
83837	FTL1	Ferritin light chain 1	0.07	0.4180	0.24	0.1036	0.66	0.0095^d	0.12	0.3684	0.03	0.8283	0.76	0.0034^d
RCG31441	BAMBI	BMP and activin membrane-bound inhibitor, homolog (Xenopus laevis)	0.24	0.0399^d	0.51	0.3394	0.63	0.0120^d	0.20	0.3335	0.31	0.1846	0.72	0.0263^d
25203	FRS2 ^b	Fibroblast growth factor receptor substrate 2^c	0.21	0.1586	−0.14	0.7867	0.59	0.0002^d	0.28	0.0247^d	0.21	0.6478	0.71	0.0019^d
312641	CCNB1	Cyclin B1	−0.24	0.2525	−0.20	0.4398	−0.62	0.0336^d	−0.06	0.4598	−0.19	0.0450^d	−0.65	0.0067^d
287961	UNASSIGNED	Fanconi anemia D2 protein	−0.19	0.2801	−0.04	0.9362	−0.63	0.0423^d	−0.24	0.2925	−0.23	0.3695	−0.59	0.0286^d
296600	UNASSIGNED	Similar to cell division cycle 45 homolog (Saccharomyces cerevisiae) like	−0.21	0.1871	−0.25	0.3779	−0.65	0.0027^d	−0.22	0.4121	−0.30	0.2299	−0.91	0.0160^d
291044	SLC2A6 ^b	Solute carrier family 2 (facilitated glucose transporter), member 6 2	−0.24	0.1919	0.00	0.9935	−0.77	0.0154^d	−0.13	0.3540	−0.27	0.0940	−0.82	0.0081^d
311336	NEDD9	Neural precursor cell expressed, developmentally downregulated gene 9	−0.24	0.0403^d	−0.43	0.0099^d	−0.80	0.0461^d	−0.17	0.3029	−0.18	0.2901	−0.75	0.0136^d
84393	NUSAP1 ^b	Nucleolar and spindle-associated protein 1^c	−0.36	0.2070	−0.43	0.1506	−0.81	0.0338^d	−0.14	0.2513	−0.20	0.2420	−0.64	0.0446^d
499839	KIF4	Kinesin family member 4	−0.22	0.3960	−0.09	0.8387	−0.89	0.0324^d	−0.15	0.1614	−0.26	0.0671	−0.71	0.0020^d
314584	RGD1564664 ^b	Similar to LOC387763 protein^c	−0.20	0.2400	−0.68	0.3098	−0.96	0.0276^d	−0.12	0.5944	−0.13	0.5230	−0.65	0.0201^d
315866	RGD1308729 ^b	Similar to ZFP-like protein^c	−0.31	0.3385	−1.22	0.2291	−0.97	0.0372^d	0.03	0.8549	−0.25	0.3740	−0.59	0.0297^d
25367	PRSS35	Protease, serine, 35	−0.40	0.0056^d	−0.29	0.4403	−1.17	0.0144^d	−0.19	0.0559	−0.22	0.0672	−0.61	0.0004^d
316767	ADARB1	Adenosine deaminase, RNA-specific, B1	−0.39	0.2512	−1.13	0.2774	−1.30	0.0176^d	−0.05	0.7232	−0.25	0.3789	−0.61	0.0161^d
171104	DDX11 ^b	Dead/H (Asp-Glu-Ala-Asp/His) box polypeptide 11 (chl1-like helicase homolog, Saccharomyces cerevisiae)^c	−0.34	0.1540	−0.15	0.7509	−1.44	0.0017^d	−0.11	0.5450	−0.18	0.4811	−0.95	0.0049^d
500124	GPR30	G protein-coupled receptor 30	−0.06	0.8714	0.06	0.9157	−1.52	0.0270^d	−0.09	0.7149	−0.43	0.1684	−1.17	0.0257^d

^aResults indicate the numbers of commonly modulated genes within each drug pair. Genes without any known function are not shown.

^bPredicted gene symbols.

^cPredicted gene names.

^d p value: <0.05 vs control.

Table 3.

Commonly modulated genes in astemizole and terfenadine groups.^a

Gene ID	Gene symbol	Gene name	Astemizole (0.5 µM)		Astemizole (1 µM)		Astemizole (5 µM)		Terfenadine (0.5 µM)		Terfenadine (1 µM)		Terfenadine (5 µM)
Gene ID	Gene symbol	Gene name	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value
81503	Cxcl1	Chemokine (C-X-C motif) ligand 1	0.76	0.2028	1.42	0.0637	3.27	0.0125^d	0.37	0.3391	0.53	0.1819	1.10	0.0463^d
171128	Gchfr	GTP cyclohydrolase I feedback regulator	0.29	0.0614	0.80	0.2023	1.12	0.0431^d	0.61	0.0099^d	0.04	0.8604	0.53	0.0273^d
304322	Chst12	Carbohydrate sulfotransferase 12	−0.22	0.0772	−0.17	0.1360	−0.82	0.0085^d	1.13	0.0002^d	0.95	0.0270^d	0.27	0.6502
25541	Scp2	Sterol carrier protein 2	−0.42	0.1920	−0.51	0.1873	−0.90	0.0208^d	−0.33	0.1620	−0.62	0.0240^d	−0.36	0.0169^d
288666	Vps29 ^b	Vacuolar protein sorting 29 (Schizosaccharomyces pombe)^c	−1.03	0.0831	−1.44	0.1802	−1.34	0.0474^d	−1.87	0.0261^d	−1.04	0.1170	−0.46	0.4776
313783	Olfm2	Olfactomedin 2	−0.13	0.7193	−1.61	0.3553	−1.45	0.0160^d	0.90	0.0321^d	1.05	0.0169^d	0.93	0.0233^d

^aResults indicate the numbers of commonly modulated genes within each drug pair. Genes without any known function are not shown.

^bPredicted gene symbols.

^cPredicted gene names.

^d p value: <0.05 vs control.

Table 4

Commonly modulated genes in loratadine and terfenadine groups.^a

Gene ID	Gene symbol	Gene name	Loratadine (0.5 µM)		Loratadine (1 µM)		Loratadine (5 µM)		Terfenadine (0.5 µM)		Terfenadine (1 µM)		Terfenadine (5 µM)
Gene ID	Gene symbol	Gene name	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value
63995	Dusp10 ^b	Dual specificity phosphatase 10^c	0.30	0.3238	0.25	0.4711	0.91	0.0349^d	0.31	0.1868	0.79	0.0678	0.94	0.0107^d
25531	Rab3a	RAB3A, member RAS oncogene family	1.07	0.0008^d	1.47	0.1226	0.89	0.2251	0.76	0.0102^d	0.72	0.0129^d	0.69	0.0034^d
24366	Fgb	Fibrinogen, B beta polypeptide	0.27	0.5467	−0.01	0.9673	0.82	0.0010	0.92	0.0091^d	0.05	0.6892	0.00	1.0000
363216	Cnnm4 ^b	Cyclin M4^c	−0.04	0.8012	0.20	0.2482	0.69	0.0390^d	−0.06	0.7214	0.43	0.4035	0.62	0.0207^d
307594	Mib1 ^b	Mindbomb homolog 1 (Drosophila)^c	0.30	0.4274	0.77	0.0170^d	0.67	0.1114	0.65	0.0179^d	0.26	0.3867	0.39	0.0513
308068	Nkd2 ^b	Naked cuticle 2 homolog (Drosophila)^c	−0.09	0.8701	−0.20	0.7050	−1.44	0.0366^d	−0.45	0.1908	−0.66	0.1586	−1.08	0.0476^d

^aResults indicate the numbers of commonly modulated genes within each drug pair. Genes without any known function are not shown.

^bPredicted gene symbols.

^cPredicted gene names.

^d p value: <0.05 vs control.

Table 5.

Commonly modulated genes in astemizole and loratadine groups.^a

Gene ID	Gene symbol	Gene name	Astemizole (0.5 µM)		Astemizole (1 µM)		Astemizole (5 µM)		Loratadine (0.5 µM)		Loratadine (1 µM)		Loratadine (5 µM)		Terfenadine (0.5 µM)		Terfenadine (1 µM)		Terfenadine (5 µM)
Gene ID	Gene symbol	Gene name	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value	Fold	p Value
307016	Arhgap12 ^b	Rho GTPase activating protein 12^c	−0.14	0.5951	−0.14	0.5894	−1.01	0.0287^d	0.75	0.0255^d	0.71	0.0617	0.88	0.0212^d	0.82	0.0073^d	0.68	0.0127^d	1.07	0.0047^d

^aResults indicate the numbers of commonly modulated genes within each drug pair.

^bPredicted gene symbols.

^cPredicted gene names.

^d p value: <0.05 vs control.

Discussion

Antihistamines, such as astemizole and terfenadine, are associated with TdP-type arrhythmias, arrhythmias syncope and even sudden death. The main mechanism of antihistamines-induced cardiovascular toxicity is the iKr current block, which play a role in QT interval prolongation, a biomarker of multiple arrhythmias. However, it is well recognized that a QT alone is not adequate for assessment of drug-induced cardiac toxicity, because QT prolongation has a poor correlation with occurrence of TdP.¹³ In addition, it has also been reported that hERG block is not necessarily related to increased arrhythmic risk. Thus, a large body of research has been directed at identifying new biomarkers of drug cardiotoxicity.¹⁴ In this study, DNA microarrays were used for identifying and analyzing putative biomarkers that are regulated by the treatment of cardiomyocytes with astemizole, loratadine, and terfenadine. PANTHER analysis revealed that genes of the integrin signaling pathway were most commonly modulated by astemizole, loratadine, and terfenadine treatment. Integrins play an important role in directing membrane localization and functional association of ion channels,^15,16 especially HERG potassium channels and L-type calcium (Ca²⁺) channels,¹⁷ which are known to be involved in QT prolongation during cardiac arrhythmia. Furthermore, a study of gene expression profile of the myocardial response to QT prolonging drug reveals integrin signaling as novel pathways of action.¹⁸ From our DNA microarray studies, we identified 53 genes that were commonly modulated by astemizole and loratadine in H9C2 rat cardiomyocytes, of which 3 were involved in integrin signaling. Spermidine/spermine N1-acetyltransferase 1 is a rate-limiting enzyme in polyamine metabolism¹⁹ that binds specifically to the integrin cytoplasmic domains and enhances integrin-mediated cell migration in leukocytes.²⁰ Ras-associated binding guanosine triphosphatases (Rab-GTPases) associate with integrin subunits and play an important role in integrin trafficking, which regulates membrane protrusion activity.²¹ Rab33a, a member of the Ras oncogene superfamily of small GTPases, localizes to the Golgi apparatus and mediates vesicular transport in rat embryonic hippocampal neurons.²² The Golgi apparatus is important for normal protein processing, which includes processing of the hERG protein that contributes to the pathogenesis of long QT syndrome.^23–25 G protein-coupled receptor 30 (GPR30), a member of the rhodopsin-like family of G protein-coupled receptors, is a multi-pass membrane protein that localizes to the endoplasmic reticulum.²⁶ GPR30 plays an important role in cardiac arrhythmic pathogenesis by binding with estrogens, which are a group of steroid hormones that regulate the activity of cardiac ion channels and modulate cardiac repolarization, causing QT prolongation.²⁷ GPR30 also coordinates estrogen-mediated fibronectin matrix assembly and promotes the formation of Src-dependent, Shc-integrin α5β1 complexes,²⁸ which modulate L-type calcium channels.²⁹ One of the genes that were commonly modulated with astemizole and terfenadine encoded a chemokine ligand, chemokine (C–X–C motif) ligand 1 (CXCL1), which is also involved in integrin signaling. CXCL1 is a member of the CXC subfamily of chemokines, which binds the G protein-coupled receptor chemokine CXC receptor 2 (CXCR2)³⁰ and facilitates the activation of β₂ integrins.³¹ Loratadine and terfenadine treatment commonly modulated the rab3a gene that encodes a small GTP-binding protein of the Ras superfamily. Rab3A protein is functionally regulated by Ca²⁺ and calmodulin (CaM) and plays an important role in vesicle trafficking between intracellular organelles, endocytosis, and exocytosis.³² Comparison of astemizole-, loratadine-, and terfenadine-treated cardiomyocytes revealed one commonly modulated gene, Rho GTPase activating protein 12 (arhgap12), which encodes a member of a large family of proteins that activate Rho-GTP-metabolizing enzymes and is involved in vesicular transport.^33,34 There have been reports that the small GTPase Rho is associated with and is functionally regulated by integrins.²¹ Rho proteins also influence ventricular arrhythmias by mediating the inhibition of inwardly rectifying potassium channel Kir2.1.³⁵ Meanwhile, it has been reported that integrin itself may be linked to heart failure in humans and is associated with myocardial dysfunction, cardiac arrhythmias, and sudden death in mice.^36–40 Therefore, all this evidence indicates that the integrin-mediated signaling pathway is involved in various biological mechanisms that lead to cardiac QT prolongation. Our results highlight the possible relationship between antihistamine-induced cardiac arrhythmia and the integrin-mediated signaling pathway. In conclusion, our genomic profiling experiments have provided significantly large data sets, from which highly specific and effective cardiac biomarkers for antihistamine-induced arrhythmia can be identified, which are critical for toxicity testing during drug development.

Footnotes

Conflict of interest

The authors declared no conflicts of interest.

Funding

This work was supported by Ministry of Food and Drug Safety grant.
