Safety assessment of the Clostridium butyricum MIYAIRI 588 ® probiotic strain including evaluation of antimicrobial sensitivity and presence of Clostridium toxin genes in vitro and teratogenicity in vivo

Abstract

Probiotics are live microorganisms ingested for the purpose of conferring a health benefit on the host. Development of new probiotics includes the need for safety evaluations that should consider factors such as pathogenicity, infectivity, virulence factors, toxicity, and metabolic activity. Clostridium butyricum MIYAIRI 588^® (CBM 588^®), an anaerobic spore-forming bacterium, has been developed as a probiotic for use by humans and food animals. Safety studies of this probiotic strain have been conducted and include assessment of antimicrobial sensitivity, documentation of the lack of Clostridium toxin genes, and evaluation of CBM 588^® on reproductive and developmental toxicity in a rodent model. With the exception of aminoglycosides, to which anaerobes are intrinsically resistant, CBM 588^® showed sensitivity to all antibiotic classes important in human and animal therapeutics. In addition, analysis of the CBM 588^® genome established the absence of genes for encoding for α, β, or ε toxins and botulin neurotoxins types A, B, E, or F. There were no deleterious reproductive and developmental effects observed in mice associated with the administration of CBM 588^®. These data provide further support for the safety of CBM 588^® for use as a probiotic in animals and humans.

Keywords

antibiotic sensitivity teratogenicity reproductive and developmental toxicity

Introduction

Probiotics are defined internationally as live microorganisms that, when administered in adequate amounts, confer a health benefit on the host.¹ The safety in use of many probiotics has been extensively studied and documented.^2
–4 The most common and well-studied probiotics include Lactobacillus spp., Bifidobacterium spp., Pediococcus spp., Bacillus spp., and Escherichia coli, along with Enterococcus spp., Streptococcus spp., and Leuconostoc spp. Probiotics have been studied in healthy individuals as well as in “at-risk” subjects, such as preterm infants,^5,6 the elderly,⁷ hospitalized children,⁸ and adults.⁹

However, the safety of new probiotics must be established. In 2002, Food and Agriculture Organization/World Health Organization (WHO) published guidelines for the evaluation of microbes for their use as probiotics. Among the safety assessments recommended were the determination of antibiotic resistance patterns and testing for toxin production if the strain under evaluation belongs to a species known to produce toxins.¹⁰ Antibiotic resistance, particularly in light of the growing number of resistant pathogens, has become a public health concern. Acquired antibiotic resistance (via plasmids or bacteriophages) is considered to have a high potential for the horizontal transfer of resistance genes,¹¹ while intrinsic resistance is presumed to possess a minimal potential for horizontal spread.

The genus Clostridium consists of a heterogeneous group of bacteria, classified by a few shared characteristics: rod-shaped vegetative forms, Gram positive, the formation of heat-stable endospores, anaerobic growth, fermentative growth with no dissimilatory sulfate reduction, and genomic DNA with a low percent of guanine and cytosine.¹² A recent study indicates that non-toxigenic Clostridium colonization may increase the percent and function of regulatory T cells in the colon and draining lymph nodes of mice.¹³ However, several Clostridium species (i.e. C. botulinum, C. difficile, C. tetani, and C. perfringens) are known human and animal pathogens due to their toxin production.¹⁴ One of the virulent pathogenic Clostridium spp. is C. perfringens, which has been isolated from soil and fecal samples of animals and humans. The major virulence factors of C. perfringens include α, β, and ε toxins.¹⁵ In addition, the highly potent botulinum neurotoxins (BoNT), the causative agent in all cases of botulism¹⁶ are known to be produced by many Clostridium species.

C. butyricum MIYAIRI588^® (CBM 588^®) was isolated from soil in Nagano, Japan, in the 1960s. CBM 588^® has been widely used as a probiotic in humans and animals^17,18 in Japan. It is also currently authorized in the European Union as a feed additive for turkeys, chickens and related minor avian species, and weaned piglets and minor porcine species^19
–21 and as a novel ingredient for use in food supplement.²² In previous studies, concentrated CBM 588^® powders did not produce toxicity in rats or dogs during short-term administration^23,24 or when fed to rats, up to 5000 mg/kg in diet (241 mg/kg body weight (BW) or 288 mg/kg BW male and female, respectively), for 12 months.²⁵

The purpose of the studies reported in this article was to assess the safety of CBM 588^® with regard to antimicrobial resistance, the presence of Clostridium toxin genes, and the effect on reproduction and development.

Methods

Bacteria and other reagents

CBM 588^® was obtained from Miyarisan Pharmaceutical Co, Ltd (Tokyo, Japan). CBM 588 was originally isolated from soil, and it has been deposited in the National Institute of Technology and Evaluation, Patent Microorganism Depository (NPMD), Japan, under the Budapest Treaty as an internationally recognized depository for the microorganisms with the deposited no. FERM BP-2789. The biochemical and genetic characteristics were well identified and reported previously.^26,27 Standard culturing conditions for CBM 588 are anaerobic conditions (nitrogen 80%, carbon dioxide 10%, and hydrogen 10%) at 37°C for 24 h in brain heart infusion (BHI) broth (Oxoid, Hampshire, UK). Evaluation of minimum inhibitory concentration included incubation with various antibiotics.

ATCC strains (Bacteroides fragilis ATCC 25285, C. butyricum ATCC 19398^T) were obtained directly from the American Type Culture Collection (ATCC. JCM strains (C. perfringens JCM 1290^T; C. perfringens JCM 3816; C. perfringens JCM 3817; C. perfringens JCM 3818; C. perfringens JCM 3819 were obtained directly from Japan Collection of Microorganisms (JCM). KZ strains (C. perfringens KZ 210; Type A BoNT producing C. botulinum KZ 2; Type B BoNT producing C. botulinum KZ 1710; Type F BoNT producing C. botulinum KZ 47; Type E BoNT producing C. botulinum KZ 1896) were obtained through a partnership with Kanazawa University.

Antimicrobial powders were obtained from the following sources: benzyl penicillin, lincomycin, colistin, bacitracin, chlortetracycline, oxytetracycline, doxycycline, amikacin and fosfomycin from Wako Pure Chemical Industries Ltd (Osaka, Japan); ampicillin, chloramphenicol, clindamycin hydrochloride, erythromycin, gentamicin sulfate, kanamycin sulfate, metronidazole, streptomycin sulfate, tetracycline hydrochloride, vancomycin hydrochloride, carbenicillin, cefmetazole, cinoxacin, norfloxacin, ofloxacin, ciprofloxacin, lomefloxacin, cephalothin, cefazolin, and cefoperazone from Sigma-Aldrich Co. (St Louis, Missouri, USA); nalidixic acid, enoxacin, tosufloxacin, ceftizoxime, ceftazidime, minocycline, neomycin, and spiramycin from Tokyo Chemical Industry Co. Ltd (Tokyo, Japan); and imipenem and paromomycin from LKT Laboratories, Inc. (St Paul, Minnesota, USA). Antimicrobial powders were diluted as recommended and prepared fresh for each experiment.

Mice

ICR mice (CLEA Japan, Inc., Tokyo, Japan) were used in the reproduction/teratology studies. Ether was used for anesthesia and euthanasia for all mouse experiments.

Evaluation of MIC

The antimicrobial susceptibility tests were performed in a consistent manner using an internationally recognized and standardized method for anaerobic bacteria, the broth microdilution procedure following the Clinical and Laboratory Standard Institute (CLSI) document M11-A8.²⁸ Antibiotic resistance minimum inhibitory concentration (MIC) results of C. butyricum were compared with those break points for several important antimicrobials, ampicillin, chloramphenicol, clindamycin, erythromycin, gentamycin, kanamycin, metronidazole, streptomycin, tetracycline, and vancomycin. B. fragilis ATCC 25285 was used as a control strain for chloramphenicol, clindamycin, metronidazole, and imipenem. All MICs obtained were considered to be valid since control MIC results were within control ranges described by CLSI.²⁹

Isolation of total DNA

C. botulinum toxin genes: All bacterial strains were cultured in BHI medium (BBL™, Becton Dickinson and Company, Baltimore, Maryland, USA) prior to total DNA extraction. Briefly, all strains were cultured overnight in an anaerobic chamber. Bacterial cells were suspended in 400 µl of Tris-ethylenediaminetetraacetic acid (EDTA)-sucrose buffer (50 mM Tris-hydrochloric acid (HCl; pH 8.0), 1 mM EDTA (pH 8.0), and 6.7% sucrose) and lysed by treating with lysozyme and then with sodium dodecyl sulfate. The DNA was extracted with phenol–chloroform (1:1) following RNase treatment and precipitated with isopropanol. The extracted DNA was suspended in 20 μl of distilled water and used for polymerase chain reaction (PCR) template. The DNA solution was kept at −20°C until use.

C. perfringens α, β, and ε toxin genes: All bacterial strains were cultured in the same manner with C. botulinum strains. Harvested bacteria were resuspended in TE buffer (10 mM Tris-HCl, 1 mM EDTA (pH 8.0)) with 20 µL of 10% sodium dodecyl sulfate and 2 µL of proteinase K and incubated at 37°C for 1 h. After incubation of the reaction mixture with 66.7 µL of 5 M sodium chloride (NaCl) and 53.3 µL of cetyltrimethylammonium bromide (CTAB)-NaCl solution (10% CTAB in 0.7 M NaCl) at 65°C for 10 min, the solution was extracted with phenol–chloroform–isoamyl alcohol (25:24:1) solution, and DNA was precipitated with absolute ethanol by incubation at room temperature for 20 min. The DNA was harvested by centrifugation, washed with 70% ethanol, dried, and resuspended in 100 µL of TE buffer. RNA was removed by incubation of the solution with RNase (1 µg/µL) at 37°C for 1 h. The concentration of DNA was measured at 260 nm with a spectrophotometer (BioPhotometer; Eppendorf, Hamburg, Germany). The DNA solution was kept at −20°C until use.

Polymerase chain reaction

All PCRs were carried out using a DNA PJ480 cycler (Perkin-Elmer Cetus, Berkeley, California, USA). 16S Ribosomal RNA (rRNA)³⁰ gene was used as a positive control for all reactions.

C. perfringens α, β, and ε toxin genes: Detection of the C. perfringens toxin genes was performed by Multiplex PCR. Primers used were previously described by Yoo et al.³¹ The reaction volumes of 50 µL contained 100 µg of template DNA, 0.25 µL of Ex Taq polymerase (5 units/µL, TaKaRa Bio Inc., Shiga, Japan), 5 µL of 10X PCR buffer (20 mM Mg²⁺, TaKaRa Bio Inc.), 4 µL of deoxynucleotide phosphate (dNTP) mixture (2.5 mM each) and 100 pmol of each primer. Pretreatment at 94°C for 5 min was followed by 30 amplification cycles (94°C for 1 min, 55°C for 1 min, and 72°C for 1 min). The amplified DNA was analyzed following electrophoresis on a 1.5% agarose gel.

C. botulinum toxin (BoNT) genes: Multiple PCR to detect BoNT was carried out with the methods described by Lindström et al.³² Ex Taq Hot Start Version (TaKaRa Bio Inc.) was used in amplification. The reaction was performed using 10 ng template DNA, 0.3 µM each primer, 0.2 µM each dNTP, 1X Ex Taq buffer, and 1.25 units Ex Taq DNA polymerase. After pretreatment at 95°C, DNA underwent 27 amplification cycles (95°C for 30 s, 60°C for 30 s, and 72°C for 1 min 30 s). The amplified DNA was analyzed following electrophoresis on a 2% agarose gel.

Teratogenicity and reproduction

The teratogenicity and reproductive toxicity study was carried out in accordance with internationally accepted guidelines³³ and in accordance with good laboratory practices. The studies were conducted by the research laboratory of Miyarisan Pharmaceutical Co., Ltd with technical support from Japan’s Central Institute for Experimental Animals. All mice were acclimated to the rearing environment for 14–30 days and evaluated during the acclimation period. The housing conditions were 23 ± 2°C, 50 ± 10% humidity, 10–13 times/h air circulation and 12 h light/dark cycle (8:00 a.m. to 8:00 p.m.). Feed (CA-1, purchased from CLEA Japan Inc., Tokyo, Japan) and sterilized tap water were provided ad libitum.

A concentrated powder preparation of CBM 588^® (Miyarisan Pharmaceutical Co., Ltd; lot no. 011, 2.4 × 10⁹ colony-forming unit (CFU)/g) was used as the test substance. CBM^® powder also contains pharmaceutical-grade lactose and corn starch as excipients and is manufactured under WHO good manufacturing practice (GMP) conditions. The powder was freshly suspended in water with 0.5% (w/v) carboxymethyl cellulose (CMC) salt prior to each administration.

Teratology

The teratology study was conducted with healthy 10-week-old male and 8-week-old nulliparous female ICR mice. Males (F₀) and females (F₀) were pair mated, and females were examined daily for evidence of a vaginal plug. Detection of the vaginal plug was determined as day 0 of pregnancy. Pregnant mice were separated, weighed, and randomly distributed into one of four feeding groups (37–38 females/feeding group).

Females in each feeding group were administered 0, 24, 240, or 4800 mg/kg BW of the CBM powder by oral gavage, daily, from days 6–15 of gestation. Total volume administered was adjusted for BW (0.15 mL/10 g BW). The mice were weighed daily, from gestational day 0, days 6–18, and then on postpartum days 0, 7, 14, and 21. Two-thirds of the pregnant F₀ mice (26 females/feeding group) were anesthetized and killed on day 18 of gestation. The abdominal wall was cut along the medioventral line to expose the uterine horn. The numbers of implantations, live fetuses, dead fetuses, and absorbed fetuses were recorded. The uterine horn was removed, and the viable fetuses were examined for external abnormalities, weighed, and sexed. A gross visceral examination of the major thoracic/abdominal organs (lung, liver, spleen, kidneys, adrenal gland, testis, and ovaries) was conducted in the viable F₁ fetuses, followed by fixation with 95% ethanol and alizarin red staining³⁴ to examine the skeletal structures.

The remaining one-third of the pregnant F₀ mice (11–12 females/feeding group) were continuously reared for spontaneous delivery in order to collect data on postnatal development in live fetuses, delivery conditions, nursing behavior, implantation site counts, and reproductive performance. All F₁ live mice were nursed through postpartum day 4. On postpartum day 4, any F₁ pups with external abnormalities were euthanized and subjected to a gross observation of thoracic/abdominal organs. The remaining F₁ pups were weighed daily and notes on general condition were taken. Examinations of pinna detachment (day 4), dorsal hair growth (day 11), tooth germ eruption (day 12), external acoustic pore (day 14), and eyelid opening (day 15) were conducted. Additionally, one male and one female were randomly selected from each litter to undergo observation for motor development. Mice not part of the reproductive study were euthanized on postpartum day 22. Gross observations were made of the same major thoracic/abdominal organs as in the F₁ fetuses.

Reproduction studies

A single male and female F₁ mouse from each litter were randomly selected and continuously reared for the F₁ reproductive examination. Non-siblings were pair mated, and females were monitored for the presence of a vaginal plug. F₁ dams were weighed, and feed consumption was recorded on days 0, 6, 15, 18, and 19. All established pregnancies were spontaneously delivered. Delivery conditions, nursing behavior, number of live births, and number of dead fetuses were examined in the F₂ generation. All live F₂ offspring were allowed to nurse until postpartum day 7 at which point all F₂ pups and remaining F₁ mice were euthanized, and gross observations were made of the major thoracic/abdominal organs.

Statistical analysis

Means and standard deviations were calculated for all data. Data were analyzed using a Student’s t-test between each groups. In addition, χ² test was used for the parameters that were recorded as frequency of occurrence.

Results

CBM 588^® lacks acquired antibacterial resistance

First, the MIC of several antimicrobials were determined for CBM 588^® (Table 1). CBM 588^® was susceptible to most antibiotics in all of the antimicrobial classes except the aminoglycosides. Additionally, there were a few antibiotics that also had high MIC values, such as cinoxacin (64 mg/L) and colistin (>256 mg/L). However, cinoxacin has been discontinued in the United States, and colistin is used primarily against respiratory infections in cystic fibrosis patients.³⁵

Table 1.

CBM588^® antibiotic susceptibility.

Antibiotic	MIC (mg/L)
Penicillins
Benzyl penicillin	0.25
Carbenicillin	4.0
Cephamycins
Cefmetazole	2.0
Quinolones (generation)
Nalidixic acid (1st)	32.0
Cinoxacin (1st)	64.0
Norfloxacin (2nd)	4.0
Ofloxacin (2nd)	1.0
Enoxacin (2nd)	2.0
Ciprofloxacin (2nd)	1.0
Lomefloxacin (2nd)	4.0
Tosufloxacin (3rd)	0.25
Lincomycins
Lincomycin	4.0
Polypeptides
Colistin	>256.0
Bacitracin	4.0
Carbapenems
Imipenem	1.0
Cephalosporins (generation)
Cephalothin (1st)	4.0
Cefazolin (1st)	1.0
Cefoperazone (3rd)	0.5
Ceftazidime (3rd)	32.0
Tetracyclines
Chlortetracycline	0.06
Oxytetracycline	0.06
Doxycycline	0.03
Minocycline	0.015
Aminoglycosides
Neomycin	128.0
Paromomycin	128.0
Amikacin	128.0
Macrolides
Spiramycin	2.0
Others
Fosfomycin	32.0

CBM 588^®: Clostridium butyricum MIYAIRI 588^®; MIC: minimum inhibitory concentration.

Next, the susceptibility of CBM 588^® to antibiotics in clinical use was determined (Table 2). CBM 588^® was susceptible to all of the clinically relevant antimicrobials used, with the exception of the aminoglycoside antibiotics (i.e. gentamicin, kanamycin, and streptomycin). European Food Safety Authority break points³⁶ for gentamicin, kanamycin, and streptomycin for Gram-positive bacteria are 4.0, 16.0, and 8.0 mg/L, respectively. The MIC values for CBM 588^® against these antibiotics were 64.0, 128, and >256 mg/L, respectively. To determine whether these high MIC values were unique to the CBM 588^® strain, the cryopreserved, deposited sample (FERM BP-2789) of CBM 588^® as well as C. butyricum ATCC 19398^T were tested. Both the cryopreserved CBM 588^® and the ATCC strain of C. butyricum were resistant to aminoglycosides, indicating that aminoglycoside resistance is not a specific trait of CBM 588^®.

Table 2.

Sensitivity of CBM 588^® to clinically relevant antibiotics.

	MIC (mg/L)
	C. butyricum MIYAIRI 588^®		C. butyricum ATCC 19398^T	EFSA 2012 break points for G+ bacteria
	Working cell bank: vial no. 191	Deposited strain: no. FERM BP-2789	C. butyricum ATCC 19398^T	EFSA 2012 break points for G+ bacteria
Ampicillin	0.25	0.25	0.25	1.0
Chloramphenicol	2.0	2.0	2.0	2.0
Clindamycin	1.0	1.0	0.5	0.25
Erythromycin	1.0	1.0	1.0	0.5
Gentamicin^a	64.0	64.0	64.0	4.0
Kanamycin^a	128	64.0	128.0	16.0
Metronidazole	1.0	2.0	1.0	4.0^b
Streptomycin^a	>256	256	256	8.0
Tetracycline	0.06	0.06	0.03	2.0
Vancomycin	1.0	1.0	1.0	2.0

G+: Gram positive; MIC: minimum inhibitory concentration; EFSA: European Food Safety Authority; EUCAST: European Committee on Antimicrobial Susceptibility Testing.

^aAminoglycoside antibiotics.

^bNo EFSA break point³⁶ exists for metronidazole, so EUCAST³⁷ values are given.

CBM 588^® lacks Clostridium toxins

CBM 588^® has thus far shown no evidence of pathogenicity, although the presence of toxins produced by other Clostridium species has not been fully assessed. Therefore, the genome of CBM 588^® was analyzed for the presence of Clostridium toxins (Figure 1(b) and (d)). 16S rRNA³⁰ gene was amplified as an internal control for all PCR reactions (Figure 1(a) and (c)). The primers for all reactions are listed in Table 3.

Figure 1.

Demonstration of absence of genes encoding Clostridium toxins in CBM 588^®. (a) Determination of 16S rRNA gene for C. perfringens with universal primers. (b) Detection of C. perfringens α, β, and ε toxins. All JCM strains show the presence of toxin genes, but CBM 588^® does not. (c) Determination of 16S rRNA gene for C. botulinum with universal primers. (d) Detection of BoNTs: A, B, E, and F. All KZ strains show the presence of toxin genes, but CBM 588^® does not. CBM 588^®: Clostridium butyricum MIYAIRI 588^®; rRNA: ribosomal RNA; JCM: Japan Collection of Microorganisms; KZ: Kanazawa University; BoNT: botulinum neurotoxin.

Table 3.

Nucleotide sequences of primers.

Primer	Sequence	References
CPA (α toxin)		³¹
Forward	5′-GTTGATAGCGCAGGA CATGTTAAG-3′
Reverse	5′-CATGTAGTCATCTGTT CCAGCATC-3′
CPB (β toxin)		³¹
Forward	5′-ACTATACAGACAGATC ATTCAACC-3′
Reverse	5′-TTAGGAGCAGTTAGAA CTACAGAC-3′
CPE (ε toxin)		³¹
Forward	5′-ACTGCAACTACTACTC ATACTGTG-3′
Reverse	5′-CTGGTGCCTTAATAGA AAGACTCC-3′
Type A		³²
CBMLA1	5′-AGCTACGGAGGCAGCT ATGTT-3′
CBMLA2	5′-CGTATTTGGAAAGCTGA AAAGG-3′
Type B		³²
CBMLB1	5′-CAGGAGAAGTGGAGC GAAAA-3′
CBMLB2	5′-CTTGCGCCTTTGTTTT CTTG-3′
Type E		³²
CBMLE1	5′-CCAAGATTTTCATCCG CCTA-3′
CBMLE2	5′-GCTATTGATCCAAAAC GGTGA-3′
Type F		³²
CBMLF1	5′-CGGCTTCATTAGAGAA CGGA-3′
CBMLF2	5′-TAACTCCCCTAGCCCC GTAT-3′
16S rRNA gene		³⁰
27F	5′-AGAGTTTGATCCTGGC TCAG-3′
1492R	5′-GGTTACCTTGTTACGA CTT-3′

rRNA: ribosomal RNA.

Many strains of Clostridium perfringens produce α, β, and ε toxins and are known virulence factors. The C. perfringens JCM strains 1290^T, 3816, 3817, 3818, and 3819 were used as positive controls for α, β and ε toxin genes (Figure 1(b)). Sequence heterogeneity has been shown for α toxin gene that may affect the binding of the PCR primers. We confirmed the absence of α toxin gene using additional primers described by Siqueira et al.³⁸ (data not shown). The presence of α, β, or ε toxin genes was not detected in the genome of CBM 588^®.

BoNT is a group of seven, serologically distinct toxins produced by many members of the Clostridium genus. Of these, A, B, E, and occasionally F are the main causes of botulinum poisoning in humans. The genomes of the positive control C. botulinum strains (C. botulinum KZ 2, KZ 1710, KZ 47, and KZ 1896) showed the genes encoding their respective toxins (toxin A, B, F, and E; Figure 1(d)). CBM 588^®, however, did not contain any genes encoding for BoNT A, B, E, or F toxins. Additionally, nontoxic non-hemagglutinin (NTNH) protein is also present in all BoNT-producing bacteria.³⁹ The highly conserved NTNH gene is located directly upstream from the BoNT genes. The four positive control C. botulinum strains and CBM 588^® were examined for the NTNH gene. The C. botulinum strains producing BoNTs also encoded for the NTNH gene, while CBM 588^® lacked genes for BoNT A, B, E, or F as well as NTNH (data not shown). These results indicate that CBM 588^® lacks Clostridium toxin virulence factors α, β, and ε toxins; types A, B, E, or F neurotoxins; and NTNH.

CBM 588^® does not adversely affect reproduction or development

Dams were administered the CBM 588^® via gavage at 0, 24, 240, or 4800 mg/kg BW, daily through days 6–15 of gestation. Evaluation of fetuses for gross visceral and skeletal malformations at day 18 of gestation along with monitoring live pups for survival, growth, and development were carried out on the resulting F₁ litters. Additionally, 10–11 mating pairs from the F₁ generation were followed to determine whether CBM 588^® had any adverse effects on second generation development.

A total of three F₀ dams died during the experiment (Table 4). Two were in the 4800 mg/kg BW group and died due to technical error on days 10 and 15 of gestation. Tracheal damage and thoracic retention of the test substance were observed and the cause of death was determined to be intrathoracic pressure due to incorrect administration of the test substance. A control animal died on day 16 postpartum due to unknown causes. None of these deaths were attributed to CBM 588^®. One dam was killed for necropsy since all live offspring were deceased on postpartum day 9. Body weights and feed intake were not affected by CBM 588^® consumption.

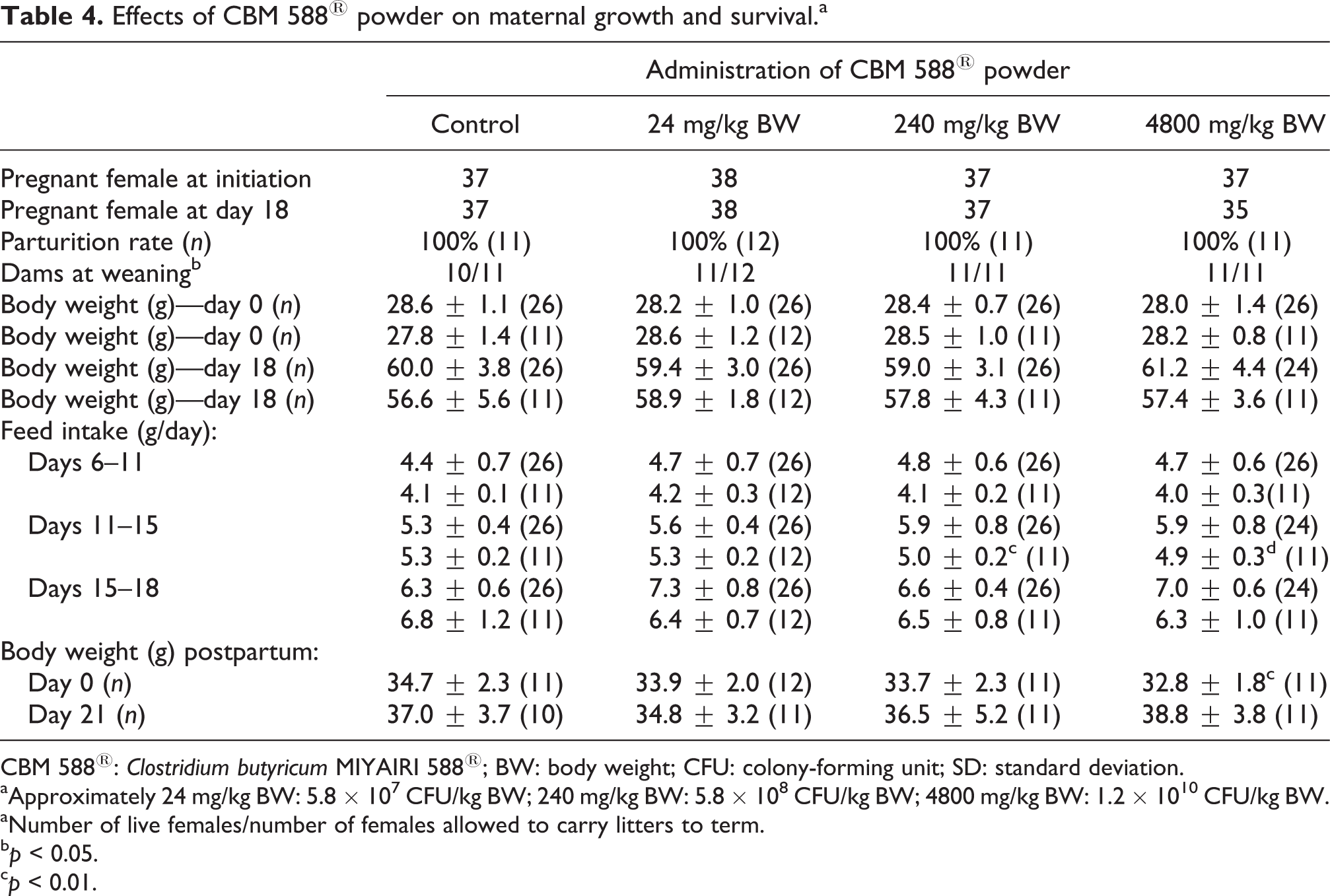

Table 4.

Effects of CBM 588^® powder on maternal growth and survival.^a

	Administration of CBM 588^® powder
	Control	24 mg/kg BW	240 mg/kg BW	4800 mg/kg BW
Pregnant female at initiation	37	38	37	37
Pregnant female at day 18	37	38	37	35
Parturition rate (n)	100% (11)	100% (12)	100% (11)	100% (11)
Dams at weaning^b	10/11	11/12	11/11	11/11
Body weight (g)—day 0 (n)	28.6 ± 1.1 (26)	28.2 ± 1.0 (26)	28.4 ± 0.7 (26)	28.0 ± 1.4 (26)
Body weight (g)—day 0 (n)	27.8 ± 1.4 (11)	28.6 ± 1.2 (12)	28.5 ± 1.0 (11)	28.2 ± 0.8 (11)
Body weight (g)—day 18 (n)	60.0 ± 3.8 (26)	59.4 ± 3.0 (26)	59.0 ± 3.1 (26)	61.2 ± 4.4 (24)
Body weight (g)—day 18 (n)	56.6 ± 5.6 (11)	58.9 ± 1.8 (12)	57.8 ± 4.3 (11)	57.4 ± 3.6 (11)
Feed intake (g/day):
Days 6–11	4.4 ± 0.7 (26)	4.7 ± 0.7 (26)	4.8 ± 0.6 (26)	4.7 ± 0.6 (26)
Days 6–11	4.1 ± 0.1 (11)	4.2 ± 0.3 (12)	4.1 ± 0.2 (11)	4.0 ± 0.3(11)
Days 11–15	5.3 ± 0.4 (26)	5.6 ± 0.4 (26)	5.9 ± 0.8 (26)	5.9 ± 0.8 (24)
Days 11–15	5.3 ± 0.2 (11)	5.3 ± 0.2 (12)	5.0 ± 0.2^c (11)	4.9 ± 0.3^d (11)
Days 15–18	6.3 ± 0.6 (26)	7.3 ± 0.8 (26)	6.6 ± 0.4 (26)	7.0 ± 0.6 (24)
Days 15–18	6.8 ± 1.2 (11)	6.4 ± 0.7 (12)	6.5 ± 0.8 (11)	6.3 ± 1.0 (11)
Body weight (g) postpartum:
Day 0 (n)	34.7 ± 2.3 (11)	33.9 ± 2.0 (12)	33.7 ± 2.3 (11)	32.8 ± 1.8^c (11)
Day 21 (n)	37.0 ± 3.7 (10)	34.8 ± 3.2 (11)	36.5 ± 5.2 (11)	38.8 ± 3.8 (11)

CBM 588^®: Clostridium butyricum MIYAIRI 588^®; BW: body weight; CFU: colony-forming unit; SD: standard deviation.

^aApproximately 24 mg/kg BW: 5.8 × 10⁷ CFU/kg BW; 240 mg/kg BW: 5.8 × 10⁸ CFU/kg BW; 4800 mg/kg BW: 1.2 × 10¹⁰ CFU/kg BW.

^aNumber of live females/number of females allowed to carry litters to term.

^bp < 0.05.

^cp < 0.01.

CBM 588^® did not produce any dose-related adverse effects on F₁ fetal survival. At 18 days gestation (approximately 1 day before expected delivery), no differences in placental remnants, reabsorption sites, sex ratio, dead embryos, or gross external or organ malformations were seen in CBM 588^®-treated animals compared with the controls (Table 5). The dams receiving CBM588^® at 240 mg/kg BW had significantly fewer live pups/litter (p < 0.05) as well as fewer corpora lutea and implantations/dam compared with the control (p < 0.01). A small but significant (p < 0.01) increase in the weight of the live fetuses was seen in the litters from the dams receiving CBM 588^® at 24 and 240 mg/kg BW. However, there were no significant adverse effects in any of these parameters in fetuses from dams receiving the highest dose, 4800 mg/kg BW CBM 588^®.

Table 5.

Effects of CBM 588^® powder on survival, growth, and development of F₁ fetuses.^a

	Administration of CBM 588^® powder
	Control	24 mg/kg BW	240 mg/kg BW	4800 mg/kg BW
Corpora lutea (per litter)	16.0	15.6	15.0^b	15.9
Implantations (per litter)	15.4	15.1	14.2^b	15.3
Placental remnants	6	7	6	7
Resorption sites	5	6	7	6
Dead embryos	4	2	1	4
Fetal loss rate (%)	3.8	3.8	3.7	4.5
Live fetuses
Total	386	377	355	351
Per litter	14.8	14.5	13.6^c	14.6
Fetal sex ratio (female/total)	0.49	0.50	0.47	0.48
Viable fetal weight^d (g):
Female	1.35 ± 0.05	1.39 ± 0.08^c	1.44 ± 0.07^b	1.38 ± 0.10
Male	1.41 ± 0.05	1.48 ± 0.08^b	1.52 ± 0.09^b	1.45 ± 0.10
Skeletal malformation (per litter)
Fusion of bone^e	0	0	0.4%	0.4%
Cervical ribs	0.4%	0.4%	1.3%	6.0%^b
14th rib	33.9%	37.6%	29.5%	41.7%
Decrease of presacral vertebra (19–25 vs. 26)	0.8%	1.2%	0.4%	2.7%
Skeletal variations (per litter)
Delayed ossification of metacarpus	0	0	0	0
Delayed ossification of metatarsus	0	0	0	0
Number of ossified caudal vertebra	9.2 ± 1.3	9.8 ± 1.1	10.3 ± 1.2^c	9.4 ± 1.5

CBM 588^®: Clostridium butyricum MIYAIRI 588^®; BW: body weight; CFU: colony-forming unit; SD: standard deviation.

^aApproximately 24 mg/kg BW: 5.8 × 10⁷ CFU/kg BW; 240 mg/kg BW: 5.8 × 10⁸ CFU/kg BW; 4800 mg/kg BW: 1.2 × 10¹⁰ CFU/kg BW.

^bp < 0.01: compared with the control group.

^cp < 0.05: compared with the control group.

^dAverage and SD values of female and male F₁ mice in each group were calculated with the average BW of two to six mice randomly selected per litter.

^eFusion of occipital bone with atlas or 7th cervical vertebra with 1st thoracic vertebra.

CBM 588^® did not negatively affect the development of the F₁ fetuses examined at day 18 of gestation (Table 5). The weight of viable fetuses, both male and female, was slightly higher in the litters from dams given 24 or 240 mg/kg BW CBM 588^® (p < 0.05–0.01) compared with the controls. The skeletal malformation rate did not differ significantly in treated groups compared with the control group, with the exception of a statistically significant increase in the incidence of extra cervical ribs noted in F₁ fetuses from the group receiving CBM 588^® at 4800 mg/kg BW compared with the control. Additionally, the number of ossified caudal vertebrae was higher in the fetuses in the 240 mg/kg group compared with the control group.

CBM 588^® had no dose-related adverse effect on the survival or physical and behavioral development of the F₁ mice evaluated up to 21 days postnatal age (Table 6). No effect was seen on gestational length, live birth index, stillborn count, sex ratio, external abnormalities, day 4 survival rate, weaning rate, and physical or behavioral development. There was a significant reduction in BW of both male and female pups at day 21 from dams receiving CBM 588^® at 240 and 4800 mg/kg BW compared with the control group (Table 6).

Table 6.

Effects of CBM 588^® powder on survival, growth development of F₁ mice.^a

	Administration of CBM 588^® powder
	Control	24 mg/kg BW (low)	240 mg/kg BW (medium)	4800 mg/kg BW (high)
Survival
Length of gestation (day)	18.4 ± 0.5	18.4 ± 0.5	18.4 ± 0.5	18.6 ± 0.5
Implantations per litter	14.4 ± 1.6	15.8 ± 1.9	15.9 ± 1.6^b	15.4 ± 0.8
Total live newborns per litter	13.5 ± 1.9	14.6 ± 1.9	15.2 ± 1.4^b	14.4 ± 1.6
Dead pups at birth	0.0 ± 0.0	0.6 ± 1.0	0.1 ± 0.3	0.0 ± 0.0
Live newborn rate (%)	93.6 ± 6.5	92.8 ± 7.2	95.6 ± 4.6	92.3 ± 7.1
Sex ratio (female/total)	0.57 ± 0.18	0.46 ± 0.15	0.50 ± 0.16	0.46 ± 0.10
Live newborns nursed per litter	13.5 ± 1.9	14.5 ± 1.7	15.2 ± 1.4^b	14.3 ± 1.7
Survival rate—postnatal day 4 (%)^c	94.3 ± 9.8	94.8 ± 12.2	95.7 ± 5.5	94.2 ± 11.1
Survival rate—weaning (%)^d	96.2 ± 8.4	86.4 ± 30.8	92.0 ± 12.8	96.6 ± 8.1
Growth and physical developments
Number of F₁ litters:
Postnatal day 0	11	12	11	11
Postnatal day 21	10	11	11	11
Female body weight day 0 (g)^e	1.49 ± 0.12	1.41 ± 0.12	1.44 ± 0.10	1.42 ± 0.12
Male body weight day 0 (g)^e	1.57 ± 0.12	1.50 ± 0.11	1.50 ± 0.11	1.54 ± 0.12
Female body weight day 21(g)^e	10.57 ± 0.64	9.78 ± 1.30	8.48 ± 1.53^b	8.68 ± 1.21^f
Male body weight day 21(g)^e	10.84 ± 0.84	10.32 ± 1.31	9.08 ± 1.80^f	9.06 ± 1.06^b
Pinna detachment—day 4 (%)	86.7 ± 19.2	72.9 ± 41.9	80.7 ± 40.1	90.9 ± 26.3
Hair growth—day 11 (%)	100.0	100.0	100.0	100.0
Tooth eruption—day 12 (%)	100.0	100.0	100.0	100.0
Opening of external auditory canals— day 14 (%)	98.9 ± 3.8	100.0	100.0	100.0 ± 0.0
Opening of eyes—day 15 (%)	100.0	97.7 ± 7.5	97.7 ± 5.0	97.7 ± 7.5
Behavioral developments/pups examined (female, male)
Pivoting—day 4	11/11, 10/11	12/12, 12/12	11/11, 11/11	11/11, 11/11
Righting reflex—day 6	11/11, 11/11	12/12, 12/12	11/11, 10/11	11/11, 11/11
Crawling—day 7	11/11, 11/11	11/11, 11/11	11/11, 11/11	11/11, 11/11
Walking—day 10	11/11, 11/11	11/11, 11/11	11/11, 11/11	11/11, 11/11
Cliff avoidanceday 11	11/11, 11/11	11/11, 11/11	11/11, 11/11	11/11, 11/11
25° slant negative geotaxis—day 8	11/11, 11/11	11/11, 11/11	11/11, 11/11	11/11, 11/11
45° slant negative geotaxis—day 13	11/11, 11/11	11/11, 11/11	11/11, 11/11	11/11, 11/11

CBM 588^®: Clostridium butyricum MIYAIRI 588^®; BW: body weight; CFU: colony-forming unit; SD: standard deviation.

^aApproximately 24 mg/kg BW: 5.8 × 10⁷ CFU/kg BW; 240 mg/kg BW: 5.8 × 10⁸ CFU/kg BW; 4800 mg/kg BW: 1.2 × 10¹⁰ CFU/kg BW.

^bp < 0.05: compared with the control group.

^cLive F₁/live newborn nursed.

^dLive pups at postnatal day 22/live pups at postnatal day 4.

^eAverage and SD values of female and male F₁ mice in each group were calculated with the average BW of two to six mice randomly selected per litter.

^fp < 0.01: compared with the control group.

CBM 588^® did not produce any dose-related adverse effects on the reproductive capabilities of the F₁ generation or the survival and growth of the F₂ generation (Table 7). There was no significant difference in gestation length, implantations, and number of live pups/litter in all test groups compared to control. F₁ dams fed with CBM 588^® gained more weight between 3 and 11 weeks than the F₁ dams in the control group. All mating pairs copulated, but the fertility rate for animals receiving CBM 588^® at 24 and 4800 mg/kg BW was only 90% compared to 100% for the control and 240 mg/kg BW CBM 588^®. Additionally, all confirmed pregnancies were delivered, with the exception of one litter in the 240 mg/kg BW group.

Table 7.

Effects of CBM 588^® powder on F₁ reproduction and survival and growth of F₂ mice.^a

	Administration of CBM 588^® powder
	Control	24 mg/kg BW (low)	240 mg/kg BW (medium)	4800 mg/kg BW (high)
Reproductive performance of F₁ mice
Female weight gain (from 3–11 weeks, %)	153.3 ± 16.0	174.8 ± 25.2^b	228.5 ± 89.0^b	230.9 ± 56.7^c
Length of gestation (days)	18.7 ± 0.5	18.7 ± 0.5	18.7 ± 0.5	18.6 ± 0.5
Fertility rate (%)	100	90	100	90
Parturition rate (%)	100	100	90	100
Implantations per litter	16.4 ± 2.2	15.2 ± 3.0	15.0 ± 1.9	15.6 ± 1.3
Live newborns per litter
Total	14.9 ± 2.6	14.4 ± 3.1	13.7 ± 2.2	15.0 ± 1.4
Female	7.6 ± 1.5	7.2 ± 3.4	6.4 ± 2.3	8.7 ± 1.6
Male	7.3 ± 2.0	7.2 ± 3.1	7.2 ± 2.4	6.3 ± 2.0
Newborn sex ratio (female/total)	0.51 ± 0.08	0.50 ± 0.20	0.47 ± 0.15	0.58 ± 0.12
Dead pups at birth	0	0	0.3 ± 0.5^b	0.2 ± 0.4
Malformed live newborns (open eyelid)	1 (0.7%)	0	2 (1.5%)	1 (0.8%)
Live newborn rate (live newborn/implantations) (%)	91.0 ± 11.9	94.4 ± 5.0	92.0 ± 5.4	96.5 ± 5.4
Postnatal observations in F₂
No. of live newborns nursed	14.8 ± 2.7	14.4 ± 3.1	13.4 ± 2.1	14.9 ± 1.6
No. of live pups—postnatal day 7:
Total	14.4 ± 2.8	13.9 ± 3.0	13.4 ± 2.1	12.9 ± 5.2
Female	7.3 ± 2.0	6.9 ± 3.4	6.4 ± 2.3	7.3 ± 3.2
Male	7.1 ± 1.8	7.0 ± 3.2	7.0 ± 2.3	5.6 ± 2.8
No. of dead in postnatal day 1-7	0.4 ± 1.0	0.6 ± 0.5	0.0 ± 0.0	2.0 ± 4.6
Body weight of F₂ mice
Female body weight at birth (g)^d:	1.62 ± 0.12	1.60 ± 0.17	1.62 ± 0.10	1.64 ± 0.05
Male body weight at birth (g)^d:	1.70 ± 0.13	1.69 ± 0.18	1.73 ± 0.12	1.71 ± 0.08
Female body weight (g)—postnatal day 7^d	3.50 ± 0.61	3.65 ± 1.00	3.69 ± 0.61	3.28 ± 0.38^e
Male body weight (g)—postnatal day 7^d	3.98 ± 0.92	3.70 ± 0.92	3.97 ± 0.52	3.52 ± 0.42^e

CBM 588^®: Clostridium butyricum MIYAIRI 588^®; BW: body weight; CFU: colony-forming unit; SD: standard deviation.

^aApproximately 24 mg/kg BW: 5.8 × 10⁷ CFU/kg BW; 240 mg/kg BW: 5.8 × 10⁸ CFU/kg BW; 4800 mg/kg BW: 1.2 × 10¹⁰ CFU/kg BW.

^bp < 0.05: compared with the control group.

^cp < 0.01: compared with the control group.

^dAverage and SD values of female and male each group were calculated with the average BW of all live pups per litter.

^eData were calculated based on eight litters since all pups from one litter died by postnatal day 5 due to maternal neglect.

CBM 588^® did not alter the survival of the F₂ pups (Table 7) through day 7. One F₂ litter in the 4800mg/kg BW group was lost on postpartum day 5 due to neglect by the F₁ dam. No statistically significant dose-related malformations were noted in the F₂ pups. BWs of male and female F₂ pups were also unaffected by CBM 588^® administration.

Discussion

CBM 588^® is used as a probiotic in Japan for both humans and animals and is approved as a probiotic for animal feed^40
–42 and as a novel food²² in Europe. CBM 588^® is the first Clostridium species and strain to be used effectively as a probiotic.¹⁷ However, because there are many pathogenic Clostridium species, it is essential that the safety and toxicity of CBM 588^® is thoroughly assessed.

The increasing prevalence of antibiotic resistant strains of bacteria is a global public health concern. Probiotics should have minimal antibiotic resistance for clinically relevant antibiotics. The MICs of several antibiotics were determined (Table 1), and CBM 588^® is susceptible to most classes of antibiotics with the exception of aminoglycosides. However, the resistance to aminoglycosides, in anaerobic bacteria, is a physical, intrinsic feature rather than genetic or metabolic property of anaerobic bacteria due to the inability of anaerobes to transport these antibiotics across the microbial cell membrane.⁴³ In addition to the aminoglycosides, there were a few specific antibiotics with elevated MICs. Cinoxacin (MIC = 64 mg/L) has been discontinued in the United States. Colistin, also known as polymixin E, (MIC = >256 mg/L) is used intravenously, primarily as a drug of last resort in multidrug-resistant, Gram negative bacterial infections in the respiratory tract of cystic fibrosis patients.³⁵ The susceptibility of CBM 588^® to clinically relevant antibiotics was also assessed (Table 2). CBM 588^® was resistant to gentamicin, kanamycin, and streptomycin, all aminoglycosides. The nonpathogenic C. butyricum ATCC 19398^T strain was also resistant to these antibiotics, indicating that the resistance is not specific to CBM 588^® but similar across multiple C. butyricum strains. Aside from the aminoglycosides, CBM 588^® does not show resistance to any class of antibiotics.

CBM 588^® does not produce α, β, or ε toxins commonly associated with C. perfringens, or BoNTs A, B, E, or F (Figure 1). While it is known that some toxin genes are located on plasmids, it has been reported that CBM 588 has only one plasmid and critical genes, such as toxin genes or antibiotic resistance genes, relevant to safety were not found.⁴⁴ The only toxin C. butyricum has been reported to produce is BoNT type E.^45,46 BoNT type E producing C. butyricum have been isolated from soil⁴⁷ and suspect food in a botulism outbreak in China⁴⁸ as well as from the feces of two infants suffering from botulism in Italy.^49
–51 The strains producing the type E toxin were confirmed as C. butyricum by 16S rRNA gene sequencing.⁵² Due to the sequence homology (97%) of the type E toxin produced by C. butyricum and C. botulinum,⁵³ it is likely that C. butyricum acquired the toxin gene (bont/E) through horizontal gene transfer. However, genetic analysis of the toxins from the C. butyricum isolated from Italy and China represent two distinctive subtypes, indicating that two distinct horizontal gene transfer events occurred.^54
–56

Although possible, horizontal genetic transfer of type E toxin has proven to be very difficult to induce in a laboratory setting since it is well known that Bont/E is chromosomally located. However, one study has shown type E toxin can be stably transferred from a toxigenic C. butyricum BL 5839 strain to a nontoxigenic C. botulinum type E-like S-5 in the presence of a bacteriophage transducing agent and the “helper” strain, nontoxigenic C. butyricum ATCC 19398^T. The transfer rate was 1 in 10.^4,57 The transfer appears to be facilitated by a temperate prophage. Mature bacteriophages have been implicated in toxins C and D transfer between C. botulinum strains and have resulted in much higher transfer rates.⁵⁸ The low in vitro transfer rates, combined with the low frequency of type E producing C. butyricum isolated from food and soil, suggests that the chances of CBM 588^® becoming toxigenic through horizontal gene transfer is very low.

The developmental toxicity of CBM 588^® was assessed through two generations. F₀ dams were administered concentrated CBM 588^® powder (2.4 × 10⁹ CFU/g) at 0, 24, 240, or 4800 mg/kg BW, daily during days 6–15 of gestation. No dose-related adverse effects related to CBM 588^® administration were noted. The resulting F₁ fetuses and live pups from dams given CBM 588^® showed no adverse effects on physical or behavioral development. CBM 588^® administration in the F₀ generation did not affect the survival and growth of the F₂ generation. The skeletal malformation rate did not differ significantly in treated groups compared with the control group, with the exception of a statistically significant increase in the incidence of extra cervical ribs noted in F₁ fetuses from the group receiving CBM 588^® at 4800 mg/kg BW compared with the control. Supernumerary or accessory ribs (SNR), either lumbar or cervical (CR), are a common finding in standard developmental toxicology bioassays. The biological significance of these anomalies has been the subject of some debate in the literature. In rodents, the spontaneous incidence of SNR is species and strain related and ranges from <1% to >30%.⁵⁹ In this study, the incidence of CR was within reported historical range, and there were no associated changes in any other skeletal parameters supporting the conclusion that this finding is not related to test article administration.

Conclusion

These data support the safe use of CBM 588^® as a probiotic for use in food supplements and animal feeds. CBM 588^® is susceptible to most antibiotics, with the exception of amnioglycosides, which are known to have limited effect on anaerobes. The genome of CBM 588^® lacks genes encoding known Clostridium toxins. Additionally, CBM 588^® does not produce developmental or reproductive toxicity in mice.

Footnotes

Acknowledgments

Teratogenicity and reproduction studies were conducted with the superb technical support of the Central Institute for Experimental Animals, Japan. The authors would like to thank the institute for their efforts. All study experiments were sponsored by Miyarisan Pharmaceutical Co. Ltd, Tokyo, Japan.

Authors’ Note

Authors KI and KO contributed equally to this work.

Declaration of Conflicting Interests

KI, KO, MS, KW, SN, MT and MT are employees of Miyarisan Pharmaceutical Co. Ltd., Tokyo, Japan.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

References

Sanders

. Probiotics: definition, sources, selection, and uses. Clin Infect Dis 2008; 46(Suppl 2): S58–S61; discussion S144–S151.

Sanders

Akkermans

Haller

. Safety assessment of probiotics for human use. Gut Microbes 2010; 1: 164–185.

Snydman

. The safety of probiotics. Clin Infect Dis 2008; 46(Suppl 2): S104–S111; discussion S144–S151.

Suvorov

. Gut microbiota, probiotics, and human health. Biosci Microbiota Food Health 2013; 32: 81–91.

Dang

Shook

Garlitz

. Nutritional outcomes with implementation of probiotics in preterm infants. J Perinatol 2015; 35: 447–450.

Ofek Shlomai

Deshpande

Rao

. Probiotics for preterm neonates: what will it take to change clinical practice? Neonatol 2014; 105: 64–70.

Islam

Cohen

Rajkumar

. Probiotics for the prevention and treatment of Clostridium difficile in older patients. Age Ageing 2012; 41: 706–711.

Wanke

Szajewska

. Probiotics for preventing healthcare-associated diarrhea in children: a meta-analysis of randomized controlled trials. Pediatr Pol 2014; 89: 8–16.

Pattani

Palda

Hwang

. Probiotics for the prevention of antibiotic-associated diarrhea and Clostridium difficile infection among hospitalized patients: systematic review and meta-analysis. Open Med 2013; 7: e56.

10.

FAO and WHO. Guidelines for the evaluation of probiotics in food. Report of a Joint FAO/WHO Working Group, 30 April–1 May 2002, Ontario, Canada, 2002.

11.

Barkay

Smets

. Horizontal gene flow in microbial communities. ASM News 2005; 71(9): 412–419.

12.

Duerre

(ed). Handbook on Clostridia. Boca Raton: CRC, Taylor & Francis, 2005. Print.

13.

Atarashi

Tanoue

Shima

. Induction of colonic regulatory T cells by indigenous Clostridium species. Science 2011; 331: 337–341.

14.

Mims

Wakelin

Playfair

. Medical microbiology. 2nd ed. London: Mosby International Limited, 1998, pp. 519–521.

15.

Rood

Cole

. Molecular genetics and pathogenesis of Clostridium perfringens. Microbiol Rev 1991; 55: 621–648.

16.

Sugiyama

. Clostridium botulinum neurotoxin. Microbiol Rev 1980; 44: 419–448.

17.

Seki

Shiohara

Matsumura

. Prevention of antibiotic-associated diarrhea in children by Clostridium butyricum MIYAIRI. Pediatr Int 2003; 45: 86–90.

18.

Takahashi

Taguchi

Yamaguchi

. The effect of probiotic treatment with Clostridium butyricum on enterohemorrhagic Escherichia coli O157: H7 infection in mice. FEMS Immunol Med Microbiol 2004; 41: 219–226.

19.

EU. Commission Regulation (EC) No 903/2009 of 28 September 2009 concerning the authorisation of the preparation of Clostridium butyricum MIYAIRI 588 (FERM-P 1467) as a feed additive for chickens for fattening (holder of authorisation Miyarisan Pharmaceutical Co. Ltd, represented by Mitsui & Co. Deutschland GmbH). Official Journal of the European Union L02/10, http://eur-lex.europa.eu (2009, accessed 1 April 2015).

20.

EU. Commission Implementing Regulation (EU) No 373/2011 of 15 April 2011 concerning the authorisation of the preparation of Clostridium butyricum FERM-BP 2789 as a feed additive for minor avian species except laying birds, weaned piglets and minor porcine species (weaned) and amending Regulation (EC) No 903/2009 (holder of authorisation Miyarisan Pharmaceutical Co. Ltd, represented by Miyarisan Pharmaceutical Europe S.L.U.). Official Journal of the European Union L02/10, http://eur-lex.europa.eu (2011, accessed 1 April 2015).

21.

EU. Commission Implementing Regulation (EU) No 1108/2014 of 20 October 2014 concerning the authorisation of a preparation of Clostridium butyricum (FERM BP-2789) as a feed additive for turkeys for fattening and turkeys reared for breeding (holder of authorisation Miyarisan Pharmaceutical Co. Ltd represented by Miyarisan Pharmaceutical Europe S.L.U.). Official Journal of the European Union L301/16, http://eur-lex.europa.eu (2014, accessed 1 April 2015).

22.

EU. Commission Implementing Decision of 11 December 2014 authorising the placing on the market of Clostridium butyricum (CBM 588) as a novel food ingredient under Regulation (EC) No 258/97 of the European Parliament and of the Council. Official Journal of the European Union L359/153, http://eur-lex.europa.eu (2014, accessed 1 April 2015).

23.

Yuzawa

Kobayashi

Yamamoto

. Tests for the acute oral toxicity in rats and mutagenicity of Clostridium butyricum miyairi powder. Pharmacometrics 1987; 34: 215–221.

24.

Yuzawa

Kobayashi

Hashiguchi

. A five-week subacute oral toxicity and recovery test of Clostridium butyricum miyairi powder in beagle dogs. Pharmacometrics 1987; 34: 223–237.

25.

Yuzawa

Kobayashi

Inoue

. Twelve-month chronic toxicity study of Clostridium butyricum miyairi powder in rats. Pharmacometrics 1987; 33: 683–694.

26.

Ikeda

Benno

Fujisawa

. Phenotypic characteristics in distinguishing Clostridium butyricum from Clostridium beijerinckii. Bifidobact Microflora 1988; 7: 56–60.

27.

Nakanishi

Kuwahara

Nakayama

. Rapid species identification and partial strain differentiation of Clostridium butyricum by PCR using 16S-23 S rDNA intergenic spacer regions. Microbiol Immunol 2005; 49: 613–621.

28.

CLSI. Methods for antimicrobial susceptibility testing of anaerobic bacteria; approved standard – eighth edition. CLSI document M11-A8. Wayne, PA: CLSI, 2012a.

29.

CLSI. Performance Standards for Antimicrobial Susceptibility Testing; Twenty-Second informational Supplement. CLSI document M100-S22. Wayne, PA: CLSI, 2012b.

30.

Lane

DJ.

16S/23S rRNA sequencing. In: Stachebrandt

Goodfellow

(eds) Nucleic acid techniques in bacterial systematics. New York: Wiley, 1991, pp. 115–175.

31.

Yoo

Lee

Park

. Molecular typing and epidemiological survey of prevalence of Clostridium perfringens types by multiplex PCR. J Clin Microbiol 1997; 35: 228–232.

32.

Lindström

Keto

Markkula

. Multiplex PCR assay for detection and identification of Clostridium botulinum types A, B, E, and F in food and fecal material. Appl Environ Microbiol 2001; 67: 5694–5699.

33.

Japan Ministry of Health and Welfare. Pharmaceutical guidelines for teratogenicity and reproductive toxicity studies. Notification Nos 1-24, Issued by the First Evaluation and Registration Division Chief, Pharmaceutical Affairs Bureau, 11 September 1989.

34.

Dawson

. A note on the skeleton of cleared specimens with alizarin red S. Stain Technol 1926; 1: 123–124.

35.

Falagas

Kasiakou

. Colistin: the revival of polymyxins for the management of multidrug-resistant Gram-negative bacterial infections. Clin Infect Dis 2005; 40: 1333–1341.

36.

EFSA. Guidance on the assessment of bacterial susceptibility to antimicrobials of human and veterinary importance. EFSA J 2012; 10: 2740–2749.

37.

EUCAST. Breakpoint tables for interpretation of MICs and zone diameters, Version 2.0, valid from 2012-01-01, http://www.eucast.org/clinical_breakpoints/ (2012, accessed 20 July 2012).

38.

Siqueira

Almeida

Barroca

. Characterization of polymorphisms and isoforms of the Clostridium perfringens phospholipase C gene (plc) reveals high genetic diversity. Vet Microbiol 2012; 159: 397–405.

39.

East

Collins

. Conserved structure of genes encoding components of botulinum neurotoxin complex M and the sequence of the gene coding for the nontoxic component in nonproteolytic Clostridium botulinum type F. Curr Microbiol 1994; 29: 69–77.

40.

EFSA Panel on Additives and Products or Substances used in Animal Feed (FEEDAP). Scientific Opinion on a request from the European Commission on the safety and efficacy of the product Miya-Gold^® S (Clostridium butyricum) as feed additive for chickens for fattening. EFSA J 2009; 1039: 1–16.

41.

EFSA Panel on Additives and Products or Substances used in Animal Feed (FEEDAP). Scientific Opinion on Miya-Gold^® (Clostridium butyricum) as a feed additive for weaned piglets, minor weaned porcine species and minor avian species. EFSA J 2011; 9: 1951–1966.

42.

EFSA Panel on Additives and Products or Substances used in Animal Feed (FEEDAP). Scientific Opinion on the safety and efficacy of Miya-Gold (Clostridium butyricum) for chickens for fattening, chickens reared for laying and minor avian species. EFSA J 2013; 11: 3040–3049.

43.

Bryan

Kowand

Van den elzen

. Mechanisms of aminoglycoside resistance of anaerobic bacteria and facultative bacteria grown anaerobically. J Antimicrob Chemoth 1979; 8: 1–8.

44.

Nakanishi

Tanaka

. Sequence analysis of a bacteriocinogenic plasmid of Clostridium butyricum and expression of the bacteriocin gene in Escherichia coli. Anaerobe 2010; 16: 253–257.

45.

Hauser

Gibert

Boquet

. Plasmid localization of a type E botulinal neurotoxin gene homologue in toxigenic Clostridium butyricum strains, and absence of this gene in non-toxigenic C. butyricum strains. FEMS Microbiol Lett 1992; 78: 251–255.

46.

Popoff

Truffaut

. Survey of plasmids in Clostridium butyricum and Clostridium beijerinckii strains from different origins and different phenotypes. Curr Microbiol 1985; 12: 151–156.

47.

Meng

Yamakawa

Zou

. Isolation and characterisation of neurotoxigenic Clostridium butyricum from soil in China. J Med Microbiol 1999; 48: 133–137.

48.

Meng

Karasawa

Zou

. Characterization of a neurotoxigenic Clostridium butyricum strain isolated from the food implicated in an outbreak of food-borne type E botulism. J Clin Microbiol 1997; 35: 2160–2162.

49.

Abe

Negasawa

Monma

. Infantile botulism caused by Clostridium butyricum type E toxin. Pediatr Neurol 2008; 38: 55–57.

50.

Aureli

Fenicia

Pasolini

. Two cases of type E infant botulism caused by neurotoxigenic Clostridium butyricum in Italy. J Infect Dis 1986; 154: 207–211.

51.

McCroskey

Hatheway

Fenicia

. Characterization of an organism that produces type E botulism. J Clin Microbiol 1986; 23: 201–202.

52.

Pourshaban

Franciosa

Fenicia

. Taxonomic identity of type E botulinum toxin-producing Clostridium butyricum strains by sequencing of a short 16S rDNA region. FEMS Microbiol Lett 2002; 214: 119–125.

53.

Poulet

Hauser

Quanz

. Sequences of the botulinal neurotoxin E derived from Clostridium botulinum type E (strain Beluga) and Clostridium butyricum (strains ATCC 43181 and ATCC 43755). Biochem Biophys Res Commun 1992; 183: 107–113.

54.

Hill

Smith

Helma

. Genetic diversity among Botulinum Neurotoxin-producing clostridial strains. J Bacteriol 2007; 189: 818–832.

55.

Wang

Karasawa

Maegawa

. Comparative analysis of nontoxigenic Clostridium butyricum by molecular typing methods. Jpn Pharmacol Ther 2000; 28: 999–1004.

56.

Wang

Maegawa

Karasawa

. Genetic analysis of type E botulinum toxin-producing Clostridium butyricum strains. Appl Environ Microbiol 2000; 66: 4992–4997.

57.

Zhou

Sugiyama

Johnson

. Transfer of neurotoxigenicity from Clostridium butyricum to a nontoxigenic Clostridium botulinum-like strain. Appl Environ Microbiol 1993; 59: 3825–3831.

58.

Eklund

Poysky

. Interconversion of type C and D strains of Clostridium botulinum by specific bacteriophages. Appl Microbiol 1974; 27: 251–258.

59.

Chernoff

Rogers

. Supernumerary ribs in developmental toxicity bioassays and in human populations: incidence and biological significance. J Toxicol Environ Health B Crit Rev 2004; 7: 437–449.

Safety assessment of the Clostridium butyricum MIYAIRI 588 ® probiotic strain including evaluation of antimicrobial sensitivity and presence of Clostridium toxin genes in vitro and teratogenicity in vivo

Abstract

Keywords

Introduction

Methods

Bacteria and other reagents

Mice

Evaluation of MIC

Isolation of total DNA

Polymerase chain reaction

Teratogenicity and reproduction

Teratology

Reproduction studies

Statistical analysis

Results

CBM 588® lacks acquired antibacterial resistance

CBM 588® lacks Clostridium toxins

CBM 588® does not adversely affect reproduction or development

Discussion

Conclusion

Footnotes

Acknowledgments

Authors’ Note

Declaration of Conflicting Interests

Funding

References

CBM 588^® lacks acquired antibacterial resistance

CBM 588^® lacks Clostridium toxins

CBM 588^® does not adversely affect reproduction or development
