Copper doping enhanced the oxidative stress–mediated cytotoxicity of TiO 2 nanoparticles in A549 cells

Abstract

Physicochemical properties of titanium dioxide nanoparticles (TiO₂ NPs) can be tuned by doping with metals or nonmetals. Copper (Cu) doping improved the photocatalytic behavior of TiO₂ NPs that can be applied in various fields such as environmental remediation and nanomedicine. However, interaction of Cu-doped TiO₂ NPs with human cells is scarce. This study was designed to explore the role of Cu doping in cytotoxic response of TiO₂ NPs in human lung epithelial (A549) cells. Characterization data demonstrated the presence of both TiO₂ and Cu in Cu-doped TiO₂ NPs with high-quality lattice fringes without any distortion. The size of Cu-doped TiO₂ NPs (24 nm) was lower than pure TiO₂ NPs (30 nm). Biological results showed that both pure and Cu-doped TiO₂ NPs induced cytotoxicity and oxidative stress in a dose-dependent manner. Low mitochondrial membrane potential and higher caspase-3 enzyme (apoptotic markers) activity were also observed in A549 cells exposed to pure and Cu-doped TiO₂ NPs. We further observed that cytotoxicity caused by Cu-doped TiO₂ NPs was higher than pure TiO₂ NPs. Moreover, antioxidant N-acetyl cysteine effectively prevented the reactive oxygen species generation, glutathione depletion, and cell viability reduction caused by Cu-doped TiO₂ NPs. This is the first report showing that Cu-doped TiO₂ NPs induced cytotoxicity and oxidative stress in A549 cells. This study warranted further research to explore the role of Cu doping in toxicity mechanisms of TiO₂ NPs.

Keywords

Doping cytotoxicity oxidative stress A549 cells

Introduction

Nanotechnology provides opportunity to develop nanoparticles (NPs) with unique features that have potential to be applied in several fields. The NPs are defined as materials, structures, or devices that have at least one dimension in the range of 1–100 nm. The NPs are being utilized in every aspect of human life including medical science, agriculture, and defense industries.^1,2 However, the intentional,^3,4 or unintentional,⁵ exposure of these NPs may pose health hazard to the environment and human.^6

–9 Being smaller than cells and organelles, NPs can penetrate basic biological structures that may, in turn, disrupt their function.^10,11

Titanium dioxide (TiO₂) NPs are now being produced in a large industrial scale and used widely due to its chemical stability and low cost.^12,13 TiO₂ NPs have been attracted significant attention due to their applications in photocatalysis, antibacterial, environmental remediation, and water disinfection.^14

–17 TiO₂ NPs are also being utilized in a broad range of products such as colorant for food and paints and used in sunscreens as an ultraviolet blocking agent.^18
–20 However, the environmental and human exposure of TiO₂ NPs is still debatable and is a rapidly expanding area of research. Study has shown that after inhalation, NPs can be translocated into the bloodstream and distributed to different organs of the body.²¹ In addition to inhalation, TiO₂ NPs can also be circulated in the bloodstream via dermal contact and ingestion.²¹ Several studies have shown that TiO₂ NPs have the potential to induce cytotoxicity, oxidative stress, inflammation, DNA damage, and apoptosis to different cells.^13,22
–24

Recent studies suggested that doping with metals or nonmetals effectively tune the optical and electrical properties of semiconductor TiO₂ NPs.^19,25,26 In semiconductors, electrons (e⁻) in conduction band and holes (h⁺) valence band have been traditionally used for photocatalytic degradation of organic and inorganic pollutants.²⁷ In these experiments, adequate electrons and holes were typically generated by ultraviolet irradiation. Photocatalytic behavior of TiO₂ NPs can be further improved by doping. The most efficient approach to extend the photo-response of TiO₂ into visible range is doping or surface modification with transition metals (e.g. copper (Cu)).^28,18 Studies have shown that Cu-doped TiO₂ NPs effectively kill bacteria under visible light.^29,30 Therefore, Cu-doped TiO₂ NPs have great potential to be applied in medicine and environmental remediation.^31,32

There is scarcity of studies on toxicity/biocompatibility of Cu-doped TiO₂ NPs in human cells. Some studies reported that metal-doped (e.g. Ag or Cu) TiO₂ NPs induce toxicity to zebra fish embryo.^33,34 However, Xu et al.³⁵ observed that Cu-doped TiO₂ films possess better blood compatibility compared with the nondoped TiO₂ film. Hence, this study was designed to investigate the role of Cu-doping in cytotoxicity mechanisms of TiO₂ NPs. To achieve this objective, we assessed the cell viability, reactive oxygen species (ROS), lipid peroxidation (LPO), glutathione (GSH), mitochondrial membrane potential (MMP), and caspase-3 enzyme activity in human lung epithelial (A549) cells after exposure of pure and Cu-doped TiO₂ NPs. The A549 cells, derived from human lung carcinoma, have widely been used in toxicity and biomedical research.^36,37

Materials and methods

Chemicals and reagents

Dulbecco’s modified eagle’s medium (DMEM), penicillin–streptomycin, and fetal bovine serum (FBS) were bought from Invitrogen (Carlsbad, California, USA). Titanium (IV) isopropoxide, rhodamine-123 (Rh123), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazoliumbromide (MTT), N-acetyl-cysteine (NAC), 2,7-dichlorofluorescin diacetate (DCFH-DA), 5,5-dithiobis-(2-nitrobenzoic acid) (DTNB), and reduced GSH were obtained from Sigma-Aldrich (St. Louis, Missouri, USA). Caspase-3 enzyme assay kit was purchased from Bio-Vision Inc. (Milpitas, California, USA). All other chemicals were highly purified and bought from the commercial sources.

Synthesis of pure and Cu-doped TiO₂ NPs

Pure and Cu-doped TiO₂ NPs were synthesized by the sol–gel method. We have used titanium(IV) isopropoxide Ti[OCH(CH₃)₂]₄ and copper sulfate (CuSO₄·5H₂O) as precursors. Briefly, 10 ml of titanium(IV) isopropoxide was dissolved in 50 ml of absolute ethanol. The mixture solution was stirred for 15 min. The resultant solution was mixed with 10 ml of distilled water and the solution was stirred for 1 h to obtain a clear solution. Now, the mixture was transformed into gel. After aging 24 h, the gel is filtered and dried. Then, prepared TiO₂ samples were calcined at 450°C for 2 h. Cu-doped (3% Cu at wt%) TiO₂ NP was prepared by impregnation of pure TiO₂ nanopowder suspension in water, with addition of an appropriate amount of copper sulfate while continuous stirring for 3 h. The samples were then filtered, washed, and dried at 60°C for overnight. Then, prepared faint bluish Cu-doped TiO₂ NPs were calcined at 450°C for 2 h.

Characterization of pure and Cu-doped TiO₂ NPs

Crystal structure, phase, and purity of pure and Cu-doped TiO₂ NPs were examined by X-ray diffraction (XRD) instrument (Westborough, MA, USA). XRD spectra of NPs were acquired at room temperature with the help of a PANalytical X’Pert X-ray diffractometer (Westborough, MA, USA) equipped with an Ni filter using Cu Kα (λ = 1.54056 Å) radiations as the X-ray source. The morphology of pure and Cu-doped TiO₂ NPs was assessed by the field-emission transmission electron microscopy (FETEM, JEM-2100F; JEOL Inc., Japan) at an accelerating voltage of 200 kV. Briefly, a diluted suspension of pure and Cu-doped TiO₂ NPs was prepared in deionized water. Then, suspension was sonicated at room temperature at 40 W for 30 min to avoid NP’s agglomeration. Further, a drop of NP’s suspension was poured onto a carbon-coated Cu-grid, air-dried, and examined on FETEM.

Hydrodynamic size and zeta potential of pure and Cu-doped TiO₂ NPs in water and culture medium were determined using dynamic light scattering (DLS; Nano-ZetaSizer-HT, Malvern, UK) as described by Murdock et al.³⁸ Briefly, pure and Cu-doped TiO₂ nanopowder was suspended in deionized water and complete cell culture medium (DMEM + 10% FBS). Further, suspension of NPs was incubated at 37°C for 24 h. Then, suspension was sonicated at room temperature for 30 min at 40 W and DLS experiments were done.

Cell culture

Human lung epithelial cell line (A549) was obtained from American Type Culture Collection (ATCC; Manassas, Virginia, USA). Cells were cultured in DMEM medium supplemented with 10% FBS and 100 U/ml penicillin–streptomycin at 5% CO₂ and 37°C. At 80–90% confluence, cells were harvested using 0.25% trypsin and were subcultured for nanotoxicity experiments. Cells were allowed to attach on the surface of culture flask for 24 h before the exposure of pure and Cu-doped TiO₂ NPs.

Exposure of pure and Cu-doped TiO₂ NPs to cells

Dry powder of pure and Cu-doped TiO₂ NPs was suspended in DMEM medium at a concentration of 1 mg/ml and diluted to desired dosages (2–200 µg/ml). The various dosages of NPs were then sonicated at room temperature for 15 min at 40 W to evade agglomeration of NPs before exposure to cells. In some experiments, cells were preexposed for 1 h with 10 mM of NAC before 24 h co-exposure with or without pure and Cu-doped TiO₂ NPs. In some experiments, ZnO NP was used as a positive control.

MTT assay

Cell viability was measured using MTT.³⁶ This assay measures the mitochondrial function by determining the ability of living cells to reduce MTT into blue formazan product. Briefly, 1 × 104 cells/well were seeded in a 96-well plate and exposed to different concentrations of pure and Cu-doped TiO₂ NPs (2–200 µg/ml) for 24 h. After the completion of exposure time, culture medium was discarded from each well to avoid interference of NPs and replaced with 100 μl MTT laden media (0.5 mg MTT per ml of media) and incubated at 37°C until a purple-colored formazan product was formed (∼3 h). The resulting formazan product was dissolved in acidified isopropanol (1 µl concentrated hydrochloric acid per 1 ml of isopropanol). Then, 96-well plate was centrifuged at 2300g for 5 min to settle down the remaining NPs. Further, 100 µl supernatant was transferred to a new 96-well plate, and absorbance was taken at 570 nm using a microplate reader (Synergy-HT, BioTek, Winooski, VT, USA).

Neutral red uptake assay

Neutral red uptake (NRU) assay was performed following the method of Ahamed et al.³⁶ Briefly, 1 × 10⁴ cells/well were seeded in a 96-well plate and treated with various concentrations of pure and Cu-doped TiO₂ NPs (2–200 µg/ml) for 24 h. At the end of the exposure time, test solution was aspirated and cells were washed with phosphate buffer saline (PBS) twice before being incubated for 3 h in medium supplemented with 50 µl of neutral red dye (0.6 mg/ml in PBS). The medium was washed off rapidly with PBS. Cells were then incubated for a further 20 min at 37°C in a mixture of acetic acid (1%) and ethanol (50%) to extract the dye. The 96-well plate was then centrifuged at 2300g for 5 min to settle down the remaining NPs. Following this, 100 µl supernatant was transferred to new 96-well plate and the absorbance was measured at 540 nm using the microplate reader (Synergy-HT, BioTek).

Cell morphology

Cells were treated with pure and Cu-doped TiO₂ NPs at a concentration of 200 µg/ml for 24 h. After the completion of exposure time, the morphology of A549 cells was assessed by a phase-contrast microscope (Leica DMIL, Germany).

ROS assay

Intracellular level of ROS was measured using the DCFH-DA probe.³⁹ In brief, 1 × 10⁴ cells/well were seeded in a 96-well black-bottomed culture plate and allowed to attach on the surface for 24 h in a CO₂ incubator at 37°C. Then, cells were treated with pure and Cu-doped TiO₂ NPs at the concentrations of 50 and 100 µg/ml for 24 h. After the completion of the exposure time, cells were washed with PBS before being incubated in 100 μl of 50 μM DCFH-DA solutions for 45 min at 37°C. Then, cells were lysed in alkaline solution and centrifuged at 2300g for 15 min at room temperature. Further, 200 μl supernatant was transferred to a new 96-well plate, and fluorescence was measured at 485 nm excitation and 520 nm emission using a microplate reader (Synergy-HT, BioTek). The values were presented as a percent of fluorescence intensity relative to the controls.

MMP assay

MMP level in cells following exposure to pure and Cu-doped TiO₂ NPs was assessed using Rh-123 fluorescent dye.^39,40 Briefly, cells (1 × 10⁴ cells/well) were exposed to NPs for 24 h. At the end of the exposure time, cells were washed twice with PBS. Then, cells were treated with 10 µg/ml of Rh-123 for 1 h at 37°C in dark. Cells were again washed with PBS. Then, fluorescence intensity of Rh-123 dye was measured using a microplate reader (Synergy-HT, BioTek).

Preparation of crude cell extract

Crude cell extract was prepared according to the method described in our earlier paper.⁴¹ Briefly, cells were cultured in 75-cm² culture flask and treated with pure and Cu-doped TiO₂ NPs with or without NAC for 24 h. At the end of exposure time, cells were harvested in ice-cold PBS by scraping and washed with PBS at 4°C. Then, cell pellets were lysed in cell lysis buffer [1 × 20 mM Tris-HCl (pH 7.5), 150 mM NaCl, 1 mM Na₂EDTA, 1% Triton, 2.5 mM sodium pyrophosphate]. Buffer with lysed cells was centrifuged at 15,000g for 10 min at 4°C to get supernatant without cell debris and NPs. Supernatant (cell extract) was stored in ice for further assays. This crude cell extract was used for the assay of GSH, LPO, and caspase-3 enzyme.

Lipid peroxidation assay

LPO was estimated by measuring the formation of malondialdehyde (MDA) using the method of Ohkawa et al.⁴² MDA is one of the end products of LPO. In brief, a mixture of 0.1 ml crude cell extract and 1.9 ml of 0.1 M sodium phosphate buffer (pH 7.4) was incubated at 37°C for 1 h. After incubation, mixture was precipitated with 5% TCA and centrifuged at 2300g for 15 min at room temperature and supernatant was collected. Then, 1.0 ml of 1% TBA was added to the supernatant and placed in the boiling water for 15 min. After cooling to room temperature, the absorbance of the mixture was taken at 532 nm and was converted to MDA and expressed in terms of percentage compared to the controls.

GSH assay

Intracellular GSH level was quantified by the method of Ellman.⁴³ In brief, a mixture of 0.1 ml of crude cell extract and 0.9 ml of 5% trichloroacetic acid (TCA) was centrifuged at 2300g for 15 min at room temperature. After that, 0.5 ml of the supernatant was added into 1.5 ml of 0.01% DTNB and the reaction was monitored at 412 nm. The content of GSH was presented in terms of nanomoles per milligram of protein.

Caspase-3 enzyme activity assay

Activity of caspase-3 enzyme was assessed by Bio-Vision colorimetric assay kit (Milpitas, CA, USA). This assay was based on the principle that activated caspases in apoptotic cells cleave the synthetic substrates to release free chromophore p-nitroanilide (pNA), which is measured at 405 nm. The pNA was generated after specific action of caspase-3 on tertrapeptide substrates DEVD-pNA.^41,44 In brief, reaction mixture consisted of 50 µl of cell extract protein, 50 µl of 2× reaction buffer (containing 10 mM dithiothreitol), and 5 µl of 4 mM DEVD-pNA substrate in a total volume of 105 µl. The reaction mixture was incubated at 37°C for 1 h and absorbance of the product was measured using the microplate reader (Synergy-HT, BioTek) at 405 nm as per the protocol of manufacturer.

Protein estimation

Cellular protein content was estimated by the Bradford method⁴⁵ using bovine serum albumin as the standard.

Statistical analysis

Statistical analysis was done by one-way analysis of variance followed by Dunnett’s multiple comparison tests. Significance was ascribed at p < 0.05.

Results

TEM characterization

Size, growth pattern, and distribution of crystallites were carried out by FETEM. Figure 1(a) and (b) represents the low-resolution images of pure and Cu-doped TiO₂ NPs, respectively. The primary particle size was assessed from measuring over 75 NPs in random fields of view. The average size of pure and Cu-doped (3%) TiO₂ NPs was 30 and 24 nm, respectively. These results suggest that Cu doping significantly reduces the size distribution of TiO₂ NPs (Table 1). Figure 1(c) demonstrates the high-resolution TEM image of Cu-doped TiO₂ NPs. This image shows the presence of both TiO₂ and Cu NPs with high-quality lattice fringes without any distortion. The estimated interplanar spacing of adjacent lattice fringe of TiO₂ NPs is 0.350 nm, which corresponds to the peak (101) of anatase TiO₂, while a lattice fringe of Cu NPs was 0.21 nm. These lattice distances were in accordance with the XRD spectra (Figure 2).

Figure 1.

TEM of pure and Cu-doped TiO₂ NPs. (a) and (b) Low-resolution TEM images. (c) High-resolution TEM images. TEM: transmission electron microscopy; TiO₂ NPs: titanium dioxide nanoparticles.

Table 1.

Characterization of pure and Cu-doped TiO₂ NPs (mean ± SD, n = 3).

Nanoparticles	TEM size	XRD size	Hydrodynamic size^a		Zeta potential^a
Nanoparticles	TEM size	XRD size	DI water	CDMEM	DI water	CDMEM
Pure TiO₂	30.4 ± 2.8	30.2 ± 1.9	110 ± 9.8	98 ± 4.3	+17.4 ± 3.1	−15.2 ± 2.5
TiO₂ + Cu (3%)	24.1 ± 3.3	24.4 ± 2.5	93 ± 8.2	81 ± 5.7	+16.8 ± 2.3	−14.8 ± 1.7

TiO₂ NPs: titanium dioxide nanoparticles; CDMEM: complete Dulbecco’s modified eagle media, which contains 10% FBS; DI: deionized water; FBS: fetal bovine serum.

^aParticle size and zeta potential in solution were measured by ZetaSizer Nano (Malvern).

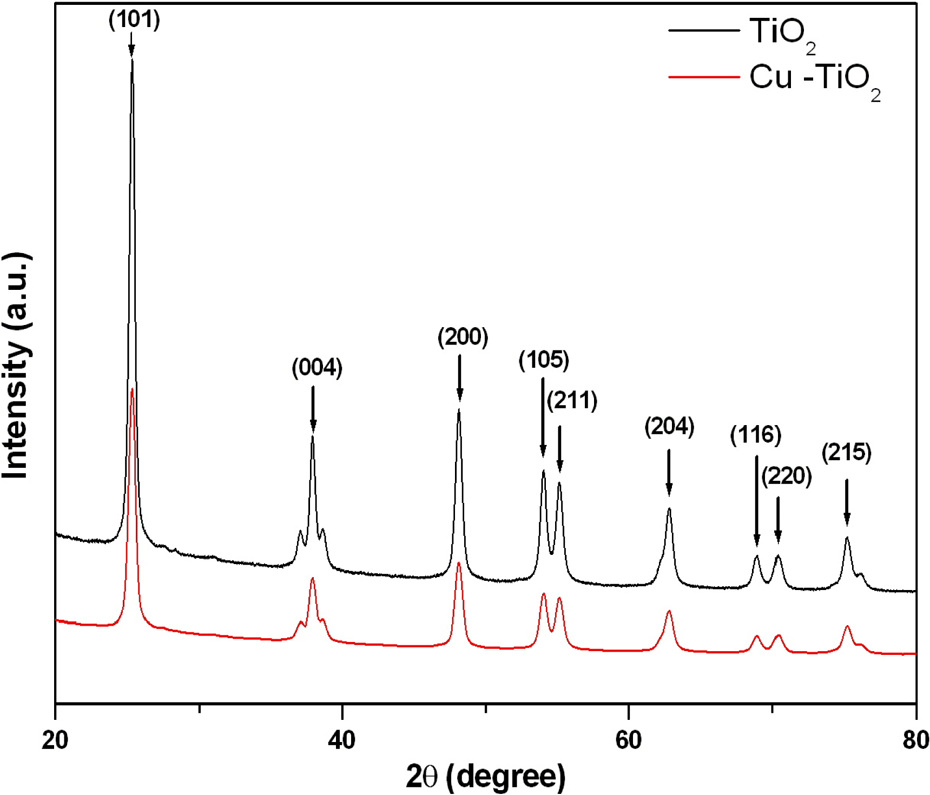

Figure 2.

X-ray diffraction spectra of pure and Cu-doped TiO₂ NPs. TiO₂ NPs: titanium dioxide nanoparticles.

XRD characterization

Figure 2 shows the XRD pattern of pure and Cu-doped TiO₂ NPs recorded in 2θ region of 20–80°. The pattern shows well-resolved diffraction peaks corresponding to the reflection of pure anatase phase of TiO₂ (JCPDS card No. 21-1272). Pure TiO₂ and Cu-doped (3%) TiO₂ have the same anatase TiO₂ peaks, and no peak shift, which is a characteristic of surface functionalization rather than Cu incorporation into the TiO₂ lattice. Any peaks related to impurities were also not detected for pure or Cu-doped TiO₂ NPs. Using the broadening of (101) anatase peak TiO₂ crystallite size was calculated by the Scherrer equation. This indicated that size of Cu-doped TiO₂ NPs was lower (24 nm) as compared to pure TiO₂ NPs (30 nm) (Table 1). The NPs size calculated from XRD spectra was also in agreement with the TEM results.

DLS characterization

Hydrodynamic size and zeta potential of pure and Cu-doped TiO₂ NPs in deionized water and culture medium are given in Table 1. Hydrodynamic size of pure and Cu-doped TiO₂ NPs was 4–6 times higher as compared to the primary size (size calculated from TEM and XRD). Zeta potential measurement indicated that pure and Cu-doped TiO₂ NPs dispersed in deionized water had positive surface charge. However, the surface charge of the aggregates in complete culture medium was negative (Table 1).

Cu doping enhanced the cytotoxic response of TiO₂ NPs

The A549 cells were treated with various concentrations of pure and Cu-doped TiO₂ NPs for 24 h and cytotoxicity was determined by MTT, NRU, and morphology assays. Results showed that cytotoxic response of Cu-doped TiO₂ NPs was higher as compared to pure TiO₂ NPs. MTT assay has shown that cell viability due to pure TiO₂ NPs exposure was reduced to 86%, 71%, 58%, and 42%, while cell viability reduction due to Cu-doped TiO₂ NPs was 77%, 63%, 51%, and 33% at the concentrations of 25, 50, 100, and 200 µg/ml, respectively (Figure 3(a)). Similar trends of cell viability reduction were observed in NRU data (Figure 3(b)).

Figure 3.

Cytotoxicity of pure and Cu-doped TiO₂ NPs. The A549 cells were treated with different concentrations of pure and Cu-doped TiO₂ NPs for 24 h. At the end of exposure time, parameters were measured. (a) MTT assay and (b) NRU assay. Data represented are mean ± SD of three identical experiments made in three replicate. *Significant difference as compared to control (p < 0.05). (c) Morphology of cells after exposure to pure and Cu-doped TiO₂ NPs (200 µg/ml for 24 h). TiO₂ NPs: titanium dioxide nanoparticles; MTT: 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazoliumbromide; NRU: neutral red uptake; SD: standard deviation.

Phase-contrast microscopic images (Figure 3(c)) also showed a significant lowering of cell density and rounding of cells after exposure to 200 µg/ml of pure and Cu-doped TiO₂ NPs for 24 h. These results are in agreement with cell viability data.

Cu-doping increased the oxidative stress response of TiO₂ NPs

We further observed that both pure and Cu-doped TiO₂ NPs were found to induce oxidative stress in A549 cells evident by induction of ROS and LPO and depletion of GSH (Figure 4(a) to (c)). Moreover, oxidative stress response of Cu-doped TiO₂ NPs was more severe than those of the pure one.

Figure 4.

Oxidative stress response of pure and Cu-doped TiO₂ NPs. The A549 cells were treated with pure and Cu-doped TiO₂ NPs at the concentrations of 50 and 100 µg/ml for 24 h. At the end of exposure time, parameters were determined. (a) ROS, (b) MDA, and (c) GSH. Data represented are mean ± SD of three identical experiments made in three replicate. *Significant difference as compared to control (p < 0.05). TiO₂ NPs: titanium dioxide nanoparticles; ROS: reactive oxygen species; MDA: malondialdehyde; GSH: glutathione; SD: standard deviation.

Cu-doping increased the apoptotic response of TiO₂ NPs

The MMP level was evaluated after pure and Cu-doped TiO₂ NPs exposure using Rd123 fluorescent probe (Figure 5(a)). Results have shown that both pure and Cu-doped TiO₂ NPs reduced the level of MMP dose dependently (Figure 5(a)). We further determined the activity of apoptotic enzyme caspase-3 in A549 cells treated with pure and Cu-doped TiO₂ NPs at the concentrations of 50 and 100 µg/ml for 24 h. Results demonstrated that the activity of this enzyme was higher in cells after exposure to pure and Cu-doped TiO₂ NPs (Figure 5(b)). Similar to oxidative stress and cytotoxicity data, caspase-3 enzyme activity along with MMP loss due to Cu-doped TiO₂ NPs was higher as compared to pure TiO₂ NPs.

Figure 5.

MMP and caspase-3 enzyme activity in A549 cells after exposure to pure and Cu-doped TiO₂ NPs. The A549 cells were treated with pure and Cu-doped TiO₂ NPs at the concentrations of 50 and 100 µg/ml for 24 h. (a) MMP and (b) Caspase-3 enzyme activity. Data represented are mean ± SD of three identical experiments made in three replicates. *Significant difference as compared to control (p < 0.05). TiO₂ NPs: titanium dioxide nanoparticles; MMP: mitochondrial membrane potential; SD: standard deviation.

Pure and Cu-doped TiO₂ NPs-induced cytotoxicity was mediated through ROS

In order to investigate whether oxidative stress might play a critical role in cytotoxic response, A549 cells treated with both pure and Cu-doped TiO₂ NPs in the presence or absence of ROS scavenger NAC. We have also taken ZnO NPs as a positive control. We observed that NAC effectively prevented ROS generation and GSH depletion caused by pure TiO₂ NPs, Cu-doped TiO₂ NPs, or ZnO NPs (Figure 6(a) and (b)). We further noticed that co-exposure of NAC, abolished almost fully the cell viability reduction caused by pure TiO₂ NPs, Cu-doped TiO₂ NPs, or ZnO NPs exposure (Figure 6(c)). Altogether, our data suggested that cytotoxicity in A549 cells induced by pure and Cu-doped TiO₂ NPs was mediated through oxidative stress.

Figure 6.

Pure and Cu-doped TiO₂ NPs induced cytotoxicity was mediated through ROS generation. The A549 cells were treated with pure and Cu-doped TiO₂ NPs at the concentration of 50 μg/ml in the presence or absence of NAC (10 mM) for 24 h. The ZnO NPs was used as a positive control. After the exposure completed, oxidative stress and cytotoxicity parameters were determined. (a) ROS, (b) GSH, and (c) MTT cell viability. Data represented are mean ± SD of three identical experiments made in three replicates. *Significant difference as compared to control (p < 0.05). ^#Significant inhibitory effect of NAC (p < 0.05). TiO₂ NPs: titanium dioxide nanoparticles; ROS: reactive oxygen species; GSH: glutathione; MTT: 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazoliumbromide; NAC: N-acetyl cysteine; NPs: nanoparticles; SD: standard deviation.

Discussion

For the realistic interpretation of data, it is indispensable to characterize the physical and chemical properties of NPs before their biochemical or toxicity studies.^46,47 We have characterized the shape, size, crystalline nature, and aqueous behavior of pure and Cu-doped TiO₂ NPs. High-resolution transmission electron microscopy image suggested the presence of both Cu and TiO₂ NPs with high-quality lattice fringes without any distortion. XRD spectra indicated that both pure and Cu-doped TiO₂ NPs have the same anatase TiO₂ peaks and no peak shift. This is the characteristic of surface functionalization rather than Cu incorporation into the TiO₂ lattice. Both TEM and XRD measurements showed that the size of Cu-doped TiO₂ NPs was slightly smaller (24 nm) as compared to pure TiO₂ NPs (30 nm). Reduction in the size of metal oxide NPs after doping is a very common trend and also reported in our earlier work.^26,48 In this case, investigators postulated that when Cu²⁺ ions doped into the TiO₂ lattice, they likely to inhibit the growth of TiO₂ crystals. Hydrodynamic size (secondary particle size) of pure and Cu-doped TiO₂ NPs was three to five times bigger than those of primary particle size (TEM or XRD size; Table 1). The higher size of NPs was due to the tendency of particles to agglomerate in the aqueous state. The present data is in agreement with other reports^49,50 and briefly discussed in the previous work.⁵¹ Zeta potential study indicated that both the pure and Cu-doped TiO₂ NPs dispersed in deionized water had positive surface charge. However, the surface charge of the aggregates in complete culture medium was negative. Different charges on the surface of NPs may be due to coating of negatively charged proteins present in culture medium. Hence, primary size, hydrodynamic size, as well as surface charge of NPs might play important roles in biomedical and toxicity studies.

NPs exposure may get through inhalation, ingestion, or dermal contact.⁹ Hence, it is critical to explore the toxicity of Cu-doped TiO₂ NPs in relevant human tissues. We have chosen human lung epithelial (A549) cells as the in vitro cell culture model to explore the role of Cu doping in cytotoxicity mechanisms of TiO₂ NPs. The A549 cells were used because lung represents the main exposure route for workers employed in the production and handling of NPs as well as the environmental exposure to the general population. It has been reported that NPs have high efficiency to deposit in the lungs for a long time where they may cause inflammation and oxidative stress.⁵² In this study, we found that Cu-doping enhanced cytotoxicity, oxidative stress, and apoptotic response of TiO₂ NPs in A549 cells.

Cytotoxic response of pure and Cu-doped TiO₂ NPs in A549 cells was examined by MTT, NRU, and morphological studies. These parameters serve as sensitive and integrated tools of cytotoxicity.^53,54 Both MTT and NRU assay showed that pure and Cu-doped TiO₂ NPs reduced the cell viability in a dose-dependent manner. Microscopy data also showed a significant lowering of cell density and rounding of cells after exposure to these NPs. Moreover, cytotoxic response induced by Cu-doped TiO₂ NPs was higher than those of pure TiO₂ NPs. Our cytotoxicity data were in accordance with lower MMP and higher caspase-3 enzyme (apoptotic enzyme) activity of A549 cells exposed to pure and Cu-doped TiO₂ NPs. Alterations in lysosomal and mitochondrial activity along with MMP loss suggested that Cu-doped TiO₂ NPs could induce apoptotic cell death through the mitochondrial pathway. Mitochondrial events of apoptotic cell death involve the opening of a pore in the inner mitochondrial membrane, referred to as mitochondrial permeability transition pore (MPTP) and MMP loss.⁵⁵ Opening of the MPTP results in mitochondrial swelling and rupture of the outer mitochondrial membrane. This phenomenon consequently leads to the release of apoptogens that likely engage the components of the apoptosis machinery to further enhance the cell death.^56,57

At last, we explored the potential mechanisms of cytotoxicity caused by pure and Cu-doped TiO₂ NPs in A549 cells. ROS generation and oxidative damage of cellular biomolecules have been proposed as possible mechanisms of toxicity caused by NPs.^51,58 It is well stated that ROS has potential to induce genetic damage, inflammation, and cell death.^59,60 However, investigations exploring the underlying mechanisms through which NPs generated ROS and ultimately cells death are still underway. Our recent work demonstrated that doped metal oxide NPs have potential to cause oxidative damage to human cells.^4,51 In this study, we found that ROS level and MDA level, a marker of LPO, increase with increasing the concentrations of pure and Cu-doped TiO₂ NPs. Generation of ROS beyond a limit is toxic to cells because of their ability to oxidize cellular biomolecules including antioxidant GSH, which plays a vital role in preserving redox homeostasis. Pure and Cu-doped TiO₂ NPs induced depletion of GSH level in a dose-dependent manner in A549 cells. Cell has a number of defense mechanisms against oxidative stress including direct interaction with antioxidant molecules. Indeed, co-exposure of an antioxidant NAC (ROS scavenger) effectively abrogated the ROS generation and GSH depletion as well as the cell viability reduction induced pure and Cu-doped TiO₂ NPs in A549 cells, indicating that oxidative stress might be the responsible factor in the cytotoxicity of these NPs.

Conclusion

Characterization data demonstrated that size of Cu-doped TiO₂ NPs was lower than pure TiO₂ NPs (24 nm vs. 30 nm). Both pure and Cu-doped TiO₂ NPs induced cytotoxicity and oxidative stress in a dose-dependent manner in A549 cells. However, the toxic response of Cu-doped TiO₂ NPs was slightly higher than those of pure one. We further observed that antioxidant NAC effectively abrogated the oxidative stress and cytotoxicity caused by pure and Cu-doped TiO₂ NPs. Altogether, our data suggested Cu-doped TiO₂ NPs toxicity in A549 cells via ROS generation. This study warranted further investigation on the role of Cu-doping in toxicity mechanisms of TiO₂ NPs in different in vitro as well as in vivo models.

Footnotes

Acknowledgement

The authors are grateful to the Deanship of Scientific Research, King Saud University for funding through Vice Deanship of Scientific Research Chairs.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.
