Human and experimental toxicology of diquat poisoning: Toxicokinetics,mechanisms of toxicity,clinical features,and treatment

Abstract

Diquat (1,1′-ethylene-2,2′-bipyridinium ion; DQ) is a nonselective quick-acting herbicide, which is used as contact and preharvest desiccant to control terrestrial and aquatic vegetation. Several cases of human poisoning were reported worldwide mainly due to intentional ingestion of the liquid formulations. Its toxic potential results from its ability to produce reactive oxygen and nitrogen species through redox cycling processes that can lead to oxidative stress and potentially cell death. Kidney is the main target organ due to DQ toxicokinetics and redox cycling. There is no antidote against DQ intoxications, and the efficacy of treatments currently applied is still unsatisfactory. The aim of this work was to review the most relevant human and experimental findings related to DQ, characterizing its chemistry, activity as herbicide, mechanisms of toxicity, consequences of poisoning, and potential therapeutic approaches taking into account previous experience in developing antidotes for paraquat, a more toxic bipyridinium herbicide.

Keywords

1,1′-Ethylene-2,2′-bipyridinium herbicide oxidative stress human poisoning treatment

Introduction

Over the past few decades, the use of pesticides, namely herbicides, has been increasing worldwide.¹ Herbicides are essential in agriculture to improve crop yields, forestry, urban settings, and to control weeds in aquatic systems. However, the inadequate and indiscriminate application of herbicides can generate serious food safety issues and environmental problems, namely due to contamination of aquatic systems by discharge of these substances from manufacturing facilities and/or surface runoffs into natural water resources.^2,3 Herbicides are generally selective to weeds, because they inhibit plant-specific pathways. They may be grouped into several classes, according to their selectivity, activity (i.e. control, suppression, crop safety, and defoliant), timing of application (i.e. preplant, preemergence, and postemergence), method of application (i.e. soil or foliar applied), mechanism of action (i.e. lipid synthesis inhibitors, amino acid synthesis inhibitors, growth regulators, photosynthesis inhibitors, pigment inhibitors, cell membrane disrupters, seedling root/shoot growth inhibitors, nitrogen metabolism inhibitors), or chemical structure (e.g. phenoxyacids, bipyridinium, dinitroaniline, chloroacetamide, carbamate, phenyl acetic acid, benzonitrile, urea, uracil, glyphosate, triazine, and pthalic acid).⁴

Diquat (1,1′-ethylene-2,2′-bipyridinium; DQ; Figure 1), is a nonselective, defoliant, preharvest and desiccant herbicide that belongs to the bipyridinium class. It was first synthesized by Dr Fielden in the laboratories of the Dyestuffs Division of the Imperial Chemical Industries (Blackley, England).⁵ At that time, it was known that the quaternary ammonium compounds, a class of surface-active agents, had more potent phytotoxic effects than anionic or nonionic substances, which then raised the interest of creating a program to evaluate their herbicidal activity. Hence, in 1955, in a series of investigations at Jealott’s Hill Research Station (Bracknell, England), after observing that quaternary ammonium germicides, as cetyl trimethylammonium bromide, were able to desiccate young seedling plants, Brian et al.⁵ discovered the herbicide potential of DQ. This led then Homer et al.⁶ to develop a program to synthesize quaternary ammonium salts of isomeric bipyridinium substances and to evaluate their herbicidal activity. Regarding DQ, they noticed that there was a relationship among the herbicidal effect and its specific chemical structure, as the activity was only present when: (i) there was a bridge between the pyridine rings, (ii) that bridge was formed by only two carbon atoms, and (iii) all structures assume a coplanar configuration. Furthermore, they verified that DQ can be easily reduced to a free radical monocation (DQ^+●), and this process had a key role in its herbicidal effects, which is more pronounced at daylight than in darkness. Aerobic conditions, high humidity, and temperature were also implicated in the increased herbicidal activity.^6,7 DQ was first introduced in the market by Imperial Chemical Industries in 1958.⁸

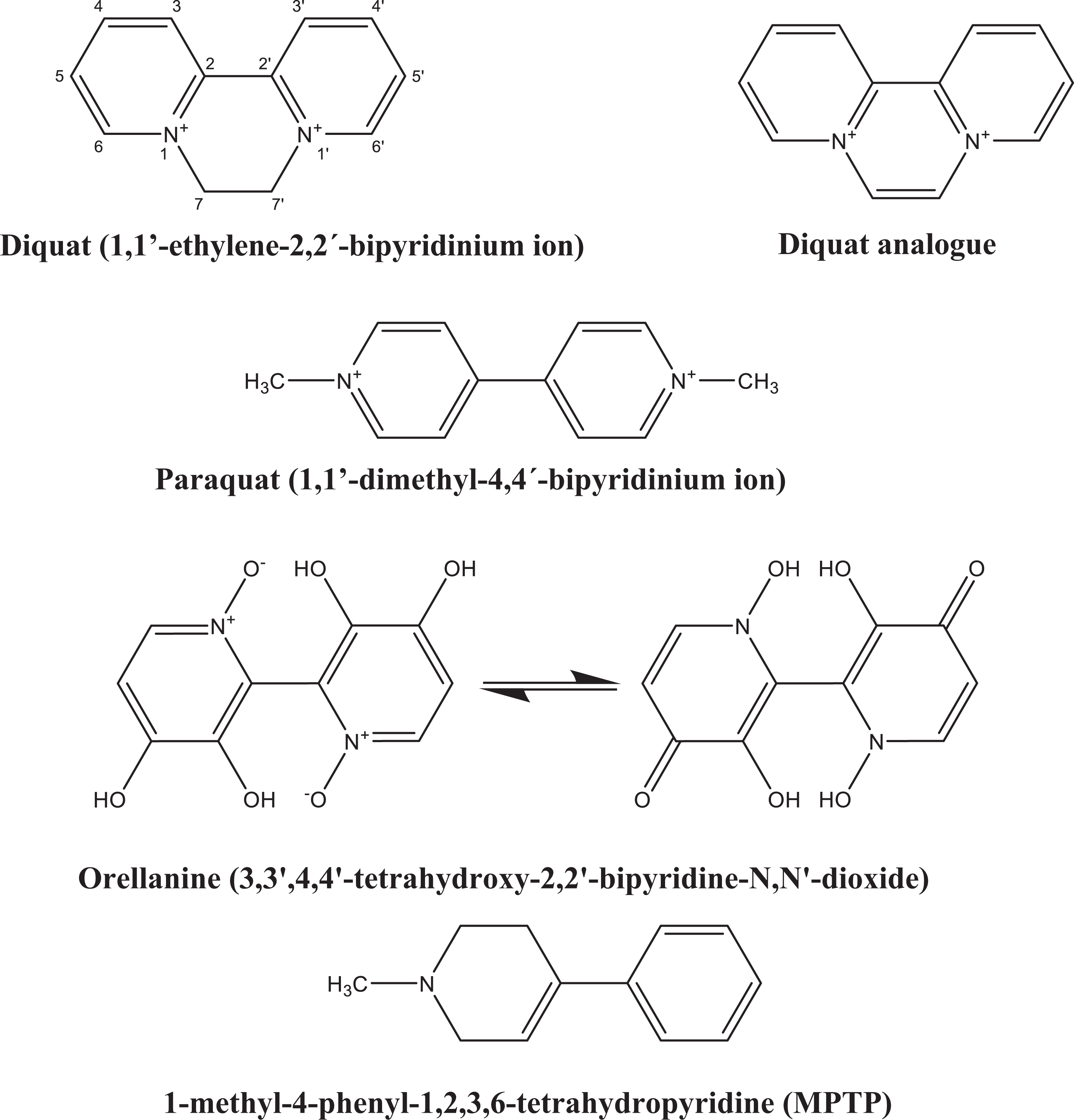

Figure 1.

Chemical structures of DQ, PQ, orellanine, and MPTP. DQ: diquat; PQ: paraquat; MPTP: 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine.

The first report of DQ poisoning dates 1968, when a young boy, aged 18 years, took accidentally a mouthful of undiluted 20% formulation.⁹ Since then, at least 60 cases of DQ poisoning worldwide were reported in the scientific literature (Table 1). Most cases derived from suicidal intents by ingestion of concentrated liquid products containing DQ. Accidental ingestion have also occurred, although rarely, as a result of decanting DQ liquid concentrates into soft drink bottles or equipment failure and violations of label requirements during agricultural practice.⁵⁰ Treatment usually includes administration of inhibitors of DQ-mediated enzymatic reactions or the use of enzymatic and low-molecular antioxidants. Other therapeutic strategies include either decreasing absorption or enhancing excretion. However, these are mainly ineffective in reducing the DQ toxicity and the development of an antidote formulation is of paramount importance to prevent morbidity and mortality.

Table 1.

Reported cases of DQ poisoning.

Age (years)	Sex	Routes of exposure	Quantity (mL)	Therapy	Outcome^a	References
36	M	Ocular	NA	Administration of chloramphenicol ointment, 1% atropine	Recovered	¹⁰
18	M	Oral	5	Gastric lavage, forced diuresis, administration of saline solution, dextrose, mannitol	Recovered	⁹
46	M	Dermal	NA	NA	Recovered	¹¹
75	M	Dermal	NA	NA	Recovered	¹¹
50	M	Dermal	NA	NA	Recovered	¹¹
43	M	Inhalation, oral	NA	NA	Recovered	¹²
25	M	Oral	15	Gastric lavage, forced diuresis, hemodialysis	Death (7 days)	¹³
26	M	Oral	NA	Gastric lavage, mechanical ventilation, administration of saline solution, sodium bicarbonate, diazepam, phenoperidine	Recovered	¹⁴
43	F	Oral	NA	Hemodialysis	Death (46 h)	¹⁵
53	M	Oral	5	Gastric lavage, forced diuresis, hemodialysis	Recovered	¹⁶
45	M	Oral	NA	Gastric and gut lavage, hemodialysis, hemoperfusion	Death (47 h)	¹⁷
45	M	Inhalation	5	Mechanical ventilation, administration of tetracycline, codeine, ampicillin, erythromycin, prednisone	Recovered	¹⁸
33	M	N. R.	200	Hemodialysis	Death (2 days)	¹⁹
16	F	Oral	50	Gastric lavage, administration of plasma expanders, vasoactive drugs, lidocaine chloride	Death (24 h)	²⁰
60	F	Oral	20	Gastric lavage, hemodialysis, hemoperfusion, mechanical ventilation	Death (5 days)	²⁰
50	F	Oral	200	Hemodialysis	Death (5 days)	²¹
23	M	Oral	300	Gastric lavage, activated charcoal, hemoperfusion, administration of diazepam, morphine sulfate, naloxone, dopamine, saline solution	Death (14 h)	²²
2	M	Oral	NA	Gastric lavage, activated charcoal, hemoperfusion, hemodialysis, mechanical ventilation, administration of ipecac, magnesium sulfate, saline solution, mannitol, furosemide, clindamycin, moxalactam	Death (143 h)	²³
33	M	Oral	300	Gastric and gut lavage, mechanical ventilation, osmotic diuresis, hemoperfusion	Recovered	²⁴
24	M	Oral	NA	Gastric lavage, activated charcoal, hemoperfusion, administration of mannitol	Recovered	²⁵
51	M	Dermal	NA	Whirlpool and hyperbaric oxygen treatments, dressing changes	Recovered	²⁶
10	M	Oral	30	NA	Recovered	²⁷
38	F	Oral	NA	Hemofiltration, hemoperfusion	Death (5.5 h)	²⁸
72	M	Dermal, ocular	NA	Administration of carbidopa, levodopa, bromocriptine	Developed PD	²⁹
24	M	Oral	NA	Forced diuresis, administration of ranitidine, sucralfate	Recovered	³⁰
33	M	Oral	100	NA	Death (2 days)	³¹
31	F	Oral	2	Forced diuresis, hemofiltration, hemoperfusion	Recovered	³²
37	F	Oral	20	Forced diuresis, hemofiltration, hemoperfusion	Recovered	³²
33	M	Oral	100	Forced diuresis, hemofiltration, hemoperfusion	Death (<48 h)	³²
55	M	Oral	NA	Forced diuresis, hemofiltration, hemoperfusion	Death (<48 h)	³²
78	M	Oral	100	Forced diuresis, hemofiltration, hemoperfusion	Death (<48 h)	³²
70	F	Oral	100	Forced diuresis, hemofiltration, hemoperfusion	Death (<48 h)	³²
70	M	Oral	100	Forced diuresis, hemofiltration, hemoperfusion	Death (<48 h)	³²
38	F	Oral	NA	Forced diuresis, hemofiltration, hemoperfusion	Death (<48 h)	³²
22	M	Oral	150	Gastric lavage, activated charcoal, hemoperfusion	Death (<24 h)	³³
NA	M	Dermal	NA	Topical silver sulfadiazine, administration of cephalosporin	Recovered	³⁴
NA	M	Dermal	NA	Topical silver sulfadiazine, administration of cephalosporin	Recovered	³⁴
55	M	Oral	NA	Gastric lavage, forced diuresis, hemoperfusion	Death	³⁵
64	M	Oral	NA	Gastric lavage, forced diuresis, hemoperfusion	Death	³⁵
55	M	Oral	NA	Gastric lavage, forced diuresis, hemoperfusion	Death	³⁵
25	F	Vaginal	20	Hemodialysis, administration of penicillin, clindamycin	Recovered	³⁶
28	M	Oral	120–240	Activated charcoal, fluid therapy, hemoperfusion, administration of benzodiazepines, phenytoin, pentobarbital, vasopressors	Death (24 h)
66	M	Oral	200	Activated charcoal, fluid therapy, administration of droperidol, clindamycin, aztreonam, paroxetine	Recovered	³⁷
37	M	Oral	300	Gastric lavage, activated charcoal, fluid therapy, hemoperfusion, hemofiltration, administration of dopamine, mannitol, N-acetylcysteine, bicarbonate	Death (26 h)	³⁸
57	F	Oral	NA	Activated charcoal, hemodialysis, administration of dopamine	Death (7 days)	³⁹
52	M	Oral	160	Activated charcoal, forced diuresis, hemodialysis, mechanical ventilation, administration of diazepam, antibiotics	Recovered	⁴⁰
41	M	Oral	30	Gastric lavage, hemoperfusion	Death (1 month)	⁴¹
53	F	Oral	NA	NA	Death (4 days)	⁴¹
42	M	NA	NA	NA	Death (>12 h)	⁴²
54	M	Ocular	NA	Administration of 0.3% ofloxacin, 0.02% fluorometholone, 2% reduced glutathione	Recovered	⁴³
NA	NA	Oral	NA	NA	Recovered	⁴⁴
84	M	Oral	NA	Hemofiltration, hemoperfusion	Death (4 days)	⁴⁵
69	M	Dermal	NA	Administration of steroids, vitamin B12, folate, ursodeoxicolic acid, N-acetylcysteine, curcumin	Recovered	⁴⁶
48	M	Oral	NA	Administration of morphine, steroids and nutritional supplements	Recovered	⁴⁷
35	F	Oral	30	Gastric lavage, mechanical ventilation, administration of saline solution, sodium bicarbonate, tramadol, diazepam, dopamine, furosemide	Death (20 h)	⁴⁸
64	M	Oral	NA	Hemodialysis, mechanical ventilation, administration of isotonic saline solution, glucose, atropine, propaphenon, verapamil	Death (18 days)	⁴⁸
38	M	Oral	NA	NA	Death (1 day)	⁴⁹
17	M	Oral, ocular, dermal	NA	NA	Recovered	⁴⁹
57	F	Dermal	NA	NA	Recovered	⁴⁹

DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium; NA: not available/reported; M: male: F: female.

^aThe period indicated reflects the time interval between diquat exposure and death.

The aim of this work was to provide a comprehensive review of the published literature related to DQ, namely regarding its chemistry, activity as herbicide, mechanisms of toxicity, poisoning outcomes, and possible therapeutic approaches. Indeed, despite all treatments already described, frequently, it is not possible to prevent a fatal outcome caused by DQ poisoning due to the absence of an antidote or effective treatment. It is expected that our previous experience focusing the toxicology of paraquat (PQ; another bipyridinium), namely the development of efficient treatments, may offer further insights into and discussions about the toxicology of DQ aiming to reduce morbidity and mortality.

Methods

An English exhaustive literature search was performed in PubMed (US National Library of Medicine) and patents to identify all articles containing relevant information about preclinical, clinical, and experimental toxicology of DQ, without a limiting period. Furthermore, from the retrieved journal articles, electronic copies of the full papers were obtained and reviewed. Also, books on pesticides were reviewed to find additional information.

Physical and chemical properties and formulations

DQ belongs to the bipyridinium chemical class. It is composed by pyridine rings (i.e. two aromatic rings in which one carbon atom is replaced by a nitrogen atom coupled by a saturated (CH₂) _n bridge; in this case, n = 2 (i.e. ethylene group; Figure 1). This makes it a highly polar divalent cationic compound that is easily reduced to an unstable DQ^+●.⁵¹ Further reduction yields polyhydrobipyridyl derivatives and atmospheric oxygen regenerates DQ²⁺. The distance between the two nitrogen atoms is about 3.5 Å.⁵² If n = 3 or 4, the compounds would be triquat or tetraquat, respectively. Also, there is another analogue of DQ which contains an unsaturated (CH)₂ bridge.⁵³ All of these belong to a quaternary ammonium salts (“quats”) group, together with other herbicides such as PQ and difenzoquat, and some growth regulators such as chlormequat and mepiquat. The physical and chemical properties of DQ²⁺ are summarized in Table 2.

Table 2.

Physical and chemical properties of DQ.

Chemical class	Bipyridylium
Appearance	Pure diquat dibromide is a yellow crystalline solid with no known characteristic odor; formulation is a dark brown clear liquid with earthy odor
Molecular formula	C₁₂H₁₂N₂ (ion); C₁₂H₁₂Br₂N₂ (dibromide); C₁₂H₁₂Br₂N₂.H₂O (dibromide monohydrate)
Molecular weight	184.2 g mol⁻¹ (ion); 344.0 g mol⁻¹ (dibromide); 362.0 g mol⁻¹ (dibromide monohydrate)
IUPAC name	9,10-Dihydro-8a,10a-diazoniaphenanthrene ion
Synonyms	1,1′-Ethylene-2,2′-bipyridilium
CAS number	2764-72-9
Physical state (as dibromide salt)	Odorless yellow crystals, formulated as aqueous solution
Relative density (at 25°C)	1.61 g cm⁻³ for diquat ion; 1.22–1.27 g cm⁻³ for formulation
Melting point	325°C with decomposition
Boiling point	Decomposes
Solubility (at 20°C)	In water—highly soluble (712 g L⁻¹ at buffered water pH 5.2; 718 g L⁻¹ at buffered water pH 7.2; 713 g L⁻¹ at buffered water pH 9.2); in organic solvents, at 20°C—only slightly soluble in alcohols (25 g L⁻¹ for methanol; <0.1 g L⁻¹ for acetone, dichloromethane, toluene, ethyl acetate and hexane)
Vapor pressure	Less than 10^–8 kPa at 25°C
Vapor pressure (at 25°C)	An absolute value for Henry’s Law Constant (H) cannot be calculated since pure diquat dibromide has no measurable vapor pressure. The value of H is estimated to be less than 5 × 10^–12 Pa m⁻³ mol⁻¹
Redox potential (E₀)	−349 mV
Hydrolysis	Stable
Photolysis	Rapidly degraded
Partition coefficients (at 20°C)	Log K_ow (octanol–water) = −4.60; Log K_oc (organic carbon–water) = 0.42
Fluorescence	Excitation (310 nm; normal), reduced to green-colored compound (430 nm), reduced to red-colored compound (495 nm); reduced to purple-colored compound (383 and 520 nm), reduced to yellow-colored compound (420 nm); emission (345 nm)
Half-life (days average)	Air = 2; soil =3450; water = 2 to 10
pH of formulation at 20°C	6.68
pka	10

DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium.

The herbicide occurs mainly in the form of highly hygroscopic salts, supplied mainly as aqueous solutions of dibromide salt monohydrate, although it can also be associated with chlorine, iodine, methylsulfate, or sulfate anions (the active part of the herbicide is the DQ²⁺ itself, whereas the anion does not have any rule).^54,55 It is sold either alone or in combination with other herbicidal agents, namely with PQ, amitrole, terbutylazine, or simazine. The most common trade name is Aquacide®.

DQ is classically synthetized in two steps: (i) pyridine is oxidatively coupled to 2,2′-bipyridine over a heated Raney nickel catalyst and (ii) quaternization of 2,2′-bipyridinium with ethylene dibromide (1,2-dibromoethane) to form the ethylene bridge, as shown in Figure 2.⁵⁶ The carcinogen ethylene dibromide is an essential starting substance for the DQ dibromide production and remains as a manufacturing impurity in DQ-containing liquid formulations. Notwithstanding, it is not considered to be a threat to human health because it dissipates from products with time.^{8,10,50,57,58}

Figure 2.

Synthesis of DQ. DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium.

DQ dibromide, in particular, has an appearance of crystalline yellow powder with no characteristic odor and is completely dissociated in aqueous solution over the full pH range.⁵⁹ Aqueous solutions of DQ are nonvolatile, nonflammable and nonexplosive. Moreover, it is very stable under neutral and acidic conditions but readily degrades in alkali solutions above pH 9 due to the uptake of a single OH⁻ molecule, which ruptures one of the pyridine rings.⁵⁹

Formulations of 20% (m/v) are particularly common. More concentrated formulations need to be diluted before use mainly due to the corrosive effects.⁶⁰ When dealing with these products, inadvertent spills and splashes can expose the handler to the herbicide. Wearing personal protective equipment is recommended⁶⁰: (i) chemical-resistant and waterproof rubber gloves, headgear, footwear, and socks; (ii) long-sleeved shirts and long impermeable pants; (iii) chemical-resistant apron; (iv) eye protection; and (v) filter respirator.

Mode of action as herbicide

Easiness of handling (crystalline salts), high solubility in water (for preparation of spraying solutions), low vapor pressure (minimal fumes), high binding capacity (inactivation after soil binding), and quick desiccation/action (once photosynthesis starts), all make DQ an appropriate herbicide for agricultural needs. It is particularly useful for pasture renovation and to protect fruit orchards and diverse plantation crops (e.g. potato, vine, banana, rice and sunflower), presenting a weed and grass species-dependent effectiveness. It can also act as defoliant for cotton, soybeans and hops and diminish the moisture content of grain, saving costs of seed drying and advancing the rice harvest season without influencing seed germination.^50,55,61 After application, DQ penetrates rapidly through the leaf surface. This absorption may increase with high light intensity, humidity, and the specific adjuvant that is incorporated in que liquid formulation, usually the surfactant Agral [nonionic liquid containing 90% (v/v) alkyl phenol ethylene oxide], which ensures a good penetration of DQ in the foliage.^55,62 DQ is referred as a desiccant because it can quickly dry out an entire plant, due to the rupture of cell membranes that allows water to escape, and it is mainly used for preharvest desiccation, aiding the harvesting of seed and fodder crops.^50,55,61 Because it is strongly adsorbed to soil, DQ is not taken up by plant roots.

DQ is also applied in various aquatic reservoirs, such as lakes, ponds, drainage ditches, among others, to control floating, emerging, and submersed weeds. This is of great importance, as aquatic weeds can impair the recreational value of those aquatic systems, block irrigation channels, hinder navigation, and damage pumping stations and hydroelectric turbines. The efficacy of DQ as herbicide may be potentiated by the association of copper sources, as was demonstrated by Garlich et al.⁶³ in some algae, although the application of chemical products needs to be cautious and moderate, concerning environmental safety and health. The same is true for the use of DQ, as it was proved that it can exert toxic effects in some nontarget species like Lymnaea stagnalis freshwater snails,⁶⁴ Stizostedion vitreum walleye, Micropterus salmoides largemouth bass and Micropterus dolomieu smallmouth bass fish,⁶⁵ and Hyalella azteca amphipods,⁶⁶ having an average threshold toxicity to fish of about 20 ppm, which means that the toxicity is reduced by a factor of two comparatively to PQ.⁶⁷ Eastern spiny softshell turtles (Apalone spinifera spinifera) are not sensitive to DQ.⁶⁸ Moreover, the efficacy of DQ is reduced at lower water temperatures⁶⁹ and higher levels of turbidity.⁷⁰ Young et al.⁷¹ determined taste and odor thresholds in drinking water for DQ dibromide of at least 56 µg L⁻¹ and 8900 µg L⁻¹, respectively, although these values cannot be associated with the potential toxicity of the herbicide.

After application, penetration through the leaf surface occurs almost immediately. This absorption is increased by high light intensity and humidity and by added nonionic adjuvants in the formulation, which ensure good spray retention and wetting of target foliage.⁵⁵

Photosystem II is inhibited by a great variety of herbicides, and the photosystem I electron pathway is diverted by bipyridinium herbicides.⁷² Herbicidal activity, as well as DQ-induced toxicity to mammals, was found to be linked to DQ redox potential.⁷³ Indeed, once it is applied as an herbicide to manage terrestrial and aquatic vegetation, DQ²⁺ is reduced from the primary electron acceptor of photosystem I inside chloroplasts, thus generating reactive oxygen species (ROS) and inhibiting photosynthesis through chlorophyll breakdown, ion leakage, and DNA fragmentation. Initial work on the mode of action of bipyridinium herbicides by Mees⁷⁴ indicated that their ability to cause rapid kill is dependent not only on the photosynthetic activity of plants (sunlight) and on O₂ but also on humidity and temperature.⁶ Zweig et al.⁷⁵ further found that bipyridinium herbicides cause a deviation of electron flow from photosystem I (which normally transfers its electron to ferredoxin), leading to an inhibition of oxidized nicotinamide adenine dinucleotide phosphate (NADP⁺) reduction during photosynthesis (Figure 3). During this process, DQ^●+ is produced in the cell at the expense of nicotinamide adenine dinucleotide phosphate (NADPH).⁷⁷ Thus, DQ is only toxic to the green parts of the plant, where the photosynthesis occurs.⁷⁸ DQ²⁺ is then rapidly reoxidized by the O₂ produced in chloroplasts.⁷⁸ In the reoxidization, superoxide radical (O₂ ^●−) is generated, with the subsequent oxidative deleterious effects and consequent cell death. This redox cycle occurs until the supply of free electrons ceases.⁷⁹ Therefore, the mechanism of toxic action of DQ involves cyclic reduction–oxidation reactions, which produce ROS and depletion of reduced NADPH.

Figure 3.

Herbicide mechanism of DQ. In PSI, PC transfers its electron (e−) through a series of steps (P₇₀₀, A₀, A₁, Fe-S, F_A, F_B) to FRD and finally to NADP⁺. DQ²⁺ binds near the FRD binding site in PSI and accepts an e ⁻, becoming diquat monocation free radical (DQ^+●), which initiates a series of reactions leading to cell membrane disruption and plant death. The formation of such free radicals stops electron transport to NADP⁺ and effectively inhibits normal functioning of PSI. A₀: modified chlorophyll a—electron acceptor chlorophyll; A₁: phylloquinone; Fe-S: iron-sulfur proteins; PsaA, PsaB, PsaC, PsaD, PsaE: polypeptides subunits of PSI; A: ferrodoxin-NADP⁺ reductase; granum: stack of thylakoids. DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium; PSI: photosystem I; PC: plastocyanin; FRD: ferrodoxin; NADP⁺: oxidized nicotinamide adenine dinucleotide phosphate. Adapted from Dinis-Oliveira et al.⁷⁶

Other applications

It was reported that DQ was effective in the treatment of columnaris, a disease that affects a diversity of fish species all over the world.⁸⁰ The etiological agent of this illness, the Flavobacterium columnare, is a bacterium that damages fish fins, gills, and skin by external and systemic infection. Affected fish can present frayed necrotic fins with gray to white margins, necrotic and depigmented skin, and also white to brown necrotic areas in the gills. The efficacy of the treatment was possibly due to the antibacterial effect of DQ on F. columnare that have colonized on external surfaces. As DQ is a divalent cationic compound, it has low permeability and absorption in gill epithelia and skin of infected fish. Notwithstanding, further studies should be done to optimize dose concentration and to evaluate repeated treatments and duration.^80,81

Inactivation in contact with soil

Some studies have reported that DQ is more environment-friendly than PQ with comparable herbicide use rate and efficacy, proving to be a valid alternative.⁶¹ Due to its cationic nature, after the release into the environment, DQ residues may strongly adhere to clay minerals and organic matter present in the soil, such as montmorillonite⁸² and sepiolite,⁸³ forming stable electrostatic interactions through base exchange between their cationic group and the carboxyl groups on those substances.⁸⁴ Although this prevents DQ from microbial degradation, it also limits its biological activity, as it becomes inactivated and diminishes its environmental mobility. In addition, they are not taken up by plant roots due to their strong adsorption and deactivation by soil colloids. DQ can, however, be taken up by the roots of plants growing in places without adsorbing colloids, such as pure sand, leading consequently to phytotoxicity.^7,40,85,86 On the other hand, up to 5% of DQ residues can be transported within soils, mainly through leaching, surface runoff, and drain-flow pathways. After spraying the herbicide into terrestrial areas, the reentry interval is about 24 h.

Some studies regarding the analysis of treated water show that DQ residues, after sprayed into the water, rapidly disappear in a few days due to their rapid absorption and concentration in the aquatic plants, remaining attached until the decaying weeds disintegrate into the bottom mud. Then, instead of returning to water, the residues adhere strongly to the mud.⁸¹ Submerged weeds generally decay in situ after herbicide treatment, not being removed from the water. In an area where weed growth has been substantial, the uptake of the oxygen from the water in the decay process may diminish its content to such low levels that could be lethal to fish. Therefore, it is necessary to apply DQ as far as possible before weed grows in a great extent and in some parts of the reservoir at different times, not over the entire area at once, so that fish have time to move to untreated areas when the dissolved oxygen significantly drops. DQ is more effective in slow-moving or still water rather than in streams or moderate-to-rapid flow canals.^8,81 Of note, various ecotoxicological studies have shown that DQ, in subacute concentrations, did not cause severe effects in some fish species, such as piauçu (Leporinus microcephalus), Nile tilapia (Orechromis niloticus), and guppy (Phallocerus caudimaculatus), being a proper product for the control of aquatic macrophytes.^87
–89 The treated water can be used for domestic purposes, crop irrigation, and animal consumption only after 14 days of herbicide application and for swimming after 24 h.^22,90,91

UV-mediated degradation on plant surfaces and in water

DQ it is not metabolized in plants. Indeed, when several plants are exposed to DQ and maintained in the dark, no breakdown of the herbicide occurred.⁹² However, when exposed to sunlight, it can be extensively decomposed photochemically by ultraviolet (UV) radiation on plant surfaces and in water at a rate of about 10% per year.⁹³ Although slow, the degradation in soil is significant over a long period and represents the most important process for removing or negating the effects of DQ on the environment. The photooxidative breakdown of one phenyl ring leads to the formation of the major degradation product 1,2,3,4-tetrahydro-1-oxopyrido[1,2-a]-5-pyrazinium ion (TOPPS), which is then degraded to picolinamide and via picolinic acid to volatile compounds. The photochemical degradation products of DQ (including those formed in water) are shown in Figure 4. The adsorption and photodegradation processes are thus important for removing the effects of DQ on the environment.^91,94

Figure 4.

Mammals’ metabolism and photochemical UV degradation on plant surfaces and in water of DQ. UV: ultraviolet; DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium.

DQ is also degraded by several soil common microorganisms when incubated in culture solution with bacteria, fungi, and yeast.⁹⁵ However, since it is firmly adsorbed to clay colloids, degradation is very slow and claimed to be 5–7% per year.⁹¹ Although slow, it has been postulated that this rate of degradation is sufficient to ensure that DQ residues do not accumulate in the soil.^81,96

Toxicokinetics

The toxicokinetics of DQ has been studied in a variety of animal species, especially rats,⁵⁴ goat,⁹⁷ cows,⁹⁸ hens, and rabbits.⁹⁹ Figure 5 presents the toxicokinetics of DQ and respective percentages of the administered dose.

Figure 5.

Toxicokinetics of DQ and respective percentages of the administered dose. DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium.

Absorption

DQ can be absorbed by oral, pulmonary, ocular, or dermal routes. Poisoning by ingestion of concentrated formulations is more common than other routes.¹⁰⁰ Volumes of 5–50 mL are typically ingested, but fatalities usually occur for volumes greater than 15 mL of a 20% concentrated formulation.¹⁰⁰ DQ is poorly absorbed (<10%) from the gastrointestinal tract (GIT) and excreted largely unchanged in the feces. Also, the absorption may significantly decrease with the presence of food and intestinal microorganisms that can degrade the herbicide. DQ can cross the cell membranes, although slowly due to its hydrophilic nature, mostly by diffusion and, in lesser extent, by active transport via cation pumps.^91,101,102

Absorption from the lung after inhalation and by skin seems also to be very low due to its hydrophilic nature, meaning that systemic toxicity is unlikely through these routes. The penetration of acidic and basic pesticides through skin can be influenced by the skin surface pH, which is weakly acidic (pH 4.2–5.6). DQ exist as fixed charged cations and remain dissociated at all pH values. A study from Feldmann and Maibach¹⁰³ showed that after the application of DQ on skin at a dose of 4 µg cm⁻² in acetone, only 0.3% was absorbed, which demonstrates that skin is a strong barrier against DQ. DQ absorption increased to 1.4% with occlusion and to 3.8% if the skin was damaged.

Dermal exposure to foliar residues is less significant than during handling with concentrated formulations of DQ. Notwithstanding, prolonged contact with these products leads to skin irritation, which facilitates the penetration of the herbicide through the skin, rising to 3.8% in 24 h. Moreover, Charles et al.¹⁰⁴ proved that DQ was absorbed 26 to 37 times more slowly through the lungs than other quaternary ammonium compounds, with the absorption limited to the porous regions of the membranes. Fatalities resulting from intramuscular injection, vaginal, and percutaneous exposure were also reported.^91,100

Distribution

Bipyridyls have large volumes of distribution. After absorption, DQ is rapidly distributed throughout the body in the aqueous phase, except for brain and spinal cord, a fact supported by its hydrophilic nature and slow passage across membranes.¹⁰⁰ It achieves peak and blood tissue levels after 2 h, followed by rapid decline and elimination through the urine.¹⁰⁵ As observed earlier, unlike PQ, it is not selectively concentrated in the lungs by the polyamine uptake system because it does not fulfill the strict structural requirements; its half-life in the lungs is five times shorter than PQ.^{99,106

–112} Indeed, in animal studies, DQ causes mild, reversible injury to type I pneumatocytes but does not injure the type II cells. The rapid efflux of the accumulated [¹⁴C]DQ indicates that the lungs would not be a major site for storage of this compound for any significant period in vivo.¹⁰⁴ No progressive pulmonary fibrosis has been noted in DQ poisoning.^113,114 The slow passage across membranes can result in an apparent sequestration in various tissues as systemic levels rise and fall.²³ Liver, kidney, GIT, and lung had the highest residues immediately following dosing; at 96 h, significant residues were seen primarily in the eye lens.

Metabolism

Since DQ is relatively resistant to metabolism, adsorption to clay soil particles, and photodegration in water and plant surfaces are the major dissipation routes. In animals, including humans, DQ is minimally metabolized by oxidation of the pyridine rings to less toxic mono- and dipyridone derivatives (Figure 4). Cleavage of one of the pyridine rings either from parent DQ or DQ monopyridone produces TOPPS, which is subsequently decomposed to picolinamide and picolinic acid, possibly via pyridine-2-carboxamide as an intermediary metabolite, although this was not identified. Further volatile products are produced but not yet identified.⁹² These metabolic pathways occur mainly in the liver via cytochrome P450 enzymes, and all metabolites are more easily excreted through the urine.^51,91,94 Fuke et al.³⁵ identified both DQ dipyridone and monopyridone in the serum of three DQ-poisoned patients, with dipyridone reaching up to 20% of DQ in one patient. In vitro studies suggested that the cecal microflora of the rat can metabolize DQ to the monopyridone.^91,115 As mentioned earlier, there is no reported metabolism of DQ in plants. The rapid desiccation of green parts of weeds after application may contribute to the observed results.

Elimination

Due to low GIT absorption, almost all of the herbicides is excreted unchanged in the feces (about 94% in the first 24 h) with slight or no biliary excretion.¹⁰⁰ Absorbed DQ ion and metabolites are mainly eliminated via urine within 48 h, irrespective of the route of administration.^51,54 In an in vivo study performed with rats, after DQ gavage administration (45 mg DQ ion/kg body weight [bw]), the herbicide was excreted mostly unchanged in urine and feces (6% and 89% of dose, respectively), and its metabolite DQ monopyridone was present mainly in feces (5% of dose) and in a lesser extent in urine.

Furthermore, urianalysis of rats after subcutaneous route of 10 mg DQ ion/kg bw revealed the presence of DQ (75%), DQ monopyridone (3%), and DQ dipyridone (6%).^91,115 Similar results were obtained with Williams and collaborators^91,116 after oral administration of DQ in rats, although there were up to 80% of DQ unchanged and only 1% of picolinic acid, DQ monopyridone, and DQ dipyridone in urine.

Mechanisms of toxicity

Although DQ does not bind covalently to macromolecules (i.e. lipids, proteins, and nucleic acids), it may lead to oxidative stress due to the ability of DQ to generate ROS intracellularly through reduction–oxidation (redox) cycling processes (Figure 6). This capacity is greater with regard to other herbicides because of its high redox potential (E ₀) value, which is a measure of electron affinity (see Table 2).¹⁰¹

Figure 6.

Schematic representation of the redox cycling of DQ and ROS and RNS generation. Cellular reductases such as cytochrome P450 reductase catalyze one electron reduction of DQ²⁺, forming the DQ monocation free radical (DQ^+●). This, in the presence of oxygen, forms superoxide radical (O₂ ^●−), regenerating the parent compound. DQ redox cycling activity requires NADPH that is produced from glucose via glucose-6-phosphate dehydrogenase, the first enzyme of the HMP. The mechanism of cellular uptake of DQ is unknown. DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium; ROS: reactive oxygen species; RNS: reactive nitrogen species; SOD, superoxide dismutase; NADPH: nicotinamide adenine dinucleotide phosphate; HMP: hexose monophosphate pathway; CAT: catalase; GPx: glutathione peroxidase; Gred: glutathione reductase; FR: Fenton reaction; HWR: Haber–Weiss reaction.

DQ is reduced by receiving a single electron from NADPH, the main source of reducing equivalents in cells, in a pH-independent reaction catalyzed by cytochrome P450 reductase, forming NADP⁺ and a highly unstable DQ^+●, which, in turn, transfers an electron to molecular oxygen (O₂) to generate O₂ ^●−. DQ^+● returns then to its original form and can, even in small amounts, undergo this continuous process to generate large quantities of O₂ ^●−, which is neutralized spontaneously or enzymatically via superoxide dismutase (SOD) to produce hydrogen peroxide (H₂O₂) and O₂.¹¹⁷ Under normal conditions, H₂O₂ is converted into water by catalase (CAT) and glutathione peroxidase (GPx). Otherwise, with the large increase in ROS production, the cellular protective mechanisms, either nonenzymatic components [e.g. glutathione (GSH), thioredoxin, selenium, vitamins C and E] or antioxidant enzymes (e.g. SOD, GPx, GR, CAT), become overwhelmed, resulting in oxidative stress and consequent cellular dysfunction and injury.^118
–120 Oxidized glutathione (GSSG) increases and is excreted through the bile. It was proved that DQ significantly increases biliary excretion of GSSG, which could therefore be used as a biomarker of hepatic oxidative stress.^50,118,121

Both DQ^+● and O₂ ^●− reductively release iron from ferritin, converting the ferric ions (Fe³⁺) into ferrous ions (Fe²⁺). This is an important process for the toxic effects of DQ, as Abe et al.¹²² found in experiments with Fischer-344 rats that higher body iron stores result in higher DQ toxicity. These Fe²⁺ ions catalyze the Fenton reaction, forming a more powerful oxidant hydroxyl radical (HO^●) from H₂O₂.^50,123,124 All these ROS, as well as the released iron, can subsequently damage biological molecules, whose effects will be described subsequently. Because it is a potent prooxidant, DQ is used in various in vivo and in vitro studies in toxicology and cellular biology fields to induce oxidative stress.

ROS can damage the allylic hydrogens of polyunsaturated fatty acids (LH) present in the cell membranes, generating peroxyl radicals (L^●) that remove allylic hydrogens from the adjacent fatty acids to create lipid hydroperoxides (LOOH), leading to lipid peroxidation (LPO).¹²⁵ This phenomenon decreases the fluidity and increases the permeability of the membrane, as it becomes easier for phospholipids to switch between the two monolayers, and practically, there is no restriction for compounds to cross the membrane. It may also lead to membrane rupture and, consequently, to necrosis of tissues. LPO can inactivate membrane-bound receptors or enzymes, which, in turn, may disrupt normal cellular function.^119,126 The LPO products can induce mutations and modified patterns of gene expression through formation of DNA adducts.¹²⁵ Using a sensitive and specific index of lipid peroxidation, it was shown in vivo that the DQ hepatoxicity is, at least partially, a consequence of ROS-induced lipid peroxidation and that the powerful antioxidant and free radical scavenger melatonin has protective effects.¹²⁶ Liver damage and lipid peroxidation induced by DQ were also significantly reduced in transgenic mice overexpressing glutathione peroxidase 4.¹²⁷ Moreover, besides ROS, DQ-induced oxidative stress was also evidenced by reactive nitrogen species (RNS) generation, namely the decreased serum nitric oxide (NO) in piglets¹²⁸ and peroxynitrite (ONOO⁻) generation in hepatocytes.¹²⁹ ONOO⁻ is formed by the reaction of O₂ ^●− and ^●NO at a diffusion-limited rate.¹³⁰ Some data suggest that ^●NO can strongly protect plants from DQ-related damage due to its scavenging ROS potential.¹³¹ On the other hand, the NG-nitro-l-arginine methyl ester (L-NAME), a competitive nonspecific inhibitor of nitrogen oxide synthase (NOS), has been found to restrain the development of nitrosative stress in neuronal cells by reducing ^●NO synthesis. Therefore, L-NAME protected against DQ neurotoxity, based on animal survival and reduced LPO in the cortex.¹³²

Regarding proteins, the misfolding and oxidation of proteins, especially through carbonylation that can occur through lipid-dependent and lipid-independent pathways, result in disrupted functions that are crucial for the organism. It can lead, for example, to dysfunctional enzymes or disturbance of blood protein carriers present in the circulatory system.¹²⁵ Several studies implicate DQ exposure in protein oxidation.^133,134

Metal cations can infiltrate through the membranes and adhere to DNA because of its polyanionic structure, allowing the formation of HO^●, which could then cause DNA strand breakage, chromosomal abnormalities, and cell cycle perturbations.¹²⁵ It was also found that ROS may have a great impact at a pretranslational level of mRNAs from a rat liver, because the expression profile of certain phase I, phase II, and antioxidant enzymes were decreased after exposure of DQ.¹³⁵ Moreover, in vitro studies with hamster cells showed that low concentrations of DQ can raise the cell cycle rate, while higher concentrations may reduce the number of mitotic cells.^136
–138

DQ administration to the rat produced an increased synthesis of liver glycogen and an increase in blood glucose that appeared to be mediated by the adrenal, because adrenalectomy prevented these changes.¹⁰⁰ These effects are thought to be due to catecholamine release and high circulating concentrations of corticosteroids.

Some reported median lethal dose (LD₅₀) values are presented in Table 3. As can be observed for rat, the value for oral administration is about 10-fold higher than by subcutaneous injection, suggesting that the oral toxicity is moderate, which is consistent with the information provided of DQ being poorly absorbed from the GIT.^99,139 Furthermore, the oral toxicity is greater than the dermal toxicity by two to four times when comparing the LD₅₀ values of rat and rabbit, in consonance with the fact that the herbicide cannot penetrate easily through the skin. Comparing to other species, DQ is highly toxic to cattle by oral route and has slight ecological impact on invertebrates and fish, demonstrated by exposure and toxicity data, probabilistic risk assessment, and ecological procedures modeling, as it rapidly dissipates in water.^64,81 Despite the chemical similarity to PQ, acute toxicity is somewhat lower for DQ.⁷²

Table 3.

LD₅₀ and NOAEL values of DQ (mg ion/kg body weight) in some animal species considering various exposure routes. Estimate of acceptable daily intake for humans is 0–0.002.

	LD₅₀
	Oral	Subcutaneous	Dermal	NOAEL
Rat	215–235	20	>424	0.58 day⁻¹ (2-year study)
				12 day⁻¹ (teratogenicity study)
				14.9 day⁻¹ (carcinogenicity)
Mouse	125	–	430	3.6 day⁻¹ (two-year study)
Mouse	125	–	430	37.8 day⁻¹ (carcinogenicity)
Guinea-pig	100	–	400
Cattle	30–37	–	–
Dog	100–200	–	–	0.53 mg day⁻¹ (one-year study)
Hen	200–400	–	–
Rabbit	100	–	> 400	1 mg day⁻¹ (maternal toxicity)
Rabbit	100	–	> 400	3 mg day⁻¹ (embryo and fetal toxicity)
Monkey	100–300

LD₅₀: median lethal dose; NOAEL: no-observed-adverse-effect level. DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium.

The major metabolite, DQ monopyridone, is significantly less toxic than DQ by oral route (LD₅₀ higher than 400 mg ion/mg ion/kg bw).

Putative link between diquat exposure and neurodegenerative diseases

Several compounds such as 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine (MPTP) and the pesticides DQ, PQ and rotenone have been implicated in Parkinson’s disease (PD), an age-related multifactorial neurodegenerative disorder.^{110,140
–142} PD is an idiopathic disease of the nervous system categorized by a significant loss of pigmented dopaminergic neurons, mostly of the substantia nigra pars compacta ¹⁴³ which are fundamental for the control of motor function,¹⁴⁴ as well as the occurrence within surviving neurons of huge eosinophilic inclusions known as Lewy bodies, which contain α-synuclein fibrils, neurofilaments, ubiquitin, and other proteins.^110,142,145 These features clinically result in various symptoms, namely rigidity, resting tremor, postural instability, and bradykinesia (slowness of voluntary movement).^144,145 Since DQ is structurally similar to PQ and MPTP (Figure 1), it was speculated that this herbicide may also play a role in the development of PD, and some reports support that there is a link.^{29,109,110,146

–149}

In a study in Rana temporaria frogs, it was observed that ¹⁴C-labelled DQ accumulates in neuromelanin-containing nerve cells after intraperitoneal injection.¹⁴⁸ Some years later, in an in vitro study performed in primary mesencephalic cultures from Sprague-Dawley rats¹⁴⁶ found that DQ induced significant changes in the morphology and number of dopaminergic neurons. Moreover, DQ also reduced the dopamine uptake by more than 80%. Drechsel and Patel¹⁴³ demonstrated that DQ may generate H₂O₂ aplenty in a concentration-dependent way either in brain mitochondria isolated from Sprague-Dawley rats or in primary midbrain cell cultures obtained from embryonic rats. These studies suggest that redox cycling of the herbicide, with ROS production that leads consequently to oxidative stress, has a role on dopaminergic cell degeneration and that should be taken in account when evaluating the environmental risk factors for PD. Because DQ has higher reduction potential than PQ (E ⁰ = −0.33 V for DQ and E ⁰ = −0.35 V for PQ), it can accept an electron and undergo a redox cycling more rapidly, which means that it may be more neurotoxic than PQ.¹⁴⁶

Nisar and et al.¹⁴⁹ performed an in vitro study where they treated SH-SY5Y neuroblastoma cells and human neural precursor stem cells line N1997 with DQ at different concentrations. They found that DQ reduced significantly cell viability in a dose-dependent manner. They also observed that DQ neither modified α-synuclein expression nor impaired mitochondrial activity, both features implicated in PD etiology, specifically on the inclusion of Lewy bodies. Authors then suggested that this herbicide may have a role in PD in a rarer way where Lewy bodies do not constitute a feature, promoting α-synuclein aggregation in a different mode and independently of mitochondria. The mechanisms of cell influx of DQ is not clear, although some results had refuted the hypothesis of an entry mechanism through the system L carrier (LAT-1) that is used by PQ for entering into the brain.¹⁵⁰

Despite of a case report dated from 1989, where a 72-year-old farmer developed symptoms of PD several days after exposure of an aqueous solution containing 10% DQ dibromide,²⁹ much more has to be found to prove the link between exposure and the development of PD, as data are inconsistent mainly due to statistical analysis, study design, modifications in exposure routes, and methodological differences.^144,151 Moreover, there have been relatively consistent pathologic brain changes noted in reported fatal cases of DQ poisoning. These consist of brain stem infarction, particularly involving the pons.²⁰ It is not clear whether these postmortem changes represent direct toxicity or secondary effects related to the systemic illness and therapy.

Also, other neurodegenerative diseases need to be evaluated, as it was verified that DQ can lead to axonal degeneration, a pathologic feature involved not only in PD but also in Alzheimer’s and Huntington’s diseases.¹⁴⁷ Authors evidenced that DQ exposure and the deficiency of SOD in dorsal root ganglion neurons culture obtained from C57BL/6 strain mice may predispose to axonal degeneration. Nevertheless, axonal degeneration in an in vivo study remains to be established.

Developmental and reproductive toxicology

Adverse systemic effects were noted in the rat, both in parents and offspring (cataracts and eye pathologies in both sexes of F0 and F1 at > 240 ppm; an increase of hypertrophy and hyperplasia of collecting duct epithelium and tubular dilatation in the renal papilla in both sexes of F1 at 240 ppm; F1 and F2 pups showed hydronephrosis at >240 ppm). In rats, a developmental no-observed-adverse-effect-level (NOAEL) of 12 mg kg⁻¹ day⁻¹ for intrauterine growth retardation was proposed (Table 3).⁷² NOAEL of 3.6 mg kg⁻¹ day⁻¹ for both maternal (clinical signs, death) and developmental toxicity (skeletal anomalies, exencephaly, and umbilical hernia) was calculated for mouse.⁷² The rabbit appears to be a highly sensitive to DQ in developmental toxicity studies.⁷² The NOAEL for maternal toxicity (histopathological changes in the liver, intestine, and vasculature; mortality) was 1.0 mg kg⁻¹ day⁻¹ and the developmental NOAEL was below 3.0 mg kg⁻¹ day⁻¹.⁷² Delayed ossification of the ventral tubercle of the cervical vertebrae was noted in all treatment groups compared with the controls. Zhang and collaborators,^152,153 demonstrated that chronic exposure to DQ at 8 or 12 mg kg⁻¹ DQ by intraperitoneal injection twice a week for four consecutive weeks induced reproductive toxicity in female imprinting control region (ICR) mice. The formation of ROS through redox cycling processes in granulosa cells and oocytes resulted in follicle development impairment (with reduction of the ovary weights), apoptosis induction, and oocyte quality reduction, leading to fewer fetal mice as well as a significant decrease of litter sizes comparing to control.

Analytical toxicology

Several methods allow an effective extraction and subsequent precisely and unequivocally identification of the herbicide in various samples, including water, soils and plant materials and biological fluids, for environmental, clinical, and forensic purposes.

Samples

The nature of the sample often does not allow direct analysis of DQ due to contaminants present in the matrix that interfere with the identification of the herbicide. In most situations, the DQ concentration may be so low that it is not detectable by the analysis method under consideration, which could lead to false negatives. Hereupon, extraction techniques are important to remove the interferences and to concentrate DQ. These procedures enable the reduction of detection limits, improving the sensitivity of analytical methods.

Water samples from irrigation channels, lakes, rivers, or other water reservoirs usually do not require an extensive clean-up. Because the presence of common contaminants, such as humic acids, surfactants, particulates, inorganic salts, among others, can compromise the efficiency of the extraction procedures or posterior quantification, a filtration step using membrane filters should be performed. If the extraction is not immediately executed, samples should be stored at 4°C. Also, it is extremely important to collect water samples in plastic bottles rather than glass, where DQ may be tightly adsorbed.¹⁵⁴

Due to the high sorption characteristics of DQ and bipyridinium herbicides in general to soil and plants, extraction have been generally achieved through refluxing or heating with strong hydrochloric or sulfuric acids to free DQ from their adsorbed state. Although this procedure is widely used, it is drastic and time-consuming. Hence, alternative methods involving sample homogenization with an organic solvent (e.g. acetone, methanol, acetonitrile, or ethyl acetate), alone or in mixture with pH-adjusted water, using a homogenizer, blender, or sonicator, and then heating the homogenized sample in acidic solution have been proposed.^4,154

Biological samples including blood, plasma, urine, milk, among others, contain a wide range of compounds that could lead, for example, to the clogging on the solid-phase extraction (SPE) column if that technique is applied. Therefore, one of the steps to be performed before DQ recovery is deproteinization with distinct acids, such as perchloric, sulfosalicylic, and trichloroacetic acid. Other useful step is adding ethylenediaminetetraacetic acid (EDTA) to remove interferences by numerous metal ions.¹⁵⁴

Extraction

DQ extraction from samples is not an easy task, however, given its high solubility in water and high binding capacity. Liquid–liquid extraction, for instance, is not a suitable technique for this herbicide.¹⁵⁵ On the other hand, chemical separations based on polyurethane foam (PUF) revealed to be a good alternative.⁸⁵ PUF is a low-cost sorbent material with the ability to separate organic and inorganic substances from aqueous medium due to its high sorption capacity, easily modifiable surface or structure, chemical and thermal resistance, selectivity and wide-range retention capacity properties. Specifically, the PUF-sodium dodecylsulfate (SDS) sorbent gave great results for extracting cationic herbicides as is the case of DQ.^85,156

SPE techniques proved to be very useful for extracting herbicide residues with high efficiency. Various sorbents have been applied, mainly silica,¹⁵⁷ graphitized carbon,^158,159 cation exchange,^160,161 and nonpolar phases like C₈ and C₁₈.^154,162,163 It was shown by Agostini de Moraes and collaborators¹⁶⁴ that chitosan and alginate are suitable biopolymers for the adsorption and removal of DQ from water sources. Microwave-assisted extraction requires sophisticated equipment but proved to be a fast and specific method for the extraction of DQ with excellent recoveries.⁸

Detection procedures

Various methods are applied for the detection of DQ, all of them differing in the principles of detection, type of data provided, selectivity, and sensitivity. Therefore, the selection of the method is crucial in any analytical study, according to its objective and the type of results to be obtained. The most commonly applied methods for detecting DQ are described below.

Figure 7 presents the spectrophotometric spectrum DQ and colored derivatives obtained after reaction with different compounds, which are useful to toxicological analysis. In emergency situations, when a DQ poisoning is suspected and a quantitative assessment is not readily available, a rapid and simple colorimetric test can be done by analyzing urine, adding sodium bicarbonate or hydroxide, followed by sodium dithionite powder, which gives a green color in the presence of DQ (Figure 8). A strong green color obtained with a urine sample taken more than 4 h after ingestion suggests a poor prognosis. However, this assay is not sufficiently specific, as PQ may undergo a similar reaction producing a blue color, interfering with the analysis.^{76,50,111,170

–173}

Figure 7.

Absorption spectrophotometric spectrum of DQ²⁺ (blue), DQ radical monocation (DQ^+●) after reduction with sodium dithionite (green), complex after reduction with 2-mercaptoethanol, dl-dithiothreitol, or l-cysteine (red) that turns purple in 1-butanol, and diquat derivative (yellow) produced at 80°C in 0.5 N sodium hydroxyde solution. DQ: diquat or 1,1′-ethylene-2,2′-bipyridiniumData are based on the studies of Maiti et al., Minakata et al., and Moffat et al.^165

–169

Figure 8.

Representative qualitative colorimetric test (intensity of the green color) by adding sodium bicarbonate and sodium dithionite to urine samples containing different DQ concentrations (μg/mL). DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium. Adapted from the studies of Dinis-Oliveira et al. and Vohra et al.^76,170

Spectrophotometry is considered the standard procedure for DQ analysis by the Official Methods of Analysis of AOAC International.^90,174 It takes in consideration the absorbance measure of DQ²⁺ at 310 nm or the formation of a green radical at 430 nm (DQ^+●) by reduction with sodium dithionite or other reducing agents, as mentioned before. This technique does not distinguish between the parent compound and its metabolites.⁵⁹ Some methods based on second-derivative spectroscopy were developed,^35,175,176 which are advantageous over classical spectrophotometric techniques due to the enhancement of the DQ^+● peak, as well as the supression of larger absorption bands as a result of nonspecific matrix absorption. Fuke et al.³⁵ developed a method where DQ²⁺ was reduced with sodium hydroxyde–dithionite solution in urine and centrifuged, while serum was firstly deproteinized with sulfosalicylic acid, centrifuged and then DQ²⁺ was reduced with the same solution (Figure 9). The second-derivative spectrum of DQ^+● showed four main peaks at 464, 445,430, and 380 nm and six satellite maxima at 482, 454, 437, 423, 387, and 373 nm, which were derived from the zero-order peaks at 461, 444, 428, and 380 nm, respectively. The highest amplitude of 380–387 nm cannot be used, because the amplitudes below 390 nm overlapped with those of PQ. Therefore, both supernatants were analyzed by second-derivative spectrophotometry at the amplitude peaks of 454 to 464 nm, obtaining the spectra of Figure 9. This method is particularly useful for diagnosis and prognosis of DQ intoxication.

Figure 9.

(a) Pretreatment procedures for DQ analysis in urine and plasma (10 µg mL⁻¹) before the second-derivative spectrophotometric analysis. (b) Zero-order and second-derivative spectra. The qualitative analysis is made by observing the presence of inflection points at about 437, 445, 454, and 464 nm. The quantification is made with amplitudes measurable between 380 nm and 387 nm only if DQ is present, and between 454 nm and 464 nm if PQ is also present. DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium; PQ: paraquat or bipyridinium.

The formation of red complexes by reducing DQ either with 2-mercaptoethanol (Figure 7), dithiothreitol or l-cysteine can be used for colorimetric determinations (495 nm) in aqueous solution at pH 13.5 (Figure 10).^59,165,177 The red-colored compound is much more stable than the green-colored radical formed by sodium dithionite addition and exhibits two maximum absorbance peaks at 350 nm and 495 nm.¹⁶⁶ On centrifugation of the aqueous solution with butanol, the reduced red-colored DQ goes to the butanol layer, producing a purple solution (absorbance at 383 and 520 nm), which is more stable and a little higher absorption than that of the red compound. Because PQ is insoluble in 1-butanol, this method may be applicable for determining DQ when both herbicides are present in solution.¹⁶⁷ DQ can also be quantified by heating the herbicide in alkaline solution at 80°C, which produces a yellow-colored derivative that presents an absorption maximum at 420 nm without interference from PQ.¹⁶⁸ This yellow DQ derivative can be extracted completely with cyclohexanol by saturating the solution with sodium sulfate. The absorption maximum in cyclohexanol shifts to 440 nm with the same molar absorbance and the same half-band width as in water.

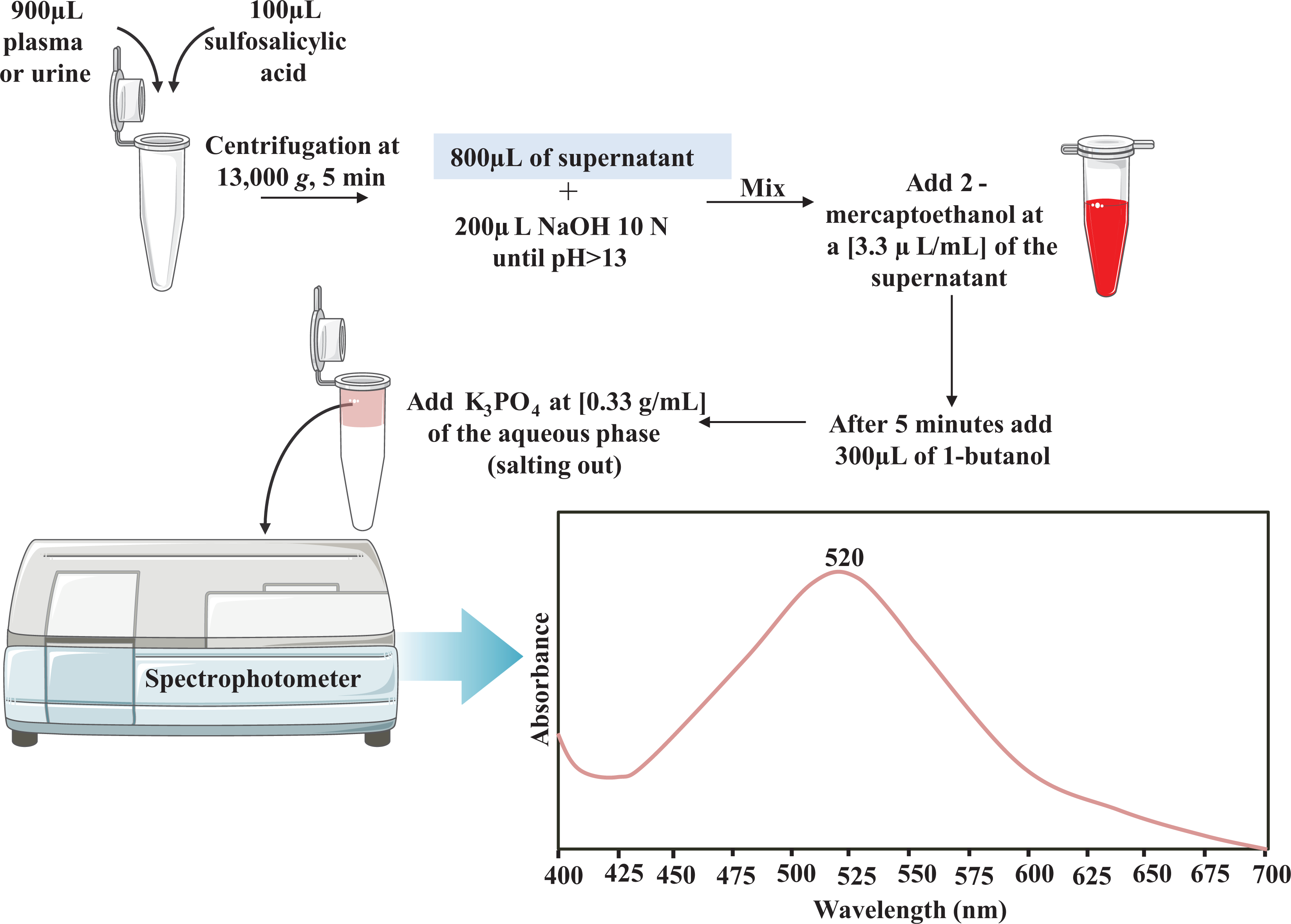

Figure 10.

Colorimetric analysis through reduction of DQ with 2-mercaptoethanol. DQ: diquat or 1,1′-ethylene-2,2′-bipyridinium. Adapted from the work of Maiti et al.¹⁶⁵

The ion-selective electrodes of potentiometric methodologies are not selective for herbicides, which may lead to misinterpretations in identification and quantification of DQ, mainly in complex matrices.¹⁷⁸

Luminescence techniques, especially chemiluminescence, are widely employed due to their speed, wide dynamic range, great sensitivity, and ease of implementation. Similarly, flow injection analysis (FIA) methods are simple, inexpensive, reproducible, and give faster results. After that, some analysis methods coupled FIA with chemiluminescence were performed for the detection of DQ in water. This hyphenated technique provides lower detection limits and higher sample throughputs and proved to be simple, sensitive, and fast enough for use in routine analysis.⁹⁰

Quantum dots (QDs), previously optimized in oat grains, can also be used as a reducing agent, presenting some advantages in relation to other reduction procedures, such as reaction rapidity and stability of the reduction product (reduction with sodium dithionite would take 5–6 min to reach equilibrium, and the product is very unstable).¹⁷⁹ Thus, given their unique properties of wide absorption, slight emission, size-tunable optical feature, good photostability, and intense brightness, QDs are useful for analytical and biomedical purposes, allowing rapid, simple, and sensitive methods that may achieve lower detection limits.¹⁸⁰

Analysis of DQ by gas chromatography (GC) is difficult due to the low volatility and high polarity of the molecule and hence would require a derivatization step to increase the selectivity or sensitivity of the detection. Notwithstanding, this derivatization step, as well as low concentration levels of the analyte, decrease the method reproducibility.^125,155 A GC method coupled with mass spectrometry (MS) was previously optimized for urine and plasma samples by converting DQ and PQ into lipophilic and thermally stable and volatile compounds using sodium borohydride.¹⁸¹ This GC-MS method was fast, specific, selective, and sensitive for the analysis of these substances in cases of acute intoxication and did not require prior deproteinization procedure.¹⁸¹ Nitrogen–phosphorous detection (NPD), alkali-flame ionization detection (AFID), or thermionic detection, which is a flame ionization detection (FID) slightly modified by adding a bead covered by an alkaline salt, are also commonly used detection methods for the analysis of bipyridinium herbicides.¹²⁵

The low volatility and high solubility in water make DQ compatible for liquid chromatography (LC) analysis. LC is useful due to its high sensitivity and selectivity, with detection limits generally higher than those achieved by GC, although it requires expertise and expensive reagents and instrumentation.¹²⁵ Reversed-phase columns and reagents that form volatile ionic pairs, for example, heptafluorobutyric (HFBA), pentafluoropropionic (PFPA), or trifluoroacetic (TFA) acids, are generally applied when performing LC analysis to improve separation and resolution.¹⁷⁸ Moreover, in experiments with different mobile phase compositions, Evans et al.¹⁸² found that DQ do not form observable ion–pair complexes or clusters with chloride or acetate anions, possibly due to steric influences, not affecting the reproducibility of the method. Besides DQ, the concentrations of its metabolites (DQ monopyridone and DQ dipyridone) could also be determined in human biological samples using a high-performance liquid chromatography (HPLC) with UV and fluorescence detection, which proved to be a sensitive, selective, and reliable method.⁴² A simple, modified quick, easy, cheap, effective, rugged, and safe procedure was developed for the determination of diquat in potato using reversed-phase LC coupled with tandem MS (MS/MS) in a total run time of 10 min.¹⁸³

A supercritical fluid chromatography (SFC) was also developed for the detection and separation of DQ and others pesticides. The mobile phase in SFC, being carbon dioxide the most commonly used, is nonreactive, economic, nontoxic, and easy to handle, allowing a high resolution at high flow rates and increased length columns, as well as a wide range of separation modes. Ishibashi et al.¹⁸⁴ developed a method that proved to be robust, rapid, high-throughput, reproducible, and very efficient for the analysis of various pesticides, including DQ, with diverse polarities and molecular weights in some agricultural products.

MS is a very powerful technique, as it can provide information about molecular structures of the compounds of interest, and can be highly selective and sensitive when used in the single ion-monitoring mode. The Environmental Protection Agency (EPA) and the US Food and Drug Administration thus recommend that, for DQ identification purposes, methods involving MS should be used, using three ions to confirm the presence of the substance.^4,178,185 Many mass analyzers have been employed for the analysis of DQ residues, such as single quadrupole,¹⁸⁶ triple quadrupole,¹⁷⁸ magnetic sector,¹⁸⁷ ion trap,¹⁸⁸ and time-of-flight,¹⁸⁹ as well as numerous ionization interfaces, namely particle beam,¹⁶⁰ fast atom bombardment,¹⁹⁰ atmospheric pressure chemical ionization,¹⁹¹ and electrospray ionization.¹⁹²

Capillary electrophoresis (CE) is an adequate analytical technique for the analysis of ions, based on differences in their electrophoretic mobility, and has the advantages of high separation efficiency, short optical path length defined by the column diameter for on-capillary UV detection and low consumption of reagents that are toxic to the operator, although the small volumes typically injected compromise its sensitivity. It has been proposed for the analysis of UV-absorbing “quats” such as DQ, not only in water, but also in other matrices such as soil, serum, and urine.¹⁹³ The most commonly used mode in CE is capillary zone electrophoresis due to the ionic nature of the herbicide.^{185,194
–196} Various studies were made coupling CE with MS, and this combination proved to be a very useful and powerful tool for the separation and identification of “quats” in water samples, as it provides the high-resolution potential of CE and the detection and identification properties of MS.¹⁹³

Experimental observations and clinical history

Typically, diagnosis is based on the history of ingestion and the presence of oral burns. If not handled properly or when protective equipment is not used, exposure to aerosols containing DQ can cause mouth irritation, nose with inflammation and bleeding of the nasal mucosa. There are reports that concentrated solutions of DQ can influence the nail growth and cause yellow nail discoloration, dimpling and shedding, and delay the healing of superficial cuts on the hands (Figure 11).^11,197 Clark and Hurst described the appearance of discolored transverse lines, then cracking, and, finally, shedding in the nail following contact with 20% DQ.⁹⁹ Toxic effects seems to occur due to local exposure and not by ingestion, as the toenails and asymmetric lesions have been reported.^11,197

Figure 11.

Local effects related to DQ. (a) and (b) Ulcerated lips and tongue after accidental exposure during manufacture. (c) Conjunctival congestion in the right eye after being splashed with a liquid formulation containing 5% PQ and 7% DQ. (d) Proximal nail shedding. (e) Mees’ lines. (f) Yellow nail discoloration. DQ: diquat; PQ: paraquat. Figure 11(a) reproduced from the work of Adams et al.47, Figure 11(c) from the work of Kitagawa et al.43, Figure 11(d) and (e) from the work of Kibby and Ring 197, and Figure 11(f) from http://www.dermatorium.net/kategoriler.asp?id=209&katid=4, with permission.

Also, splashes directly into the eye can lead to ocular burn, conjunctivitis, conjunctival congestion (Figure 11), and corneal scarring. Moreover, a chronic diet administration of DQ can lead to bilateral cataract as was demonstrated for rats and dogs.^193,198 The process of redox cycling that occurs in the eye is believed to be the likely mechanism o cataract formation.

When ingested, corrosive damage to the oral mucosa may occur, resulting in mouth hemorrhagic ulceration (Figure 11) and mucosal edema of the tongue and oropharynx.⁵⁰ In a study performed in rats, even repeated ingestion of low doses of the herbicide that may be found in food (0.1 mg kg⁻¹ day⁻¹ per os) may induce a mild GIT inflammation allied with mast cell hyperplasia.¹⁹⁹ DQ is also associated with occupational voice disturbances, immune suppression, and hormone disruption.^164,200 In this matter, Sechi et al.²⁹ had described a DQ intoxication case in a 72-year-old Italian farmer, who developed skin reddening with hyperkeratosis, akathisia, and dysphonia after exposure of his hands with 10% aqueous DQ dibromide. The patient also developed acute and persistent Parkinsonism, although it was not considered to be the direct cause of dysphonia.

As kidney is the primary excretory pathway for absorbed DQ, it specially causes kidney damage (oliguria, anuria, proteinuria, hematuria, pyuria, azotemia, acute renal failure, and acute tubular necrosis). Interestingly, DQ is structurally related to orellanine, a highly potent nephrotoxin (Figure 1).^201,202 Toxicity for the liver [elevations of serum alkaline phosphatase (ALP), aspartate aminotransferase (AST), alanine transaminase (ALT), and lactate dehydrogenase (LDH) as consequence of hepatic necrosis], heart (cardiovascular collapse, dysrhythmias, and hypertension), GIT (severe esophagitis, ulcers, intestinal paralysis, fluid loss, abdominal distension, nausea, vomiting, and diarrhea), skin (skin burn, contact dermatitis, pruritus, and edema), reproductive system, and central nervous system (hypotensive shock, seizures, coma, intracerebral and brainstem hemorrhagic lesions) have also been reported. DQ can also damage the lungs, leading to dyspnea, upper respiratory pain, pulmonary edema, and respiratory depression. However, unlike PQ, pulmonary fibrosis has not been reported.^{22,40,49,50,113,114}

According to the ingested dose, different clinical manifestations can be observed, and all implicate an urgent medical assessment⁵⁰:

Mild poisoning (< 1 g DQ²⁺, 20%): GIT symptoms with putative development of renal injury. Full recovery is possible.

Moderate-to-severe poisoning (1–12 g DQ²⁺, 20%): multiple-organ dysfunction and acute renal failure. Most patients can still recover.

Fulminant poisoning (> 12 g DQ²⁺, 20%): multiple organs severely affected, leading to failure and eventually death in all patients within 1–2 days.

Sometimes an asymptomatic period can occur, extending from 24 h to 48 h after DQ exposure.

Other laboratorial analysis

Some laboratory tests are performed, including specific serum levels of electrolytes, creatinine, glucose, liver transaminases, as well as urinalysis, chest X-ray, and arterial blood gases or oximetry. As the mechanism of toxicity of DQ involves formation of ROS and consequent damage to biomolecules, Zwart et al.²⁰³ proposed that the urinary levels of aldehydes (including acetaldehyde, propanal, butanal, pentanal, hexanal, and malondialdehyde), acetone, coproporphyrin III, and 8-hydroxy-2′-deoxyguanosine are good effect biomarkers of DQ-induced free radical injury. It is important to highlight that DQ interfere with creatinine assays using the Jaffe method causing a false elevation, although this largely occurs at concentrations exceeding 100 mg L⁻¹, which is rarely observed and likely to be associated with severe clinical toxicity.³³

Treatment

Currently, there is no antidote or effective treatment for DQ intoxications, the treatment being devoted to reduce absorption and/or enhance elimination.^48,50 Because DQ does not accumulate in the lungs, intensive care treatment is likely to lead to a better prognosis than PQ.

If the patient was exposed to spills and splashes of DQ-containing liquid formulations, one of the first preventive measures that has to be taken is to remove all contaminated clothing and to wash exposed skin and eyes with water.¹⁷ When ingested, therapeutic approaches before absorption are of great importance, because DQ is not quickly absorbed by the GIT. Therefore, activated charcoal should be immediately administered; if not available, ingestion of any food may afford some protection. Gastric lavage may be helpful if executed within an hour of the ingestion. In either case, both procedures should be performed cautiously due to the risk of perforation, especially when treatment is delayed.^40,50 Furthermore, instillation of mineral adsorbents such as Fuller’s earth or bentonite with combined administration of a cathartic may be of great importance to reduce absorption of DQ, although they are possibly no more effective than charcoal. Diarrhea induction with purgative and high enemas have also been applied as an early treatment to reduce absorption from the GIT.⁴⁰

To eliminate DQ from circulation, measures as forced diuresis, hemoperfusion, and extracorporeal hemodialysis have been considered, although some reports do not support these techniques as sufficiently effective, as they do not remove clinically and toxicologically significant quantities of the herbicide, probably due to the rapid distribution of the absorbed DQ.^40,17 In cases with significant hypovolemia, immediate fluid and electrolyte replacement must be done.⁵⁰

Administration of antioxidant compounds could be useful for scavenging or preventing the ROS and RNS formation, which play a major role in DQ poisoning. Melatonin, for example, is a broad-spectrum antioxidant and a potent free radical scavenger responsible for scavenging O₂ ^●−, HO^●, ^●NO and singlet oxygen (¹O₂) as well as preventing LPO and reducing the serum levels of blood urea nitrogen.¹¹⁹ Furthermore, it has low toxicity and its highly lipophilic and slight hydrophilic nature makes it capable to cross all morphophysiological barriers, accumulating in all tissues and subcellular compartments. Of note, the efficacy of melatonin depend on the administered dose, as it can protect against DQ-induced acute hepatic and renal toxicity and reduce mortality due to oxidative stress at low concentrations, whereas at high doses it can exert pro-oxidant effects.^119,126,137 Polymeric sulfates such as heparin,⁵¹ the potent iron chelator desferrioxamine²⁰⁴ and the climbing plant Forsythia suspense ¹²⁰ were also demonstrated to inhibit significantly the DQ-induced redox cycling procedures.

Concluding remarks

Since the discovery of its herbicidal potential in the 1950s, DQ has been extensively used as a nonselective contact herbicide to control terrestrial and aquatic vegetation by commercial and domestic gardeners. It is rapidly absorbed by green plant tissue and inhibits the photosynthetic process to “starve” and expose the weeds to ROS over several days, leading to plant cells necrosis. It is inactivated on contact with soil and not taken up by plant roots. DQ has been commercially available both combined with PQ and, less commonly, alone, namely in countries where PQ is severely restricted. It is less toxic than PQ and therefore when formulated with PQ allows a lower concentration of PQ to be used.

Much more scientific human reports and animal experimental data exists for PQ than DQ.^{106

–112,205} The majority of poisoning cases are related to intentional ingestion of concentrated liquid formulations, resulting in life-threatening renal, hepatic, cardiac, and GIT complications. Humans may also be exposed to DQ by pulmonary, ocular, or dermal routes. Its main mechanism of toxicity is related to redox cycling, leading to ROS and RNS generation, oxidative stress, and potentially cell death. DQ redox cycling continues as long as NADPH and oxygen are available. Depletion of NADPH prevents recycling of GSH and interferes with other intracellular processes, including energy production and active transporters, exacerbating toxicity. Intracellular protective mechanisms such as GSH, SOD, and CAT are overwhelmed or depleted following large exposures. Taken together, these cytotoxic reactions induce cellular necrosis, which is followed by an influx of neutrophils and macrophages.

Many therapeutic measures have been applied to minimize the effects of DQ poisoning and the delay between DQ ingestion and the onset of treatment is critical. Despite all therapies, for several times, it was not possible to prevent a fatal outcome of DQ poisoning. Therefore, an antidote or effective treatment that is specific for DQ is needed. Specifically, in vitro and/or in vivo studies should be performed, to evaluate a potential inducer of efflux transporters to release DQ residues from cells and being excreted through urine, minimizing the effects of poisoning. On the other hand, a compound that can form complexes with DQ inhibiting its entry to the cells could also be an interesting approach.

Footnotes

Acknowledgements

The authors are grateful for the extensive and knowledgeable feedback provided by the anonymous peer reviewers selected by the Editor of the journal. Ricardo Dinis-Oliveira acknowledges his Investigator Grant (IF/01147/2013) from the Fundação para a Ciência e a Tecnologica (FCT).

Declaration of Conflicting Interests

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: The employment affiliation of the authors is as shown on the first page of this article. The review was prepared during the normal course of the authors’ employment. The authors have sole responsibility for the writing and content of the article. Authors also declare that they have not been involved during the past 5 years in any legal or regulatory proceedings related to the contents of the article. The authors declare they have no conflicts of interest with regard to preparation of the article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: NORTE-01-0145-FEDER-000024, supported by Norte Portugal Regional Operational Programme (NORTE 2020), under the PORTUGAL 2020 Partnership Agreement, through the European Regional Development Fund (ERDF) and CESPU projects TramTap-CESPU-2016 and ChronicTramTap_CESPU_2017.

ORCID iD

RJ Dinis-Oliveira

References

Mahmood

Imadi

Shazadi

. Effects of pesticides on environment. In: Hakeem

Akhtar

Abdullah

SNA

, (eds.). Plant, soil and microbes: Volume 1: Implications in crop science. Cham: Springer International Publishing, 2016, pp. 253–269.

Jeyaratnam

. Acute pesticide poisoning: a major global health problem. World Health Stat Q 1990; 43: 139–144.

Aktar

Sengupta

Chowdhury

. Impact of pesticides use in agriculture: their benefits and hazards. Interdiscip Toxicol 2009; 2: 1–12.

Tadeo

Sánchez-Brunete

Pérez

. Analysis of herbicide residues in cereals, fruits and vegetables. J Chromatogr A 2000; 882: 175–191.

Brian

Homer

Stubbs

. A new herbicide 1,1′-ethylene-2,2′-dipyridylium dibromide. Nature, Lond 1958; 181: 446–447.

Homer

Mees

Tomlinson

. Mode of action of dipyridyl quaternary salts as herbicides. J Sci Food Agric 1960; 11: 309.

Boon

. The chemistry and mode of action of the bipyridylium herbicides diquat and paraquat. Outlook Agr 1964; 4: 163–170.

Pateiro-Moure

Martínez-Carballo

Arias-Estévez

. Determination of quaternary ammonium herbicides in soils: comparison of digestion, shaking and microwave-assisted extractions. J Chromatogr A 2008; 1196–1197: 110–116.

Oreopoulos

McEvoy

. Diquat poisoning. Postgrad Med J 1969; 45: 635–637.

10.

Cant

Lewis

. Ocular damage due to paraquat and diquat. Br Med J 1968; 2: 224.

11.

Samman

Johnston

. Nail damage associated with handling of paraquat and diquat. BMJ 1969; 1: 818–819.

12.

Weirich

. [Intoxication with diquat (“Reglone”)]. Dtsch Gesundheitsw 1969; 24: 1986–1988.

13.

Schonborn

Schuster

. Clinical and morphological findings in acute oral intoxication with diquat (Reglone). Arch Toxicol 1971; 27: 204.

14.

Hancock

Martin

Ward

. Attempted suicide with a pesticide mixture. Resuscitation 1975; 4: 265–269.

15.

Okonek

Hofmann

. On the question of extracorporeal hemodialysis in diquat intoxication. Arch Toxicol 1975; 33: 251–257.

16.

Fel

Zala

Szule

. [Haemodialysisse gyogyite H diquat-dibromid (Regelone) mergezes]. Orv Hetil 1976; 177: 1773–1774.

17.

Okonek

Hofmann

Henningsen

. Efficacy of gut lavage, hemodialysis, and hemoperfusion in the therapy of paraquat or diquat intoxication. Arch Toxicol 1976; 36: 43–51.

18.

Wood

Edgar

Salcedo

. Recovery from inhalation of diquat aerosol. Chest 1976; 70: 774–775.

19.

Narita

Matajuku

Sato

. Autopsy in acute suicidal poisoning with diquat. Jap Ass Rural Med J 1978; 27: 454–455.

20.

Vanholder

Colardyn

de Reuck

. Diquat intoxication: report of two cases and review of the literature. Am J Med 1981; 70: 1267–1271.

21.

Van Den Heede

Heyndrickx

Timperman

. Thin layer chromatography as a routine appropriate technique for the determination of bipyridylium herbicides in post mortem human tissues. Med Sci Law 1982; 22: 57–62.

22.

McCarthy

Speth

. Diquat intoxication. Ann Emerg Med 1983; 12: 394–396.

23.

Powell

Pond

Allen

. Hemoperfusion in a child who ingested diquat and died from pontine infarction and hemorrhage. J Toxicol Clin Toxicol 1983; 20: 405–420.

24.

Mahieu

Bonduelle

Bernard

. Acute diquat intoxication: interest of its repeated determination in urine and the evaluation of renal proximal tubule integrity. J Toxicol Clin Toxicol 1984; 22: 363–369.

25.

Williams

Jarvie

Whitehead

. Diquat intoxication: treatment by charcoal haemoperfusion and description of a new method of diquat measurement in plasma. J Toxicol Clin Toxicol 1986; 24: 11–20.

26.

Manoguerra

. Full thickness skin burns secondary to an unusual exposure to diquat dibromide. J Toxicol Clin Toxicol 1990; 28: 107–110.

27.

Buckley

McKiernan

. Survival after accidental ingestion of a fatal dose of diquat [Letter]. Ir Med J 1992; 84: 134.

28.

Fuke

Ameno

. A rapid, simultaneous determination of paraquat and diquat in serum and urine using second-derivative spectroscopy. J Anal Toxicol 1992; 16: 214–216.

29.

Sechi

Agnetti

Piredda

. Acute and persistent Parkinsonism after use of diquat. Neurology 1992; 42: 261–263.

30.

Valiante

Farinati

Dal Santo

. Upper gastrointestinal injury caused by diquat. Gastrointest Endosc 1992; 38: 204.

31.

Nagao

Terazawa

. Production of monoclonal antibodies against diquat and its enzyme-linked immunosorbent assay. Med Sci Law 1993; 33: 117–120.

32.

Ameno

Fuke

Shirakawa

. Different distribution of paraquat and diquat in human poisoning cases after ingestion of a combined herbicide. Arch Toxicol 1994; 68: 134–137.

33.

Price

Newman

Clague

. Paraquat and diquat interference in the analysis of creatinine by the Jaffe reaction. Pathology 1995; 27: 154–156.

34.

Ronnen

Klin

Suster

. Mixed diquat/paraquat-induced burns. Int J Dermatol 1995; 34: 23–25.

35.

Fuke

Ameno

. Detection of two metabolites of diquat in urine and serum of poisoned patients after ingestion of a combined herbicide of paraquat and diquat. Arch Toxicol 1996; 70: 504–507.

36.

Rudež

Sepčić

. Vaginally applied diquat intoxication. J Toxicol Clin Toxicol 1999; 37: 877–879.

37.

Tanen

Curry

Laney

. Renal failure and corrosive airway and gastrointestinal injury after ingestion of diluted diquat solution. Ann Emerg Med 1999; 34: 542–545.

38.

Hantson

Wallemacq

Mahieu

. A case of fatal diquat poisoning: toxicokinetic data and autopsy findings. J Toxicol Clin Toxicol 2000; 38: 149–152.

39.

Ruha

Wallace

Tanen

. Dilute diquat death. Am J Emerg Med 2001; 19: 527–528.

40.

Saeed

Wilks

Coupe

. Acute diquat poisoning with intracerebral bleeding. Postgrad Med J 2001; 77: 329–332.

41.

Vinner

Stievenart

Humbert

. Separation and quantification of paraquat and diquat in serum and urine by capillary electrophoresis. Biomed Chromatogr 2001; 15: 342–347.

42.

Fuke

Arao

Morinaga

. Analysis of paraquat, diquat and two diquat metabolites in biological materials by high-performance liquid chromatography. Leg Med (Tokyo) 2002; 4: 156–163.

43.

Kitagawa

Hayasaka

Hori

. Ocular injury caused by Preeglox-L (a herbicide containing paraquat, diquat, and surfactant): effect of topical reduced glutathione. Shimane J Med Sci 2003; 21: 3–5.

44.

Ito

Hori

Fujisawa

. Rapid analysis method for paraquat and diquat in the serum using ion-pair high-performance liquid chromatography. Biol Pharm Bull 2005; 28: 725–728.

45.

Hara

Sasaki

Takase

. Rapid and sensitive HPLC method for the simultaneous determination of paraquat and diquat in human serum. Anal Sci 2007; 23: 523–526.

46.

Peiró

Zapater

Alenda

. Hepatotoxicity related to paraquat and diquat absorption through intact skin. Dig Dis Sci 2007; 52: 3282–3284.

47.

Adams

Nusrath

Bryant

. Oral mucosal response to exposure to diquat: a rare occupational injury. Br J Oral Maxillofac Surg 2008; 46: 601–602.

48.

Jović-Stošić

Babić

Todorović

. Fatal diquat intoxication. Vojnosanit Pregl 2009; 66: 477–481.

49.

Fortenberry

Beckman

Schwartz

. Magnitude and characteristics of acute paraquat- and diquat-related illnesses in the US: 1998–2013. Environ Res 2016; 146: 191–199.

50.

Jones

Vale

. Mechanisms of toxicity, clinical features, and management of diquat poisoning: a review. J Toxicol Clin Toxicol 2000; 38: 123–128.

51.

Zielonka

Rybak

Celińska

. Effect of heparin on viologen-stimulated enzymatic NADH depletion. Chem Res Toxicol 2006; 19: 668–673.

52.

Parkash

. Adsorption of cationic pesticides (diquat and paraquat) from aqueous solution by activated carbon. Carbon 1974; 12: 483–491.

53.

Brienne

SHR

Boyd

PDW

Schwerdtfeger

. Infrared spectra and theoretical studies of bridged diquaternary 2,2′-dipyridinium compounds. J Mol Struct 1995; 356: 81–94.

54.

Daniel

Gage

. Absorption and excretion of diquat and paraquat in rats. Br J Ind Med 1966; 23: 133–136.

55.

Pateiro-Moure

Arias-Estévez

Simal-Gándara

. Critical review on the environmental fate of quaternary ammonium herbicides in soils devoted to vineyards. Environ Sci Technol 2013; 47: 4984–4998.

56.

Heaton

. Agrochemicals. In: Heaton

, (ed.). The chemical industry. Dordrecht: Springer Netherlands, 1994, pp. 214–271.

57.

Karuppagounder

Ahuja

Buabeid

. Investigate the chronic neurotoxic effects of diquat. Neurochem Res 2012; 37: 1102–1111.

58.

Anton

Theodorou

Fioramonti

. Low-level exposure to diquat induces a neurally mediated intestinal hypersecretion in rats: involvement of nitric oxide and mast cells. Toxicol Appl Pharmacol 1998; 152: 77–82.

59.

Díaz

Merás

Franco

. Stopped flow kinetic-spectrophotometric determination of diquat in waters. Water Res 2002; 36: 783–787.

60.

Scott

Corrigan

. The in vitro percutaneous absorption of diquat: a species comparison. Toxicol In Vitro 1990; 4: 137–141.

61.

Cheng

Liu

. Effects of pre-harvest chemical application on rice desiccation and seed quality. J Zhejiang Univ Sci B 2015; 16: 813–823.

62.

Cserháti

Szigeti

. Ions modify the strength of interaction of diquat and paraquat with some proteins and cellulose. Z Naturforsch C 1991; 46: 428–432.

63.

Garlich

Da Cruz

Da Silva

. Diquat associated with copper sources for algae control: efficacy and ecotoxicology. J Environ Sci Health B 2016; 51: 215–221.

64.

Bouétard

Besnard

Vassaux

. Impact of the redox-cycling herbicide diquat on transcript expression and antioxidant enzymatic activities of the freshwater snail Lymnaea stagnalis . Aquat Toxicol 2013; 126: 256–265.

65.

Paul

Simonin

Symula

. The toxicity of diquat, endothall, and fluridone to the early life stages of fish. J Freshwater Ecol 1994; 9: 229–239.

66.

Wilson

Bond

. The effects of the herbicides diquat and dichlobenil (Casoron®) on pond invertebrates. Part I. Acute toxicity. Trans Am Fish Soc 1969; 98: 438–443.

67.

White

. Status report on diquat and paraquat as aquatic herbicides. Hyacinth Contr J 1965; 4: Bibl. 4.

68.

Paul

Simonin

. Toxicity of diquat and endothall to eastern spiny softshell turtles (Apalone spinifera spinifera). J Aquat Plant Manage 2007; 45: 52–54.

69.

Netherland

Skogerboe

Owens

. Influence of water temperature on the efficacy of diquat and endothall versus curlyleaf pondweed. J Aquat Plant Manage 2000; 38: 25–32.

70.

Poovey

Getsinger

. Impacts of inorganic turbidity on diquat efficacy against Egeria densa . J Aquat Plant Manage 2002; 40: 6–10.

71.

Young

Horth

Crane

. Taste and odour threshold concentrations of potential potable water contaminants. Water Research 1996; 30: 331–340.

72.

Krieger

. Hayes’ handbook of pesticide toxicology. 3 rd ed. San Diego: Academic press, 2010.

73.

Bird

Kuhn

. Electrochemistry of the viologens. Chem Soc Rev 1981; 10: 49–82.

74.

Mees

. Experiments on the herbicidal action of 1,1′-ethylene-2,2′-dipyridylium dibromide. Ann Appl Biol 1960; 48: 601–12.

75.

Zweig

Shavit

Avron

. Diquat (I, I′-ethylene-2,2′-dipyridylium dibromide) in photo-reactions of isolated chloroplasts. Biochimica Et Biophysica Acta 1965; 109: 332–346.

76.

Dinis-Oliveira

Duarte

Sanchez-Navarro

. Paraquat poisonings: mechanisms of lung toxicity, clinical features, and treatment. Crit Rev Toxicol 2008; 38: 13–71.

77.

Dodge

Harris

Baldwin

. The mode of action of paraquat and diquat. Biochem J 1970; 118: 43P–4P.

78.

Slade

. Photochemical degradation of paraquat. Nature 1965; 207: 515–516.

79.

Mira

Brunk

Boveris

. One-electron transfer reactions of diquat radical to different reduction intermediates of oxygen: formation of hydroxyl radical and electronically excited states. Free Radic Biol Med 1988; 5: 155–163.

80.

Darwish

Mitchell

. Evaluation of diquat against an acute experimental infection of Flavobacterium columnare in channel catfish, Ictalurus punctatus (Rafinesque). J Fish Dis 2009; 32: 401–408.

81.

Calderbank

. Environmental considerations in the development of diquat and paraquat as aquatic herbicides. Outlook Agr 1972; 7: 51–54.

82.

Rytwo

Nir

Margulies

. Adsorption and interactions of diquat and paraquat with montmorillonite. Soil Sci Soc Am J 1996; 60: 601–610.

83.

Rytwo

Tropp

Serban

. Adsorption of diquat, paraquat and methyl green on sepiolite: experimental results and model calculations. Appl Clay Sci 2002; 20: 273–282.

84.

Gevao

Semple

Jones

. Bound pesticide residues in soils: a review. Environ Pollut 2000; 108: 3–14.

85.

Vinhal

Lima

Cassella

. Polyurethane foam loaded with sodium dodecylsulfate for the extraction of “quat” pesticides from aqueous medium: optimization of loading conditions. Ecotoxicol Environ Saf 2016; 131: 72–78.

86.

Carter

. Herbicide movement in soils: principles, pathways and processes. Weed Res 2000; 40: 113–122.

87.

Henares

MNP

Cruz

Gomes

. Toxicidade aguda e efeitos histopatológicos do diquate na brânquia e no fígado do piauçu (Leporinus macrocephalus). Pesticidas: Revista de Ecotoxicologia e Meio Ambiente 2007; 17: 107–116.

88.

Henares

MNP

Cruz

Gomes

. Toxicidade aguda e efeitos histopatológicos do herbicida diquat na brânquia e no fígado da tilápia nilótica (Oreochromis niloticus). Acta Sci Biol Sci 2008; 30: 77–82.

89.

Henares

MNP

Rezende

FRL

Gomes

. Eficácia do diquat no controle de Hydrilla verticillata, Egeria densa e Egeria najas e toxicidade aguda para o Guaru (Phallocerus caudimaculatus), em condições de laboratório. Planta Daninha 2011; 29: 279–285.

90.

López-Paz

Catalá-Icardo

Antón-Garrido

. Determination of diquat by flow injection-chemiluminescence. Anal Bioanal Chem 2009; 394: 1073–1079.

91.

FAO/WHO. Pesticide residues in food 2013 - Joint FAO/WHO meeting on pesticide residues: Part II - Toxicological evaluation. Geneve, Switzerland: World Health Organization, 2014, pp. 155–70.

92.

Slade

Smith

. Photochemical degradation of diquat. Nature 1967; 213: 919–920.

93.

Kinkennon

Green

Hutchinson

. The use of simulated or concentrated natural solar radiation for the TiO₂-mediated photodecomposition of basagran, diquat, and diuron. Chemosphere 1995; 31: 3663–3671.

94.

Orpin

Knight

Evans

. The bacterial oxidation of picolinamide, a photolytic product of diquat. Biochem J 1972; 127: 819–831.

95.

Yang

Funderburk

. Interactions of bipyridylium herbicides and soil microorganisms. Bot Bull Academia Sinica 1978; 19: 179–194.

96.

Calderbank

. The occurrence and significance of bound pesticide residues in soil. In: Ware

(ed.). Reviews of environmental contamination and toxicology. New York: Springer, 1989, pp. 71–103.

97.

Griggs

Davis

. Diquat: excretion and metabolism in a goat. Report AR 2585A DPR Vol 226-018 #011320 ICI Plant Protection Ltd Supplied to WHO by Zeneca Agrochemicals, Fernhurst, Surrey, England Unpublished work. 1973.

98.

Stevens

Walley

. Tissue and milk residues arising from the ingestion of single doses of diquat and paraquat by cattle. J Sci Food Agric 1966; 17: 472–475.

99.

Clark

Hurst

. The toxicity of diquat. Br J Ind Med 1970; 27: 51–55.

100.

Rose

Crabtree

Fletcher

. Biochemical effects of diquat and paraquat: disturbance of the control of corticosteroid synthesis in rat adrenal and subsequent effects on the control of liver glycogen utilization. Biochem J 1974; 138: 437–443.

101.

Abdollahi

Ranjbar

Shadnia

. Pesticides and oxidative stress: a review. Med Sci Monit 2004; 10: Ra141–Ra147.

102.

Baldwin

Pasi

MacGregor

. The rates of radical formation from the dipyridylium herbicides paraquat, diquat, and morfamquat in homogenates of rat lung, kidney, and liver: an inhibitory effect of carbon monoxide. Toxicol Appl Pharmacol 1975; 32: 298–304.

103.

Feldmann

Maibach

. Percutaneous penetration of some pesticides and herbicides in man. Toxicol Appl Pharmacol 1974; 28: 126–132.

104.

Charles

Abou-Donia

Menzel

. Absorption of paraquat and diquat from the airways of the perfused rat lung. Toxicology 1978; 9: 59–67.

105.

Schumacher

Høiland

. Mushroom poisoning caused by species of the genus Cortinarius Fries. Arch Toxicol 1983; 53: 87–106.

106.

Dinis-Oliveira

Pontes

Bastos

. An effective antidote for paraquat poisonings: the treatment with lysine acetylsalicylate. Toxicology 2009; 255: 187–193.

107.

Baltazar

Dinis-Oliveira

Martins

. Lysine acetylsalicylate increases the safety of a paraquat formulation to freshwater primary producers: a case study with the microalga Chlorella vulgaris . Aquat Toxicol 2014; 146: 137–143.

108.

Baltazar

Dinis-Oliveira

Guilhermino

. New formulation of paraquat with lysine acetylsalicylate with low mammalian toxicity and effective herbicidal activity. Pest Manag Sci 2013; 69: 553–558.

109.

Baltazar

Dinis-Oliveira

Duarte

. Paraquat research: do recent advances in limiting its toxicity make its use safer? Br J Pharmacol 2013; 168: 44–45.

110.

Baltazar

Dinis-Oliveira

de Lourdes Bastos

. Pesticides exposure as etiological factors of Parkinson’s disease and other neurodegenerative diseases—a mechanistic approach. Toxicol Lett 2014; 230: 85–103.

111.

Dinis-Oliveira

de Pinho

Santos

. Postmortem analyses unveil the poor efficacy of decontamination, anti-inflammatory and immunosuppressive therapies in paraquat human intoxications. PloS one 2009; 4: e7149.

112.

Dinis-Oliveira

de Pinho

Ferreira

. Reactivity of paraquat with sodium salicylate: formation of stable complexes. Toxicology 2008; 249: 130–139.

113.

Lam

Takezawa

Gupta

. A comparison of the effects of paraquat and diquat on lung compliance, lung volumes and single breath diffusing capacity in the rat. Toxicology 1980; 18: 111–123.

114.

Manabe

Ogata

. The toxic effect of diquat on the rat lung after intratracheal administration. Toxicol Lett 1986; 30: 7–12.

115.

Mills

. Diquat: disposition and metabolism in the rat. ICI Central Toxicology Laboratory, Alderley Park, Macclesfield, Cheshire, England, United Kingdom CTL Report No CTL/P/214 Syngenta File No PP901/1251 Submitted to WHO by Syngenta Crop Protection AG, Basel, Switzerland Unpublished work. 1976.

116.

Williams

SGP

Cameron

McGuire

. Identification of the major radioactive components in urine and faeces from rats following single oral administration of [14C]-diquat. Inveresk Research International, Tranent, Edinburgh, Scotland, United Kingdom IRI Report No 7563 (CTL/C/2523) Syngenta File No PP901/0150 Submitted to WHO by Syngenta Crop Protection AG, Basel, Switzerland Unpublished work. 1991.

117.

Circu

Maloney

. Diquat-induced cellular pyridine nucleotide redox changes and alteration of metabolic enzyme activities in colonic carcinoma cells. Chem Biol Interact 2017; 264: 43–51.

118.

Zhang

Klaassen

. Nrf2 protects against diquat-induced liver and lung injury. Free Radic Res 2012; 46: 1220–1229.

119.

Sun

Wei

. Melatonin reduces mortality and oxidatively mediated hepatic and renal damage due to diquat treatment. J Pineal Res 2007; 42: 166–171.

120.

Piao

Zhang

. Protective effects of Forsythia suspensa extract against oxidative stress induced by diquat in rats. Food Chem Toxicol 2010; 48: 764–770.

121.

Madhu

Gregus

Klaassen

. Marked interanimal differences in susceptibility of Sprague-Dawley rats to diquat-induced oxidative stress in the liver: correlation with hepatic uptake of diquat. J Pharmacol Exp Ther 1992; 263: 1003–1008.

122.

Abe

Kinda

Takano

. Relationship between body iron stores and diquat toxicity in male Fischer-344 rats. Biometals 2006; 19: 651–657.

123.

Lopes

Manso

. [Paraquat and diquat: mechanisms of toxicity]. Acta Med Port 1989; 2: 35–39.

124.

Higuchi

Yoshikawa

Orino

. Effect of diquat-induced oxidative stress on iron metabolism in male Fischer-344 rats. Biometals 2011; 24: 1123–1131.

125.

Valavanidis

Vlahogianni

Dassenakis

. Molecular biomarkers of oxidative stress in aquatic organisms in relation to toxic environmental pollutants. Ecotoxicol Environ Saf 2006; 64: 178–189.

126.

Zhang

Wei

. Inhibitory effect of melatonin on diquat-induced lipid peroxidation in vivo as assessed by the measurement of F2-isoprostanes. J Pineal Res 2006; 40: 326–331.

127.

Ran

Liang

. Transgenic mice overexpressing glutathione peroxidase 4 are protected against oxidative stress-induced apoptosis. J Biol Chem 2004; 279: 55137–55146.

128.

Yin

Liu

Ren

. Effects of dietary supplementation with glutamate and aspartate on diquat-induced oxidative stress in piglets. PloS one 2015; 10: e0122893.

129.

Sies

Lei

. Opposite roles of selenium-dependent glutathione peroxidase-1 in superoxide generator diquat- and peroxynitrite-induced apoptosis and signaling. J Biol Chem 2001; 276: 43004–43009.

130.

Koppenol

. The basic chemistry of nitrogen monoxide and peroxynitrite. Free Radic Biol Med 1998; 25: 385–391.

131.

Beligni

Lamattina

. Nitric oxide protects against cellular damage produced by methylviologen herbicides in potato plants. Nitric Oxide 1999; 3: 199–208.

132.

Djukic

Jovanovic

Ninkovic

. Intrastriatal pre-treatment with L-NAME protects rats from diquat neurotoxcity. Ann Agric Environ Med 2012; 19: 666–672.

133.

Blakeman

Ryan

Jolly

. Protein oxidation: examination of potential lipid-independent mechanisms for protein carbonyl formation. J Biochem Mol Toxicol 1998; 12: 185–190.

134.

Fernandez

Anglade

Mitjavila

. Potentiation of iron-induced lipid peroxidation by a series of bipyridyls in relation to their ability to reduce iron. Toxicol Lett 1997; 93: 65–71.

135.

Gallagher

Buetler

Stapleton

. The effects of diquat and ciprofibrate on mRNA expression and catalytic activities of hepatic xenobiotic metabolizing and antioxidant enzymes in rat liver. Toxicol Appl Pharmacol 1995; 134: 81–91.

136.

Dimitrov

Gadeva

Benova

. Comparative genotoxicity of the herbicides Roundup, Stomp and Reglone in plant and mammalian test systems. Mutagenesis 2006; 21: 375–382.

137.

Asghari

Moloudizargari

Bahadar

. A review of the protective effects of melatonin in pesticides-induced toxicity. Expert Opin Drug Metab Toxicol 2016; 29: 1–10.

138.

Freeman

Rayburn

. Aquatic herbicides and herbicide contaminants: in vitro cytotoxicity and cell-cycle analysis. Environ Toxicol 2006; 21: 256–263.

139.

Vinhal

Lima

Cassella

. Sorption of the herbicides diquat and difenzoquat from aqueous medium by polymeric resins in the presence of sodium dodecylsulfate: kinetic and mechanistic study. J Environ Sci Health B 2016; 51: 482–489.

140.

Franco

Rodriguez-Rocha

. Molecular mechanisms of pesticide-induced neurotoxicity: relevance to Parkinson’s disease. Chem Biol Interact 2010; 188: 289–300.

141.

Hatcher

Pennell

Miller

. Parkinson’s disease and pesticides: a toxicological perspective. Trends Pharmacol Sci 2008; 29: 322–329.

142.

Dinis-Oliveira

Remiao

Carmo

. Paraquat exposure as an etiological factor of Parkinson’s disease. Neurotoxicology 2006; 27: 1110–1122.

143.

Drechsel

Patel

. Differential contribution of the mitochondrial respiratory chain complexes to reactive oxygen species production by redox cycling agents implicated in parkinsonism. Toxicol Sci 2009; 112: 427–434.

144.

Moretto

Colosio

. Biochemical and toxicological evidence of neurological effects of pesticides: the example of Parkinson’s disease. Neurotoxicology 2011; 32: 383–391.

145.

Brown

Rumsby

Capleton

. Pesticides and Parkinson’s disease—is there a link? Environ Health Perspect 2006; 114: 156–164.

146.

Bonneh-Barkay

Langston

Di Monte

. Toxicity of redox cycling pesticides in primary mesencephalic cultures. Antioxid Redox Signal 2005; 7: 649–653.

147.

Fischer

Glass

JD.

Oxidative stress induced by loss of Cu, Zn-superoxide dismutase (SOD1) or superoxide-generating herbicides causes axonal degeneration in mouse DRG cultures. Acta Neuropathol 2010; 119: 249–259.

148.

Lindquist

Larsson

Lydén-Sokolowski

. Autoradiography of ^[14C]paraquat or ^[14C]diquat in frogs and mice: accumulation in neuromelanin. Neurosci Lett 1988; 93: 1–6.

149.

Nisar

Hanson

. Diquat causes caspase-independent cell death in SH-SY5Y cells by production of ROS independently of mitochondria. Arch Toxicol 2015; 89: 1811–1825.

150.

Shimizu

Ohtaki

Matsubara

. Carrier-mediated processes in blood–brain barrier penetration and neural uptake of paraquat. Brain Res 2001; 906: 135–142.

151.

Singh

Murthy

Ramassamy

. Neuroprotective mechanisms of the standardized extract of Bacopa monniera in a paraquat/diquat-mediated acute toxicity. Neurochem Int 2013; 62: 530–539.

152.

Zhang

Gao

Wang

. Chronic exposure to diquat causes reproductive toxicity in female mice. PLoS One 2016; 11: e0147075.

153.

Zhang

Gao

Wang

. Critical role of FoxO1 in granulosa cell apoptosis caused by oxidative stress and protective effects of grape seed procyanidin B2. Oxid Med Cell Longev 2016; 2016: 6147345.

154.

Picó

Font

Moltó

. Solid-phase extraction of quaternary ammonium herbicides. J Chromatogr A 2000; 885: 251–271.

155.

Carneiro

Puignou

Galceran

. Comparison of capillary electrophoresis and reversed-phase ion-pair high-performance liquid chromatography for the determination of paraquat, diquat and difenzoquat. J Chromatogr A 1994; 669: 217–224.

156.

Carneiro

Puignou

Galceran

. Comparison of silica and porous graphitic carbon as solid-phase extraction materials for the analysis of cationic herbicides in water by liquid chromatography and capillary electrophoresis. Anal Chim Acta 2000; 408: 263–269.

157.

Ibáñez

Picó

Mañes

. Influence of organic matter and surfactants on solid-phase extraction of diquat, paraquat and difenzoquat from waters. J Chromatogr A 1996; 727: 245–252.

158.

Ibáñez

Picó

Mañes

. On-line determination of bipyridylium herbicides in water by HPLC. Chromatographia 1997; 45: 402–407.

159.

Núñez

Moyano

Galceran

. Solid-phase extraction and sample stacking-capillary electrophoresis for the determination of quaternary ammonium herbicides in drinking water. J Chromatogr A 2002; 946: 275–282.

160.

Kambhampati

Roinestad

Hartman

. Determination of diquat and paraquat in water using high-performance liquid chromatography with confirmation by liquid chromatography-particle beam mass spectrometry. J Chromatogr A 1994; 688: 67–73.

161.

Pérez-Ruiz

Martínez-Lozano

Tomás

. Kinetic-spectrophotometric determination of diquat based on a charge-transfer complex with cysteine. Analyst 1994; 119: 1557–1560.

162.

Castro

Moyano

Galceran

. On-line ion-pair solid-phase extraction-liquid chromatography-mass spectrometry for the analysis of quaternary ammonium herbicides. J Chromatogr A 2000; 869: 441–449.

163.

Tomita

Okuyama

Nigo

. Simultaneous determination of paraquat and diquat in serum using capillary electrophoresis. Biomed Chromatogr 1992; 6: 91–94.

164.

Agostini de Moraes

Cocenza

da Cruz Vasconcellos

. Chitosan and alginate biopolymer membranes for remediation of contaminated water with herbicides. J Environ Manage 2013; 131: 222–227.

165.

Maiti

Sarma

Brar

. Novel spectrophotometric method for detection and estimation of butanol in acetone-butanol-ethanol fermenter. Talanta 2015; 141: 116–121.

166.

Minakata

Suzuki

Asano

. A new colorimetric determination of diquat produced with several moderate reductants. Forensic Sci Int 1989; 42: 231–237.

167.

Minakata

Suzuki

Asano

. Extraction of diquat with 1-butanol from biological materials. Forensic Sci Int 1990; 44: 27–35.

168.

Minakata

Suzuki

Saito

. A new diquat derivative appropriate for colourimetric measurements of biological materials in the presence of paraquat. Int J Legal Med 2000; 114: 1–5.

169.

Moffat

Osselton

Widdop

. Clarke’s analysis of drugs and poisons. 4th ed. London: Pharmaceutical Press, 2011.

170.

Vohra

Salazar

Cantrell

. The poison pen: bedside diagnosis of urinary diquat. J Med Toxicol 2010; 6: 35–36.

171.

Dinis-Oliveira

Sousa

Remiao

. Full survival of paraquat-exposed rats after treatment with sodium salicylate. Free Radic Biol Med 2007; 42: 1017–1028.

172.

Dinis-Oliveira

De Jesus Valle

Bastos

. Kinetics of paraquat in the isolated rat lung: influence of sodium depletion. Xenobiotica 2006; 36: 724–737.

173.

Moreira

de Pinho

Baltazar

. Quantification of paraquat in postmortem samples by gas chromatography-ion trap mass spectrometry and review of the literature. Biomed Chromatogr 2012; 26: 338–349.

174.

Horwitz

. Official methods of analysis of AOAC International. Gaithersburg, MD: AOAC International, 2000.

175.

Kuo

Lin

Liu

. Spectra interference between diquat and paraquat by second derivative spectrophotometry. Forensic Sci Int 2001; 121: 134–139.

176.

Matsuoka

Okuda

. Extraction and quantitation of paraquat and diquat from blood. Forensic Sci Int 1993; 62: 179–186.

177.

Yuen

Bagness

Myles

. Spectrophotometric determination of diquat and paraquat in aqueous herbicide formulations. Analyst 1967; 92: 375–381.

178.

Aramendía

Borau

Lafont

. Determination of diquat and paraquat in olive oil by ion-pair liquid chromatography–electrospray ionization mass spectrometry (MRM). Food Chem 2006; 97: 181–188.

179.

Carrillo-Carrión

Simonet

Valcárcel

. Rapid fluorescence determination of diquat herbicide in food grains using quantum dots as new reducing agent. Anal Chim Acta 2011; 692: 103–108.

180.

Medintz

Uyeda

Goldman

. Quantum dot bioconjugates for imaging, labelling and sensing. Nat Mater 2005; 4: 435–446.

181.

de Almeida

Yonamine

. Gas chromatographic-mass spectrometric method for the determination of the herbicides paraquat and diquat in plasma and urine samples. J Chromatogr B Analyt Technol Biomed Life Sci 2007; 853: 260–264.

182.

Evans

Startin

Goodall

. Formation of gas-phase clusters monitored during electrospray mass spectrometry: a study of quaternary ammonium pesticides. Rapid Commun Mass Spectrom 2001; 15: 1341–1345.

183.

Attallah

Soliman

Abo-Aly

. Determination of diquat residues in potato using reversed-phase liquid chromatography with tandem mass spectrometry. J AOAC Int 2017; 100: 789–795.

184.

Ishibashi

Ando

Sakai

. High-throughput simultaneous analysis of pesticides by supercritical fluid chromatography/tandem mass spectrometry. J Chromatogr A 2012; 1266: 143–148.

185.

Hao

Zhao

Morse

. Optimized liquid chromatography tandem mass spectrometry approach for the determination of diquat and paraquat herbicides. J Chromatogr A 2013; 1304: 169–176.

186.

Vidal

JLM

Vega

López

FJS

. Application of internal quality control to the analysis of quaternary ammonium compounds in surface and groundwater from Andalusia (Spain) by liquid chromatography with mass spectrometry. J Chromatogr A 2004; 1050: 179–184.

187.

Taguchi

Jenkins

Crozier

. Determination of diquat and paraquat in water by liquid chromatography-(electrospray ionization) mass spectrometry. J Am Soc Mass Spectrom 1998; 9: 830–839.

188.

Evans

Startin

Goodall

. Tandem mass spectrometric analysis of quaternary ammonium pesticides. Rapid Commun Mass Spectrom 2001; 15: 699–707.

189.

Núñez

Moyano

Galceran

. Time-of-flight high resolution versus triple quadrupole tandem mass spectrometry for the analysis of quaternary ammonium herbicides in drinking water. Anal Chim Acta 2004; 525: 183–190.

190.

Tondeur

Sovocool

Mitchum

. Use of FAB MS/MS for analysis of quarternary amine pesticide standards. Biol Mass Spectrom 1987; 14: 733–736.

191.

Castro

Moyano

Galceran

. Ion-pair liquid chromatography–atmospheric pressure ionization mass spectrometry for the determination of quaternary ammonium herbicides. J Chromatogr A 1999; 830: 145–154.

192.

Takino

Daishima

Yamaguchi

. Determination of diquat and paraquat in water by liquid chromatography/electrospray-mass spectrometry using volatile ion-pairing reagents. Anal Sci 2000; 16: 707–711.

193.

Núñez

Kim

Moyano

. Analysis of the herbicides paraquat, diquat and difenzoquat in drinking water by micellar electrokinetic chromatography using sweeping and cation selective exhaustive injection. J Chromatogr A 2002; 961: 65–75.

194.

Tunç

Duman

Soylu

. Study on the bindings of dichlorprop and diquat dibromide herbicides to human serum albumin by spectroscopic methods. J Hazard Mater 2014; 273: 36–43.

195.

Acedo-Valenzuela

Galeano-Díaz

Mora-Díez

. Determination of neutral and cationic herbicides in water by micellar electrokinetic capillary chromatography. Anal Chim Acta 2004; 519: 65–71.

196.

Galceran

Carneiro

Diez

. Separation of quaternary ammonium herbicides by capillary electrophoresis with indirect UV detection. J Chromatogr A 1997; 782: 289–295.

197.

Kibby

Ring

. Nail injury and diquat exposure: forgotten but not gone. Dermatitis 2012; 23: 176–178.

198.

Pirie

Rees

. Diquat cataract in the rat. Exp Eye Res 1970; 9: 198–203.

199.

Anton

Theodorou

Bertrand

. Chronic ingestion of a potential food contaminant induces gastrointestinal inflammation in rats: role of nitric oxide and mast cells. Dig Dis Sci 2000; 45: 1842–1849.

200.

Williams

. Occupational voice disorders due to workplace exposure to irritants: a review of the literature. Occup Med (Lond) 2002; 52: 99–101.

201.

Shao

Tang

Healy

. A novel orellanine containing mushroom Cortinarius armillatus . Toxicon 2016; 114: 65–74.

202.

Dinis-Oliveira

Soares

Rocha-Pereira

. Human and experimental toxicology of orellanine. Hum Exp Toxicol 2016; 35: 1016–1029.

203.

de Zwart

Vermeulen

Hermanns

. Urinary excretion of biomarkers for radical-induced damage in rats treated with NDMA or diquat and the effects of calcium carbimide co-administration. Chem Biol Interact 1999; 117: 151–172.

204.

Reif

Beales

Thomas

. Effect of diquat on the distribution of iron in rat liver. Toxicol Appl Pharmacol 1988; 93: 506–510.

205.

Gales

Amorim

Afonso

. Decreasing the toxicity of paraquat through the complexation with sodium salicylate: stoichiometric analysis. Toxicology 2015; 336: 96–98.
