Human Stem Cell–Derived Cardiomyocytes Integrate Into the Heart of Monkeys With Right Ventricular Pressure Overload

Ethics Statement

The present study was performed in strict accordance with the US Animal Welfare Act and Regulations and recommendations in the National Research Council Guide for the Care and Use of Laboratory Animals (8th edition, 2011) in an AAALAC-accredited facility [Wisconsin National Primate Research Center (WNPRC), University of Wisconsin–Madison] with the approval of the IACUC. All efforts were made to minimize the number of animals utilized and to ameliorate any distress. Human dermal punch biopsies were obtained following documented review and approval from the Institutional Review Board (IRB # 10-006845) at Mayo Clinic, Rochester, MN, USA, and collected following written informed consent by the patient, in accordance with the Declaration of Helsinki.

Animal Subjects

Adult male and female rhesus macaques (Macaca mulatta) were used in this study (Supplementary Table 1). Animals were provided water ad libitum and fed a commercial NHP diet (2050 Teklad Global 20% Protein Primate Diet, Harlan Laboratories) twice daily, supplemented with a variety of produce and treats. A nutritional shake (Ensure®, Abbot Laboratories) was administered by oro-gastric gavage during anesthetic recovery for experimental procedures as needed. Animals with decreased appetite were offered soaked chow to encourage eating.

Anesthesia for surgery was induced with ketamine (5–15 mg/kg IM) and midazolam (0.1–0.3 mg/kg IM) followed by propofol (1–5 mg/kg IV) as needed. Animals were maintained on isoflurane delivered by positive pressure ventilation with the use of constant rate infusions of fentanyl (1–10 μg/kg/h IV), ketamine (10–20 μg/kg/h IV), and/or lidocaine (25–50 μg/kg/min IV). Analgesic management included an intercostal nerve block at the planned incision site and at least one space cranial and caudal with liposomal bupivacaine (1 mg/kg IM) and regular bupivacaine (1 mg/kg IM). Intraoperative analgesia also included an incisional block using liposomal bupivacaine at the time of closure (4.4 mg/kg IM). Postoperatively, hydromorphone (0.1 mg/kg IM) was administered every 2–4 h for the first 36–48 h, followed by buprenorphine HCl (0.3 mg/kg IM) every 8–12 h for the subsequent 24 h. Meloxicam (0.2 mg/kg SQ loading dose, 0.1 mg/kg SQ or PO maintenance dose) was administered upon recovery and for at least 5 additional days. During the first 72 h post-operatively, animals were intensely monitored for signs of pain or cardiorespiratory complications. Throughout the study, daily observation and documentation of health status were performed, and animals were weighed at least weekly. The immunosuppressed monkeys were monitored for development of diabetes, a known side effect of tacrolimus; three animals (BO4-2, VC4-3, VC12-1) were treated for the condition with glargine insulin.

Generation of hiPSCs and Differentiation Into hiPSC-CLs

Human fibroblast cells were isolated from dermal punch biopsies and reprogrammed into hiPSCs via the Sendai 2.1 kit (Thermo Fisher, cat.# A34546) and assessed for etoposide sensitivity as previously described^16,17. Three hiPSC clones were expanded and cryopreserved for each reprogrammed fibroblast culture. Approximately 30 × 10⁶ hiPSCs (12 × 60 mm 50% confluent plates) were adapted to suspension culture, expanded to ~ 300 × 10⁶ hiPSCs, and differentiated for 20 days using a Wnt signal modulation–based method similar to a previously described culture system ¹⁸ , except substituting a 1:1 mixture of mTeSR1 and StemPro hESC SFM (Invitrogen, A1000701) for mTeSR1(Stemcell Technologies, 85850) alone. Day 20 hiPSC-CLs were cryopreserved in CryoStor CS10 (Stem Cell Technologies, cat.# 100-1061) at a density of 10–40 × 10⁶ cells/ml and stored in liquid nitrogen. Each hiPSC-CL-differentiated line was assigned a unique lot number; all cells were counted using the Vi-Cell XR cell viability analyzer (Beckman Coulter). Karyotype analyses were performed on a sample of suspension culture hiPSCs collected on the first day (day 0) of cardiac initiation. Day 0 hiPSCs were plated on Geltrex (Thermo Fisher, A1413201) coated 60 mm culture plates and maintained in mTeSR1 feeder-free stem cell maintenance media for 48–96 h prior to delivery to Mayo Clinic Genetics and Genomics Laboratories for G-Band analysis. A minimum of 20 metaphase analyses were conducted per sample. Cells exhibiting ≥2 genomic changes were labeled “abnormal.” Potential anaerobic and aerobic bacteria contamination was assessed using the Bactec FX40 (BD) automated detection system (14 days incubation at 35°C). Endotoxin levels were determined via the Endosafe nexgen-PTS instrument (Charles River), and Mycoplasma screening on conditioned media (≥24 h cell exposure) and cell pellets at the Immunology Core Facility, Mayo Clinic Scottsdale, AZ, using the Lonza MycoAlert™ PLUS Kit (Lonza, LT07-710). All assay samples were collected on the day of cardiomyocyte harvest.

hiPSCs and hiPSC-CLs Specific Characterization

Flow analysis for the surface makers TRA-1-60 (Invitrogen, MA1-023-PE) and TRA-1-81 (BD, 560793) was performed on 2.5 × 10⁵ fresh D0 hiPSCs as previously reported ¹⁷ . Data were collected (20,000 events per run) using a CytoFLEX flow cytometer and analyzed for the percentage of cTnT/cTnI protein levels via Kaluza analysis software (Beckman Coulter). Etoposide sensitivity assay analysis was performed on plated iPSCs (0.25 × 10⁶ cells/well) as previously described ¹⁷ , with the substitution of Live Dead Near-IR (ThermoFisher, L34975) and APO2.7-PE (Beckman Coulter, IM2088U) for propidium iodide and Annexin-FITC, respectively. EC50 values were calculated using an in-house R-script and based upon dose-response curves generated from eight treatment groups, with averages from each group determined from three technical replicates.

Cytoplasmic flow analysis for cTnT (BD, 564767) and cTnI (BD, 564409) in hiPSC-CLs was performed as previously described ¹⁷ . Data collection and analysis used the above-mentioned methods for analyzing TRA-1-60 and TRA-1-81. Cardiomyocyte electrophysiological subtype specification was determined via ArcLight optical sensor analysis on plated D20 iPSC-CL cells ¹⁹ . Briefly, APD90 and APD50 values were calculated using an in-house MatLab script from 20 second videos of spontaneously beating cells. The APD90/APD0 ratio was determined from the mean of individual action potentials captured from 30 individual cells.

RNA Sequencing

Total RNA isolated from D0 hiPSCs and D20 hiPSC-CLs was sequenced using Illumina’s Novaseq in paired end mode resulting in 101 bp paired end reads. Fastq files for all samples were processed using the Mayo RNA-Seq bioinformatics pipeline, MAP-RSeq 3.1.4 hg ²⁰ . Gene and exon expression quantification was performed using the Subread package to obtain both raw gene counts and normalized Fragments Per Kilobase per Million mapped reads (FPKM) values ²¹ . Finally, FASTQC and MultiQC tools were used for comprehensive quality control assessment of the aligned reads ²² and a final html report was generated by the MAP-Rseq pipeline. Using the raw gene counts report from MAP-RSeq, differentially expressed genes between D0 iPSC and D20 iPSC-CL cells were assessed using the bioinformatics package edgeR 2.6.2 ²³ and reported using a magnitude of fold change (log2 scale) and their level of significance (false discovery rate, FDR < 5%).

Pulmonary Artery Banding Model

Pulmonary artery banding (PAB) surgery was adapted from a swine model ²⁴ . A left thoracotomy was performed at approximately the third intercostal space to access the pulmonary artery (PA). The PA was dissected from the aorta, encircled with umbilical tape (1/8″ Nonabsorbable Surgical Cotton, Ethicon), and sequentially tightened with ligating clips (Ligaclip® Extra Medium Titanium Clips, Ethicon Endo-Surgery, LLC). Animals P1 and P2 received a saline bolus (30 ml/kg IV) prior to the placement of the PAB. Intraoperative transthoracic ultrasound was performed to measure the pressure gradient across the band and the degree of tricuspid regurgitation. The tightening of the band was slowly continued by the addition of clips until the systolic mean Doppler pressure gradient approximated 15–23 mmHg, mild to moderate tricuspid regurgitation was present, and the systemic blood pressure remained stable to mildly decreased. The air in the pleural cavity was mechanically evacuated and then a chest tube was placed under a water seal. The incision was closed using standard closure technique, with the chest tube removed during closure. Throughout surgery, heart rate, direct blood pressure, respiratory rate, temperature, and electrocardiography were continuously monitored.

Intramyocardial Delivery of hiPSC-CLs or Vehicle

Two weeks after PAB surgery, intramyocardial injections of hiPSC-CLs or vehicle (Cryostor10, Biolife Solutions) were performed^24,25. All animals were immunosuppressed with a combination of abatacept, tacrolimus, and methylprednisolone. Tacrolimus dosing (0.03 mg/kg IM twice daily) began 5 days before injection surgery (or before day 0 for banding only animals). Methylprednisolone (30 mg/kg IV bolus) was administered the day prior to surgery followed by a tapered dose (6 mg/kg IM once daily for 2 days) and then a maintenance dose (3 mg/kg IM once daily) until necropsy. Abatacept (12.5 mg/kg SQ) was initiated the day prior to surgery and re-dosed every 2 weeks. Levels of tacrolimus were measured at least weekly and dosing adjustments were made as needed to maintain a therapeutic blood concentration between 5 and 15 ng/ml (Supplementary Table 2).

The products to be injected were transported to the surgical facility in a liquid nitrogen dry shipper container. For the pilot study, a single lot of cells was used (3.5 × 10⁷ cells/ml). For the definitive study, three separate cell lots were used to produce low (7 × 10⁶ to 1.1 × 10⁷ cells/ml) and high (3.3–4.7 × 10⁷ cells/ml) hiPSC-CL doses; surgeons were blind to the vials’ contents. After the selected product was manually thawed and gently mixed, it was loaded into 1-ml syringes with a blunt 16-gauge needle. Then, the needle was replaced with a winged infusion set (27-gauge × ½ inch, 8-inch tubing, Surfo®, Terumo Medical Corporation). A right thoracotomy at the fourth or fifth intercostal space was performed to access the right ventricle, and the pericardium was incised and retracted to expose the epicardial surface. A 2- to 4-cm target injection area focused on the mid-right ventricle was visually identified. Avoiding the coronary vessels and the conduction system, the needle was inserted into the myocardium and 0.2 ml of product was delivered over 10 s. The needle was held in place for an additional 20 s to prevent leakage and slowly removed. The injection procedure was repeated in the target area to deliver 2 × 10⁶ or 10 × 10⁶ cells/kg for the low-dose and high-dose hiPSC-CL groups, respectively (Supplementary Table 1). Product was delivered within 20 min from the start of thawing time. Surgeries were all performed at the same surgical site by the same surgeon.

Telemetry Device Implantation and Continuous Cardiac Monitoring

At the conclusion of the PAB surgery, an implantable cardiac monitor (Reveal LINQ, Medtronic, Minneapolis, MN) was inserted into the subcutaneous space on the left thorax. After proper placement was verified by an adequate P wave and QRS detection, the skin was closed. The device was programmed to detect tachycardic events (≥222 bpm) lasting longer than 16 beats, bradycardic events (≤30 bpm) lasting longer than 4 beats, and pause events lasting longer than 3 s. The implantable cardiac monitor was interrogated with a handheld telemetry wand (Medtronic Patient Connector, Model 24967) connected to the Medtronic CareLink app on a dedicated iPad (Apple iPad Air 2, Model A1566) and directly uploaded into CareLink. Uploaded events were interpreted by a pediatric electrophysiologist blind to the animal’s condition to verify the presence of arrhythmias versus sinus tachycardia or artifact.

Echocardiography

Transthoracic echocardiography was performed prior to and immediately after PAB surgery, prior to product injection (day 0 for banding only animals), and every 2–4 weeks until necropsy. For imaging, the animals were anesthetized with ketamine (5–10 mg/kg IM), or as described above for surgery days. If tachycardia was identified, animals were originally anesthetized with alfaxalone (2–10 mg/kg IM), but it was transitioned to ketamine (5–10 mg/kg IM) and midazolam (0.2 mg/kg IM) for deeper sedation. The animals were imaged in left lateral decubitus or supine position with a Vivid-q (GE Health Care Systems) echocardiographic platform using 4 and 6 MHz probes (GE 6S and GE M4S, GE Health Care Systems). Offline post-processing, including measurement of ventricular function, was performed using an EchoPac (GE) system. Imaging was performed from subcostal, parasternal, and apical acoustic windows. Biventricular systolic function was assessed with 2D and M-mode imaging. The systolic mean and maximum instantaneous gradients across the PAB and the tricuspid regurgitation maximum velocity (when available) were obtained with continuous wave (CW) Doppler interrogation to estimate right ventricular systolic pressure. From the apical view, right ventricular diastolic and systolic areas were measured to calculate fractional area change for assessment of right ventricle systolic function. M-mode imaging to assess TAPSE (tricuspid annular plane systolic excursion) and visual estimates of right ventricle systolic function were also performed.

Blood Measures

Cardiac markers were evaluated prior to PAB and product injection (or day 0 for banding only animals), and at weeks 2, 4, 8, and 12. Creatine kinase-MB and B-type natriuretic peptide testing in EDTA whole blood or plasma used a fluorescent immunoassay Triage MeterPro (Quidel), while lactate dehydrogenase (LDH) was measured spectrophotometrically in serum using a Vet Axcel (Alfa Wassermann) at WNPRC Clinical Pathology Laboratory (Madison, WI). Troponin I in heparinized plasma was evaluated by chemiluminescent immunoassay with a Centaur (Siemens) or Architect i2000 (Abbott) at Unity Point-Meriter Laboratories (Madison, WI). Tacrolimus levels were measured by immunoassay at the Immunology Center CORE lab of the University of Wisconsin Hospital (Madison, WI).

Necropsy and Tissue Evaluation

At experimental endpoints, the animals were anesthetized with ketamine hydrochloride (10–15 mg/kg IM) followed by pentobarbital sodium (minimum of 25 mg/kg IV), evaluated for pericardial, pleural, and/or abdominal effusion, and perfused through the left atrium with heparinized saline, followed by 4% paraformaldehyde. A full necropsy of all animals was performed by an ACVP board-certified veterinary pathologist.

After collection, whole hearts were cut with the aid of a calibrated polymethyl methacrylate slice apparatus into 4-mm sections in a transverse plane creating 8 to 12 levels from the base to the apex^26,27. The tissue was post-fixed for 24 h in 4% paraformaldehyde, transferred to 70% ethanol, and processed for paraffin embedding. Blocks of embedded tissue were cut on a standard rotary microtome in 5-µm sections and mounted on positively charged slides. From each block, eight H&E- and two Masson’s trichrome–stained slides were prepared and evaluated. Grading for myofiber disarray, fibrosis, and cytologic alteration was based on an estimated percentage of heart chamber myocardial area affected: ~3%–5%, minimal; ~6%–15%, mild; ~16%–25%, moderate; ~26%–35%, marked; and >36%, severe. Grading for myofiber disarray and/or myocardial fibrosis in the ventricles reflected the most pronounced level(s) of the heart affected. Grading and assessment of fibrosis was based on Masson’s trichrome, with reference to H&E-stained slides.

H&E-stained tissue sections of each organ were evaluated and reviewed by ACVP board-certified veterinary pathologists. Tissues evaluated included heart, aorta, bone marrow, bone, brain, epididymis, esophagus, eye, gallbladder, adrenal gland, pituitary gland, salivary gland, seminal vesicle, thyroid gland, kidney, distal colon, liver, lung, tracheobronchial lymph node, skeletal muscle, sciatic nerve, ovary, pancreas, skin, jejunum, cervical spinal cord, spleen, stomach, testes, thymus (if present), tongue, trachea, and urinary bladder. Histological findings were analyzed and recorded; they were related to immunosuppression, surgical manipulation, and/or pathologies consistent with background findings within monkeys at the WNPRC colony.

Immunohistochemistry, Imaging, and Graft Size Assessment

Cardiac sections were immunostained with the following primary antibodies: human cTnI (Abcam AB52862), cTnT (Invitrogen MA512960), Ki-67 (Thermo Fisher Scientific 14569882), CD31 (R&D Systems AF3628), connexin 43 (Invitrogen 13-8300), CD45 (DAKO M0701), CD68 (Sigma HPA048982), and/or desmin (NSJ Bioreagents V3200) and counterstained with hematoxylin (VWR, Radnor, PA), with the exception of immunofluorescence staining, as previously described^26–28. Positive and negative controls were processed in parallel. Positive controls included human cardiac tissue (human cTnI) and rhesus spleen (immune markers). Negative controls omitted primary antibodies.

The presence of human cTnI+ grafts was assessed across all cardiac levels in human cTnI immunostained sections counterstained with hematoxylin. Using a Zeiss Axioimager M2 microscope equipped with a Qimaging camera, one tissue section per cardiac level was blindly evaluated at 2.5× magnification. When human cTnI+ cells were observed, the cardiac level and location were recorded, and an image was captured. The size of the area of engraftment per cardiac level was measured using NIH ImageJ software percent area above threshold (%AAT) function. Within each 2.5× image, all human cTnI-immunoreactivity was manually outlined to define a region of interest (ROI), and %AAT was measured in the ROI. The %AAT was then multiplied by the ROI area to determine the size (mm²) of the human cTnI+ area within that image. Human cTnI+ area was summed across all images per level for total graft area per level, and then summed across all levels to obtain the total grafted area per subject. To calculate the graft size as a percentage of the right ventricle area, the total right ventricle area was obtained by drawing ROIs in ImageJ around the right ventricle tissue at each cardiac level and summing across all levels. The total grafted area per subject was then divided by the total right ventricle area for the subject and multiplied by 100.

Graft heterogeneity between and within treatment groups was illustrated with representative images of relatively low, medium, and high graft interdigitation or core maturity/organization. Interdigitation level was assigned by the degree of “blending” between the human cTnI+ cells and rhesus cardiac cells at the edge of each graft (low = graft clearly demarcated; high = edge of the graft has regular interdigitation/intermix of human cTnI+ and cTnI- cells). Graft maturity/organization level was based on the morphology of the human cTnI+ cells at the approximate center of the graft [low = graft core with irregular/pleomorphic cell morphology and alignment; high = graft core featuring cells with “spindle-like” morphology and more parallel cell alignment]. Desmin expression was quantified in a subgroup of animals using immunofluorescent images collected via 10× XY stitching to include the entire cTnI+ grafted area. Image brightness was adjusted using identical Lookup Tables (LUTs) settings across images, and the desmin channel image was exported as a black and white tif. Using ImageJ, the tif color was inverted, an ROI was drawn around the grafted area, and the percentage of the area above threshold (%AAT) was calculated using a predetermined threshold to detect desmin-immunoreactivity.

Immunofluorescence imaging was performed using a Nikon A1R confocal microscope with 405, 488, 561, and 640 wavelength lasers using NIS Elements version 5.20.02. Detectors for the 488 and 561 lasers were high-sensitivity GaAsP PMTs; detectors for 405 and 640 lasers were HS PMTs. Brightfield imaging was performed on either an Olympus BX43F microscope with a DP23 camera and cellSens Standard 4.1.1 software or a Nikon Eclipse Ti2 microscope with a DS-Ri2 camera and NIS Elements software. During the preparation of images for figures, any adjustments made to images, such as adjusting of brightness or LUTs of immunofluorescence images, were applied to the entire image.

Statistical Analysis

Data collection and analysis were performed by investigators blind to the treatment groups. Statistical analysis was performed using GraphPad Prism (version 10.0, GraphPad Software). Total graft size was compared between low-dose and high-dose animals using the Mann–Whitney test. The relationship between total cell number injected and total graft size was evaluated using the Pearson correlation coefficient. A P value <0.05 was accepted as significant.

Generation of hiPSCs and hiPSC-CLs

We generated four hiPSC clones from primary dermal fibroblast cultures originating from three human donors to be used for cardiac grafting. The hiPSCs expressed high levels of TRA-1-60 and TRA-1-81 surface proteins (Supplementary Fig. 1a–d), and their response to etoposide (Supplementary Fig. 1e–h) and RNA profiles were consistent with undifferentiated pluripotent stem cells (Supplementary Fig. 2). The clones were subsequently differentiated into four corresponding hiPSC-CL lots, with detectable levels of cardiac troponin (cTnT/cTnI) expression varying between 57% and 88% (Supplementary Fig. 1i–l). At day 20, hiPSC-CLs exhibited RNA expression profiles typical of pluripotent cell–derived cardiomyocytes (Supplementary Fig. 2). Determination of cardiac chamber specificity of the iPSC-CLs (D20 + 5 days plated) was achieved using a stably transduced ArcLight Ca⁺ channel optical sensor. ArcLight-expressing cells exhibit a rapid change in fluorescence upon depolarization of the ultra-rapid rectifier potassium current (I_Kur), which can be captured via high-speed digital videography (Supplementary Fig. 3). Analysis of 30 spontaneously beating cardiomyocytes per lot revealed that all four hiPSC-CL lots had action potential profiles consistent with a mixture of typical atrial and ventricular electrophysiological subtypes (Supplementary Fig. 1m–p).

Methods Development: Creation of a NHP Model of Right Ventricular Pressure Overload and Intramyocardial Cell Delivery Approach

To assess the feasibility of engraftment of hiPSC-CLs in hearts experiencing right ventricular pressure overload, we developed a novel rhesus macaque model based on a swine PAB model ²⁴ . Our primary goals in developing this novel NHP model were to (1) recapitulate the right ventricular pressure overload that occurs in single-ventricle patients who have undergone surgical palliative surgeries and (2) induce a condition that is severe enough to result in histopathology similar to what occurs in these patients, yet survivable for long-term evaluation of cell engraftment. Permanent PAB was initially performed in eight monkeys to induce a pressure gradient across the constriction (Fig. 1A–C; Supplementary Fig. 4a). Animals also received implantable cardiac monitors at the time of PAB surgery. In the first two subjects of this pilot phase (P1, P2), the post-banding systolic mean Doppler pressure gradients across the PAB measured by echocardiography in the immediate post-operative period were 29 and 27 mmHg, respectively; these two subjects received a saline bolus before banding. Both animals expired within 3 days of surgery due to cardiovascular insufficiency; thus, the surgical procedure was adjusted to eliminate the fluid bolus and decrease the pressure gradient. Guided by intraoperative cardiac ultrasound, the remaining animals had a resultant target systolic mean Doppler pressure gradient of 15–23 mmHg (Fig. 1D; Supplementary Fig. 4b) and mild-moderate tricuspid regurgitation (Fig. 1E). A third subject (P3) died intraoperatively during the PAB procedure due to a PA injury. The three subjects (P1, P2, and P3) were not included in the analyses or representative images.

OPEN IN VIEWER

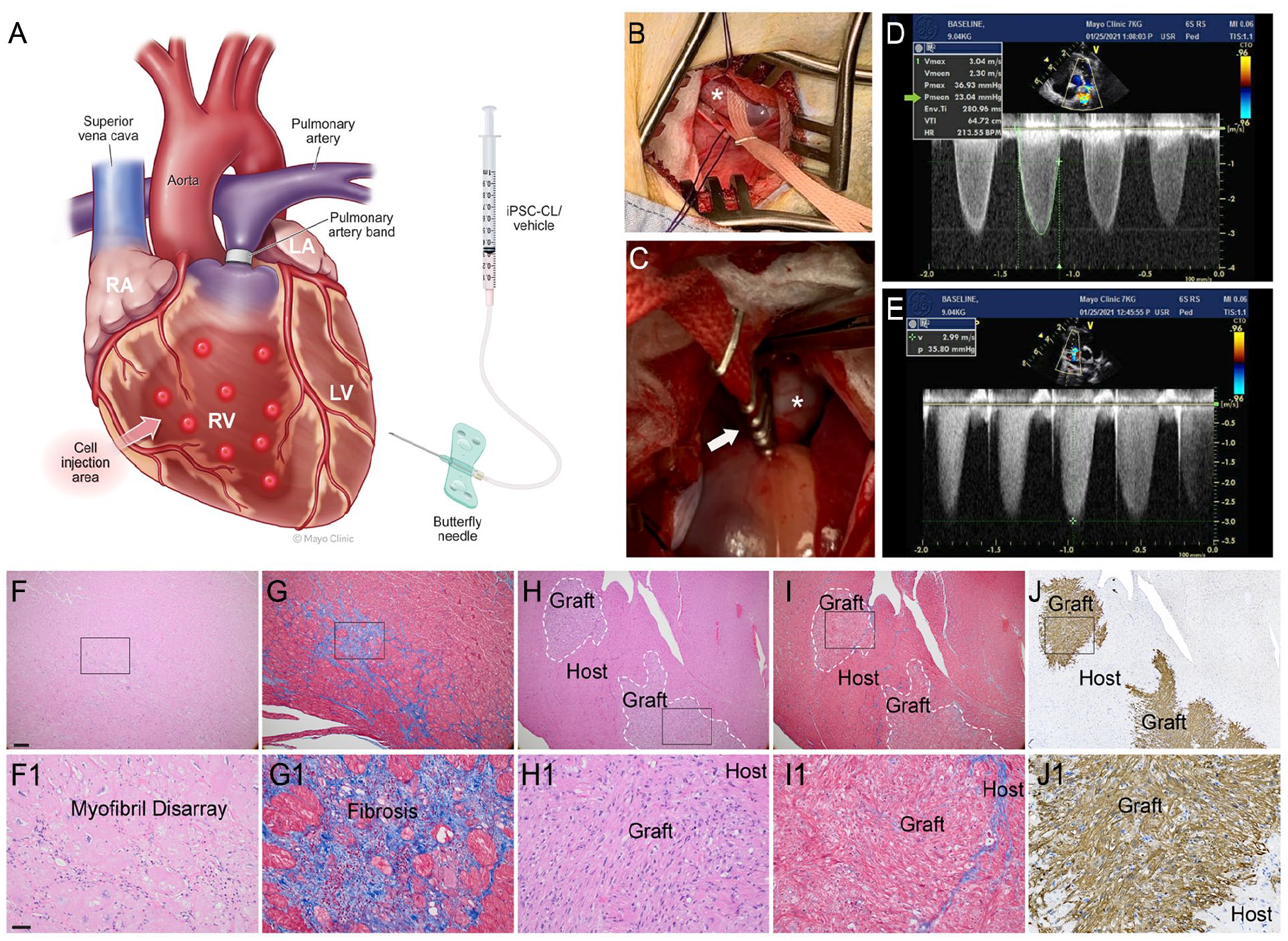

Figure 1.

Development and characterization of a nonhuman primate model of cardiac pressure overload. (A) Cartoon of cardiac anatomy and surgical targets. (B, C) To create right ventricular pressure overload, a left thoracotomy was performed to access the pulmonary artery (asterisk), which was encircled with umbilical tape and gradually tightened with ligating clips (white arrow). Intraoperative echocardiography was used to measure the pressure gradient across the band as it was tightened by the addition of clips until (D) the gradient reached ~15–23 mmHg (green arrow) and (E) mild-moderate tricuspid regurgitation was present. Postmortem analyses detected myofibril disarray (F, F1) (H&E staining) and (G, G1) fibrosis (Masson’s trichrome staining, blue coloration) (P5). Grafts of hiPSC-CLs (area demarcated by white dashed line) were recognized with (H, H1) H&E staining and (I, I1) Masson’s trichrome staining and confirmed by (J, J1) human cardiac troponin I (cTnI) immunostaining counterstained with hematoxylin (P7). (F1-J1) high magnification images of areas demarcated by black rectangles in (F-J). Scale bar: (F-J) 200 µm, (F1-J1) 50 µm.

As part of this method development phase, four of the six rhesus with successful PAB were immunosuppressed with a combination of abatacept, tacrolimus, and methylprednisolone. These animals subsequently underwent a second thoracotomy to inject hiPSC-CLs (10 × 10⁶ cells/kg) into the right ventricular myocardium (Supplementary Fig. 4c). Depending on body weight, the total volume injected ranged between 1.4 and 3 ml, administered via 7–15 injections of 0.2 ml each in a 2–4 cm² area. Cardiac rhythm monitoring detected arrhythmia events in the two monkeys that underwent banding only: two VT events in animal P4 on day 40 post-PAB and one pause event in animal P5 on day 13 post-PAB. No arrhythmia events were detected in the pilot animals receiving hiPSC-CLs (Supplementary Fig. 4c). Postmortem evaluation 4 or 8 weeks after cell delivery (or equivalent timepoints for banding only animals) identified myocardial fibrosis within the right ventricular myocardium with hematoxylin and eosin (H&E) (Fig. 1F), clearly visualized as blue cytoplasmic staining with Masson’s trichrome (Fig. 1G). Myofibril disarray was also present and was characterized by variably sized myofibers, enlarged and/or hyperchromatic myofiber nuclei, and occasionally non-aligned and/or branching myofibers (Fig. 1F, G). Last, in the four cell-injected monkeys, the hiPSC-CL grafts were identified in the target region of the right ventricular myocardium as areas of cytological alterations in H&E and Masson’s trichome stainings (Fig. 1H, I), which were positive for human-specific cardiac troponin I (cTnI) immunostaining (Fig. 1J).

Clinical Safety Assessment of Cardiac Grafts

Based on the methods development study, we performed PAB surgery and placed implantable cardiac monitors in 29 adult rhesus. One female died 8 days after PAB due to acute right ventricular heart failure and was not enrolled in the study. Two weeks post PAB surgery, all 28 surviving animals (14 males and 14 females) with a mean gradient across the PAB greater than 10 mmHg were randomly assigned to remain untreated (banding only, BO; n = 4) or to receive vehicle (VC; n = 8), a low dose (2 × 10⁶ cells/kg, LD; n = 8), or a high dose (10 × 10⁶ cells/kg, HD; n = 8) of hiPSC-CLs and to be euthanized at 4 or 12 weeks post-intramyocardial injections (Fig. 2A; Supplementary Table 1). Surgeons were blind to the contents of the treatment vials. All animals were immunosuppressed throughout the duration of the study with the same regimen used in the pilot project.

OPEN IN VIEWER

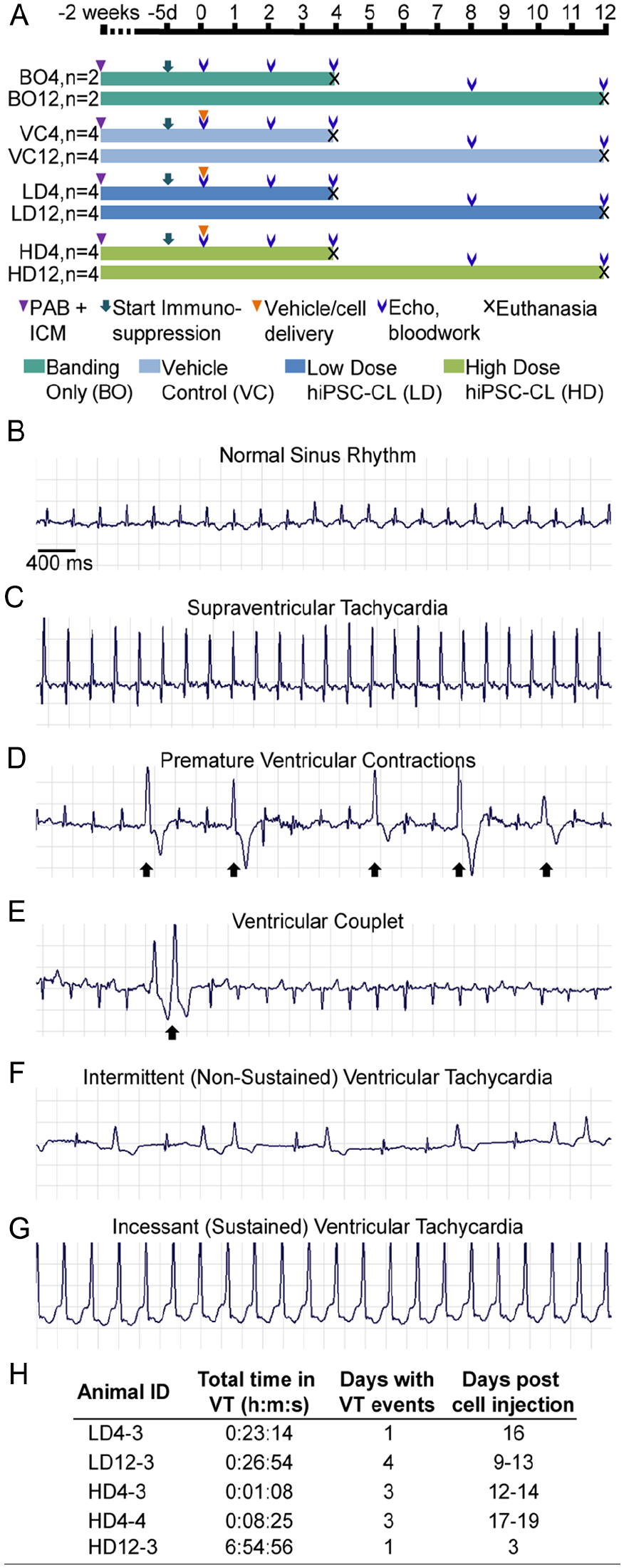

Figure 2.

Ventricular arrhythmia events detected after injection of hiPSC-CLs. (A) Experimental design evaluating cardiac effects of hiPSC-CLs in 28 monkeys. Representative electrocardiogram (ECG) tracings: (B) normal sinus rhythm, (C) supraventricular tachycardia, (D) premature ventricular contractions (black arrows), (E) ventricular couplet (black arrow), (F) intermittent, non-sustained ventricular tachycardia (VT), and (G) incessant VT. (H) Frequency and duration of all VT events in the five affected subjects. PAB, pulmonary artery banding; ICM, implantable cardiac monitor.

PAB resulted in increases in gradient across the banded area and right ventricular systolic pressure. There were no changes in right ventricular fractional area change or TAPSE (Supplementary Table 3). One animal (HD12-1) was noted to have concentric hypertrophy of the left ventricular walls at the pre-PAB echocardiogram, the degree of which did not change throughout the study. Continuous cardiac rhythm monitoring identified episodes of VT in five of the 16 grafted monkeys (Fig. 2B–G; Supplementary Table 1). One animal in the 12-week hiPSC-CL high-dose group (HD12-3) died 3 days after cell delivery due to incessant VT. One animal in the 12-week low-dose hiPSC-CL group (LD12-3) developed incessant VT 9 days after cell injection and was successfully treated with amiodarone through study endpoint. The other three animals that developed episodic VT events (LD4-3, HD4-3, and HD4-4) were asymptomatic and successfully completed the study without treatment. In these animals, VT resolved within 19 days post cell injection. Other cardiac activity events detected included supraventricular tachycardia, premature ventricular contractions, and ventricular couplets (Fig. 2C–E), which resolved by 28 days (Supplementary Table 1). No significant differences in cardiac events were detected between low- and high-dose groups or between cell lots. None of the animals in the banding only or vehicle groups developed VT (Supplementary Table 1). None of the animals had evidence of dysfunction as measured by echocardiogram and clinical health assessments throughout the study. Outside of the reported arrhythmias, no negative impact on heart health related to the cell transplantation procedures was detected.

Blood was collected at multiple timepoints for hematology and cardiac injury markers. At 2 and 4 weeks post-cell delivery, hematology alterations were consistent with stress; these values returned to at or near baseline levels by weeks 8 and 12 (Supplementary Tables 4 and 5). The cardiac biomarkers creatine kinase-MB and B-type natriuretic peptide were at or near the lower limit of detection in all animals and timepoints. Levels of LDH were measurable with some increases detected, but changes were considered not cardiac specific due to model-related tissue injury. cTnI levels were unremarkable, although some individual animals had minimal increases from baseline levels, most often at weeks 2 and 4.

Histological Evidence of Graft Distribution Across the Right Ventricular Myocardium

Evaluation of serial whole cardiac sections stained with H&E and Masson’s trichrome identified pathological changes associated with increased right ventricular pressure in all animals. Myocardial fibrosis and myofibril disarray were present in the right ventricle (Fig. 1F, G; Supplementary Fig. 5), resembling model development phase findings. In most animals, the severity of these histopathological findings ranged from minimal to moderate, with two vehicle (VC4-3, VC4-4) and two low-dose 4-week (LD4-3, LD4-4) monkeys displaying marked to severe myofibril disarray and loss, as well as fibrosis. The animal with incessant VT that expired 3 days post-cell injection (HD12-3) had marked myocardial fibrosis and myofibril disarray in the right ventricular myocardium that extended into the interventricular septum, along with mild mononuclear infiltration and areas of mild, multifocal cardiomyocyte necrosis. There were no pathological changes in the left ventricles or left atria of animals in the four study groups (cell-treated or controls) that were definitively different than typical background findings in 4 to 9 years old rhesus macaques at the WNPRC colony. The peripheral regions of the cardiac grafts in all monkeys had minimal multifocal mononuclear cell infiltration or very minimal disorganized incipient fibrosis (Supplementary Fig. 5a, b). Although there was increased connective tissue visible at 4 weeks in the Masson’s trichome–stained cardiac sections (Supplementary Fig. 5b), there was no visible evidence of organized collagen, further extracellular matrix deposition, or encapsulation of the graft by fibrotic tissue at 12 weeks (Supplementary Fig. 5d). Five of the eight low-dose and all eight high-dose monkeys injected with hiPSC-CLs had grafts that, like the pilot animals, were detected as areas of cytological alteration by H&E and were confirmed to be human cTnI+ engrafted cardiomyocytes (Fig. 3A, B).

OPEN IN VIEWER

Figure 3.

Grafts of human cardiac troponin I (cTnI)+ hiPSC-CLs across the right ventricular myocardium. (A) Representative images of the right ventricular myocardium of all hiPSC-CL injected animals. Cardiac tissue was immunostained for human cTnI (brown) and counterstained with hematoxylin (blue). (B) High-magnification image of area demarcated by black rectangle in HD12-1. Scale bar: (A) 1,000 µm, (B) 100 µm. (C) Heat map of human cTnI+ graft area (mm2) per subject across cardiac tissue levels. Each heart was sliced in 4-mm blocks from the apex to the base, and tissue from each block was immunolabeled for human cTnI to detect grafted cells across the entire right ventricle. The number of blocks depended on individual animal size; gray boxes indicate no right ventricle tissue at this level. White, empty boxes indicate no human cTnI+ graft detected. *, some human cTnI was detected, but graft size was not quantified due to lack of perfusion impacting immunolabeling. DNC, did not complete study.

Human cTnI+ cardiac grafts were mapped across serial tissue sections from cardiac base to apex. Overall, grafts were preferentially located at the mid-section of the heart (Fig. 3C). The sum of human cTnI+ areas per level was used to create a heatmap of the graft distribution per subject. Individual variations were detected between subjects and groups (e.g., lack of grafts in three low-dose subjects). The total graft area per animal (sum of human cTnI+ area in all levels) was used to calculate the mean area per treatment group. The average graft area for low-dose animals (excluding the three subjects without grafts) was 2.51 ± 1.34 mm² (mean ± SD) at 4 weeks (n = 3) and 1.48 ± 0.03 mm² at 12 weeks (n = 2), while, in the high-dose animals, graft area was 2.61 ± 2.34 mm² at 4 weeks (n = 4) and 14.59 ± 12.17 mm² (n = 3) at 12 weeks after surgery. The graft size as a percentage of the right ventricle area in low-dose animals was 0.37% ± 0.11 at 4 weeks and 0.20% ± 0.02 at 12 weeks, and in high-dose animals was 0.32% ± 0.32 at 4 weeks and 1.4% ± 1.01 at 12 weeks (Supplementary Table 6). Due to individual variability, no statistically significant differences were detected between cell dose groups or timepoints. One subject in the 12-week high-dose group (HD12-1) presented the largest graft area over the greatest number of cardiac levels, despite the injection volume and number being adjusted based on body weight. In animals with grafts, a statistically significant correlation was observed between the total number of cells injected and the total graft size per animal (P = 0.039), which remained significant when HD12-1 was excluded from analysis (P = 0.045) (Supplementary Fig. 6).

Integration, Maturity, and Organization of the Engrafted Human Cardiomyocytes

The characteristics of the grafts and their integration into the surrounding host tissue varied between subjects at different timepoints. At 4 weeks post-transplantation, cardiac graft foci were clearly demarcated within the host myocardium on H&E staining (Supplementary Fig. 5a, b). The grafted cells were characterized by spindle or pleomorphic morphology with scant, amphophilic cytoplasm (Supplementary Fig. 5a, b; arrows). In comparison, at 12 weeks grafted cells displayed more spindle-like morphology and eosinophilic cytoplasm, often with visible cross-striations characteristic of cardiomyocytes (Supplementary Fig. 5c; arrowheads). Masson’s trichrome–stained tissue sections showed variable red staining of the cytoplasm in grafted cells (similar to host cardiomyocytes) at both timepoints, which was more uniform and blended into and between adjacent host cardiomyocytes at 12 weeks (Supplementary Fig. 5d). Human cTnI immunostaining further showcased integration of the graft with the host myocardium, characterized by interdigitation of host and graft cardiomyocytes at the graft perimeter (Supplementary Fig. 7). Grafted cell foci often displayed a mature cardiomyocyte phenotype and frequently organized in a pattern that matched the surrounding host myocardium. Graft core maturity and organization was greater after 12 weeks but was also observed in some grafts at 4 weeks (Supplementary Fig. 8).

Double-label immunofluorescence with antibodies against human cTnI and the non-species-specific cardiomyocyte marker cTnT confirmed these findings (Fig. 4; Supplementary Fig. 9). The organization at the core of the human cTnI+ graft increased over time, from a semi-disordered distribution of cells at 4 weeks to a more parallel pattern matching the configuration of the cTnT+ host tissue at 12 weeks. Expression of the intermediate filament protein desmin, considered a marker of cardiomyocyte maturity, was rarely observed in grafted cells 4 weeks post-transplantation (Fig. 5; Supplementary Fig. 10). By 12 weeks, desmin was abundantly expressed in grafted cells, often present in sarcomeric striation-like patterns, like cTnI (Fig. 5; Supplementary Fig. 10; Supplementary Table 7). Immunostaining against the gap junction protein connexin 43 identified apparent areas of interaction between grafted human iPSC-CLs and host myocardium, which were more common at 12 weeks (Fig. 6A, B; Supplementary Fig. 11). Notably, the endothelial cell marker CD31+ identified blood vessels within the human cTnI+ graft and host tissue (Fig. 7A, B; Supplementary Fig. 12a, b).

OPEN IN VIEWER

Figure 4.

hiPSC-CLs integrate into the right ventricular myocardium. (A, B) Representative images from high-dose 4-week (A, HD4-4) and high-dose 12-week (B, HD12-2) subjects showing immunofluorescence labeling of human cardiac troponin I (cTnI) (green) grafted cells integrating into the myocardium (red = rhesus and human cardiac troponin T (cTnT)) counterstained with the nuclear marker 4′,6-diamidino-2-phenylindole (DAPI; blue). Grafted cells exhibited increased organization and maturity from 4 (arrowheads—disorganized with pleomorphic morphology) to 12 (arrows—increased parallel organization of cells, spindle-like morphology, and visible cross-striations) weeks. (A1, B1) Higher magnification image of area demarcated by white squares in (A, B). Scale bar: (A, B) 1,000 µm, (A1, B1) 100 µm.

OPEN IN VIEWER

Figure 5.

Desmin is abundantly present in grafted hiPSC-CLs at 12 weeks post-transplantation. (A, B) Representative images from high-dose 4-week (HD4-1) and high-dose 12-week (HD12-4) subjects showing immunofluorescence labeling of human cardiac troponin I (cTnI) (green) and desmin (red) counterstained with the nuclear marker 4′,6-diamidino-2-phenylindole (DAPI; blue). Desmin was rarely present in grafted cells at 4 weeks (white arrowhead). At 12 weeks, desmin was present in nearly all grafted cells, often displaying a striated pattern similar to cTnI (white arrows). (A1, B1) Higher magnification image of area demarcated by white squares in (A, B). Scale bar: (A, B) 1,000 µm, (A1, B1) 100 µm.

OPEN IN VIEWER

Figure 6.

Cardiac grafts have similar vascularization and presence of dividing cells at 4 and 12 weeks post-cell delivery. (A–D) Representative images from high-dose 4-week (A, HD4-1; C, HD4-4) and high-dose 12-week (B, HD12-4; d, HD12-1) subjects showing immunofluorescence labeling of human cardiac troponin I (cTnI) (green) and either the endothelial marker CD31 (A, B = red; white arrows) or the dividing cell marker Ki67 (C, D = red; white arrows). Tissue was counterstained with the nuclear marker 4′,6-diamidino-2- phenylindole (DAPI; blue). Scale bar: 100 µm.

OPEN IN VIEWER

Figure 7.

Expression of connexin 43 and minimal immune cell labeling in cardiac grafts. (A–F) Representative images from high-dose 4-week (A, C, E, HD4-4) and 12-week (B, HD12-1; D, F, HD12-4) subjects showing immunolabeling for the gap junction marker connexin 43 (A, B = brown; black arrows), immune cell marker CD45 (C, D = brown; black arrows), and macrophage marker CD68 (E, F = brown; black arrows). Tissue was counterstained with hematoxylin (blue). White dashed line is drawn at border of grafted cells. Scale bar: 100 µm.

Histological Evaluation of Graft Safety and Host Immune Response

As grafting of hiPSC-derived cardiomyocytes has the potential to generate teratomas ²⁹ , the heart and standardized sentinel tissues were evaluated by board-certified veterinary pathologists. No evidence of teratomas, cellular atypia, or neoplastic cells was identified by macroscopic or light microscopic evaluations. Mitotic figures were not prominent in sections of right ventricular myocardium stained with H&E. The expression of the nuclear protein Ki67 revealed a small number of proliferating cells per field of view within the human cTnI+ graft and in the surrounding right ventricular myocardium (Fig. 7C, D; Supplementary Fig. 12c, d; Supplementary Table 8).

Some mononuclear cells were observed surrounding the hiPSC-CL xenografts at both 4 and 12 weeks post grafting. The infiltrates were confirmed to be CD45+ (Fig. 6C, D; Supplementary Fig. 13a, c) or CD68+ (Fig. 6E, F; Supplementary Fig. 13b, d). Remarkably, the three low-dose subjects (LD4-4, LD12-1, and LD12-3) without evidence of grafts also had minimal infiltrates of immune cells. The most intense immune response around a graft area was observed in a low-dose 12-week animal (LD12-4) (Supplementary Fig. 13e, f).
