A multi-objective evaluation method based on connection numbers theory of hazardous chemical accidents emergency medical rescue capability

Abstract

Background:

An objective, comprehensive and scientific evaluation of emergency medical rescue capability (EMRC) is of great realistic significance in assisting the health administrative department to grasp the overall response capability of all emergency medical rescue teams, enabling each team to have a full understanding of its own strengths and weakness and improve itself accordingly. At present, the research on the evaluation of EMRC in Hazardous Chemicals Accidents (HCA) is not systematic and in-depth, and the existing research results also have some shortcomings, such as, the lack of strong theoretical support for the evaluation index system, the relatively single function of evaluation methods, and so on.

Objectives:

The objective of this article is to research the evaluation index system and a new evaluation method of EMRC in HCA to overcome the above shortcomings.

Methods:

It establishes an emergency medical rescue capability model by employing the competency model and then constructs the evaluation index system on the basis of the analysis of all the factors of emergency medical rescue capability in hazardous chemical accidents and sets up an evaluation model based on the theory of connection numbers and partial connection numbers. It determines the competence ranking of several emergency medical rescue teams and the competence state of an individual emergency medical rescue team by calculating the connection principal value, and it also predicts how the emergency medical rescue capability will develop based on the values of partial connection numbers.

Results:

The example shows that the calculation process of this model is relatively simple, and its assessment results are objective and authentic, and moreover, its multi-functions can make up for the deficiency of the simplified function of other evaluation models.

Conclusion:

This method is scientific and rational to some extent and can provide reference for evaluation problems of the same kind.

Keywords

Emergency medical rescue capability hazardous chemical accidents competency model connection numbers multi-objective evaluation

Introduction

Emergency medical rescue for hazardous chemical accidents (EMRHCA) refers to all the professional acute rescue work in the event of hazardous chemical accidents (HCA),^1,2 such as fires, explosions, leakages, poisoning, asphyxiation, burns, and radiation.³ The EMRHCA includes efficient emergency treatment, disease control and prevention, and hygiene supervision by comprehensively applying different health technologies and medical methods,^1,2 aiming to minimize the life and health hazards of the affected population; reduce the rates of injury, disability and mortality; and maintain their physical and mental health. HCA typically have characters of great suddenness, high perniciousness, wide spreading, and far-reaching subsequent consequences. In order to scientifically and efficiently carry out the HCA rescue, China has established chemical accident rescue centers across the country, built up national health emergency response teams, and specified the HCA-rescue-related provisions and requirements. Due to the high incidence of HCA in recent years, especially the occurrence of several major and serious accidents, there has been a constant increase in the demand for quality of EMRHCA from all levels of Chinese society. Therefore, an objective, comprehensive, and scientific evaluation of emergency medical rescue capability (EMRC) is of great realistic significance in assisting the health administrative department to grasp the overall response capability of all EMR teams, enabling each team to have a full understanding of its own strengths and weakness and improve itself accordingly, and building up the confidence of the general public in EMRHCA.

In review of recent literatures, there is an overall lack of enough investigations, especially systematic and in-depth studies on capability evaluation of EMRHCA. The insufficiency of the previous research is mainly manifested in the following three aspects. First, most of them are one-dimensional studies, and relatively few studies are on the integration of medical rescue and HCA. Some of them are based on the overall analysis of emergency rescue capability (ERC) from the perspective of “big rescue” for HCA, the medical rescue features of which are not prominent. Some studies are about EMRC for all types of emergencies, which are not fully applicable to HCA. For instance, in Wang et al.,⁴ the elements of technical capability in the EMR were analyzed and elaborated from seven aspects. In Zhang et al.,⁵ a three-level index system was set up for EMRC based on the theory of analytic hierarchy process (AHP), and the EMRC of all teams were evaluated according to the index weight at all levels determined by the experts’ rating. Dai et al.⁶ studied the evaluation and sorting of the EMRC of the disease control and prevention institutions in the 22 districts. Second, in all the previous evaluation index systems, “capability” was not closely related or emphasized, and their theoretical basis seemed insufficient, or not strong enough, or too subjective, or even attached with strong administrative color. For example, in Cheng⁷ and Wu,⁸ relatively rational competence evaluation index systems were proposed for the national EMR teams of the Chinese People’s Liberation Army (CPLA) and the mobile medical units of Corps Hospital of Armed Police Force in antiterrorist operation, respectively. However, such systems are very subjective and poorly theoretically supported, as it was mainly acquired through expert consultation, and thus lacked the systematic analysis of index sources. In Zhang et al.,⁹ an evaluation index system was established for the health emergency capability of Xinjiang Production and Construction Corps. However, similar to the systems in Cheng⁷ and Wu,⁸ it was not scientific enough, as it was obtained mainly based on public administration, and there are inadequate discussions about the “competence” itself. Third, the functions of the evaluation methods employed in previous studies were usually simplified. The methods applied in the evaluation of the existing EMRC can be classified into two types: (1) preferred election through comparative evaluation (Type I) and (2) self-evaluation and orientation (Type II). The first method (Type I) aims to select the best and set a model on the basis of comparative analysis of several EMR teams. For example, in Dai et al.,⁶ the health emergency response capabilities of the disease control and prevention institutions in the 22 districts were evaluated, ranked, and studied by comparing the AHP and entropy methods. While in the second method (Type II), each individual EMR team was studied and evaluated to determine its competence ranking. In Cao et al.,¹⁰ for instance, about 104 health units were evaluated individually in a comprehensive manner to determine their rankings of health emergency capacity. So far, little researches have been done on developing a capability evaluation index system which can combine the advantages of both Type I and II methods.

This article aims to extend the well-known competency model (CM)¹¹ to the field of EMRHCA, establish an evaluation index system, and seek its theoretic support by analyzing all the constituent factors in EMRC. In this article, by taking into consideration all the certainties and uncertainties in the process of evaluation, a mathematical model based on connection numbers (CN) and partial connection numbers (PCN)^12,13 is established for the assessment of EMRC in HCA, and the competencies of the EMR teams are evaluated quantitatively and reflected objectively, thus realizing the integration of “prioritized selection” and “self-orientation” and identifying the trend of EMRC in the future.

Methods

EMRC Evaluation Index System on the basis of CM

As stated in the theory of the CM,¹¹ a competence, in essence, is collection of resources and the property that a resource collection displays in fulfilling a task. It is also clarified that a clear description of a competence should involve its associated tasks and resource collection. The two aspects interrelate with each other and constitute a competence entity, which displays certain capabilities. And a competence itself can become the component of another competence.

As defined, the core tasks of EMR are first aid, disease control and prevention, and hygiene supervision. According to the characteristics of HCA as well as the demands and general procedures in EMR, the three core tasks can be subdivided into the following six aspects: emergency response, investigation and supervision, decontamination and protection, grading treatment, medical supply and equipment support, and survival guarantee. The six tasks correspond with the six links in the rescue process, which intertwine, interfere, and interact with each other. Meanwhile, they also represent the six essential competences in EMR, namely, the competences of emergency response, investigation and supervision, decontamination and protection, grading treatment, medical supply and equipment support, and survival guarantee.^4,5,14 Furthermore, the resources in support of EMRC in HCA consist of the elements of manpower, material resources, financial resources, information, spirit, and corresponding system. Similar to the six tasks, these elements intertwine, interfere, and interact with each other and restrain the generation and development of EMRC.

Combining with the most recent frequent major and serious HCA of different types and the associated EMR practices in China, such as the pipeline explosion in Qingdao, Shandong, on 22 November 2013, the extraordinarily serious fire explosion at Tianjin Port on 12 August 2015, the explosion of Sinopec at Linyi, Shandong on 5 June 2017, and taking into full consideration of the characteristics of HCA and the competence requirements of EMR as well as all the influencing factors and their interactions, a CM was specially constructed for the EMRHCA, as illustrated in Figure 1.

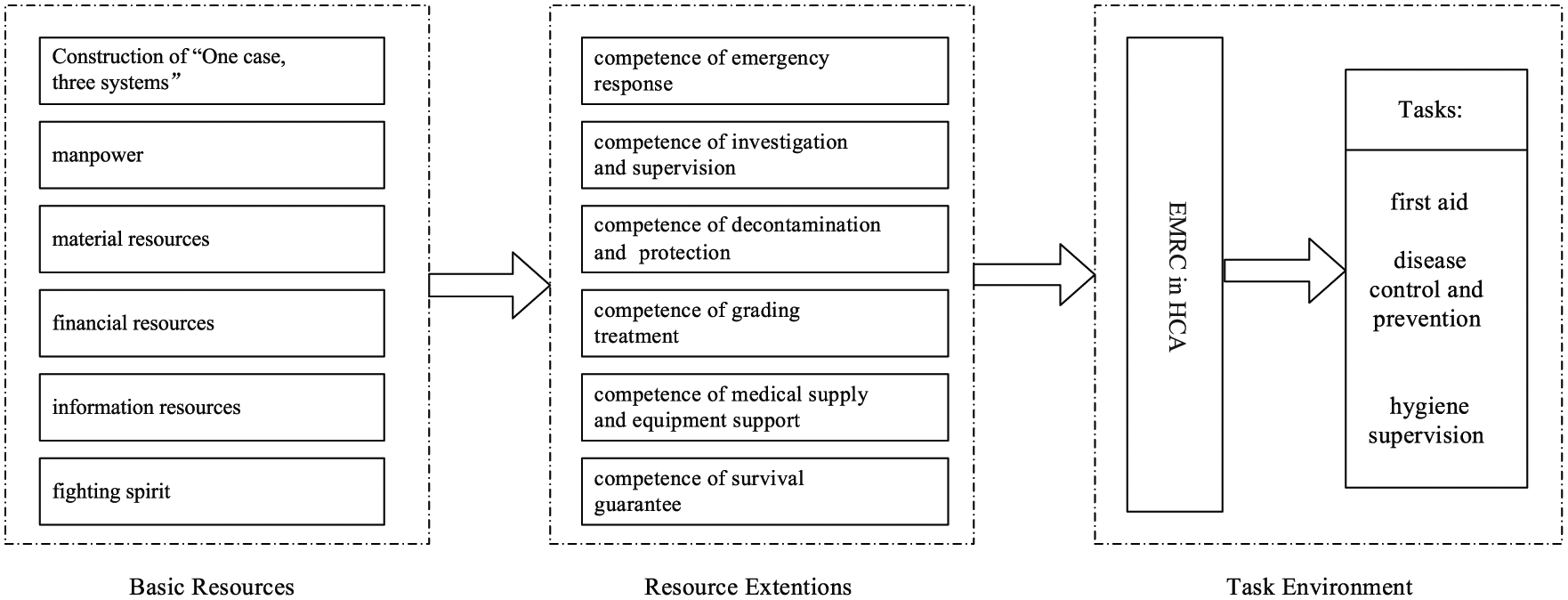

Figure 1.

Competency model for EMRHCA. (“One case, three systems” is an emergency management system with Chinese characteristics, where “one case” means emergency plan, and “three systems” refers to emergency management system, emergency management mechanism, and emergency management legal system.)

A capability evaluation index system can then be set up for EMRHCA with further detailed analysis of all the components in the model, as shown in Table 1.

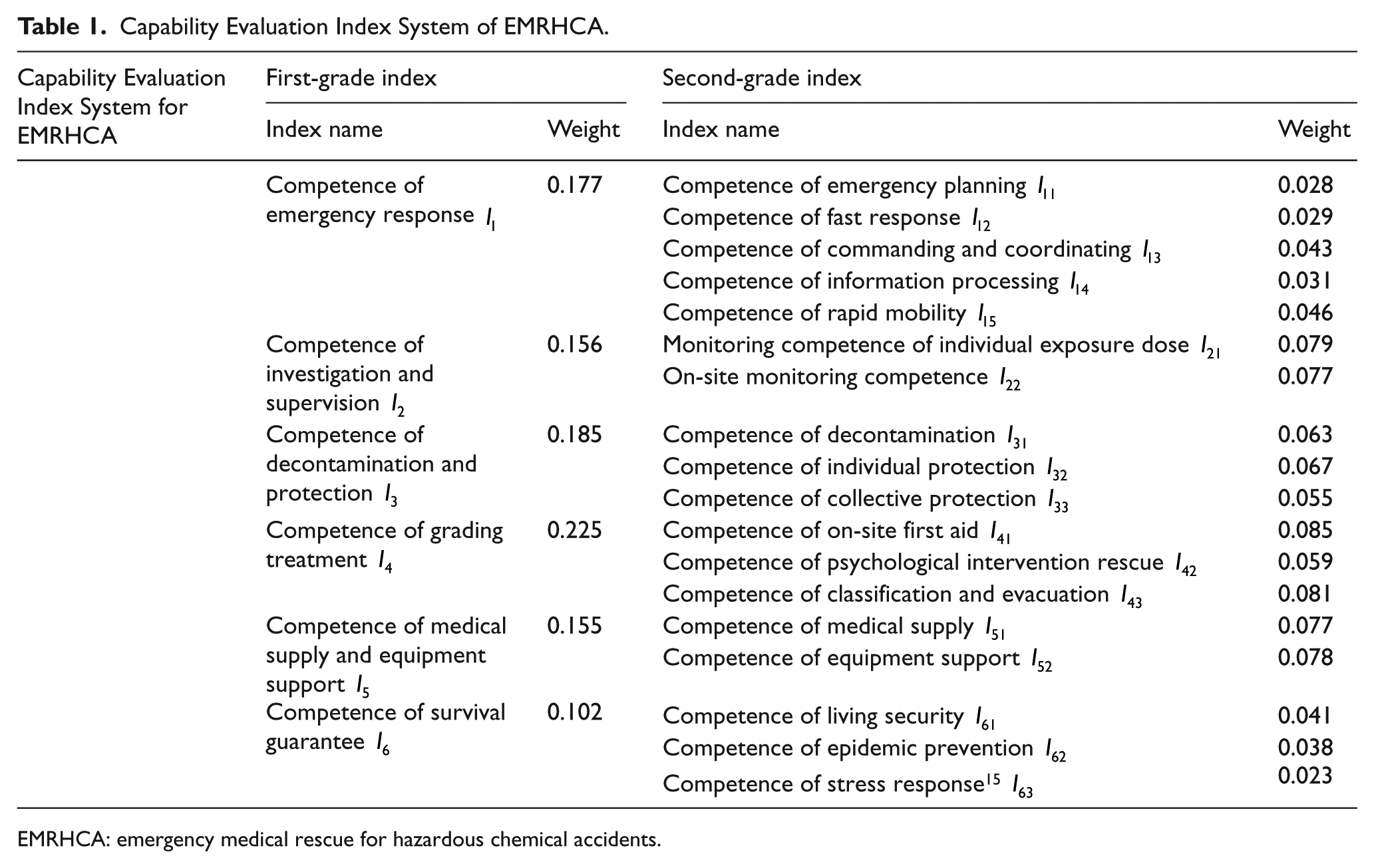

Table 1.

Capability Evaluation Index System of EMRHCA.

Capability Evaluation Index System for EMRHCA	First-grade index		Second-grade index
Capability Evaluation Index System for EMRHCA	Index name	Weight	Index name	Weight
	Competence of emergency response $I_{1}$	0.177	Competence of emergency planning $I_{11}$	0.028
			Competence of fast response $I_{12}$	0.029
			Competence of commanding and coordinating $I_{13}$	0.043
			Competence of information processing $I_{14}$	0.031
			Competence of rapid mobility $I_{15}$	0.046
	Competence of investigation and supervision $I_{2}$	0.156	Monitoring competence of individual exposure dose $I_{21}$	0.079
	Competence of investigation and supervision $I_{2}$	0.156	On-site monitoring competence $I_{22}$	0.077
	Competence of decontamination and protection $I_{3}$	0.185	Competence of decontamination $I_{31}$	0.063
			Competence of individual protection $I_{32}$	0.067
			Competence of collective protection $I_{33}$	0.055
	Competence of grading treatment $I_{4}$	0.225	Competence of on-site first aid $I_{41}$	0.085
			Competence of psychological intervention rescue $I_{42}$	0.059
			Competence of classification and evacuation $I_{43}$	0.081
	Competence of medical supply and equipment support $I_{5}$	0.155	Competence of medical supply $I_{51}$	0.077
	Competence of medical supply and equipment support $I_{5}$	0.155	Competence of equipment support $I_{52}$	0.078
	Competence of survival guarantee $I_{6}$	0.102	Competence of living security $I_{61}$	0.041
			Competence of epidemic prevention $I_{62}$	0.038
			Competence of stress response¹⁵ $I_{63}$	0.023

EMRHCA: emergency medical rescue for hazardous chemical accidents.

EMRHCA capability evaluation model based on theory of CN

Theory foundation: CN and PCN

The theory of connection numbers (CN) was developed from the set pair analysis (SPA).¹⁶ It is based on the concepts of universal connection and “one divided into three” (as a unity of contradictions, things not only include two aspects of contradiction and contradiction, but also the third party that plays a key role in the unification and transformation of the two parties) and describes problems by using logical unit set pairs. It gives a universal description and expression of identified and unidentified relations using connection numbers by means of dialectical identity–discrepancy–contrary (IDC) analysis^12,13 and conducts a universal study on the uncertainty problems from the macroscopic and microscopic perspectives. The basic concepts of the CN theory are set pairs and connection numbers. The set pair, also the logic unit of the CN theory, refers to Set A and Set B connected with each other or the set pair consisting of internal elements, denoted as $H (A, B)$ . The connection numbers refer to the eigenfunction of the set pairs (defined by concrete questions) obtained via IDC analysis that quantitatively characterizes their inter-relationships, such as direct identification, interaction, mutual restraint, and interconversion. The connection number μ is typically expressed as $μ = a + b i + c j$ . Here, a, b, and c are the connection number expressions of the identification, discrepancy, and contrary degrees, respectively, for the set pair A and B and $a, b, c \in [0, 1] and a + b + c = 1$ . The parameters i and j represent the corresponding coefficients for discrepancy factor and contrary factor, and $i \in [- 1, 1] & j = - 1$ .

Four-element connection numbers (FECN) can be regarded as an extension of three-element IDC connection numbers,¹³ with the general formula of

μ = a + b i + c j + d k,

(1)

where µ represents FECN (degree), and a, b, c, and d are the identification degree, pro-identification degree, pro-contrary degree, and contrary degree, respectively. Typically $a + b + c + d = 1$ , $i, j \in [- 1, 1], k = - 1$ .

As a key associated connection number, PCN reflects a potential paradoxical movement and its interlayer migration trend of the objects described with connection number at micro level.¹⁷ The PCN of FECN is¹³

\partial_{-}^{+} μ = \partial a + \partial b i + \partial c j + \partial_{-} b i + \partial_{-} c j + \partial_{-} d k,

(2)

in which $\partial^{+} μ = \partial a + \partial b i + \partial c j$ and $\partial_{-} μ = \partial_{-} b i + \partial_{-} c j + \partial_{-} d k$ are the positive and negative PCN, respectively, which are defined as follows in this article

\partial a = a / (a + b), \partial b = b / (b + c), \partial c = c / (c + d),

(3)

\partial_{-} b = b / (a + b), \partial_{-} c = c / (b + c), \partial_{-} d = d / (c + d) .

(4)

Substituting equations (3) and (4) into equation (2), the PCN can be recast into the following formula

\begin{array}{l} \partial_{-}^{+} μ = a / (a + b) + [b / (b + c) + b / (a + b)] i \\ + [c / (c + d) + c / (b + c)] j + d / (c + d) k \end{array}

(5)

When $\partial_{-}^{+} μ > 0$ , the object described by the FECN displays a positive development trend; when $\partial_{-}^{+} μ < 0$ , the object tends to develop in the negative direction; and when $\partial_{-}^{+} μ = 0$ , the object reaches a critical state,¹⁷ or it is temporarily in a stationary or stable state.

Step 1. Mathematical description of the problem

For the convenience of narration and calculation, $X = {x_{1}, x_{2}, \dots, x_{p}}$ is used to represent the set of EMR equipments that are to be evaluated, and F stands for the evaluation attribute space; $E = {e_{1}, e_{2}, \dots, e_{s}}$ represents the set of the evaluation experts, associated with a weight vector $v = (v_{1}, v_{2}, \dots, v_{s})$ , namely, $v_{t} (\geq 0)$ is the weight for the tth evaluator, $e_{t}$ , and $\sum_{t}^{s} v_{t} = 1$ ; $I = {I_{1}, I_{2}, \dots I_{m}}$ is the evaluation index set and $W = {ω_{1}, ω_{2}, \dots, ω_{m}}$ is the corresponding index weight set, with $ω_{r} (\geq 0)$ being the weight of the evaluation index $I_{r}$ , and $\sum_{r}^{m} ω_{r} = 1$ ; $C = {C_{1}, C_{2}, \dots, C_{n}}$ stands for the set of comments given by the experts and $C \subseteq F$ . In accordance with the actual situation and the evaluation requirements, it is set that $C = {C_{1}, C_{2}, C_{3}, C_{4}} = {strong, relatively strong, moderate, weak}$ . If $a_{q r}^{(t)}$ is the comment made by the evaluation expert $e_{t}$ about EMR team $x_{q}$ in the evaluation index $I_{r}$ , the evaluation matrix can be calculated

A_{t} = [\begin{matrix} a_{11}^{(t)} & a_{12}^{(t)} & \dots & a_{1 n}^{(t)} \\ a_{21}^{(t)} & a_{22}^{(t)} & \dots & a_{2 n}^{(t)} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ a_{p 1}^{(t)} & a_{p 2}^{(t)} & \dots & a_{p n}^{(t)} \end{matrix}]

(6)

The EMRHCA capability evaluation can be converted into a mathematical problem:¹⁸ by setting up a mathematical model, relevant calculations are made about evaluation matrix $A_{t}$ , thus realizing the “horizontal ranking and comparison” of the rescue capabilities of the anticipated EMR teams, or in other words, “which one is stronger and which one is weaker,” and fulfilling the “self-evaluation and orientation of the capabilities” of each EMR team, that is to say, knowing which capability level each EMR team is at.

Step 2. Determining the connection component matrix of individual evaluation index

The connection component matrix of individual evaluation index of the EMR team $x_{q}$ is calculated as

R_{q} = {(μ_{q r l})}_{m \times n} = [\begin{matrix} μ_{q 11} & μ_{q 12} & \dots & μ_{q 1 n} \\ μ_{q 21} & μ_{q 22} & \dots & μ_{q 2 n} \\ ⋮ & ⋮ & ⋮ & ⋮ \\ μ_{q m 1} & μ_{q m 2} & \dots & μ_{q m n} \end{matrix}],

(7)

in which $μ_{q r l} (1 \leq r \leq n)$ is the connection component of the individual index $I_{r}$ of the EMR team $x_{q}$ against the commentary $C_{l} (l = 1, 2, 3, 4)$ , which represents the correlation degree between $I_{r}$ and $C_{l}$ for the EMR team $x_{q}$ , or to what degree $I_{r}$ belongs to the commentary $C_{l}$ . The calculation method of µ_qrl is summarized as follows: if $C_{l}$ was the comment that k experts (0 ≤ k ≤ m) made about the evaluation index $I_{r}$ of the EMR team $x_{q}$ , the connection component µ_qrl would be the weighted sum of k experts. For instance, if $C_{l}$ was the comment the evaluation experts $e_{1}, e_{2}, e_{3}, e_{4}$ made about some EMR team $x_{q}$ , then $μ_{q r l} = e_{1} + e_{2} + e_{3} + e_{4}$ . Obviously, $μ_{q r l} \in [0, 1]$ and $\sum_{l = 1}^{n} μ_{q r l} = 1, (1 \leq r \leq m)$ . In order to ensure the authority of the evaluation results, someone in the Expert Consultation Committee on Emergency Health Response of the Department of Health can be invited to take the post of evaluation experts, and the weights of their comment are determined by their actual position and their influence in the field of EMR.

Step 3. Determining the connection number of total index

The connection number of total index of the EMR team $x_{q}$ is

μ_{q} = W R_{q} E = μ_{q 1} + μ_{q 2} i + μ_{q 3} j + μ_{q 4} k,

(8)

in which

μ_{q l} = \sum_{r = 1}^{m} ω_{r} μ_{q r l}, 1 \leq l \leq n

(9)

is the connection component of the total index of the EMR team $x_{q}$ against its commentary $C_{l}$ . It represents the correlation degree between the EMR team $x_{q}$ and its commentary $C_{l}$ , or in other words, or to what degree the EMR team $x_{q}$ belongs to the commentary $C_{l}$ . $W = {ω_{1}, ω_{2}, \dots, ω_{m}}$ is the index weight vector and $E = {(1, i, j, k)}^{T}$ is the coefficient matrix of connection component. In this study, the weights of the index at all levels are determined by combining the two methods, expert consultation and AHP,¹⁹ and the specific values are as shown in the “weight” of columns 4 and 5 of Table 1.

Step 4. Ranking of evaluation, determination of the comments, and development trend

1. To rank the evaluation by calculating connection principal value

For the convenience of calculation and evaluation, based on the “principle of equipartition,”²⁰ the values of i and j should be located on the nodes of trisection within the interval of $[- 1, 1]$ , or in other words, $i = 0.333, j = - 0.333$ , and then, the connection principal value of FECN should be

{\tilde{μ}}_{q} = μ_{q 1} + 0.333 μ_{q 2} - 0.333 μ_{q 3} - μ_{q 4}

(10)

Then, the capability of each EMR team will be evaluated and ranked according to its ${\tilde{μ}}_{q} (1 \leq q \leq p)$ value. The bigger the value of µ~_q is, the better the EMRC will be.

2. To determine the comment grade by calculating connection principal value

Divide $[- 1, 1]$ equally into four sections,²⁰ that is, $[0.5, 1], [0, 0.5], [- 0.5, 0], [- 1, - 0.5]$ , which corresponds to the four comment grades in turn, that is, “strong,” “relatively strong,” “moderate,” and “weak.” With the connection principal value ${\tilde{μ}}_{q}$ computed, one can then determine the capability ranking of the EMR team $x_{q}$ by the section where ${\tilde{μ}}_{q}$ is located.

3. To analyze the development trend by calculating PCN

By calculating the PCN $\partial_{-}^{+} μ_{q}$ , one can identify the development trend of the capability of each EMR team.

Discussion

Assuming that the evaluations are carried out on the EMRC of EMR teams A and B in one particular HCA, for the convenience of calculation, the three evaluation experts $e_{1}, e_{2}, and e_{3}$ (with their weight of $v_{1} = 0.36, v_{2} = 0.33, and$ , respectively) made four-grade evaluations on the two EMR teams in accordance with the indexes illustrated in Table 1. Thus, the following evaluation matrix

\begin{array}{l} = {[\begin{matrix} relatively strong & strong \\ relatively strong & moderate \\ relatively strong & relatively strong \\ moderate & relatively strong \\ relatively strong & relatively strong \\ strong & relatively strong \\ relatively strong & moderate \\ relatively strong & relatively strong \\ relatively strong & strong \\ moderate & relatively strong \\ relatively strong & relatively strong \\ \begin{array}{l} weak \\ relatively strong \\ relatively strong \\ strong \\ strong \\ moderate \\ moderate \end{array} & \begin{array}{l} moderate \\ strong \\ relatively strong \\ relatively strong \\ relatively strong \\ moderate \\ weak \end{array} \end{matrix}]}^{T} A_{2} = {[\begin{matrix} strong & strong \\ strong & relatively strong \\ strong & relatively strong \\ moderate & moderate \\ moderate & relatively strong \\ relatively strong & strong \\ strong & relatively strong \\ relatively strong & strong \\ strong & strong \\ weak & moderate \\ moderate & relatively strong \\ \begin{array}{l} weak \\ strong \\ moderate \\ relatively strong \\ relatively strong \\ relatively strong \\ weak \end{array} & \begin{array}{l} weak \\ strong \\ relatively strong \\ relatively strong \\ moderate \\ moderate \\ weak \end{array} \end{matrix}]}^{T} \\ A_{3} = {[\begin{matrix} strong & relatively strong \\ moderate & moderate \\ strong & moderate \\ relatively strong & relatively strong \\ relatively strong & strong \\ strong & relatively strong \\ relatively strong & moderate \\ strong & relatively strong \\ strong & relatively strong \\ moderate & moderate \\ relatively strong & strong \\ \begin{array}{l} moderate \\ relatively strong \\ moderate \\ relatively strong \\ relatively strong \\ relatively strong \\ weak \end{array} & \begin{array}{l} moderate \\ relatively strong \\ strong \\ strong \\ relatively strong \\ relatively strong \\ moderate \end{array} \end{matrix}]}^{T} \end{array}

Calculations are made in the following steps:

Step 1. The connection component matrices $R_{q} (q = 1, 2)$ of individual evaluation indices are determined using equation (7)

R_{1} = [\begin{matrix} 0.64 & 0.36 & 0 & 0 \\ 0.33 & 0.36 & 0.31 & 0 \\ 0.64 & 0.36 & 0 & 0 \\ 0 & 0.31 & 0.69 & 0 \\ 0 & 0.67 & 0.33 & 0 \\ 0.67 & 0.33 & 0 & 0 \\ 0.33 & 0.67 & 0 & 0 \\ 0.31 & 0.69 & 0 & 0 \\ 0.64 & 0.36 & 0 & 0 \\ 0 & 0 & 0.67 & 0.33 \\ 0 & 0.67 & 0.33 & 0 \\ 0 & 0 & 0.31 & 0.69 \\ 0.33 & 0.67 & 0 & 0 \\ 0 & 0.36 & 0.64 & 0 \\ 0.36 & 0.64 & 0 & 0 \\ 0.36 & 0.64 & 0 & 0 \\ 0 & 0.64 & 0.36 & 0 \\ 0 & 0 & 0.36 & 0.64 \end{matrix}] R_{2} = [\begin{matrix} 0.69 & 0.31 & 0 & 0 \\ 0 & 0.33 & 0.67 & 0 \\ 0 & 0.69 & 0.31 & 0 \\ 0 & 0.67 & 0.33 & 0 \\ 0.31 & 0.69 & 0 & 0 \\ 0.33 & 0.67 & 0 & 0 \\ 0 & 0.33 & 0.67 & 0 \\ 0.33 & 0.67 & 0 & 0 \\ 0.69 & 0.31 & 0 & 0 \\ 0 & 0.36 & 0.64 & 0 \\ 0.31 & 0.69 & 0 & 0 \\ 0 & 0 & 0.67 & 0.33 \\ 0.69 & 0.31 & 0 & 0 \\ 0.31 & 0.69 & 0 & 0 \\ 0.31 & 0.69 & 0 & 0 \\ 0 & 0.67 & 0.33 & 0 \\ 0 & 0.31 & 0.69 & 0 \\ 0 & 0 & 0.31 & 0.69 \end{matrix}]

Step 2. The FECN of total indices is determined using equations (8) and (9) based on the index weights as illustrated in Table 1

\begin{array}{l} μ_{1} = W R_{1} E = 0.265 + 0.461 i + 0.200 j + 0.074 k \\ μ_{2} = W R_{2} E = 0.257 + 0.492 i + 0.216 j + 0.035 k \end{array}

Step 3. The connection principal value can be calculated with equation (10)

\begin{array}{l} {\tilde{μ}}_{1} = 0.265 + 0.461 \times 0.333 - 0.200 \times 0.333 - 0.074 = 0.279 \\ {\tilde{μ}}_{2} = 0.257 + 0.492 \times 0.333 - 0.216 \times 0.333 - 0.035 = 0.313 \end{array}

Obviously, ${\tilde{μ}}_{2} > {\tilde{μ}}_{1}$ , so the EMRC of Team B is stronger than that of Team A. As ${\tilde{μ}}_{1}, {\tilde{μ}}_{2} \in [0, 0.5]$ , in terms of the capability grade, the EMRCs of both Teams A and B fall into the grade of “relatively strong.”

Step 4. From equation (5), with $i = 0.333, j = - 0.333$ on the basis of “principle of equipartition,” the PCN $\partial_{-}^{+} μ_{1} = 0.315 (> 0), \partial_{-}^{+} μ_{2} = 0.414 (> 0)$ can be calculated. It is clear that the EMRCs of both teams show good momentum in their development and will get improved continuously with the future follow-up team construction, which is just in accordance with the actual situations of strengthening the construction of EMR teams at present stage in China.²¹ Since $\partial_{-}^{+} μ_{2} > \partial_{-}^{+} μ_{1}$ , Team B might boost faster capability growth and better momentum than Team A in its EMRC in the future.

Results

As illustrated in example analysis, the capability evaluation model of EMRHCA established in this article is scientificity and rationality to some degree, as it can be used not only for the evaluation and comparison of the capabilities of several EMR teams but also for the grade evaluation of the capability of an individual EMR team, thus making up the deficiencies of functional simplicity of the other existing evaluation methods. Besides, this evaluation model is able to analyze the capability development trend of EMR through the calculation of PCN, thus providing valuable references for the long-term construction of EMR teams and leadership decision making in the relevant field.

Conclusion

This article attempts to build a capability evaluation index system of EMRHCA by using the theory of CM, which can better solve the problems of insufficient theoretical support when constructing capability evaluation index system in the past and also provide a reference in ideas and methods for other similar problems.

With the features of relatively strong operability, simplified model, and convenient calculation, the present model are relatively in line with the capability evaluation practice of EMR in China at present. It is conducive to the full playing of the expert consultation of the committee of experts and is also able to realize the quantitative calculation of qualitative comments made by the experts. In case of the multiplied increase of calculation workload in the model as the result of the large number of experts, a computer evaluation system can be developed in practice to assist the decision making.

This method is still in the stage of theoretical discussion, and its effectiveness and feasibility remain to be further verified and improved in the future practice. All the index data in this article are acquired through the method of expert rating. Despite its ease in the operation and control, the method has the disadvantage of strong subjectivity and is susceptible to the influence and restrictions of the knowledge, capacity, experience, and personal preference of the experts concerned, thus probably impacting the accuracy of evaluation results. Therefore, the in-depth research in the data collection and its quantitative processing of evaluation indexes is to be further strengthened in the future, so as to realize the objectivity and quantitativeness of evaluation.
