Raising the awareness for insufficient oxygen delivery from self-inflating resuscitation bags lacking expiratory valve during preoxygenation

We recently read an interesting study by Grauman et al. ¹ which demonstrated that self-inflating resuscitation bag (SIRB) lacking expiratory valve has unreliable performance in oxygen delivery during spontaneous breathing mimicked by mechanical lung simulator. It was postulated that the absence of an expiratory valve and the resulting air entrainment via the exhaust port accounts for the poor oxygen delivery performance. The current disposable SIRB in-use in our institutions (Med-Rescuer Disposable BVM Resuscitator 4000, BLS Systems Limited, ON, Canada) (Figure 1) has a duckbill valve but no expiratory valve. Safety concerns regarding its oxygen delivery performance during spontaneous breathing were raised, as this SIRB was commonly used to preoxygenate critically ill patient with potentially transmissible respiratory infection (e.g. COVID-19) before tracheal intubation.

OPEN IN VIEWER

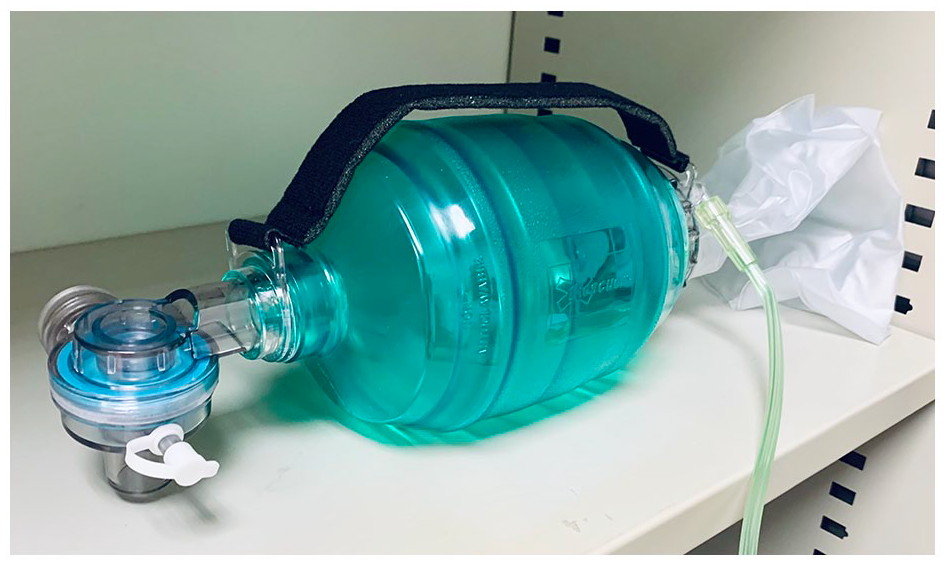

Figure 1.

The disposable self-inflating resuscitation bag under testing.

We therefore performed an experiment on this SIRB using one of us as a healthy volunteer. The oxygen inlet of this SIRB was connected to 16 L/min oxygen throughout the experiment. A filter (Ultipor, Pall Medical, Fribourg, Switzerland) was attached between the facemask and the SIRB. Gas was sampled from the sampling port of the filter and oxygen content was analysed by the built-in analyser of an anaesthetic machine (Zeus Infinity Empowered, Dräger AG & CO., Lubeck, Germany). With this setup, the following scenarios were tested in sequence consecutively without rest in-between: The volunteer was first instructed to perform tidal breathing on 16 L/min oxygen flow via the SIRB. He was then instructed to breathe ‘deep and fast’ (to mimic respiratory distress) on the same flow. The fractional inspired oxygen concentration (FiO₂) delivered in each scenario was measured. We found that FiO₂ dropped significantly when respiratory distress was mimicked (Figure 2). This is likely because in spontaneous inspiration, the final inspired gas is composed of oxygen from the self-inflating bag and entrained room air (Figure 3). Air entrainment is expected to increase when peak inspiratory flow rate (PIFR) is high such as in patients with respiratory distress. ²

OPEN IN VIEWER

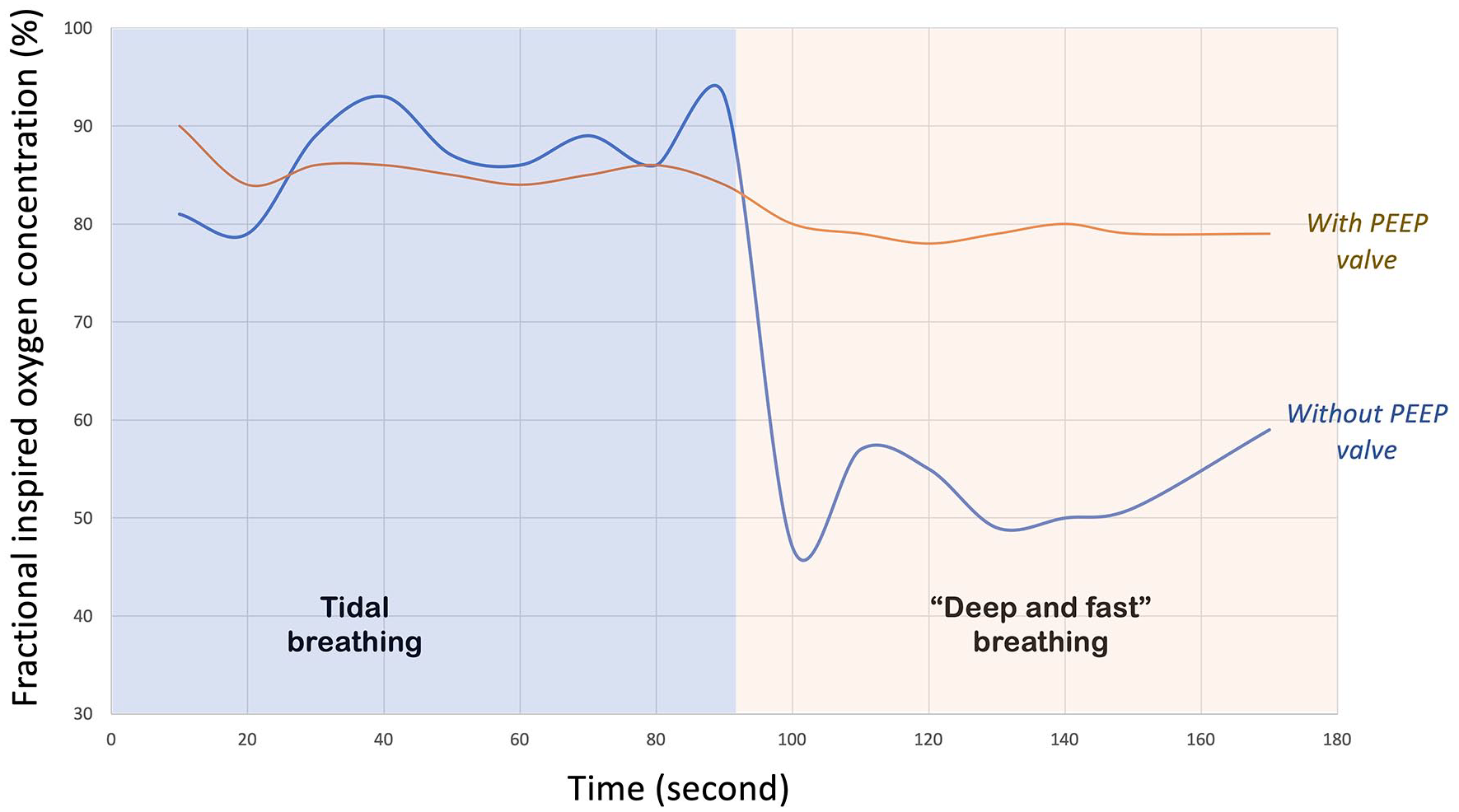

Figure 2.

A graph showing how fractional inspired oxygen concentration (FiO₂) changed with the pattern of breathing, and the effect of adding a PEEP valve. FiO₂ decreased when respiratory distress was mimicked. This was reversed by addition of a PEEP valve.

OPEN IN VIEWER

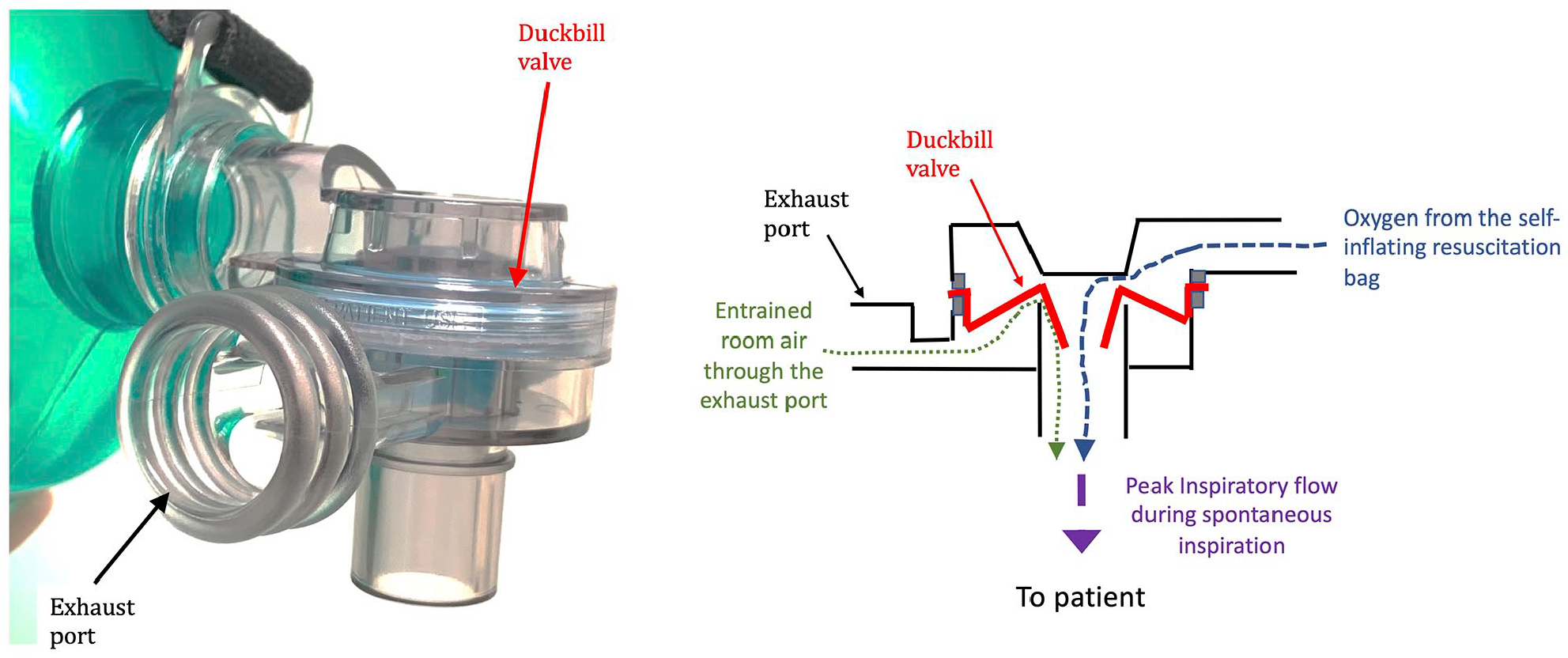

Figure 3.

A schematic diagram showing how entrained room air and oxygen match with patient’s peak inspiratory flow during spontaneous inspiration. The relative contribution of the different components to the inspired gas is represented by the weight of the different arrows.

We then repeated the scenarios with a PEEP valve (PEEP level set at 5 cmH₂O) attached to the exhaust port of the SIRB to eliminate air entrainment from the exhaust port. The FiO₂ remained static even when respiratory distress was mimicked (Figure 2). This provides evidence that the exhaust port acts as a major source of air entrainment during pre-oxygenation and leads to poor oxygen delivery performance.

Our small experiment demonstrated that air entrainment could occur via the exhaust port and affect oxygen delivery performance. Our experiment also demonstrated that attaching a PEEP valve to the exhaust port improves the oxygen delivery performance. We acknowledge that our experiment only has one subject, and therefore, we are planning a formal study to prove the concept. But at the meanwhile, we hope our experiment can alert emergency care providers to consider air entrainment via the exhaust port as a cause of failed preoxygenation and pay attention to the design of the SIRBs currently in-use in their institutions. The findings of this experiment were sent to the relevant department of our institutions for safety consideration.
