Design and Evaluation of a Multiplex Polymerase Chain Reaction Assay for the Simultaneous Identification of Genes for Nine Different Virulence Factors Associated with Escherichia Coli that Cause Diarrhea and Edema Disease in Swine

Abstract

A multiplex polymerase chain reaction (mPCR) assay was developed for detection and characterization of pathogenic Escherichia coli that cause diarrhea and edema disease in swine. The mPCR assay was designed as a single reaction for detecting 5 different adhesins (K88, K99, 987P, F41, and F18), 3 enterotoxins (LT, STaP, and STb), and the Shiga toxin (Stx2e) associated with porcine pathogenic E. coli. The specificity of the mPCR assay was evaluated by comparison with results from previous analysis of 100 porcine isolates characterized by colony blot hybridization with DNA probes for the 5 adhesins and 4 toxin genes. There was complete agreement between the 2 methods. The mPCR assay for E. coli pathogens isolated from swine was further evaluated by examination of strains containing virulence factors that are known to have different antigenic subtypes or DNA sequence variations. It was found that the mPCR assays targeting genes encoding for K88 and F18 amplified products with the appropriate sizes from strains containing genes for different K88 and F18 antigenic subtypes; mPCR assays targeting the gene encoding for STaP amplified product from only STaP-positive but not STaH-positive isolates; and mPCR assays targeting the gene encoding for the Stx2 amplified products from only Stx2-positive and not Stx1-positive isolates. Similarly, mPCR assays targeting the gene encoding for LTI did not produce the appropriate product from strains containing genes for LTII. The mPCR assays are simple to perform, and they should be useful for diagnosis of porcine colibacillosis, including the genotypic characterization of E. coli isolates from pigs with diarrhea or edema disease.

Keywords

Diagnostic assay edema disease multiplex polymerase chain reaction porcine diarrhea virulence factors virulence genes

Introduction

Pathogenic Escherichia coli cause several different diseases in swine that are collectively called colibacillosis. 39 Among these, diarrhea in neonatal and recently weaned pigs caused by enterotoxigenic E. coli (ETEC) is frequently responsible for significant morbidity and mortality. 14 Edema disease (ED) can occur following weaning and is also caused by pathogenic E. coli. 3,19 Both ETEC diarrhea and ED are important economic problems for swine producers. There are effective vaccines available that protect neonatal pigs from diarrhea caused by ETEC, but there are no vaccines currently available to protect weaned pigs from diarrhea or ED. 29 Despite the availability of ETEC vaccines, there remains a need for a simple rapid diagnostic assay for the identification and characterization of pathogenic E. coli isolates from swine.

The pathogenesis of ETEC and ED has been studied extensively, and multiple virulence factors have been identified and characterized. 29 The most intensively studied virulence factors include several antigenically and genetically distinct adhesins and toxins. The well-characterized adhesins are filamentous surface structures that facilitate adherence in the small intestine and are also called pili or fimbriae. The majority of ETEC isolates for swine express 1 or more of 5 antigenically distinct adhesins called K88 (F4), K99 (F5), F41, 987P (F6), and F18. 28 Other suspected adhesins have been identified, but their role in pathogenesis is less clear, and they appear to occur less frequently. The heat-labile (LT) and heat-stable (ST) enterotoxins are responsible for the fluid secretion that results in diarrhea in neonatal and weaned pigs. 29 Two types of LT have been described (LTI and LTII), and LTI is commonly associated with porcine ETEC. 39 The ST toxins are subdivided into STa (STI) and STb (STII). The STa enterotoxins are further subdivided into those primarily associated with human ETEC (STaH) and STaP, which was originally identified in porcine ETEC but is also found in human ETEC isolates. 26 The STb enterotoxin is the most frequent toxin found in porcine ETEC from either neonatal or weaned pigs with diarrhea, 4,25 although the role for STb in neonatal diarrhea caused by ETEC is questionable. 6 In ED isolates, the primary known virulence factors are the F18 adhesin and Stx2e toxin, 19 but other adhesins and enterotoxins may also be present in E. coli associated with ED. 27

Diagnosis of neonatal and postweaning colibacillosis is currently and most often based on clinical observations, histologic examination of small intestinal sections for adherent bacteria, bacterial isolation, and characterization of virulence factors by phenotypic or genotypic assays. 13 Methods for genotypic characterization of ETEC and ED isolates for specific virulence factors include the use of specific DNA fragments with colony blot hybridization and, more recently, polymerase chain reaction (PCR), including real-time PCR, has also been used. 29 Many different PCR assays for E. coli virulence genes in porcine isolates have been reported and used in studies examining the prevalence of these genes in porcine E. coli isolates. These include PCR assays formatted as single reactions or multiplex for the detection of multiple virulence genes and product detection by either real-time or gel electrophoresis methods. 4,8,11,16,30,31,38,40 A variety of different known or suspected E. coli virulence genes are targeted in these PCR assays. Some of these targeted genes occur infrequently, and their significance to pathogenesis of porcine diarrhea or edema disease is not known. Although these are useful for studies on the prevalence of known or suspected virulence genes, they may be less useful for routine diagnostic characterization of the most common virulence genes in E. coli pathogens from pigs.

The objective of the current study was to develop a multiplex PCR (mPCR) assay for identification of the major virulence genes of porcine pathogenic E. coli, including genes for 5 different adhesins (K88, K99, F41, 987P, and F18) and 4 different toxins (LTI, STaP, STb, and Stx2e) associated with pathogenic E. coli isolates from swine. This mPCR assay was evaluated using ETEC, ED, and nonpathogenic isolates and by comparing the PCR results with results from previously conducted experiments by DNA colony blot hybridization using specific DNA probes for the 9 virulence genes. The specificity of the mPCR assay was also determined by examining strains expressing virulence genes that are known to vary in DNA sequence, including K88 (K88ab, K88ac, and K88ad) and F18 (F18ab and F18ac) adhesions, and STa (STaP and STaH), LT (LTI and LTII), and Stx (Stx1 and Stx2) toxins.

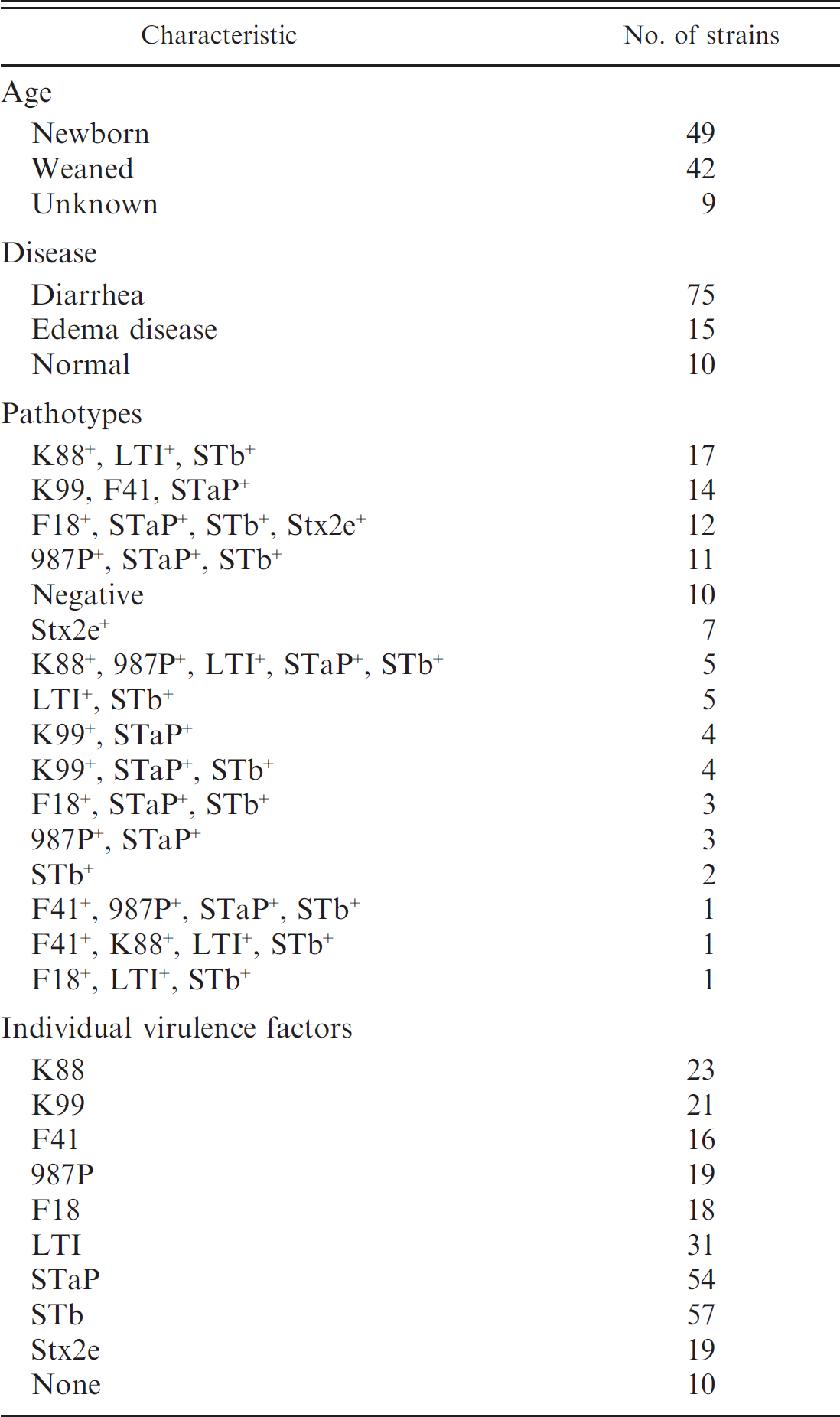

Table 1

. Characteristics of porcine Escherichia coli isolates compared by multiplex polymerase chain reaction and colony blot hybridization for 9 virulence genes.

Characteristic	No. of strains
Age
Newborn	49
Weaned	42
Unknown	9
Disease
Diarrhea	75
Edema disease	15
Normal	10
Pathotypes
K88⁺, LTI⁺, STb⁺	17
K99, F41, STaP⁺	14
F18⁺, STaP⁺, STb⁺, Stx2e⁺	12
987P⁺, STaP⁺, STb⁺	11
Negative	10
Stx2e⁺	7
K88⁺, 987P⁺, LTI⁺, STaP⁺, STb⁺	5
LTI⁺, STb⁺	5
K99⁺, STaP⁺	4
K99⁺, STaP⁺, STb⁺	4
F18⁺, STaP⁺, STb⁺	3
987P⁺, STaP	3
STb⁺	2
F41 ⁺, 987P⁺, STaP⁺, STb⁺	1
F41 ⁺, K88⁺, LTI⁺, STb⁺	1
F18⁺, LTI⁺, STb⁺	1
Individual virulence factors
K88	23
K99	21
F41	16
987P	19
F18	18
LTI	31
StaP	54
STb	57
Stx2e	19
None	10

Materials and methods

The E. coli isolates used in the current study are part ofa collection at the National Animal Disease Center and are stored in 20% glycerol at −70°C. A total of 100 porcine isolates were selected to represent a variety of different sources and different combinations of virulence factor genes. Some of the characteristics of these isolates are listed in Table 1. Additional porcine and human isolates carrying genes encoding for K88, F18 antigenic variants, STaP, STaH, Stx1, and Stx2 subtypes were also examined. Bacteria were routinely grown on lysogeny broth agar. 23

The primers were designed using Primer Designer 5 a software. The sequences of these primers are shown in Table 2, along with their corresponding GenBank accession numbers, the predicted product sizes, and other primer characteristics. The primer pairs were designed to have a similar thermal melting temperature (Tm), to have minimal base pairing interactions with other primers in the reaction, and to yield products that differed from each other by approximately 100 bp, which could be resolved by agarose gel electrophoresis. The Tm estimations for the primers shown in Table 2 were calculated based on nearest-neighbor thermodynamic parameters by the Primer Designer 5 a software. The specificity of each of the 18 primers was initially confirmed using BLASTN (nucleotide database using a nucleotide query; http://www.ncbi.nlm.nih.gov/blast/Blast.cgi) and the GenBank sequence database. 1

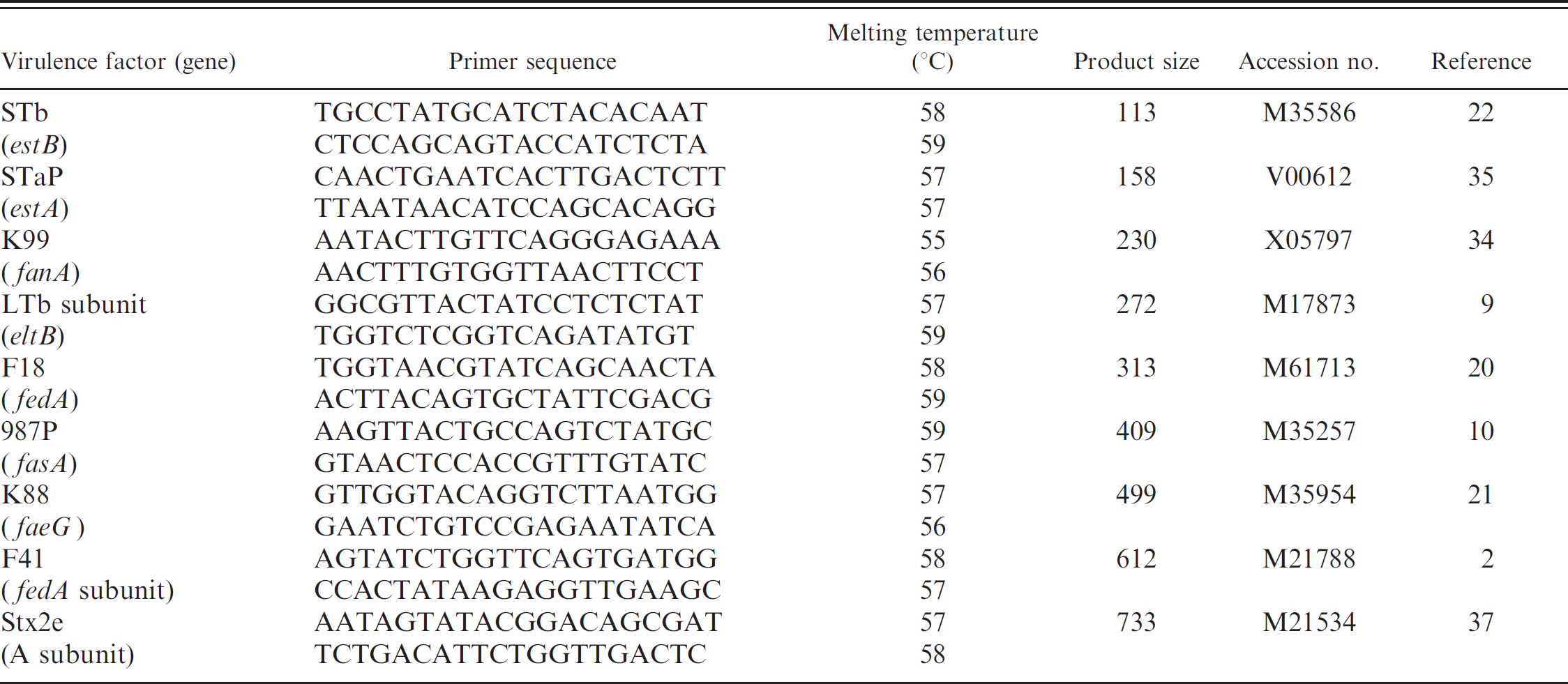

Table 2

. DNA sequence of polymerase chain reaction primers for fimbrial and toxin genes.

Virulence factor (gene)	Primer sequence	Melting temperature (°C)	Product size	Accession no.	Reference
STb	TGCCTATGCATCTACACAAT	58	113	M35586	22
(estB)	CTCCAGCAGTACCATCTCTA	59
STaP	CAACTGAATCACTTGACTCTT	57	158	V00612	35
(estA)	TTAATAACATCCAGCACAGG	57
K99	AATACTTGTTCAGGGAGAAA	55	230	X05797	34
(fanA)	AACTTTGTGGTTAACTTCCT	56
LTb subunit	GGCGTTACTATCCTCTCTAT	57	272	M17873	9
(eltB)	TGGTCTCGGTCAGATATGT	59
F18	TGGTAACGTATCAGCAACTA	58	313	M61713	20
(fedA)	ACTTACAGTGCTATTCGACG	59
987P	AAGTTACTGCCAGTCTATGC	59	409	M35257	10
(fasA)	GTAACTCCACCGTTTGTATC	57
K88	GTTGGTACAGGTCTTAATGG	57	499	M35954	21
(faeG)	GAATCTGTCCGAGAATATCA	56
F41	AGTATCTGGTTCAGTGATGG	58	612	M21788	2
(fedA subunit)	CCACTATAAGAGGTTGAAGC	57
Stx2e	AATAGTATACGGACAGCGAT	57	733	M21534	37
(A subunit)	TCTGACATTCTGGTTGACTC	58

The PCR reaction mixtures contained 18 primers at a concentration of 0.5 μmol each, 0.2 mmol deoxyribonucleotide triphosphate mix, b 1× AmpliTaq Gold reaction buffer II, c 5 mmol MgCl₂, and 2.5 units of AmpliTaq Gold polymerase c in a final volume of 20 μl. For convenience, master mixes for 50 to 100 tubes containing all the components of the PCR reaction except the Taq polymerase and template DNA were prepared in advance. This master mix was divided into tubes and dehydrated using a Speed Vac concentrator. d Polymerase chain reaction tubes prepared this way were stored at −20°C and were stable for at least 1 year. Crude bacterial DNA template for PCR was prepared by picking a single colony into 50 μl sterile distilled H₂O and heating at 95–100°C for 10 min. Template DNA (19.5 μl) was used to reconstitute a previously prepared PCR tube containing dehydrated PCR reaction mix, and 2.5 units of AmpliTaq Gold c was added. Polymerase chain reaction assays were done using a Perkin-Elmer 2400 thermocycler with the following amplification conditions: an initial denaturation at 94°C for 10 min, followed by 30 cycles of denaturation for 30 sec at 94°C, annealing at 55°C for 45 sec, and extension for 1.5 min at 72°C. The extension time was increased 3 sec each cycle, and the final extension was 10 min at 72°C.

The positive control for the mPCR assay consisted of a mixture of crude template DNA, prepared as described above, from strains 431 (K99⁺, F41⁺, and STaP⁺), 1477 (K88⁺, 987P⁺, LT⁺, STaP⁺, and STb⁺), and 2456 (F18⁺, LT⁺, STaP⁺, STb⁺, and Stx2e⁺). Batches of PCR tubes for positive controls that contained template DNA from strains 431, 1477, and 2456, were prepared in advance, dehydrated, and stored at −20°C as described above. Reaction products from the positive control PCR reactions also served as molecular size standards following separation by agarose gel electrophoresis. Polymerase chain reaction products were separated by electrophoresis using 4% precast agarose gels containing ethidium bromide with Tris-borate buffer (4% NuSieve 3:1 Plus Agar e ). Gels were electrophoresed at 75–100 V for 1.5–2 hr, photographed, and analyzed using an AlphaImager imaging system. f

Results

The mPCR assay for genes encoding K88, K99, F41, 987P, F18, LT, STaP, STb, and Stx2 was evaluated using 100 porcine E. coli isolates (Table 1). These strains had been examined previously in other studies for detecting porcine ETEC virulence factors by colony blot hybridization. 5,25,27 The strains were selected to include a minimum of 10 isolates that hybridized with at least 1 of the 9 virulence gene probes and 10 isolates that did not hybridize with any of these DNA probes. Additional criteria for selecting the 100 strains used to evaluate the specificity of the porcine mPCR included isolates from pigs at different ages, with different diseases, and isolates representing a diversity of pathotypes (i.e., combinations of virulence genes), including pathotypes that occur infrequently. The distribution of these characteristics in the isolates is shown in Table 1. Most of the porcine isolates contained genes for more than 1 virulence factor so that the total number of positive isolates by DNA hybridization and by mPCR for a single virulence factor gene was greater than 10 (Table 1). All of the isolates examined were positive by mPCR for the same virulence genes that were identified in these isolates by DNA hybridization using gene probes.

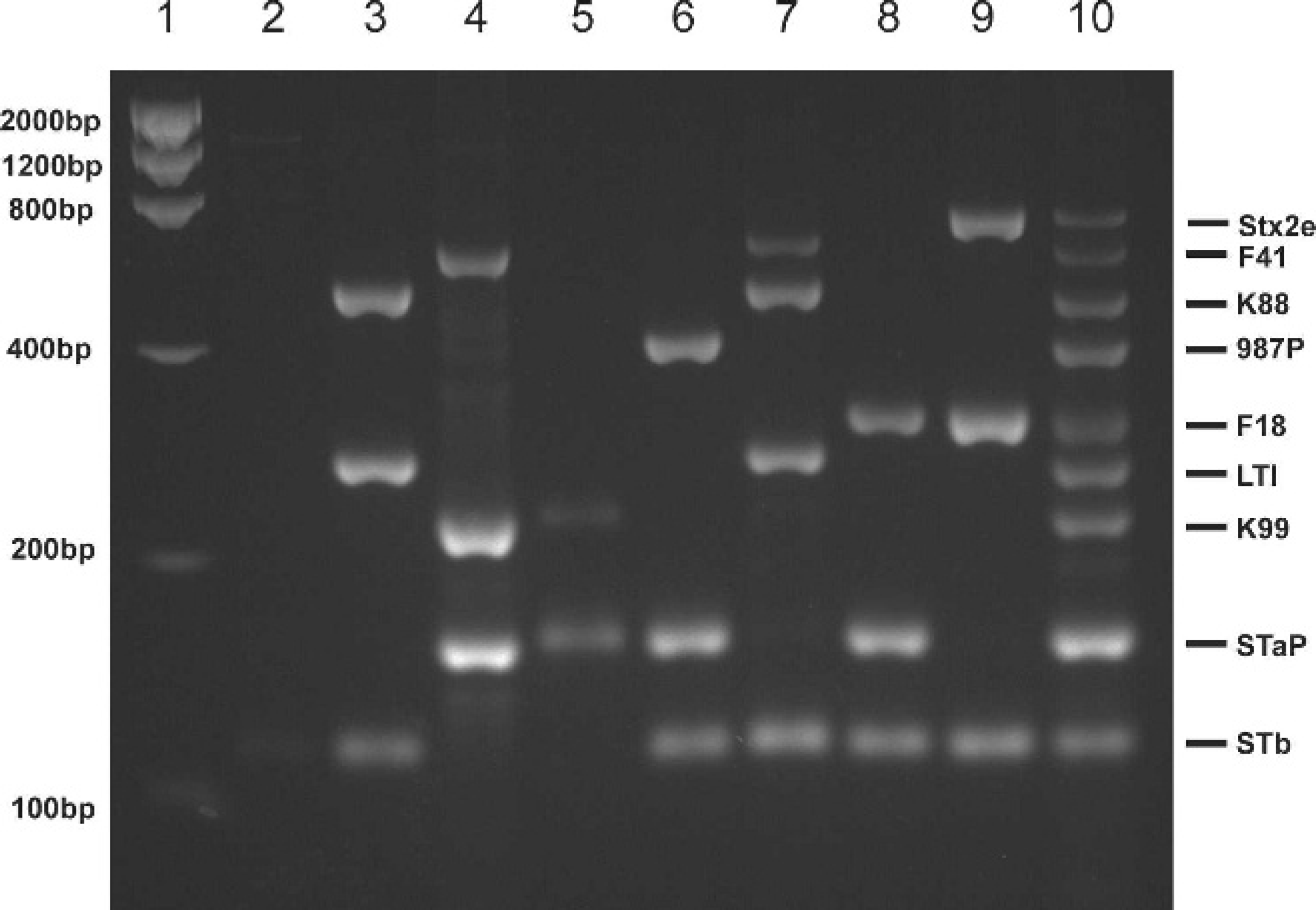

Figure 1.

Agarose gel showing multiplex polymerase chain reaction (mPCR) assays for detection of virulence genes. The sizes of the molecular size markers in lane 1 are shown on the left and on the right, the positions of the products for each of the 9 Escherichia coli virulence genes corresponding to the fragments in the positive control mixture in lane 10. Lane 2: nonadherent, nontoxigenic strain 123; lane 3: strain 263, K88ab⁺, LTI⁺, STb⁺; lane 4: strain 431, F41⁺, K99⁺, STaP⁺; lane 5, strain 637, K99⁺, STaP⁺; lane 6: strain 987, 987P⁺, STaP⁺, STb⁺; lane 7: strain 2041, F41⁺, K88ac⁺, LTI⁺, STb⁺; lane 8: strain 2134, F18ac⁺, STaP⁺, STb⁺; lane 9: strain 2228, Stx2e⁺, F18ab⁺, STb⁺; and lane 10: mixture of strain 431 (K99⁺, F41⁺, STaP⁺), strain 1477 (K88⁺, 987P⁺, LTI⁺, STaP⁺, STb⁺), and strain 2456 (F18⁺, LTI⁺, STaP⁺, STb⁺, Stx2e⁺).

An example of the products of mPCR assays for representative isolates is shown in Figure 1. Each isolate had characteristic PCR products with sizes corresponding to the presence of specific virulence genes previously demonstrated in these isolates by DNA hybridization using gene probes. The products from a positive control mixture of DNA templates from 3 strains (431, 1477, and 2456) are shown in Figure 1, lane 10. All of the PCR products were sufficiently resolved by gel electrophoresis in 4% agarose. The use of this positive control mixture containing products for all 9 virulence genes detectable using the mPCR assay allowed identification of PCR products for each virulence gene in other isolates.

The extent of sequence variations among some of genes encoding for virulence factors targeted by the mPCR assay described here has not been examined in detail. Sequence variations have been reported for genes encoding for K88 and F18 variants. 17,33 Subtypes of LT, STa, and Stx are also known. 18,26,36 The specificity of mPCR targeting genes for K88 and F18 was evaluated using additional strains carrying K88 or F18 antigenic subtypes. Human isolates that contain genes for STaH or Stx1 were also examined by the mPCR assay reported in the present study. Sixteen strains that have been antigenically characterized for their K88 subtype were examined. The 7 K88ab-, 6 K88ac-, and 3 K88ad-positive strains and the 17 K88- positive isolates with undetermined subtypes all carried faeG gene encoding for K88 in the mPCR assay. The primers for the fedA gene encoding for F18 adhesin amplified an appropriately sized fragment in strains that were either F18ab-positive (7 strains), F18ac-positive (10 strains), or F18-positive (16 strains) isolates that have not been characterized for antigenic subtype. The mPCR assay amplified products in all 31 isolates previously determined to be STaP positive by DNA hybridizations but did not amplify a product from the strains that carried the gene for STaH in any of the 8 strains examined. The primers for the stx2e gene, which were designed to amplify a region within the A subunit gene, amplified products of correct size for all 19 isolates previously found to be positive for stx2 by colony blot hybridization and also from stx2⁺ O157:H7 isolates (3 strains), but not from any of the 5 stx1⁺ isolates examined. The primers for the gene encoding for LTI did not amplify genes in any of the 8 isolates that hybridized with LTII probes. These results showed that the mPCR assay targeting genes for K88 and F18 was not specific for individual variants and amplified the respective genes from all K88- and F18-positive isolates, regardless of antigenic subtypes. However, primers for estA gene were specific for the gene encoding for STaP subtype; the stx2 primers were specific for stx2; and the eltB primers were specific for the gene encoding LTI. The discrimination of different subtypes of these virulence factor genes may not be necessary for routine diagnostics. However, if additional subclassification is desirable, several PCR and other methods have been reported that can be used for differentiating subtypes of K88 15 and F18. 5

Discussion

The current report describes the design and evaluation of an mPCR assay for genes encoding 5 different adhesins (K88, K99, F41, 987P, and F18) and 4 different toxins (LTI, STaP, STb, and Stx2) for the detection and characterization of E. coli that cause diarrhea and ED in swine. The primers amplified genes encoding for all 3 K88 subtypes, both F18 variants, STaP subtype LTI, and Stx2. These results corroborated earlier findings using colony blot hybridization with specific DNA probes to detect the presence of the virulence genes and confirm the specificity of the PCR primers. The mPCR assay is rapid and takes very little time for sample preparation. Batch preparation and lyophilization of PCR reaction components, including PCR tubes containing DNA templates for positive control strains, further strengthen the usefulness of the assay by reducing the potential for contamination. The usefulness of the multiplex PCR assay with the 9 primer sets reported in the present study, or slightly modified primers, has been demonstrated in reported surveys on the prevalence of E. coli virulence genes in porcine isolates from Iowa, North Carolina, and South Dakota. 24,32,40

There have been numerous other reports of PCR assays for a variety of virulence factor genes in porcine ETEC and ED isolates. 4,8,11,16,30,31,38 These were designed as either single assays or in a multiplex format for various combinations of known or suspected virulence genes associated with pathogenic E. coli. As an example, a comprehensive survey of 58 virulence genes in E. coli isolates from healthy pigs and pigs with diarrhea was recently reported using 18 different uniplex or multiplex PCR assays, with up to 7 primer sets in one of the assays. 8 These authors characterized the distribution of the 58 virulence genes associated with diverse pathotypes of E. coli in human and porcine isolates. The authors found a number of virulence genes in porcine isolates that had been identified previously in human isolates associated with extraintestinal or enterohemorrhagic diseases. The specific role of these additional suspected virulence genes in porcine diarrhea and ED is not known. In addition, many of the virulence genes in the mPCR assays 8 occur infrequently in porcine pathogenic E. coli, and may therefore not be useful for the routine diagnostic characterization of porcine E. coli isolates.

The virulence genes included in the mPCR for porcine pathogenic E. coli reported in the current study were selected because they are well characterized and have been shown to be prevalent in isolates from neonatal and postweaning diarrhea and ED. This mPCR assay rapidly detected all of the genes believed to be important in ETEC and ED pathogenesis. It has been demonstrated that ETEC expression of 1 or more of the adherence factors K88, K99, F41, 987P, or F18 is necessary for adherence to small intestinal epithelial cells. 28,29 Enterotoxigenic E. coli express single or multiple enterotoxins (LTI, STa, and STb) in the small intestine, which cause fluid secretion that results in diarrhea, or ED isolates express Stx2e, which is responsible for the neurological signs of ED. 19,29 Although the role of STb in the pathogenesis of ETEC in neonatal pigs has been questioned, 6 STb is still a good marker for ETEC porcine pathogens as the most prevalent suspected virulence gene. 4,25

Reports of PCR assays for specific genes associated with pathogenic E. coli have rarely confirmed the specificity of the primers used for amplification with more than a few characterized positive control strains. 4,8,11,16,30,31,38 Additional confirmation of PCR primer specificity could include Southern or colony blot hybridization, hybridization of an internal oligonucleotide probe in real-time PCR, restriction endonuclease analysis, or nucleotide sequencing of the product. 12 Each of these methods is valuable, but a choice was made in the present study to confirm the specificity of the PCR primers by examining a large group of strains that had previously been characterized by colony blot hybridization using cloned DNA probes for the virulence genes.

The main criteria for selection of primers were similar Tm values for all 9 primer sets and differences in amplicon size of about 100 bp, which could be resolved easily by agarose gel electrophoresis. The upper limit for the number of primer sets in a single PCR reaction is unclear. A limit on the number of genes detectable in an mPCR assay may be related to the number of products that can all be easily resolved by electrophoresis on a single gel and by the increasing probability of interactions among the primers. The present study included 9 different primer pairs, but it may be possible to include additional primers for other E. coli virulence genes if desirable. Regardless, the mPCR assay reported is capable of identifying and characterizing isolates with genes for virulence factors most frequently associated with pathogenic E. coli from swine. This assay should be useful for veterinary diagnostic laboratories and for others interested in diagnosis of colibacillosis and for rapid characterization of pathogenic E. coli from swine. It may also be useful for identifying novel E. coli pathotypes that contain novel virulence genes not amplified with the mPCR using a rationale similar to that used previously with colony blot hybridization data to identify the 2134P adhesin (F18ac) on E. coli isolated from weaned pigs. 7,27

Footnotes

a.

Science and Educational Software, Cary, NC.

b.

Roche Diagnostics Corp., Indianapolis, IN.

c.

Applied Biosystems, Foster City, CA.

d.

Savant Instruments, Farmingdale, NY.

e.

Reliant Gel System, Cambrex BioScience, Rockland, ME.

f.

Alpha Innotech, San Leandro, CA.

References

Altschul

Madden

Schaffer

: 1997, Gapped BLAST and PSI-BLAST: A new generation of protein database search programs Nucleic Acids Res 25: 3389–3402

Anderson

Moseley

: 1988, Escherichia coli F41 adhesin: genetic organization, nucleotide sequence, and homology with the K88 determinant J Bacteriol 170: 4890–4896

Bertschinger

Fairbrother

Nielsen

Pohlenz

: 1992, Escherichia coli infections In: Diseases of swine, ed. Leman

Straw

Mengeling

, pp. 487–521. Iowa State University Press, Ames, IA

Blanco

Gonzalez

: 1997, Genes coding for enterotoxins and verotoxins in porcine Escherichia coli strains belonging to different O:K:H serotypes: relationship with toxic phenotypes J Clin Microbiol 35: 2958–2963

Bosworth

Dean-Nystrom

Casey

Heibergs

: 1998, Differentiation of F18ab+ from F18ac+ Escherichia coli by single-strand conformational polymorphism analysis of the major fimbrial subunit gene (fedA) Clin Diagn Lab Immunol 5: 299–302

Casey

Herring

Schneider

: 1998, Expression of heat-stable enterotoxin STb by adherent Escherichia coli is not sufficient to cause severe diarrhea in neonatal pigs Infect Immun 66: 1270–1272

Casey

Nagy

Moon

: 1992, Pathogenicity of porcine enterotoxigenic Escherichia coli that do not express K88, K99, F41 or 987P adhesins Am J Vet Res 53: 1488–1492

Chapman

Barchia

: 2006, Comparison of virulence gene profiles of Escherichia coli isolated from healthy and diarrheic swine Appl Environ Microbiol 72: 4782–4795

Dallas

Falkow

: 1980, Amino acid sequence homology between cholera toxin and Escherichia coli heat-labile toxin Nature 288: 499–501

10.

de Graaf

Klaasen

: 1987, Nucleotide sequence of the gene encoding the 987P fimbrial subunit of Escherichia coli FEMS Microbiol Lett 42: 253–258

11.

Stephens

Townsend

: 2005, Rapid identification of virulence genes in enterotoxigenic Escherichia coli isolates associated with diarrhoea in Queensland piggeries Aust Vet J 83: 293–299

12.

Edwards

Gibbs

: 1994, Multiplex PCR: Advantages, development, and applications PCR Methods Appl 3:s65–s75

13.

Francis

: 1999, Colibacillosis in pigs and its diagnosis Swine Health Prod 7: 214–244

14.

Francis

: 2002, Enterotoxigenic Escherichia coli infection in pigs and its diagnosis J Swine Health Prod 10: 171–175

15.

Franklin

Francis

Baker

Mathew

: 1996, A PCR-based method of detection and differentiation of K88+ adhesive Escherichia coli J Vet Diagn Invest 8: 460–463

16.

Frydendahl

Imberechts

Lehmann

: 2001, Automated 5′ nuclease assay for detection of virulence factors in porcine Escherichia coli Mol Cell Probes 15: 151–160

17.

Guinee

Jansen

: 1979, Behavior of Escherichia coli K antigens K88ab, K88ac, and K88ad in immunoelectrophoresis, double diffusion, and hemagglutination Infect Immun 23: 700–705

18.

Guth

BEC

Twiddy

Trabulsi

Holmes

: 1986, Variation in chemical properties and antigenic determinants among type II heat-labile enterotoxins of Escherichia coli Infect Immun 54: 529–536

19.

Imberechts

De Greve

Lintermans

: 1992, The pathogenesis of edema disease in pigs. A review Vet Microbiol 31: 221–233

20.

Imberechts

De Greve

Schlicker

: 1992, Characterization of F107 fimbriae of Escherichia coli 107/86, which causes edema disease in pigs, and nucleotide sequence of the F107 major fimbrial subunit gene, fedA Infect Immun 60: 1963–1971

21.

Josephsen

Hansen

de Graaf

Gaastra

: 1984, The nucleotide sequence of the protein subunit of the K88ac fimbriae of porcine enterotoxigenic Escherichia coli FEMS Microbiol Lett 25: 301–306

22.

Lee

Moseley

Moon

: 1983, Characterization of the gene encoding heat-stable toxin II and preliminary molecular epidemiological studies of enterotoxigenic Escherichia coli heat-stable toxin II producers Infect Immun 42: 264–268

23.

Miller

: 1972. Experiments in molecular genetics. Cold Spring Harbor Press, Cold Spring Harbor, NY

24.

Moon

Hoffman

Cornick

: 1999, Prevalences of some virulence genes among Escherichia coli isolates from swine presented to a diagnostic laboratory in Iowa J Vet Diagn Invest 11: 557–560

25.

Moon

Schneider

Moseley

: 1986, Comparative prevalence of four enterotoxin genes among Escherichia coli isolated from swine Am J Vet Res 47: 210–212

26.

Moseley

Hardy

Huq

: 1983, Isolation and nucleotide sequence determination of a gene encoding a heat-stable enterotoxin of Escherichia coli Infect Immun 39: 1167–1174

27.

Nagy

Casey

Moon

: 1990, Phenotype and genotype of Escherichia coli isolated from pigs with post-weaning diarrhea in Hungary J Clin Microbiol 28: 651–653

28.

Nagy

Fekete

: 1999, Enterotoxigenic Escherichia coli (ETEC) in farm animals Vet Res 30: 259–284

29.

Nagy

Fekete

: 2005, Enterotoxigenic Escherichia coli in veterinary medicine Int J Med Microbiol 295: 443–454

30.

Ojeniyi

Ahrens

Meyling

: 1994, Detection of fimbrial and toxin genes in Escherichia coli and their prevalence in piglets with diarrhoea. The application of colony hybridization assay, polymerase chain reaction and phenotypic assays J Vet Med B 41: 49–59

31.

Osek

Gallien

Truszczynski

Protz

: 1999, The use of polymerase chain reaction for determination of virulence factors of Escherichia coli strains isolated from pigs in Poland Comp Immunol Microbiol Infect Dis 22: 163–174

32.

Post

Bosworth

Knoth

: 2000, Frequency of virulence factors in Escherichia coli isolated from pigs with postweaning diarrhea and edema disease in North Carolina Swine Health Prod 3: 119–120

33.

Rippinger

Bertschinger

Imberechts

: 1995, Designations F18ab and F18ac for the related fimbrial types F107, 2134P and 8813 of Escherichia coli isolated from porcine postweaning diarrhoea and from oedema disease Vet Microbiol 45: 281–295

34.

Roosendaal

Boots

de Graaf

: 1987, Two novel genes, fanA and fanB, involved in the biogenesis of K99 fimbriae Nucleic Acids Res 15: 5973–5984

35.

McCarthy

: 1980, Nucleotide sequence of the bacterial transposon Tn1681 encoding a heat-stable (ST) toxin and its identification in enterotoxigenic Escherichia coli strains Proc Natl Acad Sci U S A 77: 4011–4015

36.

Tesh

O'Brien

: 1991, The pathogenic mechanisms of Shiga toxin and the Shiga-like toxins Mol Microbiol 5: 1817–1822

37.

Weinstein

Jackson

Samuel

: 1988, Cloning and sequencing of a Shiga-like toxin type II variant from and Escherichia coli strain responsible for Edema Disease of swine J Bacteriol 170: 4223–4230

38.

West

Sprigings

Cassar

: 2007, Rapid detection of Escherichia coli virulence factor genes using multiplex realtime TaqMan PCR assays Vet Microbiol 122: 323–331

39.

Wray

Woodward

: 1997, Escherichia coli infections in farm animals In: Escherichia coli: mechanisms of virulence, ed. Sussman

, pp. 49–84. Cambridge University Press, Cambridge, United Kingdom

40.

Zhang

Zhao

Ruesch

: 2007, Prevalence of virulence genes in Escherichia coli strains recently isolated from young pigs with diarrheain the US Vet Microbiol 123: 145–152
