Development of a duplex rapid assay for immunoglobulins M and G to evaluate the parvoviral immune status of clinically healthy dogs

Canine parvovirus (CPV) is a nonenveloped virus with a capsid of ~25 nm in diameter that packages a single-stranded DNA genome of ~5,000 nucleotides. ⁴ The CPV genome contains 2 open reading frames (ORFs). ORF1 encodes for 2 nonstructural proteins (NS1 and NS2), and ORF2 encodes for 2 structural proteins (VP1 and VP2).^12,17 VP2 is the major capsid protein containing the antigenic determinant sites.^2,9,14 This antigen can be used for detection of CPV-specific antibodies in serum. CPV affects dogs of all ages, but severe infections occur predominantly in puppies after maternal antibodies have declined to low levels, generally between 2 and 4 months of age depending on the maternal antibody titer and level of transfer. ⁸ A diagnosis of CPV enteritis can be made based on clinical signs and virus detection using a detection assay. The humoral immune response correlates with the outcome of the disease, although the cellular immune response is also important in protection. ¹ Positive results of CPV immunoglobulin (Ig)M and IgG antibodies in serum provide veterinarians with useful information about the immune status regarding previous vaccinations or infections in unvaccinated healthy dogs.^7,15 Vaccination with a modified live viral vaccine is widely used and recommended at 6–8, 10–12, and 14–16 weeks of age, followed by a booster administered 1 year later and then every 3 years. ⁵ Dogs vaccinated against CPV have serum antibody titers that persist for 12–48 months and often require revaccination. ¹³ Maternal antibodies are passed to the newborn by intestinal absorption from colostrum. However, maternally derived immunity is the primary cause of failure of CPV vaccination.^6,16 Therefore, IgG antibodies can be used for assessment of immune status of puppies postvaccination.

Previous serologic studies showed that high levels of IgM antibodies to CPV were first detected 7 days after puppies were vaccinated and, after 9 days, all of the puppies had high titers of IgG antibodies to CPV.^11,15 Knowing the immune status of dogs to CPV is especially relevant in the case of animal populations in shelters and kennels. The adult animals should be protected by the vaccine, and CPV infection usually causes a mild disease; nevertheless, if there is a suspicious case in the population, it will be very important to know the levels of IgG and IgM of the dogs in order to take appropriate action. Several commercial assays are available for CPV IgM and IgG detection. ¹⁵ However, these techniques can only be performed in diagnostic laboratories by employing specialized equipment not commonly available in veterinary practices. A rapid and simple in-clinic assay would be very useful in CPV antibody detection. In the present study, we developed 2 easy and rapid assays for CPV IgG and IgM detection. Both assays are based on the CPV VP2 recombinant protein expressed in the baculovirus system as the target antigen for antibody detection. Initially, 2 indirect enzyme-linked immunosorbent assays (iELISAs) were developed by coating the VP2 protein onto 96-well plates to analyze dog sera. IgM and IgG levels against CPV in canine serum samples were detected with anti-canine IgM or anti-canine IgG monoclonal antibodies (mAbs;1AB4 and 1BH4, respectively).^a,b However, the detection of IgM by iELISA resulted in a high background signal in the analyzed sera. To solve this, an ELISA based on an antibody-capture format was developed in which anti-canine IgG or anti-canine IgM mAbs were used to coat plates. After adding serum samples, the VP2 recombinant protein followed by a specific mAb (4EA8) ^c to VP2 protein labeled with peroxidase was used to develop the reaction^3,10 (Fig. 1). In order to improve and adapt the assay to a rapid format, the 96-well plate support was substituted by 11-mm polyethylene immunotubes, ^d which are easier to handle given their size, and dilution of samples can be done directly in the immunotubes without predilution. As control samples, well-characterized pools of sera from CPV experimental infections in dogs were used. After testing different dilutions of the control samples, a 1:100 serum dilution was chosen as the optimal dilution for the assay. Using small fixed-volume disposable pipettes, 5 μL of serum and 500 μL of dilution buffer (0.33 M NaCl, 0.05% Tween-20 in phosphate buffered saline, pH 7.4) were added to the immunotubes. Incubation periods were 15 min at room temperature; washing was performed manually with washing buffer. Bound antibodies were detected by incubation with VP2 recombinant protein followed by peroxidase-labeled 4EA8 mAb and subsequent addition of the substrate tetramethylbenzidine (TMB). ^e The reaction was stopped with 0.002% sodium dodecyl sulfate solution converting the substrate to blue-green, which enabled the readout of the test to be done visually (Fig. 2). These features avoid the use of laboratory instruments, thus making the assay easy to perform and appropriate to be used in veterinary practices.

OPEN IN VIEWER

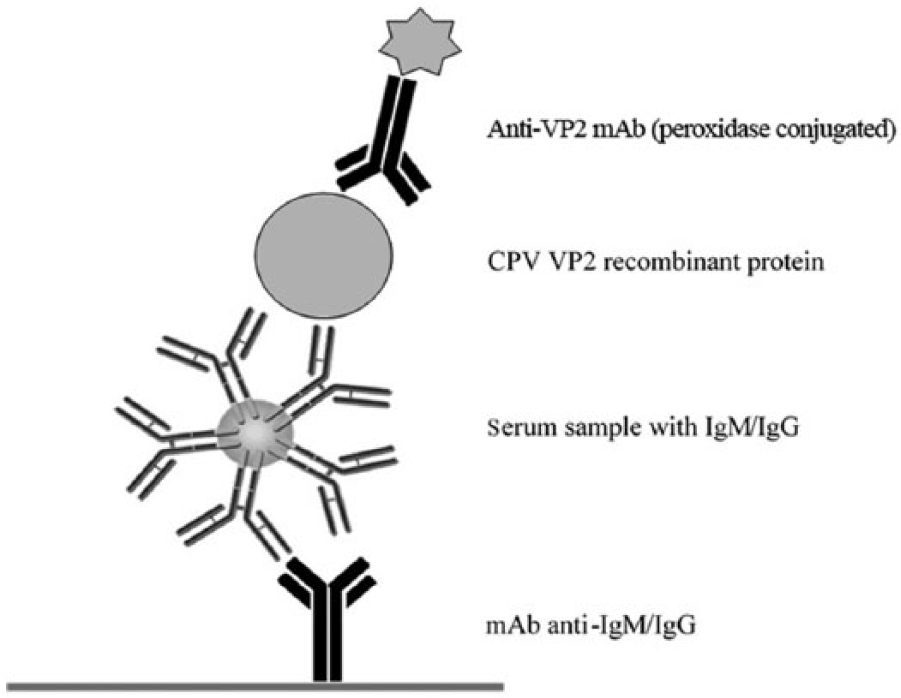

Figure 1.

Rapid assays for canine immunoglobulin (Ig)M or IgG detection. Canine IgM or IgG were captured in 2 separate immunotubes with anti-canine IgM or IgG monoclonal antibodies (mAbs) and then detected with canine parvovirus (CPV) VP2 recombinant protein and anti-VP2 mAbs conjugated with horseradish peroxidase.

OPEN IN VIEWER

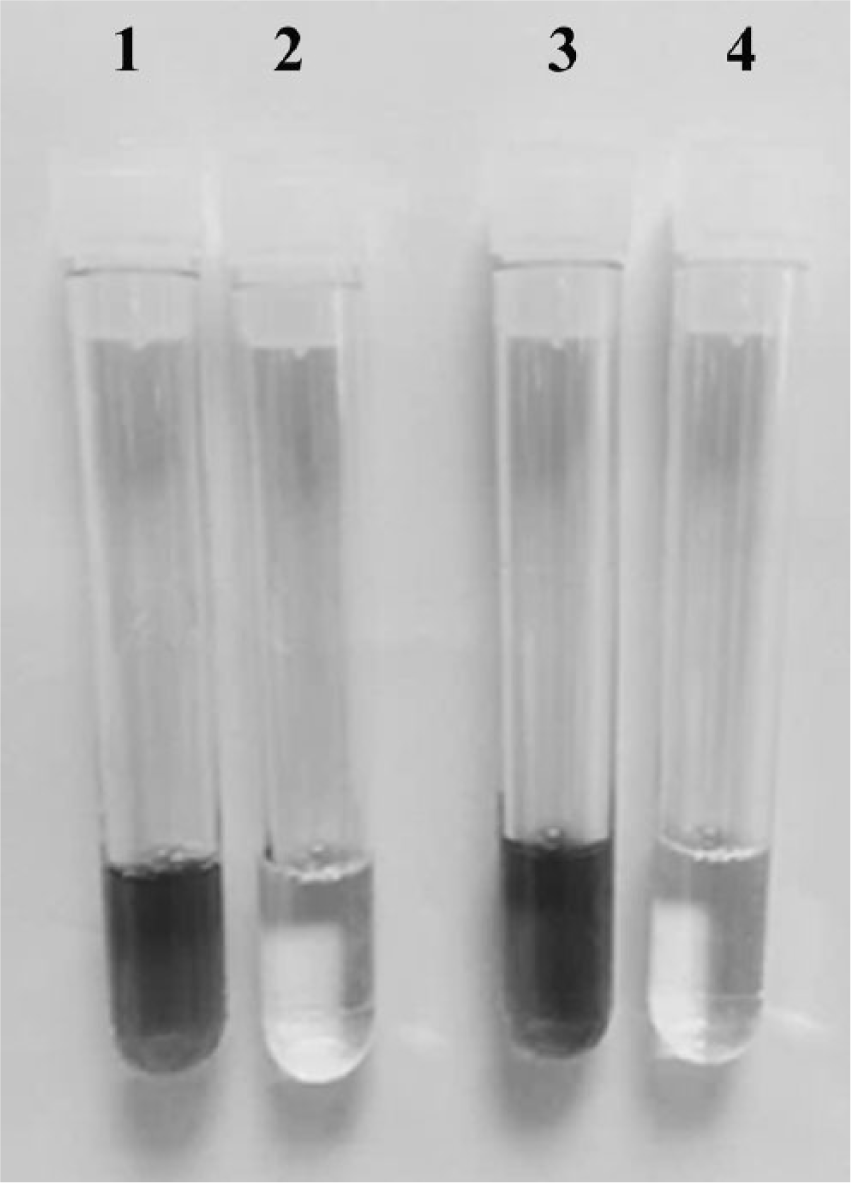

Figure 2.

Immunotubes with positive and negative canine parvovirus (CPV) antibody samples. The rapid assays were carried out in polyethylene immunotubes. 1: positive CPV immunoglobulin (Ig)M sample; 2: negative CPV IgM sample; 3: positive CPV IgG sample; and 4: negative CPV IgG sample.

The conditions for the CPV IgM and IgG rapid assays were optimized to be done in parallel as a duplex assay. In addition to visual interpretation, absorbance at 650 nm was measured in an ELISA reader in order to carry out statistical comparisons with the results obtained with 2 commercially available ELISA kits used as reference techniques.^f,g Serum samples from 41 stray dogs, of various breeds and ages, were provided by the Animal Protection Center (CPA) in Madrid. Most of the animals were vaccinated ^h against common canine diseases on arrival to the animal shelter. This vaccine ^h offers protection against parvovirus, hepatitis, parainfluenza, distemper, and leptospirosis. Serum samples from all dogs were collected between days 0–3 postvaccination. Then 1 or 2 additional samples from each animal were collected at different days and grouped into 3 sets as follows: 7–9, 10–13, and 14–17 days postvaccination. Serum samples were stored at −20°C until tested. A group of 14 samples from dogs not vaccinated at the CPA was also included in the study, and sera were collected at the same time points as the previous group. In total, 101 serum samples were analyzed and considered as individual samples for statistical purposes. Initially, the sera were analyzed by the commercial CPV IgM and IgG ELISAs, following the manufacturers’ instructions. Eight samples were IgM positive and 93 IgM negative by CPV IgM ELISA (Table 1; Fig. 3A). In the CPV IgG ELISA, 82 samples were positive and 19 negative for CPV IgG (Table 2; Fig. 3B). The same sera were tested by the rapid assay developed in immunotubes. Eight samples were positive for IgM (Table 1; Fig. 3A) and 80 for IgG (Table 2; Fig. 3B). The results obtained by the rapid assays were compared with the results obtained by the commercial ELISAs using statistical analysis software ⁱ (Fig. 3). The overall actual agreement between the rapid tests and the ELISA kits was 100% for the IgM assay and 98.0% for the IgG assay, and the kappa agreements were 1.0 for the IgM (Table 1) and 0.94 for the IgG assay (Table 2). The sensitivity was 100% for the IgM and 97.6% for IgG rapid assays. The specificity was 100% for the IgM and the IgG rapid assays.

OPEN IN VIEWER

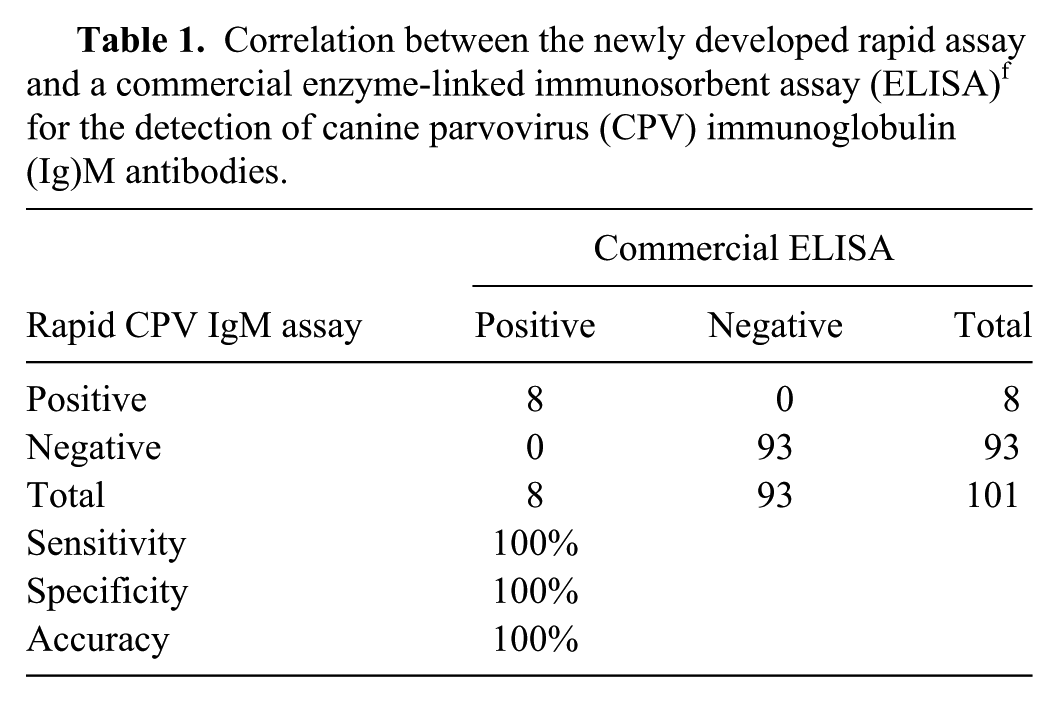

Table 1.

Correlation between the newly developed rapid assay and a commercial enzyme-linked immunosorbent assay (ELISA) ^f for the detection of canine parvovirus (CPV) immunoglobulin (Ig)M antibodies.

Rapid CPV IgM assay	Commercial ELISA
	Positive	Negative	Total
Positive	8	0	8
Negative	0	93	93
Total	8	93	101
Sensitivity	100%
Specificity	100%
Accuracy	100%

OPEN IN VIEWER

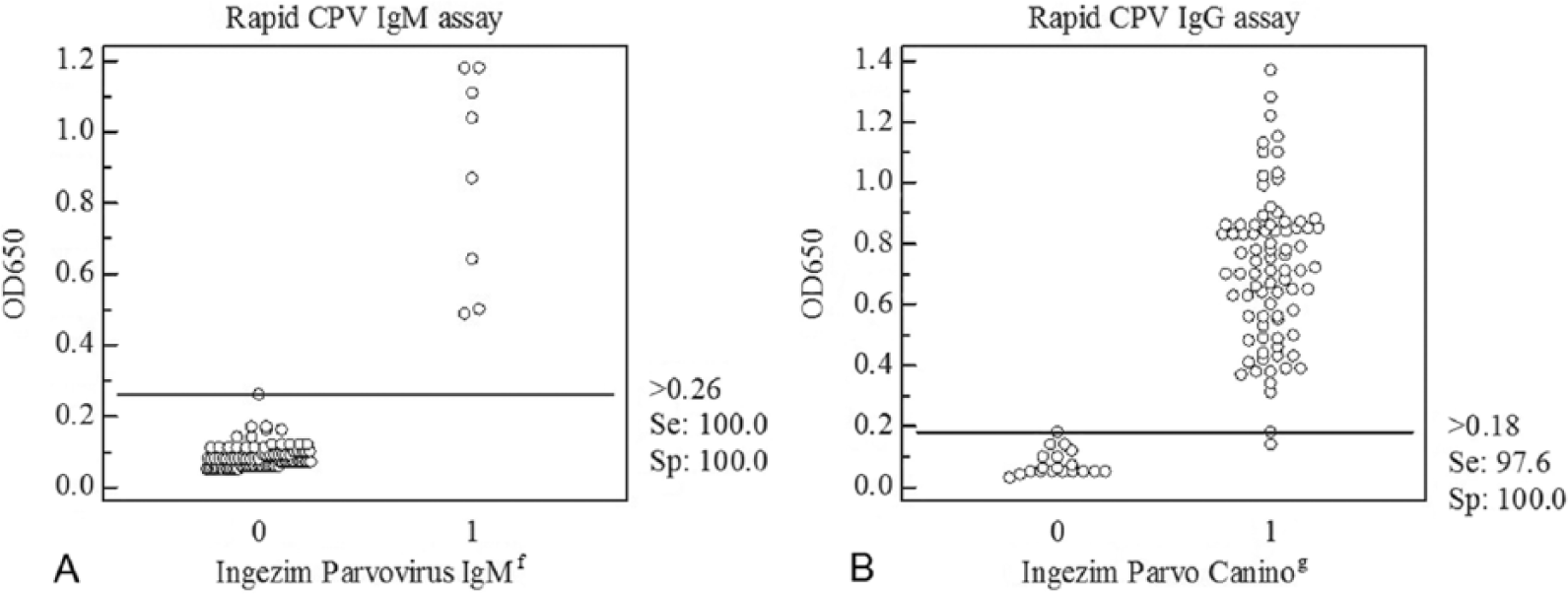

Figure 3.

Scatter plot of canine parvovirus (CPV) immunoglobulin (Ig)M and IgG levels. One hundred and one serum samples were analyzed with the duplex rapid assay, with commercial ELISA kits^f,g used as reference tests. Each dot represents an individual subject. Validation of the (A) rapid CPV IgM assay and (B) rapid CPV IgG assay. The horizontal solid line corresponds to the cutoff values in each assay. OD = optical density.

OPEN IN VIEWER

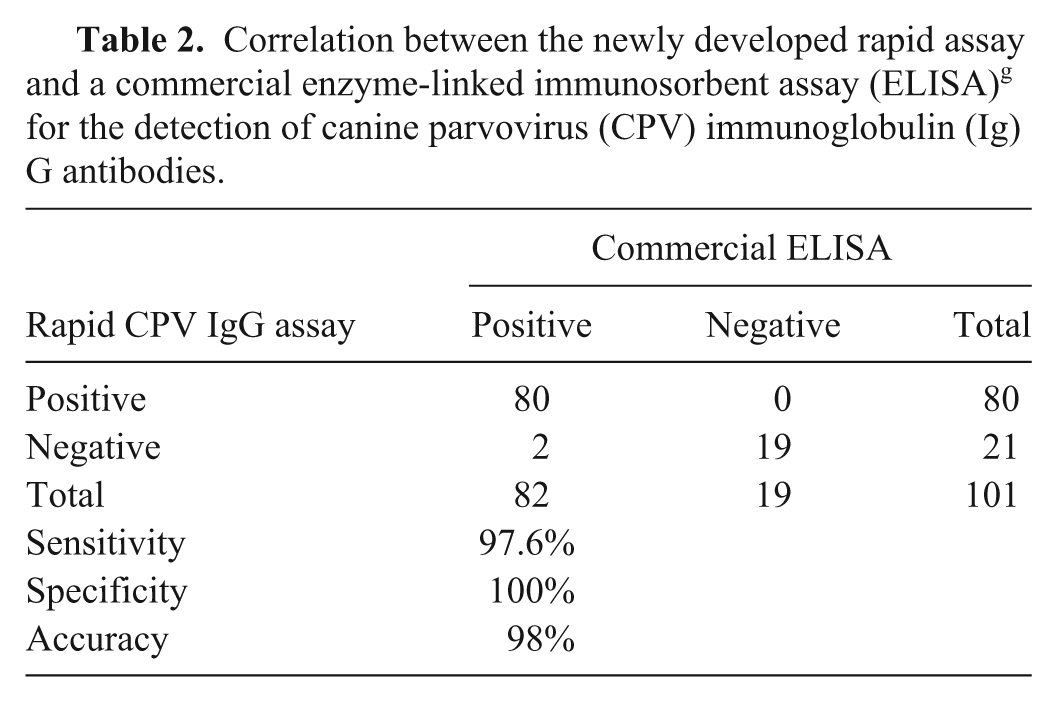

Table 2.

Correlation between the newly developed rapid assay and a commercial enzyme-linked immunosorbent assay (ELISA) ^g for the detection of canine parvovirus (CPV) immunoglobulin (Ig)G antibodies.

Rapid CPV IgG assay	Commercial ELISA
	Positive	Negative	Total
Positive	80	0	80
Negative	2	19	21
Total	82	19	101
Sensitivity	97.6%
Specificity	100%
Accuracy	98%

Seventy of the 101 samples that had been collected from CPV-vaccinated dogs at CPA were analyzed further. Because the information on their vaccination status and the time of sample collection was available, the samples from CPV-vaccinated dogs were classified based on their IgM and IgG levels and grouped by collection date postvaccination. Thirty of 70 samples were positive for IgG and negative for IgM antibodies against CPV at the first sampling at days 0–3 postvaccination, and the status remained unchanged during the 14 days thereafter (Fig. 4A). The results indicated that these dogs were CPV vaccinated or had acquired a CPV infection at some point before they arrived at the animal shelter; thus, no IgM seroconversion was observed. Most of the stray dogs in the animal shelter were most likely raised as pets previously, and therefore they were expected to be seropositive against CPV by vaccination. The other group that received the vaccine on arrival at the CPA had undetectable levels of IgM and IgG at days 0–3 postvaccination, and their IgM and IgG values increased during the 14 days thereafter (Fig. 4B). These results suggested that these dogs had either not been vaccinated or acquired a CPV infection before they arrived at the CPA and responded to the CPV vaccine by producing IgM and IgG. In the same way, samples from healthy dogs that were not vaccinated at the animal shelter were classified according to IgG and IgM levels. Of 14 sera analyzed, 9 had high IgG levels with undetectable levels of IgM, indicating that they came from dogs that were CPV vaccinated or had a CPV infection before they arrived at the shelter. In addition, 5 samples yielded undetectable IgM and IgG values (data not shown). These results indicated that these were CPV-naïve dogs (no prior vaccination or infection) and therefore these dogs would require a CPV vaccine to avoid CPV infection.

OPEN IN VIEWER

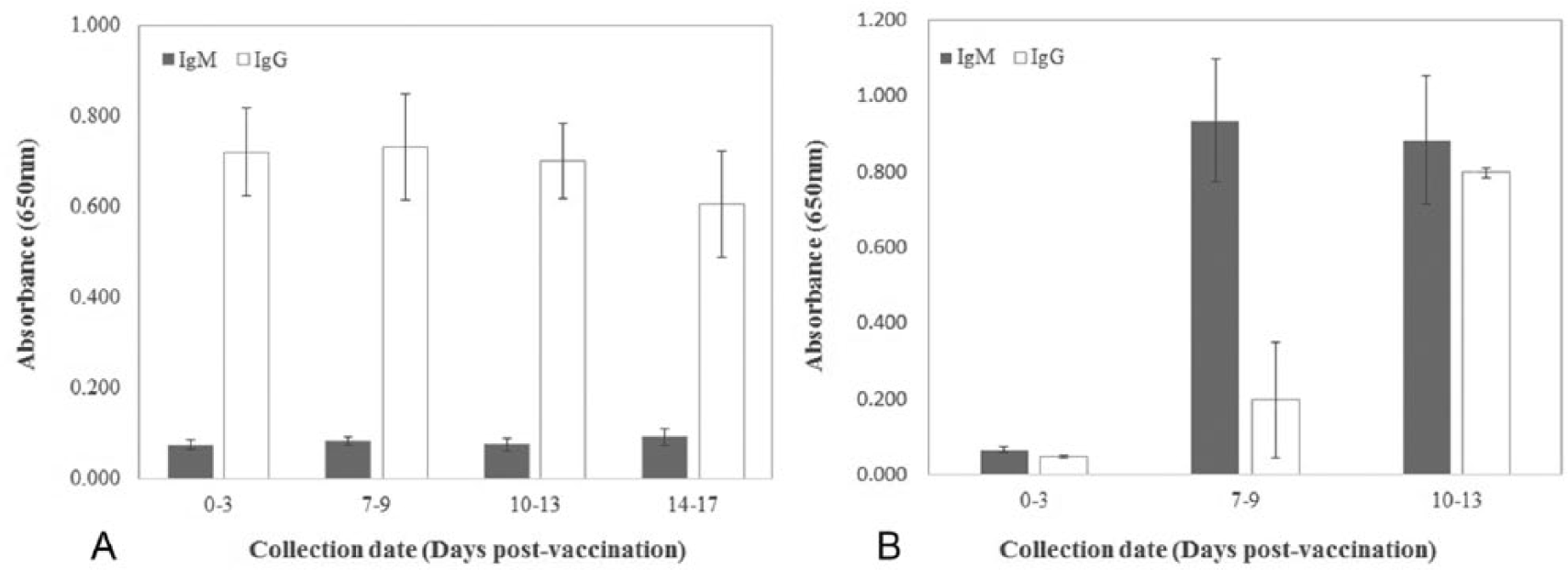

Figure 4.

Graph of immunoglobulin (Ig)M and IgG levels in serum samples from dogs vaccinated with canine parvovirus vaccine. A. The IgM and IgG levels of the group of samples with high IgG and low IgM levels at the time of vaccination at the Animal Protection Center (CPA; Madrid, Spain). B. IgM and IgG levels of a group of samples with low IgG and IgM levels at the time of vaccination at CPA. Bars represent the mean optical density of the serum samples included in each group plus the standard deviations.

The immune status of dogs to CPV could be determined using this newly developed CPV IgM–IgG duplex rapid assay in immunotubes. This assay can be easily performed without the need for laboratory instrumentation, and is intended to be used in the field. This test may be especially useful in determining the immune status of dogs to CPV in animal shelters.
