Evaluation of protein spectra cluster analysis for Streptococcus spp. identification from various swine clinical samples

The Streptococcus genus, which is composed of gram-positive cocci that grow in variable-length strings, consists of non-motile, catalase-negative, facultative anaerobes. ⁵ The genus comprises several pathogens that pose a serious threat to human and animal health. ¹⁰ Streptococcus suis is the most important species for the worldwide swine industry, as it is both a part of the upper respiratory tract microbiota, especially the tonsils and nasal cavity, and a significant cause of disease in 3–12-wk-old piglets. ⁵ The infection can cause meningitis, pneumonia, arthritis, endocarditis, septicemia, abscesses, and sudden death in peracute cases. However, several other Streptococcus species can infect swine and cause similar clinical manifestations. ⁵

Traditional microbiological methods, such as biochemical and serologic characterization, enable the identification of isolates of Streptococcus to the genus level. However, the species in the genus show broad phenotypic variation, making species-level identification difficult. ⁸ Molecular methods, especially 16S ribosomal (r)DNA sequencing, have revolutionized the taxonomy and nomenclature of the genus Streptococcus with >50 species and 6 species groups recognized to date. ⁴

Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) has become an important laboratory tool, providing rapid and accurate identification of bacterial species. ⁹ In our study, we assessed the application of the MALDI-TOF MS technique, as well as spectra cluster analysis, for the identification of diverse Streptococcus species, all of which are associated with disease in swine.

A total of 250 presumptive Streptococcus isolates were studied. The Streptococcus-like isolates were obtained from diseased pigs across different Brazilian states between 2001 and 2014. The conditions observed in these pigs were encephalitis, arthritis, pneumonia, metritis, urinary tract infection, and septicemia. The isolates were grown on Columbia blood agar plates ^a (5% defibrinated sheep blood) incubated aerobically for 24 h at 37°C. Single colonies were then inoculated into brain–heart infusion broth ^a supplemented with 5% fetal calf serum and incubated for 24 h at 37°C, for further bacterial protein and DNA extraction.

For MALDI-TOF MS sample preparation, bacterial proteins were extracted using an ethanol–formic acid protocol. ¹¹ The protein suspension (1 µL) was transferred to a polished steel MALDI target plate ^b and overlaid with 1 µL of matrix (10 mg/mL α-cyano-4-hydroxy-cinnamic acid in 50 % acetonitrile–2.5 % trifluoroacetic acid). Bacterial mass spectra in the 2–20 kDa range were acquired using a commercial mass spectrometer. ^c Spectra replicates were obtained by loading each sample into multiple spots and examining each spot twice. Initially, for MALDI-TOF MS identification, the spectra were loaded and compared with the manufacturer’s library. ^d Standard interpretive criteria ^b were applied: scores ≥2.0 were accepted for species assignment and scores ≥1.7 but <2.0 for genus identification. For further analysis, spectra replicates were used to generate a main spectrum ^e for each isolate. Cluster analysis ^e was performed using the number of different peaks detected and the unweighted pair group method with arithmetic mean method. Principal component analysis (PCA) ^e was also applied to analyze spectra homogeneity.

To confirm species identification, the biochemical profile of each isolate was characterized using an automated system, ^f and16S rDNA sequencing was also performed. DNA extraction was performed as described previously ² with prior enzymatic treatment with lysozyme (100 mg) ^g and proteinase K (20 mg) ^g at 37°C for 60 min. Partial gene amplification was performed as described previously. ¹² The polymerase chain reactions (PCRs: 50 μL) consisted of 5 μL of genomic DNA, ultrapure water, 10× PCR buffer, 1.5 mM MgCl₂, 200 μM of dNTPs, ^h 200 μM of each primer, and 1.25 U of Taq polymerase. ^h The amplicons were purified, ⁱ and sequencing was performed by the Human Genome Research Center (University of São Paulo, Brazil). A phylogenetic tree was constructed using the maximum-likelihood method. ^e The DNA sequences from our study were deposited in GenBank under accessions KR819485, KR819487–KR819494, KR819496, KR819498, KR819500, KR819502, KX485315, KX485314, KX500124, KX500127–KX500131, KX500136, KX500138, KX500139, KX500149–KX500156, and KX586713–KX586715.

The isolation sites (n = 250) of the Streptococcus strains were as follows: 117 (46.8%) were isolated from the central nervous system, 82 (32.8%) from the respiratory tract, 25 (10%) from joints, 13 (5.2%) from the genitourinary system, and 13 (5.2%) from the peritoneum, heart, blood, or a skin lesion (Table 1).

OPEN IN VIEWER

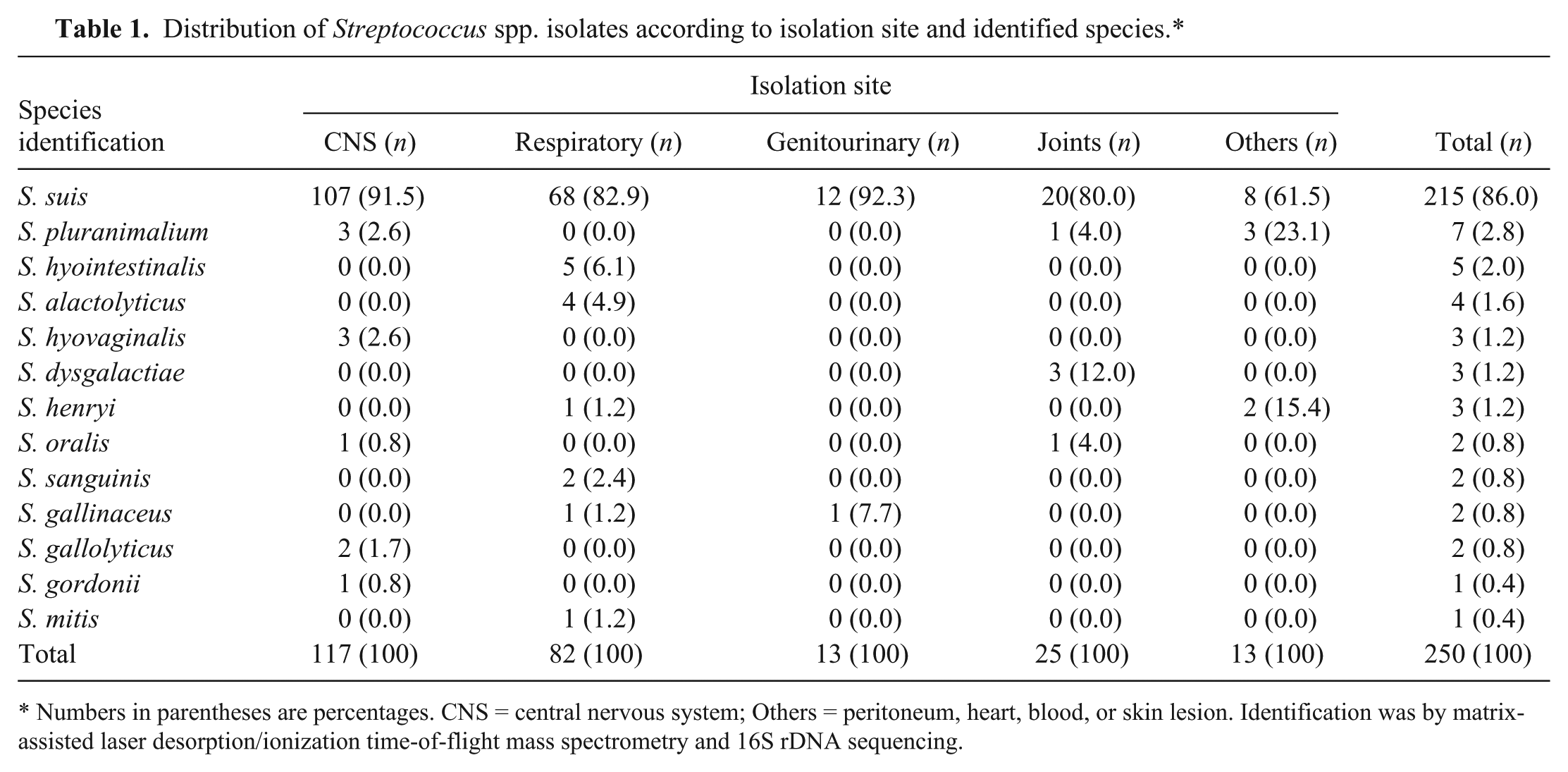

Table 1.

Distribution of Streptococcus spp. isolates according to isolation site and identified species.*

	Isolation site
Species identification	CNS (n)	Respiratory (n)	Genitourinary (n)	Joints (n)	Others (n)	Total (n)
S. suis	107 (91.5)	68 (82.9)	12 (92.3)	20(80.0)	8 (61.5)	215 (86.0)
S. pluranimalium	3 (2.6)	0 (0.0)	0 (0.0)	1 (4.0)	3 (23.1)	7 (2.8)
S. hyointestinalis	0 (0.0)	5 (6.1)	0 (0.0)	0 (0.0)	0 (0.0)	5 (2.0)
S. alactolyticus	0 (0.0)	4 (4.9)	0 (0.0)	0 (0.0)	0 (0.0)	4 (1.6)
S. hyovaginalis	3 (2.6)	0 (0.0)	0 (0.0)	0 (0.0)	0 (0.0)	3 (1.2)
S. dysgalactiae	0 (0.0)	0 (0.0)	0 (0.0)	3 (12.0)	0 (0.0)	3 (1.2)
S. henryi	0 (0.0)	1 (1.2)	0 (0.0)	0 (0.0)	2 (15.4)	3 (1.2)
S. oralis	1 (0.8)	0 (0.0)	0 (0.0)	1 (4.0)	0 (0.0)	2 (0.8)
S. sanguinis	0 (0.0)	2 (2.4)	0 (0.0)	0 (0.0)	0 (0.0)	2 (0.8)
S. gallinaceus	0 (0.0)	1 (1.2)	1 (7.7)	0 (0.0)	0 (0.0)	2 (0.8)
S. gallolyticus	2 (1.7)	0 (0.0)	0 (0.0)	0 (0.0)	0 (0.0)	2 (0.8)
S. gordonii	1 (0.8)	0 (0.0)	0 (0.0)	0 (0.0)	0 (0.0)	1 (0.4)
S. mitis	0 (0.0)	1 (1.2)	0 (0.0)	0 (0.0)	0 (0.0)	1 (0.4)
Total	117 (100)	82 (100)	13 (100)	25 (100)	13 (100)	250 (100)

*

Numbers in parentheses are percentages. CNS = central nervous system; Others = peritoneum, heart, blood, or skin lesion. Identification was by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry and 16S rDNA sequencing.

The MALDI-TOF MS identified all isolates with log (score) values >2.0. Of the 250 isolates studied, 215 (86%) were identified as S. suis; the remaining 35 (14%) belonged to S. alactolyticus, S. dysgalactiae, S. gallinaceus, S. gallolyticus, S. gordonii, S. henryi, S. hyointestinalis, S. hyovaginalis, S. mitis, S. oralis, S. pluranimalium, and S. sanguinis (Table 1; Fig. 1). The protein spectra cluster analysis enabled the distinction of the Streptococcus isolates according to the identified species. The S. gordonii, S. mitis, and S. oralis isolates tended to group together comprising a nonuniform cluster with higher proximity to the S. suis group (group highlighted by a red circle in Fig. 2). The clustering tendency of protein spectra per species was also evidenced by PCA (Fig. 2). The S. suis spectra comprise the largest group, as expected, and were separated from the spectra of the remaining Streptococcus species.

OPEN IN VIEWER

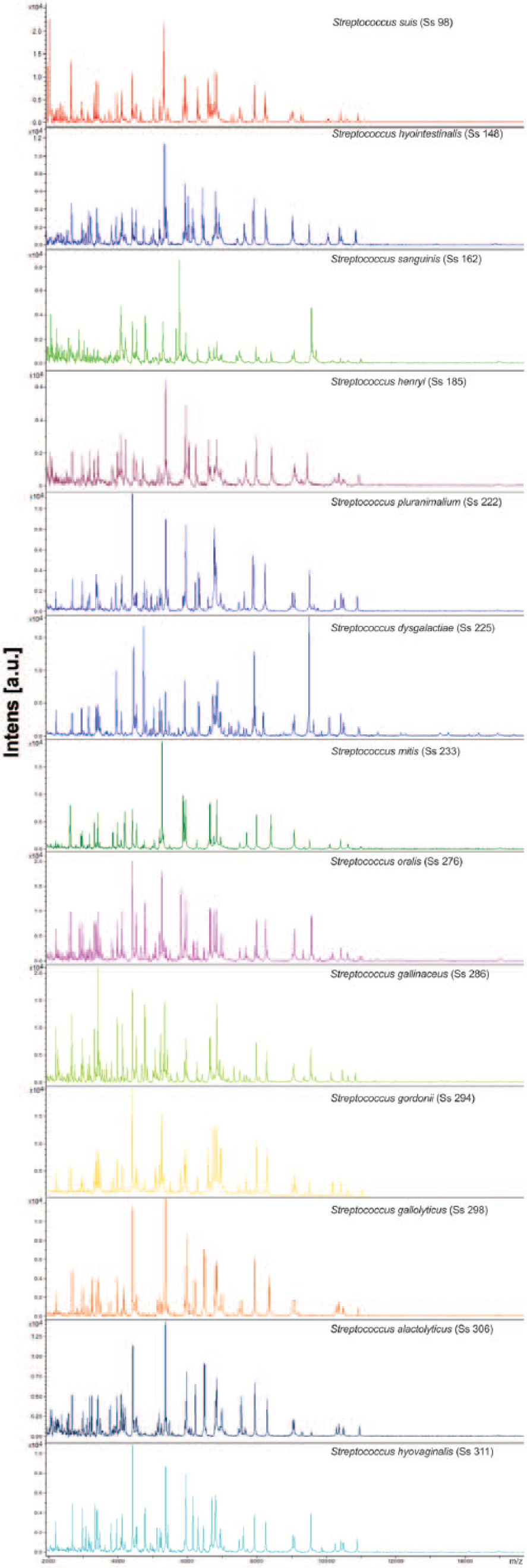

Figure 1.

Comparison of the protein spectra of the Streptococcus species examined in the current study.

OPEN IN VIEWER

Figure 2.

Principal component analysis of the spectra profiles of the Streptococcus spp. isolates. The color indicates the species. The “mitis-sanguinis” group species is within the red circle.

The 16S rDNA sequencing showed 99.2% agreement with MALDI-TOF MS for species identification; 2 S. pluranimalium isolates were misidentified as S. hyovaginalis by MALDI-TOF MS (SS224 and SS296). The phylogenetic tree (Supplemental Fig. 1, available at http://vdi.sagepub.com/content/by/supplemental-data) presents the field isolates and the Streptococcus type strains, and demonstrates the close relationship of the clusters comprised of the following pairs of species: S. hyovaginalis and S. pluranimalium; S. alactolyticus and S. gallolyticus; and S. mitis and S. sanguinis, as expected for these non–beta-hemolytic streptococci. ³ The high genetic similarity expected for the “mitis-sanguinis” group species (S. gordonii, S. mitis, S. oralis, and S. sanguinis) ⁸ was also observed and thus corroborated the clustering results of spectra analysis.

Among the 13 identified Streptococcus species, the automated biochemical system^g correctly identified all isolates of S. alactolyticus, S. dysgalactiae, S. gallolyticus, S. gordonii, S. hyointestinalis, S. mitis, S sanguinis, and S. suis. The isolates of S. gallinaceus, S. henryi, and S. hyovaginalis could not be identified, as these species are not included in the manufacturer’s database. The S. oralis and S. pluranimalium isolates were also not identified. Given that these species are in the database, it appears that the isolates of these species had biochemical profiles different from those contained in the manufacturer’s database.

The identification of Streptococcus species based on biochemical characterization is challenging because of their broad variation. ⁸ Even with the advent of commercial kits and automated systems, complete biochemical characterization of the species is still difficult. As an example, it has been reported that the Streptococcus-specific commercial identification kits achieve only an overall 50% correct identification level, with that level showing marked variation between species. ⁷ The automated system ^g used in our study appears to present a higher rate of correct identification. However, the system still has problems with closely related species, such as the “mitis-sanguinis” group, where misidentification can occur. ⁶ As shown in our study, the automated system ^g also has the disadvantage of a limited database, with some Streptococcus species absent, and a failure to recognize all possible biochemical variations for the species in the database.

The MALDI-TOF MS approach has been applied previously to a few Streptococcus species–specific studies^1,13 and proved to be a valuable tool for genus and species identification. Our results corroborate the relevance of MALDI-TOF MS for Streptococcus species identification. Furthermore, the topology of spectra cluster analysis appears to sustain the species phylogenetic similarities, further supporting MALDI-TOF MS analysis as a rapid and accurate alternative to 16S rDNA sequencing.

Even though S. suis was the most frequently isolated species, corroborating the importance of the organism for the swine industry, the remainder of the identified species may represent unrecognized pathogens that may have significance to swine health. Therefore, MALDI-TOF MS is not only a rapid and accurate tool for microbiologic diagnosis but it also enables the identification of species not yet recognized for the role that they play in animal health.
