Development and validation of SYBR Green- and probe-based reverse-transcription real-time PCR assays for detection of the S and M segments of Schmallenberg virus

Abstract

Schmallenberg virus (SBV), discovered in Germany in 2011, causes congenital malformations in ruminants. Reverse-transcription real-time PCR (RT-rtPCR) assays based on various segments of SBV have been developed for molecular detection. We developed alternative RT-rtPCR assays for SBV detection to avoid earlier reported mutations and hypervariable regions of the S and M segments of the viral genome. For SYBR Green-based detection of the S segment, the R² value and efficiency of the developed assay were 0.99 and 99%, respectively. For probe-based S segment detection, 2 assays were developed; the first had an R² value of 0.99 and 102% efficiency, and the second had a R² value of 0.98 and 86% efficiency. The probe-based M segment assay had an R² value of 1.00 and 103% efficiency. Detection limits of the RT-rtPCR assays with new primer sets were 10² and 10¹ copies/µL for the S and M segments, respectively. Field samples from cattle and sheep were also used for primary validation of the developed assays. Our assays should be suitable for SBV detection in ruminants and for in vitro studies of various SBV strains.

Keywords

M segment RT-rtPCR S segment Schmallenberg virus SYBR Green

Schmallenberg virus (SBV; Bunyavirales, Peribunyaviridae, Orthobunyavirus) was discovered in 2011 in Germany,¹³ and epidemiologic studies reveal that SBV is present in many European countries, including Turkey.^4,19 SBV has a 3-segment RNA genome consisting of small (S; 830 nt), medium (M; 4,415 nt), and large (L; 6,864 nt) segments.¹³

Studies have reported some mutations and hypervariable regions in SBV segments since the discovery of SBV.^7-9,14 The M segment contains a hypervariable region between 1,483–1,864 nt in German SBV isolates.⁹ The M segments of Belgian SBV isolates from sheep include the hypervariable region between 1,394–2,562 nt⁷ (Suppl. Fig. 1). The N-terminal region of the Gc protein, which is encoded by the M segment of SBV, harbors mutations, although other regions of the M segment of SBV are conserved. Although the S segment of SBV was found to be conserved,¹⁴ analysis of the S segment sequences reveals that the nonstructural protein coding region (57–332 nt) has many nucleotide substitutions.⁸ The L segment was found to contain point mutations, but all were silent.¹⁴

Reverse-transcription real-time PCR (RT-rtPCR) is commonly used to detect genome segments of various agents¹¹ including SBV.⁵ We developed SYBR Green- and probe-based alternative RT-rtPCR assays for detection of the S and/or M segments of SBV by using primers that were designed to avoid the reported mutations and hypervariable regions^7–9,14 of the S and M segments. We optimized and validated the selected primer sets in SYBR Green- and probe-based RT-rtPCR assays by using plasmids and field samples and compared efficiency, coefficient of correlation (R²), slope, and reproducibility or repeatability of the assays.

SBV (strain F6; GenBank accessions KC355457–KC355459 represent sequences from the 3 segments of SBV), from the laboratory of Dr. Wim H. M. van der Poel (Wageningen Bioveterinary Research), was propagated in Vero cells at 37°C in 5% humidified CO₂. SBV propagations were confirmed by RT-PCR with 382-469 primers⁵ and a plaque titration¹ assay (Suppl. Fig. 2).

Primer sets specific for the S and M segments of SBV were designed (LightCycler probe design software 2.0; Roche) to avoid possible mutation regions on the segments that have been reported (Suppl. Fig. 1).^7-9 Available SBV isolates in GenBank were used (n = 41 for S segment, n = 104 for M segment), and the most conserved regions in the S and M segments were selected as primer-binding sites. All primers and probes were synthesized by Ella Biotech (Planegg, Germany).

RNA samples were isolated (High Pure viral RNA kit; Roche), and reverse transcription was carried out as described earlier.² The S and M segments of SBV were amplified by conventional RT-PCR (Table 1). To amplify the full S segment (with AKASBV primers), cycling parameters were as follows: 95°C for 2 min, followed by 35 cycles of 95°C for 30 s, 54°C for 30 s, 72°C for 30 s, and final extension at 72°C for 6 min. To amplify the partial M segment (with M1-1107 primers), cycling parameters were as follows: 95°C for 2 min, 36 cycles of 95°C for 30 s, 54°C for 60 s, 72°C for 60 s, and final extension at 72°C for 10 min.

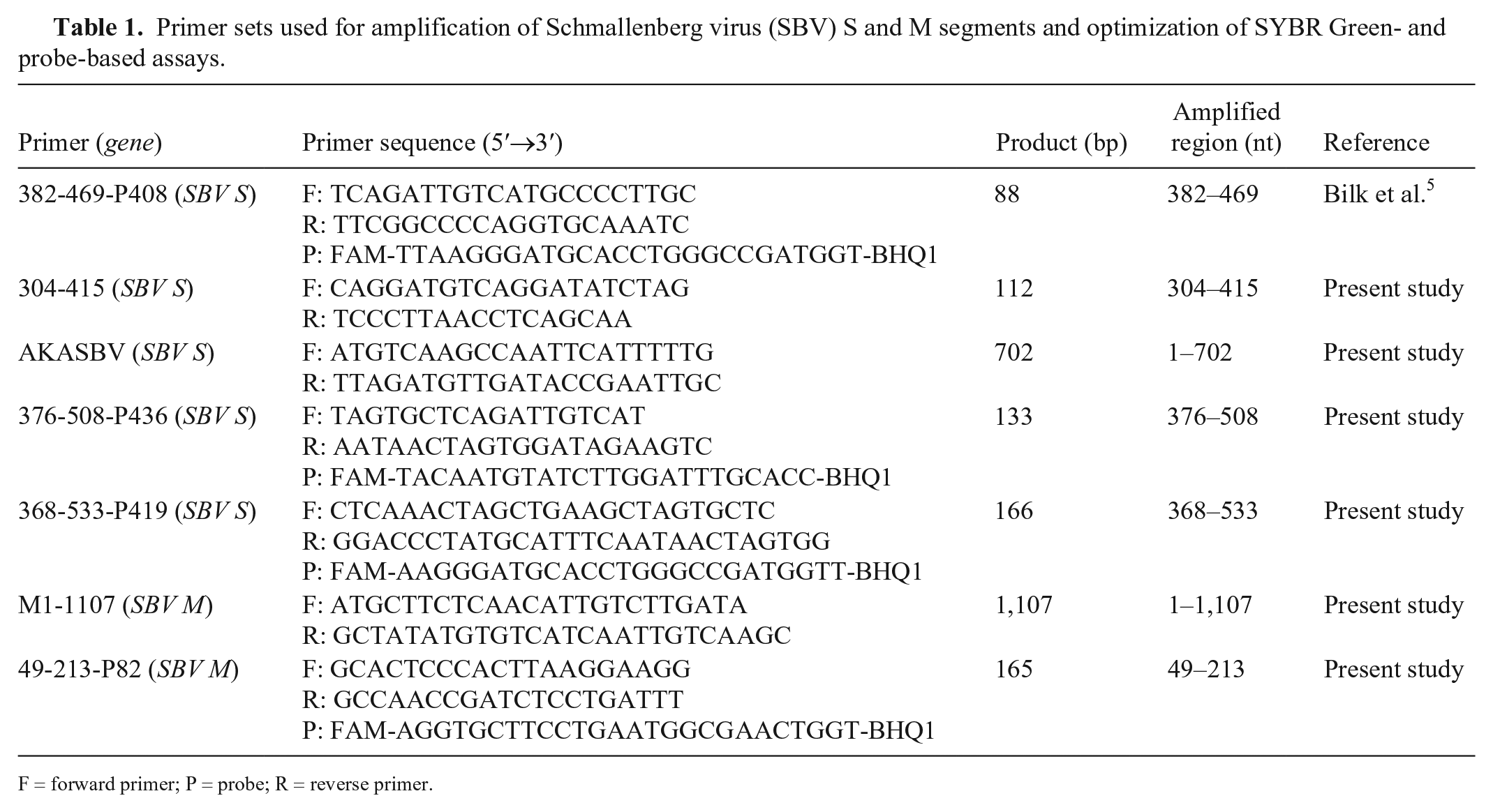

Table 1.

Primer sets used for amplification of Schmallenberg virus (SBV) S and M segments and optimization of SYBR Green- and probe-based assays.

Primer (gene)	Primer sequence (5′→3′)	Product (bp)	Amplified region (nt)	Reference
382-469-P408 (SBV S)	F: TCAGATTGTCATGCCCCTTGC R: TTCGGCCCCAGGTGCAAATC P: FAM-TTAAGGGATGCACCTGGGCCGATGGT-BHQ1	88	382–469	Bilk et al.⁵
304-415 (SBV S)	F: CAGGATGTCAGGATATCTAG R: TCCCTTAACCTCAGCAA	112	304–415	Present study
AKASBV (SBV S)	F: ATGTCAAGCCAATTCATTTTTG R: TTAGATGTTGATACCGAATTGC	702	1–702	Present study
376-508-P436 (SBV S)	F: TAGTGCTCAGATTGTCAT R: AATAACTAGTGGATAGAAGTC P: FAM-TACAATGTATCTTGGATTTGCACC-BHQ1	133	376–508	Present study
368-533-P419 (SBV S)	F: CTCAAACTAGCTGAAGCTAGTGCTC R: GGACCCTATGCATTTCAATAACTAGTGG P: FAM-AAGGGATGCACCTGGGCCGATGGTT-BHQ1	166	368–533	Present study
M1-1107 (SBV M)	F: ATGCTTCTCAACATTGTCTTGATA R: GCTATATGTGTCATCAATTGTCAAGC	1,107	1–1,107	Present study
49-213-P82 (SBV M)	F: GCACTCCCACTTAAGGAAGG R: GCCAACCGATCTCCTGATTT P: FAM-AGGTGCTTCCTGAATGGCGAACTGGT-BHQ1	165	49–213	Present study

F = forward primer; P = probe; R = reverse primer.

Whole S (702 bp) and partial M (1,107 bp) segments that were amplified by conventional RT-PCR were cloned into the pCR2.1 cloning vector (TA Cloning kit; Invitrogen) according to the manufacturer’s instructions. Selection of the S and M segment positive clones was carried out by PCR screening³ with the aforementioned segment-specific primers, and plasmid DNA was isolated (Invitrogen PureLink HiPure plasmid midiprep kit; Thermo Fisher Scientific). DNA concentrations of positive plasmids were measured by spectrophotometer (MSP touch-200; Inovia Teknoloji) and calculated using the formula described earlier.¹⁸ Concentrations were calculated as 10¹⁰ copies/µL for both the S and M segment plasmids. The S and M plasmids were 10-fold diluted, ranging from 10¹ copies/µL to 10⁹ copies/µL, in molecular-grade water.

The positive plasmid dilutions were used as standards in rtPCR assays that were performed with SYBR Green I master mix (Roche) and probes master mix (Roche) in a LightCycler 96 rtPCR instrument (Roche).

The SYBR Green-based assay was optimized in 20 µL of total reaction volume consisting of 1 µL of template, 2× SYBR Green I master mix, a final concentration of 500 nM of each primer, and PCR-grade water up to the final volume. The probe-based assays were performed with 1 µL of template, 2× probe master mix, a final concentration of 500 nM of each primer, a final concentration of 150 nM of probe, and PCR-grade water up to the final volume of 20 µL.

For detection of the S segment in the SYBR Green-based assay, the following profile was used: 10 min at 95°C, followed by 38 cycles of 10 s at 95°C, 10 s at 56°C, 10 s at 72°C. The profile for detection of the S segment in probe-based assays was: 10 min at 95°C, followed by 40 cycles of 15 s at 95°C, 20 s at 54°C, 30 s at 72°C. The M segment was detected using the profile of 10 min at 95°C pre-incubation, 40 cycles of 10 s at 95°C, 10 s at 55°C, 10 s at 72°C. Temperature profiles and melting curve analysis were evaluated using LightCycler 96 SW1.1 software (Roche).

The optimal annealing temperature of the 304-415 primers, 376-508-P436 and 368-533-P419 primers for S segment, and 49-213-P82 primers for M segment (Table 1) were 56°C, 54°C, and 55°C, respectively. The melting curve of 304-415 primers (Fig. 1A) and the amplification curves of SYBR Green- and probe-based assays (Fig. 1B–E) were generated using the same software. The detection limit of both SYBR Green- and probe-based assays for the S segment was 10² copies/µL. The detection limit of the probe-based assay for the M segment was 10¹ copies/µL.

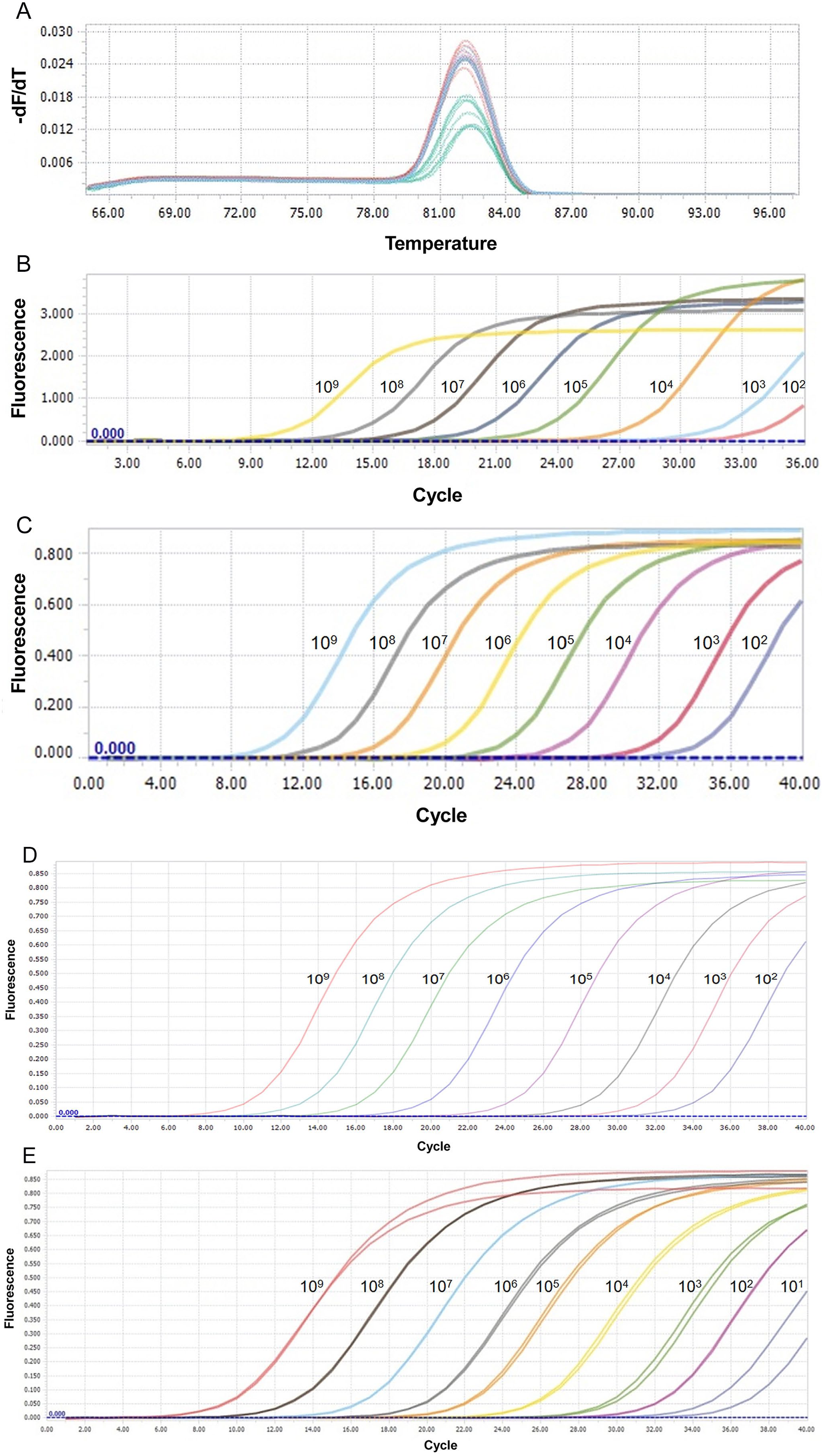

Figure 1.

A. Melting curve analyses of the 304-415 primers in the SYBR Green-based RT-rtPCR. The melting temperature of the 304-415 primers is 83.78-84.47°C. B. The amplification curves of 304-415 primers in the SYBR Green-based RT-rtPCR, and probe-based S segment detection with standard plasmid dilutions using the (C) 376-508-P436 primers-probe and (D) 368-533-P419 primers-probe. E. The amplification curve of the 49-213-P82 primers-probe in the probe-based M segment assay. 10¹–10⁹ indicate copies/µL of plasmid standards.

Efficiency, R² value, and slope of primers-probes were determined (Fig. 2A–D). The efficiency of the SYBR Green-based assay with the 304-415 primers were 99%, and the R² of the standard curve was 0.99 (Fig. 2A). The efficiency and R² value of the probe-based assay with the 376-508-P436 primers-probe, which was designed for the S segment, were 102% and 0.99, respectively (Fig. 2B). The 368-533-P419 primers-probe for probe-based S segment detection had 86% efficiency and R² value of 0.98 (Fig. 2C). The R² value was 1.00, and the efficiency was 103% for the rtPCR assay for the M segment (Fig. 2D).

Figure 2.

Standard curves of the newly designed primers with plasmid dilutions. A. The 304-415 primers, which detect the S segment, had 99% efficiency and R² = 0.99. B. The 376-508-P436 primers-probe, which targets the S segment in the probe-based assay, had 102% efficiency with R² = 0.99. C. The 368-533-P419 primers-probe, which targets the S segment in the probe-based assay, had 86% efficiency and R² = 0.98. D. M segment detection with the probe-based assay using 49-213-P82 primers-probe had efficiency of 103% and R² = 1.00. Means of cycle threshold (Ct) values of plasmid dilutions were plotted, and the efficiencies were calculated using the formula⁶: E = 10^-1/slope – 1 and multiplied by 100% for efficiency percent (E%).

In a well-optimized rtPCR assay, the slope of the standard curve should be −3.2 to −3.5, and the coefficient of correlation should be close to 1 (i.e., R² ≥ 0.98).¹⁷ Based on these results and according to plasmid standards, the assay for M segment detection was the most sensitive detection method for SBV.

To determine the sensitivity of the assays, 10-fold dilutions of standard plasmids of 10⁹–10¹ copies/µL were used. The intra-assay test was conducted with duplicates within the same run. The inter-assay test was performed as 3 different runs on different days. The mean, standard deviation (SD), and coefficient of variation (CV) were estimated for the intra- and inter-assay analyses. The R² of the standard curve and efficiency were calculated⁶ and multiplied by 100% to obtain the efficiency percentage (E%) using mean cycle threshold (Ct) values.¹⁵ Intra- and inter-assay variations were performed to assess the reproducibility and repeatability with the plasmid standards (10⁷,10⁶, 10⁵, 10⁴ copies/µL; Table 2).

Table 2.

Reproducibility and repeatability of SYBR Green- and probe-based RT-rtPCR assays for the S and M segments of Schmallenberg virus. The intra-assay test variability was conducted with duplicates within the same run. The inter-assay test was performed as 3 runs on different days.

Assay (primer-probe)	Reproducibility/ repeatability	Plasmid copies/µL	Ct (mean ± SD)	CV
SYBR Green-based, S segment (304-415)	Intra-assay	10⁷	17.6 ± 0.1	0.48
		10⁶	20.1 ± 0.5	2.35
		10⁵	24.0 ± 1.7	6.95
		10⁴	31.9 ± 0.1	0.24
	Inter-assay	10⁷	18.1 ± 1.3	7.39
		10⁶	21.7 ± 2.9	13.27
		10⁵	25.4 ± 2.8	10.90
		10⁴	30.2 ± 2.8	9.43
Probe-based, S segment (376-508-P436)	Intra-assay	10⁷	15.7 ± 0.1	0.90
		10⁶	18.7 ± 0.6	2.98
		10⁵	22.3 ± 0.2	0.73
		10⁴	26.4 ± 0.4	1.45
	Inter-assay	10⁷	16.2 ± 0.5	2.95
		10⁶	19.7 ± 0.6	3.23
		10⁵	23.0 ± 0.7	2.99
		10⁴	26.2 ± 0.4	1.56
Probe-based, S segment (368-533-P419)	Intra-assay	10⁷	14.8 ± 0.4	2.62
		10⁶	18.5 ± 0.1	0.61
		10⁵	21.8 ± 0.1	0.26
		10⁴	26.5 ± 0.2	0.64
	Inter-assay	10⁷	15.0 ± 0.7	4.74
		10⁶	18.6 ± 0.3	1.42
		10⁵	22.1 ± 0.4	1.60
		10⁴	26.8 ± 0.3	1.10
Probe-based, M segment (49-213-P82)	Intra-assay	10⁷	16.4 ± 0.1	0.43
		10⁶	19.8 ± 0.1	0.29
		10⁵	22.0 ± 0.1	0.55
		10⁴	25.6 ± 0.1	0.41
	Inter-assay	10⁷	16.1 ± 0.1	2.59
		10⁶	19.2 ± 0.3	3.08
		10⁵	21.7 ± 0.1	1.36
		10⁴	25.3 ± 0.1	1.51

Ct = cycle threshold; CV = coefficient of variation; SD = standard deviation.

The CVs of both probe-based assays for the S segment were lower than the SYBR Green-based assay, indicating that the probe-based RT-rtPCR is more reproducible (Table 2). Among the newly developed assays, the probe-based assay for the M segment had the highest reproducibility and repeatability (Table 2).

Following optimization of the assays, SBV-positive field samples (4 bovine sera, 8 sheep sera, and 8 sheep brain samples) obtained from the laboratory of Dr. van der Poel (Wageningen Bioveterinary Research) were tested for validation of the assays. The samples were collected from farms in which animals had acute clinical signs associated with SBV infection. Serum samples tested positive by virus isolation and/or demonstration of seroconversion using a virus neutralization test.¹⁶ Viral complementary DNA (cDNA) from SBV-positive field samples were further confirmed by the 382-469 primers⁵ and tested as positive (Suppl. Table 1). All primers-probes developed in our study were tested with samples of bovine rotavirus, bovine coronavirus, Epstein-Barr virus (positive human sera), Akabane virus cDNA, and Hazara virus S segment plasmid, and results were negative (data not shown).

The SYBR Green-based assay scored all 4 bovine and 16 ovine samples as positive (20 of 20) by using the 304-415 primers for detection of the S segment (Table 3). The results of the 304-415 primers were compatible with the results of the 382-469⁵ primers (Table 3; Suppl. Table 1). The Ct value of one sheep brain sample could not be determined in the 376-508-P436 assay but was detected at a Ct of 38.0 in the 368-533-P419 assay and was considered as suspicious (Table 3). The 49-213-P82 primers-probe for the M segment detected 19 samples as positive; 1 was considered as suspicious (Table 3). It was hypothesized that the 49-213-P82 primers-probe did not miss a positive signal because the primers-probe did not match any mutation region in the M segment. Consistent with the findings of others,¹² we detected the lowest Ct values in brain samples among sera and brain field samples (Table 3).

Table 3.

Cycle threshold (Ct) values of Schmallenberg virus genome positive bovine and ovine field samples tested with newly designed assays. Ct ≥37 and Ct ≥38 are considered as suspicious for probe-based S and M segment assays, respectively.

Sample	S segment assays			Probe-based M segment assay
	SYBR Green-based	Probe-based		Probe-based M segment assay
	304-415	376-508-P436	368-533-P419	49-213-P82
Bovine sera (n = 4)
1	29.4	32.5	33.0	31.2
2	32.6	35.5	34.4	35.0
3	32.1	34.4	35.7	38.4
4	31.6	34.8	35.1	34.9
Sheep brain (n = 8)
1	34.7	ND	38.0	34.1
2	34.1	36.3	38.1	34.9
3	25.8	28.5	31.8	31.5
4	29.3	32.6	33.9	33.7
5	15.1	18.2	19.8	22.4
6	29.2	33.0	34.8	33.2
7	16.6	20.2	21.8	24.1
8	28.5	32.2	34.2	32.5
Sheep sera (n = 8)
1	27.3	30.3	32.4	31.9
2	28.6	31.5	32.0	32.8
3	28.5	31.8	33.9	32.9
4	30.2	33.5	34.7	33.4
5	32.2	35.2	36.5	32.8
6	28.5	31.5	33.7	32.6
7	27.3	30.2	32.3	33.0
8	29.0	31.9	34.5	36.2

ND = not determined.

In a previous study, the 382-469-P408 primers⁵ for the S segment were found to be more sensitive than primers-probe that are specific for the M and L segments.¹⁰ The reason for this may be that the researchers¹⁰ designed the primers for the M segment for position 1,690–1,827 nt of the M segment, which has been determined to be a hypervariable region^7,9 (Suppl. Fig. 1). In our study, the 49-213-P82 primers-probe, specific for the M segment, does not target the positions that have been reported to be a hypervariable region (Suppl. Fig. 1). This may be the reason for the higher sensitivity of the M segment primers-probe in our study; mismatches between the primer and the M segment may reduce assay sensitivity.¹⁰ The 368-533-P419 assay for S segment detection and the 49-213-P82 assay for M segment detection could be useful and alternative tools for detection of SBV infections in ruminants and for detection of the SBV genome in in vitro assays.
