Bovine astrovirus and its role in lymphocytic encephalitis in cattle in Ontario,Canada,1988–2019

Selection of cases and controls

Postmortem case material and records were examined retrospectively, including cases of lymphocytic encephalitis, other forms of encephalitis, and non-neurologic disease. For all study groups, the inclusion criteria were as follows: cattle that were ≥ 4-mo-old at the time of death, and for which the whole body or tissues had been submitted to the Ontario Veterinary College or the Animal Health Laboratory from a farm in Ontario. Only one animal per premises was included. There were 3 study groups: 1) cattle with a history of neurologic disease and a histologic diagnosis of lymphocytic encephalitis or lymphocytic meningoencephalitis for which a cause was not identified (cases were excluded if inflammation was limited to the meninges); 2) cattle with a history of neurologic disease, and a histologic diagnosis of encephalitis or meningoencephalitis that was not lymphocytic (neutrophilic, histiocytic, or mixed encephalitis), for which a cause was not identified (animals were excluded if inflammation was limited to the meninges); and 3) cattle with no clinical history of neurologic disease and no histologic lesions in the CNS (hemorrhage from captive-bolt euthanasia was not considered a lesion).

Using the above criteria, the Animal Health Laboratory and Ontario Veterinary College pathology archives (January 1998–December 2019) were searched to identify cases and controls. Search terms to identify cattle, histologic lesions in the CNS, and any form of inflammation identified 258 such submissions (1998–2019), of which 50 fit the above criteria of a case of lymphocytic encephalitis, and 54 as other forms of encephalitis. Most of the 154 excluded were because a specific cause of encephalitis had been identified; others had only meningitis without encephalitis, or were too autolyzed. From submissions with no neurologic disease in the archive of 15,838 bovine pathology submissions (1998–2019), we selected 205 based on criteria for age, location, history, and availability of archived slides and paraffin blocks. A random number generator was used to select a similar number of negative control animals (n = 40 in total) matched by year to the lymphocytic encephalitis group.

H&E-stained histologic sections from all groups were evaluated (D Comeau), and questionable or suspect cases were reviewed (D Comeau and JL Caswell or RA Foster) to ensure that sufficient brain tissue was available and that the histologic lesions fit the criteria. As a retrospective study of diagnostic case material, the number and anatomic location of brain sections varied from case to case. For the included cases and controls, the paraffin block for the slide with the most histologically severe lesions was used for PCR testing. For cases with missing histology slides, new 4-μm sections were cut from the paraffin blocks and routinely stained with H&E. Samples were missing for 15 cases and 22 controls and these were excluded. In total, 35 cases of lymphocytic encephalitis, 32 controls with other forms of encephalitis, and 40 controls with no neurologic disease were included in the study from the 1998–2019 archive.

An additional 21 cases of lymphocytic encephalitis were selected from an older archive (1988–1998) using similar search terms and the same inclusion criteria as above. Control animals were not retrieved from this older archive because the objective was to compare the frequency of BoAstV infection in contemporary versus older cases.

Nucleic acid extraction and PCR testing

Samples were tested at the University of Guelph Animal Health Laboratory (AHL; Guelph, Ontario, Canada). Total nucleic acids were extracted from 128 formalin-fixed, paraffin-embedded (FFPE) tissue blocks. Tissue scrolls were prepared, transferred to 1.5-mL tubes, and ATL buffer (939011; Qiagen) followed by proteinase K (19131; Qiagen) and deparaffinization solution (19093; Qiagen) were added and incubated in a shaking heat block. Once samples cooled, 50 μL of the bottom phase was collected, and total nucleic acids were extracted (AM1836, MagMAX viral RNA isolation kit; MagMAX Express-96 magnetic particle processor; Thermo Fisher). Armored RNA enterovirus-like particles (42050; Asuragen) were added to the extraction kit lysis solution as an internal control.

PCR testing for BoAstV CH13/NeuroS1 and CH15 was performed on nucleic acids from 128 blocks, including 35 from the lymphocytic encephalitis group, 32 from the other encephalitis group, and 40 that had no brain disease, and an additional 21 cases of lymphocytic encephalitis from the older archive (for a total of 56 in the lymphocytic encephalitis group). Of the BoAstV-positive cases, only one (case 14) had additional non-neurologic tissues available, and the block containing multiple pieces of small intestine was also tested for BoAstV. The primers and probe for detecting BoAstV in FFPE tissue were designed by the AHL and run as a single-target assay (Suppl. Tables 1, 2). The design was based on sequences obtained from 4 cases of lymphocytic encephalitis and confirmed to have BoAstV via conventional PCR and sequencing. ⁴¹ Using these sequences and additional sequences available in GenBank, PCR primers were designed to target the ORF2 of BoAstV CH13/NeuroS1, and the ORF2 of CH15. BLAST analysis (https://blast.ncbi.nlm.nih.gov/Blast.cgi) of these primers and probe confirmed their target. This test was compared with a published assay for bovine neurotropic astroviruses.^29,40 The test was run as a triplex assay that included the AHL-designed primers, the primers from the published assay, and the internal control (armored enterovirus). The positive control was case material known to be positive for BoAstV by conventional PCR and sequencing. Serial dilutions made from this control were used to generate a curve. If the cycle threshold (Ct) value for the positive control fell outside of 30 ± 5, the run was discarded and repeated. The negative control was PBS buffer without nucleic acids.

Histology and immunohistochemistry

All BoAstV-positive cases were re-examined histologically to allow a descriptive summary of the distribution and character of the lesions found in cases of astroviral encephalitis. Quantitative analysis of the lesions was not an objective of our study. The 4 recent positive cases (cases 11–14) were further characterized by immunohistochemistry (IHC) to identify the types of leukocytes within the inflammatory foci. Only recent cases were included because of concerns of poor antigen preservation and retrieval in older cases with unknown duration of formalin fixation and prolonged FFPE tissue storage. For each case, the block with the most significant lesions was selected for IHC. The antibodies used included ionized calcium-binding adapter molecule 1 (Iba1; rabbit polyclonal, Waco), CD3 (A0452, rabbit polyclonal; Dako/Agilent), and PAX5 (clone 24 [formerly known as BC/24], mouse monoclonal; Biocare Medical). The negative controls were the sections of brain processed without the primary antibody, and the positive controls were canine lymph node, spleen, and tonsil, as these antibodies were previously validated and used in routine test panels at the AHL.

Cases positive for EEEV and BVDV on PCR testing were further examined using IHC for these agents. BVDV (15C5, mouse monoclonal antibody; Idexx) and EEEV (1A4B-6, mouse monoclonal antibody; Public Health Agency of Canada) were run following the procedures for routine testing as previously validated through the AHL. The negative controls were sections of the brain processed without the primary antibody, and the positive control tissues were equine brain (EEEV) and bovine ear notch tissue (BVDV).

Testing for additional pathogens

Following the PCR results for BoAstV, all cases of lymphocytic encephalitis were tested by PCR for other viruses and bacteria known to cause lymphocytic encephalitis in juvenile or adult cattle in Ontario, including RABV, OvGHV2 BoAHV1, WNV, EEEV, BVDV, L. monocytogenes, and Chlamydia pecorum. Bovine adenovirus (BAdV; Adenoviridae), bovine respiratory syncytial virus (BRSV; Pneumoviridae, Orthopneumovirus bovis), and bovine parainfluenza virus 3 (BPIV3; Paramyxoviridae, Respirovirus bovis) were also tested in these multiplex PCR panels. The samples were tested by previously described real-time PCR methods used routinely at the AHL for BVDV, EEEV, WNV, and RABV.^2,24–26,32 Chlamydia (all species) were tested using unpublished primers that were previously validated at the AHL for diagnostic cases (Andre Hamel, pers. comm., 2020). Primers and probes for OvGHV2, BoAHV1, BRSV, and BPIV3 PCR assays were designed in-house (Suppl. Table 1) and had been validated by the AHL. OvGHV2, L. monocytogenes, and the pan-Chlamydia PCR tests were single-target assays; BoAHV1, BRSV, and BPIV3 PCR tests were triplex assays. PCR for all viruses was carried out in 25-µL reactions (Ag Path-ID one-step RT-PCR kit, Thermo Fisher; Light Cycler 480, Roche; Suppl. Table 2). Samples with Ct < 37 were considered positive. For L. monocytogenes testing, the PCR was performed (208454, QuantiNova multiplex PCR kit; Qiagen) as described previously ¹⁸ (Suppl. Tables 3, 4).

Statistical analysis

A chi-square test was used to compare the frequency of positive versus negative BoAstV results between the cases and each control group. To compare the frequency of BoAstV over time, the cases were divided into 2 groups encompassing the same number of years (1990 to mid-2005 and mid-2005 to 2019) and tested by chi-square. Analyses were performed in Prism (v.6; GraphPad).

Frequency of astroviral infection

Of the 35 cases of previously diagnosed idiopathic lymphocytic encephalitis (1998–2019), 4 cases (11%) were positive by RT-qPCR for BoAstV CH13/NeuroS1. The Ct for these cases was 30.3–35.1. One case occurred in 2017 (case 14), 2 in 2016 (cases 12, 13), and 1 in 2014 (case 11; Table 1, Suppl. Table 5). All cases had severe lymphocytic inflammation throughout all sections of the brain examined, including cerebrum, thalamus, midbrain, cerebellum, and medulla oblongata (described in more detail below). The intestinal tissue available from case 14 tested negative. None of the samples tested positive for BoAstV CH15.

OPEN IN VIEWER

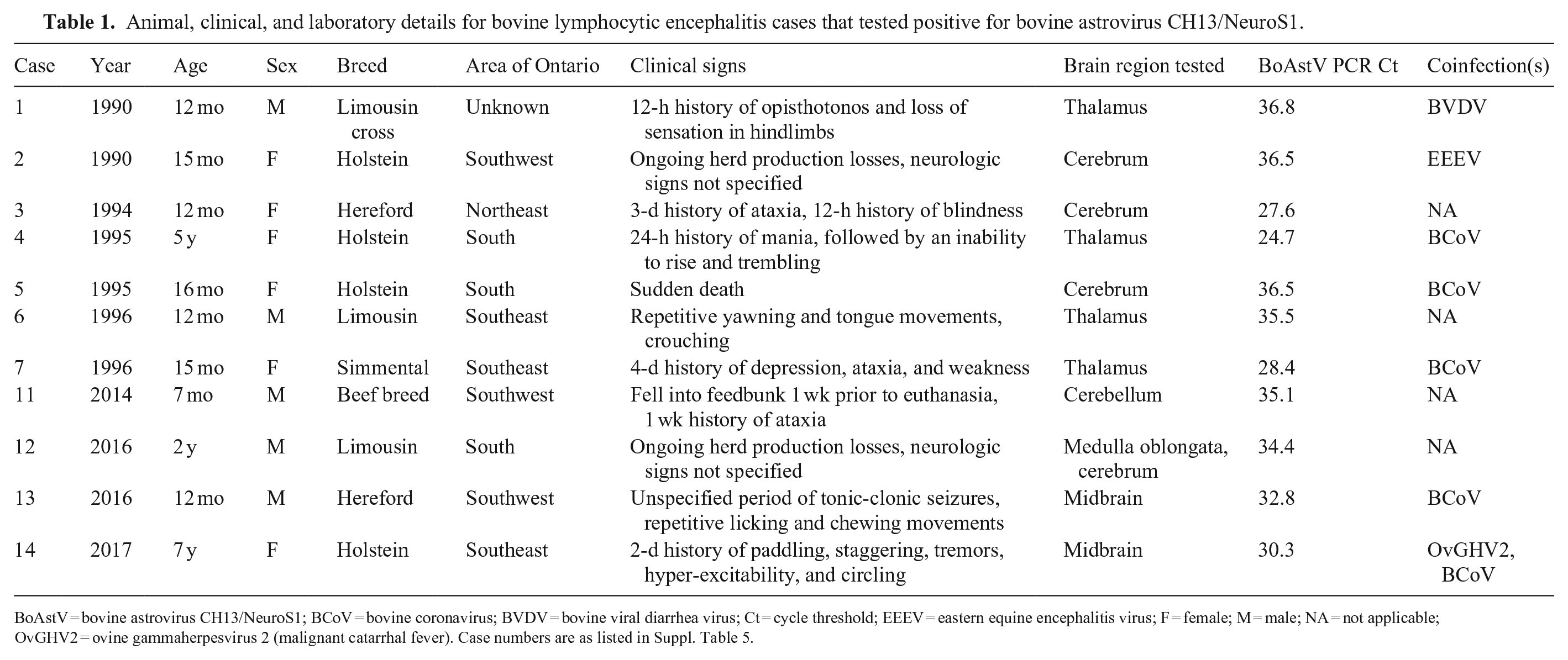

Table 1.

Animal, clinical, and laboratory details for bovine lymphocytic encephalitis cases that tested positive for bovine astrovirus CH13/NeuroS1.

Case	Year	Age	Sex	Breed	Area of Ontario	Clinical signs	Brain region tested	BoAstV PCR Ct	Coinfection(s)
1	1990	12 mo	M	Limousin cross	Unknown	12-h history of opisthotonos and loss of sensation in hindlimbs	Thalamus	36.8	BVDV
2	1990	15 mo	F	Holstein	Southwest	Ongoing herd production losses, neurologic signs not specified	Cerebrum	36.5	EEEV
3	1994	12 mo	F	Hereford	Northeast	3-d history of ataxia, 12-h history of blindness	Cerebrum	27.6	NA
4	1995	5 y	F	Holstein	South	24-h history of mania, followed by an inability to rise and trembling	Thalamus	24.7	BCoV
5	1995	16 mo	F	Holstein	South	Sudden death	Cerebrum	36.5	BCoV
6	1996	12 mo	M	Limousin	Southeast	Repetitive yawning and tongue movements, crouching	Thalamus	35.5	NA
7	1996	15 mo	F	Simmental	Southeast	4-d history of depression, ataxia, and weakness	Thalamus	28.4	BCoV
11	2014	7 mo	M	Beef breed	Southwest	Fell into feedbunk 1 wk prior to euthanasia, 1 wk history of ataxia	Cerebellum	35.1	NA
12	2016	2 y	M	Limousin	South	Ongoing herd production losses, neurologic signs not specified	Medulla oblongata, cerebrum	34.4	NA
13	2016	12 mo	M	Hereford	Southwest	Unspecified period of tonic-clonic seizures, repetitive licking and chewing movements	Midbrain	32.8	BCoV
14	2017	7 y	F	Holstein	Southeast	2-d history of paddling, staggering, tremors, hyper-excitability, and circling	Midbrain	30.3	OvGHV2, BCoV

BoAstV = bovine astrovirus CH13/NeuroS1; BCoV = bovine coronavirus; BVDV = bovine viral diarrhea virus; Ct = cycle threshold; EEEV = eastern equine encephalitis virus; F = female; M = male; NA = not applicable; OvGHV2 = ovine gammaherpesvirus 2 (malignant catarrhal fever). Case numbers are as listed in Suppl. Table 5.

None of the animals with other forms of encephalitis (n = 32) or without encephalitis (n = 40) tested positive for BoAstV. The frequency of BoAstV-positive PCR tests in animals with lymphocytic encephalitis (4 of 35) was significantly different from those with other forms of encephalitis (p = 0.048, chi-square test) and those without encephalitis (p = 0.028).

Of the additional 21 older cases of lymphocytic encephalitis (1988–1998), 7 (33%) tested positive. An additional 3 cases (14%) were inconclusive with Ct of 37.1, 38.5, and 39.2; all 3 cases tested negative on repeat testing of new scrolls, from different blocks of brain if available, and were thus considered negative. Thus, in total (1988–2019), 56 cases of idiopathic lymphocytic encephalitis were tested via RT-qPCR for BoAstV, and 11 (19%; 95% CI: 10–32%) were positive (Table 1; Suppl. Table 5).

The frequency of BoAstV-positive cases was compared between older (1990 to mid-2005) and more recent cases (mid-2005 to 2020). There was no significant difference in the proportion of astrovirus infections in cases from 1990–2005 (7 of 34; 21%) versus 2005–2020 (4 of 22, 18%; p = 0.82, chi-square test).

Characterization of BoAstV-positive cases

Of the 11 BoAstV-positive animals, 1 was < 1-y-old (7 mo), 8 were 1–2-y-old, and 2 were > 2-y-old. Both sexes, dairy and beef breeds, and different regions of the province were represented (Table 1). One case was found dead; the others with available information had neurologic signs of at least 12 h duration, with a disease course lasting up to 1 wk before death or euthanasia (Table 1).

The hallmark histologic lesions of viral encephalitis, which formed the inclusion criteria for lymphocytic encephalitis cases in our study, include perivascular cuffing by lymphocytes with or without plasma cells, diffuse and/or focal gliosis, and neuronal necrosis.^7,8 Cases varied in the number of sections and regions of brain available. The BoAstV-positive cases had lesions in all levels of the brain, including 9 of 11 sections of cerebrum, 5 of 6 of thalamus, 9 of 10 of midbrain, 5 of 7 of cerebellum, and 4 of 5 of medulla oblongata (Table 2). Perivascular cuffs were present in both the gray and white matter, often at the border between these 2 regions. Overall, perivascular cuffing was more frequent in the white matter (Figs. 1, 2), but the predominance of gray versus white matter lesions varied among cases and among brain regions within individual cases. The perivascular cuffs ranged from subtle aggregates of small lymphocytes to florid cuffs up to 15 cells thick, composed predominantly of small lymphocytes with admixed large lymphocytes and rare plasma cells (Figs. 1, 2). Occasionally, large perivascular cuffs contained nuclear debris, suggesting cell death, and rare individual neutrophils. Lymphocytes occasionally extended out of the perivascular space into the adjacent neuroparenchyma. Lymphocytes frequently formed cuffs around leptomeningeal vessels and aggregates within the leptomeninges. In both the meninges and brain parenchyma, affected blood vessels were often lined by plump, reactive endothelium, but vasculitis was not identified. The ependyma of the ventricles was unaffected when present (artifactual loss was common in the examined sections), and lesions in the periventricular neuroparenchyma were limited.

OPEN IN VIEWER

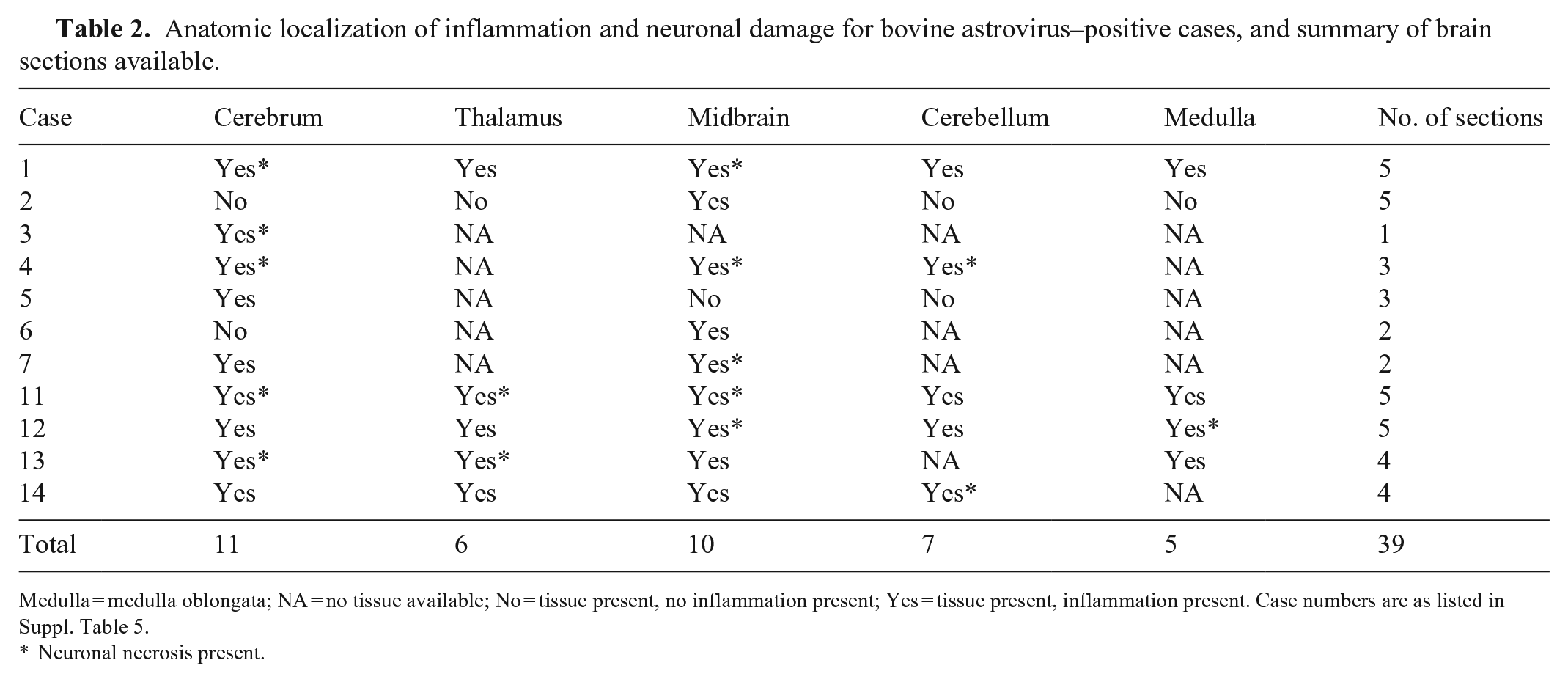

Table 2.

Anatomic localization of inflammation and neuronal damage for bovine astrovirus–positive cases, and summary of brain sections available.

Case	Cerebrum	Thalamus	Midbrain	Cerebellum	Medulla	No. of sections
1	Yes*	Yes	Yes*	Yes	Yes	5
2	No	No	Yes	No	No	5
3	Yes*	NA	NA	NA	NA	1
4	Yes*	NA	Yes*	Yes*	NA	3
5	Yes	NA	No	No	NA	3
6	No	NA	Yes	NA	NA	2
7	Yes	NA	Yes*	NA	NA	2
11	Yes*	Yes*	Yes*	Yes	Yes	5
12	Yes	Yes	Yes*	Yes	Yes*	5
13	Yes*	Yes*	Yes	NA	Yes	4
14	Yes	Yes	Yes	Yes*	NA	4
Total	11	6	10	7	5	39

Medulla = medulla oblongata; NA = no tissue available; No = tissue present, no inflammation present; Yes = tissue present, inflammation present. Case numbers are as listed in Suppl. Table 5.

*

 Neuronal necrosis present.

OPEN IN VIEWER

Figures 1–6.

Encephalitis in bovine astrovirus (BoAstV)-positive cattle. Figure 1. Perivascular cuff of leukocytes. H&E. Bar = 20 μm. Figure 2. Perivascular cuff of leukocytes near a glial nodule (arrow), in the region of the thalamus and basal nuclei. H&E. Bar = 50 μm. Figure 3. Higher magnification of Fig. 2; a glial nodule with neuronophagia (arrow). H&E. Bar = 10 μm. Figure 4. Necrotic neuron with pyknotic nucleus and shrunken, angular, hypereosinophilic cytoplasm (arrow), and gliosis of the neuroparenchyma. H&E. Bar = 20 μm. Figure 5. CD3-immunoreactive T lymphocytes in a perivascular cuff and in a glial nodule, with scattered CD3-positive T cells in the adjacent neuroparenchyma. Midbrain. Immunohistochemistry (IHC) for CD3. Bar = 50 μm. Figure 6. A glial nodule contains Iba1-immunoreactive macrophages. Dispersed Iba1-positive cells in the surrounding neuroparenchyma are consistent with microglia. Cerebrum. IHC for Iba1. Bar = 100 μm.

Glial nodules were occasionally present in the gray matter adjacent to perivascular cuffs, or more rarely as isolated lesions within the gray matter (Fig. 2). Neuronophagia was not prominent but was noted within these nodules in several cases (Figs. 2, 3). Individual dead neurons were present in 8 of 11 cases and located throughout the neuroparenchyma in all regions of the brain. Affected neurons ranged from swollen, pale cells with loss of Nissl substance, to shrunken, angular, and hypereosinophilic, with loss of nuclear detail consistent with cell death (Fig. 4). In some older cases (cases 2, 5), histologic lesions consisted only of rare, subtle cuffs or of minimal foci of gliosis and individual necrotic neurons.

In the 4 recent positive cases (cases 11–14), the cell populations were further characterized by IHC for CD3 (T lymphocytes), PAX5 (B lymphocytes), and Iba1 (microglia and macrophages). Most cells within the perivascular cuffs and the glial nodules had strong membranous immunoreactivity for CD3. The estimated percentage of CD3-positive cells within individual cuffs was 30–90%; 10–80% of the glial nodules were of CD3-positive cells (Fig. 5). Scattered individual CD3-positive cells were present throughout the neuroparenchyma. There were frequent cells with strong membranous immunoreactivity for Iba1 in the perivascular cuffs, comprising 10–30% of the cells. The glial nodules frequently contained many Iba1-immunopositive cells, which comprised up to 75% of the cells (Fig. 6). Additionally, there were numerous strongly Iba1-immunoreactive cells throughout the neuroparenchyma, consistent with microglia. These neuroparenchymal Iba1-positive cells often formed denser clusters in areas of marked perivascular cuffing and glial nodule formation, typical of focal gliosis. The perivascular cuffs and glial nodules also had a few individual cells with moderate nuclear immunoreactivity for PAX5; ~50% of the perivascular cuffs had cells with weak-to-moderate immunoreactivity for PAX5, comprising 5–15% of the cuff.

In the one available section of spinal cord (case 14), there were frequent perivascular cuffs of lymphocytes and fewer plasma cells located predominantly in the gray matter of the dorsal horns and rarely of the ventral horns.

Testing for additional pathogens

Of the 45 cases of idiopathic lymphocytic encephalitis that tested negative for BoAstV, 1 or more agents were identified by additional PCR testing in 9 (20%) cases (Table 3; Suppl. Table 5). One was positive for OvGHV2 (case 38), 1 for BoAHV1 (case 28), 3 for BVDV (cases 21, 27, 49), 3 for EEEV (cases 27, 46, 55), and 2 for L. monocytogenes (case 47 [which was also positive for EEEV], case 50). No samples tested positive for WNV, RABV, or Chlamydia spp.

OPEN IN VIEWER

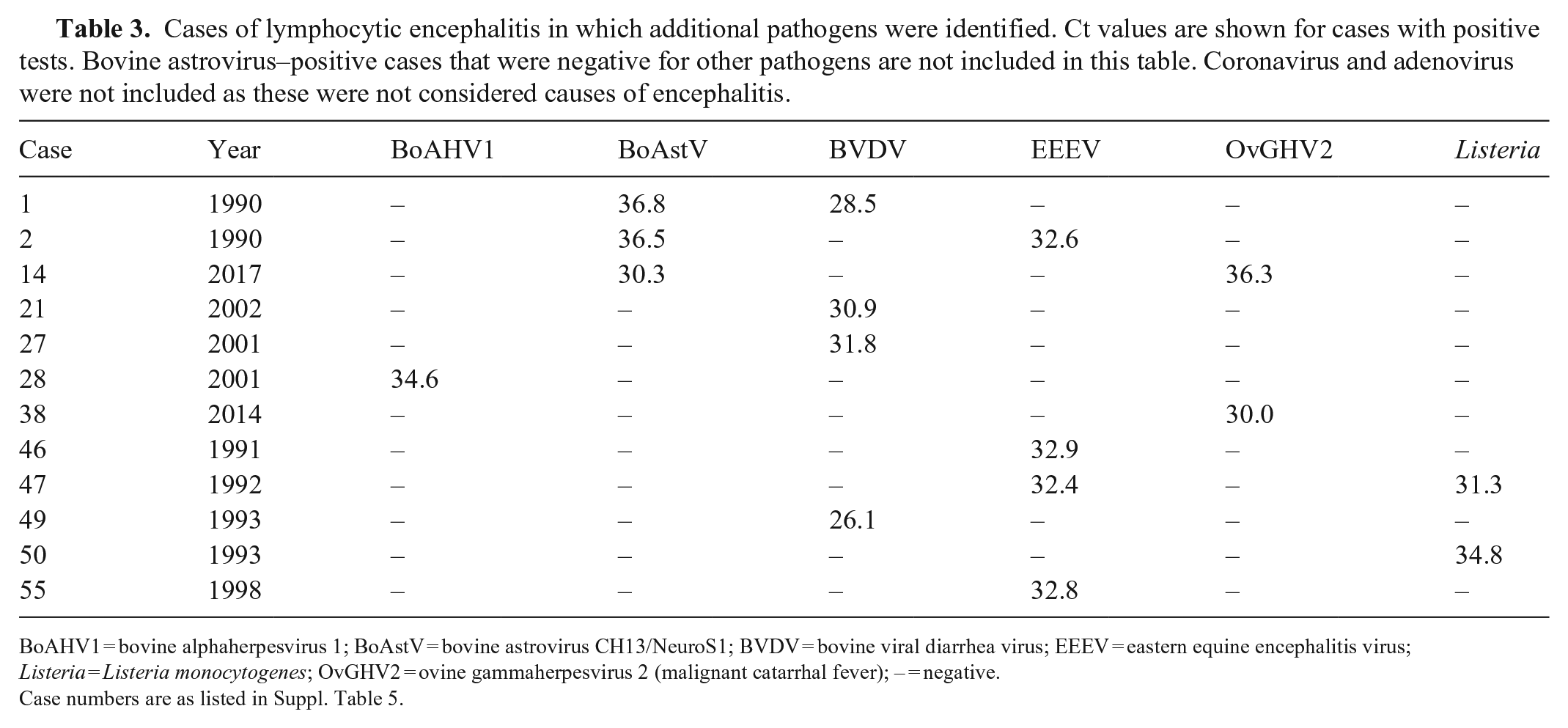

Table 3.

Cases of lymphocytic encephalitis in which additional pathogens were identified. Ct values are shown for cases with positive tests. Bovine astrovirus–positive cases that were negative for other pathogens are not included in this table. Coronavirus and adenovirus were not included as these were not considered causes of encephalitis.

Case	Year	BoAHV1	BoAstV	BVDV	EEEV	OvGHV2	Listeria
1	1990	–	36.8	28.5	–	–	–
2	1990	–	36.5	–	32.6	–	–
14	2017	–	30.3	–	–	36.3	–
21	2002	–	–	30.9	–	–	–
27	2001	–	–	31.8	–	–	–
28	2001	34.6	–	–	–	–	–
38	2014	–	–	–	–	30.0	–
46	1991	–	–	–	32.9	–	–
47	1992	–	–	–	32.4	–	31.3
49	1993	–	–	26.1	–	–	–
50	1993	–	–	–	–	–	34.8
55	1998	–	–	–	32.8	–	–

BoAHV1 = bovine alphaherpesvirus 1; BoAstV = bovine astrovirus CH13/NeuroS1; BVDV = bovine viral diarrhea virus; EEEV = eastern equine encephalitis virus; Listeria = Listeria monocytogenes; OvGHV2 = ovine gammaherpesvirus 2 (malignant catarrhal fever); – = negative.

Case numbers are as listed in Suppl. Table 5.

Of the 11 cases that tested positive for BoAstV, 1 also tested positive for BVDV (case 1), 1 for EEEV (case 2), and 1 for OvGHV2 (malignant catarrhal fever; case 14; Table 3). IHC for EEEV and BVDV on brain sections from 1 of the EEEV-positive cases and 3 of the BVDV-positive cases was done to further investigate these agents. The EEEV case was negative with a scant amount of nonspecific background labeling but no specific immunolabeling. For BVDV, one case had strong immunolabeling throughout all neurons and some of the endothelium, one case had scattered moderate labeling of some neurons, and one case had no immunolabeling.

No samples tested positive for either BRSV or BPIV3, which were included as part of the respiratory panel used to test for BoAHV1. Bovine coronavirus (BCoV; Coronaviridae, Betacoronavirus 1) and BAdV were included as part of the gastrointestinal panel used to test for BVDV. Five of 11 BoAstV-positive cases (cases 4, 5, 7, 13, 14) and 2 of 11 BoAstV-negative cases (case 47 [also positive for EEEV and L. monocytogenes], case 53) tested positive for BCoV. One of 45 BoAstV-negative cases tested positive for BAdV (case 46, also positive for EEEV).
