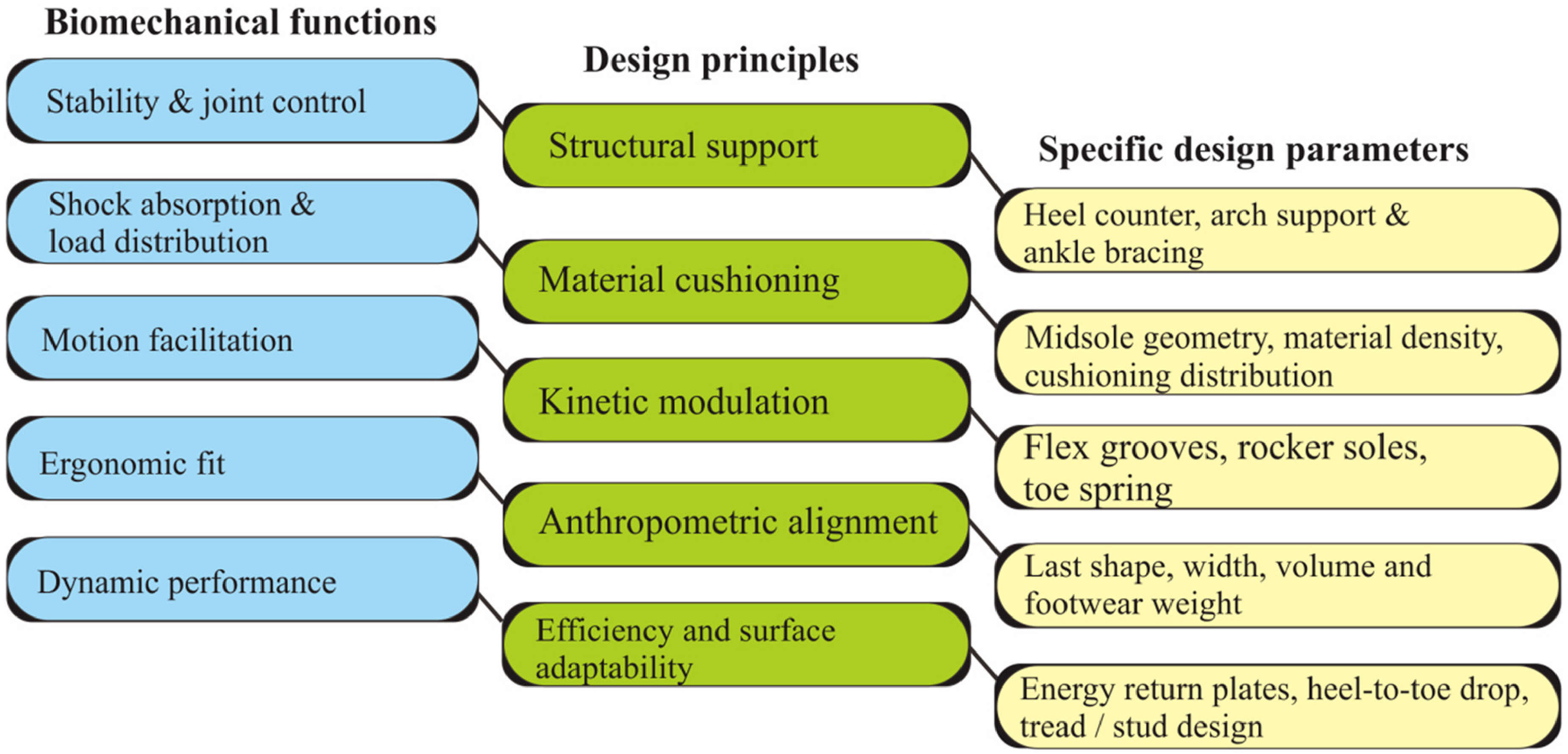

Study on Ergonomic Footwear Design framework informed by lower limb Biomechanical Characteristics

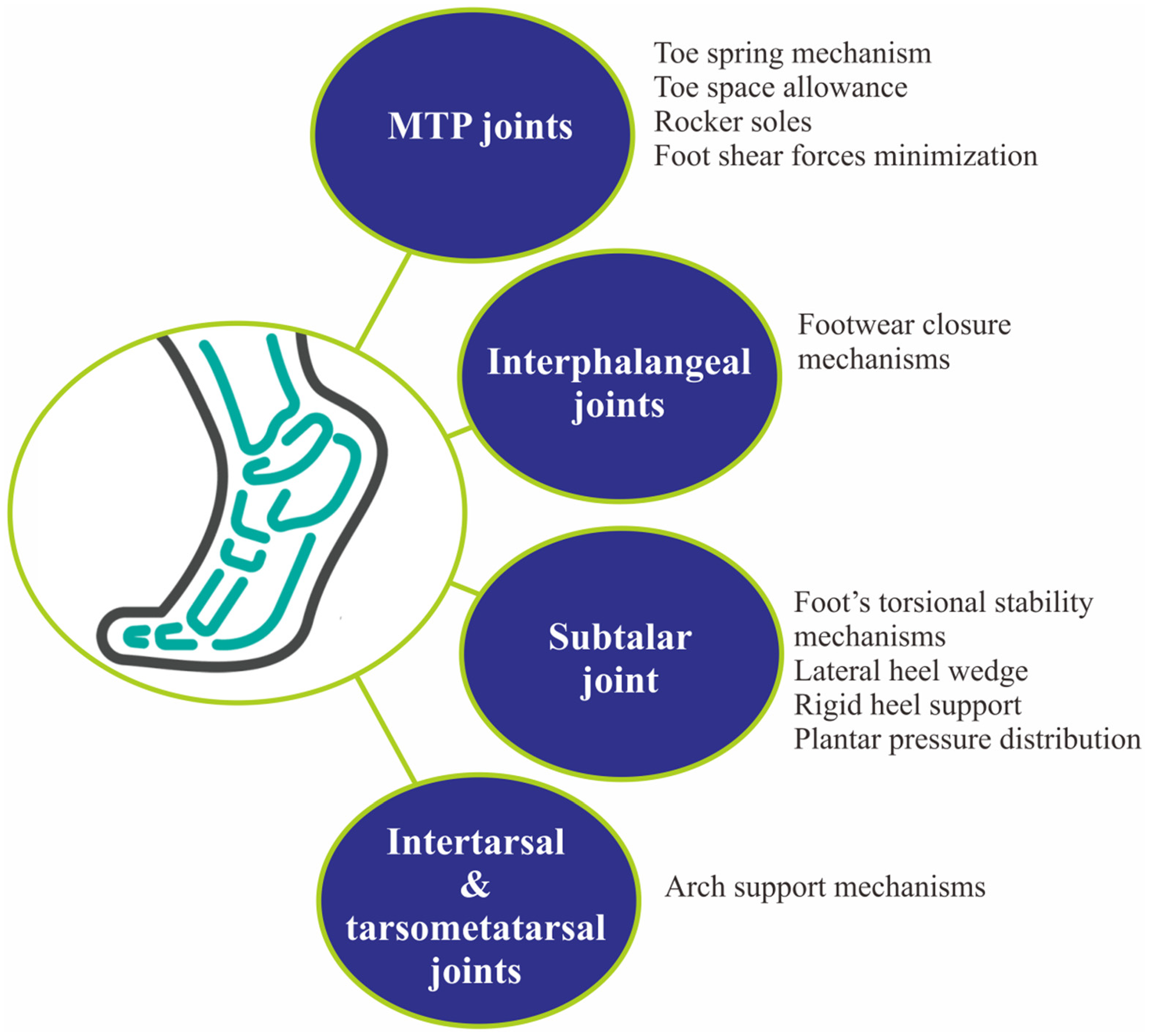

Toe spring / lateral groove flexion mechanisms

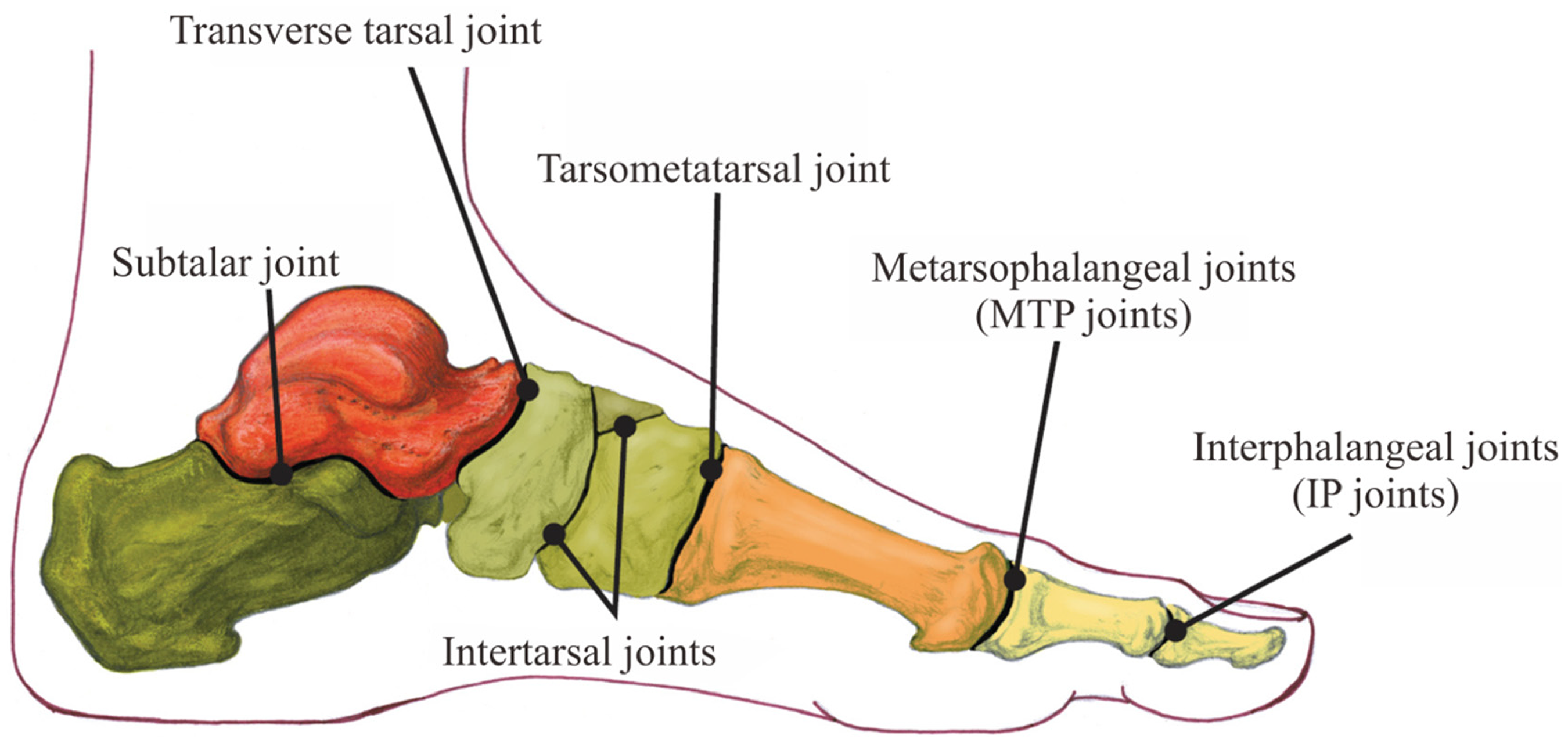

The metatarsophalangeal joints (MTP joints) are the primary flexion points of the foot, responsible for propulsion and balance. Located distally in the foot, they are formed by the articulation between the heads of the metatarsals and the proximal articular surfaces of the phalanges. ¹² Their ranges of dorsiflexion and plantar flexion, as well as force transmission efficiency, are regulated by the pronation-supination movements of the subtalar joint. In non-weight-bearing conditions, the first MTP joint has a dorsiflexion angle of 65–70°; during running, this angle increases to 90°, while plantar flexion reaches 45°. These flexion-extension angles directly influence energy transfer efficiency during push-off in the late stance phase of running and jumping.

Shoe design elements such as midsole stiffness and toe spring curvature significantly affect MTP joint motion. Soft-soled shoes, due to insufficient support, may cause excessive dorsiflexion of the MTP joints, compromising stability. Conversely, rigid soles restrict natural bending, forcing compensatory knee joint movements and accelerating wear.

Several empirical studies suggests that generally healthy adults take between 7,000–13,000 steps/day, ¹³ with MTP joint flexion frequency roughly matching step count. This repetitive bending necessitates that health-focused footwear combine durable flex resistance with adaptive plasticity to balance joint mobility and energy return efficiency. Research indicates that lateral groove flexion designs or segmented structures under the metatarsal heads in the forefoot outsole can enhance natural motion. ¹⁴ Figure 3(a) shows a schematic diagram of the bending stiffness of footwear below the metatarsal heads with lateral grooves. The lateral groove flexion design in footwear refers to a specialized structural feature aimed at enhancing the flexibility, comfort, and performance of shoes. For example, Nike's free grooved sole reduces bending stiffness to promote natural dorsiflexion. Using flexible materials like PEBAX or rubber in the forefoot—instead of rigid carbon fiber plates—avoids restricting flexion. ¹⁵

OPEN IN VIEWER

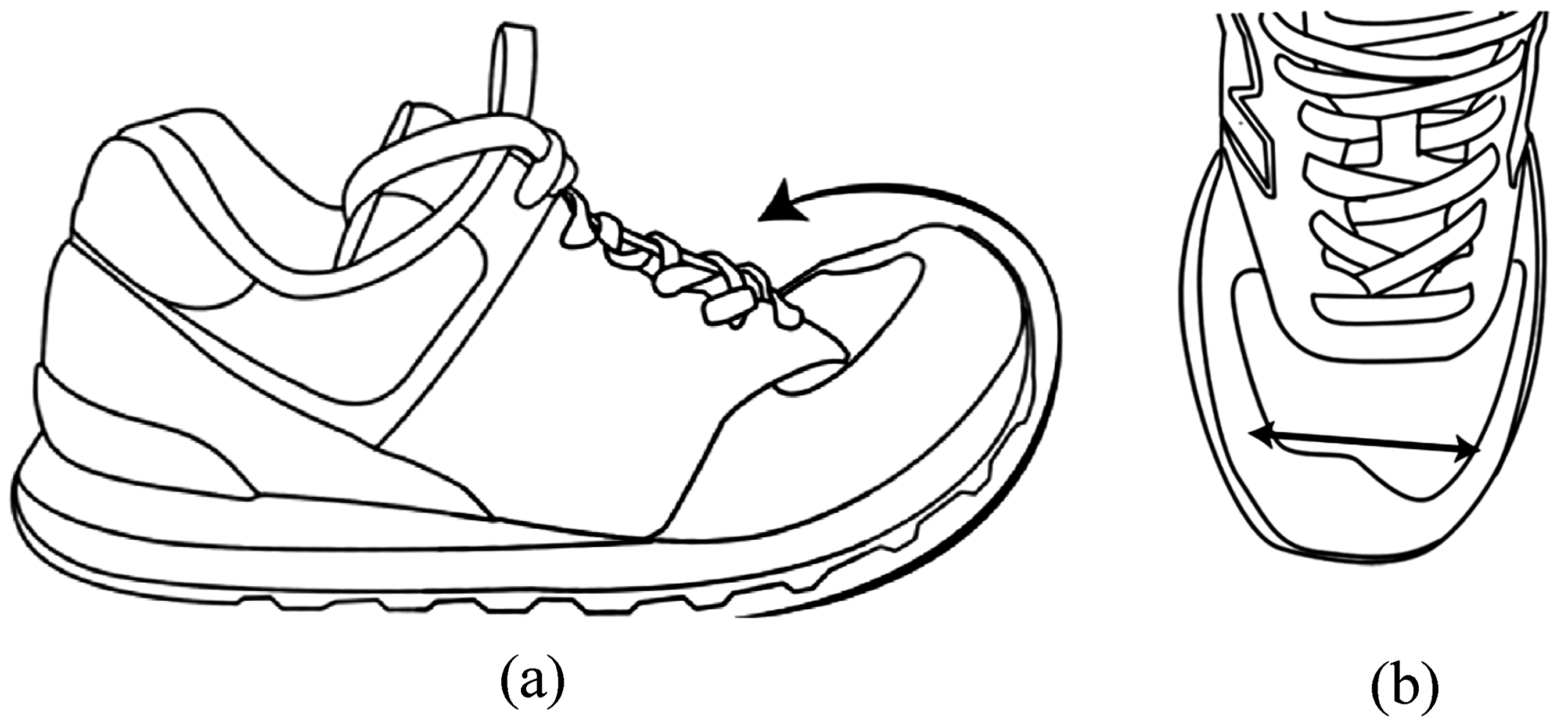

Figure 3.

Schematic diagram of (a) the footwear bending stiffness (b) round toe design.

Additionally, a toe spring curvature of 10°–15° assists upward MTP joint bending, reducing muscular effort during walking and improving efficiency. ¹⁶ Toe springs keep the toes continually elevated above the ground in a flexed upwards position to help the front part of the foot roll forward when walking or running and are present in most modern athletic shoes. While it is generally recognized that toe springs facilitate the forefoot's ability to roll forward at the end of stance, toe springs may also have some effect on natural foot function such as plantar fasciitis. ¹⁷ Thus optimal bendability in health-focused shoes requires a balance between flexibility and rigidity, ensuring natural foot movement while preventing excessive deformation.

Design of toe space allowance

Toe-box space must accommodate the dorsiflexion range of the metatarsophalangeal (MTP) joints and the forefoot's width expansion, providing sufficient room for natural biomechanical function. This enhances both comfort and safety in health-focused footwear while mitigating risks of chronic injuries caused by compression.

During foot motion, forward foot propulsion can lead to toe-to-toe-box collisions. Insufficient space in the toe-box, which leads to cramped toes, has been linked to foot problems such as joint abnormalities and forefoot lesions. ¹⁸ A longitudinal allowance of 5–8 mm reduces toe-tip pressure and prevents subungual hematoma. ¹⁹ In the propulsion phase, toe dorsiflexion angles can reach 50°–60°, requiring adequate toe-box height to permit natural bending without restricting MTP joint mobility. ²⁰

Toe-box dimensions must be tailored to individual differences and activity types: Elderly individuals (due to arch collapse, foot elongation, and widening) require ∼10 mm of toe-box space. Adults need 5–8 mm of length allowance, while children (with rapid toe growth during development) should have ∼10 mm of space. ²¹ During prolonged activity, foot morphology changes due to arch lowering or dorsal temperature rise, causing soft tissue expansion. Insufficient toe-box space may lead to friction-induced injuries like “black toenail” (subungual hematoma). Increasing the forefoot rocker curvature from 65.8 mm to 79.5 mm significantly reduces hallux contact forces. ¹⁹

Additionally, excessively soft shoes (even with sufficient space) may cause toe slippage, increasing abrasion risks. Rigid materials require larger allowances: for stiffness >15 N/mm, increase space by 2–3 mm. ²² Figure 3(b) shows a schematic diagram of round toe design (or square toe design) which enhances toe freedom compared to pointed toe designs. There is no universal standard for toe-box allowance. Design parameters must account for individual foot length, width, activity type, and gait dynamics to ensure the toe-box accommodates the full range of foot motion.

Rocker sole footwear design

With the intensification of aging populations and rising health awareness, people are increasingly opting for rocker sole shoes to meet the needs of prolonged sitting, rehabilitation, or exercise. A rocker sole refers to an arc-shaped curve on the shoe's outsole, extending from the forefoot to the heel, which mimics the rolling motion of a rocking chair. This design promotes a natural heel-to-toe gait transition, reducing energy expenditure. Based on functional specialization, rocker soles are categorized into three types:

Full-Foot Arc: A continuous curvature from heel to forefoot, suitable for individuals with foot injuries. By reducing exertion on the foot, it enhances gait fluidity. ²³

Forefoot Metatarsal Upturn: An upward curve in the metatarsal region optimizes push-off efficiency and alleviates forefoot pressure. This design is commonly used in racing shoes and diabetic foot care footwear. ²⁴

Heel Upturn: An upward curve in the heel region shortens ground contact time and disperses calcaneal (heel) impact. It is often applied in plantar fasciitis rehabilitation shoes and walking shoes for obese individuals. Figure 4 presents schematic diagrams of rocker shoe sole designs.

OPEN IN VIEWER

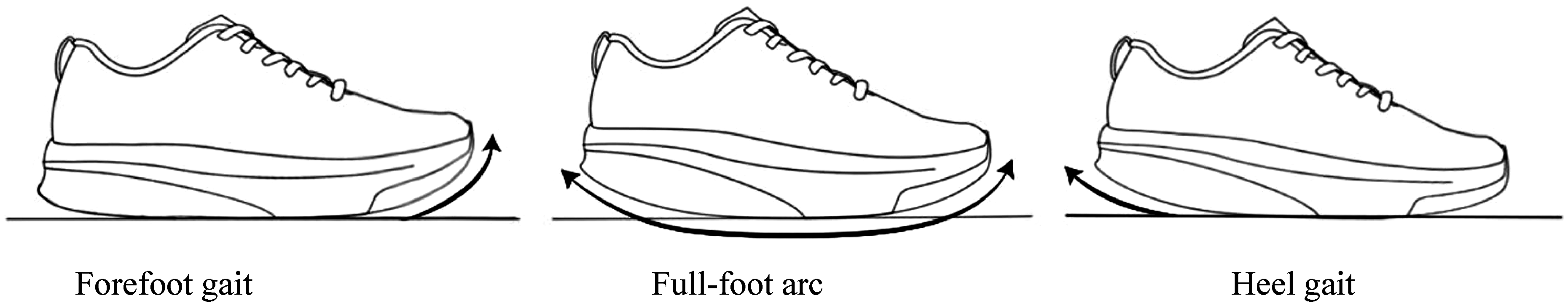

Figure 4.

Schematic diagram of rocker shoe sole design.

Rocker sole designs are not universally suitable. Selection should align with specific activity requirements and individual needs. For those without foot health issues, prolonged use may lead to foot muscle atrophy and compensatory injuries. Therefore, consumers are advised to gradually adapt to rocker sole shoes, especially first-time users, by strictly controlling usage duration and frequency to minimize injury risks and safeguard foot health.

Design of closure mechanisms for the midfoot/tarsal region

The tarsal bones, comprising the navicular, cuboid, and three cuneiform bones, are critical components of the foot's arch structure. During foot motion, the tightness of footwear around the tarsal region significantly influences stability, mobility, and plantar pressure distribution. Ergonomic footwear utilizes adjustable closure mechanisms to accommodate dynamic foot movements. A comparative study by Luo Xiangdong et al found that tongue-style shoes exert higher dorsal tarsal pressure during standing, whereas external-heel shoes disperse pressure more effectively, confirming the impact of closure design on fit. ²⁵

In running shoe design, the tarsal upper should dynamically adapt to different gait phases. During the push-off phase, it tightens to form a rigid lever that maximizes propulsion. In the stance phase, controlled elastic release accommodates arch deformation, enhancing energy return for forward motion. At this stage, the tarsal region supports approximately 15–20% of plantar pressure. ²⁶ Advanced footwear fastening systems—such as Nike Flywire's dynamic cables with multi-point anchoring—help redistribute pressure evenly across both the metatarsals and the calcaneus, improving comfort and stability.

In children's footwear, hook-and-loop straps or responsive closure mechanisms are prioritized to avoid restricting cuboid and cuneiform bone development while securing the foot. ²⁷ These dynamic fit systems — unlike traditional fixed closures—allow real-time adjustments for foot volume or gait changes, preventing complications such as: Over-tightening: Compression of the extensor digitorum longus tendon, leading to hammer toe deformity. Over-looseness: Foot slippage and poor heel grip. Figure 5(a) shows a schematic diagram of a footwear closure method where the spacing between the shoe eyelets can be flexibly adjusted using the shoelaces, ensuring a secure fit for the foot and accommodating the varying fit requirements of different users.

OPEN IN VIEWER

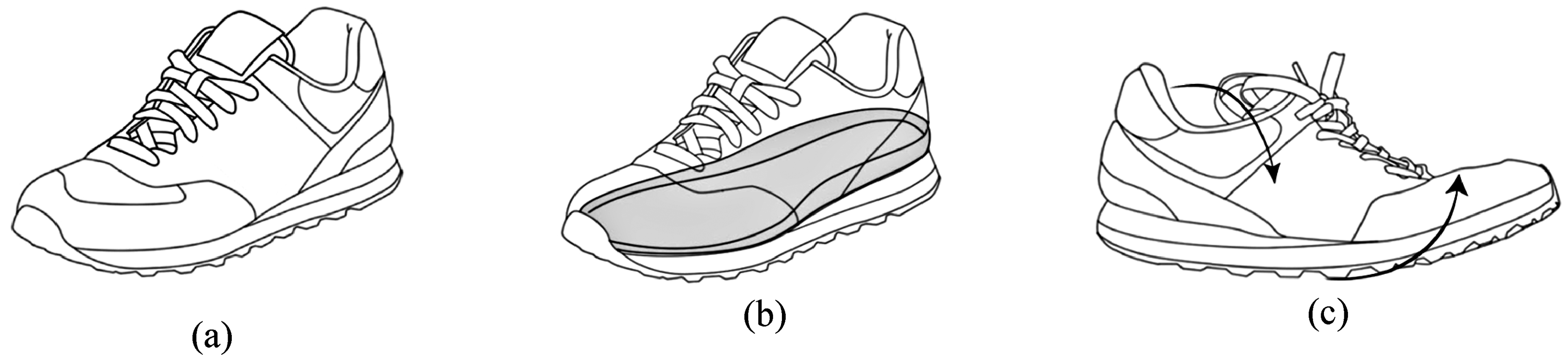

Figure 5.

Schematic diagram of (a) the closure method of footwear (b) insole arch support (c) footwear torsional stability.

Arch support design for the foot

The foot arch is an upward-curved structure formed by the articulation of tarsal and metatarsal bones, comprising the medial/lateral longitudinal arches and the transverse arch. The muscles, ligaments, and joints of the plantar region give the arch its elastic function—maintaining stability during standing, absorbing shock during walking and jumping, and shielding internal organs and plantar nerves from compression. Inadequately designed footwear can impair this elasticity, leading to reduced performance and potential.

Studies show that overly soft ‘marshmallow-soled shoes’ lack adequate support, while rigid shoes weaken arch muscles and ligaments over time, leading to arch collapse and plantar pressure imbalances. Thus, built-in arch support components in therapeutic footwear are essential for individuals with foot abnormalities. Ramirez-Rios et al proposed modular arch support insoles with detachable components (adjustable arch pads, metatarsal buttons, and calcaneal wedges) to customize height and positioning for diverse shoe types and needs. ²⁸

Advances in 3D printing enable lightweight yet high-strength designs—such as lattice structures and columnar supports—to resolve the trade-off between excessive or insufficient stiffness in traditional materials. ²⁹ Figure 5(b) shows a schematic diagram of the insole with arch support system. Arch support designs undeniably stabilize arch structure, optimize pressure distribution, and enhance athletic performance.

Design for the foot's torsional stability

Foot torsion, described as the rotational movement between the forefoot and rearfoot within the frontal plane, has been investigated in athletic actions like lateral cutting maneuvers. ³⁰ Sudden pivots, lateral cuts, or jumps during athletic movements can destabilize posture and increase ankle sprain risks. Shoes designed with torsional stability components effectively stabilize foot motion and reduces injury likelihood. When the subtalar joint undergoes pronation or supination, disruptions in the kinetic chain sequence—combined with limited ankle mobility in the coronal plane—may compromise dynamic stability during abrupt speed changes, leading to falls or joint injuries. Studies show that basketball players experience excessive inversion-eversion composite forces during sudden stops, resulting in foot sprains. ³¹

Torsional stability designs in biomechanically optimized shoes prevent excessive forefoot and rear foot deformation. Research indicates that carbon fiber plates and TPU (thermoplastic polyurethane) structures used in footwear inhibit abnormal midfoot rotation, maintain neutral lower limb alignment, and reduce ankle sprain risks. ³² Abnormal midfoot rotation can strain ligaments, tendons, and joints (e.g., plantar fascia, ankle, and knee). Figure 5(c) presents a schematic diagram of the mechanisms for torsional stability. It ensures that Ergonomic shoes maintain reduced deformation during abrupt directional changes while enhancing rebound responsiveness during acceleration. By attenuating excessive impact and torsional forces, carbon fiber and TPU reinforcement structures optimize energy transfer into forward propulsion. Their stiffness-to-weight ratio supports efficient gait mechanics while stabilizing the foot, thereby lowering the risk of injuries associated with instability, excessive pronation, or repetitive loading stress. For example, the Li-Ning Way of Wade 9 (Figure 6(a) ³³ utilizes an X-shaped TPU arch stabilizer to enhance torsional rigidity. Material hardness also influences torsional performance: in military boots, rigid ethylene vinyl acetate (EVA) flanking the heel controls foot inversion. ³⁴

OPEN IN VIEWER

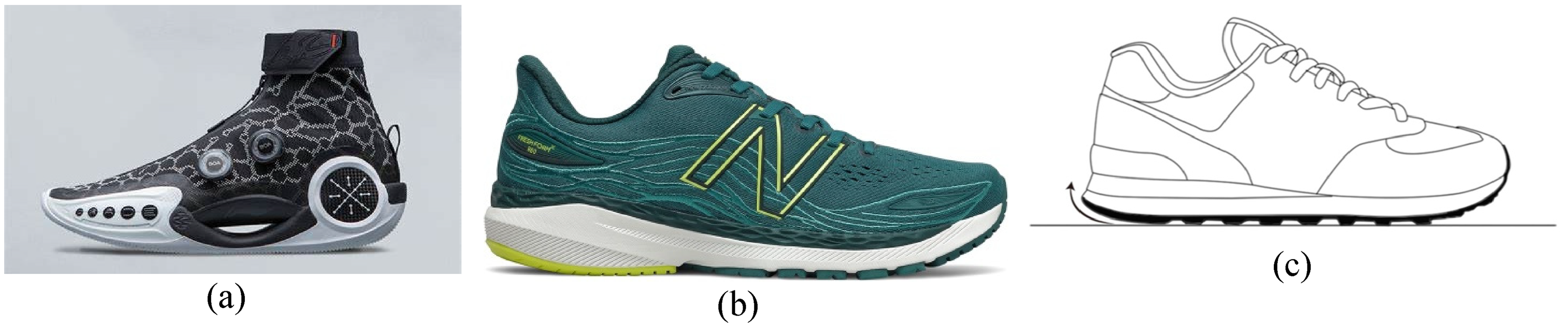

Figure 6.

(a) Image of Way of Wade 9 sneakers (b) New Balance's men's fresh foam X 860 V12 running shoe (c) Wedge-shaped design on the outer side of the heel.

Additionally, torsion beam designs limit relative rotation between the forefoot and heel, preventing arch hyper-rotation injuries and channeling ground reaction forces more efficiently toward propulsion. ³⁵ Torsional stability not only stabilizes the foot and minimizes energy loss but also improves agility and directional change efficiency. Thus, selecting sports shoes with anti-rotation designs is critical for protecting foot health and optimizing athletic performance.

Lateral heel wedge design (on the outsole)

During natural walking, foot pressure causes wear patterns on the lateral heel and forefoot metatarsal regions of the outsole. According to Dr. Root et al.'s ¹² ‘ideal force line alignment’ theory, the tibia exhibits a physiological varus angle of 4°–6° during normal gait. This inherent tibial varus transmits through the lower limb kinetic chain, inducing subtalar joint pronation—manifested as talus inversion and calcaneal eversion. This motion concentrates pressure on the lateral foot during ground contact, explaining the common lateral heel wear observed in the general population. Studies show that 50% of infantry recruits exhibit lateral heel wear. ³⁶ Initial sole wear may result from non-sloped lateral outsoles, where excessive thickness impedes heel-tibia alignment, but gradual wear adapts to foot mechanics. Dr. Root et al. ¹² proposed that each 1° increase in tibial varus angle requires ∼1 mm of pre-wear lateral sole thickness. They recommended a 4–6 mm lateral wedge design to compensate for tibial varus and achieve ideal force alignment.

Modern advancements have phased out strict adherence to Root's original slope-reduction approach, replacing it with material gradients, structural innovations, and dynamic fit technologies. These methods deliver biomechanically equivalent compensation while complying with national standards. Examples include: New Balance 860v12: Lateral heel Posting Technology™ with EVA midsole density (refer to Figure 6(b)) ³⁷ increased to 0.35 g/cm³ for a 4 mm dynamic height differential. Salomon XA Pro 3D v8: 2.5 mm lateral outsole reduction paired with Anti-Torsion Mesh for structural integrity. Nike Adapt BB: Pressure-sensor-activated lateral air pods providing 0–5 mm real-time slope compensation.

Data from the China Leather Industry Association (2020–2022) shows a decline in outsole wear-resistance failure rates from 28.7% to 19.1%. ³⁸ Improved sole designs—through material science, structural engineering, and functional zoning—now better align with human biomechanics and natural foot motion, reducing premature wear. Figure 6(c) demonstrates a wedge-shaped design on the outer side of the heel that provides heel support.

Rigid heel support design

Many footwear products on the market still prioritize the mantra ‘softness equals comfort,’ often compromising structural support. While soft-heeled shoes cater to short-term comfort needs, they may pose long-term foot health risks. Excessive stress or disease-related tissue alterations can compromise a previously healthy heel, increasing its vulnerability to injury from mechanical forces. ³⁹ This injury presents as a range of heel-related disorders, such as plantar fasciitis, sub-calcaneal pain, and soft tissue damage, and may impair the heel pad's ability to absorb and distribute impact forces. ⁴⁰

Additionally, mismatches between heel height, support structures, and human gait biomechanics further undermine heel stability. ⁴¹ Heel counters serve to provide the needed heel support. A heel counter is a structural element in running shoes designed to stabilize and support the rearfoot. Constructed from rigid materials, it is incorporated around the heel to limit over pronation (excessive inward rolling) and maintain proper foot and ankle alignment during movement. This component complements other shoe technologies to boost comfort, decrease foot strain, and help prevent injuries. ⁴² Figure 7 (a) shows schematic presentation of rigid heel support design.

OPEN IN VIEWER

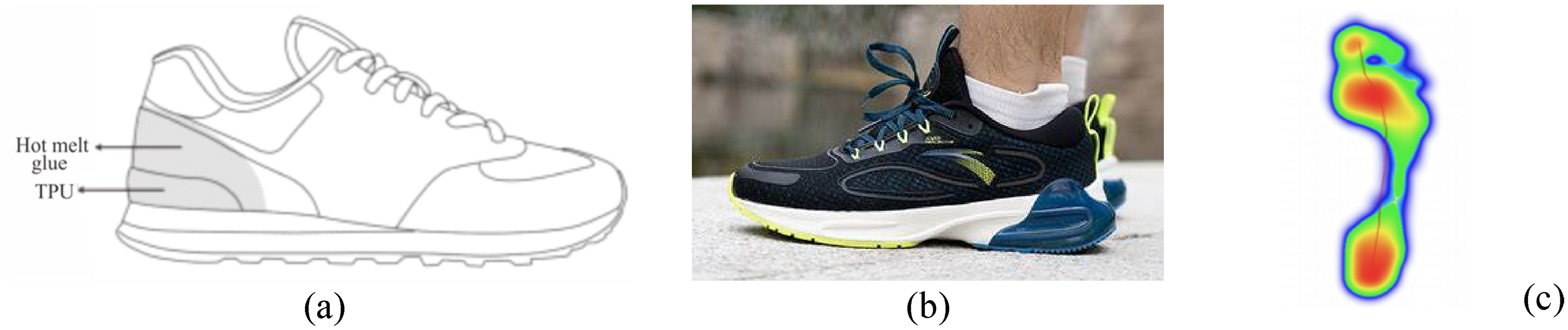

Figure 7.

Schematic diagram of (a) Rigid heel support (b) Anta Creators 1.0 running shoe (c) normal plantar pressure distribution.

Rigid heel counter materials—such as TPU, high-density plastics, or low-temperature thermoplastic reinforcements—effectively restrict excessive ankle inversion/eversion, reducing sprain risks caused by instability. Technologically, adhesive-mesh composite processes enhance durability by addressing traditional foam materials’ tendency to degrade. Adhesive-mesh composites combine flexible mesh materials (e.g., polymers, metals, or textiles) with adhesives to create lightweight, high-performance structures. These processes are critical in industries requiring strength-to-weight optimization, breathability, or tailored mechanical properties.

Structurally, TPU stabilizers or rigid cup-shaped designs conform to the foot's curvature to deliver stable support. ⁴³ For example, the Anta Creators 1.0 running shoe (Figure 7(b) ⁴⁴ integrates SMART S.A.M shock-absorbing material with TPU heel plates for enhanced protection. ⁴⁵ Thus, to avoid foot abnormalities from blindly prioritizing heel softness, health-focused footwear must holistically balance material rigidity, structural engineering, and biomechanical compatibility in heel support design.

Plantar pressure distribution

As the primary weight-bearing organ of the human body, the foot bears 80–90% of the body's weight. Plantar pressure refers to the vertical ground reaction force generated when the foot contacts the ground during standing or walking. The normal foot shows balanced pressure across the heel, lateral midfoot, and forefoot. Figure 7(c) shows the normal plantar pressure distribution of a healthy foot. Its magnitude and distribution reflect the structure of the lower limbs, foot function, and postural stability. Factors such as body posture, weight, and shoe characteristics influence plantar pressure distribution.

Proper shoe fit is critical, as poorly designed footwear can disrupt this distribution. For example high heels shift the body's center of gravity forward, increasing pressure on the forefoot. Overly rigid soles fail to absorb ground reaction forces effectively, concentrating pressure on the heel and forefoot. Soft-soled shoes lacking arch support may lead to collapsed arches, altering pressure distribution. Abnormal plantar pressure not only harms foot health but also increases risks of skin abrasions and ulcers.

To address this, insoles with arch support are essential, and the stiffness of insole materials plays a key role in dispersing pressure. For instance forefoot regions of insoles can incorporate elastic materials like cork or carbon fiber, acrylic plastics and thermoplastic polymers. ⁴⁶ Midfoot medial zones may use nylon composites to enhance support and cushioning uniformity, maintaining proper foot alignment. Additionally, shoe soles with hexagonal tread patterns distribute pressure more evenly compared to elliptical designs. ³⁵ For diabetic footwear, layered insole designs and rolling sole geometries reduce localized pressure during heel-strike and toe-off phases, thereby protecting foot health.

Foot shear forces minimization

Shear force is generated by the relative sliding or tendency to slide between two objects. When an external force is at an angle to the direction of an object's motion, the object undergoes relative displacement in a specific direction. Shear force is closely related to the internal flatness of the shoe cavity, with lateral twisting of the foot inside the shoe being a key factor in generating shear force, primarily concentrated in the forefoot and heel areas. In Ergonomic shoe design, shoes that are too narrow, too large, or high-heeled ⁴⁷ increase internal shear forces, which can disrupt the foot's normal force exertion mechanism and, in severe cases, lead to skin damage and ulcers. ⁴ This is a direct cause of foot ulcers in diabetic patients, which may ultimately lead to amputation. Therefore, healthy shoe design must carefully consider the appropriateness of the shoe's internal space. Shoes that conform to the foot's shape can effectively reduce internal shear forces.

The forefoot should have sufficient width and allowance to allow the toes to stretch freely, reducing the risk of pressure and friction. The upper should be made of soft, breathable, and stretchable materials, such as knitted fabrics or natural leather, to minimize friction on the foot. The sole should use rubber or synthetic foam materials with excellent cushioning properties to distribute pressure generated during walking. Laces, straps, or Velcro fastenings with real-time adjustment capabilities can secure the ankle, thereby reducing foot sliding within the shoe and thus lowering shear forces. The tongue should be 10 to 15 millimeters wider than the eyelet holes to prevent the eyelets from rubbing against the instep. The midsole lining should adopt a “one-piece” design to avoid localized irritation from hard seams. By improving structural fit to reduce foot displacement and using standard-compliant materials, pressure can be evenly distributed, thereby protecting the foot through healthy shoe design.
