Nectar of the Bots: Evolving Bidirectional Referential Communication

Defining Referential Communication

Communication has proven somewhat difficult to define within the animal behaviour community and also the adaptive behaviour community. On the one hand, defining communication as any episode in which one agent influences another one is too loose, allowing pushing and shoving to count as communication. On the other hand, requiring that communication must involve signallers encoding conceptual content in syntactically structured signals composed from meaningful symbols that are then decoded by an observer in order to create or update their internal representation of the world presupposes too much about the symbolic nature of communication and allows no room within the category for proto-languages and other precursors to full-blown human language.

Moreover, whilst requiring that a signalling interaction must increase the fitness of the signal receiver (Johnstone, 1997) excludes interactions that are malicious, deceptive or manipulative, it also rules out genuine efforts at communication that happen to be mistaken, redundant or ineffective in some way. Similarly, requiring that the signal producer gains a direct fitness benefit from signalling may exclude self-sacrificing communications that benefit the receiver(s) to the detriment of the signaller, for example deliberate admissions of guilt, as when a criminal admits to their crime.

Even requiring, as Maynard Smith and Harper (2003, p.15) do that a signal is ‘an act or structure that alters the behavior of another organism, which evolved because of that effect, and which is effective because the receiver’s response has also evolved’ leaves unspecified what the receiver’s signal consuming behaviour evolved for, opening the door to the inclusion of passive mimesis and masquerade behaviours as types of communication (as when an insect species has evolved to resemble a twig in order to avoid being predated).

For the purposes of this paper, we will propose and employ the following definition:

Referential communication occurs when the signal-producing behaviour of one agent (the signaller) has the proper function to adapt a second agent (the receiver), via its sense organs, to some state of affairs, and when this second agent’s signal-consuming behaviour has the proper function to be so adapted.

Here, the ‘proper function’ of an agent behaviour should be understood in the historical (teleosemantic) sense established by Millikan (1989b): roughly, the proper function of an evolved device, D, is to perform the function that, when performed by D’s ancestors, led to proliferation of the genes responsible for D’s existence. Thus, the function of a heart is to pump blood, because it was by pumping blood, rather than being red and wet, or making a bumpety-bump noise, that ancestral hearts contributed to the proliferation of genes for hearts.

Proper functions are normative. For example an injured heart that cannot pump blood is malfunctioning – it has the function to pump blood (by virtue of its evolutionary history), but is currently unable to carry out this function. Note also that proper functions are not straightforwardly statistical or causal dispositions: a sperm has the function of fertilising an egg (by virtue of the evolutionary history of sperm) regardless of the fact that the vast majority of sperm that have existed have not managed to carry out this function.

Notice that whilst key signalling scenarios fall within the definition presented above, some other superficially similar types of interaction do not. According to the above definition, for example, when one agent makes an alarm call in order to alert another agent to the fact that a predator is approaching, and, in response, the second agent instinctively hides or flees, this is a canonical example of successful referential communication. However, since the definition does not specify that communication behaviours must succeed, it also allows failed signalling attempts to count as referential communication. For example the following would all count as faulty, defective or malfunctioning signalling behaviours: if no receivers are present or able to hear the signaller’s alarm call, or the signaller makes the alarm call in error when their belief that a predator is approaching is mistaken, or the signaller tries to make the alarm call but makes a different call by mistake, or a gust of wind blowing through a hollow log sounds to a receiver like an alarm call and causes them to run and hide unnecessarily.

By contrast, the definition rules out scenarios that resemble signalling but, upon closer examination, are more accurately described in terms of ‘mind-reading’ or ‘manipulation’ (Krebs & Dawkins, 1984) in which one agent exploits the ‘tacit suppositions’ or ‘behavioural biases’ of another (e.g. Bullock, 1998). For instance if one agent gives away some information to another agent accidentally, as when a poker player reveals that they are bluffing by subconsciously making an involuntary ‘tell’ such as rubbing their nose, this will not count as referential communication because the unfortunate player’s informative behaviour does not have the proper function of adapting the observer’s behaviour to the fact that they have a weak poker hand (Millikan, 1984). Conversely, if one agent deliberately misleads another by, for example giving the alarm call that triggers in receivers an instinctive flee response associated with predator attack, when it knows that there is in fact no predator, this will also not count as referential communication (although this behaviour is parasitic on an existing referential communication system) since, although the signaller’s behaviour functions to adapt the behaviour of the listening agent to a state of affairs (that a predator is approaching), the deceived receiver’s behaviour does not have the proper function of being so adapted under circumstances in which there is in fact no predator approaching (Artiga, 2014; Bullock, 1997; Noble et al., 2001).

Note that the above definition does not require that the state of affairs being communicated about needs to be remote in space or time from either the signaller or the receiver. A courtroom witness indicating the identity of one criminal by pointing at them with her finger and then naming a second criminal who was still on the run would count as engaging in two instances of referential communication. However, the displaced reference that is employed in the second example is a powerful feature of human communication and is understood to otherwise be rare throughout natural signalling systems. For example, whilst the honey bee dance language can handle spatial displacement to some extent, it is not clear that honey bees can communicate about temporally displaced states of affairs in the past or future.

Finally, note that whilst this framing of signalling is consistent with the notion that referential communication involves the exchange of quasi-linguistic symbolic representations within which signallers encode information about the state of the world that can subsequently be decoded by receivers, this is not an explicit requirement of the definition (or of the teleosemantic approach to language and mental content in general) which remains neutral about the exact nature of the signal producing and consuming devices and the precise mechanisms by which agents use communication to adapt each other to states of affairs. Consequently, a dynamical systems theoretic interpretation of cognitive behaviour (Beer, 2000) is equally consistent with this model of communication.

Evolving Referential Communication

Perhaps the most seminal paper in this area was published by Quinn (2001), who demonstrated the evolution of successful communication behaviour in a pair of simulated model agents that were not already provided with a dedicated communication channel or a set of symbols with which to communicate. The context for Quinn’s work was a number of prior papers that claimed to have demonstrated the evolution of language in simple simulated agents (e.g. Maclennan & Burghardt, 1993; Werner & Dyer, 1992).

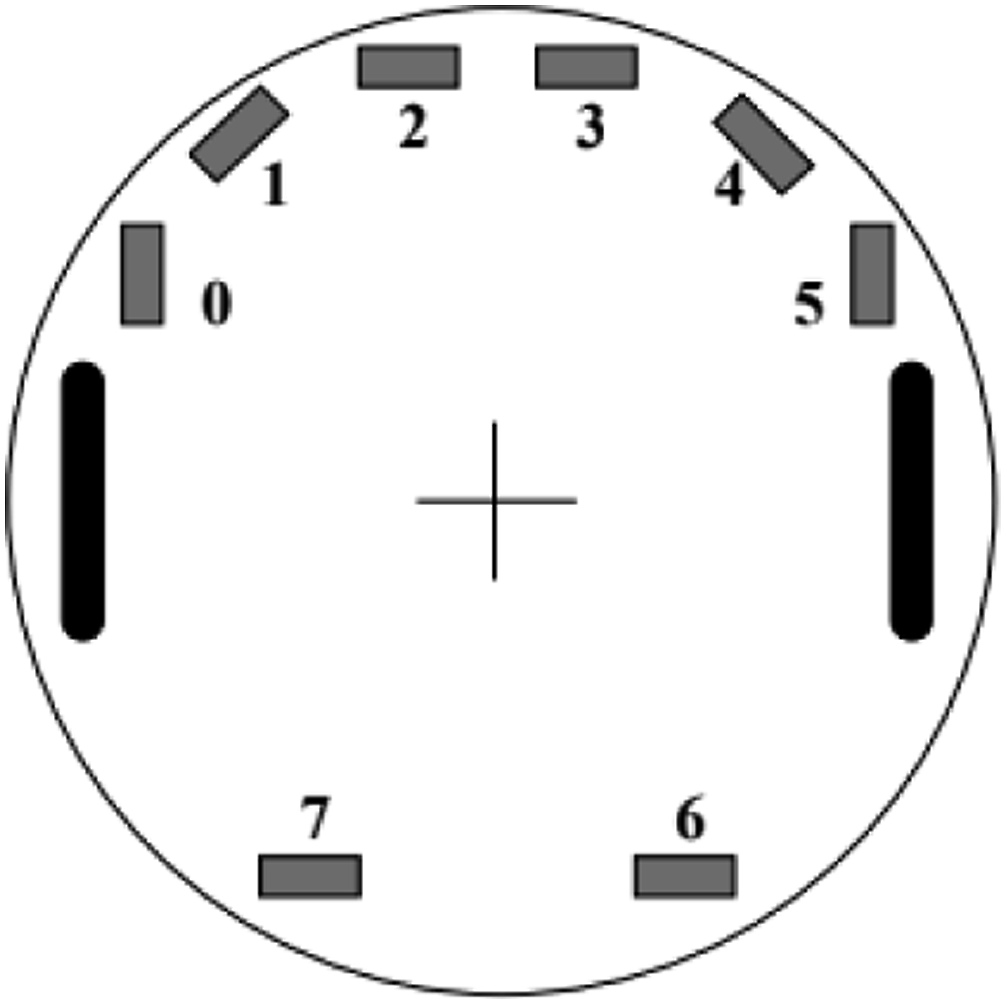

One study that exemplifies this style of work is due to Werner and Dyer (1992) who evolved a pair of simulated agents to solve a ‘mating’ problem within a 200-by-200 grid world. In this scenario, one agent was mobile and capable of receiving ‘acoustic’ signals but was otherwise ‘blind’, whilst a second agent was ‘sighted’ and capable of producing ‘auditory’ signals but remained stationary. The joint task of the pair of agents was to successfully navigate the mobile agent to the cell occupied by the stationary agent. At each time step, the stationary agent used its evolved rule-set and its visual appraisal of the current location of the mobile agent to determine which of its repertoire of auditory signals it should produce. Each signal was represented by a three-bit string, allowing for eight distinct sounds to be employed. Simultaneously, at each time step the mobile agent used its evolved rule-set plus the auditory signal that it received from the stationary agent to determine in which direction it should move. After many generations of evolution, the agents co-ordinated on rule-sets that allowed the mobile agent to consistently navigate to the location of the stationary agent – despite the relationship between the available sounds and the available movement behaviours being entirely arbitrary, initially random and evolutionarily unconstrained. The results of the paper showed that a successful communication scheme could arise spontaneously within a simple agent system, and that agents capable of communication were able to solve the mating problem in half as many moves as agents that were evolved without the ability to communicate.

However, whilst this style of work was extremely influential, the extent to which it could claim to shed light on the evolution of language was limited by the existence within the model of dedicated communication channels and discrete sets of pre-defined symbols (e.g. eight different sounds) and pre-defined actions (e.g. taking a step in one of eight different directions), which ensured that the challenge facing agents was not to evolve a language from scratch (whatever that might mean) but rather to simply co-ordinate on an appropriate lexicon that maps eight different symbols to eight different behaviours (Steels, 1997). A different approach would be needed if models were to help explain either the dynamics of truly grammatical languages (Kirby, 2002) or the cognitive basis for communication itself (Quinn, 2001).

In response, Quinn (2001) introduced an evolutionary simulation model (Bullock, 1997) in which the communicating agents were idealised versions of small, wheeled Khepera robots, possessing eight infra-red sensors (each with a 5 cm range) and two independently motor-driven wheels capable of achieving a maximum speed of 8 cm per simulated second (see Figure 1). Pairs of these agents, each controlled by the same evolved artificial neural network, were initially placed close to each other but oriented at random, within a continuous infinite 2D space, and were jointly tasked with travelling at least 25 cm (i.e., 10 agent radii) from their starting location in any direction within 10 simulated seconds whilst remaining within sensor range of each other and without colliding. This task was designed such that, in order to succeed, both agents needed to agree on the same direction of travel without recourse to any compass, landmarks, etc.OPEN IN VIEWER

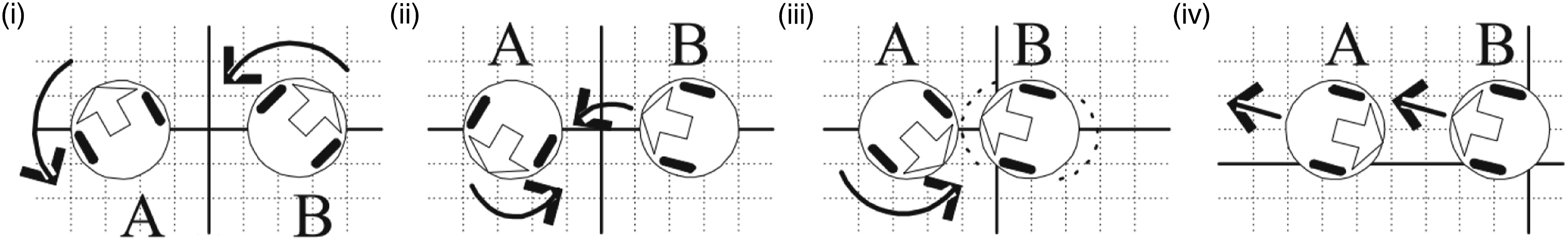

A successful strategy was evolved in which the pair of agents dynamically co-allocate the roles of ‘leader’ and ‘follower’ (Figure 2). This is achieved by each agent first rotating until its infra-red sensors indicate that it is facing its partner. The agent that manages to do so first takes the role of follower and moves back and forth until the other agent has turned to face it. At this point, the follower approaches the leader and the leader retreats backwards (whilst both maintain a fixed separation distance), resulting in both moving off together in an arbitrary but consistent direction.OPEN IN VIEWER

By contrast with previous papers, in this case the agents could not be described as having solved the communication task by agreeing on how to use a pre-defined vocabulary of symbols. It was not even clear that the communication strategy involved any symbol use at all, or relied on the use of any internal representations of aspects of the world. In fact, the evolutionary history of the strategy reveals that initially non-communicative behaviours that allowed one agent to find and move towards the other agent without colliding with it had become ritualised into a dance-like behaviour that allowed the agents to co-ordinate their movement in order to solve the task. Rather than lending itself to a quasi-linguistic symbol-processing interpretation, the evolved behaviour was more readily explicable in terms of dynamical systems ideas of coupling and synchronisation.

However, this aspect of the work can also be considered a shortcoming. Was the evolved behaviour in fact non-communicative, being an example of mere coordination? Even if the evolved behaviour could be classed as communication, what exactly was being communicated? The evolved behaviour was not a clear example of referential communication, and was certainly not displaced referential communication, as the task did not require that the agents engage with anything beyond their immediate sensor readings.

In an attempt to demonstrate the evolution of artificial communication conclusively, Williams et al. (2008) evolved successful agent communication in the context of a more complex task – one that could only be solved by displaced referential communication. Here, one agent (known as the sender) must communicate a target location to a second agent (known as the receiver), and the receiver must then navigate to this location. The agents operated within a 1D periodic environment (a ring) and were each controlled by a five-neuron CTRNN. Each agent possessed two proximity sensors, one extending clockwise and the other anticlockwise, each reporting the angular distance to the other agent to a range of π/8. Each agent also possessed a bearing sensor that either indicated their own current angular location (for the receiver) or the angular separation between their current position and the target location (for the sender). A diagram of the environment and the agents is provided in Figure 3.OPEN IN VIEWER

Each individual communication strategy was determined by the parameters of two CTRNNs, a signaller network and a receiver network, but both were encoded on the same genome ensuring that one evolutionary individual represented one entire solution to the problem, composed of an explicit sender strategy plus a separate explicit receiver strategy. Some form of communication is necessary in order to solve the task as the receiver must navigate to a target location about which they initially are ignorant. In the first experiment, no constraints were placed on agent interaction which led to the evolution of two main strategies: ‘shepherding’ and ‘sit and wait’. In the former case, the sender would ‘push’ and ‘pull’ the receiver in order to guide them to the goal, whereas in the latter the sender would stop within proximity sensor range of the target in order to indicate its location. However, the fact that the agents solved the task whilst remaining within proximity sensor range of each other ensured that whilst the evolved behaviour was clearly referential communication it could not be categorised as displaced referential communication.

To remedy this, in the next experiment the sender’s movement was restricted such that it was constrained to remain within one quarter of the environment, with the targets located in one of four locations outside of this region (see Figure 3). This restriction renders the previously evolved strategies ineffective and instead requires the use of displaced referential communication. Evolved agents were able to succeed at the task, but did not generalise well to target positions beyond the four that they were evolved to deal with. The evolved solution effectively relied on a set of four distinct movement signals, each associated with one of the four target locations, but had little ability to communicate about points lying between these locations. This evolved communication system is described by the authors as ‘symbolic’ and is compared to the use of a simple set of ‘words’. In a final experiment, the number of target locations was increased to 10 (Figure 3), encouraging the evolution of a communication strategy that could generalise over the entire range of target locations, demonstrating that it was possible to evolve displaced generalised referential communication in simple agents.

Campos and Froese (2017) extended this study by simplifying the agents involved in order to allow for more analysis to be performed, and to demonstrate that signalling and receiving behaviour could be handled by the same 3-node CTRNN. They employed an infinite non-periodic 1D environment (a line), with one target appearing uniformly at random in the range [0.5, 1] and two agents initially placed independently at locations drawn uniformly at random from the range [0, 0.3] (see Figure 4, top). The sender agent could sense the location of the target but was not permitted to leave the ‘signalling zone’ [0, 0.3], whilst the receiver could not sense the location of the target but was permitted to move freely throughout the environment. Each agent had three sensors: a binary contact sensor that was on only if agents were separated by a distance of less than 0.4, a self-position sensor that indicated the agent’s own location in the world and a target sensor. For the sender, the target sensor indicated its current distance to the goal. For the receiver, this sensor gave a constant reading of −1. This allowed for the receiver and sender to behave differently during a trial, despite being controlled by networks with the same parameters. The evolved agents were able to successfully communicate the location of the target over the range [0.5, 1] using a displaced referential communication strategy in which the location of the target was related to the amount of time that the agents spent within contact range.OPEN IN VIEWER

Subsequently, the authors were able to extend this model to a 2D environment within which a pair of agents controlled by the same evolved 6-neuron CTRNN were able to communicate the location of a target using a displaced referential communication scheme that made use of both the bearing and distance to a target location in a compositional manner with parallels to the honey bee’s waggle dance language (Campos & Froese, 2019). This paper represents the state of the art in this line of research, but leaves open the challenge of exploring whether two-way communication can be achieved by similar cognitive architecture and also the question of to what extent these studies and studies like them can shed light on the evolution of more sophisticated linguistic behaviour.

One-Way Communication

During the one-way communication task, two agents move and interact within a simple 1D environment for 300 simulated units of time, one playing the role of signaller and the other playing the role of receiver. The signaller can sense the location of a stationary target within the environment and aims to communicate this information to the receiver. The receiver is not able to sense the location of the target but aims to navigate to it based on information that it obtains from the signaller. The receiver and signaller can each detect their own location and can also detect whether or not they are within a threshold distance of each other, but have no other means of influencing one another.

At the start of each trial, both agents have their neuron activation levels set to zero and their positions initialised to locations selected uniformly at random from the range [0, 0.3], and the target location, G, is placed at a location drawn uniformly at random from the range [0.5, 1]. During a trial, the signaller’s movement is restricted to lie within a ‘signalling zone’ [0, 0.3], whereas the movement of the receiver is unrestricted (see Figure 4). Each agent receives input from its three sensors, each providing an external weighted input to one unique node within its own 3-node CTRNN controller (see Table 1). Firstly, each agent possesses a binary contact sensor which delivers a value of +1 if the two agents are separated by a distance of less than 0.4 and a value of 0 otherwise. Secondly, each agent also receives input from its self-position sensor, which delivers a value corresponding to its own real-valued co-ordinate within the environment. The agents differ in that their third sensor either provides their distance to the target location (if the agent is the signaller) or provides a constant value of −1 (if the agent is the receiver).

OPEN IN VIEWER

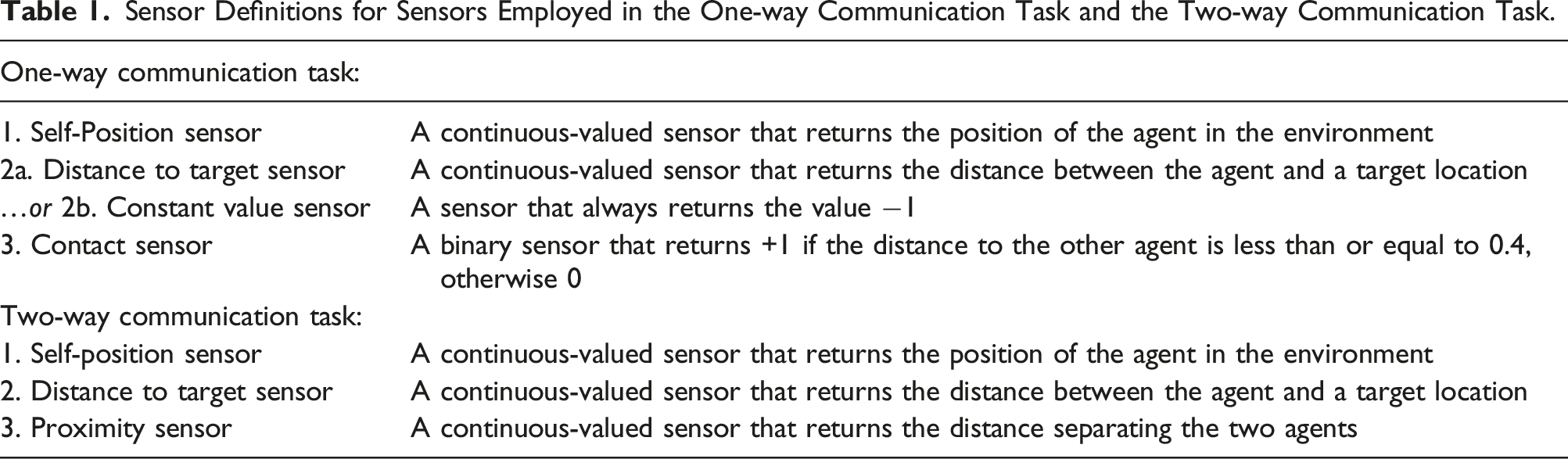

Table 1.

Sensor Definitions for Sensors Employed in the One-way Communication Task and the Two-way Communication Task.

One-way communication task:
1. Self-Position sensor	A continuous-valued sensor that returns the position of the agent in the environment
2a. Distance to target sensor	A continuous-valued sensor that returns the distance between the agent and a target location
…or 2b. Constant value sensor	A sensor that always returns the value −1
3. Contact sensor	A binary sensor that returns +1 if the distance to the other agent is less than or equal to 0.4, otherwise 0
Two-way communication task:
1. Self-position sensor	A continuous-valued sensor that returns the position of the agent in the environment
2. Distance to target sensor	A continuous-valued sensor that returns the distance between the agent and a target location
3. Proximity sensor	A continuous-valued sensor that returns the distance separating the two agents

Each agent’s behaviour is controlled by a small Continuous Time Recurrent Neural Network (CTRNN) comprising three model neurons that are updated by Euler integration of the standard equation for a CTRNN neuron’s dynamics:

τ i d y i d t = − y i + σ ( β i + ∑ w i j y j + w i I I i )

(1)

Here, τ _i is the time constant of neuron i, y _i is the current activation of neuron i, β _i is the bias of neuron i, w _ij is the weight on the connection from neuron j to neuron i, I _i is the magnitude of any external sensory input to node i, w _iI is the weight on this sensory input channel, and σ(.) is the neuron activation function, which is the standard sigmoid function: σ ( x ) = ( 1 + e − x ) − 1

Each agent’s behaviour is controlled by a separate copy of the same genetically encoded CTRNN. That is the CTRNNs controlling the signaller and the receiver have the same structure (i.e. weights, biases and time constants), but each receives its own sensory inputs and maintains its own internal state. All neuron activation values are set to zero at the start of each trial and each simulation step represents 1 unit of simulated time.

Each agent’s movement is driven by the activation level of one CTRNN node. The maximum speed of each agent is fixed at 0.01 units of distance per unit of simulated time. (Acceleration, momentum, friction, etc., are not considered as part of the model.) For each simulation step, each agent’s movement is updated using equation (2) below, where Δ _x is the change in the agent’s position, Δ _t = 1 is the number of units of time that pass during one simulation step (which is small with respect to the range of neuron time constant values), V = 0.01 is the maximum speed at which an agent can travel, and M is the activation of the neuron that drives the motor, which lies in the range [0, 1]. Note that whereas each sensory input to the network is weighted, there is no weight on the output neuron’s connection to the motor.

Δ x = 2 ( M − 0.5 ) V Δ t

(2)

Two-Way Communication

The two-way communication task is designed to be as comparable with the original one-way communication task as possible, but differs in several key respects.

During the two-way communication task, two agents move and interact within a simple 1D environment, each playing the role of both signaller and receiver. One of the agents is able to directly sense the location of one randomly located stationary target within the environment, whilst the other agent is able to directly sense the location of a second randomly located stationary target. The target that is furthest from the origin is the true target for both agents. The other target is an irrelevant false target. The target locations are generated such that (i) they lie on opposite sides of the origin, (ii) they each lie between 0.5 and 1.0 distance units from the origin and (iii) the difference between the absolute values of their locations is at least 0.15, meaning that one is significantly further from the origin than the other.

Despite each agent not knowing whether they can sense the true target or the false target, their joint aim is for both of them to navigate to the true target, the one that is furthest from the origin. To do this they must exchange information in order to (i) determine which target to approach, and (ii) (for one of the agents) determine where this target is.

At the start of each trial, both agents are located at the origin with neuron activation levels set to zero. The location of the true target, G, is chosen uniformly at random from either the range [0.65, 1] or the range [ − 0.65, −1.0], with equal frequency. If the true target, G, is positive, a second false target location, g, is chosen uniformly at random from a range of negative locations [ − 0.5, − (G − 0.15)], otherwise g is chosen uniformly at random from a range of positive locations [ + 0.5, − (G + 0.15)], thus, ensuring that | G | − | g | ≥ 0.15 , i.e., the absolute location of the true target is at least 0.15 greater than the absolute location of the false target.

During a trial, the movement of both agents is unrestricted (see Figure 4). Each agent again receives input from three sensors, each providing an external weighted input to one unique node within its own 3-node CTRNN. Firstly, each agent possesses a sensor which indicates the signed distance separating the agents from each other (i.e. the contact sensors from the original one-way communication task have been replaced with proximity sensors). Secondly, each agent receives input from its self-position sensor. Finally, each agent’s third sensor now provides the distance to one unique target location; one agent senses the distance to the location of the true target whilst the other senses the distance to the location of the false target. The agents are not aware of whether they are sensing the true target or the false target.

The scenario is otherwise identical to the one-way communication task.

Evolving CTRNNs

For each of the two tasks described above, a genetic algorithm (GA) was employed to discover successful solutions. The scheme employed is based on that described by Campos and Froese (2017). Each evolutionary generation comprised a population of N = 50 individual genomes, each a vector of 18 real values in the range [-1, +1] used to parameterise a single CTRNN. The 18 values encoded three sensory input weights (from the contact/proximity sensor, the self-position sensor and the target sensor, respectively), and a bias, time constant and three inter-neuron weights for each of the three CTRNN neurons. Each gene value was linearly re-scaled to a range appropriate to the phenotypic component that it encoded: weights and biases were mapped to the range [ − 16, +16] and time constants to the range [50, 100]. Note that one individual genome is used to encode the parameters of both agents’ CTRNNs, which share the same weights, biases, time constants and initial activation values.

For the one-way communication task, the score for each individual trial was calculated on the basis of the distance between the target location and the final position of the receiver agent as follows:

S i T = max ( 0,1 − | R i T − G T | )

(3)

For each individual network, fitness was calculated on the basis of performance across 20 trials, each randomly specifying the location of the target and the initial locations of the two agents. For each generation, the same 20 trials were used to evaluate each network in the population. The fitness of an individual network was calculated as a weighted sum of the scores that it achieved across these 20 trials, where each score’s weight was equal to the reciprocal of its rank (ascending) within the list of 20 trial scores for that individual, thus, ensuring that the individual’s worst performing trial was weighted most significantly (×1) and its best performing trial was weighted least significantly ( × 1 20 ) . This weighted sum was then normalised such that the maximum possible fitness was 1 and the minimum was zero.

Selection of parents was fitness rank proportionate, using Baker’s linear ranking method (with maximum expected offspring equal to 1.1) and Baker’s stochastic universal sampling (Baker, 1987). Offspring were generated asexually. The offspring genome was mutated by applying additive Gaussian perturbation to the value of each gene. A vector of 18 independent samples from a standard Gaussian distribution was normalised such that it summed to a mutation magnitude value drawn from a Gaussian distribution with zero mean and variance equal to 0.2. This vector was then added to the vector of offspring gene values. Any mutated gene values lying outside the range [ − 1, +1] were clipped to the nearest legal value. If the new offspring did not achieve a fitness greater than that of its parent, its place in the new generation was taken by its parent.

For convenience, values used for each parameter described above are shown in Table 2. To the best of our knowledge these are equivalent to those employed by Campos and Froese (2017).

OPEN IN VIEWER

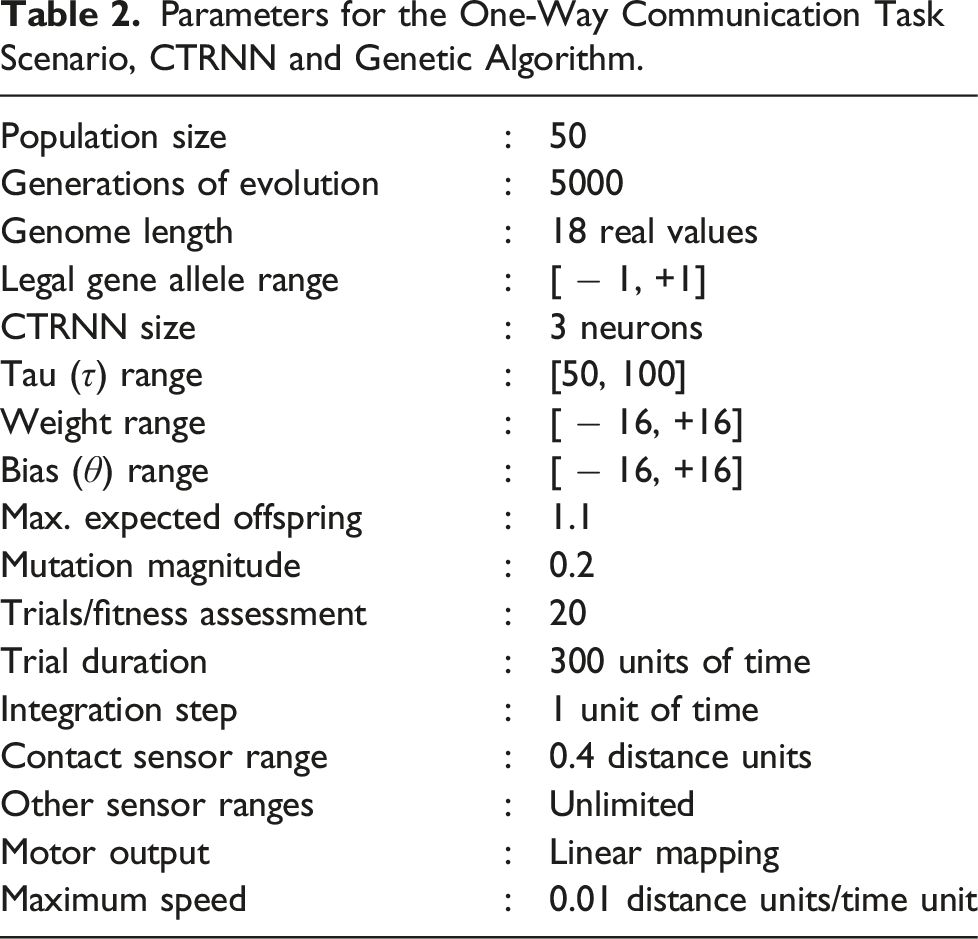

Table 2.

Parameters for the One-Way Communication Task Scenario, CTRNN and Genetic Algorithm.

Population size	: 50
Generations of evolution	: 5000
Genome length	: 18 real values
Legal gene allele range	: [ − 1, +1]
CTRNN size	: 3 neurons
Tau (τ) range	: [50, 100]
Weight range	: [ − 16, +16]
Bias (θ) range	: [ − 16, +16]
Max. expected offspring	: 1.1
Mutation magnitude	: 0.2
Trials/fitness assessment	: 20
Trial duration	: 300 units of time
Integration step	: 1 unit of time
Contact sensor range	: 0.4 distance units
Other sensor ranges	: Unlimited
Motor output	: Linear mapping
Maximum speed	: 0.01 distance units/time unit

For the two-way communication task, the score for each individual trial was calculated on the basis of the distance between the true target location and the final positions of both agents as follows:

S i T = max ( 0,1 − | A i T − G T | − | B i T − G T | )

(4)

For each individual network, fitness was calculated on the basis of performance across 20 trials, 10 featuring a true target with a random positive location, and 10 featuring a true target with a random negative location. For each generation, the same 20 trials were used to evaluate each network in the population. The fitness of an individual network was calculated as a weighted sum of the scores that it achieved across either the 10 trials featuring a true target with a positive location or the 10 trials featuring a true target with a negative location, whichever was worst. Again, each score’s weight was equal to the reciprocal of its rank (ascending) within the list of 10 trial scores achieved by that individual on the chosen side of the environment, thus, ensuring that the individual was assessed on its worst performing side of the environment and that its worst performing trial on that side was weighted most significantly (×1) and its best performing trial on that side was weighted least significantly ( × 1 10 ) . Again, this weighted sum was normalised such that maximum possible fitness was 1 and the minimum was zero.

One-Way Referential Communication

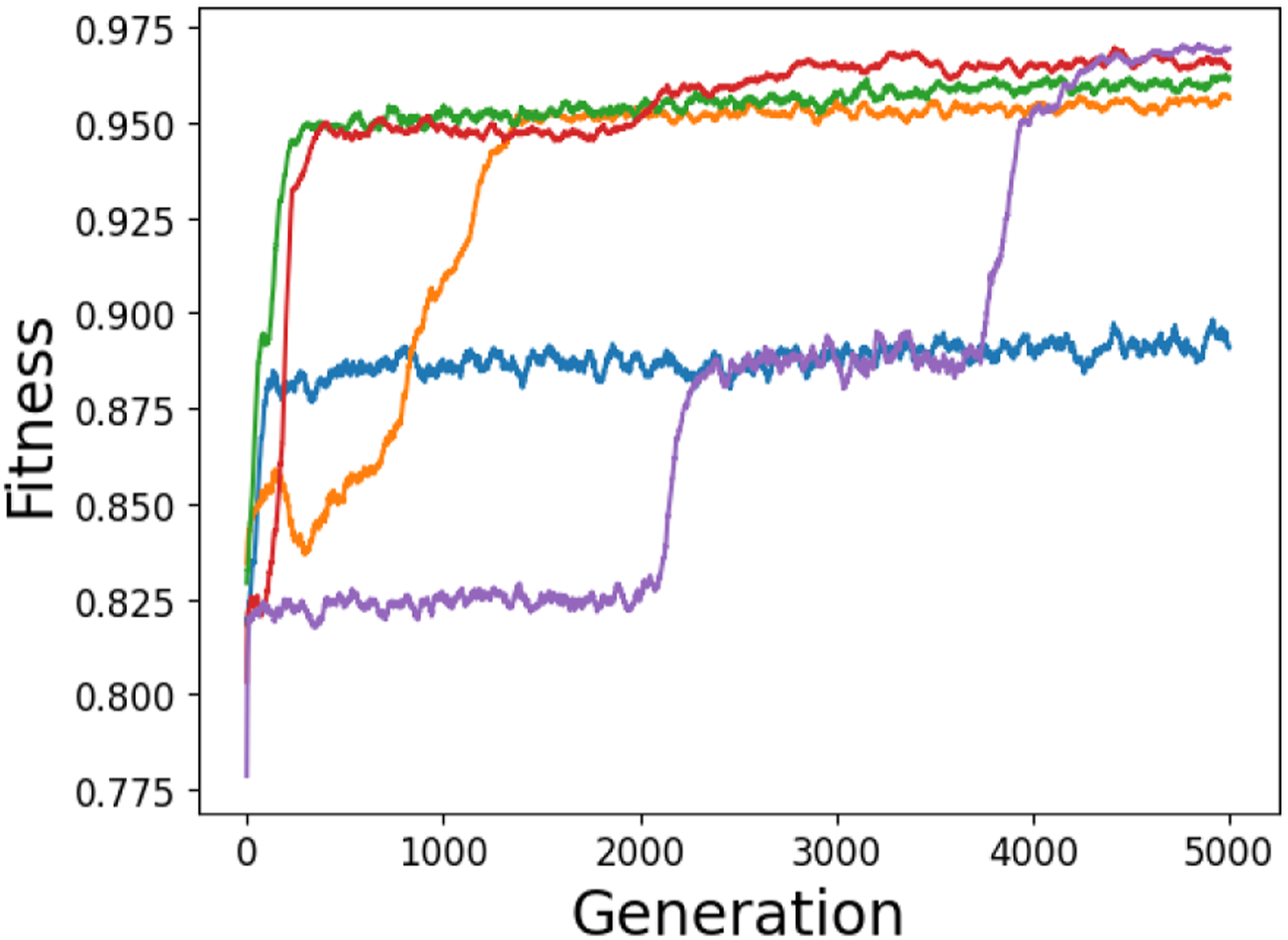

Figure 5 shows the highest fitness value in the population across five representative 5000-generation evolutionary runs. One commonly evolved mediocre, degenerate solution to the task is for the receiver to ignore the signaller and move to the average target location. This achieves an average fitness of 0.816 and corresponds to the behaviour represented by the purple line between generation 0 and 2000. There also appears to be a significant fitness plateau at around 0.875, which some runs struggle to surpass (e.g. the one represented in blue). Because of the increased weighting given by the fitness function to the lowest scoring trials, in order to gain a higher fitness score the network must be able to generalise its performance across the range of target locations. Manual analysis of the population represented in blue revealed networks that can only successfully deal with a limited range of target locations.OPEN IN VIEWER

Most evolutionary runs were able to achieve solutions with a fitness ⪆0.95, which corresponds to recognisably competent signalling behaviour. Here, we will analyse two of the best performing evolved solutions. Network 1 (Figure 6) and Network 2 (not shown) enable the signal receiver to finish trials within 0.05 distance units of the target location in 99.2% and 98% of cases, respectively. By comparison, the best performing network reported by Campos and Froese (2017) managed to achieve this degree of accuracy in 97% of the trials.OPEN IN VIEWER

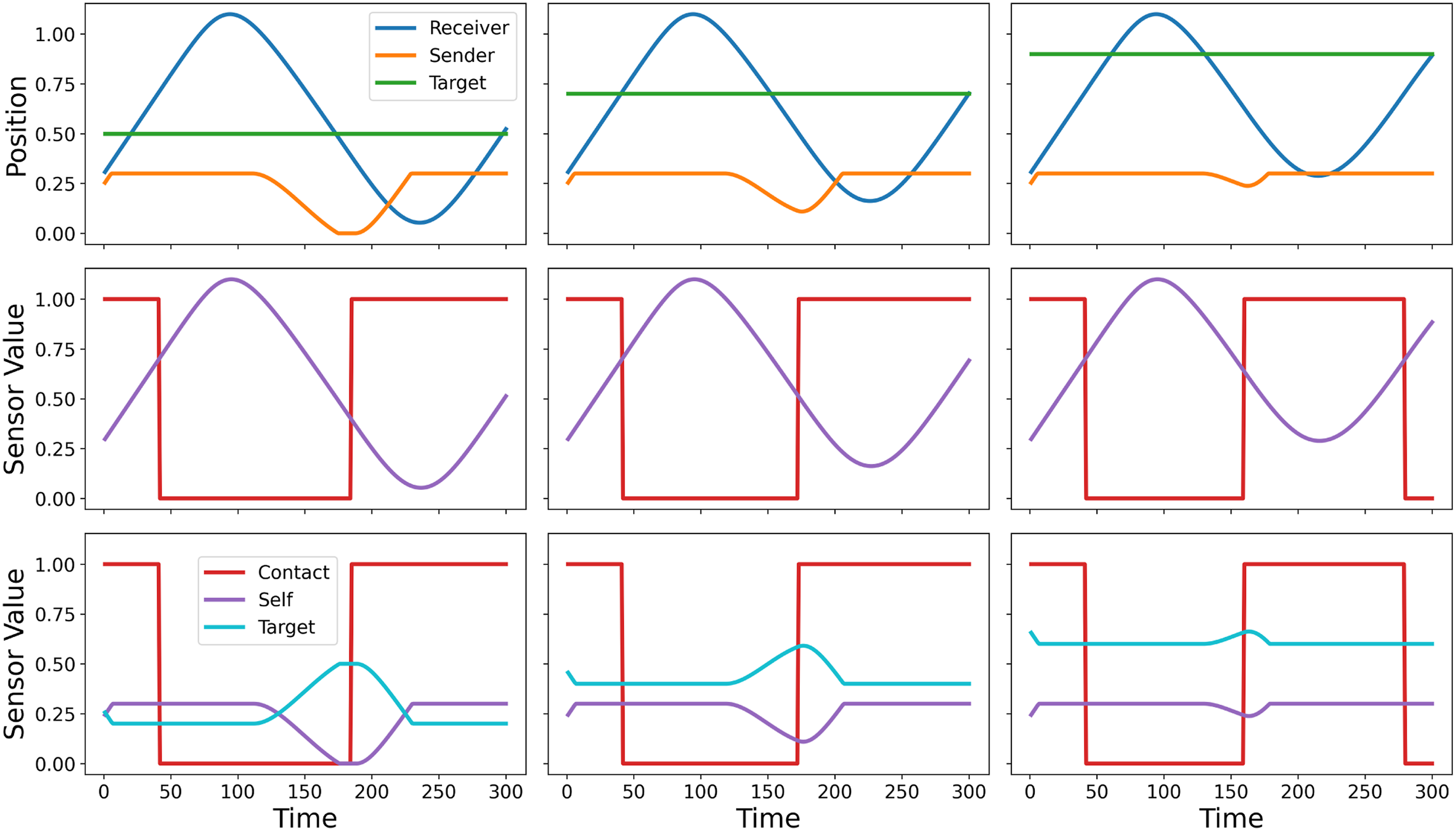

Figure 7 demonstrates the behaviour of Network 1 on three distinct trials, each starting from the same initial conditions but confronted with a different target position. The figure shows the locations of each agent and the target, and also the values for each of the agents’ sensors throughout the trials. The strategy performed by Network 1 has two phases. Firstly, for roughly 100 units of time both agents move in a positive direction. As a consequence of the fact the signaller is prevented from moving outside its ‘signalling zone’, this enables the two agents to separate and extinguishes differences caused by their initial random starting positions. Subsequently, both agents reverse direction and move back towards the origin before reversing their direction of motion a second time and moving towards the target. The signaller indicates the location of the target by performing this reversal at a time related to the magnitude of the target location co-ordinate, thereby altering the moment at which the two agents regain contact with each other. This allows the receiver to modulate the point at which it makes its second reversal of motion such that it is able to finish the trial at the target location.OPEN IN VIEWER

An alternative evolved strategy (Network 2) adopts a similar scheme, but exploits the fact that only the receiver is capable of moving to negative locations. Network 2’s behaviour also features two phases. Firstly, the signaller and receiver travel in a negative direction. The signaller is prevented from travelling to negative coordinates (which are outside the signalling zone) allowing the receiver to move out of contact sensor range, which enables the agents to extinguish the effect of variation in their initial conditions caused by their random initial starting positions. Both agents then reverse direction, moving positively towards the target (although the signaller cannot move further than the upper boundary of the signalling zone). The signaller reverses direction a second time at a moment dictated by its sensory reading of the target location. This serves to determine the amount of time for which the two agents are within contact range of each other, thereby enabling the receiver to modulate its outward motion such that it reaches the target location at the end of the trial.

Figure 8 depicts the overall accuracy of the Network 1 and Network 2 strategies. The left-most pair of graphs show the mean distance between the receiver and the target location at the end of a range of trials for Network 1 agents (top) and Network 2 agents (bottom). For the vast majority of the target range, this distance is well below the arbitrary success threshold of 0.05 employed by Campos and Froese (2017). The worst performance tends to be associated with the most extreme target locations. The central pair of graphs shows the mean final position of the receiver over a large range of initial conditions for Network 1 (top) and Network 2 (bottom). The receiver position closely approximates the target location with some slight divergence at the extremes of the target location range. The standard deviation around the performance is small, indicating that the Networks are able to achieve a high performance consistently, regardless of variation in the agents’ initial starting locations. The right-most pair of graphs support the hypothesis that the precise timing of contact being re-established between the two agents (Network 1) and the precise duration of sensory contact between the two agents (Network 2) is likely to be strongly involved in achieving successful task behaviour since the correlation between these aspects of the agents’ joint behaviour and the true location of the target are extremely strong.OPEN IN VIEWER

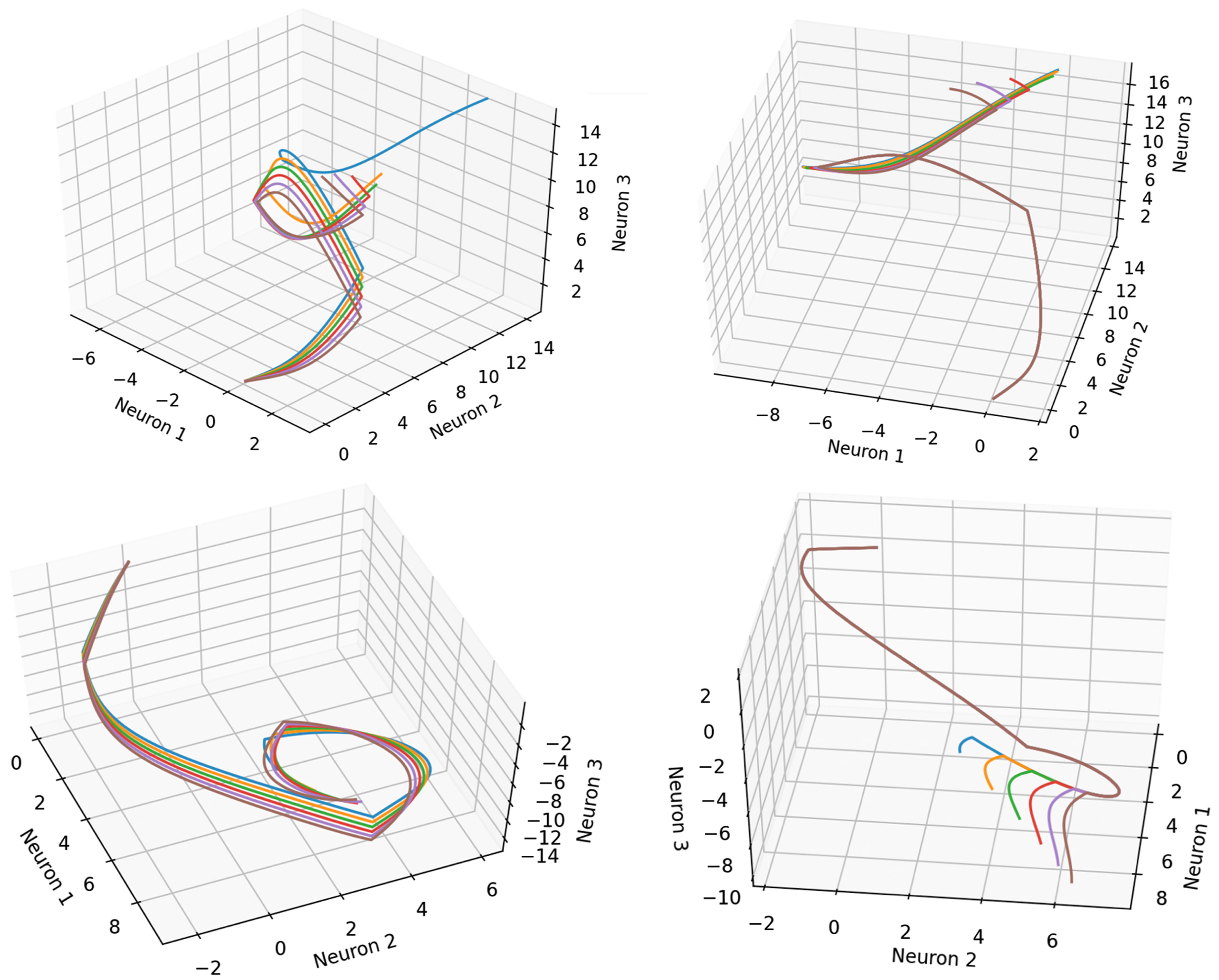

In order to further understand the behaviour of the two networks, the neural states of agents controlled by Networks 1 and 2 have been plotted for a range of trials featuring targets at one of six different locations (Figure 9). Note that unlike the behaviour of the signaller, which gradually diverges in a manner that depends on the target location, the behaviour of the receiver is identical across these trials until a certain point in time. This corresponds to the initial ‘separation phase’, during which the behaviour of the signaller has no impact on receiver movement. After this point however, the behaviour of the network diverges, with the neural states branching in a way that depends on the signaller’s location in a way that strongly correlates with the target location. It may be tempting to identify the sharp discontinuities in the neural trajectories as ‘decision points’ corresponding to moments at which the agents achieve communication. However, these discontinuities correspond to points at which either (i) the signaller reaches a signalling zone boundary, (ii) the signaller and receiver separate to the extent that they lose contact with each other. Removing the signaller from a trial at any point prior to the agents losing contact for the final time tends to have a (negative) impact on receiver behaviour. Thus, rather than being associated with a discrete event, agent communication is a temporally extended, continuous interaction reliant on the timing of the onset of contact and/or the duration of this contact.OPEN IN VIEWER

Two-way Referential Communication

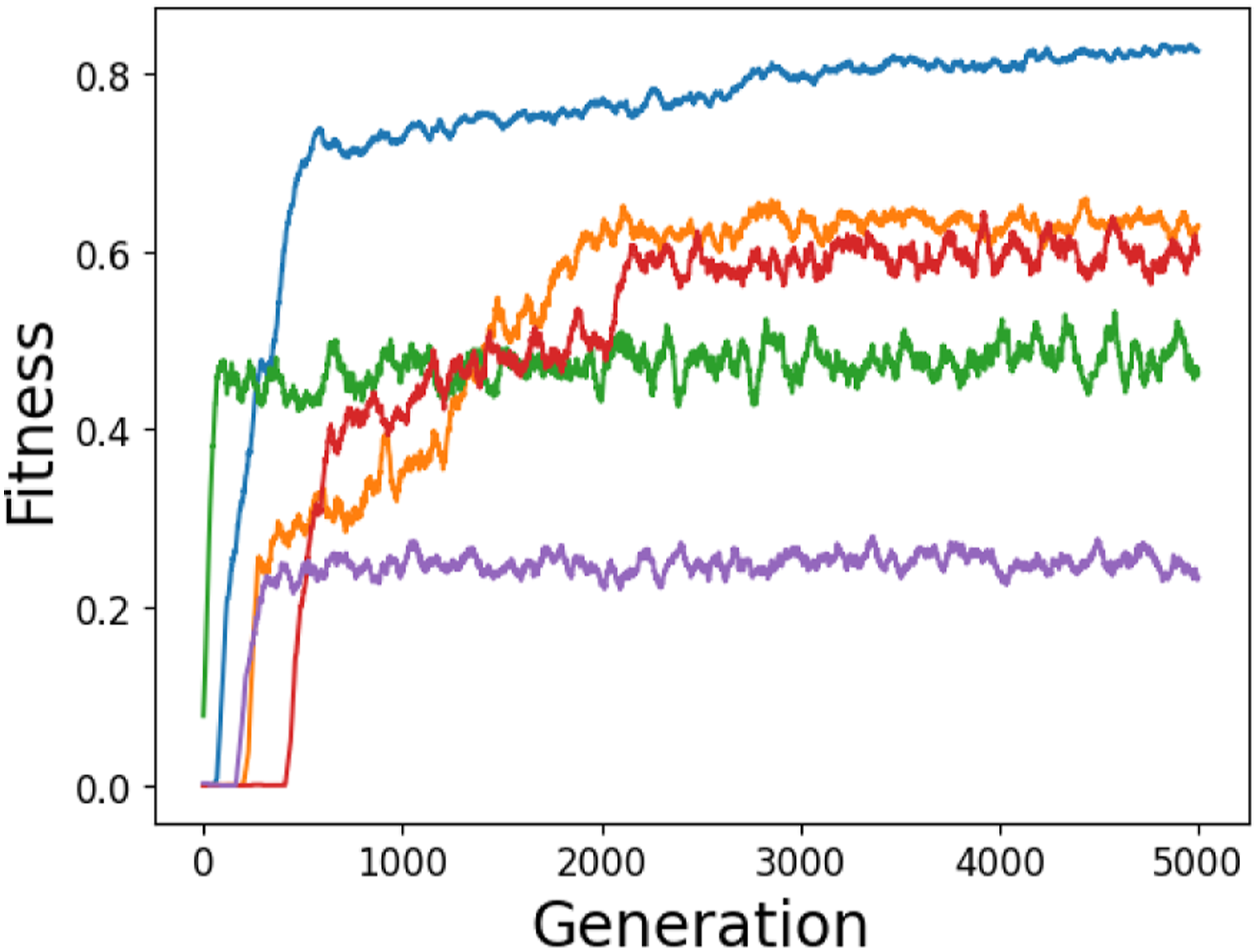

Solutions for the two-way communication problem were significantly harder to evolve than for the original one-way communication task, as shown by Figure 10. Not only do the evolutionary runs for the two-way communication task tend to exhibit larger variance in fitness across consecutive generations, but there is also a much larger variance in the range of fitness values achieved overall. For the original one-way communication task, a non-zero fitness will always be awarded to an agent that stays still or moves less than 150 distance units in the positive direction. However, for the two-way communication task most evolutionary runs feature several initial generations in which every genome achieves a fitness of zero.OPEN IN VIEWER

As the fitness function is based on the combined distance of both agents from the true target, if the agents travel to different sides of the environment their fitness will almost always be zero. Similarly, if the agents always go to one side, regardless of whether the true target is on that side or not, then the overall fitness will once again be zero, as the fitness function only considers performance on the agents’ worst performing side. Lastly, if the agents do not move at all, they will again receive zero fitness as the combined distance to the true target will be greater than 1. This means that a randomly initialised population is far less likely to include strategies that achieve non-zero fitness, and that the first few generations will therefore often perform very poorly. Consequently, once a mutant strategy with non-zero fitness arises, it is likely that it will reproduce rapidly leading to a strongly converged population, despite the relatively weak selection pressure that is implemented. Nevertheless, although the median best fitness was close to 0.6 across all 20 simulation runs, some networks managed to achieve higher values, up to 0.9 which corresponds to recognisably communicative performance.

The behaviour of two successful networks is presented in Figure 11. Due to the continuous range of values that the proximity sensor can take (by comparison with the binary contact sensor used for the one-way communication task) the two-way communication behaviour has the potential to be far more subtle than that observed in the previous task. As a consequence, the behaviour of the evolved networks can be significantly harder to analyse. However, as with the original one-way communication task, the evolved behaviour typically appears to have two phases. In the first phase, movements are performed that allow each agent to share the location of their own goal with the other agent (the ‘communication phase’). In the second phase, both agents move towards the true target (the ‘decision phase’).OPEN IN VIEWER

For Network 3, it appears that the communication phase culminates at around t = 120 when Agent 1 (which is able to sense the location of the positive target but does not initially know whether this is the true target or not) decides to either alter its trajectory by moving towards the positive target (causing Agent 2 to accompany it) or, alternatively, decides to continue to follow Agent 2 towards the negative target. The former outcome obtains in situations where Agent 1’s co-ordinate at the t ≈ 120 ‘decision point’ is higher than some threshold, but the precise mechanism by which the agents are able to make this ‘decision’ correctly across the range of trials that they must deal with is not obvious from observing their external behaviour. The behaviour of Figure 12 is significantly different. The agents commence each trial by moving towards the negative target in a sinusoidal pattern that relies on them making use of their continuously varying proximity sensors. However, if the co-ordinate of the third turning point of this sinusoidal behaviour is greater than the co-ordinate of their first turning point (which occurs at around t = 50 in almost every trial), then the agents cease this sinusoidal behaviour and travel directly towards the positive target. Again, whilst it is possible to correlate a feature of the agents’ joint trajectory with the ‘decision’ to choose the positive target versus the negative target, the extent to which this account captures the true causal mechanisms in play is not clear.OPEN IN VIEWER

Figure 13 shows the performance of Networks 3 and 4 across a range of trials in which the positive and negative target locations vary between [0.5, 1] and [ −0.5, −1.0], respectively, exhaustively sampled at intervals of 0.01 units. Scenarios that were invalid during evolution due to the absolute values of the target locations being too close together are coloured black. Both heat maps show good performance across the entire range of scenarios. For Network 3, the lowest scoring scenarios are in a small region near (1.0, −0.85) where performance falls to zero in the worst cases. When the true target is negative, fitness scores are in general higher, indicating that the agents are using a more efficient method of communication for this half of the problem. By contrast, Network 4 is capable of stronger performance overall. Notably, there are no scenarios for which the fitness score falls below 0.56, meaning there is strong performance across the whole range of scenarios to which the networks’ lineage was exposed during evolution.OPEN IN VIEWER

In order to determine how well these networks generalise, Figure 14 plots their two-way communication performance across an extended range of scenarios that involve target locations outside the range employed during evolution, and also removes the lower bound on target separation (i.e. the difference between the absolute values of target locations is no longer constrained to be greater than 0.15). Scenarios that were employed during evolution are surrounded by a red line and scenarios for which targets are an equal distance from the origin are coloured black (as correct behaviour is undefined in this case). Whilst Network 3 can cope with negative targets that are far more extreme than those experienced during evolution (which is consistent with its higher performance for negative targets in general), overall, both heat maps indicate that the evolved solutions can generalise only to some limited and unpredictable extent, with performance tending to decline steeply towards zero for increasingly novel scenarios.OPEN IN VIEWER

In Figure 14, a blue region of low fitness can represent one of two different failure modes. When performance changes abruptly from high fitness to low fitness (i.e. from red to blue), this can represent agents persisting with visiting one side of the environment when the target is now on the other side, i.e., consistently making the wrong choice regarding which side to navigate towards. Alternatively, when fitness gradually degrades over a region of the heat map (i.e. from red through white to blue), this represents agents becoming increasingly unable to accurately reach the target location by the end of the trial, but still tending to predict correctly on which side of the environment the target location lies. This may be caused either by a failure in the communication scheme’s ability to direct agents to targets beyond a certain point, or by the fact that limits on agent speed prevent them from having enough time to reach the target location before the end of a trial, despite in principal having the ability to travel to it accurately.

Earlier it was presumed that the agents first signal their private information about a target location and then decide which target they should travel towards based on the influence that this signalled information has had on their trajectory. Closer examination of the agent behaviour demonstrates that this discretised ‘signal-decide-act’ interpretation is not correct.

Figures 15 and 16 depict, for Networks 3 and 4, respectively, the trajectories of both signallers and receivers across every pair of target locations in the range [0.5,1] for the positive goal and [-0.5,-1] for the negative goal sampled at intervals of 0.01. (Note that this set of trials includes ones in which the magnitude of the true target’s co-ordinate lies in the range [0.51, 0.65], i.e. trials that would not be encountered by the agents during evolution.) Trials for which the negative target was in fact the true target have been shaded green for the first and last 100 time steps. These figures show that the behaviour of both agents is determined by the true target location far earlier than described previously. For both Network 3 and Network 4, the behaviour of both agents is already influenced by whether the true target is positive or negative by t ≈ 50, implying that the agents have already begun to ‘decide’ which side to navigate towards before this point.OPEN IN VIEWER

OPEN IN VIEWER

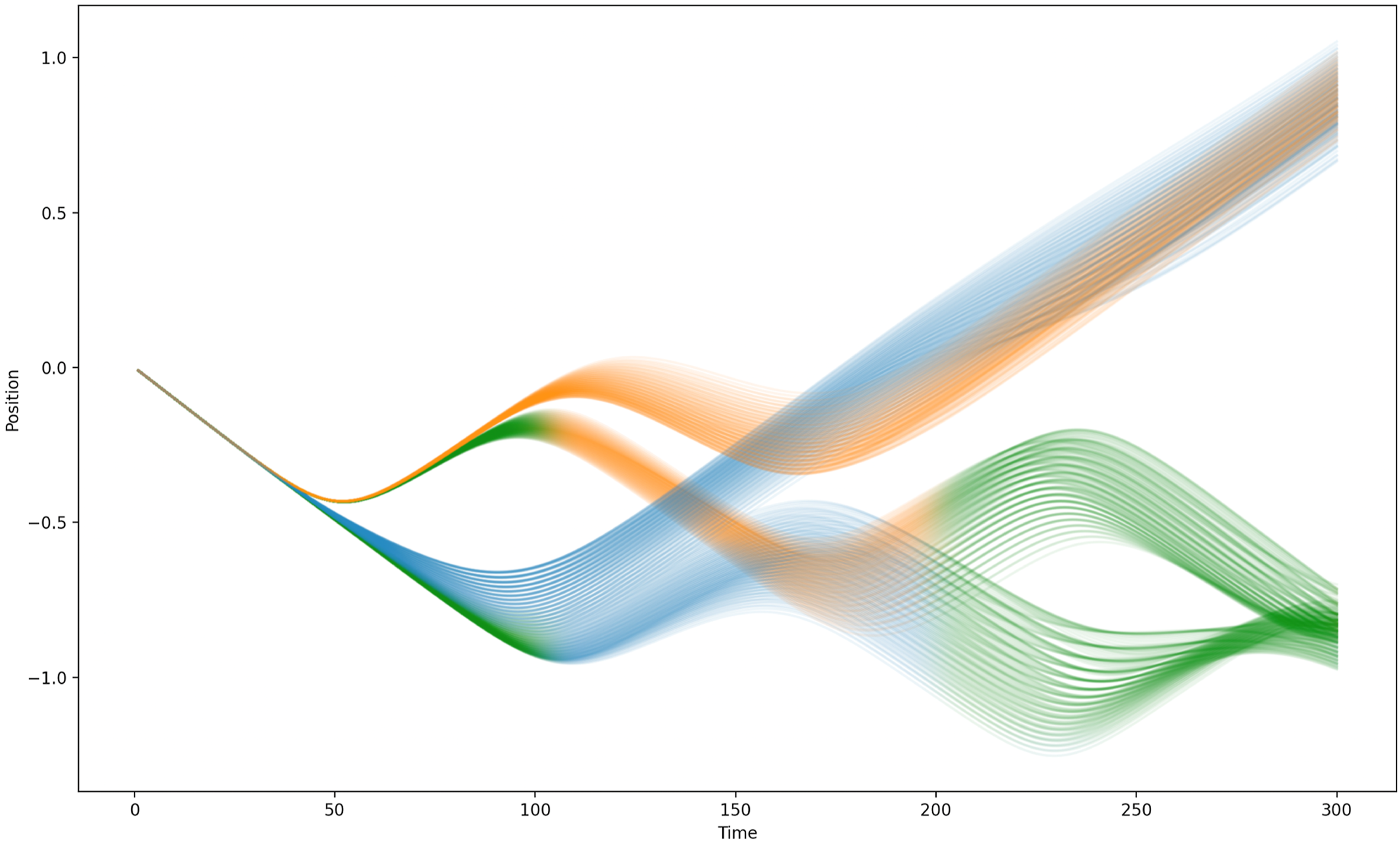

Figure 16.

Trajectories for Agent 1 (orange) and Agent 2 (blue) using Network 4 to solve the two-way communication task across a range of trials with different positive and negative target locations. Tasks for which the true target was in the negative target range are coloured green for the first and last 100 time steps.

The method by which the agents exchange information exploits the fact that they are initialised in the same location and in the same the neural state and that their proximity sensors are both noiseless and precise. This means that even subtle differences in the relative trajectories of the agents (that reflect the absolute value that they receive from their target distance sensor) can be exploited by the agents to effectively assign a ‘leader’ role to the agent with direct knowledge of the true target location and a ‘follower’ role to the other. Whilst there remains a considerable amount of variation in the trajectories subsequent to this very early differentiation of agent roles, this can be accounted for in terms of (i) the leader Agent following a target-location-specific trajectory that converges on the directly sensed target location at the end of the trial, and (ii) the follower Agent timing its convergence on the location of the leader such that they also coincide at end of the trial. Again, removal of either agent during the trial does damage the ability of the other to complete the task successfully, so there remains a significant mutual coupling between the agents which is not fully captured by the leader/follower labels.

Perhaps somewhat remarkably, then, despite the effort made in the literature and the current study to introduce a series of increasingly complex signalling tasks intended to demonstrate increasingly sophisticated displaced referential communication, we have arrived at successful evolved solutions that still strongly resemble the leader/follower co-ordination described in Quinn’s (2001) original model of evolving communication without dedicated communication channels. Whilst that model did not include an explicit target about which the agents needed to signal, in other respects the behavioural interpretation of the evolved solutions are remarkably similar, each involving an interplay of proximity-based oscillation and following behaviours.

Self-Representing Elements

Simple animal signals map onto their referent in a simple way, often relying on some property of the signal to represent the self-same property of the signal’s referent. For instance, an alarm call might use a high pitched shriek to indicate that a predator is approaching. Implicitly, the alarm call also indicates the where and the when of the approaching predator (“right here” and “right now”, respectively) by virtue of the where and the when of the signal also being “right here” and “right now”. Such a system is therefore unable to represent a referent with a where and when other than “now” and “here”. By contrast, human language is able to convey “We are being attacked tomorrow” or “We are being attacked in Paris”.

Storing Representations

If signals that map onto a where and a when other than the here and now are to be useful, then their meaning must typically somehow be persistent within the agent such that the agent can choose to act on the meaning when the time and place are right. By contrast, many simple animal signals are ephemeral, being relevant only instantaneously and therefore not requiring storage. The bee dance language is a departure in that the referent of the signal is spatially displaced from the signaller and observer. The meaning of a bee dance must continue to influence the observer once it has flown away from the dance floor. Similarly, the evolved agents reported here must often exhibit behavioural persistence in reaching a location that is outside their signalling zone. However, for both honey bees and our evolved agents, the when of a signal’s referent is always now which means that it is premature to talk of storing representations of target locations. It is sufficient to talk in terms of heading off immediately in a signalled direction at a signalled intensity. Our evolved agents need not store a representation of their target location that must be consulted as they move towards it. Rather they need only set off at the right speed, such that the end of the trial coincides with them reaching the correct location.

Indicative and Imperative Representations

As mentioned already, language utterances may have a mood that is either imperative or indicative or a mixture of both. This flexibility is not true of much animal signalling where the meaning of a signal is both indicative “Nectar is at location X” and imperative “Go to location X”. That the cognitive story for such cases involves no information processing is therefore hardly surprising. There is little cognitive work to be done on the signal. It maps directly to an imputation to act. A cognitive story with little room for information processing has limited justification for being called “representation hungry”.

Inference

When the act of receiving and understanding a signal can be decoupled from taking immediate external action, the door is opened for more sophisticated internal cognitive behaviour. If a signal’s indicative mood is decoupled from its imperative mood, some kind of inference will be required in order to re-couple its meaning with downstream action. Here then perhaps, to the extent that the contexts for this downstream action are many and varied, is where the real hunger for something like internal representation may lie: a cognitive ability to generate intentions (and actions) from beliefs.

Acts of Identifying

Once a signal’s meaning is decoupled from the where and when of its immediate sensory-motor context, and is to be retained for unspecified usage in some other where and when as instigated by inferential processes, the challenge arises of re-identifying its referent both in the world and internally. This is not a challenge for our evolved agents which simply set off immediately with a direction and speed that ensures they arrive where they need to arrive when they need to arrive without needing to recognise that they have so arrived. By contrast, acting on a signal such as “I will mark the traitor’s door with red just after midnight” requires much more of the relationship between the internal state and the downstream behaviours that it enables. The referent as indicated somehow in the trace of an indicative signal must somehow be identified with the referent as identified in the sensory world of the agent. Moreover, the potential for the referent of multiple different imperative or indicative signals to be identified as one and the same underpins much sensible behaviour (as when it transpires that “Sam’s door” is also “The traitor’s door”). Achieving this “substitution of similars” (what Stanley Jevons called “a dark and inexplicable gift”, Bullock, 2008) requires at minimum that internal states be articulated as part of some system, rather than merely mapping holistically onto the world.

Negation and Propositional Content

Finally, Millikan argues that natural signalling systems, such as the bee dance language, lack negation. When two bee dances indicate two competing locations it may well simply be the case that there is nectar in both locations. There is no capacity for one bee dance to dispute another one. In her Language, Thought and Other Biological Categories, Millikan (1984) argues that explicit contradiction relies on subject-predicate structure and is thus attendant to our capability to communicate propositional content, i.e., that without it conceptual symbolic language is not possible.

Future Work

Independent of the issues raised above there remains scope to explore the extent to which simple CTRNN-controlled agents can be evolved to solve increasingly complicated signalling tasks. Future work of this kind could, for example increase the number of agents involved in each signalling interaction (beyond the pair of agents considered in the literature so far), or increase the number of tasks for which the agents are required to employ communication (beyond conveying the location of a target). Honey bee dances, for instance are performed in front of a large number of observers, each of whom integrates the information from several dances before flying towards one (presumably the best) of the advertised locations (von Frisch, 1965). Likewise, honey bees are able to use their dance language to communicate about more than the location of nectar-bearing flowers since they also use the signalling system to decide amongst competing nest sites (Lindauer, 1955; Seeley & Visscher, 2004). Extensions of this kind would further separate signalling from acting, creating an intervening gap that may require more complex cognitive mechanisms than have been displayed in the literature so far.

Whether advertising nectar or nest sites, the honey bee dance language is being used to solve an inherently analogue problem: communicating the relative distance and direction to target locations in continuous space. This type of task seems inherently suited to a CTRNN architecture that is also inherently analogue and also to the setting of simple simulated robots moving in a one- or two-dimensional arena. One issue is that evolving and analysing CTRNN agent solutions to such tasks may reveal more about the behavioural biases and capacities of the CTRNN substrate, rather than the nature of the cognition or communication required by the task (Bullock & Cliff, 1997). A second, more significant problem is that such analogue tasks can also encourage a kind of ‘faux displacement’. Whilst an agent that is limited to communicate in one region of space before navigating alone to a target location that is temporally and physically distant may be described as exploiting information in a signal that is ‘about’ this displaced location, it can be equally accurate to describe this communication without invoking displacement at all. Such an agent can be re-described as having received a signal that is ‘about’ the way that it should start moving right here and right now, behaviour that merely has the side-effect of ensuring arrival at the right location later on. As such, there may be value in exploring signalling scenarios that lie outside the set of analogue spatial navigation problems, scenarios in which communication about discrete and articulated referents is required (e.g. communicating the identity of target objects that differ in multiple qualitative ways, Steels, 2003) particularly if the referents need to be acted on in the future in some way that is determined by the context in which they are encountered.

For instance a task in which an agent must combine multiple sources of information about the identity of a target, and must interact with that target when they encounter it in the future in a way that is determined by contextual factors would represent a significant departure from tasks explored in the literature to date (e.g. being told “The traitor wears a hat” + “…has blonde hair” + “…has a big nose” might allow me to identify them during a sequence of interactions with suspects, but whether to expose the traitor or keep quiet might depend on whether I am in love with them or not).

Evolving agents to successfully solve more demanding signalling challenges such as these will require more sophistication on the part of the evolved agents and should encourage strategies that are not as reliant on the close coupling between signaller and receiver that was central to the solutions reported here. It is not a coincidence that, simultaneously, studies of this type would address directly several of the items on Millikan’s list of representational properties presented above.
