Bi-level optimization of railway alignments considering earthwork allocation and transportation

Abstract

Earthwork Allocation and Transportation (EAT) significantly impacts construction cost in Railway Alignment (RA) optimization, but slight research has been devoted to this problem. To this end, an RA-EAT bi-level optimization framework is developed. A concurrent RA-EAT design model is formulated at the upper-level. At the lower level, the EAT system is modelled by incorporating earthwork allocation sections partition, soil waste/borrow pits selection and access roads generation. To solve this bi-level model, a tailored solution strategy is proposed. Specifically, a candidate pool for borrow/waste pits is established via a moving window method. Then, RA alternatives are generated using a Particle Swarm Optimization (PSO). Afterward, the EAT model is solved with a hierarchical approach, including determining EAT sections along an RA with a divide-and-conquer method and configuring access roads with a modified Dijkstra's algorithm. Thus, the total RA-EAT solution can be iteratively evolved through the PSO rationale. Finally, the proposed method is verified and analyzed in a real-world case via a sensitivity analysis and a comparative experiment.

Keywords

Railway alignment design earthwork allocation and transportation particle swarm optimization constrained optimization bi-level optimization

1 Introduction

Alignment design mainly aims to determine the railway locations, geometric characteristics and structure configurations, e.g., bridges, tunnels, fills, cuts, and auxiliary construction projects.^1,2 It affects the costs (e.g., construction cost, operation and maintenance costs, right-of-way cost, user time cost), construction duration,³ environmental impacts⁴ and geological hazards⁵ of an entire railway project. Therefore, alignment design is crucial for the overall railway project's design, construction and operation. However, Railway Alignment (RA) design faces many challenges such as large search spaces, complex coupled constraints, and many evaluation criteria, which makes manual alignment design exceptionally difficult and time-consuming.⁶ Due to the limitation of time and resources, engineers may overlook some valuable RA alternatives.

To overcome the above difficulties, researchers have conducted many automated alignment optimization studies, which can be divided into two aspects, i.e., optimization model development and optimization algorithm design.

An optimization model serves as a mathematical abstraction of a complex real-world engineering problem, which is usually comprised of design variables, objective functions and constraints. In this field, most model-related studies focused on objective function assessment. Among them, many publications were devoted to cost-related single-objective optimization, such as earthwork costs,⁷ bridge and tunnel construction costs,⁸ and right-of-way costs.^9,10 In addition, researchers have also proposed several multi-objective models for RA optimization. For instance, Zhang et al.⁴ considered traffic-related safety performance and construction cost into their model for tunnel alignment optimization. Also, Song et al. developed a bi-objective RA optimization model integrating construction cost and geo-hazards posed by landslides.¹¹ Moreover, Gao et al. and Pu et al. considered the construction cost and carbon emission simultaneously in highway and railway alignment optimization, respectively.^12,13 In recent years, a many-objective optimization model has also been proposed, which comprehensively considered six kinds of objectives representing different dimensions.¹⁴

To solve the above optimization models, many optimization algorithms have been devised. Researchers at the University of Maryland designed a Highway Alignment Optimization (HAO) model, and then solved the HAO model with a Genetic Algorithm.^15,16 In that method, the alignment control points (known as Points of Intersections, PIs) were defined as genes and located on a set of uniformly distributed cutting planes between the start and end points.^17–19 Then, specific genetic operators were customized to optimize these PIs for finding a satisfactory alignment solution.^20–22

Despite the successful application of GAs for alignment design in plain areas, they were inadequate in complex mountain areas because of the harsh topographic and geologic conditions. Therefore, a distance transform (DT) algorithm has been applied to the optimization of mountain RAs. Inspired by de Smith,²³ a bidirectional scanning strategy was devised for DT.²⁴ Furthermore, this method was enlarged to develop a three-dimensional DT (3D-DT)¹⁰ and then parallelized by applying the CPU-based OpenMP library to expedite the optimization process.¹¹ Meanwhile, considering the application of alignment design experience, a knowledge hypergraph-driven DT method was proposed to address the challenge that manual experience is difficult to integrate directly into intelligent alignment optimization.^25,26 Nevertheless, it is noteworthy that the DT-produced paths could be further refined to obtain smooth alignments. Thus, inspired by Jong and Schonfeld¹⁵ as well as Shafahi and Bagherian,²⁷ specific genetic and particle swarm operators were proposed to adjust the DT path for more precise RA optimization.²⁸ Besides the above methods, many other algorithms have also been applied for alignment optimization, including deep learning,²⁹ simulated annealing³⁰ and sequential quadratic programming.³¹

Considerable efforts have been invested into alignment optimization research and publications. In these publications, earthwork cost can be the major criterion in optimizing alignments. Unfortunately, while a few studies in highway alignment optimization^32,33 have considered the Earthwork Allocation and Transportation (EAT) factors, most existing studies in RA optimization only consider the simple cut and fill volume of an alignment when computing the earthwork cost, which lead to inaccurate results for the total cost. A systematic mapping study on earthwork optimization also notes that most EAT-related studies lack post-construction validation and environmental factor integration.³⁴ In actuality, the EAT work significantly affects railway construction costs, duration, and solution feasibility.^35–37 Moreover, the EAT is also a very difficult process:

(1)
First, it involves the balance of railway earthwork along the alignment itself. That is, the earth from cut sections should be primarily transported to embankment sections in order to minimize the earthwork cost. Thus, cut-fill tradeoffs should be assessed during the EAT process.
(2)
In addition, when excessive soil is excavated in cut sections or additional soil is needed in fill sections, it is necessary to select appropriate regions in the study area for obtaining or discarding soil volumes (known as borrow pits and waste pits, respectively), as shown in Figure 1. Complicating things further, during this process, the design factors of access roads from these pits to the main alignment should also be accounted for earth transportation.
(3)
Moreover, there exist an astronomic number of possible alignment alternatives as well as numerous alignment-borrow/waste pit-access road combinations to consider during the RA-EAT design. Therefore, it is fairly challenging to jointly determine the best solutions of RAs and EAT schemes.

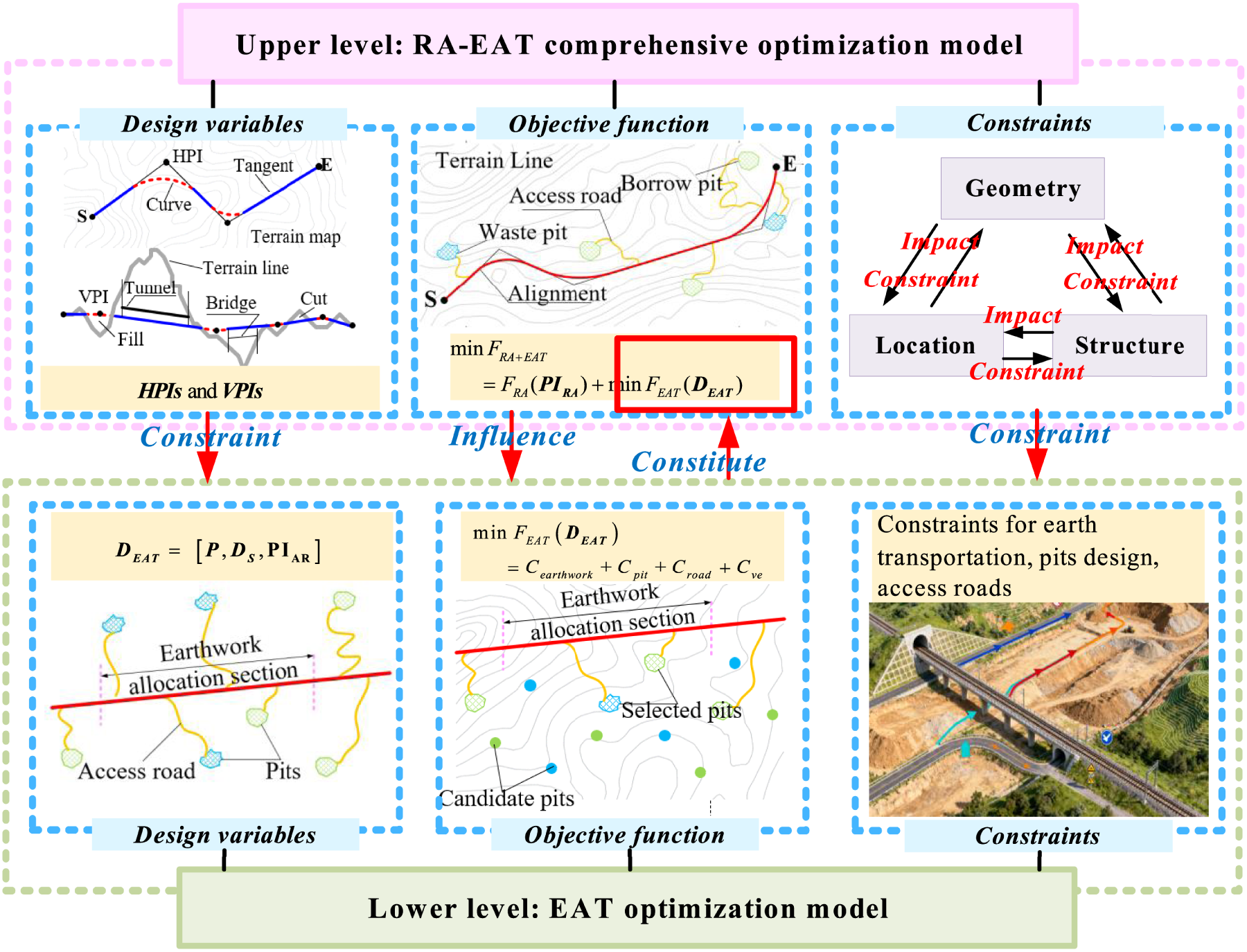

Figure 1.
The coupling relation between the upper- and lower-level models.

In the literature, some scholars have recognized the importance of EAT design. Easa^32,33 considered the variation of earthwork transportation cost and formulated a linear programming model for solving this problem. They first optimized the vertical alignment, and then developed the corresponding EAT alternatives based on this pre-optimized alignment. Burdett and Kozan³⁸ proposed a “block theoretic” model for formulating large-scale earthwork planning problems, which was improved in Burdett et al.³⁹ by reducing fuel consumption and construction costs. Güden and Süral⁴⁰ designed a minimum cost model for earthwork allocation and proposed a polynomial dynamic programming algorithm for solving it. Gwak et al.³⁶ designed a cut-ﬁll pairing and sequencing optimization method to ensure precise earthwork allocation. Choi et al.⁴¹ proposed a reinforcement learning model with an attention mechanism for EAT, which optimized truck travel time by learning dynamic terrain changes. Hare et al.⁴² devised a mixed integer linear program, which can effectively reduce the computing times. However, in most of the above studies, the earthwork allocation was based on pre-determined and unchanging railway or road alignments.

Actually, there is a complex coupled relation between RA design and EAT. On one hand, among a large number of possible alignment alternatives, the distributions as well as volumes of fill and cut sections along these alignments are generally different for the numerous possible alignment alternatives. Thus, varied EAT programs, involving flexible borrow/waste pit location and access road design factors, are required. On the other hand, EAT significantly impacts the entire RA's quality by influencing the earthwork cost, construction accessibility and duration. Therefore, in real-life engineering, a concurrent optimization model is highly desirable for RA-EAT design.

Bi-level optimization is a hierarchical framework where the upper-level model sets core decision objectives, and its solutions are constrained by the optimal outcomes of the lower-level model. This structure excels at handling coupled systems with interdependent decision-making, which aligns appropriately with our study: RA-EAT optimization (upper level) dictates earthwork distribution, while EAT design (lower level) affects RA's cost and feasibility. In similar fields, Mondal et al.⁴³ proposed a bi-level model for horizontal highway alignment optimization in a specified corridor. Beyond transportation infrastructure, bi-level optimization has also achieved notable achievements in other engineering fields. Sarma and Adeli⁴⁴ proposed bilevel parallel genetic algorithms for large-scale steel structure optimization. Lin et al.⁴⁵ developed a bilevel dynamic continuum model for urban housing allocation and transportation emission reduction. These methods provide key references for our research.

Therefore, in this work, bi-level integrated optimization model and method for 3D-RA and the corresponding EAT schemes are constructed. The main contributions include: (1)
A bi-level optimization model for RA and EAT design is developed. At the upper level, a concurrent RA-EAT optimization model is devised. At the lower-level, the EAT problem is formulated. Specifically, the geometric characteristics of RA-EAT sections, borrow/waste pits, and access roads are analyzed and treated as design variables. Then, the costs for earth transportation, borrow/waste pit location as well as access road constructions are combined to evaluate the lower-level objective function. Besides, multiple constraints are comprehensively specified for earthwork allocation, pit location and access road design.
(2)
To solve the optimization model, a divide-and-conquer approach¹ for RA-EAT concurrent optimization is devised. First, based on terrain characteristics, a moving window method is improved to construct a candidate pool for borrow/waste pit locations. Subsequently, a PSO is used to search for RA alternatives. During the PSO's iterative evolution, EAT schemes corresponding to each RA alternative is solved, specifically involving earthwork allocation sections partition, appropriate borrow/waste pit locations selection, and the generation of access roads via a modified Dijkstra's algorithm. Finally, a comprehensive RA-EAT solution is optimized.
(3)
To demonstrate practical applicability, a large-scale actual railway case study is conducted to confirm the model and algorithm's effectiveness through comprehensive analysis of results.

The rest sections are structured systematically: Section 2 develops the bi-level optimization model, followed by the solution methodology in Section 3. Section 4 verifies the approach through a real-life case analysis, with concluding remarks presented in Section 5.
2 Optimization model

To address the problem of concurrent optimization of RA and EAT, a bi-level optimization model is constructed. The upper level focuses on the collaborative optimization of RA and EAT, while the lower level is dedicated to the detailed design of EAT. Notably, both the upper- and lower-level models serve the unified goal of optimizing the comprehensive cost of RA-EAT, without internal conflict between them. Specifically, the optimization results of the lower-level are fed into the iteratively optimization process of the upper level. Meanwhile, the upper-level model, in turn, constrains the feasible range of the lower level's optimization. The coupling relation between the two levels of this bi-level optimization model is illustrated in Figure 1.

2.1 Upper level: RA-EAT optimization model

2.1.1 Design variables

A 3-D RA's horizontal alignment is determined by a series of Horizontal Points of Intersection (HPIs) with coordinates ( X_H , Y_H). Then, adjacent intersection points can be connected by straight lines (known as tangents) in sequence. Afterward, the specific circular curve radius ( R_H ) and transition curve length ( L_H ) for each HPI are designed following the Code for Design of Railway Alignment⁴⁶ to ensure the smoothness of railway operation⁴⁷ Similarly, the Vertical Points of Intersection (VPIs) are determined by station points ( S_V ) and elevations ( H_V ) as well as connected with slope tangents. Collectively, these HPIs and VPIs parameters form the design variable set PI_RA .

2.1.2 Objective function

The construction cost serves as the objective function for the upper-level RA-EAT optimization model, encompassing expenses of an RA's earthwork (C_e), right-of-way (C_r), bridges (C_b), tunnels (C_t), and length-related structures (C_l), as well as the cost of corresponding EAT configurations:

\begin{aligned} min F_{R A + E A T} (P I_{R A}) & = C_{e} + C_{r} + C_{b} + C_{t} + C_{l} \\ + min F_{E A T} (D_{E A T}) \end{aligned}

(1)

The computational expressions for these cost elements (except for cost of EAT, which will be detailed in the next section) are available in multiple published works.¹ Thus, they are not repeated here.

2.1.3 Constraints

RA design must satisfy multiple constraints. First, it is necessary to consider geometric specifications, including the minimum circular curve radius and maximum gradient. Also, an alignment must satisfy structural constraints, mainly including the maximum height of bridges and the maximum length of tunnels. In addition, an alignment should also bypass forbidden zones, such as goafs and existing buildings. The above constraints are basic conditions that must be considered in every RA design. Their formulations have been comprehensively presented in existing literature⁴⁸ and are therefore not repeated here. All constraints pertaining to RAs are denoted by constraint set C_RA( PI_RA ).

2.2 Lower level: EAT design model

2.2.1 Design variables

Generally, for EAT problems, the allocation sections (which are comprised of several cut and fill sections within a specific RA segment range for earthwork balance, with more details provided in next section) should be first partitioned based on the RA. Then, the cut and fill volumes can be transported along the alignment. If there are excessive fill or cut earth volumes, corresponding borrow or waste pits must be selected for railway construction. Access roads that connect borrow (or waste) pits with an alignment's fill (or cut) sections should also be designed and their costs should be estimated. In the EAT system, the excavated earth is first allocated along the alignment to fill sections. At this time, fill sections are considered as “customers” and cut sections are considered as “suppliers”. When there is excessive cut or fill volumes, it is necessary to construct, respectively, waste or borrow pits. At that time, the borrow and waste pits can be considered as new “suppliers”. The waste pits must store the redundant cut volume and the borrow pit must supply filling material to the railway. The borrow/waste pits should not only satisfy their own capacity constraints, but also satisfy the earth needs of cut and fill construction of the railway. The model incorporates the following simplifying assumptions:

I.
There is no earth movement between different borrow and/or waste pits.
II.
Soils and rocks excavated from cut sections can be used for fill sections along the alignment after allocation. Moreover, soils may swell after being cut and shrink when compacted into fill sections. To consider these factors, specific calibration parameters are included in the proposed model, with details provided in the next section.
III.
Excavated materials from a tunnel are divided at the tunnel's midpoint and allocated to the earthwork allocation sections at both ends of the tunnel, where they are treated as part of the cut volumes for those respective sections.

Based on the above assumptions, the earthwork allocation sections should be determined first. In this work, the start and end stations of allocation sections along the alignment are deemed as corresponding design variables:
$P = [P_{s 1}, P_{e 1}, \dots, P_{s i}, P_{e i}, \dots, P_{s n_{s}}, P_{e n_{s}}]^{T}$
(2)
where P_si and P_ei are, respectively, the start and end stations of the ith earthwork allocation section, $P_{s i}, P_{e i} \in Z$ , while i = 1, 2, …, n_s; n_s is the number of earthwork allocation sections.

Ideally, a good alignment optimization model should seek to roughly equalize cut and fill volumes, not only over the entire alignment length but within relatively short sections. However, in actual projects, the cut and fill volumes along the alignment are usually unequal since there is often excessive cut and fill earth in a large engineering project. Particularly, when there are tunnels along the alignment, the great amount of excavated tunnel soil is usually excessive and must be transported to waste pits. Thus, it is necessary to determine borrow pits and waste pits for railway construction. In this paper, every borrow (or waste) pit is considered as a polygonal area specified by its vertexes:
$\begin{aligned} D_{S} & = [X_{^{S 1}}^{1}, Y_{^{S 1}}^{1}, Z_{^{S 1}}^{1}, \dots, X_{^{S i}}^{1}, Y_{^{S i}}^{1}, Z_{^{S i}}^{1}, \\ \dots, X_{^{S 1}}^{2}, Y_{^{S 1}}^{2}, Z_{^{S 1}}^{2}, \dots, X_{^{S j}}^{2}, Y_{^{S j}}^{2}, Z_{^{S j}}^{2}, \dots, \\ X_{^{S 1}}^{m}, Y_{^{S 1}}^{m}, Z_{^{S 1}}^{m}, \dots, X_{^{S k}}^{m}, Y_{^{S k}}^{m}, Z_{^{S k}}^{m}, \dots]^{T} \end{aligned}$
(3)
where (X^m_Sk, Y^m_Sk, Z^m_Sk) is the kth vertex of the mth pit, m = 1, 2, …; k = 1, 2, …; $X_{S k}^{m}, Y_{S k}^{m}, Z_{S k}^{m} \in R$ .

Referring to Song et al.,¹ access roads are usually low-grade temporary projects for railway construction. Thus, it is assumed that HPIs and VPIs of an access road overlap, i.e., 3-D PI. Every PI's coordinates (X_{H_A}, Y_{H_A}, Z_{H_A}), and its horizontal and vertical radii (R_{H_A}, R_{V_A}) are treated as design variables for access road design, which are denoted as a set of PI_AR . Here, X_{H_A}, Y_{H_A}, Z_{H_A} $\in R$ ; R_{H_A}, $\in$ [R_H_,min, R_H_,max], R_H_,min, and R_H_,max are the minimumand maximum horizontal radii required, respectively; R_{V_A}, $\in$ [R_V_,min, R_V_,max], R_V_,min, and R_V_,max are the minimum and maximum vertical radii required, respectively; R_H_,min, R_H_,max, R_V_,min, R_V_,max >0.

Therefore, the complete EAT design variables can be denoted as D_EAT = [ P , D_S , PI_AR ].
2.2.2 Objective function

The lower-level optimization model in this research adopts EAT system costs as its fundamental objective function, including the costs for earthwork allocation along the alignment (C_earthwork), soil borrow and waste pits construction (C_pit), access road construction (C_road) and vehicle operation (C_ve), as detailed below.

(1)
Earthwork allocation cost:
$\begin{aligned} C_{e a r t h w o r k} \\ = \sum_{q = 1}^{Q} (\begin{array}{l} \sum_{k = 1}^{h} (V_{k, q} \cdot C_{u e, q} + \frac{V_{k, q}}{K_{s, q}} \cdot C_{u f, q}) + \\ \sum_{i = 1}^{c} \sum_{j = 1}^{f} (\begin{array}{l} (C_{u e, q} + C_{u h, q} \cdot D_{i j}) \cdot V_{i j, q} \\ + V_{i j, q} \cdot \frac{C_{u f, q}}{K_{s, q}} \end{array}) \end{array}) \\ + C_{B E} + C_{S E} \end{aligned}$
(4)
where h is the quantity of mixed fill and cut sections, with h $\in N^{+}$ ; Q is the total number of material types, Q $\in N^{+}$ ; V_k,q is the volume of material q at the k^th section directly reused within the same section, V_k,q $\in R$ . In this equation, c and f are the total numbers of cut and fill sections, respectively, with c, f $\in N^{+}$ ; V_ij,q represents the q^th earth volume allocated from the i^th cut section to the j^th fill section, V_ij,q $\in R_{\geq 0}$ , and $0 \leq V_{i j, q} \leq V_{i}^{a v a i l}$ ( $V_{i}^{a v a i l}$ is the available excavation volume at the i^th cut section); C_ue,q and C_uh,q are, respectively, the unit costs of cutting and hauling for q^th material, C_ue,q and C_uh,q $\in R^{+}$ ; D_ij is the distance along the RA from the i^th cut section to the j^th fill section, D_ij $\in R^{+}$ ; C_uf,q is the unit fill cost of q^th material, C_uf $\in R^{+}$ ; K_s,q is the coefficient of looseness of q^th material⁴⁹; C_BE is the cost of transporting earth from borrow pits to fill sections, which is computed according to Eq. (5); C_SE is the cost of transporting earth from cut sections to waste pits, which can be computed similarly to Eq. (6); C_BE, C_SE $\in R_{\geq 0}$ . The Eqs. (5) and (6) are formulated as follows:
$\begin{aligned} C_{B E} & = \sum_{q}^{Q} \sum_{a = 1}^{M} \sum_{b = 1}^{f} (V_{a b, q} \cdot C_{B, q} \cdot K_{s, q} \cdot D_{a}) \end{aligned}$
(5)

$\begin{aligned} C_{S E} & = \sum_{q}^{Q} \sum_{c = 1}^{c} \sum_{d = 1}^{N} (V_{c d, q} \cdot C_{S, q} \cdot D_{d}) \end{aligned}$
(6)
where M and N respectively denote the total numbers of borrow and waste pits, with M, N $\in N^{+}$ ; V_ab,q is the earth volume transported from the a^th borrow pit to the b^th fill section for the q^th material, V_ab,q $\in R_{\geq 0}$ , and $0 \leq V_{a b, q} \leq V_{a}^{a v a i l}$ ( $V_{a}^{a v a i l}$ is the available excavation volume at the a^th borrow pit); C_B,q is the unit cost of moving the q^th earth material from a borrow pit to a fill section, with C_B $\in R^{+}$ ; D_a is the access road length connecting the a^th borrow pit with the RA, with D_a $\in R^{+}$ . V_cd,q is the earth volume transported from the c^th cut section to the d^th waste pit for the q^th material, V_cd,q $\in R_{\geq 0}$ , and $0 \leq V_{c d, q} \leq V_{d}^{a v a i l}$ ( $V_{d}^{a v a i l}$ is the available volume at the d^th waste pit); D_d is the access road length connecting the d^th waste pit with the RA, with D_d $\in R^{+}$ . (2)
Pit preparation cost:

The pit's preparation cost is directly relied on its scale. In this study, the pit scale, specified by the volume of earth that it can accommodate, serves as a proxy for estimating the construction cost, which encompasses land acquisition, pit grading, and surface clearing operations. This cost is computed as:
$\begin{aligned} C_{s i t e} & = C_{B O} + C_{S O} \\ = \sum_{i = 1}^{M} (V_{B i} \cdot C_{b}) + \sum_{j = 1}^{N} (V_{S j} \cdot C_{s}) \end{aligned}$
(7)
where C_pit is the net construction cost associated with borrow pits and waste pits, satisfying C_pit $\in R$ ; C_BO is the construction cost of borrow pits, with C_BO $\in R_{\geq 0}$ ; C_SO is the construction cost of waste pits, with C_SO $\in R_{\geq 0}$ ; V_Bi is the volume of the i^th borrow pit, satisfying V_Bi $\in R^{+}$ ; C_b is the unit cost for building a borrow pit, with C_b $\in R^{+}$ ; V_Sj is the volume at the j^th waste pit, satisfying V_Sj $\in R^{+}$ ; C_s is the unit cost for building a waste pit, with C_s $\in R^{+}$ . N is the total number of waste pits, N $\in N^{+}$ .³⁷ (3)
Access road construction cost:
$C_{r o a d} = \sum_{i = 1}^{N_{R}} (C_{E i_A} + C_{R i_A} + L_{R i} \cdot c_{p})$
(8)
where C_{Ei_A}, is the earthwork cost of the i^th access road, with C_{Ei_A} $\in R_{\geq 0}$ ; C_{Ri_A} is the right-of-way expenditure of the i^th access road, satisfying C_{Ri_A} $\in R_{\geq 0}$ ¹; L_Ri $\in R^{+}$ , is the length of the i^th access road; c_p is the unit length-dependent cost, where c_p $\in R^{+}$ . (4)
Vehicle operation cost:
$C_{v e} = T \cdot \frac{c_{v e}}{V_{v e}} \cdot (\begin{matrix} \sum_{q = 1}^{Q_{a b}} \sum_{a = 1}^{M} \sum_{b = 1}^{f} (V_{a b, q} \cdot D_{a b}) \\ + \sum_{q = 1}^{Q_{c d}} \sum_{c = 1}^{c} \sum_{d = 1}^{N} (V_{c d, q} \cdot D_{c d}) \end{matrix})$
(9)
where c_ve is the unit truck cost for transporting earth, c_ve $\in R^{+}$ ; V_ve is the carrying capacity of a truck, satisfying V_ve $\in R^{+}$ ; D_ab is the transport distance along the access road from the a^th borrow pit to the b^th fill section, D_ab $\in R^{+}$ ; D_cd is the transport distance along the access road from the c^th cut section to the d^th waste pit, with D_cd $\in R^{+}$ ; Q_ab is the total type of earth materials from the a^th borrow pit to the b^th fill section; Q_cd is the total type of earth materials from the c^th cut section to the d^th waste pit; T is the total number of transport trips, T $\in N^{+}$ .
2.2.3 Constraints

(1)
Constraints for earth transportation:
(a)
Earth volume capacity:

The total earth volume that is transported from cut sections to a waste pit should not exceed the capacity of the waste pit. The total earth volume transported from a borrow pit to fill sections should not exceed the capacity of the borrow pit, as shown below:
$\begin{aligned} \sum_{i = 1}^{c} V_{R i n} & \leq V_{S n} n = 1, 2, 3, \dots, N \end{aligned}$
(10)

$\begin{aligned} \sum_{j = 1}^{f} V_{R m j} & \leq V_{B m} m = 1, 2, 3, \dots, M \end{aligned}$
(11)
where V_Rin is the volume of earth transported from the i^th cut section to the n^th waste pit, with V_Rin $\in R_{\geq 0}$ ; V_Sn is the capacity of the n^th waste pit, V_Sn $\in R^{+}$ ; V_Rmj is the earth volume transported from the m^th borrow pit to the j^th fill section, satisfying V_Rmj $\in R_{\geq 0}$ ; V_Bm is the capacity of the m^th borrow pit, V_Bm $\in R^{+}$ . (b)
Length constraint for earthwork allocation sections, expressed as:
$L_{S m i n} \leq L_{S i} \leq L_{S m a x} i = 1, 2, 3, \dots, n_{s}$
(12)
where L_Si is the i^th earthwork allocation section's length, with L_Si $\in R^{+}$ ; L_Smin is the minimal allowable length for earthwork allocation sections, satisfying L_Smin $\in R^{+}$ ; L_Smax is the maximum allowable length of earthwork allocation sections, L_Smax $\in R^{+}$ . (2)
Constraints for pit design:
(a)
Pit undulation:

The elevation relief of borrow and waste pits must satisfy specific constraints. First, waste pits should be preferably located in concavely-shaped terrain to store earth and reduce man-made landslides. Conversely, the borrow pits should be ideally located in hill-shaped terrain. Taking the soil waste pits as an example, the corresponding constraints can be derived as:
$\begin{aligned} z_{m i n} = m i n (Z_{^{S V 1}}^{j}, Z_{^{S V 2}}^{j}, Z_{^{S V 3}}^{j}, \dots, Z_{^{S V i}}^{j}, \dots, Z_{^{S V A}}^{j}) \end{aligned}$
(13)

$\begin{aligned} z_{m a x} = m a x (Z_{^{S V 1}}^{j}, Z_{^{S V 2}}^{j}, Z_{^{S V 3}}^{j}, \dots, Z_{^{S V i}}^{j}, \dots, Z_{^{S V A}}^{j}) \end{aligned}$
(14)

$\begin{aligned} z_{m a x} - z_{m i n} \leq Z_{m a x} \end{aligned}$
(15)

$\begin{aligned} Z_{^{S 0}}^{j} \leq z_{m i n} \end{aligned}$
(16)
where z_min is the minimum elevation among the boundary vertexes of the j^th waste pit, z_min $\in R^{+}$ , j = 1, 2, …; Z^j_SVi is the elevation of the j^th waste pit's i^th boundary vertex, Z^j_SVi $\in R^{+}$ ; A is the number of vertexes in the j^th waste pit, with A $\in N^{+}$ ; z_max is the maximum elevation among the boundary vertexes of the j^th waste pit, satisfying z_max $\in R^{+}$ ; Z_max is the maximum allowed value of terrain relief, Z_max $\in R^{+}$ ; $Z_{S 0}^{j}$ is the elevation of gravity center of j^th waste pit, with $Z_{S 0}^{j} \in R^{+}$ . (b)
Pit location:

In a grid-based Digital Elevation Model (DEM), all the grid cells in forbidden zones constitute a set U_F. The cells covered by borrow and waste pits are included in a set U_S. To bypass the forbidden zones, the U_F and U_S must satisfy:
$U_{S} \cap U_{F} = \emptyset$
(17)
(c)
Pit size:

The area of a pit cannot exceed the maximum allowable threshold W_max (W_max $\in R^{+}$ ), which is defined as an l_max × h_max (l_max, h_max $\in R^{+}$ ) rectangular region:
$W_{i} \leq W_{m a x} = l_{m a x} \cdot h_{m a x}$
(18)
where W_i is the area of i^th pit, with W_i $\in R^{+}$ . (d)
Distance-related restriction:

The distance between a borrow (or waste) pit and the RA should be limited based on Technical Specification for Earth Disposal pit Engineering.⁵⁰ If the distance is too short, it may affect the normal construction of the RA. Conversely, if the distance is too long, it is not conducive for EAT and increases construction costs of the railway project. Moreover, for construction feasibility and safety, a sufficient separation should be maintained between two adjacent borrow and/or waste pits:
$\begin{aligned} D_{m i n} & \leq D_{p R} \leq D_{m a x} \end{aligned}$
(19)

$\begin{aligned} D_{i (i + 1)} & \geq Δ D \end{aligned}$
(20)
where D_pR is the distance between the p^th borrow/waste pit and the alignment, satisfying D_pR $\in R^{+}$ ; D_min is the minimum distance limit between a borrow/waste pit and alignment, D_min $\in R^{+}$ ; D_max is the maximum distance limit between a borrow/waste pit and the alignment, D_max $\in R^{+}$ and D_max ≥ D_min; D_i(i ₊ ₁₎ is the distance from the i^th pit to the (i + 1) pit, with D_i(i ₊ ₁₎ $\in R^{+}$ ; ΔD is the distance limit between adjacent pits, ΔD $\in R^{+}$ . (3)
Constraints for access roads:

Similarly to the requirements for an RA, the horizontal circular curve, transition curve, gradient, length of slope sections, and vertical curve of an access road should satisfy specific geometric constraints. The access roads’ bridge heights and lengths should satisfy the Technical Standard of Low Volume Rural Highway Engineering’ requirements.⁵¹ Tunnels are generally not allowed for access roads. Besides, access roads should also bypass forbidden zones. Detailed formulations of these constraints have been previously specified in Song et al.¹ and Wang et al.⁵² To avoid repetition, they are omitted from this paper.

All the above EAT-related constraints are integrated into the constraint set C_EAT( D_EAT ). To sum up, the optimization model can be described as follows:
$\begin{aligned} O b j e c t i v e 1: \\ min F_{R A - E A T} (P I_{R A}) = C_{e} + C_{r} + C_{l} + C_{b} + C_{u} \\ + min F_{E A T} (D_{E A T}) \\ O b j e c t i v e 2: \\ min F_{E A T} (D_{E A T}) = C_{e a r t h w o r k} + C_{s i t e} + C_{r o a d} + C_{v e} \\ s . t . C_{R A} (P I_{R A}) \\ C_{E A T} (D_{E A T}) \end{aligned}$
(21)
3 Solution method

The aforementioned optimization model is a large-scale mixed-integer nonlinear program, whose size and complexity make solving it beyond the reach of standard commercial solvers. Thus, a divide-and-conquer strategy is proposed to solve this model. Specifically, a Particle Swarm Optimization (PSO)-based bi-level optimization method is devised, which includes searching for a candidate pool for borrow and waste pits, configuration of EAT projects, as well as the overall optimization of railway alignments and corresponding EAT projects. In particular, the proposed approach is embedded in a PSO method, which includes optimization of both the railway alignment and its EAT projects. However, the determination of potential borrow and waste pits in the study area is a one-time work, which can be performed in advance. Thus, all the potential borrow and waste pits are pre-determined as a candidate pool before searching for railway alignments. Then, the selected pits’ locations are decided during the integral evaluation of PSO. Finally, the best railway alignment and corresponding EAT projects are generated. More details about the proposed method will be provided in the following sections.

3.1 Candidate pool for borrow and waste pits

Alignment optimization is usually conducted in a large-scale space. To minimize repetitive and time-consuming operations during the PSO iterations, a global candidate pool of borrow/waste pits can be constructed first. During this process, a moving window method proposed by Berti et al.⁵³ is modified to scan the study area which is described with a gird-based digital elevation model (DEM) from the top to the bottom. Based on this, terrain information (e.g., elevation, gradient) is discretized into regular grid cells to enable quantitative analysis. The modified moving window method operates with a constrained rectangular window, which is designed based on the maximum width and length parameters in Eq. (18) (respectively denoted as l_max and h_max), to identify regions that satisfy design requirements. During scanning, a real-time pruning operator is developed based on the terrain conditions within the mask-scanned region. Specifically, taking the waste pit search as an example, every grid within the mask (i.e., the area covered by moving windows during scanning) is checked to determine whether it satisfies the pit design constraints in Eqs. (13)–(18). The grid cells violating constraints are then eliminated from the mask-covered area. In this way, the feasible irregular region of a waste pit in the window can be obtained, as shown in Figure 2. Eventually, after scanning the entire study area, the locations and boundaries of all feasible borrow and waste pits can be obtained.

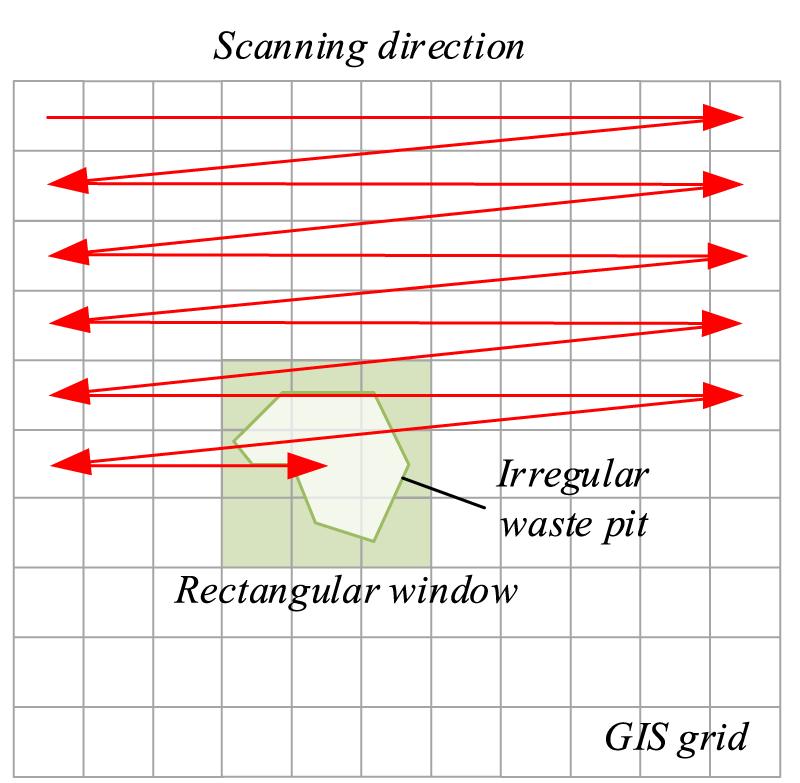

Figure 2.

Moving window scanning in the study area.

It is worth noting that this candidate pool represents the universal set of terrain-feasible pits. During the subsequent PSO iterations, for each RA, a unique and alignment-specific valid subset of candidate pits is dynamically identified from this global pool by applying the distance constraints (Eqs. 19–20). The final EAT scheme is then optimized with this dynamic valid subset.

3.2 Search for RA alternatives

After all the potential borrow and waste pits are determined, a search for the RA is conducted, which serves as the main part of upper-level optimization. PSO is a swarm intelligence algorithm based on the study of the regularity of bird and fish flocks. It uses massless particles to simulate birds (or fish), and starts from a group of random particle positions to iteratively seek the optimal position. In each iteration, the best individual value pBest and the best swarm value gBest are obtained by computing the fitness of particles. The particle updating process is following:

\begin{aligned} v_{i}^{(t + 1)} & = ω \cdot v_{i}^{(t)} + c_{1} \cdot r a n d_{1} \cdot [p B e s t_{i}^{(t)} - x_{i}^{(t)}] \\ + c_{2} \cdot r a n d_{2} \cdot [g B e s t_{i}^{(t)} - x_{i}^{(t)}] \end{aligned}

(22)

\begin{aligned} x_{i}^{(t + 1)} & = x_{i}^{(t)} + v_{i}^{(t + 1)} \end{aligned}

(23)

In these formulas, the current iteration is indicated by t; v_i and x_i correspond to the velocity and position of the i^th particle, respectively; ω is the inertia weight proposed by Shi and Eberhart⁵⁴; rand₁ and rand₂ are random variables in [0,1]; c₁ and c₂ are learning factors. Specifically, c₁ leads the particles in learning from their own history, while c₂ pushes every particle closer to the current swarm optimal solution. In theory, a higher c₁ value enables a more comprehensive exploration of the solution space, though that could compromise search efficiency. Conversely, a relatively high value of c₂ may accelerate PSO convergence but risks trapping the search in a local optimum.¹

In this work, a modified PSO algorithm proposed by Pu et al.²⁸ is adopted to search the RA alternatives. This PSO algorithm is specifically-developed for RA optimization with, for example, alignment-related constraint-handling approaches and solution evolution operators. In this method, each alignment is abstracted as a particle and generated using a stepwise “horizontal-vertical-integration” search strategy. During optimization, the pBest and gBest alignment particles are selected based on the cost evaluation. Thus, the swarm can be evolved using the PSO rationale reflected in Eqs. (21) and (22). Further implementation specifics of this PSO algorithm are detailed in Pu et al.²⁸ This method has also been successively customized in several recent RA optimization studies.^4,5,11 The modified PSO's effectiveness had been verified in several real-world railway alignment design projects in China.^28,55,56

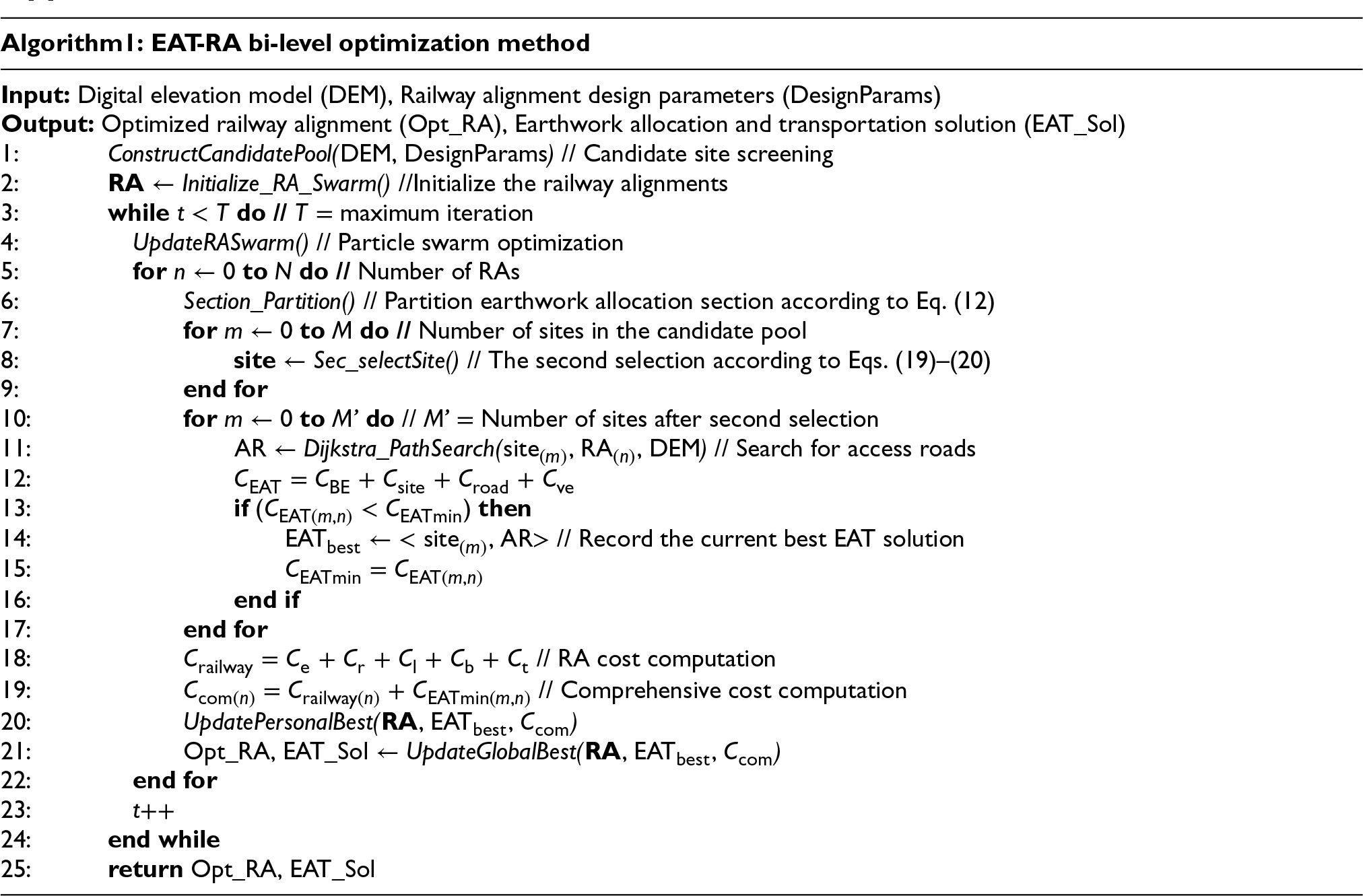

Based on the above PSO algorithm, a hierarchical approach is developed to address the lower-level earthwork allocation optimization model (see Figure 3), Further implementation details are provided in the following section.

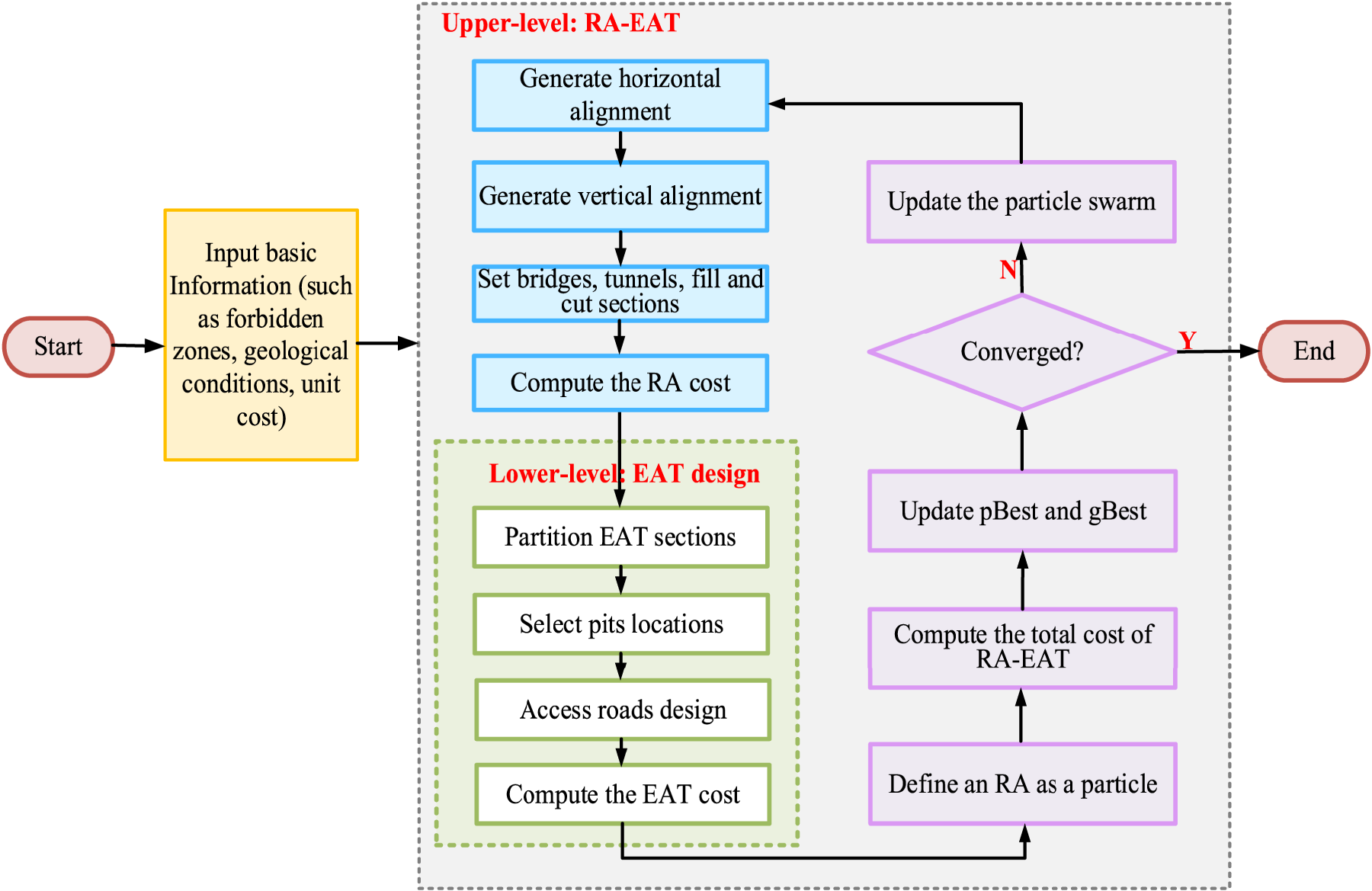

Figure 3.

Solution algorithm flow.

3.3 Design of EAT solutions

3.3.1 Partition earthwork allocation sections

The division of allocation sections is the premise for EAT system determination along an RA. Generally, earthwork allocation should not cross bridges or tunnels, because unfinished bridges/tunnels act as insurmountable physical barriers, and mountainous railways tend to lack existing facilities for cross-barrier transport, such as existing roads which can serve as access roads or assist in connecting access roads. Therefore, the start and end points of non-crossable bridges and tunnels are first taken as the demarcation points to segment the alignment into several rough sections. Then, according to the constraints of section spacing (Eq. (11)), the allocation segment ranges of cut and fill sections can be further obtained. Specifically, when a fill or cut rough section, whose start and end points are bridges or tunnels, is shorter than the minimum allowable length (L_S_min, Eq. (12)), the section needs no further division. When a fill or cut section is longer than L_S_min but shorter than the maximum allowable length (L_S_max, Eq.12), whether this section needs to be further partitioned depends on volumes of borrow and waste pits in its neighborhood. That is, if the volumes of neighboring pits suffice for the filling and cutting requirements, there is no need to further partition this fill or cut section. Otherwise, additional division is necessary. When a fill or cut section is longer than L_S_max, this section must be subdivided.

If a fill or cut section must be further partitioned, the selection of the final demarcation point is closely related to the location and volume of the nearby waste and borrow pits. Specifically, several alternative demarcation points are randomly partitioned within the above feasible segment ranges (between L_S_min and L_S_max). For each alternative demarcation point, the amount of earth from the start of this earthwork allocation section to the current location can be computed. According to the computed earthwork, every potential pit in the candidate pool is checked within the range of D_min and D_max (Eq. (19)), which is the valid subset mentioned above, to find whether it is suitable as a waste or borrow pit. If yes, the pit location is recorded. Afterward, access roads connecting borrow/waste pits to the RA in this section are generated (with more details in the next section). Among them, the alternative (i.e., the demarcation point, corresponding waste and borrow pits, as well as the generated access roads) with the lowest construction cost is selected.

It is notable that the earth can then be transported from a cut section to its neighboring fill section in the same allocation section. If excessive fill or cut volumes still exist, candidate pits and corresponding access roads are considered. The next demarcation point is searched based on this selected point by repeating the above procedures, as shown in Figure 4.

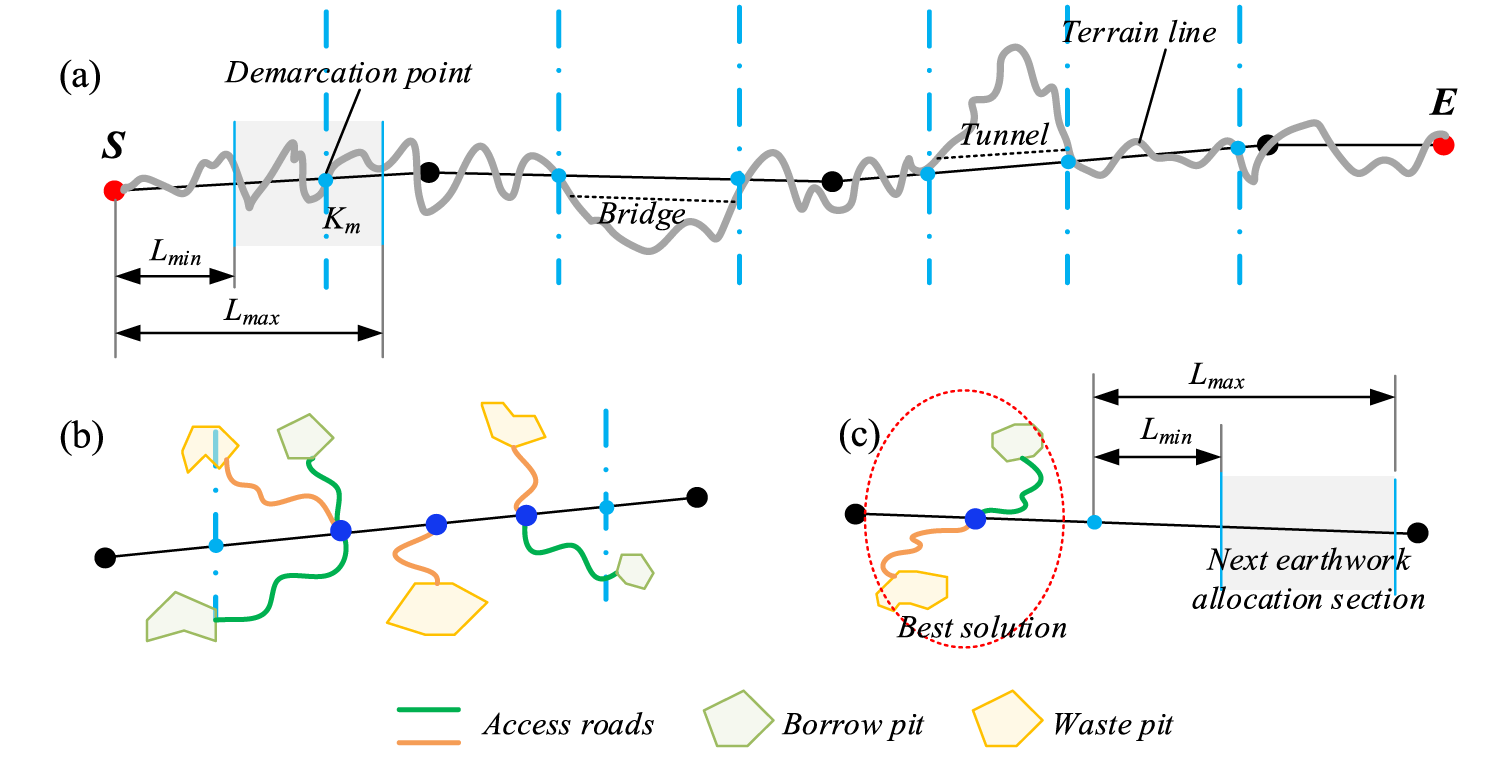

Figure 4.

Diagram for earthwork allocation sections: (a) Vertical railway alignment section; (b) Record all possible solutions of EAT projects; (c) Determine the best EAT projects and obtain the next earthwork allocation section.

Based on satisfying the earth transportation constraints described above, the earth can then be transported from a cut section to its closest fill section in the same allocation section. Afterward, if excessive cut volumes still exist, farther fill sections will be iteratively considered until the boundary of the allocation section is reached.

3.3.2 Access road generation

The access roads are used to connect borrow/waste pits with the RA for EAT. The start points of access roads (e.g., borrow and waste pits) can be predetermined. They can be fixed in the landscape during the access road design. However, the end points of access roads (e.g., fill and cut sections as well as tunnel portals) can vary along the alignment. Hence, the access road design is a typical single source shortest path (SSSP) problem. Hitherto, scholars have solved the SSSP problem with many algorithms, among which Dijkstra's algorithm⁵⁷ is the most frequently used in the literature. In this study, a modified Dijkstra algorithm proposed by Song et al.,¹ which had been verified effectively in real-world railway projects, is constructed to search for access roads. The devised method initializes by constructing a weighted directed graph. As shown in Figure 5, the start nodes are the candidate borrow/waste pits within a specified range adjacent to the main line (i.e., railway alignment). The end nodes (P_i) are determined through computation as the connection points between these pits and the main line. The edges of the graph are the local paths connecting the start and end nodes. Each edge is assigned a weight representing the total cost of local path. During each iteration of the path generation process, the algorithm systematically explores the nearest neighboring nodes relative to the source node to progressively identify the best shortest path, i.e., the local path with the lowest cost. Only nodes that satisfy the access road constraints described above are allowed to be added to the path tree. After the above process, every borrow (or waste) pit searched can be configured with the best access road. Then, the candidate pit with the lowest total cost (i.e., construction and access road costs) is selected and recorded together with its access road.

Figure 5.

Generate access roads for each pit.

After the above steps, the generated RA and its corresponding EAT solution, including earthwork allocation sections, borrow/waste pit locations and access roads, are combined as a particle individual. Then, the overall iterative optimization is performed using the PSO algorithm, which has been illustrated above. The complete pseudocode of the above algorithm is provided in the Appendix.

4 Case study

4.1 Case overview

A real-world railway project is employed in this article to verify the performance of the aforementioned method. The case involves a railway section with a linear distance of 47.86 km between its start and end points. The railway mainly comprises cut and fill sections. Hence, the earthwork-related cost is the dominant component of the total railway investment. However, due to the complex terrain, it is difficult to balance cut and fill volumes along the railway. Thus, the EAT has a major effect during the RA design process. A time-varying c₁/c₂ per Equation (24) is employed in this study (see Figure 6). In early iterations, c₁ decays slowly to fully explore the large solution space and avoid local optima. In later iterations, c₂ accelerates in growth, which enables rapid convergence to the optimized solution. This parameter set has been verified to be superior to fixed values in previous studies.¹ In this work, all experiments are run on a personal computer (64 GB RAM, 2 T hard drive) with 24 cores and 32 logical processors (Intel Core i9-13900KF CPU at 3.00 GHz). For the PSO algorithm described above, a population size of 50 and maximum iteration count of 200 were established. The constraint conditions and unit cost parameters are respectively provided in Tables 1 and 2. The maximum and minimum lengths of the earthwork allocation section division will be determined by sensitivity analysis in the next section.

{\begin{matrix} c_{1} (t) = 2.5 - \frac{9 t^{3}}{7 T^{3}} - \frac{5 t}{7 T} \\ c_{2} (t) = \frac{9 t^{3}}{7 T^{3}} + \frac{5 t}{7 T} + 0.5 \end{matrix}

(24)

Table 1.

Specified constraints.

Constraints	Items	Values	Items	Values
Constraints of RA	Minimum horizontal curve length	130m	Minimum slope section length	250m
	Minimum horizontal circular curve radius	2000m	Minimum vertical curve radius	15000m
	Maximum gradient	13‰	Maximum gradient difference	15‰
Constraints of EAT	Maximum pit width/length	400m	Distance limit between pits and RAs	100m-5000m
Constraints of EAT	Maximum terrain relief within pits	100m	Minimum distance between adjacent pits	500m
Constraints of access roads	Minimum horizontal curve length	15m	Maximum gradient	12%
Constraints of access roads	Minimum slope section length	50m	Maximum slope length	500m

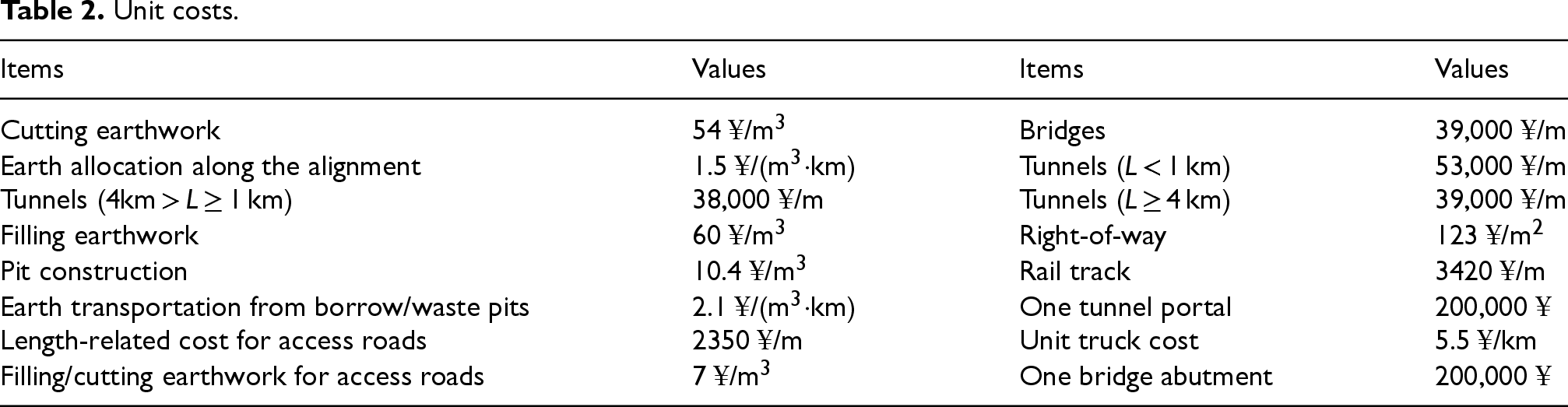

Table 2.

Unit costs.

Items	Values	Items	Values
Cutting earthwork	54 ¥/m³	Bridges	39,000 ¥/m
Earth allocation along the alignment	1.5 ¥/(m³·km)	Tunnels (L < 1 km)	53,000 ¥/m
Tunnels (4km > L ≥ 1 km)	38,000 ¥/m	Tunnels (L ≥ 4 km)	39,000 ¥/m
Filling earthwork	60 ¥/m³	Right-of-way	123 ¥/m²
Pit construction	10.4 ¥/m³	Rail track	3420 ¥/m
Earth transportation from borrow/waste pits	2.1 ¥/(m³·km)	One tunnel portal	200,000 ¥
Length-related cost for access roads	2350 ¥/m	Unit truck cost	5.5 ¥/km
Filling/cutting earthwork for access roads	7 ¥/m³	One bridge abutment	200,000 ¥

4.2 Sensitivity analysis

When there are several candidate borrow/waste pits along a railway, the subdivision into earthwork allocation sections affects the selection of the final pit locations (according to Eq. (12)). For instance, if the fill volume in an earthwork allocation section is very large while the cut volume is small, it is necessary to arrange borrow pits to provide the earth. However, if the section is enlarged, the balance of fill and cut volumes may be achieved, and thus no additional borrow pits are required. To this end, several pairs of minimum and maximum lengths of earthwork allocation sections are compared in this experiment.

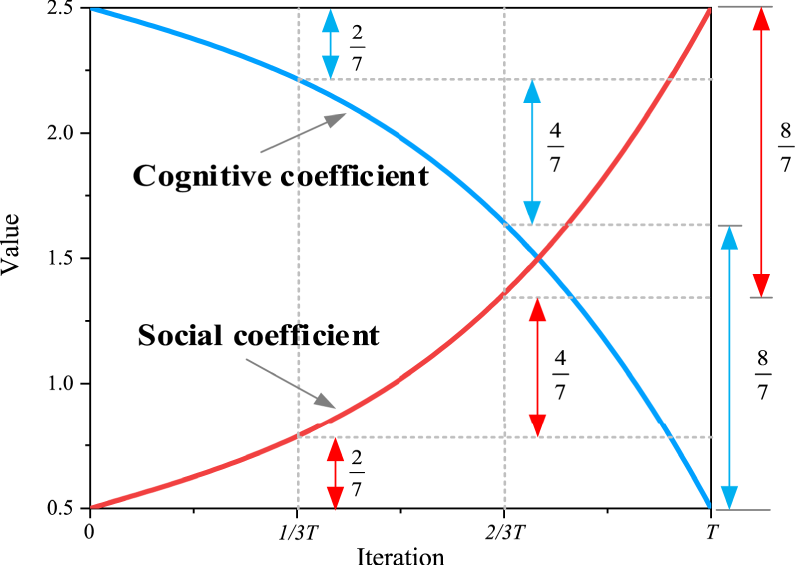

Figure 6.

Time-varying acceleration coefficients.

Due to the randomness in the PSO algorithm, ten experiments were conducted on each pair of parameters (i.e., L_Smin and L_Smax, which is an experiment group). The experimental results demonstrate convergence, with all test groups showing coefficients of variation (standard deviation/mean) below 5%. As illustrated in Figure 7, the earthwork allocation sections significantly impact the total RA-EAT cost.

In this experiment, when L_Smin = 1000 m, the variation in L_Smax exerts little influence on the RA-EAT comprehensive cost. This is primarily because the algorithm's section allocation length range is excessively broad, encompassing numerous inefficient intervals (e.g., 1000–2000 m). This forces the algorithm to search more for “non-optimal section combinations” and even risks getting trapped in local optima, which may ultimately lead to higher global costs.

In contrast, when L_Smin is set to 2000 m, 3000 m, or 4000 m, the alternative's total cost shows an obvious trough as L_Smax increases. Specifically, alternatives with lower comprehensive costs rarely correspond to the minimum or maximum L_Smax values tested (i.e., L_Smax = 4000 or 7000 m); Instead, this trough usually appears near the larger end of the L_Smax range. This occurs because a short earthwork allocation section is often dominated by a single type of volume, i.e., either fill or cut, which makes cut-fill balance difficult to achieve. In such cases, extra borrow/waste pits and their supporting access roads become necessary. As L_Smax increases, the algorithm gains greater flexibility in adaptive partitioning of earthwork allocation sections and setting of corresponding pits. This enhanced flexibility can yield a sufficient volume of cut earthwork to meet the fill demand within the current section. Under this circumstance, costs associated with borrow pits and their access roads are eliminated, thereby reducing the RA-EAT comprehensive cost.

Figure 7.

Results of the earthwork allocation sections experiments.

However, if L_Smin is excessively large (i.e., 3000 m and 4000 m), some potential solutions may be overlooked. Therefore, according to the results and above analysis, the best parameter settings for this case are L_Smin = 2000 m and L_Smax = 6000 m. Then, the specific length of each earthwork allocation section will be automatically computed in RA-EAT optimization, as listed in the next section.

It is worth noting a premise for the above analysis: Earthwork allocation sections do not cross bridges or tunnels. Therefore, short earthwork sections between bridges/tunnels (typically less than 500 m), are treated as independent sections, and such sections are not subject to the L_Smin and L_Smax constraints defined in this section.

4.3 Analysis of optimization results

Based on the sensitivity analysis, the final input parameters are determined, as listed in Table 3.

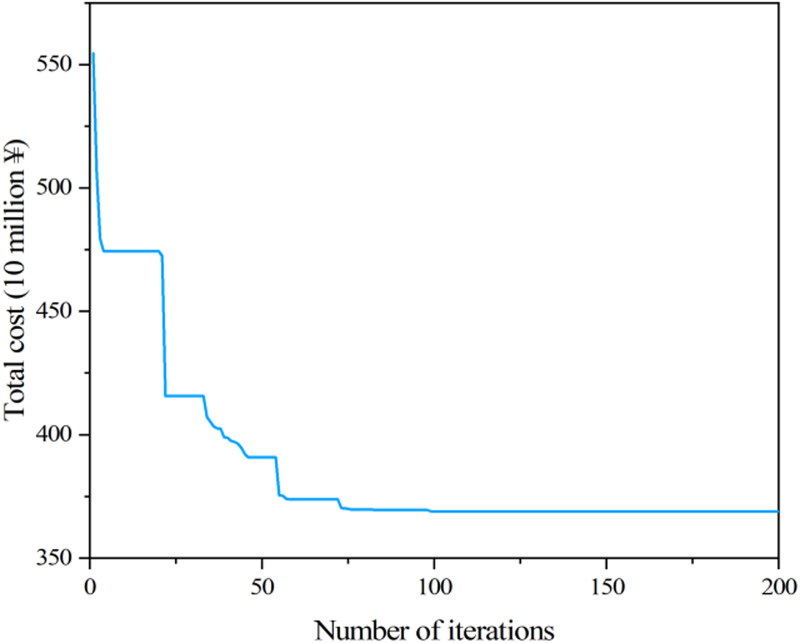

Figure 8.

Convergence curve of the PSO algorithm.

Table 3.

Relevant hyperparameters.

Hyperparameter	Value
L _min	2000m
L _max	6000m
D _min	100m
D _max	3500m
C₁ and C₂	Equation (24)
Corridor width	2000m
Maximum length of access road	6000m

The entire computation process is divided into two stages. Stage I involves screening candidate borrow/waste pit sites, and the moving window method takes 32.24 s to complete this process in the case study. Stage II corresponds to the iterative evolution process of RA and EAT, with a computation time of 166.83 min. After 200 iterations, the program achieved natural convergence. The resulting convergence curve is illustrated in Figure 8, and the computer-generated RA with corresponding EAT solution is denoted as A_C.

Then, A_C is compared with the best manually-designed railway solution (A_M) produced by the China Railway Eryuan Engineering Group Co. Ltd Meanwhile, A_C is compared with the stepwise alternative (denoted as A_P) that first optimizes the RA independently and then configures EAT based on the fixed RA, to further verify the value of bi-level optimization over a sequential approach.

Figures 9 and 10 illustrate the vertical and horizontal alignments of A_M, A_P and A_C, respectively. Meanwhile, Figure 11 shows several representative borrow/waste pits and access roads. In addition, the engineering results are summarized in Tables 4 and 5. Moreover, Table 6 provides a cost comparison between A_M, A_P and A_C.

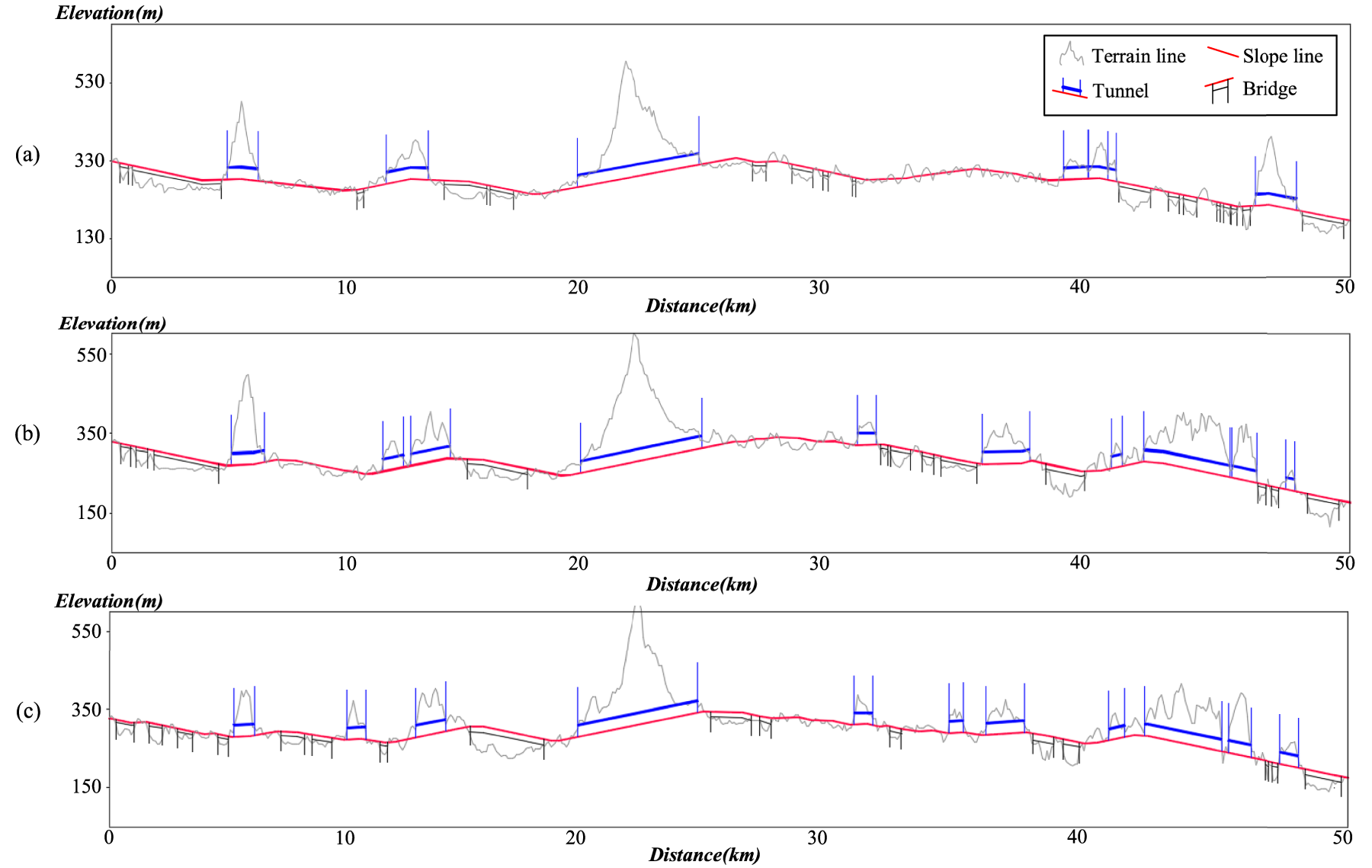

Figure 9.

The vertical alignment solutions of (a) A_M, (b) A_P and (c) A_C.

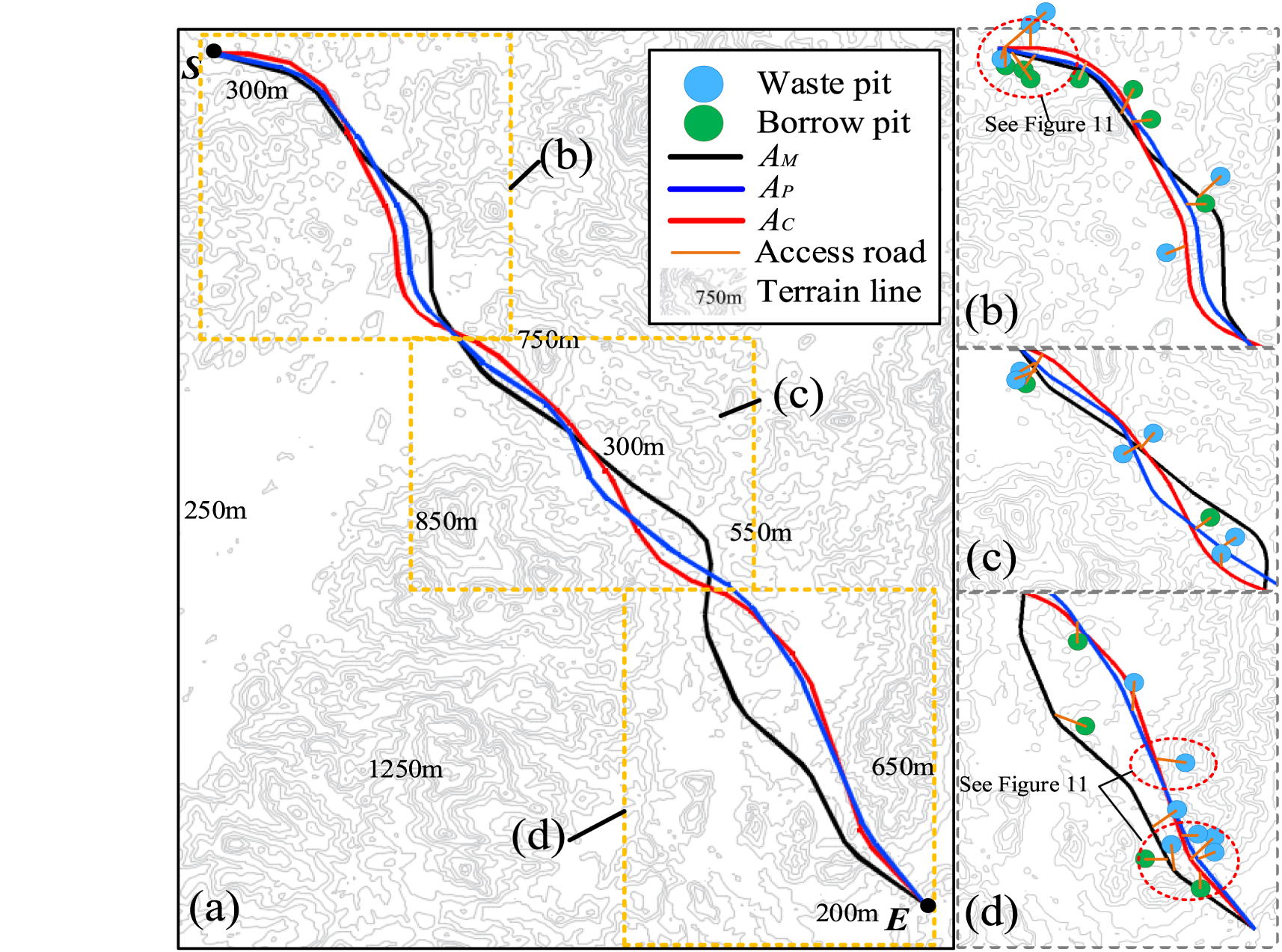

Figure 10.

Horizontal alignment comparison between A_M, A_P and A_C.

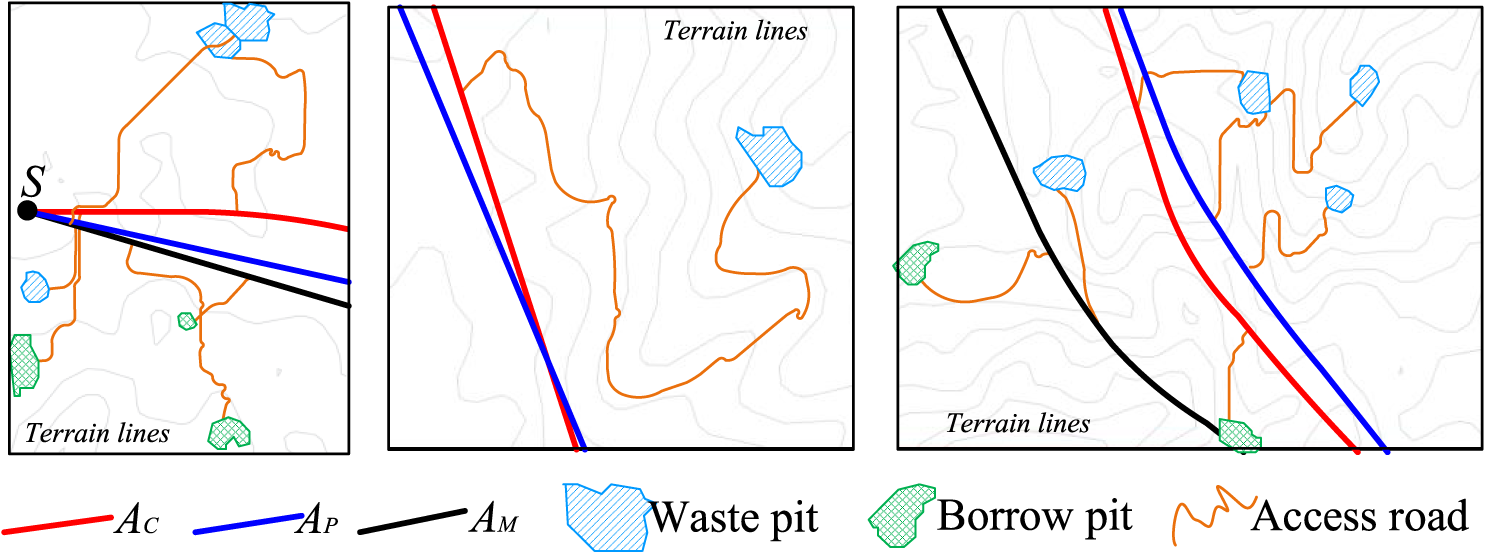

Figure 11.

Representative borrow/waste pits and access roads.

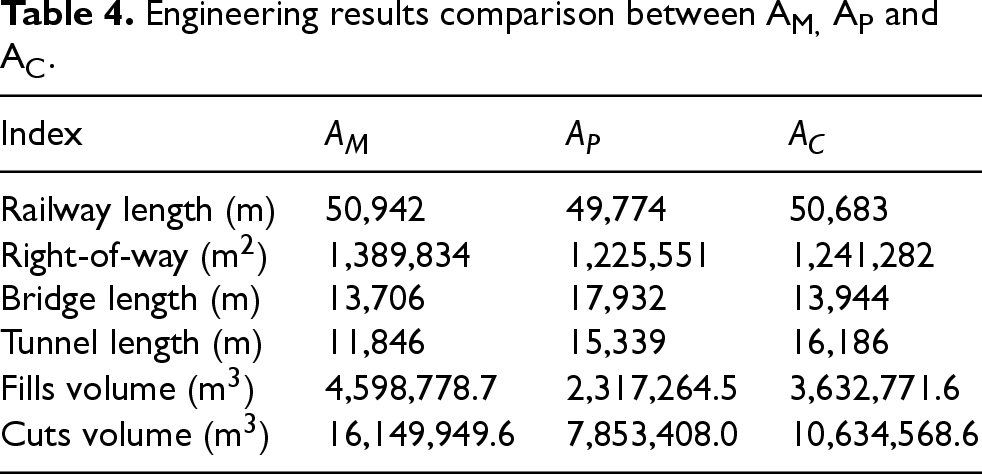

Table 4.

Engineering results comparison between A_M, A_P and A_C.

Index	A_M	A_P	A_C
Railway length (m)	50,942	49,774	50,683
Right-of-way (m²)	1,389,834	1,225,551	1,241,282
Bridge length (m)	13,706	17,932	13,944
Tunnel length (m)	11,846	15,339	16,186
Fills volume (m³)	4,598,778.7	2,317,264.5	3,632,771.6
Cuts volume (m³)	16,149,949.6	7,853,408.0	10,634,568.6

Table 5.

EAT results for A_M, A_P and A_C.

Solution	Allocation section number	Pit type - number	Earth volume from pits (10⁴m³)	Access road total length (m)	Allocated earthwork volume (m³)
A_M	32	Waste pit - 40	101.66	27,827.87	1,859,319
A_M	32	Borrow pit - 14	24.83	10,510.79	1,859,319
A_P	32	Waste pit - 67	163.83	53,263.11	1,002,256
A_P	32	Borrow pit - 9	16.24	6770.64	1,002,256
A_C	37	Waste pit - 36	137.83	23,184.04	1,457,048
A_C	37	Borrow pit - 11	16.34	6881.38	1,457,048

Table 6.

Cost comparison between A_M, A_P and A_C (unit: 10⁴¥).

Index	A_M	A_P	A_C
Earthwork	114,802.4	56,312.0	79,223.3
Right-of-way	17,094.9	15,074.3	15,267.7
Tunnels	48,927.5	62,222.6	70,427.1
Bridges	54,015.7	70,654.9	55,220.6
Length-related components	17,422.2	17,022.7	17,335.6
Cost of railway construction	252,262.7	221,286.4	237,474.3
Earthwork allocation	4957.5	3699.89	3417.0
pit construction	35,084.7	36,840.02	22,873.9
Access road construction	132,124.5	122,937.8	90,665.1
Vehicle operation	8349.3	10,130.8	14,530.3
Cost of EAT	180,515.9	173,608.4	131,486.3
Comprehensive cost	432,778.7	394,894.9	368,960.6
Reduction	N/A	8.75%	14.75%

In this case, there are 1897 candidate waste pits and about 891 candidate borrow pits generated. Among them, A_C ultimately selects 36 waste pits and 11 borrow pits. For clarity of presentation, only the locations of some representative pits are shown in Figures 10 and 11. As listed in Table 4, it can be observed that the length proportions of fill and cut sections for A_M, A_P and A_C are 49.84%, 33.16%, and 40.55% respectively, indicating that earthwork plays a crucial role in this railway project. Considering RA, the land use (right-of-way) and earthwork volumes of A_C show a significant decrease compared with those of A_M. Specifically, the land use area of A_C is reduced by (1,389,834–1,241,282)/1,389,834 = 10.69%, and the earthwork volume of A_C is decreased by (20,748,728.3–14,267,340.2)/20,748,728.3 = 31.24%. This directly leads to a 5.9% reduction in the RA cost of A_C relative to A_M. When considering EAT solution, access roads account for the largest share of EAT costs. For A_C, the total length of construction access roads is reduced by (38,338.66–29,954.68)/38,338.66 = 21.87% compared to that of A_M; the number of borrow/spoil pits is decreased by 7, and the total earthwork allocated volume is reduced by (185.93–145.70)/185.93 = 21.64%. All these factors result in both RA and EAT costs of A_C being significantly below those of A_M. The total cost of A_C achieves a 14.75% reduction compared to A_M, which verified that the proposed method could generate an RA-EAT optimization alternative superior to the manually designed alternative.

By further comparing the A_P and A_C, it is found that A_P significantly reduces the RA cost relative to A_C. Although varying terrain conditions along the alignment lead to different configurations of structures (such as bridges and tunnels) and EAT schemes, this outcome occurs mainly because A_P is generated by a sequential process, which first optimizes the RA independently and then configures EAT based on the finalized alignment. While this sequential method lowers RA cost (i.e., the RA cost of A_P is reduced by 12.27% compared with A_C and 6.82% compared with A_C), it results in a notably higher EAT cost (the EAT cost of A_P is 32.04% above that of A_C). Ultimately the total cost of A_C is 6.57% below that of A_P, which successfully demonstrates the advantages of the RA-EAT concurrent optimization approach proposed in this study.

It is notable that the RA-EAT bi-level optimization method is designed as a specialized solution for railway projects in complex terrain, where it addresses severely unbalanced earthwork and the challenge of selecting feasible borrow/waste pit locations and configuring construction access roads.

5 Conclusions

Alignment design is important work that determines railway earthwork cost, which generally requires the assessment of cut/fill volume and, more crucially, Earthwork Allocation and Transportation (EAT). However, although significant advances have been made in Railway Alignment (RA) optimization, few studies in this field consider EAT factors. To this end, an integrated optimization model for three-dimensional RA and the corresponding EAT is developed in this study. The key contributions include:

An RA-EAT bi-level optimization model is proposed. At the upper level, a concurrent optimization model of RA and EAT is employed. Thus, the real-time EAT outcomes are fed into the iterative RA-EAT optimization to guide RA's adjustment. At the lower level, the EAT problem is formulated. Particularly, the geometric characteristics of allocation sections, borrow/waste pits and access roads are analyzed and integrated as design variables. The total EAT system cost is specified as the objective function and multiple EAT constraints are also considered.

To solve the above optimization model, a divide-and-conquer strategy is proposed. For the upper-level optimization, a modified PSO is used to search RA solutions; In lower-level EAT optimization, a combination of moving window method and Dijkstra's algorithm is addressed. First, the moving window method scans candidate borrow/waste pits based on terrain. Then, allocation sections are dynamically partitioned to selected the best borrow/waste pits locations. After that, a modified Dijkstra algorithm is applied to generate access roads among pits and main alignment. Finally, the overall RA-EAT solution is generated and iteratively evolved based on the PSO.

The devised method has been applied to a real-world railway project. A set of sensitivity experiments for the section length range of earthwork allocation are conducted to find the best parameter settings for the devised approach. The results indicate that the proposed method performs best when L_Smin = 2000 m and L_Smax = 6000 m. Then, the best computer-generated alternative (A_C), including a railway alignment and its corresponding EAT projects, is compared with the best manually-designed solution (A_M) and the alternative with separated first-RA-and-then-EAT optimization (A_P), which shows that the proposed integrated RA-EAT framework achieves a comprehensive cost reduction of 14.75% compared with A_M, and a further 6.57% cost reduction compared with the A_P.

This work considers railway's large-scale auxiliary construction projects (i.e., access roads and borrow/waste pits) for RA optimization. To address this problem, a customized method is devised. Although this method has been effectively verified, it still has certain limitations that offer pathways for future research. Thus, since the verification is based on a single real-world case, more different types of cases can be analyzed in further work. Also, the model incorporates simplifying assumptions, such as no earth movement between tunnels or bridges, which may not capture all real-world construction complexities.

Future research might focus on several well-justified directions. Algorithmically, efforts might be focused on enhancing robustness and efficiency through well-verified advanced techniques, such as ant colony algorithms, simulated annealing,⁵⁸ distributed nonlinear neural dynamics algorithms,⁵⁹ discrete spider monkey optimization,⁶⁰ smart bacteria-foraging algorithms,⁶¹ deep learning and reinforcement learning. For the optimization model, multi-objective optimization models incorporating life-cycle operating costs, geo-hazards, carbon emissions, and social impacts (e.g., resident resettlement, ecological protection) may further improve the model's practical and sustainable value. Moreover, more compact model formulations (e.g., quasi-network-flow)⁶² may be adopted to improve computational scalability. Also, more precise optimization models, such as more accurate earthwork computation methods and more precise selection of abutments and portal locations⁶³ may also be constructed in future research. Furthermore, a framework based on this work may be extended to other infrastructure domains, such as highway and pipeline alignment design.

Footnotes

Acknowledgments

This work is partially funded by the Science and Technology Research and Development Program Project of China Railway Group Limited with award number 2022-Major-20 and Practical2023-Major-05; Fundamental Research Funds for the Central Universities of Central South University with award number 2025ZZTS0110; Research Funds for Hunan Province Postgraduate Research and Innovation Project with award number CX20250292.

Ethical approval

This article does not contain any studies with human or animal participants.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is partially funded by the Science and Technology Research and Development Program Project of China Railway Group Limited with award number 2022-Major-20 and Practical2023-Major-05; Fundamental Research Funds for the Central Universities of Central South University with award number 2025ZZTS0110; Research Funds for Hunan Province Postgraduate Research and Innovation Project with award number CX20250292.

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

ORCID iD

Taoran Song

References

Song

Schonfeld

, et al. Mountain railway alignment optimization integrating layouts of large-scale auxiliary construction projects. Comput-Aided Civ Infrastruct Eng 2023; 38: 433–453.

Song

Schonfeld

. A review of alignment optimization research for roads, railways and rail transit lines. IEEE Trans Intell Transp Syst 2023; 24: 4738–4757.

Kim

Jha

Schonfeld

, et al. Highway alignment optimization incorporating bridges and tunnels. J Transp Eng 2007; 133: 71–81.

Zhang

Schonfeld

, et al. Multi-objective railway alignment optimization considering costs and environmental impacts. Appl Soft Comput 2020; 89: 106105.

Xie

Schonfeld

, et al. Railway alignment optimization in mountainous regions considering spatial geological hazards: a sustainable safety perspective. Sustainability 2021; 13: 1661.

Wan

Schonfeld

, et al. Mountain railway alignment optimization based on landform recognition and presetting of dominating structures. Comput-Aided Civ Infrastruct Eng 2023; 39: 1.

Aruga

. Tabu search optimization of horizontal and vertical alignments of forest roads. J For Res 2017; 10: 275–284.

Ghoreishi

Shafahi

Hashemian

. A model for optimizing railway alignment considering bridge costs, tunnel costs, and transition curves. Urban Rail Transit 2019; 5: 207–224.

Jha

SchonfeldP

Jong

J-C

, et al. Intelligent road design. UK: WIT Press, 2006.

10.

Song

Schonfeld

, et al. A three-dimensional distance transform for optimizing constrained mountain railway alignments. Comput-Aided Civ Infrastruct Eng 2019; 34: 972–990.

11.

Song

Schonfeld

, et al. Mountain railway alignment optimization considering geological impacts: a cost-hazard bi-objective model. Comput-Aided Civ Infrastruct Eng 2020; 35: 1365–1386.

12.

Gao

, et al. Low-construction-emission cross-section optimization for mountainous highway alignment designs. Transp Res Part D Transport Environ 2022; 105: 103249.

13.

Cai

Song

, et al. Minimizing costs and carbon emissions in railway alignment optimization: a bi-objective model. Transp Res Part D Transport Environ 2023; 116: 103615.

14.

Song

Schonfeld

, et al. Many-objective optimization of railway alignments with strengthened pareto dominance analysis. IEEE Trans Intell Transp Syst 2025; 26: 11372–11387.

15.

Jong

Schonfeld

. An evolutionary model for simultaneously optimizing three-dimensional highway alignments. Transp Res B, Methodol 2003; 37: 107–128.

16.

Jong

J-C

. Optimizing highway alignments with genetic algorithms. College Park: University of Maryland, 1998.

17.

Kim

Jha

Lovell

, et al. Intersection modeling for highway alignment optimization. Comput-Aided Civ Infrastruct Eng 2004; 19: 119–129.

18.

Kang

Yang

Schonfeld

, et al. Bilevel highway route optimization. Transp Res Rec J Transp Res Board 2010; 2197: 107–117.

19.

Kang

M-W

Jha

Schonfeld

. Applicability of highway alignment optimization models. Transp Res C Emerg Technol 2012; 21: 257–286.

20.

Jha

Schonfeld

. A highway alignment optimization model using geographic information systems. Transp Res A Policy Pract 2004; 38: 455–481.

21.

Kang

Schonfeld

Yang

. Prescreening and repairing in a genetic algorithm for highway alignment optimization. Comput-Aided Civ Infrastruct Eng 2009; 24: 109–119.

22.

Yang

Kang

M-W

Schonfeld

, et al. Multi-objective highway alignment optimization incorporating preference information. Transp Res C Emerg Technol 2014; 40: 36–48.

23.

de Smith

. Determination of gradient and curvature constrained optimal paths. Comput-Aided Civ Infrastruct Eng 2006; 21: 24–38.

24.

Schonfeld

, et al. Methodology for optimizing constrained 3-dimensional railway alignments in mountainous terrain. Transp Res C Emerg Technol 2016; 68: 549–565.

25.

Song

, et al. Knowledge graph-driven mountain railway alignment optimization integrating karst hazard assessment. Appl Soft Comput 2024; 167: 112421.

26.

Song

, et al. Modeling and application of a customized knowledge graph for railway alignment optimization. Expert Syst Appl 2024; 244: 122999.

27.

Shafahi

Bagherian

. A customized particle swarm method to solve highway alignment optimization problem. Comput-Aided Civ Infrastruct Eng 2013; 28: 52–67.

28.

Song

Schonfeld

, et al. Mountain railway alignment optimization using stepwise & hybrid particle swarm optimization incorporating genetic operators. Appl Soft Comput 2019; 78: 41–57.

29.

Gao

, et al. A deep reinforcement learning approach to mountain railway alignment optimization. Comput-Aided Civ Infrastruct Eng 2021; 37: 73–92.

30.

Costa

Sousa

Einstein

. Probabilistic 3D alignment optimization of underground transport infrastructure integrating GIS-based subsurface characterization. Tunnelling Underground Space Technol 2018; 72: 233–241.

31.

Casal

Santamarina

Vazquezmendez

. Optimization of horizontal alignment geometry in road design and reconstruction. Transp Res C Emerg Technol 2017; 74: 261–274.

32.

Easa

. Earthwork allocations with linear unit costs. J Constr Eng Manag 1988; 114: 641–655.

33.

Easa

. Selection of roadway grades that minimize earthwork cost using linear programming. Transp Res Part A Gen 1988; 22: 121–136.

34.

Fernandes

PGPS

Júnior

EFN

Prata

. Optimization of earthworks planning: a systematic mapping study. Can J Civ Eng 2022; 49: 1781–1795.

35.

Kim

S-K

Russell

. Framework for an intelligent earthwork system: part II. Task identification/scheduling and resource allocation methodology. Autom Constr 2003; 12: 15–27.

36.

Gwak

H-S

Seo

Lee

D-E

. Optimal cut-fill pairing and sequencing method in earthwork operation. Autom Constr 2018; 87: 60–73.

37.

Hajarian

Osanloo

. A new developed model to determine waste dump site selection in open pit mines: an approach to minimize haul road construction cost. Int J Eng Trans A 2020; 33: 1413–1422.

38.

Burdett

Kozan

. An integrated approach for earthwork allocation, sequencing and routing. Eur J Oper Res 2014; 238: 741–759.

39.

Burdett

Kozan

Kenley

. Block models for improved earthwork allocation planning in linear infrastructure construction. Eng Optim 2015; 47: 347–369.

40.

Güden

Süral

. A polynomial algorithm for the earthwork allocation problem with borrow and waste site selection. J Oper Res Soc 2017; 68: 1085–1093.

41.

Choi

Han

. Reinforcement learning-based dynamic planning of cut and fill operations for earthwork optimization. Autom Constr 2023; 156: 105111.

42.

Hare

Koch

Lucet

. Models and algorithms to improve earthwork operations in road design using mixed integer linear programming. Eur J Oper Res 2011; 215: 470–480.

43.

Mondal

Lucet

Hare

. Optimizing horizontal alignment of roads in a specified corridor. Comput Oper Res 2015; 64: 130–138.

44.

Sarma

Adeli

. Bilevel parallel genetic algorithms for optimization of large steel structures. Comput-Aided Civ Infrastruct Eng 2002; 16: 295–304.

45.

Lin

Wong

Zhang

, et al. Bilevel dynamic continuum model for housing allocation and transportation emission problems in an urban city. Int J Sustainable Transp 2019; 15: 55–69.

46.

Administration (CNR). Code for railway alignment design, TB10098-2017. Beijing: China Railway Press, 2017.

47.

Shi

Zhang

Chen

, et al. A smoothness optimization method for horizontal alignment considering ballasted track maintenance. Comput-Aided Civ Infrastruct Eng 2022; 38: 739–761.

48.

Song

Schonfeld

, et al. Simultaneous optimization of 3D alignments and station locations for dedicated high-speed railways. Comput-Aided Civ Infrastruct Eng 2021; 37: 405–426.

49.

Dagostino

Feigenbaum

. Estimating in building construction. Upper Saddle River, NJ: Pearson Education, 2003.

50.

Standardization (CAFEC). Technical specification for earth disposal site engineering. T/CECS 1240-2023. Beijing. 2023.

51.

Transport

CMO

. Technical standard of low volume rural highway engineering. JTG 2011–2019. Beijing. 2019.

52.

Wang

Gao

Gan

, et al. Auxiliary road design and optimization for railway construction in mountainous areas. J Transp Eng Part A Syst 2023; 149: 1–14.

53.

Berti

Corsini

Daehne

. Comparative analysis of surface roughness algorithms for the identification of active landslides. Geomorphology 2013; 182: 1–18.

54.

Shi

Eberhart

. A modified particle swarm optimizer. In: Proceedings of IEEE international conference on evolutionary computation, pp.69-73. 1998.

55.

Song

Yang

, et al. Optimizing net present values of risk avoidance for mountain railway alignments with seismic performance evaluation. Comput-Aided Civ Infrastruct Eng 2023; 39: 944–962.

56.

Song

Yang

, et al. Modeling earthquake-induced landslide risk for mountain railway alignment optimization. ASCE-ASME J Risk Uncertainty Eng Syst Part A Civil Eng 2024; 10: 04024005.

57.

Dijkstra

. A note on two problems in connexion with graphs. Numer Math 1959; 1: 269–271.

58.

Aranha

Camacho Villalón

Campelo

, et al. Metaphor-based metaheuristics, a call for action: the elephant in the room. Swarm Intelligence 2022; 16: –6.

59.

Park

Adeli

. Distributed neural dynamics algorithms for optimization of large steel structures. J Struct Eng 1997; 123: 880–888.

60.

Akhand

MAH

Ayon

Shahriyar

, et al. Discrete spider monkey optimization for travelling salesman problem. Appl Soft Comput 2020; 86: 105887.

61.

Wang

Zhong

Adeli

, et al. Smart bacteria-foraging algorithm-based customized kernel support vector regression and enhanced probabilistic neural network for compaction quality assessment and control of earth-rock dam. Expert Syst 2018; 35: e12357.

62.

Hare

Hossain

Lucet

, et al. Models and strategies for efficiently determining an optimal vertical alignment of roads. Comput Oper Res 2014; 44: 161–173.

63.

Blanco-Valcarcel

Castro

Vázquez-Méndez

. On the numerical computation of earthworks in road and railway projects. Results Eng 2025; 27: 106824.
