PF4/Heparin Antibody Testing and Treatment of Heparin-Induced Thrombocytopenia in the Intensive Care Unit

Introduction

Heparin-induced thrombocytopenia (HIT) is a serious, immune-mediated reaction that may occur in individuals receiving any dose or form of a heparin agent.^1–3 Although, HIT occurs most commonly (1%-5%) with the unfractionated form of heparin (UFH), it has been reported to occur in 0.5% of patients receiving a low-molecular-weight heparin (LMWH) such as enoxaparin or dalteparin.^3–5 Heparin-induced thrombocytopenia commonly presents with a drop in platelet count occurring on the 5th day of therapy with a heparin agent, with or without the presence of thrombosis.^1,3 Heparin-induced thrombocytopenia induces a prothrombotic state characterized by intense activation of platelets, by platelet factor 4–heparin complexes (PF4/heparin), and robust thrombin generation. Prompt recognition of HIT and initiation of alternative anticoagulation is fundamental in preventing adverse outcomes such as thrombosis, organ damage, and death. ⁶

In the intensive care unit (ICU), 23% to 58% of patients have some degree of thrombocytopenia which makes the recognition and treatment of HIT even more complex.^7,8 There are often many different reasons a critically ill patient may have thrombocytopenia. Sepsis and septic shock, major surgery, intraaortic balloon pumps, and many pharmacological agents are potential causes of thrombocytopenia in the critically ill patients.^3,9 Heparin antibody tests are frequently ordered in ICU patients suspected of having HIT but are associated with high rates of false positives and can be interpreted incorrectly. ¹⁰ In addition, the decision to discontinue the heparin agent and start an alternative anticoagulant, such as a direct thrombin inhibitor (DTI) can be associated with significant patient safety risks and poses a substantial economic burden on our health-care system.^11,12 The appropriate recognition and diagnosis of HIT incorporates clinical scoring tools, such as the 4Ts score, the patient’s clinical picture, and the use of heparin antibody testing. ¹³ The 4Ts score is a clinical scoring tool used to predict the likelihood of HIT (Table 1). A score total is based on an 8-point scale, accounting for the degree of thrombocytopenia, timing of thrombocytopenia, presence of thrombosis, and alternative causes of thrombocytopenia. A score of 0 to 3 indicates a low probability of HIT, 4 to 5 intermediate probability, and 6 to 8 high probability. The 4Ts scoring system has been validated in several different acute care populations and found to have a strong negative predictive value for the presence of a positive heparin antibody test.^14–16 The 4Ts score has also been studied less extensively in critically ill patients but with similar results.^17,18

OPEN IN VIEWER

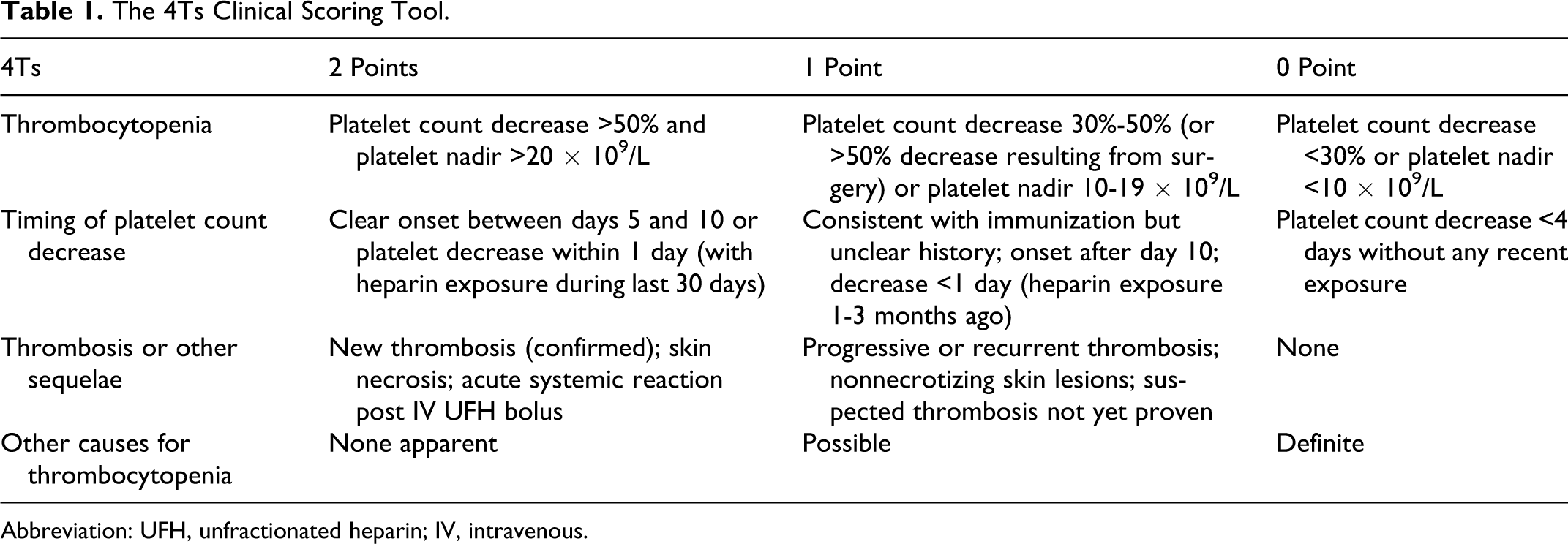

Table 1.

The 4Ts Clinical Scoring Tool.

4Ts	2 Points	1 Point	0 Point
Thrombocytopenia	Platelet count decrease >50% and platelet nadir >20 × 109/L	Platelet count decrease 30%-50% (or >50% decrease resulting from surgery) or platelet nadir 10-19 × 109/L	Platelet count decrease <30% or platelet nadir <10 × 109/L
Timing of platelet count decrease	Clear onset between days 5 and 10 or platelet decrease within 1 day (with heparin exposure during last 30 days)	Consistent with immunization but unclear history; onset after day 10; decrease <1 day (heparin exposure 1-3 months ago)	Platelet count decrease <4 days without any recent exposure
Thrombosis or other sequelae	New thrombosis (confirmed); skin necrosis; acute systemic reaction post IV UFH bolus	Progressive or recurrent thrombosis; nonnecrotizing skin lesions; suspected thrombosis not yet proven	None
Other causes for thrombocytopenia	None apparent	Possible	Definite

Abbreviation: UFH, unfractionated heparin; IV, intravenous.

With this knowledge, we set out with the objective to characterize the ordering of heparin antibody tests in the ICU based on a patient’s clinical picture utilizing the 4Ts clinical scoring tool. We also wanted to describe the usage of alternative anticoagulation agents and investigate potential cost avoidance associated with the correct recognition and treatment of HIT in ICU patients.

Methods

Results

A total of 134 patients met the inclusion criteria during the enrollment period. Three patients were excluded from study analysis because they died before the PF4/heparin antibody test result was reported. The baseline characteristics of the study population are summarized in Table 2. The majority of patients were surgical patients (n = 79, 60%), with 81 (62%) PF4/heparin antibody tests ordered on patients in the cardiovascular surgery ICU. Every other ICU had at least 4 antibody tests ordered during the study period.

OPEN IN VIEWER

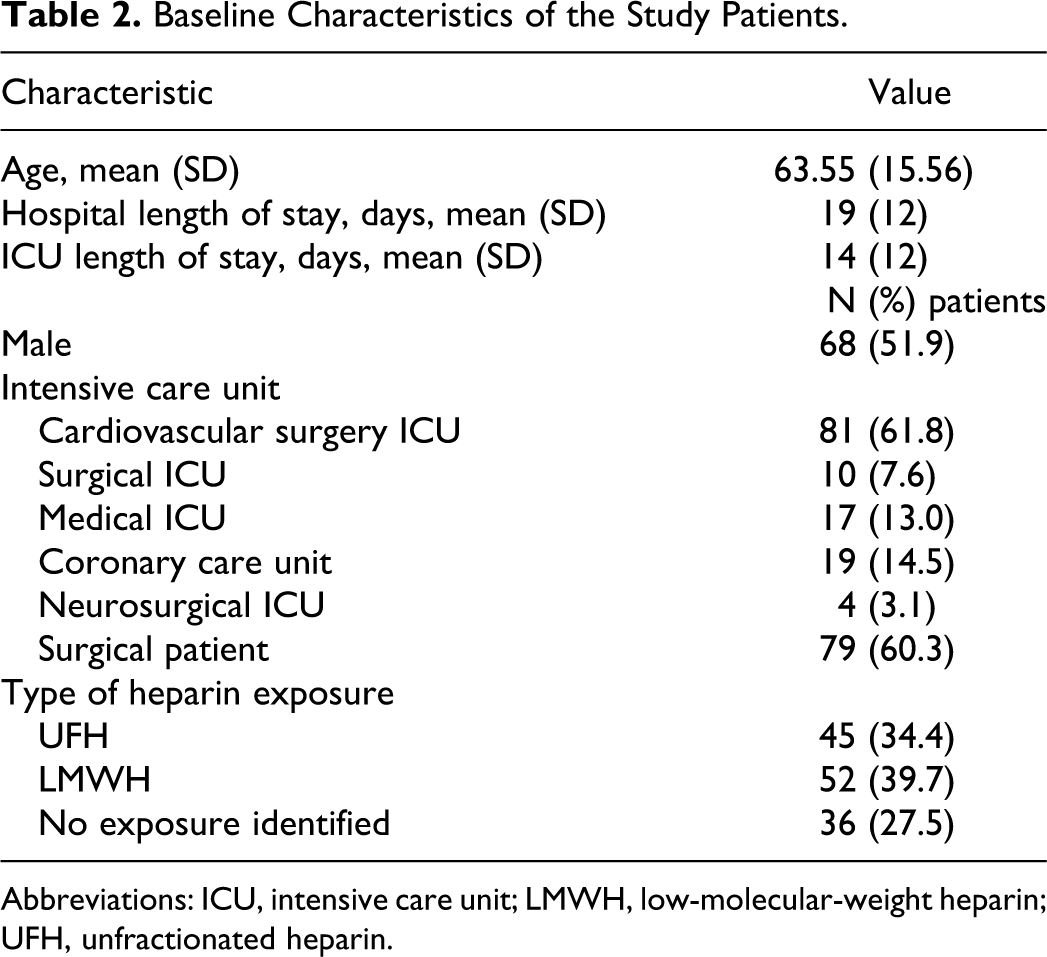

Table 2.

Baseline Characteristics of the Study Patients.

Characteristic	Value
Age, mean (SD)	63.55 (15.56)
Hospital length of stay, days, mean (SD)	19 (12)
ICU length of stay, days, mean (SD)	14 (12)
	N (%) patients
Male	68 (51.9)
Intensive care unit
Cardiovascular surgery ICU	81 (61.8)
Surgical ICU	10 (7.6)
Medical ICU	17 (13.0)
Coronary care unit	19 (14.5)
Neurosurgical ICU	4 (3.1)
Surgical patient	79 (60.3)
Type of heparin exposure
UFH	45 (34.4)
LMWH	52 (39.7)
No exposure identified	36 (27.5)

Abbreviations: ICU, intensive care unit; LMWH, low-molecular-weight heparin; UFH, unfractionated heparin.

Thirty-six patients (28%) were not exposed to heparin or LMWH during their admission at our hospital, nor could any exposure from outside institutions be identified.

A total of 95 patients received a heparin agent, 45 with UFH and 52 with LMWH. Two patients had been exposed to both agents prior to ordering the PF4/heparin antibody test. Of the 95 patients exposed to a heparin agent, 41 (43%) had the medication discontinued at the time the heparin antibody test was ordered. Alternative nonheparin anticoagulants, including DTIs and fondaparinux were initiated in 16 patients. In all, 10 patients were initiated on fondaparinux, 4 on bivalirudin, and 2 on argatroban.

Table 3 displays the comparison of the 4Ts score with heparin antibody test results. The 4Ts score was calculated to be low in 110 (84%) patients, intermediate in 19 (15%) patients, and high in 2 (1%) patients. Of the 110 patients with a low 4Ts score, 7 (6%) had a positive OD value (OD >0.40). None of the patients with a low 4Ts score had an OD value greater than 1.0. One patient (5%) with an intermediate 4Ts score had a positive OD value of greater than 0.4. This particular patient’s OD value was 3.188 and was diagnosed with HIT by medical staff. In patients with a high 4Ts score, 2 (100%) had an OD value greater than 0.4. The median OD value of these 2 patients was 1.90, and each of them ultimately received a diagnosis of HIT by a hematologist. The 3 patients diagnosed with HIT and their treatments and outcomes are described in Table 4. The negative predictive value in patients with a low 4Ts score was 93.6%. When using an elevated OD cutoff of 1.0 for a positive antibody test value, the negative predictive value of patients with a low 4Ts score was 100%. The positive predictive value of the 4Ts scoring tool in patients with a high score was 100%.

OPEN IN VIEWER

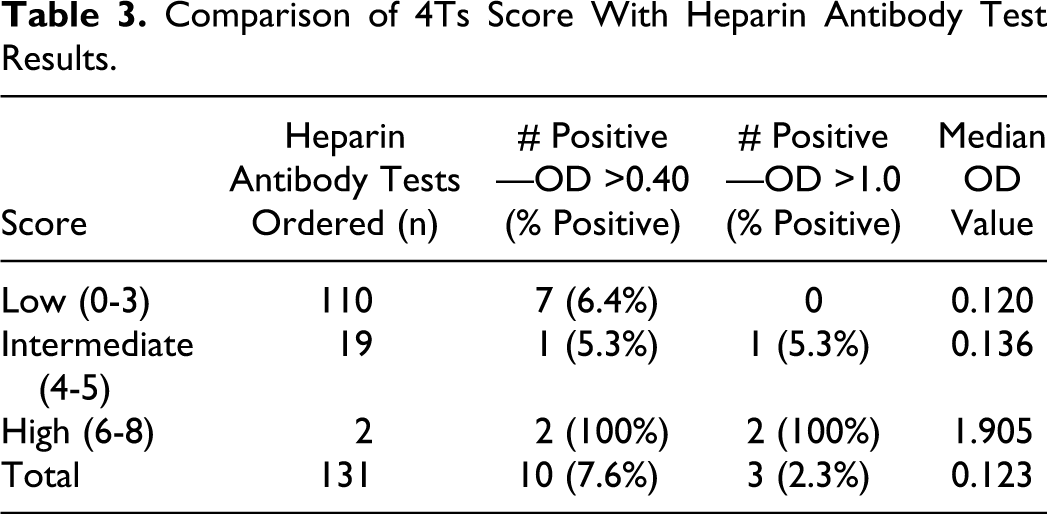

Table 3.

Comparison of 4Ts Score With Heparin Antibody Test Results.

Score	Heparin Antibody Tests Ordered (n)	# Positive —OD >0.40 (% Positive)	# Positive —OD >1.0 (% Positive)	Median OD Value
Low (0-3)	110	7 (6.4%)	0	0.120
Intermediate (4-5)	19	1 (5.3%)	1 (5.3%)	0.136
High (6-8)	2	2 (100%)	2 (100%)	1.905
Total	131	10 (7.6%)	3 (2.3%)	0.123

OPEN IN VIEWER

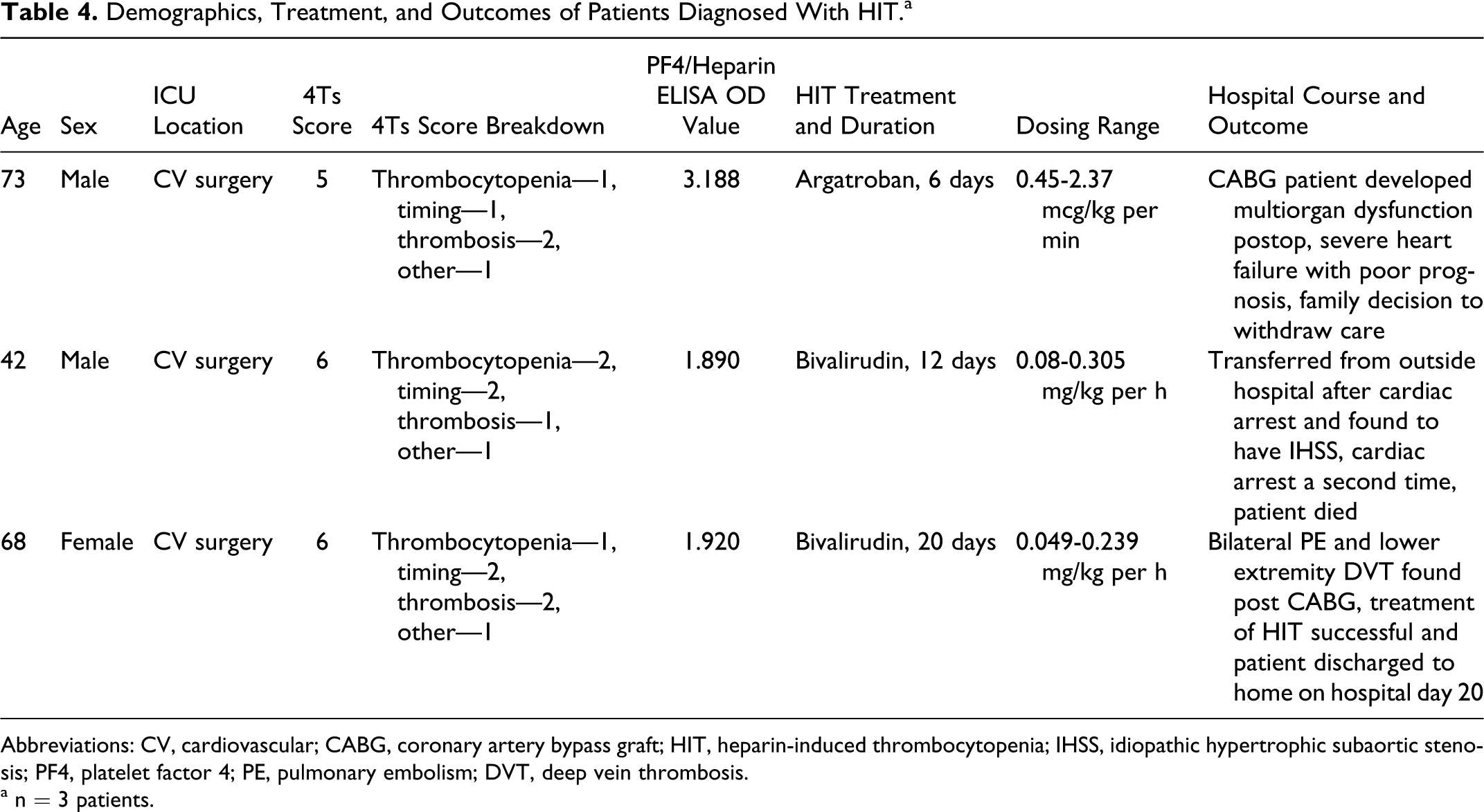

Table 4.

Demographics, Treatment, and Outcomes of Patients Diagnosed With HIT.a

Age	Sex	ICU Location	4Ts Score	4Ts Score Breakdown	PF4/Heparin ELISA OD Value	HIT Treatment and Duration	Dosing Range	Hospital Course and Outcome
73	Male	CV surgery	5	Thrombocytopenia—1, timing—1, thrombosis—2, other—1	3.188	Argatroban, 6 days	0.45-2.37 mcg/kg per min	CABG patient developed multiorgan dysfunction postop, severe heart failure with poor prognosis, family decision to withdraw care
42	Male	CV surgery	6	Thrombocytopenia—2, timing—2, thrombosis—1, other—1	1.890	Bivalirudin, 12 days	0.08-0.305 mg/kg per h	Transferred from outside hospital after cardiac arrest and found to have IHSS, cardiac arrest a second time, patient died
68	Female	CV surgery	6	Thrombocytopenia—1, timing—2, thrombosis—2, other—1	1.920	Bivalirudin, 20 days	0.049-0.239 mg/kg per h	Bilateral PE and lower extremity DVT found post CABG, treatment of HIT successful and patient discharged to home on hospital day 20

Abbreviations: CV, cardiovascular; CABG, coronary artery bypass graft; HIT, heparin-induced thrombocytopenia; IHSS, idiopathic hypertrophic subaortic stenosis; PF4, platelet factor 4; PE, pulmonary embolism; DVT, deep vein thrombosis.

^a n = 3 patients.

Possible alternative causes of thrombocytopenia were identified in 129 (98%) patients (Table 5). The most common alternative cause of thrombocytopenia was drug induced, with vancomycin being administered to 80 (61%) patients. Other medications such as famotidine (n = 21, 16%) and sulfamethaxazole/trimethoprim (n = 5, 4%) were frequently prescribed to the study participants. Fifty-one patients (38%) had major surgery in the last 72 hours and 18 patients (14%) had sepsis, 2 possible alternative causes that may have attributed to their thrombocytopenia.

OPEN IN VIEWER

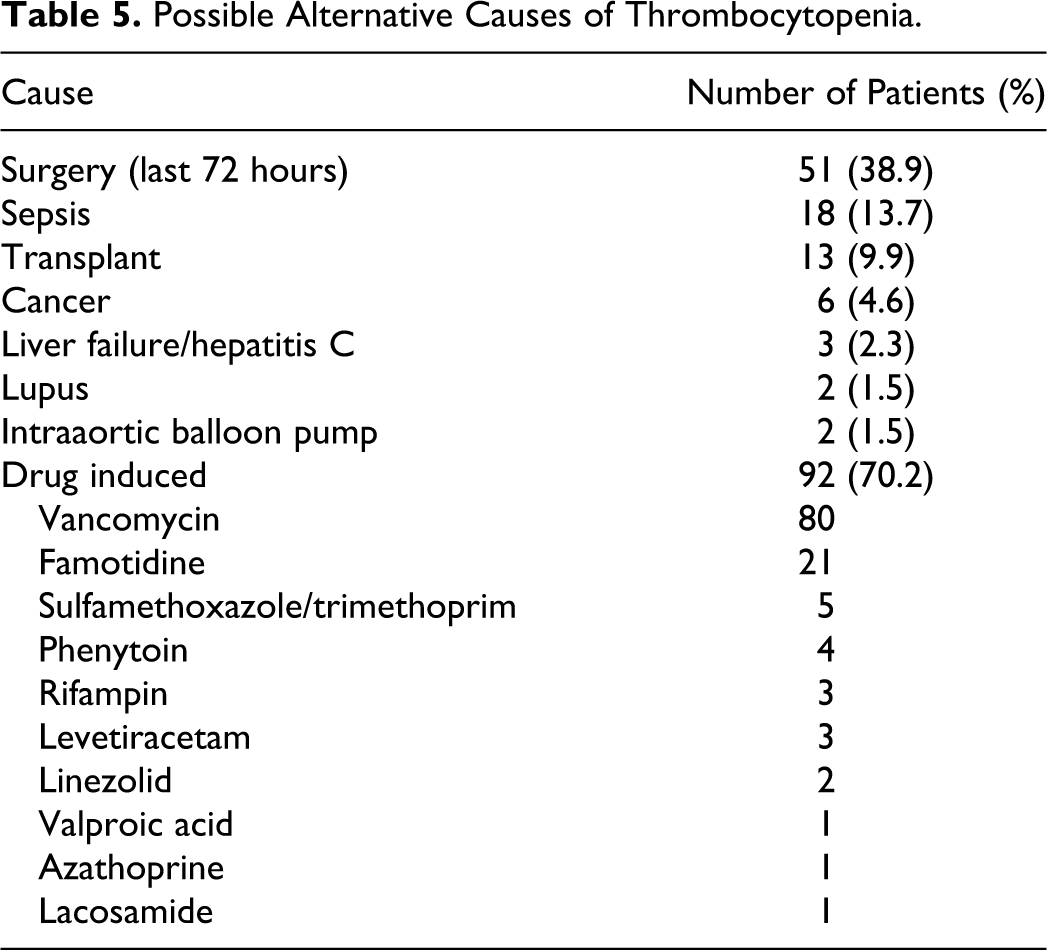

Table 5.

Possible Alternative Causes of Thrombocytopenia.

Cause	Number of Patients (%)
Surgery (last 72 hours)	51 (38.9)
Sepsis	18 (13.7)
Transplant	13 (9.9)
Cancer	6 (4.6)
Liver failure/hepatitis C	3 (2.3)
Lupus	2 (1.5)
Intraaortic balloon pump	2 (1.5)
Drug induced	92 (70.2)
Vancomycin	80
Famotidine	21
Sulfamethoxazole/trimethoprim	5
Phenytoin	4
Rifampin	3
Levetiracetam	3
Linezolid	2
Valproic acid	1
Azathoprine	1
Lacosamide	1

Discussion

The objective of this study was to characterize the ordering of PF4/heparin ELISA antibody tests in critically ill patients based on clinical suspicion. We evaluated all heparin antibody orders in the ICU over the course of 4 months to determine whether a patient’s clinical picture warranted the ordering of a heparin antibody test. Our results show that the majority of patients (110 of 131, 84%) had a low clinical suspicion of HIT based on a low 4Ts score and should not have had the laboratory test ordered. Although 7 of these patients had positive heparin antibody results with OD values between 0.4 and 1.0, none were ultimately diagnosed with HIT. The results confirm the strong negative predictive value of the 4Ts score, further validating previous data that the 4Ts score is effective in identifying critically ill patients with a low probability of HIT.^17,18 In patients with a low 4Ts score, the clinician should first look to identify possible alternative causes of thrombocytopenia before ordering a heparin antibody test or initiating alternative anticoagulation.

Other causes of thrombocytopenia can often be found in critically ill patients, as evidenced by the 98% rate seen in our study patients. It is important to evaluate all other possible causes of thrombocytopenia as this is the component of the 4Ts score that is most susceptible to interrater variability. ¹³ The most frequent cause of thrombocytopenia seen in our patients was medication induced. Many study participants were initiated on vancomycin therapy as empiric treatment for suspected infection, which may cause thrombocytopenia (1%-8%).^21,22 Famotidine was frequently administered to our study patients and its use has been associated with thrombocytopenia, although data are limited and somewhat controversial.^23,24 Major recent surgery was also common in our patient population, many of whom were located in the cardiovascular surgery and surgical ICUs. When assessing for HIT it is important to take these other causes into consideration because they are so frequently seen in critically ill patients and may obscure the clinical picture.

An interesting finding was the low (43%) rate of heparin agents discontinued when the antibody test was ordered. Many patients continued to receive treatment with heparin, which may indicate that the clinician ordering the heparin antibody test had a low suspicion of HIT. It is possible that the heparin antibody tests are frequently being used to rule out HIT in patients with thrombocytopenia rather than confirm a diagnosis based on high clinical suspicion. Due to the fact that ELISA tests have a high rate of false positives, this places increased responsibility on the clinicians to correctly interpret the results to prevent unnecessary exposure to DTIs. An alternative to using the PF4/heparin antibody tests to rule out HIT may be the use of the 4Ts score itself, which has shown a strong negative predictive value in many clinical trials and in a variety of patient populations.

The choice of alternative anticoagulation options for HIT displays a relative shift from what we have seen in previous years. Our institution has pharmacy-driven protocols for managing argatroban and bivalirudin, and other patient-specific factors such as renal or hepatic insufficiency may have attributed to the choice of one DTI over another. From the previous 12 months, 68% of patients started on a DTI for HIT were initiated on argatroban compared to only 32% of patients initiated on bivalirudin. This represents a change in DTI treatment choice compared to our study where 67% of patients were initiated on bivalirudin and 33% of patients on argatroban.

Significant cost avoidance can be appreciated from the correct evaluation, recognition, and treatment of patients with HIT. ¹¹ Significant cost can be attributed to the unwarranted ordering of heparin antibody test, however the majority of cost can be credited to the unnecessary or inappropriate initiation and monitoring of agents such as bivalirudin, argatroban, and other nonheparin anticoagulants. The initiation of these agents is extremely costly to the health care system, when taking into account the acquisition cost of the medication, nursing monitoring and care, pharmacy monitored dosing protocols, and treatment of side effects and adverse events. A study published in 2006 described the incremental average cost of treating a patient with HIT to be 41 000 USD. ¹¹ At our institution, the cost avoidance from this study extrapolated over the course of 12 months is over 120 000 USD for critical care patients alone, not taking into account acute care patients. The number of heparin antibody tests ordered in the ICU and acute care floors at our hospital is very similar on a monthly basis. We anticipated 200 patients enrolled in the study prior to data collection, and only enrolled 131 so cost avoidance may be underestimated due to a less than expected enrollment. We also anticipate cost avoidance to be significantly higher when taking into account drug and laboratory monitoring costs.

This study methodology has limitations that should be discussed. First, the largest limitation to the study was that none of the patients had a follow-up SRA to confirm their diagnosis of HIT. While the SRA has shown to have stronger predictive value than the PF4/heparin ELISA test and is used for confirmation of PF4/heparin ELISA tests, it is a send-out laboratory test with a long turnaround time. Instead, the diagnosis of HIT by a trained hematologist was used as the gold standard in patients with a positive OD result at our institution. Another limitation was that a single researcher was responsible for calculating the 4Ts score. The 4Ts score has been validated in many populations over time but can be subjective and open to interrater variability. Although having a single person calculating the 4Ts score increased the internal validity of the study, it may compromise our external validity and extrapolation of our results. Another limitation was the lack of information regarding heparin exposure from outside institutions. Since our study hospital is a large, tertiary care center with many transfers from outside institutions, we were aware of the possible high rate of recent heparin exposure at outside institutions with no available documentation. A total of 37 patients had no documented or charged heparin exposure at our hospital or an outside institution. In addition, since there was no active intervention or involvement in care by the research team, we were unaware of patient information that was conveyed to members of the patients' medical team but not documented in the patients chart or medical record.

Conclusion

Our study found the 4Ts score to have a strong negative predictive value for assessing the probability of HIT in critically ill patients. When using an elevated OD cutoff of 1.0, the negative predictive value of patients with a low 4Ts score was 100%. The 4Ts scoring tool should be used as an initial method of evaluating critically ill patients with thrombocytopenia following exposure to heparin or LMWH. In patients with a low 4Ts score, alternative causes of thrombocytopenia should be evaluated as they are frequently present. Patients with a low 4Ts score generally do not warrant the routine ordering of a heparin antibody or initiating alternative anticoagulation.
