Compatibility conditions of continua using Riemann

Abstract

The compatibility conditions for generalised continua are studied in the framework of differential geometry, in particular Riemann–Cartan geometry. We show that Vallée’s compatibility condition in linear elasticity theory is equivalent to the vanishing of the three-dimensional Einstein tensor. Moreover, we show that the compatibility condition satisfied by Nye’s tensor also arises from the three-dimensional Einstein tensor, which appears to play a pivotal role in continuum mechanics not mentioned before. We discuss further compatibility conditions that can be obtained using our geometrical approach and apply it to the microcontinuum theories.

Keywords

Compatibility conditions Cosserat continuum Riemann–Cartan geometry

1. Introduction

Compatibility conditions in continuum mechanics form a set of partial differential equations that are not completely independent of each other. They may impose certain conditions among the unknown functions, which are often derived by applying higher-order mixed partial derivatives to the given system of equations. They are closely related to integrability conditions.

In 1992, Vallée [1] showed that the standard Saint-Venant compatibility condition of linear elasticity, known since the mid-nineteenth century, can be written in the convenient form

Curl Λ + Cof Λ = 0,

(1)

where $Λ$ is the $3 \times 3$ matrix given by

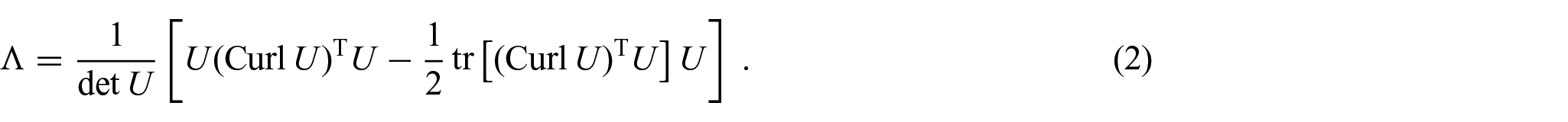

Λ = \frac{1}{det U} [U {(Curl U)}^{T} U - \frac{1}{2} tr [{(Curl U)}^{T} U] U] .

(2)

This formulation was based on Riemannian geometry, where the metric tensor was written as $g_{μ ν} = U_{μ}^{a} U_{ν}^{b} δ_{ab}$ . Here, U is the right stretch tensor of the polar decomposition of the deformation gradient tensor $F = R U$ and R is an orthogonal matrix, which is the polar part. The quantities $Curl$ and $Cof$ in equation (1) are defined by

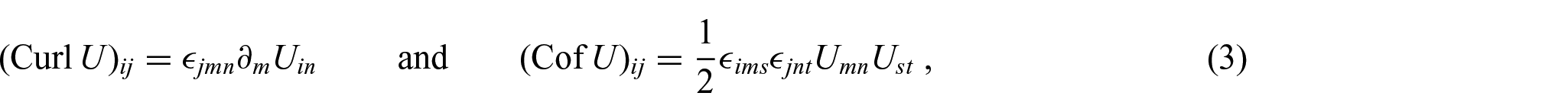

(Curl U)_{ij} = ϵ_{jmn} \partial_{m} U_{in} and (Cof U)_{ij} = \frac{1}{2} ϵ_{ims} ϵ_{jnt} U_{mn} U_{st},

(3)

and $ϵ_{ijk}$ is the totally skew-symmetric Levi–Civita symbol.

Equation (1) was derived by finding the integrability condition of the system for the right Cauchy–Green deformation tensor C, which is defined by

C = (\nabla Θ)^{T} (\nabla Θ) .

(4)

The deformation of the continuum is expressed by a diffeomorphism $Θ : M \to R^{3}$ such that $x = X + u$ , with u being the displacement vector. Hence, the tensor C assumes the role of a metric tensor in the given smooth manifold $M$ . Later [2], the existence of such an immersion $Θ$ was proved that maps an open subset of $R^{3}$ into $R^{3}$ in which the metric tensor field defined by C resides, given by U in the polar decomposition $\nabla Θ = RU$ . Equation (1) was shown to be equivalent to the vanishing of the Riemann curvature tensor in this setting.

Much earlier, in 1953, Nye [3] showed that there exists a curvature related rank-two tensor $Γ$ of the form

Γ = \frac{1}{2} tr (R^{T} Curl R) 1 - (R^{T} Curl R)^{T},

(5)

satisfying the compatibility condition

Curl Γ + Cof Γ = 0 .

(6)

The object $Γ$ is often called Nye’s tensor and is written in terms of the dislocation density tensor $K = R^{T} Curl R$ , which only depends on the orthogonal matrix R.

In this paper, we would like to show that these two compatibility conditions, seemingly arising from different and incomparable settings, are in fact special cases of a much broader compatibility condition, which can be formulated in Riemann–Cartan geometry.

Riemann–Cartan geometry provides a suitable background when one brings the concepts of curvature and torsion to the given manifold, using the method of differential geometry in describing the intrinsic nature of defects and its classifications. Pioneering works using this mathematical framework were explored in [4 –8] and many attempts to understand the theory of defects within the framework of the Einstein–Cartan theory were made [9 –13]. Curvature and torsion can be regarded as the sources for disclination and dislocation densities, respectively, in the theory of defects. The rotational symmetries are broken by the disclination and the translational symmetries are broken by the dislocation [7, 14 –16] in Bravais lattices, the approximation of crystals into a continuum.

It is worth noting that these geometries are commonly used in Einstein–Cartan theory [17 –19], teleparallel gravity [20], gauge theories of gravity [21 –23] and condensed matter systems [24 –26]. Links between microrotations and torsion were explored in [11, 27 –30]. Recent developments in incorporating elasticity theory and spin particles using the tetrad formalism can be found in [31, 32].

Our paper is organised as follows. In Section 2, after introducing frame bases and co-frame bases (also called tangent and co-tangent bases) together with its polar decompositions, we define various quantities, including a general connection, spin connection and torsion. We will see that the Riemann tensor can be expressed in various ways using the mentioned tensors. We introduce the Einstein tensor. Then we will decompose those tensors into two parts, one that is torsion-free and one that contains torsion.

In Section 3, using the tools introduced, we will derive compatibility conditions in various physical settings using a universal process. Firstly, Vallée’s result is rederived, followed by Nye’s condition. We carefully explain the connection between these two compatibility conditions and the vanishing of the Einstein tensor. Furthermore, we will show that Nye’s result is also closely linked to Skyrme theory and thus to microcontinuum theories. We briefly remark on the homotopic classification of the compatibility conditions.

Section 4 derives general compatibility conditions based on our geometric approach. This section is followed by conclusions and discussions in the final section.

2. Tools of differential geometry

2.1. Frame fields

Let us begin with a three-dimensional Riemannian manifold $M$ with coordinates x and let us introduce a set of basis co-vectors (or 1-forms) for the co-tangent space at some point $x \in M$

{e_{μ}^{1}, e_{μ}^{2}, e_{μ}^{3}} = : e_{μ}^{a} (x),

(7)

where the Latin indices $a, b, \dots$ are tangent space indices and Greek letters $μ, ν, \dots$ denote coordinate indices. This basis is often called a (co-)tetrad. The frame field consists of three orthogonal vector fields, given by

{E_{1}^{μ}, E_{2}^{μ}, E_{3}^{μ}} = : E_{b}^{μ} (x) .

(8)

These are dual basis, satisfying the following orthogonality relations

e_{μ}^{a} E_{a}^{ν} = δ_{μ}^{ν} and e_{ν}^{a} E_{b}^{ν} = δ_{b}^{a} .

(9)

Here, $δ_{μ}^{ν}$ and $δ_{b}^{a}$ are the Kronecker deltas in their respective spaces. We emphasise that, for a given manifold, we can find these tangent bases locally so that we can relate different sets of tangent bases in different points by simple transformations. However, it is impossible to find a single frame field that is nowhere vanishing globally, unless the manifold is parallelisable. For example, the hair ball problem illustrates that we cannot comb the hair on the 2-sphere $S^{2}$ embedded in three dimensions smoothly everywhere. Hence, the use of the locally defined diffeomorphism as the immersion of $Θ : M \to R^{3}$ used in equation (4).

In the frame of tetrad formalism the metric tensor emerges as a secondary quantity defined in terms of $e_{μ}^{a}$ . We have

g_{μ ν} = e_{μ}^{a} e_{ν}^{b} δ_{ab},

(10)

and recall that in Riemannian geometry this metric gives rise to an inner product between two vectors

A \cdot B : = g_{μ ν} A^{μ} B^{ν},

(11)

which then naturally leads to a normed vector space.

This means that we can use the co-tangent basis $e_{μ}^{a}$ to describe the deformation from the locally flat space $δ_{ab}$ given by the metric tensor $g_{μ ν}$ written in the coordinate basis. As a result, the metric tensor $g_{μ ν}$ is obtained from the flat Euclidean metric $δ_{ab}$ by a set of deformations, governed by $e_{μ}^{a}$ at each point $x \in M$ . Since any deformation can be regarded as a combination of rotation, shear and compression, we can apply the polar decomposition to $e_{μ}^{a}$ as follows:

e_{μ}^{a} = {R^{a}}_{b} U_{μ}^{b} .

(12)

Here, ${R^{a}}_{b}$ is an orthogonal matrix (a pure tangent space object) while the field $U_{μ}^{b}$ is a symmetric and positive-definite matrix. Whenever we need to distinguish the microdeformations from the macrodeformations, we will put a bar over the corresponding tensor. And in what follows we will often regard the matrix ${R^{a}}_{b}$ to be associated with microrotations, so that $U_{μ}^{b}$ in the co-tangent basis can be thought of as the first Cosserat deformation tensor [33]. This means that $\bar{U} = {\bar{R}}^{T} F$ . Hence, the co-tangent basis is associated with the deformation gradient.

When this decomposition is applied to equation (10), one arrives at

g_{μ ν} = {R^{a}}_{c} R_{ad} U_{μ}^{c} U_{ν}^{d} = δ_{cd} U_{μ}^{c} U_{ν}^{d},

(13)

which shows that the metric is independent of ${R^{a}}_{b}$ and only depends on $U_{μ}^{b}$ . This is a well-known result in differential geometry; namely, the metric is independent of tangent space rotations. The polar decomposition for the inverse frame is

E_{a}^{μ} = {R_{a}}^{b} U_{b}^{μ},

(14)

so that $U_{b}^{μ}$ is the inverse of $U_{μ}^{a}$ , both of which are symmetric.

Consequently, the co-tangent basis (equation (7)) given a specific metric tensor (equation (13)) is not uniquely determined. Any two (co-)tetrads ${\tilde{e}}_{μ}^{a}$ and $e_{μ}^{a}$ will yield the same metric, provided they are related by a rotation

{\tilde{e}}_{μ}^{a} = {Q^{a}}_{b} e_{μ}^{b}, {Q^{a}}_{b} \in SO (3) .

(15)

A metric compatible covariant derivative is introduced in differential geometry through the condition $\nabla_{α} g_{μ ν} = 0$ . This introduces the Christoffel symbol components $Γ_{μ ν}^{λ}$ as the general connection. From equation (13), it is natural to assume that $\nabla_{α} e_{ν}^{a} = 0$ in the frame formalism. This, in turn, will uniquely determine the spin connection coefficients ${ω_{μ}}_{b}^{a}$ ,

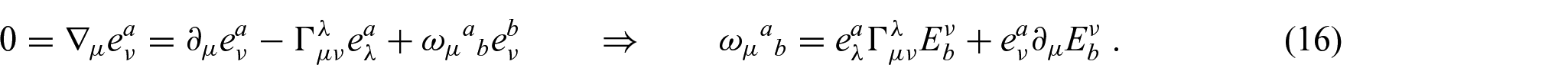

0 = \nabla_{μ} e_{ν}^{a} = \partial_{μ} e_{ν}^{a} - Γ_{μ ν}^{λ} e_{λ}^{a} + {ω_{μ}}_{b}^{a} e_{ν}^{b} \Rightarrow {ω_{μ}}_{b}^{a} = e_{λ}^{a} Γ_{μ ν}^{λ} E_{b}^{ν} + e_{ν}^{a} \partial_{μ} E_{b}^{ν} .

(16)

Note that the spin connection is invariant under global rotations but not under local rotations. The derivative terms will pick up additional terms; this is, of course, expected when working with connections.

The covariant derivative for a general vector $V^{μ}$ is defined by

\nabla_{λ} V^{μ} = \partial_{ν} V^{μ} + Γ_{λ ν}^{μ} V^{ν},

(17)

where $Γ_{λ ν}^{μ}$ is a general affine connection and the lower indices in this connection are not necessarily symmetric. Being equipped with the frame (and co-frame) field, we might introduce $V^{a} = e_{μ}^{a} V^{μ}$ (with inverse relation $V^{μ} = E_{a}^{μ} V^{a}$ ), which denotes the tangent space components of the vector.

Naturally, the covariant derivative of $V^{a}$ can be described using the spin connection, in view of equation (16). This gives

\nabla_{μ} V^{a} = \partial_{μ} V^{a} + {ω_{μ}}_{b}^{a} V^{b},

(18)

and can be extended to higher-rank objects in the same way.

For completeness, we state the inverse of equation (16), so that the general affine connection is expressed in terms of the spin connection

Γ_{μ ν}^{λ} = E_{a}^{λ} {ω_{μ}}_{b}^{a} e_{ν}^{b} + E_{a}^{λ} \partial_{μ} e_{ν}^{a} .

(19)

Equations (16) and (19) together with the (co-)frame allow us to express geometric identities in either the tangent space or the coordinate space. In general, the non-coordinate bases $E_{a} = E_{a}^{μ} \partial_{μ}$ do not commute $[E_{a}, E_{b}] : = E_{a} E_{b} - E_{b} E_{a} \neq 0$ and one introduces the object of an-holonomity as follows. Let u be a smooth function; then a direct and straightforward calculation gives

[E_{a}, E_{b}] u = E_{a}^{μ} E_{b}^{ν} (\partial_{ν} e_{μ}^{c} - \partial_{μ} e_{ν}^{c}) E_{c} u .

(20)

This must be valid for the arbitrary u, so we can write

[E_{a}, E_{b}] = {f^{c}}_{ab} E_{c},

(21)

where the ${f^{c}}_{ab}$ are the so-called structure constants, which are given by

{f^{c}}_{ab} = E_{a}^{μ} E_{b}^{ν} (\partial_{ν} e_{μ}^{c} - \partial_{μ} e_{ν}^{c}) .

(22)

2.2. Torsion and curvature

Given an affine connection, the torsion tensor is defined by

{T^{λ}}_{μ ν} : = Γ_{μ ν}^{λ} - Γ_{ν μ}^{λ},

(23)

which is the skew-symmetric part of the connection.

Throughout this paper, we will use the ‘decomposition’ of the various tensor quantities into torsion-free parts and a separate torsion part. We will use the notation ‘ $\circ$ ’ to indicate specifically the torsion-free quantities or, equivalently, the quantities written in terms of the metric compatible connection, which is generally referred to as the Christoffel symbol.

First, we decompose the connection

Γ_{ν σ}^{ρ} = {\overset{\circ}{Γ}}_{ν σ}^{ρ} + {K^{ρ}}_{ν σ},

(24)

which introduces the contortion tensor ${K^{ρ}}_{ν σ}$ . Using the definition of torsion (equation (23)), we immediately have

{T^{λ}}_{μ ν} = {K^{λ}}_{μ ν} - {K^{λ}}_{ν μ},

(25)

which one can also solve for the contortion tensor. This yields

{K^{λ}}_{μ ν} = \frac{1}{2} ({T^{λ}}_{μ ν} + {T_{ν}^{λ}}_{μ} - {T_{μ ν}}^{λ}),

(26)

which in turn implies the skew-symmetric property ${K^{λ}}_{μ ν} = - {K_{ν μ}}^{λ}$ . Using the frame fields, we can introduce those tensors with mixed components (coordinate space and tangent space indices), which will turn out to be useful for our subsequent discussion. For example, using equation (19), we can write the torsion tensor in the following equivalent way. Beginning with ${T^{a}}_{μ ν} = e_{λ}^{a} {T^{λ}}_{μ ν}$ , one arrives at

{T^{a}}_{μ ν} = \partial_{μ} e_{ν}^{a} - \partial_{ν} e_{μ}^{a} + {ω_{μ}}_{b}^{a} e_{ν}^{b} - {ω_{ν}}_{b}^{a} e_{μ}^{b} .

(27)

The Riemann curvature tensor is defined as

{R^{ρ}}_{σ μ ν} : = \partial_{μ} Γ_{ν σ}^{ρ} - \partial_{ν} Γ_{μ σ}^{ρ} + Γ_{μ λ}^{ρ} Γ_{ν σ}^{λ} - Γ_{ν λ}^{ρ} Γ_{μ σ}^{λ} .

(28)

Using equation (19), we can rewrite the Riemann tensor with mixed indices

{R^{a}}_{b μ ν} = e_{ρ}^{a} {R^{ρ}}_{σ μ ν} E_{b}^{σ},

(29)

where the Riemann tensor is now expressed in terms of the spin connections only:

{R^{a}}_{b μ ν} = \partial_{μ} {ω_{ν}}_{b}^{a} - \partial_{ν} {ω_{μ}}_{b}^{a} + {ω_{μ}}_{e}^{a} {ω_{ν}}_{b}^{e} - {ω_{ν}}_{e}^{a} {ω_{μ}}_{b}^{e} .

(30)

In addition to the skew-symmetry in the last two indices in the Riemann tensor, this satisfies

R_{ab μ ν} = - R_{ba μ ν} .

(31)

As a consequence of equation (24), we apply the same concept to the spin connection to write the decomposition

{ω_{μ}}_{b}^{a} = {\overset{\circ}{ω}}_{μ}_{b}^{a} + {K^{a}}_{μ b},

(32)

where we used ${K^{a}}_{μ b} = e_{ν}^{a} {K^{ν}}_{μ σ} E_{b}^{σ}$ . At first sight, the choice of index positions appears odd but ensures agreement with equation (25).

Inserting equation (24) into equation (28) gives rise to the decomposition of the Riemann tensor,

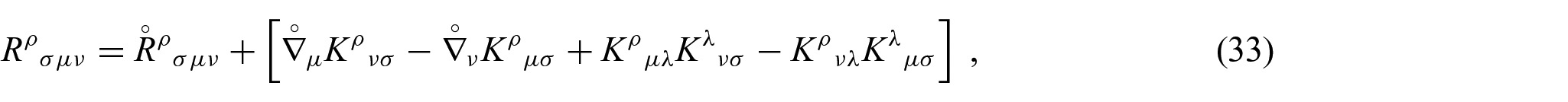

{R^{ρ}}_{σ μ ν} = {\overset{\circ}{R}}_{σ μ ν}^{ρ} + [{\overset{\circ}{\nabla}}_{μ} {K^{ρ}}_{ν σ} - {\overset{\circ}{\nabla}}_{ν} {K^{ρ}}_{μ σ} + {K^{ρ}}_{μ λ} {K^{λ}}_{ν σ} - {K^{ρ}}_{ν λ} {K^{λ}}_{μ σ}],

(33)

where the Riemann tensor ${\overset{\circ}{R}}_{σ μ ν}^{ρ}$ is computed using the connection ${\overset{\circ}{Γ}}_{μ ν}^{ρ}$ entirely.

We note that, for a general vector $V^{ρ}$ , in the coordinate basis, the covariant derivative can be rewritten using equation (24), such that

\nabla_{μ} V^{ρ} = {\overset{\circ}{\nabla}}_{μ} V^{ρ} + {K^{ρ}}_{μ ν} V^{ν} .

(34)

This relates the general covariant derivative $\nabla_{μ}$ and the torsion-free, metric compatible covariant derivative ${\overset{\circ}{\nabla}}_{μ}$ used in equation (33). In addition to equations (24) and (32), we can regard the contortion tensor on the right-hand side as the connection between these two covariant derivatives.

2.3. Einstein tensor in three-dimensional space

We define a rank 2 quantity based on the spin connection by

Ω_{c μ} : = - \frac{1}{2} ε_{abc} {ω_{μ}}^{ab},

(35)

which is equivalent to writing

{ω_{μ}}^{ab} = - ε^{abc} Ω_{c μ} .

(36)

We would like to note that this construction is tied to $R^{3}$ . The Levi–Civita symbol in n dimensions maps the spin connection from a rank 3 object to a rank $n - 1$ object, namely $ε_{abc \dots n} {ω_{μ}}^{ab}$ . Only in three dimensions would one arrive at a rank 2 object. In the following, it will turn out that $Ω_{c μ}$ plays a crucial role in establishing our compatibility conditions. The same approach was applied to the torsion tensor in [27], where the setting was also $R^{3}$ .

We substitute equation (36) into the Riemann tensor (equation (30)) and find

{R^{a}}_{b μ ν} = {ε^{sa}}_{b} (- \partial_{μ} Ω_{s ν} + \partial_{ν} Ω_{s μ}) + {ε^{sa}}_{e} {ε^{te}}_{b} (Ω_{s μ} Ω_{t ν} - Ω_{s ν} Ω_{t μ}) .

(37)

Next, we define the following rank 2 tensor, constructed from the Riemann tensor

G^{σ c} = - \frac{1}{4} ε^{abc} R_{ab μ ν} ε^{μ ν σ},

(38)

where we recall that the Riemann curvature tensor is skew-symmetric in the first and second pairs of indices. Let us emphasise again that this construction is only possible in three dimensions; otherwise, we would need to introduce a different rank in the Levi–Civita symbol.

Inserting equation (37) into equation (38) using the formulae $ε^{abc} ε_{sab} = 2 δ_{s}^{c}$ and $ε_{sae} ε^{abc} {ε^{te}}_{b} = - {ε^{tc}}_{s}$ , we obtain

G^{σ c} = ε^{μ ν σ} \partial_{μ} {Ω^{c}}_{ν} + \frac{1}{2} ε^{cst} ε^{σ μ ν} Ω_{s μ} Ω_{t ν},

(39)

which can be written in the convenient form

G^{σ c} = (Curl Ω)^{c σ} + (Cof Ω)^{c σ} .

(40)

The quantity $G_{σ c}$ is, in fact, the Einstein tensor in three-dimensional space. This can be shown using equations (38) and (29) explicitly to obtain

G_{τ λ} = R_{τ λ} - \frac{1}{2} δ_{τ λ} R .

(41)

Here, $R_{τ λ}$ is the Ricci tensor defined by $R_{τ λ} = {R^{σ}}_{τ σ λ}$ and the trace of Ricci tensor is the Ricci scalar R. It is well known that in three dimensions, the Riemann tensor, the Ricci tensor and the Einstein tensor have the same number of independent components, namely nine, provided torsion is included. One can readily verify that

{R^{a}}_{b μ ν} = 0 \Leftrightarrow R_{τ λ} = 0 \Leftrightarrow G_{τ λ} = 0 .

(42)

In other words, the vanishing curvature means that there is a vanishing Einstein tensor in three dimensions. Let us emphasise here that the particular representation of the Einstein tensor given in equation (40) will be of importance for what follows.

3. Compatibility conditions

3.1. Vallée’s classical result

We consider the torsion-free spin connection ${\overset{\circ}{Ω}}_{c μ} = - \frac{1}{2} ε_{abc} {\overset{\circ}{ω}}_{μ}^{ab}$ with the metric tensor (equation (10)). The affine connection in torsion-free spaces is conventionally expressed by the metric compatible Levi–Civita connection:

{\overset{\circ}{Γ}}_{β γ}^{α} = \frac{1}{2} g^{α σ} (\partial_{γ} g_{σ β} + \partial_{β} g_{γ σ} - \partial_{σ} g_{β γ}) .

(43)

The torsion-free spin connection in terms of the Levi–Civita connection is simply

\begin{matrix} {\overset{\circ}{ω}}_{μ}_{b}^{a} = e_{λ}^{a} {\overset{\circ}{Γ}}_{μ ν}^{λ} E_{b}^{ν} + e_{ν}^{a} \partial_{μ} E_{b}^{ν} \\ = \frac{1}{2} e_{λ}^{a} g^{λ τ} (\partial_{ν} g_{τ μ} + \partial_{μ} g_{τ ν} - \partial_{τ} g_{μ ν}) E_{b}^{ν} + e_{ν}^{a} \partial_{μ} E_{b}^{ν}, \end{matrix}

where we used equation (16). Inserting the explicit expression for the metric tensor (equation (10)) will give, after a lengthy but simple calculation,

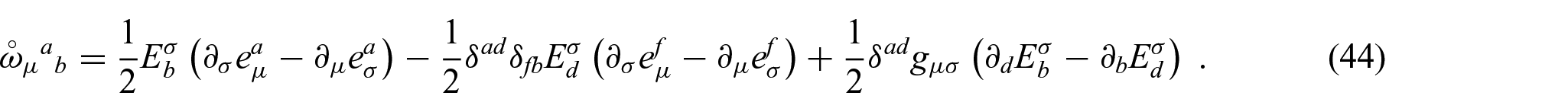

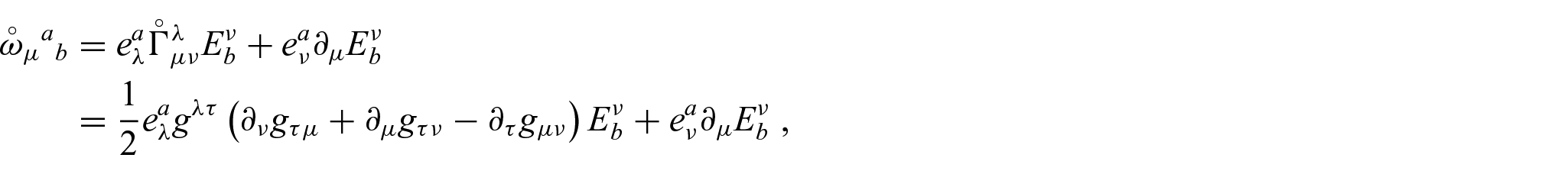

{\overset{\circ}{ω}}_{μ}_{b}^{a} = \frac{1}{2} E_{b}^{σ} (\partial_{σ} e_{μ}^{a} - \partial_{μ} e_{σ}^{a}) - \frac{1}{2} δ^{ad} δ_{fb} E_{d}^{σ} (\partial_{σ} e_{μ}^{f} - \partial_{μ} e_{σ}^{f}) + \frac{1}{2} δ^{ad} g_{μ σ} (\partial_{d} E_{b}^{σ} - \partial_{b} E_{d}^{σ}) .

(44)

Here, we used the notation $\partial_{a} = E_{a}^{σ} \partial_{σ}$ . Furthermore, we can write the spin connection in terms of polar decomposition of the co-frame field basis $e_{μ}^{a} = {R^{a}}_{b} U_{μ}^{b}$ to write ${\overset{\circ}{ω}}_{μ}^{ab}$ entirely in terms of ${R^{a}}_{b}$ and $U_{μ}^{b}$ and its derivatives. The resulting expression will be further simplified if we consider the cases ${R^{a}}_{b} = δ_{b}^{a}$ and $U_{ν}^{d} = δ_{ν}^{d}$ separately, to see whether these will lead to the desired compatibility conditions.

First, when ${R^{a}}_{b} = δ_{b}^{a}$ after multiplying both sides of equation (44) by $ϵ_{abc}$ , we have

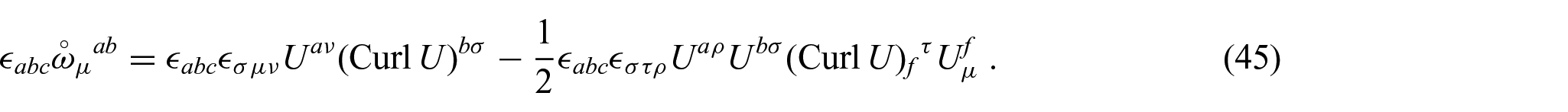

ϵ_{abc} {\overset{\circ}{ω}}_{μ}^{ab} = ϵ_{abc} ϵ_{σ μ ν} U^{a ν} (Curl U)^{b σ} - \frac{1}{2} ϵ_{abc} ϵ_{σ τ ρ} U^{a ρ} U^{b σ} {(Curl U)_{f}}^{τ} U_{μ}^{f} .

(45)

We can extract the determinant of U from the first and the second terms in the right-hand side of this,

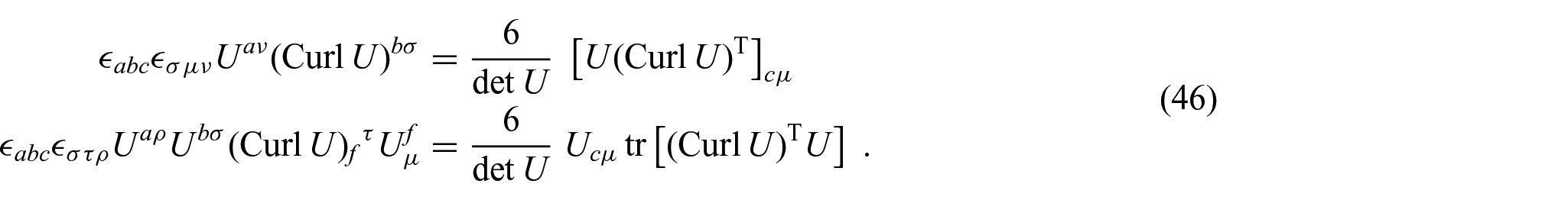

\begin{matrix} ϵ_{abc} ϵ_{σ μ ν} U^{a ν} {(Curl U)}^{b σ} = \frac{6}{det U} {[U {(Curl U)}^{T}]}_{c μ} \\ ϵ_{abc} ϵ_{σ τ ρ} U^{a ρ} U^{b σ} {(Curl U)}_{f}^{τ} U_{μ}^{f} = \frac{6}{det U} U_{c μ} tr [{(Curl U)}^{T} U] . \end{matrix}

(46)

Therefore, we find

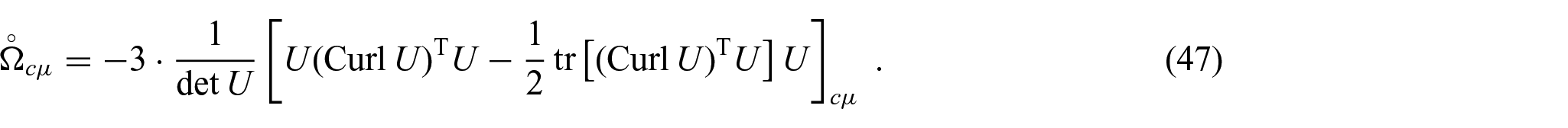

{\overset{\circ}{Ω}}_{c μ} = - 3 \cdot \frac{1}{det U} {[U {(Curl U)}^{T} U - \frac{1}{2} tr [{(Curl U)}^{T} U] U]}_{c μ} .

(47)

The vanishing Riemann tensor in three-dimensional space ensures the vanishing Ricci tensor, hence the vanishing of the Einstein tensor ${\overset{\circ}{G}}_{μ c} = 0$ , as stated in equation (42). This leads to the compatibility condition in the torsion-free space of vanishing Riemann curvature, with the help of equation (40),

Curl \overset{\circ}{Ω} + Cof \overset{\circ}{Ω} = 0 .

(48)

We can rescale $- \frac{1}{3} \overset{\circ}{Ω} = Λ_{U}$ to match Vallée’s result [1] exactly:

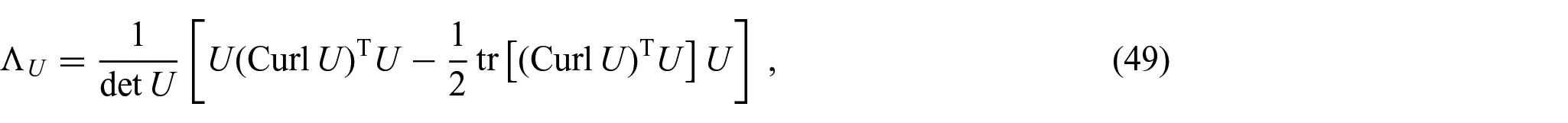

Λ_{U} = \frac{1}{det U} [U {(Curl U)}^{T} U - \frac{1}{2} tr [{(Curl U)}^{T} U] U],

(49)

which reads

Curl Λ_{U} + Cof Λ_{U} = 0 .

(50)

The elastic deformation is nothing but the diffeomorphism described by a metric tensor with associated metric compatible connection $Γ_{β γ}^{α}$ as the fundamental measure of the deformation. Then, the prescription of elastic deformations requires vanishing curvature and torsion, hence the compatibility conditions (equation (48)).

We should also note the results of Edelen [34], where compatibility conditions were derived using Poincaré’s lemma. This resulted in the vanishing Riemann curvature 2-form, equation (3.3) in [34], while assuming a metric compatible connection, equation (3.4) in [34]. These conditions explicitly contained torsion, owing to the affine connection being non-trivial but curvature free.

3.2. Nye’s tensor and its compatibility condition

In the following, we set $U_{μ}^{c} = δ_{μ}^{c}$ but assume a non-trivial rotation matrix ${R^{a}}_{b}$ ; this is the opposite of the previous case. The compatibility condition from equation (44) becomes

Curl Λ_{R} + Cof Λ_{R} = 0,

(51)

where the quantity $Λ_{R}$ is given by

Λ_{R} = R (Curl R)^{T} R - \frac{1}{2} tr [{(Curl R)}^{T} R] R .

(52)

This is formally identical to replacing $U_{μ}^{c}$ with ${R^{a}}_{b}$ in equation (49) and using $det {R^{a}}_{b} = + 1$ .

It turns out that the quantity $Λ_{R}$ is (up to a minus sign) Nye’s tensor $Γ$ , which is known to satisfy the compatibility condition (equation (51)). This is quite a remarkable result, which follows immediately from our geometrical approach to the problem.

We emphasise that the metric tensor is independent of the rotations, which implies that $U_{μ}^{c} = δ_{μ}^{c}$ yields a vanishing (torsion-free) Levi–Civita connection $Γ_{β γ}^{α}$ . Consequently, the Levi–Civita part of the curvature tensor vanishes identically, ${\overset{\circ}{R}}_{σ μ ν}^{ρ} = 0$ . Nonetheless, the non-trivial rotational part of the frame contributes to the curvature tensor ${R^{ρ}}_{σ μ ν}$ in equation (33) through the contortion tensor, since the general connection $Γ_{μ ν}^{ρ}$ does not vanish in this case. The compatibility condition simply ensures that the micropolar deformations do not induce curvature into the deformed body. Most importantly, torsion is not assumed to vanish and the rotation matrices ${R^{a}}_{b}$ become dynamic and non-trivial.

Let us note that, in the space where $Γ_{μ ν}^{λ} = 0$ , or equivalently $U_{μ}^{c} = δ_{μ}^{c}$ and non-vanishing torsion, the general connection becomes the contortion. Moreover, by setting ${ω_{μ}}_{b}^{a} = 0$ in equation (19), this yields

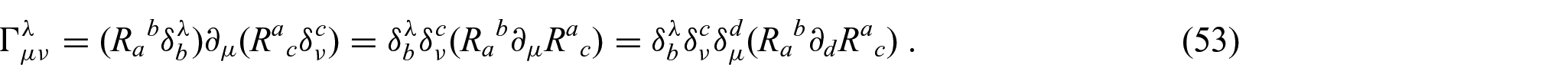

Γ_{μ ν}^{λ} = ({R_{a}}^{b} δ_{b}^{λ}) \partial_{μ} ({R^{a}}_{c} δ_{ν}^{c}) = δ_{b}^{λ} δ_{ν}^{c} ({R_{a}}^{b} \partial_{μ} {R^{a}}_{c}) = δ_{b}^{λ} δ_{ν}^{c} δ_{μ}^{d} ({R_{a}}^{b} \partial_{d} {R^{a}}_{c}) .

(53)

The final term in the brackets is recognised to be the second Cosserat tensor when written in index-free notation, $R^{T} Grad R$ , see, for instance, [33]. This tensor is sometimes denoted by K; to avoid confusion with our contortion tensor, we shall refrain from using this notation.

In the following, we will briefly discuss how the compatibility condition for Nye’s tensor can also be derived directly without referring to the general result (equation (40)). To have a completely vanishing curvature tensor (equation (33)) with $U_{μ}^{c} = δ_{μ}^{c}$ , we note:

The Levi–Civita connection $Γ_{μ ν}^{ρ} = 0$ and ${Γ^{ρ}}_{σ μ ν} = 0$ in equation (33).

The connection and contortion tensors becomes identical using equation (24), as in the case of equation (53).

We can replace ${\overset{\circ}{\nabla}}_{μ}$ with $\partial_{μ}$ in equation (33).

Under these circumstances, the Riemann tensor (equation (33)) reduces to

{R^{ρ}}_{σ μ ν} = \partial_{μ} {K^{ρ}}_{ν σ} - \partial_{ν} {K^{ρ}}_{μ σ} + {K^{ρ}}_{μ λ} {K^{λ}}_{ν σ} - {K^{ρ}}_{ν λ} {K^{λ}}_{μ σ} .

(54)

We introduce, similar to equation (35), the dislocation density tensor

K_{λ σ} : = {ϵ_{σ}}^{μ ν} K_{λ μ ν},

(55)

which, for our explicit choice of contortion in equation (53), we can write as

K_{λ σ} = {ϵ_{σ}}^{μ ν} δ_{λ b} {R_{a}}^{b} \partial_{μ} {R^{a}}_{c} δ_{ν}^{c} = {(R^{T} Curl R)}_{λ σ} .

(56)

For Nye’s tensor, we contract the first and third index of the contortion tensor:

Γ_{λ ν} : = - \frac{1}{2} {ϵ_{λ}}^{ρ σ} K_{ρ ν σ} .

(57)

In turn, the relation between Nye’s tensor and contortion becomes $Γ_{λ ν} {ϵ^{λ}}_{α β} = - K_{α ν β}$ . From this, the contortions can be substituted into equation (54) to write the Riemann curvature in terms of Nye’s tensor. This immediately yields

{ϵ^{δ}}_{ρ σ} \partial_{ρ} Γ_{α σ} + \frac{1}{2} {ϵ^{τ η}}_{α} {ϵ^{δ}}_{ρ σ} Γ_{τ ρ} Γ_{η σ} = 0,

(58)

\Leftrightarrow {(Curl Γ)}_{α δ} + {(Cof Γ)}_{α δ} = 0 .

(59)

This is our second compatibility condition written in terms of Nye’s tensor, for the vanishing curvature and non-zero torsion space.

We note that combining equations (56) and (57) leads to the usual expression of Nye’s tensor:

Γ_{λ ν} = \frac{1}{2} tr (R^{T} Curl R) δ_{λ ν} - {(R^{T} Curl R)^{T}}_{λ ν} .

(60)

3.3. Skyrme’s theory with compatibility condition

In a series of papers [35 –37], Skyrme introduced a non-linear field theory for describing strongly interacting particles. This work has motivated many subsequent studies and noted some interesting links between baryon numbers, the sum of the proton and neutron numbers and topological invariants in field theory. Following Skyrme’s notation, the key variable is the field

B_{μ}^{α} = - \frac{1}{4} ϵ_{α β γ} g^{β δ} \frac{\partial}{\partial x_{μ}} g_{γ δ},

(61)

where g denotes an orthogonal matrix. Now, using ${R^{a}}_{b}$ to denote the orthogonal matrix instead, we note that the field $B_{μ}^{α}$ is related to $R^{T} \partial_{μ} R$ , which is generally referred to as the second Cosserat tensor [33], so that we immediately note a close similarity between Skyrme’s non-linear field theory and Cosserat elasticity. It was noted in [37] that the ‘covariant curl of’B vanishes identically

\partial_{ν} B_{μ}^{α} - \partial_{μ} B_{ν}^{α} - 2 ϵ_{α β γ} B_{μ}^{β} B_{ν}^{γ} = 0 .

(62)

If we now contract this equations with $ϵ^{μ ν σ}$ , we will recognise the final product as the cofactor matrix of B, while the first becomes the matrix Curl. Therefore, the ‘covariant curl’ (equation (62)) is equivalent to

Curl B + Cof B = 0 .

(63)

Perhaps unsurprisingly, at this point, a direct calculation shows that Skyrme’s field is in fact Nye’s tensor. Using our notation, we have

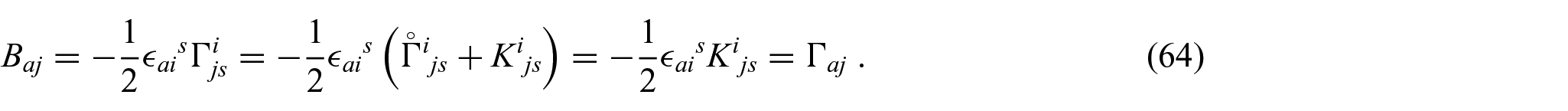

B_{aj} = - \frac{1}{2} {ϵ_{ai}}^{s} Γ_{js}^{i} = - \frac{1}{2} {ϵ_{ai}}^{s} ({Γ^{\circ}}^{i}_{js} + {K^{i}}_{js}) = - \frac{1}{2} {ϵ_{ai}}^{s} {K^{i}}_{js} = Γ_{aj} .

(64)

In the third step, we used the condition $U_{μ}^{c} = δ_{μ}^{c}$ , hence $Γ_{μ ν}^{ρ} = 0$ . As in the previous subsection, we can derive this equation explicitly by requiring the complete Riemann curvature tensor (equation (28)) to vanish. Together with the assumption of a trivial metric tensor with non-trivial frame field, this is equivalent to satisfying equation (54). Consequently, Skyrme’s condition (equation (62)) is in fact equation (51), or equivalently equation (59).

Since Skyrme’s variable is in fact Nye’s tensor in three dimensions, it becomes clear that it must also have a relation to a topological invariant. In the context of Cosserat elasticity, this connection has been noted in [38, 39], where it is shown that the winding number can be written as the integration of the determinant of the Nye’s tensor over all space defined in the given manifold $M$ :

n = - \frac{1}{{(4 π)}^{2}} \int_{M} det Γ d^{3} x, n \in Z .

(65)

The factor of $2 π^{2}$ is due to the surface area of $S^{3}$ . This can be understood by recalling that a unit vector $\hat{v} \in R^{4}$ has three independent components, hence $\hat{v} \in S^{3}$ , which in turn allows one to define orthogonal matrices through $\hat{v}$ . The determinant of the Nye tensor is simply related to the determinant of the induced metric of $S^{3}$ and thus related to its volume. Notably, in [28] the form of integration using contortion one-forms gives

n = \frac{1}{96 π^{2}} \int_{M} tr (K \land K \land K), n \in Z,

(66)

which can be derived from a Chern–Simons type action in terms of contortion, seen as gauge fields,

S = \frac{1}{4 π} \int_{M} tr (K \land d K + \frac{2}{3} K \land K \land K) .

(67)

The two integrations (equations (65) and (66)) can be shown to be identical using equation (57). The agreement of the compatibility conditions for Skyrme’s field and Nye’s tensor is by no means accidental. In particular, by varying the action (equation (67)) with respect to contortion, one arrives at the equation of motion

d K + K \land K = 0,

(68)

which agrees with equation (54), the vanishing Riemann tensor with non-zero torsion, see again [34].

One might get the impression from equation (54) that non-vanishing curvature is induced by the non-vanishing contortion or torsion. However, this is not the case. As indicated in equation (68), contortion is of Maurer–Cartan form $K = R^{T} d R$ , which satisfies the Maurer–Cartan equation $d K = - K \land K$ . In our setting, we considered two kinds of compatibility condition so far; namely, we have

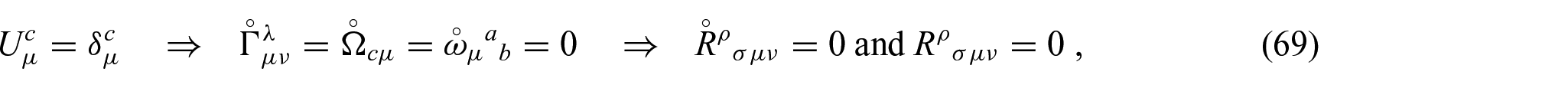

U_{μ}^{c} = δ_{μ}^{c} \Rightarrow {\overset{\circ}{Γ}}_{μ ν}^{λ} = {\overset{\circ}{Ω}}_{c μ} = {\overset{\circ}{ω}}_{μ}_{b}^{a} = 0 \Rightarrow {\overset{\circ}{R}}_{σ μ ν}^{ρ} = 0 and {R^{ρ}}_{σ μ ν} = 0,

(69)

{R^{a}}_{b} = δ_{b}^{a} \Rightarrow K_{λ ν} = Γ_{λ ν} = K_{α ν β} = 0 \Rightarrow {T^{λ}}_{μ ν} = 0 .

(70)

The converse is not true in general, as will be shown in Section 4, when deriving the general form of the compatibility conditions.

Finally, we note that there has also been some mathematical interests in this topic, see, for instance, [40, 41] where Skyrme’s model was studied using a variational approach. The key challenge was to find minimisers subject to appropriate boundary conditions that yield soliton solutions. Discrete topological sectors according to these solutions will lead to the topological number in accordance with the distinct homotopy classifications. These topological invariants can be found in diverse physical systems with order parameters describing the ‘defects’ of distinct nature, such as monopoles, vortices and domain walls [42, 43]. Certain ‘optimal’ properties of orthogonal matrices in the context of Cosserat elasticity were studied in [44 –47].

3.4. Eringen’s compatibility conditions

Generalised continua are characterised by replacing the idealised material point with an object with additional microstructure. The inner structure is described by directors, which can undergo deformations such as rotation, shear and compression, introducing nine additional degrees of freedom. The first ideas along those lines go back to the Cosserat brothers who, in 1909, first considered such theories [48]. A comprehensive account of microcontinuum theories can be found in [49]. In particular, micropolar theory describes the rigid microrotation for the microelement deformation. Non-linear problems in generalised continua were studied rigorously, for instance in [50 –55].

Let us begin by briefly recalling the basic notation used in [49]. First, we introduce strain measures

C_{KL} = \frac{\partial x_{k}}{\partial X_{K}} X_{Lk}, C_{KL} = χ_{kK} χ_{kL} = C_{LK},

(71)

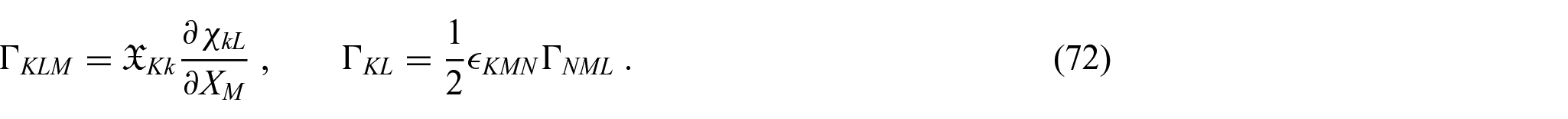

Γ_{KLM} = X_{Kk} \frac{\partial χ_{kL}}{\partial X_{M}}, Γ_{KL} = \frac{1}{2} ϵ_{KMN} Γ_{NML} .

(72)

The tensors $χ_{kK} = \partial ξ_{k} / \partial Ξ_{K}$ and $X_{Kk} = \partial Ξ_{K} / \partial ξ_{k}$ are called microdeformation tensors and inverse microdeformation tensors with the directors $Ξ_{K}$ and $ξ_{k}$ in material coordinate $X_{K}$ and spatial coordinate $x_{k}$ , respectively. These satisfy orthogonal relations $χ_{kK} X_{Kl} = δ_{kl}$ and $X_{Kl} χ_{lL} = δ_{KL}$ .

Now, these microdeformation tensors can be decomposed into rotation and stretch parts, again the polar decomposition, as we did in bases $e_{μ}^{a}$ and $E_{a}^{ν}$ . For example, after changing indices in accordance with our convention, we can rewrite

{χ^{a}}_{c} = {\bar{R}}^{a}_{b} {\bar{U}}_{c}^{b}, {X_{a}}^{c} = {\bar{R}}_{a}^{b} {\bar{U}}_{b}^{c},

(73)

C_{a}^{μ} = {X_{a}}^{c} {F_{c}}^{μ} = {\bar{R}}_{a}^{b} {\bar{U}}_{b}^{c} {R_{c}}^{d} U_{d}^{μ},

(74)

C_{bc} = {χ^{a}}_{b} χ_{ac} = {\bar{R}}^{a}_{c} {\bar{U}}_{b}^{c} {\bar{R}}_{ad} {\bar{U}}_{c}^{d},

(75)

Γ_{klm} = {χ^{a}}_{k} \partial_{m} χ_{al} = {\bar{R}}^{a}_{b} {\bar{U}}_{k}^{b} \partial_{m} ({\bar{R}}_{ac} {\bar{U}}_{l}^{c}),

(76)

in which we used bars over the the microdeformations and used definition for the (macro)deformation gradient tensor F with its polar decomposition into macrorotation and macrostretch.

The compatibility conditions for the micromorphic body [49] are given by

ϵ_{KPQ} (\partial_{Q} C_{PL} + C_{PR} Γ_{LRQ}) = 0,

(77)

ϵ_{KPQ} (\partial_{Q} Γ_{LMP} + Γ_{LRQ} Γ_{RMP}) = 0,

(78)

\partial_{M} C_{KL} - (Γ_{PKM} C_{LP} + Γ_{PLM} C_{KP}) = 0,

(79)

where $\partial_{M} = \partial / \partial X_{M}$ . It is evident from equation (76) that the wryness tensor $Γ_{KLM}$ can be viewed as the contortion tensors in differential geometry, so we can make a replacement $Γ_{PKM} \to {K^{P}}_{MK}$ ; hence, the compatibility condition (equation (79)) now becomes

\partial_{M} C_{KL} - {K^{P}}_{MK} C_{PL} - {K^{P}}_{ML} C_{KP} = 0 .

(80)

Using the decomposition (equation (24)) with ${\overset{\circ}{Γ}}_{MK}^{P} = 0$ , this will further reduce to

\nabla_{M} C_{KL} = 0 .

(81)

This condition is now equivalent to assuming a metric compatible covariant derivative, see equation (15), one of our central assumptions of the geometrical approach.

Next, we consider equation (78). We have

\partial_{Q} {K^{L}}_{PM} - \partial_{P} {K^{L}}_{QM} + {K^{L}}_{QR} {K^{R}}_{PM} - {K^{L}}_{PR} {K^{R}}_{QM} = 0 .

(82)

The left-hand side of this is in the form of the Riemann curvature tensor (equation (54)), hence this condition is equivalent to ${R^{L}}_{MQP} = 0$ . This is our second geometrical condition that led to the compatibility conditions.

Lastly, for equation (77) one writes

ϵ_{KPQ} (\partial_{Q} C_{PL} + {K^{L}}_{QR} C_{PR}) = 0,

(83)

which is known as the compatibility condition for the disclination density tensor. After some algebraic manipulation this final condition can be written as

\nabla_{Q} C_{P}^{L} - \nabla_{P} C_{Q}^{L} + {T^{R}}_{PQ} C_{R}^{L} = 0,

(84)

and can be seen as the defining equation for torsion on the manifold.

This shows that the setting of Riemann–Cartan geometry appears to be very well suited to the study of a micromorphic continuum.

3.5. Homotopy for the compatibility condition

In [56], it is shown that the existence of the metric tensor field (equation (4)) for a given immersion $Θ : Ω \to E^{3}$ requires the condition ${R^{ρ}}_{σ μ ν} = 0$ in $Ω \subset R^{3}$ and $Ω$ to be simply connected. It is further shown to be necessary and sufficient.

If the subset of the given manifold is just a connected subset, then $Θ$ is unique up to isometry of Euclidean space $E^{3}$ to ensure the existence of the metric field

C = (\nabla \tilde{Θ})^{T} (\nabla \tilde{Θ}),

(85)

where $Θ = Q \tilde{Θ} + T$ for $Q \in SO (3)$ and T is translation.

Now, we might wish to establish how many compatibility conditions or, more precisely, how many classifications of such compatibility conditions are derivable from the condition ${R^{ρ}}_{σ μ ν} = 0$ ? One possible approach to answer this question would be the consideration of the homotopy classification $π_{n} (M)$ , where n is the dimension of the n-sphere $S^{n}$ , the probe of the defects in the space M in which the order parameter is defined. In our case, we can put the order parameter to be simply the tetrad field $e_{μ}^{a}$ , so that $M = SO (3)$ .

It is well known that the dislocation or, equivalently, the torsion can be measured by following a small closed path in the crystal lattice structure, and the curvature can be computed in a similar manner. We can put $n = 1$ to consider the fundamental group for $SO (3)$ , which is a homotopy group for the line defects in three dimensions

π_{1} (SO (3)) ≅ Z_{2} .

(86)

This suggests that we can have two distinct classifications for the compatibility conditions under ${R^{ρ}}_{σ μ ν} = 0$ . One of them is to the trivial class, the elastic regime, so that all elastic deformations belong to the same compatible condition. And the non-trivial classification is for the microstructure description, where one is only dealing with microdeformations. Similar analyses can be found in [15, 57, 58].

Interestingly, in some simplified Skyrme models [59], the homotopy class $π_{4} (SO (3))$ is identified with $π_{1} (SO (3))$ . Since $SO (3)$ is not simply connected, it is straightforward to see that its fundamental group is isomorphic to $Z_{2}$ . Further, using J-homomorphism, we can state

π_{4} (SO (3)) ≅ π_{1} (SO (3)) ≅ Z_{2} .

(87)

This characterises the equivalent classes of the compatibility conditions; hence, the possible solutions for the system in describing the deformations, as:

${0} : Configurations that can be continuously deformed uniformly via diffeomorphism .$

${1} : Configurations that cannot be continuously deformed in a way of {0} .$

The elastic compatibility condition including Vallée’s result (equation (1)) falls into the classification ${0}$ : vanishing curvature and torsion. The conditions by Nye (equation (6)), the Skyrme field (equation (63)) and the micropolar case (equation (78)) belong to ${1}$ : vanishing curvature and non-zero torsion.

One might ask why the different compatibility conditions, which apply to distinct spaces, have the same mathematical form. The following section will contain the full geometrical treatment with curvature and torsion. It will not be too difficult to see (mathematically) that the transition between the two spaces is provided by the expression of the spin connection (equation (32)). On the one hand, we can have the situation where the Levi–Civita connection vanishes, while on the other it is the spin connection that vanishes. This difference is captured by the frame fields and their first derivatives, which in turn are related to our key geometrical quantities.

4. Geometrical compatibility conditions

4.1. Geometrical identities

The geometrical starting point for all compatibility conditions is the Bianchi identity, which is satisfied by the curvature tensor and is given by

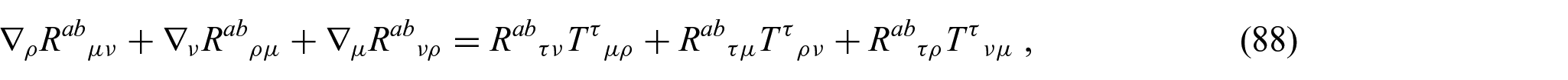

\nabla_{ρ} {R^{ab}}_{μ ν} + \nabla_{ν} {R^{ab}}_{ρ μ} + \nabla_{μ} {R^{ab}}_{ν ρ} = {R^{ab}}_{τ ν} {T^{τ}}_{μ ρ} + {R^{ab}}_{τ μ} {T^{τ}}_{ρ ν} + {R^{ab}}_{τ ρ} {T^{τ}}_{ν μ},

(88)

see, for instance, [60]. For completeness, we also state the well-known identity

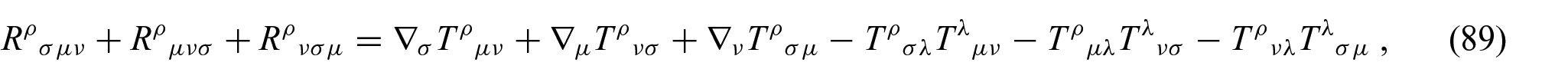

{R^{ρ}}_{σ μ ν} + {R^{ρ}}_{μ ν σ} + {R^{ρ}}_{ν σ μ} = \nabla_{σ} {T^{ρ}}_{μ ν} + \nabla_{μ} {T^{ρ}}_{ν σ} + \nabla_{ν} {T^{ρ}}_{σ μ} - {T^{ρ}}_{σ λ} {T^{λ}}_{μ ν} - {T^{ρ}}_{μ λ} {T^{λ}}_{ν σ} - {T^{ρ}}_{ν λ} {T^{λ}}_{σ μ},

(89)

for the Riemann curvature tensor, which will also be required. Using ${R^{ab}}_{μ ν} = {R^{λ σ}}_{μ ν} e_{λ}^{a} e_{σ}^{b}$ and contracting twice over indices $λ$ and $ρ$ , and $σ$ and $ν$ , gives the well-known twice-contracted Bianchi identity

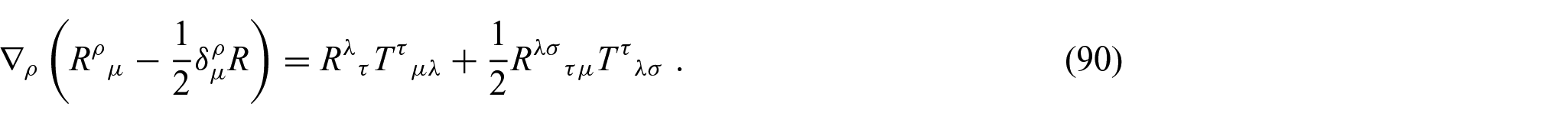

\nabla_{ρ} ({R^{ρ}}_{μ} - \frac{1}{2} δ_{μ}^{ρ} R) = {R^{λ}}_{τ} {T^{τ}}_{μ λ} + \frac{1}{2} {R^{λ σ}}_{τ μ} {T^{τ}}_{λ σ} .

(90)

The term in the first bracket is the Einstein tensor, so the most general compatibility condition can be written as

\nabla_{ρ} {G^{ρ}}_{μ} = {R^{ρ}}_{τ} {T^{τ}}_{μ ρ} + \frac{1}{2} {R^{ρ σ}}_{τ μ} {T^{τ}}_{ρ σ} .

(91)

Equations (88) and (89) can be seen as a compatibility or integrability condition in the following sense. One cannot choose the curvature tensor and the torsion tensor fully independently, as these equations need to be satisfied for a consistent geometrical approach.

Let us now recall equation (40), the Einstein tensor in terms of $Ω$ , which was $G = Curl Ω + Cof Ω$ . Next, we use the decomposition of the spin connection (equation (32)) into equation (35) to obtain

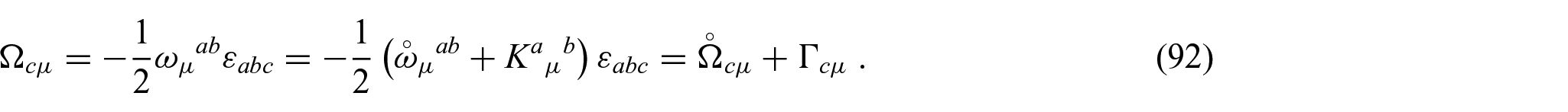

Ω_{c μ} = - \frac{1}{2} {ω_{μ}}^{ab} ε_{abc} = - \frac{1}{2} ({\overset{\circ}{ω}}_{μ}^{ab} + {K_{μ}^{a}}^{b}) ε_{abc} = {\overset{\circ}{Ω}}_{c μ} + Γ_{c μ} .

(92)

When this decomposition is put into the explicit Einstein tensor equation, a slightly lengthy calculation yields

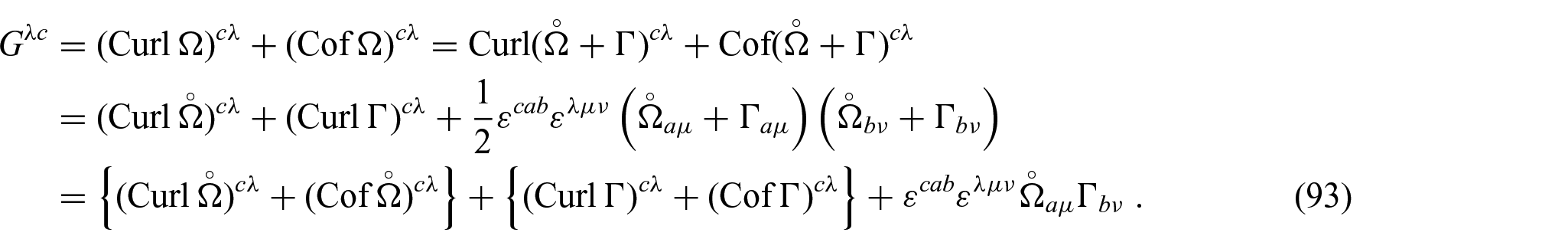

\begin{matrix} G^{λ c} = (Curl Ω)^{c λ} + (Cof Ω)^{c λ} = Curl (\overset{\circ}{Ω} + Γ)^{c λ} + Cof (\overset{\circ}{Ω} + Γ)^{c λ} \\ = (Curl \overset{\circ}{Ω})^{c λ} + (Curl Γ)^{c λ} + \frac{1}{2} ε^{cab} ε^{λ μ ν} ({\overset{\circ}{Ω}}_{a μ} + Γ_{a μ}) ({\overset{\circ}{Ω}}_{b ν} + Γ_{b ν}) \\ = {(Curl \overset{\circ}{Ω})^{c λ} + (Cof \overset{\circ}{Ω})^{c λ}} + {(Curl Γ)^{c λ} + (Cof Γ)^{c λ}} + ε^{cab} ε^{λ μ ν} Ω_{a μ}^{\circ} Γ_{b ν} . \end{matrix}

(93)

Let us note that the final term on the right-hand side can be written as

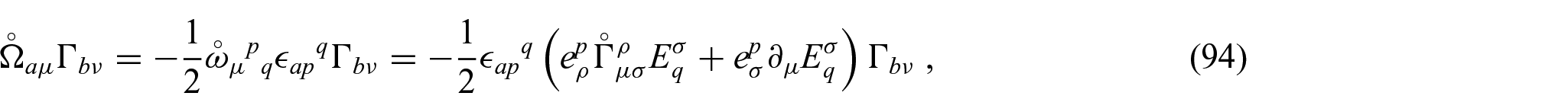

{\overset{\circ}{Ω}}_{a μ} Γ_{b ν} = - \frac{1}{2} {\overset{\circ}{ω}}_{μ}_{q}^{p} {ϵ_{ap}}^{q} Γ_{b ν} = - \frac{1}{2} {ϵ_{ap}}^{q} (e_{ρ}^{p} Γ_{μ σ}^{ρ} E_{q}^{σ} + e_{σ}^{p} \partial_{μ} E_{q}^{σ}) Γ_{b ν},

(94)

where we used equation (16) together with equation (35). We are now ready to present a complete description of compatibility conditions encountered so far, following a unified approach using equations (91) and (93).

Before doing so, let us note the key property of the Einstein tensor decomposition (equation (93)). The final term is a cross-term, which mixes the curvature and the torsion parts of the connection. Without this term, one of the compatibility conditions would necessarily imply the other; it is precisely the presence of this term that gives the general condition a much richer structure.

4.2. Compatibility conditions

4.2.1. No curvature and no torsion

Let us set ${R^{ρ}}_{σ μ ν} = 0$ and ${T^{λ}}_{μ ν} = 0$ in equation (93). Then we must also have $K_{b ν} = Γ_{b ν} = 0$ , by the definitions, and we find the compatibility condition

{\overset{\circ}{G}}^{λ c} = (Curl \overset{\circ}{Ω})^{c λ} + (Cof \overset{\circ}{Ω})^{c λ} = 0,

(95)

which is Vallée’s result (equation (48)), discussed earlier.

4.2.2. No curvature but torsion

Let us set ${R^{ρ}}_{σ μ ν} = 0$ and ${T^{λ}}_{μ ν} \neq 0$ in equation (93), which becomes

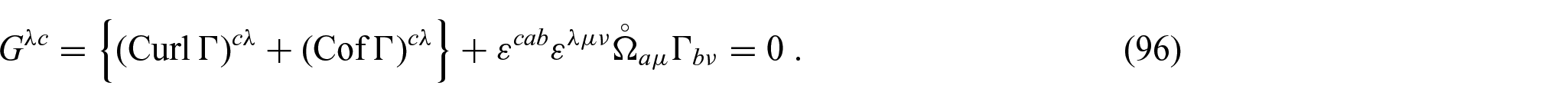

G^{λ c} = {(Curl Γ)^{c λ} + (Cof Γ)^{c λ}} + ε^{cab} ε^{λ μ ν} {\overset{\circ}{Ω}}_{a μ} Γ_{b ν} = 0 .

(96)

Furthermore, if we impose the condition $U_{μ}^{a} = δ_{μ}^{a}$ , then as observed in equation (69), ${\overset{\circ}{Ω}}_{a μ} = 0$ , the compatibility condition reduces to

G^{λ c} = (Curl Γ)^{c λ} + (Cof Γ)^{c λ} = 0 .

(97)

In this case, we have Nye’s result (equation (59)), which is equivalent to Skyrme’s condition (equation (63)).

4.2.3. No torsion but curvature

Using ${R^{ρ}}_{σ μ ν} \neq 0$ and ${T^{λ}}_{μ ν} = 0$ in equation (91), we have the compatibility condition

{\overset{\circ}{\nabla}}_{μ} {\overset{\circ}{G}}^{μ σ} = 0,

(98)

where ${\overset{\circ}{G}}^{μ σ}$ is now a symmetric tensor. These equations are well known in the context of general relativity (in this case, one works on a four-dimensional Lorentzian manifold), where they imply the energy–momentum conservation equations.

4.2.4. Curvature and torsion

Let us now consider the general case, where neither curvature nor torsion are assumed to vanish. In this case, there are no ‘compatibility’ equations, as such, to satisfy. However, one should read equations (88) and (89) as integrability or consistency conditions in the following sense: one cannot prescribe an arbitrary curvature tensor and an arbitrary torsion tensor at the same time, these tensors need to satisfy equations (88) and (89), as already said.

4.3. An application to axisymmetric problems

The compatibility conditions for an axisymmetric three-dimensional continuum were reconsidered recently in [61]. Using our geometrical approach shows, once more, the role played by geometrical objects in continuum mechanics. To study an axisymmetric material, we choose the line element with cylindrical coordinate $X^{μ} = {r, θ, z}$ to be

d s^{2} = (1 + ϵ_{rr}) d r^{2} + r^{2} (1 + ϵ_{θ θ}) d θ^{2} + (1 + ϵ_{zz}) d z^{2} + 2 ϵ_{rz} d r d z,

(99)

where the strain components $ϵ_{μ ν}$ are functions of r and z only. Next, following from this, one now computes the Einstein tensor components $G_{τ λ}$ while assuming that $ϵ_{μ ν} << 1$ . It turns out that the incompatibility tensor $S$ used in [61] is identical to the three-dimensional Einstein tensor. This means that we have

{\overset{\circ}{G}}_{τ λ} = S_{τ λ} = {[\nabla \times (\nabla \times ϵ)]}_{τ λ} = 0 .

(100)

The square brackets here indicate that we are referring to the components of the enclosed object. Furthermore, the Einstein tensor must satisfy equation (98), which means we find the neat relation

{\overset{\circ}{\nabla}}^{τ} {\overset{\circ}{G}}_{τ λ} = {[\nabla \cdot S]}_{λ} = 0 .

(101)

The condition $\nabla \cdot S = 0$ is valid for classical elasticity and does not necessarily apply to other more general settings. Conversely, the identity ${\overset{\circ}{\nabla}}^{τ} {\overset{\circ}{G}}_{τ λ} = 0$ crucially depends on the vanishing of the right-hand side of equation (91) and therefore on the specific model being considered.

The equivalence of both results is expected, as they follow from Bianchi-type identities in geometry. It was then observed in [61] that the four non-vanishing components of $S$ , or equivalently $G_{τ λ}$ , are not independent and that it should be possible to reduce this system further; this is then demonstrated. The three-dimensional Einstein tensor hence plays an important role in continuum mechanics. Further applications of the compatibility condition in solving non-linear systems with non-trivial dislocations and disclinations in both classical and micropolar theories can be found in [62 –66].

5. Conclusions and discussions

The starting point of this work was the use of geometrical tools for the study of compatibility conditions in elasticity. It is well known that the vanishing of the Riemann curvature tensor of the deformed body yields compatibility conditions equivalent to the Saint-Venant compatibility conditions [67 –72], which are otherwise derived by considering higher-order partial derivatives, which necessarily have to commute. Since the Riemann curvature tensor satisfies various geometrical identities, it is expected that these identities also play a role in continuum mechanics. After revisiting these basic results, we were able to show that Vallée’s compatibility condition, which was also derived using tools of differential geometry, is in fact equivalent to the vanishing of the three-dimensional Einstein tensor. Our first key result was thus equation (40), which is also of interest in its own right, as the representation of the Einstein tensor in this form appears to be new. The underlying geometrical space contained curvature and torsion, which made it possible to apply our result to Nye’s tensor and show the link to Skyrme’s model, which is very well known in particle physics. Given that the determinant of the Nye tensor is related to a topological quantity, it is interesting to speculate about other links between topology and quantities used in continuum mechanics. A geometrical formulation, as much as is possible, will be key in understanding this.

As a small application, we applied our results to a recent study of the compatibility conditions for an axisymmetric problem, where we showed that the (linearised) Einstein tensor naturally appears and can be expressed as the double curl of the strain tensor (equation (100)). This was our second representation of the Einstein tensor in an unusual way. It naturally led to additional identities that needed to be satisfied, which then further reduced the number of compatibility equations.

Our study can be extended further by dropping our assumption of vanishing non-metricity and introducing the non-metricity tensor $Q_{α μ ν} : = \nabla_{α} g_{μ ν}$ . The polar decomposition of the tetrad will not be affected by this; however, the connection and spin connection components will change. For instance, the decomposition (equation (24)) will contain a third piece, owing to non-metricity, which hence enters the Riemann curvature tensor. Its identities, in turn, will involve additional terms [60] and it would be interesting to understand the compatibility conditions in this extended framework. In [73] a geometry of this type, with non-vanishing non-metricity, was considered, to study a distribution of point defects. The space in question was torsion-free and did not contain curvature. It is not clear, at the moment, whether or not the Einstein tensor will play an important role in this setting as well and how non-metricity would affect the various conditions that were studied.

Footnotes

Acknowledgements

We thank Friedrich Hehl, Patrizio Neff and Jaakko Nissinen for helpful suggestions.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship and/or publication of this article: This work was supported by the EPSRC Doctoral Training Programme (grant number EP/N509577/1).

ORCID iDs

Christian G Böhmer

Yongjo Lee

References

Vallée

Compatibility equations for large deformations. Int J Eng Sci 1992; 30(12): 1753–1757.

Ciarlet

Gratie

Iosifescu

, et al. Another approach to the fundamental theorem of Riemannian geometry in

R^{3}

, by way of rotation fields. J Math Pures Appl 2007; 87(3): 237–252.

Nye

JF.

Some geometrical relations in dislocated crystals. Acta Metall 1953; 1(2): 153–162.

Cottrell

Bilby

BA.

Dislocation theory of yielding and strain ageing of iron. Proc Phys Soc London, Sect A 1949; 62(1): 49.

Kröner

Allgemeine Kontinuumstheorie der Versetzungen und Eigenspannungen. Arch Ration Mech Anal 1959; 4(1): 273.

Noll

A mathematical theory of the mechanical behavior of continuous media. Arch Ration Mech Anal 1958; 2(1): 197–226.

Kondo

On the analytical and physical foundations of the theory of dislocations and yielding by the differential geometry of continua. Int J Eng Sci 1964; 2(3): 219–251.

Bilby

. Geometry and continuum mechanics. In: Kröner

. (ed.) Mechanics of generalized continua. Berlin: Springer, 1968, 180–199.

Kleinert

Gravity as a theory of defects in a crystal with only second gradient elasticity. Ann Phys 1987; 499(2): 117–119.

10.

Katanaev

Volovich

IV.

Theory of defects in solids and three-dimensional gravity. Ann Phys 1992; 216(1): 1–28.

11.

Hehl

Obukhov

YN.

Élie Cartan’s torsion in geometry and in field theory, an essay. Ann Fond Louis de Broglie 2007; 32: 157–194.

12.

Yavari

Goriely

Riemann–Cartan geometry of nonlinear dislocation mechanics. Arch Ration Mech Anal 2012; 205(1): 59–118.

13.

Yavari

Goriely

Riemann–Cartan geometry of nonlinear disclination mechanics. Math Mech Solids 2013; 18(1): 91–102.

14.

deWit

Relation between dislocations and disclinations. J Appl Phys 1971; 42(9): 3304–3308.

15.

Kléman

Relationship between Burgers circuit, Volterra process and homotopy groups. J Phys Lett – Paris 1977; 38(10): 199–202.

16.

Kléman

Defects in liquid crystals. Rep Prog Phys 1989; 52(5): 555–654.

17.

Hehl

Von Der Heyde

Kerlick

, et al. General relativity with spin and torsion: foundations and prospects. Rev Mod Phys 1976; 48: 393–416.

18.

Arcos

Pereira

JG.

Torsion gravity: a reappraisal. Int J Mod Phys D 2004; 13(10): 2193–2240.

19.

Böhmer

Downes

RJ.

From continuum mechanics to general relativity. Int J Mod Phys D 2014; 23(12): 1442015.

20.

Aldrovandi

Pereira

JG.

Teleparallel gravity: an introduction (Theoretical, Mathematical & Computational Physics, vol. 173). Dordrecht, Springer, 2013.

21.

Lazar

Hehl

FW.

Cartan’s spiral staircase in physics and, in particular, in the gauge theory of dislocations. Found Phys 2010; 40(9–10): 1298–1325.

22.

Kleinert

. New gauge symmetry in gravity and the evanescent role of torsion. In: Proceedings of the Conference in Honour of Murray Gell-Mann’s 80th Birthday, 2010.

23.

Blagojević

Hehl

FW.

Gauge theories of gravitation: a reader with commentaries. London: Imperial College Press, 2013.

24.

Kleinert

Zaanen

Nematic world crystal model of gravity explaining absence of torsion in spacetime. Phys Lett A 2004; 324(5–6): 361–365.

25.

Beekman

Nissinen

, et al. Dual gauge field theory of quantum liquid crystals in two dimensions. Phys Rep 2017; 683: 1–110.

26.

Nissinen

Emergent spacetime and gravitational Nieh–Yan anomaly in chiral

p + ip

Weyl superfluids and superconductors. Phys Rev Lett 2020; 124(11): 117002.

27.

Böhmer

Downes

Vassiliev

Rotational elasticity. Q J Mech Appl Math 2011; 64(4): 415–439.

28.

Böhmer

Obukhov

YN.

A gauge-theoretic approach to elasticity with microrotations. Proc R Soc London, Ser A 2012; 468(2141): 1391–1407.

29.

Böhmer

Tamanini

Rotational elasticity and couplings to linear elasticity. Math Mech Solids 2013; 20(8): 959–974.

30.

Peshkov

Romenski

Dumbser

Continuum mechanics with torsion. Continuum Mech Thermodyn 2019; 31(5): 1517–1541.

31.

Nissinen

Volovik

GE.

Tetrads in solids: from elasticity theory to topological quantum Hall systems and Weyl fermions. J Exp Theor Phys 2018; 127(5): 948–957.

32.

Nissinen

Volovik

GE.

Elasticity tetrads, mixed axial–gravitational anomalies, and (3+1)-d quantum Hall effect. Phys Rev Res 2019; 1: 023007.

33.

Lankeit

Neff

Osterbrink

Integrability conditions between the first and second Cosserat deformation tensor in geometrically nonlinear micropolar models and existence of minimizers. Z Angew Math Mech 2016; 68(1): 11.

34.

Edelen

DGB.

A new look at the compatability [sic] problem of elasticity theory. Int J Eng Sci 1990; 28(1): 23–27.

35.

Skyrme

THR.

A non-linear theory of strong interactions. Proc R Soc London, Ser A 1958; 247: 260–278.

36.

Skyrme

THR.

A unified model of K- and

π

-mesons. Proc R Soc London, Ser A 1959; 252: 236–245.

37.

Skyrme

THR.

A non-linear field theory. Proc R Soc London, Ser A 1961; 260(1300): 127–138.

38.

Trebin

HR.

Elastic energies of a directional medium. J Phys 1981; 42(11): 1573–1576.

39.

Trebin

HR.

The topology of non-uniform media in condensed matter physics. Adv Phys 1982; 31(3): 195–254.

40.

Esteban

MJ.

A direct variational approach to Skyrme’s model for meson fields. Commun Math Phys 1986; 105(4): 571–591.

41.

Esteban

Müller

Sobolev maps with integer degree and applications to Skyrme’s problem. Proc R Soc London, Ser A 1992; 436(1896): 197–201.

42.

Unzicker

Topological defects in an elastic medium: a valid model particle physics. Structured media, Proceedings of an International Symposium in Memory of E. Kröner, 2001.

43.

Randono

Hughes

TL.

Torsional monopoles and torqued geometries in gravity and condensed matter. Phys Rev Lett 2011; 106(16): 161102.

44.

Neff

Lankeit

Madeo

On Grioli’s minimum property and its relation to Cauchy’s polar decomposition. Int J Eng Sci 2014; 80: 209–217.

45.

Fischle

Neff

Grioli’s theorem with weights and the relaxed-polar mechanism of optimal Cosserat rotations. Rend Lincei – Mat Appl 2017; 28(3): 573–600.

46.

Neff

Fischle

Borisov

Explicit global minimization of the symmetrized Euclidean distance by a characterization of real matrices with symmetric square. SIAM J Appl Algebra Geom 2019; 3(1): 31–43.

47.

Borisov

Fischle

Neff

Optimality of the relaxed polar factors by a characterization of the set of real square roots of real symmetric matrices. Z Angew Math Mech 2019; 99(6): e201800120.

48.

Cosserat

Théorie des corps déformables. Paris: Librairie Scientifique A. Hermann et Fils, 1909.

49.

Eringen

AC.

Microcontinuum field theories: I. Foundations and solids. New York: Springer, 1999.

50.

Neff

Existence of minimizers for a finite-strain micromorphic elastic solid. Proc R Soc Edinburgh A 2006; 136: 997–1012.

51.

Neff

Münch

Curl bounds Grad on SO(3). ESAIM: Control Optim Calc Var 2008; 14(1): 148–159.

52.

Neff

. Existence of minimizers in nonlinear elastostatics of micromorphic solids. In: Iesan

(ed.) Encyclopedia of thermal stresses. Heidelberg: Springer, 2013, 1475–1485.

53.

Neff

Ghiba

Lazar

, et al. The relaxed linear micromorphic continuum: well-posedness of the static problem and relations to the gauge theory of dislocations. Q J Mech Appl Math 2015; 68(1): 53–84.

54.

Neff

Bîrsan

Osterbrink

Existence theorem for geometrically nonlinear Cosserat micropolar model under uniform convexity requirements. J Elast 2015; 121(1): 119–141.

55.

Bîrsan

Neff

. On the dislocation density tensor in the Cosserat theory of elastic shells. In: Naumenko

Aßmus

(eds) Advanced methods of continuum mechanics for materials and structures (Advanced Structured Materials, vol. 60). Singapore: Springer, 2016, 391–413.

56.

Ciarlet

PG.

An introduction to differential geometry with applications to elasticity. J Elast 2005; 78(1–3): 1–125.

57.

Finkelstein

D. Kinks

. J Math Phys 1966; 7(7): 1218–1225.

58.

Shankar

Applications of topology to the study of ordered systems. J Phys 1977; 38(11): 1405–1412.

59.

Nakahara

Toy-skyrmions in superfluid ³He-A. Prog Theor Phys 1987; 77(5): 1011–1013.

60.

Schouten

JA.

Ricci-Calculus. Berlin: Springer, 1954.

61.

Lubarda

VA.

A note on the compatibility equations for three-dimensional axisymmetric problems. Math Mech Solids 2020; 25(2): 160–165.

62.

Romenskii

EI.

Hyperbolic equations of Maxwell’s nonlinear model of elastoplastic heat-conducting media. Sib Math J 1989; 30(4): 606–625.

63.

Zubov

LM.

Nonlinear theory of dislocations and disclinations in elastic bodies (Lecture Notes in Physics Monographs, vol. 47). Berlin: Springer, 1997.

64.

Derezin

Zubov

Disclinations in nonlinear elasticity. Z Angew Math Mech 2011; 91(6): 433–442.

65.

Zelenina

Zubov

. Spherically symmetric deformations of micropolar elastic medium with distributed dislocations and disclinations. In: dell’Isola

et al. (eds) Advances in mechanics of microstructured media and structures (Advanced Structured Materials, vol. 87). Cham: Springer, 2018, 357–369.

66.

Goloveshkina

Zubov

LM.

Universal spherically symmetric solution of nonlinear dislocation theory for incompressible isotropic elastic medium. Arch Appl Mech 2019; 89(3): 409–424.

67.

Bilby

Bullough

Smith

Continuous distributions of dislocations: a new application of the methods of non-Riemannian geometry. Proc R Soc London, Ser A 1955; 231(1185): 263–273.

68.

Kondo

Non-Riemannian and Finslerian approaches to the theory of yielding. Int J Eng Sci 1963; 1(1): 71–88.

69.

Godunov

Romenskii

EI.

Nonstationary equations of nonlinear elasticity theory in Eulerian coordinates. J Appl Mech Tech Phys 1972; 13(6): 868–884.

70.

Kröner

. Continuum theory of defects. In: Balian

Kléman

Poirier

(eds.) Physics of defects (Les Houches, vol. 35). Amsterdam: North-Holland, 1980, 215–315.

71.

Kleinert

Gauge fields in condensed matter vol. 2: Stresses and defects (differential geometry, crystal melting). Singapore: World Scientific, 1989.

72.

Godunov

Romenskii

Elements of continuum mechanics and conservation laws. New York: Kluwer Academic, 2003.

73.

Yavari

Goriely

Weyl geometry and the nonlinear mechanics of distributed point defects. Proc R Soc London, Ser A 2012; 468(2148): 3902–3922.

Compatibility conditions of continua using Riemann–Cartan geometry

Abstract

Keywords

1. Introduction

2. Tools of differential geometry

2.1. Frame fields

2.2. Torsion and curvature

2.3. Einstein tensor in three-dimensional space

3. Compatibility conditions

3.1. Vallée’s classical result

3.2. Nye’s tensor and its compatibility condition

3.3. Skyrme’s theory with compatibility condition

3.4. Eringen’s compatibility conditions

3.5. Homotopy for the compatibility condition

4. Geometrical compatibility conditions

4.1. Geometrical identities

4.2. Compatibility conditions

4.2.1. No curvature and no torsion

4.2.2. No curvature but torsion

4.2.3. No torsion but curvature

4.2.4. Curvature and torsion

4.3. An application to axisymmetric problems

5. Conclusions and discussions

Footnotes

Acknowledgements

Funding

ORCID iDs

References
