On variational principles in coupled strain-gradient elasticity

Abstract

Strain-gradient elasticity is a special case of high-gradient theories in which the potential energy density depends on the first and second gradient of the displacement field. The presence of a coupling term in the material law leads to a non-diagonal quadratic form of the stored energy, which makes it difficult for the derivation of fundamental theorems. In this article, two variational principles of the minimum of potential and complementary energies are argued in the context of the coupled strain-gradient elasticity theory. The basis of the proofs of both variational principles is the equivalent transformation of the stain and strain-gradient energy density that allows to avoid the complication related to the presence of the fifth-rank coupling tensor $C_{5}$ in the equation for the potential energy density and leads to diagonalization of the quadratic form of the stored energy. This transformation enables to inverse Hook’s law, to determine compliance tensors, and to obtain closed-form relation for the complementary energy. After that the proofs of both principles of a minimum of potential and complementary energies are provided in the usual manner adopted in the classical theory of elasticity.

Keywords

Variational principles coupled strain-gradient elasticity principle of the minimum of potential energy principle of the minimum of complementary energy

1. Introduction

Gradient continuum theories have a long history. Early works in this regard are Cosserat and Cosserat [1] and Hellinger [2]. Then in the 60th and early 70th of the last century, they were generalized in [3 –8]. Next resurgence of interest to higher-gradient theories took place in numerous papers due to necessity to overcome some restrictions of the classical elasticity [9 –25].

Unlike gradient continuum theories, classical elasticity has a sound basis. There are many theorems on which we can rely, many of them are summarized in Gurtin [26]. These are theorems regarding the existence and uniqueness of solutions, auxiliary theorems like Betty’s reciprocal theorem, Clapeyron’s work theorem, and de Saint Venant’s principle, variational formulations like the minimum principle of the elastic potential, the minimum principle of complementary energy, corresponding maximum principles, the principles of Hellinger-Reissner, de Veubeke-Hu-Washizu, and some others, Hooke’s law is fully explored for all anisotropy classes [27]. For all of these, representation theorems for the stiffness tetrad can be found. So, regarding the linear theory [26], can be considered a concluding work.

In gradient elasticity, the proofs of fundamental theorems are presented mainly for the uncoupled case, that is, when the coupling tensor of fifth-order is assumed to be equal to zero. However, by dropping the coupling tensor of fifth order, it is restricted to centro-symmetric materials. This excludes 30% of all crystals [28] that may be piezo-active, and one can even construct isotropic materials that are not centro-symmetric, like an entangled bundle of coil springs of equal chirality.

The uniqueness theorem for isotropic, uncoupled gradient elasticity is given by Mindlin and Eshel [7]. The proof is based on the assumption of positive definiteness of the stiffness tensors of the fourth- and sixth-orders. Mindlin’s uniqueness proof holds for mixed boundary conditions, and there are no restrictions regarding the shape of the domain. Conditions of positive definiteness in absence of coupling terms were presented also in previous works [5,29]. The inequality constraints obtained by Mindlin [5] and Dell’Isola et al. [29] have been extended for the case of coupled strain-gradient elasticity by Nazarenko et al. [30]. To this end, it has been used so-called block diagonalization of the composite stiffness [31]. Such an equivalent transformation makes it possible to obtain the necessary conditions of positive definiteness and convexity of the hemitropic strain and strain-gradient energy, including the coupling stiffness $C_{5}$ . The uniqueness of solution for the case of coupled strain-gradient elasticity is proven by Nazarenko et al. [32], which is based on the decoupling of the strain and strain-gradient energy due to block diagonalization and is applicable to any symmetry of stiffness tensors.

The principles of the minimum of the elastic potential (PMEP), which is minimized over the displacement field, and the principle of the minimum of the complementary potential (PMCP), which is minimized over the stress field, are elementary variational formulations of the elastostatic boundary value problem [26]. They serve as starting point for the construction of approximate solutions, they are needed for different mean value theorems, and they give upper bounds for the stored elastic energy and the global stiffness of elastic systems. All of this has important practical applications, for numerical solution methods like the FEM (approximate solutions) and as bounds for effective stiffness’s in homogenization theory (upper bounds). Likewise, maximum principles have been formulated. In homogenization theory, they give with the absence of body forces the lower bounds for the stored energy and hence for the effective stiffness.

Following Gurtin [26], the origin of the PMEP is hard to trace and goes probably back to the middle of the 19th century to Green and Kirchhoff. It can be derived from the virtual power principle by replacing the virtual stress power by the virtual change of the elastic energy. With appropriate assumptions regarding the test function, the principle of virtual power becomes the first variation of the elastic potential. Alternatively one can start from the local balance of momentum, multiply by a test functions and integrate. The independent function is the displacement field in the PMEP. Since the displacement method is much more popular than the force method (or flexibility method), it is fundamental to many finite-element implementations.

The PMCP is from the beginning of the 20th century. Its derivation involves stricter assumptions (star convex domains) and is hence less general than the PMCP. It requires statically admissible stress fields, of which the one that satisfies the stress boundary conditions also minimizes the complementary potential.

Since the starting point is the virtual power, the generalization of the PMEP to gradient elasticity is relatively simple, see e.g. previous works [33 –36]. The extension of the PMCP is less clear. There are some works, like Polizzotto [35] (section 3.1 therein) who examines a stress-gradient elasticity. The change of the independent variable from one displacement field to several stress fields ( $T_{2}$ and $T_{3}$ ) is rather complicated. It is not necessary in Polizzotto’s study [35], since he considers a stress field and its gradient.

In this work, we generalize and derive the PMEP and the PMCP for the case of the coupled strain-gradient elasticity. Representing of the complementary energy in the coupled strain-gradient elasticity is not a trivial problem itself [see for details Nazarenko et al.’s study 31]. Using the block diagonalization technique presented by Nazarenko et al. [31] and Nazarenko et al. [30] we reduce the potential and complementary energies to uncoupled form and then derive the principle of a minimum of the potential and complementary energies.

The structure of this paper is as follows. The next section briefly outlines the main relations for potential and complementary energies, their representation in decoupled form and variational equation of the stress equilibrium with the boundary conditions. The principles of minimum potential energy and minimum complementary energy are proven (novel) after that. Finally, the conclusions and discussion are given in the last section.

2. Coupled strain-gradient elasticity

2.1. Potential energy

For a first strain-gradient theory, the strain and strain-gradient energy can be written as

w = \frac{1}{2} E_{2} \cdot \cdot C_{4} \cdot \cdot E_{2} + E_{2} \cdot \cdot C_{5} \cdot \cdot \cdot E_{3} + \frac{1}{2} E_{3} \cdot \cdot \cdot C_{6} \cdot \cdot \cdot E_{3}

(1)

where $E_{2}$ and $E_{3}$ are the strains and the second gradient of displacement calculated as a function of the displacement field $u (x)$

E_{2} = sym (u \otimes \nabla), E_{3} = u \otimes \nabla \otimes \nabla,

(2)

and $C_{4}$ , $C_{5}$ , and $C_{6}$ are the stiffnesses. Here the number of indices corresponds to the tensor rank of $E_{2}$ , $E_{3}$ , $C_{4}$ , $C_{5}$ , $C_{6}$ . Scalars, vectors, second- and higher-rank tensors are denoted by italic letters (like $a$ or $A$ ), bold minuscules (like $a$ ), bold majuscules (like $A$ ), and blackboard bold majuscules (like $A$ ), respectively.

∇ is the three-dimensional nabla operator $\nabla \equiv \partial / \partial x_{i} e_{i}, (i = 1, 2, 3)$ , where $e_{1}, e_{2}, e_{3}$ are an orthonormal base vectors. The repeating indices imply a summation. ⊗ denotes the dyadic product. A gradient of the displacement $u \otimes \nabla$ is defined as

u \otimes \nabla = \frac{\partial u_{i}}{\partial x_{j}} e_{i} \otimes e_{j} = u_{i, j} e_{i} \otimes e_{j} .

(3)

The dots denote scalar contractions, where the double and triple scalar contractions are determined with regard to orthonormal base vectors $e_{i}$ as follows

The tensors $E_{2}, E_{3}$ and $C_{4}, C_{5}, C_{6}$ have the following index symmetries

E_{ij} = E_{ji}

(6)

E_{ijk} = E_{ikj}

(7)

C_{ijkl} = C_{lkij} = C_{jikl} = C_{ijlk}

(8)

C_{ijklm} = C_{jiklm} = C_{ijkml}

(9)

C_{ijklmn} = C_{lmnijk} = C_{ikjlmn} = C_{ijklnm} .

(10)

Remark 1. Both variants

u \otimes \nabla \otimes \nabla

and

sym (u \otimes \nabla) \otimes \nabla

can be treated as the strain gradient. In the first case, a third-order tensor with one index symmetry has 18 independent components. Linearized rotations removed from

u \otimes \nabla

are saved in accordance with the compatibility conditions $E$ , while the second one

sym (u \otimes \nabla) \otimes \nabla

is a strain gradient.

Equation (1) can be equivalently transformed as follows

w = \frac{1}{2} E_{2}^{m} \cdot \cdot C_{4} \cdot \cdot E_{2}^{m} + \frac{1}{2} E_{3} \cdot \cdot \cdot C_{6}^{m} \cdot \cdot \cdot E_{3},

(11)

in order to present the strain and strain-gradient contributions as decoupled (see Nazarenko et al. [30]). Here the superscript $m$ indicates the modified strain and stiffness tensors

E_{2}^{m} = E_{2} + E_{3} \cdot \cdot \cdot C_{5}^{T} \cdot \cdot C_{4}^{- 1}

(12)

and

C_{6}^{m} = C_{6} - C_{5}^{T} \cdot \cdot C_{4}^{- 1} \cdot \cdot C_{5} .

(13)

We define the transpose of $C_{5}$ by

E_{2} : C_{5} \cdot \cdot \cdot E_{3} = E_{3} \cdot \cdot \cdot C_{5}^{T} : E_{2},

(14)

that is, in terms of indices

C_{ijklm}^{T} = C_{klmij} .

(15)

The decoupled matrix representation of the potential energy density can also be achieved by splitting a modified second gradient of displacement and modified stiffness tensor of fourth-rank (see Nazarenko et al. [31]):

w = \frac{1}{2} E_{2} \cdot \cdot C_{4}^{m} \cdot \cdot E_{2} + \frac{1}{2} E_{3}^{m} \cdot \cdot \cdot C_{6} \cdot \cdot \cdot E_{3}^{m} .

(16)

As indicated above, the superscript $m$ corresponds the modified tensors, which are specified as

E_{3}^{m} = E_{3} + E_{2} \cdot \cdot C_{5} \cdot \cdot \cdot C_{6}^{- 1}

(17)

and

C_{4}^{m} = C_{4} - C_{5} \cdot \cdot \cdot C_{6}^{- 1} \cdot \cdot \cdot C_{5}^{T} .

(18)

Remark 2. It should be pointed out that the equations for the potential energy density (1), (11), (16) are equivalent and that both modifications (11), (16) can be applied for arbitrary material symmetry classes(see Nazarenko et al. [31]).

Remark 3. It should be noted that equations similar to equations (16) and (18) are presented by Lurie et al. [37] equations (8) and (9)). are presented in equation (9) by Lurie et al. [37] is not given quite correctly and should be considered taking into account equation (10).

2.2. Complementary energy

2.2.1. Terminology and the special case of linear elasticity

The following different energies are usually distinguished: The strain energy is the stored energy as a function of the strains. In terms of scalar strains and stresses it is

w (ε_{0}) = \int_{0}^{ε_{0}} σ (ε) d ε .

(19)

For a linear stress strain relation

σ = E ε

(20)

it is

w (ε_{0}) = \frac{E}{2} ε_{0}^{2} .

(21)

Geometrically, it is the area below the stress–strain curve up to the point ( $σ, ε$ ).

The final value of energy is the product $σ_{0} ε_{0}$ . It has no physical meaning but appears when performing a Legendre transformation. Geometrically, it is the area of the rectangle spanned by the point $(σ, ε)$ and the origin.

The complementary energy is the difference between the final value of energy and the strain energy,

w^{*} = σ_{0} ε_{0} - w (ε_{0}) .

(22)

For linear stress–strain relations, it is equal to the strain energy in value

w^{*} = E ε_{0}^{2} - \frac{E}{2} ε_{0}^{2} = \frac{E}{2} ε_{0}^{2} .

(23)

It is usually associated with a change of the independent variable from the strains to the stresses. Then

w^{*} (σ) = \frac{E^{- 1}}{2} σ

(24)

is the Legendre transform of the function $w (ε)$ . Due to the linearity of the stress–strain relation (or the quadratic form of the strain energy), the Legendre transform is simply obtained using the material law $σ = E ε$ to change the independent variable. This generalizes to the 3D case. The Legendre transform of the quadratic form

w (E_{2}, E_{3}) = \frac{1}{2} E_{2} : C_{4} : E_{2} + \frac{1}{2} E_{3} \cdot \cdot \cdot C_{6} \cdot \cdot \cdot E_{3}

(25)

w^{*} (T_{2}, T_{3}) = \frac{1}{2} T_{2} : C_{4}^{- 1} : T_{2} + \frac{1}{2} T_{3} \cdot \cdot \cdot C_{6}^{- 1} \cdot \cdot \cdot T_{3}

(26)

with

T_{2} = C_{4} : E_{2}

(27)

T_{3} = C_{6} \cdot \cdot \cdot E_{3},

(28)

which is why we can obtain the complementary energy once we can invert the stress–strain relation after getting rid of $C_{5}$ .

2.2.2. The coupled strain-gradient elasticity

\begin{matrix} w^{*} = \frac{1}{2} T_{2} \cdot \cdot S_{4} \cdot \cdot T_{2} + T_{2} \cdot \cdot S_{5} \cdot \cdot \cdot T_{3} \\ + \frac{1}{2} T_{3} \cdot \cdot \cdot S_{6} \cdot \cdot \cdot T_{3}, \end{matrix}

(29)

where $S_{4}, S_{5}, S_{6}$ are the compliance tensors and have the same symmetry as $C_{4}, C_{5}, C_{6}$ . The stresses and the double stresses are given by

T_{2} = \frac{\partial w}{\partial E_{2}} = C_{4} \cdot \cdot E_{2} + C_{5} \cdot \cdot \cdot E_{3},

(30)

T_{3} = \frac{\partial w}{\partial E_{3}} = C_{5}^{T} \cdot \cdot E_{2} + C_{6} \cdot \cdot \cdot E_{3} .

(31)

This is the generalized Hookean law. The inverse is

E_{2} = \frac{\partial w^{*}}{\partial T_{2}} = S_{4} \cdot \cdot T_{2} + S_{5} \cdot \cdot \cdot T_{3},

(32)

E_{3} = \frac{\partial w^{*}}{\partial T_{3}} = S_{5}^{T} \cdot \cdot T_{2} + S_{6} \cdot \cdot \cdot T_{3} .

(33)

It has been demonstrated by Nazarenko et al. [31] that the both modified equations for the potential energy density equations (11), (16) can be used in order to specify the compliance tensors $S_{4}$ , $S_{5}$ , $S_{6}$ and to determine the stress energy density. In the same article the compliance tensors $S_{4}$ , $S_{5}$ , $S_{6}$ are derived as

S_{4} = C_{4}^{- 1} + C_{4}^{- 1} \cdot \cdot C_{5} \cdot \cdot \cdot (C_{6}^{m})^{- 1} \cdot \cdot \cdot C_{5}^{T} \cdot \cdot C_{4}^{- 1},

(34)

S_{5} = C_{4}^{- 1} \cdot \cdot C_{5} \cdot \cdot \cdot (C_{6}^{m})^{- 1},

(35)

S_{6} = (C_{6}^{m})^{- 1},

(36)

S_{4} = (C_{4}^{m})^{- 1},

(37)

S_{5} = (C_{4}^{m})^{- 1} \cdot \cdot C_{5} \cdot \cdot \cdot {C_{6}}^{- 1},

(38)

S_{6} = C_{6}^{- 1} + C_{6}^{- 1} \cdot \cdot \cdot C_{5}^{T} \cdot \cdot (C_{4}^{m})^{- 1} \cdot \cdot C_{5} \cdot \cdot \cdot C_{6}^{- 1},

(39)

where $C_{6}^{m}$ and $C_{4}^{m}$ are determined according to equations (13), (18). Both presentations for $S_{4}$ , $S_{5}$ , $S_{6}$ are identical.

2.3. Variational equation of the stress equilibrium and the boundary conditions

The equilibrium equations and the natural boundary conditions for the model under consideration can be obtained using the Lagrange variational principle

δ L = δ a - δ \int_{V} w d V = 0

(40)

where $L$ is the Lagrangian, $δ a$ is the work of external forces and double forces defined in equations (57) and (58), and $w$ is a strain and strain-gradient energy density equation (1). The variation of the potential energy density is defined as

δ w (E_{2}, E_{3}) = \frac{\partial w}{\partial E_{2}} \cdot \cdot δ E_{2} + \frac{\partial w}{\partial E_{3}} \cdot \cdot \cdot δ E_{3},

(41)

or we obtain

δ w = T_{2} \cdot \cdot δ E_{2} + T_{3} \cdot \cdot \cdot δ E_{3},

(42)

with the stresses $T_{2}$ and the double stresses $T_{3}$ determined in equations (30) and (31). Then the total potential energy density for an arbitrary variation of the displacement field $u$ can be written down as

\begin{matrix} δ \int_{V} w d V = \int_{V} (T_{2} \cdot \cdot δ E_{2} + T_{3} \cdot \cdot \cdot δ E_{3}) d V \\ = \int_{V} [T_{2} \cdot \cdot (δ u \otimes \nabla) + T_{3} \cdot \cdot \cdot (δ u \otimes \nabla \otimes \nabla)] d V . \end{matrix}

(43)

Applying the chain rule and the divergence theorem in the form

\int_{v} v \cdot \nabla d V = \int_{S} v \cdot n d S

(44)

gives

\begin{matrix} \int_{V} T_{2} \cdot \cdot (δ u \otimes \nabla) d V \\ = - \int_{V} δ u \cdot T_{2} \cdot \nabla d V + \int_{S} δ u \cdot T_{2} \cdot n d S, \end{matrix}

(45)

and

\begin{matrix} \int_{V} T_{3} \cdot \cdot \cdot (δ u \otimes \nabla \otimes \nabla) d V = - \int_{V} δ u \otimes \nabla \cdot \cdot T_{3} \cdot \nabla d V + \int_{S} δ u \otimes \nabla \cdot \cdot T_{3} \cdot n d S \\ = \int_{V} δ u \cdot T_{3} \cdot \nabla \cdot \nabla d V - \int_{S} δ u \cdot T_{3} \cdot \nabla \cdot n d S + \int_{S} δ u \otimes \nabla \cdot \cdot T_{3} \cdot n d S \end{matrix}

(46)

Given the identities equations (45) and (46), equation (43) can be presented as the sum of volume and surface integrals

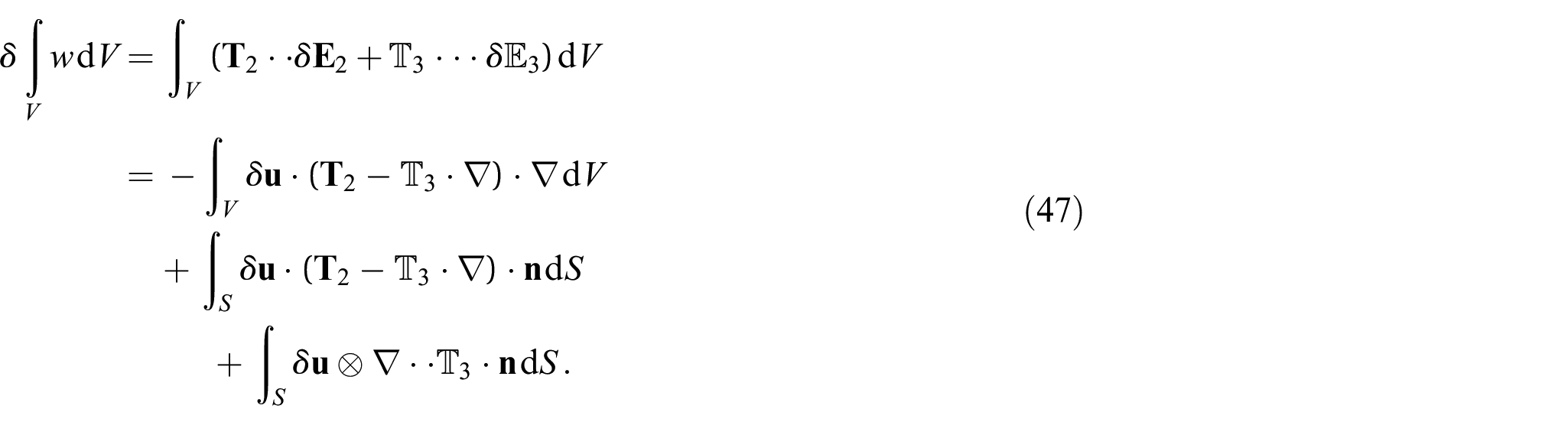

\begin{matrix} δ \int_{V} w d V = \int_{V} (T_{2} \cdot \cdot δ E_{2} + T_{3} \cdot \cdot \cdot δ E_{3}) d V \\ = - \int_{V} δ u \cdot (T_{2} - T_{3} \cdot \nabla) \cdot \nabla d V \\ + \int_{S} δ u \cdot (T_{2} - T_{3} \cdot \nabla) \cdot n d S \\ + \int_{S} δ u \otimes \nabla \cdot \cdot T_{3} \cdot n d S . \end{matrix}

(47)

It should be noted that $δ u \otimes \nabla$ is not independent of $δ u$ on $S$ . Indeed, knowing $δ u$ on $S$ , it is possible to determine the surface gradient of $δ u$ . Following Toupin [3] and Mindlin [6], we decompose the gradient of $δ u$ into its normal and tangential parts

δ u \otimes \nabla = δ u \otimes (\nabla_{n} + \nabla_{s}) .

(48)

Here

\nabla_{n} \equiv n \otimes n \cdot \nabla = \nabla \cdot n \otimes n = \frac{\partial}{\partial x_{j}} n_{j} n,

(49)

and

\nabla_{s} \equiv \nabla \cdot (I - n \otimes n) .

(50)

Decomposing the gradient of $δ u$ in the last term of equation (47) into its normal and tangential parts [3,6,32]

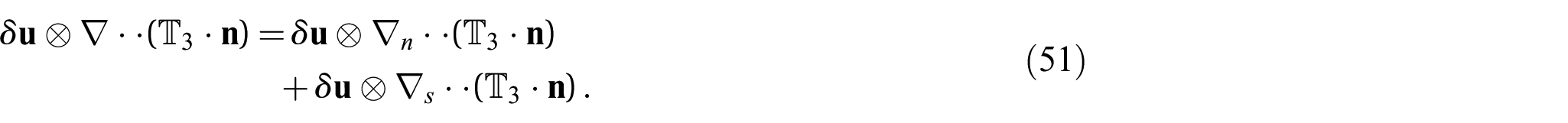

\begin{matrix} δ u \otimes \nabla \cdot \cdot (T_{3} \cdot n) = δ u \otimes \nabla_{n} \cdot \cdot (T_{3} \cdot n) \\ + δ u \otimes \nabla_{s} \cdot \cdot (T_{3} \cdot n) . \end{matrix}

(51)

We convert it into the sum of only independent variations $δ u$ and $δ u \otimes \nabla_{n}$ . By employing the chain rule, the surface gradient can be presented in the following form:

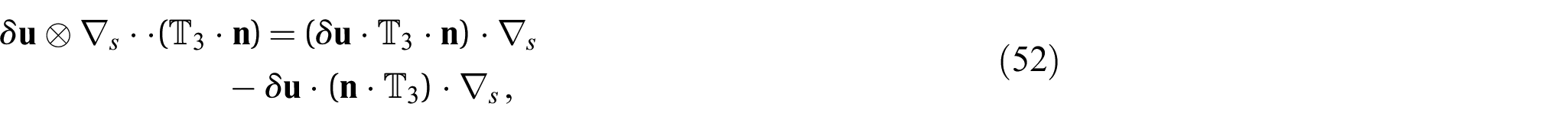

\begin{matrix} δ u \otimes \nabla_{s} \cdot \cdot (T_{3} \cdot n) = (δ u \cdot T_{3} \cdot n) \cdot \nabla_{s} \\ - δ u \cdot (n \cdot T_{3}) \cdot \nabla_{s}, \end{matrix}

(52)

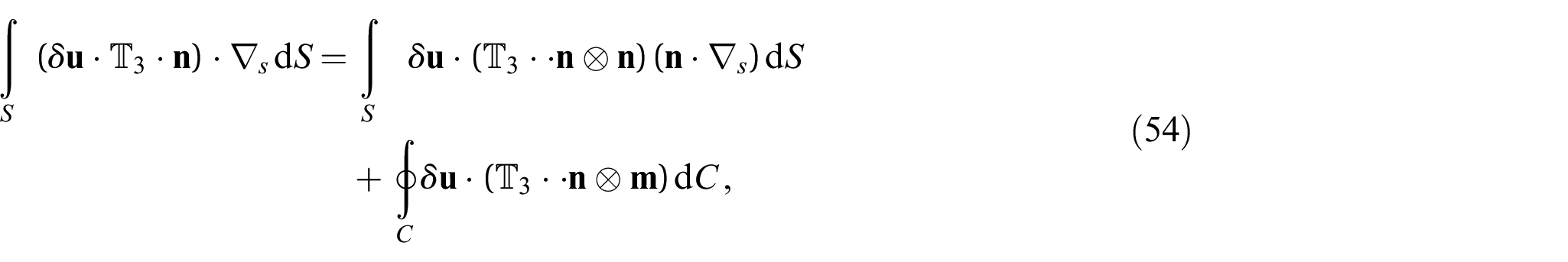

and using the surface divergence theorem in the form

\int_{S} v \cdot \nabla_{s} d S = \int_{S} (n \cdot \nabla_{s}) v \cdot n d S + \oint_{C} v \cdot m d C,

(53)

with $v = δ u \cdot T_{3} \cdot n$ in equation (53) gives

\begin{matrix} \int_{S} (δ u \cdot T_{3} \cdot n) \cdot \nabla_{s} d S = \int_{S} δ u \cdot (T_{3} \cdot \cdot n \otimes n) (n \cdot \nabla_{s}) d S \\ + \oint_{C} δ u \cdot (T_{3} \cdot \cdot n \otimes m) d C, \end{matrix}

(54)

where $C$ is the union of all edges of the domain $V$ , $t$ is the unit tangent to the edge, and $m$ ( $= t \times n$ ) is the unit outward normal to $C$ tangent to $t$ .

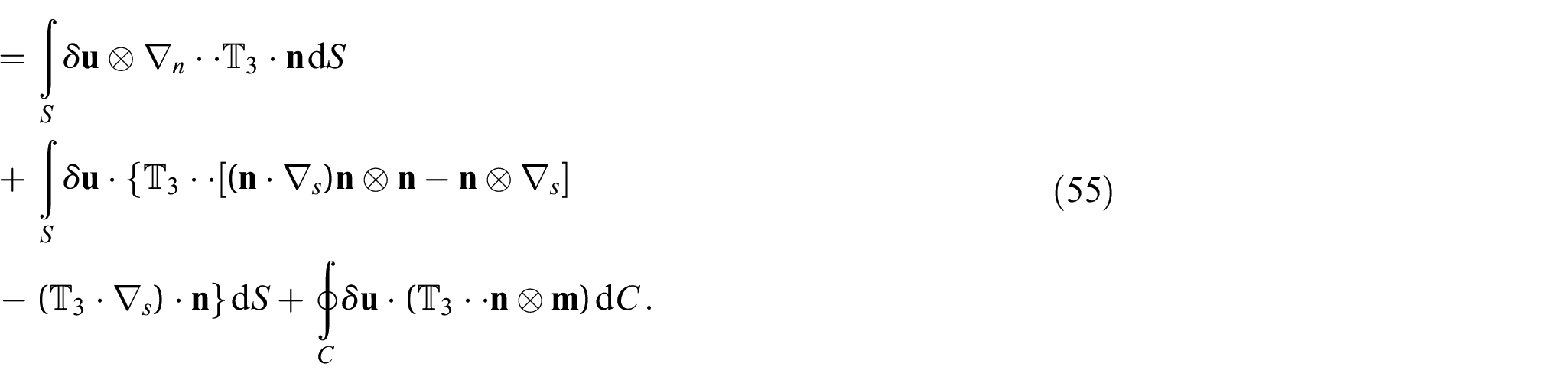

Accounting for the identity equation (54) and equation (51), the last term in the variation of the total potential energy from equation (47) is

\begin{matrix} \int_{S} δ u \otimes \nabla \cdot \cdot T_{3} \cdot n d S \\ = \int_{S} {δ u \otimes \nabla_{n} \cdot \cdot T_{3} \cdot n + (δ u \cdot T_{3} \cdot n) \cdot \nabla_{s} \\ - δ u \cdot (T_{3} \cdot n) \cdot \nabla_{s}} d S \end{matrix}

\begin{matrix} = \int_{S} δ u \otimes \nabla_{n} \cdot \cdot T_{3} \cdot n d S \\ + \int_{S} δ u \cdot {T_{3} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}] \\ - (T_{3} \cdot \nabla_{s}) \cdot n} d S + \oint_{C} δ u \cdot (T_{3} \cdot \cdot n \otimes m) d C . \end{matrix}

(55)

The variation of the total potential energy equation (47) can be written down as

\begin{matrix} δ \int_{V} w d V = - \int_{V} δ u \cdot (T_{2} - T_{3} \cdot \nabla) \cdot \nabla d V \\ + \int_{S} δ u \cdot {(T_{2} - T_{3} \cdot \nabla - T_{3} \cdot \nabla_{s}) \cdot n \\ + T_{3} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}]} d S \\ + \int_{S} δ u \otimes \nabla_{n} \cdot \cdot T_{3} \cdot n d S \\ + \oint_{C} δ u \cdot (T_{3} \cdot \cdot n \otimes m) d C . \end{matrix}

(56)

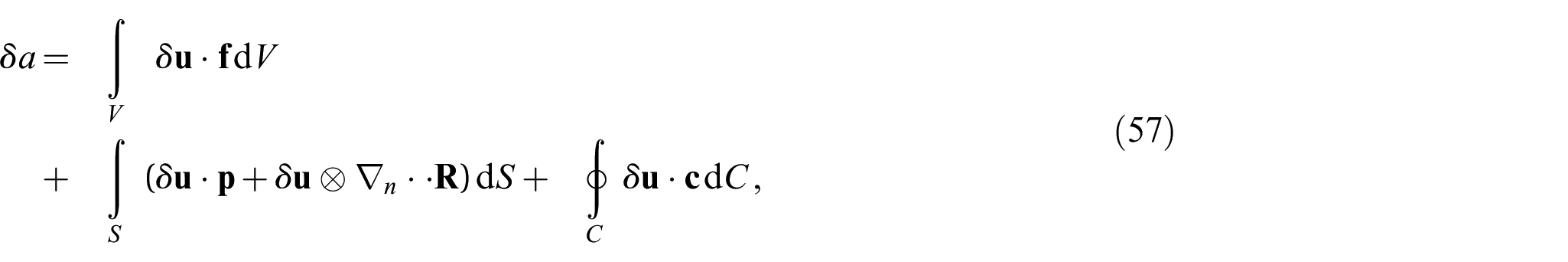

The admissible form of the work of external forces and double forces is governed by the variation of the strain and strain-gradient energy:

\begin{matrix} δ a = \int_{V} δ u \cdot f d V \\ + \int_{S} (δ u \cdot p + δ u \otimes \nabla_{n} \cdot \cdot R) d S + \oint_{C} δ u \cdot c d C, \end{matrix}

(57)

where $f$ is a body force per unit volume, $p$ is a surface traction, $R$ is a surface normal double force on $S$ (e.g. Eremeyev et al. [38], and $c$ is a line force on edge $C$ , or

\begin{matrix} δ a = \int_{V} δ u \cdot f d V \\ + \int_{S} (δ u \cdot p + D (δ u) \cdot r_{n}) d S + \oint_{C} δ u \cdot c d C . \end{matrix}

(58)

Here $r_{n}$ is a double traction in normal direction on $S$ (e.g. Bertram [39])

r_{n} = R \cdot n,

(59)

and

D u = (u \otimes \nabla) \cdot n = \frac{\partial u_{i}}{\partial x_{j}} n_{j} e_{i} .

(60)

The variation of the potential energy for all admissible functions $δ u$ in according to equation (40) is

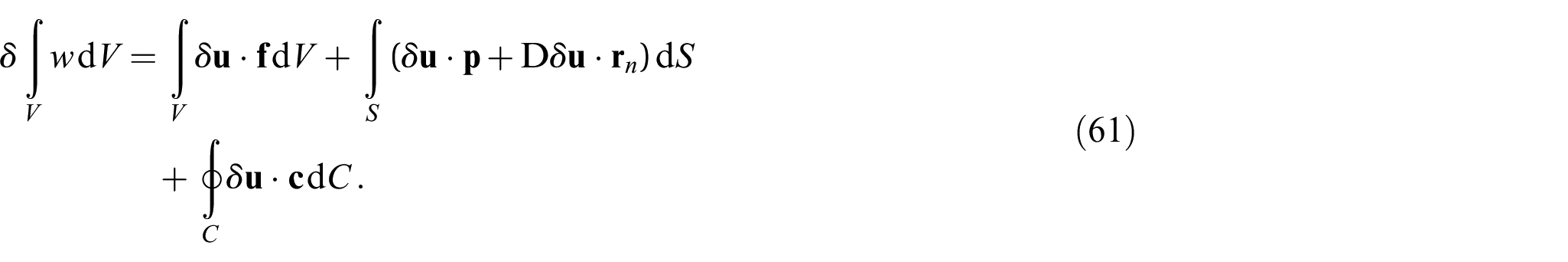

\begin{matrix} δ \int_{V} w d V = \int_{V} δ u \cdot f d V + \int_{S} (δ u \cdot p + D δ u \cdot r_{n}) d S \\ + \oint_{C} δ u \cdot c d C . \end{matrix}

(61)

Accounting for equation (56), we obtain the stress equilibrium equation:

(T_{2} - T_{3} \cdot \nabla) \cdot \nabla + f = 0,

(62)

and the natural (static) boundary conditions for

The prescribed vector field of the tractions on the part of the body surface $S_{d}$

\begin{matrix} p_{pr} = (T_{2} - T_{3} \cdot \nabla - T_{3} \cdot \nabla_{s}) \cdot n \\ + T_{3} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}], \end{matrix}

(63)

The prescribed double tractions in normal direction on the $S_{d}$

r_{n pr} = T_{3} \cdot \cdot n \otimes n,

(64)

The prescribed line forces on edge on the part of edge $C_{d}$

c_{pr} = T_{3} \cdot \cdot n \otimes m .

(65)

Here, the subscript $pr$ is short for “prescribed.”

The kinematic boundary conditions in terms of the displacement $u$ on the part of the body surface $S_{g}$ ( $S_{d} \cup S_{g} = S$ ) and on the part of the surface edge follow from equation (61)

u_{pr} = u on S_{g},

(66)

D u_{pr} = D u on S_{g},

(67)

u_{pr} = u on C_{g} .

(68)

3. Variational principles

In this section, we present the proof of two variational principles for the coupled strain-gradient elasticity theory. One is the principle of the minimum potential energy, the other is the principle of the minimum complementary energy.

3.1. Principle of minimum potential energy

Theorem 1. Let us consider the linear elastic gradient material with the positive definite potential energy density, let $A$ be the set of all (compatible) vector fields $u (x)$ on the body which fulfil the displacement boundary conditions on the part of the body surface $S_{g}$ ( $S_{d} \cup S_{g} = S$ ) and on the part of the surface edge $C_{g}$ ( $C_{d} \cup C_{g} = C$ ). We define the following functional $Φ$ : $A \to ℜ$

\begin{matrix} Φ (u) \equiv \int_{V} w d V - \int_{V} u \cdot f d V \\ - \int_{S_{d}} (u \cdot p_{pr} + D u \cdot r_{n pr}) d S - \oint_{C_{d}} u \cdot c_{pr} d C, \end{matrix}

(69)

where the following fields are prescribed:

The body force $f$ in the interior of the body $V$ ,

The tractions $p_{pr}$ on the body surface $S_{d}$ ,

The double tractions in normal direction $r_{n pr}$ on the body surface $S_{d}$ ,

The line forces on edge $c_{pr}$ on the edge $C_{d}$ of the body surface $S_{d}$ ,

where $p_{pr}$ , $r_{n pr}$ and $c_{pr}$ are defined in equations (63) – (65) . Here $w$ is the potential energy density described by equation (1) , and $T_{2}$ and $T_{3}$ are the stresses and the double stresses.

Then the functional $Φ$ obtains a minimum for the solution $u^{0}$ of the mixed boundary value problem, that is,

Φ (u^{0}) \leq Φ (u) \forall u \in A,

(70)

If equality holds, then $u^{0}$ and $u$ differ only by a rigid body displacement

u (x) - u^{0} (x) = u_{c} + Ω \cdot (x - x^{0}),

(71)

where $u_{c}$ and $x^{0}$ are two constant vectors and $Ω$ is a constant antisymmetric tensor.

Proof. Let $u^{0}$ be the solution, and $δ u \equiv u - u^{0}$ . Then $δ u$ fulfils zero-displacement boundary conditions on $S_{g}$ . Let

δ E_{2} = sym (δ u \otimes \nabla), δ E_{3} = δ u \otimes \nabla \otimes \nabla

(72)

and

δ T_{2} = C_{4} \cdot \cdot δ E_{2} + C_{5} \cdot \cdot \cdot δ E_{3},

(73)

δ T_{3} = C_{5}^{T} \cdot \cdot δ E_{2} + C_{6} \cdot \cdot \cdot δ E_{3} .

(74)

Then

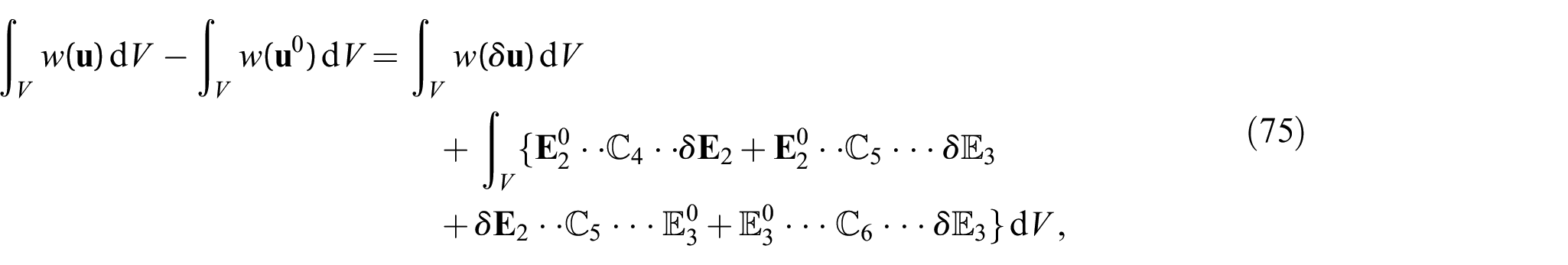

\begin{matrix} \int_{V} w (u) d V - \int_{V} w (u^{0}) d V = \int_{V} w (δ u) d V \\ + \int_{V} {E_{2}^{0} \cdot \cdot C_{4} \cdot \cdot δ E_{2} + E_{2}^{0} \cdot \cdot C_{5} \cdot \cdot \cdot δ E_{3} \\ + δ E_{2} \cdot \cdot C_{5} \cdot \cdot \cdot E_{3}^{0} + E_{3}^{0} \cdot \cdot \cdot C_{6} \cdot \cdot \cdot δ E_{3}} d V, \end{matrix}

(75)

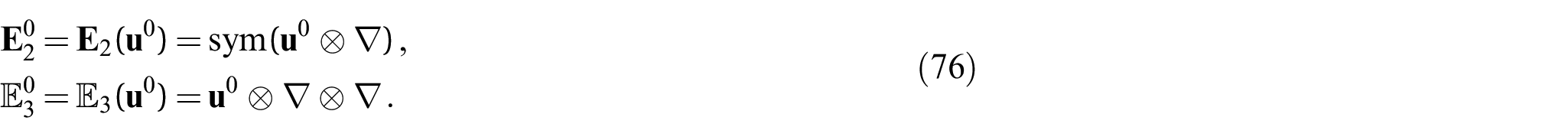

where

\begin{matrix} E_{2}^{0} = E_{2} (u^{0}) = sym (u^{0} \otimes \nabla), \\ E_{3}^{0} = E_{3} (u^{0}) = u^{0} \otimes \nabla \otimes \nabla . \end{matrix}

(76)

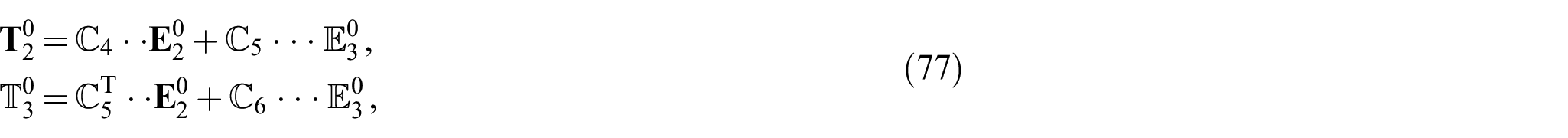

Given that

\begin{matrix} T_{2}^{0} = C_{4} \cdot \cdot E_{2}^{0} + C_{5} \cdot \cdot \cdot E_{3}^{0}, \\ T_{3}^{0} = C_{5}^{T} \cdot \cdot E_{2}^{0} + C_{6} \cdot \cdot \cdot E_{3}^{0}, \end{matrix}

(77)

and the identity

δ E_{2} \cdot \cdot C_{5} \cdot \cdot \cdot E_{3}^{0} = E_{3}^{0} \cdot \cdot \cdot C_{5}^{T} \cdot \cdot δ E_{2},

(78)

We have

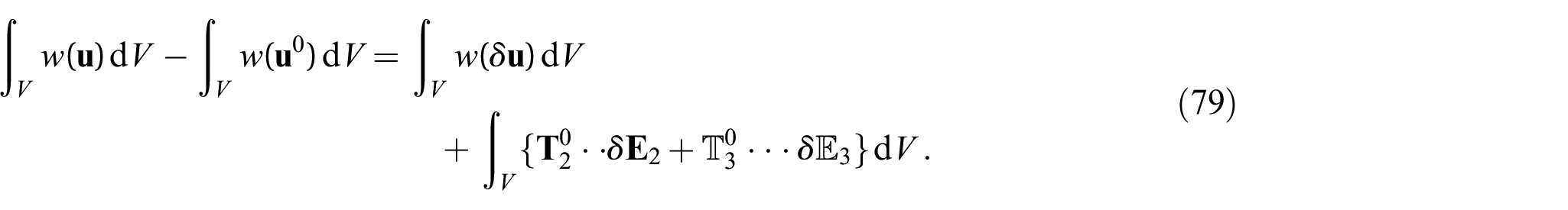

\begin{matrix} \int_{V} w (u) d V - \int_{V} w (u^{0}) d V = \int_{V} w (δ u) d V \\ + \int_{V} {T_{2}^{0} \cdot \cdot δ E_{2} + T_{3}^{0} \cdot \cdot \cdot δ E_{3}} d V . \end{matrix}

(79)

The last term of the above equation can be written in accordance with equations (43) and (56) in terms of the displacement variation for zero-displacement boundary conditions on $S_{g}$

\begin{matrix} \int_{V} (T_{2}^{0} \cdot \cdot δ E_{2} + T_{3}^{0} \cdot \cdot \cdot δ E_{3}) d V \\ = - \int_{V} δ u \cdot (T_{2}^{0} - T_{3}^{0} \cdot \nabla) \cdot \nabla d V \\ + \int_{S_{d}} δ u \cdot {(T_{2}^{0} - T_{3}^{0} \cdot \nabla - T_{3}^{0} \cdot \nabla_{s}) \cdot n \\ + T_{3}^{0} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}]} d S_{d} \\ + \int_{S_{d}} δ u \otimes \nabla_{n} \cdot \cdot T_{3}^{0} \cdot n d S_{d} \\ + \oint_{C_{d}} δ u \cdot [T_{3}^{0} \cdot \cdot n \otimes m] d C_{d} . \end{matrix}

(80)

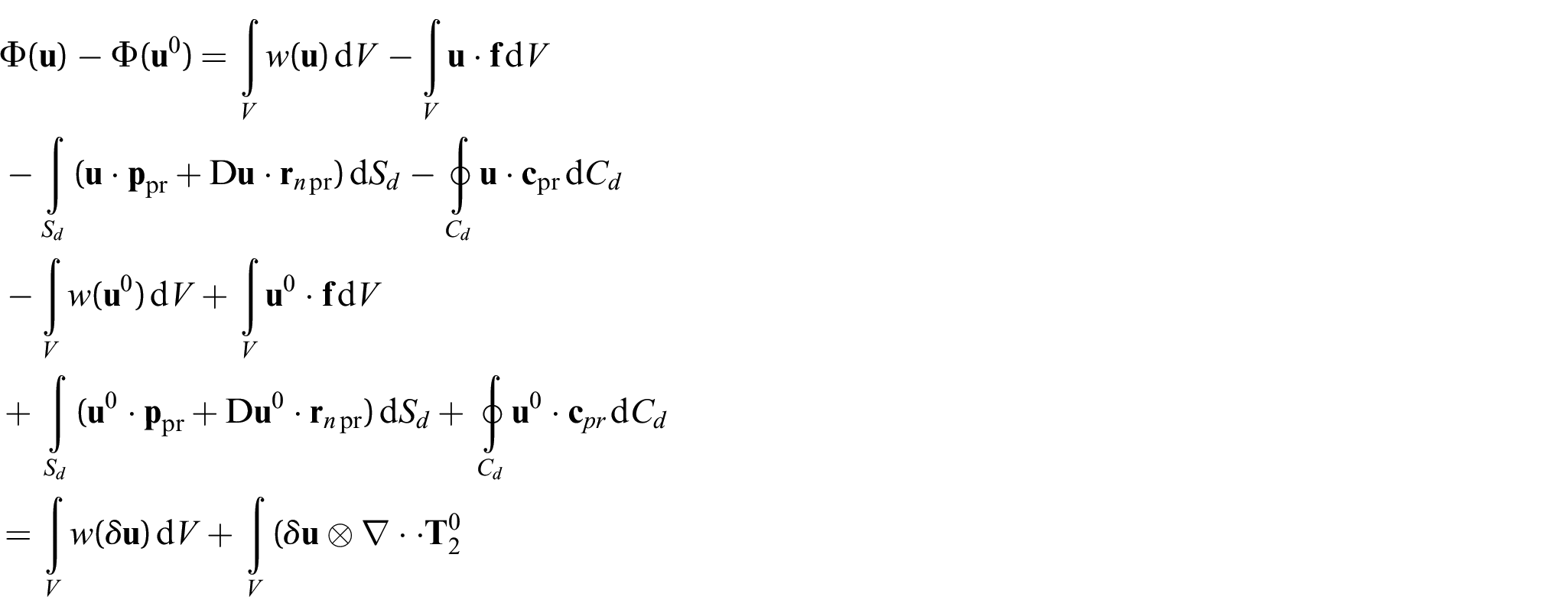

Thus

\begin{matrix} Φ (u) - Φ (u^{0}) = \int_{V} w (u) d V - \int_{V} u \cdot f d V \\ - \int_{S_{d}} (u \cdot p_{pr} + D u \cdot r_{n pr}) d S_{d} - \oint_{C_{d}} u \cdot c_{pr} d C_{d} \\ - \int_{V} w (u^{0}) d V + \int_{V} u^{0} \cdot f d V \\ + \int_{S_{d}} (u^{0} \cdot p_{pr} + D u^{0} \cdot r_{n pr}) d S_{d} + \oint_{C_{d}} u^{0} \cdot c_{pr} d C_{d} \\ = \int_{V} w (δ u) d V + \int_{V} (δ u \otimes \nabla \cdot \cdot T_{2}^{0} \end{matrix}

\begin{matrix} + δ u \otimes \nabla \otimes \nabla \cdot \cdot \cdot T_{3}^{0}) d V - \int_{V} δ u \cdot f d V \\ - \int_{S_{d}} (δ u \cdot p_{pr} + D δ u \cdot r_{n pr}) d S_{d} - \oint_{C_{d}} δ u \cdot c_{pr} d C_{d} \\ = \int_{V} w (δ u) d V - \int_{V} δ u \cdot (T_{2}^{0} - T_{3}^{0} \cdot \nabla) \cdot \nabla d V \\ + \int_{S_{d}} (δ u \cdot p^{0} + D δ u \cdot r_{n}^{0}) d S_{d} + \oint_{C_{d}} δ u \cdot c^{0} d C_{d} \\ - \int_{V} δ u \cdot f d V \\ - \int_{S_{d}} (δ u \cdot p_{pr} + D δ u \cdot r_{n pr}) d S_{d} - \oint_{C_{d}} δ u \cdot c_{pr} d C_{d} \\ = \int_{V} w (δ u) d V - \int_{V} δ u \cdot {\cdot (T_{2}^{0} - T_{3}^{0} \cdot \nabla) \cdot \nabla + f} d V \\ + \int_{S_{d}} {δ u \cdot (p^{0} - p_{pr}) + D δ u \cdot (r_{n}^{0} - r_{n pr})} d S_{d} \\ + \oint_{C_{d}} δ u \cdot (c^{0} - c_{pr}) d C_{d}, \end{matrix}

(81)

with

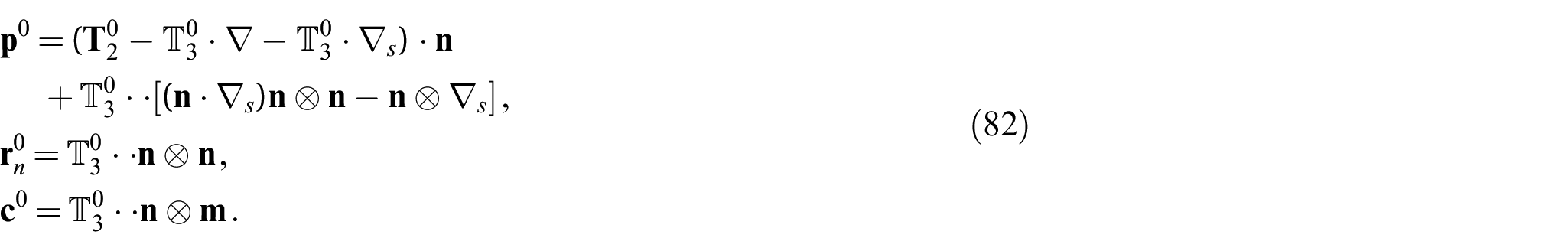

\begin{matrix} p^{0} = (T_{2}^{0} - T_{3}^{0} \cdot \nabla - T_{3}^{0} \cdot \nabla_{s}) \cdot n \\ + T_{3}^{0} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}], \\ r_{n}^{0} = T_{3}^{0} \cdot \cdot n \otimes n, \\ c^{0} = T_{3}^{0} \cdot \cdot n \otimes m . \end{matrix}

(82)

Since $u^{0}$ solves the mixed boundary value problem, the three last integrals in equation (81) are zero. Because of the positive definiteness of $w$ we have $w (δ u) \geq 0$ and therefore

Φ (u) \geq Φ (u^{0}) .

(83)

Equality holds if and only if

δ E_{2} = sym (δ u \otimes \nabla) = 0,

(84)

sym (u \otimes \nabla) = sym (u^{0} \otimes \nabla) .

(85)

Therefore, the two displacement fields can only differ by an (infinitesimal) rigid body motion

δ u (x) = u (x) - u^{0} (x) = u_{c} + Ω \cdot (x - x^{0}),

(86)

where $u_{c}$ and $x^{0}$ are two constant vectors and $Ω$ is a constant antisymmetric tensor. If the displacements are prescribed for at least three points that do not lie on a straight line, then

u (x) = u^{0} (x) .

(87)

3.2. Principle of minimum complementary energy

Theorem 2. Let consider the linear elastic gradient material with positive definite complementary energy, let $T$ be the binary set of symmetric stress fields $T_{2}$ and of couple stress fields $T_{3}$ that obey the equilibrium conditions

(T_{2} - T_{3} \cdot \nabla) \cdot \nabla + f = 0,

(88)

and the natural (static) boundary conditions for the following prescribed fields:

The vector field of the tractions $p_{pr}$ on the part of the surface of the body $S_{d}$ ,

The double tractions in normal direction $r_{n pr}$ on $S_{d}$ ,

The line forces on edge $c_{pr}$ on the part of edge $C_{d}$ ,

with $p_{pr}$ , $r_{n pr}$ and $c_{pr}$ defined in equations (63) – (65). Then the functional

\begin{matrix} Ψ (T_{2}, T_{3}) \equiv \int_{V} w^{*} d V - \int_{S_{g}} (u_{pr} \cdot p + D u_{pr} \cdot r_{n}) d S_{g} \\ - \oint_{C_{g}} u_{pr} \cdot c d C_{g}, \end{matrix}

(89)

with the complementary elastic energy $w^{*}$ equation (29) obtains for the solution $T_{2}^{0}$ , $T_{3}^{0}$ of the mixed boundary value problem a minimum in $T$ , that is

Ψ (T_{2}^{0}, T_{3}^{0}) \leq Ψ (T_{2}, T_{3}) \forall T_{2}, T_{3} \in T .

(90)

If equality holds, then $T_{2}^{0} = T_{2}$ and $T_{3}^{0} = T_{3}$ . Here $S_{4}$ , $S_{5}$ , $S_{6}$ are the compliance tensors, the stresses $T_{2}$ , and the double stresses $T_{3}$ are defined in equations (30), (31).

Proof. Let $T_{2}^{0}$ , $T_{3}^{0}$ be the solution of the mixed boundary value problem, and $δ T_{2} \equiv T_{2} - T_{2}^{0}$ and $δ T_{3} \equiv T_{3} - T_{3}^{0}$ . $δ T_{2}$ and $δ T_{3}$ fulfil zero-traction boundary conditions on $S_{g}$ and satisfies

(δ T_{2} - δ T_{3} \cdot \nabla) \cdot \nabla = 0 .

(91)

Then

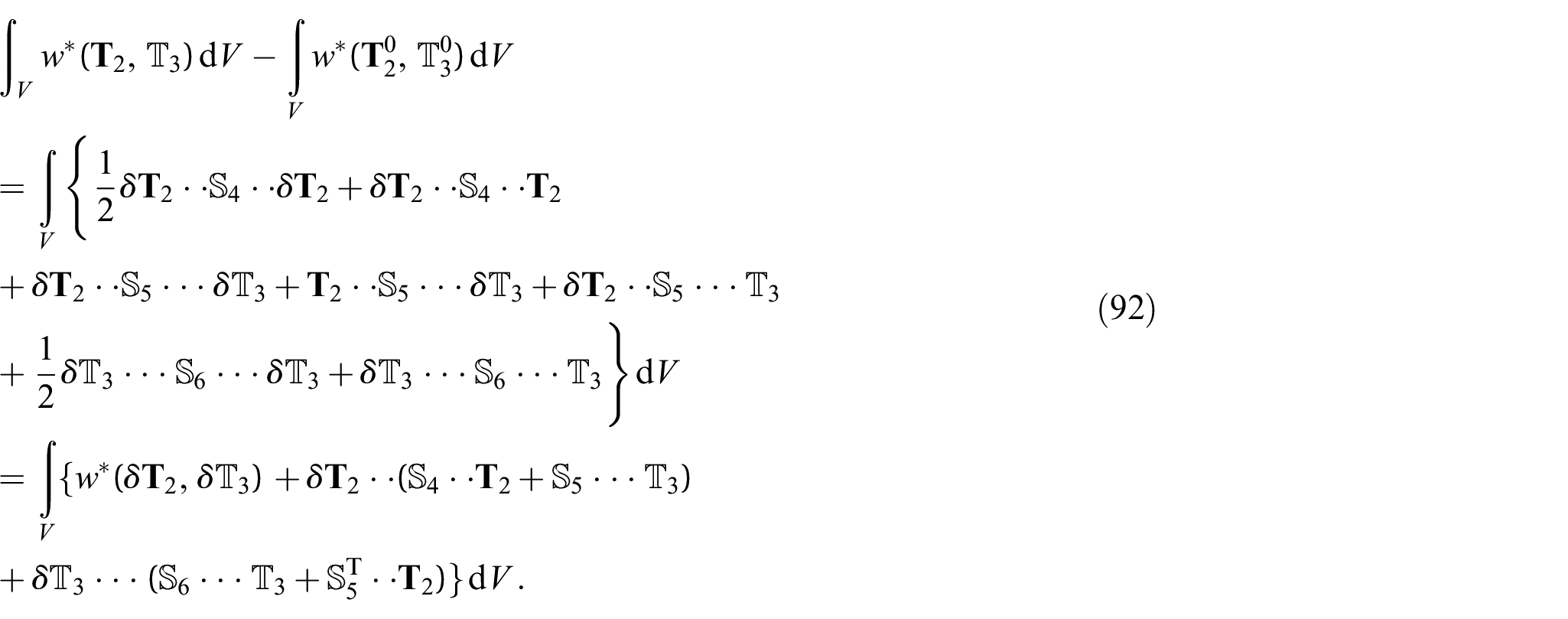

\begin{matrix} \int_{V} w^{*} (T_{2}, T_{3}) d V - \int_{V} w^{*} (T_{2}^{0}, T_{3}^{0}) d V \\ = \int_{V} {\frac{1}{2} δ T_{2} \cdot \cdot S_{4} \cdot \cdot δ T_{2} + δ T_{2} \cdot \cdot S_{4} \cdot \cdot T_{2} \\ + δ T_{2} \cdot \cdot S_{5} \cdot \cdot \cdot δ T_{3} + T_{2} \cdot \cdot S_{5} \cdot \cdot \cdot δ T_{3} + δ T_{2} \cdot \cdot S_{5} \cdot \cdot \cdot T_{3} \\ + \frac{1}{2} δ T_{3} \cdot \cdot \cdot S_{6} \cdot \cdot \cdot δ T_{3} + δ T_{3} \cdot \cdot \cdot S_{6} \cdot \cdot \cdot T_{3}} d V \\ = \int_{V} {w^{*} (δ T_{2}, δ T_{3}) + δ T_{2} \cdot \cdot (S_{4} \cdot \cdot T_{2} + S_{5} \cdot \cdot \cdot T_{3}) \\ + δ T_{3} \cdot \cdot \cdot (S_{6} \cdot \cdot \cdot T_{3} + S_{5}^{T} \cdot \cdot T_{2})} d V . \end{matrix}

(92)

Given that

\begin{matrix} E_{2} = S_{4} \cdot \cdot T_{2} + S_{5} \cdot \cdot \cdot T_{3}, \\ E_{3} = S_{5}^{T} \cdot \cdot T_{2} + S_{6} \cdot \cdot \cdot T_{3}, \end{matrix}

(93)

We obtain

\begin{matrix} \int_{V} w^{*} (T_{2}, T_{3}) d V - \int_{V} w^{*} (T_{2}^{0}, T_{3}^{0}) d V \\ = \int_{V} {w^{*} (δ T_{2}, δ T_{3}) + δ T_{2} \cdot \cdot E_{2} + δ T_{3} \cdot \cdot \cdot E_{3}} d V . \end{matrix}

(94)

Accounting for equation (2), we obtain (see details in Nazarenko et al. [32])

\begin{matrix} \int_{V} (δ T_{2} \cdot \cdot E_{2} + δ T_{3} \cdot \cdot \cdot E_{3}) d V \\ = - \int_{V} u \cdot (δ T_{2} - δ T_{3} \cdot \nabla) \cdot \nabla d V \\ + \int_{S} u \cdot {(δ T_{2} - δ T_{3} \cdot \nabla - δ T_{3} \cdot \nabla_{s}) \cdot n \\ + δ T_{3} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}]} d S \\ + \int_{S} u \otimes \nabla_{n} \cdot \cdot δ T_{3} \cdot n d S \\ + \oint_{C} u \cdot [δ T_{3} \cdot \cdot n \otimes m] d C . \end{matrix}

(95)

Thus, since $u = u_{pr}$ in $S_{g}$ ( $S_{g} = S \ S_{d}$ ) we have with equation (91) and the zero-traction boundary conditions on $S_{d}$

\begin{matrix} \int_{V} (δ T_{2} \cdot \cdot E_{2} + δ T_{3} \cdot \cdot \cdot E_{3}) d V \\ = \int_{S_{g}} u_{pr} \cdot {(δ T_{2} - δ T_{3} \cdot \nabla - δ T_{3} \cdot \nabla_{s}) \cdot n \\ + δ T_{3} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}]} d S_{g} \\ + \int_{S_{g}} u_{pr} \otimes \nabla_{n} \cdot \cdot δ T_{3} \cdot n d S_{g} \\ + \oint_{C_{g}} u_{pr} \cdot [δ T_{3} \cdot \cdot n \otimes m] d C_{g} \\ = \int_{S_{g}} (u_{pr} \cdot δ p + D u_{pr} \cdot δ r_{n}) d S_{g} \\ + \oint_{C_{g}} u_{pr} \cdot δ c d C_{g}, \end{matrix}

(96)

where

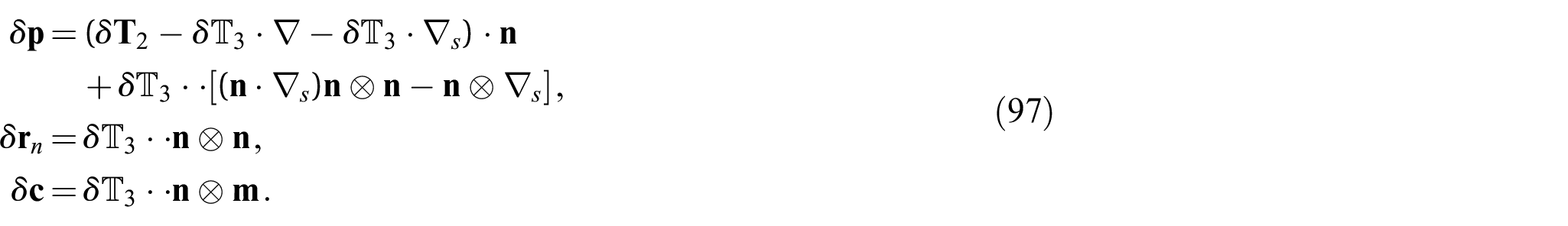

\begin{matrix} δ p = (δ T_{2} - δ T_{3} \cdot \nabla - δ T_{3} \cdot \nabla_{s}) \cdot n \\ + δ T_{3} \cdot \cdot [(n \cdot \nabla_{s}) n \otimes n - n \otimes \nabla_{s}], \\ δ r_{n} = δ T_{3} \cdot \cdot n \otimes n, \\ δ c = δ T_{3} \cdot \cdot n \otimes m . \end{matrix}

(97)

Finally

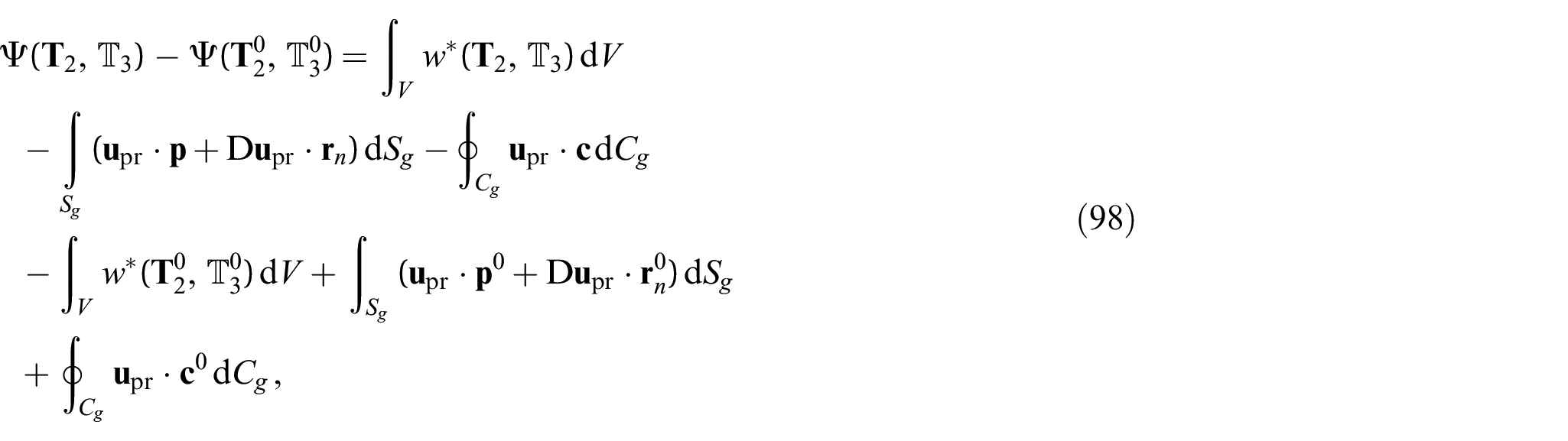

\begin{matrix} Ψ (T_{2}, T_{3}) - Ψ (T_{2}^{0}, T_{3}^{0}) = \int_{V} w^{*} (T_{2}, T_{3}) d V \\ - \int_{S_{g}} (u_{pr} \cdot p + D u_{pr} \cdot r_{n}) d S_{g} - \oint_{C_{g}} u_{pr} \cdot c d C_{g} \\ - \int_{V} w^{*} (T_{2}^{0}, T_{3}^{0}) d V + \int_{S_{g}} (u_{pr} \cdot p^{0} + D u_{pr} \cdot r_{n}^{0}) d S_{g} \\ + \oint_{C_{g}} u_{pr} \cdot c^{0} d C_{g}, \end{matrix}

(98)

with

p^{0} = p (T_{2}^{0}, T_{3}^{0}), r_{n}^{0} = r_{n} (T_{2}^{0}, T_{3}^{0}), c^{0} = c (T_{2}^{0}, T_{3}^{0}) .

(99)

Accounting for equations (94) and (96) we obtain

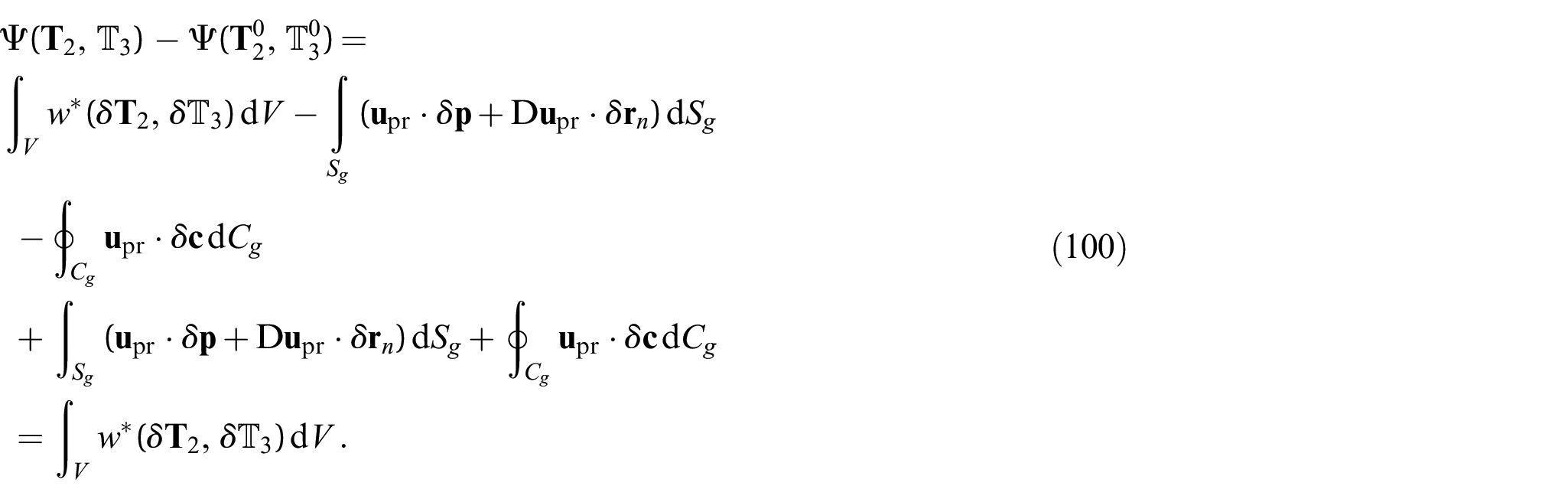

\begin{matrix} Ψ (T_{2}, T_{3}) - Ψ (T_{2}^{0}, T_{3}^{0}) = \\ \int_{V} w^{*} (δ T_{2}, δ T_{3}) d V - \int_{S_{g}} (u_{pr} \cdot δ p + D u_{pr} \cdot δ r_{n}) d S_{g} \\ - \oint_{C_{g}} u_{pr} \cdot δ c d C_{g} \\ + \int_{S_{g}} (u_{pr} \cdot δ p + D u_{pr} \cdot δ r_{n}) d S_{g} + \oint_{C_{g}} u_{pr} \cdot δ c d C_{g} \\ = \int_{V} w^{*} (δ T_{2}, δ T_{3}) d V . \end{matrix}

(100)

Therefore, since the positive definiteness of $w^{*}$ , we have $w^{*} (δ T_{2}, δ T_{3}) \geq 0$ and consequently

Ψ (T_{2}, T_{3}) \geq Ψ (T_{2}^{0}, T_{3}^{0}),

(101)

and equality

Ψ (T_{2}, T_{3}) = Ψ (T_{2}^{0}, T_{3}^{0})

(102)

holds only if

δ T_{2} = 0, δ T_{3} = 0,

(103)

T_{2} = T_{2}^{0}, T_{3} = T_{3}^{0} .

(104)

Indeed, it is shown by Nazarenko et al. [31] that the complementary energy equation (29) can be presented in a modified form

\begin{matrix} w^{*} (T_{2}, T_{3}) = \frac{1}{2} T_{2} \cdot \cdot C_{4}^{- 1} \cdot \cdot T_{2} \\ + \frac{1}{2} T_{3}^{m} \cdot \cdot \cdot (C_{6}^{m})^{- 1} \cdot \cdot \cdot T_{3}^{m}, \end{matrix}

(105)

\begin{matrix} w^{*} (δ T_{2}, δ T_{3}) = \frac{1}{2} δ T_{2} \cdot \cdot C_{4}^{- 1} \cdot \cdot δ T_{2} \\ + \frac{1}{2} δ T_{3}^{m} \cdot \cdot \cdot (C_{6}^{m})^{- 1} \cdot \cdot \cdot δ T_{3}^{m}, \end{matrix}

(106)

where $C_{6}^{m}$ is defined in equation (13) and $T_{3}^{m}$ and $δ T_{3}^{m}$ are determined as

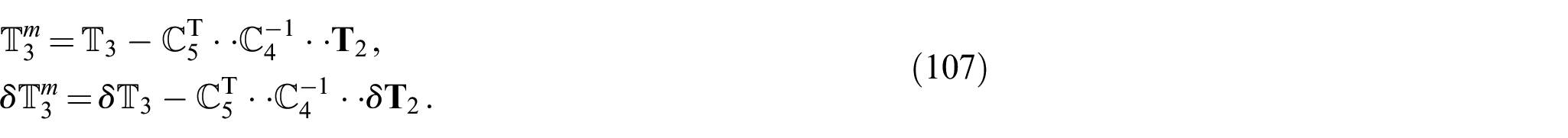

\begin{matrix} T_{3}^{m} = T_{3} - C_{5}^{T} \cdot \cdot C_{4}^{- 1} \cdot \cdot T_{2}, \\ δ T_{3}^{m} = δ T_{3} - C_{5}^{T} \cdot \cdot C_{4}^{- 1} \cdot \cdot δ T_{2} . \end{matrix}

(107)

It is evident that $w^{*} (δ T_{2}, δ T_{3}) = 0$ only if $δ T_{2} = 0$ and $δ T_{3}^{m} = 0$ . Since $δ T_{2} = 0$ , we obtain that $δ T_{3} = 0$ .

4. Conclusion

The variational formulations of the minimum of potential and complementary energies are considered for the coupled strain-gradient elasticity theory. They play an important role in the construction of approximate solutions by numerical methods like FEM and in the evaluation of the upper and lower bounds, like the Voigt and Reuss bounds [40,41] in homogenization theory.

The coupling term in the equations for the stored and complementary energies equations (1) and (29) complicate the proof of the minimum character of these principles. To overcome this, the equation for the potential energy is rewritten with substitute quantities. It leads to decoupling or diagonalization of the quadratic form of the potential energy. Such a diagonalization makes it possible to convert Hooke’s law, to obtain the relations for compliance tensors, to derive a closed-form expression for complementary energy and to prove that the solution of the boundary value problem is indeed minimizes the potential and complementary energies even in the presence of fifth-rank coupling tensor $C_{5}$ . An additional complication in the proof of the minimum of complementary energy is related to the change of the independent variable from one displacement field to several stress fields ( $T_{2}$ and $T_{3}$ ).

It should be noted that the proofs are general and hold for any symmetry of stiffness tensors including non-centro-symmetric materials, even though in terms of the substitute quantities, the coupling stiffness is zero.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: Authors gratefully acknowledge the financial support by the German Research Foundation (DFG) via Project AL 341/51-1.

ORCID iD

Lidiia Nazarenko

References

Cosserat

. Théorie des corps déformables. Paris: A. Hermann et ﬁls, 1909.

Hellinger

. Die Allgemeinen Ansätze der Mechanik der Kontinua. In: Klein

Müller

(eds) Encyklopädie der mathematischen Wissenschaften, vol. IV-4, Heft 5. Leipzig: Teubner, 1913, pp. 601–694.

Toupin

. Elastic materials with couple-stresses. Arch Ration Mech Anal 1962; 11(1): 385–414.

Green

Rivlin

. Multipolar continuum mechanics. Arch Ration Mech Anal 1964; 17(2): 113–147.

Mindlin

. Micro-structure in linear elasticity. Arch Ration Mech Anal 1964; 16(1): 51–78.

Mindlin

. Second gradient of strain and surface-tension in linear elasticity. Int J Solids Struct 1965; 1: 417–438.

Mindlin

Eshel

. On ﬁrst strain-gradient theories in linear elasticity. Int J Solids Struct 1968; 4: 109–124.

Germain

. The method of virtual power in continuum mechanics—part 2: microstructure. SIAM J Appl Math 1973; 25(3): 556–575.

Askes

Suiker

ASJ

Sluys

. A classiﬁcation of higher-order strain-gradient models: linear analysis. Arch Appl Mech 2002; 72: 171–188.

10.

Cordero

Forest

Busso

. Second strain gradient elasticity of nano-objects. J Mech Phys Solids 2016; 97: 92–124.

11.

Forest

Cordero

Busso

EP.

First vs Second gradient of strain theory for capillarity effects in an elastic ﬂuid at small length scales. Comput Mater Sci 2011; 50(4): 1299–1304.

12.

Forest

Bertram

. Formulations of strain gradient plasticity. In: Altenbach

Maugin

Eremeyev

(eds) Mechanics of generalized continuaAdvanced structured materials, vol. 7. Berlin: Springer, 2011, pp. 137–149.

13.

Eugster

dell’Isola

Steigmann

. Continuum theory for mechanical metamaterials with a cubic lattice substructure. Math Mech Comp Syst 2019; 7(1): 75–98.

14.

Georgiadis

Anagnostou

. Problems of the Flamant–Boussinesq and Kelvin type in dipolar gradient elasticity. J Elast 2008; 90: 71–98.

15.

Javili

dell’Isola

Steinmann

. Geometrically nonlinear higher-gradient elasticity with energetic boundaries. J Mech Phys Solids 2013; 61: 2381–2401.

16.

Placidi

Barchiesi

Turco

, et al. A review on 2D models for the description of pantographic fabrics. ZAMM: J Appl Math Mech / Zeitschrift Angew Math Mech 2016; 67(5): 121.

17.

Rahali

Giorgio

Ganghoffer

, et al. Homogenization Ã la piola produces second gradient continuum models for linear pantographic lattices. Int J Eng Sci 2015; 97: 148–172.

18.

Abdoul-Anziz

Seppecher

. Strain gradient and generalized continua obtained by homogenizing frame lattices. Math Mech Comp Syst 2018; 6(3): 213–250.

19.

Volkov-Bogorodsky

Evtushenko

Zubov

, et al. Calculation of deformations in nanocomposites using the block multipole method with the analytical-numerical account of the scale effects. Comput Math Math Phys 2006; 46: 1234–1253.

20.

Reiher

Giorgio

Bertram

. Finite-element analysis of polyhedra under point and line forces in second-strain gradient elasticity. J Eng Mech 2017; 143(2): 0001184.

21.

Sinclair

. Stress singularities in classical elasticity—I: removal, interpretation, and analysis. Appl Mech Rev 2004; 57: 251–298.

22.

Lazar

Maugin

Aifantis

. On a theory of nonlocal elasticity of bi-Helmholtz type and some applications. Int J Solids Struct 2006; 43(6): 1404–1421.

23.

Lim

Zhang

Reddy

. A higher-order nonlocal elasticity and strain gradient theory and its applications in wave propagation. J Mech Phys Solids 2015; 78: 298–313.

24.

Peerlings

RHJ

Geers

MGD

de Borst

, et al. A critical comparison of nonlocal and gradient-enhanced softening continua. Int J Solids Struct 2001; 38(44–45): 7723–7746.

25.

Aifantis

. A simple approach to solve boundary-value problems in gradient elasticity. Acta Mech 1993; 101(1–4): 59–68.

26.

Gurtin

. The linear theory of elasticity. In: Truesdell

(ed.) Linear Theories of Elasticity and Thermoelasticity. Berlin; Heidelberg: Springer, 1973, pp. 1–295.

27.

Forte

Vianello

. Symmetry classes for elasticity tensors. J Elast 1996; 43(2): 81–108.

28.

Kholkin

Pertsev

Goltsev

. Piezoelectricity and crystal symmetry. In: Safari

Akdogan

(eds) Piezoelectric and acoustic materials for transducer applications. Cham: Springer, 2008, pp. 17–38.

29.

Dell’Isola

Sciarra

Vidoli

. Generalized hooke’s law for isotropic second gradient materials. Proc Royal Soc London A: Math, Phys Eng Sci 2009; 465: 2177–2196.

30.

Nazarenko

Glüge

Altenbach

. Positive deﬁniteness in coupled strain gradient elasticity. Contin Mech Thermodyn 2021; 33: 713–725.

31.

Nazarenko

Glüge

Altenbach

. Inverse Hooke’s law and complementary strain energy in coupled strain gradient elasticity. ZAMM: J Appl Math Mech / Zeitschrift Angew Math Mech 2021; 2021: e00005.

32.

Nazarenko

Glüge

Altenbach

. Uniqueness theorem in coupled strain gradient elasticity with mixed boundary conditions. Contin Mech Thermodyn 2022; 34: 93–106.

33.

Kirchner

Steinmann

. A unifying treatise on variational principles for gradient and micromorphic continua. Philos Mag 2005; 85(33–35): 3875–3895.

34.

Polizzotto

. Gradient elasticity and nonstandard boundary conditions. Int J Solids Struct 2003; 40(26): 7399–7423.

35.

Polizzotto

. A unifying variational framework for stress gradient and strain gradient elasticity theories. Eur J Mech: A/Solids 2015; 49: 430–440.

36.

Gao

Park

. Variational formulation of a simpliﬁed strain gradient elasticity theory and its application to a pressurized thick-walled cylinder problem. Int J Solids Struct 2007; 44(22): 7486–7499.

37.

Lurie

Belov

Solyaev

, et al. Symmetry and applied variational models for strain gradient anisotropic elastisity. Nanosci Technol: Int J 2021; 12(1): 75–99.

38.

Eremeyev

Lurie

Solyaev

, et al. On the well posedness of static boundary value problem within the linear dilatational strain gradient elasticity. Zeitschrift Angew Math Phys 2020; 71(6): 182.

39.

Bertram

. Compendium on gradient materials. 4th ed.2019, https://www.lkm.tu-berlin.de/fileadmin/fg49/publikationen/bertram/Compendium_on_Gradient_Materials_2019_neu.pdf

40.

Voigt

. Ueber die Beziehung zwischen den beiden Elasticitätsconstanten isotroper Körper. Annal Phys 1889; 274(12): 573–587.

41.

Reuss

. Berechnung der Fließgrenze von Mischkristallen auf Grund der Plastizitätsbedingung für Einkristalle. ZAMM: J Appl Math Mech / Zeitschrift Angew Math Mech 1929; 9(1): 49–58.
