On the torsion of a shaft made of polar isotropic or fibre-reinforced linearly elastic material

Abstract

The fundamental solution of the linear elasticity problem of a non-polar isotropic shaft subjected to an externally applied torsional couple is extended to embrace effects of structural behaviour observed when the shaft is made of either polar isotropic or fibre-reinforced (transversely isotropic) material with fibre-bending stiffness. In the latter case, which is the subject of principal interest, the fibres are assumed parallel to the shaft central axis that is aligned with the axis of the externally applied torque. The shape of the shaft cross-section is essentially considered arbitrary, in the sense that full solution of polar material problem is subjected only to relevant conditions met in its classical, non-polar elasticity version. In dealing with polar isotropy, the obtained solution substantially enhances some initial analytical results that are already available in the literature. In dealing with polar transverse isotropy, the presented models and analytical results are new. It is verified that, in the latter case, the attained solution is exclusively dominated by fibre-twist features of deformation. This verification is underpinned by the observation that, as far as the torsion problem of interest is concerned, the unrestricted version of the theory of fibre-reinforced materials with fibre-bending stiffness provides a reliable relevant model, as well as equally reliable analytical results. However, due to the substantially smaller number of couple-stress elastic moduli involved in the restricted fibre-bending and fibre-splay versions of the theory, neither of the latter versions is able to do the same.

Keywords

Cosserat theory couple-stress theory elasticity fibre-reinforced materials fibres with bending stiffness polar materials polar linear elasticity shaft torsion transverse isotropy

1. Introduction

Section 9 in Spencer and Soldatos’s study [1] developed the linearised version of the couple-stress theory of elastic solids reinforced by a single family of unidirectional straight fibres with bending stiffness and revealed that the polar part of a relevant deformation is generally dominated by the interplay of three principal modes. These are the so-called fibre-splay, fibre-twist, and fibre-bending modes of deformation. Their coupled action requires from the theory to complement the standard set of five elastic moduli met in non-polar transverse isotropic elasticity with an additional set of eight new elastic moduli (also refer Section 5 in Soldatos’s study [2]). Seven of those new, polar response elastic moduli emerge in the constitutive equation of the deviatoric part of the couple-stress tensor [1] and, for simplicity are accordingly termed as “deviatoric couple-stress moduli” in what follows. The eighth modulus of that set is associated with the action of the spherical part of the couple-stress tensor [2]. It is recalled that the conventional versions of couple-stress theory [1,3,4] leave the spherical part (or, equivalently, the trace) of the couple-stress tensor indeterminate. However, a recent refined formulation of that theory [2,5] has now eliminated that deficiency.

It is remarkable that, on its own (if uncoupled, or filtrated, from its other two counterparts), each one of the aforementioned fibre deformation modes is characterised by features that resemble closely the transversely isotropic equivalent of one of three fundamental elasticity problems discussed by Timoshenko and Goodier [6] in Sections 9 and 10 of their study. These are the problems of the stretching of a bar by its own weight, the torsion of a shaft, and the pure bending of a plate (or bar), all three being of paramount theoretical significance and practical importance in non-polar isotropic linear elasticity.

The fact that the fibre-bending deformation mode exhibits features that resemble pure bending of a relevant transversely isotropic elastic specimen guided the application of a filtration process [7] that produced the now-called restricted fibre-bending version of the linearised couple-stress theory developed by Spencer and Soldatos [1] and Soldatos [2]. By considering that the fibre-bending deformation mode is generally most influential in the majority of practical applications, that restricted version [7] succeeded to reduce the number of seven deviatoric couple-stress elastic moduli emerging in the unrestricted theory into, just, a single one. The extra (eighth) polar elasticity modulus that relates to action of the spherical part of the couple-stress tensor still emerges in this case, but only as a necessary second polar elasticity modulus (also refer Soldatos [8]).

A second restricted version of the same, unrestricted, linearised couple-stress theory [1,2] proposed by Soldatos et al. [9] and succeeded to predominantly capture features chracterising the aforementioned fibre-splay deformation mode. That version of the theory reduces the initial number of seven deviatoric couple-stress elastic moduli to two, thus leaving the extra modulus that relates to action of the spherical part of the couple-stress as a third polar elasticity modulus. The rather evident relation of that version with the fibre-splay deformation mode was further verified, analytically, in Soldatos’s study [10], which studied in detail the dilatation features that dominate deformation of a self-stretched bar made of transversely isotropic polar elastic material.

In modelling and solving the pure bending problem of a fibre-reinforced plate with fibre-bending stiffness [8] the unrestricted (full) theory and its restricted fibre-bending version produce practically identical analytical results, while the restricted fibre-splay version fails to yield reliable relevant information [9]. In an analogous manner, though on the opposite end of the fibre deformation spectrum, the restricted fibre-bending version fails to provide reliable information when employed to study the problem of a self-stretched fibre-reinforced bar, for which, however, the full theory and its restricted fibre-splay version are found practically equivalent [10]. It is accordingly concluded that, in more general boundary value problem applications, the single deviatoric couple-stress elastic modulus employed by the restricted fibre-bending version of the theory accounts for completely different fibre deformation effects to those accounted for by the pair of its counterparts appearing in the restricted fibre-splay version.

The outlined theoretical progress and analytical findings suggest that the last remaining, fibre-twist deformation mode is likely to exhibit features that resemble torsional characteristics of some appropriately built transversely isotropic cylindrical shaft. The lack and need for discovery of possible relevant information, thus, adequately describes the principal subject of the present investigation. This aims (1) to initiate a study of the torsion problem of a polar fibre-reinforced shaft on the basis of the unrestricted linear couple-stress theory of present interest [1,2] and, through appropriate analytical comparisons, (2) to also gather, partially or totally, additional information regarding the relevant performance of either of its restricted versions.

It is recalled in this context that torsion of polar anisotropic shafts was also considered and studied by Taliercio and Veber [11,12]. However, unlike this study that is based on the anisotropic couple-stress theory stemming from previous studies [1,2], Taliercio and Veber [11,12] were interested on applications underpinned by the relevant micropolar theory. Namely, a theory that employs an augmented number of displacement and micro-rotation unknowns and, also, makes use of a non-symmetric strain tensor.

Nevertheless, the interests of this communication also embrace torsion of polar isotropic elastic shafts, where there is no fibre presence. Relevant investigations do exist in the literature [13 –17]. However, the studies [13 –15] are based on theoretical background, stemming from strain-gradient and relaxed micromorphic models, that is more sophisticated than the present, simpler framework of the couple-stress theory. On the contrary, Tsiatas and Katsikadelis [16] and Kwon [17] make use of a modified version of the conventional couple-stress theory proposed by Yang et al. [18] and, hence, are nearer to the polar material models of present interest [5,7]. In this connection, some interesting comparisons are also made between the analytical findings detailed by Tsiatas and Katsikadelis [16] and Kwon [17] and their counterparts stemming from this study, whose basic concepts and equations are briefed in Section 2.

Section 3 initially introduces existing basic background regarding the problem of torsion of a non-polar linearly elastic isotropic shaft with arbitrary cross-section [6,19] and, afterwards, upgrades it in a manner that embraces torsion of corresponding transversely isotropic shafts. Moreover, it connects that background with polar material behaviour and describes the form attained by the corresponding solution when a fibre-reinforced shaft subjected to torsion has a cross-section of arbitrary shape. Section 4 next attempts to solve the same problem with use of either the restricted fibre-bending version of the theory or its fibre-splay counterpart and, thus, reveals that, due to substantial number reduction of the involved polar material elastic moduli, neither of those versions can provide any kind of information in this case. As is already implied, Section 5 turns into the corresponding case of polar linear isotropy and provides relevant analytical results that refer to shafts of either general or elliptical cross-section. Section 6 summarises and discusses further the principal findings of this investigation.

2. Preliminary theoretical concepts and basic equations

In cases that a linearly elastic material responds to mechanical loading in a manner that characterises polar material behaviour, its strain energy function attains the form (e.g. [1 –5,7]):.

W = W^{e} (e) + W^{k} (κ) \geq 0,

(2.1)

where W^e is the strain energy function of the corresponding non-polar linearly elastic material and W^k is positive semi-definite and quadratic in the components of a tensor, $κ$ , that captures curvature-type features of deformation.

Hence, by decomposing the components of the emerging non-symmetric stress tensor, σ, into its standard symmetric and antisymmetric parts (indices take the values 1, 2, and 3):

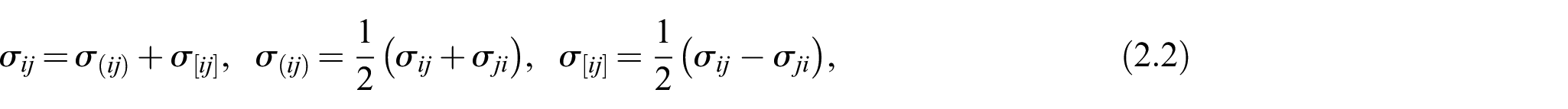

σ_{ij} = σ_{(ij)} + σ_{[ij]}, σ_{(ij)} = \frac{1}{2} (σ_{ij} + σ_{ji}), σ_{[ij]} = \frac{1}{2} (σ_{ij} - σ_{ji}),

(2.2)

and regardless of the type of the involved anisotropy, one initially finds that the symmetric part of that tensor is naturally consistent with the well-known definitions:

σ_{(ij)} = \frac{\partial W^{e}}{\partial e_{ij}}, W^{e} (e) = \frac{1}{2} σ_{(ij)} e_{ji},

(2.3)

Here, as well as in what follows, use is made of the standard definitions of the small strain and rotation tensors,

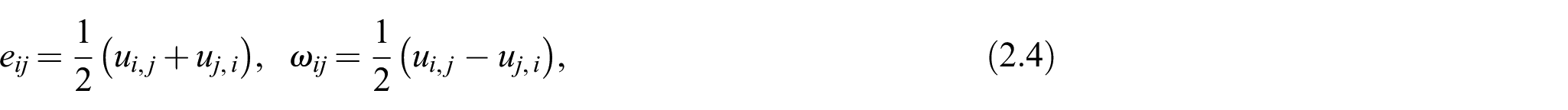

e_{ij} = \frac{1}{2} (u_{i, j} + u_{j, i}), ω_{ij} = \frac{1}{2} (u_{i, j} - u_{j, i}),

(2.4)

respectively, where u represents the displacement vector and a comma among indices denotes partial differentiation. These tensors evidently emerge as the symmetric and the antisymmetric part, respectively, of the displacement gradient tensor, $u_{i, j}$ .

In the case of present principal interest, where there exists anisotropy due to the presence of a single family of straight fibres with bending stiffness, the components of the curvature tensor $κ$ , as well as its symmetric and antisymmetric parts, are given as follows (e.g. [1,7]):

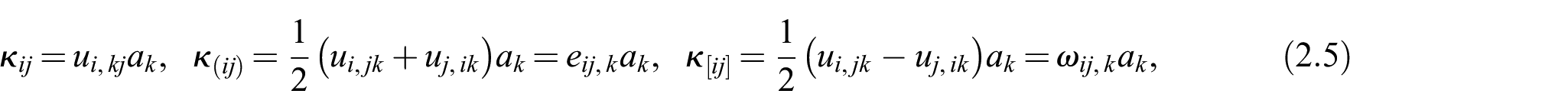

κ_{ij} = u_{i, kj} a_{k}, κ_{(ij)} = \frac{1}{2} (u_{i, jk} + u_{j, ik}) a_{k} = e_{ij, k} a_{k}, κ_{[ij]} = \frac{1}{2} (u_{i, jk} - u_{j, ik}) a_{k} = ω_{ij, k} a_{k},

(2.5)

where the appearing fibre direction vector, a, is considered constant. In analogy with (2.3a), the polar part of the constitutive equations is given as follows [7]:

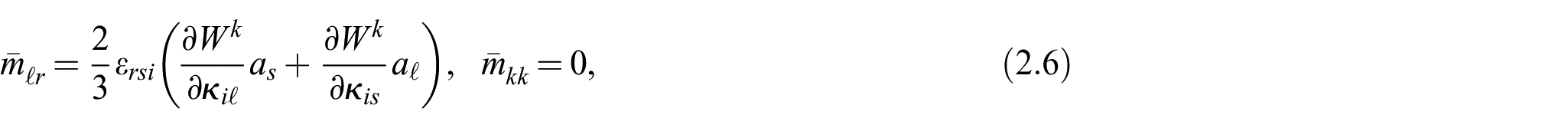

{\bar{m}}_{ℓ r} = \frac{2}{3} ε_{rsi} (\frac{\partial W^{k}}{\partial κ_{i ℓ}} a_{s} + \frac{\partial W^{k}}{\partial κ_{is}} a_{ℓ}), {\bar{m}}_{kk} = 0,

(2.6)

where $\bar{m}$ , with components:

{\bar{m}}_{ℓ k} = m_{ℓ k} - \frac{1}{3} m_{rr} δ_{ℓ k},

(2.7)

represents the deviatoric part, of the couple-stress tensor, m, and $δ_{ℓ k}$ is the Kronecker’s symbol.

The most general form of the polar part of the strain energy function is as follows (e.g. [7 –10]):

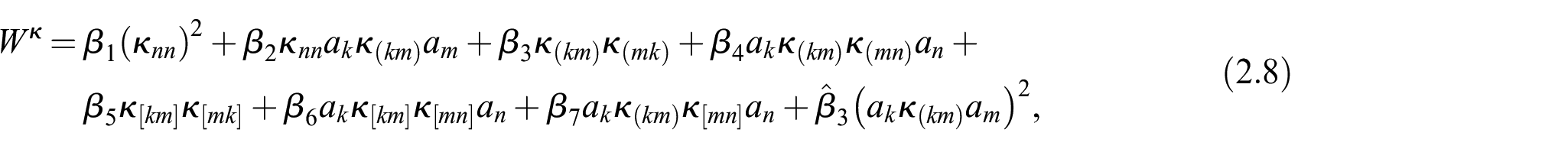

\begin{matrix} W^{κ} = β_{1} {(κ_{nn})}^{2} + β_{2} κ_{nn} a_{k} κ_{(km)} a_{m} + β_{3} κ_{(km)} κ_{(mk)} + β_{4} a_{k} κ_{(km)} κ_{(mn)} a_{n} + \\ β_{5} κ_{[km]} κ_{[mk]} + β_{6} a_{k} κ_{[km]} κ_{[mn]} a_{n} + β_{7} a_{k} κ_{(km)} κ_{[mn]} a_{n} + {\hat{β}}_{3} {(a_{k} κ_{(km)} a_{m})}^{2}, \end{matrix}

(2.8)

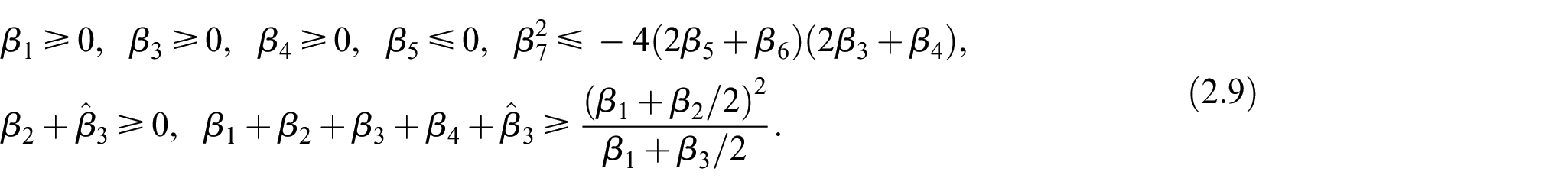

where the values of the eight elastic moduli β₁–β₇, and ${\hat{β}}_{3}$ are required to obey the following inequalities:

\begin{matrix} β_{1} \geq 0, β_{3} \geq 0, β_{4} \geq 0, β_{5} \leq 0, β_{7}^{2} \leq - 4 (2 β_{5} + β_{6}) (2 β_{3} + β_{4}), \\ β_{2} + {\hat{β}}_{3} \geq 0, β_{1} + β_{2} + β_{3} + β_{4} + {\hat{β}}_{3} \geq \frac{{(β_{1} + β_{2} / 2)}^{2}}{β_{1} + β_{3} / 2} . \end{matrix}

(2.9)

Hence, introduction of (2.8) into (2.6a) yields the constitutive equation:

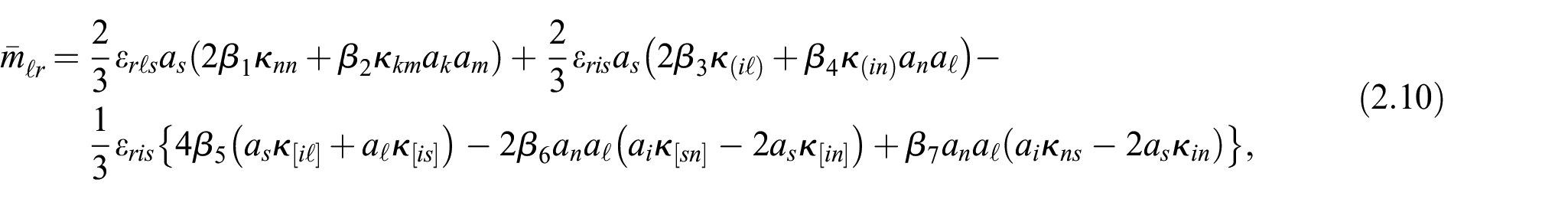

\begin{matrix} {\bar{m}}_{ℓ r} = \frac{2}{3} ε_{r ℓ s} a_{s} (2 β_{1} κ_{nn} + β_{2} κ_{km} a_{k} a_{m}) + \frac{2}{3} ε_{ris} a_{s} (2 β_{3} κ_{(i ℓ)} + β_{4} κ_{(in)} a_{n} a_{ℓ}) - \\ \frac{1}{3} ε_{ris} {4 β_{5} (a_{s} κ_{[i ℓ]} + a_{ℓ} κ_{[is]}) - 2 β_{6} a_{n} a_{ℓ} (a_{i} κ_{[sn]} - 2 a_{s} κ_{[in]}) + β_{7} a_{n} a_{ℓ} (a_{i} κ_{ns} - 2 a_{s} κ_{in})}, \end{matrix}

(2.10)

which naturally satisfies (2.6b). It then becomes evident that this constitutive equation receives no contribution from the part:

W^{m} = {\hat{β}}_{3} {(a_{k} κ_{(km)} a_{m})}^{2},

(2.11)

of the curvature-strain energy function (2.8).

Due to the anticipated polar material behaviour, the standard equilibrium equation met in non-polar elasticity needs to be replaced with a pair of such equations, namely:

σ_{(ij), i} + \frac{1}{2} ε_{kji} {\bar{m}}_{ℓ k, ℓ i} = 0, σ_{[ij]} = \frac{1}{2} ε_{kji} m_{ℓ k, ℓ},

(2.12)

where ε represents the alternating tensor. Hence, the second of these equations is here regarded as a constitutive equation that provides the components of the antisymmetric part of the stress as soon as the components of the couple-stress tensor are determined.

Nevertheless, and in view of (2.7), determination of those components, $m_{ℓ k}$ , requires prior determination of the spherical part of the couple-stress, $m_{rr}$ . This is achieved by solving the following partial differential equation (PDE):

Ω_{ℓ} {m_{rr}}_{, ℓ} = 6 W^{m} - 3 {({\bar{m}}_{ℓ i} Ω_{i})}_{, ℓ},

(2.13)

which guarantees uniqueness of the value of the strain energy function (2.1) (e.g. [2,5,10]). Here, the appearing spin-type vector $Ω$ , with components.

Ω_{i} = \frac{1}{2} ε_{ijk} ω_{kj} = \frac{1}{2} ε_{ijk} u_{k, j},

(2.14)

is identified as the axial vector of the antisymmetric small rotation tensor defined in equation (2.4b).

Any relevant, well-posed boundary value problem must be accompanied with a set of six natural, geometric or mixed boundary conditions. In the former case, for instance, the components of the traction and the couple-traction vectors acting on a bounding surface must respectively be given, in consistency with the Cauchy-type formulas, as follows:

T_{i}^{(n)} = σ_{ji} n_{j}, L_{i}^{(n)} = m_{ji} n_{j},

(2.15)

where n denotes the outward unit normal of that surface. It is recalled in passing that, in dealing with the bounding surface of a polar material, Koiter [4] observed that only two of the three couple-stress-related boundary conditions, like (2.15b), can be set independently of the deformation. In agreement with Koiter’s observation, it is recently concluded [2,5] that five of the boundary conditions (2.15) are associated with the solution of the equilibrium equations (2.12) and, hence, the single remaining boundary condition is necessarily connected with the solution of the first-order PDE (2.13).

3. Torsion of a polar transversely isotropic shaft

Figure 1 depicts an elastic cylindrical shaft of length L, placed within a Cartesian co-ordinate system, Ox_i, and subjected to some externally applied torsional couple M₃. The generators as well as the axis of the externally applied torque are considered parallel to the co-ordinate axis Ox₃. Thus, every shaft cross-section lies on a plane parallel to the co-ordinate plane Ox₁x₂ and is bounded by a plane curve, C. It follows that the depicted outward unit normal, $\hat{n}$ , of the curve C represents the outward unit normal of the shaft lateral surface as well.

Figure 1.

Schematic representation of (a) a cylindrical elastic shaft of length L, subjected to externally applied torsional couple, $M_{3}$ , and having an undeformed cross-section of (b) arbitrarily general or (c) elliptical shape ( $\hat{n}$ represents the outward unit vector of the plane, cross-sectional bounding curve, C).

It will be seen that, if the shaft is made of non-polar material, the origin of the co-ordinate system, O, may be placed on any cross-section, regardless of the general shape of the latter. However, it will also be seen that this matter may require special care in cases that the shaft exhibits polar material behaviour.

In the case of a shaft made of non-polar isotropic material, this torsion problem is susceptible to a well-known, classical solution that is attributed to Saint-Venant [6, 19], in particular, presents an extensive historical review of the subject and, in Art. 226, extends that solution to embrace symmetries of material anisotropy that are as advanced as those met in linearly elastic monoclinic materials. This study is principally interested on polar material response of a shaft reinforced by a single family of straight fibres aligned with the x₃-direction. Hence, the type of anisotropy involved is confined within the material symmetries of transverse isotropy.

3.1. Torsion of a non-polar transversely isotropic shaft of arbitrary cross-section (m = 0)

It is accordingly considered that the axis of the applied torque and the axis of transverse isotropy are both parallel to the x₃-direction of the co-ordinate system. In that case, the form attained by the generalised Hooke’s law stemming from Equation (2.3) can be expressed in terms of five independent elastic moduli (e.g. Soldatos [10]) as follows:

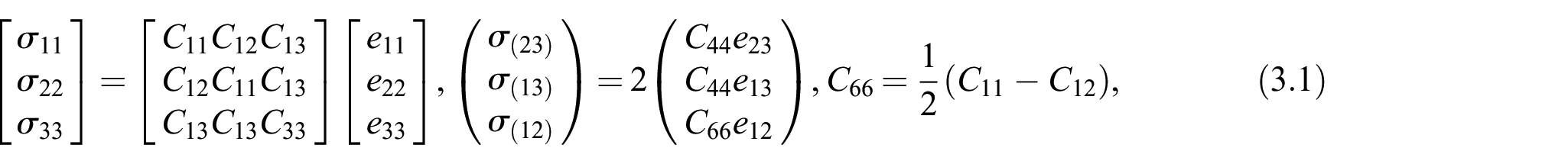

[\begin{matrix} σ_{11} \\ σ_{22} \\ σ_{33} \end{matrix}] = [\begin{matrix} C_{11} C_{12} C_{13} \\ C_{12} C_{11} C_{13} \\ C_{13} C_{13} C_{33} \end{matrix}] [\begin{matrix} e_{11} \\ e_{22} \\ e_{33} \end{matrix}], (\begin{matrix} σ_{(23)} \\ σ_{(13)} \\ σ_{(12)} \end{matrix}) = 2 (\begin{matrix} C_{44} e_{23} \\ C_{44} e_{13} \\ C_{66} e_{12} \end{matrix}), C_{66} = \frac{1}{2} (C_{11} - C_{12}),

(3.1)

where, in line with Equation (2.2b), enclosure of shear stress indices within parentheses implies that the stress tensor is symmetric.

It is fitting to also point out that this form of the generalised Hooke’s law reduces to its isotropic elasticity counterpart by replacing the appearing elastic moduli with the following:

C_{11} = C_{33} = λ + 2 μ, C_{12} = C_{13} = λ, C_{44} = C_{66} = μ,

(3.2)

where $λ$ and $μ$ are the standard Lamé elastic moduli. It will next be seen that the only difference between the solution of the isotropic Saint-Venant torsion problem, and its transversely isotropic extension is essentially an appropriate introduction into the former of the out-of-plane shear modulus, C₄₄.

Accordingly, the transversely isotropic extension sought starts again with the displacement choice [6,19]:

u_{1} = - ϑ x_{2} x_{3}, u_{2} = ϑ x_{1} x_{3}, u_{3} = ϑ w (x_{1}, x_{2}),

(3.3)

where the positive constant $ϑ$ , with dimensions of (length)⁻¹, and the cross-sectional warping function w, with dimensions of area, are to be determined. A combination of equations (3.3) and (2.4) then reveals that the only non-zero strain components are:

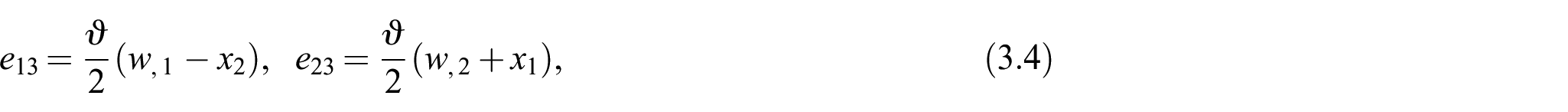

e_{13} = \frac{ϑ}{2} (w_{, 1} - x_{2}), e_{23} = \frac{ϑ}{2} (w_{, 2} + x_{1}),

(3.4)

while the corresponding rotation components are given as follows:

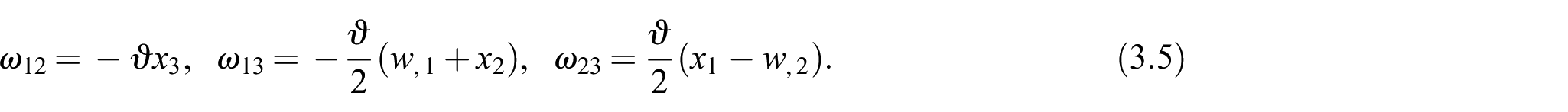

ω_{12} = - ϑ x_{3}, ω_{13} = - \frac{ϑ}{2} (w_{, 1} + x_{2}), ω_{23} = \frac{ϑ}{2} (x_{1} - w_{, 2}) .

(3.5)

Introduction of Equations (3.4) into (3.1) then yields the non-zero components of stress as follows:

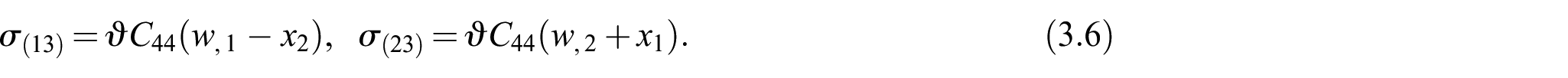

σ_{(13)} = ϑ C_{44} (w_{, 1} - x_{2}), σ_{(23)} = ϑ C_{44} (w_{, 2} + x_{1}) .

(3.6)

Hence, satisfaction of the equilibrium equations of non-polar elasticity (m = 0), namely

σ_{(ji), j} = 0,

(3.7)

still requires from the warping function to be harmonic [6,19], namely to satisfy the Laplace’s PDE,

\nabla^{2} w \equiv w_{, 11} + w_{, 22} = 0 .

(3.8)

Moreover, two of the zero-traction boundary conditions,

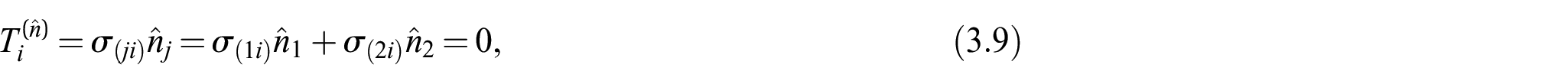

T_{i}^{(\hat{n})} = σ_{(ji)} {\hat{n}}_{j} = σ_{(1 i)} {\hat{n}}_{1} + σ_{(2 i)} {\hat{n}}_{2} = 0,

(3.9)

applied on the shaft lateral boundary (see Figure 1) are satisfied identically, while the third requires from w to further satisfy the PDE:

(w_{, 1} - x_{2}) {\hat{n}}_{1} + (w_{, 2} + x_{1}) {\hat{n}}_{2} = 0,

(3.10)

whose precise form depends on the unit vector $\hat{n}$ and, therefore, on the shape of the cross-sectional boundary curve C.

Since neither of the PDEs (3.8) and (3.10) is influenced by the elastic moduli appearing in Equation (3.1), their solution, as well as the solution of the torsion problem of the non-polar transversely isotropic shaft, is seen mathematically identical to their non-polar isotropic counterparts. It follows that, as is shown by Timoshenko and Goodier [6] and Love [19], (1) the resultant force produced by the non-zero stresses (3.6) on any cross-section is zero and, therefore, (2) those non-zero stresses are statically equivalent to the couple, M₃, which is applied externally on the shaft ends.

Moreover, (3) the magnitude of that torsional moment relates to the torsion parameter $ϑ$ as follows:

ϑ = | M_{3} | / D,

(3.11)

where the value of the appearing “torsional rigidity,”

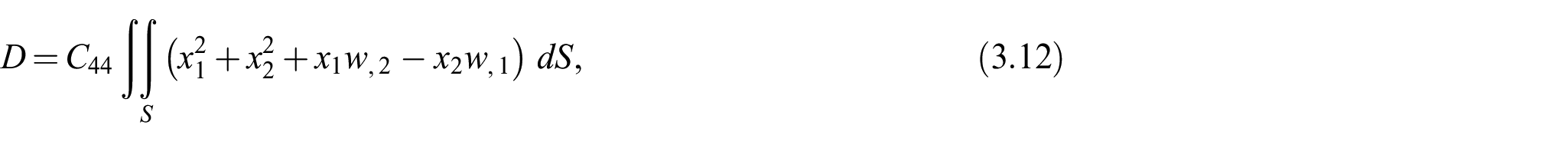

D = C_{44} \int \int_{S} (x_{1}^{2} + x_{2}^{2} + x_{1} w_{, 2} - x_{2} w_{, 1}) dS,

(3.12)

depends on the form of the warping function, w, the shape and the area of the shaft cross-section, S, as well as on the value of the out-of-plane shear modulus, C₄₄.

It follows, by virtue of Equations (3.4), (3.8), and (3.10), that regardless of the precise location of the co-ordinate origin, every cross-section is subjected to (1) the same out-of-plane strain field (3.4), (2) the same warping, and (3) rotates around the x₃-axis by an angle (3.5a) that changes continuously along the x₃-axis. As a matter of fact, if the co-ordinate origin (x₃ = 0) is unnecessarily placed on a particular cross-section, (3.5a) implies that the latter is essentially chosen to represent a reference cross-section that is considered restrained against torsional rotation. In other words, both the sense and the amount (3.5a) of torsional rotation observed on any shaft cross-section are dependent on its oriented distance, x₃, from the chosen reference cross-section.

It is accordingly recalled that, in dealing with the special case in which C₄₄ satisfies section (3.2c), Timoshenko and Goodier [6] and Love [19] provide complete solutions of this torsional problem for several different forms of the shaft cross-section. Appropriate replacement of the isotropic material shear modulus, $μ$ , with its transverse isotropy counterpart, C₄₄, makes therefore those solutions, as well as the substantial relevant bibliographic and other additional information provided by Timoshenko and Goodier [6] and Love [19] directly applicable into the present case of interest.

For instance, it is already known that the cross-sectional warping function and the torsional rigidity of an elliptic shaft are respectively given as follows [6,19]:

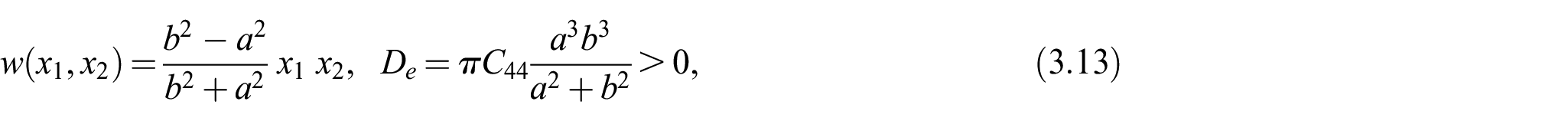

w (x_{1}, x_{2}) = \frac{b^{2} - a^{2}}{b^{2} + a^{2}} x_{1} x_{2}, D_{e} = π C_{44} \frac{a^{3} b^{3}}{a^{2} + b^{2}} > 0,

(3.13)

where a and b represent the length of the ellipsis semi-axes along the x₁ and x₂ directions, respectively (see Figure 1(c)). Use of (3.11) thus yields:

ϑ = \frac{| M_{3} |}{D_{e}} = \frac{a^{2} + b^{2}}{π C_{44} a^{3} b^{3}} | M_{3} | > 0,

(3.14)

which completes the solution of the non-polar elasticity problem in this special case.

It is worth recalling that this result is in agreement with its counterpart stemming from the elementary theory of torsion, according to which the cross-section of a non-polar circular shaft (b = a) does not warp during torsion (w = 0).

3.2. Polar material behaviour (m≠0): fibre-reinforced shaft with fibre-bending stiffness

It is now considered that transverse isotropy is due to the presence of a single family of straight fibres with bending stiffness. Due to the externally applied torque and subsequent shaft torsion, those fibres twist and, as a result, become the source of polar material behaviour.

By virtue of Equation (2.1), it is accordingly considered that the analysis detailed in Section 3.1 (1) is still valid and (2) is complemented by the polar material part of its counterpart detailed in Section 2, where, (3) it is necessarily (see Figure 1):

a \equiv e_{3} = {(0, 0, 1)}^{T} .

(3.15)

The fibre-curvature components (2.5), thus, attain the more specific form:

κ_{ij} = u_{i, j 3}, κ_{(ij)} = e_{ij, 3}, κ_{[ij]} = ω_{ij, 3},

(3.16)

and, by virtue of Equations (3.4) and (3.5), reveal that their nonzero counterparts,

κ_{12} = κ_{[12]} = - κ_{[21]} = - ϑ,

(3.17)

are all constant.

The polar part (2.8) of the strain energy function then attains a simple form,

W^{κ} = β_{5} κ_{[km]} κ_{[mk]} = - 2 β_{5} ϑ^{2},

(3.18)

which, by virtue of (2.9d), is indeed positive semi-definite. It thus becomes understood that (1) the present polar material study makes use of a single couple-stress elastic modulus only, namely $β_{5}$ , and (2) this modulus is necessarily associated with curvature-strain energy contribution that is due solely to fibre-twist action. Moreover, either through direct use of Equation (3.18) or with the help of Equation (2.11), it is also seen that

W^{m} = {\hat{β}}_{3} κ_{33}^{2} = 0 .

(3.19)

The deviatoric couple-stress constitutive Equation (2.10) then simplifies into the following:

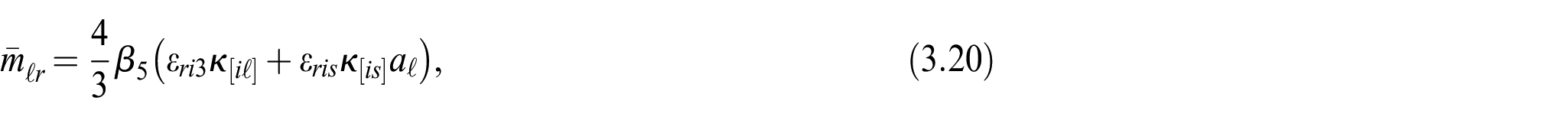

{\bar{m}}_{ℓ r} = \frac{4}{3} β_{5} (ε_{ri 3} κ_{[i ℓ]} + ε_{ris} κ_{[is]} a_{ℓ}),

(3.20)

and returns only three nonzero deviatoric couple-stresses, namely

{\bar{m}}_{11} = {\bar{m}}_{22} = - \frac{8}{3} β_{5} ϑ, {\bar{m}}_{33} = \frac{16}{3} β_{5} ϑ,

(3.21)

whose values are naturally in agreement with the fact that a deviatoric tensor is traceless ( ${\bar{m}}_{rr} = 0$ ).

It is observed that Equation (3.21) consists of normal deviatoric couple-stresses only. Hence, by virtue of Equation (2.7), the couple-stress tensor, m, happens to be symmetric in this application. Moreover, the fact that these deviatoric couple-stresses (3.21) are all constant enables reduction of the polar elasticity equilibrium Equation (2.12a) into its non-polar elasticity form Equation (3.7), which is therefore still satisfied.

3.3. Determination of the spherical part of the couple-stress

Determination of the spherical part of the couple-stress now requires reduction of the PDE (2.13) into an explicit relevant form that must be solved for $m_{rr}$ . It is accordingly seen that a combination of Equations (2.14) and (3.5) yields the components of the spin-type vector Ω as follows:

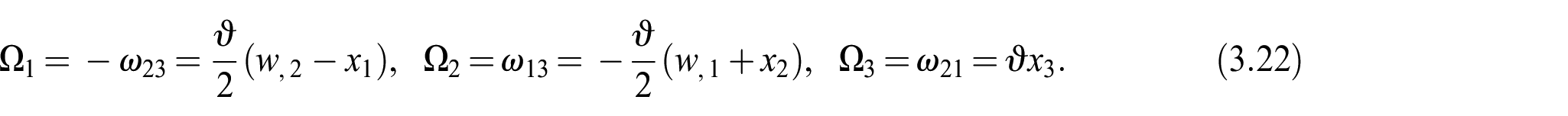

Ω_{1} = - ω_{23} = \frac{ϑ}{2} (w_{, 2} - x_{1}), Ω_{2} = ω_{13} = - \frac{ϑ}{2} (w_{, 1} + x_{2}), Ω_{3} = ω_{21} = ϑ x_{3} .

(3.22)

When combined with Equations (3.19) and (3.21), these relationships thus enable the PDE (2.13) to attain the form:

(w_{, 2} - x_{1}) {m_{rr}}_{, 1} - (w_{, 1} + x_{2}) {m_{rr}}_{, 2} + 2 x_{3} m_{rr, 3} = - 48 ϑ β_{5} .

(3.23)

Potential solutions of this PDE may be sought with the use of the method of characteristic lines, which has already been employed elsewhere [5,8,10] in connection with different types of relevant boundary value problems. In this context, the Appendix 1 outlines the initial steps that the method may employ before the shaft cross-section and, henceforth, the form of the warping function, w, are specified. Nevertheless, solutions onf (3.23) for a given form of w may also become available with use of some different method and, as is next seen for the general case of unspecified w, even by using the simple method of inspection.

It is accordingly observed that the PDE (3.23) admits a particular solution of the form:

m_{rr} = c_{1} \ln | x_{3} | + c_{2}, (x_{3} \neq 0),

(3.24)

where $c_{1}$ and $c_{2}$ are arbitrary constants. The logarithmic singularity observed at x₃ = 0 can be isolated by placing the origin of the co-ordinate system on one (say, the left) end of the shaft depicted in Figure 1(a).

The left end of the shaft thus is considered restrained against torsional rotation, and since the other end is located at x₃ = L, it is:

0 \leq x_{3} \leq L .

(3.25)

In this manner, the particular solution (3.24) now attains the simpler form:

m_{rr} = c_{1} \ln x_{3} + c_{2}, (x_{3} > 0) .

(3.26)

Potential combination of Equations (3.25) and (3.26) seems to require from $m_{rr}$ to attain an infinite value at x₃ = 0. However, this is a physically admissible requirement because, by virtue of Equation (2.7), no finite value of the normal couple-stress $m_{33} = {\bar{m}}_{33} + m_{rr} / 3$ can enforce rotation of the rotationally restrained left end of the shaft.

It is further noted in this regard that the possibility of placing the co-ordinate origin on some different cross-section, such as the middle cross-section of the shaft, needs not be considered. This is because such a choice essentially splits the shaft into two parts, each of which can be treated in a similar manner. Namely, having one of its ends restrained against rotation/torsion.

Introduction of Equations (3.26) into (3.23) makes now possible the unique specification of the constant $c_{1}$ , thus leading to:

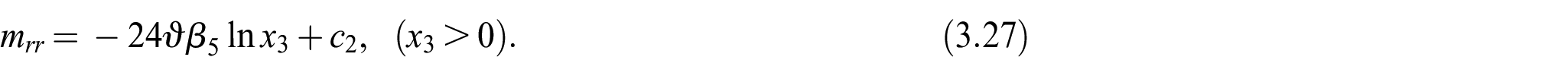

m_{rr} = - 24 ϑ β_{5} \ln x_{3} + c_{2}, (x_{3} > 0) .

(3.27)

3.4. Completion of polar elasticity solution for general shape of the shaft cross-section

Combination of Equations (2.7) and (3.21) reveals that the only non-zero couple-stresses acting throughout the circular shaft are the normal couple-stresses:

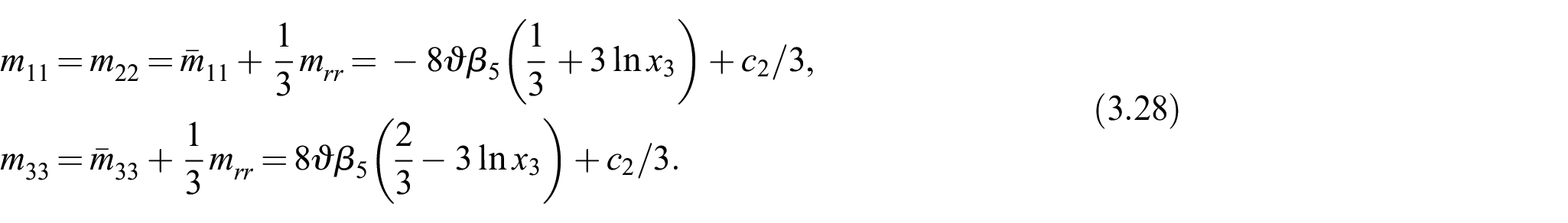

\begin{matrix} m_{11} = m_{22} = {\bar{m}}_{11} + \frac{1}{3} m_{rr} = - 8 ϑ β_{5} (\frac{1}{3} + 3 \ln x_{3}) + c_{2} / 3, \\ m_{33} = {\bar{m}}_{33} + \frac{1}{3} m_{rr} = 8 ϑ β_{5} (\frac{2}{3} - 3 \ln x_{3}) + c_{2} / 3 . \end{matrix}

(3.28)

The couple-stress tensor thus happens to be symmetric in this particular boundary value problem application, a fact that is evidently in agreement with a corresponding result obtained by Koiter [4] and Soldatos [5] for isotropic shafts of circular cross-section (further elucidation is provided Section 5 below).

The remaining arbitrary constant, $c_{2}$ , can then be specified by considering the out-of-plane couple-traction acting normally on any cross-section, where

n \equiv e_{3} = {(0, 0, 1)}^{T} .

(3.29)

Accordingly, introduction of Equation (3.29) into Equation (2.15b) yields:

L_{i}^{(e_{3})} = m_{ji} {(e_{3})}_{j} = m_{3 i},

(3.30)

or, in explicit form,

L_{1}^{(e_{3})} = L_{2}^{(e_{3})} = 0, L_{3}^{(e_{3})} = m_{33} = 8 ϑ β_{5} (\frac{2}{3} - 3 \ln x_{3}) + c_{2} / 3 .

(3.31)

It follows that the single, non-zero component of the out-of-plane couple-traction acting on the unfixed end boundary ( $x_{3} = L$ ) is

L_{3}^{(e_{3})} |_{x_{3} = L} = 8 ϑ β_{5} (\frac{2}{3} - 3 \ln L) + c_{2} / 3 .

(3.32)

However, $L_{3}^{(e_{3})}$ is parallel to the externally applied torsional moment and, hence, its end boundary value (3.32) can be absorbed by, or incorporated into the magnitude of M₃, regardless of the value of the arbitrary constant $c_{2}$ .

The simplest way of implementing this consideration is by choosing:

c_{2} = 8 ϑ β_{5} (9 \ln L - 2),

(3.33)

so that (3.32) returns:

L_{3}^{(e_{3})} |_{x_{3} = L} = 0 .

(3.34)

In this manner, the non-zero couple-stresses (3.28) acting throughout the body of the polar shaft are found to be

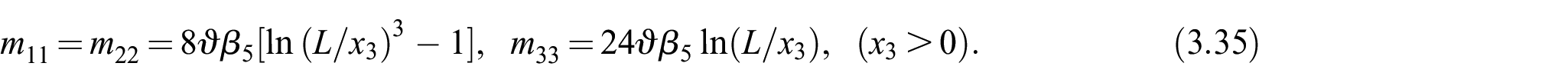

m_{11} = m_{22} = 8 ϑ β_{5} [\ln {(L / x_{3})}^{3} - 1], m_{33} = 24 ϑ β_{5} \ln (L / x_{3}), (x_{3} > 0) .

(3.35)

As is already pointed out, the singularities observed at the left end of the shaft ( $x_{3} = 0$ ) are physically admissible because that end is considered constrained against rotation/torsion.

It is next seen that the components of the couple-traction acting at any point of the shaft lateral boundary are

L_{i}^{(\hat{n})} = m_{ji} {\hat{n}}_{j} = m_{1 i} {\hat{n}}_{1} + m_{2 i} {\hat{n}}_{2},

(3.36)

or, in explicit form,

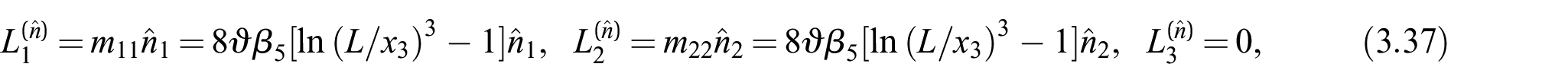

L_{1}^{(\hat{n})} = m_{11} {\hat{n}}_{1} = 8 ϑ β_{5} [\ln {(L / x_{3})}^{3} - 1] {\hat{n}}_{1}, L_{2}^{(\hat{n})} = m_{22} {\hat{n}}_{2} = 8 ϑ β_{5} [\ln {(L / x_{3})}^{3} - 1] {\hat{n}}_{2}, L_{3}^{(\hat{n})} = 0,

(3.37)

where $\hat{n}$ is outward the unit vector of the boundary curve C (see Figure 1). It is accordingly concluded that the deformation pattern (3.3) of the corresponding non-polar fibre-reinforced shaft can be maintained in the present polar material case only if the couple-traction:

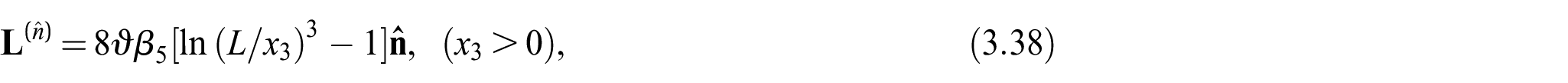

L^{(\hat{n})} = 8 ϑ β_{5} [\ln {(L / x_{3})}^{3} - 1] \hat{n}, (x_{3} > 0),

(3.38)

is applied externally all around the shaft lateral boundary.

It is further observed, that by virtue of Equation (2.12b), the non-zero couple-stress field (3.35) gives rise to the following, anti-symmetric part of in-plane shear stress:

σ_{[12]} = - σ_{[21]} = 12 ϑ β_{5} / x_{3}, (x_{3} > 0) .

(3.39)

Emergence of these stresses does not affect equilibrium but may invalidate the zero-traction boundary conditions (3.9) imposed on the lateral boundary of the non-polar material shaft.

It is indeed seen that the traction components acting on the lateral shaft boundary are given as follows:

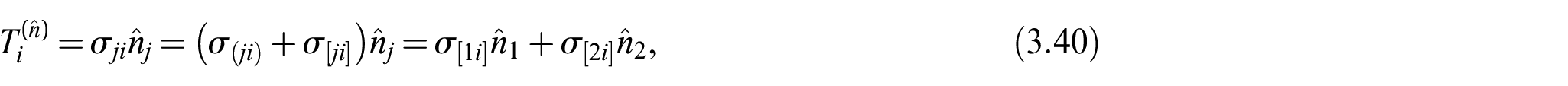

T_{i}^{(\hat{n})} = σ_{ji} {\hat{n}}_{j} = (σ_{(ji)} + σ_{[ji]}) {\hat{n}}_{j} = σ_{[1 i]} {\hat{n}}_{1} + σ_{[2 i]} {\hat{n}}_{2},

(3.40)

or, explicitly,

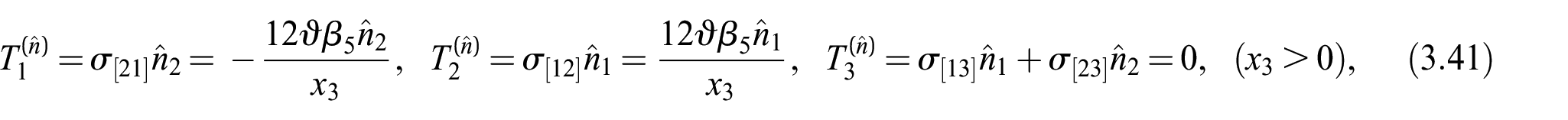

T_{1}^{(\hat{n})} = σ_{[21]} {\hat{n}}_{2} = - \frac{12 ϑ β_{5} {\hat{n}}_{2}}{x_{3}}, T_{2}^{(\hat{n})} = σ_{[12]} {\hat{n}}_{1} = \frac{12 ϑ β_{5} {\hat{n}}_{1}}{x_{3}}, T_{3}^{(\hat{n})} = σ_{[13]} {\hat{n}}_{1} + σ_{[23]} {\hat{n}}_{2} = 0, (x_{3} > 0),

(3.41)

because (3.9) are still valid.

It is accordingly concluded that, regardless of the shape of its cross-section, the present polar fibre-reinforced shaft can maintain the deformation pattern Equation (3.3) attained by its non-polar material counterpart only if the non-zero in-plane tractions Equation (3.41a, b) are also applied externally on its lateral boundary, along with their couple-traction counterparts Equation (3.37a, b).

In practical terms, potential failure of a relevant material specimen to attain the displacement pattern Equation (3.3), when subjected to a standard torsion test, consists strong indication of polar material behaviour. In that case, the linearity of the torsion problem of interest anticipates that, upon increasing the value of the loading parameter $ϑ$ , the deviation of the observed polar deformation pattern from its non-polar counterpart (3.3) will also be increasing in a linear manner. By virtue of Equations (3.11) and (3.12), this fact may therefore enable a simple torsion experiment to provide a linear relationship between the active polar material modulus $β_{5}$ and its non-polar material counterpart C₄₄.

It is worth recalling in this regard that a search for the actual deformation pattern that the implied polar material specimen will attain to, during a simple torsion experiment, may be sought by solving the polar material problem studied in this section in a retrospective manner, after replacing the set of extra, non-homogeneous boundary conditions (3.37a, b) and (3.41a, b) with their homogeneous equivalent ( $L_{1}^{(\hat{n})} = L_{2}^{(\hat{n})} = T_{1}^{(\hat{n})} = T_{2}^{(\hat{n})} = 0$ ). A relevant future endeavour that is based on direct solution of the outlined differential equations may be considered demanding at present. Nevertheless, an alternative solution method that is based on energy minimisation techniques has recently been made also available in Section 6 in Soldatos’ study [10].

3.5. Example: elliptic cross-section

As an example of the outlined analysis, consider an elliptical shaft whose cross-section, shown in Figure 1(c), is bounded by the plane curve:

f (x_{1}, x_{2}) \equiv \frac{x_{1}^{2}}{a^{2}} + \frac{x_{2}^{2}}{b^{2}} - 1 = 0,

(3.42)

where, a and b represent the lengths of the ellipsis semi-axes along the x₁ and x₂ directions, respectively. In this special case, the outward unit normal of the lateral boundary is given as follows:

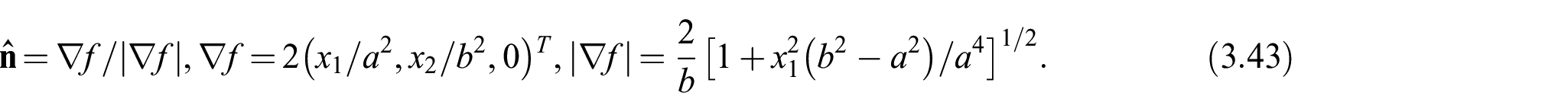

\hat{n} = \nabla f / | \nabla f |, \nabla f = 2 {(x_{1} / a^{2}, x_{2} / b^{2}, 0)}^{T}, | \nabla f | = \frac{2}{b} {[1 + x_{1}^{2} (b^{2} - a^{2}) / a^{4}]}^{1 / 2} .

(3.43)

It is already seen that the warping function and the torsional rigidity of such a shaft are given in Equation (3.13), while Equation (3.14) gives the relation between the torsional parameter $ϑ$ and the magnitude of the externally applied torsional moment, $M_{3}$ .

In this case, the PDE (3.23) thus attains the more specific form:

(1 - A) x_{1} {m_{rr}}_{, 1} + (1 + A) x_{2} {m_{rr}}_{, 2} - 2 x_{3} m_{rr, 3} = 48 ϑ β_{5},

(3.44)

where,

- 1 < A = \frac{b^{2} - a^{2}}{b^{2} + a^{2}} < 1, 1 - A = \frac{2 a^{2}}{b^{2} + a^{2}} > 0, 1 + A = \frac{2 b^{2}}{b^{2} + a^{2}} > 0 .

(3.45)

It is observed, by inspection of its left-hand side, that the PDE (3.44) admits a particular solution of the form:

m_{rr} = {\hat{c}}_{1} \ln | x_{1} | + {\hat{c}}_{2} \ln | x_{2} | + c_{1} \ln | x_{3} | + c_{2}, (x_{3} \neq 0),

(3.46)

where ${\hat{c}}_{1}$ , ${\hat{c}}_{2}$ , $c_{1}$ and $c_{2}$ are arbitrary constants.

However, physically admissible solutions require rejection of the logarithmic singularity observed on either of the co-ordinate planes located at x₁ = 0 and x₂ = 0. This becomes possible by choosing:

{\hat{c}}_{1} = {\hat{c}}_{2} = 0,

(3.47)

thus leading again to Equation (3.24) and, subsequently, to Equation (3.26). The remaining of the analysis detailed in the preceding section remains intact though, where appropriate, use must also be made of the special form attained by the components (3.43) of the unit vector $\hat{n}$ .

4. Consideration of the restricted versions of the theory

Either of the existing restricted versions of the full theory aims to simplify the mathematical analysis outlined in Section 2 by capturing effects that are principally due to a certain type of fibre deformation features and, thus, by decreasing considerably the number of the eight elastic moduli appearing in the polar part (2.8) of the strain energy function. In this context, the restricted version that principally captures fibre-bending deformation effects makes use of two polar material moduli only, while its counterpart that is interested to capture deformation effects of the fibre-splay type uses three polar material moduli.

In either of those restricted versions, one of the implied elastic moduli, termed as ${\hat{β}}_{3}$ in (2.8), is associated with the strain energy contribution (2.11), which is due to action of the spherical part of couple-stress. Nevertheless, while the full (unrestricted) theory outlined in Section 2 is applicable to any relevant boundary value problem, the art of boundary value problem modelling with either of the implied simpler versions may need more careful consideration and/or use of engineering intuition.

It is recalled in this regard that the fibre-bending deformation mode is naturally considered as most influential potential source of polar material response in the large majority of relevant boundary value problems [1,5,7,8]. However, it is further found [10] that problems solely influenced by fibre-splay type of deformations are outside the region of applicability of the fibre-bending version of the theory, and, likewise, problems that are purely influenced by fibre-bending type of deformations fall outside the applicability region of the fibre-splay version [8].

It will now be seen that, in a similar context, problems that are solely influenced purely by fibre-twist type of deformations are outside the region of applicability of both restricted versions of the theory. This will be done by attempting to connect either of those restricted versions with the analysis and results detailed in the preceding sections, where the torsional deformation imposed on a fibrous composite shaft is a natural cause of fibre-twist.

It is accordingly recalled [9,10] that, in the case of the restricted fibre-splay version, the polar part (2.8) of the strain energy function attains the simplified form:

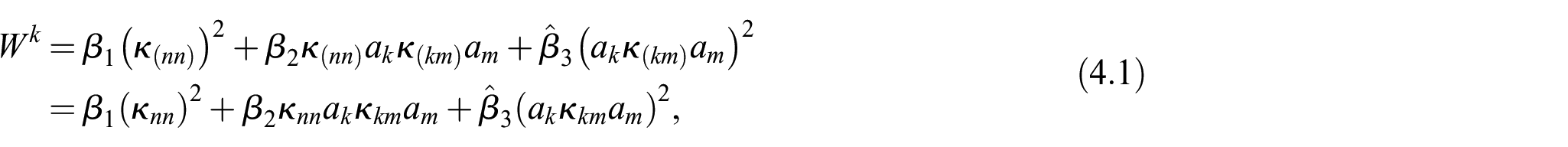

\begin{matrix} W^{k} = β_{1} {(κ_{(nn)})}^{2} + β_{2} κ_{(nn)} a_{k} κ_{(km)} a_{m} + {\hat{β}}_{3} {(a_{k} κ_{(km)} a_{m})}^{2} \\ = β_{1} {(κ_{nn})}^{2} + β_{2} κ_{nn} a_{k} κ_{km} a_{m} + {\hat{β}}_{3} {(a_{k} κ_{km} a_{m})}^{2}, \end{matrix}

(4.1)

and, hence, neglects the energy contribution that its unrestricted counterpart associates with the fibre-twist elastic modulus, $β_{5}$ ; see (3.18). It follows that, in the special case of shaft torsion problem, where (2.8) naturally reduces to Equation (3.18), Equation (4.1) returns a zero value for $W^{k}$ . This result leads to the conclusion that the restricted, fibre-splay deformation version perceives the fibrous composite shaft as made of a non-polar material. It, thus, fails to offer any kind of information regarding the polar material response that the shaft exhibits under torsion.

In dealing with the restricted fibre-bending deformation version of the theory, one has again to begin with the relevant curvature-strain part of the strain energy function, namely [1,7]:

W^{K} = \frac{3}{8} d^{f} K_{j} K_{j} + \bar{γ} {(a_{j} K_{j})}^{2} = \frac{3}{8} d^{f} K_{j} K_{j} + \bar{γ} K_{3}^{2},

(4.2)

where

K_{i} = u_{i, kj} a_{k} a_{j} = u_{i, 33},

(4.3)

represents the fibre-curvature vector, and Equation (3.15) is also accounted for. However, since the displacement components (3.3) are at most linear in the x₃ co-ordinate parameter, all three fibre-curvature components (4.3) and, subsequently, the polar part (4.2) of the strain energy function acquire zero values. It thus is similarly concluded that the restricted, fibre-bending deformation version of the theory perceives, erroneously, that the fibrous composite shaft is made of a non-polar elastic material.

5. Polar material isotropy

Torsion of a shaft made of polar isotropic material has been considered and studied by Tsiatas and Katsikadelis [16] and Kwon [17] with use of a modified couple-stress theory proposed by Yang et al. [18]. As is mentioned by Yang et al. [18], the foundation of that modified theory diverts from the laws of classical mechanics that consider the couple of forces as a free vector. As a result, Yang et al. [18] are driven to conclude that the deviatoric couple-stress tensor should be symmetric.

Evidently, this study supports the side of the original version of the theory [3,4], which endorses the view that the deviatoric couple-stress is generally non-symmetric. It will accordingly be seen that the deviatoric couple-stress tensor does happen to be symmetric in the special case of this torsion problem, but this is due to the special features of the problem and contrasts other relevant observations (e.g. [4,5,10]).

It will then follow that the attempted simplification, proposed by Yang et al. [18] and employed by Tsiatas and Katsikadelis [16] and Kwon [17], makes no difference when applied to the problem of present interest. Consideration of the original [3,4], rather than the modified [18] couple stress-theory will leave unaffected the results presented by Tsiatas and Katsikadelis [16] and Kwon [17].

Nevertheless, the refined couple-stress theoretical framework employed in this section (see also [2,5]) determines not only the deviatoric couple-stresses, but also the spherical part of the couple-stress tensor. In this connection, the theoretical background outlined earlier for fibre-reinforced solids with fibre-bending stiffness (Section 2), is next slightly reformed and becomes suitable for adaptation of the rules of polar linear isotropy [5].

5.1. Re-adjustment of the principal theoretical background

It is accordingly recalled that the equilibrium equations (2.12), as well as all additional features and relevant concepts described by Equations (2.13)–(2.15) are still valid. In the present case though, the strain energy function (2.1) is represented as follows:

W = W^{e} (e_{ij}) + W^{Φ} ({Φ_{i}}_{, j}) \geq 0,

(5.1)

where W^e still represents the strain energy function met in non-polar linear elasticity.

The corresponding form of the polar material part of Equation (5.1) then is:

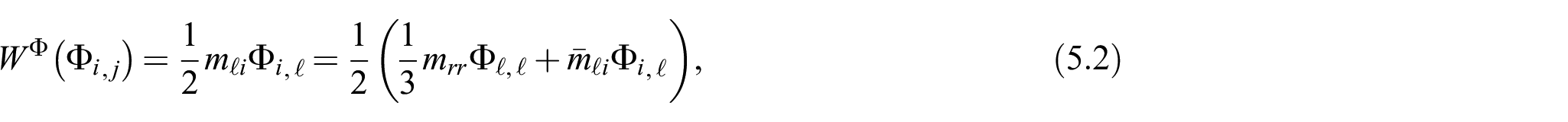

W^{Φ} ({Φ_{i}}_{, j}) = \frac{1}{2} m_{ℓ i} {Φ_{i}}_{, ℓ} = \frac{1}{2} (\frac{1}{3} m_{rr} Φ_{ℓ, ℓ} + {\bar{m}}_{ℓ i} {Φ_{i}}_{, ℓ}),

(5.2)

where the curvature-type tensor, $κ$ , implied in Equation (2.1) is now formed by gradients of the auxiliary spin-type vector $Φ$ (with components $Φ_{i}$ ). That vector is required to satisfy the conditions:

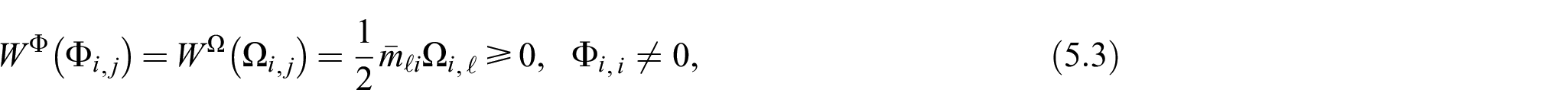

W^{Φ} ({Φ_{i}}_{, j}) = W^{Ω} ({Ω_{i}}_{, j}) = \frac{1}{2} {\bar{m}}_{ℓ i} {Ω_{i}}_{, ℓ} \geq 0, {Φ_{i}}_{, i} \neq 0,

(5.3)

and, thus, essentially represents an infinite number of virtual, spin-type vectors. It is recalled [2,5] that the first of these conditions enables preservation of the uniqueness of the value of the strain energy function.

The displacement generated spin vector $Ω$ , with components defined in (2.14), is regarded as an exceptional, essentially singular member of the aforementioned set of $Φ$ -vectors. This is because its definition advocates the identity

Ω_{i, i} = 0,

(5.4)

and, hence, violates the second of the conditions (5.3).

Under these considerations, the non-polar material constitutive equation (2.3) is accompanied by its polar material equivalent:

m_{ji} = \frac{\partial W^{Φ}}{\partial Φ_{i, j}}, W^{Φ} = \frac{1}{2} m_{ij} Φ_{j, i},

(5.5)

where, however, the appearing spin-gradient tensor, $Φ_{i, j}$ , is generally non-symmetric.

Moreover, the symmetries of material isotropy require that:

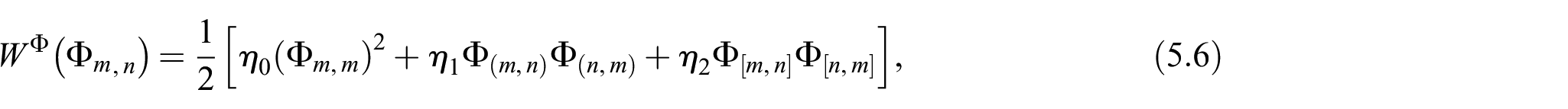

W^{Φ} ({Φ_{m}}_{, n}) = \frac{1}{2} [η_{0} {(Φ_{m, m})}^{2} + η_{1} Φ_{(m, n)} Φ_{(n, m)} + η_{2} Φ_{[m, n]} Φ_{[n, m]}],

(5.6)

where,

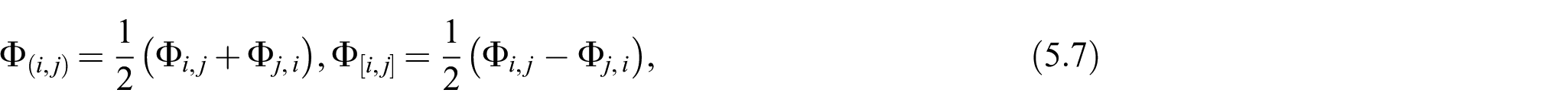

Φ_{(i, j)} = \frac{1}{2} (Φ_{i, j} + Φ_{j, i}), Φ_{[i, j]} = \frac{1}{2} (Φ_{i, j} - Φ_{j, i}),

(5.7)

are the symmetric and antisymmetric parts of $Φ_{i, j}$ , respectively, and $η_{0}$ , $η_{1}$ and $η_{2}$ represent appropriate, non-negative elastic moduli. Hence, introduction of Equation (5.6) into Equation (5.5a) yields the following couple-stress constitutive equation:

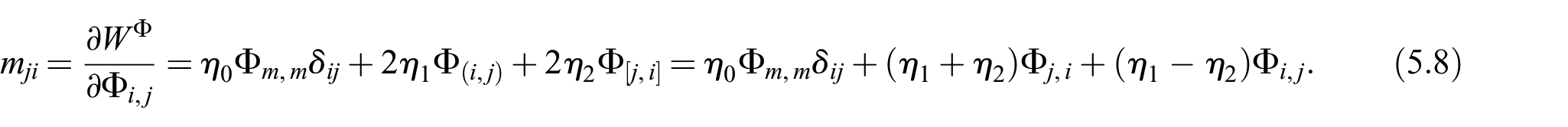

m_{ji} = \frac{\partial W^{Φ}}{\partial Φ_{i, j}} = η_{0} Φ_{m, m} δ_{ij} + 2 η_{1} Φ_{(i, j)} + 2 η_{2} Φ_{[j, i]} = η_{0} Φ_{m, m} δ_{ij} + (η_{1} + η_{2}) Φ_{j, i} + (η_{1} - η_{2}) Φ_{i, j} .

(5.8)

Upon replacing $Φ$ with $Ω$ in Equations (5.6) and (5.8), one obtains, as a special case, the corresponding expressions met in conventional couple stress theory [3,4]

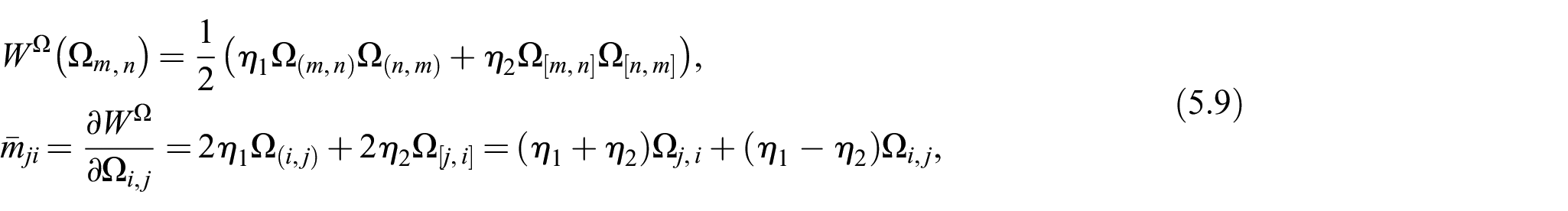

\begin{matrix} W^{Ω} ({Ω_{m}}_{, n}) = \frac{1}{2} (η_{1} Ω_{(m, n)} Ω_{(n, m)} + η_{2} Ω_{[m, n]} Ω_{[n, m]}), \\ {\bar{m}}_{ji} = \frac{\partial W^{Ω}}{\partial Ω_{i, j}} = 2 η_{1} Ω_{(i, j)} + 2 η_{2} Ω_{[j, i]} = (η_{1} + η_{2}) Ω_{j, i} + (η_{1} - η_{2}) Ω_{i, j}, \end{matrix}

(5.9)

which imply that the deviatoric couple-stress tensor is generally non-symmetric.

It is worth recalling at this point that, since the couple-stress tensor is assumed symmetric by Yang et al. [18], the studies of the shaft torsion problem conducted by Tsiatas and Katsikadelis [16] and Kwon [17] made no use of the elastic modulus $η_{2}$ . Moreover, Tsiatas and Katsikadelis [16] and Kwon [17] considered, necessarily at the time, that the spherical part of the couple-stress was an indeterminate quantity and hence, made neither use of the elastic modulus $η_{0}$ appearing in Equation (5.6).

Consideration of Equation (5.3a), followed by a comparison of Equations (5.9a) and (5.6), leads next to the conclusion that Equation (2.11) is now replaced by the following:

W^{m} = η_{0} {(Φ_{m, m})}^{2} / 2 .

(5.10)

It follows that, in the present case of polar material isotropy, the PDE (2.13) reduces to:

Ω_{ℓ} {m_{rr}}_{, ℓ} = 3 η_{0} {(Φ_{m, m})}^{2} - 3 {({\bar{m}}_{ℓ i} Ω_{i})}_{, ℓ} .

(5.11)

Nevertheless, contraction of the free indices appearing in Equation (5.8) reveals further that:

m_{rr} = (3 η_{0} + 2 η_{1}) Φ_{r, r} .

(5.12)

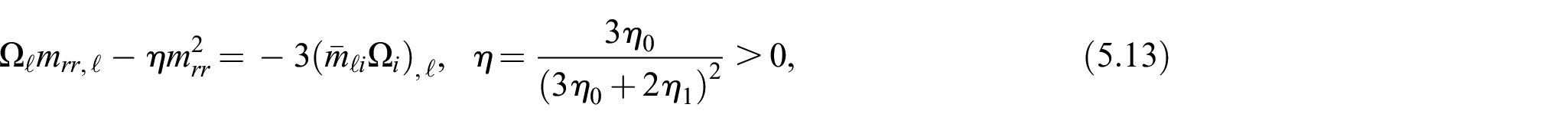

Hence, a combination of this result with Equation (5.11) leads to:

Ω_{ℓ} m_{rr, ℓ} - η m_{rr}^{2} = - 3 {({\bar{m}}_{ℓ i} Ω_{i})}_{, ℓ}, η = \frac{3 η_{0}}{{(3 η_{0} + 2 η_{1})}^{2}} > 0,

(5.13)

which is clearly a non-linear PDE for the unknown trace of the couple-stress, $m_{rr}$ .

5.2. Effect of polar material response on the solution of the non-polar torsion problem

The analysis detailed in Section 3.1 is still valid when dealing with torsion of a linearly isotropic polar material shaft, in the sense that it is still underpinned by the displacement field Equation (3.3) and, subsequently, by the kinematics described by Equations (3.4), (3.5), and (3.22). Hence, Equations (3.2c) and (3.6) suffice to accommodate isotropic material behaviour in the case of non-polar linear elasticity, while the warping function, w, is still required to be a harmonic function that also satisfies the boundary condition Equation (3.10).

As a result of these considerations, Equation (3.22) yields:

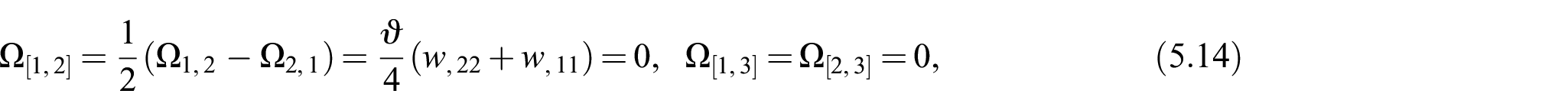

Ω_{[1, 2]} = \frac{1}{2} (Ω_{1, 2} - Ω_{2, 1}) = \frac{ϑ}{4} (w_{, 22} + w_{, 11}) = 0, Ω_{[1, 3]} = Ω_{[2, 3]} = 0,

(5.14)

where use is made of the fact that w is a harmonic function. Hence, the nullification of the anti-symmetric part of the spin gradient $Ω_{i, j}$ , observed in the special case of this torsion problem, forces the polar part Equation (5.9a) of the conventional strain energy function to attain the form:

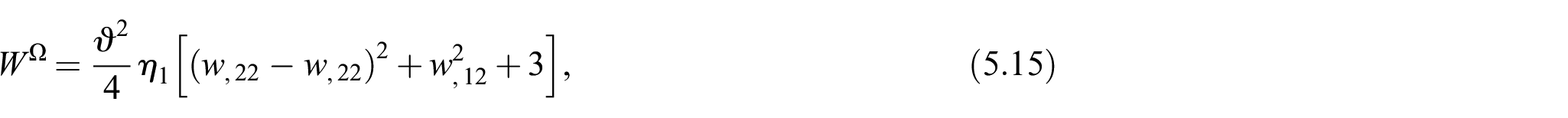

W^{Ω} = \frac{ϑ^{2}}{4} η_{1} [{(w_{, 22} - w_{, 22})}^{2} + w_{, 12}^{2} + 3],

(5.15)

which, like its counterpart, Equation (3.18) met in the case of the corresponding fibre-reinforced shaft, is influenced by a single polar elastic modulus only. However, unlike Equation (3.18), which is independent of w, Equation (5.15) is substantially influenced by the form of the cross-sectional warping function.

It is also fitting at this point to note that, due to complete lack of influence that the elastic modulus $η_{2}$ exerts on this particular problem, the relevant analyses presented by Tsiatas and Katsikadelis [16] and Kwon [17] happens to hold not only within the framework of their targeted-modified couple-stress theory [18] but, also, within the framework of the conventional couple-stress theory [3,4]. In other words, the attempted simplification proposed by Yang et al. [18], by dropping the influence of $η_{2}$ , makes no difference and is, therefore, unnecessary in the torsion problem of the polar isotropic shaft considered and studied in Tsiatas and Katsikadelis [16] and Kwon [17]. However, determination of the spherical part of the couple-stress and, hence, introduction of the extra elastic modulus $η_{0}$ [2,5], gives rise to a proper and useful extension of the conventional couple-stress theory [3,4].

Under these considerations, the constitutive equation (5.9b) produces the following non-zero deviatoric couple-stress components:

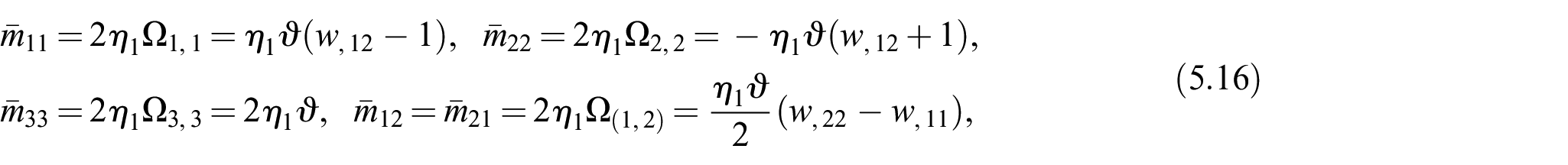

\begin{matrix} {\bar{m}}_{11} = 2 η_{1} Ω_{1, 1} = η_{1} ϑ (w_{, 12} - 1), {\bar{m}}_{22} = 2 η_{1} Ω_{2, 2} = - η_{1} ϑ (w_{, 12} + 1), \\ {\bar{m}}_{33} = 2 η_{1} Ω_{3, 3} = 2 η_{1} ϑ, {\bar{m}}_{12} = {\bar{m}}_{21} = 2 η_{1} Ω_{(1, 2)} = \frac{η_{1} ϑ}{2} (w_{, 22} - w_{, 11}), \end{matrix}

(5.16)

which naturally comply with the requirement of traceless deviatoric tensor ( ${\bar{m}}_{rr} = 0$ ). The trace (or, equivalently, the spherical part) of the couple-stress tensor, m, must then be determined by solving the non-linear PDE (5.13), which now attains the following form:

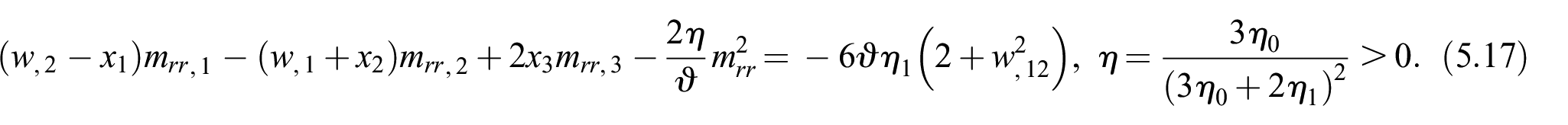

(w_{, 2} - x_{1}) {m_{rr}}_{, 1} - (w_{, 1} + x_{2}) {m_{rr}}_{, 2} + 2 x_{3} m_{rr, 3} - \frac{2 η}{ϑ} m_{rr}^{2} = - 6 ϑ η_{1} (2 + w_{, 12}^{2}), η = \frac{3 η_{0}}{{(3 η_{0} + 2 η_{1})}^{2}} > 0 .

(5.17)

A combination of Equation (5.16) with a suitable solution of the PDE (5.17a) will fully determine the couple-stresses and, as is already anticipated in Section 3.2, use of Equation (2.12b) will finally enable determination of the anti-symmetric part of the stress tensor. However, such a successful conclusion can become possible only after the shape of the shaft cross-section is decided and, hence, after a subsequent solution of the PDE (3.10) yield the form of the warping function, w, which now appears not only in Equation (5.16) and the left-hand side of Equation (5.17a) but also in the right-hand side of the latter PDE.

5.3. Polar isotropic shaft with elliptical cross-section

Consider, for example, an elliptical shaft whose cross-section is bounded by the plane curve Equation (3.42) and, thus, possesses the outward unit normal, $\hat{n}$ , provided in Equation (3.43). The warping function and the torsional rigidity of such an isotropic elliptical shaft are evidently still given in Equation (3.13) and, after recalling that isotropy now implies that $C_{44} = μ$ , the relation between the torsional parameter $ϑ$ and the magnitude of the externally applied torsional moment, $M_{3}$ , is still given by Equation (3.14).

The second derivative of the warping function Equation (3.13) with respect to either of the in-plane co-ordinate parameters is zero and, hence, the shear couple-stress components (5.16d) are also zero. The normal deviatoric couple-stresses:

{\bar{m}}_{11} = η_{1} ϑ (A - 1), {\bar{m}}_{22} = 2 η_{1} Ω_{2, 2} = - η_{1} ϑ (A + 1), {\bar{m}}_{33} = 2 η_{1} ϑ,

(5.18)

thus, stand as the only non-zero components of the, thus, symmetric deviatoric couple-stress tensor, where the appearing parameter A is still given in Equation (3.45a). Hence, the non-zero deviatoric couple-stresses are all constant, and this enables again reduction of the polar elasticity equilibrium Equation (2.12a) into its already satisfied non-polar elasticity form (3.7).

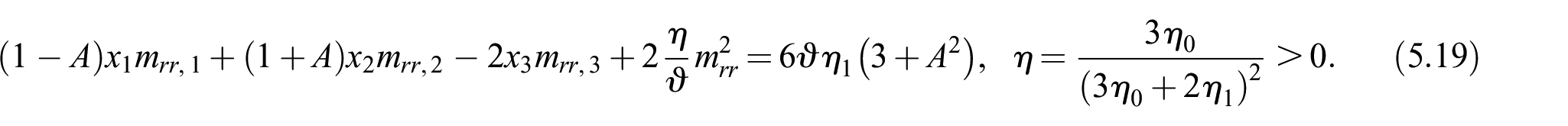

In this case, the PDE (5.17) thus reduces to:

(1 - A) x_{1} m_{rr, 1} + (1 + A) x_{2} m_{rr, 2} - 2 x_{3} m_{rr, 3} + 2 \frac{η}{ϑ} m_{rr}^{2} = 6 ϑ η_{1} (3 + A^{2}), η = \frac{3 η_{0}}{{(3 η_{0} + 2 η_{1})}^{2}} > 0 .

(5.19)

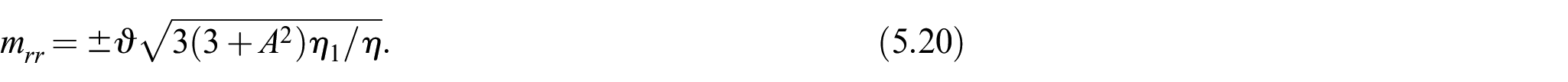

It is observed that its simplest possible solutions are obtained for constant values of the spherical couple-stress and are as follows:

m_{rr} = \pm ϑ \sqrt{3 (3 + A^{2}) η_{1} / η} .

(5.20)

A combination of Equations (5.20) and (5.18) with Equation (2.7) then reveals that the normal couple-stresses can attain either of the two sets of constant values:

\begin{matrix} m_{11} = ϑ [\pm \sqrt{(1 + A^{2} / 3) η_{1} / η} - η_{1} (1 - A)], \\ m_{22} = ϑ [\pm \sqrt{(1 + A^{2} / 3) η_{1} / η} - η_{1} (1 + A)], \\ m_{33} = ϑ [\pm \sqrt{(1 + A^{2} / 3) η_{1} / η} + 2 η_{1}] . \end{matrix}

(5.21)

It is further observed in this regard that, since the direction of $m_{33}$ is parallel to the direction of the externally applied torsional moment, $M_{3}$ , either of its constant values (5.21c) can be absorbed by or incorporated into the value of $| M_{3} |$ employed in Equation (3.14).

A straightforward way towards this incorporation begins by re-defining the total torsional moment acting on the elliptical shaft as follows:

{\hat{M}}_{3} = M_{3} + m_{33} e_{3}, | {\hat{M}}_{3} | = | M_{3} | + m_{33},

(5.22)

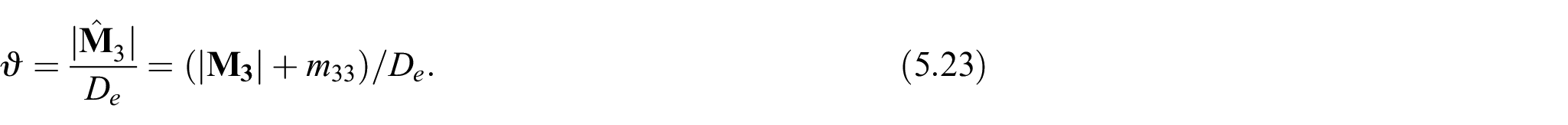

and, by virtue of Equation (3.14), thus deduce that

ϑ = \frac{{| \hat{M}}_{3} |}{D_{e}} = (| M_{3} | + m_{33}) / D_{e} .

(5.23)

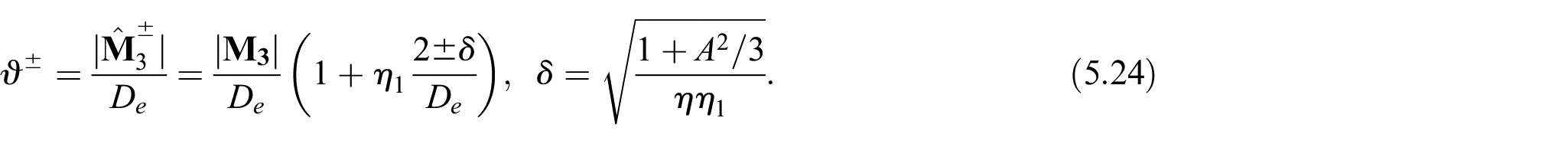

With further use of Equation (5.21c), this relation returns two values of this torsional parameter, namely

ϑ^{\pm} = \frac{{| \hat{M}}_{3}^{\pm} |}{D_{e}} = \frac{| M_{3} |}{D_{e}} (1 + η_{1} \frac{2 \pm δ}{D_{e}}), δ = \sqrt{\frac{1 + A^{2} / 3}{η η_{1}}} .

(5.24)

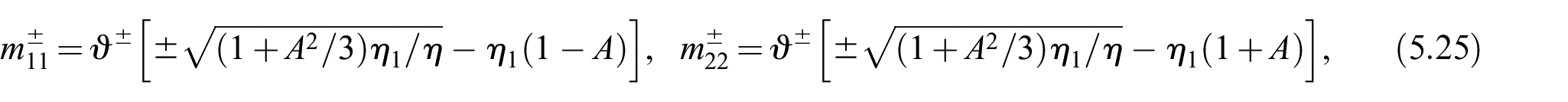

By thus replacing Equation (3.14) with Equation (5.24), either of the two sets of in-plane normal couple-stresses:

m_{11}^{\pm} = ϑ^{\pm} [\pm \sqrt{(1 + A^{2} / 3) η_{1} / η} - η_{1} (1 - A)], m_{22}^{\pm} = ϑ^{\pm} [\pm \sqrt{(1 + A^{2} / 3) η_{1} / η} - η_{1} (1 + A)],

(5.25)

may be considered as representing the only non-zero couple-stresses of principal interest.

Hence, by inserting Equation (5.25) into Equation (2.15b), one determines the couple-traction field acting throughout the body for either of the implied solutions. On the lateral shaft boundary, where the outward unit normal is given according to Equation (3.43), that field produces the boundary couple-tractions:

L_{i}^{(\hat{n})} = m_{ji} {\hat{n}}_{j},

(5.26)

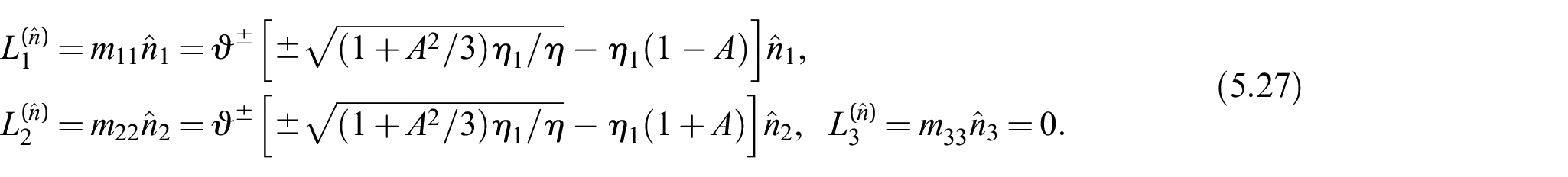

or, in explicit form:

\begin{matrix} L_{1}^{(\hat{n})} = m_{11} {\hat{n}}_{1} = ϑ^{\pm} [\pm \sqrt{(1 + A^{2} / 3) η_{1} / η} - η_{1} (1 - A)] {\hat{n}}_{1}, \\ L_{2}^{(\hat{n})} = m_{22} {\hat{n}}_{2} = ϑ^{\pm} [\pm \sqrt{(1 + A^{2} / 3) η_{1} / η} - η_{1} (1 + A)] {\hat{n}}_{2}, L_{3}^{(\hat{n})} = m_{33} {\hat{n}}_{3} = 0 . \end{matrix}

(5.27)

It follows that the constant couple-stress field (5.25) can be maintained by an elliptical shaft only if the nonzero normal couple-tractions (5.27a, b) are applied externally throughout the shaft lateral boundary. It must be mentioned in this context that observations and comments analogous to those detailed in the last two paragraphs of Section 3.4, for the relevant analysis referring to torsion of the fibre-reinforced shaft, may also become applicable in this case, and need not be repeated or discussed any further.

However, a note must be made of the fact that, in the present case, either of the couple-stress fields (5.25) is constant. This observation implies that, by virtue of Equation (2.12b), the anti-symmetric part of all stress components is zero. It thus follows that, the stress field observed throughout the body of a polar, isotropic elliptical shaft subjected to combined torsion and action of the boundary couple-tractions (5.27) is still symmetric.

5.4. The special case of a shaft with circular cross-section

Due to its simplicity, the torsional problem of a polar isotropic circular shaft was first considered, as an example application, in Koiter’s pioneering publication [4]. However, the spherical part of the couple-stress tensor, left indeterminate by Koiter [4], was determined most recently by Soldatos [5].

The shape of a circular cross-section is evidently obtained as a special case of its elliptic counterpart considered in the preceding section, by setting A = 0. In this manner, all results presented in Equations (5.18)–(5.21) become equivalent to their counterparts obtained in Section 5.1 of Soldatos’ study [5], where, however, the axis of the externally applied torsional moment is aligned with the x₁ co-ordinate axis.

In this connection, the only new relevant information that the present analysis may add on its counterpart presented by Koiter [4] and Soldatos [5] relates to the emergence of Equation (5.24) and its subsequent reduction,

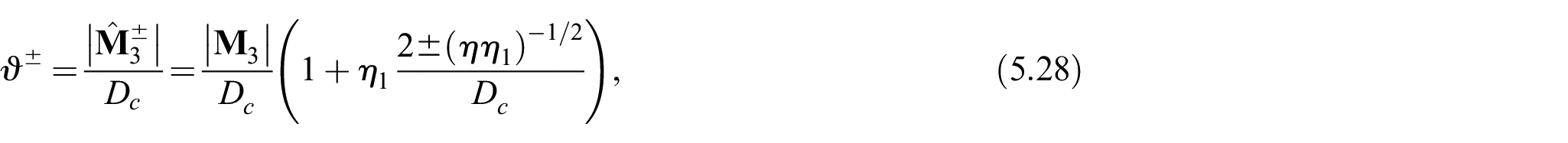

ϑ^{\pm} = \frac{| {\hat{M}}_{3}^{\pm} |}{D_{c}} = \frac{| M_{3} |}{D_{c}} (1 + η_{1} \frac{2 \pm {(η η_{1})}^{- 1 / 2}}{D_{c}}),

(5.28)

where the appearing torsional rigidity of a circular isotropic shaft,

D_{c} = π μ a^{4} / 2,

(5.29)

is evidently obtained by setting b = a and $C_{44} = μ$ in Equation (3.13b).

6. Conclusion and future research directions

Upon reversing the order of the Introduction narrative, it can be claimed that this communication dealt with a substantial expansion of a couple-stress theory application, first employed by Koiter [4] in his pioneering relevant publication and more recently complemented by Soldatos [5]. Namely, the problem of torsion of a polar isotropic circular shaft subjected to an externally applied torque.

In a first step, that expansion re-formulated that fundamental polar elasticity problem by enabling it to embrace the general case of an isotropic shaft of arbitrary cross-section (Sections 5.1 and 5.2) and, afterwards, developing its analytical solution for the case of an elliptical shaft (Section 5.3). The obtained solution led to full determination of (1) the couple-stress field (including both its deviatoric and spherical parts) and, hence, (2) the stress field (including both its symmetric and anti-symmetric parts). This step thus also prepares the ground for future potential applications, where, as has already happened in the case of the corresponding non-polar isotropic shaft [6,19], relevant solutions may be sought and found for several different shapes of the shaft cross-section.

In a second step (Section 3), the implied extension was engaged with material properties of transverse isotropy that is due to presence of a single family of straight fibres, aligned with the shaft axis and possessing bending stiffness, and succeeded to complete the corresponding solution for a polar material shaft of arbitrary cross-section. In that case, formulation of the boundary value problem was underpinned by the linearised version of the relevant couple-stress theory developed by Spencer and Soldatos [1] and Soldatos [2]. It is worth recalling that the theory makes use of as many as eight fibre-deformation-related elastic moduli, seven of which appear in the deviatoric couple-stress constitutive equation. The eighth such modulus relates to the action of the spherical part of the couple-stress. The whole set of employed moduli enables the unrestricted theory to capture and tailor together effects that are due to three inter-related fibre-deformation modes, first observed in Section 9 of Spencer and Soldatos’ study [1] and now termed as the fibre-bending, the fibre-splay, and the fibre-twist such.

However, the rather large number of the involved couple-stress moduli still justifies careful use of the existing pair of restricted versions of the full theory (termed as the restricted fibre-bending and the restricted fibre-splay versions). Either of those versions conveniently employs a substantially reduced number of couple-stress elastic moduli, at the expense of reducing accuracy and confining applicability to certain boundary problem subclasses. In this context, Section 4 completed a relevant round of interesting studies and comparisons (also refer [8 –10]) that refer to the relation of the full (unrestricted) couple-stress theory employed in Section 3 with its implied pair of restricted versions.

Accordingly, in summarising principal criteria that would help the choice of a most suitable restricted version, one may begin by recalling that the number of seven deviatoric couple-stress moduli emerging in the unrestricted theory reduces to, just, a single one in the case of its restricted fibre-bending version. That version captures effects predominantly due to the fibre-bending deformation mode, which is naturally regarded as the most influential such in the large majority of applications. The fibre-bending version provides practically identical results to those obtained through use of the full (unrestricted) theory for problems that are purely influenced by fibre-bending types of deformation, but fails to provide any kind of physically meaningful information when dealing with problems that are purely influenced by fibre-splay and/or fibre-twist types of deformation.

On the other side of the deformation spectrum, the restricted fibre-splay version of the theory makes use of only two deviatoric couple-stress elastic moduli and gives practically identical results to those obtained through use of the full theory for problems that are purely influenced by fibre-splay types of deformation. However, that version fails to provide physically meaningful information when dealing with problems that are predominantly influenced by fibre-bending and/or fibre-twist types of deformation.

In dealing with future relevant developments, attention must also be given to an alternative type of relevant boundary value problems, where a fibre-reinforced specimen may exhibit polar material behaviour despite that its fibres (or, simply, material preference directions in such cases) are perfectly flexible. The theoretical foundation of such a development has become most recently available in Soldatos’s study [20], where it is perceived as the anisotropic material extension of the polar isotropic material theory employed in Section 5 of the present communication (also refer Soldatos [5]).

It is anticipated, more generally, that systematic engagement of existing versions of the couple-stress theory with modelling and solution of fundamental boundary value problems, such as those studied already in non-polar (symmetric-stress) elasticity, can substantially assist the ongoing effort of decoding the secrets, and improving understanding of the usefulness of this and, perhaps, other theoretical frameworks stemming from the Cosserat theory of elasticity [21]. Namely, by connecting the couple-stress theory founded by Mindlin and Tiersten [3] and Koiter [4] with the route of the early developments followed by non-polar linear elasticity (e.g. [6,19,22]).

Footnotes

Appendix 1 Declaration of conflicting interests

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

KP Soldatos

References

Spencer

AJM

Soldatos

. Finite deformations of fibre-reinforced elastic solids with fibre bending stiffness. Int J Non-lin Mech 2007; 42(2): 355–368.

Soldatos

KP.

Finite deformations of fibre—reinforced elastic solids with fibre bending stiffness—part II: determination of the spherical part of the couple-stress. Math Mech Solids 2023; 28(1): 124–140. DOI: 10.1177/10812865211061595.

Mindlin

Tiersten

HF.

Effects of couple-stresses in linear elasticity. Arch Ration Mech Anal 1962; 11: 415–448.

Koiter

WT.

Couple stresses in the theory of elasticity, I and II. Proc Ned Akad Wet Ser B 1964; 67: 17–44.

Soldatos

KP.

Determination of the spherical couple-stress in polar linear isotropic elasticity. J Elast 2023; 153: 185–206. DOI: 10.1007/s10659-022-09979-0.

Timoshenko

Goodier

JN.

Theory of elasticity. 3rd ed. NY, New York: McGraw Hill, 1970.

Soldatos

KP.

Foundation of polar linear elasticity for fibre-reinforced materials. J Elasticity 2014; 114: 155–178.

Soldatos

KP.

Determination of the spherical part of the couple-stress in a polar fibre-reinforced elastic plate subjected to pure bending. Acta Mechanica 2021; 232: 3881–3896. DOI: 10.1007/s00707-021-03035-z.

Soldatos

Shariff

MHBM

Merodio

On the constitution of polar fibre-reinforced materials. Mech Adv Meter Struct 2021; 28: 2255–2266. DOI: 10.1080/15376494.2020.1729449.

10.

Soldatos

KP.

On the splay deformation mode of a polar linearly elastic bar stretched by its own weight. Mech Adv Mater Struct 2024; 31(29): 11915–11927. DOI: 10.1080/15376494.2024.2313151.

11.

Taliercio

Veber

Some problems in linear elasticity for cylinders in micropolar orthotropic material. Int J Solids Struct 2009; 46: 3948–3963.

12.

Taliercio

Veber

Torsion of elastic anisotropic micropolar cylindrical bars. Europ J Mech A/Solids 2016; 55: 45–56.

13.

Beheshti

A numerical analysis of Saint-Venant torsion in strain gradient bars. Europ J Mech A/Solids 2018; 70: 181–190.

14.

Rizzi

Hütter

Khan

, et al. Analytical solution of the cylindrical torsion problem for relaxed micromorphic and other generalised continua (including full derivations). Math Mech Solids 2022; 27(3): 507–553. DOI: 10.1177/10812865211023530.

15.

Podulka

Macek

Saint-Venant torsion based on strain gradient theory. Int J Mech Sci 2024; 109069269. DOI: 10.1016/j.ijmecsci.2024.109069.

16.

Tsiatas

Katsikadelis

JT.

A new microstructure- dependent Saint-Venant torsion model based on a modified couple stress theory. Europ J Mech A/Solids 2011; 30: 741–747.

17.

Kwon

YR.

Numerical verification of torsion-bar models based on the modified couple stress theory. Mech Adv Mater Struct 2024. DOI: 10.1080/15376494.2024.2398738.

18.

Yang

Chong

ACM

Lam

DCC

, et al. Couple stress based gradient theory for elasticity. Int J Solids Struct 2002; 39: 2731–2743.

19.

Love

AEH.

A treatise on the mathematical theory of elasticity. 4th ed. New York: Dover, 1944.

20.

Soldatos

KP.

Refined linearly anisotropic couple-stress elasticity. Math Mech Solids. Epub ahead of print 7 February 2024. DOI: 10.1177/10812865231222898.

21.

Cosserat

Théorie des corps deformables. Paris: Hermann, 1909.

22.

Todhunter

Pearson

A history of the theory of elasticity and of the strength of materials. Vol 1; Vol 2. Cambridge: Cambridge University Press, 1886; 1893.
