Alterations in the Ventral Attention Network During the Stop-Signal Task in Children With ADHD: An Event-Related Potential Source Imaging Study

Abstract

Objective: Deficits in response inhibition figure prominently in models of ADHD; however, attentional deficiencies may better explain previous findings of impaired response inhibition in ADHD. We tested this hypothesis at the neurophysiological level. Method: Dense array ERPs (event-related potentials) were obtained for 46 children with ADHD and 51 controls using the stop-signal task (SST). Early and late components were compared between groups. N2 and P3 components were localized with LAURA distributed linear inverse solution. Results: A success-related N1 modulation was only apparent in the ADHD group. N2 and P3 amplitudes were reduced in ADHD. During the successful inhibition N2, the ADHD group showed reduced activation in right inferior frontal gyrus (rIFG), supplementary motor area (SMA), and right temporoparietal junction (rTPJ), and during failed inhibition in the rIFG. During the successful inhibition P3, reduced activation was found in anterior cingulate cortex (ACC) and SMA. Conclusion: Impairments in the ventral attention network contribute to the psychopathology of ADHD and challenge the dominant view that ADHD is underpinned by impaired inhibitory control.

Keywords

ADHD children inhibition electroencephalography neuroimaging psychopathology

Introduction

Deficits in response inhibition are seen as one of the core problems in ADHD and figure prominently in theoretical models of the disorder (Barkley, 1997; Sonuga-Barke, Bitsakou, & Thompson, 2010). Empirical support for these models originates for an important part from the stop-signal task (SST; Logan & Cowan, 1984; Logan, Cowan, & Davis, 1984). Although a majority of studies found evidence for a slower inhibition process in ADHD (Oosterlaan, Logan, & Sergeant, 1998), as reflected in slower stop-signal reaction times (SSRT), more recent meta-analyses suggest that the calculation of SSRT is disproportionally influenced by slower reaction times (RTs) to go stimuli in the ADHD group (Alderson, Rapport, & Kofler, 2007; Lijffijt, Kenemans, Verbaten, & van Engeland, 2005). Attentional deficiencies may therefore better explain previous findings of impaired response inhibition.

Moreover, imaging studies point to potential confounds in the SST that challenge findings of functional abnormalities in typical inhibition-related brain areas in ADHD. One major methodological concern is the attentional capture effect of infrequent stop stimuli (Pauls et al., 2012; Sharp et al., 2010), which in the same way as oddball stimuli, could induce activation in a ventral attention network important for target detection/salience that partly overlaps with inhibition areas such as the right inferior frontal gyrus (rIFG; Hampshire, Chamberlain, Monti, Duncan, & Owen, 2010). This raises doubt on the interpretation of well-documented functional magnetic resonance imaging (fMRI) findings of reduced activation in rIFG/insula, supplementary motor area (SMA), and anterior cingulate cortex (ACC) in children with ADHD during SST (Hart, Radua, Nakao, Mataix-Cols, & Rubia, 2013).

Event-related potential (ERP) findings of early processing alterations in ADHD during the SST further complicate the picture. Although the exploration of early exogenous ERP components is generally not the main focus of SST studies in ADHD, there are at least some studies suggesting altered sensory registration as reflected in reduced P1 amplitude (Shen, Tsai, & Duann, 2011), increased N1 amplitude (Dimoska, Johnstone, Barry, & Clarke, 2003; Johnstone, Barry, & Clarke, 2007), or increased as well as decreased P2 amplitudes (Dimoska et al., 2003; Senderecka, Grabowska, Szewczyk, Gerc, & Chmylak, 2012), although evidence is inconsistent. This inconsistency could be attributable to ineffective correction or the lack of correction of ERPs elicited by preceding “go” stimuli that distort stop ERPs, especially for early components such as N1 and P2 (Woldorff, 1993). If, indeed, problems in early sensory registration in ADHD exist, then these should be considered when interpreting findings of subsequent processing stages in ADHD.

Late endogenous components in the SST such as N2 and P3 have been studied more extensively and numerous studies have consistently shown reduced amplitudes in children with ADHD (Johnstone et al., 2007; Liotti, Pliszka, Higgins, Perez, & Semrud-Clikeman, 2010; Liotti et al., 2007; Pliszka et al., 2007). Liotti and Pliszka reported in multiple studies that the reduction in N2 amplitude is most pronounced at the right frontal scalp and that only typically developing (TD) children showed a success-related modulation of the right frontal N2 (Liotti et al., 2010; Pliszka et al., 2007; Pliszka, Liotti, & Woldorff, 2000). Although both N2 and P3 have been associated with inhibition (Ramautar, Kok, & Ridderinkhof, 2004; van Boxtel, van der Molen, Jennings, & Brunia, 2001), there is still much debate about their functional significance. The N2 may signal conflict (Enriquez-Geppert, Konrad, Pantev, & Huster, 2010) and the P3 might reflect monitoring of the outcome of inhibition (Liotti, Pliszka, Perez, Kothmann, & Woldorff, 2005). Source localization studies of the N2 show inconsistent findings, with evidence for rIFG involvement (Lavric, Pizzagalli, & Forstmeier, 2004), associated with inhibition, or ACC involvement (Nieuwenhuis, Yeung, van den Wildenberg, & Ridderinkhof, 2003), typically implicated in cognitive control functions such as conflict monitoring, or both (Bokura, Yamaguchi, & Kobayashi, 2001). The P3 has been localized in the ACC (Crottaz-Herbette & Menon, 2006), suggesting a role in cognitive control as well.

The discussed methodological concerns emphasize the need for a more comprehensive examination of the SST in ADHD. Therefore, the aims of the current study were twofold: (a) to assess the possible influence of early processing deficits in ADHD during the SST and (b) to anatomically localize altered ERP components to gain both temporal and spatial insights in the involved neural networks. To aid these goals, we used the “adjacent response filter method” (ADJAR; Woldorff, 1993), which is effective in removing the overlap of preceding go ERPs (see Bekker, Kenemans, Hoeksma, Talsma, & Verbaten, 2005, for a discussion and demonstration of ADJAR for the SST). Furthermore, individual distributed source localization of differentiating components was implemented. One of the main advantages over equivalent current dipole methods is that it is less prone to operator bias and that it can handle multiple spatially extended sources (Pizzagalli, 2007).

For the ADHD group, we expected altered early N1/P2 responses and reduced N2 and P3 components. Based on ERP source imaging studies of N2 and P3 components and fMRI findings in ADHD, we expected the involvement of several altered brain networks associated with inhibition, attention, and cognitive control. More specifically, we hypothesized reduced source activity during the N2 in rIFG and/or ACC, and during the P3 in ACC.

Materials and Method

Participants

Complete data were available for 97 children in the age range from 7 to 14 years with 46 children in the ADHD group (37 males, 9 females) and 51 children in the TD group (37 males, 14 females; see Table 1). Inclusion required an estimated full-scale IQ > 80, measured with a short version of the Wechsler Intelligence Scale for Children (WISC-III; Wechsler, 1991), using subtests Vocabulary, Arithmetic, Block Design, and Picture Arrangement. Children were excluded if there was a known history of neurological conditions.

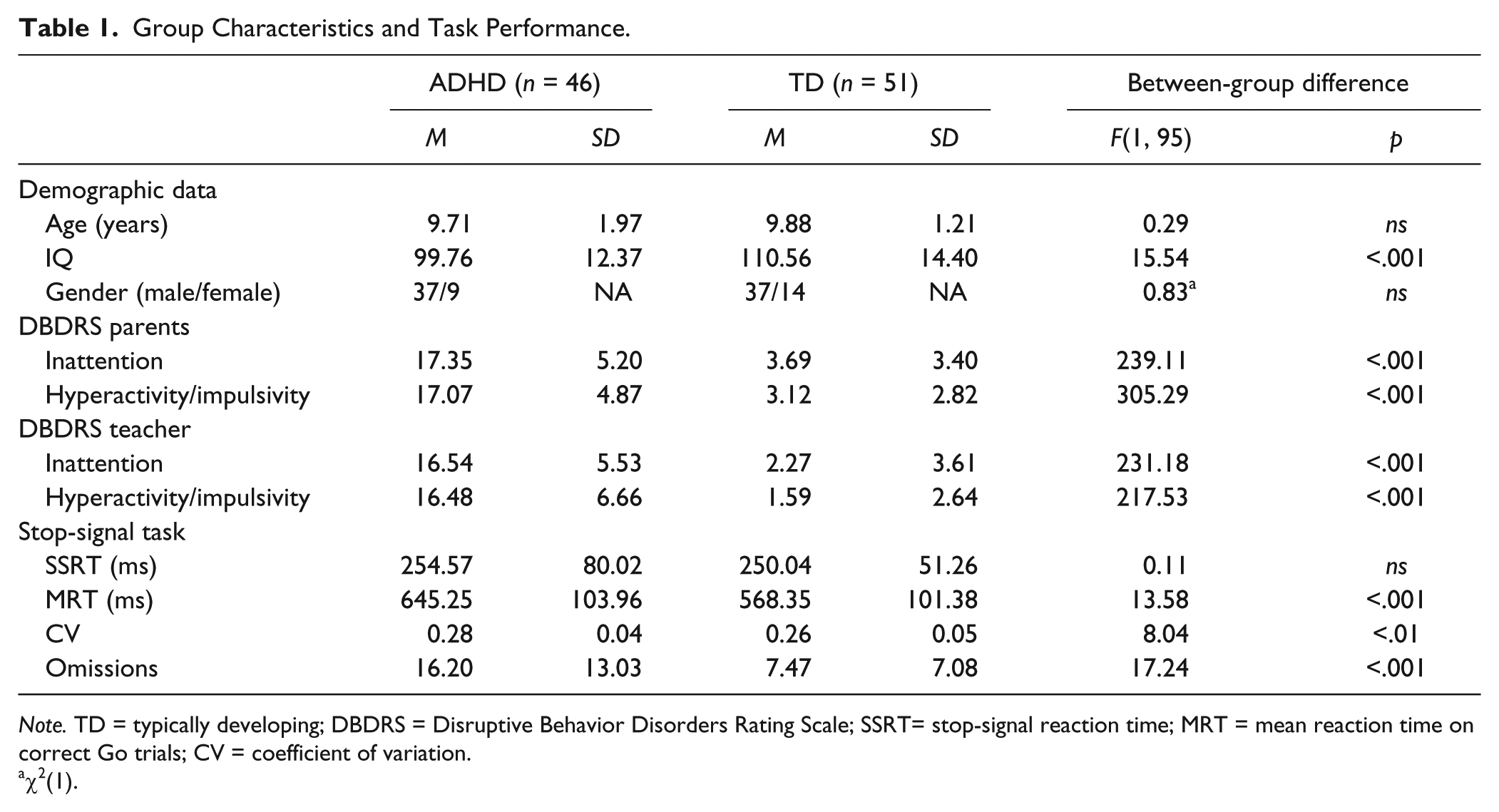

Table 1.

Group Characteristics and Task Performance.

	ADHD (n = 46)		TD (n = 51)		Between-group difference
	M	SD	M	SD	F(1, 95)	p
Demographic data
Age (years)	9.71	1.97	9.88	1.21	0.29	ns
IQ	99.76	12.37	110.56	14.40	15.54	<.001
Gender (male/female)	37/9	NA	37/14	NA	0.83^a	ns
DBDRS parents
Inattention	17.35	5.20	3.69	3.40	239.11	<.001
Hyperactivity/impulsivity	17.07	4.87	3.12	2.82	305.29	<.001
DBDRS teacher
Inattention	16.54	5.53	2.27	3.61	231.18	<.001
Hyperactivity/impulsivity	16.48	6.66	1.59	2.64	217.53	<.001
Stop-signal task
SSRT (ms)	254.57	80.02	250.04	51.26	0.11	ns
MRT (ms)	645.25	103.96	568.35	101.38	13.58	<.001
CV	0.28	0.04	0.26	0.05	8.04	<.01
Omissions	16.20	13.03	7.47	7.08	17.24	<.001

Note. TD = typically developing; DBDRS = Disruptive Behavior Disorders Rating Scale; SSRT= stop-signal reaction time; MRT = mean reaction time on correct Go trials; CV = coefficient of variation.

χ²(1).

The ADHD group was recruited through mental health outpatient facilities in the West of the Netherlands. All children obtained a clinical diagnosis of ADHD combined type according to the Diagnostic and Statistical Manual of Mental Disorders (4th ed.; DSM-IV; American Psychiatric Association, 1994) as established by a child psychiatrist. ADHD diagnosis was confirmed with the parent version of the Diagnostic Interview Schedule for Children (DISC-IV; Shaffer, Fisher, Lucas, Dulcan, & Schwab-Stone, 2000), and by parent and teacher ratings on the Disruptive Behavior Disorders Rating Scale (DBDRS; Pelham, Gnagy, Greenslade, & Milich, 1992), which required at least one of the scores on the Inattention or Hyperactivity/Impulsivity scales to be in the clinical (>90th percentile) range for both informants. Seventy-six percent of children were naïve for stimulant medication and the remaining children discontinued the use of stimulants at least 4 weeks before testing. Children with a clinical DSM-IV diagnosis of autism spectrum disorder were excluded.

The TD group was recruited through three primary schools and a sports club in the same recruitment area as the ADHD group. Control children were required to obtain normal scores on the DBDRS (<90th percentile) for both informants and to be free of any psychiatric disorder.

Procedure

The current study sample partly overlaps with a sample that later participated in a randomized controlled trial on the effects of neurofeedback, methylphenidate, and physical exercise as treatments for ADHD (Trial Number: NCT01363544). The study was conducted according to the Declaration of Helsinki, and approved by the ethics committee of the VU Medical Centre (Amsterdam, The Netherlands). Parents and children aged 12 years or older signed informed consent.

Behavioral Assessment

Symptom scales of Inattention and Hyperactivity/Impulsivity from parent and teacher reports on the Strengths and Weaknesses of ADHD symptoms and Normal behavior scale (SWAN; Swanson, Schuck, Mann, & Carlson, 2006) were used for correlational analyses with the primary outcome measures.

Stimuli and Task

The SST involved two types of stimuli: go stimuli and stop stimuli. Go stimuli were left or right pointing airplanes requiring either a left or right button response. Each trial started with a black fixation cross, centered on a white background for 500 ms, followed by a go stimulus for 1,250 ms and a blank screen for 650 ms. Inter-trial intervals varied randomly between 0, 50, 100, 150, and 200 ms. In a randomly selected 25% of the trials, go stimuli were followed by a visual stop signal (traffic stop sign) superimposed on the go stimulus, requiring the participants to withhold their response. The delay between the go and stop signal (stop-signal delay [SSD]) varied trial-by-trial using a tracking algorithm which increased or decreased the delay with 50 ms, depending on whether or not the previous stop trial resulted in successful inhibition. This procedure yielded approximately 50% successful inhibitions (SI) and 50% failed inhibitions (FI).

Two practice blocks (one containing 12 go trials and another containing 20 mixed go and stop trials) and six experimental blocks of 100 trials were administered in 25 min with the trials presented in a fixed randomized order. Participants were instructed to respond both quickly and accurately to the go stimuli and withhold their response when a stop signal was presented. They were told that they would be unable to withhold their responses on all stop trials, and that they should not wait for the stop sign. The recording was interrupted by two short breaks of 1 min. Performance was monitored online to check the participant’s co-operation and protocol adherence, and if needed, additional standardized instructions were given during the 1-min breaks.

Variables for analysis of the performance data were number of omissions (no response to go stimulus), mean reaction time (MRT) of correct go trials, reaction time variability (coefficient of variation [CV]: standard deviation/MRT), and SSRT, which was computed by subtracting mean SSD from MRT (Logan, 1994).

Electrophysiological Recordings

Continuous electroencephalogram (EEG) was recorded at 512 Hz using the ActiveTwo Biosemi system and ActiView software (Biosemi, Amsterdam, The Netherlands) from 128 scalp electrodes according to the ABC labeling system, referenced to the active common mode and grounded to the passive driven right leg, which functions as a feedback loop to drive average potentials across electrodes to the amplifier zero. The electrooculogram (EOG) was obtained using two electrodes at the external canthi, and two electrodes at infraorbital sides. Reference electrodes were placed at both mastoids.

Off-line analysis was performed with Brain Vision Analyzer 2 software (Brain Products, Gilching, Germany). A band-pass filter of 0.1 to 30 Hz at 24 dB/Oct and a 50-Hz notch filter were applied, and scalp electrodes were re-referenced to the average of the mastoids. Ocular artifacts were estimated and corrected with a semi-automatic independent component analysis (ICA) using a restricted infomax algorithm (Jung et al., 2000), and automatic artifact rejection was applied to segments based on the following criteria: maximum allowed voltage step of 50 µV/ms, maximal peak-to-peak amplitude difference of ±150 µV, and minimal low activity of 0.50 µV for 100 ms intervals. Broken electrodes were interpolated with the spherical splines method (Perrin, Pernier, Bertrand, & Echallier, 1989).

Correct go trials were segmented from 700 ms pre-stimulus to 1,700 ms post-stimulus and baseline-corrected for the interval −700 to −500 ms; this interval precedes the fixation cross during the presentation of a blank screen between trials. Both SI and FI trials were first segmented at the preceding go stimulus using an equal interval and baseline correction as previously described. Due to the adjacency between go and stop stimuli, go and stop responses in the EEG overlap. We corrected for this with ADJAR (Woldorff, 1993), which filters out overlap of previous go responses. After this correction, trials were segmented from −100 to 800 ms relative to the stop stimulus. Subsequently, a 100 ms pre-stimulus baseline was applied, and averages were obtained for SI and FI.

Grand average ERPs, scalp topographies, and difference waves for each trail type were inspected to define analysis windows for N1 (105-155 ms), P2 (175-225 ms), N2 (240-290 ms), and P3 (320-420 ms). Although a late positive wave (LPW) was apparent around 650 ms, this component is beyond the scope of the current article. Mean voltage amplitudes were used for statistical analyses.

LAURA Source Estimation

Sources underlying differentiating ERP components between groups were estimated for each time-window using the LAURA distributed linear inverse solution method (Grave de Peralta Menendez, Gonzalez Andino, Lantz, Michel, & Landis, 2001; Grave de Peralta Menendez, Murray, Michel, Martuzzi, & Gonzalez Andino, 2004; Michel et al., 2004). The analysis was performed using the Cartool software by Denis Brunet (brainmapping.unige.ch/cartool). Only main group effects were examined. LAURA incorporates biophysical constraints by selecting a source configuration that better mimics biophysical principles of electric vector fields. Inverse solutions were calculated for each participant separately on a realistic head model that included 5,004 equally distributed nodes within the gray matter of the Montreal Neurological Institute (MNI) transformed National Institutes of Health Pediatric (NIHPD) brain atlas based on 7.5- to 13.5-year-old children (Fonov et al., 2011; Fonov, Evans, McKinstry, Almli, & Collins, 2009).

Statistics

Demographic and performance data were compared between groups using General Linear Model (GLM) ANOVA in SPSS 20 (Corp IBM, 2011). Alpha was set at .05, two-tailed. To explore the relation between brain responses, cognition, and ADHD symptoms, Pearson correlations were computed between LAURA activations and SSRT, MRT, CV, omissions, and SWAN symptom scales. Correlations of p < .01 were considered significant, and p > .01 and p < .05 as trend. Non-significant correlations were not reported. Assumptions of the SST such as independence of go and stop processes (MRT go trials > MRT FI trials), comparability of RT skew and RT slowing were assessed (see Verbruggen, Chambers, & Logan, 2013, for a discussion). To account for within-subject correlation of responses, RT slowing was tested with generalized estimated equations (GEE). IQ was not entered as covariate in any of the analyses, as lower IQs are associated with ADHD (Frazier, Demaree, & Youngstrom, 2004), which violates assumptions of ANCOVA (Dennis et al., 2009).

For the P1, N1, and P3 analyses, repeated-measures GLM multivariate analysis of variance (MANOVAs) were performed with Group as between-subject factor (TD, ADHD) and with both Condition (SI, FI) and Location (Fz, Cz, Pz) as within-subject factors. To specifically test for right frontal dominance in N2 group differences, the analysis for N2 distinguished four averaged regions of interest (ROIs): left frontal (LF; C27,D4,D7), left parietal (LP; D17,D26,A7), right frontal (RF; C14,C4,C7), and right parietal (RP; B19,B16,B4). Findings involving group were further explored with Bonferroni-corrected post hoc tests, if necessary. When appropriate, conditions or locations were averaged for further post hoc analysis.

For the LAURA estimations, group differences were tested with unpaired t tests for each node; p values were Bonferroni-corrected based on the number of electrodes, with p = .05/128 = .0004 (Grave de Peralta Menendez et al., 2004). Coordinates were converted from MNI to Talairach space with the icbm2tal algorithm (Lancaster et al., 2007) using GingerALE software (Laird et al., 2005). Individual ROIs were computed for brain regions that differed significantly between groups by averaging the solution points to obtain correlations with performance measures.

Results

Group Characteristics and Behavioral Data

Table 1 summarizes the group characteristics and task performance data. Groups did not differ on age and gender. As expected, IQ was lower in the ADHD group. MRT go trials were slower than MRT FI trials, F(1, 95) = 303.54, p < .001, no differences were found between groups in skewness of go RT distributions, F(1, 95) = 2.58, p = .111, RT slowing, Wald χ²(1) = −.439, p = .51, or percentage of successful inhibition, F(1, 95) = 0.01, p = .754, indicating SST assumptions were met. Groups did not differ on SSRT. However, the ADHD group showed increased MRT and CV and made more omission errors than the TD group.

Number of artifact-free segments did not differ between groups for go trials (M = 299), F(1, 95) = 2.61, p = .110; SI trials (M = 66), F(1, 95) = 1.48, p = .226; and FI trials (M = 53), F(1, 95) = 2.5, p = .114, and there were no significant group differences in number of interpolations (M = 1.5), F(1, 95) = 3.01, p = .086.

ERP Results

Mean amplitudes of the ERP components for each location, condition, and group, and MANOVA results are shown in Table 2. Waveforms are shown in Figure 1.

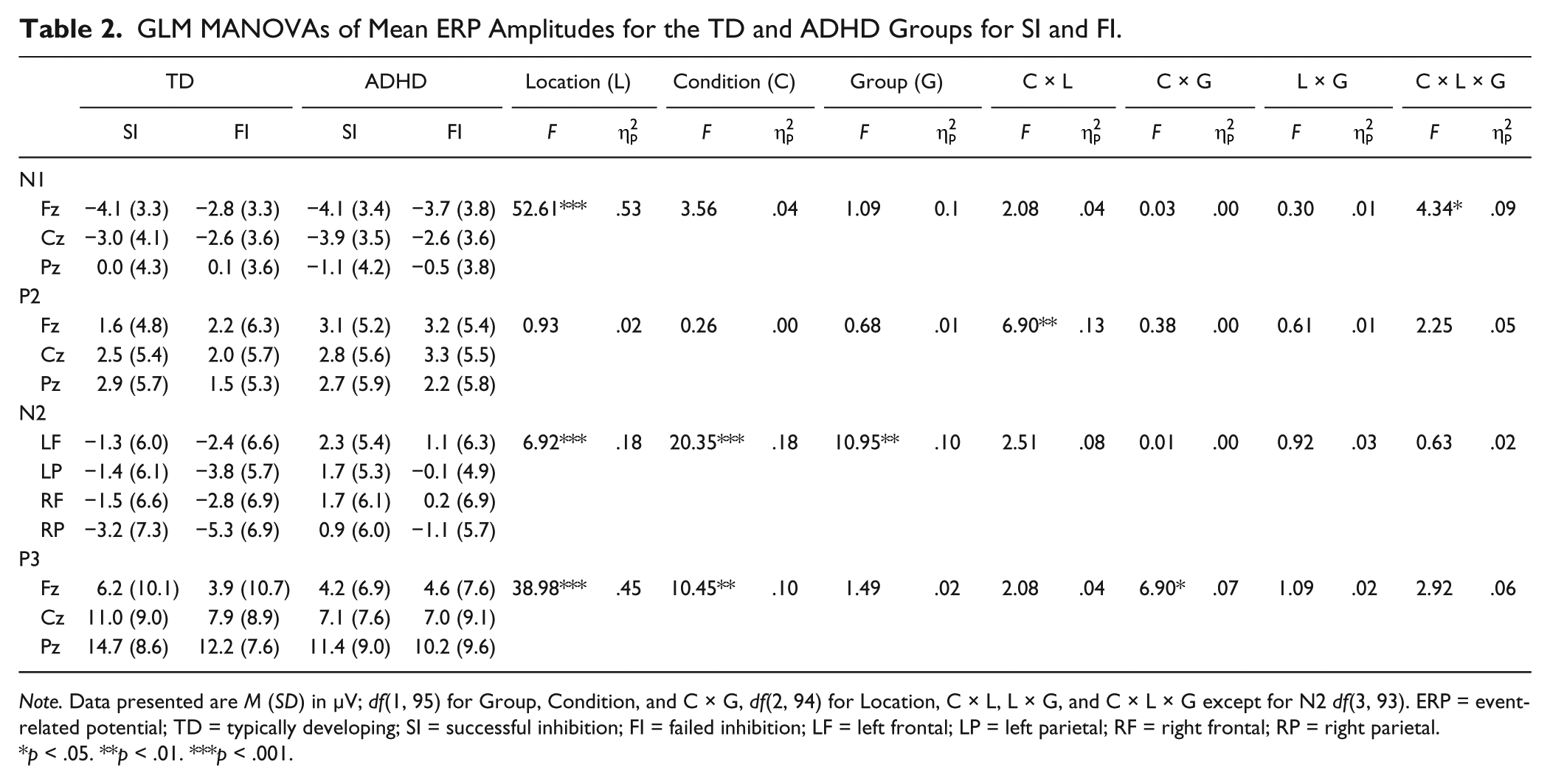

Table 2.

GLM MANOVAs of Mean ERP Amplitudes for the TD and ADHD Groups for SI and FI.

	TD		ADHD		Location (L)		Condition (C)		Group (G)		C × L		C × G		L × G		C × L × G
	SI	FI	SI	FI	F	$η_{p}^{2}$	F	$η_{p}^{2}$	F	$η_{p}^{2}$	F	$η_{p}^{2}$	F	$η_{p}^{2}$	F	$η_{p}^{2}$	F	$η_{p}^{2}$
N1
Fz	−4.1 (3.3)	−2.8 (3.3)	−4.1 (3.4)	−3.7 (3.8)	52.61***	.53	3.56	.04	1.09	0.1	2.08	.04	0.03	.00	0.30	.01	4.34*	.09
Cz	−3.0 (4.1)	−2.6 (3.6)	−3.9 (3.5)	−2.6 (3.6)
Pz	0.0 (4.3)	0.1 (3.6)	−1.1 (4.2)	−0.5 (3.8)
P2
Fz	1.6 (4.8)	2.2 (6.3)	3.1 (5.2)	3.2 (5.4)	0.93	.02	0.26	.00	0.68	.01	6.90**	.13	0.38	.00	0.61	.01	2.25	.05
Cz	2.5 (5.4)	2.0 (5.7)	2.8 (5.6)	3.3 (5.5)
Pz	2.9 (5.7)	1.5 (5.3)	2.7 (5.9)	2.2 (5.8)
N2
LF	−1.3 (6.0)	−2.4 (6.6)	2.3 (5.4)	1.1 (6.3)	6.92***	.18	20.35***	.18	10.95**	.10	2.51	.08	0.01	.00	0.92	.03	0.63	.02
LP	−1.4 (6.1)	−3.8 (5.7)	1.7 (5.3)	−0.1 (4.9)
RF	−1.5 (6.6)	−2.8 (6.9)	1.7 (6.1)	0.2 (6.9)
RP	−3.2 (7.3)	−5.3 (6.9)	0.9 (6.0)	−1.1 (5.7)
P3
Fz	6.2 (10.1)	3.9 (10.7)	4.2 (6.9)	4.6 (7.6)	38.98***	.45	10.45**	.10	1.49	.02	2.08	.04	6.90*	.07	1.09	.02	2.92	.06
Cz	11.0 (9.0)	7.9 (8.9)	7.1 (7.6)	7.0 (9.1)
Pz	14.7 (8.6)	12.2 (7.6)	11.4 (9.0)	10.2 (9.6)

Note. Data presented are M (SD) in µV; df(1, 95) for Group, Condition, and C × G, df(2, 94) for Location, C × L, L × G, and C × L × G except for N2 df(3, 93). ERP = event-related potential; TD = typically developing; SI = successful inhibition; FI = failed inhibition; LF = left frontal; LP = left parietal; RF = right frontal; RP = right parietal.

p < .05. **p < .01. ***p < .001.

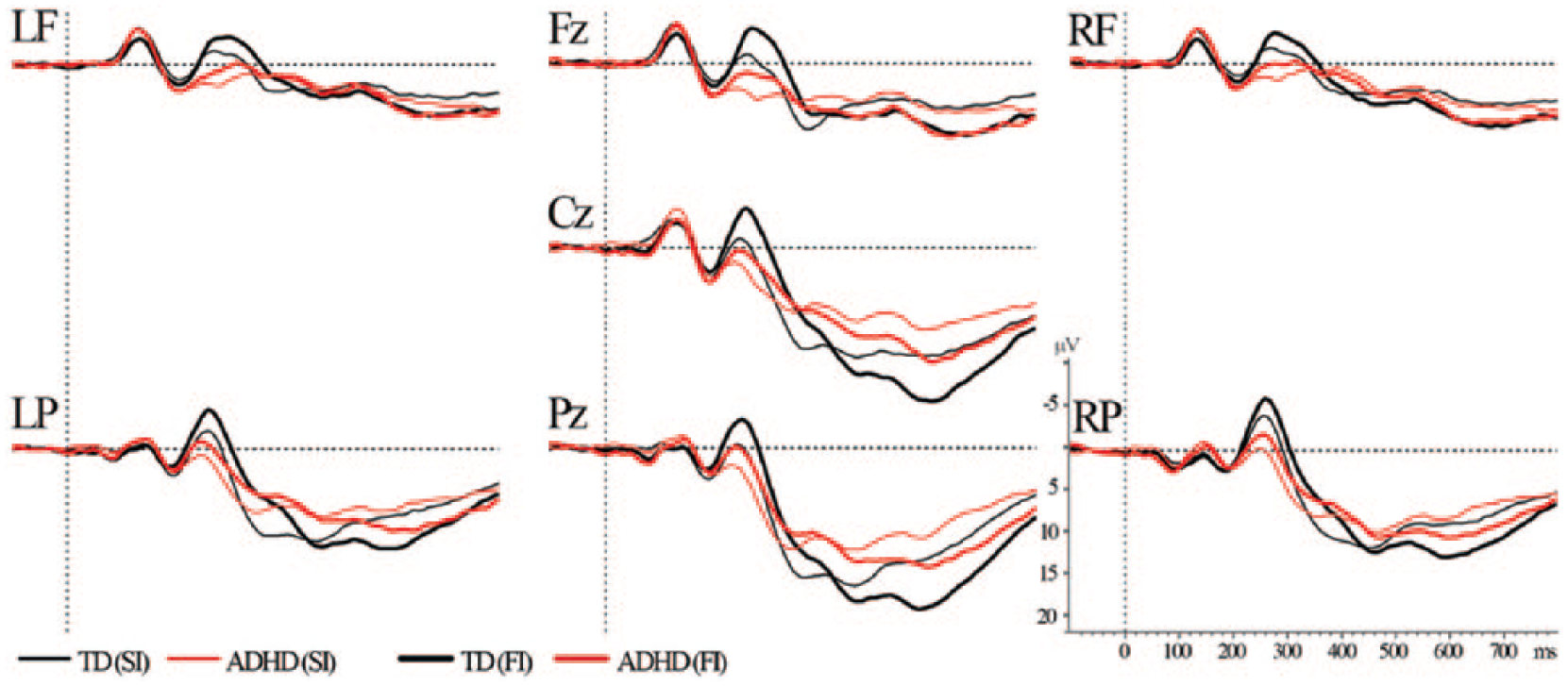

Figure 1.

Grand average ERPs of the ADHD and TD groups on the stop-signal task.

N1 (105-155 ms)

The three-way interaction between Condition, Location, and Group was significant. Post hoc tests revealed that only for the ADHD group, Condition, and Location interacted significantly, F(2, 44) = 6.15, p = .004, $η_{p}^{2}$ = .22, with only for Cz a significant larger N1 amplitude for SI than FI, F(1, 45) = 5.45, p = .024, $η_{p}^{2}$ = .11. The main effect of Location indicated that amplitudes were larger at Fz compared with Cz and Pz.

P2 (175-225 ms)

No differences were found between groups. Condition and Location interacted significantly. This interaction reflected larger P2 amplitude at Pz for SI than FI.

N2 (240-290 ms)

Main effects were found for Condition, Location, and Group. The main effect of Group indicated that N2 amplitudes were smaller for the ADHD group than the TD group, M difference = −3.57, 95% confidence interval [CI] [−5.71, −1.43]. The main effect for Condition indicated that FI trials showed greater N2 amplitude than SI trials. The Location effect revealed that N2 amplitudes were maximal at right hemispheric parietal sites.

P3 (320-420 ms)

Condition and group interacted. Post hoc analysis revealed a trend for a group difference only for SI trials, F(1, 95) = 3.77, p = .055, $η_{p}^{2}$ = .04, with smaller P3 amplitudes for the ADHD group, M difference = 3.06, 95% CI = [−0.07, 6.19]. The main effect of Condition indicated that P3 amplitudes were larger for SI than FI trials, whereas the main effect of Location revealed larger P3 amplitudes at Pz compared with Cz and Fz.

LAURA Source Estimation Results

Given the ERP findings of reduced N2 amplitudes during SI and FI, and reduced P3 amplitude during SI in ADHD, these analysis windows were used for LAURA source estimation. The N1 three-way interaction was not suitable for examination with LAURA, which only allows testing of main group effects. Figure 2 shows the statistical parametric maps of the group comparisons. For N2 during SI, the ADHD group showed reduced activation in right inferior frontal gyrus (rIFG) and insula (Brodmann areas [BA] 44 and 13) extending into BA6, right temporoparietal junction (rTPJ; BA 40) and rostral medial frontal cortex (BA 6), including the supplementary motor area (SMA). See Figure 3 for a lateral view. During FI, the ADHD group showed reduced activation in the rIFG (BA44) for N2. Analyses for the subsequent P3 during SI showed reduced activation in children with ADHD compared with TD children in medial frontal areas, including the anterior cingulate cortex (ACC, BA 32, 24) and SMA (BA 6).

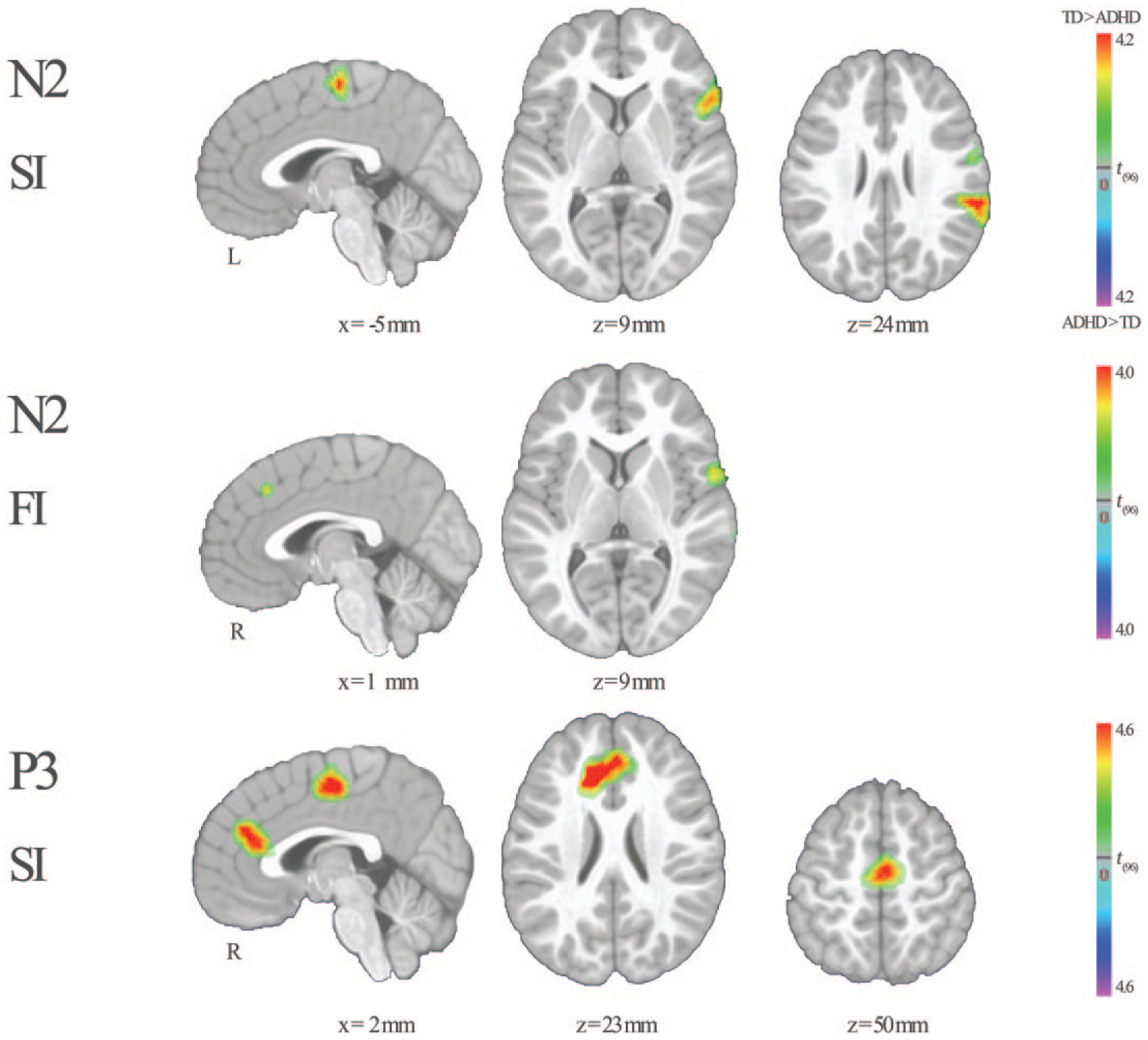

Figure 2.

Statistical differences between ADHD and TD groups in source localization of N2 and P3.

Figure 3.

Statistical differences between ADHD and TD groups in source localization of N2 during successful inhibition.

Correlations

Differentiating sources between groups during N2 and P3 were averaged for each child and correlated with performance measures and SWAN symptom scales.

Successful inhibition

For N2 sources, the TD group showed a trend for a negative correlation between rIFG activation and SSRT, r(49) = −.33, p < .05. For the ADHD group, a negative correlation was found between rTPJ activation and omissions, r(44) = −.32, p < .05, and between SMA activation and CV, r(44) = −.41, p < .01. For P3 sources, the TD group showed statistical trends for negative correlations between activation in both ACC and SMA and SSRT, r(49) = −.31 and −.28, respectively, p < .05. For the ADHD group, a negative correlation was found between SMA activation and SSRT, r(44) = −.37, p < .05. No significant correlations were found between source activations and ADHD symptoms.

Failed inhibition

For N2 sources, only the ADHD group showed a relation between rIFG activation and SSRT, r(44) = −.33, p < .05. No significant correlations were found between source activations and ADHD symptoms.

Discussion

The present study aimed to critically appraise processes involved in response inhibition as assessed with the SST in children with ADHD compared with TD children. Overall, earlier processing steps as reflected in N1 and P2 did not differentiate between ADHD and TD, except for a success-related N1 modulation that was only apparent in the ADHD group; however, later N2 and P3 components were reduced in amplitude in ADHD, as hypothesized. Differentiating components were localized in both typical inhibition and ventral attention (N2), and monitoring networks (P3). Surprisingly, while groups differed on MRT, CV, and number of omissions, SSRTs were equal among groups (250 ms).

Performance data indicated difficulties with processing speed and/or attention (increased MRT, more omission errors and increased CV), which are characteristic for ADHD (Castellanos, Sonuga-Barke, Milham, & Tannock, 2006). Although many behavioral studies found evidence for slower SSRTs (Alderson et al., 2007), several ERP studies also failed to find this difference (Johnstone et al., 2007; Liotti et al., 2005; Pliszka et al., 2000). This could be due to intrinsic characteristics of ERP tasks, such as a large number of trials administered, differences in inter-trial intervals during the task or test environment.

In contrast to previous findings, no marked deficiencies in early processing were identified in children with ADHD, although a success-related N1 modulation was only apparent in the ADHD group with increased N1 for SI at the vertex compared with FI. Possibly, children with ADHD partly compensate for inhibitory or attentional difficulties by increasing sensory processing of the stop stimulus to enable successful stopping. Several factors could explain the inconsistent findings of the few studies that have looked into early components in the SST. Three of the available four studies used an auditory stop signal (Dimoska et al., 2003; Johnstone et al., 2007; Senderecka et al., 2012). Possibly, abnormal sensory registration in ADHD is modality-specific, at least for the N1 and P2 components. Another explanation is the lack of correction for an overlap between go and stop ERPs in two studies (Johnstone et al., 2007; Senderecka et al., 2012), or residual overlap despite weighted stop-delay sub-ranges, which is a method to control but not correct differential overlap (Dimoska et al., 2003; Shen et al., 2011).

In line with previous studies, N2 amplitudes were reduced in ADHD (Albrecht, Banaschewski, Brandeis, Heinrich, & Rothenberger, 2005; Dimoska et al., 2003; Johnstone et al., 2007; Liotti et al., 2010; Liotti et al., 2007; Pliszka et al., 2007). Group differences in individual distributed source imaging estimations revealed decreased activation in the rIFG (BA 44) for both SI and FI, and specifically for SI, reduced activation in the rTPJ and SMA in the ADHD group.

Reduced activations in the rIFG and SMA have been identified in numerous SST imaging studies in children with ADHD (Hart et al., 2013; McCarthy, Skokauskas, & Frodl, 2014). Aron, Behrens, Smith, Frank, and Poldrack (2007) propose that the rIFG implements inhibition via the subthalamic nucleus (STN), which activates the globus pallidus, resulting in thalamo-motorcortical inhibition. However, the rIFG has also been associated with a right-lateralized ventral attention network together with the rTPJ, which is important for responding to behaviorally relevant stimuli and maintaining attentive control (Corbetta, Patel, & Shulman, 2008; Hampshire et al., 2010; Singh-Curry & Husain, 2009). A tentative conclusion would be that the findings of reduced activation in both rIFG and rTPJ in the ADHD group, and the lack of SSRT differences, support the second interpretation, that the ventral attention network is disrupted. However, the relation between activation in rTPJ and rIFG and performance measures may point to a dissociation between attention and inhibition, as within the ADHD group, the rTPJ was related to omissions on go trials, and for both groups rIFG was related to SSRT.

The role of the (pre-)SMA in inhibition is still debated. There is evidence for connections between the pre-SMA, rIFG, and STN, in which the pre-SMA could implement neural inhibition directly or have a conflict monitoring function (Aron et al., 2007). The former option is supported by transcranial magnetic stimulation (TMS) studies experimentally disrupting pre-SMA functioning during an SST resulting in slower SSRTs (Chen, Muggleton, Tzeng, Hung, & Juan, 2009; Obeso, Robles, Marrón, & Redolar-Ripoll, 2013). Sharp et al. (2010) even suggest a unique role of the pre-SMA in inhibition. Others argue that the pre-SMA is implicated in the complexity of condition–action associations or switching between tasks (Nachev, Kennard, & Husain, 2008).

The subsequent P3 results were in accordance with other studies, showing success-related enhancement during SI and reduced amplitudes during SI in children with ADHD (Johnstone et al., 2007; Liotti et al., 2010; Liotti et al., 2007; Pliszka et al., 2007). Furthermore, P3 differences between groups were localized in medial frontal brain areas, ACC and SMA, which play important roles in cognitive control. A recent overarching theory of the ACC proposes that this structure allocates control based on an evaluation of the expected value of control (EVC; Shenhav, Botvinick, & Cohen, 2013). The EVC can be seen as a cognitive control signal based on diverse sources of information, such as expected pay-off of not implementing control and costs in terms of effort to implement control.

Some limitations to this study should be noted. First, source imaging is an estimation of brain activity instead of a measurement like fMRI, with less spatial resolution, and should therefore be interpreted with more caution. Second, distributed source imaging can produce spurious activations, or “ghost” sources (Fuchs, Wagner, Kohler, & Wischmann, 1999). However, both problems were reduced in the current study by calculating individual source estimations, which make it unlikely that spurious activations will be consistently observed across individuals, and stringent statistical group comparisons give more confidence than source localization of grand averages. Last, although we found a significant interaction between group and condition for the P3 amplitude measures, further post hoc tests revealed a statistical trend for a difference (p = .055) between groups on successful inhibition trials. The P3 amplitudes showed considerable variation within groups, which may explain we only found a trend.

In conclusion, although we found no evidence for deficient early processing, children with ADHD may partly compensate for inhibitory or attentional difficulties by intensifying sensory processing to enable successful stopping. There were marked differences in subsequent N2 and P3 processing stages, which were localized in a right-lateralized network encompassing rTPJ and rIFG, and medial frontal areas, including ACC and SMA, respectively. These areas strikingly coincide with fMRI evidence of the SST in ADHD (Hart et al., 2013; McCarthy et al., 2014). We speculate that disruptions in the ventral attention network during N2 at least contribute to poor performance of children with ADHD on the SST. These disruptions seem to be followed by deficient monitoring of the success of inhibition as reflected by P3. However, the functional specificity of these networks remains to be better established.

Footnotes

Acknowledgements

The Cartool software (brainmapping.unige.ch/cartool) has been programmed by Denis Brunet, from the Functional Brain Mapping Laboratory, Geneva, Switzerland, and is supported by the Center for Biomedical Imaging (CIBM) of Geneva and Lausanne. Furthermore, we thank Denis Brunet for the LAURA inverse solution. We thank all participating children and families for their contribution.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This trial is funded by The Netherlands Organization for Health Research and Development (ZonMw): 157003012. ZonMw funded the trial, but had no role in the data analysis, manuscript preparation, or decision to publish.

Author Biographies

Tieme W. P. Janssen, MSc, is involved in the Child Study Group, part of the department of Clinical Neuropsychology at the VU University in Amsterdam. His research covers the neurocognitive mechanisms of ADHD, randomized controlled trials into non-pharmacological and pharmacological interventions, and neural treatment mechanisms.

Dirk J. Heslenfeld, PhD, is assistant professor at the department of Cognitive Psychology at the VU University in Amsterdam. His work covers diverse neuroscientific subjects such as cognitive, emotional, and social brain functions using techniques of MRI, PET, EEG, and MEG.

Rosa van Mourik, PhD, is involved in electrophysiological studies of ADHD and intervention trials. She is also active as clinical neuropsychologist at Koninklijke Kentalis in Utrecht.

Katleen Geladé, MSc, is neuropsychologist and researcher at Yulius Academy in Barendrecht. Her topics of investigation are the behavioural and neuropsychological effects of ADHD interventions.

Athanasios Maras, MD, PhD, is child psychiatrist and the chief of Yulius Academy in Barendrecht. His research programs cover diverse subjects in paediatric psychiatry, such as non-pharmacological/pharmacological interventions and fundamental research into the physiology of psychiatric disorders.

Jaap Oosterlaan, PhD, is professor in the department of Clinical Neuropsychology at the VU University in Amsterdam and chief of the Child Study Group. He is also director of Follow Me in collaboration with The Emma Children’s Hospital AMC and the department of Paediatrics VU Medical Center. His research covers medical conditions and childhood developmental disorders, such as premature birth, traumatic brain injury, and ADHD.
