Abstract
Keywords
Introduction
ADHD is a highly prevalent morbid disorder estimated to affect up to 11% of children (Centers for Disease Control and Prevention, 2016). One source of impairment in ADHD is deficits in executive functions (EFDs; Barkley & Murphy, 2010; Biederman et al., 2006; Biederman et al., 2007; Faraone et al., 2006), a group of high-order cognitive functions necessary for goal-directed activities, of which working memory is a prominent component. Working Memory (WM) as well as its predecessor, Freedom From Distractibility (FFD), refers to the ability to hold information in mind for use in complex tasks (Alderson, Kasper, Hudec, & Patros, 2013; Baddeley, 1998). WM deficits are often thought to be core symptoms of ADHD; however, they are not present in all individuals with ADHD and need specialized assessment to be diagnosed. While ADHD is diagnosed with clinical interviews and checklists that rely on behavioral observations, WM deficits can only be assessed through psychometric testing.
Because of its importance in learning and everyday tasks, WM deficits can be expected to have a wide range of adverse functional consequences when impaired (Alloway & Alloway, 2010). Yet the scope of the adverse outcomes of these deficits within ADHD has not been adequately investigated. A better understanding of the impact of WM deficits in ADHD has important implications. Insights about the morbidity of WM deficits and ADHD will first encourage clinicians managing children with ADHD to assess WM deficits with psychometric testing. Such information can help further define a homogeneous subgroup of ADHD patients with unique neurobiological underpinnings and identify more specific presentations of the disorder. Moreover, because pharmacological treatments for ADHD have limited impact on WM (Biederman et al., 2008; Matsuura et al., 2014), identification of WM deficits within ADHD will hopefully lead to appropriate targeted interventions (Arnsten, 2009; Biederman et al., 2008; Faraone, 2012; Pietrzak, Mollica, Maruff, & Snyder, 2006; Swanson, Baler, & Volkow, 2011).
The main aim of this study was to examine the available literature on WM deficits in ADHD to assess the scope of outcomes associated with it. We conducted a systematic literature search of scientific articles on ADHD and WM deficits. We hypothesized that WM deficits in ADHD will be associated with a wide range of functional deficits.
Method
We conducted a comprehensive search of the scientific literature on WM deficits, and its predecessor FFD, in ADHD relying on PubMed and PsycInfo databases. We used the following search criteria: (ADHD [All Fields] AND Working Memory deficits [All Fields] as well as ADHD [All Fields] AND Freedom From Distractibility [All Fields]). To be included in our review, we restricted the literature to studies that met the following criteria: (a) operationalized diagnosis of ADHD, (b) psychometric assessment of WM, (c) utilization of healthy controls, and (d) operationalized assessment of functional outcomes.
Data Extraction
The following variables were extracted: (a) numbers of participants in ADHD and control groups, (b) age group (pediatric, adolescent, adult), (c) tests and domain (auditory-verbal [AVM] or spatial-visual [SWM]) used in the assessment of WM, (d) specific measures of functional outcomes, and (e) type of study design (longitudinal or cross-sectional).
Results
As shown in Figure 1, the initial search in PubMed and PsycInfo identified 1,188 manuscripts with (a) ADHD, (b) either WM (1,144) or its predecessor FFD (44), (c) Functional Outcomes [All Fields] OR Academic* [All Fields] OR Social* [All Fields], (d) articles written in the English language, (e) peer-reviewed, (f) not a review article, and (g) controlled studies. The significant correlation of .72 between the Freedom of Distractibility Factor and the Working Memory Index of the Wechsler Intelligence Scale for Children–IV (WISC-IV) renders the use of FFD factor scores an appropriate proxy for WM index (Wechsler, 2003).

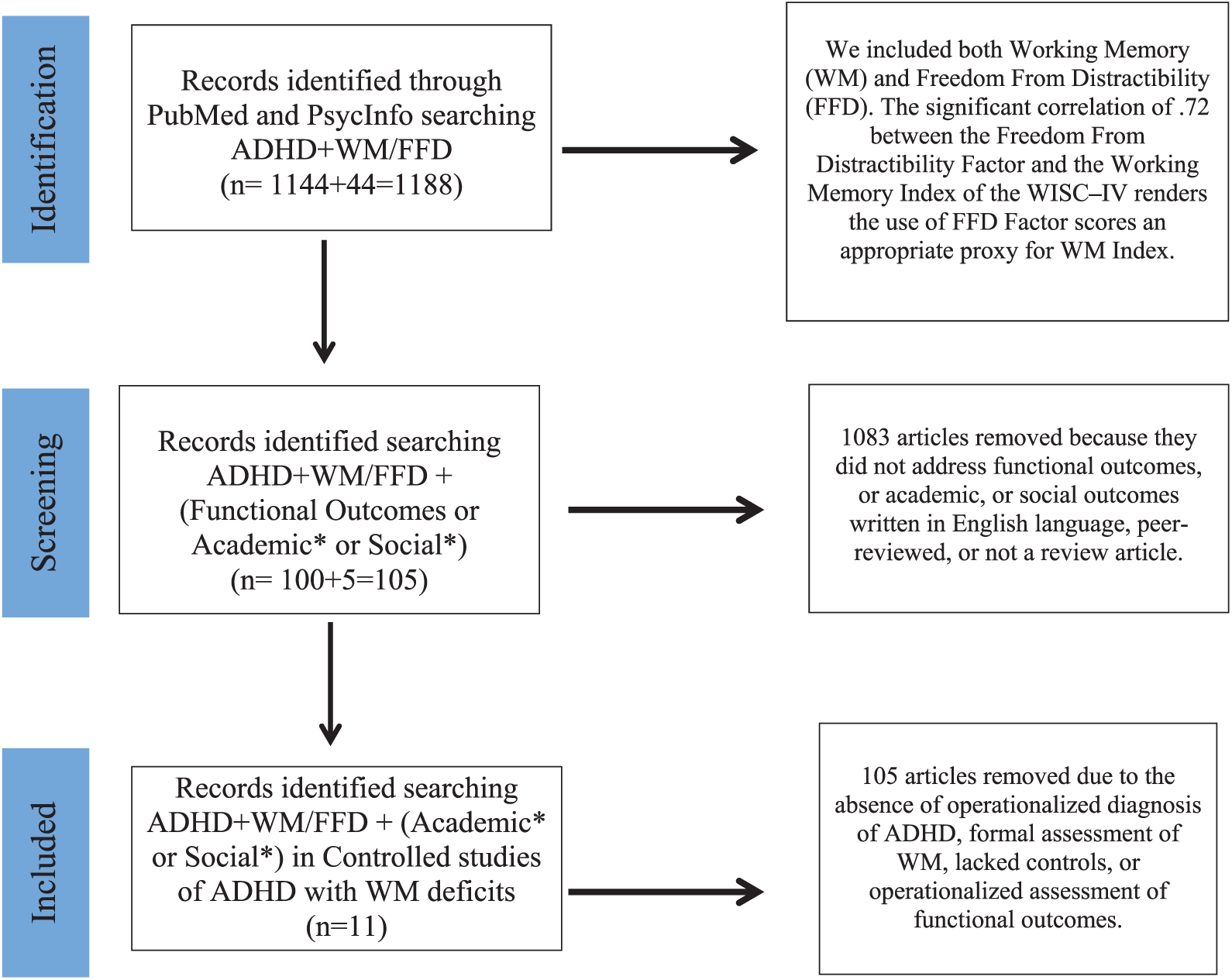

Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) flow diagram.
The search criteria reduced the number of manuscripts to 105. Of these, 94 articles were removed due to the absence of an operationalized diagnosis of ADHD and/or lack of formal assessment of WM, a control group, or operationalized assessment of functional outcomes. The final sample used in this review was 11 articles that met our inclusion and exclusion criteria. Within the 11 articles, effects of WM deficits were assessed in three functional domains: academic, social, and emotional. Three articles examined academic functioning only and three examined social functioning only. Two articles examined social and academic problems and one assessed social and emotional problems. Two articles looked at all three domains: academic, social and emotional. Of these 11 articles, only two assessed adult participants. Otherwise, the articles were limited to pediatric samples.
Assessment of WM
The assessment of WM was divided into two domains: auditory-verbal memory (AVM), which refers to the manipulation of read or heard information involving language, and spatial-visual memory (SWM), which refers to the manipulation of visual item locations or the relationship between visual items. Of the 11 studies identified, seven tested both AVM and SWM, two tested AVM only, and two tested SWM only. In regard to the range of methods to measure WM, eight studies used the Wechsler Working Memory Index (FFD) scales to assess AVM. Of these, two studies used the Wechsler measures exclusively, five used the Wechsler scales with customized research measures, and one used the Wechsler scales with customized research measures and a subtest of the Cambridge Neuropsychological Test Automated Battery (CANTAB; to measure SWM with a computerized test). One study used only customized research measures of both AVM and SWM, and two studies used only the CANTAB to measure SWM (Table 1).
Studies Included in Qualitative and Comprehensive Review.
Note. WM = working memory; AVM = auditory-verbal memory; SWM = spatial-visual memory; CANTAB = Cambridge Neuropsychological Test Automated Battery; GPA = grade point average; EF = executive function; RT= rate; SOC= Stockings of Cambridge.
Impact of WM Deficits on Academic Functioning
Of the seven studies that examined the impact of WM deficits on academic functioning, all found deficits in this area. Three studies found WM deficits had a significant adverse impact on reading and math scores. (Alloway, Elliott, & Place, 2010; Miller, Nevado-Montenegro, & Hinshaw, 2012; Rennie, Beebe-Frankenberger, & Swanson, 2014; Table 1). In addition, four articles reported on the adverse outcome of WM deficits on academic achievement or performance (Chiang & Gau, 2014; Fried et al., 2016; Gropper & Tannock, 2009; Sjowall & Thorell, 2014). Gropper and Tannock (2009) found that AVM had a significant adverse impact in academic performance as reflected in poor grade point average (GPA). Other related academic findings include Chiang and Gau’s (2014) finding that SWM deficits were associated with behavioral problems in school as measured by the Social Adjustment Inventory for Children and Adolescents (SAICA). In addition, Fried et al. found that AVM deficits were significantly associated with academic deficits as measured by grade retention and placement in special classes (Table 1).
Impact of WM Deficits on Social Functioning
Eight articles examined the effects of WM deficits on social functioning (Bunford et al., 2015; Chiang & Gau, 2014; Fried et al., 2016; Kofler et al., 2011; Miller et al., 2012; Rinsky & Hinshaw, 2011; Sjowall & Thorell, 2014; Tseng & Gau, 2013). Kofler et al. (2011), Tseng and Gau (2013), and Bunford et al. (2015) found that SWM deficits contributed to social impairment in youth with ADHD (e.g., being teased, less liked, and not getting along with peers). Chiang and Gau (2014) reported that SWM deficits were also associated with deficits in social interaction in school, school behavior problems, peer social interaction, and peer problems. Rinsky and Hinshaw (2011) found a detrimental effect of WM on adolescent social functioning. In contrast, Miller et al. (2012), Sjowall and Thorell (2014), and Fried et al. (2016) did not find any significant correlations between WM deficits and social functioning (Table 1).
Impact of WM Deficits on Psychopathology
Three articles examined the effects of WM deficits on psychopathology. Rinsky and Hinshaw (2011) found a marginally significant effect of childhood WM deficits on adolescent internalizing disorders. In contrast, Fried et al.(2016) did not find meaningful associations between WM deficits and psychiatric disorders. Finally, in Miller et al. (2012) WM predicted nonsuicidal self-injury (NSSI)/suicide attempts, but this finding was no longer significant when they controlled for group status (ADHD vs. control).
Conclusion
This literature search identified 11 controlled studies that examined the effect of WM deficits on functioning in individuals with ADHD. Despite the wide variety of tests used to assess WM, the two aspects of WM (AVM/SWM) and the various outcome measures assessed, the majority of the available literature suggests that WM deficits affect primarily academic functioning.
This robust finding of the effect of WM deficits on academic functioning was present in all seven of the studies that assessed this area. This finding was present regardless of the tests used to document WM deficits, the type of WM deficit (AVM or SWM), and the outcome measured (scores on math tests, reading tests, GPA, grades). This finding is not surprising considering the well-documented association between WM and the skills necessary for successful learning (Alloway & Alloway, 2010; Archibald, Joanisse, & Edmunds, 2011). Laboratory tasks designed to simulate the high WM demands of classroom activities confirm the critical importance of WM for learning (Engle, Carullo, & Collins, 1991; Gathercole, Durling, Evans, Jeffcock, & Stone, 2008).
Considering the high prevalence of ADHD, its documented impact on academic functioning, and its high overlap with WM deficits, the detrimental effects of WM deficits in ADHD on academic functioning has very high clinical, educational, and public health relevance. In a recent study, it was documented that ADHD is a significant risk factor for grade retention and dropping out of school, adjusting for social class and IQ (Fried et al., 2013). Every year in the United States, about 1.2 million students fail to graduate from high school on time (Editorial Projects in Education, 2011). Doll, Eslami, and Walters (2013) found that poor grades were the cause for approximately 38% of early termination from high school. Failing to graduate from high school has been shown to have severe adverse life-course consequences for these individuals such as poorer health and greater demand on social welfare (Freudenberg & Ruglis, 2007), lower standard of living, and impaired social mobility (Kessler, Foster, Saunders, & Stang, 1995). Moreover, failure to graduate from high school leads to lower wages, shorter lives (Muennig, 2005), and higher likelihood to commit crimes (Muennig, 2005; Raphael, 2004). Also, adding to this problem, WM has been shown to be a factor in grade retention (Fried et al., 2016), which is correlated with students being 4 times as likely not to complete high school or to receive a Graduate Equivalent Degree (GED).
The results of the eight studies that assessed social problems were more equivocal. Because social functioning and WM deficits in these studies were assessed by disparate measures, interpretation of these finding is difficult. The mechanism by which WM deficits are causal in reducing academic success has been well documented; however, the effect on social behaviors in less clear. There is a small literature that documents that students who underperform in school may be less socially accepted than their classmates (McKown, Gumbiner, & Johnson, 2011; Mrug et al., 2012). Therefore, there is a question as to whether deficits in WM directly contribute to poorer social behaviors and peer rejection or whether children’s rejection is due to poor performance in school, as a result of WM deficits. In addition, peer rejection in these scenarios may further hinder the development of positive social behavior, creating a difficult-to-break cycle. Since many of the studies that assessed social functioning also reported academic deficits, it could be that the social problems are secondary to academic deficits such as being less adept in school. More work is needed to further examine this issue.
The lack of robust findings in the literature regarding psychopathology is an interesting and somewhat unexpected finding. However, it must be considered in light of the fact that the majority of participants had not yet fully matured past the age of risk for many psychiatric disorders that could be linked to WM deficits.
Our findings need to be viewed in light of some methodological limitations. First, the available literature was small and almost exclusively focused on youth. The methods of measuring WM were inconsistent. In addition, methods of measuring outcomes were similarly inconsistent. Measures of social problems ranged from parent to teacher to self-report. Measures of academic outcomes ranged from performance on reading and math to self-reported GPA to parent-reported grades.
Despite these limitations, our review of the literature documents that WM deficits affect primarily educational functioning. Given the high morbidity and disability associated with academic dysfunction, more efforts are needed to help identify WM deficits in individuals with ADHD. More research is needed to help characterize the impact of WM deficits in adults with ADHD and develop appropriate interventions to help address them.
