Composite Primary Neuronal High-Content Screening Assay for Huntington’s Disease Incorporating Non-Cell-Autonomous Interactions

Abstract

Huntington’s disease (HD) is a fatal neurodegenerative disease characterized by progressive cognitive, behavioral, and motor deficits and caused by expansion of a polyglutamine repeat in the Huntingtin protein (Htt). Despite its monogenic nature, HD pathogenesis includes obligatory non-cell-autonomous pathways involving both the cortex and the striatum, and therefore effective recapitulation of relevant HD disease pathways in cell lines and primary neuronal monocultures is intrinsically limited. To address this, the authors developed an automated high-content imaging screen in high-density primary cultures of cortical and striatal neurons together with supporting glial cells. Cortical and striatal neurons are transfected separately with different fluorescent protein markers such that image-based high-content analysis can be used to assay these neuronal populations separately but still supporting their intercellular interactions, including abundant synaptic interconnectivity. This assay was reduced to practice using transfection of a mutant N-terminal Htt domain and validated via a screen of ~400 selected small molecules. Both expected as well as novel candidate targets for HD emerged from this screen; of particular interest were target classes with close relative proximity to clinical testing. These findings suggest that composite primary cultures incorporating increased levels of biological complexity can be used for high-content imaging and “high-context” screening to represent molecular targets that otherwise may be operant only in the complex tissue environment found in vivo during disease pathogenesis.

Keywords

Huntington’s disease huntingtin high-content analysis primary neuronal culture compound screening

Introduction

Huntington’s disease (HD) is a fatal, genetic neuro-degenerative disease characterized by progressive cognitive, behavioral, and motor deficits over a period of 15 to 25 years leading to disability and death.¹ Limited palliative treatments for HD are currently available but there is no effective cure; therefore there is a significant unmet need for developing drug therapies that can modify the disease course of HD. HD is autosomal dominant, arising from expansion of a CAG repeat sequence in the HD gene that translates into a polyglutamine (polyQ) expansion and causes disease when the repeat number exceeds ~36² (reviewed in Orr and Zoghbi³). PolyQ expansion in the resulting huntingtin (Htt) protein leads to misfolding and accumulation of aggregated Htt protein in the cytoplasm and nucleus of cells.^4-6 Neurodegeneration in HD may also be partly due to loss of normal Htt function, as Htt is involved in numerous cellular processes, including intracellular trafficking and transcription.^7,8 Transfection of Htt constructs containing polyQ expansions is, in any case, capable of generating strong and reproducible degenerative phenotypes in a range of model cells and organisms, including Drosophila melanogaster, Caenorhabditis elegans, rodents, and nonhuman primates,⁹ presumably through gain-of-function mechanisms.

This property of mutant Htt has enabled the development of a range of in vitro and in vivo assays as screening platforms for HD drug discovery.^10,11 These include a number of molecular assays that are designed to target aggregation of polyglutamine- containing peptides or proteins that have successfully identified compounds subsequently shown to also have anti- aggregative properties in cell and animal models (e.g., Apostol et al.,¹² Desai et al.,¹³ Wang et al.,¹⁴ and Berthelier and Wetzel¹⁵). More recent research, however, has fuelled debate over whether larger aggregates are inherently toxic, cytoprotective, or epiphenomenal¹⁶ (reviewed in Truant et al.¹⁷). Cell-based HD assays have generally focused on downstream targets of mutant Htt, such as surrogates of cell death (caspase-3 activation or lactate dehydrogenase release) as the assay endpoints (e.g., Aiken et al.,¹⁸ Piccioni et al.,¹⁹ Varma et al.,²⁰ and Wang et al.²¹). A number of compound hits from these screens have also been tested in more complex tissue or animal model systems such as Drosophila and transgenic HD mouse models.^9,22,23

However, the rate of success of these compounds has been relatively low, even in the context of de novo drug discovery, in terms of continued efficacy in increasingly physiologically and clinically relevant preclinical models, suggesting that key aspects of HD pathogenesis may not be adequately represented in conventional cell-free and cell-based HD models. Moreover, although striatal degeneration has long been a focus of HD research, increasing evidence suggests the complicit dysfunction of other brain regions, notably the cerebral cortex, and indeed neurodegeneration in late-stage HD is pervasive and widespread across the CNS.^24-27 As such, HD may not fundamentally be a cell-autonomous disorder but rather one that in vivo involves the interaction of several cell types, notably both striatal and cortical neurons.^24,25 In fact, basic aspects of striatal neuronal differentiation have been demonstrated to not occur in vitro in the absence of co-culturing with and active synaptic input from cortical neurons.²⁸

For new HD drug and drug target discovery, it would therefore be desirable to have an intermediate-stage screening assay with increased representation of the actual cell types and intercellular interactions that drive key aspects of HD pathogenesis in vivo, yet with sufficient throughput and assay robustness to support such applications as hit-to-lead, lead optimization, and primary screening of targeted compound libraries. In this context, we describe here a novel “composite” primary neuronal screening assay based on high-content analysis (HCA) that incorporates both striatal and cortical neurons in combination with their native glial cell counterparts. This approach offers significant advantages over cell line and primary cell monoculture assays in terms of physiological and clinical relevance, yet the use of image-based HCA allows the deconvolution of individual neuronal species within these composite cultures into cell-type-specific assay readouts even on the background of such a complex biological milieu.²⁹

Using this high-content, high-context approach, we screened an initial set of ~400 small-molecule compounds implicated in HD by their presumptive target mechanisms or by their origin from other cell-free or cell-based screens for HD. These compounds included 27 compounds with preexisting efficacy data in animal models of HD or related diseases/mechanisms. Of the hits emerging from this initial screen, we describe 4 compound target classes that provided significant and reproducible neuroprotection in this novel cortico-striatal primary neuronal assay and that are of particular interest because of the proximity of these drug/target classes to clinical use. Together, these results indicate the feasibility of automated high-content screening in the context of multiple, interconnected neuronal cell types in a complex co-culture system.

Materials and Methods

Plasmids

The HttN90Q8 and HttN90Q73 expression plasmids were constructed based on clones and sequences that were generous gifts of Dr. Chris Ross (Johns Hopkins) and the Hereditary Disease Foundation and contained Htt exon-1 (90 aa) with an expanded CAG repeat domain encoding 8 or 73 glutamines, respectively, cloned into the expression vector gWiz (Genlantis, San Diego, CA). Independent reporter constructs for yellow fluorescent protein (YFP), cyan fluorescent protein (CFP), and mCherry were also made in the gWiz backbone.

Primary culture and transfection

Striatal and cortical tissues from E18 embryonic brains were microdissected and dissociated enzymatically with papain/DNase I (Worthington Biochemical Corp., Lakewood, NJ). Then, 5 × 10⁶ cells of each neuronal cell type were electroporated separately using an Amaxa device (Lonza, Basel, Switzerland) with striatal versus cortical neurons co-transfected with different fluorescent protein reporter constructs to allow subsequent individual tracking under HCA. After electroporation, striatal and cortical cells were mixed together and then plated into 96-well plates in which glial beds had been plated 3 days previously. These final mixed cultures of neurons and astrocytes were grown in Neurobasal medium (Invitrogen, Carlsbad, CA) supplemented with 5% fetal calf serum (Sigma-Aldrich, St. Louis, MO), 2 mM glutamine (Glutamax, Invitrogen), 10 mM potassium chloride, and 5 µg/mL gentamicin.

Astroglia were generated from excess cortical cell preparations during the neuronal dissection by plating the mixed cell preparation into T-75 flasks (Becton Dickinson, Franklin Lakes, NJ) in Neurobasal medium (see above) (P0). The P0 cell mixtures were passaged into new flasks (P1) after 4 days in vitro (DIV). Thereafter, astroglial preparations were given media changes after 3 days and passaged after 7 days (>90% confluence). After 2 passages (P2), most of the nonglial cells had been removed, and cells were passaged into T-150 flasks for the third passage (P3). Astroglia were used for experiments at the P3 or P4 passage. For plating into 96-well plates, glia were harvested with trypsin/EDTA (Invitrogen), counted, and seeded at a density of 2000 cells/well into poly-D-lysine-coated 96-well plates (Becton Dickinson). These glial beds were used 3 to 4 days later for neuronal plating (see above).

Immunostaining and confocal microscopy

For immunostaining, identical cell mixtures were plated at equivalent densities on poly-lysine/laminin-coated coverslips (Becton Dickinson) in 24-well plates previously seeded with glial feeder layers as described above. When plating into 24-well plates, glial and neuronal cell numbers were scaled to equivalent cell densities as in the 96-well plate cultures. To immunostain, medium was removed and cells were fixed in freshly diluted 4% paraformaldehyde (16% stock, VWR)/4% sucrose for 20 min and then rinsed twice with phosphate- buffered saline (PBS). Cells were blocked with 5% goat serum/2% bovine serum albumin (BSA)/0.1% Triton X-100 in PBS for 1 h at room temperature, followed by incubation with primary antibodies overnight at 4°C in a humidified chamber. Coverslips were washed 4 times for 5 min each in PBS and appropriate secondary antibodies applied at 1:500 (4 µg/mL) in blocking solution for 2 h in the dark followed by 4 rinses with PBS. Finally, coverslips were mounted in Vectashield (Vector Labs, Servion, Switzerland) for imaging. Antibodies were purchased from Millipore (Billerica, MA) or Sigma-Aldrich (St. Louis, MO) and used at the following dilutions: NeuN 1:500, DARPP-32 1:100, vGLUT1 1:1000, GAD67 1:1000, synaptophysin 1:100, and spinophilin 1:400.

Electrophysiology

For electrophysiological recording, cortico-striatal co- cultures were prepared as described above for immunostaining. Portions of coverslips were then transferred on the specific DIV to a recording chamber, where standard patch-clamp methods³⁰ were used to obtain whole-cell recordings from striatal neurons identified by their fluorescence labeling. Briefly, patch-clamp electrodes (~3 MΩ resistance) were used to record synaptic currents on an Axopatch 200B voltage clamp with pClamp version 9 software (Molecular Devices, Sunnyvale, CA). The neurons were held at −65 mV, and signals were digitized at 5 kHz followed by low-pass Bessel filtering at 2 kHz. For recording miniature excitatory postsynaptic currents (mEPSCs), the extracellular solution contained (in mM) the following: 137 NaCl, 3 KCl, 2 CaCl₂, 10 glucose, and 10 mM HEPES, adjusted to pH 7.4 with NaOH. Then, 10 µM tetrodotoxin (TTX) and 20 µM bicuculline were added to block voltage-gated sodium channel and GABA receptor currents, respectively. The internal recording solution contained (in mM): 130 CsCl, 0.2 EGTA, 4 MgATP, 0.3 Na₂GTP, and 10 mM HEPES, adjusted to pH 7.3 with CsOH. To record miniature inhibitory postsynaptic currents (mIPSCs), the same solutions were used, but the bicuculline was replaced with 10 µM NBQX and 10 µM APV to inhibit AMPA and NMDA currents. All chemicals were purchased from Sigma-Aldrich (St. Louis, MO) unless otherwise indicated. Offline data analysis for mEPSC and mIPSC activity was done using Clampfit 9 (Molecular Devices) and mini analysis software from Synaptosoft (Decatur, GA).

High-content screening and analysis

Compound screening was done in a 96-well plate format with striatal and cortical neurons transfected separately with HttN90Q73 in combination with YFP, CFP, or mCherry, n = 6-8 wells for each condition. Positive control wells were treated with 10 µM KW-6002 or transfected with YFP and gWiz-CFP as a non-Htt transfection control. Negative control wells were treated with 0.5% DMSO, the carrier for compound delivery. Images of cells were captured on the Cellomics Arrayscan VTI (Thermo Scientific, Pittsburgh, PA) using a 10×/0.3 NA objective through appropriate filter sets for YFP, CFP, or dsRED (Chroma Technology, Rockingham, VT) and analyzed using the Cellomics Target Activation algorithm. Initially, 16 fields per well were acquired at full resolution; however, after statistical determination (data not shown), this was reduced to 9 fields per well. The algorithm was optimized for object size, object shape, and fluorescence intensity to identify specific neuronal cell bodies, as further described in the main text. Data graphs were generated, and statistical significance and nonlinear regression were calculated using GraphPad Prism (GraphPad Software, La Jolla, CA). Statistical significance was determined by 1-way analysis of variance (ANOVA) followed by Dunnett’s post hoc comparison test at the 0.05 confidence level. The z′ factor was calculated from a consecutive 60-plate run in a 1-month period.³¹

Test compounds

Test compounds were acquired through the CHDI Foundation, Inc. (Los Angeles, CA) or purchased directly from Tocris Bioscience (Ellisville, MO), Sigma-Aldrich (St. Louis, MO), or Calbiochem/EMD Biosciences (Gibbstown, NJ). Compounds were dissolved in 100% DMSO and diluted in culture medium to 2× the desired final concentrations, then added 1:1 (vol:vol) to culture wells immediately after neuronal plating. Final concentration of DMSO in the assay was 0.5% for all assay wells unless otherwise noted. Brain-derived neurotrophic factor (BDNF) (Sigma-Aldrich) was reconstituted in PBS and stored at −70°C in single-use aliquots and diluted for use in a similar fashion except for no addition of DMSO.

Results

Assembly of composite cortico-striatal cultures

The goal of these studies was to develop a high-content, high-context primary neuronal screening assay in which specific neuronal cell types such as striatal neurons and cortical neurons could be tracked as distinct cell populations while remaining resident—and synaptically interconnected—in a complex, multicellular mixture, including multiple neuronal and glial cell types. In diseases such as HD, in which intercellular interactions among different neuronal and glial populations appear to mediate core components of disease pathogenesis, such a screening assay could be particularly important in capturing non-cell-autonomous processes critical for disease pathogenesis.

We reasoned that such a screening assay could be constructed by combining automated HCA with high-density mixed primary cultures of neurons and glia from both striatum and cortex, the 2 major brain areas implicated in HD initiation and progression, providing that striatal and cortical neurons could be selectively labeled with different and independent fluorochromes for tracking distinct cell types and cell populations within these mixed cultures. To accomplish this, we microdissected striatal versus cortical brain tissues from E18 rat embryos and then dissociated and electroporated these different neuronal populations separately with different wavelength fluorescent protein-encoding indicator plasmids. These neuronal populations were then recombined and plated onto previously established glial cell support layers in 96-well plates ( Fig. 1 ).

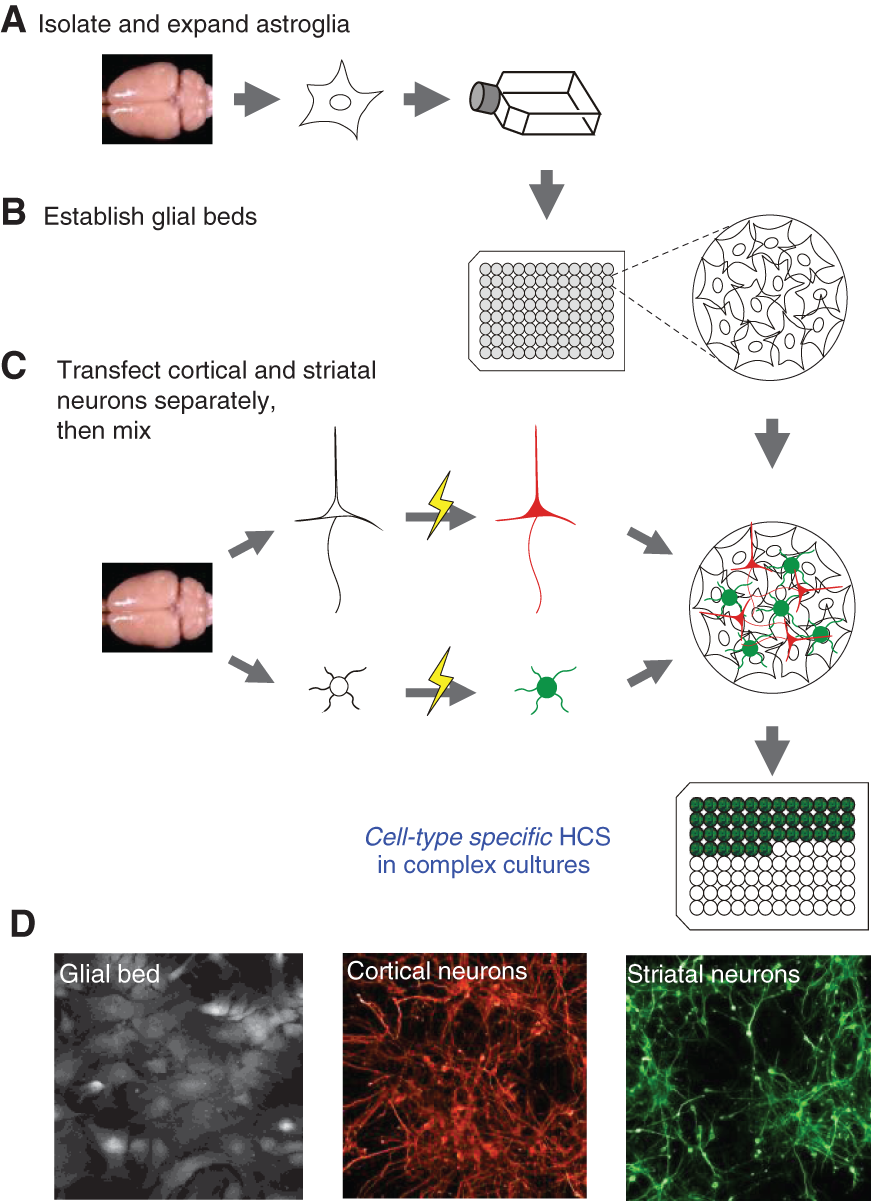

Fig. 1.

Assembly process for composite cortico-striatal co-cultures. (A) Three weeks prior to isolation of neurons, astroglia are prepared from E18 embryonic rat brains and cultured in T-75 flasks through 3 passages. (B) Three days prior to neuronal preparation, the glia are recovered from the flasks and plated onto poly-lysine/laminin-coated 96-well plates at a density of 2000 glial cells/well. In the following 3 days, these glial cultures will proliferate into near-confluent glial beds. (C) Striatal and cortical brain tissues are microdissected from E18 rat embryos and separately dissociated and electroporated with the desired DNA plasmid mixtures as described in the main text, with striatal and cortical neurons transfected with different wavelength fluorescent protein reporters (shown here for yellow fluorescent protein [YFP] into striatal neurons, mCherry into cortical neurons). Immediately after electroporation, striatal and cortical neurons are mixed thoroughly and plated onto the previously prepared glial beds in 96-well plates. (D) Transfected cells from the cortex and striatum are predominantly neurons and are morphologically easily distinguishable from the astroglia cells making up the glial bed.

Such mature glial beds are known to be critical for neuronal survival and development in vitro and are supportive of the reestablishment of synaptic connectivity between cortical and striatal neurons as is the aim of this assay strategy. Glial cells were prepared from isochronic rat brain tissues and expanded by 3 passages in culture before seeding into 96-well plates 2 to 3 days before neuronal dissection to allow for prior establishment and maturation of glial beds ( Fig. 1A,B ). By the third passage, these glial populations exhibit uniform astroglial morphology with insignificant numbers of contaminating neurons and microglial cells. As these glial cells are not transfected, clear imaging of striatal and cortical neurons expressing different fluorescent proteins is still supported when these neuronal populations are plated onto the glial beds and allowed to reconnect synaptically ( Fig. 1C ). In addition, electroporation conditions were developed such that very few glial cells are transfected, and those few that are can be easily excluded by HCA object identification criteria on the basis of their very different morphologies compared to neurons of either the striatum or the cortex ( Fig. 1D ).

In fact, the cell populations expressing fluorescent reporters were of almost exclusive neuronal morphology ( Fig. 1D ), and to confirm the identities and differential phenotypes of striatal versus cortical neurons, we used immunostaining to identify general as well as neuronal cell-type-specific markers under identical culture conditions, including glial beds. As expected, the vast majority of cells expressing fluorescent proteins also expressed NeuN, indicating that these cells were differentiated neurons ( Fig. 2A,B ). To confirm the identity of the neurons isolated from striatal tissues, we immunostained against the inhibitory interneuron marker glutamic acid decarboxylase (GAD67; Fig. 2A ). GAD67 should label striatal medium spiny neurons (MSNs), which constitute 95% of the neurons in the striatum³² as well as other striatal interneuronal subtypes. To confirm the identity of the neurons isolated from cortical tissues, we immunostained against the excitatory neuronal marker vesicular glutamate transporter (vGLUT1/SLC17A7; Fig. 2B ). vGLUT1 should label the predominant excitatory neuronal class in the cortex, pyramidal neurons, including those that project to the striatum in vivo. Immunostaining against the presynaptic vesicle marker synaptophysin and the postsynaptic dendritic spine marker spinophilin (PPP1R9B) suggested extensive synaptic interconnectivity among these striatal and cortical neurons ( Fig. 2C ).

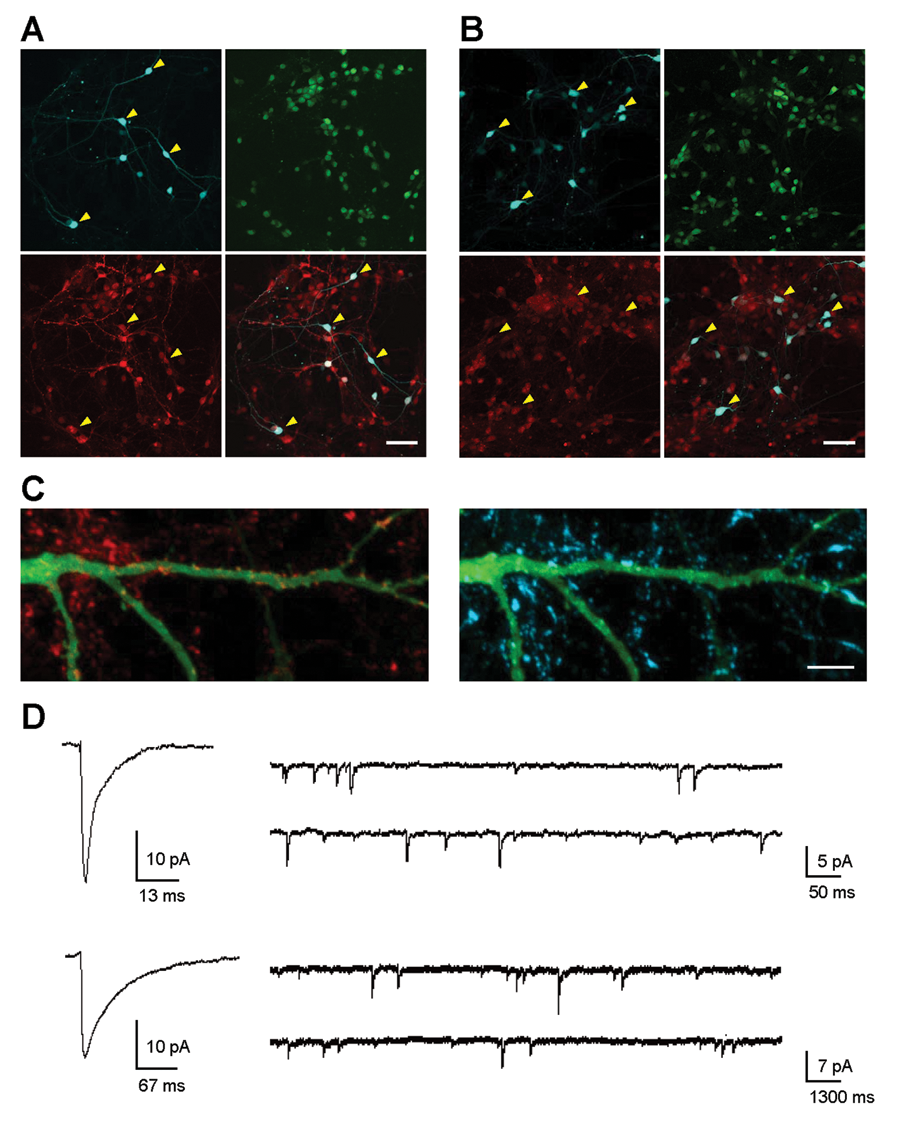

Fig. 2.

Striatal and cortical neurons in composite cultures express cell-type-specific markers and are electrically and synaptically active. (A) Striatal neurons in co-culture on glial feeder layers transfected with cyan fluorescent protein (CFP; upper left, blue channel) immunostain positive for the inhibitory interneuronal marker GAD67 (lower left, red channel) and for the pan-neuronal marker NeuN (upper right, green channel). Lower right panel shows overlay of the CFP and GAD67 channels, with examples of neurons coexpressing these markers indicated by yellow arrowheads. (B) Cortical neurons in co-culture on glial feeder layers transfected with CFP (upper left, blue channel) immunostain positive for the excitatory neuronal marker vGLUT1 (lower left, red channel) and for the pan-neuronal marker NeuN (upper right, green channel). Lower right panel shows overlay of the CFP and vGLUT1 channels, with examples of neurons coexpressing these markers indicated by yellow arrowheads. For (A) and (B), images were acquired on a Zeiss LSM 510 inverted confocal microscope using a 20× objective; scale bars are 50 µm. (C) Striatal neurons in co-culture at 6 days in vitro (DIV) immunostain positive for synaptic proteins, including the postsynaptic marker spinophilin (red, left panel) and presynaptic marker synaptophysin (blue, right panel). The dendrite of the striatal neuron expressing CFP is pseudocolored green. Image stacks were acquired on a Zeiss LSM510 confocal microscope using a 63× objective; scale bar is 5 µm. (D) Cortico-striatal co-cultures at 6 DIV are synaptically active. Upper: Mixed AMPA/NMDA miniature excitatory postsynaptic currents (mEPSCs) recorded at −65 mV in tetrodotoxin (TTX) and bicuculline in 0 Mg²⁺ from yellow fluorescent protein (YFP) transfected striatal neurons. Representative traces are shown at right, with an averaged mEPSC shown at left. Overall average amplitude was 27 pA, with a 10% to 90% rise time of 0.81 ms and 90% to 20% decay time of 2.8 ms. Lower: GABA receptor-mediated mIPSCs were recorded in the presence of TTX, NBQX, and APV. Representative traces are shown at right, with an averaged miniature inhibitory postsynaptic current (mIPSC) shown at left. Overall average amplitude was 22 pA, with a 10% to 90% rise time of 2.8 ms and 90% to 20% decay time of 58 ms.

Finally, we used whole-cell patch-clamp recording to determine directly if co-cultured striatal and cortical neurons were electrically active and had reestablished the expected types of synaptic connections ( Fig. 2D ). Recordings from YFP-transfected striatal neurons at 6 to 8 DIV showed significant levels of spontaneous miniature excitatory and inhibitory synaptic currents, as well as the expected mix of AMPA- and NMDA-type glutamate receptor currents and GABAergic inhibitory synaptic currents for the normal intra-striatal inhibitory inputs to MSNs and, importantly, for the afferent excitatory inputs to the striatum from the cortex that are found in vivo.³² Together, these immunocytochemical and electrophysiological experiments demonstrated robust neuronal health and abundant synaptic connectivity in these composite cortico- striatal co-cultures.

High-content analysis of striatal versus cortical neurons in co-cultures

We next developed and optimized automated high-content microscopy imaging algorithms on the Cellomics ArrayScan VTI platform (ThermoFisher, Pittsburgh, PA) to identify and analyze the comingled but differentially labeled striatal versus cortical neurons residing in these composite cultures in a 96-well format. Fluorescent proteins (CFP, YFP, or mCherry) were excited with appropriate excitation filters using a metal halide light source (EXFO, Ontario, Canada). Fluorescence emissions were collected using CFP, YFP, or DsRed filter sets (Chroma Technology, Rockingham, VT) through a 10×/0.3 NA objective and images captured with a 12-bit Orca-II ER CCD camera (Hamamatsu, Hamamatsu, Japan) to positively identify fluorescent objects based on a defined threshold above background in the field using the Cellomics Target Activation protocol. Either 9 or 16 image fields per well were collected at full resolution (1024 × 1024 pixels) with an average fixed exposure time ranging from 0.05 to 0.5 s per fluorescent channel. The algorithm used to identify neuronal cell bodies was optimized based on both morphology and intensity properties of objects, and a segmentation algorithm was employed to separate objects in close proximity; large clusters or clumps of cells, which were rare, were excluded from analysis. As indicated above, relatively few transfected astroglia cells were observed during image analysis and were easily discriminated by their large object size and shape compared to either striatal or cortical neurons ( Fig. 3A,B ). Fluorescent cellular debris, exhibited as small intense spots that likely represented the remains of dendrites, was easily excluded by image analysis thresholding of object size and/or object intensity ( Fig. 3A , inset).

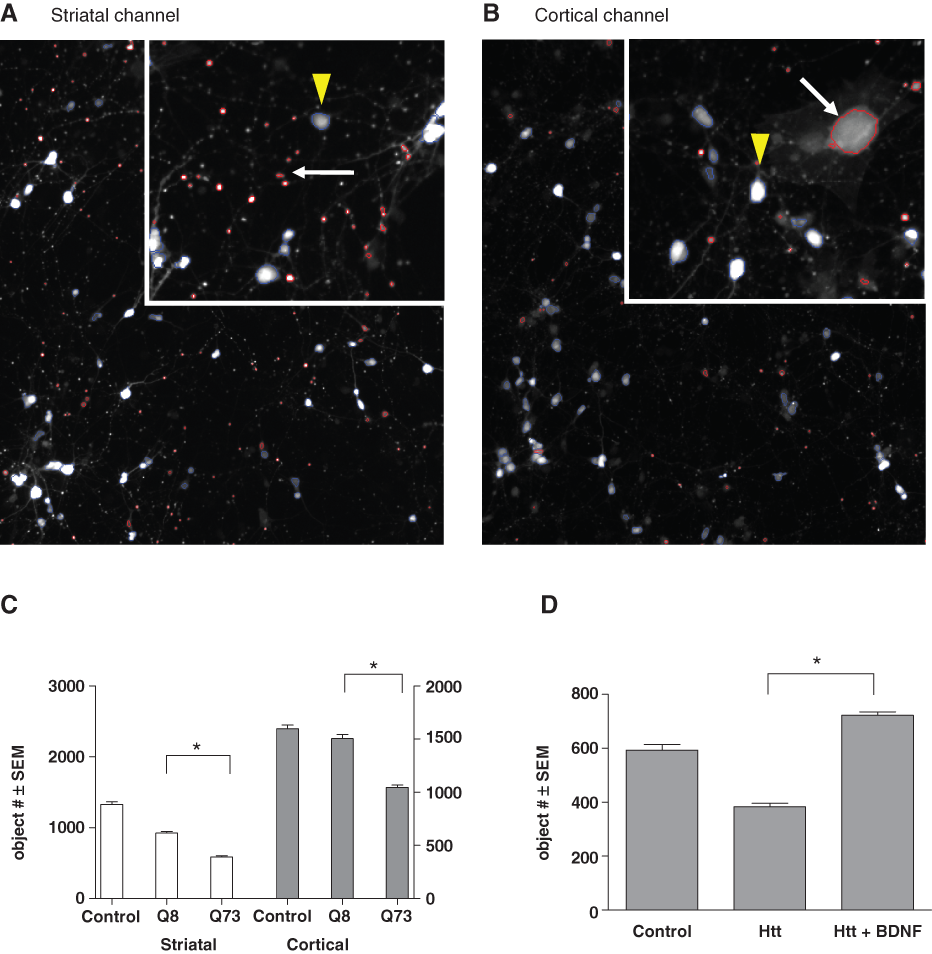

Fig. 3.

High-content analysis (HCA) of neurons coexpressing fluorescent proteins and an N-terminal domain of mutant Htt. Cellomics ArrayScan VTI generated images showing striatal neurons expressing (A) mCherry and cortical neurons expressing (B) yellow fluorescent protein (YFP) with inset images magnified to show detail. Objects outlined in blue represent fluorescent neuronal cell bodies meeting acceptance criteria using the Cellomics Target Activation algorithm (yellow arrowheads in A and B); fluorescent objects not meeting acceptance criteria are outlined in red. The white arrows show objects that were excluded such as fluorescent punctae in dendrites (white arrow in A) or a transfected glial cell in the cortical panel (white arrow in B). (C) Using this HCA protocol, numbers of striatal (white bars, left axis) or cortical neurons (gray bars, right axis) in co-culture could be distinguished, and the effects of cotransfection with a non-Htt transfection control plasmid (cyan fluorescent protein [CFP]; “Control”), normal polyQ-length Htt construct (“Q8”), or an expanded polyQ Htt construct (“Q73”) on neuronal survival could be quantified. The y-axis represents the number of valid objects within 16 image fields of each well, representing approximately 40% of the well, averaged for 6 wells per condition. Transfection of HttN90Q73 induced significantly more degeneration than the normal polyQ-length httN90Q8 construct by unpaired t-test with confidence intervals of 99%. Means ± SEM are shown, n = 6 for each condition. (D) Degeneration of striatal neurons induced by HttN90Q73 transfection could be reversed by addition of 100 ng/mL brain-derived neurotrophic factor (BDNF). HCA was done as described in (C) except that 9 image fields were collected per well instead of 16.

To model HD in these composite cultures, we cotransfected an Htt exon-1 sequence carrying a repetitive CAG sequence encoding a73 polyglutamine expansion (“HttN90Q73”), the same Htt fragment with an 8 CAG repeat corresponding to the endogenous rat gene (“HttN90Q8”), or a fluorescent protein plasmid (CFP) together with either YFP (into striatal neurons) or mCherry (into cortical neurons), each hereafter referred to as the “control” condition for these 2 neuronal populations, respectively. As the cotransfection linkage rate was relatively high at ~80% (Suppl. Fig. S1), we could expect that the majority of striatal and cortical neurons that expressed a fluorescent reporter also expressed the cotransfected Htt construct.

Transfection of polyglutamine-expanded HttN90Q73 induced the progressive degeneration of both striatal and cortical neurons over the course of 6 DIV or more. At 2 DIV, no differences were seen between control and HttN90Q73-transfected cultures, but by 4 to 6 DIV, there were significantly fewer neurons of either species surviving in HttN90Q73-transfected cultures ( Fig. 3C and data not shown). In contrast, expression of a normal-length polyQ, HttN90Q8, resulted in significantly less neurodegeneration compared to HttN90Q73 ( Fig. 3C ). As overexpression of normal polyQ-length Htt constructs is commonly observed to induce modest or intermediate levels of degeneration in a range of HD model systems, we chose the CFP + YFP or mCherry conditions as the routine positive controls for striatal and cortical neurons, respectively, in screening mode because of their larger dynamic ranges.

Thus, to quantify the potential neuroprotective effects of drug candidate compounds in this assay, cell object numbers were primarily analyzed at 6 DIV, at which the largest differences between control and HttN90Q73-transfected neuronal numbers were observed without necessitating media changes or refeeding of compounds. As an initial cross-validation of this assay relative to other, previously established HD models, we tested the ability of BDNF to protect striatal neurons against HttN90Q73-induced neurodegeneration in these composite cultures ( Fig. 3D ). BDNF is a neurotrophic factor that is known to support the survival and differentiation of striatal neurons and has been found to be depleted in the striatum in HD animal models as well as patients (for review, see Zuccato and Cattaneo³³). As shown in Figure 3D , the addition of 100 ng/mL BDNF to the composite cultures significantly promoted survival of HttN90Q73-transfected striatal neurons.

Compound screening using composite cortico-striatal cultures

For compound screening, the final 96-well assay format excluded the perimeter wells due to edge effects from evaporation and used n = 6 wells for each experimental condition. In this format, 7 compound concentrations could be evaluated per 96-well plate, with 3 conditions assigned to in-plate positive and negative controls. Data acceptance criteria required >100 fluorescent cells per control well and a minimum of 4 acceptable wells per control condition. In addition, a compound screening run was considered acceptable if the following criteria were met: >1.5-fold difference between the control and HttN90Q73 conditions and a statistically significant difference with p < 0.05 between HttN90Q73 and the positive control compound condition. Compounds were considered hits if the run met the above criteria and the compound showed p < 0.05 statistical significance compared to the HttN90Q73 condition by Dunnett’s post hoc comparison test following ANOVA.

Given an average of 12 E18 rat embryos per pregnant dam and a final plating density of 60,000 striatal and 60,000 cortical neurons per well, up to 8 such formatted 96-well plates could be prepared and run per rat litter. Using these parameters, the theoretical throughput for 4 runs/litters per week is 832 compounds/year at 7-point dose-response or 5824 compounds/year at single-point dose, depending on the level of statistical discrimination power desired.

Each run includes a positive control condition not transfected with Htt, as well as an HttN90Q73-transfected condition treated with a positive control compound. The z′ factor for the assay,³¹ calculated from 60 compound plates run over a 1-month screening period, was determined to be 0.54 with an assay window (i.e., dynamic range) of 1.9, suggesting suitability for such screening uses of the assay.

In the initial implementation of this assay in screening mode, we evaluated a set of small-molecule compounds at 3- or 7-point dose responses under fully automated HCA. These compounds were collected as part of a research collaboration with the CHDI Foundation and were chosen on the basis of their nominal targets being implicated in HD by their identification in previous target- or cell-based HD screens. Using the criteria described above, the hit rate for this initial screen was 8%, with 31 compounds showing significant neuroprotection (Suppl. Table S1), whereas 37 compounds exhibited cytotoxicity in the co-culture assay (data not shown).

Among the compound screening set were 28 compounds representing clinical candidates from the Huntington Study Group (http://www.huntington-study-group.org/) and/or have been evaluated in animal models of HD (Suppl. Table S2). Of these, 7 compounds provided significant levels of neuroprotection to HttN90Q73-transfected striatal neuron in co-culture, representing a range of different target classes, including heat shock proteins, serotonin modulation, neurotrophin signaling, and energy metabolism. Other included compounds, such as tetrabenazine, although clinically effective, have not been reported to provide direct neuroprotective support and did not show neuroprotection in cortico-striatal co-cultures. Interestingly, antiapoptotic compounds, including BOC-D-FMK and HDAC inhibitors, generally failed to show significant neuroprotection in this assay. Together, these results suggested that the composite cortico-striatal co-culture assay described here has the potential to identify neuroprotective compounds that may be predictive of continued effectiveness when tested in subsequent whole-animal model studies.

Of the remaining hits, we describe 4 target classes here that supported neuroprotective activity for multiple compounds with dissimilar chemical structures:

Rho kinase (ROCK) inhibitors

The ROCK inhibitory compound ROCK2_Ex_55 showed clear neuroprotection for both striatal and cortical neurons transfected with HttN90Q73 in composite co-cultures, with EC₅₀s of 2 µM and 3 µM, respectively ( Fig. 4 ). The ROCK inhibitor Y-39983 also provided significant neuroprotection in this assay for both striatal and cortical neurons, with EC₅₀s of 10 µM and 4 µM, respectively, but was cytotoxic at concentrations ≥30 µM. Furthermore, we found that the related ROCK inhibitor Y-27632 also showed neuroprotective activity for HttN90Q73-transfected cortical neurons, with EC₅₀ of 7 µM, but, interestingly, became significantly neuroprotective for striatal neurons only at much higher concentrations.

Fig. 4.

Rho kinase (ROCK) inhibitors are protective against HttN90Q73-induced neurodegeneration. Neuroprotective activities of these ROCK inhibitors were identified as part of a targeted screen of ~400 small-molecule compounds implicated in Huntington’s disease (HD), conducted as described in the main text and methods. (A, B) ROCK2_ex_55 was neuroprotective for both HttN90Q73-transfected (A) striatal and (B) cortical neurons, with similar EC₅₀s in the 2- to 3-µM range. (C, D) Y-39983 also provided neuroprotection to both (C) striatal and (D) cortical neurons, with somewhat lower apparent potencies, but was cytotoxic at concentrations of ≥30 µM. (E, F) Y-27632 was neuroprotective for HttN90Q73-transfected cortical neurons with an EC₅₀ of ~7 µM (F), but neuroprotection for striatal neurons was observed only at much higher compound concentrations (E). Data points are expressed as mean percentage of the HttN90Q73 + DMSO condition, which is set to zero relative to the positive control (no Htt condition), set to 100%, ± SEM. EC₅₀s were determined using nonlinear regression analysis (GraphPad Prism). In cases where complete dose-response curves could not be determined due to solubility limits or nonspecific compound cytotoxicity, these best-fit EC₅₀s should be considered to be preliminary estimates. Data from 2 independent experiments (n = 6 for each experiment) were pooled in each case. Because of cytotoxicity, data for concentrations of Y-39983 >10 µM were excluded from the EC₅₀ determination.

Y-27632 was initially identified in a cell-based assay for polyglutamine aggregation inhibitors³⁴ and was later shown to improve motor function in the R6/2 mouse model.³⁵ In addition, Rho kinase inhibitors are in clinical development for cardiovascular disease and glaucoma and in preclinical development for a number of other disease states.^36,37 However, we were unable to detect neuroprotective effects of the Food and Drug Administration (FDA)–approved rho-kinase inhibitor fasudil (HA-1077) for concentrations up to 100 µM or for its active metabolite hydroxyfasudil (data not shown). Given known issues with in vitro target specificity of ROCK inhibitors,³⁸ it cannot be excluded that Y-27632 and Y-39983 may have additional kinase targets.³⁹

Phosphodiesterase (PDE) inhibitors

We identified 3 PDE4 inhibitors, including roflumilast and, to a lesser degree, rolipram, to be neuroprotective for HttN90Q73-transfected neurons in co-culture ( Fig. 5 ). Roflumilast provided neuroprotection with an EC₅₀ of 7 nM for both striatal and cortical neurons in co-culture. Forskolin, which also increases cAMP levels but through activation of protein kinase A, was protective against HttN90Q73-induced neurodegeneration of striatal and cortical neurons with EC₅₀s of 2 and 5 µM, respectively. However, 2 other compounds screened with inhibitory activity on PDE4, the FDA-approved drug pentoxifylline and the late-stage clinical candidate propentofylline, were ineffective in this assay. Rolipram has been reported to have neuroprotective properties in the R6/2 mouse model of HD⁴⁰ as well as in toxin models.^41,42 Interestingly, reduction in cAMP levels has been reported in an HD mouse model.⁴³

Fig. 5.

Compounds that alter cAMP signaling are neuroprotective against HttN90Q73-induced striatal and cortical neurodegeneration. Neuroprotective activities of cAMP modulators were also identified in the course of the targeted screen of ~400 small-molecule compounds as described in the main text and methods. (A, B) The PDE4 antagonist roflumilast was neuroprotective for both HttN90Q73-transfected (A) striatal and (B) cortical neurons, with similar EC₅₀s in the 7-nM range. (C, D) Another PDE4 inhibitor, rolipram, was less effective but also provided significant neuroprotection to both (C) striatal and (D) cortical neurons in the low µM compound concentration range. (E, F) Forskolin, which elevates cAMP through a different mechanism (activation of protein kinase A), also provided neuroprotection against HttN90Q73-induced degeneration for both (E) striatal and (F) cortical neurons with EC₅₀s in the 2- to 5-µM range. Data analyzed and presented as in Figure 4 .

Adenosine 2a receptor and IKKβ inhibitors

In addition, of note were 2 isolated hits that provided strong neuroprotection but were not as clearly corroborated by initial surveys of other compounds directed at the same nominal targets. The first was the adenosine 2a receptor antagonist KW-6002 (istradefylline), which provided robust and reproducible neuroprotection to HttN90Q73-transfected striatal neurons with an EC₅₀ of 2 µM ( Fig. 6A ). However, a number of other compounds targeting the adenosine 2a receptor were not as effective, including SCH-420814, SCH-58261, VER-7835, VER-6947, and CGS-15943, showing neuroprotective activity only at concentrations above 10 µM (data not shown). Thus, although the A2a receptor has been considered a potential therapeutic target for HD,⁴⁴ these results suggest there may be additional targets for KW-6002 in providing neuroprotective activity in the co-culture HD model.

Fig. 6.

A2a receptor and IKKβ modulators. (A, B) The A2a receptor antagonist KW-6002 (istradefylline) was neuroprotective for both HttN90Q73-transfected (A) striatal and (B) cortical neurons, with similar EC₅₀s in the 2-µM range. (C, D) The IKKβ inhibitor MLN-1145 provided significant neuroprotection to both (C) striatal and (D) cortical neurons in the low µM compound concentration range. Data analyzed and presented as in Figure 4 .

Finally, MLN-1145, an IKKβ inhibitor, showed strong protection against HttN90Q73-induced neurodegeneration for both striatal and cortical neurons in co-culture with EC₅₀s of 3 and 7 µM, respectively ( Fig. 6C,D ), of interest as activation of IKK has been reported to contribute to Htt-induced toxicity.⁴⁵ However, 2 other IKKβ inhibitory compounds tested, BMS-345541 and Astra Zeneca thiophenecarboxamide compound 4,⁴⁶ were ineffective, as was the IKKγ NEMO-binding domain (NBD) inhibitory peptide.

Discussion

We have developed and implemented a complex, multicellular neuronal screening assay to better reflect the biological complexity of HD in the early stages of the drug discovery process. In particular, this assay seeks to capture non- cell-autonomous aspects of HD pathogenesis that involve the interaction of different cells types in different brain regions, including synaptic transmission. Thus, a key element of this assay is the co-culture of comingled striatal and cortical neurons transfected with a mutant Htt-based construct but in a process that allows each of these neuronal populations to be labeled independently with a different fluorescent marker. We demonstrate that image-based HCA can then be used to create phenotypic assays that are still restricted to individual, defined cell populations even within these densely mixed co-cultures. The initial screen of ~400 selected compounds encountered hits that validated this assay against compounds and targets already known to be effective in other models of HD and also provided direct evidence for new compound/target classes providing robust neuroprotection to striatal and/or cortical neurons in this system.

Together, these findings suggest that highly biological complex primary cell assays can be developed in which HCA can be used to develop rigorous, cell-type-specific phenotypic assays and thereby address important aspects of disease biology that may not otherwise be representable in conventional cell culture or other in vitro models. Important future developments will include the addition of other cell types that may be important to disease progression, such as microglia; the construction of additional functional endpoints directly addressing cell biological processes important to neuronal health and function, including dendrite outgrowth/regulation, calcium handling, electrical excitability, and synapse regulation and function; and the incorporation of RNAi methods for direct target validation studies.

Footnotes

Acknowledgements

We thank Vahri Beaumont and Gary Banker for helpful discussions on the design and implementation of the screen and Lan Ye for help with assay development.

This work was supported by the CHDI Foundation, Inc.

References

Walker

: Huntington’s disease. Lancet 2007;369:218-228.

HDCRG: a novel gene containing a trinucleotide repeat that is expanded and unstable on Huntington’s disease chromosomes. The Huntington’s Disease Collaborative Research Group. Cell 1993;72:971-983.

Orr

Zoghbi

: Trinucleotide repeat disorders. Annu Rev Neurosci 2007;30:575-621.

DiFiglia

Sapp

Chase

Davies

Bates

Vonsattel

: Aggregation of huntingtin in neuronal intranuclear inclusions and dystrophic neurites in brain. Science 1997;277:1990-1993.

Davies

Turmaine

Cozens

DiFiglia

Sharp

Ross

: Formation of neuronal intranuclear inclusions underlies the neurological dysfunction in mice transgenic for the HD mutation. Cell 1997;90:537-548.

Scherzinger

Lurz

Turmaine

Mangiarini

Hollenbach

Hasenbank

: Huntingtin-encoded polyglutamine expansions form amyloid-like protein aggregates in vitro and in vivo. Cell 1997;90:549-558.

Cattaneo

Zuccato

Tartari

: Normal huntingtin function: an alternative approach to Huntington’s disease. Nat Rev Neurosci 2005;6:919-930.

Truant

Atwal

Burtnik

: Nucleocytoplasmic trafficking and transcription effects of huntingtin in Huntington’s disease. Prog Neurobiol 2007;83:211-227.

Marsh

Lukacsovich

Thompson

: Animal models of polyglutamine diseases and therapeutic approaches. J Biol Chem 2009;284:7431-7435.

10.

Fecke

Gianfriddo

Gaviraghi

Terstappen

Heitz

: Small molecule drug discovery for Huntington’s disease. Drug Discov Today 2009;14:453-464.

11.

Varma

Stockwell

: High throughput screening for neurodegeneration and complex disease phenotypes. Comb Chem High Throughput Screen 2008;11:238-248.

12.

Apostol

Kazantsev

Raffioni

Illes

Pallos

Bodai

: A cell-based assay for aggregation inhibitors as therapeutics of polyglutamine-repeat disease and validation in Drosophila. Proc Natl Acad Sci U S A 2003;100:5950-5955.

13.

Desai

Pallos

Stockwell

Thompson

Marsh

: Biologically active molecules that reduce polyglutamine aggregation and toxicity. Hum Mol Genet 2006;15:2114-2124.

14.

Wang

Gines

MacDonald

Gusella

: Reversal of a full-length mutant huntingtin neuronal cell phenotype by chemical inhibitors of polyglutamine-mediated aggregation. BMC Neurosci 2005;6:1.

15.

Berthelier

Wetzel

: Screening for modulators of aggregation with a microplate elongation assay. Methods Enzymol 2006;413:313-325.

16.

Arrasate

Mitra

Schweitzer

Segal

Finkbeiner

: Inclusion body formation reduces levels of mutant huntingtin and the risk of neuronal death. Nature 2004;431:805-810.

17.

Truant

Atwal

Desmond

Munsie

Tran

: Huntington’s disease: revisiting the aggregation hypothesis in polyglutamine neurodegenerative diseases. FEBS J 2008;275:4252-4262.

18.

Aiken

Tobin

Schweitzer

: A cell-based screen for drugs to treat Huntington’s disease. Neurobiol Dis 2004;16:546-555.

19.

Piccioni

Roman

Fischbeck

Taylor

: A screen for drugs that protect against the cytotoxicity of polyglutamine-expanded androgen receptor. Hum Mol Genet 2004;13:437-446.

20.

Varma

Voisine

DeMarco

Cattaneo

Hart

: Selective inhibitors of death in mutant huntingtin cells. Nat Chem Biol 2007;3:99-100.

21.

Wang

Duan

Igarashi

Morita

Nakamura

Ross

: Compounds blocking mutant huntingtin toxicity identified using a Huntington’s disease neuronal cell model. Neurobiol Dis 2005;20:500-508.

22.

Menalled

El-Khodor

Patry

Suarez-Farinas

Orenstein

Zahasky

: Systematic behavioral evaluation of Huntington’s disease transgenic and knock-in mouse models. Neurobiol Dis 2009;35:319-336.

23.

Popovic

Brundin

: The use of the R6 transgenic mouse models of Huntington’s disease in attempts to develop novel therapeutic strategies. NeuroRx 2005;2:447-464.

24.

Andre

Cepeda

Levine

: Pathological cell-cell interactions are necessary for striatal pathogenesis in a conditional mouse model of Huntington’s disease. Mol Neurodegener 2007; 2:8.

25.

Wei

Gong

: Pathological cell-cell interactions elicited by a neuropathogenic form of mutant Huntingtin contribute to cortical pathogenesis in HD mice. Neuron 2005;46:433-444.

26.

Rosas

Liu

Hersch

Glessner

Ferrante

Salat

: Regional and progressive thinning of the cortical ribbon in Huntington’s disease. Neurology 2002;58:695-701.

27.

Rosas

Tuch

Hevelone

Zaleta

Vangel

Hersch

: Diffusion tensor imaging in presymptomatic and early Huntington’s disease: selective white matter pathology and its relationship to clinical measures. Mov Disord 2006;21:1317-1325.

28.

Segal

Greenberger

Korkotian

: Formation of dendritic spines in cultured striatal neurons depends on excitatory afferent activity. Eur J Neurosci 2003;17:2573-2585.

29.

Daub

Sharma

Finkbeiner

: High-content screening of primary neurons: ready for prime time. Curr Opin Neurobiol 2009;19:537-543.

30.

Hamill

Marty

Neher

Sakmann

Sigworth

: Improved patch-clamp techniques for high-resolution current recording from cells and cell-free membrane patches. Pflugers Arch 1981;391:85-100.

31.

Zhang

Chung

Oldenburg

: A simple statistical parameter for use in evaluation and validation of high throughput screening assays. J Biomol Screen 1999;4:67-73.

32.

Wilson

: Basal ganglia. In Shepherd

(ed): The Synaptic Organization of the Brain. 5th ed. New York: Oxford University Press, 2004:361-414.

33.

Zuccato

Cattaneo

: Role of brain-derived neurotrophic factor in Huntington’s disease. Prog Neurobiol 2007;81:294-330.

34.

Pollitt

Pallos

Shao

Desai

Thompson

: A rapid cellular FRET assay of polyglutamine aggregation identifies a novel inhibitor. Neuron 2003;40:685-694.

35.

Huang

Lin

Diamond

: Y-27632 improves rotarod performance and reduces huntingtin levels in R6/2 mice. Neurobiol Dis 2009;36:413-420.

36.

Shimokawa

Rashid

: Development of Rho-kinase inhibitors for cardiovascular medicine. Trends Pharmacol Sci 2007;28:296-302.

37.

Kubo

Yamaguchi

Iwata

Yamashita

: The therapeutic effects of Rho-ROCK inhibitors on CNS disorders. Ther Clin Risk Manag 2008;4:605-615.

38.

Davies

Reddy

Caivano

Cohen

: Specificity and mechanism of action of some commonly used protein kinase inhibitors. Biochem J 2000;351:95-105.

39.

Shao

Welch

Diamond

: ROCK and PRK-2 mediate the inhibitory effect of Y-27632 on polyglutamine aggregation. FEBS Lett 2008;582:1637-1642.

40.

DeMarch

Giampa

Patassini

Bernardi

Fusco

: Beneficial effects of rolipram in the R6/2 mouse model of Huntington’s disease. Neurobiol Dis 2008;30:375-387.

41.

DeMarch

Giampa

Patassini

Martorana

Bernardi

Fusco

: Beneficial effects of rolipram in a quinolinic acid model of striatal excitotoxicity. Neurobiol Dis 2007;25:266-273.

42.

Yang

Calingasan

Lorenzo

Beal

: Attenuation of MPTP neurotoxicity by rolipram, a specific inhibitor of phosphodiesterase IV. Exp Neurol 2008;211:311-314.

43.

Gines

Seong

Fossale

Ivanova

Trettel

Gusella

: Specific progressive cAMP reduction implicates energy deficit in presymptomatic Huntington’s disease knock-in mice. Hum Mol Genet 2003;12:497-508.

44.

Popoli

Blum

Domenici

Burnouf

Chern

: A critical evaluation of adenosine A2A receptors as potentially “druggable” targets in Huntington’s disease. Curr Pharm Des 2008;14:1500-1511.

45.

Khoshnan

Watkin

Paige

Reinhart

Patterson

: Activation of the IkappaB kinase complex and nuclear factor-kappaB contributes to mutant huntingtin neurotoxicity. J Neurosci 2004;24:7999-8008.

46.

Baxter

Brough

Cooper

Floettmann

Foster

Harding

: Hit-to-lead studies: the discovery of potent, orally active, thiophenecarboxamide IKK-2 inhibitors. Bioorg Med Chem Lett 2004;14:2817-2822.
