A High-Content Screening (HCS) Assay for the Identification of Chemical Inducers of PML Oncogenic Domains (PODs)

Abstract

PML is a multi-functional protein with roles in tumor suppression and host defense against viruses. When active, PML localizes to subnuclear structures named PML oncogenic domains (PODs) or PML nuclear bodies (PML-NBs), whereas inactive PML is located diffusely throughout the nucleus of cells. The objective of the current study was to develop a high content screening (HCS) assay for the identification of chemical activators of PML. We describe methods for automated analysis of POD formation using high throughput microscopy (HTM) to localize PML immunofluorescence in conjunction with image analysis software for POD quantification. Using this HCS assay in 384 well format, we performed pilot screens of a small synthetic chemical library and mixture-based combinatorial libraries, demonstrating the robust performance of the assay. HCS counter-screening assays were also developed for hit characterization, based on immunofluorescence analyses of the subcellular location of phosphorylated H2AX or phosphorylated CHK1, which increase in a punctate nuclear pattern in response to DNA damage. Thus, the HCS assay devised here represents a high throughput screen that can be utilized to discover POD-inducing compounds that may restore the tumor suppressor activity of PML in cancers or possibly promote anti-viral states.

Keywords

PML POD nuclear bodies apoptosis high content screening

Introduction

Promyelocytic leukemia protein (PML) oncogenic domains (PODs), also known as PML nuclear bodies (PML-NBs), Kremer bodies, ND10 (nuclear domain 10), or nuclear dots (NDs), are ~0.2- to 1-µm subnuclear structures present in a wide variety of cell types.^1,2 PML is required for the formation of PODs, and more than 30 proteins either transiently or constitutively co-localize with PML in PODs.² The significance of the PML gene was first noted in acute promyelocytic leukemia (APL), wherein the vast majority of cases are characterized by t(15;17) chromosomal translocations that result in a PML-RARα fusion protein that disrupts PML function by delocalizing PML into microspeckled nuclear structures (the reciprocal RARα-PML fusion protein disrupts RARα function).³ Expression of PML-RARα in the promyelocytic/myeloid compartment of transgenic mice causes leukemia with APL features, underscoring the tumor-suppressive activity of PODs.^1-3

PML plays an essential role in both caspase-dependent and caspase-independent cell death.² pml–/– mice are resistant to apoptosis induced by numerous stimuli and have an increased tumor incidence.^4,5 PML contributes to cell death induced by γ-radiation, the primary treatment modality for a wide variety of tumors.⁶ Interferons and arsenicals (e.g., As₂O₃) increase the number and size of PODs per cell and sensitize and/or induce apoptosis in a variety of tumor cell types.^7,8 Interestingly, PML confers direct resistance to many viruses, and numerous viruses have evolved mechanisms for disrupting POD formation.⁹

Among the proteins that localize to PODs are p53, Daxx, and RecQ DNA helicase. The tumor suppressor p53 requires acetylation by CBP/p300 at PODs for the induction of apoptosis.^2,10 Daxx localization to PODs increases PTEN nuclear localization and PTEN tumor suppressor activity by inhibiting HAUSP-mediated PTEN deubiquitinylation.¹¹ PTEN nuclear exclusion is associated with cancer progression, and HAUSP overexpression coincides with PTEN nuclear exclusion in prostate cancer.¹¹ Daxx also represses the transcription of various antiapoptotic Rel-B-associated genes, including cIAP2, cFLIP, and Bfl-1 (A1), via histone deacetylase (HDAC) and DNA methyltransferase binding and recruitment.^12,13 PODs are required for the maintenance of genomic stability in combination with proteins such as RecQ DNA.¹⁴ Notably, PML also suppresses the anchorage-independent growth of transformed cells, is required for hypophosphorylated Rb-mediated cell cycle arrest, and inhibits neoangiogenesis in human and mouse tumors.^1,15

The fundamental roles of PODs and POD-related proteins in tumor suppression validate targeting PODs for drug discovery. POD formation is essential in interferon and arsenical cancer therapy, especially for leukemias and multiple myeloma.^2,16,17 Interferons and arsenicals, however, induce a plethora of toxic effects, limiting their effectiveness.^17,18 The objective of the current study was to develop a high-content screening (HCS) assay for the high-throughput identification of chemical activators of PODs.

Materials and Methods

Cell culture

HeLa cells were originally obtained from ATCC (Manassas, VA) and cultured in Dulbecco’s modified Eagle’s medium (DMEM; Invitrogen, Carlsbad, CA), with 10% fetal bovine serum (FBS; Clontech, Mountain View, CA) and penicillin-streptomycin (diluted according to the manufacturer’s specifications; Invitrogen) at 37 °C, 5% CO₂. PPC-1 cells were cultured similarly but with RPMI 1640 (Invitrogen) instead of DMEM.

Compounds

The LOPAC¹²⁸⁰ collection of 1280 pharmacologically active single compounds was obtained from Sigma-Aldrich (St. Louis, MO). The Torrey Pines Institute for Molecular Studies Combinatorial Libraries are mixture-based libraries in positional scanning format, and they were dissolved in dimethylformamide (DMF).^19-21

Immunofluorescence assay

In total, 3150 cells/well (50-µL/well volume) were seeded onto 384-well clear-bottom plates (Greiner Bio-One, Monroe, NC) using the Matrix WellMate liquid dispenser (Thermo Fisher Scientific, Hudson, NH) and incubated at 37 °C (5% CO₂). After 24 h, the Biomek FX Laboratory Automation Workstation (Beckman Coulter, Fullerton, CA) was used to add interferon-γ (IFN-γ; 4 U/µL with either 0.1% DMSO or DMF; R&D Systems, Minneapolis, MN), DMSO (0.1% final concentration; Sigma-Aldrich), DMF (0.1% final concentration; Sigma-Aldrich), or compounds. After 12 h, cells were washed with phosphate-buffered saline (PBS), fixed with 4% formaldehyde (Sigma-Aldrich) for 15 min, washed, permeabilized with 0.5% Triton X-100 (Sigma-Aldrich) for 5 min, washed, incubated with the primary antibody diluted to 0.5 µg/mL in 5% bovine serum albumin (BSA; Thermo Fisher Scientific) for 1 h, washed, incubated with the secondary antibody diluted to 5 µg/mL in 5% BSA for 1 h, washed, and placed in a 100-ng/mL DAPI-PBS solution (Invitrogen) overnight. Each wash step was a multiple fluid change using the Titertek MAP-C II Microplate Washer and Stacker (aspiration to 10 µL, 50 µL PBS addition, repeated a total of 3 times; Titertek, Huntsville, AL).

For PML immunostaining, mouse monoclonal antihuman PML primary antibody (PG-M3, Santa Cruz Biotechnology, Santa Cruz, CA) was used with an Alexa Fluor 488 chicken antimouse IgG secondary antibody (Invitrogen). For phospho-H2AX (Ser139; p-H2AX or γ-H2AX) or phospho-Chk1 (Ser317) immunostaining, rabbit polyclonal antihuman phosphohistone H2A.X (Ser139; diluted 1:400; Cell Signaling Technology, Danvers, MA) or phospho-Chk1 (Ser317; diluted 1:400; Cell Signaling Technology) primary antibodies were used, respectively, with an Alexa Fluor 568 goat antirabbit IgG secondary antibody (Invitrogen).

High-content imaging

Plates were imaged using the Beckman Coulter Cell Lab IC-100 Image Cytometer with a 40× 0.6NA ELWD Plan Fluor dry (air) objective (6 images/well). The images (>200 cells/well) were analyzed using the POD detection algorithm, which was developed based on CytoShop (Beckman Coulter) and MATLAB (MathWorks, Natick, MA) software.

HCS was performed at the Conrad Prebys Center for Chemical Genomics at the Sanford-Burnham Medical Research Institute (La Jolla, CA).

Statistical analyses

HCS performance was characterized using the following equation: Z′ factor = 1 − (3σ_positive + 3σ_negative)/│(µ_positive − µ_negative)│, where σ_positive is the standard deviation of the positive control, σ_negative is the standard deviation of the negative control, µ_positive is the mean of the positive control, and µ_negative is the mean of the negative control.²²

Results

Development and optimization of the PML-POD localization assay

Immunostaining conditions were optimized for detection of PML using a commercially available mouse monoclonal antibody. HeLa cells were seeded in 384-well plates, treated with either DMSO or IFN-γ for 24 h, and immunofluorescently stained for PML to confirm IFN-γ-induced PML localization into PODs ( Fig. 1A ). IFN-γ-induced localization of PML into PODs is accompanied by the localization of various other proteins to PODs, such as Daxx.²³ Thus, simultaneous immunofluorescence detection of both PML and Daxx in HeLa cells confirmed co-localization/formation of PODs and validated IFN-γ as a positive control ( Fig. 1B ). IFN-γ-induced PML and Daxx co-localization to PODs was also confirmed to occur in PPC-1 cells (observed by immunofluorescence; data not shown).

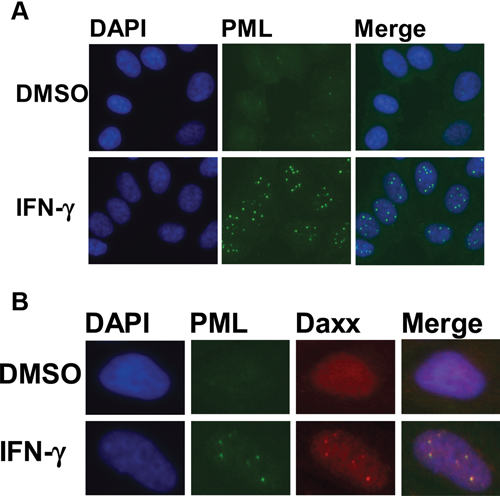

Fig. 1.

PML and Daxx localize to PML oncogenic domains (PODs) after interferon-γ (IFN-γ) treatment. (A) PML localizes to nuclear bodies. HeLa cells were seeded in 384-well plates (3150 cells/well), treated (12 h) with DMSO (0.1%) or IFN-γ (4 U/µL), immunostained with mouse monoclonal antihuman PML and Alexa Fluor 488 chicken antimouse antibodies (green), and incubated in DAPI (nuclear stain; 100 ng/mL; blue). Cells were imaged using the Cell Lab IC-100 Image Cytometer (40× 0.6NA ELWD Plan Fluor objective). (B) PML and Daxx co-localize to PODs. Cells were treated and imaged as in A but also immunostained for Daxx (rabbit polyclonal antihuman Daxx primary antibody, Alexa Fluor 568 goat antirabbit secondary antibody; red).

To quantify the extent of POD formation (i.e., the number of PODs per cell, the intensity of PML localization, and the fraction of cells per well with extensive numbers of PODs) in an automated fashion, the “POD detection algorithm” was developed using Beckman Coulter CytoShop and MathWorks MATLAB software ( Fig. 2A ). First, the nuclear image (DAPI stain) was used to produce a “nuclear mask,” which identified all nuclei in an image. This nuclear mask was applied to the PML (“green”) image, and all green pixels outside of this nuclear mask were eliminated. Next, PODs were outlined based on the identification of green pixels with higher intensities than their surrounding pixels (using CytoShop’s “Aggregate Detection”), with the minimum size of a POD defined based on IFN-γ control wells (CytoShop’s “Object Scale”). This number of detected PODs was then reported on a per nucleus basis and used to determine the percentage of nuclei per image that were “POD positive.” The value for the number of detected PODs above which a nucleus is considered POD positive was determined to be 4.0 by iteratively setting increasing threshold values and determining the Z′ factor for each threshold (on control plates).

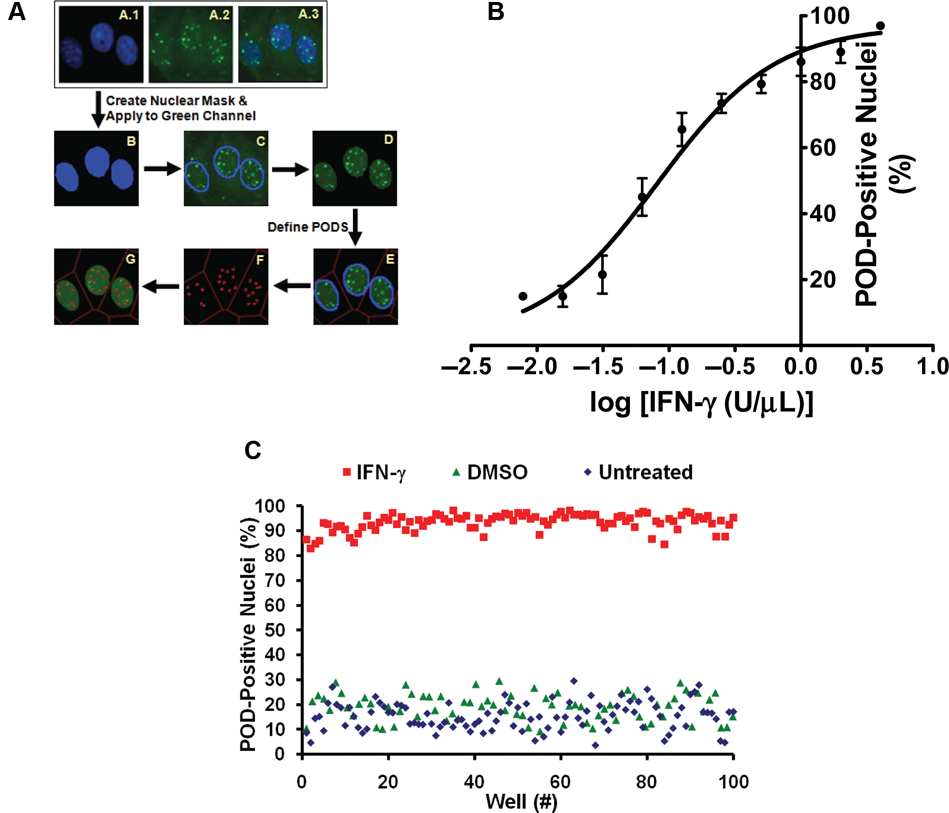

Fig. 2.

High-content screen (HCS) development and optimization. (A) Algorithm for detecting and quantifying PML oncogenic domains (PODs). DAPI (A.1; blue), PML (A.2; green), and merged (A.3) images of interferon-γ (IFN-γ)–treated (4 U/µL; 12 h) HeLa cells are shown. The nuclear (DAPI) image was used to produce a nuclear mask (B; blue). The nuclear mask (C; blue outline) was applied to the PML image. Green pixels outside of the nuclear mask were eliminated (D). Beckman Coulter CytoShop software was used to estimate cellular area (E; red outline) based on the nuclei. POD outlines (F; red) were identified based on differences in green pixel brightness. The number of detected PODs (G; red) was reported on a per nucleus basis. The percentage of POD-positive nuclei (>4.0 PODs per cell) was reported. (B) Quantification of IFN-γ-induced POD formation. HeLa cells were seeded in a 384-well plate (3150 cells/well) and treated with increasing concentrations of IFN-γ (12 h) as shown. Cells were immunostained for PODs (mouse monoclonal antihuman PML and Alexa Fluor 488 chicken antimouse antibodies), incubated in DAPI (nuclear stain; 100 ng/mL), imaged using the Beckman Coulter Cell Lab IC-100 Image Cytometer (40× 0.6NA ELWD Plan Fluor objective), and quantified using the described computerized algorithm. Mean ± standard deviation are shown (n = 4 wells/data point, >200 cells imaged and quantified per well). (C) POD HCS reproducibility assessment. HeLa cells were cultured overnight in a 384-well plate (3150 cells/well seeded using the Matrix WellMate bulk liquid dispenser; treated with IFN-γ (4 U/µL), DMSO (0.1%), or nothing for 12 h; and immunostained for PML, imaged, and analyzed (n > 85 wells/condition). The Z′ factor is 0.64 or 0.65 using DMSO or untreated cells, respectively, as the negative control.

To both further validate the algorithm, HeLa cells were treated with increasing concentrations of IFN-γ, stained with anti-PML antibody, and imaged, and the percentage of POD-positive cells was determined ( Fig. 2B ). Using this automated method, IFN-γ was determined to induce concentration-dependent POD formation in HeLa cells. Manual counting of POD-positive cells confirmed the algorithm-defined quantification (data not shown). Examples of whole-field images from single wells (multiple images from single wells) are shown in Supplemental Figure S1 (online at http://jbx.sagepub.com/content/by/supplemental-data).

To characterize the reproducibility of the assay, multiple replicates were prepared (n > 80 per condition), where cells were seeded into a 384-well plate using the Matrix Wellmate bulk liquid dispenser (3150 cells/well); treated with IFN-γ (4 U/µL), DMSO (0.1%), or nothing for 12 h; and immunostained for PML, imaged, and analyzed. The Z′ factor was determined to be 0.64 or 0.65 using DMSO or untreated cells, respectively, as the negative control ( Fig. 2C ).

High-content screening

The HCS assay was used to screen the LOPAC¹²⁸⁰ library of pharmacologically active compounds for PML activators ( Fig. 3A ). Compounds that increased the number of POD-positive nuclei by at least 50% (relative to the controls), as measured by the POD detection algorithm, were considered hits. No hits were identified when the library was screened at 5 µM. Moreover, dose-response curves (serial dilutions performed from 250 µM to 0.25 µM) were generated for the 5 LOPAC¹²⁸⁰ compounds inducing the most POD positivity, and the highest value observed was less than 40% POD-positive nuclei (data not shown). Thus, the HCS assay is not promiscuous with respect to hit rate.

Fig. 3.

High-content screening (HCS) for chemical activators of PML oncogenic domains (PODs). (A) Sample plate from the LOPAC¹²⁸⁰ POD localization screen. HeLa cells were seeded in 384-well plates (3150 cells/well) and incubated at 37 °C overnight. The cells were then treated for 12 h with IFN-γ (4 U/µL; positive control), DMSO (0.1%; negative control), or LOPAC¹²⁸⁰ compounds (5 µM). Plates were immunostained for PML, imaged, and analyzed. The Z′ factor was 0.55. (The dotted line represents the mean value between the positive and negative controls.) (B) TPIMS combinatorial library POD localization screen. Cells were screened as described previously but with mixtures from the TPIMS scaffold ranking library (5 µg/mL or 10 µg/mL, representing ~10 µM or ~20 µM, respectively, for molecular weight [MW] ≈500 g/mol). Interferon-γ (IFN-γ; 4 U/µL) was used as the positive control, and dimethylformamide (DMF; 0.1%) was used as the negative control. The Z′ factor was 0.6. (C-E) Combinatorial library deconvolution reveals the structure-activity relationship of N-methyl triamine compounds. Deconvolution of the mixture-based N-methyl triamine library was accomplished by the positional scanning method,^23-26 where one of the substituents used to create the library was fixed at positions (C) R1, (D) R2, or (E) R3, and the other positions were allowed to vary as mixtures of all possible substituents employed in library construction. Compounds were tested at 4 µg/mL (representing ~8 µM for MW ≈500 g/mol). IFN-γ (4 U/µL) was used as the positive control, and DMF (0.1%) was used as the negative control (striped bar). The Z′ factor was ~0.5.

The TPIMS mixture-based combinatorial libraries were formatted and plated as a “scaffold ranking library,” which was subsequently screened to determine the most active chemical scaffolds before further screening/deconvolution of mixtures.²⁴ The scaffold ranking library was formatted as 38 mixtures (dissolved in DMF), grouped according to scaffold, and represented 5,287,896 compounds (and several million peptides). Each mixture was present in 2 different wells at 2 different concentrations. Use of mixtures makes it readily feasible to screen large collections of compounds. This library was screened at 5 µg/mL (~10 µM for average molecular weight [MW] ≈500 g/mol) and 10 µg/mL (~20 µM for average MW ≈500 g/mol; Fig. 3B ). The most active mixture was “1422,” which induced >40% POD-positive cells.

The 1422 library contains compounds with an N-methyl triamine scaffold in which chemical diversity was created at 3 positions, R₁, R₂, and R₃. Analysis of a collection of N-methyl triamines, at which one of these diversity positions was fixed, allowing the others to vary as a mixture of all possibilities built into the combinational library, revealed substituents at R1, R2, or R3 that induced >50% POD-positive cells when tested at 4 µg/mL (~8 µM; Fig. 3C - E ). Successful implementation of the HCS assay for POD inducers for structure-activity relation (SAR) analysis of the N-methyl triamine combinatorial library demonstrates the robust performance of the assay.

POD-inducing specificity

To complement the HCS assay for POD activation, we also devised 2 HCS counterscreen assays using immunostaining for the DNA damage/repair–related proteins, H2AX and Chk1. H2AX is phosphorylated primarily by ATM, which “senses” double-stranded DNA breaks, whereas Chk1 is phosphorylated primarily by ATR, which “senses” single-stranded DNA breaks (a common intermediate found at sites of DNA damage detection and repair pathways).²⁵ Immunofluorescence staining for phospho-H2AX (Ser139) (γ-H2AX) and phospho-Chk1 (Ser317), which are visible as nuclear aggregates, was used as a counterscreen to test the specificity of the most active 1422 compounds. The similarity in antigen redistribution for H2AX and Chk1 compared to PML provides the basis for counterscreens that eliminate false-positive compounds that might affect PML or alter immunostaining patterns in a nonspecific manner. In addition, because some types of DNA-damaging agents can stimulate POD formation,^25-29 the phospho-H2AX and phospho-Chk1 immunofluorescence counterscreens serve to eliminate compounds that operate as DNA-damaging agents and thus eliminate these from further consideration.

For these counterscreen HCS assays, CytoShop algorithms were used to quantify the intensity of nuclear phospho-H2AX (Ser139) (γ-H2AX) or phospho-Chk1 (Ser317) immunofluorescence. As shown in Figure 4 (and Supplemental Figures S2-S4 online at http://jbx.sagepub.com/content/by/supplemental-data), IFN-γ (POD-positivity control) induced PML localization to PODs without affecting the markers of DNA damage. Similarly, 3 active N-methyl triamine (1422) compounds synthesized based on results from the combinatorial library analysis (1422-9, 1422-10, and 1422-62) induced PML localization into nuclear aggregates without altering phospho-H2AX or phospho-Chk1, thus confirming the selectivity of their POD-inducing activity. In contrast, cisplatin (DNA damage control) induced H2AX and Chk1 phosphorylation without affecting POD formation, whereas etoposide (DNA damage control) simultaneously induced POD formation, H2AX phosphorylation, and Chk1 phosphorylation. Staurosporine (a broad-spectrum kinase inhibitor), DMSO (solvent control), and DMF (solvent control) had little effect on POD activation, H2AX phosphorylation, or Chk1 phosphorylation. Altogether, these results validate both the primary HCS assay for detection of POD activators and also the counterscreening assays for elimination of DNA damage-inducing compounds.

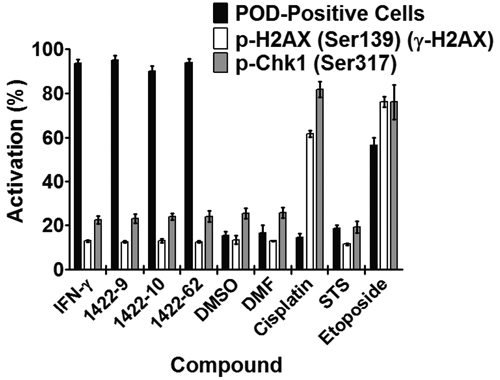

Fig. 4.

PML oncogenic domain (POD)–inducing N-methyl triamines do not induce DNA damage. HeLa cells were treated for 12 h with interferon-γ (IFN-γ; 4 U/µL), DMSO (0.1%), dimethylformamide (DMF; 0.1%), cisplatin (25 µM), staurosporine (STS; 25 nM), etoposide (25 µM), or 1422 compounds (N-methyl triamines; 10 µM). Cells were then immunostained for PODs (mouse monoclonal antihuman PML, Alexa Fluor 488 chicken antimouse antibodies), phospho-H2AX (rabbit polyclonal antihuman phospho-H2AX-Ser139, Alexa Fluor 568 goat antirabbit antibodies), or phospho-Chk1 (rabbit polyclonal antihuman phospho-Chk1-Ser317, Alexa Fluor 568 goat antirabbit antibodies). POD-positive nuclei (%) were quantified as previously described. p-H2AX and p-Chk1 nuclear staining intensity was quantified using CytoShop. Mean and standard deviation are shown (n = 4 wells/condition, >200 cells imaged and quantified per well).

Discussion

The current study describes an HCS assay for compounds that induce PML to localize to PODs, subnuclear structures involved in a variety of tumor-suppressive pathways, and host defense against some types of viruses. After developing algorithms for automated analyses of POD formation, the LOPAC¹²⁸⁰ and TPIMS combinatorial libraries were screened. No hits were identified among the 1280 pharmacologically active LOPAC¹²⁸⁰ compounds, possibly providing evidence that the HCS assay is highly specific and does not suffer from promiscuous reactivity. Screening of the TPIMS combinatorial libraries, which consist of mixtures representing 5,287,896 compounds and several million peptides, revealed a bioactive N-methyl triamine mixture. Further SAR evaluations where library deconvolution was performed by the positional scanning method revealed a clear SAR and thus validated the HCS assay for detection of POD-inducing compounds. Furthermore, N-methyl triamines that were active in the POD assay did not affect the distribution of control proteins, H2AX and Chk1, demonstrating specificity.

Some types of DNA damage have been shown to induce the formation of PML-type bodies that are thought to be functionally different from the tumor-suppressive and antiviral PODs mentioned in the current study.^25-29 Thus, the HCS counterscreen assays described here eliminate DNA-damaging compounds from further consideration.

Active compounds such as the N-methyl triamines could potentially induce PODs via several different mechanisms. First, IFN-α, -β, and -γ induce POD formation by upregulating PML and various POD-associated proteins.⁹ Thus, compounds might induce interferon production, a mechanism that can be readily determined by measuring interferon elaboration into culture supernatants (e.g., using immunoassays) or by testing activation of interferon-inducible reporter genes (e.g., ISGE-luciferase). Second, arsenicals have been shown to activate PML by directly conjugating cysteines within the zinc fingers of the PML RBCC domain,³⁰ and thus compounds that covalently modify these sites define an additional mechanism for POD activation. Third, conjugation of PML by the ubiquitin-like protein SUMO is required for POD formation.³¹ Hence, compounds that affect SUMOylation represent another potential mechanism, which might include, for instance, inhibitors of the proteases responsible for de-SUMOylation. Finally, PML binding proteins such as Daxx are regulated by phosphorylation.³² The protein kinase ZIPK, for example, has been shown to be required for interferon to induce POD formation.²⁸ Thus, compounds that influence the relevant kinases or phosphatases represent another potential class of POD activators that might be revealed by our HCS assay.

Because of the role of PODs in tumor suppression and host defense against viruses, POD-inducing compounds may have relevance to a wide variety of cancers and infectious diseases. Arsenicals are already being used to treat leukemias (such as APL) and multiple myeloma.^2,16 In addition, adenoviruses, herpes simplex virus–1, human cytomegalovirus, Epstein-Barr virus, papillomavirus, hepatitis D virus, human T-lymphotropic virus–1, lymphocytic choriomeningitis, and rabies viruses disrupt PODs,⁹ suggesting that POD-inducing compounds may also promote antiviral states that could be therapeutically useful. The HCS assay described here enables high-throughput screening (HTS) for compounds with potential medicinal activity based on induction of PODs, thus providing a route to chemical modulators of PML that accommodates the diversity of cellular mechanisms responsible for POD regulation in a manner unachievable with standard biochemical HTS assays.

Footnotes

Acknowledgements

We thank Tessa Siegfried and Melanie Hanaii for assistance with manuscript preparation, as well as Drs. Paul Diaz and Satoshi Ogasawara for technical assistance. Support by DoD grant W81XWH-08-0574 and NIH grant CA-55164.

References

Bernardi

Pandolfi

: Structure, dynamics and functions of promyelocytic leukaemia nuclear bodies. Nat Rev Mol Cell Biol 2007;8:1006-1016.

Salomoni

Pandolfi

: The role of PML in tumor suppression. Cell 2002;108:165-170.

Melnick

Licht

: Deconstructing a disease: RARalpha, its fusion partners, and their roles in the pathogenesis of acute promyelocytic leukemia. Blood 1999;93:3167-3215.

Wang

Ruggero

Ronchetti

Zhong

Gaboli

Rivi

: PML is essential for multiple apoptotic pathways. Nat Genet 1998;20:266-272.

Wang

Delva

Gaboli

Rivi

Giorgio

Cordon-Cardo

: Role of PML in cell growth and the retinoic acid pathway. Science 1998;279:1547-1551.

Salomoni

Bernardi

Bergmann

Changou

Tuttle

Pandolfi

: The promyelocytic leukemia protein PML regulates c-Jun function in response to DNA damage. Blood 2005;105:3686-3690.

Hofmann

Will

: Body language: the function of PML nuclear bodies in apoptosis regulation. Cell Death Differ 2003;10:1290-1299.

Jensen

Shiels

Freemont

: PML protein isoforms and the RBCC/TRIM motif. Oncogene 2001;20:7223-7233.

Regad

Chelbi-Alix

: Role and fate of PML nuclear bodies in response to interferon and viral infections. Oncogene 2001;20:7274-7286.

10.

Guo

Salomoni

Luo

Shih

Zhong

: The function of PML in p53-dependent apoptosis. Nat Cell Biol 2000;2:730-736.

11.

Song

Salmena

Carracedo

Egia

Lo-Coco

Teruya-Feldstein

: The deubiquitinylation and localization of PTEN are regulated by a HAUSP-PML network. Nature 2008;455:813-817.

12.

Puto

Reed

: Daxx represses RelB target promoters via DNA methyltransferase recruitment and DNA hypermethylation. Genes Dev 2008;22:998-1010.

13.

Croxton

Puto

de Belle

Thomas

Torii

Hanaii

: Daxx represses expression of a subset of antiapoptotic genes regulated by nuclear factor-kappaB. Cancer Res 2006;66:9026-9035.

14.

Zhong

Stan

Ellis

Pandolfi

: A role for PML and the nuclear body in genomic stability. Oncogene 1999;18:7941-7947.

15.

Khan

Nomura

Kim

Kaul

Wadhwa

Zhong

: PML-RARalpha alleviates the transcriptional repression mediated by tumor suppressor Rb. J Biol Chem 2001;276:43491-43494.

16.

Crowder

Dahle

Davis

Gabrielsen

Rudikoff

: PML mediates IFN-alpha-induced apoptosis in myeloma by regulating TRAIL induction. Blood 2005;105:1280-1287.

17.

Berenson

Yeh

: Arsenic compounds in the treatment of multiple myeloma: a new role for a historical remedy. Clin Lymphoma Myeloma 2006;7:192-198.

18.

Dunn

Ikeda

Bruce

Koebel

Uppaluri

Bui

: Interferon-gamma and cancer immunoediting. Immunol Res 2005; 32:231-245.

19.

Houghten

Pinilla

Appel

Blondelle

Dooley

Eichler

: Mixture-based synthetic combinatorial libraries. J Med Chem 1999;42:3743-3778.

20.

Pinilla

Appel

Blanc

Houghten

: Rapid identification of high affinity peptide ligands using positional scanning synthetic peptide combinatorial libraries. Biotechniques 1992;13:901-905.

21.

Pinilla

Appel

Borras

Houghten

: Advances in the use of synthetic combinatorial chemistry: mixture-based libraries. Nat Med 2003;9:118-122.

22.

Zhang

Chung

Oldenburg

: A simple statistical parameter for use in evaluation and validation of high throughput screening assays. J Biomol Screen 1999;4:67-73.

23.

Kawai

Akira

Reed

: ZIP kinase triggers apoptosis from nuclear PML oncogenic domains. Mol Cell Biol 2003;23:6174-6186.

24.

Houghten

Pinilla

Giulianotti

Appel

Dooley

Nefzi

: Strategies for the use of mixture-based synthetic combinatorial libraries: scaffold ranking, direct testing in vivo, and enhanced deconvolution by computational methods. J Comb Chem 2008;10:3-19.

25.

Sancar

Lindsey-Boltz

Unsal-Kacmaz

Linn

: Molecular mechanisms of mammalian DNA repair and the DNA damage checkpoints. Annu Rev Biochem 2004;73:39-85.

26.

Eskiw

Dellaire

Mymryk

Bazett-Jones

: Size, position and dynamic behavior of PML nuclear bodies following cell stress as a paradigm for supramolecular trafficking and assembly. J Cell Sci 2003;116:4455-4466.

27.

Zhong

Salomoni

Ronchetti

Guo

Ruggero

Pandolfi

: Promyelocytic leukemia protein (PML) and Daxx participate in a novel nuclear pathway for apoptosis. J Exp Med 2000;191:631-640.

28.

Seker

Rubbi

Linke

Bowman

Garfield

Hansen

: UV-C-induced DNA damage leads to p53-dependent nuclear trafficking of PML. Oncogene 2003;22:1620-1628.

29.

Tanaka

Halicka

Traganos

Seiter

Darzynkiewicz

: Induction of ATM activation, histone H2AX phosphorylation and apoptosis by etoposide: relation to cell cycle phase. Cell Cycle 2007;6:371-376.

30.

Zhang

Yan

Zhou

Yang

Sun

: Arsenic trioxide controls the fate of the PML-RARalpha oncoprotein by directly binding PML. Science 2010;328:240-243.

31.

Shen

Lin

Scaglioni

Yung

Pandolfi

: The mechanisms of PML-nuclear body formation. Mol Cell 2006;24:331-339.

32.

Salomoni

Khelifi

: Daxx: death or survival protein? Trends Cell Biol 2006;16:97-104.
