BioAssay Ontology Annotations Facilitate Cross-Analysis of Diverse High-Throughput Screening Data Sets

PubChem local mirror database and chemical structures

A local relational mirror of the PubChem bioassay database was created using in-house scripts and a public version of the MySQL database. The details of this database, schema, population and update processes, implementation, and code are reported elsewhere. ¹⁸ Briefly, the database consisted of several tables, including assay details (such as AID, assay name, description, project category, protocol), panel assay specifications, result definitions (such as IC₅₀, percentage inhibition, or any other observed measurement or statistics), result data (with PubChem Activity Outcome and Score and the most important results, such as IC₅₀, and qualifiers such as <, >, =), cross-references (links of assays to other National Center for Biotechnology Information (NCBI) databases such as protein or nucleotide target, PubMed, taxonomy), and relationships (links between different assays, links to other NCBI Entrez databases, and links between targets and their sequences). The system used the PubChem FTP site to access XML assay descriptions and CSV assay data and the NCBI Entrez Utilities (eUtils) to access additional information (including if an assay had changed) to keep the mirror database current. The database included a structure table only as a placeholder. Chemical structures corresponding to the assay data were downloaded by substance IDs (SIDs) directly from PubChem as SDFiles using the batch download facility.

PubChem assay annotation and assay clustering

PubChem assays were annotated manually using the mirror database described above, which was fetched from PubChem in April 2010 with 2299 assays by AID. In total, 172 assays had no data at all (on-hold assays). There were 194 summary assays, of which 136 had no substances or activity data. These assays were not considered for annotation. There were 105 assays with no activity outcome method (which is usually assigned as screening, confirmatory, other, or summary)—these are from Ambit Biosciences, Developmental Therapeutics Program/National Cancer Institute, and Structural Genomics Consortium. From the screening centers of the NIH Molecular Libraries Probe Center Network (MLPCN) and the former Molecular Libraries Screening Center Network (MLSCN) were 1498 assays—not including assays without data (on hold) and summary assays.

To aid the manual annotation process, all assays were clustered based on the assay title, description, protocol, and source. Several assays (other than on-hold or summary assays) did not have a protocol or only a minimal description, but all had information about the source. To cluster the assays, first for each assay a text fingerprint was generated from all words used in title, description, protocol, and source after stemming (to consolidate different grammatical forms) using the Pipeline Pilot 8.0 (Accelrys, San Diego, CA) ¹⁹ text analytics component collection. The text fingerprints (TXFP_Custom) encode for each individual assay the presence and absence of word tokens from the global corpus of assays. The assay “documents” were then clustered based on the fingerprints using the Tanimoto similarity metric and setting the average cluster size to five members. The clustering method is a relocation technique based on maximum dissimilarity partitioning implemented in the Pipeline Pilot text analytics collection. A total of 460 clusters were generated. This method grouped together similar assays very effectively—for example, all assays of the same screening campaign by center or assays with the same procedure or assay design (e.g., many National Center for Chemical Genomics [NCGC] toxicity assays); as expected, clusters usually included assays from the same source. The method also grouped together related assays with minimal annotations (such as many of the NCI or Chembank assays), summary assays, or assays that were on hold. Two hundred ninety-nine clusters were generated from the 1498 MLPCN and MLSCN assays that had data deposited and were not summary assays. To illustrate the similarity relationships of these assays, we generated a minimum spanning tree (MST) based on the pairwise (Tanimoto) similarities of the assays computed from their text fingerprints (the same similarities that were used for clustering above). The MST was computed using an in-house protocol implementing Kruskal’s algorithm. The MST was visualized in Cytoscape ²⁰ and is shown in Supplemental Figure S1A. Supplemental Figure S1B,C shows the cluster and assay memberships for biochemical and cell-based assays, respectively. Assay formats were mapped onto the tree after manual annotation (see the following).

Following cluster preprocessing, assays were then manually annotated by assay format, design, technology, and the other BioAssay Ontology (BAO) categories. The BAO schema with classes, individuals, relationships, and their definitions can be downloaded from our Web site, and BAO can also be visualized there. ²¹ For the limited analysis presented here, we focused specifically on assays based on designs to detect luminescence from the luciferase-catalyzed conversion of luciferin substrates ²² and assays employing β-lactamase-based technology. ²³

Luciferase-assays were classified into five subcategories: reporter gene, viability, adenosine triphosphate (ATP)–coupled, luciferin-coupled, and luciferase enzyme activity assays. Briefly, luciferase reporter gene assays use the luciferase gene downstream of a promoter of interest. The amount of luciferase expressed is quantified by the intensity of light (luminescence) produced in the presence of substrates, ATP, and luciferin. Viability assays estimate the proportion of living cells in an assay by measurement of ATP content in a luciferase-catalyzed reaction. ATP-coupled assays measure the residual amount of ATP (e.g., after a kinase reaction) by a coupled luciferase reaction. Luciferin-coupled assays measure the amount of luciferin generated after detoxification by cytochrome P450 enzyme activity. Luciferase enzyme activity assays quantify the luciferase enzyme activity by the amount of light produced in a biochemical reaction. β-Lactamase technology is used in either reporter gene or enzyme activity assays.

PubChem Promiscuity Index (PCIdx)

The PubChem Promiscuity Index (PCIdx) of a substance (by SID) was defined as the number of assays in which this substance is active divided by the number of assays in which it was tested (equation (1), where N is the assay count for the substance).

PCIdx ( substance ) = N ( Active ) N ( Tested ) .

(1)

To define active, we used the PubChem activity outcome, which is one of the required fields to be uploaded by the assay depositor. Activity outcome categorizes tested samples as active, inactive, inconclusive, or unspecified. PubChem does not have rules when to apply the outcome category “active,” which is defined (subjectively) by the depositor. Therefore, active can have different meanings across different assays. This is clearly not the best way of comparing compounds in a large number of assays, and it would be much better to standardize the most important endpoints across all assays. However, currently, activity outcome is one of the only two required endpoints (the other one is activity score—also subjectively depositor defined) and therefore the only way to quickly identify “active” compounds.

To compute PCIdx for each compound, all assays in which it was tested and the corresponding activity outcomes were determined by querying the PubChem mirror database above. PCIdx was calculated according to equation (1), separately for single-concentration assays (PubChem activity outcome method “screening”) and concentration–response assays (activity outcome method “confirmatory”). Only assays of a certain category were considered—for example, all luciferase technology assays or a certain subset thereof, such as viability assays or luciferase enzyme inhibition assays.

Because the significance of the PCIdx measure increases with more tested assays, we visualized compounds’ promiscuities by plotting PCIdx over the number of assays tested while indicating the number of active assays by a color code (cf. Fig. 1 and Supplementary Figures S4 and S6).

OPEN IN VIEWER

Fig. 1.

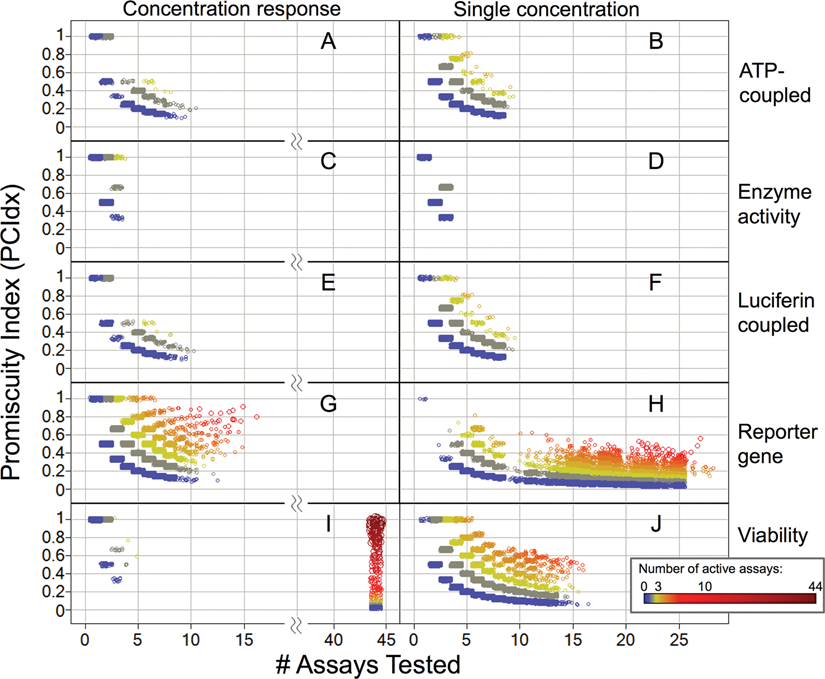

Compound promiscuity by luciferase assay technologies. For each compound, the Promiscuity Index versus number of tested assays is depicted. (A, B) Adenosine triphosphate (ATP)–coupled enzyme activity (e.g., kinase activity, not viability). (C, D) Luciferase enzyme activity. (E, F) Luciferin-coupled enzyme activity (e.g., P450). (G, H) Luciferase reporter gene assays. (I, J) Cell viability assays (ATP coupled). (A, C, E, G, I) Concentration–response assays. (B, D, F, H, J) Single-concentration assays. Color and size indicate the number of assays (of the particular luciferase assay type) in which a compound was active. In total, 87 615 data points with at least one active assay shown: (A) 3457, (B) 5619, (C) 2313, (D) 3646, (E) 3457, (F) 5619, (G) 14 200, (H) 36 685, (I) 1413, (J) 11 206.

Figure 1 , Supplementary Figures S4 and S6, and the heat map in Figure 2 were created in TIBCO Spotfire DecisionSite. ²⁴

Data Clustering

Data in Figure 2 (corresponding to Supplementary Table S1) were hierarchically clustered using the unweighted pair group method with arithmetic mean (UPGMA) and PCIdx correlation as a similarity measure.

OPEN IN VIEWER

Fig. 2.

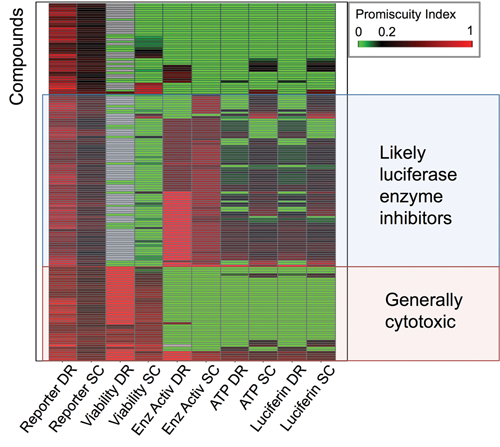

Heat map of 161 most promiscuous compounds in luciferase reporter gene assays, which are active in at least five concentration–response and five single-concentration (luciferase reporter) assays. DR, dose response; SC, single concentration. Shown are the promiscuity indices of all compounds in the different luciferase assay categories for both concentration–response and single-concentration assays, respectively, clustered by their PubChem Promiscuity Index (PCIdx) profiles. Two groups of promiscuous reporter gene compounds were apparent, suggesting the mechanism for reporter gene assay promiscuity: one in which compounds were also active in viability assays (red) and the other where compounds were also active in luciferase enzyme assays (blue). Compare Supplemental Table S1 for details.

BioAssay Ontology and assay annotations

We have developed an ontology (BAO) ²¹ to facilitate analyses of screening results from large and diverse sets of biological assays spanning multiple technologies and originating from different sources. The BAO project seeks to develop a formal, extensible, knowledge-based description of biological assays by making use of descriptive logic-based features of the Web Ontology Language (OWL). Expert curation is an important component of the BAO project, and we have been systematically annotating sets of PubChem bioassays with BAO terms describing assay concepts. The BAO project will also provide software tools to query and explore data sets in the context of the ontology.

The BioAssay Ontology describes several concepts related to biological screening, including Perturbagen, Target, Format, Assay Design, Detection Technology, and Endpoint, including endpoint data manipulation. Perturbagens deposited in PubChem and the other screening data sources mentioned above are mostly small molecules but can include various other perturbing agents that are screened in an assay. We refer to targets as “Meta Target” describing not just protein targets but also pathways, biological processes or events, and so on targeted by the assay. Format describes the biological or chemical features common to each test condition in the assay and includes biochemical, cell based, organism based, and variations thereof. Assay Design describes the assay methodology and implementation of how the perturbation of the biological system is translated into a detectable signal. Detection Technology relates to the physical method and technical details to detect and record a signal. Endpoints are the final HTS results as they are usually published (such as IC₅₀, percentage inhibition, etc.). Endpoint data manipulation specifies how the raw signal(s) is transformed into reported endpoints (i.e., normalization, correction, etc.). BAO also captures other assay properties such as assay purpose and how assays are related in campaigns. BAO is also designed to handle multiplexed assays. All main BAO components include multiple levels of subclasses and specification classes, which are linked via object–property relationships forming a knowledge representation. The details of the development and description of BAO will be reported elsewhere. The BAO schema with classes, individuals, and relationships can be downloaded from our Web site. ²¹ BAO classes, their subsumption hierarchies, and class definitions can also be visualized directly on the BAO Web site. ²¹

We annotated a set of more than 350 PubChem assays and grouped them into related classes by assay design and detection technology. Specifically, we focused on widely used HTS assay technologies that employ luciferase- and β-lactamase–based reporters. ²² By analyzing the outcomes of related assays, we could readily identify compounds of interest, for example, those that were promiscuously active in one or multiple classes of assays. The luciferase assays were annotated and classified into subcategories that relate to assay design (described in Methods). To efficiently annotate assays and to facilitate data analysis across all PubChem assays, we created a local mirror of the PubChem database. This database stores assay descriptions and endpoints in a relational format and can be queried easily using SQL. Mirrored assays were then manually annotated with BAO terms after interpreting the textual descriptions available in PubChem. To aid in the assay annotation process, we clustered the assays based on text fingerprints derived from the free text in assay title, description, protocol, and source (see methods). Supplemental Figure S1 illustrates the similarity relationships based on their textual descriptions in PubChem of the 1498 MLPCN and MLSCN assays and the clusters that were obtained as well as the most important formats (biochemical and cell based) and the screening center. Supplemental Figure S1A shows the minimum spanning tree of the assays (see Methods) illustrating that assays from the same center and assays of the same format typically group together locally. Supplemental Figure S1B,C shows the cluster memberships (see Methods). Each cluster contained only assays from one center, and most clusters only contained assays of one format. Clusters of assays also typically were of related designs and biological targets (not shown). In our hands, this was an effective method to group similar assays together, enabling the sequential annotation of sets of related assays. We found that this greatly reduced errors and accelerated the annotation process compared to random or chronological (by assay ID [AID]) order of annotation.

Analysis of luciferase technology assays

Using the local relational database created from data as of April 2010, we identified a total of 257 assays using a design based on the luciferase-induced conversion of luciferin substrates that results in the emission of light. ²² Specifically, we annotated the following types of luciferase technology assays: reporter gene assays (105), cell viability assays (through detection of ATP, 82), ATP-coupled assays (other than viability assays, 35), luciferin-coupled assays (23), and enzyme (biochemical) activity assays (12). A histogram of assay types is shown in Supplemental Figure S2. We also identified and annotated the assay kits (Supplemental Figure S3).

Using the luciferase assay annotations, we computed promiscuity statistics for each compound that was tested in any of the luciferase assays. We developed a Pipeline Pilot (Accelrys) protocol that queries the relational database to determine how many different assays (of a luciferase technology category) each compound was tested in and in how many it was found active. This was done separately for single-concentration and concentration–response assays. To define active and inactive, we used the PubChem activity outcome endpoint. Although this is a subjective, “local” definition (each depositor can define active and inactive for each assay independently), we found it a useful first approximation. We calculated a PCIdx for each category as the quotient of the number of luciferase assays in which a substance was reported as active and the number of assays in which it was tested (see Methods, equation (1)). The larger the ratio of active luciferase assays to assays tested, the higher a compound’s promiscuity PCIdx. However, the significance of this promiscuity measure increases with the number of assays tested. We therefore visualized promiscuity by a scatter plot of PCIdx and the number of assays tested while also indicating the number of active assays (of each category) by color. Figure 1 shows compound promiscuities for the different luciferase technology categories for single-concentration and concentration–response assays (87 615 data points shown overall). It shows a large number of promiscuous compounds identified from viability and reporter gene assays, which we decided to investigate in greater detail. Supplemental Figure S4 illustrates promiscuities across all luciferase technology assays taken together.

The majority of viability assays were concentration–response series deposited by the NCGC. Figure 3 shows the most promiscuous cytotoxic compounds (by SID) identified by these assays. We have previously demonstrated that such data can be useful to model acute animal toxicity. ²⁷ All of the compounds shown have been tested in 44 concentration–response assays and were categorized as active in more than 95% of them. For example, the toxicity of digitonin (SID 17389047) is related to its lipid (membrane) solubilizing properties. Most of the compounds are chemically reactive, which is likely the cause of their toxicity. Crystal violet (hexamethyl-p-rosaniline chloride; SID 17389869) and methylene blue (SID 17388909) are redox-active and electrophilic dyes, respectively. 17388695 and 17389115 are surfactants (phase transfer reagents), 17389451 is a reactive dihydroxyanthraquinone, 17389124 is used as a pesticide, and 17389974 is an alkylator.

OPEN IN VIEWER

Fig. 3.

Examples of highly promiscuous (cytotoxic) compounds in luciferase viability assays. All compounds have a promiscuity index between 0.95 and 1.0, were tested in 44 assays, and are active in at least 42 assays.

Although luciferase is often used in viability assays, its most common application is in reporter gene assays. To investigate promiscuous compounds in this category, we retrieved all substances that were active in at least five single-concentration and five concentration–response luciferase reporter gene assays. Figure 2 illustrates the PCIdx of the 161 compounds in each of the luciferase assay categories for dose–response (DR) and single-concentration (SC) assays after hierarchical clustering (see Methods). There are two major clusters of compounds. In one group, the compounds were also highly promiscuous across viability assays. This could be expected because broadly cytotoxic compounds should also show up as actives in luciferase reporter gene assays. Importantly, this pattern was immediately revealed by our analysis method, which used activity outcomes across all assays of each category in which a compound had been tested. In the other group, compounds also showed promiscuity in the category of luciferase enzyme inhibition assays. It is therefore likely that the mechanism responsible for their promiscuity across reporter gene assays is inhibition of the luciferase enzyme. Most of those compounds also showed high promiscuity indices in the other categories of luciferase assays. Supplemental Table S1 lists all 161 compounds corresponding to Figure 2 (by SID), their PCIdx values for each category, and the number of assays in which each compound was active versus the number of assays in which it was tested.

Figure 4 and Table 1 illustrate example chemical structures of both categories of highly promiscuous reporter gene compounds. The first row in Figure 4 and the first five entries in Table 1 show selected compounds that likely act via inhibiting luciferase enzyme. They represent five different chemical classes, including the benzoyl-aryl-urea (SID 3717070) or the 3,5-disubstituted-1,2,4-triazole (SID 865680) scaffolds. ¹⁶ The second row of Figure 4 and entries 6 to 10 in Table 1 show cytotoxic compounds that were broadly active across cell proliferation assays. They include reactive compounds such as electron-deficient vinyl chloride (SID 24817234) and Michael acceptor (SID 845529), as well as daunorubicin (SID 855534), which is a DNA intercalator used as a chemotherapeutic.

OPEN IN VIEWER

Fig. 4.

Selected examples of promiscuous compounds in luciferase reporter gene assays of two categories. Top row compounds were also active in luciferase enzyme inhibition assays. Bottom row compounds were active in viability assays. Refer to Table 1 for details.

OPEN IN VIEWER

Table 1.

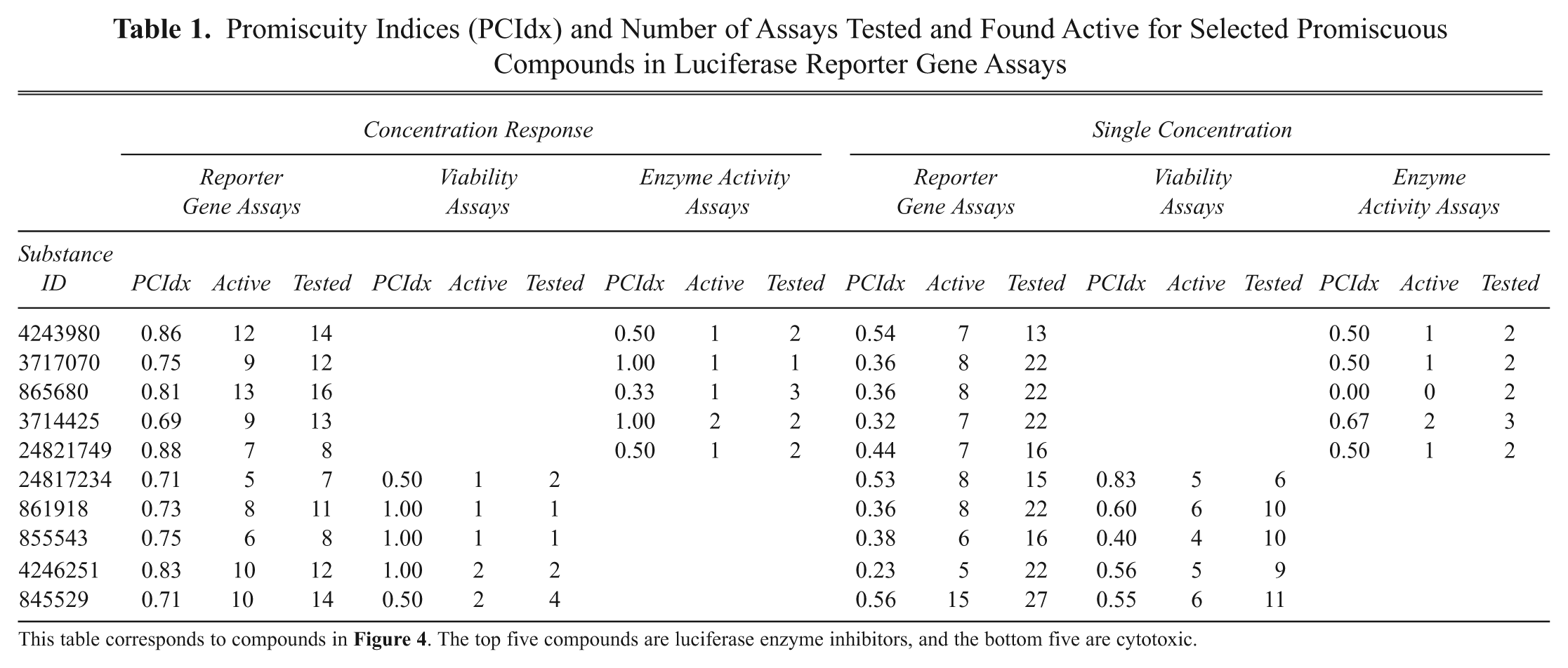

Promiscuity Indices (PCIdx) and Number of Assays Tested and Found Active for Selected Promiscuous Compounds in Luciferase Reporter Gene Assays

	Concentration Response									Single Concentration
	Reporter Gene Assays			Viability Assays			Enzyme Activity Assays			Reporter Gene Assays			Viability Assays			Enzyme Activity Assays
Substance ID	PCIdx	Active	Tested	PCIdx	Active	Tested	PCIdx	Active	Tested	PCIdx	Active	Tested	PCIdx	Active	Tested	PCIdx	Active	Tested
4243980	0.86	12	14				0.50	1	2	0.54	7	13				0.50	1	2
3717070	0.75	9	12				1.00	1	1	0.36	8	22				0.50	1	2
865680	0.81	13	16				0.33	1	3	0.36	8	22				0.00	0	2
3714425	0.69	9	13				1.00	2	2	0.32	7	22				0.67	2	3
24821749	0.88	7	8				0.50	1	2	0.44	7	16				0.50	1	2
24817234	0.71	5	7	0.50	1	2				0.53	8	15	0.83	5	6
861918	0.73	8	11	1.00	1	1				0.36	8	22	0.60	6	10
855543	0.75	6	8	1.00	1	1				0.38	6	16	0.40	4	10
4246251	0.83	10	12	1.00	2	2				0.23	5	22	0.56	5	9
845529	0.71	10	14	0.50	2	4				0.56	15	27	0.55	6	11

This table corresponds to compounds in Figure 4 . The top five compounds are luciferase enzyme inhibitors, and the bottom five are cytotoxic.

β-lactamase versus luciferase reporter gene assays

Another widely used assay reporter technology relies on β-lactamase. ²³ Most of the implementations use fluorescence resonance energy transfer (FRET) substrates, resulting in a fluorescence shift upon hydrolysis of the β-lactam. ²⁸ As of April 2010, we annotated 92 β-lactamase assays, 74 of which were reporter gene assays (Supplemental Figure S5A). Supplemental Figure S5B shows the assay kits used. To identify small-molecule structural classes that were active in a large percentage of the β-lactamase technology assays tested in PubChem, we performed an analysis similar to that for luciferase-based assays. Supplemental Figure S6 shows the compounds’ promiscuity plots for β-lactamase enzyme activity and β-lactamase reporter gene assays, respectively, and expressed separately for single-concentration and concentration–response assays. From Supplemental Figure S6, several interesting classes of compounds can be identified, including some subtle ones. For example, from quadrant A (biochemical β-lactamase enzyme activity measured by concentration–response assays), a series of 2-alkylsulfonyl-1,3,4-oxadiazoles could be identified, which had previously been demonstrated to covalently modify the enzyme resulting in its inhibition. ¹⁷ Because of its mechanism, this chemotype shows activity in many other assay types (not shown). However, many more compounds can be identified as highly promiscuous among the β-lactamase reporter gene assays.

For further analysis, we selected compounds with a PCIdx of at least 0.5 and that have been tested in at least 10 reporter gene assays (for single-concentration or concentration–response assays). These compounds were clustered by MCS. Some of the most promiscuous clusters are shown in Figure 5 by their MCS scaffolds. Supplemental Table S2 includes all 97 compounds, their MCS scaffolds, cluster details, PCIdx, and the number of active and tested assays. Interestingly, in contrast to the promiscuous luciferase reporter gene compounds ( Fig. 4 and Supplemental Table S1), these compounds formed more pronounced (larger) clusters. The mechanism of promiscuity was not immediately obvious from this analysis. However, we hypothesize that compounds in cluster 1 inhibit the β-lactamase enzyme because these compounds were also promiscuously active in the biochemical β-lactamase inhibition assays. Some of the other series had reactive functional groups—for example, cluster 2 ( Fig. 5 ) or clusters 7 and 4 (Supplemental Table S2), which could therefore be toxic or react chemically with the reporter enzyme or other proteins in the pathways upstream of the promoter.

OPEN IN VIEWER

Fig. 5.

Representative chemical scaffolds of the most promiscuous compounds in β-lactamase reporter gene assays (see Supplemental Table S2 for compounds from all series).

To further investigate how the promiscuity mechanisms were distinct among luciferase and β-lactamase reporter gene assays, we pairwise compared all highly promiscuous compounds across the two technologies—specifically, 102 compounds that were active against the majority of luciferase reporter gene assays versus 97 compounds active against the majority of β-lactamase reporter gene assays. Compounds were selected with PCIdx ≥0.5 and tested in at least 10 assays of their respective reporter technology. Figure 6 shows the similarity histogram of the maximum similar compound among one group for each compound in the other group (see Methods). The complete similarity matrix and the histogram of all pairwise similarities are provided in Supplemental Figures S7 and S8. Figure 6 (and Supplemental Figures S7 and S8) indicated that for most of the compounds active against β-lactamase, there was no significantly similar compound active against luciferase. This supports distinct mechanisms of nonspecific chemical interferences among luciferase and β-lactamase reporter gene assays. Chemical classes that were promiscuous in both luciferase and β-lactamase reporter gene assays are shown in Figure 7 (all compounds are provided in Supplemental Table S3). Their generic mechanisms appeared to include high chemical reactivity such as SID 14729238 or SID 4251553 and general toxicity such as emetine (SID 855836), ²⁷ which is a protein synthesis inhibitor. However, the results suggested that other mechanisms are likely to exist; for example, staurosporine (SID 11532977) is one of the most promiscuous pan-kinase inhibitors. ²⁹

OPEN IN VIEWER

Fig. 6.

Histogram of the maximum pairwise Tanimoto similarities of each of the 102 most promiscuous luciferase reporter gene compounds compared with the 97 most promiscuous β-lactamase reporter gene compounds. Tanimoto similarities were computed using ECFP4 fingerprints. Most promiscuous compounds were defined as those with a promiscuity index (PCIdx) ≥0.5 and that were tested in at least 10 assays. See Supplemental Figure S7 for the full similarity matrix and Supplemental Figure S8 for the histogram of all pairwise similarities.

OPEN IN VIEWER

Fig. 7.

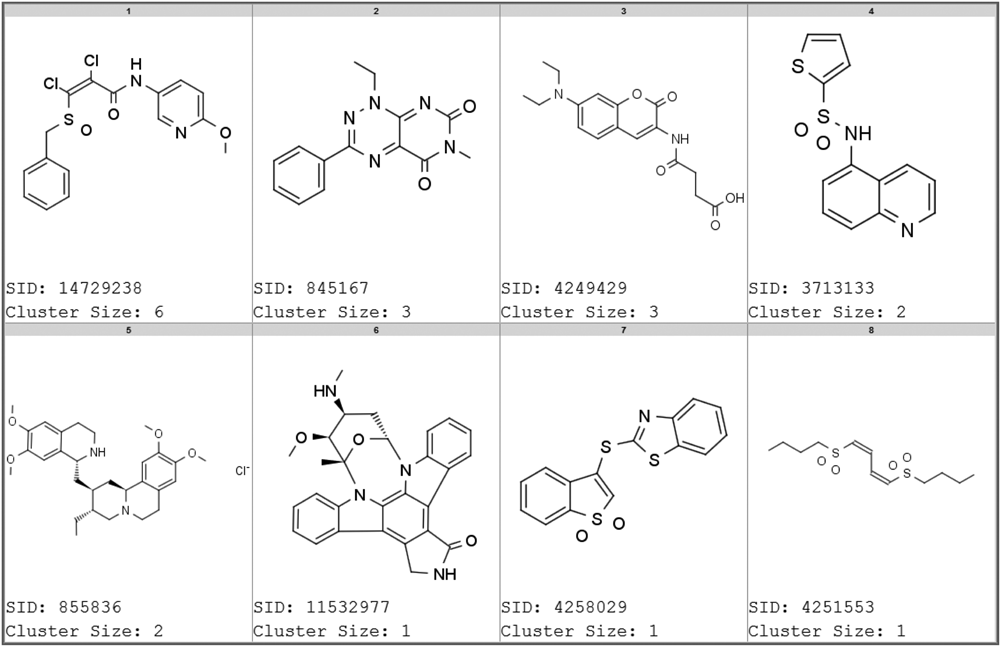

Compounds representing structural classes that show promiscuous activity across luciferase and β-lactamase reporter gene assays. Supplemental Table S3 includes all compounds and their cluster details.
