Bioluminescent Method for Assaying Multiple Semicarbazide-Sensitive Amine Oxidase (SSAO) Family Members in Both 96- and 384-Well Formats

Abstract

Vascular adhesion protein–1 (VAP-1), also known as semicarbazide-sensitive amine oxidase (SSAO) or copper-containing amine oxidase (AOC3, EC 1.4.3.6), catalyzes oxidative deamination of primary amines. One endogenous substrate has recently been described (Siglec 10), and although its mechanism of action in vivo is not completely understood, it is suggested to play a role in immune cell trafficking, making it a target of interest for autoimmune and inflammatory diseases. Much of the enzymology performed around this target has been conducted with absorbance, fluorescent, or radiometric formats that can have some limitations for high-throughput screening and subsequent compound profiling. The authors present the use of a bioluminescent assay, originally developed for monoamine oxidase enzymes, in a high-throughput format. It can be used for related SSAOs such as AOC1 given their substrate similarity with VAP-1. The authors also demonstrate that it is compatible with different sources of VAP-1, both purified recombinant and VAP-1 overexpressed on live cells.

Keywords

VAP-1 AOC3 SSAO bioluminescent assay

Introduction

Vascular adhesion protein–1 (vap-1) is a 180-kda glycoprotein member of the family of semicarbazide-sensitive amine oxidases (SSAOs). It is expressed at significant levels on endothelial cells, adipose tissue, and smooth muscle cells and is also found on pericytes and follicular dendritic cells. It has been suggested to play a role in the pathogenesis of inflammatory diseases, including arthritis, multiple sclerosis, diabetes, and atherosclerosis, by influencing immune cell trafficking (via cell adhesion) and cell activation.^1–6

The active sites of SSAOs contain an essential topoquinone (TPQ) cofactor, which is modified from tyrosine in a copper-dependent manner, and so these enzymes are also called copper-containing amine oxidases (AOCs). VAP-1 can oxidize a variety of amine substrates, including methylamine and aminoacetone (physiological) and benzylamine (nonphysiological). Siglec 10 has recently been described as a leukocyte ligand.⁷ The enzymatic reaction involves reduction of the primary amine with formation of a transient Schiff base via the TPQ with the release of an aldehyde. The reduced TPQ is then hydrolyzed with oxygen, and subsequently hydrogen peroxide and ammonia are released. There are four SSAO family members, including VAP-1 (AOC3), AOC1 (soluble), AOC2 (retina specific), and AOC4 (inactive pseudogene).

Valley and colleagues⁸ have recently reviewed the inadequacies of current methods of assaying amine oxidases; high-performance liquid chromatography (HPLC) and radiochemical detection are time-consuming and expensive; fluorescence and absorbance assays are rapid and sensitive but may be susceptible to compound interference. They also disclosed a luciferase-based assay for monitoring monoamine oxidase (MAO)–A and MAO-B activity via bioluminescence. We investigated this bioluminescent assay and predicted that it would be suitable for measuring VAP-1 activity as MAOs and AOCs share common substrates and inhibitors,³ but nonetheless it was important to demonstrate as we evaluated our high-throughput screening (HTS) screening options.

We therefore present our VAP-1 bioluminescent assay development steps and summarize the performance of the assay used for initial HTS, counterscreening, and cellular profiling. We believe it provides a convenient, versatile, and robust HTS format for screening multiple amine oxidases and offers some advantages over other screening formats (e.g., radiometric, absorbance). Here, we also show the utility of this bioluminescent assay to measure the activity of multiple amine oxidases from different sources, such as recombinant purified proteins and as AOC enzymes expressed on the surface of live Chinese hamster ovary (CHO) cells, allowing the assay to be used broadly in monitoring the optimization of compounds throughout a drug discovery program.

Materials and Methods

Construct design

Human VAP-1 (41-755), murine VAP-1 (41-755), rat VAP-1 (41-755), and human AOC1 (20-751) with a mutated glutathione S-transferase (GST) N-terminal fusion tag (with cysteines at positions 85 and 138 and serine at position 178) were expressed in the pcDNA-Dest40 Gateway Vector (Invitrogen, Carlsbad, CA). The native signal sequence was replaced with a murine IgG heavy-chain signal peptide, and an human rhinovirus (HRV) protease cleavage site was introduced after the mutated GST fusion tag.

Cell line generation

HEK 293 cells were grown in RPMI 1640 Medium (Invitrogen) supplemented with 10% fetal bovine serum (FBS; Invitrogen). They were transfected with the expression vectors (human VAP-1, mouse VAP-1, or rat VAP-1) using Freestyle MAX (Invitrogen) transfection reagent according to the manufacturer’s protocol and selected with 500 µg/mL G418 (Invitrogen).⁹ The relative protein expression levels from pools of stably expressing cells were determined by Western blot. The stable pools were adapted to suspension conditions in FreeStyle 293 serum-free medium (Invitrogen) and scaled up for 10- or 20-L runs with a Wave bag bioreactor using the FreeStyle medium without G418.

CHO cells were cultured in RPMI 1640 with glutamine from Gibco/Invitrogen, 10% FBS from HyClone (Logan, UT), and 1 mg/mL (human clones) or 0.5 mg/mL (murine clones) G418 (Gibco/Invitrogen) at 37 °C, 5% CO₂. Full-length constructs of human (GenBank Accession #NM_003734), mouse (GenBank Accession #NM_009675), and rat (GenBank Accession #NM_031582) VAP-1 in pcDNA DEST 40 were generated (Geneart, Inc., Ontario, Canada) and transfected into CHO K1 cells using Lipofectamine 2000 (Invitrogen) according to the manufacturer’s instructions. Stable cell lines were established by limiting dilution under G418 antibiotic selection for 2 weeks. Antibiotic-resistant clones were screened for VAP-1 expression by flow cytometry (Guava Technologies, Inc., Hayward, CA) using VAP-1-specific monoclonal antibodies: TK8-14 (Santa Cruz Biotechnology, Santa Cruz, CA) for human VAP-1 expression, clone 174-5 (Hycult Biotechnology, Uden, The Netherlands) for rat VAP-1, and clone 7-88 (Hycult Biotechnology) for mouse VAP-1 expression. Secondary antibodies for the anti-human and anti-mouse antibodies were goat anti-mouse IgG-FITC (cat. sc-2010; Santa Cruz Biotechnology) and goat F(ab¹)₂ anti-rat IgG-PE (R&D Systems, Minneapolis, MN), respectively. Isotype controls included mouse IgG2a κ pure, mouse IgG2b κ isotype control, and mouse IgG1 κ isotype control (BD Biosciences, San Jose, CA). Multiple clones expressing >98% VAP-1-positive cells were selected, expanded, and cryopreserved for each line. For enzymatic analysis, cells were grown to confluence; washed with phosphate-buffered saline (PBS) prior to treatment with Accutase (Millipore, Billerica, MA) for 10 min at 37 °C, 5% CO₂; resuspended in media; and then washed twice and resuspended in assay buffer.

Purification of GST-VAP-1 and GST-AOC1

Both GST-VAP-1 (VAP-1) and GST-AOC1 (AOC1) were purified from fresh biomass by affinity chromatography using Glutathione Sepharose 4B resin (Amersham Biosciences, Piscataway, NJ) in the presence of 0.1% Tween-20. Postdialysis, 0.1% Tween-20 and 10% glycerol were added. Protein concentration was determined by Bradford assay. Total protein yield was approximately 1 to 1.4 mg/L.

Luminescence assay

The AOC luminescence assay for recombinant and cell surface VAP-1 (CHO-VAP-1) was the Promega MAO-Glo Assay (cat. V1401; Promega, Madison, WI) with the following modifications; assay plates were white, medium binding, flat-bottom plates (96-well; cat. 655075; Greiner Bio One, Monroe, NC). The assay buffer was modified from the “physiological HEPES”¹⁰ and consisted of 50 mM HEPES (pH 7.4), 5 mM KCl, 2 mM CaCl₂, 1.4 mM MgCl₂, 120 mM NaCl, 0.001% Tween-20, and 100 µM TCEP (Thermo Scientific, Rockford, IL).

For assay development with recombinant VAP-1, AOC1 and CHO-VAP-1 ( Figs. 1 and 2 ), the reaction volume was 50 µL (25 µL diluted enzyme or cells plus 25 µL diluted substrate) with a 60-min 37 °C catalysis reaction followed by the addition of 50 µL detection reagent (100 µL total) and a 20-min 37 °C detection reaction, after which relative light units (RLU) were counted on an LJL BioSystems Analyst AD (Molecular Devices, Sunnyvale, CA). The Promega MAO-Glo substrate ((4S)-4,5-dihydro-2-(6-hydroxybenzothiazolyl)-4-thiazolecarboxylic acid) was solubilized in DMSO (16 mM). For experiments titrating substrate, buffers were adjusted such that all samples contained the same final DMSO concentration of 1%. For IC₅₀ determinations, compound inhibitors were solubilized in 100% DMSO and serially diluted in DMSO prior to being diluted into assay buffer. They were preincubated with enzyme (20 min) prior to the catalysis reaction. There was a 1% final DMSO concentration from compounds in the recombinant VAP-1 assay and 0.25% DMSO in the CHO-VAP-1 assay, which was mimicked in controls and backgrounds. For compound assays, the substrate concentration used varied depending on the respective AOC K_m such that all IC₅₀ data are comparable. Buffer blanks with buffer plus substrate were subtracted from sample and control values. The IC₅₀ curves for the recombinant VAP-1 assay were generated by SigmaPlot regression fitting using the equation category “Sigmoidal” and the equation name “Hill 3 Parameter.” For the CHO-VAP-1 assay data, SigmaPlot 9.0 (Systat Software, San Jose, CA) was used to graph substrate concentration versus RLUs fitting the data to the rectangular hyperbolic curve according to the Michaelis-Menten equation. XLfit was used to calculate compound concentration versus percent activity (% of control activity, no inhibitor). IC₅₀ values were calculated by fitting the data to the four-parameter logistic curve in SigmaPlot 9.0. The compounds LJP 1586 and LJP 1207 were synthesized as described¹¹ except for the last two steps, which were combined into one step as follows: 9.0 g of the boc-amine was dissolved in 2 M HCl in doxane (25 mL). After approximately 30 min, a solid began to form. This was left to stir for 18 h, and the solid was collected by vacuum filtration to afford both isomers of the final product. The solid was purified by reverse-phase HPLC to afford 1.7 g (29%) of the desired z-isomer after lyophilization. The structure was identified and confirmed using ¹H nuclear magnetic resonance (HNMR) and mass spectral information.

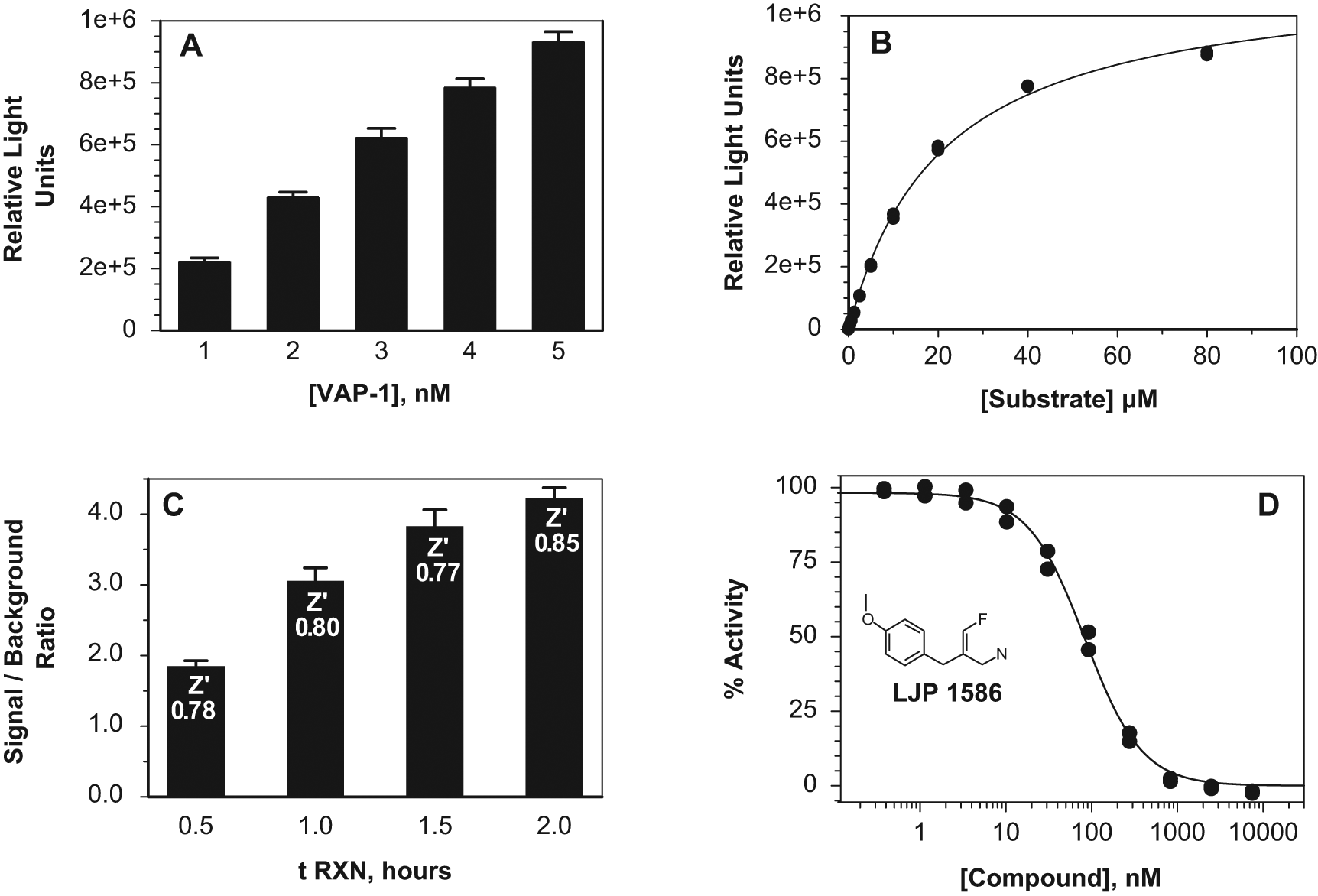

Fig. 1.

Vascular adhesion protein–1 (VAP-1) assay development. (A) Enzyme-dependent product formation. Increasing concentrations of human recombinant VAP-1 shown on the x-axis (n = 8 per condition) were assayed in the presence of 27 µM substrate. A 60-min 37 °C catalysis reaction was followed by a 20-min 37 °C detection reaction. Bars represent signal (minus no enzyme background) achieved, and error bars are the standard deviation calculated for the eight samples. (B) Substrate-dependent product formation: 1 nM recombinant human VAP-1 was assayed from 0 to 80 µM substrate. A 60-min 37 °C catalysis reaction was followed by a 20-min 37 °C detection reaction. Duplicate samples (background subtracted) are plotted. The curve shown was generated by SigmaPlot regression fitting the data to a rectangular hyperbolic curve according to the Michaelis-Menten equation. (C) Time-dependent product formation: 2 nM human recombinant VAP-1 was incubated with 27 µM substrate at 37 °C for 0.5, 1, 1.5, and 2 h, followed by the addition of MAO-Glo and a 20-min detection incubation. Black bars represent signal-to-background ratio with error bars representing standard deviations. Z′ numbers (n = 8) are shown with the black bars. (D) Inhibition of VAP-1 activity with a specific inhibitor. The IC₅₀ of LJP 1586 was assessed using 1 nM human recombinant VAP-1. A 60-min 37 °C catalysis reaction was followed by a 20-min 37 °C detection reaction. Data are presented as a percentage of control activity (no inhibitor). Duplicate samples with appropriate background samples subtracted are plotted.

Fig. 2.

Vascular adhesion protein–1 (VAP-1) Chinese hamster ovary (CHO) cell characterization and assay development. (A) Flow cytometry of full-length human VAP-1 expression on CHO cells. Cells were stained with anti-VAP-1 mAb, TK8-14 (gray fill), or isotype control (solid black line). (B) Titration of human VAP-1 CHO cell number. Relative light units (RLUs) produced after 1 h at 37 °C with substrate were plotted versus cell number. Bars represent the mean of four replicate samples ± SD; 1 nM glutathione S-transferase (GST) human VAP-1 (41–755) is shown as a positive control. (C) Substrate K_m determination for human VAP-1 CHO cells; 6 × 10³ VAP-1 CHO cells/well were assayed with substrate ranging from 160 to 0.156 µM. Symbols represent duplicate points of experimental data with background subtracted. (D) IC₅₀ determination of LJP 1586; 6 × 10³ VAP-1 CHO cells/well were titrated with 3200 to 0.16 nM of compound for 60 min at 37 °C. Symbols represent duplicate points of experimental data with background subtracted.

For HTS ( Fig. 3 ), the VAP-1 assay was miniaturized to 30 µL total volume in a 384-well white nonbinding surface plate (#3673; Corning, Corning, NY) in a reaction comprising 3 µL VAP-1 protein, 2 µL test compound, 10 µL substrate, and 15 µL MAO-Glo detection reagent. Final concentrations in the screening assay were 2 nM VAP-1, 27 µM substrate, and 5 µg/mL test compound. The assay was automated on the Allegro robotics system (Caliper, Hopkinton, MA) using a Sciclone pipettor to deliver enzyme and compound (Caliper) and Multidrop Combi’s (Thermo Fisher Scientific, Waltham, MA) to deliver substrate (1-h incubation) and detection reagents (15-min incubation). The plates were incubated in a humidified incubator (Liconic, Woburn, MA) at 37 °C, and luminescence was read on an Analyst HT (Molecular Devices). The percent of control (POC) and IC₅₀ values were calculated relative to a negative control containing complete reaction minus VAP-1 and a positive control containing VAP-1 buffer with 1% DMSO in place of test compound, using Activity Base (IDBS, Guildford, UK).

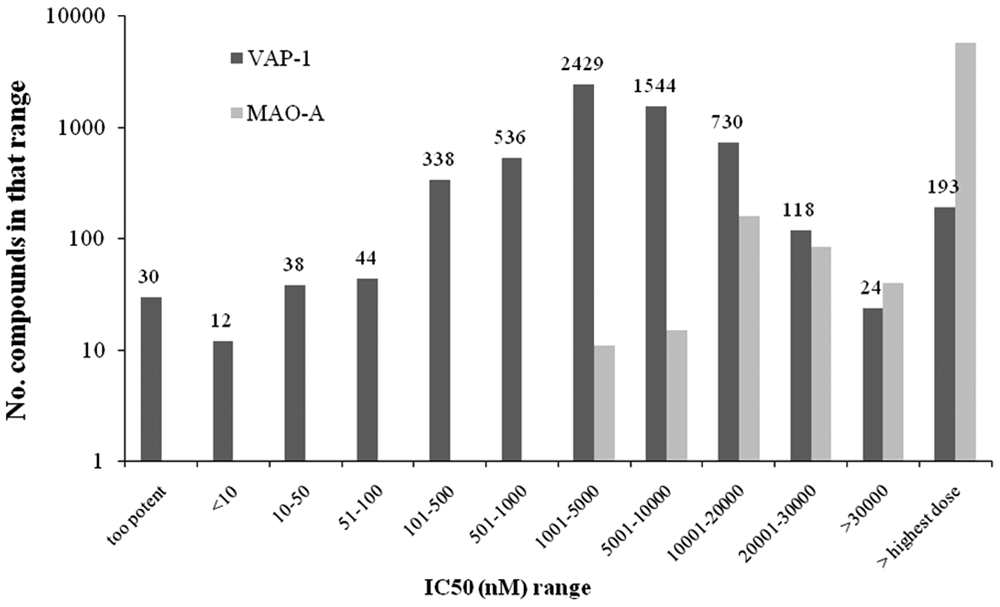

Fig. 3.

High-throughput screening of vascular adhesion protein–1 (VAP-1). Distribution of IC₅₀s in the VAP-1 and monoamine oxidase (MAO)–A assays.

Results and Discussion

The luminescence assay was modified from the Promega MAO-Glo assay (see Materials and Methods) and extensively tested with different SSAO enzymes, from recombinant and cellular sources, and shown to be a robust bioluminescent assay, which can be used to identify and characterize VAP-1 inhibitors. We describe herein the details of the assay characterization, including evaluation of known VAP-1 inhibitors and its use in an HTS screen. Recent reports describing inhibitors of VAP-1 have used radiometric, a combination of fluorometric and radiometric, or absorbance assay formats to evaluate and compare this class of enzymes.^12–14 We determined that the bioluminescent format both enables a direct comparison of IC₅₀s for the different amine oxidases from different sources and uses a convenient HTS-compatible method (rapid, robust, without compound interference, and nonhazardous) and present it as an additional format for measuring this class of enzymes.

We also analyzed a peroxidase-coupled fluorometric assay (Amplex Red Monoamine oxidase kit from Invitrogen [data not shown]), which is a two-step assay based on utilization of the hydrogen peroxide by-product of benzylamine conversion to benzaldehyde by the target amine oxidase. Hydrogen peroxide then oxidizes the substrate ADHP (10-acetyl-3, 7- dihydroxyphenoxazine) to produce fluorescent product. We chose to develop the bioluminescent assay as the Amplex Red reagent is reported by Invitrogen to be unstable in the presence of reducing agents (such as dithiothreitol and 2-mercapto-ethanol at >10 µM) and at high pH (>8.5). Also, it has been reported that the assay can give a positive result due to mobilization of NADH or glutathione.¹⁵

Figure 1 shows the steps in the development of the assay for human recombinant VAP-1 protein, produced as described in the Materials and Methods. Enzyme-dependent product formation was determined by titrating human recombinant VAP-1 in the presence of 27 µM substrate ( Fig. 1A ). Under these conditions, data were linear up to 4 nM. To calculate substrate-dependent product formation, 1 nM recombinant human VAP-1 was assayed versus 11 concentrations of substrate up to 80 µM (including 0 µM; Fig. 1B ). The simulated V_max is 1.14 × 10⁶ RLU (60-min reaction), and the derived apparent K_{m(Promega Substrate)} value is 20.7 µM. Under the same assay conditions, the derived apparent K_{m (Promega Substrate)} values for MAO-A and MAO-B were determined to be 18 and 1.8 µM, respectively (data not shown).

The VAP-1 assay time course was conducted using 2 nM enzyme and 27 µM substrate and was shown to be robust from 30 min to 2 h ( Fig. 1C ). All conditions resulted in a percent coefficient of variation (CV%) ≤5 and Z′ determinations of >0.77. A 1-h reaction time was therefore chosen for compound profiling. Known VAP-1 inhibitors were profiled in the assay and included LJP 1586, IC₅₀ 84 nM ( Fig. 1D ) and LJP 1207, IC₅₀ 23 nM ( Table 1 ). These data are consistent with the literature^11-13 and serve to validate the assay. The human recombinant VAP-1 assay was therefore determined to be a robust bioluminescent assay that could be used to identify and characterize VAP-1 inhibitors.

Table 1.

Summary of AOC Substrate and Inhibitor Binding Affinities

Enzyme	Species	Source	Substrate, K_{m app} µM	LJP 1586, IC₅₀ nM	LJP 1207, IC₅₀ nM
AOC3/VAP-1 (41–755)	Human	Recombinant	19–27^a	84	23
AOC3/VAP-1 (41–755)	Mouse	Recombinant	23	19	ND
AOC3/VAP-1 (41–755)	Rat	Recombinant	51	92	ND
AOC3/VAP-1	Human	CHO cells	25	75	26
AOC3/VAP-1	Mouse	CHO cells	26	8	2^b
AOC3/VAP-1	Rat	CHO cells	23	26	ND
AOC1 (20–751)	Human	Recombinant	4.4	Not active	526

AOC, copper-containing amine oxidase; CHO, Chinese hamster ovary; ND, not determined; VAP-1, vascular adhesion protein–1.

Three different lots of material were tested, and binding affinities were 26.9, 19.4, and 20.7 µM.

Assayed with a stable pool of mouse VAP-1-expressing cells.

The assay was miniaturized for use in a high-throughput format, as described in the Materials and Methods, and used to profile approximately 890 000 compounds. The average Z′ for the screen was 0.78 with signal-to-background ratios between 7 and 8 (data not shown) and demonstrated that the assay was robust over approximately 2800 plates and 18 screening days. By comparing the potency of hits for VAP-1 to those of MAO-A, we demonstrated that specific inhibitors could be identified across a range of IC₅₀s ( Fig. 3 ).

The assay was further modified to measure the activity of VAP-1 expressed on the surface of cells. As described in the Materials and Methods, full-length human, mouse, and rat VAP-1 were expressed on CHO cells. Flow cytometry was used to determine the surface expression level of each protein on the stable cell pool. Clones expressing >98% VAP-1-positive cells ( Fig. 2A ) were selected, expanded, and analyzed for corresponding enzyme activity. Cell number was titrated to be in the linear range of RLUs for the assay and comparable to the values obtained with 1 nM recombinant VAP-1 ( Fig. 2B ), and 6000 cells/well were used for further experiments. This allowed for better comparison of substrate K_m values and IC₅₀ values of compounds between the molecular and cellular assays. Apparent substrate K_m values were determined for human, mouse, and rat VAP-1-transfected CHO cells by titrating various concentrations of substrate ( Fig. 2C ).

The Promega substrate K_mapp was determined for full-length human, mouse, and rat VAP-1 CHO cells: 25 µM (human), 26 µM (mouse), and 23 µM (rat). V_max values were 8.22 × 10⁵ RLU (human), 1.9 × 10⁶ RLU (mouse), 1.7 × 10⁶ RLU (rat). IC₅₀ values for compounds were derived at substrate K_m for each species using a constant cell number. A positive control using 1 nM recombinant VAP-1 was included in all experiments. The assay was validated by generating IC₅₀ values for reference compounds LJP 1586 and LJP 1207, as shown in Table 1 and Figure 2D , and were 75 nM (human), 8 nM (mouse), and 26 nM (rat) for LJP 1586 and 26 nM (human), 2 nM (mouse stable pool) for LJP 1207.

The assay was also used to evaluate a related SSAO, AOC1. The substrate K_m was determined to be 4.4 µM (see Materials and Methods and Table 1 ), and it was used to profile compounds, including LJP 1586 (not active) and LJP 1207 (IC₅₀ 526 nM). The assay was further evaluated to measure VAP-1 activity from mouse and human tissue lysates and plasma. Although the signal to background was smaller (~2), the assay could be used to evaluate enzyme inhibition (data not shown).

These assays allowed us to compare data generated with the truncated recombinant GST-VAP-1 fusion protein (VAP-1) to data generated with full-length cell surface–expressed VAP-1 across three species. We saw an excellent correlation of the data from the two different assays for human VAP-1 with 311 compounds evaluated (IC₅₀s within threefold for 302 compounds, lower IC₅₀s in the cellular assay for the remaining nine compounds, suggestive of cytotoxicity; data not shown).

References

Salter-Cid

L. M.

Wang

O’Rourke

A. M.

Miller

Gao

Huang

Garcia

Linnik

M. D.

Anti-Inflammatory Effects of Inhibiting the Amine Oxidase Activity of Semicarbazide-Sensitive Amine Oxidase. J. Pharmacol. Exp. Ther. 2005, 315(2), 553–562.

H.-L.

Salter-Cid

Linnik

M. D.

Wang

E. Y.

Paisansathan

Pelligrino

D. A.

Vascular Adhesion Protein–1 Plays an Important Role in Postischemic Inflammation and Neuropathology in Diabetic, Estrogen-Treated Ovariectomized Female Rats Subjected to Transient Forebrain Ischemia. J. Pharmacol. Exp. Ther. 2006, 317(1), 19–29.

Smith

D. J.

Vainio

P. J.

Targeting Vascular Adhesion Protein–1 to Treat Autoimmune and Inflammatory Diseases. Ann. N. Y. Acad. Sci. 2007, 1110, 382–388.

Yraola

Albericio

Royo

Inhibition of VAP1: Quickly Gaining Ground as an Anti-Inflammatory Therapy. Chem. Med. Chem. 2007, 2(2), 173–174.

Airas

Mikkola

Vainio

J. M.

Elovaara

Smith

D. J.

Elevated Serum Soluble Vascular Adhesion Protein–1 (VAP-1) in Patients with Active Relapsing Remitting Multiple Sclerosis. J. Neuroimmunol. 2006, 177(1–2), 132–135.

Madej

Reich

Orda

Szepietowski

J. C.

Vascular Adhesion Protein–1 (VAP-1) Is Overexpressed in Psoriatic Patients. Eur. Acad. Dermatol. Venereol. 2007, 21, 72–78.

Kivi

Elima

Aalto

Nymalm

Auvinen

Koivunen

Otto

Crocker

Salminen

Salmi

. Human Siglec 10 Can Bind to Vascular Adhesion Protein–1 and Serves as Its Substrate. Blood 2010, 114(26), 5385–5392.

Valley

M. P.

Zhou

Hawkins

E. M.

Shultz

Cali

J. J.

Worzella

Bernad

Good

Riss

T. L.

. A Bioluminescent Assay for Monoamine Oxidase Activity. Anal. Biochem. 2006, 359(2), 238–246.

Ohman

Jakobsson

Kallstrom

Elmblad

Ansari

Kalderen

Robertson

Danielsson

Gustavsson

A.-L.

Varadi

. Production of a Truncated Soluble Human Semicarbazide-Sensitive Amine Oxidase Mediated by a GST-Fusion Protein Secreted from HEK293 Cells. Protein Expr. Purif. 2006, 46(2), 321–331.

10.

Holt

Palcic

M. M.

A Peroxidase-Coupled Continuous Absorbance Plate-Reader Assay for Flavin Monoamine Oxidases, Copper-Containing Amine Oxidases and Related Enzymes. Nat. Protocols 2006, 1(5), 2498–2505.

11.

Wang

E. Y.

Jones

D. S.

O’Rourke

MacDonald

M. T.

Gao

Ton-nu

Kessler

Linnik

M. D.

Inhibitors of Semicarbazide-Sensitive Amine Oxidase (SSAO) and VAP-1 Mediated Adhesion Useful for Treatment and Prevention of Diseases; World Intellectual Property Organization: Geneva, Switzerland, October 25, 2007. WO2007120528.

12.

Wang

E. Y.

Gao

Salter-Cid

Zhang

Huang

Podar

E. M.

Miller

Zhao

O’Rourke

Linnik

M. D.

Design, Synthesis, and Biological Evaluation of Semicarbazide-Sensitive Amine Oxidase (SSAO) Inhibitors with Anti-Inflammatory Activity. J. Med. Chem. 2006, 49(7), 2166–2173.

13.

O’Rourke

A. M.

Wang

E. Y.

Miller

Podar

E. M.

Scheyhing

Huang

Kessler

Gao

Ton-Nu

H.-T.

MacDonald

M. T.

. Anti-Inflammatory Effects of LJP 1586 [Z-3-Fluoro-2-(4-Methoxybenzyl)Allylamine Hydrochloride], an Amine-Based Inhibitor of Semicarbazide-Sensitive Amine Oxidase Activity. J. Pharmacol. Exp. Ther. 2008, 324(2), 867–875.

14.

Nurminen

E. M.

Pihlavisto

Lazar

Pentikainen

Fulop

Pentikainen

O. T.

Novel Hydrazine Molecules as Tools to Understand the Flexibility of Vascular Adhesion Protein–1 Ligand-Binding Site: Toward More Selective Inhibitors. J. Med. Chem. 2011, 54(7), 2143–2154.

15.

Votyakova

T. V.

Reynolds

I. J.

Detection of Hydrogen Peroxide with Amplex Red: Interference by NADH and Reduced Glutathione Auto-Oxidation. Arch. Biochem. Biophys. 2004, 431(1),138–144.
