A Biochemical Screen for Identification of Small-Molecule Regulators of the Wnt Pathway Using Xenopus Egg Extracts

Abstract

Misregulation of the Wnt pathway has been shown to be responsible for a variety of human diseases, most notably cancers. Screens for inhibitors of this pathway have been performed almost exclusively using cultured mammalian cells or with purified proteins. We have previously developed a biochemical assay using Xenopus egg extracts to recapitulate key cytoplasmic events in the Wnt pathway. Using this biochemical system, we show that a recombinant form of the Wnt coreceptor, LRP6, regulates the stability of two key components of the Wnt pathway (β-catenin and Axin) in opposing fashion. We have now fused β-catenin and Axin to firefly and Renilla luciferase, respectively, and demonstrate that the fusion proteins behave similarly as their wild-type counterparts. Using this dual luciferase readout, we adapted the Xenopus extracts system for high-throughput screening. Results from these screens demonstrate signal distribution curves that reflect the complexity of the library screened. Of several compounds identified as cytoplasmic modulators of the Wnt pathway, one was further validated as a bona fide inhibitor of the Wnt pathway in cultured mammalian cells and Xenopus embryos. We show that other embryonic pathways may be amendable to screening for inhibitors/modulators in Xenopus egg extracts.

Keywords

Wnt signaling β-catenin Axin LRP6 flavonoids

Introduction

Wnt/β-catenin signaling plays a critical role in metazoan development and tissue homeostasis. Disregulation of the Wnt pathway gives rise to a variety of human disease, most notably cancer.^1,2 The critical regulatory step in the Wnt pathway is the formation of a complex that targets the transcriptional coactivator β-catenin for degradation ( Fig. 1 ). Upon binding of a Wnt ligand to the Frizzled (Fz) family of cell surface receptors and the low-density lipoprotein receptor-related protein 5 or 6 (LRP5/6), β-catenin degradation is inhibited. Because β-catenin is continually synthesized, its levels rise in the cytoplasm, tipping the balance from degradation to escape into the nucleus.³ Upon entry into the nucleus, β-catenin interacts with the TCF/Lef1 family of DNA-bound nuclear factors to activate a Wnt transcriptional program.⁴ Thus, a critical feature of the Wnt pathway machinery is the ligand-driven regulation of the intracellular levels of β-catenin.

Fig. 1.

Model of the Wnt pathway. In the absence of Wnt ligand, β-catenin is degraded upon its recruitment to a complex containing the scaffold protein Axin. Within this complex, β-catenin is phosphorylated and targeted for degradation. In the presence of Wnt, degradation of β-catenin is inhibited and Axin degradation is stimulated. β-catenin accumulates, enters the nucleus, and initiates a Wnt pathway–specific transcriptional program. In many cases, activation of the Wnt pathway results in cellular growth and proliferation.

Degradation of β-catenin occurs in a complex primarily assembled by the scaffold protein Axin. In addition to β-catenin, Axin binds with high affinity the two kinases, glycogen synthase kinase-3 (GSK3) and casein kinase 1α (CK1α), and the tumor suppressor adenomatous polyposis coli (APC).⁴ Within this complex, β-catenin is phosphorylated by CK1α at serine 45. This creates a priming site for subsequent and progressive phosphorylation by GSK3 at threonine 41, serine 37, and serine 33.^5,6 Phosphorylated β-catenin is recognized by β-TRCP, a specificity subunit of the Skp1-Cullin-F-box (SCF) ubiquitin ligase, which catalyzes the polyubiquitination of β-catenin. Polyubiquitinated β-catenin is subsequently degraded by the proteosome.⁷ The continual degradation of β-catenin ensures that cytosolic β-catenin levels are maintained below the threshold for Wnt target gene regulation. Axin has also been shown to be ubiquitinated and degraded via the proteosome.^8–10 Because the concentration of Axin is a limiting factor in the establishment of the β-catenin degradation complex, alterations in Axin levels are likely to have a dramatic effect on Wnt signaling.³ Axin stability has been shown to be regulated by phosphorylation and poly(ADP) ribosylation via the actions of GSK3 and Tankyrases, respectively.^3,8–10 In the case of the latter, small-molecule inhibitors of Tankyrases have been shown to be potent inhibitors of the Wnt pathway.¹⁰

Xenopus laevis has played a prominent role in our understanding of early vertebrate development. In the case of Wnt signaling, the activation of this pathway on the future dorsal side of the early Xenopus embryo is a critical event in the formation of the Spemann organizer, a tissue-organizing center found in vertebrates.¹¹ Ectopic activation of the Wnt signaling in the future ventral side of the embryo induces a second organizer that can coordinate the formation of a complete secondary body axis.^12,13 Conversely, early inhibition of Wnt signaling results in animals that have reduced dorsal-anterior structures (ventralized).^14,15 To date, almost all major members of the Wnt pathway have been validated using the Xenopus axis specification assay.

The misregulation of Wnt signaling plays a critical role in many human diseases.¹ Because of this pathway’s role in human development, its early misregulation leads to developmental defects. A variety of developmental genetic defects are known to occur as a result of misregulation of Wnt signaling, including defects in limb formation (tetra-amelia), bone density, eye vascularization, and tooth formation.^16–21 In the adult, Wnt signaling plays an important role in stem cell renewal and tissue homeostastis.²² Thus, perturbation of the Wnt pathway is associated with human degenerative diseases such as heart disease, schizophrenia, Alzheimer’s disease, and diabetes.^23–25 Misregulation of the Wnt pathway is strongly associated with major human cancers. Loss of APC occurs in the majority (>80%) of sporadic colorectal cancer.²⁶ Oncogenic misregulation in Wnt signaling has been found in many other cancers including liver cancer, skin cancer, lung cancer, Wilms’ tumor, prostate cancer, and breast cancer (reviewed by Klaus and Birchmeier²⁷). Given the role of activating and loss-of-function mutations in the Wnt pathway in the genesis of a number of human diseases, there is great interest in identifying both positive and negative modulators of Wnt signaling. To date, there are currently no drugs in late clinical trials or in clinical use that specifically target the Wnt pathway.

Xenopus egg extracts contain cytoplasmic proteins, plasma membrane, organelles, amino acids, and nucleotides at or near physiological levels.²⁸ The Xenopus egg extract system represents a biochemical system that has been used to successfully recapitulate many complex biological reactions including microtubule and actin dynamics, DNA replication, nuclear envelope reformation, mitotic spindle assembly, DNA damage and repair, apoptosis, and oxygen homeostasis.^28–36 Taking advantage of the ability of Xenopus extracts to reconstitute a wide variety of complex biology reactions, severals screens using Xenopus extracts have been previously performed to isolate modulators within various cellular compartments. These include screens for inhibitors of actin assembly, spindle assembly, and proteasome-mediated degradation.^37–39 To our knowledge, this system has not been applied for high-throughput screening (HTS) of small molecules that target signal transduction pathways.

Xenopus extracts currently represent the only a simple biochemical system in which the dynamics of β-catenin and Axin degradation can be simultaneously monitored. We have previously shown that Xenopus egg extracts can recapitulate regulated degradation of β-catenin and Axin using a recombinant protein that encodes the intracellular domain of the Wnt coreceptor, LRP6.^8,18,40 An assay for the identification of regulators of β-catenin turnover in Xenopus extracts has been previously described, although to our knowledge, no specific compound has been identified and/or characterized using this assay.⁴¹ In the current report, we describe in detail major modifications of this system that take advantage of LRP6-regulated β-catenin and Axin degradation in Xenopus egg extracts. In addition, we demonstrate that Xenopus extracts can be used to identify modulators of the Wnt pathway. Recently, we used this screen to identify the Food and Drug Administration–approved drug pyrvinium as a potent Wnt inhibitor, although a detailed description of this screen was not provided.⁴² Finally, we demonstrate for the first time that Xenopus extracts can potentially be used to identify small-molecule modulators of other embryonic pathways such as the Hedgehog and the Notch pathways, for which there has been intense interest in developing inhibitors as potential therapeutics. To our knowledge, a reconstituted biochemical system for the identification of small-molecule inhibitors of the Hedgehog and Notch pathways has not been previously described.

Materials and Methods

Chemical compounds and recombinant proteins

Reagents 3,6-dihydroxyflavone, 5,7-dihydroxyflavone, catechin hydrate, and cycloheximide were all purchased from Sigma-Aldrich (St. Louis, MO). LRP6ICD was prepared as previously described with modifications.⁸ Bacterial pellets were denatured with 6 M guanidine HCl, and histidine-tagged LRP6ICD was bound to nickel resin and eluted with imidazole. Eluate was dialyzed to remove guanidine HCl. All chemical structures were drawn using CS ChemDraw Ultra. DMSO was used as vehicle for all compounds in all experiments unless otherwise stated.

In vitro–translated proteins

Radiolabeled β-catenin and Axin were generated in rabbit reticulocyte lysates (Promega, Madison, WI) according to the manufacturer’s instructions. β-catenin-FLuc and Axin-RLuc for HTS were generated in TNT SP6 High-Yield Protein Expression System (Promega) according to the manufacturer’s instructions.

Preparation of Xenopus egg extracts

Xenopus egg extracts preparation and degradation assays were performed as previously described with modifications.⁴³ Frogs are primed with 100 U of pregnant mare serum gonadotropin (PMSG, Sigma) 3 to 7 days before induction of ovulation. Ovulation is induced by administration of 500 U human chorionic gonadotropin (HCG), frogs are then placed in large bins contain approximately 2 L of 1x Marc’s Modified Ringer (100 mM NaCl, 2 mM KCl, 1 mM MgCl₂, 2 mM CaCl₂, 0.1 mM EDTA, 5 mM HEPES [pH 7.8]) per frog. Frogs are allowed to lay eggs for 12 to 18 hr at 16 °C and then transferred to separate containers. Eggs are combined in a single beaker and washed three times in chilled (16 °C) 1x MMR to remove debris. Eggs are allowed to settle, and excess buffer is removed. Eggs are resuspended by gentle swirling in an ample volume of 2% cysteine in MMR. The jelly coat of the eggs should dissolve in approximately 5 min and is completed when settled eggs pack closely. Eggs are washed with a large volume of 1x MMR until the buffer is no longer cloudy. Eggs are washed 2 more times in Xenopus buffer (100 mM KCl, 0.1 mM CaCl₂, 1 mM MgCl₂, 10 mM potassium HEPES [pH 7.7], 50 mM sucrose). With a wide-mouth plastic Pasteur pipette, any eggs that appear white are removed, as these are apoptotic and could taint the extracts.

Eggs are transferred to chilled 30 mL centrifuge tubes. Once eggs have settled, excess buffer is removed. The eggs are first spun at 200 rpm for 2 min in a Sorval RC-6 at 4 °C. This packs the eggs so additional buffer can be removed. A crushing spin is performed for 5 min at 21 000g at 4 °C to separate the extracts into three major layers. The middle layer contains cytosol and is extracted by piercing through the top lipid layer with a p1000 tip and transferred to a fresh, chilled 30 mL tube. Cytochalasin B (10 µg/mL) is added to prevent actin polymerization. Extracts are spun at 21 000g, and cytosol is removed two more times. Final extracts should be a straw yellow color. Protease inhibitor (1000× stock; leupeptin, chymostatin, and pepstatin, all at 10 mg/mL in DMSO) and energy mix (150 mM creatine phosphate, 20 mM ATP, 2 mM EGTA, and 20 mM MgCl₂ in water, pH 7.7) are added and mixed. Extracts are aliquoted, snap frozen, and stored in liquid nitrogen. Extracts can maintain β-catenin and Axin degradation activity for more than 1 year.

384-well assay conditions

Previously prepared extracts were thawed rapidly and placed on ice. In vitro–translated (IVT) β-catenin-FLuc (1 mL), Axin-RLuc (1.5 mL), and LRP6ICD (400 nM) were added to 100 mL of egg extracts and rotated end over end at 4 °C for 10 min. Samples were dispensed into chilled 384-well plates (5 µL/well) manually using a 24-channel repeat pipetter and kept in a 4 °C cold room just prior to addition of compounds. Library compounds were transferred by pin tool (custom apparatus, Harvard Medical School) or by Echo550 acoustic plate reformatter (Labcyte, Vanderbilt Institute of Chemical Biology) to plates at 25 °C to a final concentration ranging from ˜40 to 200 µm in 2% DMSO. Plates were sealed, vortexed gently, and incubated for 4 hr at 25 °C. After incubation, firefly and Renilla luciferase activities were measured using the Dual-Glo Luciferase Assay (Promega) per the manufacturer’s suggested protocol. Luminescent signal was acquired on an EnVision plate reader (PerkinElmer, Waltham, MA) or FDSS system (Hamamatsu, Bridgewater, NJ). For testing dilutions, egg extracts were diluted in Xenopus buffer.

Screen statistics

We normalized each plate using the method outlined in Malo et al.⁴⁴ The normalization procedure uses Tukey’s median polish to remove systematic row and column biases (e.g., edge effects).⁴⁵ The differences of the normalized log intensities between the Axin and β-catenin wells for each plate were obtained (equivalent to the ratio on the nonlog scale). Compounds were identified as hits if the log differences were in the 5th and 95th percentiles of the empirical distribution in both replicates.

For Kruskal-Wallis analysis, data were transformed into z-scores (z = \frac{x-\mu}{\sigma}) and separated into 3 groups (activators, inhibitors, and inactive compounds) by thresholding the z-scores, where z < –3, z > 3, and –3 < z < 3, respectively. Application of the Kruskal-Wallis analysis indicated that the population means among these three groups were significantly different (P = 1.07e-19).

Reporter assays

For cell-based luciferase assays, HEK 293 STF cells were seeded into 96-well plates at subconfluent levels and luciferase activities measured by Steady-Glo Luciferase Assay (Promega). Luciferase activities were normalized to a viable cell number using the CellTiter-Glo Assay (Promega). All graphs were made in Prism 4 (GraphPad Software, San Diego, CA) with nonlinear regression fit to a sigmoidal dose-response curve (variable slope).

Cell lines

HEK 293 STF cells were a gift from Jeremy Nathans. HEK 293 and IEC-6 were purchased from ATCC. An HEK 293 cell line stably expressing firefly luciferase under the control of the CMV promoter (CMV-Luc) was generated using standard methods. Cell lines were maintained in DMEM, 10% fetal bovine serum, and antibiotics. Cells were treated with compounds and/or Wnt for 24 hr unless otherwise stated.

Antibodies and plasmids

Immunoblotting was performed using the α-β-catenin (BD Transduction Labs, Franklin Lakes, NJ) and α-tubulin (Santa Cruz Biotechnology, Santa Cruz, CA) antibodies. β-catenin-FLuc and Axin-RLuc fusions were generated using standard PCR-based cloning strategies and subcloned into the pCS2 vector. The bacterial expression construct of LRP6ICD has been described.⁸

Immunoblot and immunofluorescence

For immunoblot, cells were lysed in nondenaturing buffer (50 mM Tris-Cl [pH 7.4], 300 mM NaCl, 5 mM EDTA, 1% [w/v] Triton X-100) and the soluble fraction used for immunoblotting. For immunofluorescence, cells were seeded on fibronectin-coated coverslips, fixed in 3.7% formaldehyde, stained, and mounted in VectaShield with DAPI (Vector Laboratories). Images were acquired using a CoolSNAP ES camera mounted on a Nikon Eclipse 80i fluorescence microscope with 60× or 100× objectives.

Xenopus laevis studies

Xenopus embryos were in vitro fertilized, dejellied, maintained, and injected as previously described.⁴⁶ Compounds were dissolved in 100% DMSO. For test compound bathing experiments, embryos were cultured in MMR, to which compounds were added at the indicated concentrations. At stage 10, embryos were washed three times with a large volume of MMR on a rocking platform to remove residual test compound. Capped β-catenin FLuc and Axin RLuc mRNA was generated using Message Machine (Ambion, Austin, TX) according to the manufacturer’s instructions.

Results

Characterization of β-catenin-FLuc and Axin-RLuc

Consistent with previous studies, we show that degradation of β-catenin and Axin are regulated by the intracellular domain of the Wnt coreceptor (LRP6) in Xenopus extracts (LRP6ICD; Fig. 2A ).⁸ We also find that Xenopus extracts have the capacity to regulate the degradation of NotchICD and GLI1 (Fig. S1), demonstrating the potential general utility of Xenopus extracts for assaying embryonic signaling pathways. To adapt our biochemical assay for HTS, we fused β-catenin and Axin to firefly and Renilla luciferase, respectively (Fig. S2A). This allows us to monitor two proteins in the Wnt pathway with stabilities that are regulated in opposing fashion. We rationalized that this would be a more rigorous analysis of potential hits because compounds that perturb both activities in the same direction are less likely to be specific for the Wnt pathway. In addition, measurement of both Axin-RLuc and β-catenin-FLuc allows for normalization of differences in the volumes that may be dispensed in each well. Finally, through the use of the Dual-Glo assay (Promega), we were able to assay the stability of both β-catenin and Axin in the same reaction. Studies by us and other labs using β-catenin-FLuc indicate that the degradation rate of such a fusion in Xenopus egg extracts faithfully recapitulated the kinetics of β-catenin degradation in Xenopus embryos and mice.^40,47 We find that the half-life of Axin-RLuc in Xenopus embryos is the same as reported for Axin turnover in Xenopus extracts and in cultured cells (Fig. 2A, B).^8,9 Differences in the rate of Axin degradation between the dorsal and ventral blastomeres of Xenopus embryos likely reflect differences in the activity of the Wnt pathway (higher rate of Axin degradation in the dorsal blastomeres where the Wnt pathway activity is greater).⁴⁸ To determine whether the fusion constructs are functional, we injected mRNAs encoding β-catenin-FLuc and Axin-RLuc into Xenopus embryos. As shown in Figure 2D , β-catenin-FLuc and Axin-RLuc induced secondary axis formation and ventralization, respectively, consistent with activation and inhibition of Wnt signaling in vivo ( Fig. 2C ). Similarly, transfection of β-catenin-FLuc and Axin-RLuc into HEK 293 STF–cultured cells activates and inhibits a Wnt-response luciferase reporter, respectively ( Fig. 2D ). Finally, the stabilities of both fusions are regulated by recombinant LRP6ICD in Xenopus extracts ( Fig. 2E ). These studies of β-catenin-FLuc, Axin-RLuc, and LRP6ICD demonstrate the feasibility of using Xenopus egg extracts to identify small-molecule modulators of the Wnt pathway (Fig. S2B).

Fig. 2.

β-catenin-FLuc and Axin-RLuc behave similar to their wild-type proteins. (A) Radiolabeled β-catenin and Axin are inversely regulated by recombinant LRP6ICD in Xenopus extracts. In vitro–translated [³⁵S] β-catenin and [³⁵S] Axin were incubated in Xenopus extracts in the presence or absence of LRP6ICD (100 ng). At the indicated times, samples were removed and processed by SDS-PAGE/autogradiography. (B) Kinetics of Axin-RLuc in Xenopus embryos is similar to the turnover of Axin in Xenopus extract. In vitro–translated Axin-RLuc was injected into Xenopus embryos at the four-cell stage in both dorsal and ventral blastomeres. (C) Injection of β-catenin-FLuc and Axin-RLuc induces formation of a secondary axis and ventralized Xenopus embryos, respectively. β-catenin-FLuc mRNA (100 ng) or Axin-RLuc mRNA (25 ng) were injected into one ventral blastomere or both dorsal blastomeres of four-cell embryos, respectively. No perturbation of axis formation was observed in control embryos. Parentheses contain the number of embryos injected. (D) β-catenin-FLuc and Axin-RLuc activate and inhibit the Wnt pathway–cultured mammalian cells, respectively. Plasmids encoding vector, β-catenin-FLuc, or Axin-RLuc were transfected into HEK 293 STF. To detect inhibition by Axin-RLuc, Wnt3a-conditioned media were added to activate the Wnt pathway. The graph represents mean ± SEM of TOPflash signal normalized to cell number (performed in triplicate). (E) Turnover of β-catenin-FLuc and Axin-RLuc in Xenopus extracts parallels the degradation of the wild-type proteins. In vitro–translated β-catenin-FLuc and Axin-RLuc were incubated in Xenopus extracts in the presence or absence of LRP6ICD (10 ng/mL). At the indicated times, samples were removed and luciferase activity determined.

Establishment of assay for β-catenin-FLuc– and Axin-RLuc–regulated stability by LRP6 and adaptation to a high-throughput format

An advantage of Xenopus egg extracts is that they can be readily scaled up for large volumes (liters). Such extracts were used as the basis for the purification of the anaphase promoting complex.⁴⁹ For our preliminary HTS, we were able to obtain sufficient amounts of Xenopus extracts (100 mL) from 100 female frogs injected with HCG 20 hr prior to egg collection (Fig. S3A).⁴⁰ For producing sufficient amounts of β-catenin-FLuc and Axin-RLuc proteins for the screen, fusion proteins were generated using a high-yield IVT coupled system based on wheat germ extracts from Promega (TNT SP6 High-Yield Protein Expression System). Hexahistidine tagged-LRP6 intracellular protein was purified from inclusion bodies under denaturing conditions on nickel resin and renatured by dialysis. LRP6ICD purified in this fashion is indistinguishable from LRP6ICD protein purified under previously described nondenaturing conditions and was active to inhibit β-catenin and stimulate Axin degradation in Xenopus extracts.⁸

For adapting to a high-throughput format for screening, we first demonstrate we can reliably and robustly detect changes in β-catenin-FLuc luciferase activity in response to a Wnt pathway activator (lithium) or inhibitor (Axin protein) in a 384-well plate format ( Fig. 3A ). Lithium and Axin inhibit and stimulate the degradation of β-catenin, respectively. Because the protein concentration of Xenopus extracts is high (>50 mg/mL), egg extracts are viscous, making it potentially difficult to reliably dispense small volumes in 384-well plates. To determine whether Xenopus extracts can be diluted without significant loss in activity for degrading β-catenin, we tested the degradation of β-catenin-FLuc in diluted Xenopus extracts. As shown in Figure 3A , β-catenin-FLuc is measurably degraded in a regulated fashion even when extracts are diluted up to 4-fold. In addition to decreasing viscosity, another obvious advantage of diluting Xenopus extracts is that it decreases the amount of material required for screening. We next tested whether we can detect the ability of recombinant LRP6ICD to inhibit the degradation of β-catenin-FLuc and stimulate the degradation of Axin-RLuc in a 384-well plate. As shown in Figure 3B , the capacity of LRP6ICD to inhibit the degradation of β-catenin-FLuc and stimulate the degradation of Axin-RLuc over a period of 3 hr is readily observed. Based on these results, we devised a scheme for screening for positive and negative modulators of the Wnt pathway using Xenopus egg extracts (Fig. S3B). IVT β-catenin-FLuc and Axin-RLuc plus recombinant LRP6ICD were mixed with Xenopus extracts and dispensed into 384-well plates in 5 µL aliquots. Compounds were then added, the reaction allowed to proceed at room temperature, and plates processed for firefly and Renilla luciferase activity after 4 hr.

Fig. 3.

The regulated degradation of β-catenin-FLuc and Axin-RLuc in Xenopus extracts can be adapted for high-throughput screening. (A) Regulation of β-catenin-FLuc turnover in a 384-well format. In vitro translated β-catenin-FLuc was added to Xenopus egg extracts (1:100, v:v) and diluted as indicated. Extracts (5 µL/well) were dispensed into a 384-well plate containing buffer, lithium chloride (25 mM), or recombinant Axin protein (50 mg/mL) and allowed to incubate for 3 hr. (B) Regulation of β-catenin-FLuc and Axin-RLuc by the Wnt coreceptor, LRP6ICD, in a 384-well format. In vitro–translated β-catenin-FLuc and Axin-RLuc were added to Xenopus egg extracts (1:100 each, v:v) in the presence or absence of LRP6ICD (10 ng/mL). At the indicated time, samples were withdrawn and snap frozen in liquid nitrogen. At the end of the experiment, samples were thawed and aliquoted into a 384-well plate for detection of firefly and Renilla luciferase signals.

Results of biochemical screen for modulators of the Wnt pathway using diverse set of compound libraries

Preliminary screening and characterization of compounds was performed at the Vanderbilt Institute for Chemical Biology using commercially available ChemDiv and Chembridge chemical libraries. The distribution of signal strength from a representative plate after incubation with compounds is shown in Figure 4A . Overall signals from β-catenin-FLuc and Axin-RLuc were within a fairly narrow range (three standard deviations from the mean).

Fig. 4.

Behavior of screened compounds in Xenopus extracts that recapitulates Wnt signaling. (A) Representative plate indicating that β-catenin-FLuc (red) and Axin-RLuc (blue) signals are uniform throughout and that a majority of signals are within three standard deviations (SD) from the mean. Arrows point to wells in which the β-catenin-FLuc signal is greater that three SD from the mean. Solid lines are the average signal, and broken lines are the average signal plus three standard deviations. (B) Density plots (smoothed histograms) of the ratios of β-catenin-FLuc/Axin-RLuc egg signals from our Xenopus egg extracts screen of chemical libraries. Each point represents the signal from a single well on a plate. These plots show reproducibility of intensities between duplicates as well as the distribution of the β-catenin-Luc/Axin-RLuc signals for each library.

Approximately 6400 compounds were screened, and 125 hits (2% hit rate) for compounds that perturbed β-catenin-FLuc and/or Axin-RLuc were identified that gave signals three standard deviations above background. Further confidence in the assay resulted from the fact that we could identify structurally related compounds that altered β-catenin-FLuc signals and Axin-RLuc signals greater than three deviations from the mean (Fig. S4A). To obtain a better understanding of the behavior of the screen using more chemically diverse compounds, we performed chemical screens using diverse library sets at Harvard Medical School’s Institute for Chemistry and Cell Biology.

Screening at Harvard was performed with three distinct libraries sets (total of approximately 8500 compounds): (1) Chembridge/ChemDiv, (2) NINDS bioactives, and (3) natural product (from Dr. Jon Clardy, Harvard Medical School). To optimize identification of hits with a high degree of confidence, we used an analysis method that is a modification of the method reported by Malo et al. and uses Tukey’s median polish to remove systematic row and column biases (e.g., edge effects; Fig. S4B).^44,50 As shown in Figure 4B , a comparison of the change in standard deviations for β-catenin-FLuc signals from the three libraries indicates differences in activities of the compound sets. After screening, differences of the log intensities between the Axin-RLuc and β-catenin-FLuc wells for each plate were obtained. Log differences were pooled within libraries to obtain those differences that are below the 2.5% quantile and the 97.5% quantile for each library examined. These hits, based on the empirical distribution, were then compared with the hits from a replicate plate. To compare the effects on β-catenin and Axin stability of the three potential compound types (activators, inhibitors, and inactive compounds), we applied the Kruskal-Wallis test, which indicated statistically significant differences (P = 1.07e-19) between them.

If the compound was identified as a hit in both replicates, then it was added to the candidate list. Approximately 80 compounds were identified from screening the three classes of libraries with a high degree of confidence using our data analysis program. Of these, 60 compounds were from bioactive libraries (including Food and Drug Administration [FDA]–approved drugs), and 20 were hits from natural product extracts. Of the 60 compounds that were identified from the bioactive libraries, many are present in multiple libraries that we screened. Strikingly, we identified many such compounds in screens of different libraries, giving us another level of confidence that they are true hits. Priorities were assigned to compounds that stimulated Axin and inhibited β-catenin degradation. Compounds that solely stimulate or inhibit Axin turnover were prioritized because little is known as to the mechanism of Axin turnover, and these compounds would likely target proteins that are important for Axin degradation (e.g., tankyrase or E3 ligase for axin).^11,51 Lower priority was assigned to compounds that inhibited both Axin and β-catenin degradation because they likely target common components of the degradation machinery (e.g., proteasome). Finally, compounds that inhibit both Axin and β-catenin-luciferase signals are likely (directly or indirectly) inhibitors of luciferase. A partial list of inhibitors and activators identified that are FDA-approved drugs is shown in Tables 1 and 2. None of the compounds had observable effects on the activity of luciferase at submillimolar concentrations.

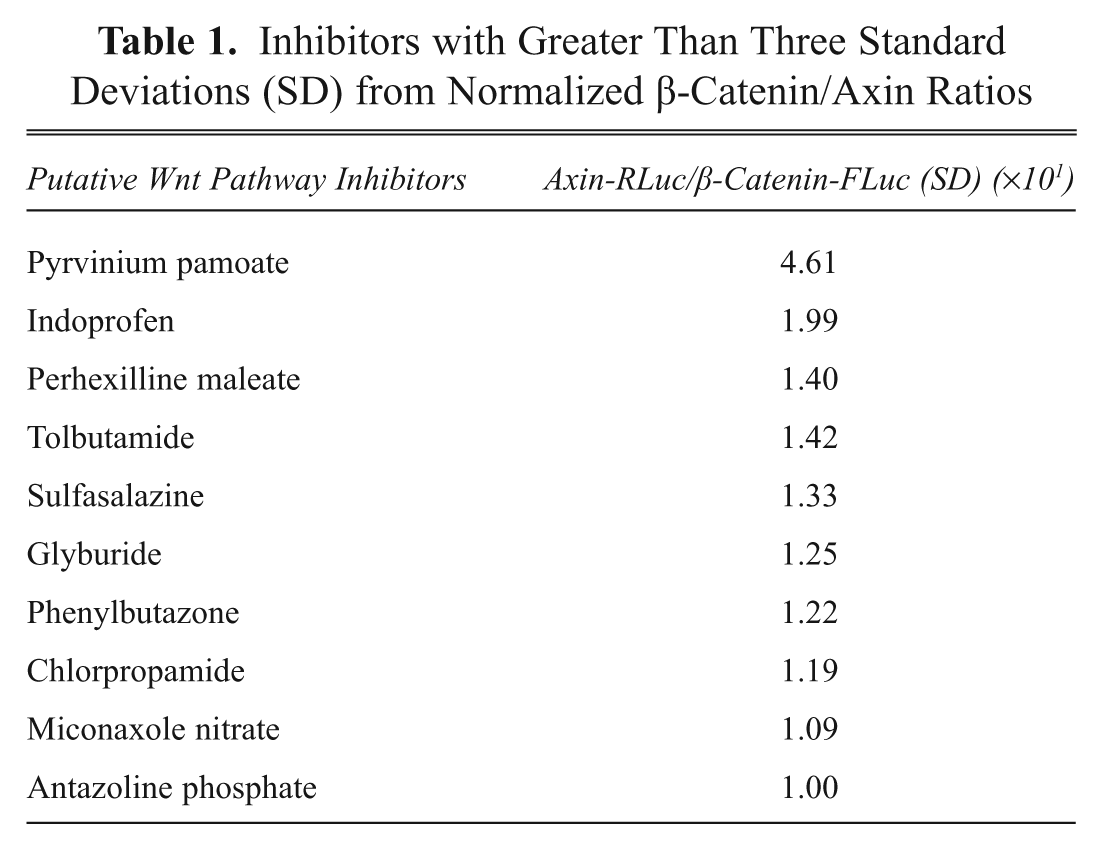

Table 1.

Inhibitors with Greater Than Three Standard Deviations (SD) from Normalized β-Catenin/Axin Ratios

Putative Wnt Pathway Inhibitors	Axin-RLuc/β-Catenin-FLuc (SD) (×10¹)
Pyrvinium pamoate	4.61
Indoprofen	1.99
Perhexilline maleate	1.40
Tolbutamide	1.42
Sulfasalazine	1.33
Glyburide	1.25
Phenylbutazone	1.22
Chlorpropamide	1.19
Miconaxole nitrate	1.09
Antazoline phosphate	1.00

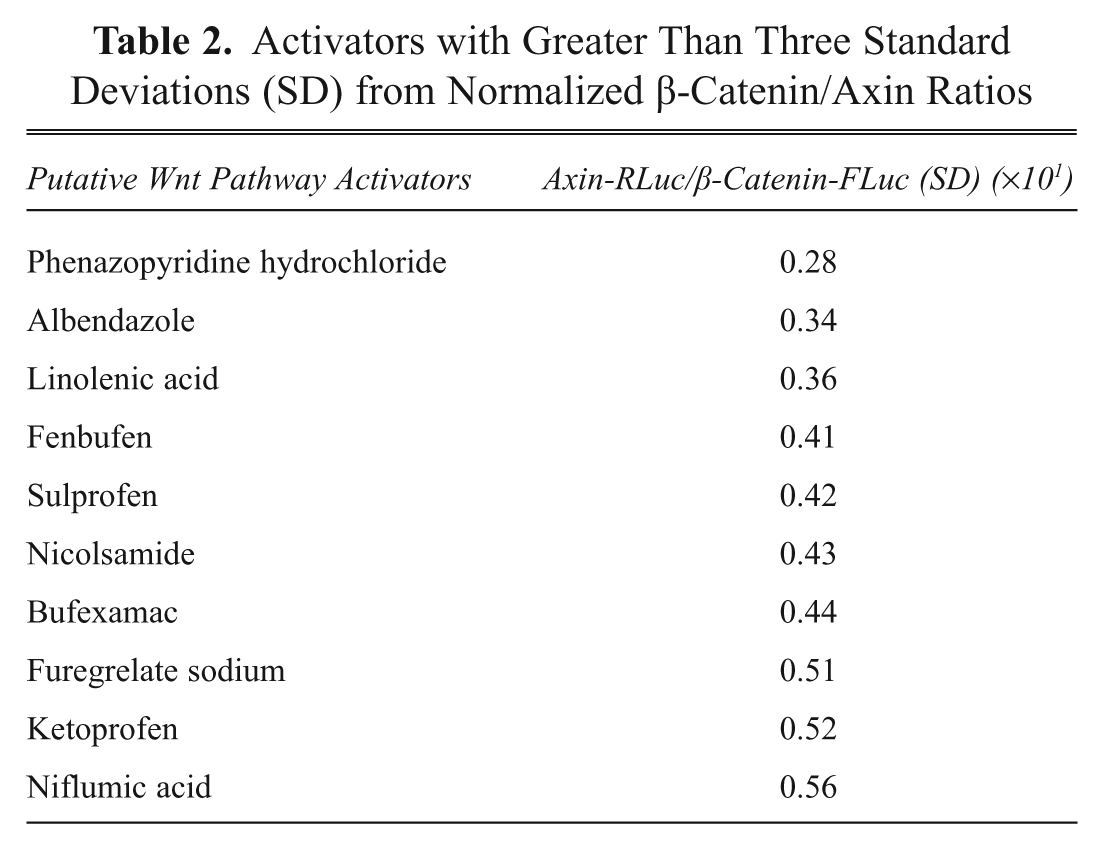

Table 2.

Activators with Greater Than Three Standard Deviations (SD) from Normalized β-Catenin/Axin Ratios

Putative Wnt Pathway Activators	Axin-RLuc/β-Catenin-FLuc (SD) (×10¹)
Phenazopyridine hydrochloride	0.28
Albendazole	0.34
Linolenic acid	0.36
Fenbufen	0.41
Sulprofen	0.42
Nicolsamide	0.43
Bufexamac	0.44
Furegrelate sodium	0.51
Ketoprofen	0.52
Niflumic acid	0.56

Characterization of 3,6-dihydroxyflavone as an inhibitor of the Wnt pathway

To provide further evidence that identified compounds modulated Wnt signaling, we carried out extensive cell- and organism-based characterization of the activities of select compounds. A description of a particularly potent compound (pyrvinium) has already been described elsewhere.⁴¹ In addition, we identified two compounds (3,6-dihydroxyflavone and 5,7-dihydroxyflavone) in our screen that were structurally related to flavonoids ( Fig. 5A ). This result suggests that flavonoid derivatives are active in our assay to modulate Wnt pathway components. To our knowledge, neither of these compounds had been previously shown to affect the Wnt pathway. To further validate their effect on the Wnt pathway, we show that they inhibit Wnt signaling in a dose-dependent manner, as assessed by a cell-based reporter (TOPflash) assay ( Fig. 5B ). In contrast, the flavanol 2R-(3,4-dihydroxyphenyl)-3,4-dihydro-2H-1-benzopyran-3S,5,7-triol (catechin; Fig. 5A ) did not inhibit Wnt signaling in this assay, even at millimolar concentrations (data not shown). Because 3,6-dihydroxyflavone was more potent in inhibiting Wnt signaling in the TOPFlash assay when compared with 5,7-dihydroxyflavone, we further characterized its effect on Wnt signaling. Incubation of HEK 293 cells with 3,6-dihydroxyflavone decreased the steady-state level of β-catenin in a dose-dependent manner in contrast to catechin ( Fig. 5C ). This was reflected in decreased immunofluorescence staining of β-catenin when Wnt3a-treated HeLa cells are incubated with 3,6-dihydroxyflavone ( Fig. 5D ). Inhibition of canonical Wnt signaling results in ventralization of Xenopus embryos (i.e., reduced dorsal-anterior structures), and soaking in 3,6-dihydroxyflavone induces ventralization of Xenopus embryos in a dose-dependent manner ( Fig. 5E ). In contrast, soaking Xenopus embryos in catechin had no effect on axiation at similar doses (data not shown). Finally, the breast cancer cell line MDA-MB-231 requires autocrine Wnt signaling for proliferation and survival.⁵² To determine the effects of 3,6-dihydroxyflavone on Wnt-dependent cancer cell growth, MDA-MB-231 cells were grown in culture and incubated with increasing amounts of 3,6-dihydroxyflavone. As shown in Figure 5F , 3,6-dihydroxyflavone inhibits the proliferation of the breast cancer line MDA-MB231.

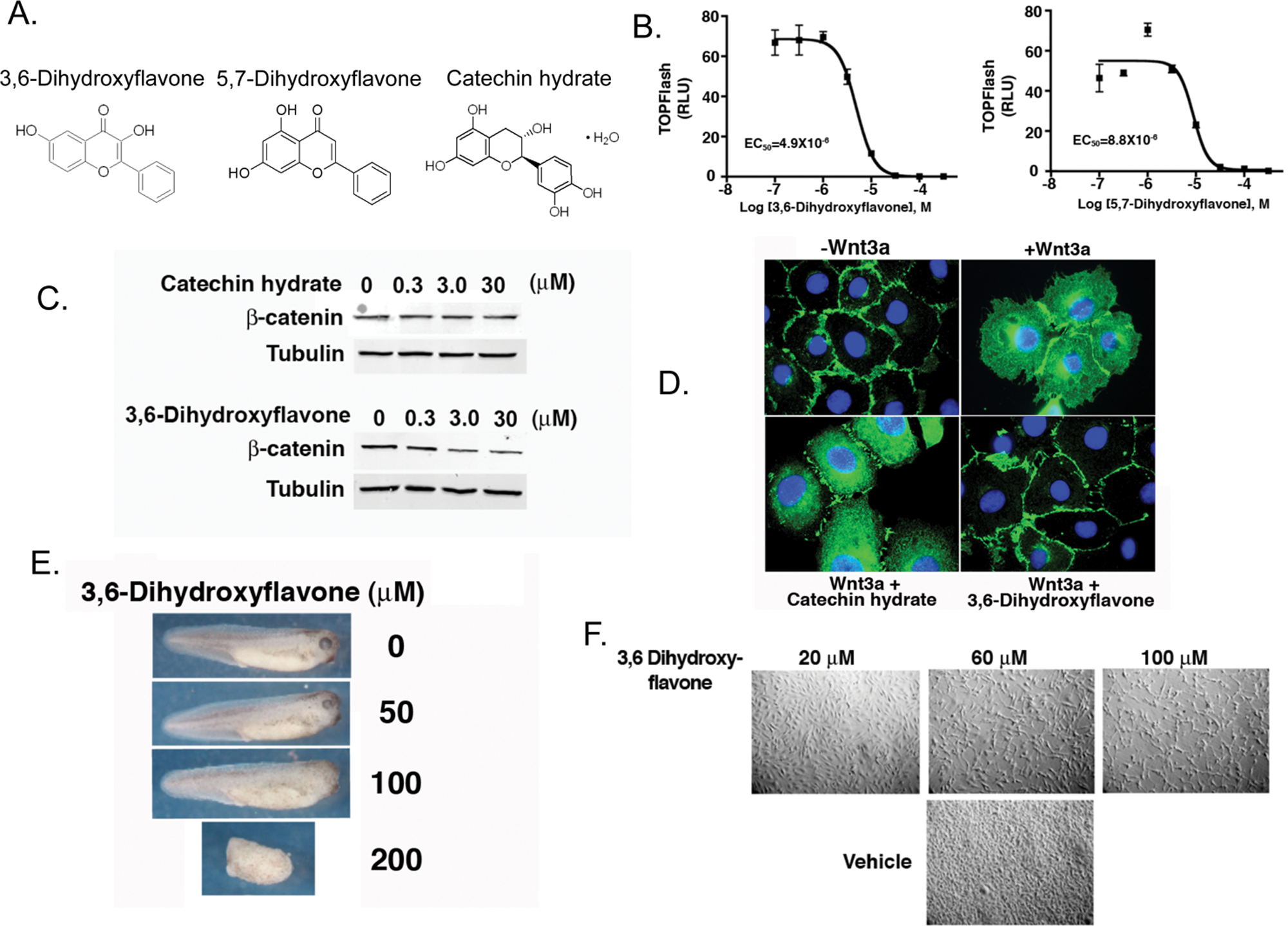

Fig. 5.

Validation of two hits identified from the Xenopus extracts screen as bona fide Wnt inhibitors. (A) Structures of 3,6-dihydroxyflavone, 5,7-dihydroxyflavone, 2R-(3,4-dihydroxyphenyl)-3,4-dihydro-2H-1-benzopyran-3S,5,7-triol, and catechin. (B) 3,6-Dihydroxyflavone and 5,7-dihydroxyflavone inhibit TOPflash activation. HEK 293 STF reporter cells were treated as indicated. Graph represents mean ± SEM of TOPflash signal normalized to cell number (performed in triplicates) (C) 3,6-Dihydroxyflavone decreases cellular β-catenin levels. HEK 293 cells were treated for 16 hr as indicated, and fractionated lysates were immunoblotted for β-catenin. Tubulin is loading control. (D) 3,6-Dihydroxyflavone blocks Wnt-mediated accumulation of β-catenin. HeLa cells were treated with 3,6-dihydroxyflavone or catechin (10 µM each) and stained for β-catenin (green) and DNA (blue). Greater than 90% of cells demonstrate reduced β-catenin staining with 3,6-dihydroxyflavone treatments, and more than 500 cells were scored for each condition. (E) 3,6-Dihydroxyflavone inhibits axis formation in Xenopus in a dose-dependent manner. Four- to eight-cell stage embryos were soaked with 3,6-dihydroxyflavone as indicated and allowed to develop. More than 10 embryos were soaked for each condition, with >90% of embryos exhibiting ventralized phenotypes. (F) The breast cancer line MDA-MB-321 was treated with the indicated concentration of 3,6-dihydroxyflavone for 48 hr. Phase contrast micrographs (20× magnification) show decreasing cell numbers with increasing concentrations of 3,6-dihydroxyflavone.

Discussion

We have developed a biochemical high-throughput assay using Xenopus egg extracts that recapitulates key biochemical steps in the Wnt pathway and screened a small set of chemically diverse compounds, which include FDA-approved compounds and natural product extracts. A major advance is that we are able to monitor two events of the Wnt pathway (β-catenin and Axin degradation) whose stabilities are inversely regulated in response to Wnt signaling. We have developed new data analysis software to identify potential hits with a high degree of confidence. For one of the hits (3,6-dihydroxyflavone), we validate that it inhibits both Wnt-mediated transcription and increase in β-catenin levels in cultured mammalian cells. We demonstrate that 3,6-dihydroxyflavone has in vivo activity consistent with inhibition of the Wnt pathway when incubated with Xenopus embryos. Finally, we show that 3,6-dihydroxyflavone inhibits the growth of a cancer line, MDA-MB-231, that has been shown to be dependent on Wnt signaling for growth and proliferation. Previous studies have demonstrated that certain flavonoids can inhibit Wnt signaling.^53–55 For the most part, these studies indicate that flavonoids act in the nucleus, at the level of β-catenin and TCF/Lef1. It is likely that 3,6-dihydroxyflavone (and possibly 5,7-dihydroxyflavone) inhibit Wnt signaling via a distinct mechanism because our Xenopus extracts screen focused on compounds that alter the turnover of β-catenin and Axin. We observed decreases in steady-state cellular levels of β-catenin by immunoblotting and immunofluorescence upon treating cells with 3,6-dihydroxyflavone. Thus, in addition to identifying new flavonoids that inhibit Wnt signaling, we have uncovered a novel mechanism of action by which they act. Overall, these results provide strong evidence for the use of Xenopus egg extracts as a biochemical tool to identify small molecules that modulate Wnt signaling.

To date, there are no Wnt inhibitors in the clinic or in late clinical trials. Given the importance of the Wnt pathway in human development and disease, there has been intense interest in academic medical centers and in the pharmaceutical/ biotechnology industry to develop modulators of this pathway. Such compounds would have broad applications in the treatment of major human diseases such as schizophrenia, Alzheimer disease, heart disease, diabetes, and most major human cancers (colorectal, liver, and breast).

Our initial studies with NotchICD and Gli1 reported herein indicate that their turnover can be recapitulated in Xenopus egg extracts. As with the Wnt pathway, the Notch and Hedgehog pathways appear to lack obvious targets for drug development, and it has been particularly difficult to develop drugs against these pathways.⁵⁶ Our incomplete understanding of the circuitry of these pathways and how they are regulated is a major hindrance for drug development. Xenopus egg extracts have great potential for identifying compounds that inhibit/modulate Notch and Hedgehog pathways as well as other signaling pathways that are particularly difficult to target for drug development.

Footnotes

Acknowledgements

We thank members of the E. Lee and L. Lee lab for critical reading of the manuscript, Ashley Spann and Jessica Sweatt for assistance with tissue culture and experiments, and members of the Institute of Chemistry and Cell Biology–Longwood for assistance with screening. This work was supported by American Cancer Society Research Scholar grant RSG-05-126-01, National Cancer Institute grant GI SPORE P50 CA95103, National Institutes of Health grant 1 R01 GM081635-01 (E. Lee), American Heart Association Predoctoral Fellowship 0615279B, Molecular Endocrinology Training grant 5 T 32 DK007563 (C. A. Thorne), National Institute of General Medical Studies Medical-Scientist Training grant 5 T32 GM007347, Ruth L. Kirschstein National Research Service Award 4042800401 (A. J. Hanson), American Heart Association Predoctoral Fellowships 0615162B, and National Institutes of Health Cancer Biology Training grant T32 CA09592 (K. K. Jernigan). C. Wichiadit is supported in the Altschuler and Wu labs by Welch grant (I-1644) and Eureka grant (GM085442). E. Lee is a recipient of a Pew Scholarship in the Biomedical Sciences.

Supplementary material for this article is available on the Journal of Biomolecular Screening Web site at .

References

Nusse

Wnt Signaling in Disease and in Development. Cell Res. 2005, 15, 28–32.

Clevers

Wnt/Beta-Catenin Signaling in Development and Disease. Cell. 2006, 127, 469–480.

Lee

Salic

Kruger

Heinrich

Kirschner

M. W.

The Roles of APC and Axin Derived from Experimental and Theoretical Analysis of the Wnt Pathway. PLoS. Biol. 2003, 1, E10.

MacDonald

B. T.

Tamai

Wnt/Beta-Catenin Signaling: Components, Mechanisms, and Diseases. Dev. Cell. 2009, 17, 9–26.

Amit

Hatzubai

Birman

Andersen

J. S.

Ben-Shushan

Mann

Ben-Neriah

Alkalay

Axin-mediated CKI phosphorylation of beta-catenin at Ser 45: a molecular switch for the Wnt pathway. Genes Dev. 2002, 16, 1066–1076.

Liu

Semenov

Han

Baeg

G. H.

Tan

Zhang

Lin

Control of Beta-Catenin Phosphorylation/Degradation by a Dual-Kinase Mechanism. Cell. 2002, 108, 837–847.

Latres

Chiaur

D. S.

Pagano

The Human F Box Protein Beta-Trcp Associates with the Cul1/Skp1 Complex and Regulates the Stability of Beta-Catenin. Oncogene. 1999, 18, 849–854.

Yamamoto

. Phosphorylation of Axin, a Wnt Signal Negative Regulator, by Glycogen Synthase Kinase-3beta Regulates Its Stability. J. Biol. Chem. 1999, 274, 10681–10684.

Huang

S. M.

. Tankyrase Inhibition Stabilizes Axin and Antagonizes Wnt Signalling. Nature. 2009, 461, 614–620.

10.

De Robertis

E. M.

Spemann’s Organizer and Self-Regulation in Amphibian Embryos. Nat. Rev. Mol. Cell Biol. 2006, 7, 296–302.

11.

Sokol

Christian

J. L.

Moon

R. T.

Melton

D. A.

Injected Wnt RNA Induces a Complete Body Axis in Xenopus Embryos. Cell. 1991, 67, 741–752.

12.

Kinzler

K. W.

. Identification of FAP Locus Genes from Chromosome 5q21. Science. 1991, 253, 661–665.

13.

Heasman

. Overexpression of Cadherins and Underexpression of Beta-Catenin Inhibit Dorsal Mesoderm Induction in Early Xenopus Embryos. Cell. 1994, 79, 791–803.

14.

Saint-Jeannet

J. P.

Woodgett

J. R.

Varmus

H. E.

Dawid

I. B.

Glycogen Synthase Kinase-3 and Dorsoventral Patterning in Xenopus Embryos. Nature. 1995, 374, 617–622.

15.

Niemann

. Homozygous WNT3 Mutation Causes Tetra-Amelia in a Large Consanguineous Family. Am. J. Hum. Genet. 2004, 74, 558–563.

16.

Boyden

L. M.

. High Bone Density due to a Mutation in LDL-Receptor-Related Protein 5. N. Engl. J. Med. 2002, 346, 1513–1521.

17.

Gong

. LDL Receptor-Related Protein 5 (LRP5) Affects Bone Accrual and Eye Development. Cell. 2001, 107, 513–523.

18.

Toomes

. Mutations in LRP5 or FZD4 Underlie the Common Familial Exudative Vitreoretinopathy Locus on Chromosome 11q. Am. J. Hum. Genet. 2004, 74, 721–730.

19.

. Vascular Development in the Retina and Inner Ear: Control by Norrin and Frizzled-4, a High-Affinity Ligand-Receptor Pair. Cell. 2004, 116, 883–895.

20.

Lammi

. Mutations in AXIN2 Cause Familial Tooth Agenesis and Predispose to Colorectal Cancer. Am. J. Hum. Genet. 2004, 74, 1043–1050.

21.

Nusse

Wnt Signaling and Stem Cell Control. Cell Res. 2008, 18, 523–527.

22.

Cohen

E. D.

Tian

Morrisey

E. E.

Wnt Signaling: An Essential Regulator of Cardiovascular Differentiation, Morphogenesis and Progenitor Self-renewal. Development. 2008, 135, 789–798.

23.

De Ferrari

G. V.

Moon

R. T.

The Ups and Downs of Wnt Signaling in Prevalent Neurological Disorders. Oncogene. 2006, 25, 7545–7553.

24.

Welters

H. J.

Kulkarni

R. N.

Wnt Signaling: Relevance to Beta-Cell Biology and Diabetes. Trends Endocrinol. Metab. 2008, 19, 349–355.

25.

Kinzler

K. W.

Vogelstein

Lessons from Hereditary Colorectal Cancer. Cell. 1996, 87, 159–170.

26.

Klaus

Birchmeier

Wnt Signalling and Its Impact on Development and Cancer. Nat. Rev. Cancer. 2008, 8, 387–398.

27.

Cantley

L. C.

Janmey

P. A.

Kirschner

M. W.

Corequirement of Specific Phosphoinositides and Small GTP-Binding Protein Cdc42 in Inducing Actin Assembly in Xenopus Egg Extracts. J. Cell. Biol. 1998, 140, 1125–1136.

28.

Theriot

J. A.

Rosenblatt

Portnoy

D. A.

Goldschmidt-Clermont

P. J.

Mitchison

T. J.

Involvement of Profilin in the Actin-Based Motility of L. Monocytogenes in Cells and in Cell-Free Extracts. Cell. 1994, 76, 505–517.

29.

Kornbluth

Dasso

Newport

Evidence for a Dual Role for TC4 Protein in Regulating Nuclear Structure and Cell Cycle Progression. J. Cell Biol. 1994, 125, 705–719.

30.

Blow

J. J.

Watson

J. V.

Nuclei Act as Independent and Integrated Units of Replication in a Xenopus Cell-Free DNA Replication System. EMBO. J. 1987, 6, 1997–2002.

31.

Gard

D. L.

Kirschner

M. W.

Microtubule Assembly in Cytoplasmic Extracts of Xenopus Oocytes and Eggs. J. Cell Biol. 1987, 105, 2191–2201.

32.

Murray

A. W.

Kirschner

M. W.

Cyclin Synthesis Drives the Early Embryonic Cell Cycle. Nature. 1989, 339, 275–280.

33.

Lupardus

P. J.

Byun

Yee

M. C.

Hekmat-Nejad

Cimprich

K. A.

A Requirement for Replication in Activation of the ATR-Dependent DNA Damage Checkpoint. Genes Dev. 2002, 16, 2327–2332.

34.

Evans

E. K.

. Reaper-Induced Apoptosis in a Vertebrate System. EMBO. J. 1997, 16, 7372–7381.

35.

Ivan

. HIFalpha Targeted for VHL-Mediated Destruction by Proline Hydroxylation: Implications for O2 Sensing. Science. 2001, 292, 464–468.

36.

Verma

. Ubistatins Inhibit Proteasome-Dependent Degradation by Binding the Ubiquitin Chain. Science. 2004, 306, 117–120.

37.

Peterson

J. R.

Lokey

R. S.

Mitchison

T. J.

Kirschner

M. W.

A Chemical Inhibitor of N-WASP Reveals a New Mechanism for Targeting Protein Interactions. Proc. Natl. Acad. Sci. U. S. A. 2001, 98, 10624–10629.

38.

Wignall

S. M.

. Identification of a Novel Protein Regulating Microtubule Stability through a Chemical Approach. Chem. Biol. 2004, 11, 135–146.

39.

Salic

Lee

Mayer

Kirschner

M. W.

Control of Beta-Catenin Stability: Reconstitution of the Cytoplasmic Steps of the Wnt Pathway in Xenopus Egg Extracts. Mol. Cell. 2000, 5, 523–532.

40.

Salic

King

R. W.

Identifying Small Molecule Inhibitors of the Ubiquitin-Proteasome Pathway in Xenopus Egg Extracts. Methods Enzymol. 2005, 399, 567–585.

41.

Thorne

C. A.

. Small-Molecule Inhibition of Wnt Signaling through Activation of Casein Kinase 1alpha. Nat. Chem. Biol. 2010, 6, 829–836.

42.

Murray

A. W.

Cell Cycle Extracts. Methods Cell. Biol. 1991, 36, 581–605.

43.

Malo

Hanley

J. A.

Cerquozzi

Pelletier

Nadon

Statistical Practice in High-Throughput Screening Data Analysis. Nat. Biotechnol. 2006, 24, 167–175.

44.

Tukey

J. W.

A Survey of Sampling from Contaminated Distributions. In Contributions to Probability and Statistics; Olkin

, Ed. Stanford University Press: Stanford, CA, 1960.

45.

Peng

H. B.

Xenopus laevis: Practical Uses in Cell and Molecular Biology. Solutions and Protocols. Methods Cell. Biol. 1991, 36, 657–662.

46.

Naik

Piwnica-Worms

Real-Time Imaging of Beta-Catenin Dynamics in Cells and Living Mice. Proc. Natl. Acad. Sci. U. S. A. 2007, 104, 17465–17470.

47.

Kofron

. Wnt11/Beta-Catenin Signaling in Both Oocytes and Early Embryos Acts through LRP6-Mediated Regulation of Axin. Development. 2007, 134, 503–513.

48.

King

R. W.

. A 20S Complex Containing CDC27 and CDC16 Catalyzes the Mitosis-Specific Conjugation of Ubiquitin to Cyclin B. Cell. 1995, 81, 279–288.

49.

Tukey

J. W.

Exploratory Data Analysis. Addison-Wesley: Reading, MA, 1977.

50.

Chen

. Small Molecule-Mediated Disruption of Wnt-Dependent Signaling in Tissue Regeneration and Cancer. Nat. Chem. Biol. 2009, 5, 100–107.

51.

Bafico

Liu

Goldin

Harris

Aaronson

S. A.

An Autocrine Mechanism for Constitutive Wnt Pathway Activation in Human Cancer Cells. Cancer Cell. 2004, 6, 497–506.

52.

Lee

J. H.

Park

C. H.

Jung

K. C.

Rhee

H. S.

Yang

C. H.

Negative Regulation of Beta-Catenin/Tcf Signaling by Naringenin in AGS Gastric Cancer Cell. Biochem. Biophys. Res. Commun. 2005, 335, 771–776.

53.

Park

C. H.

. Quercetin, a Potent Inhibitor against Beta-Catenin/Tcf Signaling in SW480 Colon Cancer Cells. Biochem. Biophys. Res. Commun. 2005, 328, 227–234.

54.

Shukla

. Blockade of Beta-Catenin Signaling by Plant Flavonoid Apigenin Suppresses Prostate Carcinogenesis in TRAMP Mice. Cancer Res. 2007, 67, 6925–6935.

55.

Takebe

Harris

P. J.

Warren

R. Q.

Ivy

S. P.

Targeting Cancer Stem Cells by Inhibiting Wnt, Notch, and Hedgehog Pathways. Nat. Rev. Clin. Oncol. 2011, 8, 97–106.
