Development and Validation of a Generic Fluorescent Methyltransferase Activity Assay Based on the Transcreener AMP/GMP Assay

Abstract

Methylation is a ubiquitous covalent modification used to control the function of diverse biomolecules including hormones, neurotransmitters, xenobiotics, proteins, nucleic acids, and lipids. Histone methyltransferases (HMTs) are currently of high interest as drug targets because of their role in epigenetic regulation; however, most HMT assay methods are either not amenable to a high-throughput screening (HTS) environment or are applicable to a limited number of enzymes. The authors developed a generic methyltransferase assay method using fluorescent immunodetection of adenosine monophosphate (AMP), which is formed from the MT reaction product S-adenosylhomocysteine in a dual-enzyme coupling step. The detection range of the assay; its suitability for HTS, including stability of reagents following dispensing and after addition to reactions; and the potential for interference from drug-like molecules was investigated. In addition, the use of the assay for measuring inhibitor potencies with peptide or intact protein substrates was examined through pilot screening with selected reference enzymes including HMT G9a. By combining a novel enzymatic coupling step with the well-characterized Transcreener AMP/GMP assay, the authors have developed a robust HTS assay for HMTs that should be broadly applicable to other types of methyltransferases as well.

Keywords

epigenetics histone methyltransferase DNA methyltransferase methyltransferase assay high-throughput screening

Introduction

Methyltransferases are a diverse family of enzymes that catalyze the transfer of a methyl group from S-adenosylmethionine (SAM) to amino, thiol, or hydroxyl groups of acceptor molecules, generating S-adenosyl-homocysteine (SAH) as a by-product. Acceptor substrates include endogenous and xenobiotic small molecules,^1,2 proteins,³ DNA,⁴ and RNA,⁵ and lipids.⁶ Their role in epigenetic regulation includes methylation of histones at lysine and arginine residues⁷ and methylation of DNA at cytosines in hemimethylated CpG sites.⁸ There are more than 50 protein lysine methyltransferases (PKMTs) in humans, at least 10 protein arginine methyltransferases (PRMTs), and 2 DNA methyltransferases (DNMTs).⁹ Together, these enzymes play a critical role in the dynamic modification of chromatin, and they are increasingly being targeted for cancer and other diseases with an epigenetic component.^3,4,10

Assay methods for methyltransferases rely on either detection of the methylated product or detection of SAH.⁹ Filter- or flash plate–based radioassays using ³H-SAM to generate ³H-methylated products^11,12 are the most quantitative and reliable methods; however, the associated regulatory and disposal costs are a liability for high-throughput screening (HTS). Immunoassays for methylated lysine, arginine, and cytosine have been used for both PKMT and DNMT enzyme assays, either in an enzyme-linked immunosorbent assay (ELISA) format or in a homogenous format such as time-resolved fluorescence resonance energy transfer (TR-FRET).^13,14 Antibody selectivity is critical for this approach and can limit the utility of the assay. For instance, some histone methyltransferases can generate both mono- and dimethylated lysine products, and the known antibodies do not recognize both forms.⁹ Assays based on enzymatic cleavage (or protection) of products have been applied to both PKMTs¹⁵ and DNMTs¹⁶ using methylation state–dependent restriction enzymes or endoproteinase Lys C, which are unable to cleave at methylated lysine residues. Although application of this approach has generally relied on a solid-phase method such as ELISA, or a separation step, a more HTS-friendly fluorescence dequenching configuration was recently developed for DNMT1.¹⁶

Detection of SAH formation has the advantage of providing universal detection of MT enzymes regardless of the acceptor substrate or the mix of methylated reaction products. Several coupled enzyme assays have been deployed for SAH detection. For instance, SAH can be converted to homocysteine and adenosine using SAH hydrolase, and homocysteine is then detected using covalent reaction with a thiol-sensitive fluor.^17,18 Alternatively, the adenine portion of SAH can be converted to urate by the sequential action of three coupling enzymes, with coproduction of hydrogen peroxide in the final step.¹⁹ Hydrogen peroxide can be detected colorimetrically or fluorescently, via formation of resorufin. Recently, a luciferase-based coupled assay was developed that relies on the sequential conversion of SAH to adenine, adenosine monophosphate (AMP), and adenosine triphosphate (ATP), with the final step catalyzed by pyruvate phosphate dikinase.²⁰

BellBrook has developed a line of HTS assays, called Transcreener, that use highly specific immunodetection of nucleotide reaction products with homogenous fluorescent readouts including fluorescence polarization (FP), time-resolved fluorescence, and fluorescence intensity.^21-25 Direct immunodetection of SAH would be advantageous as it would eliminate the potential for compound interference with coupling enzymes; however, it requires an antibody that specifically binds SAH in the presence of excess SAM, that is, that differentiates on the basis of a single methyl group. Although we have produced polyclonal antibodies in rabbits with more than 100-fold selectivity for SAH versus SAM (data not shown), we have been unable to produce sufficient quantities of high-titer antibodies to support commercialization of an HTS assay kit. There is one literature report of an FP-based methyltransferase assay using an anti-SAH antibody from a diagnostic assay kit for homocysteine.²⁶ However, we and others have been unable to obtain the antibody from the commercial suppliers.

To overcome this hurdle, we used two coupling enzymes, SAH hydrolase and adenosine kinase, to convert the SAH consecutively to adenosine and AMP. The AMP can be measured with nanomolar sensitivity using an existing Transcreener monoclonal antibody and tracer with negligible cross-reactivity with the other nucleotides present, SAM²⁵ and dGTP ( Fig. 1 ). We optimized the assay components for measuring methyltransferase initial velocity using initial SAM concentrations ranging from 0.20 µM to 50 µM and tested reagent and signal stability and interference from drug molecules. We next showed that the assay could be used to detect histone methyltransferases and DNA methyltransferases and examined the response to known inhibitors. Last, we performed a pilot screen of 8800 small molecules with HMT G9a in 1536-well format. The results show that combining coupling enzymes for conversion of SAH with the Transcreener AMP/GMP assay provides a robust, HTS-compatible approach for screening methyltransferases.

Figure 1.

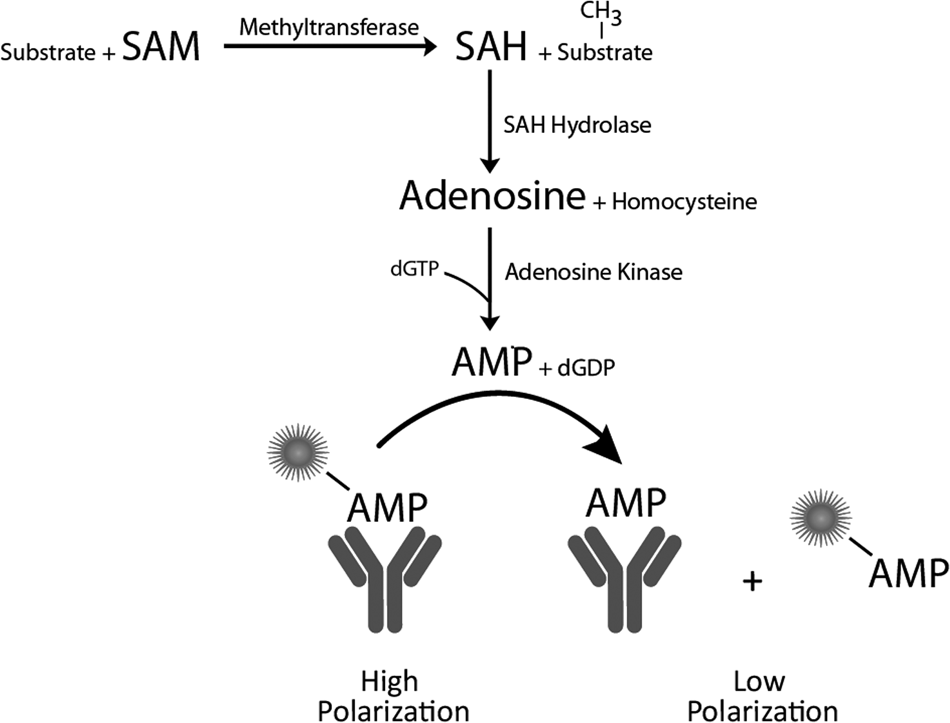

Transcreener Epigen methyltransferase assay principle. SAH produced in a methyltransferase reaction is converted to AMP in two sequential enzymatic steps. AMP is detected using a competitive fluorescence polarization immunoassay

Materials and Methods

Materials

The monoclonal antibody and Alexa Fluor633 tracer for immunodetection of AMP were developed at BellBrook Labs (Madison, WI). Alexa Fluor633 succinimidyl ester used was purchased from Invitrogen (Carlsbad, CA) and conjugated to AMP. The Tocriscreen Mini compound library was from Tocris Bioscience (Ellisville, MO). SAM was obtained from AK Scientific (Mountain View, CA). SAH, AMP, and other nucleotides were from Sigma (St. Louis, MO). Buffer components were purchased from Sigma or Fisher Scientific (Hampton, NH). All methyltransferases were recombinant human proteins with an N-terminal GST tag. G9a HMT, SUV39H1 HMT, DNMT1 MT, and DNMT3a MT were purchased from BPS Biosciences (San Diego, CA), and Set7/Set9 HMT was from Prospec Protein Specialists (Ness-Ziona, Israel). G9a (amino acids 785–1210) was expressed using Escherichia coli (specific activity = 146 pmol/min/mg) and baculovirus-infected Sf9 insect cells (specific activity = 10 pmol/min/mg). SUV39H1 (full-length, specific activity 400 pmol/min/mg) was expressed in Sf9 cells. Set7/Set9 was expressed in E. coli (366 amino acids, specific activity unknown). DNMT1 (amino acids 2–1632, specific activity = 0.14 pmol/min/mg) and DNMT3a (full-length, specific activity unknown) were expressed in Sf9 cells.

Instrumentation and analysis

Assays were performed in black Corning 384-well, flat-bottom microplates (part no. 3654; Corning, NY) or black Corning 384-well, round-bottom, low-volume polystyrene nonbinding surface microplates (part no. 3676). Mixing after additions was performed by orbital shaking for 1 min. Unless otherwise noted, 20 µL assays were equilibrated for 1 h at room temperature before reading the plate on the instrument.

FP measurements using the AMP-Alexa Fluor633 tracer were performed on a Tecan Safire² (Tecan, Durham, NC), PerkinElmer Envision (PerkinElmer, Waltham, MA), or BMG PheraStar Plus (BMG Labtech, Cary, NC) plate reader using 635 nm excitation (LED) and 670 emission (20 nm bandwidth) settings. The free tracer reference was set to 20 mP, and the buffer (with or without antibody) was used as the buffer blank for both the sample and free tracer reference wells.

Equilibrium binding data, standard curves, and enzyme velocity data were analyzed and graphed using GraphPad Prism (GraphPad Software, San Diego, CA).

Assay development

Antibody specificity

The AMP detection component for the assay is a competitive immunoassay that relies on displacement of a fluorescent tracer from antibody by analytes.²⁵ The affinity of AMP and cross-reacting molecules was measured using competition binding experiments and quantified by IC₅₀ determinations. Competition binding experiments were carried out by titrating AMP, SAM, SAH, adenosine, and dGTP independently into wells containing AMP antibody and Alexa Fluor633 AMP tracer. Final conditions were 20 mM HEPES (pH 7.5), 100 mM KPO₄ (pH 7.5), 20 mM KCl, 40 mM MgCl₂, 4 nM tracer; the AMP antibody was present at 3.0 µg/mL, which was 85% of saturation. EC₈₅ was calculated by using the EC₅₀ and hillslope values, calculated from fitting the equilibrium binding data to a variable slope sigmoidal dose-response curve using the equation below.

E C_{85} = ({(85 / (100 - 85))}^{1 / hillslope}) * EC 50 .

Assay development was carried out using mock reactions containing SAM and SAH at ratios representing quenched MT enzyme reactions. Mock reactions were run similarly to endpoint enzymatic reactions (i.e., with the inclusion of a quench step prior to addition of detection reagents). SAM/SAH mixtures were added to wells at the indicated concentrations in 10 µL of HMT buffer (50 mM Tris, 5 mM MgCl₂, 4 mM DTT, pH 8.5), followed by addition of 5 µL of HMT Stop Buffer (400 mM MES, 1 M NaCl, and 4 mM MgCl₂, pH of 6.0) and by 5 µL of Detection Mix (40 mM HEPES, 0.04% Brij-35, 16 nM Alexa Fluor633 AMP tracer, and AMP antibody as indicated, pH 7.25). Unless otherwise indicated, final read conditions were 10 mM HEPES (pH 7.2), 12.5 mM Tris (pH 8.5), 100 mM MES (pH 6.0), 250 mM NaCl, MgCl₂, 2 mM DTT, 250 µM cofactor, 0.01% Brij-35, 4 nM tracer, 2 ng/µL SAH hydrolase, 5 ng/µL adenosine kinase and antibody.

Coupling enzymes

The two coupling enzymes, SAH hydrolase and adenosine kinase, were first tested separately for each of the two steps in the conversion of SAH to AMP and then tested together in a matrix fashion to determine the relative amounts of each to use in the assay. Enzymes from different commercial sources as well as enzymes produced in house were tested. An FP-based immunoassay for the disappearance of SAH was used to monitor SAH hydrolase (BellBrook Labs, unpublished data), and AMP immunodetection was used to monitor the adenosine kinase. A recombinant human SAH hydrolase and a recombinant human adenosine kinase were selected for use in the assay; both are available from commercial sources. The final SAH hydrolase and adenosine kinase concentrations used for the assay were 2.5-fold and 100-fold in excess of what was required for a maximal signal in mock reactions representing initial velocity MT reactions with initial SAM concentrations ranging from 0.5 µM to 100 µM.

Antibody optimization

In a competitive immunoassay with antibody in excess, the antibody concentration determines the dynamic range of the assay. The optimal amount of AMP antibody was determined by titrating it in two-fold dilutions into mock reactions representing 20% conversion of initial SAM concentrations of 0.5, 1.0, 5.0, 10, 50, and 100 µM (e.g., 0.2 µM SAH/0.8 µM SAM for the 1.0 µM initial SAM reaction), and polarization values were determined relative to control reactions with only SAM present (the equivalent of no-enzyme controls). Antibody concentrations of 1.0, 2.5, 5.0, 7.5, and 10 µg/mL, respectively, were selected as optimal for initial velocity reactions with SAM concentrations of <1, 1 to 4 µM, 5 to 9 µM, 10 to 24 µM, and 25 to 50 µM.

SAM/SAH standard curves

Mock reactions mimicking enzymatic conversion (0, 1.0, 2.5, 5.0, 7.5, etc, . . . 100%) of SAM to SAH were dispensed into wells in 10 µL of HMT buffer, followed by the addition of 5 µL of Stop Buffer and 5 µL of Detection Mix as described above. For each standard curve, the total (SAM + SAH) remained constant at 0.20, 0.5, 1.0, 5.0, 10, or 50 µM, representing the initial SAM concentrations in MT enzyme reactions, and antibody was present at the optimal concentrations for each SAM concentration as determined above. Polarization was measured after 1 h at ambient temperature. The data were plotted as ΔmP versus %SAM conversion using four-parameter nonlinear regression curve fitting. ΔmP = mP_{initial [SAM]} – mP_sample. Z′ values were calculated using replicates of either 12 or 24 for each standard point.²⁷

Reagent and signal stability

To determine the equilibration time following addition of detection reagents and the stability of the signal, a 10 µM SAM/SAH standard curve (n = 12) was prepared as described above, and the FP signal was read periodically. To assess the stability of the SAH Detection Mixture prior to dispensing, 10 µM SAM/SAH standard curves were prepared periodically using Detection Mix that had been stored at room temperature for up to 48 h and freshly prepared SAM/SAH mock reactions. Reactions were allowed to equilibrate for 90 min prior to reading.

Compound interference screen

The potential for interference of drug molecules was assessed by screening the Tocriscreen Mini compound library (1120 compounds) in triplicate mock reactions representing 4% conversion of 10 µM SAM (9.6 µM SAM/0.4 µM SAH). Mock reactions were added to compound wells for a final concentration of 10 µM compound, 1% DMSO in 10 µL HMT buffer, followed by addition of 5 µL of Stop Buffer and 5 µL of Detection Mix. Reactions were allowed to equilibrate for 90 min prior to reading. Control reactions representing 0%, 4%, and 100% SAM conversion with no compound were included on each plate (n = 16). The Z factor was determined using 0% control and compound wells, and the Z′ factor was determined using 0% control and 4% control wells.²⁷

Enzyme and inhibitor studies

The protocol used for enzyme assays was identical to that used for mock reactions. MT enzyme reactions (10 µL) were incubated at room temperature for the indicated time followed by addition of 5 µL Stop Buffer and 5 µL Detection Mix, and plates were read following a 90-min equilibration period. The period between addition of Stop Buffer and Detection Mix was not carefully controlled but generally was within 1 h. HMT buffer (50 mM Tris, 5 mM MgCl₂, 4 mM DTT, pH 8.5) was used for HMTs G9a, Set7/Set9, and SUV39H1, and DNMT buffer (50 mM Tris, 4 mM MgCl₂, 2 mM EDTA, pH 8.0) was used for DNMT 1 and DNMT 3A. The Stop Buffer used for HMTs was 400 mM MES, 1 M NaCl, and 4 mM MgCl₂, pH of 6.0, and the same buffer with 14 mM MgCl₂ was used to stop DNMTs. All enzymes were highly purified recombinant preparations from commercial sources (see the Materials section). A peptide representing amino acids 1 to 25 of histone H3, generally at ≥2× K_m, was used for HMT reactions, except in indicated cases when full-length histone H3 was used at 1 µM. Poly d(I-C) at 5 µM was used as a substrate for DNMT reactions. SAM was generally used at a concentration at or near its reported K_m for each enzyme. Reactions were initiated by the addition of SAM. Enzyme assay signal, the decrease in polarization relative to control reactions lacking enzyme, was reported as a positive value, ΔmP. For some reactions, including inhibitor studies, SAM/SAH standard curves were used to convert the polarization values to the amount of SAH formed so that accurate enzyme velocity and IC₅₀ values could be determined.

Assay miniaturization and pilot screen

Using the chemical and biological reagents provided by BellBrook as described above, the assay was run in black Greiner 1536-well microplates (part no. 789176-A, Greiner, Germany). The reagents were dispensed by the Synquad (Digilab Inc., Holliston, MA) and the Multidrop Combi (Thermo Scientific, Waltham, MA). Library compounds in 90% DMSO (50 nL of 2 mM stock for primary screening, 100 nL of serial dilutions for dose-response experiments and counterscreening) were transferred with a Hummingbird (Digilab Inc.) directly into the destination plate and incubated for 15 min at room temperature together with 2 µL of 2× concentrated enzyme (2 nM final concentration), 2× concentrated SAH (0.7 uM final concentration) for the counterscreen or buffer for controls. After addition of 2 µL of a 2× concentrated substrate mix (4 µM SAM and 4 µM H3K9 final concentration), incubation at room temperature was continued for a further 30 min at room temperature. The reaction was stopped by 2 µL of the Stop Buffer, and the AMP production was initiated with 2 µL of SAH Detection Mixture for 90 min at room temperature and in the darkness before reading the FP of the AMP-Alexa Fluor633 tracer on an Analyst GT plate reader (Molecular Devices, provided through Bucher Biotec, Basel, Switzerland) using 620 nm (40 nm bandwidth) excitation and 688 nm (45 nm bandwidth) emission settings. Data were analyzed using the proprietary Helios software package²⁸ as well as GraphPad Prism (GraphPad Software, San Diego, CA).

Results

Assay development and optimization

Antibody specificity

The key detection reagents are a highly specific antibody for AMP,²⁵ two coupling enzymes, and a nucleotide cofactor, dGTP ( Fig. 1 ). Minimal antibody cross-reactivity with SAM and dGTP is critical for assay feasibility. The competition binding curves in Figure 2 and the IC₅₀ values (see the legend to Fig. 2 ) show that none of these molecules cross-react significantly with the AMP antibody and thus will not contribute to background signal in the assay. Cross-reactivity with adenosine, the intermediate in the coupling reactions, was detectable but low. dGDP, the by-product of the adenosine kinase reaction, was not tested; however, both ADP and GDP were previously shown to have negligible cross-reactivity.²⁹ Moreover, dGDP is produced in stoichiometric amounts with SAH, so cross-reactivity with the AMP antibody would result in enhancement of the signal, not background.

Figure 2.

Competition binding assays with nucleotides used or produced in the assay. Serial dilutions of nucleotides were added independently to 3 µg/mL AMP antibody and 4 nM tracer, allowed to come to equilibrium, and polarization was read. IC₅₀ values for AMP, SAM, SAH, adenosine, and dGTP were 0.035, 2 624, >20 000, 35.2, and 14 491 µM, respectively

Coupling enzymes and cofactor

To show proof of concept and optimize the key detection components, we used mock reactions lacking MT enzyme and containing various ratios of SAM and SAH to mimic a completed enzyme reaction. For instance, a mock reaction representing 10% conversion of 1 µM SAM contained 0.9 µM SAM, 0.1 µM SAH, and all of the detection reagents. In general, the desired endpoint was a maximal polarization change in mock reactions representing low fractional conversion of SAM to SAH (5–20%).

AMP is produced in two enzymatic steps catalyzed by SAH hydrolase and adenosine kinase ( Fig. 1 ), the second of which requires a phosphate donor. Following evaluation of several enzyme preparations, including native and recombinant, some that we cloned and expressed, we selected two for further assay development. To minimize the potential for assay interference caused by inhibition of the coupling enzymes, we chose concentrations of each of the two coupling enzymes that were well in excess of what was required for a maximal signal. Titrating adenosine kinase in the presence of all other assay components resulted in a signal plateau at 0.01 ng/µL; we chose 5 ng/µL as the final assay concentration. SAH hydrolase exhibited more of a bell-shaped response, with signal starting to level off at 0.25 ng/µL; we selected 2 ng/µL as a final concentration.

We tested several nucleotide triphosphates reported to serve as phosphate donors for adenosine kinase,³⁰ including ATP, GTP, dGTP, and UTP for cross-reactivity with the AMP antibody and concentration dependence in the adenosine kinase reaction. We selected dGTP based on its relatively low K_m and minimal cross-reactivity with the AMP antibody ( Fig. 2 ). We then tested a range of concentrations and selected one that is approximately 100-fold over its reported K_m concentration, to drive the equilibrium toward product (AMP) formation (data not shown).

Antibody optimization

In a competitive binding assay, the concentration of antibody defines the dynamic range of the assay, which is generally about two logs. Therefore, it is necessary to determine the optimal antibody concentration for detecting different ranges of analyte. We examined dependence of assay signal on antibody concentration in mock reactions representing 20% SAM conversion with a range of initial SAM concentrations. As shown in Figure 3 , increasing the total SAM/SAH concentration requires more antibody for a maximal signal. Note that the maximal assay response increases as total SAM/SAH increases up to 50 µM and then falls off. Investigation of this effect has suggested that the decrease at higher SAM concentrations is due to production of AMP from SAM, either from SAH contamination in the SAM preparation or from direct action of SAH hydrolase on SAM (data not shown). The former is more likely the predominant cause because the assay signal is quite stable once it has equilibrated (see Fig. 4B ). Based on these results, we selected five antibody concentrations for use over initial SAH concentrations ranging from 0.25 to 50 µM. Although the assay can be used at higher or lower SAM concentrations, the assay window may not be sufficient for HTS applications.

Figure 3.

Effect of AMP antibody concentration on assay signal in mock reactions representing 20% conversion of SAM. Mock reactions (10 µL) contained total (SAM + SAH) concentrations of 0.5, 1.0, 5.0, 10, 25, 50, and 100 µM at a 4:1 SAM:SAH ratio. Control reactions contained only SAM. Stop Buffer and Detection Mix were added in sequential 5 µL aliquots just as in an enzymatic assay, and plates were read following a 90-min equilibration period. The assay signal is shown as the magnitude of the decrease in polarization of mock reactions relative to controls: ΔmP = mP_control − mP_20%

Figure 4.

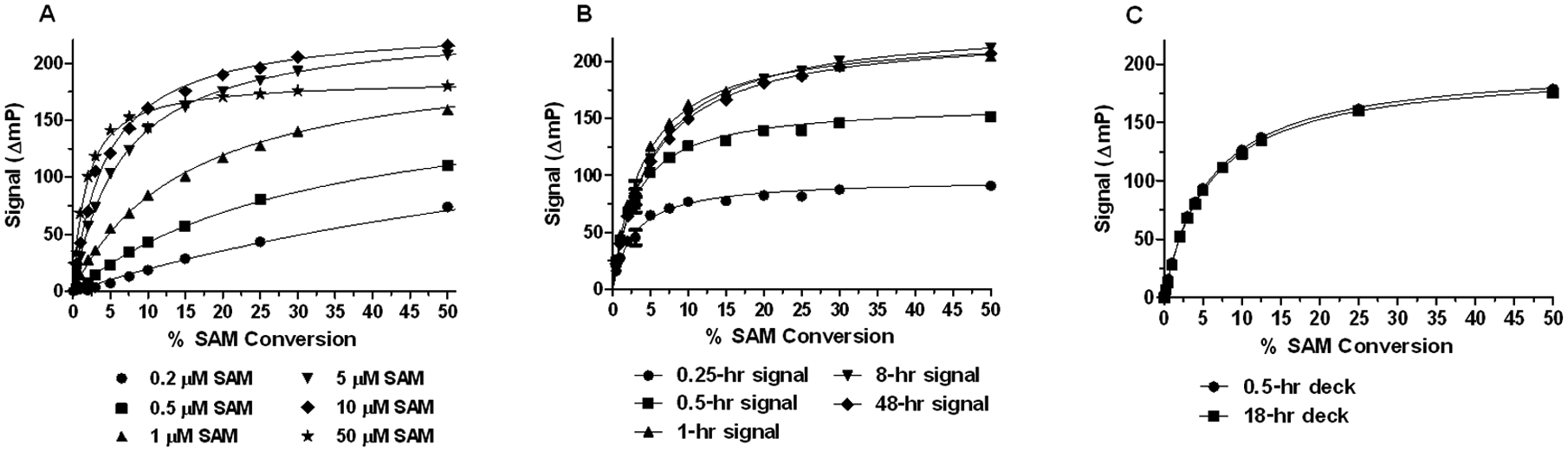

Standard curves mimicking enzymatic conversion of SAM to SAH. (A) SAM/SAH standard curves (n = 16) for initial SAM concentrations of 0.2, 0.5, 1.0, 5.0, 10, and 50 µM. Stop Buffer and Detection Mix were added in sequential 5-µL aliquots to mock reactions with various SAM/SAH concentrations, and plates were read after 90 min. (B) Signal equilibration and stability measured using 10 µM SAM/SAH standard curve (n = 12). Following addition of Stop Buffer and Detection Mix, plates were kept at room temperature and read periodically. (C) Reagent stability measured using 10 µM SAM/SAH standard curves (n = 12). Standard curves were prepared from Detection Mix that had been stored at room temperature for the indicated time periods

Standard curves

Standard curves mimicking enzyme reactions were used to test the optimized reagent concentrations over a range of initial SAM concentrations. As a rule of thumb, we consider a polarization shift of 60 to 100 mP and a Z′ value of 0.5 to be indicative of robust assay performance for HTS applications. For initial SAM concentrations of 5 µM, 10 µM, and 50 µM, these criteria were achieved when less than 5% of the SAM was converted to SAH, whereas approximately 10% conversion was required at 1 µM initial SAM and 25% conversion for 0.5 µM SAM ( Fig. 4A ). For instance, a Z′ value of 0.59 and a polarization shift of 74 mP was reached at 3% conversion of 5 µM SAM. At 0.20 SAM, 40% conversion, which is beyond the initial velocity region, was required to generate an assay window suitable for HTS ( Fig. 4A ), reflecting the limits of sensitivity for the AMP immunodetection component of the assay. Efforts are currently under way to increase the sensitivity of the assay by optimizing conditions for antibody binding (i.e., decreased K_d for tracer and antigen), and we have observed a two- to four-fold increase by limiting the dilution resulting from addition of quenching and detection reagents and decreasing the ionic strength (BellBrook Labs, unpublished data).

Deck and signal stability

Implementation of an assay in HTS typically requires stable reagents during dispensing and sustained signal stability after addition of detection reagents. To assess these parameters, we monitored the assay signal using standard curves mimicking MT enzyme reactions initially containing 10 µM SAM. The maximal FP signal was reached by 60 min, reflecting complete equilibration of all the detection reagents ( Fig. 4B ). After that, the curve remained unchanged for at least 8 h, with only a very slight downward shift after 48 h, reflecting excellent signal stability. To assess the “deck stability” of the assay, precombined detection reagents were used to develop standard curves following storage at room temperature. There was no detectable decay in the standard curve at 18 h ( Fig. 4C ), indicating excellent stability for the precombined detection mixture.

Effect of drug compounds on detection reagents

Inhibition or activation of coupling enzymes by screening compounds is a common source of assay interference for coupled assays. Other potential sources of interference would be disruption of antibody-tracer binding or extraneous fluorescence. To investigate the potential for compound interference, we screened a collection of 1120 bioactive compounds (Tocriscreen Mini) using mock reactions representing 4% conversion of 10 µM SAM. As shown in Figure 5 , the vast majority of the compounds clustered within the data variability bands drawn at three standard deviations from the mean. The Z factor for the screen, which includes all of the sample wells, was 0.59, and the Z′, which is determined from control wells lacking sample, was 0.77 (using 0% and 4% conversion).²⁷ Nine compounds fell outside of the signal variability bands, reflecting a 0.8% interference rate. Further analysis showed that five of the interfering compounds interfered with the AMP antibody and tracer alone, so it can be surmised that the remaining four inhibited the coupling enzymes or both.

Figure 5.

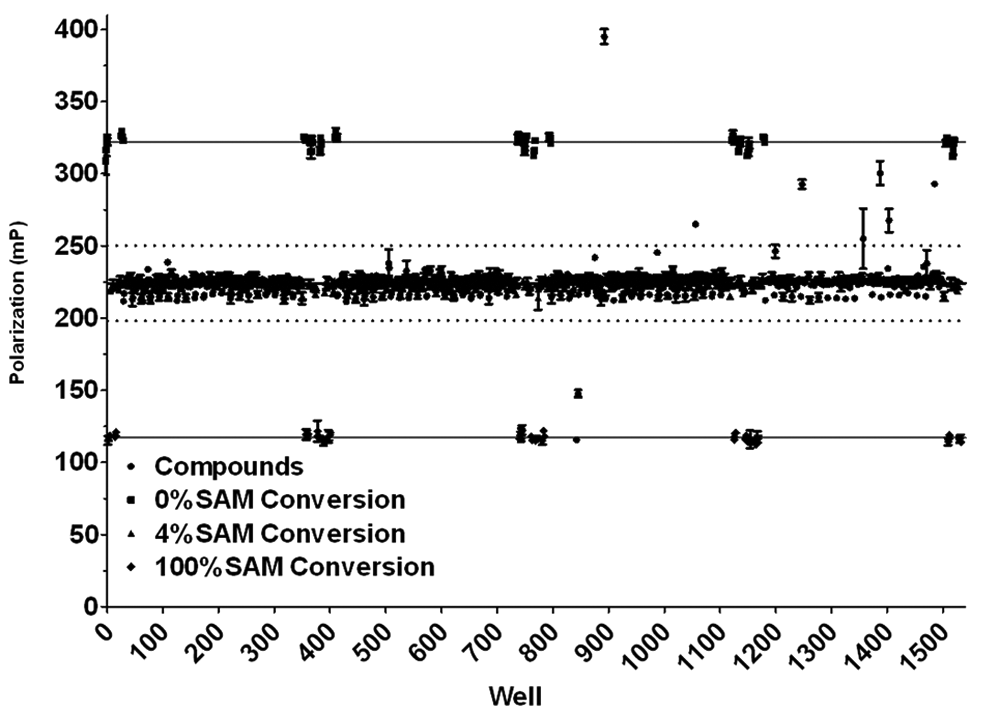

Assay interference screen. An 1120-compound library of bioactives (Tocriscreen Mini) was screened at 10 µM against mock reactions representing 4% conversion of 10 µM SAM (9.6 µM SAM/0.4 µM SAH). The upper solid line is drawn at the average polarization of 0% conversion, no compound controls; the lower solid line is drawn at the average polarization of 100% conversion, no compound controls. The 4% conversion, no compound controls, is clustered with the majority of the compound wells at 220 mP. The dashed lines are drawn at ±three standard deviations from the mean of the compound wells

Detection of Enzymes and Inhibitors

We tested the ability to detect enzyme activity with the Transcreener Epigen MT Assay using three HMTs and two DNMTs. We used an endpoint assay format incorporating an enzyme quench step followed by addition of a single detection mix containing the coupling enzymes and AMP immunodetection reagents. HMTs were quenched using a low pH buffer, and DNMTs were quenched by MgCl₂; note that we have not tested these quenching reagents for other methyltransferases.

A peptide representing the first 25 amino acids of histone H3 was used as acceptor substrates for HMTs G9a, Set7/Set9, and SUV39H1; full-length histone H3 was also used for HMT G9a; and poly d(I-C) was used for DNMT 1 and DNMT 3a. SAM was used near its reported K_m concentration, except where indicated, and the peptide and DNA substrates were present in excess. Histone H3 was used at a limiting concentration for reasons explained below. The signal increased in a dose-dependent manner as increasing amounts of enzyme were added to reactions ( Fig. 6A and B ), and in all cases except DNMT 3a, a total polarization change of at least 100 mP was achieved, indicating a good assay window. Where activity data were provided by the vendor, our results were in agreement with the expected relative activity levels for the different enzymes tested. These results suggest that the assay will have broad applicability across the MT enzyme family.

Figure 6.

Detection of SAM produced in HMT and DNMT enzyme reactions. MT enzyme reactions, initiated by the addition of SAM, were incubated and quenched with 5 µL Stop Buffer; 5 µL of Detection Mix was added, and plates were read after 90 min. Control reactions lacked enzyme: ΔmP = mP_control – mP_enzyme. (A) Titrations of HMTs Set7/Set9 and SUV39H1 and DNMTs 1 and 3a. Enzyme incubations were 120 min. Set7/Set9 and SUV39H1 reactions contained 50 µM peptide substrates and 6 and 12 µM SAM, respectively. DNMT reactions contained 5 µM poly d(I-C) and 3 µM SAM. (B) Titration of HMT G9a from two different sources with peptide and full-length histone substrates. Enzyme incubations were 120 min. Peptide substrate was present at 10 µM, and histone H3 was used at 1 µM. (C) Rates of SAH formation in HMT G9a reactions. SAM/SAH standard curves were used to convert polarization data to SAH formation. (D) Inhibition of HMT G9a by sinefungin. HMT G9A and detection reactions were performed as described in the Materials and Methods section. Enzyme incubations were 60 min. Peptide substrate was present at 20 µM, and SAM was present at 2 µM

We carried out more detailed studies with HMT G9a,²⁹ because it was to be the target for a pilot screen ( Fig. 7 ). In a comparison with two commercially available recombinant enzymes, the preparation from BaV-infected Sf9 insect cells was significantly more active than the enzyme expressed in E. coli ( Fig. 6B ); therefore, the Sf9 material was used for further studies. HMT G9a had much higher activity with the peptide substrate than full-length histone ( Fig. 6B ), and use of higher histone concentrations resulted in even lower activity (data not shown). In investigating this, we determined that the full-length histone interferes with the immunodetection component of the assay: it caused polarization values to decrease when incubated with the AMP antibody and tracer in the absence of other assay components. To minimize this effect, we used a limiting amount of histone H3 (1 µM).

Figure 7.

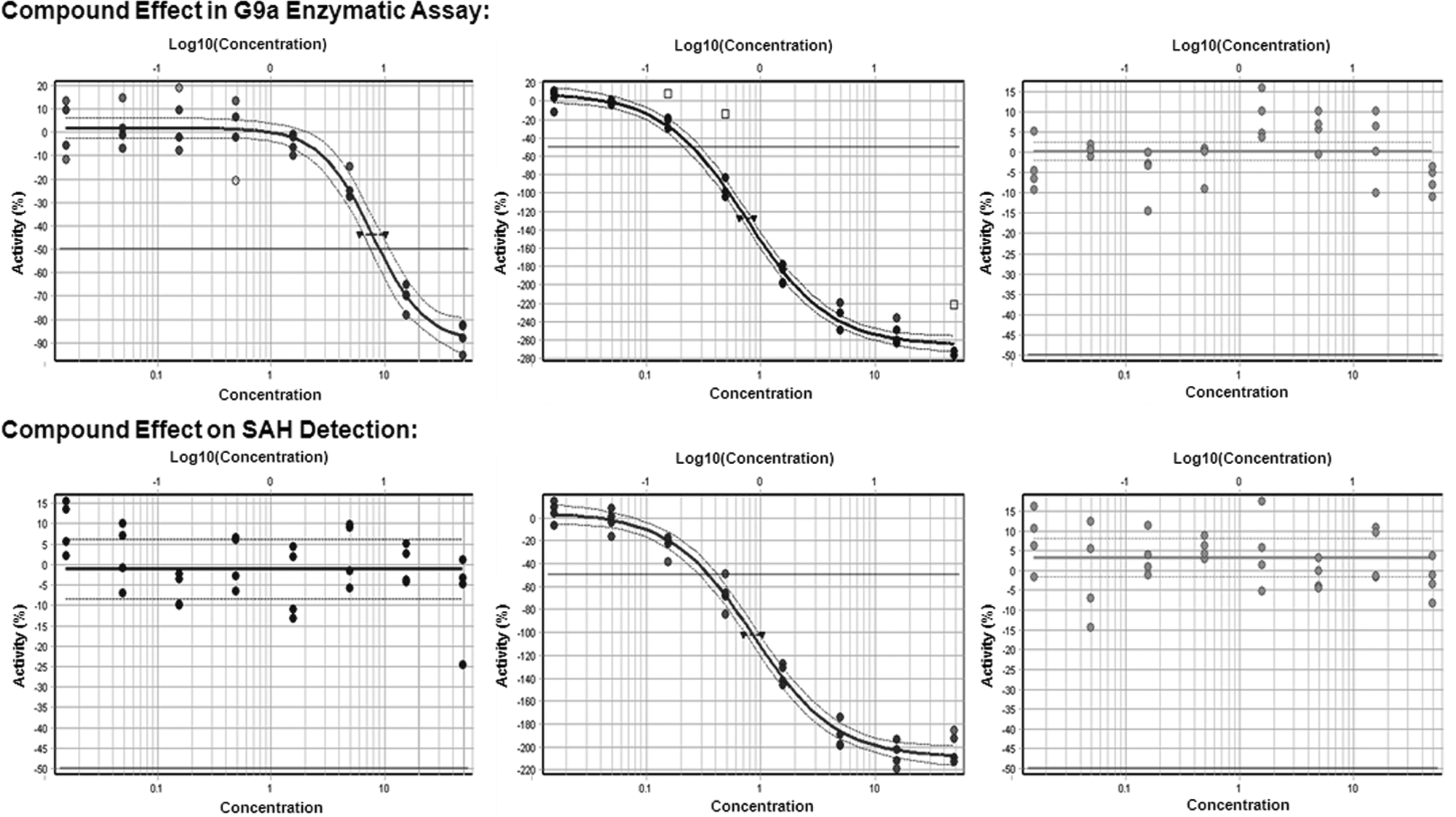

Hit validation in a 1536-well format for different types of pilot screen hits Shown are results in the G9a assay (top) or the SAH counterassay (bottom) for one of the four primary hits specifically inhibiting G9a (left), for one of the 21 primary hits affecting both the G9a-dependent and the counterassay (middle), and for one of the 17 primary hits that were inactive in a concentration-response experiment. Note that the specific inhibition curve (left) has the inflection point around −50% inhibition and a plateau at −100% inhibition, whereas the interfering compounds (middle) reach inhibition values that exceed the no-enzyme control

The Transcreener AMP assay relies on a competitive binding reaction; therefore, it generates a nonlinear signal in response to enzyme. To demonstrate linearity of the assay with respect to SAH formation, we performed HMT G9a reactions using 2 µM SAM and 50 µM peptide substrate and used a standard curve to convert polarization values to SAH formation. The resulting progress curves were linear over time, and the slopes increased with the HMT concentration ( Fig. 6C ). Moreover, the polarization shifts at the 60 min time points (data not shown) confirmed that HMT linear velocity can be detected with an assay window suitable for HTS (e.g., 60–100 mP).

We tested the assay for measuring inhibitor potency using sinefungin, a SAM-competitive inhibitor of HMT G9a, and it displayed a typical dose-response curve ( Fig. 6D ); SAM was present at its K_m concentration of 2 µM.²⁹ The observed IC₅₀ of 9 µM for sinefungin agrees well with the previously reported value of 18 µM determined using an assay based on detection of methylated peptides.¹⁵

Pilot Screening

A miniaturized (1536-well) assay protocol was used to screen a proprietary 8800-compound pilot library at a concentration of 25 µM for inhibitors of HMT G9a. Data were normalized based on controls that either contained or lacked G9a. The assay window was stable during screening of the seven plates and fluctuated only slightly between 78 and 84 mP. The overall quality of the screen was acceptable as judged from robust Z′ values (an equivalent of the well-known Z′ value based on robust statistics instead of standard deviation and thus less affected by outliers²⁸) of about 0.6. The more widely used Z′ values²⁷ were about 0.5. At a compound concentration of 16.5 µM during the reaction, just 0.41% of the compounds showed an effect of more than −30%.

Primary hits were cherry picked and tested in a 1536-well format at concentrations ranging from 10 nM to 33 µM, allowing determination of IC₅₀ values by nonlinear least square fitting of a sigmoidal concentration-response curve ( Fig. 7 ). In parallel, the same compounds were tested at the same concentration in an assay setup in which a mixture of SAM and SAH simulated the roughly 20% conversion at the end of the standard reaction time ( Fig. 7 ). Of the 41 hits compounds tested in this way, 17 were inactive in either setup, 20 showed an effect in both setups (and thus appear to interfere with the detection system), and 4 showed a specific effect in the G9a-dependent assay format only ( Fig. 8 ). Two previously known reference compounds were also active in just the G9a-dependent assay variant.

Figure 8.

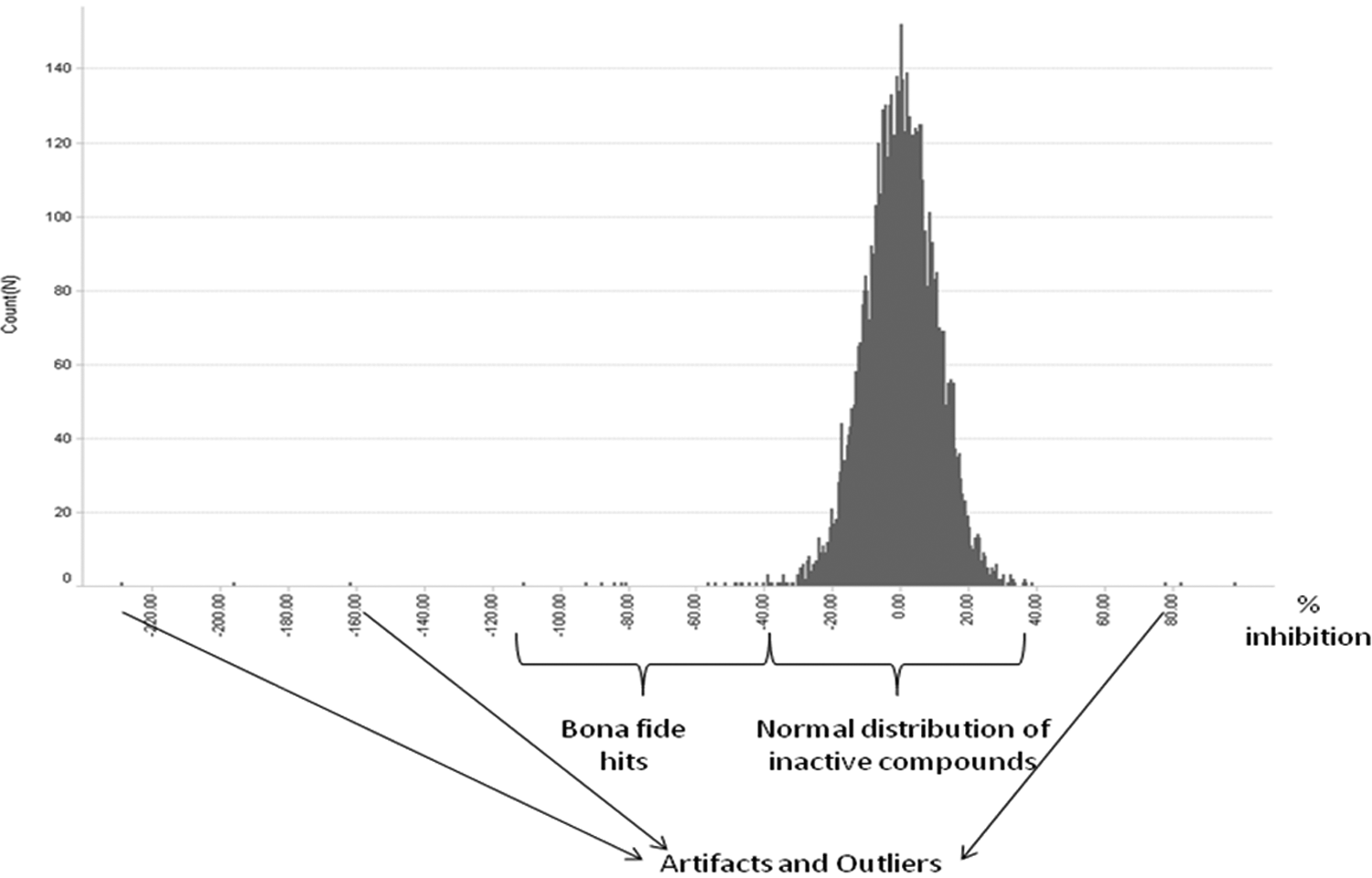

Histogram of HMT G9a primary screening results. Shown is a typical distribution of compounds, hits, artifacts, and outliers of the 8800-compound library screen of G9a HMT

Discussion

The Transcreener Epigen MT assay was designed, developed, and validated specifically for HTS, with the key parameters being facile incorporation into an automated environment and robust performance under relevant enzyme conditions. As BellBrook is a drug discovery solutions provider, we cannot provide an unbiased comparison to alternative MT assays, many of which are also available commercially. However, we can provide a summary of the key characteristics of the assay protocol, reagents, and performance that make it well suited for HTS.

The assay protocol is a simple mix-and-read format, with homogenous detection, and it is miniaturizable to 384- and 1536-well densities, properties that make incorporation into a typical automated HTS environment very straightforward. Endpoint assays are generally easier to incorporate into an automated protocol, and use of the assay in this mode allows determination of initial rates using a standard curve, if desired ( Fig. 6C ). Because of the difference in pH optimum between the G9a methyltransferase and the coupling enzymes, a two-step protocol with an enzyme-quenching step prior to detection ( Fig. 6 ) was used for enzyme studies, and the pilot screen ( Figs. 7 and 8 ). However, because quenching conditions that would also be compatible with the detection reagents have not been identified for all methyltransferases, the ability to use continuous detection may be advantageous in some situations, and we have preliminary evidence that the assay can also be used in this fashion (data not shown, to be published later). Note that use of the assay in continuous mode yields an approximation of initial rates because the detection reactions require more than 30 min to reach equilibrium ( Fig. 4A ).

The sensitivity, dynamic range, and data quality of the assay combine to yield a very good signal window for initial velocity measurements within the physiological range of SAM concentrations (0.20−50 µM). Assay performance at the lower end of this range is important because screening is often done using subsaturating substrate to avoid masking competitive inhibitors, and most HMTs have SAM K_m’s of less than 5 µM. The main determinants of assay performance are the sensitivity and selectivity of the AMP antibody/tracer pair and the efficiency of SAH conversion to AMP. The IC₅₀ for AMP for binding to the AMP antibody in competition with tracer was 35 nM, and selectivity versus SAH and SAM was greater than 2 000-fold ( Fig. 2 ). Thus, if conversion of SAH by coupling enzymes is nearly complete, the assay should yield a good signal with SAH concentrations of 70 to 100 nM, even in the presence of excess SAM. In practice, we found that this was the case, with acceptable HTS performance (Z′ > 0.5, ΔmP = 60–100) occurring right around 100 nM SAH for the lower SAM concentrations tested (e.g., 10%, 25%, and 40% conversion of 1 µM, 0.5 µM, and 0.25 µM SAM, respectively; Fig. 4A ). Preliminary studies have indicated that the sensitivity of the assay can be increased by decreasing the volume and ionic strength of the detection reactions, thus increasing the assay window at the lower SAM concentrations (BellBrook Labs, unpublished data).

Even in the miniaturized 1536-well format with a 4 µL reaction volume, the assay yielded an acceptable assay quality when SAM was employed at a concentration of roughly 2× its K_M value of 1.8 µM.²⁹ The assay window could have undoubtedly been increased further by using higher concentrations of SAM, which would have improved assay statistics but also might have jeopardized assay sensitivity.

The histogram of the primary screening results ( Fig. 8 ) shows a normal distribution centered around 0% inhibition for the vast majority of the library compounds tested. Some compounds, among them the true inhibitors such as the one in Figure 7 (left), are observed between the threshold of −50% and full inhibition (which can be assumed at −100% ± 30% inhibition) but not on the other side of the normal distribution. Only a handful of compounds—presumably readout or other artifacts and outliers—show results significantly below −100% or significantly above 0% that cannot be explained by stoichiometric inhibition. Overall, this distribution profile is very typical of the observations we make both in small-scale pilot screens such as the one described here and large-scale high-throughput screens of up to 1.5 million compounds for multiple targets (both methyltransferases and others) with a variety of readouts.

The significant fraction of primary hits that show activity in the counterscreen reflects the nature of the coupled assay system as well as the fact that typical screening libraries inevitably contain some nonstoichiometric and hence nonspecific compounds. As long as there is an efficient way to rapidly distinguish them from the desired stoichiometric compounds, which we demonstrate in Figure 7 , this is no obstacle to finding leads.³¹

The hit rate of 0.41% against our pilot library is in the range that we would expect for a robust screening assay that is not overly affected by readout artifacts. Nevertheless, inhibitors of the auxiliary enzymes as well as other compounds interfering with the readout undoubtedly can show up in the assay but are efficiently eliminated by appropriate counterscreening ( Fig. 7 ). Although we demonstrate this by means of concentration-response experiments, the principle can be just as well applied at a single concentration, which would allow efficient work up of larger hit lists. Our confidence in this approach is corroborated by the results for the reference compounds as well as the fact that three of the four G9a-dependent hits had been observed previously in an orthogonal TR-FRET–based assay (data not shown) similar to the DELFIA assay described by Kubicek and others.¹⁴

As noted in the Introduction, with the exception of direct immunodetection of SAH—an approach that has proven difficult to commercialize—all of the SAH-based MT assay methods rely on coupling enzymes,^17-20 with the associated risk of compound interference. To mitigate this risk, we used coupling enzymes in significant excess of what was required for a maximal signal. Thus, nearly complete inhibition would be required to affect the assay signal. Interference with the AMP detection component of the assay is likely to be low because of the very high selectivity of the antibody²⁵ ( Fig. 2 ) and because the tracer emits in the far red, which minimizes interference from fluorescent compounds and light scattering.³² Although obviously not a comprehensive study, the low level of interference that we observed in the compound interference screen ( Fig. 5 ) and the reasonable hit rate in the pilot screen ( Fig. 8 ) are both encouraging. A more complete picture of interference levels will emerge from screens by end users using larger, more diverse libraries.

Reagent stability and cost are sometimes overlooked in assay development, but these factors frequently prohibit the practical use of an assay for high-volume screening. All of the reagents that were used for the Transcreener Epigen MT assay are available with continuous supply and at a scale and cost that will support many millions of wells of screening annually. Moreover, the reagents are stable to multiple freeze thaws (data not shown) and for extended periods at room temperature prior to dispensing ( Fig. 4C ), which will ensure that assay performance does not decay when long dispensing times are required for large screens. In addition, the AMP detection component of the assay is extremely stable under the final quenched reaction conditions, allowing more than 12 h for plates to be read ( Fig. 4B ).

In summary, combining the Transcreener AMP assay with coupling enzymes that convert SAH to AMP provides a generic, homogenous methyltransferase enzyme assay that is well suited for an automated HTS environment. The assay can accommodate SAM levels as low as 0.5 µM with initial velocity detection and lower if higher substrate conversion levels are used; thus, it should be useful for screening many methyltransferases using nonsaturating SAM concentrations.

Footnotes

Acknowledgements

This work was funded in part by National Institutes of Health grant R44GM073290. Thanks to Tim Wigle at Epizyme and Novartis colleagues, especially from CNIBR Shanghai, for many valuable discussions on methyltransferases and assay methods. Thanks to Bianca Heedmann for comparison with her TR-FRET–based G9a results, and thanks to Hans-Peter Gubler for explanations concerning robust statistics.
