Evaluation of a Luciferase-Based Reporter Assay as a Screen for Inhibitors of Estrogen-ERα-Induced Proliferation of Breast Cancer Cells

Abstract

Estrogens, acting through estrogen receptor α (ERα), stimulate breast cancer proliferation, making ERα an attractive drug target. Since 384-well format screens for inhibitors of proliferation can be challenging for some cells, inhibition of luciferase-based reporters is often used as a surrogate end point. To identify novel small-molecule inhibitors of 17β-estradiol (E₂)–ERα-stimulated cell proliferation, we established a cell-based screen for inhibitors of E₂-ERα induction of an estrogen response element (ERE)₃–luciferase reporter. Seventy-five “hits” were evaluated in tiered follow-up assays to identify where hits failed to progress and evaluate their effectiveness as inhibitors of E₂-ERα-induced proliferation of breast cancer cells. Only 8 of 75 hits from the luciferase screen inhibited estrogen-induced proliferation of ERα-positive MCF-7 and T47D cells but not control ERα-negative MDA-MB-231 cells. Although 12% of compounds inhibited E₂-ERα-stimulated proliferation in only one of the ERα-positive cell lines, 40% of compounds were toxic and inhibited growth of all the cell lines, and ~37% exhibited little or no ability to inhibit E₂-ERα-stimulated cell proliferation. Representative compounds were evaluated in more detail, and a lead ERα inhibitor was identified.

Keywords

cell-based assays gene expression reporter gene assays cancer and cancer drugs endocrine diseases transcription factors

Introduction

High-throughput screens based on luciferase reporter assays are widely used to evaluate the effects of compounds on a pathway or target of interest.¹ Reporter assays are often used as surrogate markers for a process such as cell proliferation that is more difficult to establish in 384- or 1536-well high-throughout screens. Although there have been several studies of off-target effects due to direct interaction of a compound with the luciferase protein,^2,3 much less is known about the ability of a simple luciferase reporter assay to predict small-molecule effects on a complex process, such as cell proliferation. Using inhibitors of estrogen receptor α (ERα) as a model, we evaluated how effectively a primary screen based on inhibition of a luciferase reporter predicted the ability of small molecules to selectively inhibit estrogen-ERα-dependent growth of human breast cancer cells.

The complex of estrogens, such as 17β-estradiol (E₂) and ERα, plays a critical role in the growth and metastases of breast cancer. The important role of estrogens in breast cancer is illustrated by the widespread therapeutic use of aromatase inhibitors that block estrogen production, as well as the selective estrogen receptor modulators tamoxifen and faslodex/fulvestrant/ICI 182,780 that work by competing with estrogens for binding to ERα.⁴ The progressive development of tumors resistant to tamoxifen and other ERα antagonists,⁵ as well as to aromatase inhibitors,⁶ underscores the continued importance of ERα as a therapeutic target.

It is widely accepted that the ability of E₂-ERα to regulate nuclear gene expression plays a key role in the ability of estrogens to stimulate proliferation of ERα-positive breast cancer cells.^7,8 The E₂-ERα complex regulates gene expression by direct binding to DNA sequences termed estrogen response elements (EREs) and closely related sequences and by tethering to DNA through other proteins bound at AP1 and SP1 sites.^9–12 The E₂-ERα complex can also act in the cytosol to rapidly activate several membrane-associated protein kinase–based signaling pathways. However, selective activation of the progrowth ERK1/2 signaling pathways by the E₂-ERα complex is not sufficient to stimulate E₂-dependent growth of breast cancer cells.¹³

Recent reports have described assays using growth as a biological end point.¹⁴ Although effective in 96-well plates, due to high sensitivity to small changes in the initial plating conditions, our assays for E₂-ERα-stimulated proliferation of breast cancer cells did not exhibit sufficient reproducibility and precision for use in 384-well high-throughput screens. We therefore developed a screen using endogenous ERα in T47D, human breast cancer cells, stably transfected to express a luciferase reporter containing three consensus EREs ((ERE)₃-luciferase).¹⁵ The readout is the ability of small molecules to inhibit the E₂-ERα induction of the (ERE)₃-luciferase reporter. Although E₂-ERα-regulated gene expression is essential for E₂-ERα-dependent cell proliferation, we found that there was an imperfect relationship between the inhibitory potency of compounds in the luciferase reporter assay and their potency as selective inhibitors of estrogen-dependent cell proliferation. This led us to characterize in some detail the properties of 75 verified hits from the reporter assay. Around 10% of the verified hits functioned as selective inhibitors of E₂-ERα-stimulated proliferation of breast cancers cells. We identified several causes for the failure of most of the hits to function as selective inhibitors. As a primary screen, HTS using luciferase reporter assays represents a viable, but imperfect, way to identify small-molecule inhibitors of E₂-ERα-induced cell proliferation.

Materials and Methods

Cell Culture

Human breast cancer cell lines were maintained in the following culture media: MCF-7: phenol red–free minimal essential medium (MEM), supplemented with 5% fetal bovine serum (FBS); T47D: MEM, supplemented with 10% FBS; T47D-KBluc: RPMI-1640, supplemented with 10% FBS¹⁶; and MDA-MB-231: phenol red–free MEM, supplemented with 10% FBS. Prior to experiments, ERα-positive cell lines were maintained for at least 3 days in phenol red–free charcoal-dextran (CD)–treated serum. T47D cells: 4 days in MEM containing 10% CD-FBS; MCF-7 cells: 4 days in MEM + 5% CD-FBS; and T47D-KBluc cells: 3 days in RPMI-1640 + 10% CD-FBS.

Automated High-Throughput Screening and Manual 384-Well Plate Luciferase Assays

High-throughput screening (HTS) luciferase-based assays were carried out by adding test compounds to plates using a Matrix PlateMate Plus instrument (Thermo Scientific, Waltham, MA), equipped with a 384-well pin-transfer apparatus. To reach the desired final concentration for screening with limited volume options available using the pin-transfer apparatus, 0.1 µL of each 10-mM compound stock in DMSO was transferred into 70 µL serum-free RPMI-1640. Then, 60 µL medium containing each test compound was then withdrawn from the plates using a 384-well tip cartridge, leaving 10 µL of each compound at 14.28 µM. Cells were harvested at a density of 1-million cells/mL in RPMI-1640, supplemented with 10% CD-FBS. A 1:500 dilution of 17β-estradiol (E₂) in ethanol (EtOH) and a vehicle-ethanol control were added to the (+)E₂ and (−)E₂ cell stocks, respectively. Cells were plated at a density of 10 000 cells/well by pipetting 10 µL of cells into each well using a Matrix Wellmate dispenser. The final concentration of test compounds was 7.14 µM. The screening medium contained 0.1% (v/v) EtOH, 0.07% (v/v) DMSO, and 10 nM E₂. Plates were centrifuged for 2 min at 500 rpm and incubated for 24 h (37 °C/5% CO₂).

“Hits” from the primary HTS were reconfirmed by diluting 10-mM compound stocks in DMSO to 20 µM in serum-free RPMI-1640. Cells were harvested at a density of 1 million cells/mL in RPMI-1640, supplemented with 10% CD-FBS. A 1:500 dilution of 17β-estradiol (E₂) in EtOH and a vehicle-ethanol control were added to the (+)E₂ and (−)E₂ cell stocks, respectively. Cells were plated at a density of 10 000 cells/well by pipetting 10 µL of cells into each well. The final concentration of test compounds was 10 µM, and the medium contained 0.1% (v/v) EtOH, 0.1% (v/v) DMSO, and 10 nM E₂. Plates were centrifuged for 2 min at 500 rpm and incubated for 24 h (37 °C/5% CO₂).

All plates were frozen at −20 °C overnight following the 24-h incubation and thawed to room temperature to promote cell lysis. Then, 10 µL Bright-Glo reagent (Promega, Madison, WI) was added to each well and allowed to incubate for 15 min on the bench before measuring luminescence.

96-Well Luciferase Assays

Five to 6 days before the experiment, T47D-KBluc cells were subcultured and plated at a high density (about 30%–40% confluence) in RPMI-1640 + 10% FBS. Two days later, the medium was changed to RPMI-1640 +10% CD-FBS. After 3 or 4 days with a medium change on day 2, the cells were harvested and counted, and 50 000 cells in 100 µL medium were added to each well of a 96-well white-wall clear-bottom plate (BD Biosciences, Franklin Lakes, NJ) in RPMI-1640 + 10% CD–calf serum (CS). The medium was replaced the next day with medium containing the test compounds with or without hormone. After 24 h, the medium was aspirated off, and 30 µL Bright-Glo reagent (Promega) was added. To help lyse the cells, the plate was placed on a shaker for 5 min. To remove any bubbles in the wells, the plate was subjected to centrifugation at 2500 rpm for 2 min.

MTS Growth Assays

Cells were harvested and plated in 96-well plates at a density of 1000 cells/well. MCF-7 cells were plated into MEM, supplemented with 10% CD-CS; T47D cells were plated into MEM, supplemented with 10% CD-FBS; and MDA-MB-231 cells were plated into MEM, supplemented with 10% FBS. The medium was replaced with treatment medium the following day, and plates were incubated at 37 °C in 5% CO₂ for 3 days. Then, 20 µL CellTiter 96 Aqueous One Solution Reagent (Promega) was added to each well, and the cells were incubated at 37 °C in 5% CO₂ for 1 h. A₄₉₀ was then measured to assess cell viability. For each cell line, cell number was calculated from a standard curve of the number of cells plated versus A₄₉₀.¹⁶

Western Blotting

Cells were trypsinized, resuspended in MEM supplemented with 10% CD-CS, and plated into 6-well plates at a density of 300 000 cells/well. The medium was replaced with treatment medium the following day, and the cells were treated for 24 h. The cells were washed in ice-cold phosphate-buffered saline (PBS), and whole-cell extracts were prepared in lysis buffer containing 1× radioimmunoprecipitation assay buffer, 1 mM EGTA, 30 mM NaF, 2.5 mM sodium pyrophosphate, 1 mM sodium orhovanadate, 1 mM β-glycerol phosphate, 1 mM phenylmetholsulfonyl fluoride, and 1 tablet of protease inhibitor cocktail (Roche, Indianapolis, IN). Cells were collected, and debris was pelleted by centrifugation at 15 000 g for 10 min at 4 °C. The supernatants were collected and stored at −20 °C. Then, 20 µg total protein was loaded onto 10% (v/v) sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) gels, separated, and transferred to nitrocellulose. Membranes were incubated with monoclonal ERα [6F11] antibody (Biocare Medical, Concord, CA) or control monoclonal α-tubulin antibody (Sigma, St. Louis, MO). Bound antibodies were detected using horseradish peroxidase–conjugated secondary antibodies and chemiluminescent immunodetection with an ECL Detection Kit (GE Healthcare, Piscataway, NJ) and were visualized using a PhosphorImager (GE Healthcare, Piscataway, NJ).

qRT-PCR

pS2 mRNA levels were analyzed by quantitative real-time reverse transcriptase–polymerase chain reaction (qRT-PCR). RNAs were extracted with TRIzol reagent and purified with the RNAeasy mini-kit (QIAGEN, Valencia, CA), and 0.5 µg RNA was reverse transcribed using a DyNAmo cDNA synthesis kit (Finnzymes, Espoo, Finland). Then, 10 ng cDNA product was added to a primer mix, such that the forward and reverse primer final concentration was 50 nM. Primers used in qRT-PCR were as follows: pS2, forward (5′-ACCGGACACCTCAGACACG) and reverse (5′-CTGTGT TGTGAGCCGAGGC); 36B4, forward (5′-GTGTTCG ACAATGGCAGCAT) and reverse (5′-GACACCCTCCA GGAAGCGA). The fold change in expression of each gene was calculated using the ΔΔC_t method with 36B4 as the internal control.

Transient Transfection and Dual-Luciferase Assay

T47D cells were seeded at a density of 4.5 × 10⁴ cells in 24-well plates. Cells were transfected with 0.4 µg (ERE)₄-luciferase plasmid and 2.5 ng SV40–Renilla luciferase plasmid, using Lipofectamine 2000 reagent (Invitrogen, Carlsbad, CA). Transfection solutions were replaced after 24 h, and cells were treated with and without 1 nM E₂ or with the appropriate small molecule in the presence of 1 nM E₂. Cells were treated for 24 h prior to cell lysis and measurement of firefly and Renilla luciferase luminescence using the Stop-Glo Reagent system (Promega).

Data Analysis

Primary HTS data are representative of single assays. Percent inhibition of the E₂-induced (ERE)₃-luciferase or dihydrotestosterone (DHT)–induced ARE-luciferase was calculated as follows:

Inhibition (%) = (1 - \frac{x - {\bar{X}}_{P}}{{\bar{X}}_{N} - {\bar{X}}_{P}}) \times 100,

where x is the luciferase signal following small-molecule treatment, ${\bar{X}}_{P}$ is the mean signal of the positive control (hormone deprived), and ${\bar{X}}_{N}$ is the average signal of the plate. Strictly standardized mean difference (SSMD) scores for small molecules were calculated using the method-of-moment (MM) method, as previously described.¹⁷ Small molecules inhibiting the (ERE)₃-luciferase reporter by more than 50% were designated as “hits” in the primary screen. All small molecules reaching this cutoff produced statistically significant reductions in (ERE)₃-luciferase at the 95% confidence level (SSMD <−2). Z′ factor for primary HTS plates was calculated, as previously described.¹⁸

Seventy-five small-molecule “hits” were randomly selected for further evaluation. Compounds were reconfirmed as hits in three independent experiments in quadruplicate. Small molecules were screened for their ability to inhibit E₂-ERα-induced cell proliferation in ERα-positive MCF-7 cells and T47D breast cancer cells in three independent assays in triplicate. Equation (1) was used to calculate percent inhibition of E₂-ERα-stimulated cell proliferation (where ${\bar{X}}_{N}$ equals the mean signal of E₂-induced cells), and a 50% cutoff was used to classify compounds as inhibitors of E₂-ERα-stimulated cell proliferation. Small molecules were screened for off-target effects using ERα-negative MDA-MB-231 breast cancer cells in three independent experiments in triplicate. Percent inhibition of cell proliferation was calculated from the ratio of small-molecule treated to untreated samples. Compounds were classified as “toxic” if they inhibited growth of the control ERα-negative MDA-MB-231 cells by more than 30% or if the cell growth inhibition was less than twofold greater in the ERα-positive cell lines compared with the MDA-MB-231 cells. (E₂-dependent growth is limited to 100% for this calculation. Thus, all compounds inhibiting MDA-MB-231 cell growth by more than 50% were classified as “toxic.”)

Results

A Cell-Based Screen for Inhibitors of E₂-ERα Induction of an (ERE)₃-Luciferase Reporter Gene

Regulation of nuclear gene expression is central to the ability of estrogens bound to ERα to induce proliferation of breast cancer cells. The widely used breast cancer therapeutic tamoxifen acts by competing with estrogens for binding to ERα and interfering with recruitment of coactivators critical for ERα-mediated gene expression. To identify novel small molecules that directly or indirectly inhibit E₂-ERα-mediated gene expression, a cell-based primary screen was developed using ERα-positive T47D human breast cancer cells stably transfected to express a luciferase reporter whose expression is driven by three copies of the consensus estrogen response element (ERE)₃-luciferase.¹⁵ Dose-response studies show that E₂ robustly and reproducibly induces expression of the luciferase reporter (Fig. 1A). Some cell-based luciferase reporter screens have not been robust screens, as indicated by a low Z′ factor.¹⁹ In HTS, our assay was robust with a mean Z′ factor of 0.55 (Fig. 1B).

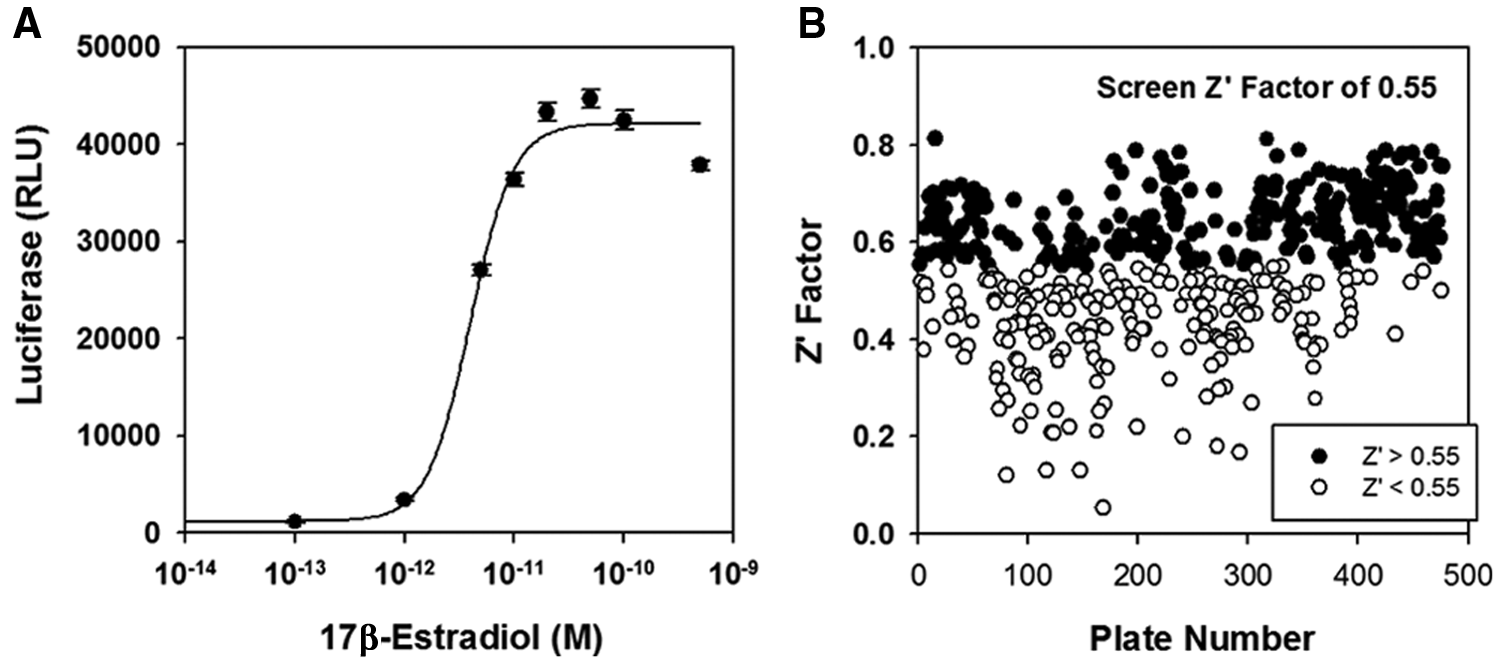

Figure 1.

The estrogen response element (ERE)₃–luciferase-based assay. (A) Dose-response study of 17β-estradiol (E₂)–estrogen receptor α (ERα) induction of (ERE)₃-luciferase. The data represent the average ± SEM of quadruplicate assays carried out in 96-well plates. (B) Assessment of screen robustness using Z′ factor. RLU, relative light unit.

In some screens, a constitutively active luciferase reporter can provide a useful indicator of the specificity and toxicity of potential small-molecule inhibitors. However, small-molecule inhibitors of E₂-ERα-induced gene expression should also inhibit the proliferation of ERα-positive human breast cancer cells and might thereby decrease the activity of a constitutively active Renilla luciferase internal standard. To test this, we compared the effect of several well-established, specific, and nontoxic inhibitors of ERα with a mildly toxic compound identified in our follow-on assays. The well-known therapeutics tamoxifen, raloxifene, and faslodex and the toxic compound all produced similar substantial declines in expression of the constitutively active luciferase reporter gene (Suppl. Fig. S1).

Since the constitutively active luciferase could not distinguish toxic compounds from bona-fide ER inhibitors, we used tiered assays to filter out toxic compounds.

Small-molecule hits were first screened for inhibition of DHT–androgen receptor (AR) induction of a prostate-specific antigen-luciferase (ARE-luciferase) reporter in stably transfected HeLa cells.¹⁶ This provided a way to initially flag compounds as toxic, which was later reconfirmed in subsequent toxicity assays. A second reporter also functioned as a crude method for assessing the nuclear receptor specificity of small molecules, given that ERα and AR share a high degree of structure homology and conservation in upstream signaling pathways. It also provides a way to detect inhibitors of luciferase enzyme activity. Alternatively, inhibitors of luciferase enzyme activity could have been detected by growing the T47D-kBLuc cells in the presence of estrogen alone, lysing the cells, and then adding the small molecule being tested and the luciferase reagent.

Compounds were considered hits in the primary screen if, at a concentration of 7.1 µM, they reduced luciferase units by at least 50%. All compounds reaching the 50% cutoff had reached statistical significance, as defined by ±3 SD from the negative reference. To evaluate the effective size of inhibition, we used strictly standardized mean difference as a secondary metric in lead selection.

Evaluation of 75 Verified Inhibitors of E₂-ERα Induction of the (ERE)₃-Luciferase Reporter Gene

To evaluate the effectiveness of our luciferase-based assays in identifying useful lead inhibitors that selectively inhibit E₂-ERα-induced proliferation of ERα-positive human breast cancer cells, we characterized a randomly selected set of 75 hits from a subset of approximately 16 000 compounds. Data from the primary HTS screen for each compound screened at 7.1 µM are shown for inhibition of (ERE)₃-luciferase and ARE-luciferase in Figure 2 and in terms of SSMD in Supplemental Figure S2. Compounds were further characterized in terms of their effects on cell growth ( Fig. 3A , B ) after reconfirming the compounds as inhibitors of (ERE)₃-luciferase activity at 10 µM ( Fig. 3C , T47D-KBluc; Suppl. Table S1). Each of the 75 compounds was evaluated at 10 µM for its ability to inhibit E₂-dependent proliferation of ERα-positive MCF-7 and T47D, human breast cancer cells, and for nonspecific toxicity as evidenced by inhibition of the proliferation of control ERα-negative MDA-MB-231 cells ( Fig. 3C ; Suppl. Table S1). This is a rigorous control as small molecules readily inhibit proliferation of MDA-MB-231 cells.¹⁶ Based on their effects on E₂-ERα-dependent and E₂-ERα-independent cell proliferation, the compounds clustered into four distinct categories: (1) “lead” compounds that inhibited proliferation of both ERα-positive cell lines, with minimal effects on proliferation of the ERα-negative MDA-MB-231 cells ( Fig. 3C , 1–8); (2) “cell-selective” compounds that inhibited proliferation of only one of the two ERα-positive cell lines, with minimal effects on proliferation of the ERα-negative MDA-MB-231 cells ( Fig. 3C , 9–17); (3) “no-growth inhibition” compounds that exhibited little or no ability to inhibit E₂-ERα-stimulated proliferation ( Fig. 3C , 18–38); and (4) “toxic” compounds that inhibited proliferation of the ERα-negative MDA-MB-231 cells ( Fig. 3C , 39–75). The toxic compounds could be further subdivided into “toxic to all” compounds that were toxic in all three cell lines ( Fig. 3C , 39–68) and “toxic to 231” compounds that were primarily toxic in the MDA-MB-231 cells ( Fig. 3C , 69–75).

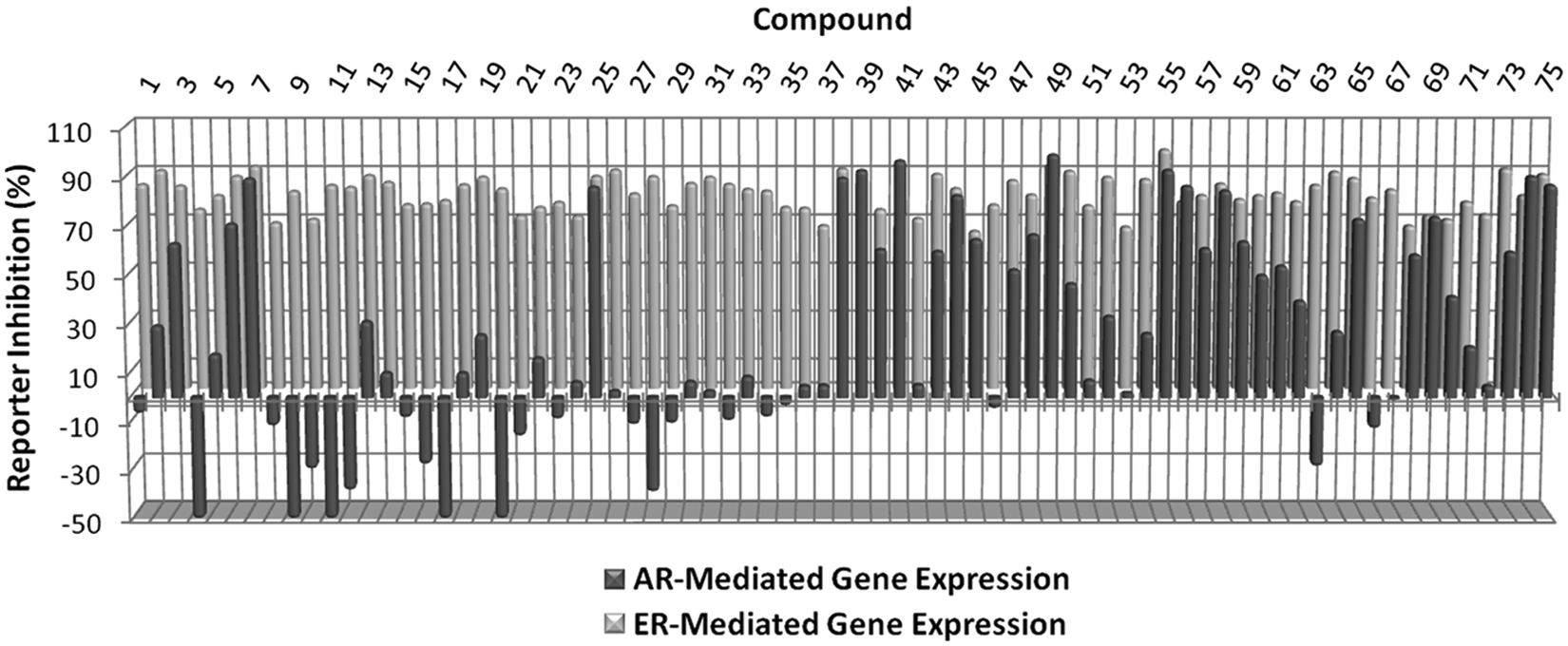

Figure 2.

Primary screening data for the 75 representative compounds selected for further characterization. For each compound, percent inhibition of dihydrotestosterone (DHT)–androgen receptor (AR)–stimulated ARE-luciferase activity (black bars) and 17β-estradiol (E₂)–estrogen receptor α (ERα)–stimulated estrogen response element (ERE)₃–luciferase activity (gray bars) is shown. The strictly standardized mean difference (SSMD) score for each small molecule is shown in Supplemental Figure S2.

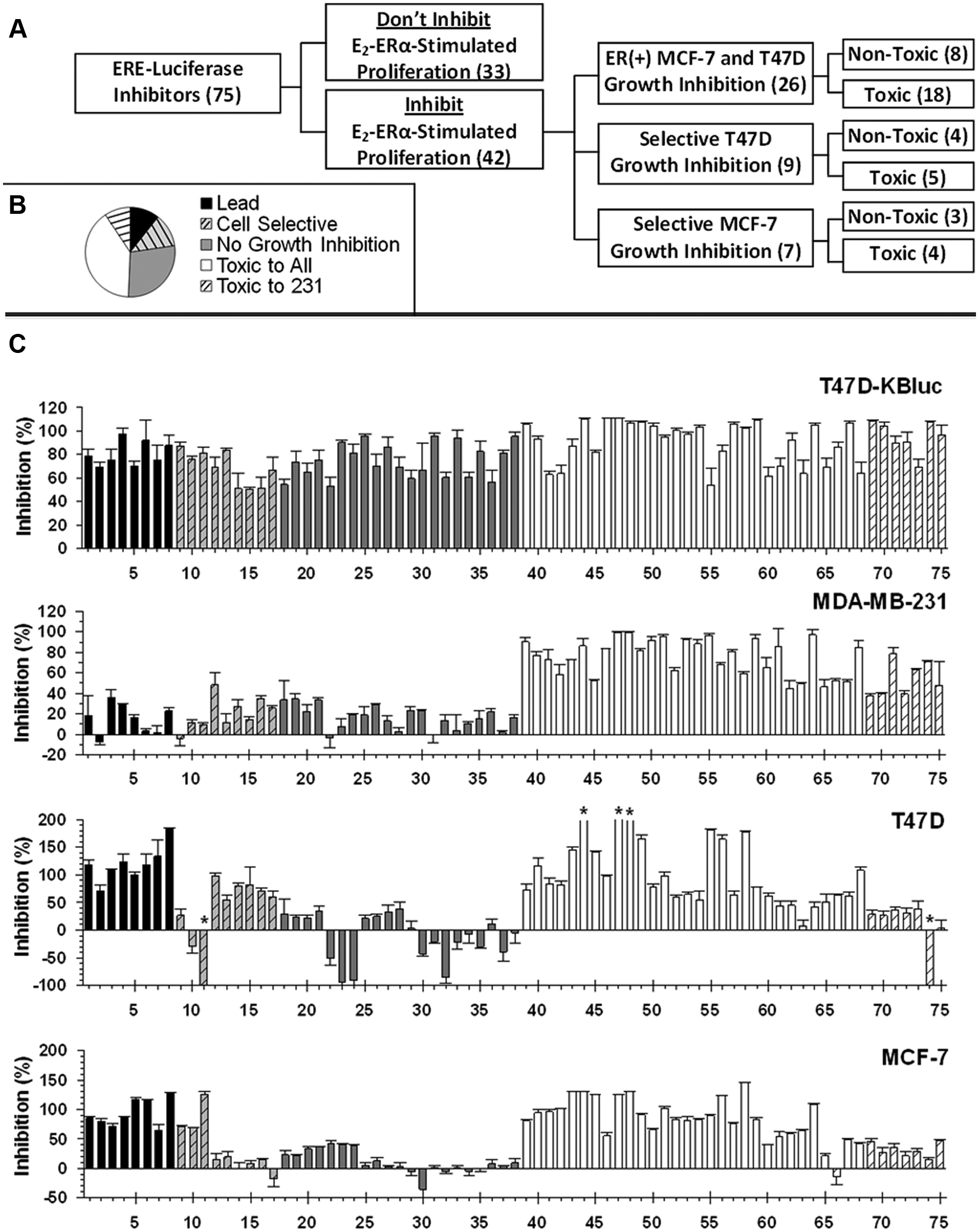

Figure 3.

Summary of assays used to evaluate inhibitors of estrogen receptor α (ERα)–mediated gene expression as a surrogate marker for inhibitors of 17β-estradiol (E₂)–dependent growth. (A) Flowchart showing the breakdown by category of compounds screened for reporter activity and growth inhibition. (B) Summary of the classes of compounds identified. (C) Compounds were further assessed (from top to bottom) for their ability to inhibit estrogen response element (ERE)₃–luciferase activity (T47D-KBluc), growth of ERα-negative MDA-MB-231 breast cancer cells (MDA-MB-231), E₂-ERα-dependent proliferation of ERα-positive T47D, and MCF-7 breast cancer cells. Mean inhibition represents the average of three independent experiments ± SEM. Numerical data are shown in Supplemental Table S1.

Detailed Characterization of Selected Compounds

We examined the properties of four structurally unrelated representative compounds in more detail ( Fig. 4A ). For the four compounds that were selected, we performed dose-response studies of inhibition of E₂-ERα-mediated expression of the (ERE)₃-luciferase reporter ( Fig. 4B ) and of E₂-ERα-stimulated proliferation ( Fig. 5 ).

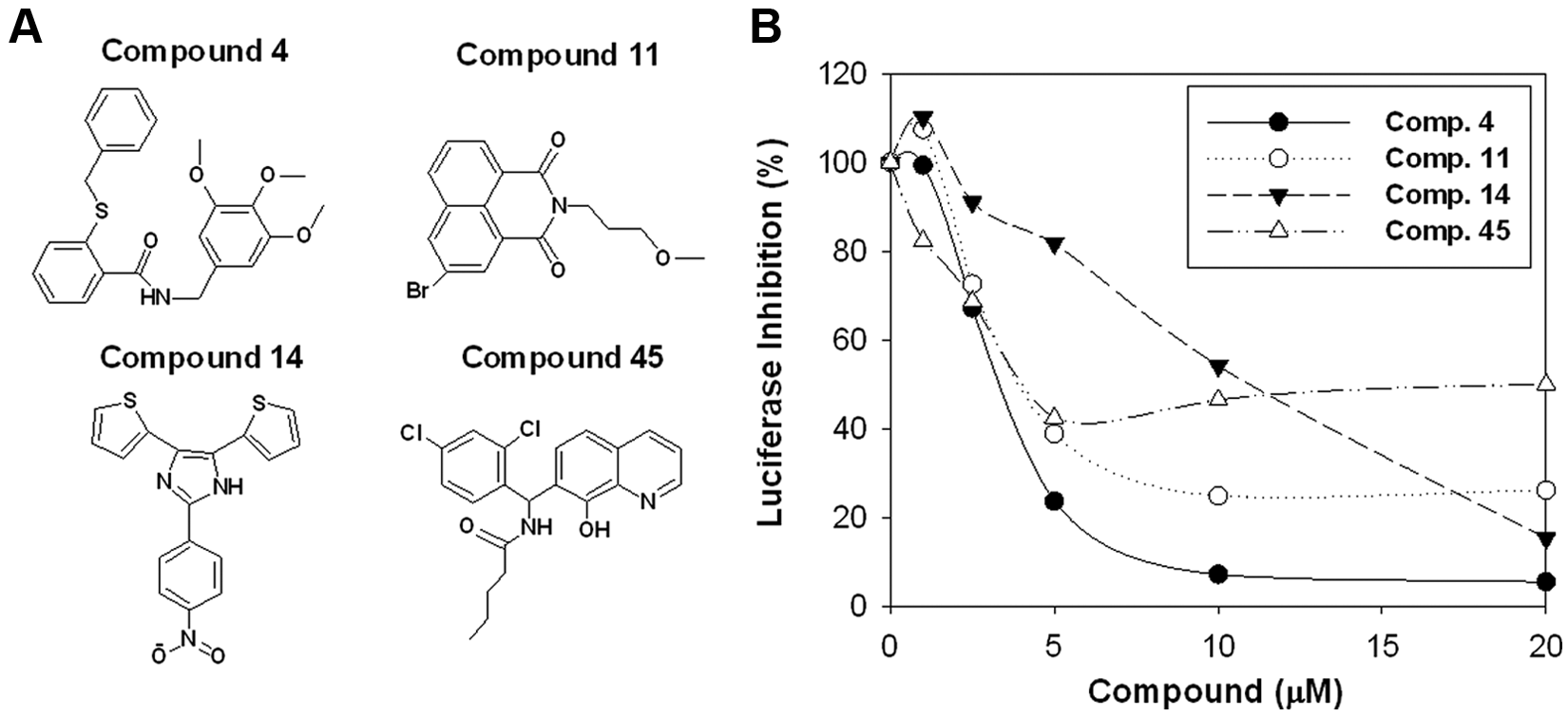

Figure 4.

Characterization of representative inhibitors. (A) Structures of small molecules selected to represent each class of compounds for further evaluation. (B) Dose-response curves for inhibition of estrogen response element (ERE)₃–luciferase by selected compounds. T47D-KBluc cells were maintained for 3 days in 10% charcoal-dextran (CD)–fetal bovine serum (FBS) and then incubated for 24 h in the presence of 10 nM 17β-estradiol (E₂) and the indicated concentrations of the test compounds. Cells were harvested and assayed for luciferase activity. Mean percent inhibition represents the average of three independent experiments ± SEM.

Figure 5.

Dose-response studies of the effects of the inhibitors on cell proliferation. Dose-response studies were used to evaluate the effect on the 17β-estradiol (E₂)–estrogen receptor α (ERα)–dependent proliferation of MCF-7 and T47D cells and on the growth of ERα-negative MDA-MB-231 for (A) compound 4, (B) compound 45, (C) compound 14, and (D) compound 11. Cells received the indicated concentrations of each inhibitor in DMSO. After 3.5 days, cell number was quantified by MTS. ERα-positive cell lines were also treated with 1 µM ICI 182,780, a known ER antagonist. Mean percent growth inhibition represents the average of three independent experiments ± SEM.

At all concentrations tested, compound 45 strongly inhibited proliferation of both the ERα-positive MCF-7 and T47D cells and the ERα-negative MDA-MB-231 cells ( Fig. 5B ). Its overall toxicity is responsible for the ability of compound 45 to inhibit expression of the (ERE)₃-luciferase reporter ( Fig. 4B ). The shorter time cells were exposed to compounds in the reporter assay, 1 day as opposed to 3 days, likely accounts for the more limited inhibition seen in the reporter assay. Since compound 45 was toxic to all the cells across a broad range of concentrations ( Fig. 5B ), it was not analyzed further. Compound 4 was identified as a potential selective inhibitor of ERα action ( Fig. 3 ). Compound 4 elicited a dose-dependent inhibition of E₂-ERα-induced (ERE)₃-luciferase with an IC₅₀ of ~4.0 µM ( Fig. 4B ). From 2.5 to 10 µM, compound 4 selectively inhibited proliferation of the ERα-positive cells compared with the ERα-negative MDA-MB-231 cells ( Fig. 5A ). The IC₅₀s for inhibition of the proliferation of the ERα-positive cells were 3.7 and 1.7 µM for the MCF-7 and T47D cells, respectively, and 12.8 µM for the ERα-negative MDA-MB-231 cells ( Fig. 5A ). We also evaluated two small molecules that selectively inhibited one of the two ERα-positive cell lines. Compound 14 was a moderately effective inhibitor of (ERE)₃-luciferase with an IC₅₀ of ~11.1 µM ( Fig. 4B ). Although compound 14 had little effect on cell proliferation at 1 to 5 µM, at concentrations above 10 µM, it robustly inhibited proliferation of the T47D cells with little effect on the MCF-7 cells ( Fig. 5C ). Compound 11 inhibited (ERE)₃-luciferase with an IC₅₀ of ~3.4 µM ( Fig. 4B ). Compound 11 stimulated growth of the T47D cells but strongly inhibited growth of the MCF-7 cells and exhibited moderate dose-independent inhibition of the MDA-MB-231 cells ( Fig. 5D ). Thus, this unusual small molecule has opposite effects on the proliferation of the two ERα-positive cell lines.

Effect of Selected Compounds on the Level of ERα and on Estrogen Induction of pS2 mRNA

Several ERα inhibitors act in part by decreasing the level of ERα.^16,20 We therefore examined whether the lead inhibitor, compound 4, and the two cell-type selective inhibitors, compounds 11 and 14, influence levels of ERα in T47D and MCF-7 cells. ICI 182,780/fulvestrant/faslodex and TPSF are competitive and noncompetitive ERα inhibitors known to function in part by reducing ERα levels.^16,20,21 As expected, ICI 182,780 and TPSF dramatically reduced ERα levels in the MCF-7 and T47D cells ( Fig. 6A , B ). The lead ERα inhibitor, compound 4, strongly reduced ERα levels in both cell lines. In contrast, the two cell line selective inhibitors either had no effect (compound 14) or elicited a small decline in ERα levels (compound 11) ( Fig. 6A , B ).

Figure 6.

Effect of the three inhibitors on estrogen receptor α (ERα) levels and on the induction of pS2 mRNA. The effects of the three compounds on the level of ERα were evaluated in Western blots of extracts from (A) T47D cells and (B) MCF-7 cells. ICI 182,780 (ICI) and TPSF, known downregulators of ERα, were used as controls. Cells were treated for 24 h with or without 10 nM 17β-estradiol (E₂) or a combination of 10 nM E₂ and 1 µM ICI, 10 µM TPSF, 5 µM compound 4, 10 µM compound 11, or 10 µM compound 14. (C) Compounds were tested for their ability to inhibit E₂-ERα induction of pS2 mRNA. pS2 mRNA levels were quantified by quantitative RT-PCR, following 24-h treatment of T47D-KBluc cells with and without 10 nM E₂ or a combination of 10 nM E₂ and each compound at the concentrations listed above. Average fold-change represents the average of three independent experiments ± SEM.

We carried out our initial assays for inhibition of E₂-ERα-mediated gene expression using a stably transfected (ERE)₃-luciferase reporter. Although this stably transfected reporter gene will exhibit a more nearly native chromatin structure than a transiently transfected reporter gene, it is still likely different from the chromatin structure of a true endogenous gene. We therefore examined the ability of the three small molecules to inhibit E₂-ERα induction of the widely studied endogenous pS2 gene in the same cell line in which we performed the (ERE)₃-luciferase assays.^22,23 We used quantitative RT-PCR to measure pS2 mRNA levels (Fig. 6C). E₂ induced pS2 mRNA 5.8-fold. The induction of pS2 mRNA was largely blocked by the control ERα inhibitors ICI 182,780 and TPSF and by the lead inhibitor reported here, compound 4. There was good agreement between the ability of 5 µM compound 4 to inhibit E₂-ERα induction of the (ERE)₃-luciferase reporter gene and the endogenous pS2 mRNA (~76% inhibition of (ERE)₃-luciferase [ Fig. 4B ] and ~67% inhibition of pS2 mRNA [ Fig. 6C ]). In contrast, the weak inhibitor of (ERE)₃-luciferase, compound 14, did not inhibit E₂ induction of pS2 mRNA, and 10 µM compound 11 inhibited induction of pS2 mRNA by ~35%. Although the lead compound, which inhibited proliferation in both ERα-positive cell lines, robustly inhibited E₂ induction of the endogenous pS2 mRNA, the two cell selective inhibitors were ineffective and are unlikely to act by directly targeting ERα action.

Discussion

In evaluating a single reporter luciferase-based assay as a surrogate assay for estrogen-induced proliferation of cancer cells, two potential sources of off-target effects stand out: small molecules that inhibit because they exhibit direct interaction with luciferase and small molecules that are broadly toxic. Both types of small molecule can reduce luciferase activity and be scored as hits in the primary screen.^2,3

Approximately 37% (28 of 75, Fig. 3 ) of the hits identified in the luciferase assay did not reach the cutoff for inhibition of E₂-ERα-stimulated proliferation in both MCF-7 and T47D human breast cancer cells. This included the 21 compounds in the “no-growth inhibition” category ( Fig. 3 , 18–37) and the 7 compounds in the “toxic” category that only inhibited cell growth in MDA-MB-231 cells ( Fig. 3 , 69–75). Nearly all of the latter compounds (6 of 7) inhibited cell growth modestly (>25%) in both ERα-positive breast cancer cell lines. The more pronounced effects on cell growth in the ERα-negative MDA-MB-231 cells can be attributed to the higher sensitivity of this cell line to damage.¹⁶ The no-growth inhibitors could be further subclassified as (1) compounds that modestly inhibited cell proliferation but did not reach the 50% cutoff ( Fig. 3 , 18–28) or (2) compounds that exhibited little or no ability to inhibit E₂-ERα-stimulated proliferation of the breast cancer cells ( Fig. 3 , 29–38). Partial growth inhibition may reflect different dose-response curves for inhibition of gene expression and cell proliferation. Consistent with this idea, the concentration of the noncompetitive ERα inhibitor TPSF required to inhibit cell proliferation is ~3-fold higher than is required to inhibit the luciferase reporter.¹⁶ Compounds that showed no ability to inhibit E₂-ERα-stimulated proliferation of the breast cancer cells might be acting as direct inhibitors of luciferase enzyme activity. However, 8 of 9 compounds that failed to significantly inhibit growth ( Fig. 3 , 29–38) also failed to significantly inhibit the ARE-luciferase reporter ( Fig. 2 , 29–38). This suggests that these compounds are not functioning as luciferase inhibitors.

Approximately 49% (37 of 75, Fig. 3 ) of the compounds were toxic, as a result of their ability to inhibit cell growth in ERα-negative MDA-MB-231 cells. Approximately 81% of the toxic compounds displayed global toxicity ( Fig. 3 , 39–68), whereas 19% selectively inhibited growth of the MDA-MB-231 cells ( Fig. 3 , 69–75). The large number of toxic compounds is likely due to the high sensitivity of MDA-MB-231 cells to damage,¹⁶ the rigorous 4-day treatment interval used to assess for growth effects, and the more stringent growth inhibition cutoffs used to classify compounds as toxic (30% cutoff vs. 50% cutoff for ERα-positive cell lines). Our data suggest that use of an alternative reporter system in parallel with the primary screen has predictive value in flagging potentially toxic compounds. Approximately 70% of the compounds considered toxic inhibited the ARE-luciferase reporter by >30% ( Fig. 2 , 39–75). These compounds all displayed SSMD scores <–2 (Suppl. Fig. S2, 39–75), demonstrating that these reductions in ARE-luciferase were statistically significant at the 95% confidence level. Conversely, only 11% of “nontoxic” compounds inhibited the DHT-AR-induced ARE-luciferase reporter by >30% ( Fig. 2 , 1–38). Yet, 3 of these nontoxic compounds represent “lead” compounds ( Fig. 2 , 3, 6, and 7). This suggests that data from a secondary reporter system should aid in evaluating toxicity and should be used in concert with additional toxicity assays, rather than serve as a rigid cutoff for evaluating candidate leads. The identification of leads that inhibit both reporters may reflect modulation of receptor activity via direct interactions with small molecules at structurally homologous sites or through indirect interaction via targeting-conserved upstream signaling pathways. Importantly, the ARE-reporter provides a preliminary measure of nuclear receptor specificity for small-molecule “leads” and provides a starting point for tailoring subsequent assays toward subsets of “leads.”

Perhaps most surprising was our finding that some small-molecule hits from the (ERE)₃-luciferase reporter assay inhibited proliferation in either T47D cells or MCF-7 cells but not in both cell lines. MCF-7 and T47D cells are the most widely used lines of ERα-positive breast cancer cells. These cell lines were independently derived from different tumors. Since the hits were identified using a primary screen for inhibitors of (ERE)₃-luciferase expression in stably transfected T47D cells, and T47D cells contain less ERα than MCF-7 cells,²⁴ we anticipated we might identify small molecules that were more effective in T47D cells than in MCF-7 cells. Instead, we identified some small molecules that were toxic in MDA-MB-231 cells but only damaged one of the two cell lines and a few small molecules that preferentially inhibited proliferation of each of the cell lines without damaging MDA-MB-231 cells. Compound 14 exhibited a dose-dependent inhibition of the proliferation of T47D cells with little effect on proliferation of MCF-7 cells. At 10 µM, compound 14 inhibited proliferation of the T47D cells by ~81% with no effect on proliferation of the MCF-7 cells or MDA-MB-231 cells ( Fig. 5C ). In contrast, compound 11 killed all the MCF-7 cells and actually stimulated estrogen-dependent growth of the T47D cells from 2.5 to 20 µM ( Fig. 5D ). The surprising properties of compound 11 demonstrate that effects on cell proliferation can be entirely dissociated from effects on reporter gene expression. It is unlikely that compounds 11 and 14 directly target ERα action as they had little or no ability to inhibit estrogen induction of pS2 mRNA in the same T47D line used for the luciferase assays ( Fig. 6C ). These data illustrate the importance of early evaluation of primary hits using more than one cell line. Since T47D cells proliferate more rapidly in full serum compared with stripped serum supplemented with estrogen, small molecules such as compound 11 can also exhibit off-target effects on pathways that lead to increased cell proliferation. The higher frequency of small molecules that activate growth in T47D cells may reflect the fact that MCF-7 proliferation rates in the presence of estrogen are near maximum and are higher than those of T47D cells, making MCF-7 cells much less susceptible to off-target effects that increase rates of cell proliferation.

About 10% of the primary hits from the luciferase screen represented leads that inhibited estrogen-dependent proliferation of both the MCF-7 and T47D cells with minimal effects on proliferation of the ERα-negative MDA-MB-231 cells ( Fig. 3 , 1–8). From 1 to 5 µM, compound 4 elicited progressive inhibition of the proliferation of MCF-7 and T47D cells with little effect on proliferation of MDA-MB-231 cells ( Fig. 5A ). Since compound 4 showed some toxicity in MDA-MB-231 cells at 10 µM, we used 5 µM to test its effect on estrogen induction of pS2 mRNA. Consistent with its effect on the (ERE)₃-luciferase reporter and on E₂-ERα-stimulated cell proliferation, compound 4 effectively inhibited induction of pS2 mRNA and is a lead compound for further development.

The application of cell-based assays in HTS remains inherently challenging. The large number of biological targets and high degree of crosstalk between integrated signaling pathways predispose cell-based assays to higher “hit” frequencies, lower confirmation rates, and higher numbers of toxic compounds in follow-up assays.^25,26 Approximately 10% of the verified hits from the luciferase-based screen ultimately met our end point for selective inhibition of estrogen-dependent proliferation of ERα-positive cell lines. Although this might seem to argue for a cell proliferation–based screen, a primary screen based on inhibition of cell proliferation would have exposed many of the same issues. Since single-cell proliferation assays do not usually distinguish between toxic compounds and those targeting the pathway of interest, many of the hits from a proliferation-based screen would have emerged as toxic when tested in a control cell line. Our finding that some compounds exhibit cell line–specific inhibition of estrogen-dependent proliferation means that compounds identified in a single cell line may still fail in other cell lines because they do not target ERα. In our hands, assays for estrogen-dependent cell proliferation assays in 384-well plates exhibited less precision and reproducibility than luciferase-based assays and require several days compared to one day for luciferase assays. Although luciferase-based assays offer the advantage of improved efficiency in HTS, assay interference remains an important obstacle to generating high-quality leads. Although the role of assay interference in our screen is largely unknown, the coupling of multiple cell proliferation assays to the primary screen provided an effective filter for rapidly eliminating compounds that lack target specificity. Alternatively, this empirically driven approach of asking cells to tell us what small molecules are capable of inhibiting E₂-ERα-stimulated proliferation provides a way to select for bioactive compounds, independent of their ability to elicit assay interference in the primary screen. Recent studies have shown that several important small molecules function as dual inhibitors of adenosine triphosphate (ATP)–dependent kinases and luciferases, including resveratrol and the MEK1/2 inhibitor, PD090859.^27–29 Since the role of E₂-ERα in gene expression is essential to stimulating breast cancer cell proliferation, and a number of pathways can modulate ERα transcriptional activity through posttranslational modifications,³⁰ our screen would not preclude identification of such bioactive compounds. Small molecules generally target several sites in cells and, through signal integration and unintended crosstalk, can elicit toxicity that is readily observed in downstream readouts such as E₂-ERα-mediated gene expression. Carrying out multiple cell proliferation assays, using cells with and without the target, provides a very effective toxicity filter. This is reflected by the large numbers of toxic compounds we identified. With appropriate follow-on verification assays carried out in multiple cell lines, a luciferase-based primary screen represents a useful surrogate assay for a more complex process, such as hormone-stimulated cell proliferation.

Footnotes

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by National Institutes of Health, grant RO1 DK-071909.

References

Fan

Wood

K. V.

Bioluminescent Assays for High-Throughput Screening. Assay Drug Dev. Technol. 2007, 5, 127–136.

Auld

D. S.

Thorne

Maguire

W. F.

Inglese

Mechanism of PTC124 Activity in Cell-Based Luciferase Assays of Nonsense Codon Suppression. Proc. Natl. Acad. Sci. U. S. A. 2009, 106, 3585–3590.

Inglese

Johnson

R. L.

Simeonov

Xia

Zheng

Austin

C. P.

Auld

D. S.

High-Throughput Screening Assays for the Identification of Chemical Probes. Nat. Chem. Biol. 2007, 3, 466–479.

Lewis

J. S.

Cheng

Jordan

V. C.

Targeting Oestrogen to Kill the Cancer but Not the Patient. Br. J. Cancer 2004, 90, 944–949.

Jordan

V. C.

Chemoprevention with Antiestrogens: The Beginning of the End for Breast Cancer. Daniel G. Miller Lecture. Ann. N. Y. Acad. Sci. 2001, 952, 60–72.

Anderson

Bulun

Smith

Dowsett

Predictors of Response to Aromatase Inhibitors. J. Steroid Biochem. Mol. Biol. 2007, 106, 49–54.

Cummings

S. R.

Duong

Kenyon

Cauley

J. A.

Whitehead

Krueger

K. A.

Serum Estradiol Level and Risk of Breast Cancer during Treatment with Raloxifene. JAMA 2002, 287, 216–220.

Shang

DiRenzo

Lazar

M. A.

Brown

Cofactor Dynamics and Sufficiency in Estrogen Receptor–Regulated Transcription. Cell 2000, 103, 843–852.

Carroll

J. S.

Liu

X. S.

Brodsky

A. S.

Meyer

C. A.

Szary

A. J.

Eeckhoute

Shao

Hestermann

E. V.

Geistlinger

T. R.

. Chromosome-Wide Mapping of Estrogen Receptor Binding Reveals Long-Range Regulation Requiring the Forkhead Protein FoxA1. Cell 2005, 122, 33–43.

10.

Carroll

J. S.

Brown

Estrogen Receptor Target Gene: An Evolving Concept. Mol. Endocrinol. 2006, 20, 1707–1714.

11.

Qin

Singh

Safe

Transcriptional Activation of Insulin-Like Growth Factor-Binding Protein-4 by 17beta-estradiol in MCF-7 Cells: Role of Estrogen Receptor-Sp1 Complexes. Endocrinology 1999, 140, 2501–2508.

12.

Jakacka

Ito

Weiss

Chien

P. Y.

Gehm

B. D.

Jameson

J. L.

Estrogen Receptor Binding to DNA Is Not Required for Its Activity through the Nonclassical AP1 Pathway. J. Biol. Chem. 2001, 276, 13615–13621.

13.

Harrington

W. R.

Kim

S. H.

Funk

C. C.

Madak-Erdogan

Schiff

Katzenellenbogen

J. A.

Katzenellenbogen

B. S.

Estrogen Dendrimer Conjugates That Preferentially Activate Extranuclear, Nongenomic versus Genomic Pathways of Estrogen Action. Mol. Endocrinol. 2006, 20, 491–502.

14.

Somwar

Shum

Djaballah

Varmus

Identification and Preliminary Characterization of Novel Small Molecules That Inhibit Growth of Human Lung Adenocarcinoma Cells. J. Biomol. Screen. 2009, 14, 1176–1184.

15.

Wilson

V. S.

Bobseine

Gray

L. E.

Jr.

Development and Characterization of a Cell Line That Stably Expresses an Estrogen-Responsive Luciferase Reporter for the Detection of Estrogen Receptor Agonist and Antagonists. Toxicol. Sci. 2004, 81, 69–77.

16.

Kretzer

N. M.

Cherian

M. T.

Mao

Aninye

I. O.

Reynolds

P. D.

Schiff

Hergenrother

P. J.

Nordeen

S. K.

Wilson

E. M.

Shapiro

D. J.

A Noncompetitive Small Molecule Inhibitor of Estrogen-Regulated Gene Expression and Breast Cancer Cell Growth That Enhances Proteasome-Dependent Degradation of Estrogen Receptor α. J. Biol. Chem. 2010, 285, 41863–41873.

17.

Zhang

X. D.

A New Method with Flexible and Balanced Control of False Negatives and False Positives for Hit Selection in RNA Interference High-Throughput Screening Assays. J. Biomol. Screen. 2007, 12, 645–655.

18.

Zhang

J. H.

Chung

T. D.

Oldenburg

K. R.

A Simple Statistical Parameter for Use in Evaluation and Validation of High Throughput Screening Assays. J. Biomol. Screen. 1999, 4, 67–73.

19.

Lin

David

C. A.

Donnelly

J. B.

Michaelides

Chandel

N. S.

Huang

Warrior

Weinberg

Tormos

K. V.

Fesik

S. W.

. A Chemical Genomics Screen Highlights the Essential Role of Mitochondria in HIF-1 Regulation. Proc. Natl. Acad. Sci. U. S. A. 2008, 105, 174–179.

20.

Shapiro

D. J.

Mao

Cherian

M. T.

Small Molecule Inhibitors as Probes for Estrogen and Androgen Receptor Action. J. Biol. Chem. 2011, 286, 4043–4048.

21.

Cheng

Zhang

Shapiro

D. J.

A Functional Serine 118 Phosphorylation Site in Estrogen Receptor-Alpha Is Required for Down-Regulation of Gene Expression by 17beta-estradiol and 4-Hydroxytamoxifen. Endocrinology 2007, 148, 4634–4641.

22.

Barkhem

Haldosen

L. A.

Gustafsson

J. A.

Nilsson

Transcriptional Synergism on the pS2 Gene Promoter between a p160 Coactivator and Estrogen Receptor-Alpha Depends on the Coactivator Subtype, the Type of Estrogen Response Element, and the Promoter Context. Mol. Endocrinol. 2002, 16, 2571–2581.

23.

Berry

Nunez

A. M.

Chambon

Estrogen-Responsive Element of the Human pS2 Gene Is an Imperfectly Palindromic Sequence. Proc. Natl. Acad. Sci. U. S. A. 1989, 86, 1218–1222.

24.

Reese

J. C.

Katzenellenbogen

B. S.

Examination of the DNA-Binding Ability of Estrogen Receptor in Whole Cells: Implications for Hormone-Independent Transactivation and the Actions of Antiestrogens. Mol. Cell. Biol. 1992, 12, 4531–4538.

25.

Crisman

T. J.

Parker

C. N.

Jenkins

J. L.

Scheiber

Thoma

Kang

Z. B.

Kim

Bender

Nettles

J. H.

Davies

J. W.

. Understanding False Positives in Reporter Gene Assays: In Silico Chemogenomics Approaches to Prioritize Cell-Based HTS Data. J. Chem. Inf. Model. 2007, 47, 1319–1327.

26.

Feng

Mitchison

T. J.

Bender

Young

D. W.

Tallarico

J. A.

Multi-Parameter Phenotypic Profiling: Using Cellular Effects to Characterize Small-Molecule Compounds. Nat. Rev. Drug Discov. 2009, 8, 567–578.

27.

Alessandrini

Namura

Moskowitz

M. A.

Bonventre

J. V.

MEK1 Protein Kinase Inhibition Protects against Damage Resulting from Focal Cerebral Ischemia. Proc. Natl. Acad. Sci. U. S. A. 1999, 96, 12866–12869.

28.

Auld

D. S.

Southall

N. T.

Jadhav

Johnson

R. L.

Diller

D. J.

Simeonov

Austin

C. P.

Inglese

Characterization of Chemical Libraries for Luciferase Inhibitory Activity. J. Med. Chem. 2008, 51, 2372–2386.

29.

Bakhtiarova

Taslimi

Elliman

S. J.

Kosinski

P. A.

Hubbard

Kavana

Kemp

D. M.

Resveratrol Inhibits Firefly Luciferase. Biochem. Biophys. Res. Commun. 2006, 351, 481–484.

30.

Musgrove

E. A.

Sutherland

R. L.

Biological Determinants of Endocrine Resistance in Breast Cancer. Nat. Rev. Cancer 2009, 9, 631–643.
