A New System for Profiling Drug-Induced Calcium Signal Perturbation in Human Embryonic Stem Cell–Derived Cardiomyocytes

Cytiva Culture and Maintenance

Cytiva hSCCMs were derived from monolayer differentiation of an H7 hESC cell line that had been expanded under feeder-free conditions and then subjected to a proprietary differentiation protocol (GE Healthcare, Piscataway, NJ, USA). ¹³ Cytiva were supplied as a heterogeneous cell population containing 50.5% ± 5.4% cardiomyocytes (n = 6 batches; batch numbers 4799455, 4903456, 4638600, 4636900, 7396634, 6265575). Cells were thawed and seeded into 7-mm² chambers created by the adherence of silicon gaskets (CultureWell MultiWell 3 mm in diameter, 1-mm-depth inserts [Life Technologies]) on glass-bottomed culture chambers (In Vitro Scientific, Sunnyvale, CA, USA) that had been precoated with Matrigel (BD Biosciences, Franklin Lakes, NJ, USA), Franklin Lakes, NJ, USA diluted 1:30 (v/v) in Knockout DMEM (Life Technologies, Carlsbad, CA, USA). Cells were seeded as per the manufacturer’s instructions at a density of 2500 cells per mm² surface area (i.e., 17,500 cells in each 7-mm² chamber corrected for plating efficiency) in antibiotic-free RPMI 1640 (15 µL) supplemented with B27 (1:50 [v/v] dilution) (RPMI/B27) (Life Technologies) and maintained at 37 °C in a humidified 5% CO₂ environment. Cells were allowed to adhere to the coverslip for 2 h before the dish was filled with RPMI/B27 (2 mL). Medium was exchanged every 48 h.

Immunofluorescent Detection of Troponin-T

Cells were fixed (4% [v/v] formaldehyde in phosphate-buffered saline [PBS], containing [in mM] NaCl [140], KCl [2.7], Na₂HPO₄ [10], NaH₂PO₄ [2], pH 7.4) for 10 min at room temperature (RT) and then washed three times with PBS prior to permeabilization (0.1% [v/v] Triton X-100 in PBS, 4 min at RT). Nonspecific antibody interactions were blocked by incubation in horse serum (4% [v/v] in PBS, 1 h, RT) before cells were incubated with mouse anti–troponin-T (TnT; 1:200 [v/v] in PBS) (MA5-12960; Thermo Scientific, Waltham, MA, USA) overnight at 4 °C. Cells were washed with PBS (3 × 5 min) before being incubated with Alexa Fluor 546 anti–mouse IgG (1:200 [v/v]; Life Technologies) for 1 h at RT in the dark. Following washing with PBS (3 × 5 min), cell nuclei were counterstained with DAPI (1 µg/mL; 20 min) prior to further washing in PBS (2 × 1 min) and mounting under Prolong Gold (Life Technologies). Cells were imaged using a confocal microscope (SP5; Leica Microsystems, Wetzlar, Germany), and assessments of TnT positivity and cellular alignment were made using image analysis (LAS-AF [Leica Microsystems] and ImageJ [National Institutes of Health, Bethesda, MD, USA]).

Ca²⁺ Imaging and Analysis of Ca²⁺ Signals

Cells were incubated with fluo-4 AM (5 µM) (Life Technologies) for 1 h at 37°C before coverslips were flooded with RPMI/B27 (2 mL). Fluo-4 Ca²⁺-dependent signals were visualized in 0.021-mm² regions with a 63× oil immersion objective (NA 1.4) using argon laser excitation (488 nm) and a confocal microscope (SP5; Leica Microsystems). Cells were maintained at 37 °C throughout experiments. Images were recorded every 100 ms at a 512 × 512–pixel resolution. The application of caffeine (5 mM final concentration) was used to trigger sarcoplasmic reticulum (SR) Ca²⁺ release and thereby estimate the intra-SR Ca²⁺ store load.

Taking our lead from Uhlen’s method of using spectral analysis to investigate the organization of Ca²⁺ signals, ¹⁴ we developed SALVO to decode the spatiotemporal patterning of Ca²⁺ oscillations within individual cells and across multicellular populations. SALVO outputs 30 parameters that describe Ca²⁺ signal organization, ¹⁵ but for the purposes of this study, we focused on five parameters: oscillation rate (rate, Hz) and four other parameters that quantify the amplitude and temporal patterning of Ca²⁺ oscillation: (1) amplitude heterogeneity index (AHI) and (2) temporal heterogeneity index (THI), statistical assessments of signal amplitude and temporal variability within single cells, respectively; (3) intertransient noise (ITN), defined as the Ca²⁺ signal variability occurring between Ca²⁺ oscillations and that extends the use of signal variability (SV) to measure point-by-point differences in very low-amplitude Ca²⁺ signals^6,10,12; and (4) synchronization, an index of the temporal coincidence of Ca²⁺ oscillation maxima occurring across cells in the population. The calculation of these parameters is described in Supplementary Figure S1. SALVO is implemented using a Python-based computer program. ¹⁵ The detection of signal maxima and minima over a 30-s period in data obtained from 6 to 20 cells in each instance was performed using SALVO’s autodetection algorithms (based on spline detect or threshold detection methods) or by manual assignation of the start, peak, and end of each Ca²⁺ spike. SALVO outputs were archived and interrogated using a custom-built SQL-based database system (DB Miner, CHG, NCS, SBJ).

Characterization of Drug-Evoked Ca²⁺ Perturbation

Baseline assessments of Ca²⁺ signals in fluo-4–loaded cells prior to the addition of drug (control) were established as described above. Cells were then sequentially exposed to increasing concentrations of cardioactive drugs, selected to represent those categories assigned by Redfern and colleagues ¹⁶ as category 1 (“repolarization-prolonging as an intended, desirable effect”; sotalol, prescribed as a β-blocker with class III antiarrhythmic properties ¹⁷ ), category 2 (“drugs that have been withdrawn or suspended from the market in at least one major regulatory territory due to an unacceptable risk of TdP”; astemizole and cisapride, QT-prolonging IK_r/hERG-blocking antihistamine and gastric prokinetic, respectively), category 3 (“drugs that have a measurable incidence of TdP in humans”; thioridazine, a drug with the highest incidence of TdP among prescribed antipsychotics via off-target effects on IK_r/hERG, ¹⁸ and flecainide, a torsadogenic class IC antiarrhythmic [Na_v1.5 channel blocker] ¹⁷ ), and category 5 (“no published reports of TdP in humans”; nadolol, a nonselective β-blocker). Valdecoxib, a COX-2–selective nonsteroidal anti-inflammatory drug (NSAID) that was initially approved for use in the treatment of osteoarthritis and rheumatoid arthritis but was subsequently withdrawn from the market due to adverse CV effects, ¹⁹ was not included in the assessment by Redfern et al. ¹⁶ but was included here. We purchased rofecoxib (Vioxx) from Sequoia Research Products (Pangborne, UK), but the supplied compound exhibited inconsistent bioactivity in our assay system.

Stock solutions of drugs (10 mM) in ultrapure water or tissue-culture grade DMSO were diluted in RPMI/B27, and the concentration of each drug under test was sequentially increased. After each addition and following a period of equilibration (approximately 90 s), fluo-4–dependent Ca²⁺ signals were acquired for 30 s. Using this protocol, the same population of cells was imaged throughout the entire drug addition sequence.

To validate the system, we used a second set of compounds at maximal effective concentrations in our assay (1–30 µM): category 1, amiodarone (class III antiarrhythmic); category 2, terodiline (QT-prolonging proarrhythmic); category 5, metoprolol (selective β₁-blocker); celecoxib (COX-2 inhibitor), and aconitine (non–QT-prolonging proarrhythmic). We also included two drugs that have mechanisms of actions distinct from those above: verapamil (L-type Ca²⁺ channel blocker, category 5) and ranolazine (late I_Na current inhibitor). In all experiments, operators were blinded to the identities of the drugs under test throughout all phases of postexperimental data analysis.

Electrophysiological Recordings of Action Potentials in Cytiva

Cells in 35-mm glass-bottomed culture dishes containing a superfusion insert (AutoMate PCP-1; Digitimer Ltd., Welwyn Garden City, UK) were mounted on the stage of an inverted microscope (CKX-41; Olympus, Tokyo, Japan) and were superfused with normal Tyrode (NT) solution (containing [in mM] NaCl [145], KCl [4], MgCl₂ [1], CaCl₂ [2], HEPES [10], glucose [10]; pH 7.4 with NaOH) or NT-containing drugs maintained at 37 °C using a heated jacket.

Cells were whole-cell clamped with 3- to 4-MΩ patches and an intrapipette solution (containing in [mM] KCl [120], MgCl₂ [1.75], CaCl₂ [5.37], EGTA [10], HEPES [10], and Na₂ATP [4]; pH 7.2 with KOH) in current-clamp (IC) mode using a CV-7B headstage and MultiClamp 700B amplifier controlled by MultiClamp software (Molecular Devices, Sunnyvale, CA). Data were digitized and acquired using a Digidata 1322a card and pClamp software, respectively (Molecular Devices). Action potentials were sampled at a rate of 20 kHz and low pass (Bessel) filtered at 10 kHz.

Spontaneous cell contracture was terminated using blebbistatin (5 µM, 10 min), an agent that inhibits myofilament shortening and thereby negates patch-clamp recording instability but preserves normal Ca²⁺ cycling. ²⁰ Following cessation of contractures, spontaneous action potentials were observed in all cells following the application of a current pulse to obtain whole-cell access. Action potential (AP) recordings from blebbistatin-immobilized cells were taken under control (no-drug) conditions (1 min) and following the switch to drug-containing NT. APD₉₀, corrected for AP cycle length using Fridericia’s method (APD_90(corr) = APD₉₀/cycle length^0.3), was calculated from five consecutive APs following a 3-min exposure of the cells to drug.

Hierarchical Clustering and Statistical Analysis

Hierarchical clustering of SALVO outputs was performed using the uncentered correlation similarity metric and centroid clustering method in Cluster 3.0 (Lawrence Berkley Laboratories, CA, USA) with output visualization using TreeView (v1.1.6r4; JAM Software, Trier, Germany). Data sets were tested for normality using the D’Agostino-Pearson algorithm, and normally distributed data were compared using analysis of variance with intergroup comparisons performed using Bonferroni’s post hoc test. Nonnormally distributed data were compared using the Kruskal-Wallis test with Dunn’s post hoc test. For comparing only two groups of data, two-tailed Student t test (normal) or the Mann-Whitney test (nonnormal) was used. All statistical analysis was performed using Prism 6.0 (GraphPad Software, La Jolla, CA, USA). All data are given as mean ± standard error (SE). A p value of 0.05 was considered statistically significant.

Profiling the Functional Maturation of Ca²⁺ Handling

The relative axial alignment of TnT-positive cardiomyocytes (CMs) was low on days 2 and 3 postseeding but progressively increased to a maximum at day 5 with no further change to day 7 ( Fig. 1A–C ). This alignment of cells was associated with the intracellular redistribution of TnT that transitioned from a form that lacked apparent organization (day 2) into well-defined striatal arrangements (days 4–7) ( Fig. 1A , C ). The proportion of TnT-positive CMs remained constant between days 2 and 7, suggesting a stable population of differentiated CMs and the absence of proliferative or differentiation-competent contaminant non-CM cells ( Fig. 1B ). Cells between days 2 and 7 exhibited robust responses to caffeine, and contrary to a report that only a subset of hSCCMs is caffeine sensitive (approximately 38%), ²¹ all Cytiva CMs possessed the requisite cellular machinery to support caffeine-induced Ca²⁺ release even by day 2 postseeding (Suppl. Fig. S2). However, the amplitude of caffeine-induced Ca²⁺ release, an index of the functional Ca²⁺ storage capacity of the SR, was augmented at day 4 and remained unchanged through day 7 ( Fig. 1D and Suppl. Fig. S2). CMs between days 4 and 7 also exhibited a faster rate of Ca²⁺ sequestration/extrusion after caffeine-induced Ca²⁺ release (Suppl. Fig. S2).

OPEN IN VIEWER

Figure 1.

Phenotypic characterization of Cytiva. (A) The subcellular distribution of troponin-T (TnT; red) was visualized. Cell nuclei were stained with DAPI (blue). Arrow indicates TnT striation. Scale bar = 20 µm. (B) The proportion of TnT-positive cardiomyocytes (n = 28–40 separate image fields). (C) The relative alignment of cells. The maximum value (100%) represents every cell aligning along a single axis. Data are mean ± SE (n = 23–48 image fields). *p < 0.05. ***p < 0.001. (D) The amplitude of Ca²⁺ release triggered by caffeine (5 mM). Data are mean ± SE (n > 4 fields of view, n > 12 cells in each instance). *p < 0.05.

Our data point to the culture-dependent alignment of CMs, the intracellular reorganization of TnT, and the improved functional capacity of the Ca²⁺ handling machinery and corroborate reports of progressive SR maturation in cultured hSCCMs. ²¹ Although our study did not establish the causal drivers of these phenomena, we observed that day 4 CMs exhibited maximal amplitude and kinetics of caffeine-induced Ca²⁺ release ( Fig. 1D and Suppl. Fig. S2), yet were incompletely aligned ( Fig. 1C ). This suggests a complex association between changes in cellular morphology, subcellular architecture, and functional modulation of the SR Ca²⁺ store that requires further investigation. The progressive alignment of cells from day 3 was not associated with increased levels of cell death in the population that remained consistently low (cell death [%]: day 3, 2.0 ± 0.8; day 4, 1.1 ± 0.4; day 5, 1.5 ± 0.4; day 6, 1.4 ± 0.6; day 7, 1.9 ± 0.5; p = 0.8573).

The morphological and Ca²⁺ signaling changes observed at day 4 coincided with the onset of spontaneous Ca²⁺ oscillations (53.6% ± 19.7% cells on day 4 exhibited spontaneous Ca²⁺ oscillations vs. 0% on day 3, p < 0.0001) and synchronized contraction ( Fig. 2A(i) and Suppl. Movies 1–3). Between days 4 and 7, the proportion of cells exhibiting spontaneous Ca²⁺ release remained static (day 5, 65.0% ± 18.9%; day 6, 64.8% ± 14.3%; day 7, 59.2% ± 13.1%; p = 0.505), but the Ca²⁺ oscillations became qualitatively ( Fig. 2A(ii) ) and quantitatively ( Fig. 2B ) better organized (see also Suppl. Fig. S3). Notably, there was a marked decrease in AHI and THI (indices that tend to zero with reduced amplitude and temporal variability of spontaneous Ca²⁺ release) and a reduction in ITN, indicative of less variability in low-amplitude Ca²⁺ signals occurring between large Ca²⁺ transients ( Fig. 2B ). Taken together, the attenuation of AHI, THI, and ITN suggests an improvement in the amplitude and temporal organization of Ca²⁺ oscillations between days 4 and 7. These data extend our findings that pivotal changes in cell morphology, alignment, and Ca²⁺ signaling that occur between days 3 and 4 drive the onset of spontaneous Ca²⁺ oscillations, which become progressively better organized to day 7. Intercellular synchronization of Ca²⁺ oscillations remained unchanged between days 4 and 7 ( Fig. 2B ), indicating that functional cell-to-cell coupling established by day 4 was unaffected by subsequent phenotypic changes. Cell density, which varied between 200 and 1000 cells/mm² depending on batch number and the plating efficiency of the cells, had no measureable effect on the Ca²⁺ handling behavior of the cells or on the extent of intercellular synchronization (Suppl. Fig. S4). It has been reported that hSCCMs plated at “low density” (500–1200 cells/mm²) exhibit markers of cellular hypertrophy and electrical remodeling. ²² Although our mean cell densities were below this threshold, the alignment of cells in culture leads to regional heterogeneity, with some regions at very high densities and other areas that contain few cells (see Fig. 1 ). Since there was no increase in cell death to day 7, the contribution of cell death to the observed distribution of cells can be excluded. We did not investigate the functional impact of more uniformly distributed regions of high cell densities (>1200 cells/mm²) on Cytiva CM phenotype.

OPEN IN VIEWER

Figure 2.

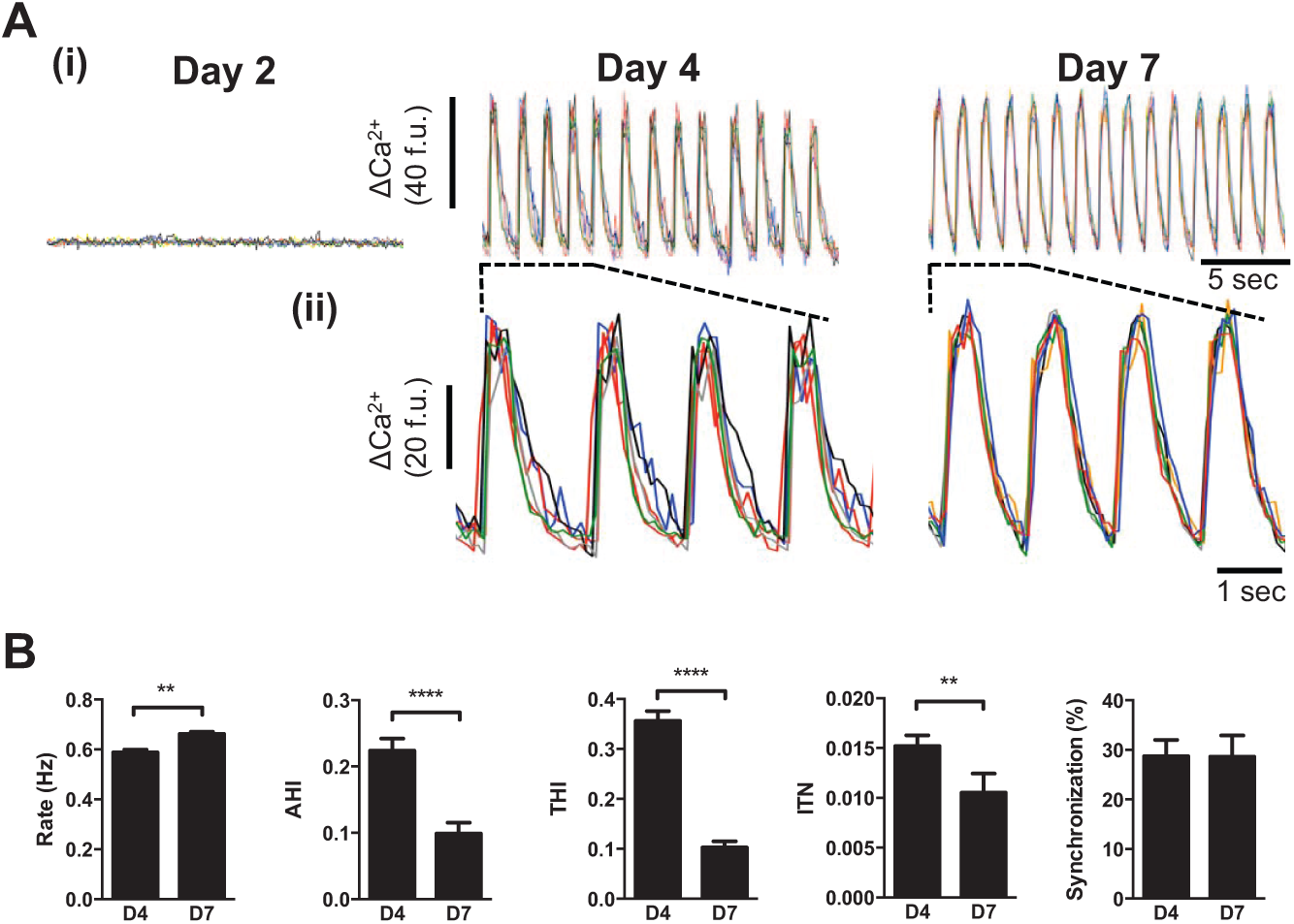

Functional maturation of Ca²⁺ cycling in Cytiva. (A) (i) Ca²⁺ traces from six representative cells. (ii) Expanded sections depicted by dashed lines in (i). Data for days 2 through 7 are given in Supplementary Figure S3. (B) A five-parameter description of Ca²⁺ signal organization in spontaneously oscillating cells. Data are from ≥5 separate experiments. **p < 0.01. ****p < 0.001. Data from days 4 through 7 are given in Supplementary Figure S3.

The optimal functional state of Cytiva CMs (i.e., like that determined on days 6 and 7; Suppl. Fig. S3) existed only for a short period. Beyond day 7, the proportion of TnT-positive cells progressively decreased, and by day 14, there was a pronounced functional deterioration in Ca²⁺ signaling (Suppl. Fig. S5). At day 21, the few cells that remained adherent (typically 5%–10% of those present at day 7) had mostly reverted to fibroblastic-like morphologies with a loss of TnT striation and organization (Suppl. Fig. S5). This short window meant that we performed all subsequent experiments on CMs between days 6 and 8. We did not pursue strategies reported to prolong hSCCM functionality (e.g., optimized replating cycles ²³ ), and it is likely that such protocols could improve the functional longevity of Cytiva in culture.

Using Ca²⁺ Signal Perturbation to Assess Drug-Induced Cytotoxicity

The disruption of the spatiotemporal patterning of Ca²⁺ signals is a hallmark of cellular dysfunction, and so we next investigated the propensity of cardioactive drugs to perturb intra- and intercellular Ca²⁺ signal organization. Nadolol, a nonselective β-blocker with an excellent clinical safety profile, had no measurable effect on Ca²⁺ handling at concentrations up to 30 µM ( Fig. 3 and Suppl. Table S2). Sotalol, a class III antiarrhythmic that has been reported to have QT-prolonging effects at therapeutic plasma concentrations exceeding 10 µM, caused an isolated change in AHI at concentrations >1 µM but did not reduce the extent of intercellular synchronization ( Fig. 3 and Suppl. Table S2). Concentration-response profiling revealed that drugs with recognized proarrhythmic hazards resulting from hERG-blocking activities (astemizole, cisapride, thioridazine) or via other “non-hERG” mechanisms (flecainide, valdecoxib) evoked large effect sizes in multiple parameters of Ca²⁺ handling ( Fig. 3 and Suppl. Table S2). These data confirmed that the perturbation of cellular Ca²⁺ signals in vitro is a hallmark feature of drugs with known cardiovascular risk in humans irrespective of whether their proarrhythmic mechanism of action involves IK_r/hERG blockade. Notably, SALVO quantified the Ca²⁺-disrupting effects of valdecoxib, a drug that had hitherto not been considered to exert direct effects on CMs using conventional electrophysiological assessments. Our data are consistent with those of Pyrko and colleagues, ²⁴ who reported the elevation of cytoplasmic Ca²⁺ within seconds of the addition of 2,5-dimethyl-celecoxib, an analogue valdecoxib, to glioblastoma cells. These findings add weight to the concern that contemporary electrophysiological measurements do not adequately resolve potential CV risk associated with some drugs, especially those that do not directly modulate cellular Na⁺ and K⁺ ion handling. Illustrating this point, impedance measurements in hSCCM failed to identify the potential hazard associated with rofecoxib (Vioxx), ²⁵ an analogue of valdecoxib that was withdrawn because of unacceptable CV risk. ¹⁹ We believe that SALVO has the potential to occupy this void in the contemporary drug screening landscape.

OPEN IN VIEWER

Figure 3.

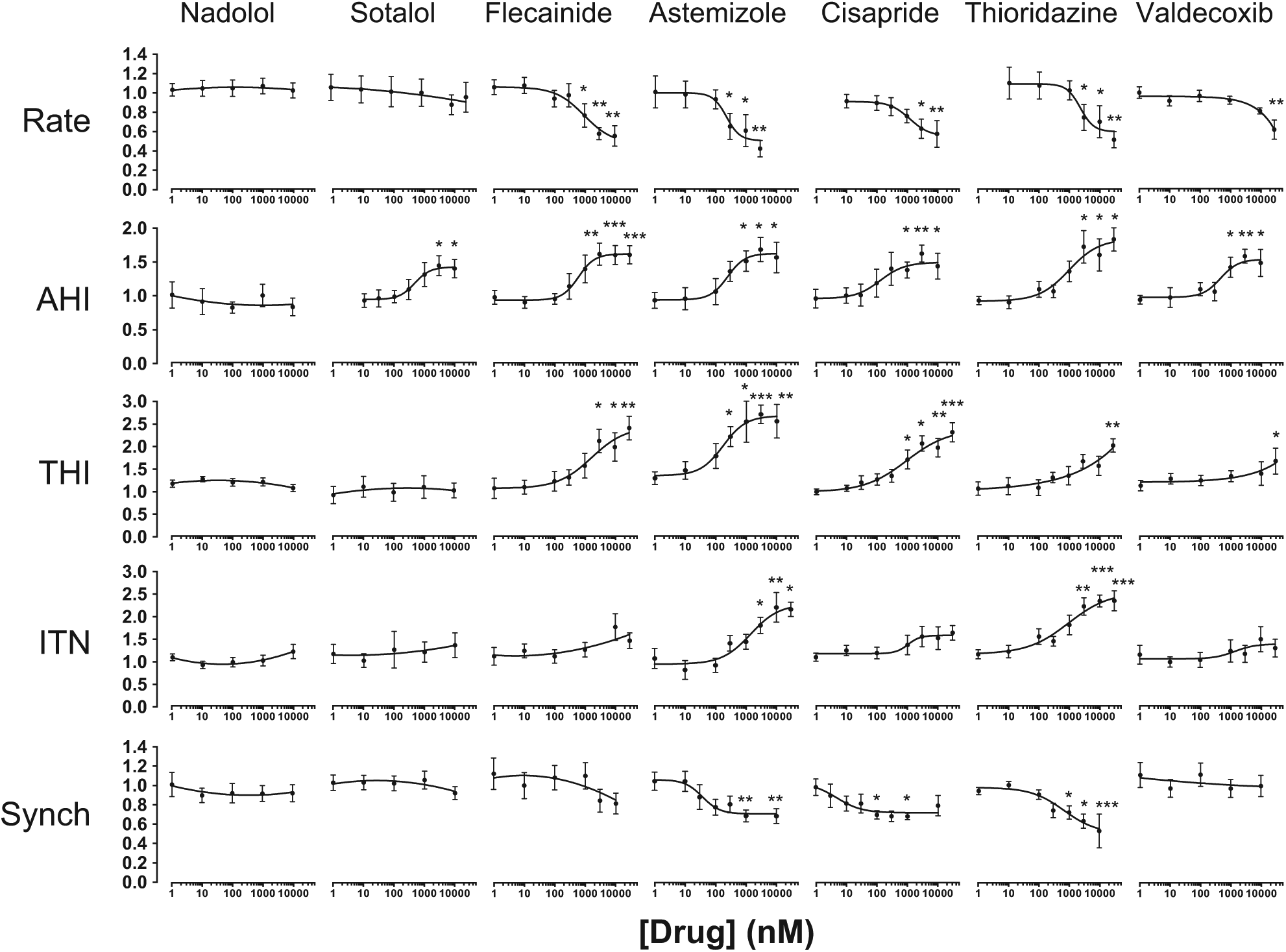

Profiling cardiovascular drug-evoked perturbations in Ca²⁺ signals. Spontaneously oscillating cells were exposed to compounds (1 nM–30 µM) (see Materials and Methods). Data were normalized to controls (no drug) and are plotted as mean ± SE (n ≥ 6). *p < 0.05. **p < 0.01. ***p < 0.001. EC₂₀ values, the concentration of drug that produces a 20% change relative to control values, are given in Supplementary Table S2.

To further corroborate the utility of SALVO to identify potential CV drug hazard that arises from diverse mechanistic bases, we profiled the effects of these same drugs on spontaneous APs. Cytiva CMs were characterized by resting membrane potentials of approximately −60 mV and exhibited ventricular-like waveforms ( Fig. 4 ). Astemizole, cisapride, and thioridazine increased APD90, entirely in keeping with their known IK_r/hERG blocking activities. However, flecainide and valdecoxib, drugs that markedly perturbed Ca²⁺ signals ( Fig. 3 ) and are known to increase proarrhythmic susceptibility in some circumstances,^16,19 had no effect on action potential duration ( Fig. 4A , B ). These data reinforce the use of SALVO to profile compounds based on their disruption of cellular Ca²⁺ signal organization irrespective of whether the drugs in question modulate the electrophysiological profile of hSCCMs.

OPEN IN VIEWER

Figure 4.

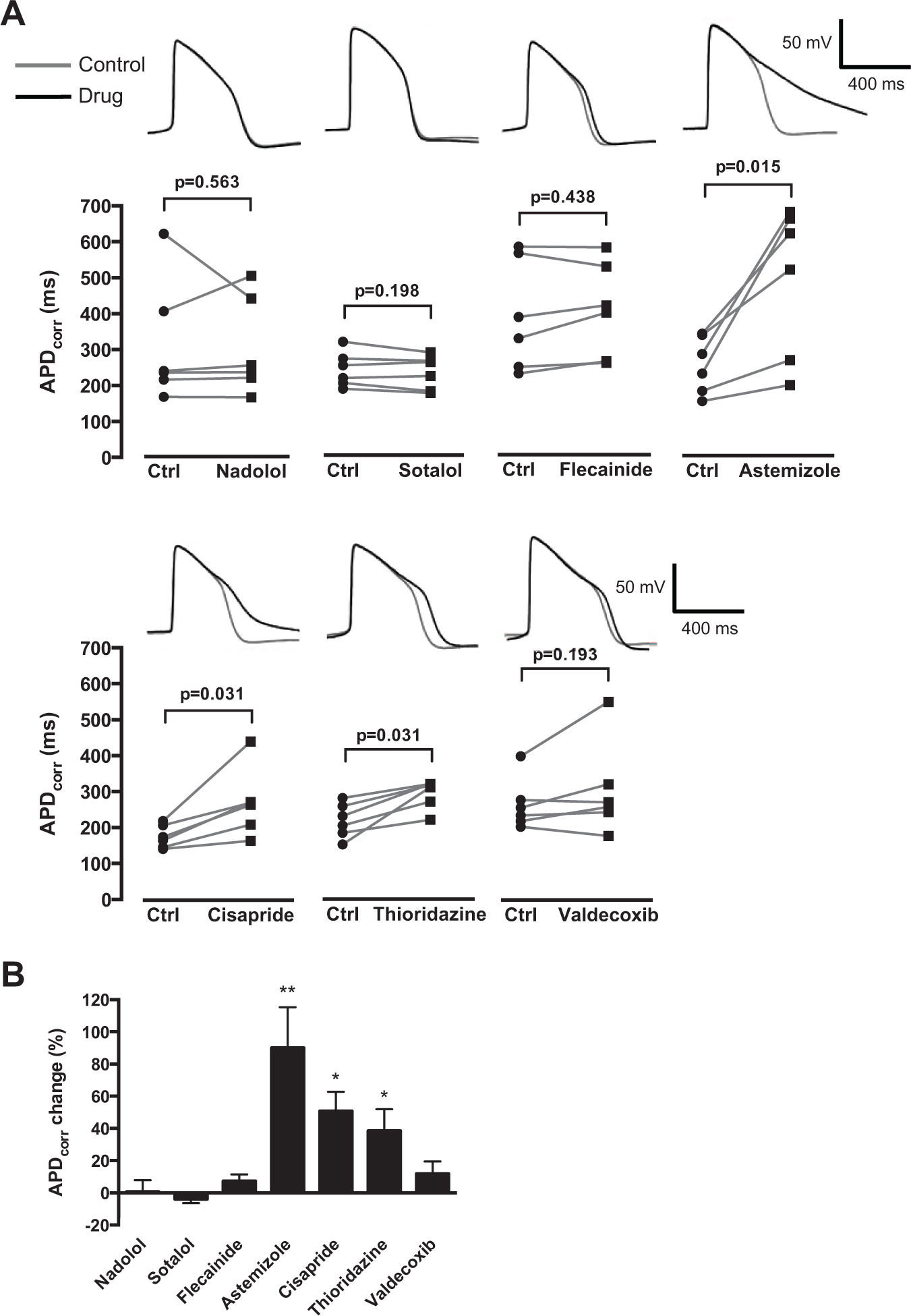

Investigating the effect of cardiovascular-active drugs on Cytiva APD₉₀. (A) Cells were exposed to drugs at EC₂₀ concentrations for 3 min (Suppl. Table S2). APD₉₀ values were corrected for beat period using Fridericia’s algorithm. Data points represent individual paired experiments (n = 6). Representative control (gray) and drug-treated (black) action potential traces are shown. (B) APD₉₀ plotted as the percentage change relative to the paired control value (no drug). *p < 0.05. **p < 0.01.

Cytiva are supplied as a heterogeneous mix of CMs and non-CMs. It is therefore plausible that effects of drugs on contaminant non-CMs could influence the measured effect on CMs (e.g., EC₂₀ values). We used a fluorescence-activated cell sorting (FACS)–based strategy to enrich CMs, but the small population of viable yet morphologically abnormal CMs that were obtained offset any improvement in Ca²⁺ signal organization observed in post-FACS CMs (Suppl. Fig. S6).

Calculation of a SALVO Toxicity Score and Its Alignment with Proarrhythmic Risk in Humans

The five-parameter SALVO output ( Fig. 3 ) was integrated into a single in vitro cytotoxicity score (SALVO toxicity score). The rank order of the extent of Ca²⁺ perturbation (astemizole > thioridazine > cisapride > flecainide > valdecoxib > sotalol > nadolol) was in very close agreement with the known proarrhythmogenic liabilities of these drugs in humans^13,16,25,26 ( Fig. 5A and Suppl. Fig. S7). Moreover, SALVO exhibited a superior correlation with established CV drug risk in humans compared with electrophysiological readouts (APD₉₀, impedance measurements). Thus, for the reasons outlined above, we propose that SALVO will improve early stage assessments in CV drug hazard liabilities. However, the extrapolation of in vitro cell-based toxicity outputs to risk prediction in clinical scenarios is problematic,^1,2 and it is accepted that, at present, no single approach can accurately translate in vitro readouts to drug effects in humans. Consequently, SALVO outputs should be appropriately integrated with information obtained from other platforms (e.g., electrophysiology).

OPEN IN VIEWER

Figure 5.

Integrating multiparametric outputs into the SALVO toxicity score. (A) The calculation of the SALVO toxicity score is described in Supplementary Figure S7. The vertical red line indicates a score twice that of control (no-drug) values. (B) A rank-ordered comparison of three in vitro assessments of cardioactive drugs (SALVO, APD₉₀, and impedance measurements) against established in vivo drug QT prolongation liability (human QT prolongation). SALVO and APD₉₀ data are from the present study, impedance measurements are from Guo et al., ²⁵ and QT prolongation is from Redfern et al. ¹⁶ Nadolol and valdecoxib were not profiled in the Guo or Redfern studies and are not included here.

There is also the issue regarding the relevance of drug potency determined in vitro to clinical dosing in humans. Guo and colleagues^25,27 used an impedance-derived index of arrhythmic beating in hSCCMs to derive a predicted proarrhythmic score (PPS) that took into account the therapeutically relevant total concentration of drug in human plasma (defined as C_eff). More recently, Clements and Thomas ¹³ used a similar approach to generate a predictive risk score (PRS) based on their measurement of field potential duration (FPD) in Cytiva. In keeping with these studies, we adjusted the five-parameter SALVO output to account for the free plasma concentration of the clinically effective drug (ETPC_unbound) (Suppl. Tables S1 and S2). Our resultant PPS (ETPC_unbound/EC₂₀) (Suppl. Fig. S8) described a rank order of thioridazine > cisapride > valdecoxib that was entirely consistent with the SALVO toxicity scores ( Fig. 5A ) and aligned closely to the recognized hazards that these drugs pose in humans. However, flecainide exhibited an elevated PPS at odds with its relatively low proarrhythmia risk in humans. Moreover, anomalous PPS values for sotalol (PPS ~15) and astemizole (PPS <1) grossly misrepresent the CV hazard associated with sotalol (low) and astemizole (high) ¹⁶ (Suppl. Fig. S8). The erroneous values for these two drugs, which were also noted by Clements and Thomas, ¹³ result from skew introduced by very high and low ETPC_unbound values (14,733 and 0.2 nM for sotalol and astemizole, respectively) (Suppl. Table S1). Consequently, our data highlight the significant potential for the misleading categorization of “risk” following the calculation of a PPS or PRS (i.e., the adjustment of in vitro toxicity scores using clinically relevant plasma drug concentrations). These data strongly suggest that such simple indices are unlikely to accurately predict in vivo risk/hazard. However, by studying a larger set of compounds with known risk, together with consideration of other factors that influence in vivo drug responses, our future understanding of the relationship between in vitro assay outputs and CV risk in humans should be improved.

Hierarchical Clustering Analysis of SALVO Outputs to Discriminate Mechanisms of Drug Action

To further validate the system and to investigate the ability of SALVO to discriminate drugs based on their mechanisms of action, we tested a second set of compounds (see Materials and Methods). Hierarchical cluster analysis (HCA) revealed that, as anticipated, drugs with comparable mechanisms of action clustered together—for example, hERG blockers (terodiline with astemizole), non-hERG blockers (aconitine with flecainide), COX-2 inhibition (celecoxib with valdecoxib), class III antiarrhythmics (sotalol with amiodarone), and β-blockers (nadolol with metoprolol) ( Fig. 6 ). Importantly, we studied two cardioactive drugs selected on the basis of distinct mechanisms of action to those compounds used above. Verapamil, a clinically safe L-type Ca²⁺ channel blocker, reduced the rate of Ca²⁺ oscillation at very high concentrations of drug (>10 µM) but otherwise had no measurable effect on cellular Ca²⁺ handling. Ranolazine, an inhibitor of the late I_Na that is not associated with elevated CV hazard, ²⁸ reduced intercellular synchronization against a background of unchanged Ca²⁺ cycling. Consistent with their different mechanisms of action, verapamil and ranolazine were separated in the resultant dendrogram and did not cluster with the other compounds tested in this study ( Fig. 6 ). These data support the conclusion that SALVO discriminates compounds based on their mechanism of action. This analysis used data obtained from the maximally effective concentration of drug to reconcile the impact of these compounds on cellular Ca²⁺ signaling with their known mechanisms of action. However, these concentrations (typically >1 µM; see Fig. 6 ) greatly exceed the free plasma levels of drug achieved via clinical dosing regimes.^16,29 We emphasize therefore that Figure 6 shows the clustering of drugs based on their mechanisms of action and not on their established safety/risk profile in humans.

OPEN IN VIEWER

Figure 6.

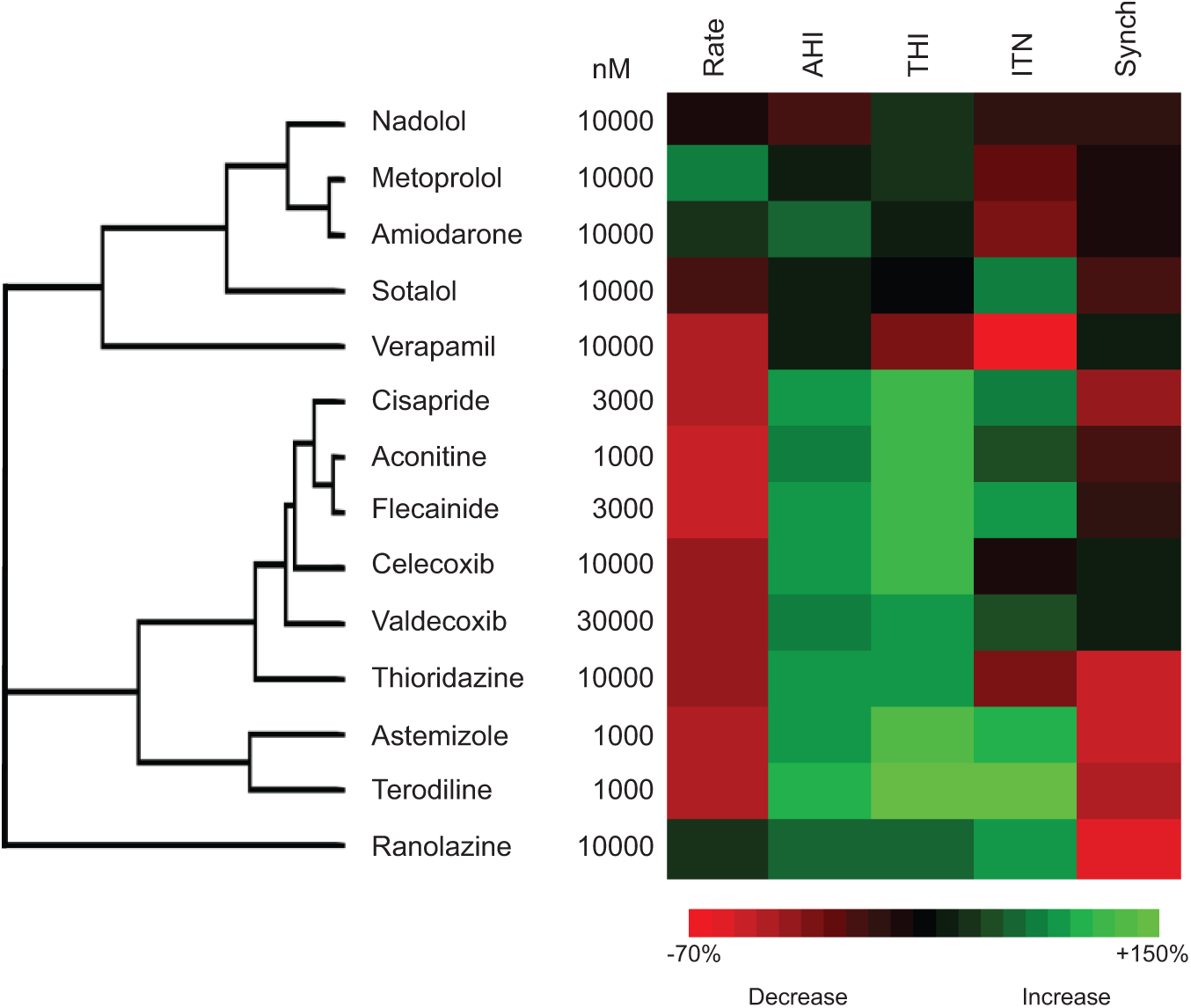

Hierarchical cluster analysis of compounds based on their mechanism of action. The effects of drugs, including a secondary set of validation compounds (see Materials and Methods), on Ca²⁺ cycling parameters were determined at their maximal effective concentrations.

Future Directions

This study reports the development and proof-of-concept validation of SALVO, a new system to quantify drug-induced (dys)organization of intra- and intercellular Ca²⁺ signaling in hSCCM populations. We propose that SALVO fills a current void in the early stage drug screening process, specifically via its ability to identify those compounds that exhibit CM cytotoxicity (and thus potentially increase proarrhythmic susceptibility) but have negligible impact on the cellular electrophysiological profile. We also demonstrate the utility of SALVO to discriminate drugs based on their mechanism of action. The present work used only a small number of compounds of known proarrhythmia risk, and clearly, a systematic evaluation of a much larger panel of compounds is now warranted.

The comparative assay miniaturization reported here—17,500 cells seeded in 7-mm² gaskets and with the potential to use fewer cells still—suggests that this system is amenable to scaling to higher throughput formats (e.g., 384-well plates). Moreover, the system could be configured toward “multiplexing” ion-sensitive fluorescent probes or in combination with electrophysiological platforms. ³⁰ Outside of the predictive toxicology arena, such detailed assessments of cellular Ca²⁺ signaling may also be useful in quality control (QC) processes, cellular phenotyping, and profiling batch-to-batch variability during the manufacture/differentiation process. It is also noteworthy that SALVO analysis could be applied to any oscillatory biological signal. To this end, it is of interest to explore SALVO in the context of other cell systems (e.g., hepatocytes) and to the analysis of other cellular signals that change on different timescales (e.g., pH).
