Safety Assessment of Ceramides as Used in Cosmetics

Abstract

The Expert Panel for Cosmetic Ingredient Safety (Panel) reviewed the safety of ceramides, which function in cosmetics primarily as hair-conditioning agents and skin-conditioning agents—miscellaneous. The Panel considered relevant data related to these ingredients. The Panel concluded that ceramides were safe in cosmetics in the present practices of use and concentration described in this safety assessment.

Keywords

ceramides cosmetics safety

Introduction

Ceramide ingredients are reported to function primarily as hair-conditioning agents and skin-conditioning agents—miscellaneous in cosmetics.¹ The 23 ingredients reviewed in this safety assessment are listed below:

Ceramide 1 [retired]

Ceramide 2 [retired]

Ceramide 3 [retired]

Ceramide 4 [retired]

Ceramide 5 [retired]

Ceramide 1A [retired]

Ceramide 6 II [retired]

Ceramide AP

Ceramide EOP

Ceramide EOS

Ceramide NP

Ceramide NG

Ceramide NS

Ceramide AS

Ceramide NS dilaurate

Caprooyl Phytosphingosine

Caprooyl Sphingosine

Hydroxypalmitoyl Sphinganine

2-Oleamido-1,3-Octadecanediol

Caproyl Sphingosine

Hydroxylauroyl Phytosphingosine

Hydroxycapryloyl Phytosphingosine

Hydroxycaproyl Phytosphingosine

Many of the reports found in the published literature presented efficacy studies on the named cosmetic ingredients, efficacy studies of other cosmetic ingredients or pharmaceuticals in which naturally occurring ceramide levels in the skin were evaluated, and data on pseudo-ceramides (such as that found in an approved medical device; the chemical structures of which were determined by the Expert Panel for Cosmetic Ingredient Safety (Panel) to be significantly different from those of the cosmetic ingredients addressed in this report). However, these studies were not relevant for assessing the safety of the ceramide ingredients included in this assessment. Additionally, a published paper that presented data from toxicology studies of several ceramides (1, 3, 3A, 3B, 6) and a phytosphingosine was reviewed, but the data from this paper were not incorporated into this report because some data points appeared to be merely cumulative to those of unpublished studies that were submitted by the Personal Care Products Council (Council) to the Cosmetic Ingredient Review (CIR), and the information presented in the paper is too incomplete to advance the development of a proper safety assessment.²

Many published reports address the essential nature of extracellular ceramides as components of the epidermal permeability barrier. These ceramides are clearly segregated to the extracellular spaces of the stratum corneum and other upper layers of the epidermis.^3,4 The family of ceramides that serve this function comprise about 50% of the lipid weight, and 5% of the total weight, of the stratum corneum.⁴ Many other reports address the central role of ceramides in sphingolipid metabolism and the mediation of antiproliferative and proapoptotic functions inside cells, including keratinocytes. However, the extracellular barrier-forming ceramides are partly O-acylated molecules with long-chain fatty acids, in contrast to the signal-transducing ceramides.³ Further, naturally occurring ceramides are nearly cell impermeant, and metabolic pathways can suppress intracellular ceramide accumulation to protect cells from ceramide-induced apoptosis and other effects. Thus, much of the extensive literature on the signal-transducing properties of ceramides does not appear to be relevant and was not incorporated into this safety assessment report.

The names of ceramide ingredients were changed during the development of this safety assessment. For instance the International Nomenclature Cosmetic Ingredient (INCI) name, Ceramide 1, which was originally assigned in 1997, has been retired. For an interim period, trade name assignments formerly published with the INCI name Ceramide 1 will be retained in the retired monograph and also published with the new name assignment, Ceramide EOP. This means that, during the “interim period,” products on the market may be labeled with either name, Ceramide 1 or Ceramide EOP, although both names refer to the same ingredient. Reported use data are associated primarily with the retired names. Likewise, most ingredient-specific data received for these ingredients may be associated with the retired INCI names. Accordingly, throughout this safety assessment report, the retired INCI names are used consistently to refer to the ingredients listed under either nomenclature. However, the data and the conclusions of the Panel will apply to these ingredients under both the new and the retired nomenclature.

The other name changes include (further explained in Table 1): Ceramide 2 will be replaced by 2 names, Ceramide NS (limited to sphingosine-based ceramides) and Ceramide NG (limited to sphinganine-based ceramides); Ceramide 3 will be replaced by Ceramide NP; Ceramide 4 and Ceramide 5 will both be replaced by Ceramide AS; and Ceramide 6 II will be replaced by Ceramide AP.

Table 1.

Definitions and Idealized Structures of the Ingredients in This Safety Assessment.¹

Ingredient CAS No.	Definition/structure
Ceramide 1 (Retired) 100403-19-8	Ceramide 1 (Retired) is the N-acylated phytosphingosine having the erythro structure that conforms generally to: wherein n has a value from 10 to 20. The INCI name, Ceramide 1, originally developed in 1997, was designated with a retired status in 2014. For an interim period of time, trade name assignments formerly published with the INCI name Ceramide 1 will be retained in the retired monograph, and also published with the new name assignment, Ceramide EOP. For further information, consult the Introduction, retired INCI Names.
Ceramide 1A (Retired) 100403-19-8	Ceramide 1 A (Retired) is the N-acylated phytosphingosine having the erythro structure that conforms generally to: wherein n has a value from 10 to 20. The INCI name, Ceramide 1 A, originally developed in 1997, was designated with a retired status in 2014. For an interim period of time, trade name assignments formerly published with the INCI name Ceramide 1 A will be retained in the retired monograph, and also published with the new name assignment, Ceramide EOP. For further information, consult the Introduction, retired INCI names.
Ceramide EOP	Ceramide EOP, formerly known under either of the INCI names, Ceramide 1 or Ceramide 1 A, is the N-acylated sphingolipid consisting of Phytosphingosine having the d-erythro structure linked to an omega-hydroxy acid which is esterified with a saturated or unsaturated fatty acid.
Ceramide 2 (Retired) 100403-19-8	Ceramide 2 (Retired) is the N-acylated sphingolipid having the erythro structure that conforms generally to: wherein m has a value from 14 to 28 and n has a value from 10 to 16. The INCI name, Ceramide 2, originally developed in 1997, was designated with a retired status in 2014. For an interim period of time, trade name assignments formerly published with the INCI name Ceramide 2 will be retained in the retired monograph, and also published with the new name assignment as either Ceramide NS or Ceramide NG. For further information, consult the Introduction, retired INCI names.
Ceramide NS	Ceramide NS, formerly known under the INCI name Ceramide 2, is the N-acylated sphingolipid consisting of sphingosine having the d-erythro structure linked to a normal saturated or unsaturated fatty acid. As opposed to the broader definition for Ceramide 2, which includes sphingolipids consisting of either sphingosine or dihydrosphingosine (sphinganine), Ceramide NS is limited to sphingosine-based ceramides.
Ceramide NG	Ceramide NG, formerly known under the INCI name Ceramide 2, is the N-acylated sphingolipid consisting of Sphinganine having the d-erythro structure linked to a normal saturated or unsaturated fatty acid. As opposed to the broader definition for Ceramide 2 which includes sphingolipids consisting of either sphingosine or dihydrosphingosine (sphinganine), Ceramide NG is limited to sphinganine-based ceramides.
Ceramide 3 (Retired) 100403-19-8 72968-43-5	Ceramide 3 (Retired) is the N-acylated phytosphingosine having the erythro structure that conforms generally to: wherein m has a value from 12 to 28 in which the acyl moiety may be saturated, monounsaturated, or di-unsaturated and n has a value from 10 to 20. The INCI name, Ceramide 3, originally developed in 1997, was designated with a retired status in 2014. For an interim period of time, trade name assignments formerly published with the INCI name Ceramide 3 will be retained in the retired monograph, and also published with the new name assignment, Ceramide NP. For further information, consult the Introduction, retired INCI names.
Ceramide NP	Ceramide NP is the N-acylated sphingolipid consisting of Phytosphingosine having the d-erythro structure linked to normal saturated or unsaturated fatty acid.
Ceramide 4 (Retired) 100403-19-8	Ceramide 4 (Retired) is the N-acylated sphingolipid having the erythro structure that conforms generally to wherein m has a value from 13 to 27 in which the acyl moiety may be saturated or mono-unsaturated and n has a value ranging from 10 to 16. Ceramide 4 is similar to Ceramide 5, however, the acylating hydroxy acids are generally shorter in Ceramide 4 than in Ceramide 5. The INCI name, Ceramide 4, originally developed in 1997, was designated with a retired status in 2014. For an interim period of time, trade name assignments formerly published with the INCI name Ceramide 4 will be retained in the retired monograph, and also published with the new name assignment, Ceramide AS. For further information, consult the Introduction, retired INCI names.
Ceramide 5 (Retired) 100403-19-8	Ceramide 5 (Retired) is the N-acylated sphingolipid having the erythro structure that conforms generally to the formula: wherein m has a value from 13 to 27 in which the acyl moiety may be saturated or monounsaturated and n has a value from 10 to 16. Ceramide 5 is similar to Ceramide 4, however, the acylating hydroxy acids are generally longer in Ceramide 5 than in Ceramide 4. The INCI name, Ceramide 5, originally developed in 1997, was designated with a retired status in 2014. For an interim period of time, trade name assignments formerly published with the INCI name Ceramide 5 will be retained in the retired monograph, and also published with the new name assignment, Ceramide AS. For further information, consult the Introduction, retired INCI names.
Ceramide AS	Ceramide AS, formerly known under either of the INCI Names, Ceramide 4 or Ceramide 5, is the N-acylated sphingolipid consisting of sphingosine having the d-erythro structure linked to an alpha-hydroxy saturated or unsaturated fatty acid.
Ceramide 6 II (Retired) 100403-19-8	Ceramide 6 II (Retired) is the N-acylated phytosphingosine having the erythro structure that conforms generally to: wherein m has a value from 13 to 27 and n has a value from 12 to 20. The INCI name, Ceramide 6 II, originally developed in 1997, was designated with a retired status in 2014. For an interim period of time, trade name assignments formerly published with the INCI name Ceramide 6 II will be retained in the retired monograph, and also published with the new name assignment, Ceramide AP. For further information, consult the Introduction, retired INCI names.
Ceramide AP	Ceramide AP, formerly known under the INCI name Ceramide 6 II, is the N-acylated sphingolipid consisting of Phytosphingosine having the d-erythro structure linked to an alpha-hydroxy saturated or unsaturated fatty acid.
Ceramide EOS	Ceramide EOS is the N-acylated sphingolipid consisting of sphingosine having the d-erythro structure linked to an esterified omega-hydroxy saturated or unsaturated fatty acid.
Ceramide NS Dilaurate	Ceramide NS Dilaurate is the diester of Ceramide NS and lauric acid.
Hydroxypalmitoyl Sphinganine	Hydroxypalmitoyl Sphinganine is the organic compound that conforms to the structure:
2-Oleamido-1,3-Octadecanediol 54422-45-6	2-Oleamido-1,3-Octadecanediol is the organic compound that conforms to the structure:
Hydroxylauroyl Phytosphingosine	Hydroxylauroyl Phytosphingosine is a synthetic N-acylated sphingolipid that conforms generally to the structure: wherein n has a value from 10 to 20.
Hydroxycaproyl Phytosphingosine	Hydroxycaproyl Phytosphingosine is a synthetic N-acylated sphingolipid that conforms generally to the structure: wherein n has a value from 10 to 20.
Hydroxycapryloyl Phytosphingosine	Hydroxycapryloyl Phytosphingosine is a synthetic N-acylated sphingolipid that conforms generally to the structure: wherein n has a value from 10 to 20.
Caproyl Sphingosine 100403-19-8 (generic)	Caproyl Sphingosine is a synthetic N-acylated sphingolipid that conforms generally to the structure: where n has a value of 10 to 16.
Caprooyl Sphingosine 100403-19-8 (generic)	Caprooyl Sphingosine is the product obtained by the reaction of Caproic Acid and sphingosine.
Caprooyl Phytosphingosine	Caprooyl Phytosphingosine is the product obtained by the reaction of Caproic Acid and Phytosphingosine.

Information on manufacturing methods for several ceramide ingredients submitted to CIR by the Council indicates that these ingredients are produced synthetically. Although some ceramides are plentiful in bovine central nervous system tissues (eg, brain and spinal cord), the US Food and Drug Administration (FDA) prohibits the use of ingredients derived from such tissues in cosmetic products because of the risk of transmitting infectious agents, such as bovine spongiform encephalitis (BSE; 21 CFR 700.27). Some ceramide ingredients may be derived from plant sources (eg, those designated as phytosphingosines in the INCI names or definitions), which do not pose the risks associated with ingredients derived from the bovine central nervous system.⁵

Chemistry

Definition and Characterization

Generally, a ceramide is the amidation reaction product of a sphingoid base and a fatty acid (Figure 1).

Figure 1.

Example of a ceramide structure.

The ceramide ingredients described herein vary principally in the chain lengths of the sphingoid and fatty acid residues and in the degree of unsaturation in the chains. The ceramide ingredients are also defined as having a certain stereochemistry related to the 2 stereocenters of the sphingoid base. Specifically, all of the ceramide ingredients, like those ceramides found in human skin, are defined as d-erythro. Additionally, each of these ingredients is a mixture of ceramides, described in more detail in Table 1. Chemical properties were only available for Ceramide 2: These data are presented in Table 2.

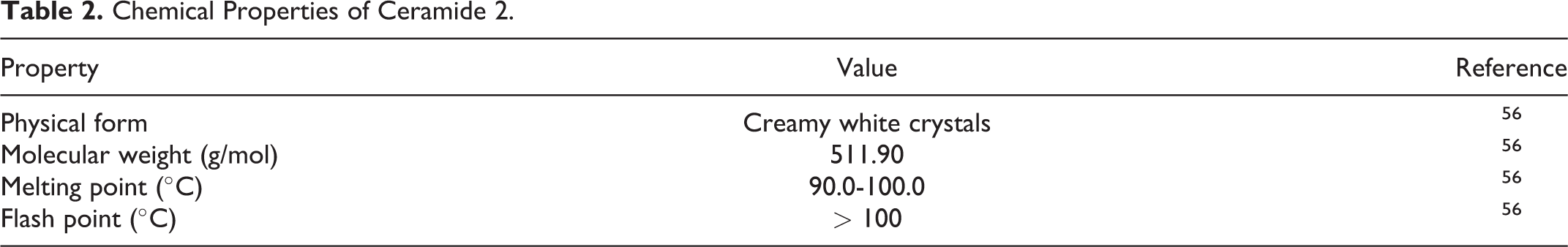

Table 2.

Chemical Properties of Ceramide 2.

Property	Value	Reference
Physical form	Creamy white crystals	⁵⁶
Molecular weight (g/mol)	511.90	⁵⁶
Melting point (°C)	90.0-100.0	⁵⁶
Flash point (°C)	> 100	⁵⁶

However, some of the ingredients in this report are not traditional ceramides and the stereochemistries therein are not defined. For example, the stereochemistries of Hydroxypalmitoyl Sphinganine and 2-Oleamido-1,3-Octadecanediol are not recited in the respective monographs.

Method of Manufacturing

In biological systems, ceramides are synthesized by de novo synthesis or sphingomyelin hydrolysis or through a salvage pathway.⁶ Ceramide manufacture could be accomplished by a variety of synthetic methods, but most methods involve amidation of a fatty acid with a sphingoid base.⁷ This can be accomplished by reaction of the sphingoid base with an acyl chloride, but the results are not selective and esterification and amidation occur concurrently. However, mild alkaline hydrolysis can selectively remove the esters. Alternatively, activating the fatty acid with a carbodiimide enables ceramide synthesis without concurrent esterification.

The unpublished data on method of manufacturing detailed below were received from suppliers of Ceramide 2, Ceramide 5, 2-Oleamido-1,3-Octadecanediol, and Hydroxypalmitoyl Sphinganine.

Ceramide 2

Ceramide 2 is produced synthetically via amide formation (ie, reaction of [2S,3R]-sphinganine with methyl stearate to produce an amide), and other constituents/impurities are the isomers (Figure 2).⁸

Figure 2.

Formation of ceramide 2.

It has been reported that Ceramide 2 is a pure substance obtained by reacting a glycine ester derivative and activated palmitic acid before further reacting with stearoyl chloride.⁹ Ceramide 2 is a mixture of d, l-erythro and d, l-threo with respective proportions of approximately 75% and 25%.

Ceramide 5

Ceramide 5 is produced synthetically via amide formation (ie, reaction of [2S,3R]-sphinganine) with methyl 2-hydroxyhexadecanoate to produce an amide (Figure 3).¹⁰

Figure 3.

Formation of ceramide 5.

2-Oleamido-1,3-Octadecanediol

2-Oleamido-1,3-Octadecanediol is obtained by chemical reaction between dihydrosphingosine and an oleic acid derivative.¹¹

Hydroxypalmitoyl Sphinganine

Hydroxypalmitoyl Sphinganine is obtained by chemical reaction between dihydrosphingosine and a 2-bromohexadecanoic acid derivative, followed by the indirect substitution of bromine by hydroxyl group.¹¹

Impurities

Ceramide 2

In a high-performance liquid chromatography analysis of Ceramide 2, only 1 peak was detected. No residual solvent was detected and the water content was less than 0.5% (no further details provided).⁹

A heavy metals analysis performed on Ceramide 2 (reported under the new name Ceramide NG) yielded the following results: lead < 10 ppm, arsenic < 3 ppm, mercury < 1 ppm, cadmium < 1 ppm, nickel < 1 ppm, and palladium < 1 ppm.¹²

Ceramide 5

The residue-on-ignition value for Ceramide 5 was reported to be less than 0.5%.¹⁰

Ultraviolet/Visible Absorption

Ceramide 2

The ultraviolet and visible absorption spectra of solutions of Ceramide 2 were measured with a Perkin Elmer Lambda 15 spectrophotometer.¹³ Ceramide 2 was tested at concentrations of 0.001%, 0.01%, 0.1%, and 1% in 95% ethanol or 1,4-dioxane. Negligible absorption was observed ( A [300 nm] = 0.064 in ethanol and 0.078 in 1,4-dioxane) indicating that significant photochemical reactions in sunlight are unlikely.

Use

Cosmetic

The safety of the cosmetic ingredients included in this safety assessment is evaluated on the basis of the expected use in cosmetics. The Panel utilizes data received from the FDA and the cosmetics industry in determining the expected cosmetic use. The data received from the FDA are those it collects from manufacturers on the use of individual ingredients in cosmetics by cosmetic product category in its Voluntary Cosmetic Registration Program (VCRP), and those from the cosmetic industry are submitted in response to a survey of the maximum reported use concentrations by category conducted by the Council.

According to the 2015 VCRP survey data, 2-Oleamido-1,3-Octadecanediol is reported to be used in 360 formulations (Table 3).¹⁴ Ceramide 3 is reported to be used in 359 formulations. The majority of the uses for all ceramide ingredients are in leave-on skin care preparations. The results of the concentration of use survey conducted by the Council in 2013 and 2014 indicate 2-Oleamido-1,3-Octadecanediol has the highest reported maximum concentration of use; it is used at up to 0.7% in hair conditioners.^15,16 The highest maximum concentration of use reported for products resulting in leave-on dermal exposure is 0.2% for Ceramide 2, Ceramide 3, Ceramide 6 II, Ceramide AP, Ceramide NP, and 2-Oleamido-1,3-Octadecanediol in skin care preparations. Suppliers reported that Ceramide 2 and Ceramide 5 are used at concentrations up to 4% and 2%, respectively, in cosmetic products (no further details were provided).^8,10 Table 4 lists the 8 ceramide ingredients not indicated to be in use based on the VCRP data and the results of the Council’s concentration of use survey.

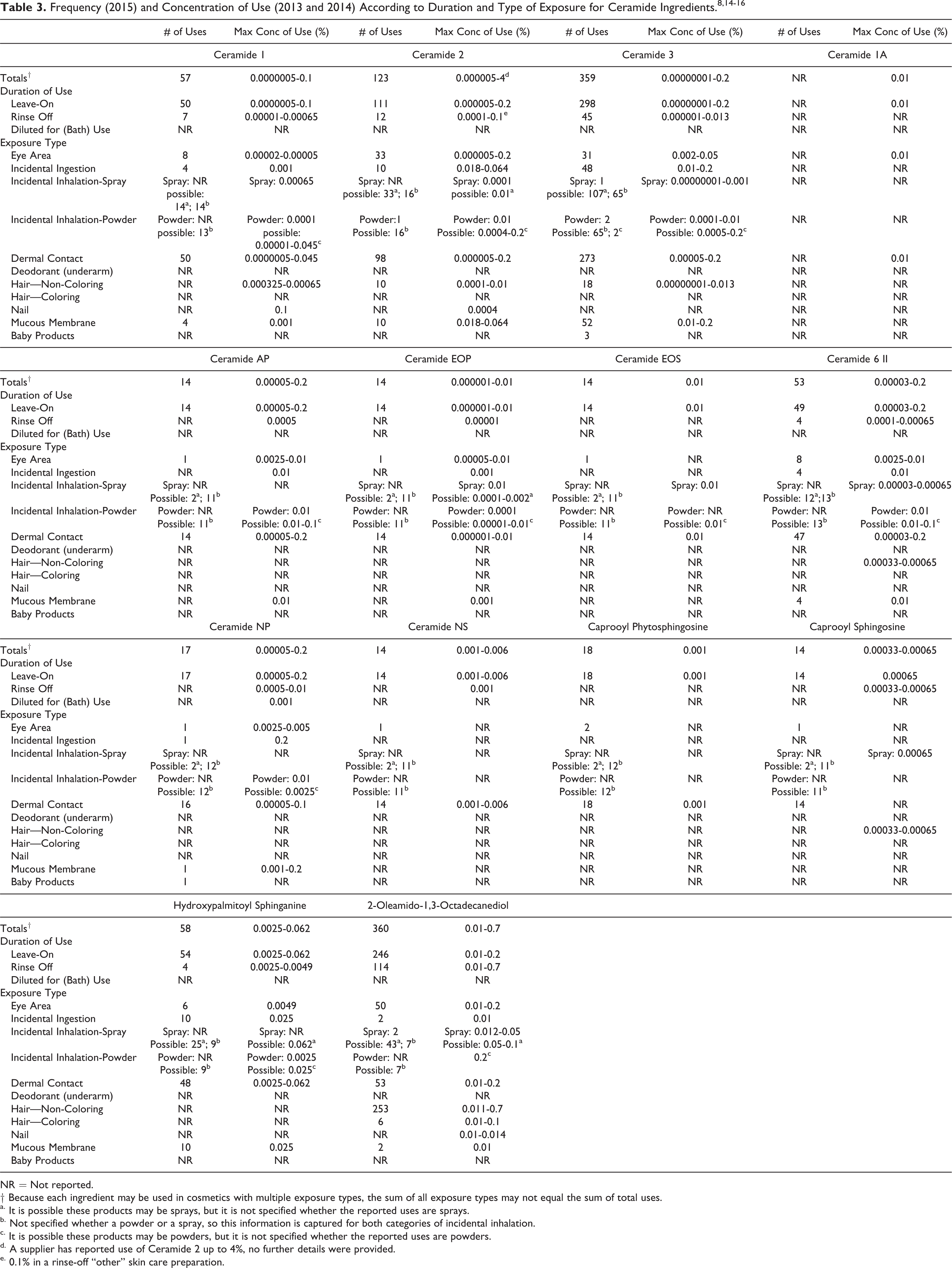

Table 3.

Frequency (2015) and Concentration of Use (2013 and 2014) According to Duration and Type of Exposure for Ceramide Ingredients.^8,
14
-16

	# of Uses	Max Conc of Use (%)	# of Uses	Max Conc of Use (%)	# of Uses	Max Conc of Use (%)	# of Uses	Max Conc of Use (%)
	Ceramide 1		Ceramide 2		Ceramide 3		Ceramide 1A
Totals^†	57	0.0000005-0.1	123	0.000005-4^d	359	0.00000001-0.2	NR	0.01
Duration of Use
Leave-On	50	0.0000005-0.1	111	0.000005-0.2	298	0.00000001-0.2	NR	0.01
Rinse Off	7	0.00001-0.00065	12	0.0001-0.1^e	45	0.000001-0.013	NR	NR
Diluted for (Bath) Use	NR	NR	NR	NR	NR	NR	NR	NR
Exposure Type
Eye Area	8	0.00002-0.00005	33	0.000005-0.2	31	0.002-0.05	NR	0.01
Incidental Ingestion	4	0.001	10	0.018-0.064	48	0.01-0.2	NR	NR
Incidental Inhalation-Spray	Spray: NRpossible: 14^a; 14^b	Spray: 0.00065	Spray: NRpossible: 33^a; 16^b	Spray: 0.0001possible: 0.01^a	Spray: 1possible: 107^a; 65^b	Spray: 0.00000001-0.001	NR	NR
Incidental Inhalation-Powder	Powder: NRpossible: 13^b	Powder: 0.0001possible: 0.00001-0.045^c	Powder:1Possible: 16^b	Powder: 0.01Possible: 0.0004-0.2^c	Powder: 2Possible: 65^b; 2^c	Powder: 0.0001-0.01 Possible: 0.0005-0.2^c	NR	NR
Dermal Contact	50	0.0000005-0.045	98	0.000005-0.2	273	0.00005-0.2	NR	0.01
Deodorant (underarm)	NR	NR	NR	NR	NR	NR	NR	NR
Hair—Non-Coloring	NR	0.000325-0.00065	10	0.0001-0.01	18	0.00000001-0.013	NR	NR
Hair—Coloring	NR	NR	NR	NR	NR	NR	NR	NR
Nail	NR	0.1	NR	0.0004	NR	NR	NR	NR
Mucous Membrane	4	0.001	10	0.018-0.064	52	0.01-0.2	NR	NR
Baby Products	NR	NR	NR	NR	3	NR	NR	NR
	Ceramide AP		Ceramide EOP		Ceramide EOS		Ceramide 6 II
Totals^†	14	0.00005-0.2	14	0.000001-0.01	14	0.01	53	0.00003-0.2
Duration of Use
Leave-On	14	0.00005-0.2	14	0.000001-0.01	14	0.01	49	0.00003-0.2
Rinse Off	NR	0.0005	NR	0.00001	NR	NR	4	0.0001-0.00065
Diluted for (Bath) Use	NR	NR	NR	NR	NR	NR	NR	NR
Exposure Type
Eye Area	1	0.0025-0.01	1	0.00005-0.01	1	NR	8	0.0025-0.01
Incidental Ingestion	NR	0.01	NR	0.001	NR	NR	4	0.01
Incidental Inhalation-Spray	Spray: NRPossible: 2^a; 11^b	NR	Spray: NRPossible: 2^a; 11^b	Spray: 0.01Possible: 0.0001-0.002^a	Spray: NRPossible: 2^a; 11^b	Spray: 0.01	Spray: NRPossible: 12^a;13^b	Spray: 0.00003-0.00065
Incidental Inhalation-Powder	Powder: NRPossible: 11^b	Powder: 0.01Possible: 0.01-0.1^c	Powder: NRPossible: 11^b	Powder: 0.0001 Possible: 0.00001-0.01^c	Powder: NRPossible: 11^b	Powder: NRPossible: 0.01^c	Powder: NRPossible: 13^b	Powder: 0.01Possible: 0.01-0.1^c
Dermal Contact	14	0.00005-0.2	14	0.000001-0.01	14	0.01	47	0.00003-0.2
Deodorant (underarm)	NR	NR	NR	NR	NR	NR	NR	NR
Hair—Non-Coloring	NR	NR	NR	NR	NR	NR	NR	0.00033-0.00065
Hair—Coloring	NR	NR	NR	NR	NR	NR	NR	NR
Nail	NR	NR	NR	NR	NR	NR	NR	NR
Mucous Membrane	NR	0.01	NR	0.001	NR	NR	4	0.01
Baby Products	NR	NR	NR	NR	NR	NR	NR	NR
	Ceramide NP		Ceramide NS		Caprooyl Phytosphingosine		Caprooyl Sphingosine
Totals^†	17	0.00005-0.2	14	0.001-0.006	18	0.001	14	0.00033-0.00065
Duration of Use
Leave-On	17	0.00005-0.2	14	0.001-0.006	18	0.001	14	0.00065
Rinse Off	NR	0.0005-0.01	NR	0.001	NR	NR	NR	0.00033-0.00065
Diluted for (Bath) Use	NR	0.001	NR	NR	NR	NR	NR	NR
Exposure Type
Eye Area	1	0.0025-0.005	1	NR	2	NR	1	NR
Incidental Ingestion	1	0.2	NR	NR	NR	NR	NR	NR
Incidental Inhalation-Spray	Spray: NRPossible: 2^a; 12^b	NR	Spray: NRPossible: 2^a; 11^b	NR	Spray: NRPossible: 2^a; 12^b	NR	Spray: NRPossible: 2^a; 11^b	Spray: 0.00065
Incidental Inhalation-Powder	Powder: NRPossible: 12^b	Powder: 0.01Possible: 0.0025^c	Powder: NRPossible: 11^b	NR	Powder: NRPossible: 12^b	NR	Powder: NRPossible: 11^b	NR
Dermal Contact	16	0.00005-0.1	14	0.001-0.006	18	0.001	14	NR
Deodorant (underarm)	NR	NR	NR	NR	NR	NR	NR	NR
Hair—Non-Coloring	NR	NR	NR	NR	NR	NR	NR	0.00033-0.00065
Hair—Coloring	NR	NR	NR	NR	NR	NR	NR	NR
Nail	NR	NR	NR	NR	NR	NR	NR	NR
Mucous Membrane	1	0.001-0.2	NR	NR	NR	NR	NR	NR
Baby Products	1	NR	NR	NR	NR	NR	NR	NR
	Hydroxypalmitoyl Sphinganine		2-Oleamido-1,3-Octadecanediol
Totals^†	58	0.0025-0.062	360	0.01-0.7
Duration of Use
Leave-On	54	0.0025-0.062	246	0.01-0.2
Rinse Off	4	0.0025-0.0049	114	0.01-0.7
Diluted for (Bath) Use	NR	NR	NR	NR
Exposure Type
Eye Area	6	0.0049	50	0.01-0.2
Incidental Ingestion	10	0.025	2	0.01
Incidental Inhalation-Spray	Spray: NRPossible: 25^a; 9^b	Spray: NRPossible: 0.062^a	Spray: 2Possible: 43^a; 7^b	Spray: 0.012-0.05Possible: 0.05-0.1^a
Incidental Inhalation-Powder	Powder: NRPossible: 9^b	Powder: 0.0025Possible: 0.025^c	Powder: NRPossible: 7^b	0.2^c
Dermal Contact	48	0.0025-0.062	53	0.01-0.2
Deodorant (underarm)	NR	NR	NR	NR
Hair—Non-Coloring	NR	NR	253	0.011-0.7
Hair—Coloring	NR	NR	6	0.01-0.1
Nail	NR	NR	NR	0.01-0.014
Mucous Membrane	10	0.025	2	0.01
Baby Products	NR	NR	NR	NR

NR = Not reported.

† Because each ingredient may be used in cosmetics with multiple exposure types, the sum of all exposure types may not equal the sum of total uses.

^a. It is possible these products may be sprays, but it is not specified whether the reported uses are sprays.

^b. Not specified whether a powder or a spray, so this information is captured for both categories of incidental inhalation.

^c. It is possible these products may be powders, but it is not specified whether the reported uses are powders.

^d. A supplier has reported use of Ceramide 2 up to 4%, no further details were provided.

^e. 0.1% in a rinse-off “other” skin care preparation.

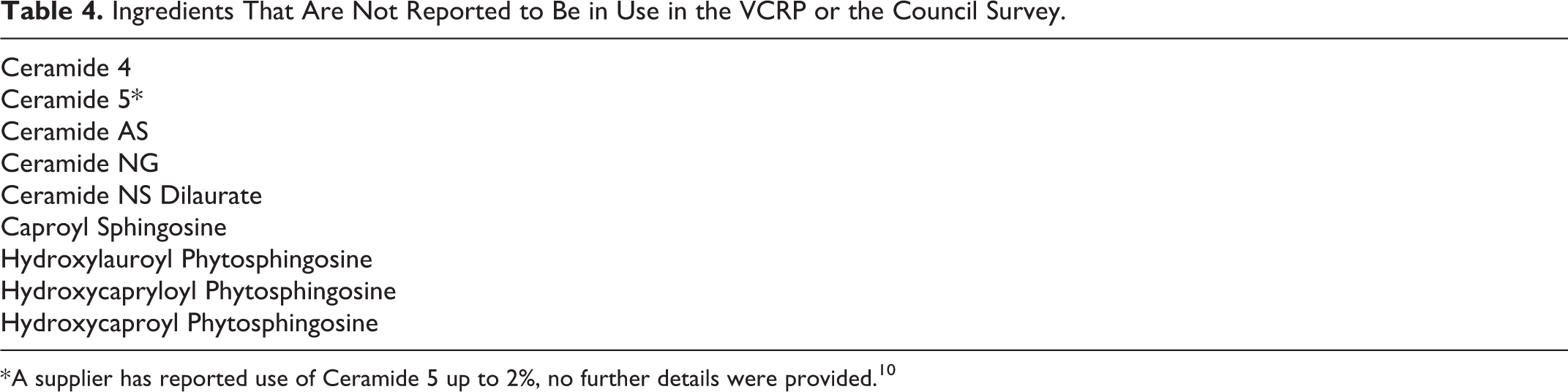

Table 4.

Ingredients That Are Not Reported to Be in Use in the VCRP or the Council Survey.

Ceramide 4

Ceramide 5*

Ceramide AS

Ceramide NG

Ceramide NS Dilaurate

Caproyl Sphingosine

Hydroxylauroyl Phytosphingosine

Hydroxycapryloyl Phytosphingosine

Hydroxycaproyl Phytosphingosine

* A supplier has reported use of Ceramide 5 up to 2%, no further details were provided.¹⁰

In some cases, no reported uses were received from the VCRP, but a maximum use concentration was provided in the industry survey. For example, Ceramide 1A was not reported in the VCRP, but the industry survey indicated that it is used in eye lotions at concentrations up to 0.01%. It should be presumed that Ceramide 1A is used in at least one cosmetic formulation.

Some of these ingredients may be used in products that can be incidentally ingested or come into contact with mucous membranes. For example, Ceramide 3 is used at 0.2% in lipstick and Ceramide 2 is used at 0.2% in eye lotion. Additionally, some of these ingredients were reported to be used in hair sprays and body and hand or moisturizing sprays and could possibly be inhaled. For example, Ceramide 3 was reported to be used in body and hand sprays at a maximum concentration of 0.001%. In practice, 95% to 99% of the droplets/particles released from cosmetic sprays have aerodynamic equivalent diameters > 10 µm, with propellant sprays yielding a greater fraction of droplets/particles below 10 µm compared with pump sprays.^17

–20 Therefore, most droplets/particles incidentally inhaled from cosmetic sprays would be deposited in the nasopharyngeal and bronchial regions and would not be respirable (ie, they would not enter the lungs) to any appreciable amount.^18,19 The ceramide ingredients in this report are not restricted from use in any way under the rules governing cosmetic products in the European Union.²¹

Toxicokinetics

Ceramides are among the lipids that make up sphingomyelin, which is a major component of the lipid bilayer of the cell membranes of keratinocytes in the epidermis.^8,10 Ceramides are lipophilic and are likely to be readily absorbed into the skin. However, they are expected to remain in the stratum corneum and not penetrate any deeper.

The absorption, distribution, and excretion of an analogous radiolabeled ceramide ([3-³ H]-palmitoyl d-erythro-sphingosine) was studied in male HWY rats.²² The chemical structure of the ceramide tested, and the position of the radiolabel, were given as follows in Figure 4:

Figure 4.

Ceramide analog.

An unreported number of rats received a single oral administration (300 kBq/30 µg/kg) of [³ H]-ceramide. Blood samples were serially collected from the subclavian vein at 0.5, 1, 2, 4, 8, 12, 24, 48, 72, 96, and 144 hours and the concentration of total radioactivity in the plasma was determined. Radioactivity was also measured in urine and feces collected up to 96 hours posttreatment and in excised abdominal skin and carcass. Distribution of radioactivity was measured in selected organs and tissues up to 168 hours posttreatment. The mean plasma concentration of radioactivity reached a maximum at approximately 10.67 hours and then decreased with a half-life of 67.12 hours. The mean cumulative excretion of radioactivity in urine and feces was approximately 4.79% and 87.44% of the dose, respectively. At 96 hours after dosing, 1.67% and 3.67%, respectively, of the dose were still present in the skin and carcass. The radioactivity in the skin at 12 hours was lower than that in plasma and the ratio of skin to plasma concentration was 0.7. However, at 120 hours after dosing, the ratio of skin to plasma concentration increased to 4. An analysis of the distribution of radioactivity in a section of skin found radioactivity in the dermis and epidermis. At 72 and 168 hours, the radioactivity in the epidermis was 5.6% and 8.0%, respectively, of the radioactivity in skin, while at these same observation periods, the radioactivity in the dermis was 94.4% and 92.0%, respectively, of the radioactivity in skin. This study found that, following oral exposure, radiolabeled ceramide is distributed gradually in the dermis and then transferred to the epidermis.

Toxicological Studies

Acute Toxicity

Acute oral and dermal toxicity studies are summarized in Table 5.^{23

–31} The median lethal oral dose (LD₅₀) was greater than 2000 mg/kg in rat studies of Ceramide 2, Ceramide AP, Hydroxypalmitoyl Sphinganine, and 2 Oleamido-1,3-Octadecanediol, and greater than 5000 mg/kg in rat studies of Ceramide NP. In dermal studies on rats, the LD₅₀ s were greater than 2000 mg/kg for Ceramide NP, Ceramide AP, and 2-Oleamido-1,3-Octadecanediol.

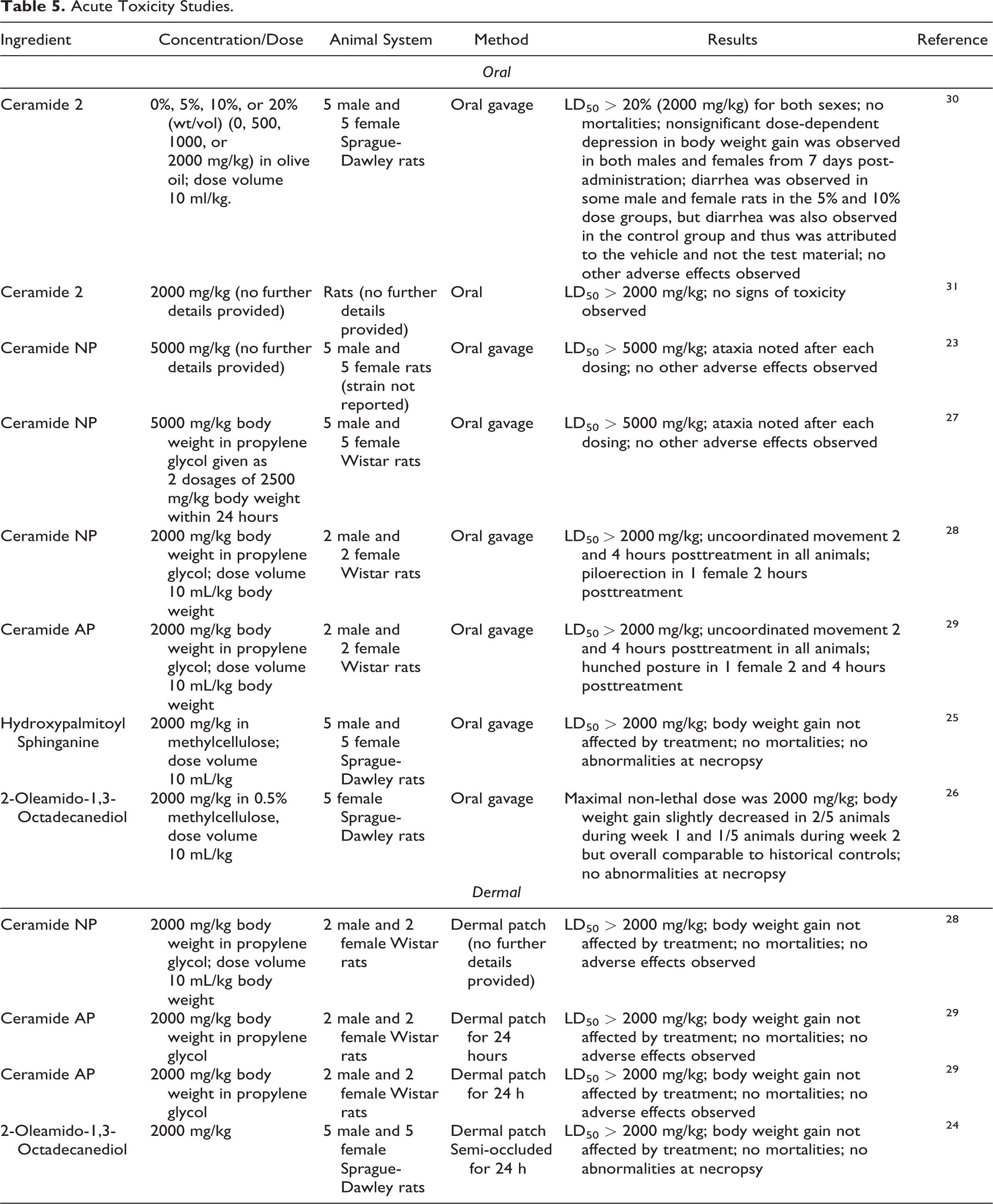

Table 5.

Acute Toxicity Studies.

Ingredient	Concentration/Dose	Animal System	Method	Results	Reference
Oral
Ceramide 2	0%, 5%, 10%, or 20% (wt/vol) (0, 500, 1000, or 2000 mg/kg) in olive oil; dose volume 10 ml/kg.	5 male and 5 female Sprague-Dawley rats	Oral gavage	LD₅₀ > 20% (2000 mg/kg) for both sexes; no mortalities; nonsignificant dose-dependent depression in body weight gain was observed in both males and females from 7 days post-administration; diarrhea was observed in some male and female rats in the 5% and 10% dose groups, but diarrhea was also observed in the control group and thus was attributed to the vehicle and not the test material; no other adverse effects observed	³⁰
Ceramide 2	2000 mg/kg (no further details provided)	Rats (no further details provided)	Oral	LD₅₀ > 2000 mg/kg; no signs of toxicity observed	³¹
Ceramide NP	5000 mg/kg (no further details provided)	5 male and 5 female rats (strain not reported)	Oral gavage	LD₅₀ > 5000 mg/kg; ataxia noted after each dosing; no other adverse effects observed	²³
Ceramide NP	5000 mg/kg body weight in propylene glycol given as 2 dosages of 2500 mg/kg body weight within 24 hours	5 male and 5 female Wistar rats	Oral gavage	LD₅₀ > 5000 mg/kg; ataxia noted after each dosing; no other adverse effects observed	²⁷
Ceramide NP	2000 mg/kg body weight in propylene glycol; dose volume 10 mL/kg body weight	2 male and 2 female Wistar rats	Oral gavage	LD₅₀ > 2000 mg/kg; uncoordinated movement 2 and 4 hours posttreatment in all animals; piloerection in 1 female 2 hours posttreatment	²⁸
Ceramide AP	2000 mg/kg body weight in propylene glycol; dose volume 10 mL/kg body weight	2 male and 2 female Wistar rats	Oral gavage	LD₅₀ > 2000 mg/kg; uncoordinated movement 2 and 4 hours posttreatment in all animals; hunched posture in 1 female 2 and 4 hours posttreatment	²⁹
Hydroxypalmitoyl Sphinganine	2000 mg/kg in methylcellulose; dose volume 10 mL/kg	5 male and 5 female Sprague-Dawley rats	Oral gavage	LD₅₀ > 2000 mg/kg; body weight gain not affected by treatment; no mortalities; no abnormalities at necropsy	²⁵
2-Oleamido-1,3-Octadecanediol	2000 mg/kg in 0.5% methylcellulose, dose volume 10 mL/kg	5 female Sprague-Dawley rats	Oral gavage	Maximal non-lethal dose was 2000 mg/kg; body weight gain slightly decreased in 2/5 animals during week 1 and 1/5 animals during week 2 but overall comparable to historical controls; no abnormalities at necropsy	²⁶
Dermal
Ceramide NP	2000 mg/kg body weight in propylene glycol; dose volume 10 mL/kg body weight	2 male and 2 female Wistar rats	Dermal patch (no further details provided)	LD₅₀ > 2000 mg/kg; body weight gain not affected by treatment; no mortalities; no adverse effects observed	²⁸
Ceramide AP	2000 mg/kg body weight in propylene glycol	2 male and 2 female Wistar rats	Dermal patch for 24 hours	LD₅₀ > 2000 mg/kg; body weight gain not affected by treatment; no mortalities; no adverse effects observed	²⁹
Ceramide AP	2000 mg/kg body weight in propylene glycol	2 male and 2 female Wistar rats	Dermal patch for 24 h	LD₅₀ > 2000 mg/kg; body weight gain not affected by treatment; no mortalities; no adverse effects observed	²⁹
2-Oleamido-1,3-Octadecanediol	2000 mg/kg	5 male and 5 female Sprague-Dawley rats	Dermal patchSemi-occluded for 24 h	LD₅₀ > 2000 mg/kg; body weight gain not affected by treatment; no mortalities; no abnormalities at necropsy	²⁴

Repeated Dose Toxicity

Oral—Non-Human

2-Oleamido-1,3-Octadecanediol

The toxicity of 2-Oleamido-1,3-Octadecanediol was assessed in a 28-day oral study in groups of 5 male and 5 female Sprague-Dawley rats.³² The rats received 10, 30, or 100 mg/kg of the test material in carboxymethylcellulose daily via gavage. An additional group of 5 males and 5 females received the vehicle alone as a control. The rats were observed weekly for clinical signs of toxicity and feed and water consumption. The rats were weighed twice weekly. Hematology, blood clinical chemistry, and urinalysis were also performed. Macroscopic and histologic examinations were performed at study end.

No mortalities were observed during the study. With the exception of the 30 mg/kg dose females, behavior, body weight gain, and feed consumption of the treated animals were comparable to those of the control animals. In the 30 mg/kg females, a slight decrease in body weight gain was observed. Decreased water consumption was observed during week 4 in the 10 mg/kg dose males and during week 2 to week 4 in the 30 mg/kg dose males. In the females, increased water consumption was observed in week 2 and week 3 in the 10 mg/kg dose group and during week 1 and week 2 in the 30 and 100 mg/kg dose groups. Mean white cell count in the 10 mg/kg dose females, mean neutrophils count in the 10 and 100 mg/kg dose males, and mean lymphocyte count in the 10 mg/kg dose females were statistically significantly lower than those of the controls, but individual results were within physiological ranges. Alanine transaminase and aspartate transaminase activities were high in one 100 mg/kg dose female, and a histopathological examination of the liver of this animal revealed moderate single cell necrosis with inflammatory cell infiltration. The mean urea level in the blood in the 30 mg/kg dose females was significantly lower than that of the controls, but individual results were within physiological ranges. No other statistically significant differences were observed in other hematologic and clinical chemistry parameters. Macroscopic examination found mean absolute weight of the heart in the 30 mg/kg dose males and mean relative weight of the heart in the 30 and 100 mg/kg dose males statistically significantly lower than those of the controls, but individual results were within normal physiological ranges. At 100 mg/kg in male rats, a statistically significant increase in mean absolute and relative weight of the thymus was observed. Based on the findings in the thymus, the no observed effect level (NOEL) for 2-Oleamido-1,3-Octadecanediol was 30 mg/kg/d in rats.³²

Dermal—Nonhuman

2-Oleamido-1,3-Octadecanediol

The cutaneous toxicity of 2-Oleamido-1,3-Octadecanediol was tested in 3 male and 3 female Sprague-Dawley rats.³³ The animals received 1 g/kg body weight of test material in powder form applied to 40 cm2 of the costal cutaneous area once daily for 14 consecutive days. Test sites were occluded for 6 hours and then washed. An additional group of 3 male and 3 female rats that did not receive the powder served as control. The rats were observed daily for clinical signs of toxicity, mortality, and cutaneous reactions. The rats were weighed on days 7 and 14. Macroscopic and histologic examinations were performed at study end. No mortalities were observed during the study. Behavior and mean body weight gains of the treated animals were comparable to those of the control animals. No adverse reactions were observed in the skin. No macroscopic abnormalities of the skin or main abdominal and thoracic organs were observed. No treatment-related skin irritation was noted in the histological evaluation. It was concluded that 1 g/kg 2-Oleamido-1,3-Octadecanediol did not cause cutaneous toxicity in rats.

Reproductive and Developmental Toxicity

2-Oleamido-1,3-Octadecanediol

The effects of 2-Oleamido-1,3-Octadecanediol on reproduction and development were studied in groups of 10 rats/sex/dose by oral gavage.³⁴ Dose levels tested were 0, 100, 300, and 1000 mg/kg body weight/d at a dose volume of 5 mL/kg body weight. The vehicle was a 0.5% aqueous solution of methylcellulose in purified water. Parental males were exposed to the test material 2 weeks prior to mating, during mating, and about 2 weeks postmating (approximately 6 weeks total). Parental females were exposed 2 weeks prior to mating, during mating, during gestation, and during at least 4 days of lactation.

In the 1000 mg/kg dose group, one pregnant rat was observed with poor clinical condition and body weight loss toward the end of gestation and did not deliver by day 24 postmating. Fibrinous and necrotic inflammation of the pericardium was observed microscopically. Another female in the high-dose group was also observed with poor clinical condition from the end of gestation until day 2 postpartum. A normal delivery was observed in this rat, though, and no abnormal findings were observed at necropsy. The findings in these 2 high-dose females were not considered treatment-related. No treatment-related clinical effects were noted in the other animals in any dose group. No treatment-related effects were observed with mean body weights, mean feed consumption, or mating or fertility parameters (including mean numbers of corpora lutea, implantation sites per litter, pups delivered, and live pups).

Further, no increased incidences of mortality, adverse effects on body weight, influence on sex ratio, or treatment-related gross malformations were noted in the pups. In the 1000 mg/kg/d dose group, one parental male had several findings in the urinary tract, including urinary lithiasis, thickened and red urinary bladder mucosa, and dilated right ureter and pelvic cavity of the right kidney. The researchers could not determine whether these findings were treatment-related or a random event. No other treatment-related effects were noted in parental animals at necropsy.

Based on the results of this study on 2-Oleamido-1,3-Octadecanediol, the researchers determined the maternal no observed adverse effect level (NOAEL) to be 1000 mg/kg body weight/d, and the NOEL for mating and fertility to be 1000 mg/kg body weight/d.³⁴

Genotoxicity

In vitro genotoxicity studies are summarized in Table 6.^{27
–29,31,35

–40} Ceramide 2, Ceramide NP, Ceramide 5, Ceramide AP, Hydroxypalmitoyl Sphinganine, and 2-Oleamido-1,3-Octadecanediol were not mutagenic in Ames assays. Additionally, 2-Oleamido-1,3-Octadecanediol was not polyploidy-inducing or clastogenic in a metaphase chromosome analysis in Chinese hamster lung cells at a concentration up to 5000 μg/mL with and without metabolic activation.

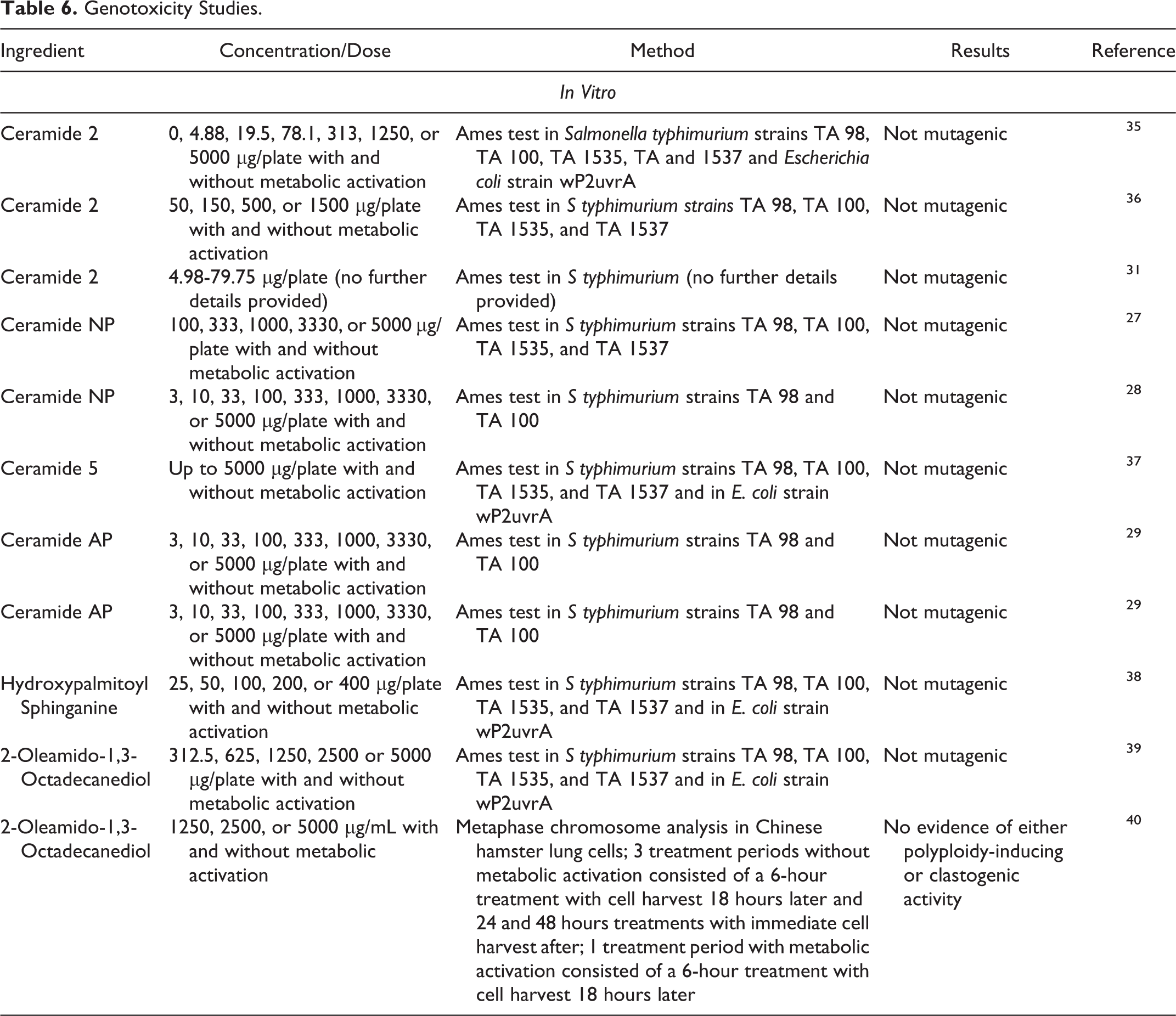

Table 6.

Genotoxicity Studies.

Ingredient	Concentration/Dose	Method	Results	Reference
In Vitro
Ceramide 2	0, 4.88, 19.5, 78.1, 313, 1250, or 5000 μg/plate with and without metabolic activation	Ames test in Salmonella typhimurium strains TA 98, TA 100, TA 1535, TA and 1537 and Escherichia coli strain wP2uvrA	Not mutagenic	³⁵
Ceramide 2	50, 150, 500, or 1500 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98, TA 100, TA 1535, and TA 1537	Not mutagenic	³⁶
Ceramide 2	4.98-79.75 μg/plate (no further details provided)	Ames test in S typhimurium (no further details provided)	Not mutagenic	³¹
Ceramide NP	100, 333, 1000, 3330, or 5000 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98, TA 100, TA 1535, and TA 1537	Not mutagenic	²⁷
Ceramide NP	3, 10, 33, 100, 333, 1000, 3330, or 5000 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98 and TA 100	Not mutagenic	²⁸
Ceramide 5	Up to 5000 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98, TA 100, TA 1535, and TA 1537 and in E. coli strain wP2uvrA	Not mutagenic	³⁷
Ceramide AP	3, 10, 33, 100, 333, 1000, 3330, or 5000 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98 and TA 100	Not mutagenic	²⁹
Ceramide AP	3, 10, 33, 100, 333, 1000, 3330, or 5000 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98 and TA 100	Not mutagenic	²⁹
Hydroxypalmitoyl Sphinganine	25, 50, 100, 200, or 400 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98, TA 100, TA 1535, and TA 1537 and in E. coli strain wP2uvrA	Not mutagenic	³⁸
2-Oleamido-1,3-Octadecanediol	312.5, 625, 1250, 2500 or 5000 μg/plate with and without metabolic activation	Ames test in S typhimurium strains TA 98, TA 100, TA 1535, and TA 1537 and in E. coli strain wP2uvrA	Not mutagenic	³⁹
2-Oleamido-1,3-Octadecanediol	1250, 2500, or 5000 μg/mL with and without metabolic activation	Metaphase chromosome analysis in Chinese hamster lung cells; 3 treatment periods without metabolic activation consisted of a 6-hour treatment with cell harvest 18 hours later and 24 and 48 hours treatments with immediate cell harvest after; 1 treatment period with metabolic activation consisted of a 6-hour treatment with cell harvest 18 hours later	No evidence of either polyploidy-inducing or clastogenic activity	⁴⁰

Carcinogenicity

Data on carcinogenicity were not found in the published literature for ceramides nor were unpublished data provided.

Irritation and Sensitization

Irritation

Ocular

Ocular irritation studies are summarized in Table 7.^{27
–29,31,41

–44} Undiluted Ceramide 2 was mildly irritating to rabbit eyes in one study but not irritating in another. Ceramide NP, Ceramide AP, and Hydroxypalmitoyl Sphinganine were also not irritating in rabbit eye studies when tested neat. 2-Oleamido-1,3-octadecanediol was slightly irritating when tested neat in rabbit eyes.

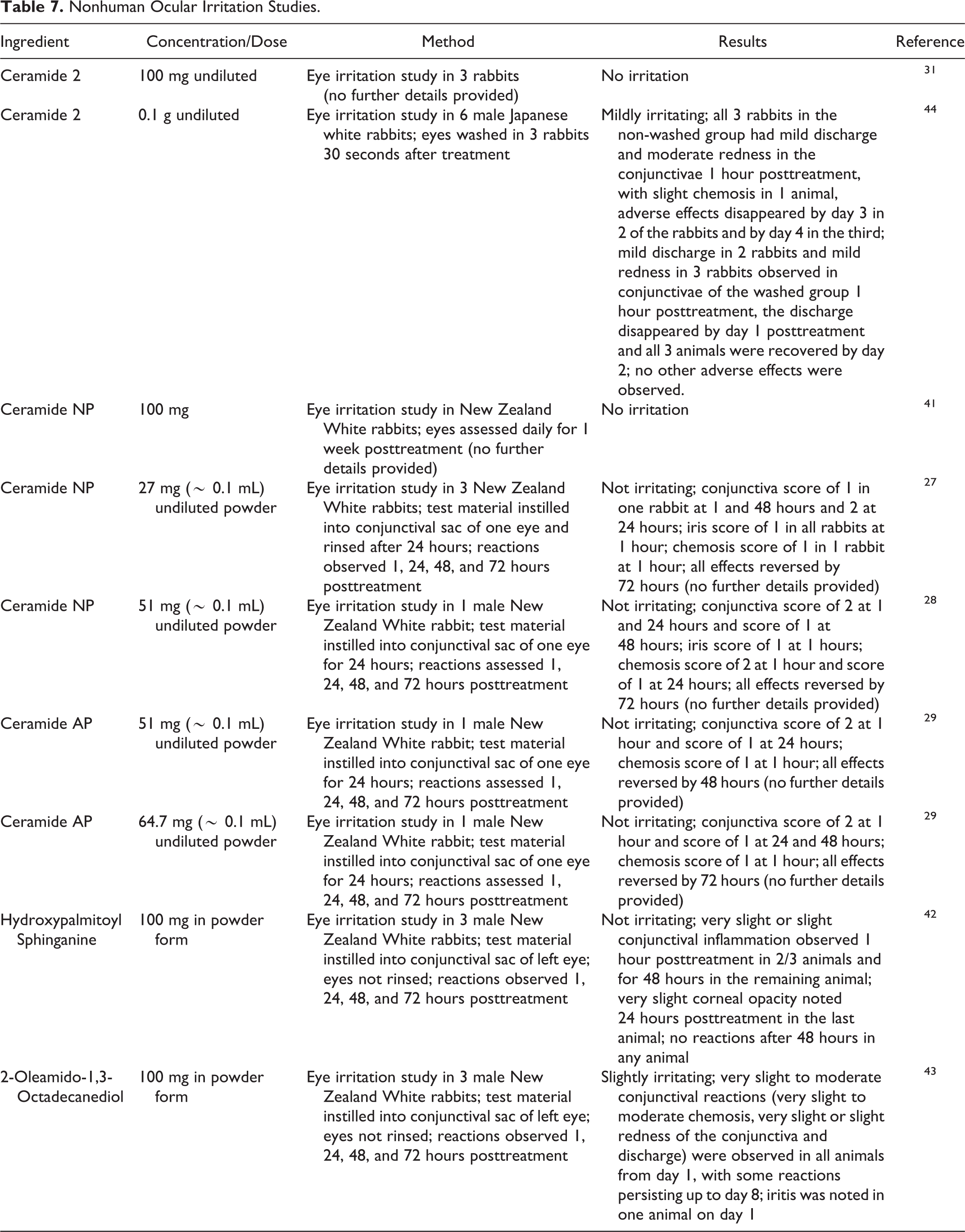

Table 7.

Nonhuman Ocular Irritation Studies.

Ingredient	Concentration/Dose	Method	Results	Reference
Ceramide 2	100 mg undiluted	Eye irritation study in 3 rabbits (no further details provided)	No irritation	³¹
Ceramide 2	0.1 g undiluted	Eye irritation study in 6 male Japanese white rabbits; eyes washed in 3 rabbits 30 seconds after treatment	Mildly irritating; all 3 rabbits in the non-washed group had mild discharge and moderate redness in the conjunctivae 1 hour posttreatment, with slight chemosis in 1 animal, adverse effects disappeared by day 3 in 2 of the rabbits and by day 4 in the third; mild discharge in 2 rabbits and mild redness in 3 rabbits observed in conjunctivae of the washed group 1 hour posttreatment, the discharge disappeared by day 1 posttreatment and all 3 animals were recovered by day 2; no other adverse effects were observed.	⁴⁴
Ceramide NP	100 mg	Eye irritation study in New Zealand White rabbits; eyes assessed daily for 1 week posttreatment (no further details provided)	No irritation	⁴¹
Ceramide NP	27 mg (∼ 0.1 mL) undiluted powder	Eye irritation study in 3 New Zealand White rabbits; test material instilled into conjunctival sac of one eye and rinsed after 24 hours; reactions observed 1, 24, 48, and 72 hours posttreatment	Not irritating; conjunctiva score of 1 in one rabbit at 1 and 48 hours and 2 at 24 hours; iris score of 1 in all rabbits at 1 hour; chemosis score of 1 in 1 rabbit at 1 hour; all effects reversed by 72 hours (no further details provided)	²⁷
Ceramide NP	51 mg (∼ 0.1 mL) undiluted powder	Eye irritation study in 1 male New Zealand White rabbit; test material instilled into conjunctival sac of one eye for 24 hours; reactions assessed 1, 24, 48, and 72 hours posttreatment	Not irritating; conjunctiva score of 2 at 1 and 24 hours and score of 1 at 48 hours; iris score of 1 at 1 hours; chemosis score of 2 at 1 hour and score of 1 at 24 hours; all effects reversed by 72 hours (no further details provided)	²⁸
Ceramide AP	51 mg (∼ 0.1 mL) undiluted powder	Eye irritation study in 1 male New Zealand White rabbit; test material instilled into conjunctival sac of one eye for 24 hours; reactions assessed 1, 24, 48, and 72 hours posttreatment	Not irritating; conjunctiva score of 2 at 1 hour and score of 1 at 24 hours; chemosis score of 1 at 1 hour; all effects reversed by 48 hours (no further details provided)	²⁹
Ceramide AP	64.7 mg (∼ 0.1 mL) undiluted powder	Eye irritation study in 1 male New Zealand White rabbit; test material instilled into conjunctival sac of one eye for 24 hours; reactions assessed 1, 24, 48, and 72 hours posttreatment	Not irritating; conjunctiva score of 2 at 1 hour and score of 1 at 24 and 48 hours; chemosis score of 1 at 1 hour; all effects reversed by 72 hours (no further details provided)	²⁹
Hydroxypalmitoyl Sphinganine	100 mg in powder form	Eye irritation study in 3 male New Zealand White rabbits; test material instilled into conjunctival sac of left eye; eyes not rinsed; reactions observed 1, 24, 48, and 72 hours posttreatment	Not irritating; very slight or slight conjunctival inflammation observed 1 hour posttreatment in 2/3 animals and for 48 hours in the remaining animal; very slight corneal opacity noted 24 hours posttreatment in the last animal; no reactions after 48 hours in any animal	⁴²
2-Oleamido-1,3-Octadecanediol	100 mg in powder form	Eye irritation study in 3 male New Zealand White rabbits; test material instilled into conjunctival sac of left eye; eyes not rinsed; reactions observed 1, 24, 48, and 72 hours posttreatment	Slightly irritating; very slight to moderate conjunctival reactions (very slight to moderate chemosis, very slight or slight redness of the conjunctiva and discharge) were observed in all animals from day 1, with some reactions persisting up to day 8; iritis was noted in one animal on day 1	⁴³

Dermal

Dermal irritation studies are summarized in Table 8.^{27
–29,31,45

–52} In dermal studies, Ceramide 2 (up to 5% in corn oil and undiluted), Ceramide 3 (concentration not reported), Ceramide 5 (up to 5% in white petrolatum), Ceramide AP (undiluted), Hydroxypalmitoyl Sphinganine (undiluted), and 2-Oleamido-1,3-Octadecanediol (undiluted) were not irritating to rabbit or guinea pig skin. Slight irritation was observed in a dermal irritation study in rabbits with Ceramide NP in propylene glycol, but no irritation was observed in other studies of the undiluted form. No dermal irritation was observed in human patch tests of Ceramide 2 (up to 5% in lanolin), Ceramide NP (up to 10% dispersion in petrolatum), Ceramide 5 (up to 5% in lanolin), and Ceramide AP (5% dispersion in petrolatum).

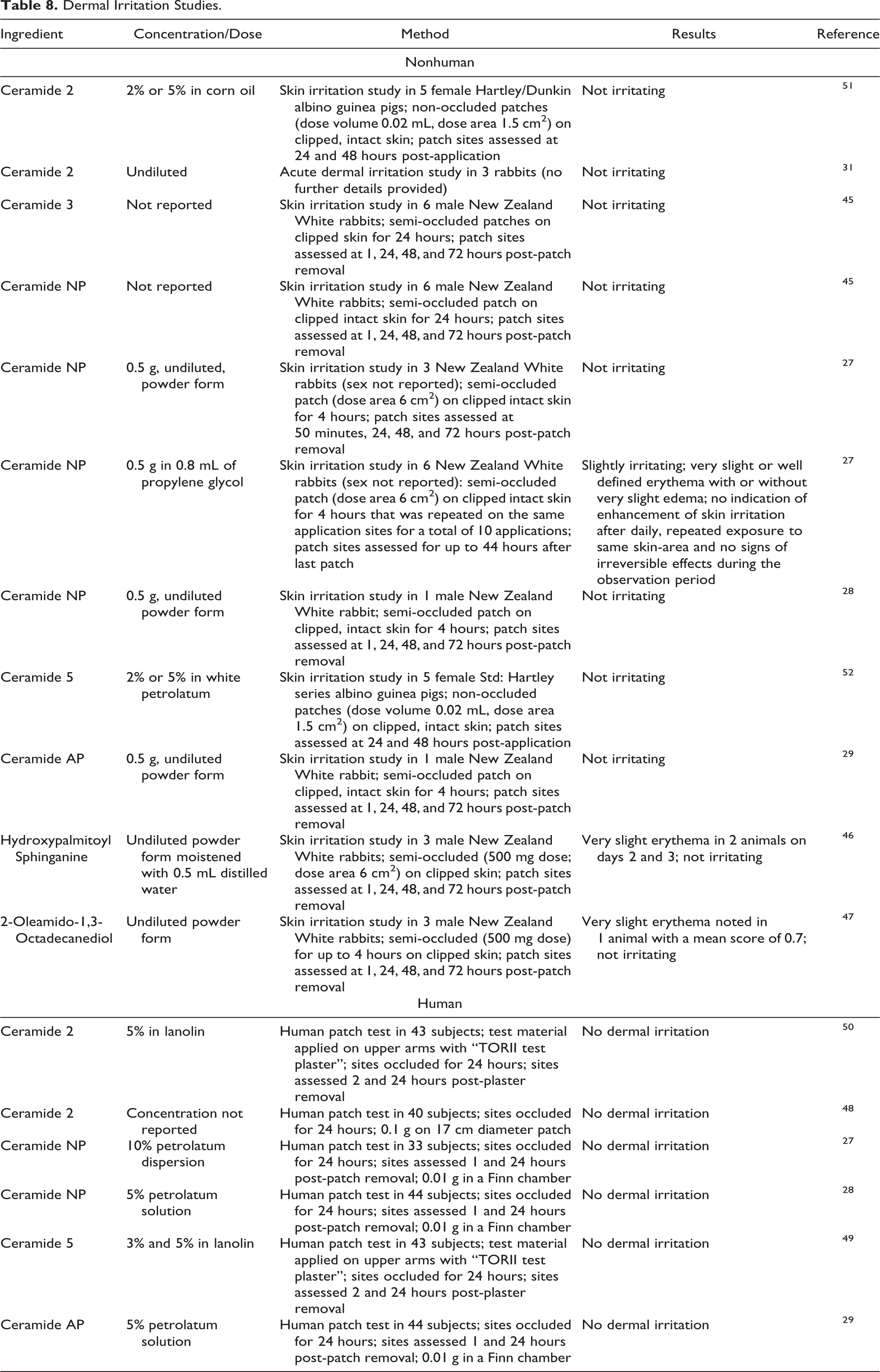

Table 8.

Dermal Irritation Studies.

Ingredient	Concentration/Dose	Method	Results	Reference
Nonhuman
Ceramide 2	2% or 5% in corn oil	Skin irritation study in 5 female Hartley/Dunkin albino guinea pigs; non-occluded patches (dose volume 0.02 mL, dose area 1.5 cm²) on clipped, intact skin; patch sites assessed at 24 and 48 hours post-application	Not irritating	⁵¹
Ceramide 2	Undiluted	Acute dermal irritation study in 3 rabbits (no further details provided)	Not irritating	³¹
Ceramide 3	Not reported	Skin irritation study in 6 male New Zealand White rabbits; semi-occluded patches on clipped skin for 24 hours; patch sites assessed at 1, 24, 48, and 72 hours post-patch removal	Not irritating	⁴⁵
Ceramide NP	Not reported	Skin irritation study in 6 male New Zealand White rabbits; semi-occluded patch on clipped intact skin for 24 hours; patch sites assessed at 1, 24, 48, and 72 hours post-patch removal	Not irritating	⁴⁵
Ceramide NP	0.5 g, undiluted, powder form	Skin irritation study in 3 New Zealand White rabbits (sex not reported); semi-occluded patch (dose area 6 cm²) on clipped intact skin for 4 hours; patch sites assessed at 50 minutes, 24, 48, and 72 hours post-patch removal	Not irritating	²⁷
Ceramide NP	0.5 g in 0.8 mL of propylene glycol	Skin irritation study in 6 New Zealand White rabbits (sex not reported): semi-occluded patch (dose area 6 cm²) on clipped intact skin for 4 hours that was repeated on the same application sites for a total of 10 applications; patch sites assessed for up to 44 hours after last patch	Slightly irritating; very slight or well defined erythema with or without very slight edema; no indication of enhancement of skin irritation after daily, repeated exposure to same skin-area and no signs of irreversible effects during the observation period	²⁷
Ceramide NP	0.5 g, undiluted powder form	Skin irritation study in 1 male New Zealand White rabbit; semi-occluded patch on clipped, intact skin for 4 hours; patch sites assessed at 1, 24, 48, and 72 hours post-patch removal	Not irritating	²⁸
Ceramide 5	2% or 5% in white petrolatum	Skin irritation study in 5 female Std: Hartley series albino guinea pigs; non-occluded patches (dose volume 0.02 mL, dose area 1.5 cm²) on clipped, intact skin; patch sites assessed at 24 and 48 hours post-application	Not irritating	⁵²
Ceramide AP	0.5 g, undiluted powder form	Skin irritation study in 1 male New Zealand White rabbit; semi-occluded patch on clipped, intact skin for 4 hours; patch sites assessed at 1, 24, 48, and 72 hours post-patch removal	Not irritating	²⁹
Hydroxypalmitoyl Sphinganine	Undiluted powder form moistened with 0.5 mL distilled water	Skin irritation study in 3 male New Zealand White rabbits; semi-occluded (500 mg dose; dose area 6 cm²) on clipped skin; patch sites assessed at 1, 24, 48, and 72 hours post-patch removal	Very slight erythema in 2 animals on days 2 and 3; not irritating	⁴⁶
2-Oleamido-1,3-Octadecanediol	Undiluted powder form	Skin irritation study in 3 male New Zealand White rabbits; semi-occluded (500 mg dose) for up to 4 hours on clipped skin; patch sites assessed at 1, 24, 48, and 72 hours post-patch removal	Very slight erythema noted in 1 animal with a mean score of 0.7; not irritating	⁴⁷
Human
Ceramide 2	5% in lanolin	Human patch test in 43 subjects; test material applied on upper arms with “TORII test plaster”; sites occluded for 24 hours; sites assessed 2 and 24 hours post-plaster removal	No dermal irritation	⁵⁰
Ceramide 2	Concentration not reported	Human patch test in 40 subjects; sites occluded for 24 hours; 0.1 g on 17 cm diameter patch	No dermal irritation	⁴⁸
Ceramide NP	10% petrolatum dispersion	Human patch test in 33 subjects; sites occluded for 24 hours; sites assessed 1 and 24 hours post-patch removal; 0.01 g in a Finn chamber	No dermal irritation	²⁷
Ceramide NP	5% petrolatum solution	Human patch test in 44 subjects; sites occluded for 24 hours; sites assessed 1 and 24 hours post-patch removal; 0.01 g in a Finn chamber	No dermal irritation	²⁸
Ceramide 5	3% and 5% in lanolin	Human patch test in 43 subjects; test material applied on upper arms with “TORII test plaster”; sites occluded for 24 hours; sites assessed 2 and 24 hours post-plaster removal	No dermal irritation	⁴⁹
Ceramide AP	5% petrolatum solution	Human patch test in 44 subjects; sites occluded for 24 hours; sites assessed 1 and 24 hours post-patch removal; 0.01 g in a Finn chamber	No dermal irritation	²⁹

Sensitization

Dermal sensitization studies are summarized in Table 9.^{27,31,53
–55} Ceramide 2 (up to 20%), Ceramide NP (up to 10%), Ceramide 5 (up to 5%), and Hydroxypalmitoyl Sphinganine (up to 20%) were not sensitizing in guinea pig maximization tests.

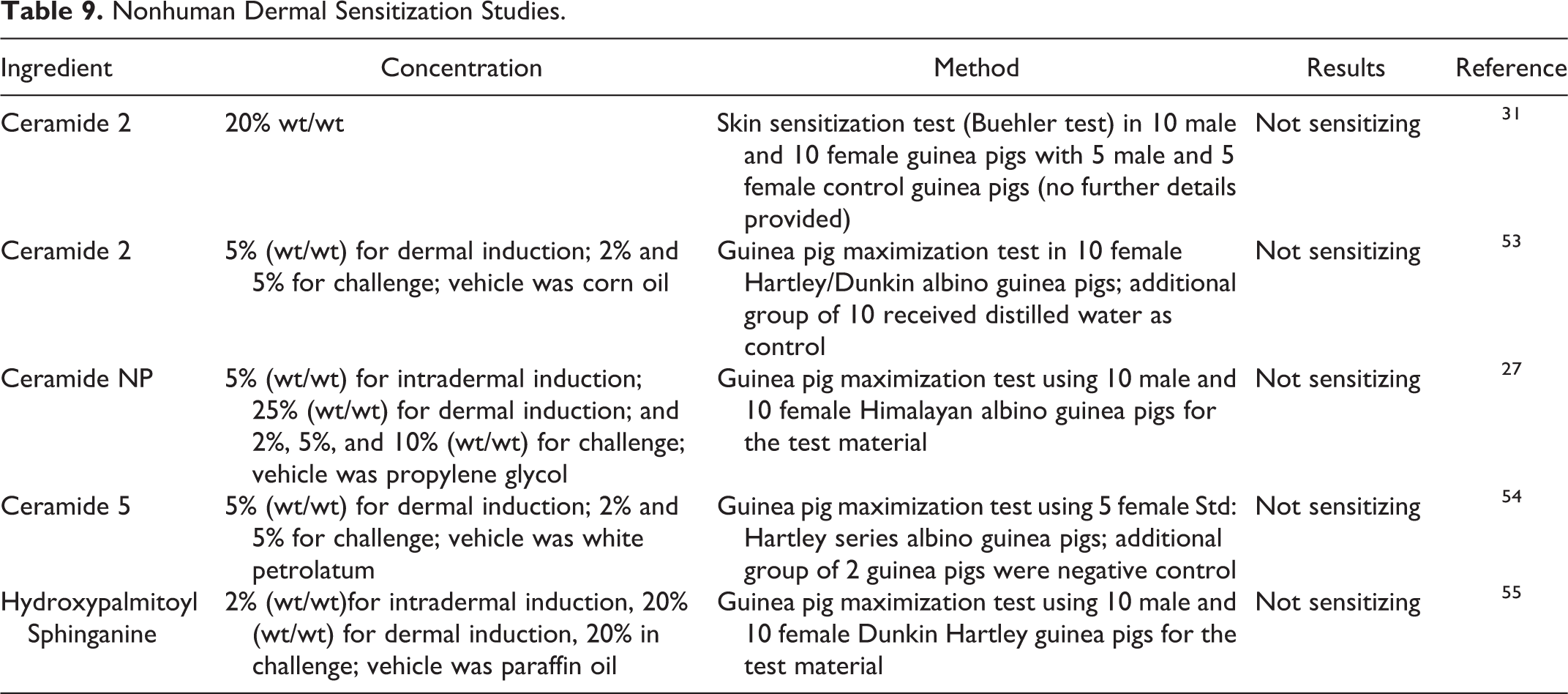

Table 9.

Nonhuman Dermal Sensitization Studies.

Ingredient	Concentration	Method	Results	Reference
Ceramide 2	20% wt/wt	Skin sensitization test (Buehler test) in 10 male and 10 female guinea pigs with 5 male and 5 female control guinea pigs (no further details provided)	Not sensitizing	³¹
Ceramide 2	5% (wt/wt) for dermal induction; 2% and 5% for challenge; vehicle was corn oil	Guinea pig maximization test in 10 female Hartley/Dunkin albino guinea pigs; additional group of 10 received distilled water as control	Not sensitizing	⁵³
Ceramide NP	5% (wt/wt) for intradermal induction; 25% (wt/wt) for dermal induction; and 2%, 5%, and 10% (wt/wt) for challenge; vehicle was propylene glycol	Guinea pig maximization test using 10 male and 10 female Himalayan albino guinea pigs for the test material	Not sensitizing	²⁷
Ceramide 5	5% (wt/wt) for dermal induction; 2% and 5% for challenge; vehicle was white petrolatum	Guinea pig maximization test using 5 female Std: Hartley series albino guinea pigs; additional group of 2 guinea pigs were negative control	Not sensitizing	⁵⁴
Hydroxypalmitoyl Sphinganine	2% (wt/wt)for intradermal induction, 20% (wt/wt) for dermal induction, 20% in challenge; vehicle was paraffin oil	Guinea pig maximization test using 10 male and 10 female Dunkin Hartley guinea pigs for the test material	Not sensitizing	⁵⁵

Summary

Ceramides function primarily as hair conditioning agents and skin-conditioning agents—miscellaneous in personal care products. Naturally occurring ceramides are normal constituents of the skin and are essential components of the epidermal permeability barrier. The names of ceramide ingredients changed during the development of this safety assessment. Reported use data are associated primarily with the retired names. Likewise, most ingredient-specific data received for these ingredients may be associated with the retired INCI names. Accordingly, the retired INCI names are used consistently to refer to the ingredients listed under either nomenclature. However, the data and the conclusions of the Panel will apply to these ingredients under both the new and the retired nomenclature.

2-Oleamido-1,3-Octadecanediol has the most reported uses in cosmetics, with a total of 360; the majority of the uses are in leave-on skin care preparations. Ceramide 3 has the second greatest number of overall uses reported, with a total of 359; the majority of those uses are also in leave-on skin care preparations. In the Council’s use-concentration survey, 2-Oleamido-1,3-Octadecanediol had a maximum use concentration of 0.7% reported in hair conditioners. The highest maximum concentration of use reported for products resulting in leave-on dermal exposure is 0.2% for Ceramide 2, Ceramide 3, Ceramide 6 II, Ceramide AP, Ceramide NP, and 2-Oleamido-1,3-Octadecanediol in skin care preparations.

Ceramides are among the lipids that make up sphingomyelin, which is a major component of the lipid bilayer that forms cell membranes of cells in the stratum corneum. Thus, ceramides are lipophilic and likely to be absorbed into the skin. However, they are expected to remain in the stratum corneum and not penetrate any deeper. An absorption, distribution and excretion study of an analogous radiolabeled ceramide in male rats found that, following oral exposure, the ceramide was distributed gradually to the dermis and then transferred to the epidermis.

The oral LD₅₀ was greater than 2000 mg/kg in rat studies of Ceramide 2, Ceramide AP, Hydroxypalmitoyl Sphinganine, and 2-Oleamido-1,3-Octadecanediol, and greater than 5000 mg/kg in rat studies of Ceramide NP. In dermal studies, the LD₅₀ was greater than 2000 mg/kg in rats exposed to Ceramide NP, Ceramide AP, or 2 Oleamido-1,3-Octadecanediol.

In an oral repeated dose toxicity study, the NOEL for 2-Oleamido-1,3-Octadecanediol was 30 mg/kg/d in rats. At 100 mg/kg in male rats, a statistically significant increase in mean absolute and relative weights of the thymus was observed. In a dermal repeated dose toxicity study, the cutaneous tolerance of 1 g/kg 2-Oleamido-1,3-Octadecanediol in rats was good. No skin reactions or systemic effects were observed,

The maternal NOAEL and mating and fertility NOEL were both 1000 mg/kg body weight/d, respectively, in a rat reproduction and developmental study of 2-Oleamido-1,3-Octadecanediol. In the1000 mg/kg/d dose group, one male had several lesions in the urinary tract, including urinary lithiasis, thickened and red urinary bladder mucosa, and dilated right ureter and pelvic cavity of the right kidney. The researchers could not determine whether this finding was treatment-related or a random event. No other treatment-related effects were noted in parental animals. No increased incidences of mortality, adverse effects on body weight, influence on sex ratio, or treatment-related gross malformations were noted in the pups.

Ceramide 2, Ceramide NP, Ceramide 5, Ceramide AP, Hydroxypalmitoyl Sphinganine, and 2-Oleamido-1,3-Octadecanediol were not mutagenic in Ames assays. Additionally, 2-Oleamido-1,3-Octadecanediol was not polyploidy-inducing or clastogenic in a metaphase chromosome analysis in Chinese hamster lung cells at concentrations up to 5000 μg/mL with and without metabolic activation.

Data on carcinogenicity were not found for ceramides in the published literature. Unpublished data were not provided. Undiluted Ceramide 2 was mildly irritating to rabbit eyes in one study, but not irritating in another. Ceramide NP, Ceramide AP, and Hydroxypalmitoyl Sphinganine were also not irritating in rabbit eye studies when tested neat. 2 Oleamido-1,3-octadecanediol was slightly irritating when tested neat in rabbit eyes. In dermal studies, Ceramide 2 (up to 5% in corn oil and undiluted), Ceramide 3 (concentration not reported), Ceramide 5 (up to 5% in white petrolatum), Ceramide AP (undiluted), Hydroxypalmitoyl Sphinganine (undiluted), and 2-Oleamido-1,3-Octadecanediol (undiluted) were not irritating to rabbit or guinea pig skin. Slight irritation was observed in a dermal irritation study in rabbits with Ceramide NP in propylene glycol, but no irritation was observed in other dermal studies of the undiluted ingredient. No dermal irritation was observed in human patch tests of Ceramide 2 (up to 5% in lanolin), Ceramide NP (up to 10% petrolatum dispersion), Ceramide 5 (up to 5% in lanolin), and Ceramide AP (5% petrolatum dispersion). Ceramide 2 (up to 20%), Ceramide NP (up to 10%), Ceramide 5 (up to 5%), and Hydroxypalmitoyl Sphinganine (up to 20%) were not sensitizing in guinea pig maximization tests.

Discussion

The Panel considered the available data on ceramides and noted that there were no substantive data on reproductive and developmental toxicity or carcinogenicity. However, concerns were mitigated in light of the negative results of a reproductive and developmental toxicity study of 2-Oleamido-1,3-Octadecanediol in rats and of in vitro genotoxicity assays as well as the findings of no systemic toxicity at high doses in single and repeated oral dose animal studies, little to no irritation in ocular and dermal animal studies, no dermal irritation in human studies, and no dermal sensitization in multiple animal studies. The Panel noted that ceramides with structures that were identical or very similar to the structures of these cosmetic ingredients, exist naturally in the stratum corneum, and commented that the ceramides that are cosmetic ingredients would not be readily absorbed through the skin.

The Panel discussed the issue of incidental inhalation exposure from hair sprays and body and hand or moisturizing sprays. There were no inhalation toxicity data available. The Panel considered pertinent data indicating that incidental inhalation exposures to ceramides in such cosmetic products would not cause adverse health effects, including data characterizing the potential for ceramides to cause systemic toxicity, ocular or dermal irritation or sensitization, and other effects. The Panel noted that 95% to 99% of droplets/particles produced in cosmetic aerosols would not be respirable to any appreciable amount. The potential for inhalation toxicity is not limited to respirable droplets/particles deposited in the lungs. In principle, inhaled droplets/particles deposited in the nasopharyngeal and thoracic regions of the respiratory tract may cause toxic effects depending on their chemical and other properties. However, coupled with the small actual exposure in the breathing zone and the concentrations at which the ingredients are used, the available information indicates that incidental inhalation would not be a significant route of exposure that might lead to local respiratory or systemic effects. A detailed discussion and summary of the Panel’s approach to evaluating incidental inhalation exposures to ingredients in cosmetic products is available at http://www.cir-safety.org/cir-findings.

Conclusion

The Panel concluded that the following ceramide ingredients are safe in cosmetics in the present practices of use and concentration described in this safety assessment:

Ceramide 1 [retired]

Ceramide 2 [retired]

Ceramide 3 [retired]

Ceramide 4* [retired]

Ceramide 5 [retired]

Ceramide 1A [retired]

Ceramide 6 II [retired]

Ceramide AP

Ceramide EOP

Ceramide EOS

Ceramide NP

Ceramide NG*

Ceramide NS

Ceramide AS

Ceramide NS dilaurate*

Caprooyl Phytosphingosine

Caprooyl Sphingosine

Hydroxypalmitoyl Sphinganine

2-Oleamido-1,3-Octadecanediol

Caproyl Sphingosine*

Hydroxylauroyl Phytosphingosine*

Hydroxycapryloyl Phytosphingosine*

Hydroxycaproyl Phytosphingosine*

*Not reported to be in current use. Where ingredients in this group not in current use to be used in the future, the expectation is that those would be used in product categories and at concentrations comparable to others in this group.

Footnotes

Authors’ Note

Unpublished sources cited in this report are available from the Executive Director, Cosmetic Ingredient Review, 1620 L Street, NW, Suite 1200, Washington, DC 20036, USA.

Author Contributions

Burnett contributed to conception and design; acquisition, analysis, and interpretation; drafted manuscript; and critically revised manuscript. Boyer contributed to analysis and interpretation. Bergfeld, Belsito, Hill, Klaassen, Liebler, Marks, Shank, Slaga, and Snyder contributed to conception and design; analysis and interpretation; and critically revised manuscript. Gill contributed to analysis and interpretation and critically revised manuscript. Heldreth contributed to conception and design; analysis and interpretation; and critically revised manuscript. All authors gave final approval and agree to be accountable for all aspects of work ensuring integrity and accuracy.

Declaration of Conflicting Interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The articles in this supplement were sponsored by the Cosmetic Ingredient Review. The Cosmetic Ingredient Review is financially supported by the Personal Care Products Council.

References

Nikitakis

Breslawec

. International Cosmetic Ingredient Dictionary and Handbook. 15th ed. Personal Care Products Council; 2014.

Morganti

Fabrizi

. Safety evaluation of phytosphingosine and ceramides of pharmaceutical grade. J Appli Cosmetol. 1999;17(1):1–9.

Geilen

Wieder

Orfanos

. Ceramide signalling: regulatory role in cell proliferation, differentiation and apoptosis in human epidermis. Arch Dermatol Res. 1997;289(10):559–566.

Uchida

Holleran

Elias

. On the effects of topical synthetic pseudoceramides: comparison of possible keratinocyte toxicities provoked by the pseudoceramides, PC104 and BIO391, and natural ceramides. J Dermatol Sci. 2008;51(1):37–43.

CIR SSC. Comments on the tentative report: safety assessment of ceramides as used in cosmetics. Unpublished data submitted by Personal Care Products Council. 2015.

Elkhayat

Mohamed

Ibrahim

SRM

. Activity and structure elucidation of ceramides. Curr Bioact Compd. 2012;8(4):370–409.

Hammarstrõm

. A convenient procedure for the synthesis of ceramides. J Lipid Res. 1971;12(1):760–765.

Takasago International Corporation. Ceramide 2 as Ceramide TIC-001. Unpublished data submitted by Personal Care Products Council. 2014.

Personal Care Products Council. Ceramide 2 (N-stearoyl-DL-sphinganin). Unpublished data submitted by Personal Care Products Council. 2014:1.

10.

Takasago International Corporation. Ceramide 5 as Ceramide TIC-006. Unpublished data submitted by Personal Care Products Council. 2014.

11.

Personal Care Products Council. Method of Manufacture: 2-Oleamido-1,3-Octadecanediol and Hydroxypalmitoyl Sphinganine. Unpublished data submitted by Personal Care Products Council. 2014:1.

12.

Anonymous. Cosmetic ingredient declaration: Ceramide NG. Unpublished data submitted by Personal Care Products Council. 1 pages. 2014:1.

13.

Anonymous. UV/VIS absorption spectrum study ceramide 2. Unpublished data submitted by the Personal Care Products Council. 1991.

14.

Food and Drug Administration (FDA). Frequency of use of cosmetic ingredients. FDA Database. FDA; 2015. Data received February 3, 2015 in response to a Freedom of Information Act request.

15.

Personal Care Products Council. Concentration of use by FDA product category: ceramide-like ingredients. Unpublished data submitted by Personal Care Products Council. 2014.

16.

Personal Care Products Council. Concentration of use by FDA product category: ceramides. Unpublished data submitted by Personal Care Products Council. 2013:7.

17.

Rothe

Fautz

Gerber

, et al. Special aspects of cosmetic spray safety evaluations: principles on inhalation risk assessment. Toxicol Lett. 2011;205(2):97–104.

18.

Rothe

. Special aspects of cosmetic spray evalulation. Unpublished data presented at the 26 September CIR Expert Panel meeting. 2011.

19.

Bremmer

Prud’homme Lodder

LCH

Engelen

JGM

. Cosmetics fact sheet: to assess the risks for the consumer; updated version for consexpo 4. 2006. Report No. RIVM 320104001/2006. 2006:1–77.

20.

Johnsen

. The influence of particle size. Spray Technol Market. 2004;14(11):24–27.

21.

European Union. Regulation (EC) No. 1223/2009 of the European Parliament and of the Council of 30 November 2009 on Cosmetic Products; 2009. Accessed September 13, 2013. http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2009:342:0059:0209:en:PDF

22.

Ueda

Hasegawa

Kitamura

. Distribution in skin of ceramide after oral administration to rats. Drug Metab.Pharmacokinet. 2009;24(2):180–184.

23.

Anonymous. Assessment of acute oral toxicity with Ceramide III (Ceramide NP) in the rats. Unpublished data submitted by Personal Care Products Council. 1998.

24.

CIT. Toxicite aigue par voie dermique chez le rat: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 1994.

25.

CIT. Acute oral toxicity in rats: Hydroxypalmitoyl Sphinganine. Unpublished data submitted by Personal Care Products Council. 1995.

26.

CIT. Acute oral toxicity in rats “fixed dose method”: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 2005.

27.

Evonik Degussa

GMBH

. Robust summaries of studies on Ceramide III (Ceramide NP). Unpublished data submitted by Personal Care Products Council. 2014.

28.

Evonik Degussa

GMBH

. Robust summaries of studies on Ceramide IIIB (Ceramide NP). Unpublished data submitted by Personal Care Products Council. 2014.

29.

Evonik Degussa GmbH. Robust summaries of studies on Ceramide VI (Ceramide AP). Unpublished data submitted by Personal Care Products Council. 2014.

30.

Life Science Laboratory. Single oral toxicity test for N-hexadecanoyl-2-aminohexadecan-1,3-diol (Ceramide 2) in rats. Unpublished data submitted by Personal Care Products Council. 1996.

31.

Sederma

SAS

. Information on ceramide 2. Unpublished data submitted by Personal Care Products Council. 2014:4.

32.

CERB. Study of toxicity by repeated oral dosing in the rat for 28 days: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 1992.

33.

CERB. Cutaneous tolerance by repeated applications in the rat for 14 days: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 1992.

34.

CIT. Reproductive and developmental toxicity screening test by oral route (gavage) in rats: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 2009.

35.

Takasago International Corporation. Mutagenicity test of dihydroceramide (TIC-001) (Ceramide 2). Unpublished data submitted by Personal Care Products Council. 1997.

36.

Huntingdon Research Centre Ltd. Bacteria mutation assay of Ceramide 2. Unpublished data submitted by Personal Care Products Council. 1992.

37.

Takasago International Corporation. Reverse mutation test “Ames test” with S. typhimurium and E.coli (TIC-006) (Ceramide 5). Unpublished data submitted by Personal Care Products Council. 1997.

38.

CIT. Bacterial reverse mutation assay: Hydroxypalmitoyl Sphinganine. Unpublished data submitted by Personal Care Products Council. 1995.

39.

CIT. Reverse mutation assay on bacteria Salmonella typhimurium and Escherichia coli 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 1994.

40.

Huntingdon Research Centre Ltd. Analysis of metaphase chromosomes obtained from CHL cells cultured in vitro: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 1992.

41.

Anonymous. Eye irritation study with Ceramide III (Ceramide NP) in the New Zealand white rabbits. Unpublished data submitted by Personal Care Products Council. 1998.

42.

CIT. Acute eye irritation in rabbits: Hydroxypalmitoyl Sphinganine. Unpublished data submitted by Personal Care Products Council. 1995.

43.

CIT. Acute eye irritation in rabbits: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 2005.

44.

Life Science Laboratory. Primary eye irritation test for N-hexadecanoyl-2-aminohexadecan-1,3-diol (Ceramide 2) in rabbits. Unpublished data submitted by Personal Care Products Council. 1996.

45.

Anonymous. Primary skin irritation study with Ceramide III (Ceramide NP) in the rabbits. Unpublished data submitted by Personal Care Products Council. 1998.

46.

CIT. Acute dermal irritation in rabbits: Hydroxypalmitoyl Sphinganine. Unpublished data submitted by Personal Care Products Council. 1995.

47.

CIT. Acute dermal irritation in rabbits: 2-Oleamido-1,3-Octadecanediol. Unpublished data submitted by Personal Care Products Council. 2005.

48.

Life Science Laboratory. 5-16-2014. Primary skin irritation test for N-hexadecanoyl-2-aminohexadecan-1,3-diol (Ceramide 2) in human subjects. 1996. Unpublished data submitted by Personal Care Products Council.

49.

Takasago International Corporation. Human patch test of (2S, 3R)-2-(2-hydroxydexadecanoyl)amino octadecane-1,3-diol (TIC-006) (Ceramide 5). 1996. Unpublished data submitted by the Personal Care Products Council.

50.

Takasago International Corporation. Human patch test of dihydroceramide (TIC-001) (Ceramide 2). Unpublished data submitted by Personal Care Products Council. 1997.

51.

Takasago International Corporation. Primary skin irritation study in guinea pigs of dihydroceramide (TIC-001) (Ceramide 2). Unpublished data submitted by Personal Care Products Council. 1997.

52.

Takasago International Corporation. Primary skin irritation study in guinea pigs of TIC-006 (Ceramide 5). Unpublished data submitted by Personal Care Products Council. 1999.

53.

Takasago International Corporation. Delayed contact hypersensitivity study in guinea pigs of dihydroceramide (TIC-001) (Ceramide 2). Unpublished data submitted by Personal Care Products Council. 1997.

54.

Takasago International Corporation. Delayed contact hypersensitivity study in guinea pigs of TIC-006 (Ceramide 5). Unpublished data submitted by the Personal Care Products Council. 1999.

55.

CIT. Skin sensitization test in guinea pigs (maximization method of Magnusson, B. and Kligman, A.M) Hydroxypalmitoyl Sphinganine. Unpublished data submitted by Personal Care Products Council. 1995.

56.

Anonymous. Technical data sheet: Ceramide NG. Unpublished data submitted by Personal Care Products. 2011.
