Resilience and fault tolerance in high-performance computing for numerical weather and climate prediction

3.1. Taxonomy

In the reliability literature, faults are defined as causes of errors, which are parts of the state causing a failure. The latter represents the transition to incorrect service (for taxonomy and wider related literature we refer to the reviews in Avizienis et al., 2004; Cappello, 2009; Cappello et al., 2014; Dongarra et al., 2015; Mittal and Vetter, 2015; Nielsen, 2018; Snir et al., 2014). Parallel computing systems may undergo hardware breakdowns in several of their components – processors, nodes, blades, cabinets. These breakdowns are usually defined as hard faults, they are in general reproducible and, if unaddressed, bring programs to halt. Soft faults are instead usually caused by fluctuations in radiation that introduce spurious modifications in the program data in the form of bit flips and are usually non-reproducible (Cher et al., 2014). Faults are further distinguished into detected and corrected, detected and uncorrectable, and undetected ones. The latter category can take the form of silent data corruption (SDC) and lead the program to compute the wrong solution unbeknown to the user (Calhoun et al., 2017; De Oliveira et al., 2017; Elliott et al., 2014, 2015, 2016; Feng et al., 2010; Fiala et al., 2012; Guhur et al., 2017; Li et al., 2018; Michalak et al., 2012). Next to other performance figures in HPC, mean time between failure (MTBF), made of the sum of mean time to interrupt (MTTI) and mean time to repair (MTTR), has arisen as a measure of reliability of a computing system.

Efforts to limit the impact of computing failures have usually revolved around rollback strategies, mostly in the form of checkpoint-restart (CPR). In this approach, state data are written out to a parallel file system, enabling the application to continue from this consistent state after being restarted following a failure. Checkpointing is intuitive in principle and is commonly agreed to be good programming practice for code bases of a certain size. However, it is computationally expensive as it involves moving data to and from disk, a potential requeuing of the job when run under batch submission systems, and an increase in total system resource and energy usage. Looking ahead, the delays in time-to-solution and overhead caused by CPR may become less and less sustainable for time-bound applications such as NWP, given the inherently increasing failure frequency in future operating schedules. While studies have identified optimal checkpointing intervals (Daly, 2006), CPR clearly stops being worthwhile at the point when the checkpointing procedure takes longer than the average mean time between failure that it is meant to protect from. As an example, Snir et al. (2014) reports CPR times of 2000s for a 64 TB dump on 1000 nodes. Other traditional resilience strategies have used other forms of redundancy, typically replication (Benoit et al., 2017; Dongarra et al., 2015). While these approaches may present some advantages when MTBF is low and CPR is heavy, they also carry sizeable overheads and are generally power-hungry.

To protect the system from bitflips, error-correcting code (ECC) memory features in almost all architectures used in HPC (see, e.g. Mittal and Inukonda, 2018, for a recent review). The associated overhead in terms of performance, storage, and power consumption is not negligible. Depending on the configuration, capacity overhead varies between 10% and 40% (Li et al., 2013) and performance-power overhead around 10–20% (Kim et al., 2015b). In the hardware community, a 12.5% overhead appears to be a commonly accepted value (Sun, 2014). In this context, figures released by hardware vendors tend to include performance penalty only, overlooking the power requirements for ECC/Chipkill (Dell, 1997). Memory (DRAM) protection – increasing refresh rate and adding more parity modules/bits to ECC/Chipkill – also needs energy. The hardware community agreed on the power or performance penalty associated with reliability enhancement. Despite new techniques enabling more efficient reliability enhancement, it is inevitable for computer system architects to allocate some power and performance budget for reliability. For example, in Kim et al. (2015a) a highly reliable Chipkill was implemented with 2 extra chips for a 16-chip memory module. Other authors suggested hybridizing dynamic refresh rates and Chipkill together to tune reliability, power and performance trade-offs.

At any rate, high-performance computing hardware could work much more efficiently if the constraint to always calculate the exact answer could be weakened. A number of studies recently investigated the possibility to reduce numerical precision in weather simulations so as to lower computing costs and energy consumption. Savings can be reinvested to increase model resolution or the number of ensemble members for ensemble forecasts to improve predictions. Studies have covered atmosphere models (Düben and Palmer, 2014) but also data assimilation (Hatfield et al., 2018) and other model components such as land surface (Dawson et al., 2018). It has also been argued that reduced numerical precision may not necessarily degrade results of simulations for weather predictions. In contrast, in some cases it may even be possible to use variability from rounding errors to improve ensemble simulations (Düben and Dolaptchiev, 2015).

A possible reduction in numerical precision has been investigated using stochastic processors (Düben et al., 2014b) and exact arithmetic, for example employing programmable hardware such as Field Programmable Gate Arrays (FPGAs, Russell et al., 2015). Stochastic processors reduce power consumption through voltage over scaling. Here, the voltage applied to the processor is reduced beyond the level at which all operations are calculated correctly. Results suggest that power consumption could indeed be reduced significantly if a low number of faults is acceptable for the applications (Düben et al., 2014a; Lingamneni et al., 2012; Sartori et al., 2011).

3.2. Hardware resilience

The exponential growth in the core counts of high-performance computing systems carries the potential to shrink fault-free computing cycles, dramatically so in some cases. The authors of Gamell et al. (2014) report a MTBF of 9–12 hours. Lower figures were identified for Blue Waters (Di Martino et al., 2015) and the Tianhe-2 machines (Chen et al., 2017). The authors of Gupta et al. (2017) present the normalized MTBF of five systems over 8 years (their Figure 1). As reported in Daly (2006), the MTBF of a system with one million nodes, each of which with a MTBF of 3 years, drops to about 94 seconds.

OPEN IN VIEWER

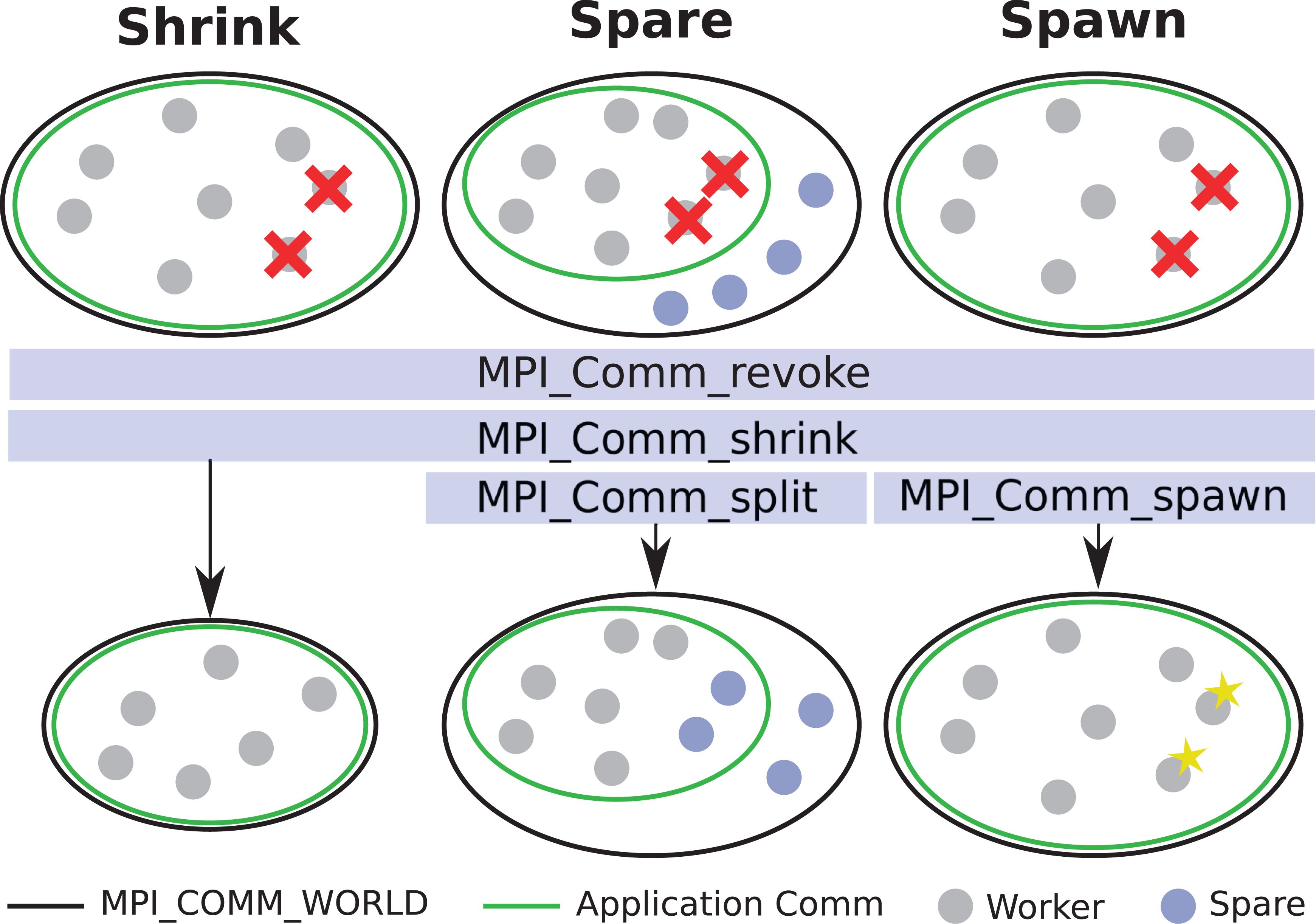

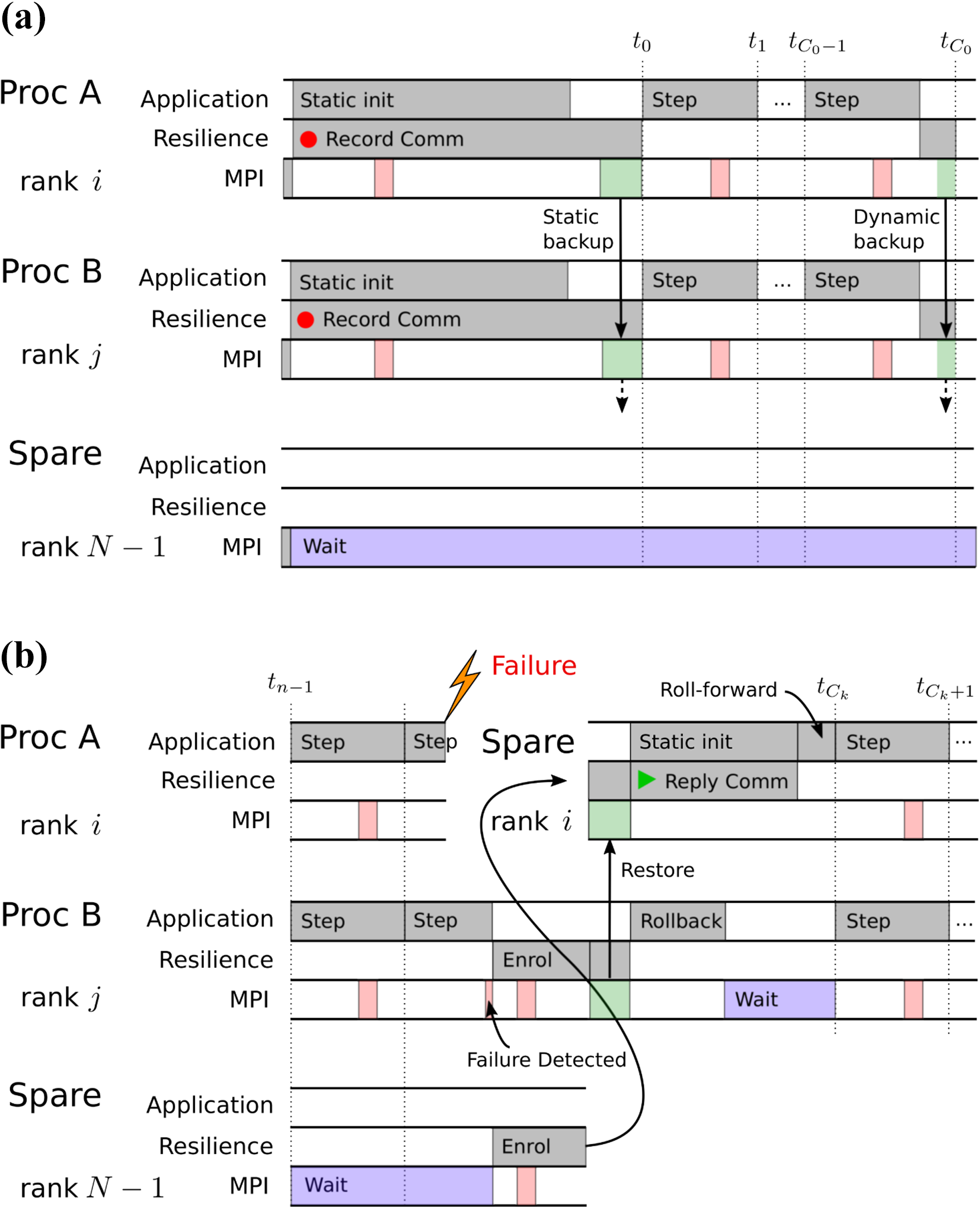

Figure 1.

Approaches to communication-channel recovery using user-level failure management extensions proposed for MPI 4.x.

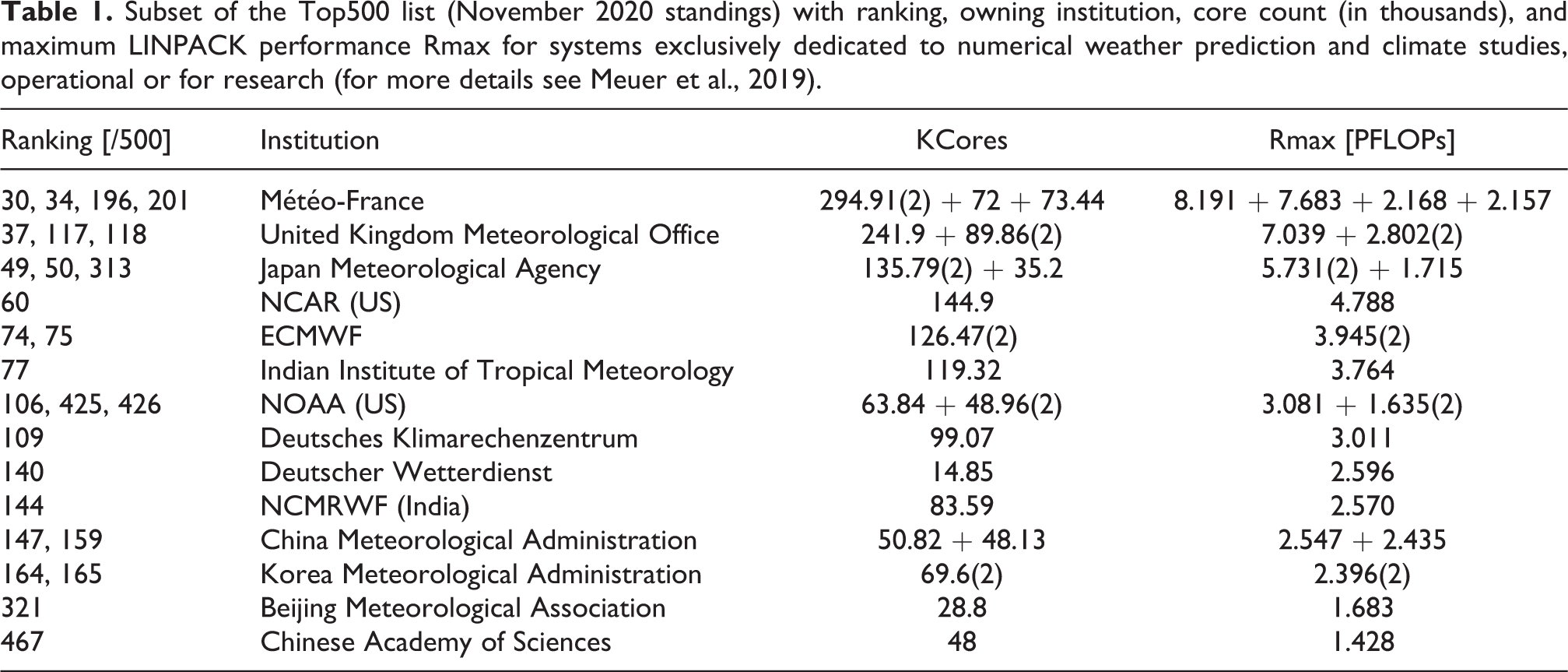

Published figures about machines used in weather centres are generally hard to come by. The two supercomputers at ECMWF, with a total 7220 Cray XC-40 nodes and a joint peak performance of more than eight petaflops, show about 15 node failures per months, including memory failures, CPU failures and software crashes but excluding preventive maintenance (Christian Weihrauch, personal communication; see also Barker et al., 2016; Bautista-Gomez et al., 2016; Gupta et al., 2017; Schroeder and Gibson, 2009, for more experimental resilience assessments).

Reliability, availability and serviceability (RAS) features of an HPC system include all the components required to keep the system functional for long periods without failures. In HPC, it is generally recognized that the overhead cost associated with permanent RAS features should be kept low compared to the potential impact of computational nodes loss.

The common hardware RAS features are deployed at different levels, from processors to the whole HPC system. Radojkovic et al. (2020) surveyed and set priorities for the implementation of lower-level RAS features, focusing on CPU, memory, intra-node (socket-to-socket) interconnect and emerging FPGA-based hardware accelerators. A ‘must-have’ features list in production HPC systems resulted based on three main criteria:

Resilience features should ensure that the failure rate of the system stays below an acceptable threshold depending on the deployed technology, system size and target application;

More specifically, essential resilience features according to Radojkovic et al. (2020) include, at the processor and accelerator level, error detection in CPU caches and registers, memory thermal throttling to slow down memory access rate and dynamic voltage and frequency scaling (DVFS). At the memory level, ECC should be included in main and accelerator memory and a mechanism to identify and correct memory errors should be introduced. At intra-node level, packet retry should be deployed in the intra-node interconnect, mostly based on cyclic redundancy check (Peterson and Brown, 1961; Ramabadran and Gaitonde, 1988), and PCIe should be included among the standard RAS features. At inter-node level, stacking network switch allowing redundant network links using Link Aggregation Control Protocol (LACP) is recommended, while at storage level, Redundant Arrays of Inexpensive Disks (RAID, see, e.g. Patterson and Hennessy, 2016) and evolutions such as Declustered RAID, see Qiao et al. (2019), should feature.

Note that some techniques have a larger positive or negative impact on performance than others. For example, ECC and DVFS features lower the performance while LACP can improve performance as it takes advantage to the redundant hardware.

Redundancy is the approach commonly used at the higher infrastructure level, where management of the redundant resources is especially crucial. At the whole system level, a solution is to have two or more HPC facilities physically apart, as done at ECMWF, Météo-France, and the UK Met Office, for example. This method can include also the low-level RAS features.

Case study: The BullSequana XH2000 system

For concreteness, we consider in detail a set of high-level hardware redundancy techniques for power, cooling, management and high-speed interconnect implemented in a real example, the BullSequana XH2000. This system is relevant for the purposes of NWP applications, since it will be installed at three major weather and climate centres in Europe (ECMWF, Météo-France and DKRZ), as well as at supercomputing centres in Europe and beyond, such as CINECA in Italy, GENCI in France, CSC in Finland and C-DAC in India.

In the BullSequana XH2000 there is redundancy at the level of power, cooling, management and high-speed interconnect. For power redundancy, in the XH2000 design the AC/DC conversion within a rack is shared for all resource elements (compute node, switch, hydraulic chassis, etc.). The power section is composed of a power distribution unit (PDU), power supply unit (PSU) shelves, optional ultra-capacity module (UCM) and a busbar to distribute power to all the components within the cabinet. The level and type of redundancy is configurable for the PSU shelves, it could be configured at the PSU block or at the PSU shelf level with the following types of configuration: N (no redundancy), N + 1 , N + 2 , and 2 N redundant. The optional UCM chassis allows the mitigation of micro power outages up to 300 ms at full load when three-phase uninterruptible power supply equipment for system shutdown is not present upstream in the data centre infrastructure. Some HPC centres use an uninterruptible power supply (UPS) so as to maintain the power supply for longer in order to start another power source or properly stop the systems. This method (UPS plus another power source) is so costly with respect to the power at stake that it is rarely deployed. Indeed, the high electrical power demand of current HPC systems is not compatible anymore with the densification and power efficiency imperatives required.

The BullSequana XH2000 Direct Liquid Cooling system is composed of hydraulic chassis (HYC), primary and secondary manifolds, and an expansion tank. The HYCs contain the heat exchanger system that allows it to achieve 95% of heat transfer between the primary and secondary manifolds. Up to three HYC are available depending on the redundancy type desired. To protect the system against cooling lost at rack level and to avoid stopping the production, the rack is immediately put in low power mode to lower its power consumption, and thus its dissipation. In case of persistent failure inducing a temperature rise, the system shuts down automatically.

The network management of an XH2000 rack is based on a redundant network switch stack (one redundant switch for each switch) and redundant network links using LACP, ensuring a minimum redundancy. Moreover, in case of a cell failure, the cell-based architecture prevents from an impact on the rest of the system. On the high-speed interconnect side, in case of node or switch loss, the Infiniband standard allows for recomputing the routing tables in order to find alternative routes and keep the system running by isolating the failed resources.

3.3. Application-level resilience

Application-level resilience techniques take a software-based approach, often with the focus on handling hard faults that result in the complete loss of one or more MPI processes. The objective is protecting the entire application from permanent failures in the computing resources and enabling it to continue, potentially on a reduced set of resources. As a consequence, application-level resilience may target specific types of software using approaches which cater to a subset of software.

The most basic form of resilience is replication, whereby calculations are performed in duplicate on multiple nodes. This allows immediate continuation of the calculation in the event of a failure, but with a very inefficient use of resources during normal forward-path execution. Process replication has been explored as a simple and effective approach to resilience (Guerraoui and Schiper, 1997; Mohamed, 2016), although it is highly wasteful of resources during fault-free execution.

As noted in Section 2, CPR to stable storage is the classic application-level resilience methodology used to avoid complete re-execution of long-running simulations in the event of faults. Application-based checkpointing is common among production codes, particularly in NWP, allowing targeted data structures to be protected without wasting resources in protecting auxiliary data which can otherwise be reconstructed. In the following, we survey a number of recent developments that have been proposed in order to improve the efficiency of the CPR technique at the system level.

3.3.2. Minimally intrusive approaches

A less intrusive approach (Cantwell and Nielsen, 2019), targeting time-dependent solvers, combines message-logging techniques and remote in-memory checkpointing to reduce this burden in often complex object-oriented applications. It exploits the nature of these codes by transparently logging MPI messages during the relatively short initialization phase of the application, when the data structures remain static, thereby allowing recovering processes to follow the normal unmodified program to reach the time-integration phase. For the time-integration phase, in which the solution data change frequently, remote in-memory checkpointing is used to maintain scalability. This approach is illustrated in Figure 2.

OPEN IN VIEWER

Figure 2.

A low intrusive approach to application-level resilience by splitting the algorithm into a static and dynamic phase (Cantwell and Nielsen, 2019). (a) All communication is logged during the static initialization phase by intercepting MPI function calls. Remote in-memory checkpointing is used during the dynamic time-integration phase. (b) Following a failure, spare ranks are used to replace failed ranks. These ranks follow the normal code path but the results of MPI calls are replayed from the message log.

3.3.7. Backup grids for resilient NWP models

To the best of our knowledge, there has only been a single study to test an approach to secure weather and climate models against hardware faults on a software level (Düben and Dawson, 2017). The approach uses a backup grid to store coarse-resolution copies of prognostic variables. In the presence of a hardware fault, an estimate of the original values of the model fields could be reproduced from the backup grid to enable the simulation to continue with no significant delay. The approach could not reproduce a bit-identical result when compared to a fault-free simulation but it could allow the completion of a simulation in the presence of both soft and hard faults.

The backup system uses the following mechanism (Düben and Dawson, 2017):

The prognostic variables from the model grid are mapped onto the coarse-resolution backup grid at the end of each time step. The values of the backup grid are stored for one time step to allow a comparison with the model fields at the following time step.

It is checked whether the fields on the backup grid have changed by an unexpected amount during a time step. The threshold of this check needs to be tuned to the specific model simulation under consideration. If the change of a model variable is suspicious, it is assumed that a hardware fault has perturbed the simulation. Therefore, the specific value on the backup grid is replaced by the corresponding value from the previous time step.

The corresponding values on the model grid that influenced the erroneous grid value on the backup grid are checked for values outside of a physically meaningful range.

If the value on the model grid is found to be unreasonable, it is replaced by the value mapped from the backup grid onto the specific position of the model grid (Figure 3).

OPEN IN VIEWER

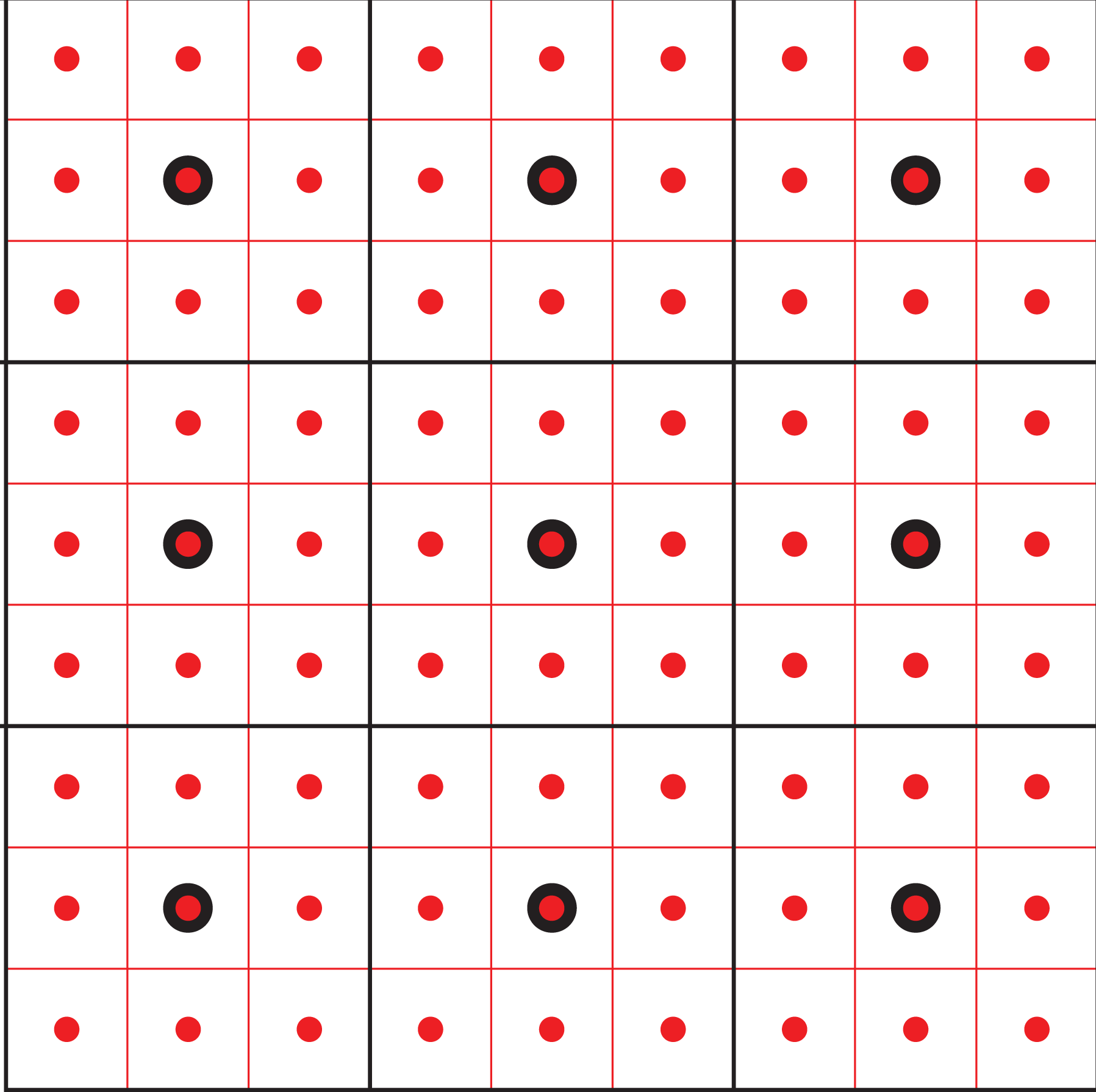

Figure 3.

Backup system of Düben and Dawson (2017). The coarse-resolution backup grid (black grid points) holds an approximated representation of the prognostic variables on the fine-resolution grid (red grid points). If a hardware fault is detected, the prognostic fields on the model grid can be reproduced as an approximation from the backup grid or vice versa.

The approach was tested on numerical simulations with a two-dimensional shallow water model, a standard test bed for numerical schemes in NWP model development. As long as the backup system was used, simulations did not crash and a high level of solution quality could be maintained. The overhead due to the backup system was reasonable with a 13% runtime increase (Düben and Dawson, 2017). Additional storage requirements were small.

However, there are a number of limitations to the approach that would require further research. The backup system, as used in Düben and Dawson (2017), is not able to distinguish between model errors and hardware errors, and it violates local mass conservation and global energy conservation.

3.4. Algorithmic resilience: Recovery-restart for sparse linear solvers

Numerical models as the ones used in NWP intensively rely on the solution of sparse linear systems that consume a significant part of the simulation time. In this section we focus on possible numerical mitigation techniques to make these kernels resilient. We assume that the core of the application data, that are not updated by the linear solver, are asynchronously checkpointed using appropriated checkpointing techniques by the application before calling the linear solver. An agile combination of the various techniques described in this paper has to be considered to make the full application resilient.

Algorithmic fault tolerance approaches aim at supplying numerical methods with techniques to deal with hard or soft faults. In general, these approaches modify the theoretical formulation and the implementation of the non fault-tolerant version of the methods. Some methods, for example multigrid, structurally lend themselves well to these modifications. The effectiveness of these approaches can be evaluated based on the trade-off between fault tolerance performance on one side and the scope of changes needed for fault-proofing and related computational overhead on the other.

Of particular interest in the NWP context are fault-tolerant versions of iterative algorithms for linear systems solution. Two examples are given below that can be applied when the fault translates to data that are lost and the location of the lost data is known. We make the assumption that a mechanism is able to notify the solver which data are lost, assuming a separate mechanism for fault detection. In the current software infrastructure, this corresponds well to node failure where all the data stored on the node are lost and MPI is able to detect the failure of the process running on that node. We describe numerical mitigations that can be implemented to ensure the continuation of the solution process with possibly some delay in the convergence compared to the non-faulty case. After data extraction, a well-chosen part of the missing data is regenerated through any of the described strategies, and is then used as meaningful input to restart the iterative scheme.

A non-singular linear system A x = b with A ∈ ℝ n × n and x , b ∈ ℝ n can be approximately solved by successive application of the Richardson iteration (see, e.g. Quarteroni et al., 2010)

x ( k + 1 ) = x ( k ) + b − A x ( k )

1

where x ( 0 ) is an appropriate initial guess and k the iteration index.

We consider the formalism proposed in Langou et al. (2007), where data losses are classified into three categories: computational environment, static data and dynamic data. When a node crashes, all available data in its memory are lost. The computational environment consists of all the data needed to perform the computation (program code, environment variables, etc.). Static data are set up during the initialization phase and remain unchanged during the computation. In the case of the solution of a linear system, they correspond to the input data to the problem and include in particular the coefficient matrix A and the right-hand side vector b. Dynamic data are those whose value may change during the computation, that reduces to the iterate x ( k ) for a single fixed-point iteration scheme. For this section we are only dealing with dynamic data recovery.

Let N be the number of partitions, such that each block-row is mapped to a computing node. For all p, p ∈ [ 1 , N ] , I_p denotes the set of row indices mapped to node p. With respect to this notation, node p stores the block-row A I p , : and x I p as well as the entries of all the vectors involved in the solver associated with the corresponding row indices of this block-row. If the block A I p , I q contains at least one nonzero entry, node p is referred to as neighbour of node q, as communication will occur between those two nodes to perform a parallel matrix-vector product.

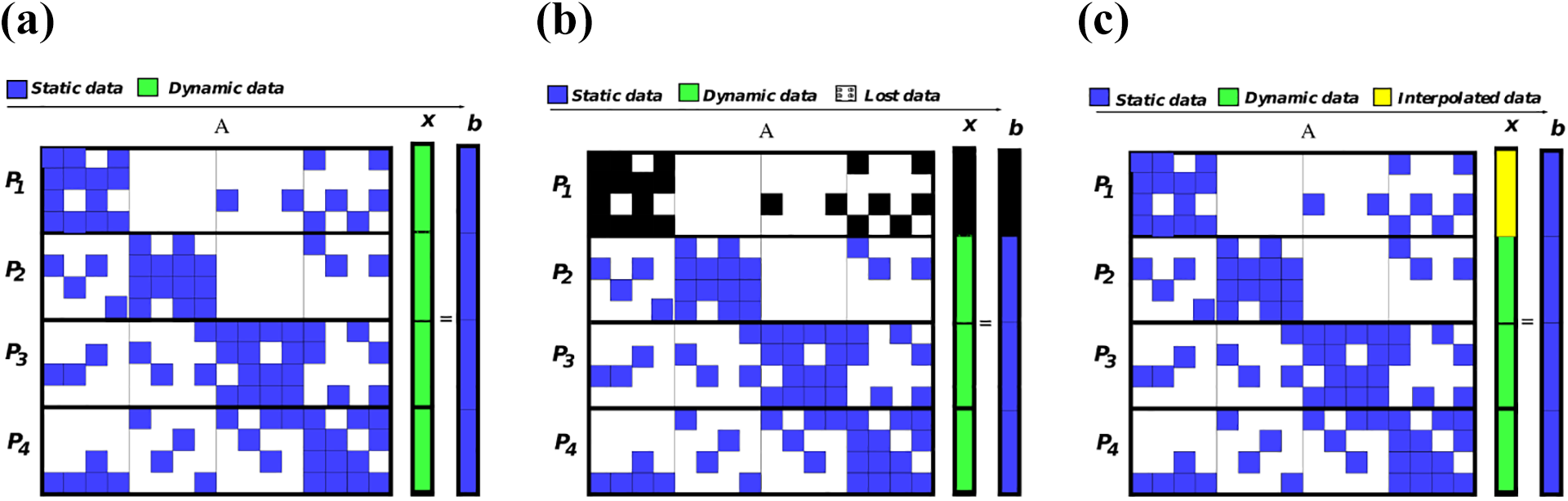

Figure 4 shows a block-row distribution on four nodes, with static data (matrix and right-hand side, blue) and dynamic data (the iterate, green) associated with the linear system. If node P₁ fails, the first block-row of A as well as the first entries of x and b are lost (in black in Figure 4). The corresponding matrix block-row as well as the portion of the right-hand side can be restored thanks to the checkpoint performed by the application. By contrast, the dynamic iterate is permanently lost and must be recovered.

OPEN IN VIEWER

Figure 4.

General interpolation scheme: (a) before fault, (b) faulty iteration and (c) interpolation. The matrix is initially distributed with a block-row partition, here on four nodes (a). When a fault occurs on the node P₁, the corresponding data are lost (b). Whereas static data can be immediately restored, dynamic data that have been lost cannot. We investigate numerical strategies for regenerating them (c).

A well-suited initial guess for the restart of the iterative solver can be recovered by interpolating available data. Two fully algebraic interpolation policies – recomputing the entries of the faulty iterate based on data living on surviving nodes and a compressed backup-based policy – are considered. These interpolation policies require the solution of either a small linear system or a small least-squares problem. The schemes are designed at application level and require no or only very moderate extra computational units or computing time when no fault occurs.

Because the primary interest here lies in the numerical behaviour of the schemes, we make strong assumptions on the parallel environment. In particular, when a fault occurs we assume that the crashed node is replaced and the associated computational environment and static data are restored (Langou et al., 2007) thanks to some checkpointing mechanism.

3.4.1. Interpolation-restart

Interpolation-Restart (IR) techniques are designed to cope with node crashes (hard faults) in a parallel distributed environment (Agullo et al., 2015, 2017, 2016a, 2016b). The methods can be designed at the algebraic level for the solution both of linear systems and of eigenvalue problems.

The idea consists in interpolating the lost entries of the iterate using interpolation strategies adapted to the linear systems to be solved. The interpolated entries and the current values available on the other nodes define the recovered iterate which is then used as an initial guess to restart the Richardson iteration.

A first interpolation strategy, introduced in Langou et al. (2007), consists in interpolating lost data by using data from surviving nodes. Let x ( k ) be the approximate solution when a fault occurs. After the fault, the entries of x ( k ) are known on all nodes except the failed one. This Linear Interpolation (LI) strategy computes a new approximate solution by solving a local linear system associated with the failed node. If node p fails, x ( L I ) is computed via

x I p ( L I ) = A I p , I p − 1 ( b I p − ∑ q ≠ p A I p , I q x I q ( k ) ) , x I q ( L I ) = x I q ( k ) for q ≠ p .

2

This basic idea can be adapted to more sophisticated linear solvers based on Krylov subspace methods (Agullo et al., 2016a; Langou et al., 2007) or to eigensolvers (Agullo et al., 2016b) and more robust interpolation can be designed to tackle the possible singularity of the diagonal block A I p , I p − 1 . We refer to Section 4.1 for a more detailed description of these ideas in the context of the GMRES method.

Finally, we note that when the linear system or eigenproblem arises from the discretization of a partial differential equation (PDE), each node of the parallel platform usually handles the unknowns associated with a subdomain. In the context of a linear system solution, the interpolation policy can be viewed as the solution of the PDE on the failed subdomain with Dirichlet boundary conditions defined by the current values on the interfaces with the neighbouring domains. In that context, more sophisticated boundary conditions can be considered as presented for example in Huber et al. (2016).

4.1. Resilient GMRES with interpolation-restart

The GMRES method is one of the most popular solvers for the solution of non-symmetric linear systems. It belongs to the class of Krylov solvers that minimize the 2-norm of the residual associated with the iterates built in the sequence of Krylov subspaces (MINRES, Paige and Saunders, 1975, is another example of such a solver). In contrast to many other Krylov methods, GMRES does not update the iterate at each iteration but only either when it has converged or when it restarts every m steps in the so-called restarted GMRES (GMRES(m), Saad and Schultz, 1986).

Most of the parallel GMRES implementations rely on a block-row partitioning of the matrix (Balay et al., 2019) that induces a similar distribution of the Krylov orthonormal basis, while the small upper Hessenberg matrix resulting from the Arnoldi procedure is replicated. The memory footprint and extra local computational cost of this replication are negligible, and it avoids extra expensive global communications.

When a node crashes, the approximate solution is not available. The Hessenberg matrix is replicated on each node and the least-squares problem is also solved redundantly. Consequently, each individual node ℓ still in operation can compute its entries I ℓ of the iterate when a fault occurs. Following the general idea of the IR policy, the lost entries of the current iterate can be approximated by solving a local linear system defined by equation (2) or a more robust recovery technique, referred to as LSI (Least-Squares Interpolation) that solves the local least squares. If node p fails, x ( L S I ) is computed as follows:

x I p ( L S I ) = argmin x I p ∥ ( b − ∑ q ≠ p A : , I q x q ( k ) ) − A : , I p x I p ∥ , x I q ( L S I ) = x I q ( k ) for q ≠ p .

3

In addition to removing the assumption on the non-singularity of the A I p , I p block made to define the LI policy, the LSI strategy ensures the monotonic decrease of the residual norm, a key property of GMRES.

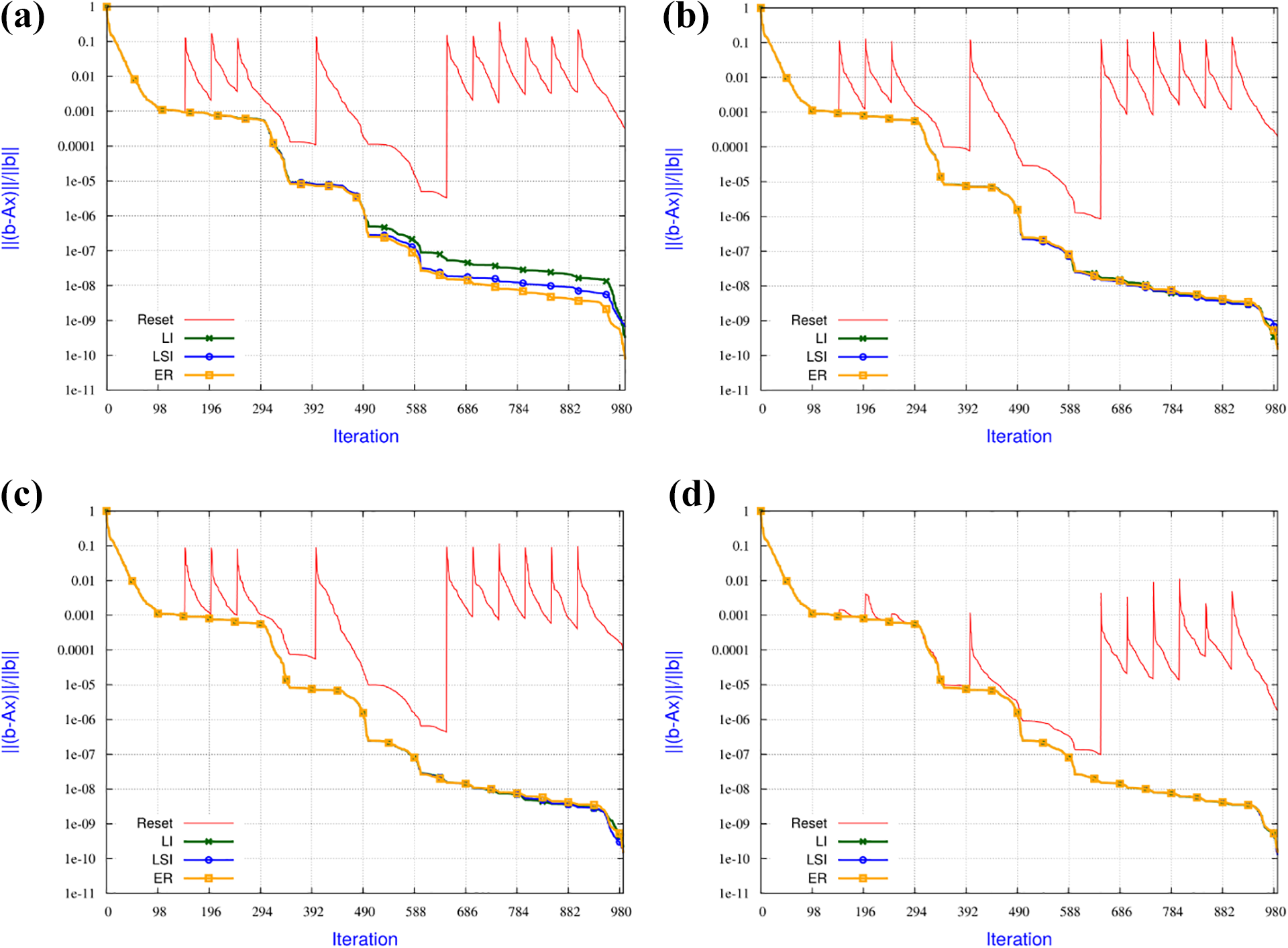

To study the numerical features of the proposed IR strategies, we display the convergence history as a function of the iterations (Figure 5), that also coincide with the number of preconditioned matrix-vector products.

OPEN IN VIEWER

Figure 5.

Numerical behaviour of the IR strategies applied to the GMRES(100) solution of the linear system with matrix Averous/epb3 and 10 faults when the amount of data loss is varied: (a) 3% data lost, (b) 0.8% data lost, (c) 0.2% data lost and (d) 0.001% data lost.

The recovery policy can induce delay in the convergence for two reasons. The first source of possible delay is the quality of the interpolation, the second is related to the restart that is performed after a fault. To distinguish between the effect of the two sources of delay, we implement a GMRES where we do not inject faults but impose a restart at each iteration the faulty run experienced a fault (it corresponds to a variable restarted policy for GMRES). We refer to this strategy as Enforced Restart (ER, yellow line in Figure 5). Furthermore, we also depict in red a straightforward strategy where the lost entries of the iterate are replaced by the corresponding ones of the first initial guess. This simple approach is denoted as Reset and corresponds to the zero backup in Section 3.4.2.

We solve the linear system A x = b with GMRES(100) and taking as A the matrix Averous from the Florida matrix collection (Davis and Hu, 2011), varying the volume of lost entries between 3% and 0.001% at each fault (a single entry is lost in the latter case). For these experiments, in order to enable cross comparison, the number of faults is kept the same and the faults occur at the same iteration for all the runs. The straightforward restarting Reset policy does not lead to convergence (Figure 5). Each peak in the convergence history corresponds to a fault showing that the solver is not able to converge. These characteristics are similar in other cases like multigrid methods for symmetric positive definite systems (Göddeke et al., 2015). In contrast, the IR strategies ensure convergence and have very similar convergence behaviour and robustness capabilities. Furthermore, the convergence behaviour of IR strategies appears scarcely affected by the amount of data loss.

In Figure 6, we investigate the robustness of the IR strategies when the number of faults is varied while the amount of recovered entries remains fixed at 0.2% after each fault. For those experiments, we consider restarted GMRES(100) to solve a linear system associated with the matrix Kim1 from the Florida matrix collection (Davis and Hu, 2011). An expected general trend that can be observed on this example: the larger the number of faults, the slower the convergence. When only a few faults occur, the convergence penalty is not significant compared to the non-faulty case. For a large number of faults, the solver still converges, albeit more slowly. For instance, for an expected accuracy of 10 − 7 , the iteration count with 40 faults is twice the one without faults.

OPEN IN VIEWER

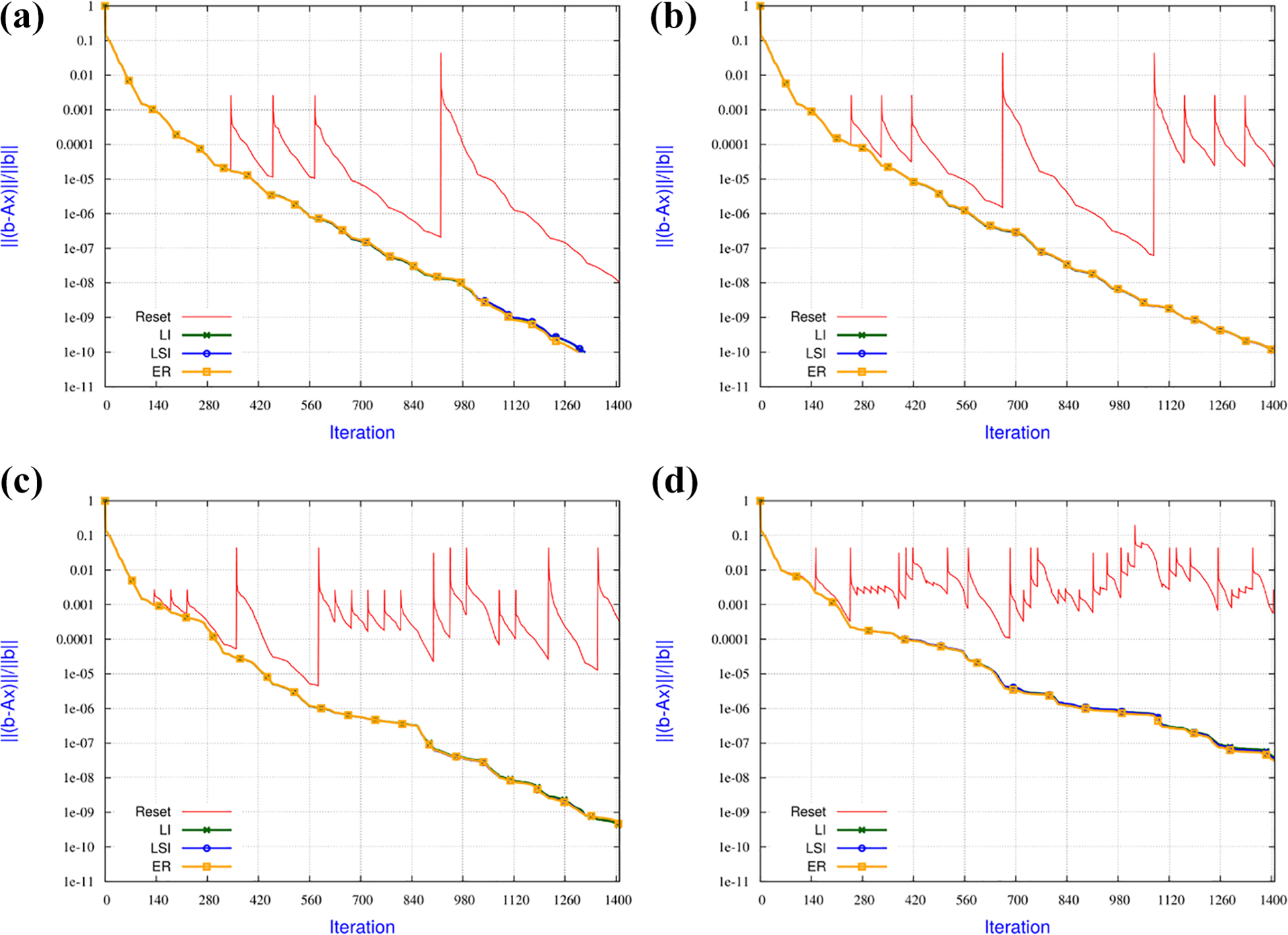

Figure 6.

Numerical behaviour of the IR strategies applied to the GMRES(100) solution of the linear system with matrix Kim/kim1, varying number of faults, and fixed 0.2% data loss at each fault: (a) 4 faults, (b) 8 faults, (c) 17 faults and (d) 40 faults.

4.2. Compressed checkpointing

In order to showcase the backup and recovery options with the compressed checkpointing method described in Section 3.4.2, we consider the test problem

− ∇ ⋅ 1 0 0 0.01 ∇ u = b in Ω = ( 0 , 1 ) 2 u = 0 on ∂ Ω

4

with b such that u ( x , y ) = sin ( π x 2 ) sin ( π y 2 ) is the exact solution. This problem is solved within the DUNE PDE framework by a conjugate gradient method with an algebraic multigrid solver as preconditioner provided by the Iterative Solver Template Library (DUNE-ISTL, Blatt and Bastian, 2007). The problem is solved in parallel on 52 ranks using an overlapping Schwarz approach with minimal overlap (using the template ISTLBackend_CG_AMG_SSOR as solver from DUNE-PDELab, Bastian et al., 2010). The iterative solving procedure is stopped after a relative residual reduction of 10 − 8 . In the fault-free case the solver needs 115 iterations to fulfil this criterion for this particular demonstrator problem.

We suggest and evaluate three recovery techniques. The first, baseline approach mimics CPR and simply replaces the global iterate with its decompressed representation, independently of the compression strategy. The second approach follows the LFLR strategy and, similarly to interpolation-restart, re-initializes only the local data lost on faulty ranks by using backup data stored on neighbouring nodes. Unlike the baseline approach, this is purely local and only needs minimal communication to receive a remotely stored backup. In particular, the recovery procedure itself does not involve the participation of other ranks.

As a worst-case fallback when the backup data are not sufficient, we established a third improved recovery approach, which is still mostly local. An auxiliary problem is constructed, either by domain decomposition overlap or the operator structure, with boundary data from the neighbouring ranks, and solved iteratively with an initial guess based on the checkpoint data. This improves the quality of the recovered data and is closely related to equation (2) in Section 3.4.1, where a pure algebraic approach is considered. This approach can nearly always restore the convergence from the fault-free scenario independently of the used backup technique, only the number of additional local iterations varies (see also Altenbernd and Göddeke, 2018; Huber et al., 2016). It can be mandatory in highly-frequent fault scenarios to maintain convergence.

In addition to the recovery approaches, for backup we consider the aforementioned techniques of Zero Backup, Multigrid compression (MG, Göddeke et al., 2015), and SZ compression, as well as a fourth adaptive SZ compression (aSZ) technique. MG is configured to a fixed backup depth of two which reduces the data volume to 1 / 16 in our 2D demonstrator. For standard SZ compression, we prescribe a compression accuracy of 1e-7 and 1e-3 as benchmarks for high and low accuracy. For adaptive SZ compression, the compression accuracy is coupled to the normalized local vector norm of the current residual multiplied by an additional tolerance tol aSZ ∈ 1e-2, 1e-1, 1e0, 1e1 :

∥ A x ( i ) − b ∥ 2 ∥ b ∥ 2 tol aSZ .

5

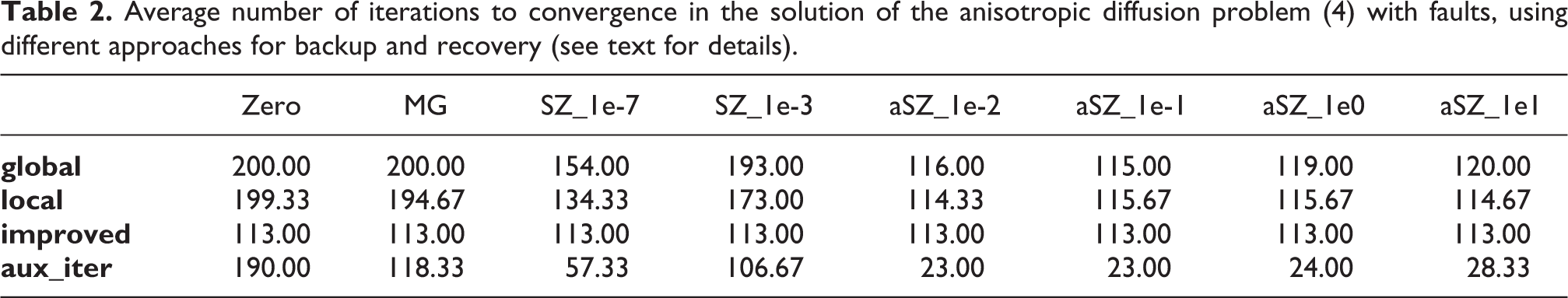

Table 2 shows the average number of iterations to convergence in the iterative solution of problem 4 when a fault happens in iteration i ∈ { 10 , 40 , 75 , 110 } on rank r ∈ { 0 , 21 , 37 } , using different combinations of recovery approaches (first three rows) and backup techniques. Furthermore, the last row (aux_iter) shows the number of additional iterations for the local auxiliary problem when the improved recovery is applied, using the different backups as initial guesses.

OPEN IN VIEWER

Table 2.

Average number of iterations to convergence in the solution of the anisotropic diffusion problem (4) with faults, using different approaches for backup and recovery (see text for details).

	Zero	MG	SZ_1e-7	SZ_1e-3	aSZ_1e-2	aSZ_1e-1	aSZ_1e0	aSZ_1e1
global	200.00	200.00	154.00	193.00	116.00	115.00	119.00	120.00
local	199.33	194.67	134.33	173.00	114.33	115.67	115.67	114.67
improved	113.00	113.00	113.00	113.00	113.00	113.00	113.00	113.00
aux_iter	190.00	118.33	57.33	106.67	23.00	23.00	24.00	28.33

Local recovery is always superior to global recovery while the overhead is similar or even less. The improved recovery always yields the best possible results but the amount of additional iterations of the auxiliary solver varies. Zero backup, MG and the less accurate SZ compression technique SZ_1e-3 result in a significant number of additional iterations, either global or auxiliary ones. For local recovery, high accurate fixed SZ compression (SZ_1e-7) is good if a fault happens early but is not competitive if a fault happens late in the iterative procedure (e.g. in iteration 110, not shown). Adaptive SZ compression seems to be the best and aSZ_1e0 seems to mark the sweet spot as increasing the accuracy does not yield a big advantage for global and local recovery and a decrease in accuracy (aSZ_1e1) yields around 20% more additional iterations when using improved recovery.

In terms of compression factors (Figure 7, top) and cumulative data size (Figure 7, bottom), most of the SZ compressed backups yield a compression factor of around 100 for the given data size. Therefore, the cumulative size over 115 iterations is less than the size of two classic checkpoints of 1 iteration. Furthermore, the adaptive approach takes advantage of the low accuracy of the solver in the early stages and obtains higher compression factors. At the end of the iterative solve, the adaptive compression is not as strong as the non-adaptive one, but it enables a more efficient recovery as shown before. It should be noted that SZ compression gives even better compression factors when used for more data points. The cumulative checkpoint size could be further reduced by reducing its frequency, i.e. a checkpoint every n-th iteration. This could also reduce the communication overhead because the backups on different ranks could be created in different iterations and thus the communication would be better distributed.

OPEN IN VIEWER

Figure 7.

History of the average compression factor (top) and cumulative backup size compared to full-sized checkpoint (bottom) over the iterative process using different backup techniques in the iterative solution of the anisotropic diffusion problem (4) with faults.

4.3. Soft fault detection and correction in the Generalized Conjugate Residual method

A new nonhydrostatic dynamical core, the Finite Volume Module (FVM, Kühnlein et al., 2019), is being developed at ECMWF for next-generation NWP. The module uses a preconditioned Generalized Conjugate Residual (GCR) elliptic solver (Smolarkiewicz and Margolin, 2000; Smolarkiewicz and Szmelter, 2011) to solve the boundary value problem that arises from the application of the Non-oscillatory Forward-in-Time integrator based on the MPDATA advection scheme (Smolarkiewicz and Szmelter, 2005) and results in an equation which can symbolically be written as

L ϕ = R

6

where L is the elliptic operator and R represents the right-hand side of the problem at hand. The elliptic solver (Algorithm 1) belongs to a class of Krylov subspace methods, minimizes the L²-norm of the residual, r, of the model (6), and solves the k t h -order damped oscillator equation with preconditioner operator P :

∂ k P ( ϕ ) ∂ τ k + 1 T k − 1 τ ∂ k − 1 P ( ϕ ) ∂ τ k − 1 + ... + 1 T 1 τ ∂ 1 P ( ϕ ) ∂ τ 1 = L ϕ − R

7

See Smolarkiewicz and Szmelter (2011) for a description of the physically motivated stopping criteria. The damped oscillator equation (7) is discretized in pseudo-time τ and optimal parameters T 1 ,.. T k − 1 are determined to assure the minimization of < r , r > for the field ϕ (see Smolarkiewicz and Margolin, 2000; Smolarkiewicz and Szmelter, 2011, for a detailed discussion).

The solver employs bespoke left-preconditioning (for details see, e.g. Kühnlein et al., 2019) to address the large condition number induced by the domain anisotropy for global atmospheric problems. Since the elliptic solver takes a significant (∼40%) proportion of the computational resources of the dynamical core, it is quite likely to encounter soft faults if they were to occur during computation.

OPEN IN VIEWER

Algorithm 1

FT-GCR(k).

The iterative nature of GCR provides ample opportunity to recompute faulty data at minimal cost to the solver, given an ability to detect such faults. A basic detection method can be derived, given that for each iteration of GCR (n in Algorithm 1), the k t h order dampening takes place on a Krylov subspace, K_n, such that K n ⊆ K n + 1 , ∀ n ∈ 1 , 2 , … . As such, each iteration of GCR minimizes the L²-norm of the residual, r, on that Krylov subspace. Since the norm is non-increasing on each subspace, it is also non-increasing between subspaces. If during computation the discrete L²-norm value increases, that most likely indicates a problem with the solver. Testing the resilience of Algorithm 1 by injecting faults (bit flips) into various stages of GCR often cause the solver to stall for an iteration, after which the routine usually continues – sometimes more slowly but often without other noticeable signs that a problem has been encountered. Even when a larger proportion of data is corrupted by a fault, GCR is usually able to converge with about 10–20% computational overhead. However, this can cause some erratic behaviour of the solver – including large jumps in the maximum absolute value of the residual in the domain, with the potential to induce undesired modes into the solution, even if the solver itself still converges.

Assuming a fault has been detected, the solver can be easily reverted to a state previously deemed good (i.e., no fault detected), at the cost of at most a full iteration of Algorithm 1 (if a fault occurs during the ν = k − 1 pass). Algorithm 1 describes the fault-tolerant GCR (FT-GCR) method, including snap-shotting and fault detection. The instructions needed for fault tolerance are marked in red.

In order to test the effectiveness of FT-GCR (algorithm 1), the GCR elliptic solver in Mengaldo (2016) was adapted to include fault injection, detection, and resetting. The method solves potential flow for an isolated hill on an Earth-like domain. An O 32 Octahedral reduced Gaussian mesh (corresponding to ∼ 280 km horizontal resolution) with 51 vertical layers was used for the simulations.

Faults are injected after the preconditioning stage with an implausibly high 2 % probability, with a maximum of 10 individual fault occurrences allowed. The fault causes a given number of entries of e = P − 1 r ν + 1 , the preconditioner output, to suffer a bit flip. Figure 8 illustrates graphically the response of the protected and unprotected simulations, for different levels of data corruption per fault encountered. Histograms a), b), c), and d) correspond to 1 ( 0.0004 % ), 100 ( 0.04 % ), 500 ( 0.2 % ), and 2700 ( 1 % ) entries corrupted ( % of total data), respectively. Table 3 documents averaged statistics for each of these simulation sets. Each set contains between 100 and 200 simulation results, where faultless simulations are disregarded.

OPEN IN VIEWER

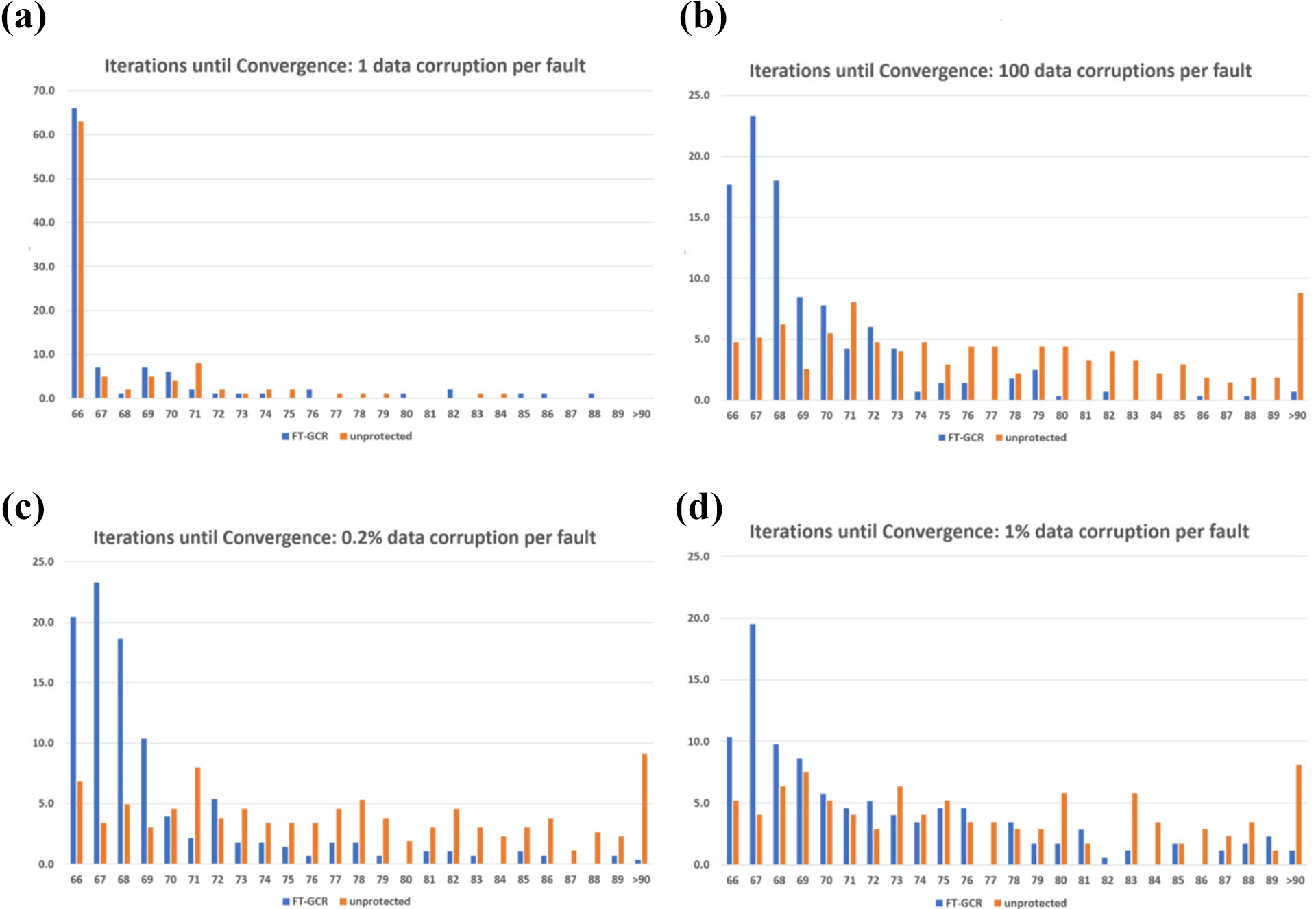

Figure 8.

Numerical behaviour of GCR and FT-GCR when faults are introduced. Each histogram displays the percentage of runs that converged at a given iteration. Fault-free convergence is reached after 66 iterations. (a) 0.0004% data lost, (b) 0.04% data lost, (c) 0.2% data lost and (d) 1% data lost.

OPEN IN VIEWER

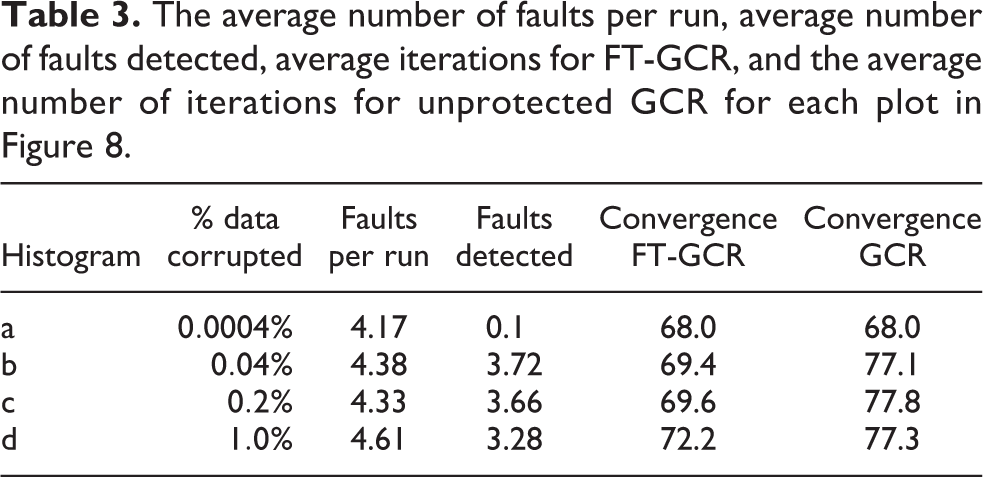

Table 3.

The average number of faults per run, average number of faults detected, average iterations for FT-GCR, and the average number of iterations for unprotected GCR for each plot in Figure 8.

Histogram	% data corrupted	Faults per run	Faults detected	Convergence FT-GCR	Convergence GCR
a	0.0004 %	4.17	0.1	68.0	68.0
b	0.04 %	4.38	3.72	69.4	77.1
c	0.2 %	4.33	3.66	69.6	77.8
d	1.0 %	4.61	3.28	72.2	77.3

It is clear that GCR is highly resilient to bit flip faults. Indeed, even when a larger amount of data is corrupted, the unprotected algorithm usually manages to converge. Additionally, it can be observed that minor data corruption events have little effect on convergence (Figure 8(a)), which is also the likely reason why such small corruption events are difficult to detect. When a sufficient proportion of data is corrupted, FT-GCR detects between 60–80% of faults (Table 3), and convergence delay is reduced by five to eight iterations compared to the unprotected runs. The overhead of this fault-tolerant method is small, with one backup step required per full GCR iteration – including a small amount of extra memory to store the backups. The cost of detection is also minimal, since the expensive global sum to compute the L²-norm of the residual has already been carried out.

5.1. Composable resilience in NWP models

No single resilience technique provides a perfect solution to ensure reliable execution of NWP models. Recently, Hukerikar and Engelmann (2017) discussed how effective resilience can be achieved through a composition of multiple resilience techniques in the area of HPC. They claimed the importance of classifications to identify resilience design patterns across the layers of HPC systems and applications, facilitating seamless systematic compositions of these techniques towards resilience-oriented application-system co-design. Such a co-design balances resilience and performance, both in the forward execution and recovery execution path, ensuring that NWP models can recover in the most efficient way from a variety of failure types.

Resilience in NWP models will therefore result from a combination of hardware, programming environment, algorithmic and application resilience measures. Some of the approaches presented in this paper can be combined straightforwardly. For example, hardware resilience techniques and algorithmic resilience methodologies, or application resilience and soft fault detection/correction, can be applied in a relatively independent way.

As an example of composition of resilience methods, compressed and in-memory checkpointing as seen in Section 3.4.2 could be incorporated into the FT-GCR solver. Assuming that checkpointing will have to play a more dominant role to maintain robustness of solvers, our experiments show that compression can increase efficiency and reduce overhead substantially, without compromising the numerical accuracy. Using these techniques in an adaptive way yields low overhead at the start of the iterative procedure, when a restart or information loss has little effect. Later, when a simple restart will cause the loss of a large amount of invested computational effort, the compression accuracy increases, as well as the overhead, but in return the recovery is as good as with no compression. The computational overhead introduced by the SZ compression is in the low single-digit percentage range, while its achieved compression factors can decrease the memory overhead significantly. Small scale numerical tests (cf. Figure 7) already provide promising compression factors, although SZ compression requires much larger data sets to exploit its full potential. Introducing these techniques into the FT-GCR solver could further reduce its communication and storage overhead while maintaining its recovery properties. In addition, backup grid approaches as seen in Section 3.3 can easily be implemented in other numerical frameworks, for example in the modal DG framework (Tumolo and Bonaventura, 2015) by storage of the lowest order modal coefficients of the solution for each element.

5.2. Open challenges and opportunities

The techniques surveyed in this paper to secure NWP applications against faults are not yet implemented within operational environments, but may start to play a more significant role in the next few years. As exascale architectures start to be deployed, the feasibility of disk or memory CPR will ultimately be contingent on the evolution of memory latency and bandwidth compared with the growing size of restart files in NWP applications at km-scale resolution. In addition, to assume that all calculations will be performed with no faults will become increasingly costly. Computational cost could be significantly reduced if constraints for fault-free calculations are weakened (see for example discussion of ECC memory checking and stochastic processors in Section 3.1).

The ongoing transition to exascale NWP models constitutes an excellent framework to set out objectives and requirements for resilience and fault tolerance, as well as to test different options to include resilience features in future atmospheric models that may translate into cost savings. More economical resilience strategies should be investigated that could flank or supplant CPR, which should ideally become the technique of last resort. On the road to those solutions, decisions and compromises need to be made on a number of aspects, for instance whether to focus exclusively on fault recovery or also fault detection, and on hard or soft faults.

In the United States, efforts targeting improvement of hardware resilience are under way in the framework of the Exascale computing project. In particular, application of the above-mentioned VeloC has enabled to significantly reduce CPR time (Di Martino et al., 2015). With a final project target of a 1-week MTBF at exascale, on some machines a three-fold increase in MTBF has been obtained.

In Europe, at ECMWF energy efficiency and model sustainability efforts are focusing on reshaping model implementation into more manageable independent units called dwarfs, developed in the framework of the ESCAPE (Müller et al., 2019) and ESCAPE-2 ¹ projects. The dwarfs are eventually expected to cover around 60% of the forecast model code, so improved checkpointing procedures can be tested on existing dwarfs with a view to establishing a resilience framework applying to future ones. For instance, experiments with checkpointing in memory (Cantwell and Nielsen, 2019) rather than to disk could be carried out. Avoiding the parallel file system may give a sizeable boost in performance when a large number of nodes write simultaneously. With this and other possible solutions, performance gains from fault recovery using spares and spawning, as well as savings in requeueing time and start-up cost of the NWP code, should be weighed against development overhead for the tools themselves. From the systems point of view, standards are already starting to provide resilience tools, an example being the potential inclusion of ULFM as an extension to version 4.x of MPI.

In addition, performance and portability across multiple architectures with a single source code requires NWP models to shift to domain-specific-language (DSL)-based approaches, such as Kokkos (Bertagna et al., 2019), Psyclone (Adams et al., 2019), and Stella/GridTools (Fuhrer et al., 2014; Thaler et al., 2019). Fault tolerance efforts requiring code modifications will more naturally interface with DSLs, see Section 3.3.4 in this paper for an example.

On the hardware side, securing stronger support from HPC vendors in resilience efforts will require clear use cases from the NWP community. ESCAPE and ESCAPE-2 dwarfs can provide an ideal environment for such experiments. When a dwarf-tested application resilience technique evolves into a de facto standard in the weather and climate community, it can become a differentiator for vendors targeting this HPC market.

While vendors have generally been reluctant to publish hardware resilience statistics such as MTBF for HPC architectures, the request for this information could be included in future procurements. Hardware could include system monitoring functionalities, so that users can isolate nodes that look suspicious and distinguish between healthy and unhealthy ones. In fact, unlike faults on data, soft faults impacting instruction sets of hardware as well as integer arithmetic are not yet addressed by any of the methods in this survey, which have not yet been tested for a specific hardware configuration. Atos, an ESCAPE and ESCAPE-2 project member, takes part in MPI Forum, the MPI standardization body (MPIForum, 2020). Currently there is a strong interest in the high-performance Fault Tolerance Interface (FTI) for hybrid systems (Bautista-Gomez et al., 2011), and Atos is already delivering FTI as part of its software stack called Super Computer Suite.

From the algorithms viewpoint, properties of the methods shown in this paper should be explored in more realistic NWP settings. In particular, interpolation-restart techniques could be deployed to fault-proof linear solvers in atmospheric dynamical cores under development such as the ECMWF’s FVM (Kühnlein et al., 2019) or the Discontinuous Galerkin (DG) dynamical core under development in ESCAPE-2 along the lines proposed in Tumolo and Bonaventura (2015). Because of the nature of solvers used in NWP, data recovery approaches that are local in nature will be of particular interest given the increasing communication/computation time ratio, and contrasting the global connectivity of global spectral solvers still used effectively in NWP today.

As shown by the resilience experiments with the FT-GCR solver in this paper, small numbers of faults in the elliptic solver are hard to detect and generally have a limited impact on convergence. If we can better detect soft faults in the elliptic solver, repair techniques like the one proposed here would be able to adequately protect this part of the model. FVM uses a GCR solver, so that implementing the FT-GCR version introduced here would give an immediate comparison between it and, for example, IR-GMRES in terms of resilience and overhead. Results could be compared to those obtained with disk checkpointing or replication to evaluate trade-offs and inform decisions.

Compressed checkpointing aside, the methods analysed in this paper chiefly, though not exclusively, concern recovery from hard faults. The frequency of soft errors in modern supercomputers presently is not precisely known to model developers. Bit-reproducibility tests could relatively easily be set up for large model configurations in order to start filling this knowledge gap. Hardware vendors could offer valuable advice in these efforts, which would have to be intertwined with verification and validation (V&V) strategies. Indeed, bit-reproducibility tests are a common verification step in the testing of NWP models, but the protocol for these tests and the interpretation of their results may need to be revisited if more frequent soft faults have to be taken into account. Indeed one strategy has been to routinely test with alternative compilers and libraries to sample potential reproducibility issues. In addition to soft faults, the use of massively threaded systems (accelerators), FPGA, and special-purpose – such as AI – chips creates a huge challenge for bitwise reproducibility. Overall bit-reproducibility is realistic when executing only a few test runs, while model checking can be used in workflows with repeated code execution. For the latter, it is essential to explore more sophisticated V&V techniques to assess the correctness of NWP code. Today, a variety of V&V techniques have been practised in other areas of computational science and engineering (Roy, 2005; Roy and Oberkampf, 2011), and the HPC community has recognized the importance of V&V techniques in the areas of compiler optimization (Bentley et al., 2019), runtime (MPI and thread scheduler, Chapp et al., 2015; Evans, 2018) and numerical kernels (Demmel and Nguyen, 2015).

Finally, it can be argued that the operational use of ensemble simulations for weather and climate introduces another level of resilience, since individual ensemble members are run in parallel. If a single simulation is crashing due to a hardware fault, at least most of the members may finish in time and still allow the delivery of a forecast. However, it will be difficult to perform reliable forecasts if the number and quality of ensemble simulations varies. In general, the error of ensemble predictions will be proportional to the sum of a constant that is dependent on the quality of the forecast model plus a term which is proportional to the inverse of the number of ensemble members (see Leutbecher and Ben Bouallègue, 2020).
