Versatile software-defined HPC and cloud clusters on Alps supercomputer for diverse workflows

Introduction

The demand for High-Performance Computing (HPC) and data analysis is growing across various communities, in line with the rapid digitalisation of scientific methods and tools. At the same time, historically distinct resource requirements for supercomputing and large-scale data analysis are now converging as overheads for data movement are increasing with growth in experimental and simulation data generation capabilities. However, vendors and operators of supercomputing technologies limit hardware and software configuration changes outside of the major 4–6-year lifecycle management timeframe to minimise service disruptions, particularly for 24 × 7 × 365 operational environments.

Emerging machine learning and data science frameworks configuration and deployment pipelines leverage cloud technologies for abstractions and virtualization, creating a convergence from a software development and deployment perspective. This convergence enables efficient and secure software development and deployment using continuous integration, delivery and deployment (CI/CD) pipelines, from edge instruments to on-premise and off-premises IT resources to supercomputers. DevOps, defined as a closed-loop delivery and operational cycle for IT services, facilitates readily available new features and fixes through highly efficient development, testing, staging and delivery to production pipelines for developers and operators.

To achieve this, standard technologies such as containers, orchestration engines, microservices architecture (MSA), RESTful APIs, secure identity and access management (IAM) protocols, and Infrastructure-as-Code (IaC) are employed, while maintaining separation of concerns and enabling secure, common abstractions for independent development, testing and validation through standard interfaces and protocols. Equally essential are widespread availability of common tool chains for packaging, integrating, distributing and running software (Artifactory) (Docker) (GitHub) (Open Container Initiative).

The supercomputing infrastructure however largely remains outside of this realm of mainstream CI/CD pipelines due to primarily four constraints, which subsequently limit DevOps within a supercomputing ecosystem:

1. Bespoke software development and deployment environments because HPC sites provide vendor and site-specific programming and runtime environments. Configurations are not fully reproducible beyond the installation site.

Our proposed vCluster (versatile software-defined clusters) on supercomputers approach addresses the first three, while facilitating the fourth one, which has been listed for completeness. Different public cloud providers (AWS ParallelCluster) (Azure CycleCloud) (GCP Slurm Cluster) and independent providers such as cluster-in-the-cloud (Cluster-in-the-Cloud) have developed similar solutions using standard abstraction such as TerraForm. An open-source, abstractions-enabling infrastructure programmability is not available for a supercomputing ecosystem like Cray-EX Shasta, the supercomputing platform for November 2022 number 1-ORNL Frontier (Frontier Supercomputer) and number 3-CSC LUMI (LUMI Supercomputer) list of fastest computers (Top500).

Table1 highlights typical workflows for each constraint as motivating examples, the requirements and related mainstream CI/CD approach. The proposed vCluster solution in turn fuses the standard approach with supercomputing characteristics such that the resulting solution retains the defining characteristics of both supercomputing and cloud technologies.

OPEN IN VIEWER

Table 1.

Key constraints for realising users and platform-driven CI/CD pipelines on contemporary supercomputing ecosystems. Typical HPC configurations are listed as examples highlighting the reasons why CI/CD pipelines and tooling that are commonplace in software development teams cannot be easily leveraged in a classic supercomputing ecosystem. These configurations are compared with the requirements for CI/CD pipelines that are often a prerequisite for DevOps, enabling close-loop development, testing, delivery and deployment of software artefacts. Standard approaches are listed for addressing these requirements thereby enabling DevOps opportunities across the supercomputing ecosystems, specifically with proprietary hardware and software stacks such as the Cray-HPE Shasta supercomputer.

Constraint	Typical HPC configuration	CI/CD requirements	Standard approach
1	Some sites provide test and development systems (TDS) on separate, significantly smaller-scale clusters for building and testing before changes are applied to production cluster. Production clusters are taken offline for environment updates	Reproducible CI/CD pipelines including automated testing and deployment, and user-driven change management are needed, independent from the cluster infrastructure operator, where target cluster configuration can be reproduced autonomously	Reusable and customisable programming environment and runtime configurations representing the relevant state of a production cluster that can be instantiated independently as multi-tenant, software-defined infrastructure (machines or clusters)
2	Platform users are often restricted to site-specific images, file systems (for instance parallel file system for HPC) and site-specific slurm configuration which are either optimised for HPC or HTC workloads	Platform developers in particular need an ability to compose and customise system stack artefacts such as slurm and file system integration before operational deployments	Reusable and customisable configuration images per cluster tenant that can be instantiated independently by platform developers as isolated tenants, for their CI/CD pipelines
3	Supercomputing vendors and sites have single, global configurations with predefined change management frequencies for compute, storage and networking software updates	Infrastructure configuration is managed like any software, or IaC approach where each change result in a new unique configuration or state, with rollback as a build-in option	Decoupled infrastructure and platform provisioning using DevOps approach. CI/CD pipelines of different artefacts are independently instantiated and validated by reusing configuration recipes

With decades of experience of navigating these constraints at CSCS, we have been co-designing and co-deploying a set of solutions, inspired by the cloud technologies for deploying software, platform and infrastructure services (X-as-a-Service model) since 2015. These virtualisation and abstraction technologies include container runtime for HPC, RESTful APIs for HPC to address the fourth constraint of the list, and recently, IaC for HPC (vClusters) for supercomputing environments. vCluster is a unique fusion of HPC and cloud technologies resulting in a software-defined, multi-tenant cluster on a supercomputing ecosystem, that, together with software-defined storage, enable DevOps for the entire grid middleware stack alongside classic HPC platforms. With respect to the classic configuration where an HPC cluster can serve different usage patterns through a batch resource scheduler for supporting build, testing, interactive and long-running simulations, the versatility in vCluster enables creation of separate tenants, and simplify cluster configurations. For instance, an application-build cluster is a different tenant from a production batch cluster, using the shared hardware infrastructure while reusing common configuration recipes. Likewise, a cloud-native container orchestration cluster can be configured alongside a slurm cluster, as two separate tenants. Two major advantages of using a shared, HPC networked infrastructure with multiple vCluster tenants is the flexibility in sizing or elasticity of individual clusters as per quality of service (QoS) such as high availability and enabling isolation of one cluster tenant from another.

With the vCluster solution, we maintain a look-and-feel of classic HPC workflows such that the changes are transparent to users, for instance, how they access an HPC cluster, how jobs are submitted and how data is staged. Solution design and development follow a collaborative co-design approach with domain experts and vendors; therefore, these are highly impactful specifically for 24 × 7 × 365 HPC services, and for quick uptake and usage by targeted communities. A further advantage that is typically not available for large-scale supercomputing ecosystems is availability of smaller (in size), on-demand and ephemeral vClusters tenants for testing, developing and staging software before changes are rolled out to the production tenant.

The flagship Swiss National Supercomputing Centre’s Alps ecosystem demonstrates the design principle of vClusters for two characteristically different workflows. The Alps supercomputing ecosystem has a highly heterogeneous infrastructure to fulfil different QoS constraints from diverse customers, one HPC and another data-driven HTC. Therefore, the vCluster approach is essential in order to manage versatile configurations using a software-defined infrastructure management philosophy such as IaC to address the constraints identified in Table 1. Alps is based on the Cray-HPE Shasta EX supercomputing platform. The microservices-based architecture of the Shasta management system is leveraged for IaC for HPC. We provide implementation details of two operational clusters. One is a classic HPC platform that is used for large-scale numerical simulations. Another is a widely used, Grid computing middleware platform used for data-driven, HTC computation for the CERN Worldwide LHC Computing Grid (WLCG).

Our main contributions are:

• extension of IaC concept for supercomputing called vCluster on Cray-HPE Shasta supercomputer software stack to align with software-defined, cloud-native compute and storage management systems. This addresses three main constraints of the bespoke supercomputing ecosystems by enabling programmable instantiation of multi-tenant build, test, stage and operational vClusters

The article outline is as follows: the next section provides details of the vCluster solution with respect to contemporary approaches of deploying and operating HPC clusters. Implementation details of vCluster in Cray-HPE Shasta EX microservices-based architecture in the following section. The two sections after Shasta outline implementation details the classic HPC platform and coverage for the WLCG Grid middleware platform. This is followed by an evaluation and analysis of advantages of the vCluster approach, which is followed by an overview of the related work. We then conclude our study and provide an outlook for the future directions.

vClusters – versatile software-defined HPC and cloud clusters

vClusters (versatile software-defined clusters) are built on Infrastructure-as-Code (IaC) with an aim at making supercomputing ecosystems mainstream for developers of artefacts deploying application software and domain platforms using contemporary CI/CD pipelines, which can be instantiated on any infrastructure, independently by application and platform developers. IaC is an approach for provisioning and managing hardware resources such as computing, storage and network in a programmable, automated manner, much like a versioned-controlled, software ecosystem (Morris 2016). vClusters extends the IaC concept with HPC-specific criteria of close-to-metal performance and scaling efficiencies. IaC approach for provisioning and management relies on key principles of software engineering, namely, configuration management, version control and automation. This is due to the growing needs for faster and robust delivery of new services by supporting multiple continuous integration and delivery (CI/CD) pipelines managed by diverse teams, from web applications to infrastructure operators, using what is called DevOps (automated development-operations) approach. This is essential because scientific workflows increasingly leverage not only HPC methods but also data science techniques such as Machine Learning (ML) and Artificial Intelligence (AI), often relying on distributed, on-premise and off-premise (cloud) resources. High Throughput Computing (HTC) is another usage model that does not map well with classic supercomputing style configuration and resource management systems.

Typically, IaC concepts are supported through virtualisation of the infrastructure resources and containerisation of applications, decoupling hardware from the functional elements. There lies the challenge for HPC and supercomputing where virtualisation of hardware and containerisation of software stacks are uncommon due to concerns about performance. Fusion of HPC and cloud technologies enable extensibility of IaC for supercomputing, which we will demonstrate in the article. Two models exist for IaC, namely, imperative approach, and declarative approach (HPE IaC). A declarative approach defines the desired state of the system and the current state of different objects, which are configured and maintained by the IaC tool chains. In contrast, an imperative approach lists specific commands needed to achieve the desired configuration, in a specific order of execution. We exploit both approaches for IaC as the technology is evolving for HPC stacks and their efficacy vary depending on the desired objectives and the level of abstraction needed for the configuration management.

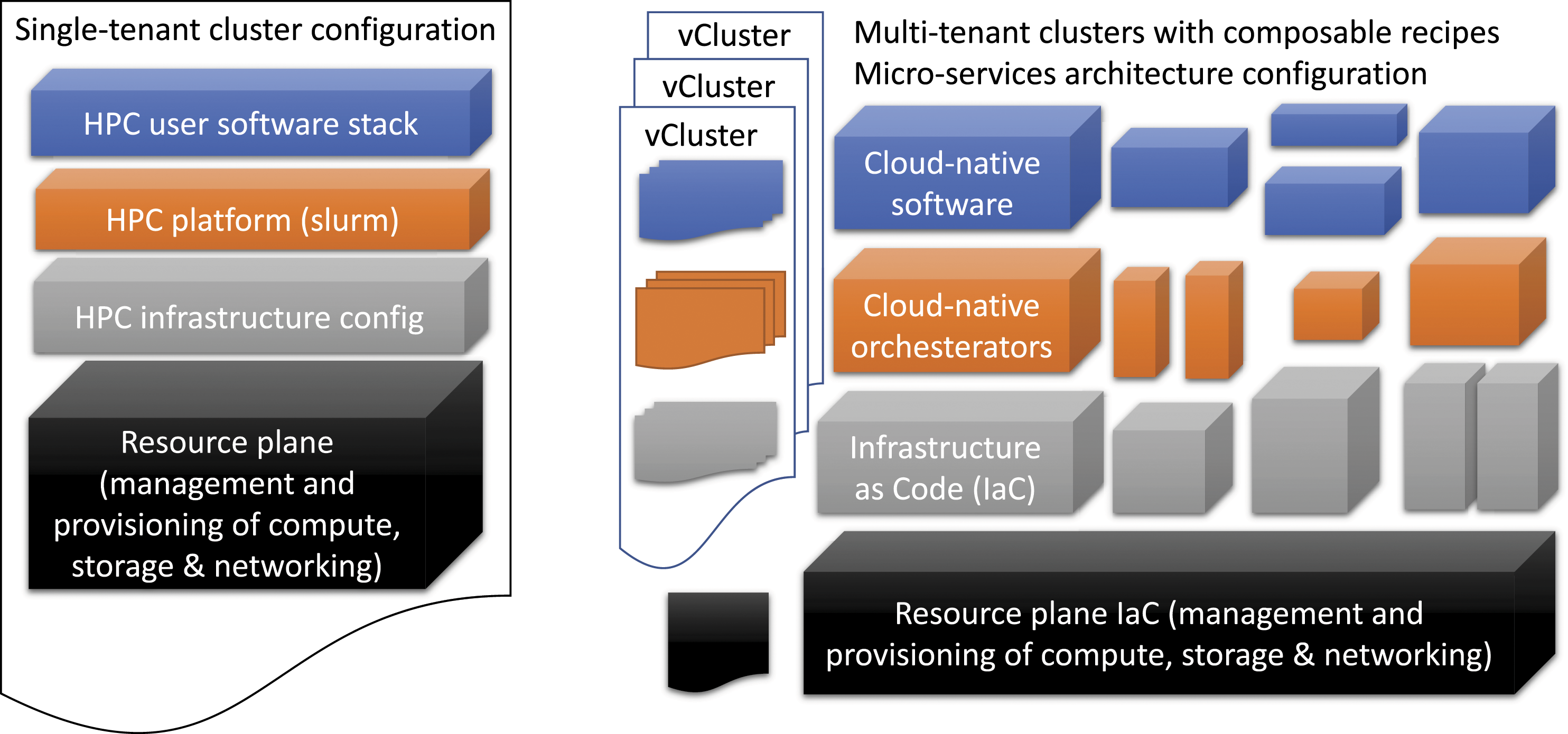

Figure 1 shows the setup of a classic HPC cluster and composable vCluster configurations, using a high-level classification of the resource management plane, the infrastructure, platform and user level software layers. A classic single-tenant HPC cluster has a tightly integrated environment from the infrastructure management plane to the programming environment layers. Although the unique user level software can be installed, often there are dependencies on MPI and driver versions that are part of the tightly integrated stack, often managed by system administrators who are responsible for the resource plane. Similarly, a single resource management and scheduling system, such as a batch scheduling system is configured to support different usage modes such as debugging, long running jobs, and interactive jobs. The versatility in vCluster is to create separate tenants and simplify cluster configurations, for multiple usage scenarios such as developing and testing a software, checking readiness for production, and operational deployment. Moreover, each layer can be configured separately and is independently managed. This gives flexibility for independent software development teams, for instance, numerical libraries developers, application software teams, and as well as site operators to deploy CI/CD pipelines in an automated manner assuming standard abstractions are being used.OPEN IN VIEWER

In order to fully support the vCluster model, we rely on an immutable infrastructure approach. Immutability in IaC essentially means that once a configuration is generated for an image it is versioned and is never updated in place. A new version must be generated for even minor changes and patches. The idea is that there is always a state that can be restored. There are trade-offs with this approach, specifically maintaining a large number of states of machines. The advantages include autonomous and reproducible CI/CD pipelines by diverse teams. Typically, large-scale classic supercomputing installations follow a mutable model due to the complexities associated with upgrading the entire, vertically integrated stack. Different elements can be updated in a compute node image for instance, drivers, MPI libraries and security patches. Often this leads to untraceable and tedious debugging and troubleshooting on supercomputing platforms when regressions and errors are reported because it is impossible to go back to the previous known state of the system since it is not kept.

The resource plane is isolated and is separately managed from any of the vClusters. In fact, one way to view the distinction is that the system administration team is focused on managing the health of the resource plane components, and is responsible for change management and troubleshooting of resources independently of any of the top, X-as-a-Service (XaaS) layers. Each XaaS layer can be managed by different teams (roles), which do not have any privileged access to the resource plane. Thus, a role-based access control (RBAC) is a key requirement for implementing vClusters. RBAC is commonplace in the identity and access management (IAM) systems of cloud-native technologies while classic HPC uses a typical Unix style access model. IAM and change management of the resource plane and vCluster layers are distinct. Another characteristic feature of cloud-native solutions is MSA compliance where each microservice can be managed and updated independently. All microservices operate with a common IAM and security model based on RBAC and policies. Depending on the role, a microservice from each layer can be configured to obtain a platform service configuration such as an HPC platform or a canonical slurm cluster, or a complex data-driven middleware of the Grid platform, which itself is composed of multiple services including an HTC cluster. These details will be provided in the next sections.

The key benefit of an IaC vCluster approach on Shasta supercomputer for our study is maintaining separation of concerns for the development and deployment of non-cloud-native HPC software stacks on an infrastructure that follows an MSA architecture. Our design target is to enable development-operations (DevOps) style change management and to maximise productivity of diverse teams’ ability to configure their continuous integration and delivery (CI/CD) pipelines. As a result, both platforms demonstrated in this article have smaller (in size) and ephemeral vClusters tenants for testing, developing and staging software before changes are rolled out to the production tenant. Conversely, the recipes can be potentially adopted and deployed on the non-Shasta ecosystems provided similar IaC abstractions are available.

Cray-HPE Shasta EX system and software stack

The HPE-Cray EX system and software management stacks support IaC capabilities through key innovative technologies (Cray System Management). These systems are characterised by two distinguishing features that are relevant for our study:

• Software-defined, Ethernet-compliant, high-performance networking stack – interoperability with the data centre networks has been among the key designed objectives of the Cray-HPE Slingshot interconnect technology, in addition to support for the HPC, MPI payloads (Khorassani et al., 2022). As a result, it is compatible with Ethernet while offering additional essential features for the low-latency and high-bandwidth needs of HPC applications such as adaptive routing and congestion control. A further enhancement has been the introduction of software-defined features for creating isolated, network tenants, similar to other contemporary cloud-native networking technologies. It provides system-wide service classes, to control and manage network bandwidth, among individual jobs ensuring high priority jobs get the network resources they require, in a programmable manner.

Support for network virtualisation for HPC communication protocols, and, critically, MSA for the system management are key enablers for DevOps. For instance, the new stack permits the creation of multiple isolated groups or tenants (compute and networking) which in turn can be configured as multiple isolated and elastic batch clusters with Slurm or PBS, or Kubernetes clusters in a programmable manner (Jette et al., 2003) (Hightower et al., 2017) (Zhou et al., 2021). Availability of such programmable partitioning without virtualisation overheads has been the main motivating factor for implementing vClusters on Shasta, from a configuration management point of view. The compute nodes are not shared or virtualised (not running a hypervisor) and instead are provisioned bare-metal.

Additional features of Cray-HPE Shasta EX systems include the support of highly heterogeneous compute nodes. The first Exaflops supercomputer, ORNL (Frontier Supercomputer), has AMD CPU and GPU nodes. Similar configuration is available for the largest partition of the LUMI supercomputer at CSC, Finland (LUMI Supercomputer). LUMI supercomputer also has multi-core only nodes with dual socket AMD GPUs. Another Cray-HPE Shasta EX supercomputing platform at NERSC, LBNL, has Nvidia GPU accelerators. Planned systems include nodes with Nvidia ARM processors, and next generation of AMD, Intel and Nvidia GPUs. We believe a vCluster approach will be highly effective for managing complex user, platform and system software stacks on highly diverse, heterogeneous supercomputers, including Alps.

The first phase of installation of Cray-HPE EX hardware with the Shasta software stack was completed during the fourth quarter of 2020 at CSCS. A production Slurm HPC virtual cluster instance was made available to external users during the first quarter of 2021 (CSCS Eiger Cluster). Since then, we have been gradually co-designing and evaluating the environment to achieve our multi-tenant vClusters design objectives, as the Shasta hardware and software stacks continue to evolve. The HPC cluster services remain available and used by users for submitting their MPI jobs while the management stack is going through major updates and configuration changes. This can be attributed to the adoption of multi-tenant vClusters approach on Alps that is detailed in the next section. While the work is in progress for fully developing the software-defined networking and the IaC management stack of clusters and machines, we have exploited a subset of existing features of Cray-HPE Shasta to create multi-tenant HPC vClusters for users that have been in operation since 2021.

HPC Platform vClusters on Alps

Historically, the design objectives of system and software management stacks of a supercomputer do not include requirements for programmable access from other on-premise and off-premises resources, or applications. This is because the objective for an HPC cluster is to primarily run large-scale MPI jobs, through a batch scheduling system. Users of such a system define number of nodes or resources and duration of a job, and then wait until the requested configuration becomes available within an HPC cluster that is shared by multiple users and their jobs. These systems typically have two operating zones, a user zone to compile and run applications, and an admin zone, for everything else, such as configuration management, provisioning, and orchestration of system and software stacks. Several change management operations are not allowed because there is only one tenant; therefore, any configuration change can potentially impact the entire supercomputing infrastructure (deemed too high risk for an expensive resource). Hence, users use the supercomputing system through batch jobs (running applications compiled on the system) and system administrators try keeping the ecosystem healthy by taking periodic down times for configuration changes, and for applying patches and fixes (Allen et al., 2020) (Lundin and Fisher 2019).

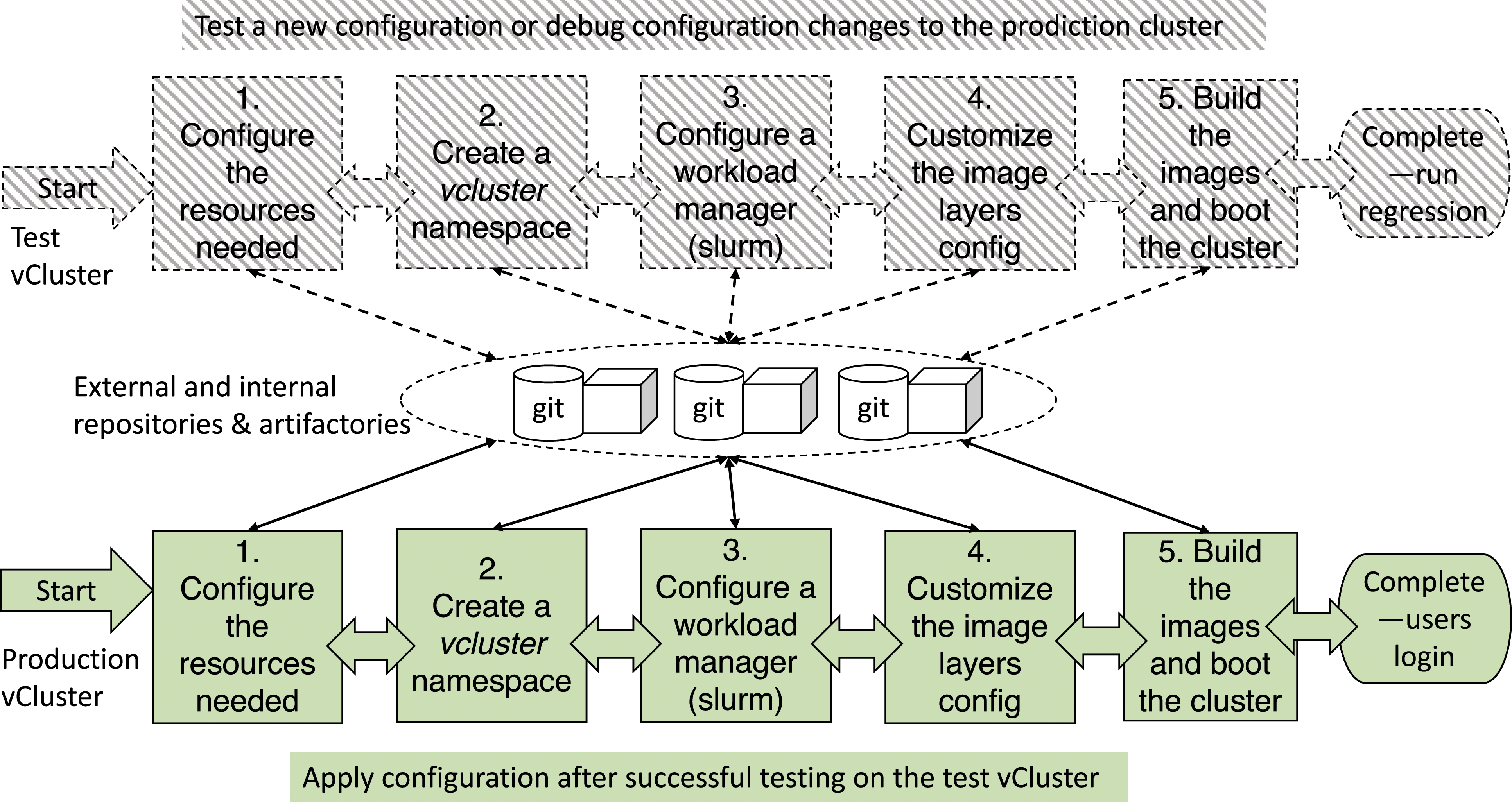

Figure 2 shows the procedure for configuring a vCluster within the Alps ecosystem and instantiating it such that users can perform typical operations seamlessly such as login to the cluster, compiling an application and submitting a job. Two cluster tenants are shown in the figure, a test and development (TDS) environment that can be on-demand and ephemeral and a production HPC cluster. Major parts of the configuration recipes are reused for build, test, stage and production HPC platforms instantiated using vClusters.OPEN IN VIEWER

There are five main steps of the procedure that each recipe follows to generate vClusters on Alps supercomputers. Within each step, different configuration options can be selected from the repository, or a customised one can be built. A couple of steps require privilege roles to control access to the resource or management plane, for instance, requesting different numbers and types of nodes from the resource pool. The objective is to eliminate privilege access and make these available using APIs that enforce roles and policies-based access controls. Policies and QoS govern if a resource request can be granted. The main steps are:

1. Request and configure the resources

The vCluster layers shown in Figure 1 are largely mapped onto these five stages to distinguish our approach from a single-tenant HPC cluster configuration. First, the resourcing layer is isolated and is managed separately through a role and policy-based access control. The first step assumes that this layer is configured already. Second, the IaC configuration is the starting point for the procedure, as step 1, which is followed by step 2 for interfacing a new tenant registration with the resourcing plane (for inventory). Step 3 represents the orchestration layer, which in the case of an HPC cluster configures a batch workload manager (slurm). Step 4 involves creating an image with several options that are typically not available in a classic provisioning approach. This step is customisable, giving configuration opportunities for setting up a full programming and runtime stack, or leaving these configuration options to users to bring-their-own. All configurations are kept in standard repositories and artifactories (CSCS uses JFrog) for managing versions and access controls to the configuration files that are available for sharing and creating custom branches for the development and sharing of different software artefacts.

In the example below we assume the name of the vCluster is cscs-test-hpc.

WLCG Platform vClusters on alps

The Worldwide LHC Computing Grid (WLCG) provides and operates the Grid infrastructure used by the experiments of the Large Hadron Collider (LHC) at CERN for their data processing (WLCG). It is an instantiation of Grid Computing, which is defined as a collection of distributed resources to perform collective tasks (a global collaboration of around 170 computing centres in more than 40 countries, linking up national and international grid infrastructures). WLCG’s mission is to provide global computing resources for the storage, distribution and analysis of the data generated by the LHC. Already CERN workflows have one of the unique storage and data transfer requirements, reaching close to 100 Petabytes per year. The significant amount of data to be distributed and analysed, the number of collaborating centres and users and the diversity of the underlying resources make the WLCG the largest and most complex research Grid currently in operation (CERN Tape Archive). A substantial growth in data generation, storage and processing is anticipated for the next generation of experiments called Run 3 (Fartoukh et al., 2021).

CSCS operates a Swiss Tier-2 in the WLCG for the Swiss Institute of Particle Physics (CHiPP), mainly to analyse data coming from the LHC experiments, namely, ATLAS, CMS, and LHCb at CERN. Compared to the vCluster configuration for an HPC cluster, the setup for the WLCG platform has significantly higher complexity and external dependencies for the middleware stack. Nevertheless, using the vCluster approach, we can extend the HPC cluster configuration to an extreme data-driven HTC cluster configuration, and customise recipes for user access, slurm controls and software-defined, multi-tenant, HTC-oriented file systems. Previous studies have demonstrated that the middleware for virtualised computing and storage stacks aren’t interoperable with classic, Petascale supercomputing systems (De et al., 2021) (Boccali et al. 2021). The middleware has been partially containerised (Roy et al., 2020). Our vCluster approach maps the entire middleware using three compute and storage management solutions, namely, Slurm, Kuberntes and Ceph (on-premise software-defined storage for HTC-friendly data services) (Ceph).

DevOps on alps

One of the key advantages of vClusters that we consider is enabling several, autonomous CI/CD pipelines and enable DevOps approach to the delivery of services. This is particularly important for distributed frameworks such as WLCG middleware that aren’t designed specifically for HPC ecosystems. Figure 3 highlights the mapping of service description and orchestration on a vCluster (VC), which is essentially a configuration recipe that instantiates an HPC or Kubernetes cluster on Alps. Key terminologies used in Figure 3 are defined as follows. The different zones (DEV-development, Stage-STAGE, Production-PROD, Services) are used to fulfil the QoS and CI/CD pipeline requirements. This platform deals with three main types of services with different lifecycle and availability requirements as per service level agreements (SLAs) with the customer. To fulfil SLAs while enabling DevOps in a shared supercomputing ecosystem, we specify three different zones:

• We distinguish central or shared components that are necessary to make the site work and that behave like cattle (IaC Cattle Pet Analogy) (i.e., a restart of any of them isn’t critical to the operation of the site, in WLCG terms). Several middleware components such as CVMFS or BDIIs fit this role: they rarely change, the impact of a single pod/service failure is not critical, and they mostly don’t need certificates linked to specific IPs, nor use odd protocols such as xrootd or gridftp. This is the ‘Services’ zone.

• The ‘DEV’ zone is not persistent and is instantiated on demand for development purposes, but the ‘STAG’, ‘PROD’ and ‘Services’ zones are persistent. Both STAGE and PROD are under ‘production’ SLAs from a WLCG customer’s or VOs perspective. Their configurations serve for testing changes with operational workflows of customers, as well as to enable the gradual introduction of new nodes/configurations (elasticity). One could argue that a development zone is not needed, but in this use case, many components cannot be tested locally on laptops because they have specific requirements that can’t be satisfied with local development (i.e., grid certificates and compute node images).

• The ‘PROD’ zone contains components that need to be registered and stable for operation (computing, storage, ARC, etc.). dCache and ARC gateways (plus the computing resources behind them) fit this description as they need to be registered in WLCG (and with each VO) where SLA metrics are monitored and reported. Any failure or regression is considered critical in establishing the health of a site in the grid central ecosystem. Further technical implementation details and operational results are provided in (Gila et al., 2023).

OPEN IN VIEWER

Figure 3.

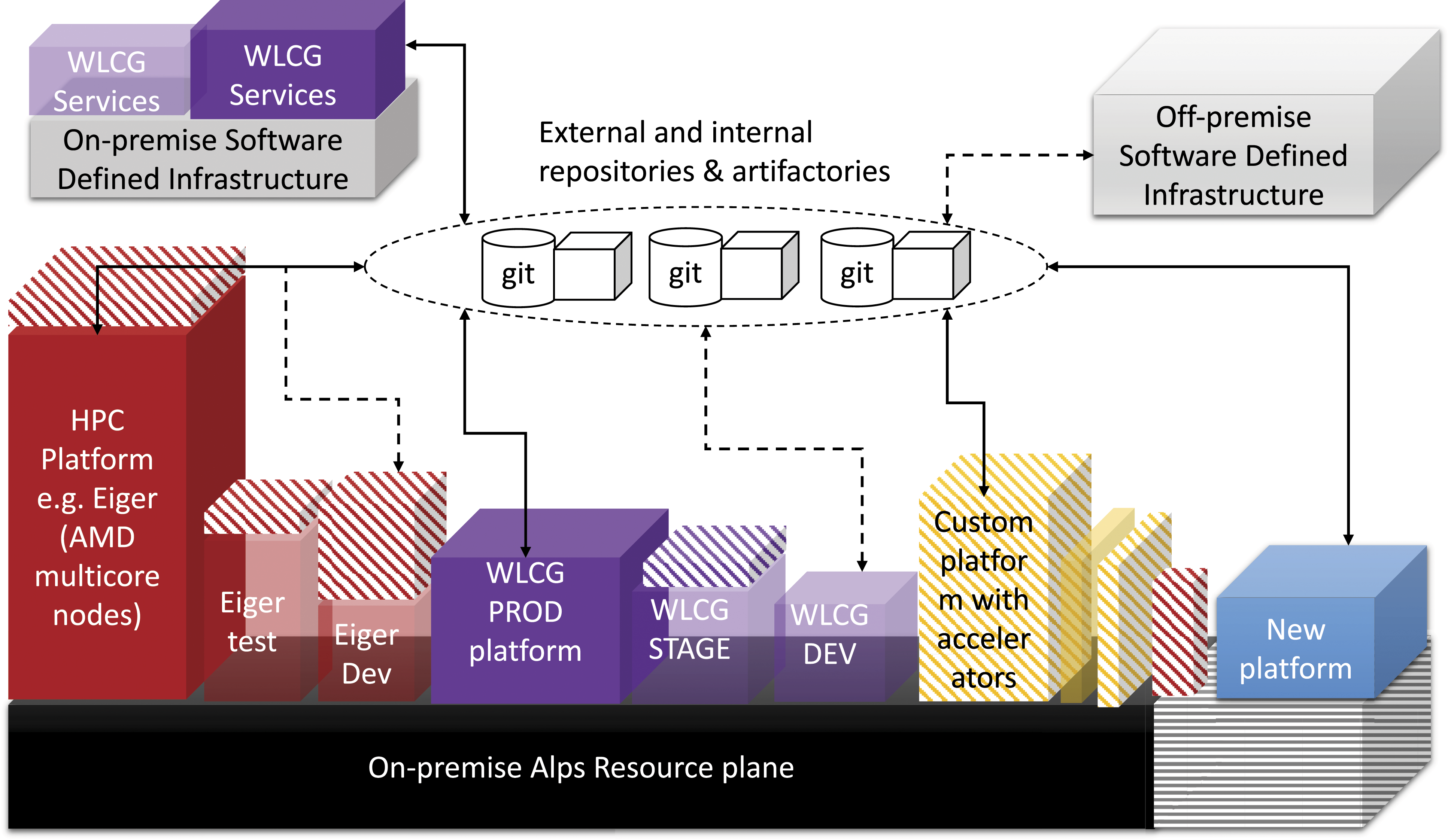

vClusters on Alps and on-premise software-defined infrastructure for mapping services for grid workflows on Alps. The implementation of the vCluster (VC) is divided into four zones to allow independent development and operation (IaC concepts of pet and cattle for named and unnamed clusters): Dev (cattle), Stage (pet), Production (pet) and Services (pet). DEV vClusters are instantiated on-demand and is ephemeral with the corresponding configuration recipes for the WLCG middleware services. Stage and production vClusters share production services. As the name suggests, after testing on the DEV vClusters, changes are staged with common releases such that part of the workload can start using the new configuration e.g. worker node (WN) images. All changes are transparent to the end users. The nodes can be gradually added from PROD to STAGE such that all experiments can validate and migrate their workflows. In case of regression or issues, changes can be rolled back on the stage and the configuration is discarded. Workarounds, patches and updates are first tested on the DEV environment. Components (composed of HELM charts and compute node images) include multiple middleware service configuration such as CVMFS Proxy, IAM, CMS Proxy, Dashboard, ARC, dCache, Slurmctld, Worker Node (WN), which can be tested in the DEV vCluster platform before migrating to STAGE. Standard tools like Github and JFrog (an artefact repository) are used at CSCS for managing CI/CD pipelines. Note that the PROD and STAGE are under the service level agreements (SLAs) from customers meaning that operational metrics for health, reliability and availability of production services and resources are being monitored for compliance.

Evaluation and discussion

We evaluate the design and implementation vClusters for the two distinct use cases that were presented as a demonstration to address three constraints:

1. Bespoke software development and deployment environments

At the time of writing this article, both platforms are in production and are operating with SLAs that predate Alps vCluster design approach. Figure 4 illustrates implementation of two platform use cases, additional platforms that are being developed using multi-tenant vCLusters on Alps, on-premise software-defined infrastructure and possibility of extending to remote IaC capable software-defined resources such as public cloud providers. Concretely, the configuration of all layers is managed using commonly used CI/CD pipelines and tools. Using standard technologies, we observed an increased reuse of recipes across platforms. For instance, historically, an application software developer will be dependent on the system administrator and will be constrained by the global configuration of the HPC platform on a supercomputer. The approach had some drawbacks, for instance, the system administration team was deemed responsible for ensuring health of all layers of a complex software ecosystem for diverse configuration needs. By separating concerns of different roles and layers of the deployment process in the vCluster procedure and enabling on-demand configurations for autonomously composing layers (test, stage and production tenants), testing and deployment can be automated without compromising overall health of the production platforms. Furthermore, changes can be rolled back within the layer minimising overhead for managing and validating changes for a vertically integrated, complex HPC cluster configuration.OPEN IN VIEWER

At CSCS, the vCluster approach triggered two rather interesting phenomena. The first one being a convergence of common CI/CD tooling needs across teams, from scientific application software developers, platform engineers to system operators. There is an increased transparency as a result where previously there was a black box thinking for updates and change management. The roles and policy-based IAM has been a cornerstone for sharing and leveraging CI/CD pipelines of community, in-house and vendor software. Common tools such as repositories and artifactories have accelerated DevOps across teams. The second one is the awareness about reducing CapEx and OpEx using IaC and software-defined infrastructure technologies. As different recipes are created and shared across platforms for instantiating vClusters and configuring middleware such as WLCG, the deployment teams are identifying opportunities to maximise transferable tools and skills and minimise single points of failures and resource contentions, both human and technical. This has led to an increased simplification into CSCS technical portfolio without compromising the scalability of its service offerings. As an example, there were several storage solutions for POSIX-based parallel file system services for HPC and HTC clusters, fulfilling availability, performance and accessibility requirements. The multi-tenant vCluster model requires a multi-tenant file system to maintain isolation. The WLCG team introduced Ceph for dCache as a solution so that it can be extended, in a programmable manner, to other non-HPC use cases such as users home and application folders. This is an example of a configuration that was introduced for an HTC platform but can also be leveraged and reused for the HPC platform by adapting configuration changes.

Furthermore, vClusters enabled collaborative developments with the WLCG middleware development teams and facilitated integration of platform or VO representatives. One of the requirements is enabling VO representatives to track health and performance metrics in real time and on-demand. The cloud-native technology approach enables us to implement fine-grained access controls for different roles, which were not feasible on classic supercomputing platforms where there are two roles, an administrator and cluster users. Exceptions are typically created manually for middleware specific roles and services. This approach was not scalable and sustainable for diverse workflows, and was prone to security vulnerabilities. On Alps, WLCG tenants, monitoring and regression testing operations required by VO roles will be tracked using two mechanisms:

1. Setting a dedicated service or view to collect and show health and performance metrics and statistics. The specific contents will be determined over time with a feedback loop with the VOs.

Table 2 lists the vCluster approach for two platforms on Alps dealing with diverse workflow scenarios, a classic HPC platform for running batch simulations and a data-driven Grid platform with HTC requirements. We identified common and distinct features because one platform (HPC) can be configured as per site needs, therefore, has a greater degree of freedom for selecting CI/CD pipelines and tools, while the WLCG software stack distribution is centrally controlled. The common aspects are build, test, stage and production tenants for individual platforms. For the complex grid middleware, we focus on the coverage of services, portability and extensibility, and operational efficiency using the vClusters approach. Using standard technologies like Ceph and Kubernetes for IaC, we have developed highly portable and extensible solutions, beyond Alps. This in turn allows developers, engineers and administrators to use common CI/CD pipelines and tools reducing overhead for distributed development teams and site-specific optimisations. The unique contribution of vClusters is development of multi-tenant slurm clusters that are used for the CE services (HTC payload). On the one hand, using an IaC approach, we can create multi-tenant slurm clusters that can have custom recipes without a single, shared slurm configuration constraint of a supercomputing HPC platform. On the other hand, we gain elasticity so that resource capacity can be modified dynamically, without change management overheads and delays. These vClusters are resized for production, development and at-scale testing, without having to dedicate resources for specific operations. This in turn can minimise overall investment and operational overheads for different services because the infrastructure resources are part of a much bigger pool of resources, available to multiple tenants. On a regular basis, diverse teams can provision, deploy, test and destroy vClusters for their CI/CD pipelines on Alps resulting in autonomy of the teams and enabling DevOps in a supercomputing ecosystem.

OPEN IN VIEWER

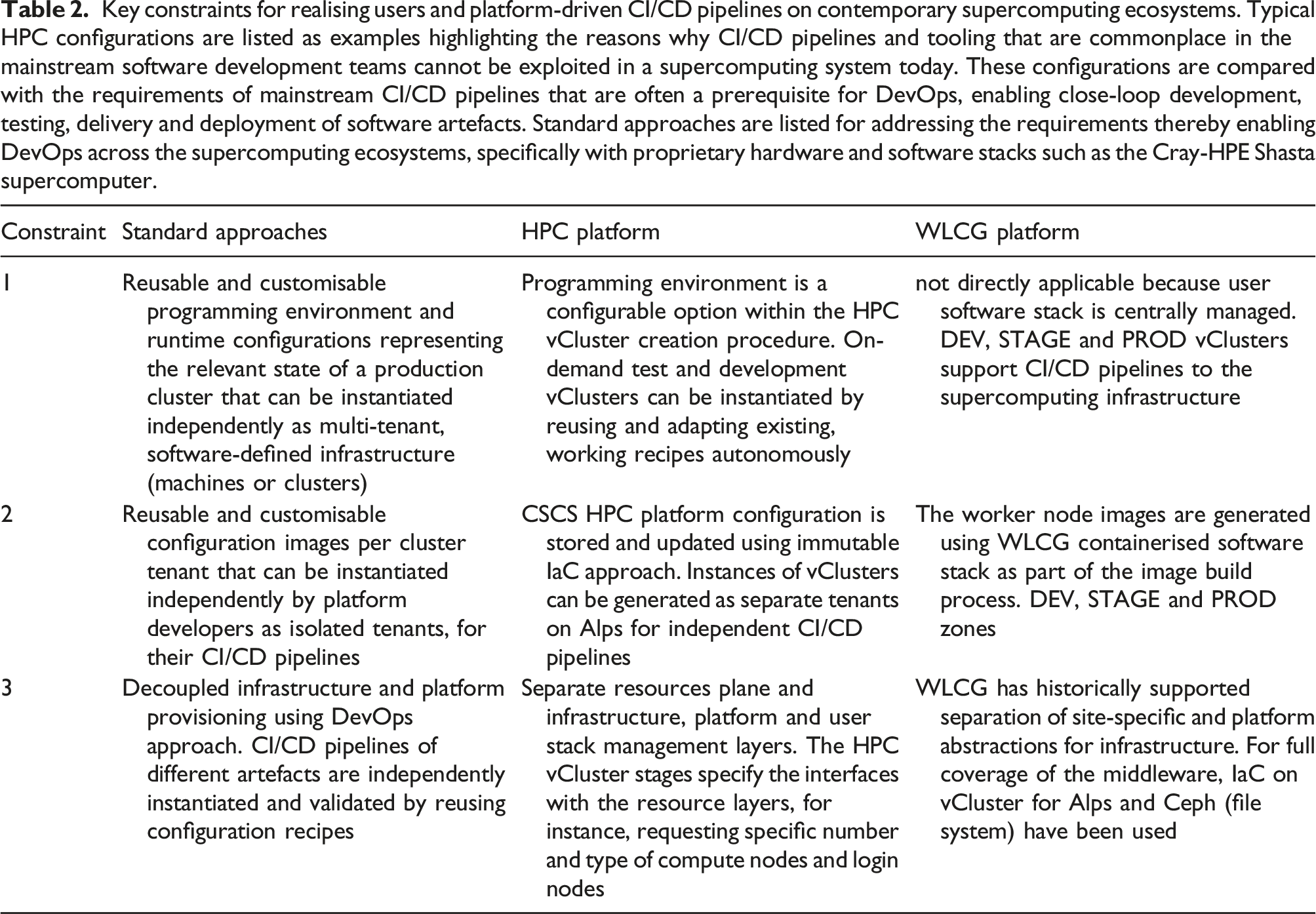

Table 2.

Key constraints for realising users and platform-driven CI/CD pipelines on contemporary supercomputing ecosystems. Typical HPC configurations are listed as examples highlighting the reasons why CI/CD pipelines and tooling that are commonplace in the mainstream software development teams cannot be exploited in a supercomputing system today. These configurations are compared with the requirements of mainstream CI/CD pipelines that are often a prerequisite for DevOps, enabling close-loop development, testing, delivery and deployment of software artefacts. Standard approaches are listed for addressing the requirements thereby enabling DevOps across the supercomputing ecosystems, specifically with proprietary hardware and software stacks such as the Cray-HPE Shasta supercomputer.

Constraint	Standard approaches	HPC platform	WLCG platform
1	Reusable and customisable programming environment and runtime configurations representing the relevant state of a production cluster that can be instantiated independently as multi-tenant, software-defined infrastructure (machines or clusters)	Programming environment is a configurable option within the HPC vCluster creation procedure. On-demand test and development vClusters can be instantiated by reusing and adapting existing, working recipes autonomously	not directly applicable because user software stack is centrally managed. DEV, STAGE and PROD vClusters support CI/CD pipelines to the supercomputing infrastructure
2	Reusable and customisable configuration images per cluster tenant that can be instantiated independently by platform developers as isolated tenants, for their CI/CD pipelines	CSCS HPC platform configuration is stored and updated using immutable IaC approach. Instances of vClusters can be generated as separate tenants on Alps for independent CI/CD pipelines	The worker node images are generated using WLCG containerised software stack as part of the image build process. DEV, STAGE and PROD zones
3	Decoupled infrastructure and platform provisioning using DevOps approach. CI/CD pipelines of different artefacts are independently instantiated and validated by reusing configuration recipes	Separate resources plane and infrastructure, platform and user stack management layers. The HPC vCluster stages specify the interfaces with the resource layers, for instance, requesting specific number and type of compute nodes and login nodes	WLCG has historically supported separation of site-specific and platform abstractions for infrastructure. For full coverage of the middleware, IaC on vCluster for Alps and Ceph (file system) have been used

Related work

Different public cloud providers have solutions for provisioning HPC clusters for batch scheduling systems like slurm that can be instantiated using software recipes on their platforms. AWS has (AWS ParallelCluster). Azure provides AzureBatch and (Azure CycleCloud). GCP has cloud HPC toolkit for configuring and deploying clusters (GCP Slurm Cluster). These solutions are similar to the vCluster approach such that infrastructure is defined in software, and therefore, can be managed as IaC. The integration targets are different where vClusters is a relatively narrowly scoped, open-source solution co-designed with the use cases for scientific platforms that represent diverse HPC and data-driven workflow characteristics. The public cloud solutions are integrated with respective ecosystems of individual providers, aligned with their respective business models. Moreover, due to the proprietary nature of these solutions, portability and extensibility to other resource providers and HPC data centres have not been addressed.

To address the proprietary abstraction, some research groups have developed solutions like (Cluster-in-the-Cloud) using standard abstractions such as Terraform (TerraForm), which is defined as an open-source IaC. Cluster in the cloud essentially leverages Terraform for deploying small-scale HPC clusters on public clouds. At the time of writing this article, Terraform did not have provider plugins for Cray-HPE Shasta systems. In future, vCluster work can potentially be leveraged to develop such plugins in collaboration with the supercomputer vendors. However, the current Shasta system management software stack and APIs do not have necessary abstractions to create such plugins. This could be an opportunity for not only Cray-HPE Shasta stack but vendors of other supercomputing technologies.

The usage and utilisation models for supercomputing, and public and private cloud services are considerably different and are not addressed within the scope of this article. However, in relation to the work presented in this article, multiple, isolated tenants are fully supported (compute, networking and storage) and resource can programmatically migrate across vClusters in case of underlying hardware failure. In fact, system and software stacks are decoupled and are patched and upgraded independently and continuously, using a so called cloud DevOps and Site Reliability Engineering (SRE) processes (Beyer et al., 2018).

Different open-source, close-to-metal, HPC solutions have been supported by public cloud providers, in form of batch HPC clusters for running applications or, in some cases, for bursting workload of an on-premise cluster (Tefler 2017). These are nevertheless not a replacement for a shared supercomputing ecosystem where a single job can potentially scale to the entire low-latency, high-performance networking domain, which can be defined as an RDMA (Remote Direct Memory Access) network scaling in contrast with typical L2 and L3 cloud network scaling (Alam et al., 2020). All compute resources of Alps supercomputer are connected via a low-latency, high-bandwidth proprietary interconnect technology called SlingShot (Khorassani et al., 2022). With the vCluster solution, we obtain native performance and scaling characteristics for large-scale MPI jobs, across the whole infrastructure and within individual tenants.

There are other approaches that have been investigated for finding optimal convergence of HPC and cloud technologies from a resource management and workload orchestration perspective. Flux introduces a hierarchical resource management concept that goes beyond a single cluster, like a meta-scheduler, and extends resource definition beyond a compute node (Ahn et al., 2014). This approach gives more control to the resource providers and users for requesting and managing resources but does not address the composibility issues for managing CI/CD of software artefacts. Elasticity is limited to the subnet of individual HPC clusters. Another approach that has been explored is called KubeFlux where HPC MPI jobs are run inside a Kubernetes cluster (Misale et al., 2021). This is an interesting approach as it keeps the cloud-native model to the infrastructure management layer. However, as reported in the article, Kubernetes is not natively designed for launching a large number of (MPI) tasks in a synchronous manner resulting in relatively significant job launch overheads. This is a promising approach but requires additional research to scale it to supercomputing platforms. Other hierarchical approaches included Apache Mesos that is used for resource management and scheduling of workloads across distributed data centre and cloud environments with dynamic resource sharing (Hindman et al., 2011). There have been efforts to extend HPC plugins for Mesos but there are no recent updates on integration and results on contemporary supercomputing platforms.

Grid middleware communities have been gradually adopting cloud-native technologies for the development and deployment across WLCG data centres. For instance, (Roy et al., 2020) demonstrated the management burden is reduced and uptime has increased by adopting cloud-native technologies such as containerisation and container orchestration systems. This work has similarities to our approach for adopting standard CI/CD tools. However, the scope of the work did not include unique requirements of a supercomputing ecosystem, which has been addressed by our approach. Presently, WLCG is providing singularity containers (Singularity), which is a container solution for HPC batch systems with shared file systems, to provide pilot/payload isolation and to run the payloads against the operating system of their choice, rather than that provided by the host site. There is a specific work group in WLCG targeting containerisation efforts. We can deploy Singularity as well as standard docker containers on our HPC ecosystem using a container runtime called (Sarus). The procedure for creating vClusters on Alps includes build of images for compute nodes and the application stacks allowing targeted container runtime to be introduced as part of the configuration recipes.

With the planned upgrades of the LHC and expected growth in the amount and complexity of data collected by its experiments, CERN’s computing infrastructures will be facing a large and challenging demand of computing resources (CERN Tape Archive) (Fartoukh et al., 2021). Within this scope, the adoption of OpenStack cloud computing at CERN has opened the door to the evaluation of commercial cloud services, which could supply additional Infrastructure-as-a-Service (IaaS) resources to extend the current CERN computing resources for physics data processing (Cordeiro et al., 2017). While OpenStack is highly customisable for cloud-native workloads, it has not been adopted in HPC, especially for large, multi-Petascale systems running MPI applications at scale. One of the main reasons being overheads of virtualization that prevent large-scale MPI jobs requiring order of micro-second latencies and order of terabytes per second global bandwidths for communication. The multi-tenant vClusters on Alps rely on the Shasta system management stack that interfaces with the SlingShot fabric manager natively.

At the Oak Ridge National Laboratory (ORNL) leadership computing facility, a project was completed a few years ago titled: Big PanDA Workflow Management on Titan for High Energy and Nuclear Physics and for Future Extreme Scale Scientific Applications (De et al., 2021). The project aimed at exploring WLCG workflow models for future exascale computing by increasing the technical interoperability between HPC and that used for data-analytic, HTC usage patterns. The demonstrator project developed practical experiences and solutions to support diverse use cases and requirements, sharing workloads across HTC and HPC resources, and investigating the operational implications of running traditional HTC workloads on HPC resources. The extensibility and portability of the solution was specific to the Titan supercomputing ecosystem for the targeted workflows of a given VO. Additional effort would be required to reproduce the solution for different workflows and on different supercomputing ecosystems. vCluster-based implementation of the WLCG platform is portable and extensible to other IaC compliant resource providers.

Conclusions and future directions

vCluster (versatile software-defined cluster), which is based on Infrastructure-as-code (IaC) technology, addresses the key constraints for enabling CI/CD pipelines of software artefacts on supercomputing ecosystems. The vClusters approach is a unique fusion of HPC and cloud technologies resulting in a software-defined, multi-tenant cluster on a supercomputing ecosystem, that, together with software-defined storage, enable DevOps for complex, data-driven workflows like grid middleware, alongside a classic HPC cluster. Specifically, vClusters address key constraints that prevent configuration of CI/CD pipelines of software artefacts on supercomputing ecosystems, which have bespoke software development, deployment, integration and operational stacks, with site-specific change management policies. The design principles maximise reuse of software artefacts and configuration recipes. By far, the most valuable byproduct is an expansion of knowledge and expertise of HPC and cloud technologies among the software development and infrastructure operation teams. The future development tasks include investments into automation, particularly configuration and operations of Kubernetes alongside multi-tenant slurm HPC clusters and support for standard interfaces like Terraform provider plugins for supercomputing platforms in order to leverage vCluster artefacts broadly, beyond the Alps supercomputing ecosystem. Furthermore, vClusters have opened up possibilities for innovating CI/CD pipelines of the user environments while addressing the security constraints of shared supercomputing ecosystems.
