In Silico Characterization of a Hypothetical Protein from Shigella dysenteriae ATCC 12039 Reveals a Pathogenesis-Related Protein of the Type-VI Secretion System

Abstract

Shigellosis caused by Shigella dysenteriae is a major public health concern worldwide, particularly in developing countries. The bacterial genome is known, but there are many hypothetical proteins whose functions are yet to be discovered. A hypothetical protein (accession no. WP_128879999.1, 161 residues) of S. dysenteriae ATCC 12039 strain was selected in this study for comprehensive structural and functional analysis. Subcellular localization and different physicochemical properties of this hypothetical protein were estimated indicating it as a stable, soluble, and extracellular protein. Functional annotation tools, such as NCBI-CD Search, Pfam, and InterProScan, predicted our target protein to be an amidase effector protein 4 (Tae4) of type-VI secretion system (T6SS). Multiple sequence alignment of the homologous sequences coincided with previous findings. Random coil was found to be predominant in secondary structure. Three-dimensional (3D) structure of the protein was obtained using homology modeling method by SWISS-MODEL server using a template protein (PDB ID: 4J30) of 80.12% sequence identity. The 3D structure became more stable after YASARA energy minimization and was validated by several quality assessment tools like PROCHECK, QMEAN, Verify3D, and ERRAT. Superimposition of the target with the template protein by UCSF Chimera generated RMSD value of 0.115 Å, suggesting a reliable 3D structure. The active site of the modeled structure was predicted and visualized by CASTp server and PyMOL. Interestingly, similar binding affinity and key interacting residues were found for the target protein and a Salmonella enterica Tae4 protein with the ligand L-Ala D-Glu-mDAP by molecular docking analysis. Protein-protein docking was also performed between the target protein and hemolysin coregulated protein 1 of T6SS. Finally, the protein was found to be a unique protein of S. dysenteriae nonhomologous to human by comparative genomics approach indicating a potential therapeutic target. Most pathogens harboring T6SS in their system pose a significant threat to the human health. Many T6SSs and their effectors are associated with interbacterial competition, pathogenesis, and virulency; however, relationships between these effectors and pathogenicity of S. dysenteriae are yet to be determined. The study findings provide a lucrative platform for future antibacterial treatment.

Keywords

hypothetical protein functional annotation homology modeling molecular docking type-VI secretion system (T6SS)amidase effector protein 4 hcp1

Introduction

Next-generation sequencing (NGS) allows scientists to obtain huge amounts of data in a relatively short period of time. As more and more organisms are being sequenced, the challenge of assigning functions to genes is increasing.^1,2 In many organisms, the molecular functions of more than 30% proteins are unknown termed as “Hypothetical Proteins (HP).”³ In silico characterization of hypothetical proteins help in determining 3-dimensional (3D) structures which may reveal new domains and motifs, pathways, protein networks, and so on.^4-6 Furthermore, structural and functional annotation of HPs may also reveal potential biomarkers and pharmacological targets.⁷ Several bioinformatics databases and tools have been successfully used to annotate the functions of hypothetical proteins in different pathogenic micorganisms.^8-14

A family of bacteria known as Shigella is responsible for nearly 700 000 deaths a year resulting from an intestinal disease, Shigellosis (Shigella infection).¹⁵ There are 4 known species of Shigella which are pathogenic: Shigella flexneri, Shigella boydii, Shigella sonnei, and Shigella dysenteriae.¹⁶ Among these 4 species, S. dysenteriae is prominently found in developing countries that can lead to deadly epidemics.^17,18 It is a gram-negative, nonspore forming bacillus that survives as a facultative anaerobe. This organism is generally found in contaminated water supplies and in the stool of infected individuals.¹⁹

S. dysenteriae ATCC 12039 strain contains 4129 proteins of which nearly 8% are hypothetical.²⁰ In silico analysis of these hypothetical proteins is essential because an understanding of the genome of this organism might contribute to the successful development of a drug or vaccine which is still under development in laboratories. A hypothetical protein (accession no. WP_128879999.1) of S. dysenteriae ATCC 12039 was selected in this study for comprehensive structural and functional analysis using various bioinformatics tools.

Materials and Methods

Sequence retrieval

Sixty five genomes of S. dysenteriae are available in NCBI (http://www.ncbi.nlm.nih.gov/)²¹ database. A hypothetical protein (accession no. WP_128879999.1) of S. dysenteriae ATCC 12039 strain containing 161 amino acid residues was selected for this study. Primary sequence of the protein was retrieved as FASTA format for subsequent analysis.

Analysis of physicochemical properties

Physical and chemical properties including molecular weight, aliphatic index (AI), extinction coefficients, GRAVY (grand average of hydropathy), and isoelectric point (pI) of the target protein were analyzed using ProtParam (http://web.expasy.org/protparam/)²² tool of ExPASy.

Subcellular localization and solubility prediction

The subcellular location of the hypothetical protein was predicted by CELLO (http://cello.life.nctu.edu.tw/).²³ SOSUI (http://harrier.nagahama-i-bio.ac.jp/sosui/)²⁴ calculates average hydrophobicity and determines the solubility of the protein. Any hydrophobic portion of the protein is labeled as transmembrane region.

Function prediction by domain and motif analysis

For domain analysis, NCBI Conserved Domain Search Service (CD Search) (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi),²⁵ Pfam (https://pfam.xfam.org/),²⁶ and InterProScan (http://www.ebi.ac.uk/Tools/services/web/toolform.ebi?tool=iprscan5)²⁷ was used. CD Search identifies the conserved domains present in a protein sequence. It compares a query sequence by performing RPS-BLAST (Reverse Position-Specific BLAST) against position-specific score matrices resulting from conserved domain alignments present in the Conserved Domain Database (CDD). Pfam is a protein family database that includes annotations and multiple sequence alignments generated using hidden Markov models (HMMs).²⁶ Protein sequence motif was analyzed using MOTIF (http://www.genome.jp/tools/motif/) server.

Multiple sequence alignment

A BLASTp search from NCBI (http://www.ncbi.nlm.nih.gov/) against the nonredundant database with default parameters was performed to find the homologues of the protein. Multiple sequence alignment and phylogenetic tree was constructed using Jalview.²⁸

Secondary structure determination

Secondary structure was predicted using the self-optimized prediction method with alignment (SOPMA) (https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl?page=/NPSA/npsa_sopma.html).²⁹ We also used PSIPRED (http://bioinf.cs.ucl.ac.uk/psipred/)³⁰ and ENDscript (http://endscript.ibcp.fr/ESPript/ENDscript/)³¹ to validate the results obtained from SOPMA.

Homology modeling

The 3D structure of the target protein was determined using SWISS-MODEL³² server based on homology modeling. The server automatically performs BLASTp search to identify templates for each protein sequence. From the query result, template protein 4j30.1.A was selected for homology modeling. This is an X-ray diffraction model of a Salmonella typhimurium putative cytoplasmic protein with 80.12% sequence identity which was a reliable score to initiate modeling. The 3D model structure was visualized by BIOVIA Discovery Studio Visualizer (version 20.1.0.19295).

Energy minimization of the model structure

Three-dimensional model structure from SWISS-MODEL server was energy minimized using YASARA force field minimizer.³³ It minimizes the energy and gives a more accurate and stable 3D structure of the desired protein.

Quality assessment

The quality of the model structure was evaluated by PROCHECK (https://www.ebi.ac.uk/thornton-srv/software/PROCHECK/),³⁴ Verify3D (https://servicesn.mbi.ucla.edu/Verify3D/),³⁵ QMEAN (https://swissmodel.expasy.org/qmean/)³⁶ programs of ExPASy server of SWISS-MODEL Workspace and ERRAT (https://servicesn.mbi.ucla.edu/ERRAT/).³⁷ Furthermore, the model and the template structure was superimposed and visualized by UCSF Chimera software.³⁸ The Z scores for both the proteins were also estimated by ProSA-web server.³⁹

Active site determination

Computed atlas of surface topography of proteins (CASTp) (http://sts.bioe.uic.edu/castp/) server was used to determine the active site of the protein. The topographical features of a protein are obtained in a detailed, comprehensive, and quantitative manner by CASTp. Active pockets located on protein surfaces and in the interior site of the 3D structure can be precisely located and be measured. Thus, it has become an indispensable platform for prediction of the regions and key residues of protein which interact with ligands.⁴⁰ The CASTp result was also visualized by PyMOL software.⁴¹

Molecular docking analysis

Docking analysis was performed using Autodock Vina (http://vina.scripps.edu/download.html) software.⁴² It helps study and predict how ligands interact with macromolecules. The ligand used for the docking was L-Alanyl-gamma-D-glutamyl-meso-diaminopimelic acid (a peptidoglycan fragment). The binding affinity of the target protein and a Salmonella enterica Tae4 protein WP_129397493.1 (3D structure was developed by HHpred MODELER)⁴³ with the ligand was obtained using Autodock Vina. Protein-protein docking between the target protein and hemolysin coregulated protein-1 of T6SS was performed by ClusPro 2.0 server.⁴⁴ Docking result was analyzed using PyMOL and Discovery Studio Visualizer.

Comparative genomics approach

To know if our target hypothetical protein WP_128879999.1 has any resemblance to human, a BLASTp (https://blast.ncbi.nlm.nih.gov/Blast.cgi?PAGE=Proteins)⁴⁵ search against Homo sapiens proteome was performed. A threshold E-value (expected value) of .005 and a minimum bit score of 100 was set to filter the hits.

Results

Physicochemical properties and subcellular localization

Several physicochemical properties of the hypothetical protein WP_128879999.1 were estimated by ProtParam tool which is shown in Table 1. The protein was predicted to contain 161 amino acids, possess a molecular weight of 17 589.04, theoretical pI of 7.72, and grand average of hydropathicity (GRAVY) of −0.072. The instability index (II) of the target protein was predicted to be 31.46 classifying the protein as stable.

Table 1.

Physicochemical properties estimated by ProtParam tool.

No. of amino. acids.	Molecular Weight	Half life	pI	(Asp + Glu)	(Arg + Lys)	Aliphatic index (AI)	Instabiliy index (II)	Grand average of hydropathicity (GRAVY)
161	17 589.04	30 hr	7.72	12	13	80.43	31.46	−0.072

Subcellular localization of a hypothetical protein would be useful to have insight into their function, as different cellular locations represent different functions. This knowledge can also be used to design a drug against the target protein.⁴⁶ The subcellular localization of our target protein was predicted as “extracellular” by CELLO program. SOSUI server predicted the protein to be a soluble protein.

Protein family and phylogeny analysis

Several annotation tools were used to identify conserved domains and potential function of our target protein. Based on predictions made by NCBI-CD Search, Pfam and InterProScan, the target protein was suggested to contain domain of Tae4 superfamily and is classified as amidase effector protein 4 (Tae4) of type-VI secretion system (T6SS). NCBI-CDD server predicted the Tae4 superfamily domain at 40-139 amino acid residues with an E-value of 5.62e−21. Pfam also predicted the Tae4 superfamily domain at 40-151 amino acid residues. MOTIF found Tae4 superfamily at 41-138 position with an E-value of 1.1e−16.

The BLASTp search against the nonredundant database showed homology (up to 96% sequence similarity) with other known T6SS amidase effector protein 4 from different enterobacteriaceae (Table 2). We also retrieved 2 hypothetical proteins containing Tae4 domain from S. flexneri (Accession No. OUZ56033.1) and S. sonnei (Accession No. PBP02122.1). Multiple sequence alignment of 5 sequences from BLASTp result along with these 2 sequences was completed using Jalview 2.11.1.3 and shown in Figure 1. It is interesting to see that the sequences are also conserved in other Shigella species (WP_094105598.1 and OUZ56033.1 from S. flexneri; PBP02122.1 from S. sonnei) along with the target protein. Russell et al. 2012, described the distribution of Tae4 in bacteria; however, they were unable to discover it in Shigella.⁴⁷ To address this, we performed a tblastn search using our target hypothetical protein as query against the nonredundant nucleotide database and RefSeq Genome database. Interestingly, we found Tae4 homologs in some Proteobacteria (Serratia marcescens, Pseudomonas fluorescens, Burkholderia multivorans, Burkholderia cepacia, etc.) including Shigella species that could not be identified by Russell et al. (Supplementary files 1 and 2). Zhang et al,⁴⁸ Plos One 2013, referred to the residues Cys44-His126-Asp137 as the catalytic triad of the Tae4 amidase. However, our target protein lacks His126 and Asp137 and contains Tyr126 and Glu137 instead. Glu137 is also present in another S. enterica amidase WP_023213614.1. Both of the substitutions are conservative which might retain protein’s catalytic activity. The His126 is used for deprotonation of the Cys44, whereas Asp 137 forms hydrogen bond with His126 in the catalytic triad which might be possible by the substituted amino acids in our target protein.^49,50 We also compared the 3D conformation of the catalytic triad of an S. enterica Tae4 protein (WP_129397493.1) with our target protein and found similarity between them (Figure 2). Nevertheless, whether these substitutions retain the protein’s catalytic activity or result in loss of function needs to be experimentally validated.

Table 2.

BLASTp result showing similarity between proteins.

Accession No.	Organism	Protein name	Score	Percent identity	E-value
\|WP_128879999.1\|	Shigella dysenteriae	Hypothetical protein	332	100%	3e−115
\|WP_000533466.1\|	Enterobacteriaceae	MULTISPECIES: type-VI secretion system amidase effector protein Tae4	322	96.89%	4e−111
\|WP_001558594.1\|	Escherichia coli	type-VI secretion system amidase effector protein Tae4	321	96.27%	1e−110
\|WP_096858990.1\|	Escherichia coli	type-VI secretion system amidase effector protein Tae4	321	96.27%	1e−110
\|WP_094105598.1\|	Shigella flexneri	type-VI secretion system amidase effector protein Tae4	321	96.27%	2e−110

Figure 1.

MSA among different amidase effector 4 (Tae4) proteins using ClustalOmega algorithm by Jalview software. (Top row—target protein, Rows 2 and 3—Shigella flexneri, Row 4—Shigella sonnei, Row 5—Enterobacteriaceae, Rows 6 and 7—Escherichia coli, and Row 8—Salmonella enterica). Marked white boxes indicate conserved catalytic cysteine (C) and histidine (H) residues typical of amidases. MSA indicate multiple sequence alignment.

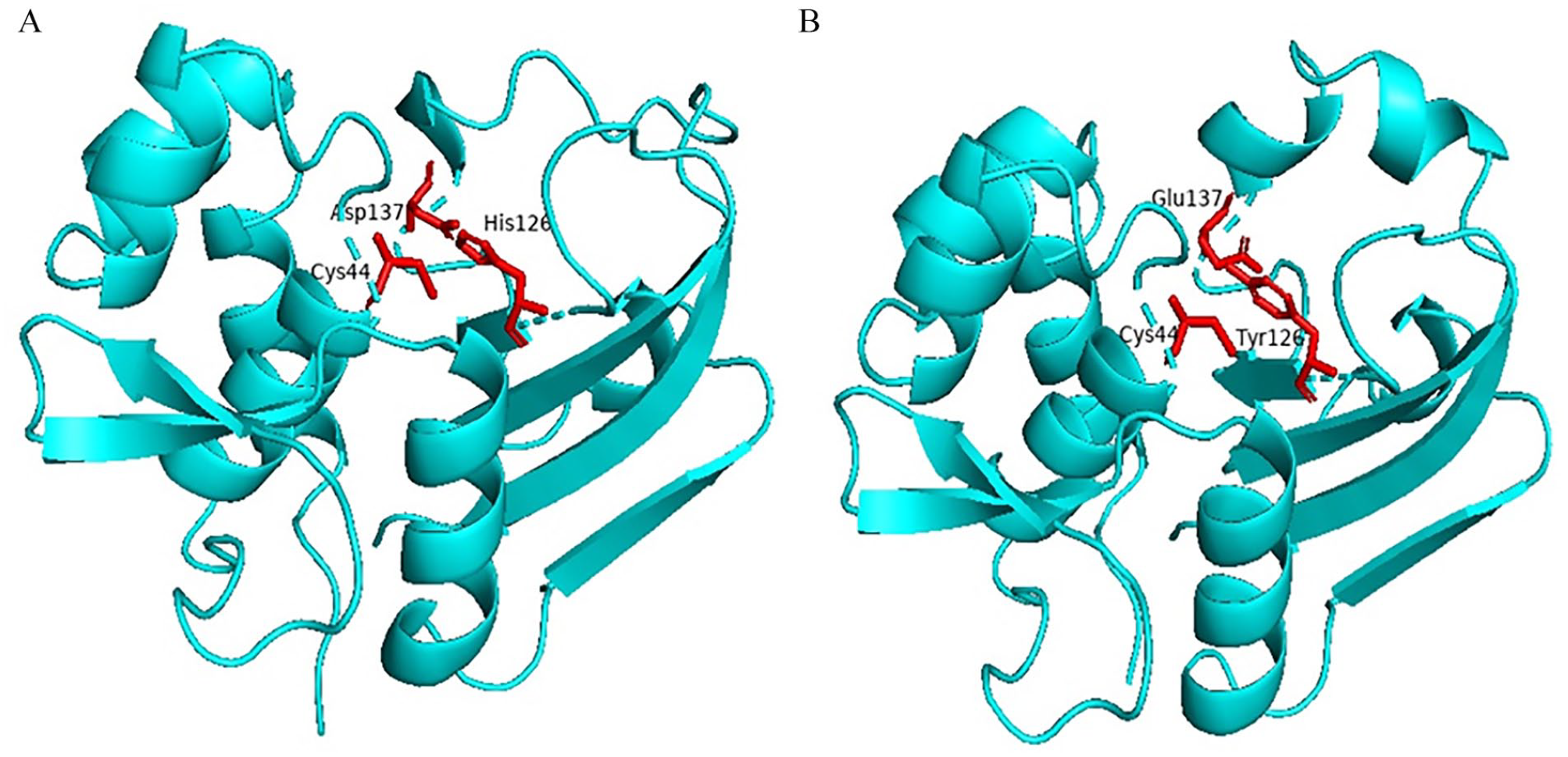

Figure 2.

Three-dimensional conformation of the catalytic triad of Salmonella enterica Tae4 protein (WP_129397493.1) (A) and the target hypothetical protein (B) generated by PyMOL software.

A phylogenic tree was constructed using many Tae4 protein sequences by Jalview software. The Tae4 proteins used for phylogenetic tree construction were retrieved from BLASTp results which were mostly from Escherichia coli and S. enterica species. The target protein along with 3 other Shigella Tae4 amidases seems to share the most recent common ancestor with E. coli amidases rather than S. enterica amidases (Figure 3).

Figure 3.

A phylogenetic tree showing evolutionary relationship of the target protein (yellow marked) with other Tae4 proteins. The tree was generated using neighbor joining method based on BLOSUM62 scoring matrix by Jalview software. The values indicate percentage mismatches between 2 nodes (branch length). The target protein along with 3 other Shigella Tae4 amidases (shaded) seems to share the most recent common ancestor with E. coli amidases (blue color) rather than Salmonella enterica amidases (black color).

Structure analysis and model quality assessment

The secondary structure of the protein was predicted by PSIPRED, SOPMA, and ENDscript server. According to SOPMA estimation, the random coil was found to be the most predominant (42.24%) one followed by alpha helix (27.33%), extended strand (19.88%), and beta turn (10.56%). In case of 3 conformational states prediction by SOPMA, the results were found to be random coil (54.66%), alpha helix (26.09%), and extended strand (19.25%). Similar results were obtained from ENDscript (not shown here) and PSIPRED (random coil: 58.38%, alpha helix: 24.84%, and extended strand: 16.77%). Secondary structure of the protein predicted by PSIPRED is shown in Figure 4. Tertiary structure of the protein was obtained from SWISS-MODEL server using the template 4j30.1.A which shows 80.12% sequence identity with the target protein. The structure obtained through SWISS-MODEL is depicted in Figure 5.

Figure 4.

Predicted secondary structure of the target protein using PSI-PRED server.

Figure 5.

Predicted 3-dimensional structure of the target protein through SWISS-MODEL server after YASARA energy minimization (visualized by BIOVIA Discovery Studio Visualizer version 20.1.0.19295).

YASARA Energy Minimization Server minimized the energy of the model protein structure from −64 076.4 to −85 175.9 kJ/mol. The preliminary score was −0.56 but after energy minimization, the final score turned to be 0.47 indicating a more stable form.

The quality of our modeled 3D structure was assessed by PROCHECK, Verify 3D, QMEAN, and ERRAT program. According to PROCHECK result, 92.3% amino acid residues fell within the most favored region in “Ramachandran plot” (Table 3 and Figure 6A). The model structure successfully passed the Verify 3D server where 93.75% of the residues have averaged 3D-1D score ⩾0.2. QMEAN tool placed the model inside the dark gray zone with QMEAN4 value of 0.49 which is considered as good (Figure 6B). ERRAT also predicted the protein structure to be of good quality with a quality factor of 99.3243.

Table 3.

Ramachandran plot statistics of target protein.

Statistics	Number of AA residues	Percentage (%)
Residues in the most favored regions [A, B, L]	120	92.3
Residues in the additional allowed regions [a, b, l, p]	10	7.7
Residues in the generously allowed regions [~a, ~b, ~l, ~p]	0	0.0
Residues in disallowed regions	0	0.0 Total: 100
Number of nonglycine and nonproline residues	130
Number of end-residues (excl. Gly and Pro)	0
Number of glycine residues (shown as triangles)	20
Number of proline residues	10
Total number of residues	160

Figure 6.

Quality assessment of the model: (A) Ramachandran plot of model structure validated by PROCHECK program, (B) graphical representation of QMEAN result of the model structure (indicates good agreement between the model structure and experimental structures of similar size).

Superimposition between the model and the template protein (PDB ID: 4J30) is shown in Figure 7. The RMSD (root-mean-square deviation of atomic positions) value obtained from the superimposition in UCSF Chimera was found to be 0.115 Å, suggesting a reliable 3D model. The Z score of the model indicates overall model quality and is used to check whether the input structure is within the range of scores usually found for native proteins of similar size.³⁹ The Z score for the model obtained from ProSA was −6.29 (Figure 8A) and for the template was −5.08 (Figure 8B), proposing the homology between the template and the model.

Figure 7.

Superimposition of the model (red color) and the template (cyan color) protein using UCSF Chimera software.

Figure 8.

Z scores of the target (A) and template (B) protein using ProSA server. Both of the structure fell in the region typically found for experimentally determined (NMR and X-ray) native proteins of similar size.

Active site determination and molecular docking analysis

The active site of the model structure was analyzed using the CASTp server and the amino acid residues of the active site were also determined. The result was then visualized using PyMOL (Figure 9). Identification and characterization of active site residues is the key step toward the design of a drug or an inhibitor. According to CASTp prediction, active residues of the model protein (of 2 largest active pockets with solvent accessible [SA] area of 229.931 and 108.012, respectively) were found to be Val²⁰, Glu⁴¹, Asn⁴², Ala⁴³, Cys⁴⁴, Arg⁴⁷, Val⁸⁰, Pro¹⁰¹, Thr¹⁰², Pro¹⁰³, Phe¹⁰⁶, Ile¹¹³, Val¹¹⁵, Trp¹²⁰, Asn¹²², Ala¹²³, Gly¹²⁵, Tyr¹²⁶, Val¹²⁷, Thr¹²⁸, Trp¹³⁰, Cys¹³⁵, Glu¹³⁷, Gln¹³⁸, His¹⁴⁰, Leu¹⁴¹, Leu¹⁴², Asp¹⁴⁴, Asp¹⁴⁶, Asn¹⁴⁷, Phe¹⁵⁰, and Pro¹⁵². These residues lie on the Tae4 superfamily domain of the target protein consistent with the prediction made by NCBI-CD Search, Pfam, and InterProScan (discussed in “Protein family and phylogeny analysis” section). The predicted active residues by CASTp also included the catalytic triad Cys⁴⁴-Tyr¹²⁶-Glu¹³⁷ (Tyr¹²⁶ instead of His¹²⁶ and Glu¹³⁷ instead of Asp¹³⁷ as discussed earlier) and some conserved Cys and His residues typical of amidases.⁵¹

Figure 9.

Determination of active site using CASTp server and visualized (2 largest pockets) in PyMOL (left). Active amino acid residues are highlighted in the right figure.

Docking analysis between the target protein and the ligand was performed using Autodock Vina software. Tae4 protein hydrolyzes peptide crosslinks of the peptidoglycan at the γ-D-glutamyl-mDAP (meso-diaminopimelic acid) LD-bond.⁴⁷ Hence, the ligand L-Alanyl-gamma-D-glutamyl-meso-diaminopimelic acid was docked with both the target protein and an S. enterica Tae4 protein (WP_129397493.1). A strong binding affinity was found for the ligand with both of the proteins. The binding affinity of the ligand for the model and the S. enterica Tae4 protein was −6.2 kcal/mol and −5.9 kcal/mol with grid box center X: 33.642; Y: 34.998; Z: 10.456 and X: 31.516; Y: 34.278; Z: 3.073, respectively. Many interacting residues in the active site were found to be similar for both of the proteins. The result is also consistent with active site prediction by CASTp. So far, to our knowledge, no crystal structure of Tae4 with its substrate is available till now. Structure of Tae4 with the ligand is needed to further investigate and compare our results. However, the findings were similar to previous studies which strengthen our prediction.^49,52 Docking analysis results are shown in Table 4 and Figure 10.

Table 4.

Summary of docking analysis results from Autodock Vina.

Protein	Ligand	Binding affinity (Kcal/Mol)	Key interacting residues
Hypothetical Protein (WP_128879999.1)	L-Ala D-Glu-mDAP	−6.2	Phe18, Val20, Asn42, Ala43, Cys44, Arg47, Trp120, Asn122, Tyr126, Glu137, His140, Leu141, Asp144, Asn147
Salmonella enterica Tae4 (WP_129397493.1)	L-Ala D-Glu-mDAP	−5.9	His18, Val20, Ala43, Cys44, Arg47, Trp120, Asp137, His140, Leu142, Asn143

Figure 10.

L-Ala D-Glu-mDAP ligand (red stick) docked in the active site of proteins: (A) ligand-bound hypothetical protein (WP_128879999.1), (B) ligand-bound S. enterica Tae4 protein (WP_129397493.1) (analyzed by PyMOL), (C) key interacting residues of WP_129397493.1 with ligand, and (D) key interacting residues of hypothetical protein with ligand (analyzed by Discovery Studio Visualyzer).

Sana et al⁵³ found that, the Hcp1 (hemolysis coregulated protein) of T6SS in S. typhimurium selectively binds to the Tae4 antibacterial toxin and helps stabilize the effector and allow for proper delivery. However, no hcp1 protein of S. dysenteriae or any other Shigella species is reported so far. Hence, we built a 3D structure of an S. typhimurium hcp1 protein (NP_459274.1) based on homology modeling method by HHpred MODELER⁴³ using a template (PDB ID: 5XHH). The protein was then docked with both the target hypothetical protein and S. enterica Tae4 protein (Accession No. WP_129397493.1) using ClusPro 2.0 server. Docking results are summarized in Table 5. The interactions were then analyzed using PyMOL software (Figure 11). It is to be noted that many interacting residues varied between S. typhimurium and S. dysenteriae probably because the protein-ligand complex conformation from ClusPro server was chosen based on highest cluster members in each case. However, the specific interaction between hcp1 and Tae4 protein is yet to be discovered experimentally.

Table 5.

Summary of docking analysis results from ClusPro server.

Receptor	Ligand	Cluster members	Weighted energy score of the center
S. typhimurium Hcp1 (NP_459274.1)	Hypothetical protein (WP_128879999.1)	80	−720.8
S. typhimurium Hcp1 (NP_459274.1)	S. enterica Tae4 (WP_129397493.1)	227	−869.5

Figure 11.

Hcp1-Tae4 interaction analysis by PyMOL software resulted from ClusPro server: (A) interaction of Salmonella typhimurium Hcp1 (red) with Salmonella enterica Tae4 (teal), (B) interaction of Salmonella typhimurium Hcp1 (red) with the target hypothetical protein (teal). The interacting residues of Hcp1 and Tae4 are marked in black and blue color, respectively.

Structural and functional annotation of the hypothetical protein being successfully performed, comparative genomics strategy was applied to further characterize our target protein. A BLASTp search against human proteome was performed to identify whether the target protein has any human homologue. The result showed no homology of the target protein to any of the known human protein and was identified as a unique protein of S. dysenteriae. Targeting microbial proteins that are nonhomologous to human proteins would be a suitable drug candidate avoiding any side effect.

Discussion

Researchers are striving to develop a Shigella vaccine, but there are no licensed vaccines available still now. Rapid development of low-cost sequencing technologies has generated vast amount of genomic and proteomic data, although research on hypothetical proteins is yet to keep pace with. Characterization of HPs can help better understand bacterial metabolic pathways, disease progression, drug development, and disease control strategies.⁵⁴ In this study, various bioinformatics resources were used for structural and functional characterization of the hypothetical protein WP_128879999.1 of S. dysenteriae ATCC 12039 strain. By analyzing physicochemical properties, the protein was estimated to contain 161 amino acids with a molecular weight of 17 589.04, theoretical pI of 7.72, and grand average of hydropathicity (GRAVY) of −0.072 (Table 1). CELLO server predicted this soluble protein to be extracellular. Secondary structure of the protein consists of random coil, alpha helix, beta turn, and extended strand with random coil being the predominant one. Domain and motif analysis predicted our target hypothetical protein to be an amidase effector protein 4 (Tae4) of T6SS by all the annotation tools with high confidence. BLASTp result against the nonredundant database showed up to 96% sequence similarity with other known T6SS amidase effector proteins validating the prediction (Table 2). Tae4 is a new form of toxin-antitoxin system protein of T6SS which is a specialized secretion system recently identified in gram-negative bacteria. Type-VI secretion system is mostly involved in bacterial competition by using it to kill neighboring nonimmune bacteria.⁵⁵ Bacteria encode cognate immunity proteins (e.g. Tai4) that neutralize the toxic activities of T6SS effectors (e.g. Tae4) to protect themselves from self-intoxication. These antibacterial proteins are secreted directly into the periplasm of the target bacterial cell in a contact-dependent manner. A few T6SSs have been found to play role in pathogenesis, biofilm formation, and macrophage survival.^56-58 Several T6SSs have been discovered in many pathogenic E. coli strains that cause persistent diarrhea in children, infants, and immunocompromised individuals.^59,60 Recently, T6SS has been found in many E. coli strains with extensive drug resistance (XDR) properties.⁶¹ Previously, it was reported that virulent species of Shigella contained T6SS orthologs but not the avirulent ones suggesting its crucial role in imparting pathogenicity to an organism.⁶² However, relationship between T6SS effectors and pathogenecity of S. dysenteriae is still unknown. Toxic activities of T6SS are mediated by deployment of different effectors including amidases into a neighboring cell.⁶³ These amidases exert antibacterial activities by hydrolyzing the cell wall peptidoglycan.⁵⁷ Russell et al⁴⁷ reported the first superfamily of Tae (type-VI amidase effector) consisting 4 families, named Tae1-4. All 4 families contained the conserved catalytic cysteine and histidine residues typical of amidases.⁵¹ This also coincides with our findings from the multiple sequence alignments of different amidase effector 4 proteins with the target protein (Figure 1). However, Russell et al. could not report Tae4 in Shigella which might be due to less available genomic sequences at that time or a possible recent emergence of Tae4 protein in those species urging further study. Three-dimensional structure of the protein obtained using SWISS-MODEL server successfully passed all of the model quality assessment tools like PROCHECK, Verify 3D, QMEAN and ERRAT. The 3D structure became more stable after YASARA energy minimization process. Superimposition of the model protein with the template protein (S. typhimurium putative cytoplasmic protein, PDB ID: 4J30) by UCSF chimera also suggested the 3D structure to be reliable with RMSD value of 0.115 Å (discussed in “Structure analysis & model quality assessment” section). The active site amino acid residues computed by CASTp server were consistent with the prediction of functional annotation tools and lie in the Tae4 superfamily domain region. However, 2 conservative substitutions were found in the protein’s catalytic triad (His126Tyr and Asp137Glu) typical of Tae4 amidases. Further experimentations are needed to confirm whether these substitutions retain the protein’s catalytic activity or result in loss of function. Molecular docking was performed by Autodock Vina tool to know the interaction between the target protein with the ligand L-Ala D-Glu-mDAP (peptidoglycan fragment). A strong binding affinity was found for the ligand with the target protein and an S. enterica Tae4 protein further confirming our findings. Many interacting residues in the active site of the proteins were found to be similar (Table 4, Figure 10). A component of T6SS, hemolysin coregulated protein (hcp1) selectively binds Tae4 protein and helps stabilize the effector.⁵³ Protein-protein docking was also performed by S. typhimurium hcp1 protein with the target protein and an S. enterica Tae4 protein (Table 5, Figure 11). Comparative genomics study revealed the protein to be a unique S. dysenteriae protein nonhomologous to human indicating a potential therapeutic target. Interestingly, the sequences were also found to be conserved in other Shigella species, including S. sonnei and S. flexneri, which reinforces the potential of Shigella Tae4 to be used as a treatment target. However, we did not find any homolog in the avirulent species S. boydii which is consistent with previous findings.⁶² Further research and experimental validations are needed to confirm our findings about this crucial protein. Most pathogens containing a T6SS in their system are an important threat to the human health. While there has been considerable progress in recent years toward understanding the roles of T6SSs, many structural and functional features of T6SSs and their effectors remain unknown. So far, to our knowledge, this is the first study to characterize a T6SS amidase effector of S. dysenteriae from both structural and functional aspects. Annotation of the hypothetical protein like this may help in designing an effective drug/vaccine. The study of individual effectors will be useful to understand antibacterial mechanisms. We underscore the importance of continued research into T6SSs and their effectors not only in Shigella but also in other pathogenic microorganisms to develop future treatment strategies.

Supplemental Material

sj-xlsx-1-bbi-10.1177_11779322211011140 – Supplemental material for In Silico Characterization of a Hypothetical Protein from Shigella dysenteriae ATCC 12039 Reveals a Pathogenesis-Related Protein of the Type-VI Secretion System

Supplemental material, sj-xlsx-1-bbi-10.1177_11779322211011140 for In Silico Characterization of a Hypothetical Protein from Shigella dysenteriae ATCC 12039 Reveals a Pathogenesis-Related Protein of the Type-VI Secretion System by Md. Fazley Rabbi, Saiwda Asma Akter, Md. Jaimol Hasan and Al Amin in Bioinformatics and Biology Insights

Supplemental Material

sj-xlsx-2-bbi-10.1177_11779322211011140 – Supplemental material for In Silico Characterization of a Hypothetical Protein from Shigella dysenteriae ATCC 12039 Reveals a Pathogenesis-Related Protein of the Type-VI Secretion System

Supplemental material, sj-xlsx-2-bbi-10.1177_11779322211011140 for In Silico Characterization of a Hypothetical Protein from Shigella dysenteriae ATCC 12039 Reveals a Pathogenesis-Related Protein of the Type-VI Secretion System by Md. Fazley Rabbi, Saiwda Asma Akter, Md. Jaimol Hasan and Al Amin in Bioinformatics and Biology Insights

Footnotes

Acknowledgements

The authors acknowledge the Department of Biotechnology and Genetic Engineering, Noakhali Science and Technology University for providing support to conduct the research work. They also acknowledge the book “Gobeshonay Bioinformatics—1st Part.”

Funding:

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Declaration of Conflicting Interests:

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Author Contributions

M.F.R. conceived and designed the experiments, made critical revisions, and approved the final version. M.F.R. and S.A.A. analyzed the data and wrote the first draft of the manuscript. M.F.R., S.A.A., M.J.H., and A.A. reviewed the analysis and contributed to the preparation of the manuscript. All authors reviewed and approved the final manuscript.

ORCID iD

Md. Fazley Rabbi

Supplemental Material

Supplemental material for this article is available online.
