Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea ( Pisum sativum L.) Leaves by High-Throughput Sequencing

Abstract

MicroRNAs (miRNAs) are single-stranded, endogenous, non-coding RNAs of 20–24 nucleotides that play a significant role in post-transcriptional gene regulation. Various conserved and novel miRNAs have been characterized, especially from the plant species whose genomes were well-characterized; however, information on miRNA in economically important plants such as pea (Pisum sativum L.) is limited. In this study, I have identified conserved and novel miRNA in garden pea plant leaves samples along with their targets by analyzing the next generation sequencing (NGS) data. The raw data obtained from NGS were processed and 1.38 million high-quality non-redundant reads were retained for analysis, this tremendous quantity of reads indicates a large and diverse small RNA population in pea leaves. After analyzing the deep sequencing data, 255 conserved and 11 novel miRNAs were identified in the garden pea leaves sample. Utilizing psRNATarget tool, the miRNA targets of conserved and novel miRNA were predicted. Further, the functional annotation of the miRNA targets were performed using blast2Go software and the target gene products were predicted. The miRNA target gene products along with GO_ID (Gene Ontology Identifier) were categorized into biological processes, cellular components, and molecular functions. The information obtained from this study will provide genomic resources that will help in understanding miRNA-mediated post-transcriptional gene regulation in garden peas.

Keywords

Conserved miRNA novel miRNA miRNA targets small RNA post-transcriptional gene regulation

Introduction

The garden pea is an economically important cool-season crop, which is grown across the globe. It is a rich source of protein, fiber, starch, phytochemical substances, and trace elements. Besides human consumption, pea has been grown as forage crops for cattle as well as a cover crop to minimize soil erosion (http://dpd.gov.in/Pea.pdf).

Due to the increase in population and consumer awareness about the consumption of healthy plant-based proteins, the demand for peas has been increasing in developed and developing countries. In terms of production, the pea is the fourth most important legume crop grown throughout the world. From 2022 to 2027, the pea market is expected to register a compound annual growth rate of 4.3%. (https://www.mordorintelligence.com/industry-reports/peas-market)

This protein-rich pulse crop is widely grown in China, India, the USA, France, Egypt, the UK, Pakistan, Algeria, Peru, and Turkey. India is the second largest producer of green peas in the world with a total production of 4.8 million tons (https://worldmapper.org/maps/green-peas-production/).

In plant species, microRNAs (miRNAs) and small interfering RNAs (siRNAs) are two important types of small regulatory RNAs. These two types of RNA differ in their function and biogenesis. In plants and animals, these small regulatory RNAs are highly conserved and regulate gene expression.

miRNAs are 20–24 nucleotides long non-coding RNAs that play a significant role in post-transcription gene regulation. It complements the target mRNAs and causes translational repression or target mRNA degradation.¹ In plants, RNA polymerase II transcribes miRNA genes into a primary transcript (pri-miRNAs). Ribonuclease III-like Dicer (DCL1) enzyme trims pri-miRNAs and produces miRNA precursors (pre-miRNAs) that had a stem-loop (hairpin) structure. Eventually, a short double-stranded RNA (dsRNA) is produced by the second cleavage of DCL1 on the stem-loop region of the hairpin. In the dsRNA, one strand acts as a mature miRNA. Subsequently, the processed miRNA incorporates with the RNA-induced silencing complex (RISC) and directs the RISC to the target complementary mRNA for translational inhibition or degradation.^2,3 Plant miRNA involves in various biological processes such as signaling,⁴ development,⁵ and stress responses,^6-11 and organ morphogenesis.¹²

Formerly, miRNAs were identified using computational and hybridization-based experiments. As the computational-based method was entirely dependent on the availability of the EST or genome survey sequences in the database. If miRNA was expressed at a very low level, then it was difficult to detect miRNA using the hybridization-based method. On the contrary, using high-throughput next-generation sequencing (NGS) technologies like Illumina Solexa, Roche 454, and ABI SOLi, it is possible to differentiate lowly expressed miRNAs from well-characterized or poorly characterized plant species.^13-18 Recent evidence indicates that plant miRNAs and siRNAs play a role in biotic and abiotic stress responses

The biotic and abiotic stress has been relegating the production of a garden pea. To minimize the damage caused by biotic and abiotic stress, plants regulate gene expression at transcriptional, post-transcriptional, and post-translational levels. A thorough understanding of the gene expression level at post-transcriptional will help in the development of new strategies that will enhance plant stress tolerance.

To understand the transcriptional response in garden pea plant, transcriptome analysis of pea tissues and organs were fully investigated. To gain insights into garden pea plant post-transcriptional and post-translational modification related to stress, there is a need to study miRNAs in various organs and tissues of pea plants under different conditions. As miRNAs can control various protein-coding genes associated with related gene families or genes that are involved in the same pathway, it is interesting to study miRNA-mediated post-transcriptional gene regulation in pea plants.¹⁹

The current literature lacks research studies on miRNA related to pea plants. Therefore, in this study, to gain robust information about the entire repertoire of miRNA present in garden peas, a small RNA library was prepared from young garden pea leaves tissues, followed by deep sequencing and bioinformatic analyses.

Material and Methods

Sample preparation and extraction of total RNA

In this study, I have selected P. sativum (var. Arkel), which was easily available in the local market of India. The growth of this variety was vigorous, and the plant can grow up to 45 cm (http://agropedia.iitk.ac.in/content/vegetable-pea-varieties). Mature seeds of P. sativum (var. Arkel) were surface sterilized in 70% ethanol for 2 min and rinsed two times in sterile distilled water. The seeds were soaked in water overnight. Then, the seeds were sown in pots containing humus-rich soil. The plants were allowed to grow for a month in a net house. The plants were covered with plastic bags with holes. The young leaves were collected and immediately chilled in liquid nitrogen. The samples were stored at −80 C until RNA isolation. Utilizing the Trizol reagent, as per the manufacturer’s instructions, total RNA was extracted from the leaves.

Using Nanodrop Spectrophotometer, the RNA concentration and purity were estimated. A good quality RNA with a very low amount of protein contamination would have A₂₆₀/A₂₈₀ ratio greater than 1.8. Similarly, if the isolated RNA has a very less amount of polysaccharides contamination, then A₂₆₀/A₂₈₀ will be greater than 1.8. The total RNA extracted in this study has a concentration of 352.8 ng/ul, A₂₆₀/A₂₈₀ ratio of 2.19, A₂₆₀/A₂₃₀ ratio of 2.22 indicating a good quality RNA.^20,21

Small RNA library preparation and deep sequencing

Small RNA sequencing (sRNA) library was prepared with TruSeq Small RNA Sample Preparation protocol (Illumina, San Diego, California, USA). 1000 ng of total RNA was used as starting material. 3' adapters were ligated to the specific 3’OH group of micro RNAs followed by ligation of 5' adapter.

Illumina Universal and Index Adapters utilized in this study were as follows:

Universal Adapter:

5'-AATGATACGGCGACCACCGAGATCTACACGTTCAGAGTTCTACAGTCCGA-3'

Index Adapter:

5'-CAAGCAGAAGACGGCATACGAGAT[INDEX]GTGACTGGAGTTCCTTGGCACCCGAGAATTCCA-3'

Reverse transcription of adapter-ligated fragments was performed using Superscript III reverse transcriptase (Invitrogen). The cDNA generated from the reverse transcription was enriched and barcoded by PCR amplification (15 cycles). Utilizing Polyacrylamide gel, the amplified library was size selected in the range of 140-160 bp followed by overnight gel elution and precipitation in the presence of glycogen, 3M sodium acetate (Sigma, Saint Louis, Missouri, USA), and absolute ethanol. Pellet was re-suspended in nuclease-free water (Invitrogen, Whitefield, Bangalore). The workflow of TruSeq Small RNA sample preparation is shown in Figure 1.

Figure 1.

Overview of small RNA sample preparation.

Qubit fluorometer (Thermo Fisher Scientific, MA, USA) was used to quantify the Illumina-compatible sequencing library. The Qubit concentration of the small RNA library was 13.4 (ng/ul). Agilent 2100 Bioanalyzer was used to analyze the fragment size distribution. The fragment size of the Illumina-Compatible sequencing library ranges between 130 and 180 bp. Since the combined adapter size was approximately 120 bp, the effective user-defined insert size ranges between 10-60 bp. The raw NGS data of P. sativum young leaves sample was deposited in National Center for Biotechnology Information (NCBI) Sequence Read Archive (SRA) database with accession PRJNA882352.

Data analysis of small RNA transcriptome

After completion of the NGS run, the raw data were analyzed using UEA small RNA Workbench (Version 4.6; http://srna-workbench.cmp.uea.ac.uk).^22,23 In Oracle VM VirtualBox, a virtual machine (VM) was created, and Ubuntu OS was installed on it. The adaptor sequences and low-quality reads were filtered and the sequences between 16 to 40 nucleotides were retained for further analysis. Then, using Rfam database, the reads that match with other ncRNAs such as rRNA, tRNA, snRNA, and snoRNAs were removed.²⁴ Glycine max genome was used as a reference genome. Using Bowtie software, the small RNA was aligned to the reference genome.^25-27 The mapped and unmapped reads were separated using SAMtools. Using the CD-HIT program, a read count was generated.^28-30 The mature sequences of miRNA were downloaded from miRbase (https://www.mirbase.org/), a local miRNA database was constructed, then a homology search was performed using the ncbi-blast-2.13.0 + program to identify the conserved miRNA with E-value of 0.001 and non-gap alignment.^31-35 Subsequently, the unaligned reads were used for predicting novel miRNAs using the MIREAP program. A total of 29 novel miRNAs were predicted using the software; however, only 11 novel miRNAs have proper precursor secondary structure and MFEI values of > 0.70. The secondary structure of the precursors was predicted using the RNAfold web server.^{17,27,28,36-42} The MFEI values were calculated utilizing the following formula:

M F E I = \frac{(M F E / l e n g t h o f R N A s e q u e n c e) \times 100}{% G C c o n t e n t}

The targets for conserved and novel miRNA were predicted using the psRNATarget tool.^43,44 The steps involved in this study are shown in Figure 2.

Figure 2.

Steps involved in analyses of P. sativum next-generation sequencing data.

Results

Analysis of small RNA transcriptome of P. sativum

As limited EST sequence information was present in the National Center for Biotechnology Information Expressed Sequence Tags database, it is highly impossible to identify P. sativum miRNAs merely based on computational analysis. Next-generation high-throughput sequencing is a robust tool for the de novo identification of miRNA present in P. sativum.

By utilizing high-throughput Illumina sequencing in this study, a total of 12,713,919 raw reads were generated from the small RNA library of garden pea leaves tissue. After filtering the low-quality reads, adapters, and redundant sequences along with rRNA (2,106), tRNA (424), mRNA (75,037), snRNA (1,024), and snoRNA (999), a total of 1,184,724 unique reads with lengths ranging from 16 to 40 nucleotides were retained for further analysis. It was observed that in P. sativum young leaves tissue small RNA library, the size of the small RNA was unevenly distributed as shown in Figure 3.

Figure 3.

Small RNA length and reads distribution detected in P. sativum young leaves tissue using Illumina Next Generation Sequencing.

Identification of conserved miRNAs

To identify conserved miRNAs in P. sativum, Glycine max reference genome was downloaded from EnsemblPlants (https://plants.ensembl.org/). The unique sequences ⩾16 bp and ⩽40 bp length were considered for further analysis. Using Bowtie 1.3.1, the reads were aligned to the Glycine max reference genome. Then, the aligned reads were separated. The reads were checked for rRNA, tRNA, snRNA, and snoRNA contamination using the Rfam database. Finally, the filtered reads were used for conserved miRNA prediction. Using the CD-HIT program, the reads were made unique and the read count profile was generated.

Using the NCBI-blast-2.13.0 + program, a homology search of the unique miRNA reads was performed against matured miRNA sequences retrieved from miRbase-22. A total of 254 miRNA belonging to 56 different families were identified. miRNA family analysis revealed MIR-156 family was the most abundant, followed by MIR-166, MIR-159, etc. All the identified conserved miRNAs in P. sativum were shown in Table 1.

Table 1.

Conserved miRNAs identified in P. sativum.

miRNA Family	Name	Sequence (5'-3')	miRNA Family	Name	Sequence (5'-3')
MIR156	psa-miR156a	UUGACAGAAGAGAGUGAGCACAUUUUGGGGAGGAGUCAUA	MIR397	psa-miR397a	UCAUUGAGUGCAGCGUUGAUG
	psa-miR156b-3p	GCUCACCCUCUAUCUGUCACCAAUCCCUCCUCGCCCACCA		psa-miR397-3p	AUUGAAUGUAGCGUUGAUGAAAUU
	psa-miR156	ACCACGUUCCCGUGGUUGACAGAAGAUAGAGAGCAC	MIR398	psa-miR398c	UGUGUUCUCAGGUCGCCCCUG
	psa-miR156 g-3p	CGCUCUCUAGACUUCUGUCAUCC		psa-miR398b-3p	UUGUGUUCUCAGGUCACCCCU
	psa-miR156f	UUGACAGAAGAGAGAGAGCACAGAUGAGUGCUCUCCU		psa-miR398a-3p	UGUGUUCUCAGGUCACCCCUU
	psa-miR156i-3p	UGCUCACUUCUCUUUCUGUCAUC		psa-miR398a-5p	GGAGUGAAACUGAGAACACAAG
	psa-miR156q	UUGACAGAAGAGAGUAAGCACU		psa-miR398b	GUGUUCUCAGGUCGCCCCUGC
	psa-miR156d-3p	GCUCUCUAUGCUUCUGUCAUCA		psa-miR399c-3p	UGCCAAAGGAGAGUUGCCCUG
	psa-miR156c-3p	GCUUACCCUCUAUCUGUCACC	MIR399	psa-miR399o	UGCCAAAGGAGAGCUGCCCUG
	psa-miR156e-3p	GCUCACUGCUCUCUCUGUCAAU		psa-miR399q	UGCCAAAGGAGAGCUGCUCUU
	psa-miR156b	UGACAGAAGAGAGUGAGCAU		psa-miR399e-5p	GGGCUUCUCUUUCUUGGCAGG
	psa-miR156b-3p	GGGUGACAGAUAGAAAGUGAGCAC	MIR408	psa-miR408-3p	UGCACUGCCUCUUCCCUGUUUU
	psa-miR156c	UUGUCAGAAGAGAGUGAGCAC		psa-miR408	UUGCACUGCCUCUUCCCUGG
	psa-miR156e	UUGACAGAGGAGAGUGAGCAC		psa-miR408-5p	UCAUCCAUGCUCAGCCUGUUCCCU
	psa-miR156j	UUUAAUCGGAAAAUGGUUGACAGAAGAGAGUGAGCAC		psa-miR408	AUGCACUGCCUCUUCCCUGGCACCGAUAGACUUGAAC
	psa-miR156ad	UGACAGAAGAAAGUGAGCAC	MIR414	psa-miR414	GAGGUGGAGAUAUGGACGAGGAUGAUGAGGAAGAGGAGG
	psa-miR156b-3p	GCUCUCUAAACUUCUGUCAUCC		psa-miR414	CAUCUUCAUCUUCAUCAUCGUCGU
	psa-miR156d-3p	GCUCACUUUCUUUCUGUCACC	MIR437	psa-miR437	UGUGCGAGUUAUAGAAGUUUGACUU
	psa-miR156	CAACUACUCAUAUCAUCGUCUGACAGAAGAGAGUGAGCAC	MIR4376	psa-miR4376-5p	UACGCAGGAGAGAUGAUGCCG
	psa-miR156f-3p	GCUCACCCUCUAUCCGUCACC	MIR4416	psa-miR4416c	CAGGUGAGAGAAACACGUAUC
	psa-miR156 g-5p	UUGACAGAAGAUAGAGGGCAC	MIR474	psa-miR474b	UGAACCCACCCAAACCCAACAACC
	psa-miR156k	UGACAGAAGAGAGGGAGCAC	MIR5037	psa-miR5037c	AACCCUCAAAGGCUUCCACGG
	psa-miR156e	UGACAGAAGAGAGCGAGCAC	MIR5067	psa-miR5049c	CGUCCCAAAAUAAUUGUCAUAUUU
	psa-miR156a	CGACAGAAGAGAGUGAGCAC	MIR5079	psa-miR5079b	AAUUUGGAUAUGUUAUUUUGGGAUC
MIR159	psa-miR159a	UUUGGAUUGAAGGGAGCUCUAUCGUUCCCGGGCCUUGUAC	MIR5268	psa-miR5268b	UAUCUUCAUUCCACUCUGCUCCAU
	psa-miR319d-3p	CUUGGACUGAAGGGAGCUCCCUA	MIR5272	psa-miR5272e	ACAGAAUUGAUUUAUGUUUGGAU
	psa-miR159d	NAGAGCUGCUUAGCUAUGGAUCCC	MIR5291	psa-miR5291c	UUUGAUGAAUAGAUUGGAUGGAU
	psa-miR319d	GCAUGGACUGAAGGGGAGCUCCUUC	MIR530	psa-miR530	UGCAUUUGCACCUGCACUUUCCUCCGCACCCA
	psa-miR159c	UUUGGAUUGAAGGGAGCUUUUUUAC	MIR5303	psa-miR5303f	UUUUUGGAGAAUCUGACAGGACGU
	psa-miR159c-5p	UUUGGAUCGAAGGGAGCUCUA	MIR535	psa-miR535	UUGACAAAGAUAGAGAGCAC
	psa-miR159b	UUUGGAUUGAAGGGAGCUCUCCUAAGAUGAGUGCUCUCCU	MIR5770	psa-miR5770b	UUAGGACUAUGGUUUGGACAAUUACCAGGUCCAGACAUA
	psa-miR159	UUUGGACUGAAGGGAGCUCUA	MIR6024	psa-miR6024-3p	GAAAACAACUCUUGAUAAAACAUG
	psa-miR159	UUUGGGUUGAAGGGAGCUCUA	MIR7540	psa-miR7540b	GUAACACAUCACUUAUCAUAUCCU
	psa-miR159b	UUUGGAUUGAAGAGAGCUCUA	MIR818	psa-miR1130b-3p	UUGCUUAUAAUAUGGGACGGAGGG
	psa-miR319 g	UUGGACUGAAGGGAGCUCCUUC		psa-miR1436	UACUCCCUCCGUCCCAUAAUGAGU
	psa-miR319a-5p	GAGCUUCCUUCAGUCCACUC		psa-miR5568 g-3p	AAACGUCUUAGAAUUUGGAACAGA
	psa-miR159b	UUUGGAUUGAAGUGAGCUCU		psa-miR5568 g-5p	UAAAUUAUAAGAUGUUUUGGACAU
	psa-miR159c	AUUGGAUUGAAGGGAGCUUUA	MIR831	psa-miR831-5p	UUACUCAUCUCCUUGUAUCUCUU
	psa-miR159f	AUUGGAUUGAAGGGAUCUCUA	MIR838	psa-miR838-3p	CGAAGAGUUGUGCAAGAAGAGGAAGAAAGUCUGAUU
	psa-miR159i-3p	UUUGGAGUGAAGGGAGCUCUA	MIR84	psa-miR845b-5p	CCUGCUCUGAUACCAAUUGAAAUU
MIR160	psa-miR160 g	UGCCUGGCUCCCUGUAUGCCAUGGGGAGUUUGGCUGGGGC		psa-miR845b	UCAAUUGGUAUCAGAGCUUUGGCU
	psa-miR162b-3p	UCGAUAAACCUCUGCAUCCAGUUUUA	MIR862	psa-miR5204	UGCUGGAAGGUUUUGUAGGAAC
MIR162	psa-miR162a	UCGAUAAACCUCUGCAUCCUA	MIR8643	psa-miR8643a	AUUCGACUUCUCAAUAUGUAACUGC
	psa-miR162b	UCGAUAAGCCUCUGCAUCCAG	MIR8781	psa-miR8781b	UUAGGAACUUUGAGGAUCACCAAC
MIR164	psa-miR164b-5p	CCCGUGGUGGAGAAGCAGGGCACGUGCA	MIR1120	psa-miR1120a	CUCCCUCCGUCUCAUAUUAUAAGC
MIR166	psa-miR166a	UCGGACCAGGCUUCAUUCCCCUCAUGGAGGCAUACAUUUU	MIR1122	psa-miR5281e	CUUAUAAAUAAGGCCGGAGGGAGU
	psa-miR166e-3p	UUCUACAGUCCGACGAUCUCGGACCAGGCUUCAUUCCCC		psa-miR1133	AUACAUAUACUCCCUCCGUCCCAU
	psa-miR166c	UCUCGGACCAGGCUUCAUUCCUCAAACGAGGAAAGGCUU	MIR1507	psa-miR1507-3p	AGAACUGGCGAUGCGGGCCUCAUUCCAUACAUCAUCUAA
	psa-miR166b	UCGGACCAGGCUUCAUUCCCGAUUGGGGUUUGAAGAAAAA		psa-miR1507-5p	UAGAGUUGUAUGGAAUGAAAGAU
	psa-miR166u	UCUCGGACCAGGCUUCAUUCUUUUC		psa-miR1507a	CCUCAUUCCAUAUAUCGUCUAA
	psa-miR166a	UCGGACCAGGCUUCAUUUCCCC	MIR1511	psa-miR1511-5p	UUAACAAGACUCUGAUACCACACU
	psa-miR166e-3p	UCGAACCAGGCUUCAUUCCCC	MIR1514	psa-miR1514a-5p	UUCAUUUCUAAAAUAGGCAUUG
	psa-miR166i-3p	UUCGGAUCAGGCUUCAUUCCCC	MIR1520	psa-miR1520 m	AAAUCAGGACAUGACAUGUGCGUC
	psa-miR165b	UCGGACCAGGCUUCAUACCCC	MIR2119	psa-miR2119	UCAAAGGGAGGUGUGGAGUAG
	psa-miR166d	UCGGGCCAGGCUUCAUUCCCC	MIR2593	psa-miR5287a	CAUCCUCCGGUCACUAUUAUAAAC
	psa-miR166k-3p	GCGGACCAGGCUUCAAUCCCC		psa-miR5287b	ACACCCUCUGAUCACUAUUAUAAG
	psa-miR166 m	UCGGACCAGGCAUCAUUCCCC	MIR3630	psa-miR3630-3p	GAAAAUGAUGAUUUGUCGUUGGGAAUCUCUCUGAUGCAUA
	psa-miR166p	UUCGGACCAGGCUCCAUUCCCC	MIR390	psa-miR390b	AAGCUCAGGAGGGAUAGCGCC
	psa-miR166b	UCGGACCAGGCUUCAUUCCUAUUAUUA		psa-miR390a-3p	CGCUAUCCAUCCUGAGUUUC
	psa-miR166q	UCGGACCAGGCUUCAUUCCUUCAUGAAGCCGG	MIR393	psa-miR393	CGGAAGGUCCAAAGGGAUCGCAUUGAUCU
	psa-miR166k	UCUCGGACCAGGCUUCGUUCC		psa-miR393c-3p	AUCAUGCCAUCCCUUUGGAUU
	psa-miR166 m	GCGGACCAGGCUUCAGUCCCC	MIR394	psa-miR394b-5p	UUUGGCAUUCUGUCCACCUCC
	psa-miR166i	UUGGACGAGGCUUCAUUCCCC	MIR395	psa-miR395i	CGAUGAAGUGUUUGGGGGAACUCU
	psa-miR166 h-5p	GGAAUGUUGUUUGGCUCGAGG		psa-miR6300	GUCGUUGUAGUAUAGUGGUGAGUAUUCCCGCCUGUCACGC
	psa-miR166c-5p	GGAACGUUGUCUGGCUCGA	NA	psa-miR6173	GUAGUCCUAGCCGUAAACGAUGGAUACUAAGUGGCUGUGC
	psa-miR166i	UCGGACCAGGCUUCAUUCUC		psa-miR894	GAUCAGAAGGUUGCGUGUUCGUUUCACGUCAGGUUCACCA
	psa-miR166k	CCGGACCAGGCUUCAUUCUUAA		psa-miR5368	GUGCCAAGACAGACCAAGGGACAGUCUCAGGUAGACAGUU
	psa-miR166j-5p	UUUGAACCAAACAAACAAACUAUU		psa-miR5232	CCUUGUCGCUUCGAUUCGUAUACAUGUCGCUCUCACCUUG
MIR167	psa-miR167d	UGAAGCUGCCAGCAUGAUCUGGCGGCGAUGUGUCUCGGUC		psa-miR6483	ACCUAAUCUUAUUGUAGAAAUUUUCAGGAUCAAGGAUUGU
	psa-miR167d	UGAAGCUGCCAGCAUGAUCUGACAGCUUUCUUGAACUG		psa-miR1511	UACAGUCCGACGAUCAACCAGGCUCUGAUACCAUGA
	psa-miR167f-3p	AUCAGAUCAUGUGGCAGUUUCACC		psa-miR2916	AAAGUUGGGGGCUCGAAGACGAUCAGAUACCGUCCUAGUC
	psa-miR167b-3p	AGGUCAUCUUGCAGCUUCAAUU		psa-miR6478	CCGACCUUAGCUCAGUUGGUAGAGCGGAGGACUGUAGUGG
	psa-miR167b-3p	AGAUCAUGUCGGAGCUUCACCCGAACGGGUGAGUAACGCG		psa-miR4995	UCAUAGGCAGUGGCUUGGUUAAGGGAAACCACCGGAGCCG
	psa-miR167c-5p	UGAAGCUGCCAGCAUGAUCUGCUGGUGUAUUCGGCGGCUC		psa-miR5213-5p	UACGUGUGUCUUCACCUCUGAAUU
	psa-miR167a	UCAGGUCAUCUUGCAGCUUCA		psa-miR8175	CACGCGGGUAACCCGGGUUCGAUCCCCGGCAACGGCGCCA
	psa-miR167i	UGAAGCUGCCAGCAUGAUCUUAUCCCCAGUAGCUCAG		psa-miR1527	AACCGGUUUUGUAGGGUUGAGUUAGGUCCAACCACAUU
	psa-miR167d	UGAAGCUGCCAGCAUGAUUUCU		psa-miR5261	AAGAUUGUAGAUAGCUUUGGCUGU
	psa-miR167b-3p	GUGAGGCUGUCACAGCAUGACCU		psa-miR5083	ACGAUUGUAAAAUUUCAGACUACAAUUAUCUGAUCAAA
	psa-miR167b	UGAAGCUGCCAGCAUGAUCUAAAAC		psa-miR6485	AGAAAGACCUAGGAUGUAGAAGAUCAUAACAUGAGU
	psa-miR167b-5p	UAAAGCUGCUAGCAUGAUCUGC		psa-miR5523	AUAUAACUAGUAAAUAUGUCCCUCCUCAUGUCAAUAU
	psa-miR167j-3p	AGAUCAUGUGGCAGUUUCAUU		psa-miR6167	ACCCAGGUGGUAGCUUUGACCCAUUGG
MIR168	psa-miR168b-5p	UCGCUUGGUGCAGGUCGGGAAUUCGACCCGUC		psa-miR408	UGCACUGCCUCUUCCCUGGCUUUAUUU
	psa-miR168	UCCCGCCUUGCAUCAACUGAAUU		psa-miR5141	UAACGUCGGCUUAUCUGUCAGUCGCGUCGGGUCUGCCGC
	psa-miR168a-3p	CCCGCCUCGCAUCAACUGAAU		psa-miR5211	CUGUCGCAGGAGUGAUGGGACC
MIR169	psa-miR169d	UGAGCCAAGGAUGACUUGCCGG		psa-miR5054	CGUGGGUUCGUUCCCCACGGUCGGCGCCA
	psa-miR169s	UUCUCCGGCAAGUCAUCCUUGGCU		psa-miR4403	ACGGACACCGAACACGACACAGAG
	psa-miR169e-3p	GGCAGGUCAUCCUUCGGCUA		psa-miR2614	UCGGUUCAACUCGUUAGGUUCAGU
	psa-miR169 h	UAGCCAAGGAUGGCUUGCCUGGC		psa-miR2666	UGAAAGUGAGGCUAUCAAGGAUAUUGUU
	psa-miR169j	UGAGCCAGGAUGACUUGCCGG		psa-miR2678	UGAAAUUGUUGCGAGUGUCUU
MIR171	psa-miR171p	UUGAGCCGCGUCAAUAUCUUGUU		psa-miR5248	UUUUUAGUUGGAAUGCAUUCAAGCAAGCGAGUCCUAC
	psa-miR171e	UUGAGCCGCGUCAAUAUCUCGA		psa-miR845	GGCUCUGAUACCAAUUGUUGGUGC
	psa-miR171k-3p	UUGAGCCGCGCCAAUAUCACU		psa-miR156r	UUGACAGAAGAUAGAGAGCAUUUU
	psa-miR171a	UUGAGCCGUGCCAAUAUCACU		psa-miR5299	AUUCAUUGGUAUUAUAAAGCGACU
	psa-miR170-5p	UAUUGGCCUGGUUCACUCAGA		psa-miR5742	ACAUCAAUCGUCGUUGGAUCGAGU
	psa-miR171c-5p	AGAUAUUGGUGCGGUUCAAUC		psa-miR5072	AUUCUGGGUUUCCCCAGCAGAGUCGCCA
	psa-miR171d	UGAUUGAGCCGUGCCAAUAUC		psa-miR5538	UAACGGCAGCAAGUGAUUGAGUUCAGUAGUUCC
	psa-miR171 g	UUGAGCCGCGCCAAUAUCUCG		psa-miR8030-3p	AUUGAUUUGGUUUGAUUUGGUUU
	psa-miR171l	CGAUGUUGGUGAGGUUCAAUC		psa-miR4233	AUAUGCGGGGAGUUGAUGUUGAUGAUCGUCAGU
	psa-miR171q	UUGAGCCGUGCCAAAAUCACA		psa-miR5653	CGUAAACUCAACCCAACUCAACCC
	psa-miR171b	UGAUUGAGCCGCGUCAAUAUC		psa-miR5658	ACUGACUAUGAUAAUGAUGAUGAUGACGAGG
	psa-miR171e	GGAUAUUGGUCCGGUUCAAUA		psa-miR829-3p.1	AUAUCUCCAUCAUUUUGUAUCAGA
	psa-miR171b-3p	CGAGCCGAAUCAAUAUCACUC		psa-miR8599	GCAAAUGACUUGAGUUCUAACUUU
	psa-miR171l-5p	CGUGAUAUUGAUCCGGCUCAUC		psa-miR8613	AUCGAUCAAACUGGAUGACUUGGU
MIR172	psa-miR172a	AGAAUCUUGAUGAUGCUGCAUC		psa-miR5174e-3p.2	AAUAUGGAACGGAGGGAGUACUUG
	psa-miR172c-5p	GUAGCAUCAUCAAGAUUCACU		psa-miR5174e-5p.2	CUAGUACUCCCUCUUUUCCAUAAU
	psa-miR172a	AGAAUCCUGAUGAUGCUGCAG		psa-miR5281b	ACCUCCGUUCCUAUUUGUAAGAGA
	psa-miR172c-5p	GUGGCAUCAUCAAGAUUCAC		psa-miR7782-3p	AUCAAGGCUCUGAUACCAUGUUGU
	psa-miR172b	AGAAUCUUGAUAAUGCUGCAU		psa-miR6104	AUACGGCAAAUCGAACAAAUAAAU
	psa-miR172c	GCAGCAUCAUCAAGAUUCAC		psa-miR6113	CGAUGAACCUCAAGAACACGUUCC
	psa-miR172d	UUGUCAUGAGAAUCUUGAUGAUGCU		psa-miR169t	UGAGCCAGGAAUGACUUGCCGG
MIR1846	psa-miR1846d-5p	UGGUCGCACCCCACCCAGCAGCCGGAUCU		psa-miR8155	CGUAACCGGGCUCUGAUACCA
MIR1863	psa-miR1863b	UAAAAGCUCUGAUACCAUGUUAAG		psa-miR1171	AUGGAGUGGAAUGAAGUGGAGUGG
MIR2111	psa-miR2111a-5p	UAAUCUGCAUCCUGAGGUUUA		psa-miR3946	CUAACAGAGAAAGAGAAAAGAGCA
MIR396	psa-miR396 g-3p	GUUCUACAGUCCGACGAUCUUCCACAGCUUUCUUGAACUU		psa-miR9753	CUAGCAGCCCUAAGUACCAAAUUG
	psa-miR396a-5p	UUCCACAGCUUUCUUAAACUGA		psa-miR2637	UAGUGAUCAGAGGAUGUAUUGAAU
	psa-miR396a-3p	GUUCAAUAAAGCUGUGGGAAG		psa-miR1424	AACUGACAAUCAGCAUUAGUGUGC
	psa-miR396	UUCCACAGCUUUCUUGAACUUAUUCAGGAGAGAGGACUG		psa-miR1863a	UUAGCUCUGAUACCAUGUAAGAUA
	psa-miR396b-3p	CGGUUCAAUAAAGCUGUGGGA		psa-miR1873	ACUAGGCUCUGAUACCAUGUUGAA
	psa-miR396j	UUCCACAGCUAUCUUGAACUG		psa-miR414	AGGCCACUGAAGCUGAGGACGAUGAUGAUGACGAUGUGG
	psa-miR396 g-5p	UUCCACAGCUUUAUUGAACUU		psa-miR5808	AAAUUGUUUCUGAUCGUUGGCCUU
	psa-miR396 g-5p	UUCCACGGCUUUCUUGAACUU		psa-miR7828	ACGAUGACAUGGACACCAAACUCC
	psa-miR396a	AUCCACAGCUUUCUUGAACUA		psa-miR7804-3p	AUCGAAUGAAGAUUUUAAAAGACU
	psa-miR396b	UUCCACAGCUUUCUUGAAUU		psa-miR5385	UACCAAUCCCACCGCUUCUCUGGC
	psa-miR396-3p	UUCCACAGCUUUCUUGAGCUU		psa-miR1128	AUACUACUCCCUCCAUCCCACGGA
	psa-miR396d	AAGAAAGCUGUGGGAGAAUAUGGC		psa-miR8028-3p	GGUGCAUAAUUAUAGUAUAAGGCU
	psa-miR396k-3p	GCUCAAGAAGGCUGUGGGAGA		psa-miR8040-3p	AUAUAAUUGUAAUAAUGAUCCGA
	psa-miR396a	UUCACAGCUUUCUUGAACUU		psa-miR6197-5p	AACUGUAAAGAAAUGUAGGACACC

The rest of the information related to the conserved miRNAs such as length, reference miRNA, read count, percent identity, alignment length, mismatches, and E value were attached as supplementary data S1.

Identification of novel miRNA

After the identification of conserved miRNA, the unaligned reads were used to predict novel miRNA using MIREAP software. The software integrates small RNA depth and position with the miRNA biogenesis model for detecting miRNAs from NGS small RNA libraries. A total of 11 novel miRNAs were identified, and the read count of these miRNA candidates varies from 20 to 5. psa-m0029-3p miRNA has the highest number of read counts. The MFEI value of all the novel miRNA precursors ranges from 0.72 to 1.40 ruling out the possibility of other types of RNAs like mRNAs (0.62–0.66), tRNAs (0.64), and rRNAs (0.59).⁴⁵ The novel miRNAs detected in P. sativum young leaf sample were shown in Table 2. The red color sequences in the precursor sequence represent mature miRNA. The rest of the information related to the novel miRNAs such as strand, length, read count, and MFEI were attached as supplementary data S2.

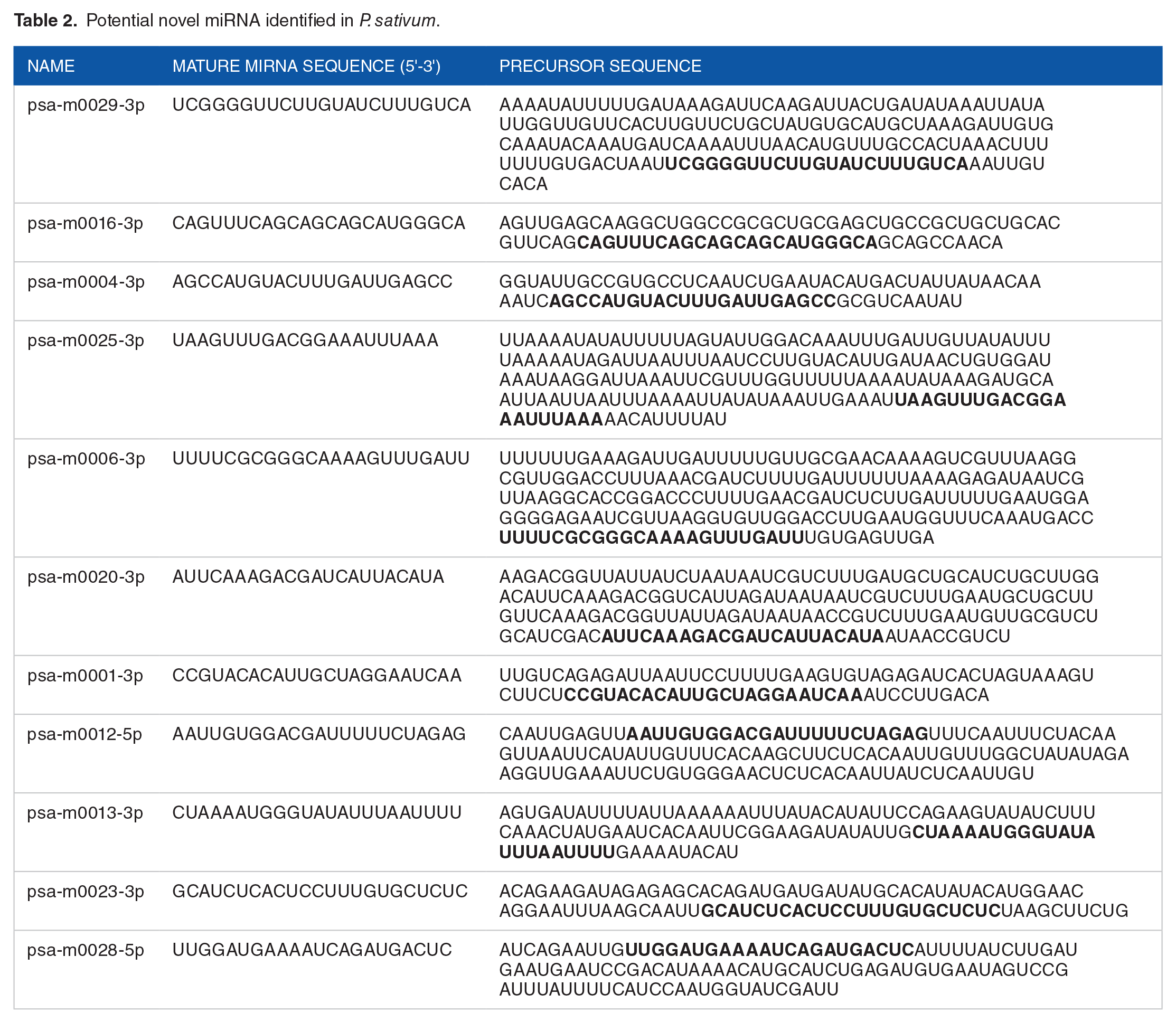

Table 2.

Potential novel miRNA identified in P. sativum.

Name	Mature miRNA sequence (5'-3')	Precursor sequence
psa-m0029-3p	UCGGGGUUCUUGUAUCUUUGUCA	AAAAUAUUUUUGAUAAAGAUUCAAGAUUACUGAUAUAAAUUAUAUUGGUUGUUCACUUGUUCUGCUAUGUGCAUGCUAAAGAUUGUGCAAAUACAAAUGAUCAAAAUUUAACAUGUUUGCCACUAAACUUUUUUUGUGACUAAUUCGGGGUUCUUGUAUCUUUGUCAAAUUGUCACA
psa-m0016-3p	CAGUUUCAGCAGCAGCAUGGGCA	AGUUGAGCAAGGCUGGCCGCGCUGCGAGCUGCCGCUGCUGCACGUUCAGCAGUUUCAGCAGCAGCAUGGGCAGCAGCCAACA
psa-m0004-3p	AGCCAUGUACUUUGAUUGAGCC	GGUAUUGCCGUGCCUCAAUCUGAAUACAUGACUAUUAUAACAAAAUCAGCCAUGUACUUUGAUUGAGCCGCGUCAAUAU
psa-m0025-3p	UAAGUUUGACGGAAAUUUAAA	UUAAAAUAUAUUUUUAGUAUUGGACAAAUUUGAUUGUUAUAUUUUAAAAAUAGAUUAAUUUAAUCCUUGUACAUUGAUAACUGUGGAUAAAUAAGGAUUAAAUUCGUUUGGUUUUUAAAAUAUAAAGAUGCAAUUAAUUAAUUUAAAAUUAUAUAAAUUGAAAUUAAGUUUGACGGAAAUUUAAAAACAUUUUAU
psa-m0006-3p	UUUUCGCGGGCAAAAGUUUGAUU	UUUUUUGAAAGAUUGAUUUUUGUUGCGAACAAAAGUCGUUUAAGGCGUUGGACCUUUAAACGAUCUUUUGAUUUUUUAAAAGAGAUAAUCGUUAAGGCACCGGACCCUUUUGAACGAUCUCUUGAUUUUUGAAUGGAGGGGAGAAUCGUUAAGGUGUUGGACCUUGAAUGGUUUCAAAUGACCUUUUCGCGGGCAAAAGUUUGAUUUGUGAGUUGA
psa-m0020-3p	AUUCAAAGACGAUCAUUACAUA	AAGACGGUUAUUAUCUAAUAAUCGUCUUUGAUGCUGCAUCUGCUUGGACAUUCAAAGACGGUCAUUAGAUAAUAAUCGUCUUUGAAUGCUGCUUGUUCAAAGACGGUUAUUAGAUAAUAACCGUCUUUGAAUGUUGCGUCUGCAUCGACAUUCAAAGACGAUCAUUACAUAAUAACCGUCU
psa-m0001-3p	CCGUACACAUUGCUAGGAAUCAA	UUGUCAGAGAUUAAUUCCUUUUGAAGUGUAGAGAUCACUAGUAAAGUCUUCUCCGUACACAUUGCUAGGAAUCAAAUCCUUGACA
psa-m0012-5p	AAUUGUGGACGAUUUUUCUAGAG	CAAUUGAGUUAAUUGUGGACGAUUUUUCUAGAGUUUCAAUUUCUACAAGUUAAUUCAUAUUGUUUCACAAGCUUCUCACAAUUGUUUGGCUAUAUAGAAGGUUGAAAUUCUGUGGGAACUCUCACAAUUAUCUCAAUUGU
psa-m0013-3p	CUAAAAUGGGUAUAUUUAAUUUU	AGUGAUAUUUUAUUAAAAAAUUUAUACAUAUUCCAGAAGUAUAUCUUUCAAACUAUGAAUCACAAUUCGGAAGAUAUAUUGCUAAAAUGGGUAUAUUUAAUUUUGAAAAUACAU
psa-m0023-3p	GCAUCUCACUCCUUUGUGCUCUC	ACAGAAGAUAGAGAGCACAGAUGAUGAUAUGCACAUAUACAUGGAACAGGAAUUUAAGCAAUUGCAUCUCACUCCUUUGUGCUCUCUAAGCUUCUG
psa-m0028-5p	UUGGAUGAAAAUCAGAUGACUC	AUCAGAAUUGUUGGAUGAAAAUCAGAUGACUCAUUUUAUCUUGAUGAAUGAAUCCGACAUAAAACAUGCAUCUGAGAUGUGAAUAGUCCGAUUUAUUUUCAUCCAAUGGUAUCGAUU

The secondary structure of the novel miRNA precursor sequences was predicted using RNAfold WebServer (http://rna.tbi.univie.ac.at/cgi-bin/RNAWebSuite/RNAfold.cgi).^46,47 Figure 4 shows novel psa-m0023-3p miRNA and psa-m0028-5p generated from RNAfold WebServer.

Figure 4.

Secondary structure of novel psa-m0023-3p miRNA and psa-m0028-5p miRNA.

Predicting target for conserved and novel miRNA of P. sativum

To understand the functions of the identified P. sativum miRNAs, potential targets were predicted using psRNATarget tool (https://www.zhaolab.org/psRNATarget/). miRNAs with copy number ⩾5 were considered for target prediction. Pea mRNA and EST sequences were downloaded from NCBI and used as targets in psRNATarget tool with default parameters.

In this study, a total of 12,838 corresponding potential target gene products of P. sativum miRNAs were detected (9,715 target gene products for conserved miRNA and 1,064 target gene products for novel miRNA). Approximately 83% of the conserved miRNA directly cleaves the target mRNA whereas the rest of the conserved miRNA performs translational repression on the target mRNA. As 11 novel miRNAs were identified, some of them directly cleave the target mRNA and some perform translational repression.

In the conserved miRNAs, psa-miR1527 (191) has the highest number of potential targets, followed by psa-miR5261 (171) and psa-miR396 g-3p (165), whereas in novel miRNAs psa-m0025-3p (161) has the higher number of targets, followed by psa-m0028-5p (145) and psa-m0016-3p (121).

Functional annotation of the miRNA target was performed using Blast2Go software. The GO (Gene Ontology) terms were obtained. The miRNA target gene products along with GO_ID were categorized into biological processes, cellular components, and molecular functions.^48,49 All the data related to conserved and novel miRNA targets, miRNA target gene products, and gene ontology functional categorization were attached as Supplementary Data S3 and S4.

Discussion

Over the past few years, NGS or deep sequencing technologies have been used in different molecular biology studies.^15,50 Various studies have been conducted to identify conserved and novel miRNAs in different plant species; however, miRNA and their target remain unknown in an economically important plant such as garden pea.

The small RNA size distribution pattern in P. sativum young leaves shows that 63% of small RNA reads lie between 20 and 24 nucleotides and 24 nucleotides length small RNA reads are dominant (41%) in the entire sRNA transcriptome. A large number of sequencing reads of miRNA belonging to MIR-156, MIR-159, and MIR-166 families support the deep sequencing data in other leguminous species such as Medicago and peanut.^51,52

Conversely, in wheat and rice plant species, MIR-169 family sequencing reads are high in number and MIR-156 family reads were very low in abundance indicating the presence of species-specific expression profile of miRNA.⁵³ All the detected novel miRNAs had MFEI value > 72 and appropriate secondary structures.

The variation in sequencing reads numbers of different members or isoforms of a miRNA family in P. sativum indicates that the regulatory role of the isoform is dominant during the particular stage of development. For instance, the MIR-172 family is likely to play a significant role in phase transformation and floral organ development in various plant species, and the reads number of psa-miR172a (64) belonging to the MIR-172 family was high compared to other isoforms of the family.⁵⁴ The comparative study of various miRNA isoforms present in a miRNA family during a particular stage of development or at specific conditions will provide valuable insights into the role-played by the miRNA in growth and development.

The lack of funding was the major limitation of the study. As leaf tissue contains a large repertoire of miRNAs;^55,56 therefore, I have focused primarily on garden pea leaves in this study. It would be interesting to study the distribution of the identified miRNA in roots, stems, and other important organs and tissues of garden pea plants under various stress conditions to understand the regulatory mechanism of miRNAs and to develop strategies that will help in enhancing the production of garden pea crops.

Conclusions

In conclusion, in this study, a small-RNA library was prepared by high-throughput sequencing of P. sativum leaves to identify the conserved and novel miRNAs along with their potential targets. This study provides the first report on the identification of conserved and novel miRNAs in P. sativum leaves by deep sequencing. The valuable information obtained from this study will provide a strong base for the researchers to select the candidate miRNA or MIR family in P. sativum plants and check the regulatory role-played by the miRNA in response to biotic and abiotic stress, growth, and development. In addition, this study will enlighten our understanding of miRNA-mediated post-transcriptional gene regulation and could be helpful in the annotation of the genome.

Supplemental Material

sj-docx-1-bbi-10.1177_11779322231162777 – Supplemental material for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing

Supplemental material, sj-docx-1-bbi-10.1177_11779322231162777 for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing by Qurshid Hasan Khan in Bioinformatics and Biology Insights

Supplemental Material

sj-docx-2-bbi-10.1177_11779322231162777 – Supplemental material for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing

Supplemental material, sj-docx-2-bbi-10.1177_11779322231162777 for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing by Qurshid Hasan Khan in Bioinformatics and Biology Insights

Supplemental Material

sj-xlsx-3-bbi-10.1177_11779322231162777 – Supplemental material for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing

Supplemental material, sj-xlsx-3-bbi-10.1177_11779322231162777 for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing by Qurshid Hasan Khan in Bioinformatics and Biology Insights

Supplemental Material

sj-xlsx-4-bbi-10.1177_11779322231162777 – Supplemental material for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing

Supplemental material, sj-xlsx-4-bbi-10.1177_11779322231162777 for Identification of Conserved and Novel MicroRNAs with their Targets in Garden Pea (Pisum Sativum L.) Leaves by High-Throughput Sequencing by Qurshid Hasan Khan in Bioinformatics and Biology Insights

Footnotes

Acknowledgements

I am thankful to the Department of Plant Sciences and School of Life Science, University of Hyderabad, for their support and cooperation. I would like to express my deepest gratitude to Prof. Ch. Venkataramana, Department of Plant Sciences, University of Hyderabad, and Dr. Satendra Kumar Mangrauthia, Senior Scientist, IIRR, for their support.

Declaration Of Conflicting Interests:

The author(s) declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: The author declares that he has no known competing financial interests or personal relationships that could have appeared to influence the work reported in this article.

Funding:

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by BIRAC SRISTI Appreciation Grant.

Author Contributions

Q.H.K. conceived, planned, and carried out the experiment, processed the experimental data, performed the analysis and interpretation of results, and prepared the manuscript.

Supplemental Material

Supplemental material for this article is available online.

References

Bartel

. MicroRNAs: genomics, biogenesis, mechanism, and function. Cell. 2004;116:281-297.

Chen

. MicroRNA biogenesis and function in plants. FEBS Lett. 2005;579:5923-59310.

Vazquez

Legrand

Windels

. The biosynthetic pathways and biological scopes of plant small RNAs. Trends Plant Sci. 2010;15:337-345.

Yoshikawa

Peragine

Park

Poethig

. A pathway for the biogenesis of trans-acting siRNAs in Arabidopsis. Genes Dev. 2005;19:2164-2175.

Chen

. A microRNA as a translational repressor of APETALA2 in Arabidopsis ﬂower development. Science. 2004;303:2022-2025.

Sunkar

Kapoor

Zhu

. Posttranscriptional induction of two Cu/Zn superoxide dismutase genes in Arabidopsis is mediated by downregulation of miR398 and important for oxidative stress tolerance. Plant Cell. 2006;18:2051-2065.

Sun

Chiang

. Stress-responsive microRNAs in Populus. Plant J. 2008;55:131-151.

Zhang

Pan

Stellwag

. Identiﬁcation of soybean microRNAs and their targets. Planta. 2008;229:161-182.

Zhou

Wang

Sutoh

Zhu

Zhang

. Identiﬁcation of cold-inducible microRNAs in plants by transcriptome analysis. Biochim Biophys Acta. 2008;1779:780-788.

10.

Ding

Zhang

Wang

Liu

Zhang

Zheng

. Differential expression of miRNAs in response to salt stress in maize roots. Ann Bot. 2009;103:29-38.

11.

Kundu

Paul

Dey

Pal

. High throughput sequencing reveals modulation of microRNAs in Vigna mungo upon Mungbean Yellow Mosaic India Virus inoculation highlighting stress regulation. Plant Sci. 2017;257:96-105.

12.

Kidner

Martienssen

. The developmental role of microRNA in plants. Curr Opin Plant Biol. 2005;8:38-44.

13.

Paul

Kundu

Pal

. Identiﬁcation and validation of conserved microRNAs along with their differential expression in roots of Vigna unguiculata grown under salt stress. Plant Cell Tiss Organ Cult. 2011;105:233-242.

14.

Rajagopalan

Vaucheret

Trejo

Bartel

. A diverse and evolutionarily ﬂuid set of microRNAs in Arabidopsis thaliana. Genes Dev. 2006;20:3407-3425.

15.

Yao

Guo

, et al. Cloning and characterization of microRNAs from wheat (Triticum aestivum L.). Genome Biol. 2007;8:R96.

16.

Morin

Aksay

Dolgosheina

, et al. Comparative analysis of the small RNA transcriptomes of Pinus contorta and Oryza sativa. Genome Res. 2008;18:571-584.

17.

Creighton

Reid

Gunaratne

. Expression proﬁling of microRNAs by deep sequencing. Brief Bioinfo. 2009;10:490-497.

18.

Git

Dvinge

Salmon Divon

-M

, et al. Systematic comparison of microarray proﬁling, real-time PCR, and next-generation sequencing technologies for measuring differential microRNA expression. RNA. 2010;16:991-1006.

19.

Shukla

Chinnusamy

Sunkar

. The role of microRNAs and other endogenous small RNAs in plant stress responses. Biochim Biophys Acta. 2008;1779:743-748.

20.

Sambrook

Fritsch

Maniatis

. Molecular cloning: a laboratory manual. 2nd ed. Cold Spring Harbor, NY: Cold Spring Harbor Laboratory Press; 1989.

21.

Manchester

. Use of UV methods for measurement of protein and nucleic acid concentrations. Biotechniques. 1996;20:968-970.

22.

Stocks

Moxon

Mapleson

Woolfenden

Mohorianu

. The UEA sRNA workbench: a suite of tools for analysing and visualizing next generation sequencing microRNA and small RNA datasets. Bioinformatics. 2012;28:2059-2061.

23.

Langmead

Trapnell

Pop

Salzberg

. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol. 2009;10:R25.

24.

Kalvari

Nawrocki

Argasinska

, et al. Non-coding RNA analysis using the Rfam database. Curr Protoc Bioinformatics. 2018;62:e51.

25.

Ben

. Aligning short sequencing reads with Bowtie. Curr Protoc Bioinformatics. 2011;11:117.

26.

Giannoulatou

Park

Humphreys

. Verification and validation of bioinformatics software without a gold standard: a case study of BWA and Bowtie. BMC Bioinformatics. 2014;15:S15.

27.

Bao

Jiang

Kwan

Wang

Song

. Evaluation of next-generation sequencing software in mapping and assembly. J Hum Genet. 2011;56:406-414.

28.

Godzik

. Cd-hit: a fast program for clustering and comparing large sets of protein or nucleotide sequences. Bioinformatics. 2006;22:1658-1659.

29.

Niu

Zhu

. CD-HIT: accelerated for clustering the next generation sequencing data. Bioinformatics. 2012;28:23.

30.

Cruz Gaia

CaraccioloGomes

Sá

deOliveira

de OliveiraVeras

. NGS reads treatment—a cuckoo filter-based tool for removing duplicate reads in NGS data. Sci Rep. 2019;9:11681.

31.

Ahmed

Xia

Zhang

, et al. Identification of conserved and novel miRNAs responsive to heat stress in flowering Chinese cabbage using high-throughput sequencing. Sci Rep. 2019;9:14922.

32.

Kozomara

Griffiths-Jones

. miRBase: annotating high confidence microRNAs using deep sequencing data. Nucleic Acids Res. 2013;42:D68-D73.

33.

Altschul

Gish

Miller

Myers

Lipman

. Basic local alignment search tool. J Mol Bio. 1990;215:403-410.

34.

Shenkute

Wang

. Characterization of Conserved and Novel microRNAs in Lilium lancifolium Thunb. by high-throughput sequencing. Sci Rep. 2018;8:2880.

35.

Yan

Zhang

Jiang

Gao

Yang

. Identification of known and novel MicroRNAs in raspberry organs through high-throughput sequencing. Front Plant Sci. 2020;11:728.

36.

Qibin

Jiang

. MIREAP: microRNA discovery by deep sequencing, 2008, https://sourceforge.net/projects/mireap/ (accessed 10 May 2022).

37.

Mazhar

Raza

Sikandar

, et al. Cytochrome C and COI Sequence of O. laetus review. Austin J Pharmacol Ther. 2021;9:1142.

38.

Saleem

Shahzadi

Hafeez

Mumtaz

Mazhar

. (2021) Identification and phylogenetic analysis of KUP/HAK/KT gene family in Daucus carota (wild carrot). Quant J Med Health Sci. 2021;1:36-52.

39.

Mazhar

Yusof

Shaheen

Saif

Raza

Mazhar

. Sequence, secondary structure, and phylogenetic conservation of MicroRNAs in Arabidopsis thaliana. Bioinform Biol Insights. 2022;16:11779322221142116.

40.

Lorenz

Bernhart

Höner

Siederdissen

, et al. ViennaRNA Package 2.0. Algorith Molec Biol. 2011;6:26.

41.

Sripathi

Choi

Gossett

Stelly

Moss

, et al. Identification of microRNAs and their targets in four Gossypium species using RNA sequencing. Current Plant Biology. 2018;14:30-40.

42.

Liu

Zhang

, et al. Identification and characterization of microRNAs in the developing maize endosperm. Genomics. 2013;102:472-478.

43.

Dai

Zhuang

Zhao

. psRNATarget: a plant small RNA target analysis server (2017 release). Nucleic Acids Research. 2018;46:W49-W54.

44.

Anders

Huber

. Differential expression analysis for sequence. Genome Biol. 2010;11:R106.

45.

Zhang

Pan

Cox

Cobb

Anderson

. Evidence that miRNAs are different from other RNAs. Cell Mol Life Sci. 2006;63:246-254.

46.

Mathews

Disney

Childs

Schroeder

Zuker

Turner

. Incorporating chemical modification constraints into a dynamic programming algorithm for prediction of RNA secondary structure. PNAS. 2004;101:7287-7292.

47.

Srivastava

Moturu

Pandey

Baldwin

Pandey

. A comparison of performance of plant miRNA target prediction tools and the characterization of features for genome-wide target prediction. BMC Genomics. 2014;15:348.

48.

Dang

Ouyang

Zhang

, et al. Circular RNAs expression profiles in human gastric cancer. Sci Rep. 2017;7:9060.

49.

Conesa

Götz

García-Gómez

Terol

Talón

Robles

. Blast2GO: a universal tool for annotation, visualization and analysis in functional genomics research. Bioinformatics. 2005;21:3674-3676.

50.

Rajagopalan

Vaucheret

Trejo

Bartel

. A diverse and evolutionarily fluid set of microRNAs in Arabidopsis thaliana. Genes Dev. 2006;20:3407-3425.

51.

Zhao

Xia

Frazier

, et al. Deep sequencing identiﬁes novel and conserved microRNAs in peanuts (Arachis hypogaea L.). BMC Plant Biol. 2010;10:3.

52.

Szittya

Moxon

Santos

, et al. High-throughput sequencing of Medicago truncatula short RNAs identiﬁes eight new miRNA families. BMC Genomics. 2008;9:593.

53.

Sunkar

Zhou

Zheng

Zhang

Zhu

. Identiﬁcation of novel and candidate miRNAs in rice by high throughput sequencing. BMC Plant Biol. 2008;8:25.

54.

Wang

Ping

Cao

, et al. Genome-wide exploration and characterization of miR172/euAP2 genes in Brassica napus L. For likely role in flower organ development. BMC Plant Biology. 2019;19:336.

55.

Sunkar

Zhu

. Novel and stress-regulated microRNAs and other small RNAs from Arabidopsis. Plant Cell. 2004;16:2001-2019.

56.

Zhang

Pan

Wang

Cobb

Anderson

. Identification and characterization of new plant microRNAs using EST analysis. Cell Res. 2005;15:336-360.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

0.08 MB

0.03 MB

0.76 MB

0.51 MB
