Predictive Capability of Cardiopulmonary and Exercise Parameters From Day 1 to 6 Months After Acute Pulmonary Embolism

Abstract

We hypothesized that the slope of relation ventilation to carbon dioxide output (V’E/V’CO2-slope) could be predictive already during the very first days after submassive pulmonary embolism (PE) to right ventricular systolic pressure (RV_sys by echocardiography) after 6 months. We evaluated 21 hemodynamically stable patients at admittance, at days 3, 7, 90, and 180 by cardiopulmonary exercise testing and echocardiography. V’E/V’CO2-slope (48.4 ± 10.8) decreased within the first week (43.0 ± 9.8 at day 7) and normalized until follow-up at 6 months (35.0 ± 11.3; P < 10^-4), p(a-ET)CO₂ remained abnormal between days 1 and 3 (5.0 ± 3.9 to 6.7 ± 5.3 mmHg). RV_sys declined from 41.7 ± 14.3 to 26.3±13.1 mmHg (P < 10^–4) at 6 months. V’E/V’CO2-slope (r²= 0.27; P < .02) and RV_sys (r² = 0.28; P = .03) at day 7 correlated with RV_sys at 6 months. p_(a-ET)CO₂, p_(a-ET)O₂, V’D/V’T were not related to RV_sys after 6 months. RV_sys 6 months after acute PE is positively correlated with the V’E/V’CO2-slope at day 7.

Keywords

Acute pulmonary embolism pulmonary hypertension cardiopulmonary exercise testing follow-up

Introduction

Following pulmonary embolism (PE), 1.0-8.8% of patients will develop chronic thromboembolic pulmonary hypertension (CTEPH).^1–4 The transition from acute to chronic disease is still a point of debate, and CTEPH is frequently underdiagnosed and undertreated.¹ Little is known about the acute cardiopulmonary response and whether this can predict complications in later follow-up.⁵ However, early detection of patients who are at risk of developing CTEPH is important, and it is possible that incomplete recovery between the acute event and hospital discharge may already correlate with long-term deterioration. Therefore, it may be useful to examine the patient not only at a single point during follow-up but during the first days and weeks after PE.

Parameters indicating the risk of CTEPH can be derived from patients’ clinical status, echocardiography and plasma markers (brain natriuretic peptide [BNP] and troponin), and from cardiopulmonary exercise testing (CPET).^6,7 Echocardiography and biochemical markers reflect right ventricular (RV) dysfunction, and altered echocardiographic parameters at hospital discharge have been associated with higher 3-year mortality,⁸ but this correlation is still controversial in patients without systemic hypotension.^9,10 Early mortality is increased among patients whose RV dysfunction is accompanied by elevated levels of N-terminal BNP^11,12 or troponin,¹³ but the association with future CTEPH is uncertain. In contrast to echocardiography and plasma markers, the measurement of blood gases and respiratory gas exchange reflects the pathophysiology of the lung itself. Older studies have evaluated some of these parameters at rest, but none of end tidal pressure of carbon dioxide (p_ETCO₂),^14–16 arterio-alveolar oxygen pressure difference (p_(a-ET)O₂)¹⁷ or the ratio of dead space ventilation to tidal volume (V’_D/V’_T)^18,19 have been found to be predictive for CTEPH. Studies assessing these parameters during stepwise incremental maximal exercise testing found that physiological dead space (V’_D/V’_T) and p_(a-ET)O₂ at peak exercise strongly differentiated patients with and without CTEPH after PE,²⁰ and that the capillary to end tidal carbon dioxide gradient (p_(c-ET)CO₂) was significantly increased in CTEPH compared with idiopathic pulmonary arterial hypertension.²¹ Likewise, the slope of the linear relationship between ventilation (V’_E) and carbon dioxide output (V’_CO2) during incremental exercise, which is regarded as a precise parameter assessing pulmonary perfusion and ventilation-perfusion-mismatch, has been established as a follow-up parameter in chronic PE.^22,23 In contrast to parameters at maximum exercise level such as peakV’_O2, the V’_E/V’_CO2 slope is a submaximal effort-independent measure which indicates breathing drive during exercise. Therefore, we assume that the relation of V’_E/V’_CO2 at the anaerobic threshold (V’_E/V’_CO2 @AT) could be related to the development of CTEPH. So far, neither V’_E/V’_CO2 slope nor V’_E/V’_CO2 @AT have been studied in the acute phase of PE and the first days following acute PE.

Against this background, we designed this study to include simple, non-invasive and specific parameters linked to both PE and CTEPH. We hypothesized that the V’_E/V’_CO2 slope during the first days after submassive PE could already be predictive of RV systolic pressure (RV_sys, measured with echocardiography) after 6 months. The secondary hypothesis was to evaluate the relationship between other parameters of breathing, V’_E/V’_CO2@AT, V’_D/V’_T, p_(c-ET)CO₂ and p_(c-ET)O₂, early after the PE event and RV_sys after 6 months.

Methods

Study population

The study was approved by the local ethics committee (Ethikkommission Charité, No. 160/3) and informed written consent was obtained from all patients. Our study included stable patients with acute PE of low- and intermediate risk, for example, with stable systolic blood pressure (SBP) > 100 mmHg (without catecholamine administration), heart rate (HR) < 100/min, capillary oxygen saturation > 90% (without oxygen supplementation) and full consciousness (Pulmonary Embolism Severity Index [PESI] < 85 points).²⁴ Patients had to be effectively treated either with unfractionated heparin intravenously (i.v.) or with low molecular weight heparin (LMWH) subcutaneously. Exclusion criteria were high risk PE (eg, requiring thrombolytic therapy or surgical intervention), severe chronic obstructive pulmonary disease with home-care oxygen supply or forced expiratory volume in 1 second (FEV1) < 1000 mL/s, malignancies that limit prognosis or PESI > 86 points. In addition, patients younger than 18 years and pregnant women were excluded.

Patients were examined at the Charité University Medicine Berlin, Campus Virchow, Department of Cardiology and sequentially studied at five predefined time points: at admittance to the intensive care unit (ICU, day 1), during hospitalization (days 3 and 7) and after 3 and 6 months during outpatient follow-up. Diagnosis of PE was confirmed by computed tomographic angiography in 20 patients and by combined ventilation-perfusion scintigraphy in one patient.

Control population

Parameters of respiration and gas exchange depend on age, gender, body weight and height, and an exact definition of reference values is essential. For V’_E/V’_CO2, V’_D/V’_T, p_(a-ET)CO₂ and V’_E/V’_CO2 @AT, these were taken from the Study of Health In Pomerania (SHIP)-study by Koch et al²⁵ (n = 1708, bicycle), for V’_E/V’_CO2 slope and V’_E/V’_CO2 @AT from Sun et al²⁶ (n = 474, bicycle and treadmill), and for V’_E/V’_CO2 slope from Habedank²⁷ (n = 101, treadmill).

Treatment of PE

If heparin was administered continuously i.v., a two- to threefold prolongation of the activated partial thromboplastin time (aPTT) had to be achieved; heparin dose was adjusted every 12 hours if it was in the therapeutic range, and 3 hours after correction if it was out of the therapeutic range. If LMWH was administered, an anti-Xa-activity of 0.3 to 0.7 IU/mL had to be achieved; the dose was corrected at 12-hour intervals if necessary. Oral anticoagulation with phenprocoumon or rivaroxaban was started between day 3 and 7. For patients on vitamin K antagonists, patients’ general practitioners were responsible for checking the international normalized ratio (INR), which was documented at outpatient visits in our department. Oral anticoagulation was withdrawn after 6-9 months in patients with idiopathic thromboembolism. Supportive medication during the ICU stay included oxygen supply between 2 and 6 L/min if oxygen saturation was < 93%, i.v. volume expansion with full electrolyte solution, and, if necessary, antihypertensive medication. Mobilization of patients started at day 2 or 3 and was completed before discharge from hospital. All patients were advised to wear compression stockings for at least 1 year.

Resting and exercise protocols

At days 1 and 3 after admission, patients sat in a half-supine position and breathed for at least 3 minutes into a bed-side, mobile metabolic cart (MedGraphics CardiO₂, Minnesota, USA), with a simultaneous subcutaneous oxygen saturation measurement (Draeger Oxysat 2, Draeger, Lübeck, Germany). In order to simulate a minimal effort, patients were asked to sit in a completely upright position while measurement was continued for a further 3 minutes. Data from this “minimal exercise” were used to calculate a slope of the linear regression between V’_E and V’_CO2. In addition, at day 7 and after 3 and 6 months, a symptom-limited cardiopulmonary exercise test was performed on a treadmill (MedGraphics, as above) according to the modified Naughton protocol.²⁸ Prior to each test, the equipment was calibrated according to the manufacturer’s standards with reference gas and volume calibration. For the measurements at days 1 and 3, the mobile measurement unit was moved to the ICU, and a new calibration was performed at bed-side due to changed environmental conditions. All exercise tests on the treadmill started with a phase of 3 minutes quiet standing and breathing into the mask to reach steady-state conditions. These data were analyzed and are referred to as “resting parameters.” Exercise time was recorded and symptoms at peak exercise were documented. All patients were monitored with a continuous 12-lead electrocardiogram (ECG; CardioPerfect, Welch Allyn, New York, USA).

Measurement of gas exchange

Airway flow, V’_O2 and V’_CO2, and end tidal expiratory gas concentrations p_ETO₂ and p_ETCO₂ were measured breath by breath. Ventilation per minute (V’_E) and the V’_E/V’_CO2 ratio were calculated automatically from airway flow and partial gas concentrations. Respiratory gas exchange variables were acquired breath by breath and averaged over 10-second intervals. For peakV’_O2, peakV’_CO2 and peakV’_E, the highest readings of each parameter in the final 30 seconds of exercise were used. The respiratory exchange ratio (RER) was calculated as quotient peakV’_CO2 /peakV’_O2. Ventilatory efficiency during exercise was measured by plotting V’_E against V’_CO2, excluding values due to acidotic hyperventilation beyond the lactate metabolic threshold, and the slope of the revealed linear relationship (V’_E/V’_CO2 slope) was calculated by linear regression and accepted if the correlation coefficient r was > 0.95. The relation of V’_E/V’_CO2 is lowest at the AT and was reported as V’_E/V’_CO2 @AT. The AT reflects the transition from aerobic to anaerobic metabolism and was determined manually by the V-slope method according to current guidelines. If the V-slope method could not be applied, AT was defined as the lowest point of the ventilatory equivalent for oxygen (V’_E/V’_O2). Two of three independent observers (D.H., T.K., Th.K.) identified the AT in every case.

Blood gas analysis and plasma markers

Arterial blood samples were taken from the radial artery at time of respiratory gas measurement when the resting steady state was reached and were analyzed by Radiometer Copenhagen (ABL 750, Radiometer GmbH, Krefeld) to assess pH value and partial pressures of carbon dioxide (p_aCO₂) and oxygen (p_aO₂). The proportion of dead space V’_D/V’_T was calculated from arterial and end tidal partial pressures of carbon dioxide as V’_D/V’_T = (p_aCO₂—p_ETCO₂)/p_aCO₂.²⁴ Samples for the measurement of serum plasma markers such as troponin I, D-dimer and C-reactive protein (CRP) were taken during routine venous blood sampling at hospital admittance, centrifuged at 3000 min-1, cooled to 18°C and analyzed immediately.

Echocardiography

Echocardiography was performed immediately before gas exchange analysis at all five study time points (day 1 [ICU], days 3 and 7, and during follow-up at months 3 and 6) using a Vivid S6 echocardiograph (GE Healthcare Germany, Solingen). Diameters of left and right ventricles were measured in the parasternal short (left ventricular end-diastolic diameter [LVEDd], right ventricular end-diastolic [RVEDd]) and long (LVEDd) axis, and ejection fraction was calculated automatically by the Simpson method²⁹ in the apical four-chamber view. Mitral and tricuspid regurgitation were assessed semi-quantitatively by proximal jet width³⁰ and proximal isovelocity surface area (PISA),³¹ and the severity was classified as mild (I°), moderate/medium (II° and III°) and severe (IV°) according to ACC/ESC recommendations.³² RV_sys was estimated by simplified Bernoulli equation via tricuspid regurgitation velocity v as RV_sys [mmHg] = 4v² without addition of central venous pressure. Paradox movements of the interventricular septum were classified as degree I in case of mild systolic shift and degree II in case of systolic compression of the left ventricle. Tricuspid annular plane systolic excursion (TAPSE) was measured in apical 4-chamber view M-mode with the septum centered.

Statistical analysis

All numeric data are expressed as mean ± standard deviation for parametric variables, and as median with interquartile range (IQR) in brackets for skewed distributions (non-parametric variables). The normality of the data was verified with the Kolmogorov-Smirnov-test. Changes over time of quantitative parameters (exercise, echocardiographic and laboratory parameters) were identified by repeated measurements analysis of variance (ANOVA) for the entire follow-up and by Student’s paired t-test for differences between sequential visits. In the case of non-parametric distribution, changes over time were calculated using the Wilcoxon signed-rank test. A correlation with echocardiographic RV_sys at 6 months was tested for the following parameters: circulation (HR, blood pressure [BP]), respiratory rate, laboratory values (Troponin, D-dimer), blood gases (p_aCO₂, p_aO₂), respiratory gases (p_ETO₂, p_ETCO₂), gas exchange and perfusion, V’_D/V’_T, V’_E/V’_CO2 slope, V’_E/V’_CO2 @AT, p_(a-ET)CO₂, and echocardiographic parameters of RV dysfunction (RVEDd, RV_sys, TAPSE). Spearman’s correlations were necessary for the non-Gaussian laboratory parameters Troponin and D-dimer. Univariate linear regression was utilized to evaluate the relationship between RV_sys at 6 months and different parameters at baseline, at days 3 and 7 and at 3 months. A P-value < .05 was considered significant. All analyses were performed using SPSS 18 (SPSS Inc., Chicago, USA).

Results

Clinical findings at admittance

We examined 21 patients (14 female, mean age 64.2 ± 18.9 years, range 21.6-88.8 years) from ICU to outpatient follow-up. Thromboembolism was found in the Truncus pulmonalis in two patients, in one or both Aa. pulmonales in five patients, in two lobar pulmonary arteries in 11 patients, and in subsegment branches of the pulmonary artery in three patients. Sources of the emboli were (regarding the most proximal localization) V. iliaca in one patient, V. femoralis (communis or superficialis) in 11 patients, V. poplitea in three patients, and peripheral or superficial veins (V. tibialis anterior, saphena magna) in three patients. The embolic origin could not be detected in three patients. Two patients reported taking a long-distance flight immediately before admission. All other thromboembolic events (n = 13) were classified as idiopathic. All patients were screened for markers of thrombophilia, and a phospholipid antibody syndrome was identified in three patients, while a factor V (Leiden) mutation, a protein S deficiency and a plasminogen activator inhibitor I mutation were found in one patient each. The time between onset of symptoms and admission to ICU was 10.9 ± 7.4 hours. Basic clinical data at time of first examination are shown in Table 1. A pathologic ECG, defined as main vector > 90° or sagittal type, right bundle branch block or new onset negative T in leads V1 to V3, was found in 16 of the 21 patients.

Table 1.

Basic clinical data at time of first examination.

Parameter	Mean ± SD	Median (IQR)	Range	Unit
BMI	27.0 ± 4.4		20.7-39.0	kg/m²
NYHA-class	3.1 ± 0.6		2-4
Heart rate	96.8 ± 16.2		75-130	1/min
Systolic blood pressure	132.4 ± 24.5		96-188	mmHg
Respiratory rate	18.2 ± 4.3		10-26	1/min
p_aCO₂	29.8 ± 3.4		23.6-37.0	mmHg
p_aO₂	68.6 ± 26.5		41.0-146.0	mmHg
p_ETCO₂	25.3 ± 6.4		18-36	mmHg
RV_sys	41.7 ± 14.3		20.0-75.0	mmHg
D-dimer		6.25 (6.15)	2.6-16.0	ng/mL
Troponin I		0.075 (0.66)	0.0-1.2	ng/mL
C-reactive protein	3.9 ± 5.6		0-26	mg/dL
Hemoglobin	13.5 ± 1.8		10-17.9	mg/dL
LVEF	65.1 ± 6.0		49-71	%
LVEDd	44.3 ± 5.2		33-50	mm

BMI: body mass index; LVEDd: left ventricular end-diastolic diameter; LVEF: left ventricular ejection fraction; NYHA: New York Heart Association; p_aCO₂: arterial partial pressure of carbon dioxide; p_aO₂: arterial partial pressure of oxygen; p_ETCO₂: end-tidal partial pressure of carbon dioxide; RV_sys: right ventricular systolic pressure.

Mean ± standard deviation is shown in case of normal distribution, otherwise data are medians with interquartile range (IQR) in brackets.

Clinical findings at follow-up

All patients survived, had no re-occurrence of thromboembolism and underwent exercise testing at 6 months. At this time, 10 (48%) patients were in New York Heart Association (NYHA) class “0” (M: class I, range 0–III), ECG changes (as defined above) persisted in two (9.5%) patients, and resting cardiopulmonary parameters were normalized (SBP 124 ± 19 mmHg, diastolic BP 77 ± 7.5 mmHg, HR 87±16 beats/min, respiratory rate 14 ± 4 beats/min). Detailed clinical data are shown in Table 2.

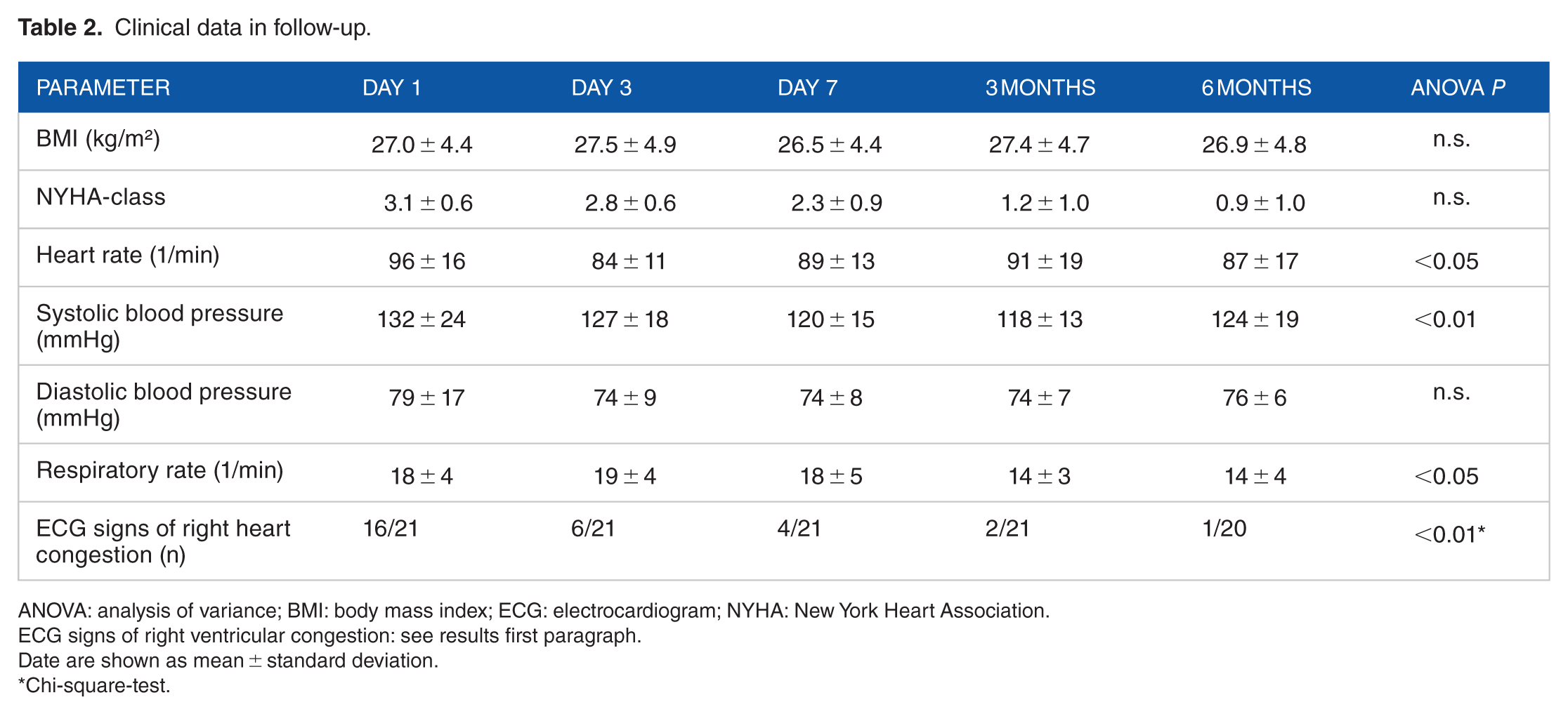

Table 2.

Clinical data in follow-up.

Parameter	Day 1	Day 3	Day 7	3 months	6 months	ANOVA p
BMI (kg/m²)	27.0 ± 4.4	27.5 ± 4.9	26.5 ± 4.4	27.4 ± 4.7	26.9 ± 4.8	n.s.
NYHA-class	3.1 ± 0.6	2.8 ± 0.6	2.3 ± 0.9	1.2 ± 1.0	0.9 ± 1.0	n.s.
Heart rate (1/min)	96 ± 16	84 ± 11	89 ± 13	91 ± 19	87 ± 17	<0.05
Systolic blood pressure (mmHg)	132 ± 24	127 ± 18	120 ± 15	118 ± 13	124 ± 19	<0.01
Diastolic blood pressure (mmHg)	79 ± 17	74 ± 9	74 ± 8	74 ± 7	76 ± 6	n.s.
Respiratory rate (1/min)	18 ± 4	19 ± 4	18 ± 5	14 ± 3	14 ± 4	<0.05
ECG signs of right heart congestion (n)	16/21	6/21	4/21	2/21	1/20	<0.01*

ANOVA: analysis of variance; BMI: body mass index; ECG: electrocardiogram; NYHA: New York Heart Association.

ECG signs of right ventricular congestion: see results first paragraph.

Date are shown as mean ± standard deviation.

Chi-square-test.

Pulmonary gas exchange at rest and during exercise

The minimal in-bed exercise at day 3 lead to a decline of p_ETO₂ from 120.1 ± 10.6 to 119.7 ± 9.8 mmHg and an increase of p_ETCO₂ from 25.5 ± 5.5 to 26.0 ± 6.0 mmHg, which was acceptable as metabolically demanding and therefore allowed a calculation of V’_E/V’_CO2 slope.

At admittance (day 1), resting p_(a-ET)CO₂, p_(a-ET)O₂, V’_E/V’_O2 and V’_D/V’_T were higher than normal values, while p_ETCO₂ and p_ETO₂ were lower. Between days 1 and 3, p_(a-ET)CO₂ remained abnormal (increasing from 5.0 ± 3.9 to 6.7 ± 5.3 mmHg; P =n.s.), whereas p_(a-ET)O₂ declined (from 59.5 ± 19.8 to 47.9 ± 16.1 mmHg; P = 0.001).

p_ETCO₂@AT and p_ETO₂@AT normalized within 1 week. Remarkably, the initially high V’_E/V’_CO2 slope (48.4 ± 10.8) decreased slowly within the first week (to 43.0 ± 9.8 at day 7) and normalized by follow-up at 3 (35.8 ± 11.1) and 6 months (35.0 ± 11.3; P < 10^–4, Figure 1). The V’_E/V’_CO2 @AT showed a comparable decline from 46.4 ± 12.7 at day 3 to 35.3 ± 8.1 at 6 months (P < .01, Figure 2).

Figure 1.

V’_E /V’ C_O2—slope over time (bold line, error bars indicating 1 SD).

Figure 2.

V’_E/V’_CO2@AT over time (bold line, error bars indicating 1 SD).

Spirometric parameters such as FEV1 and FVC did not change significantly from day 7 to 6 months (2.3 ± 0.6 to 2.4 ± 0.8 L/s and 2.9 ± 1.0 to 3.1 ± 1.1 L, respectively); these are presented in detail in Table 3. At 6 months, the mean exercise duration was 9.1 ± 6.1 min, with a mean treadmill speed of 2.0 miles/h (3.2 km/h) and an incline of 7%.

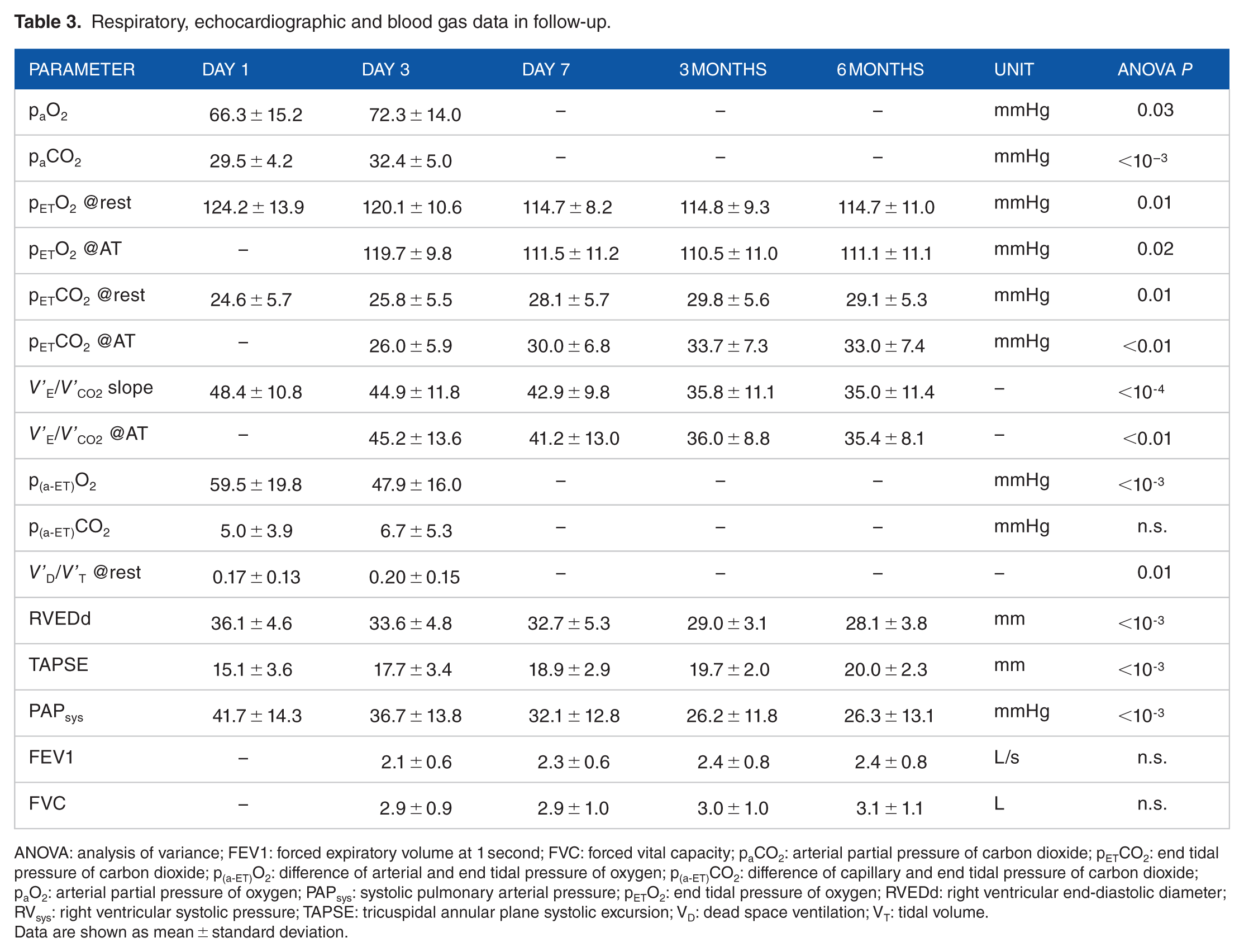

Table 3.

Respiratory, echocardiographic and blood gas data in follow-up.

Parameter	Day 1	Day 3	Day 7	3 months	6 months	Unit	ANOVA p
p_aO₂	66.3 ± 15.2	72.3 ± 14.0	−	−	−	mmHg	0.03
p_aCO₂	29.5 ± 4.2	32.4 ± 5.0	−	−	−	mmHg	<10^–3
p_ETO₂ @rest	124.2 ± 13.9	120.1 ± 10.6	114.7 ± 8.2	114.8 ± 9.3	114.7 ± 11.0	mmHg	0.01
p_ETO₂ @AT	−	119.7 ± 9.8	111.5 ± 11.2	110.5 ± 11.0	111.1 ± 11.1	mmHg	0.02
p_ETCO₂ @rest	24.6 ± 5.7	25.8 ± 5.5	28.1 ± 5.7	29.8 ± 5.6	29.1 ± 5.3	mmHg	0.01
p_ETCO₂ @AT	−	26.0 ± 5.9	30.0 ± 6.8	33.7 ± 7.3	33.0 ± 7.4	mmHg	<0.01
V’_E/V’_CO2 slope	48.4 ± 10.8	44.9 ± 11.8	42.9 ± 9.8	35.8 ± 11.1	35.0 ± 11.4	−	<10^-4
V’_E/V’_CO2 @AT	−	45.2 ± 13.6	41.2 ± 13.0	36.0 ± 8.8	35.4 ± 8.1	−	<0.01
p_(a-ET)O₂	59.5 ± 19.8	47.9 ± 16.0	−	−	−	mmHg	<10^-3
p_(a-ET)CO₂	5.0 ± 3.9	6.7 ± 5.3	−	−	−	mmHg	n.s.
V’_D/V’_T @rest	0.17 ± 0.13	0.20 ± 0.15	−	−	−	−	0.01
RVEDd	36.1 ± 4.6	33.6 ± 4.8	32.7 ± 5.3	29.0 ± 3.1	28.1 ± 3.8	mm	<10^-3
TAPSE	15.1 ± 3.6	17.7 ± 3.4	18.9 ± 2.9	19.7 ± 2.0	20.0 ± 2.3	mm	<10^-3
PAP_sys	41.7 ± 14.3	36.7 ± 13.8	32.1 ± 12.8	26.2 ± 11.8	26.3 ± 13.1	mmHg	<10^-3
FEV1	−	2.1 ± 0.6	2.3 ± 0.6	2.4 ± 0.8	2.4 ± 0.8	L/s	n.s.
FVC	−	2.9 ± 0.9	2.9 ± 1.0	3.0 ± 1.0	3.1 ± 1.1	L	n.s.

ANOVA: analysis of variance; FEV1: forced expiratory volume at 1 second; FVC: forced vital capacity; p_aCO₂: arterial partial pressure of carbon dioxide; p_ETCO₂: end tidal pressure of carbon dioxide; p_(a-ET)O₂: difference of arterial and end tidal pressure of oxygen; p_(a-ET)CO₂: difference of capillary and end tidal pressure of carbon dioxide; p_aO₂: arterial partial pressure of oxygen; PAP_sys: systolic pulmonary arterial pressure; p_ETO₂: end tidal pressure of oxygen; RVEDd: right ventricular end-diastolic diameter; RV_sys: right ventricular systolic pressure; TAPSE: tricuspidal annular plane systolic excursion; V_D: dead space ventilation; V_T: tidal volume.

Data are shown as mean ± standard deviation.

The complete time-course of respiratory parameters and normal values is shown in Figures 3 and 4.

Figure 3.

Oxygen exchange.

Figure 4.

Carbon dioxide exchange.

Echocardiography

RV dilatation (diastolic diameter RVEDd > 30 mm) was found in 17 of 21 (81%) patients at baseline (35.9 ± 4.2 mm overall) and normalized in all patients within 6 months (27.9 ± 3.9 mm, P < 10-4). In parallel, there was a decline in RV systolic pressure from 41.7 ± 14.3 mmHg at baseline to 32.1 ± 12.8 mmHg at day 7. At 6 months, the mean RV_sys had normalized to 26.3 ± 13.1 mmHg (P < 10^-4), but remained elevated (±30 mmHg) in seven (33%) patients. Changes over time in the parameters describing RV function (RVEDd, RV_sys, TAPSE) are shown in Figure 5.

Figure 5.

Right ventricular function. PAP_sys (left, bold line, in mmHg), TAPSE (middle, - -, in mm), RVEDd (right, bold line, in mm). Error bars indicating 1 SD.

Laboratory markers

Troponin I, a marker of myocardial (ie, RV) damage, was initially elevated in 15 of 21 (71%) patients. Mean troponin I levels decreased from 0.075 (0.66) mg/mL at first examination to 0.0 (0.15) mg/mL at day 3 (Wilcoxon, P = .001) and remained below the cut-off at subsequent time points. Similarly, the D-dimer level decreased from 6.3 (6.2) initially to 4.0 (3.3) at day 3 and normalized by day 7. CRP and hemoglobin remained unchanged.

Parameters potentially predicting CTEPH (correlation with RV_sys at 6 months)

Primary hypothesis

The V’_E/V’_CO2 slope at day 3 correlated weakly but statistically significantly to RV_sys at 6 months (r² = 0.19; P = .047); this correlation remained weak but statistically significant for the V’_E/V’_CO2 slope measured at day 7 (r² = 0.27, P < .02), at 3 months (r² = 0.28; P < .02) and at 6 months (r² = 0.3; P < .01).

Secondary hypothesis

As measured at admission, the parameters assessed in the secondary hypothesis had close to zero correlation with RV_sys at 6 months (r² = 0.02; P = .5 and r² = 0.01; P = 0.8 for p_(c-ET)CO₂ and p_(c-ET)O₂, respectively). At day 3, correlations remained weak and not significant for V’_E/V’_CO2@AT (r² = 0.01; P = .9), V’_D/V’_T (r² = 0.04; P = .3), p_(c-ET)CO₂ (r² = 0.04; P = .3) and p_(c-ET)O₂ (r² = 0.1 [negative r]; P = .8). RV_sys at day 7 (r² = 0.28; P = .03) and at 3 months (r² = 0.39; P < .01) correlated with RV_sys at 6 months. There were weak correlations in late follow-up between RV_sys and V’_E/V’_CO2 @AT (at 6 months, r² = 0.35; P < .01) and RVEDd (at 3 and 6 months, r² = 0.27 to 0.42; all P < .02). No other parameters were correlated with 6-month RV_sys. Detailed correlation data for all these parameters and for HR, oxygen pulse, peakV’_O2, peakV’_O2%predicted, V’_D/V’_T, and peakV’_E are summarized in supplementary Table 4.

Discussion

This study evaluated multiple parameters and their change over time after low- or intermediate-risk PE and searched for an association with RV_sys at 6 months after the embolic event. We confirmed our primary hypothesis that the V’_E/V’_CO2 slope (assessed at day 3 and 7) correlated with RV_sys half a year later. Clinical data, laboratory values or other parameters of gas exchange (secondary hypothesis, V’_E/V’_CO2@AT, V’_D/V’_T, p_(c-ET)CO₂ and p_(c-ET)O₂) did not predict elevated RV_sys.

Since the landmark study by Riedel et al,³³ several attempts have been made to characterize the mismatch between ventilation and pulmonary perfusion in acute and chronic PE.^23,24 Analysis of blood or respiratory gases alone does not predict the severity of PE, as shown for p_ETCO₂,¹⁶ p_(a-ET)O₂,³⁴ or capnography,¹⁹ and even a complex analysis of peak expiratory flow, minute ventilation, inspiration time and p_ETCO₂ reached a specificity of only 48%.¹⁵ Consistent with previous studies, we found RV_sys at 6 months to be correlated with neither V’_D/V’_T nor p_(a-ET)O₂ (both calculated from arterial and p_ETO₂). Only the V’_E/V’_CO2 slope was associated with estimated pulmonary pressure during follow-up. When obtained from standardized CPET at day 7, the calculation of the linear regression line V’_E versus V’_CO2 has a very low variance; by contrast, calculation of the V’_E/V’_CO2 slope from a bed-side test at day 3 is more variable and this correlation with RV_sys at 6 months just met significance. However, we demonstrated that this minimum in-bed effort led to metabolic changes large enough to determine the ventilatory response to carbon dioxide increase. In contrast to our findings, Held et al³⁴ found that p_(c-ET)CO₂ was the single parameter that best separated patients with CTEPH and controls, while McCabe et al²⁰ preferred V’_D/V’_T. However, Held et al. evaluated patients with confirmed CTEPH and McCabe et al. patients with persistent pulmonary obstruction, that is, both studies assessed the very subgroup of patients that our study intended to select from all PE patients. In this respect, our results complement both studies and emphasize that CPET should be implemented far earlier. The excellent prognostic parameter peakV’_O2 could not be evaluated in our study, because a physical effort only 7 days after PE would probably remain at submaximum level. A recent study by Kahn et al³⁵ showed a close relation between impaired (ie, <80% of predicted value) peakV’_O2 at 1 month and at 1 year after PE. However, this study found no correlation of peakV’_O2 with systolic pulmonary arterial pressure (PAP_sys) or V’_E/V’_CO2 @AT at 1 year, which might be due to the inclusion of only three patients with elevated PAP_sys and a completely normal V’_E/V’_CO2 @AT. Our differing predefined time points prevent a direct comparison with these results.

Compared with the measurement of gas exchange, echocardiography is still the preferred method for assessing RV dysfunction in PE. By use of echocardiography, Pengo et al² found that 12.5% of patients developed pulmonary hypertension (PH) at 6 months, and the proportion of patients with RV_sys > 30 mmHg in our study is in a comparable range (9.5%), though not verified invasively. Regarding echocardiographic parameters, a correlation with mortality has been shown for calculated RV_sys,³⁶ while RV dilation and RV hypokinesis are associated with PE but failed to predict mortality in a large prospective study.³⁷ Lewczuk et al³⁸ found a high mortality of 38% at 4 years’ follow-up in patients presenting with high pulmonary pressures at the time of the acute event, but this study used a higher cut-off level (mean pulmonary artery pressure > 30 mmHg) and obtained invasive hemodynamics. By contrast, our study estimated RV pressure non-invasively, investigated patients with a far lower risk of mortality and confirmed that at least RV_sys at day 7 could be a criterion for persistent PH. However, it is not clear that an elevated pulmonary pressure at this time should alter the therapeutic regimen. We believe that the complex interaction of hypocarbic bronchoconstriction, atelectasis, small peripheral embolism, inflammation, remodeling and RV dysfunction as described by Verschuren et al¹⁸ and Arbustini et al³⁹ cannot be reflected by a simple combination of the two parameters that were predictive in our study (V’_E/V’_CO2 slope and RV_sys at day 7). Nevertheless, both parameters are easy to obtain and reproducible and are in this respect more suitable as screening methods than invasive tests.

Plasma markers of RV strain such as troponin and BNP have been evaluated in acute embolism^14,35 and in late follow-up.⁴⁰ However, the correlation between BNP and CTEPH as demonstrated by Klok et al⁴⁰ referred to a very late follow-up, a median of 4.5 years after the embolic event. Therefore, the missing correlation between BNP and RV pressure at 6 months in our study might be due to the limited number of patients, but may also indicate that BNP is not sensitive in early follow-up.

Limitations

Our study is limited by the small number of patients. Moreover, the measurement of the RV_sys was not validated by right heart catheterization, but this was necessary to keep the study design feasible. Further limitations arise from the blood gas analysis that was taken at rest only, so that the potentially interesting arterio-alveolar differences (p_(a-ET)O₂ and p_(a-ET)CO₂) at exercise are not available. A further difference to literature is the use of arterial blood gases at days 1 and 3 in our study; however, these are known to correspond to capillary gases, as demonstrated by Scheidl et al.²¹

Summary

The V’_E/V’_CO2 slope assessed at 3 or 7 days after acute PE is significantly correlated with the RV_sys (calculated by echocardiography) at 6 months after the acute event. Within this first week after PE, neither laboratory values nor gas exchange (p_(a-ET)CO₂, p_(a-ET)O₂, V’_D/V’_T) were related to RV_sys after 6 months. CPET with calculation of the V’_E/V’_CO2 slope may identify patients at risk of developing CTEPH as early as 7 days following acute PE.

Footnotes

Funding:

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: For the current manuscript, editorial assistance was provided by Dr Paul Overton (Beacon Medical Communications Ltd, Brighton, UK), funded by the Ernst-Moritz-Arndt University of Greifswald.

Declaration of conflicting interests:

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Authors’ Note

None of the authors have a financial or personal relationship with other people or organizations that could have influenced this study.

References

Gall

Hoeper

Richter

Cacheris

Hinzmann

Mayer

An epidemiological analysis of the burden of chronic thromboembolic pulmonary hypertension in the USA, Europe and Japan. Eur Respir Rev. 2017;26:143.

Pengo

Lensing

AWA

Prins

et al . Incidence of chronic thromboembolic pulmonary hypertension after pulmonary embolism. N Engl J Med. 2004;350:2257–2264.

Carson

Kelley

Duff

et al . The clinical course of pulmonary embolism: one year follow-up of PIOPED patients. N Engl J Med. 1992;326:1240.

Dentali

Donadini

Gianni

et al . Incidence of chronic pulmonary hypertension in patients with previous pulmonary embolism. Thromb Res. 2009;124:256–282.

Konstantinides

Barco

Rosenkranz

et al . Late outcomes after acute pulmonary embolism: rationale and design of FOCUS, a prospective observational multicenter cohort study. J Thromb Thrombolysis. 2016;42:600–609.

Held

Kolb

Grün

et al . Functional characterization of patients with chronic thromboembolic disease. Respiration. 2016;91:503–509.

Schwaiblmair

Faul

von Scheidt

Berghaus

TM.

Ventilatory efficiency testing as prognostic value in patients with pulmonary hypertension. BMC Pulm Med. 2012;12:23.

Grifoni

Vanni

Magazzini

et al . Association of persistent right ventricular dysfunction at hospital discharge after acute pulmonary embolism with recurrent thromboembolic events. Arch Intern Med. 2006;166:2151–2156.

Kasper

Konstantinides

Geibel

Tiede

Krause

Just

Prognostic significance of right ventricular afterload stress detected by echocardiography in patients with acute pulmonary embolism. Heart. 1997;77:346–349.

10.

Ten Wolde

Sohne

Quak

Mac Gillavry

Büller

. Prognostic value of echocardiographically assessed right ventricular dysfunction in patients with pulmonary embolism. Arch Intern Med. 2004;164:1685–1689.

11.

Pieralli

Olivotto

Vanni

et al . Usefulness of bedside testing for brain natriuretic peptide to identify right ventricular dysfunction and outcome in normotensive patients with acute pulmonary embolism. Am J Cardiol. 2006;97:1386–1390.

12.

Ten Wolde

Tulewski

Mulder

JWM

et al . Brain natriuretic peptide as a predictor of adverse outcome in patients with pulmonary embolism. Circulation. 2003;107:2082–2084.

13.

Konstantinides

Geibel

Olschewski

et al . Importance of cardiac troponins I and T in risk stratification of patients with acute pulmonary embolism. Circulation. 2002;106:1263–1268.

14.

Patel

Rayburn

Browning

Kline

JA.

Neural network analysis of the volumetric capnogram to detect pulmonary embolism. Chest. 1999;116:1325–1332.

15.

Kline

Israel

Michelson

et al . Diagnostic accuracy of a bedside D-dimer assay and alveolar dead-space measurement for rapid exclusion of pulmonary embolism. JAMA. 2001;285:761–768.

16.

Johanning

Veverka

Bays

Tong

Schmiege

SK.

Evaluation of suspected pulmonary embolism utilizing end-tidal CO2 and D-dimer. Am J Surg. 1999;178:98–102.

17.

Stein

Terrin

Hales

et al . Clinical, laboratory, roentgenographic, and electrocardiographic findings in patients with acute pulmonary embolism and no pre-existing cardiac or pulmonary disease. Chest. 1991;100:598–603.

18.

Verschuren

Thys

Steady-state end-tidal alveolar dead space measure and D-dimer. Chest. 2002;121:1373–1374.

19.

Kline

Meek

Boudrow

Warner

Colucciello

Use of the alveolar dead space fraction (Vd/Vt) and plasma D-dimers to exclude acute pulmonary embolism in ambulatory patients. Acad Emerg Med. 1997;4:856–863.

20.

McCabe

Deboeck

Harvey

et al . Inefficient exercise gas exchange identifies pulmonary hypertension in chronic thromboembolic obstruction following pulmonary embolism. Thromb Res. 2013;132:659–665.

21.

Scheidl

Englisch

Kovacs

et al . Diagnosis of CTEPH versus IPAH using capillary to end-tidal carbon dioxide gradients. Eur Respir J. 2012;39:119–124.

22.

Matsuda

Ogino

Minatoya

et al . Long-term recovery of exercise ability after pulmonary endarterectomy for chronic thromboembolic pulmonary hypertension. Ann Thorac Surg. 2006;82:1338–1343.

23.

Nagaya

Shimizu

Satoh

Oya

et al . Oral beraprost sodium improves exercise capacity and ventilatory efficiency in patients with primary or thromboembolic pulmonary hypertension. Heart. 2002;87:340–345.

24.

Konstantinides

Torbicki

Agnelli

et al . 2014 ESC guidelines on the diagnosis and management of acute pulmonary embolism. Eur Heart J. 2014;35:3033–3073.

25.

Koch

Schäper

Ittermann

et al . Reference values for cardiopulmonary exercise testing in healthy volunteers: the SHIP study. Eur Respir J. 2009;33:389–397.

26.

Sun

Hansen

Garatachea

Storer

Wasserman

Ventilatory efficiency during exercise in healthy subjects. Am J Respir Crit Care Med. 2002;166:1443–1448.

27.

Habedank

Reindl

Vietzke

et al . Ventilatory efficiency and exercise tolerance in 101 healthy volunteers. Eur J Appl Physiol. 1998;77:421–426.

28.

Weber

Kinasewitz

Janicki

Fishman

AP.

Oxygen utilization and ventilation during exercise in patients with chronic cardiac failure. Circulation. 1982;65:1213–1223.

29.

Evangelista

Flachskampf

Lancellotti

et al . European Association of Echocardiography recommendations for standardization of performance, digital storage and reporting of echocardiographic studies. Eur J Echocardiogr. 2008;9:438–448.

30.

Hall

Brickner

Willet

Irani

Afridi

Grayburn

PA.

Assessment of mitral regurgitation severity by Doppler color flow mapping of the vena contracta. Circulation. 1997;95:636–642.

31.

Flachskampf

Frieske

Engelhard

et al . Comparison of transesophageal Doppler methods with angiography for evaluation of the severity of mitral regurgitation. J Am Soc Echocardiogr. 1998;11:882–892.

32.

Zoghbi

Enriquez-Sarano

Foster

et al . Recommendations for evaluation of the severity of native valvular regurgitation with two-dimensional and Doppler echocardiography. J Am Soc Echocardiogr. 2003;16:777–802.

33.

Riedel

Stanek

Widimsky

Prerovsky

Longterm follow-up of patients with pulmonary thromboembolism. Late prognosis and evolution of hemodynamic and respiratory data. Chest. 1982;81:151–158.

34.

Held

Grün

Holl

et al . Cardiopulmonary exercise testing to detect chronic thromboembolic pulmonary hypertension in patients with normal echocardiography. Respiration. 2014;87:379–387.

35.

Kahn

Hirsch

Akaberi

et al . Functional and exercise limitations after a first episode of pulmonary embolism: results of the ELOPE prospective cohort study. Chest. 2017;151:1058–1068.

36.

Tulevski

Mulder

van Veldhuisen

DJ.

Utility of a BNP as a marker for RV dysfunction in acute pulmonary embolism. J Am Coll Cardiol. 2002;39:2080.

37.

Stevinson

Hernandez-Nino

Rose

Kline

JA.

Echocardiographic and functional cardiopulmonary problems 6 months after first-time pulmonary embolism in previously healthy patients. Eur Heart J. 2007;28:2517–2524.

38.

Lewczuk

Piszko

Jagas

et al . Prognostic factors in medically treated patients with chronic pulmonary embolism. Chest. 2001;119:818–823.

39.

Arbustini

Morbini

D’Armini

et al . Plaque composition in plexogenic and thromboembolic pulmonary hypertension: the critical role of thrombotic material in pultaceous core formation. Heart. 2002;88:177–182.

40.

Klok

Surie

Kempf

et al . A simple non-invasive diagnostic algorithm for ruling out chronic thromboembolic pulmonary hypertension in patients after acute pulmonary embolism. Thromb Res. 2011;128:21–26.

Predictive Capability of Cardiopulmonary and Exercise Parameters From Day 1 to 6 Months After Acute Pulmonary Embolism

Abstract

Keywords

Introduction

Methods

Study population

Control population

Treatment of PE

Resting and exercise protocols

Measurement of gas exchange

Blood gas analysis and plasma markers

Echocardiography

Statistical analysis

Results

Clinical findings at admittance

Clinical findings at follow-up

Pulmonary gas exchange at rest and during exercise

Echocardiography

Laboratory markers

Parameters potentially predicting CTEPH (correlation with RVsys at 6 months)

Primary hypothesis

Secondary hypothesis

Discussion

Limitations

Summary

Footnotes

Funding:

Declaration of conflicting interests:

Authors’ Note

References

Parameters potentially predicting CTEPH (correlation with RV_sys at 6 months)
